Veilux VP-58CND12X User manual

Veilux VP-58CND12X User manual
Veilux Model # VP-58CND12X User Manual

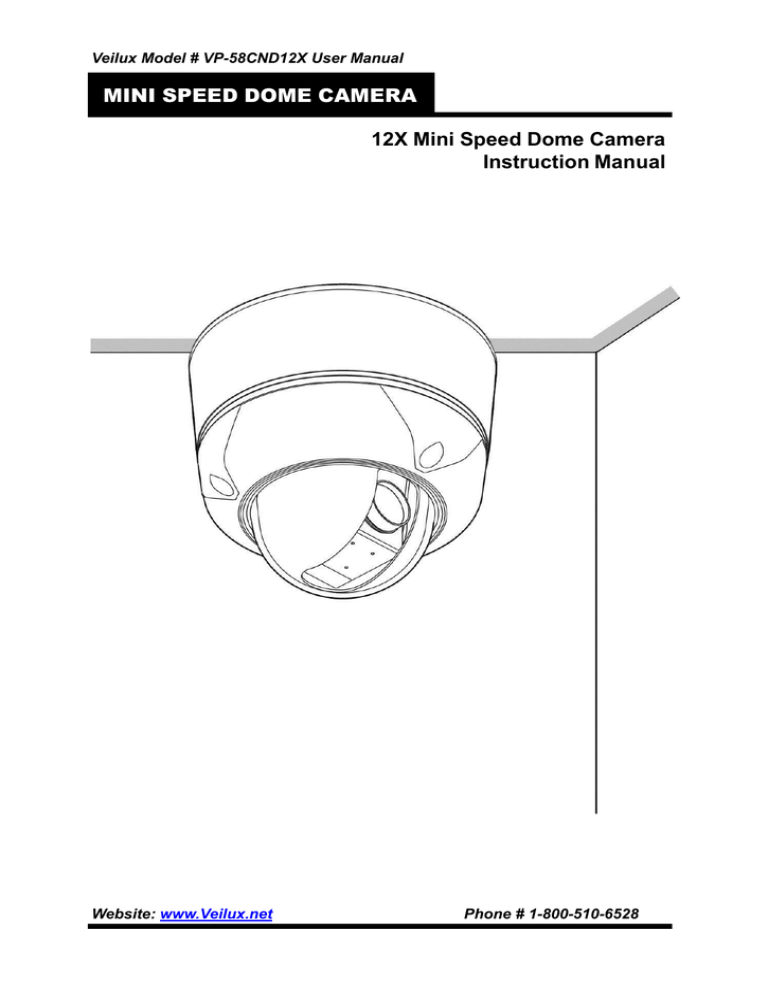

MINI SPEED DOME CAMERA
12X Mini Speed Dome Camera
Instruction Manual
Website: www.Veilux.net
Phone # 1-800-510-6528
Veilux Model # VP-58CND12X User Manual
CONTENTS
Warnings & Caution ---------------------------------------------------------------------------------------- 3
What’s in the Box? ----------------------------------------------------------------------------------------- 3
General Features --------------------------------------------------------------------------------------------- 4
Names of Each Part ---------------------------------------------------------------------------------------- 5
Installation ---------------------------------------------------------------------------------------------------- 6
A.
Connections ---------------------------------------------------------------------------------- 6
B.
Ceiling Mount Type
C.
Embedded Mount Type ---------------------------------------------------------------------- 8
D.
Pipe Mount Type ------------------------------------------------------------------------------ 10
E.
Gooseneck Mount Type --------------------------------------------------------------------- 12
F.
Wall Mount Type ------------------------------------------------------------------------------ 13
G.
Corner Mount Type --------------------------------------------------------------------------- 15
H.
Pole Mount Type ------------------------------------------------------------------------------ 17
------------------------------------------------------------------------ 7
Quick Operating Keys ------------------------------------------------------------------------------------- 18
Diagnostic ------------------------------------------------------------------------------------------------------ 20
OSD Menu Setting-------------------------------------------------------------------------------------------- 21
A.
OSD Menu Table ------------------------------------------------------------------------------ 21
B.
DOME SET ------------------------------------------------------------------------------------- 22
C.
CAMERA SET --------------------------------------------------------------------------------- 27
D.
PRESET ---------------------------------------------------------------------------------------- 29
E.
AUTO SCAN SET----------------------------------------------------------------------------- 30
F.
TOUR SET ------------------------------------------------------------------------------------- 31
G.
PRIVACY SET --------------------------------------------------------------------------------- 32
H.
PATTERN SET -------------------------------------------------------------------------------- 33
I.
ALARM SET------------------------------------------------------------------------------------ 34
J.
SECTOR SET --------------------------------------------------------------------------------- 35
DIP Switch Setting ------------------------------------------------------------------------------------------ 36
A.
Factory Default setting --------------------------------------------------------------------- 36
B.
ID Setting (1-ON, 0-OFF)(1->10)---------------------------------------------------------- 36
C.
Protocol Setting ------------------------------------------------------------------------------- 37
D.
Baud Rate Setting ---------------------------------------------------------------------------- 37
E.
485 Terminations ------------------------------------------------------------------------------ 37
Trouble Shooting --------------------------------------------------------------------------------------------- 38
Specification -------------------------------------------------------------------------------------------------- 39
Dimension
-------------------------------------------------------------------------------------------------- 40
Website: www.Veilux.net
Phone # 1-800-510-6528
2
Veilux Model # VP-58CND12X User Manual
WARNINGS & CAUTION
If you fail to read this information and
handle the product incorrectly, death or
serious injury may occur.
The unit should be installed by the trained
personnel
Switch off immediately if the product emits
This symbol is intended to alert the
user to the presence of un-insulated
“dangerous
voltage”
within
the
product’s enclosure that may be of
sufficient magnitude to constitute a risk
of electric shock to persons.
smoke or abnormal heat.
Never install the product in area exposed to
water, oil or gas.
This symbol is intended to alert the
user to the presence of important
operating and maintenance (servicing)
instructions
in
the
literature
accompanying the appliance.
Never install the product on a ceiling that
cannot hold its weight.
Warning
Never touch the power cord with wet hands.
Never
manually
assembly.
Clean only with dry cloth.
move
Serious
and
the
pan/tilt
permanent
damage will occur
Never install the product in extreme high or
low temperature.
What’s in the Box ?
1. Camera
Ensure that the product is not subjected to
2. Screws ( Ø4x16 screw
strong impacts and vibration
3. Terminal block 5pin 2EA (DC Type)
5EA )
4. Terminal block 5pin 1EA , 6pin 1EA
(AC 12V Type)
Never expose the camera to direct sunlight
5. Manual
6. Screw Cap (1 EA)
Never touch the front glass of the product.
Website: www.Veilux.net
Phone # 1-800-510-6528
3
Veilux Model # VP-58CND12X User Manual
GENERAL FEATURES
12X Zoom Mini Speed Dome
Quick Operation Keys
12X Optical Zoom with 16X digital zoom
This camera provides quick function keys to allow
control by most keyboards and DVRs that have Pelco
protocol support.
±0.05° dome system accuracy with full
micro step
Various Surveillance Functions
With 0.05° positional accuracy, the camera provides
excellent sensitive and delicate control. This is achieved by
full micro step motors and twin gear system
Auto Scan repeats pan and tilt between two preset
positions with different speed and dwell time.
8 Group Tour up to 8 Programmable Group tours are
available with each group is consisting of up to 60 preset
steps with different speed and dwell times along with 16
character titling.
165 Preset positions up to 165 programmable
preset positions are available with 16 character title.
8 Patterns up to 8 programmable user-defined patters
are available with 16 character title. Each can be up to
50 seconds long, giving a total of 400 seconds.
8 Sectors up to 8 programmable user-defined sectors
are available with 16 character titling.
4 Privacy Masking Zones up to 4 programmable
user-defined privacy masking zones are available.
4 Alarm input up to 4 alarms can be wired to the
dome head and can activate presets, tours, or patterns.
360° Endless Rotation
12X mini speed dome is capable of endless rotation of 360
degrees
Compensation function: preset position
The function provides absolute preset position even in
difficult applications where vibration and strong winds may
otherwise affect dome performance.
Over 200°/Sec Preset Speed
The 360° full pan function moves through a maximum of
200°/sec., enabling you to quickly pinpoint the spot you
want to watch. Tilt speed is also driven at 200°/sec on
preset seek.
150°/S – Manual speed
The dome provides up to 150°/sec of manual speed and
is also adjustable from 100°/sec to 150°/sec in 10°/sec
increments.
Polarity Protection of Power (DC12V)
This protection function prevents damage to the domes
power board if the dc supply is connected with incorrect
polarity.
1/4” Sony Super HAD CCD
Equipped with Sony Super HAD CCD technology, the
camera provides excellent sensitivity and low smear
levels.
Filter changeable True Day/Night
Top quality images are assured under day and night
conditions due to the true day / night camera with IR cut
filter. Low light sensitivity is further increased by the
cameras digital slow shutter.
Intelligent Pan/Tilt Controlling
Indoor / Outdoor applications
Intelligent Pan/Tilt function is continually increases or
decreases pan and tilt speeds in proportion to zoom.
The domes small size and construction to IP 66 ingress
protection rating make it ideal for internal or external
applications.
Dome Housing
The elegantly designed aluminum body and Poly
Carbonate dome cover provide a very solid product for a
wide range of applications.
Password Protection
It is possible to password protect all dome settings to
prevent unauthorized changes.
Website: www.Veilux.net
Phone # 1-800-510-6528
4
Veilux Model # VP-58CND12X User Manual
NAMES OF EACH PART
FIG. 1
1. Surface Mount Adaptor
2. Cap Screw (PT3/4, 1EA)
3. Dip Switch
4. Terminal Block
5. Main body
Website: www.Veilux.net
Phone # 1-800-510-6528
5
Veilux Model # VP-58CND12X User Manual
INSTALLATION
A. CONNECTIONS
A-1
1.
2.
3.
4.
5.
6.
Loose the screws on the domes cover and remove it from the base.
(Screws won’t be removed)
Loosen the screws which connect mount cover and Main base and separate dome
cover from the main base. (These are captive screws that do not remove)
Connect power to Power and GND.
Connect video to video and GND.
Connect communication cable to RS-485 connectors.
Connect alarm common cables to GND. Connect the alarm input cables to their
relevant terminal (1-4) Alarm polarity can be programmed as N/O or N/C
● Do not over tighten screws. This can cause damage.
■
■
12VDC type
24VAC type
FIG. 2
Website: www.Veilux.net
Phone # 1-800-510-6528
6
Veilux Model # VP-58CND12X User Manual
INSTALLATION
B. CEILING MOUNT TYPE
FIG. 4
FIG. 3
1.
Fix the surface mount adaptor with 4pcs of screws on the place where you want to install. (FIG. 3)
Caution ) Be sure to use seal tape for 3/4" cap screw to prevent a water leakage.
2.
When you use pipe, please note the standard size of pipe. (FIG.4)
Caution ) Be sure to use seal tape for pipe screw to prevent a water leakage.
3.
Re-assemble the dome.
FIG. 5
Website: www.Veilux.net
Phone # 1-800-510-6528
7
Veilux Model # VP-58CND12X User Manual
INSTALLATION
C.
EMBEDDED MOUNT TYPE
Contents
■
Embedded mount bracket 1ea
■
Holder 3ea
■
Decoration cover 1ea
■
Safety wire 2ea
■
Screw – M3.0 x 6 5ea
■
Screw - Ø4.0 x 16 1ea
SUSPENSION
SAFETY WIRE (150cm)
SAFETY WIRE HOLE
LOCK LEVER
LOCK LEVER
LOCK LEVER
LOCK LEVER
FIG. 6
FIG. 7
SAFETY WIRE (25cm)
M3 SCREW
HOLDER
M3.0 SCREW
DECORATION COVER
CAMERA
FIG. 8
Website: www.Veilux.net
Phone # 1-800-510-6528
8
Veilux Model # VP-58CND12X User Manual
INSTALLATION
1.
Make a hole, 190mm, on the ceiling. (FIG. 6)
2.
Hook the safety wire over suspension and safety wire hold of embedded mount bracket.
Fold the lock levers and insert the bracket into the hole.
You can fix the lock lever by driving screws. (FIG. 7)
3.
Fix the decoration cover on the rear of camera by holder screws (M3.0) (FIG. 8)
4.
Drive the screw (M4.0) to fix safety wire of camera and hook the safety wire over safety
wire hold of embedded mount bracket. (FIG. 9)
5.
Install the camera by inserting cover lock and twisting it clockwise. (FIG. 10)
6.
Fix the decoration cover by screw (Ø4.0x16) (FIG. 10)
FIG. 9
FIG. 10
Website: www.Veilux.net
Phone # 1-800-510-6528
9
Veilux Model # VP-58CND12X User Manual
INSTALLATION
D.
PIPE MOUNT TYPE
Contents
■
Pipe mount bracket 1ea
■
Rubber 1ea
■
Screw – M4.0 x 8 4ea
■
Set anchor bolt (W5/16) 4ea
SCREW M4x8 (4ea)
BRACKET
(RUBBER BOTTOM VIEW)
RUBBER
BOTTOM COVER
FIG. 11
1. As above FIG.11, assemble rubber and bracket on the bottom of camera.
2. After finishing assembly, it will be shown as below. (FIG.12)
FIG. 12
Website: www.Veilux.net
Phone # 1-800-510-6528
10
Veilux Model # VP-58CND12X User Manual
INSTALLATION
3.
If you want to install the speed dome on the concrete wall, you need to make 12.5mm diameter
4 holes by drill like FIG. 13 (Depth 37mm)
4.
Install SET ANCHOR BOLT on the holes.
5.
As shown on FIG.15, after assembling mini PTZ and bottom cover assembly, drive the pipe mount
bracket and fix. (FIG.15)
Caution ) Be sure to use seal tape for pipe screw to prevent a water leakage.
<the cable into the ceiling>
FIG. 13
<the cable out of the ceiling>
FIG. 14
PIPE MOUNT BRACKET
THREAD SEAL TAPE
BOTTOM COVER ASSEMBLY
MINI SPEED DOME CAMERA
FIG. 15
Website: www.Veilux.net
Phone # 1-800-510-6528
11
Veilux Model # VP-58CND12X User Manual
INSTALLATION
E. GOOSENECK MOUNT TYPE
Contents
■ Gooseneck mount bracket 1ea
■
Rubber 1ea
■ Set anchor bolt (W5/16) 4ea
■
Screw M4x8 4ea
<the cable into the ceiling>
<the cable out of the ceiling>
FIG. 16
1.
If you want to install the speed dome on the concrete wall, you need to make 12.5mm diameter
4 holes by drill like FIG.16 (Depth 37mm)
2.
Install SET ANCHOR BOLT on the holes.
3.
As shown on FIG.17, after assembling mini PTZ and bottom cover assembly, drive the gooseneck
mount bracket and fix. (FIG.17)
Caution ) Be sure to use seal tape for pipe screw to prevent a water leakage.
GOOSENECK MOUNT BRACKET
THREAD SEAL TAPE.
BOTTOM COVER ASSEMBLY
MINI SPEED DOME CAMERA
FIG. 17
Website: www.Veilux.net
Phone # 1-800-510-6528
12
Veilux Model # VP-58CND12X User Manual
INSTALLATION
F.
WALL MOUNT TYPE
Contents
■ Wall mount bracket 1ea
1.
■ Set Anchor Bolt (W5/16) 4ea
■
Hexagon Socket head cap screw M4.0 x16 4ea
■
Hexagon wrench 3mm L Type 1ea
If you want to install the speed dome on the concrete wall, you need to make 12.5mm diameter
4 holes by drill like FIG. 1 (Depth 37mm) (FIG.18)
2.
Install SET ANCHOR BOLT on the holes.
3.
To install Wall Mount Bracket
Tip> Select a ceiling board strong enough to hold 4 times the total weight of the camera
(Weight combined camera: approx.5kg)
FIG. 18
FIG. 19
<the cable into the ceiling>
<the cable out of the ceiling>
Website: www.Veilux.net
Phone # 1-800-510-6528
13
Veilux Model # VP-58CND12X User Manual
INSTALLATION
4.
Assemble a wall mount bracket and camera by Hexagon socket head cap screws
(M4.0X16) (FIG. 20)
HEXAGON SOCKET HEAD CAP
SCREW M4.0x16 4EA
FIG. 20
Website: www.Veilux.net
Phone # 1-800-510-6528
14
Veilux Model # VP-58CND12X User Manual
INSTALLATION
G. CORNER MOUNT TYPE
Contents
■ Corner mount adaptor 1ea
■ Set Anchor Bolt (W5/16) 4ea
■ M10 Bolt & Nut 4ea
1.
First mark the positions of holes placing the corner mount bracket. (FIG. 21)
2.
Make 12.5mm diameter 4 holes by drill. (Depth 37mm)
3.
Install SET ANCHOR BOLT on the holes.
4.
Fix the wanted bracket on the corner mount bracket with 4 ea of M10 BOLT before you install
the corner mount bracket. (FIG. 22)
5.
Screw the set anchor bolt of the bracket by nut on the wall. (FIG. 23)
mark the positions
of holes
M10.0 BOLT
FIG. 21
GOOSENECK MOUNT
BRACKET
GOOSENECK MOUNT
BRACKET
CORNER MOUNT
BRACKET
CORNER MOUNT
BRACKET
FIG. 22
FIG. 23
Website: www.Veilux.net
Phone # 1-800-510-6528
15
Veilux Model # VP-58CND12X User Manual
INSTALLATION
6.
After driving a bottom cover assembly to gooseneck mount bracket, as shown on FIG 23,
assemble mini PTZ with bottom cover assembly. (FIG. 24)
Caution ) Be sure to use seal tape for pipe screw to prevent a water leakage.
GOOSENECK MOUNT
BRACKET
CORNER BRACKET
THREAD SEAL TAPE
BOTTOM COVER ASSEMBLY
MINI SPEED DOME CAMERA
FIG. 24
Website: www.Veilux.net
Phone # 1-800-510-6528
16
Veilux Model # VP-58CND12X User Manual
INSTALLATION
H.
POLE MOUNT TYPE
Contents
■ Pole mount adaptor 1ea
1.
2.
3.
■ Band Clamp 2ea
■ M10 Bolt & Nut 4ea
Fix the wanted bracket on the pole mount bracket with 4 ea of M10 BOLT before you install the
pole mount bracket. (FIG. 25)
Tie the bracket with SUS BAND tightly. (FIG. 26)
As shown FIG. 26 after installing a wall mount bracket, fix a camera on the wall mount bracket.
(FIG. 27)
FIG. 25
M10 BOLT
WALL MOUNT BRACKET
POLE MOUNT BRACKET
SUS BAND
FIG. 26
HEXAGON SOCKET HEAD CAP SCREW
M4.0x16 4ea
FIG. 27
Website: www.Veilux.net
Phone # 1-800-510-6528
17
Veilux Model # VP-58CND12X User Manual
QUICK OPERATING KEYS
The dome supports Pelco-D/P, SAMSUNG and VICON protocols.
The dome may be used with any controller or DVR etc that supports the Pelco D and Pelco
P protocols.
The default setting of the dome is Pelco D / P with 2400 bps (baud rate).
[PELCO D/P, SAMSUNG PROTOCOLS]
The comprehensive feature set of the dome is available from Pelco compatible controllers via quick
operation keys as defined below.
1-64 + preset and 100~200 + preset are used for normal user presets.
Presets 65-99 + are reserved for special functions.
For example, to enter OSD MENU, press the button 95 + Call
<Quick Operation Key Table 1, Pelco D/P, SAMSUNG>
Number
1 ~ 64, 100~200 +Call
65 + Call
66 +Call
67 +Call
71~78 +Call
81~88 +Call
91 + Call
92 + Call
93 + Call
94 + Call
95 + Call
96 + Call
97 +Call
Note
PRESET
PRESET STATUS
AUTO SCAN
AUTO FLIP
GROUP TOUR
PATTERN
ZERO POSITION
FREEZE
BLC MODE
D/N MODE
OSD MAIN MENU
FOCUS ADJUST
ALARM
Function
Execute Preset 1 ~ 64
Display Preset Status
Execute Auto Scan
Selectable On/Off/Auto in Auto Flip function
Execute Group Tour #1 ~ #8
Execute Pattern #1 ~ #8
Search For Pan / Tilt Zero Position
Select Freezing of current image
Selectable On/Off in BLC function
Selectable Day/Night Mode (Auto/Day/Night Mode)
To enter OSD Main Menu
Focus adjustment
Selectable Enable/Disable all Alarms
<Quick Operation Keys Table 2> Use these function keys if controller has these keys>
Menu
Tilt Up / Down
Pan Left / Right
Focus Near
Focus Far
Zoom Tele
Zoom Wide
Function
Sub menu cursor moves up / down
Enter to the sub menu or status change or decrement
Using for Enter key when user select YES or NO
Using for function changing keys when set coordinate
Status cursor to the right
Status cursor to the left
●
65 + Call
: “Preset Status” is displayed, to remove this screen, press Focus Near button.
●
92 + Call
: This feature freezes the current live image during tour, auto scan or pattern
operation. W hen you press 92 + Call
button, the image freezes but the camera is still
working as per operation such as tour, pattern or auto scan.
92 + Call
To return to normal images, press
button again.
This feature is operated by preset number but not included in OSD main menu.
●
If a controller asks for an unsupported feature “Not available” is displayed on the monitor.
Website: www.Veilux.net
Phone # 1-800-510-6528
18
Veilux Model # VP-56CND12X User Manual
QUICK OPERATING KEYS
[VICON PROTOCOL]
If user wants to choose Vicon Protocol, the user may change the dip switch first.
(Refer to Page #36 DIP SWITCH SETTING - PROTOCOL)
Baud Rate: 4800 (Vicon default)
The operation system is almost same as Pelco D/P protocols but some special features are
different way as noted below’
<Quick Operation Key Table 2: VICON>
Number
1 ~ 79 +Call
80~87 +Call
88~89 +Call
90 + Call
90 + Call
91 + Call
92 + Call
93 + Call
Note
PRESET
GROUP TOUR
PATTERN
Focus Mode Set
Pan/Tilt Lockout
ZERO POSITION
ALARM
BLC MODE
Function
Execute Preset 1 ~ 79
Execute Group Tour #1 ~ #8
Execute Pattern #1 ~ #2
Focus Mode Toggle to Auto or Manual
PAN/TILT Lock or Unlock setting
Search For Pan / Tilt Zero Position
Selectable Enable/Disable all Alarms
Selectable On/Off in BLC function
<Quick Operation Keys Table 2> Use these function keys if controller has these keys>
Menu
Tilt Up / Down
Pan Left / Right
A/P
A/I
Zoom Tele
Zoom Wide
Function
Sub menu cursor moves up / down
Enter to the sub menu or status change or decrement
Using for Enter key when user select YES or NO
Using for function changing keys when set coordinate
Status cursor to the right
Status cursor to the left
Website: www.Veilux.net
Phone # 1-800-510-6528
19
Veilux Model # VP-58CND12X User Manual
DIAGNOSTIC
Whenever the dome is powered on, a standard diagnostic is operated.
The following messages are displayed on the monitor.
CAMERA ID : 001
BAUD RATE : 2400 BPS
WAITING………
A.
PAN ORIGIN
TEST OK
TILT ORIGIN
TEST OK
TX CONNECTION
TEST OK
CAMERA COMM
TEST OK
Pan Origin Test
Zero point of Pan is located during the Panning test.
B.
Tilt Origin Test
Zero point of Tilt is located during the Tilt test.
C.
TX connection Test
The TX connection test looks for commands from a controller to the dome. If no commands are
detected the test will exit after 60 seconds.
During the 60 seconds, the camera must receive a signal from the controller or DVR, so please
operate the controller during this phase. As soon as the dome detects a command “OK” will be
displayed and the test will move on to the next step.
If the Tx connection test fails check the RS 485 wiring.
D.
Camera Comm. Test
Camera communication is also checked.
OK should be displayed in these four tests before installation.
If all the above Tests are OK, “NOW EEPROM CHECKING” and “ALL DATA INITIALIZING” is
displayed and the camera is ready to operate.
Website: www.Veilux.net
Phone # 1-800-510-6528
20
AUTO SCAN
TOUR
PRAVACY
PATTERN
ALARM
SECTOR
EXIT
PRESET SET
AUTO SCAN SET
FLICKER
: OFF/ON
PRESET NO: 001
START ANGLE : XXX.X.XX.X
RECOVER
: OFF
MIRROR
: OFF/ON
PRESET ID: PRESET01□□□□□□□□□
END ANGLE
MANUAL SPEED
: 100°/S
D ZOOM
: OFF/ON
PAN:XXX.X.XX.X TILT:XXX.X.XX.X
DIRECTION
: CW
AUTO FLIP
: OFF
WB MODE
: AWB MODE
SAVE
ENDLESS
: OFF/ON
ZOOM SPEED
: FAST
PIC FLIP : OFF/ON
EXIT
SPEED
: QUICK
ALARM
: DISABLE
BLC
: OFF/ON
: XXX.X.XX.X
DWELL TIME : 03
LANGUAGE : ENGLISH
D/N MODE : AUTO
SAVE AND EXIT
[NEXT PAGE]
DSS MODE : OFF/ON
EXIT
SAVE AND EXIT
EXIT
TOUR SET
TOUR NO.
PRIVACY SET
PATTERN SET
ALARM SET
21
PRIVACY NO. : 01
PATT NO.
TOUR TITLE : TOUR01□□□□□□
DISPLAY : ON/OFF
PATT TITLE PATTERN01□□□
TOUR STEP
: 01
ACTION : MOVE/ADJUST
DATA FILL
PRESET NO
: 01
SAVE
SAVE
SAVE
SECTOR END
EXIT
EXIT
EXIT
SAVE
DWELL TIME : 3
SPEED
: 200°/S
: 01
ALARM NO.
SECTOR SET
: 01
: 100%
: 01
SECTOR NO : 01
ALARM INPUT
: OFF
SECTOR ID
ALARM ACT
: 01
SECTOR START: XXX.X.XX.X
: SECTOR01□□□
: XXX.X.XX.X
EXIT
SAVE AND EXIT
Phone # 1-800-510-6528
EXIT
DOME SET
OSD DISPLAY
[SYSTEM STATUS]
[INITIALIZATION]
SYSTEM LOCK : OFF
CAMERA ID: OFF/ON
PROTOCOL : PELCO D,P
[TOUR CLEAR]
[PASS WORD]
PRESET ID: OFF/ON
BAUD RATE: 2400BPS
[PRESET CLEAR]
[OSD DISPLAY]
SECTOR ID: OFF ON
FIRMWARE VER.:2.00
[SECTOR CLEAR]
[SYSTEM STATUS]
COORDINATE:ON/OFF
UPGRADED DATE: 06.28,06
[PRIVACY CLEAR]
[INITIALIZATION]
[PREVIOUS PAGE]
CAMERA MODULE: SDM100
[PATTERN CLEAR]
[PREVIOUS PAGE]
[LOAD OPTIMIZED DEFAULT
[PREVIOUS PAGE]
[REVIOUS PAGE]
Veilux Model # VP-58CND12X User Manual
CAMERA SET
CAMERA SET
: CAM1□□□□□□□□□□□□
OSD MENU SETTING
DOME SETUP
CAMERA ID
A. OSD MENU TABLE
Website: www.Veilux.net
DOME SET
MAIN MENU
Veilux Model # VP-58CND12X User Manual
OSD MENU SETTING
To enter OSD Menu, press the button 95 + Call.
MAIN MENU
DOME SETUP
CAMERA SET
PRESET
AUTO SCAN
TOUR
PRIVICY
PATTERN
ALARM
SECTOR
EXIT
*
Use “ up down” to move the position and “ left right” to make selection
B. Dome Setup
In order to enter Dome setup, select right direction when the cursor is on dome setup.
DOME SET
CAMERA ID
RECOVER
MANUAL SPEED
AUTO FLIP
ZOOM SPEED
ALARM
LANGUAGE
[NEXT PAGE]
SAVE AND EXIT
EXIT
:
:
:
:
:
:
:
CAM1
OFF
100°/S
OFF
FAST
DISABLE
ENGLISH
DEFAULT SETTING
B-1. DOME SET - CAMERA ID
To set camera name, and select a title of up to 16 characters using left or right direction keys or
joystick.
Press ZOOM TELE button to move to the next character from left to right direction and
ZOOM WIDE button to move to the next character from right to left direction
(Space displays when  appears)
Website: www.Veilux.net
Phone # 1-800-510-6528
22
Veilux Model # VP-58CND12X User Manual
OSD MENU SETTING
B-2. DOME SET - RECOVER
This feature allows the dome to revert to a specific programmed action when the dome has not
received a command for the recovery timer period.
Actions can be Auto scan, group tour and pattern. The recovery time can be programmed from
15 second to 90 seconds. The default setting is OFF.
B-3. DOME SET - MANUAL SPEED
The manual speed of Pan/Tilt is selectable from 100°/sec up to 150°/sec.
The default setting is 100°/sec
B-4. DOME SET - AUTO FLIP
Auto Flip enables the dome to automatically do a 180° turn when the tilt bottom point is reached.
The default setting is OFF. This function can be recalled by pushing 67+ Call button.
B-5. DOME SET - ZOOM SPEED
Zoom speeds are selectable as FAST or SLOW mode. The default setting is FAST.
B-6. DOME SET - ALARM
You must enable the alarms for them to operate. The default setting is DISABLED.
This function can be recalled by pushing 97 + Call button.
B-7. DOME SET - LANGUAGE
Multiple languages are selectable (English, German, Dutch, Danish, French)
The default setting is ENGLISH.
B-8. DOME SET - [NEXT PAGE]
DOME SET
SYSTEM LOCK: : OFF
[PASS WORD]
[OSD DISPLAY]
[SYSTEM STATUS]
[INITIALIZATION]
[PREVIOUS PAGE]
DEFAULT SETTING
B-8-1. DOME SET - [NEXT PAGE] - SYSTEM LOCK
All stored dome settings can be password protected to prevent unauthorized changes.
In order to enter [PASS WORD] page, the system lock status must firstly be set as ON.
The default setting is OFF.
Website: www.Veilux.net
Phone # 1-800-510-6528
23
Veilux Model # VP-58CND12X User Manual
OSD MENU SETTING
B-8-2. DOME SET - [NEXT PAGE] - [PASSWORD]
To enter this page to set a password, move joystick or pan key in the right direction.
The password must be set by preset number from 001 to 255 (Default 99)
ENTER PASSWORD
BY ENTERING PRESET CODE
PASSWORD ***
CONFIRM ***
Enter any number from 001~255 on the password blank area and again for confirmation on
blank area. Then “CONFIRMED” is displayed on the monitor and the menu will go back to
the previous page automatically.
ENTER PASSWORD
BY ENTERING PRESET CODE
PASSWORD ***
CONFIRM ***CONFIRMED
ENTER PASSWORD
BY ENTERING PRESET CODE
PASSWORD ***
CONFIRM ***NOT CORRECT
<CONFIRMED>
<CANCELLED>
If you press an incorrect number between PASSWORD and CONFIRM, “NOT CORRECT” is
displayed on the monitor.
* When a password has been set, the operator must enter the correct password in order to
enter OSD MAIN MENU, or to change any of the domes configuration data
* If you set a password you must ensure that it does not get lost. If this happens the dome
must be returned for workshop repair
B-8-3. DOME SET - [NEXT PAGE] - [OSD DISPLAY]
The camera ID setting defines whether the camera OSD display is displayed or switched off.
OSD DISPLAY
CAMERA ID
:
PRESET ID
:
SECTOR ID
:
COORDINATE
:
[PREVIOUS PAGE]
OFF
OFF
OFF
ON
DEFAULT SETTING
Website: www.Veilux.net
Phone # 1-800-510-6528
24
Veilux Model # VP-58CND12X User Manual
OSD MENU SETTING
B-8-4. DOME SET - [NEXT PAGE] - [SYSTEM STATUS]
This page shows the information of this camera.
SYSTEM STATUS
PROTOCOL
:
BAUD RATE
:
FIRMWARE VER. :
UPGRADED DATE :
CAMERA MODULE :
[PREVIOUS PAGE]
-
PELCO D, P
2400 BPS
X.XX
YY.MM.DD
XXXXXXXX
DEFAULT SETTING
Protocol and baud rate are shown according to the dip switch setting
(Refer to page 36, 37)
Firmware version and upgraded date will be changed if the dome has been upgraded.
The camera module type is stated as follows.
SAMSUNG 12X ZOOM CAMERA MODULE.
B-8-5. DOME SET - [NEXT PAGE] - [INITIALIZATION]
To clear the current settings select the item that you wish to reset back to factory defaults.
INITIALIZATION
[TOUR CLEAR]
[PRESET CLEAR]
[SECTOR CLEAR]
[PRIVACY CLEAR]
[PATTERN CLEAR]
[LOAD OPTIMIZED DEFAULT]
[PREVIOUS PAGE]
-
To clear the memorized data, move the joystick or pan right key until the cursor is on
the required item.
TOUR CLEAR
TOUR CLEAR
ARE YOU SURE? YES NO
Website: www.Veilux.net
Phone # 1-800-510-6528
25
Veilux Model # VP-58CND12X User Manual
OSD MENU SETTING
Press FOCUS NEAR button when the cursor is at YES in order to clear memorized data.
Then each item such as tour, preset, and sector will flicker for about 2~3 seconds. After this
process, the menu is returned to the previous page.
* Use the above method for [PRESET CLEAR], [SECTOR CLEAR], [PRIVACY CLEAR],
[PATTERN CLEAR], [TOUR CLEAR].
LOAD OPTIMIZED DEFAULT
ALL DATA INITIALIZING
ARE YOU SURE? YES NO
-
To clear all data and return to factory defaults, move the joystick right or press the pan
right key to when the cursor is at [LOAD OPTIMIZED DEFAULT] to enter the next page.
Move joystick or the pan right keys so that the cursor is over YES, then press the
FOCUS NEAR button.
“ALL DATA INITIALIZING” is then displayed for about 5~7 seconds and then the menu is
returned to the previous page automatically.
B-9. DOME SET - [NEXT PAGE] - SAVE AND EXIT
To save the memorized data and escape this page, move the joystick right or press the pan right
key when cursor is at SAVE AND EXIT.
B-10. DOME SET - [NEXT PAGE] - EXIT
In order to escape this page, move the joystick right or press the pan right key when the cursor
is at EXIT
Website: www.Veilux.net
Phone # 1-800-510-6528
26
Veilux Model # VP-58CND12X User Manual
OSD MENU SETTING
C. CAMERA SET
CAMERA SET
FLICKER
MIRROR
APERTURE
D ZOOM
WB MODE
PIC FLIP
BLC
D/N MODE
DSS MODE
EXIT
:
:
:
:
:
:
:
:
:
OFF
OFF
10
OFF
AWB MODE
OFF
OFF
AUTO
OFF
DEFAULT SETTING
C-1. CAMERA SET - FLICKERLESS
The flicker less feature has options of 50Hz and 60Hz.
The default setting is OFF (NTSC: 60Hz / PAL: 50Hz). The flicker less mode only needs to be
set when there is a mismatch between the power frequency and camera sync rate.
The default setting is OFF.
C-2. CAMERA SET - MIRROR
This feature literally swaps the image left and right as if looking into a mirror.
The default setting is OFF.
C-3. CAMERA SET - APERTURE
Aperture correction enhances the picture details and sharpness by increasing the gain of the
caemra. Increade the value to sharpen the image, decrease to soften it The default seeting is 10.
(the aperture level is from 01 ~ 15)
C-4. CAMERA SET - D ZOOM
If neabled digital zoom is applied when the zoom lens has reached its maximum optical zoom in
capability The default setting is OFF.
C-5. CAMERA SET - WB MODE
White balance functions has 4 modes and may need to be changed depending on the situation.
●
AW B Mode – 3,200°K to 6, 000°K (Default)
●
Indoor – up to 3,200°K
●
Outdoor – up to 5,800°K
●
ATW Mode - 2,000°K to 10, 000°K
Website: www.Veilux.net
Phone # 1-800-510-6528
27
Veilux Model # VP-58CND12X User Manual
OSD MENU SETTING
C-6. CAMERA SET - PIC FLIP
The picture flip feature swps the top and bottom of the image, literally inverting it.
The default setting is OFF.
C-7. CAMERA SET - BLC (Back Light Compensation)
The default setting is OFF and BLC modes can be OFF/ON.
● OFF – Backlight compensation is not activated.
● ON – Back light compensation is activated.
This function can be recalled by pushing 93 + Call button.
C-8. CAMERA SET - D/N MODE
The dome camera can operate in day /night mode and will switch depending on lighting
conditions. Alternatively it can be forced into color only mode.
The default setting is AUTO MODE.
This function can be recalled by pushing 94 + Call button.
C-9. CAMERA SET - DSS MODE (DIGITAL SLOW SHUTTER)
If digital slow shutter is enabled the exposure time of the camera is increased, this allowing
more light to be collected and improving low light response. This setting should not be enabled
if the dome is touring at night or fast moving objects are likely to be in the scene as smearing is
also increased.
The default setting is OFF.
C-10. CAMERA SET - EXIT
To escape this page, move the joystick right or press the pan right key.
Website: www.Veilux.net
Phone # 1-800-510-6528
28
Veilux Model # VP-58CND12X User Manual
OSD MENU SETTING
D. PRESET SET
To enter PRESET SET, move joystick to the right direction.
PRESET SET
PRESET NO :001
PRESET ID :PRESET001------PAN :XXX.XX TILT : XXX.XX
SAVE
EXIT
DEFAULT SETTING
D-1. PRESET - PRESET NO.
Up to 165 preset positions are available. Use the joystick or pan left/right keys to select the
number.
D-2. PRESET - PRESET ID
To create preset titles use the joystick or pan left/right keys to navigate the menu.
The ZOOM TELE button moves to the next character from left to right and ZOOM WIDE
button moves to the next character from right to left (Space displays when  appears)
D-3. PRESET - PAN: XXX.X TILT: XX.X
Press FOCUS FAR button in order to set preset position then, use the joystick or pan left/right
keys to the position where memorized preset number .is needed. Then press FOCUS FAR
button again after setting a preset location.
D-4. PRESET - SAVE
Move the joystick right or press the pan right key when the cursor is at SAVE and then the
cursor will be located on Preset ID for the continuous preset No. setting.
D-5. PRESET - EXIT
To escape this page, move the joystick right or press the pan right button.
Website: www.Veilux.net
Phone # 1-800-510-6528
29
Veilux Model # VP-58CND12X User Manual
OSD MENU SETTING
E. AUTO SCAN SET
*
66 + Call
button is working as AUTO SCAN after setting.
AUTO SCAN SET
START ANGLE
END ANGLE
DIRECTION
ENDLESS
SPEED
DWELL TIME
SAVE AND EXIT
EXIT
:
:
:
:
:
:
XXX.X.XX.X
XXX.X.XX.X
CW
OFF
10°/S
03
DEFAULT SETTING
E-1. AUTO SCAN - START ANGLE
To set the start position, press FOCUS FAR button then move the dome to the required start
position. Press FOCUS FAR button again is to escape.
E-2. AUTO SCAN - END ANGLE
To set the end position, press FOCUS FAR button then move the dome to the required end
position. Press FOCUS FAR button again is to escape.
E-3. AUTO SCAN - DIRECTION
Auto Scan directions are available as CW or CCW.
● CW: Clock wise direction (Default)
● CCW: Count Clock Wise Direction.
E-4. AUTO SCAN - ENDLESS
Auto Scan can be set to endless rotation by enabling the endless option.
The default setting is OFF.
E-5. AUTO SCAN - SPEED
Auto scan speed can be programmed from 05°/S up to 35°/S. The default setting is 10°/S.
E-6. AUTO SCAN - DWELL TIME
The dwell time at the start and end points can be programmed from 1 second to 30 seconds.
The default setting is 03 seconds.
E-7. AUTO SCAN - SAVE AND EXIT
To save the memorized data and escape this page, move the joystick right or press the pan
right key when the cursor is at SAVE AND EXIT.
E-8. AUTO SCAN - EXIT
To escape this page, move the joystick right or press the pan right key.
Website: www.Veilux.net
Phone # 1-800-510-6528
30
Veilux Model # VP-58CND12X User Manual
OSD MENU SETTING
F. TOUR SET
8 Programmable tours can be set and each tour can have up to 64 preset steps.
After setting up the tours the 71~78 + Call
buttons launch group tours # 1~8
TOUR SET
TOUR NO
TOUR TITLE
TOUR STEP
PRESET NO.
DWELL TIME
SPEED
SAVE
EXIT
F-1.
:
:
:
:
:
:
01
TOUR01
01
01
03
200º/S
DEFAULT SETTING
TOUR SET - TOUR NO.
Up to 8 group tours can be programmed.
F-2. TOUR SET - TOUR TITLE
To set a tour title, use the joystick left/right or pan left/right keys.
Each title can have up to 16 characters.
Press ZOOM TELE button to move the next character from left to the right and ZOOM WIDE
button to move the next character from right to left (Space displays when  appears) The tour
title is not displayed on the monitor and is only for the reference of user.
F-3.
TOUR SET - TOUR STEP
Each tour group consists of up to 60 preset steps with different dwell time and speed.
It is possible to match any preset # for any tour step.
F-4. TOUR SET - PRESET NO.
For each tour step it is possible to select any preset number up to 64.
The default setting is BLK
F-5.
TOUR SET - DWELL TIME
Dwell time can be programmed from 1-99 seconds. The default setting is 03 seconds.
F-6. TOUR SET - SPEED
Each tour step can be set with a different speed up to 200°/S and it is selectable from 10°/S.
The default setting is 200°/S.
F-7.
TOUR SET - SAVE
To save the memorized data and escape this page, move the joystick right or press the pan
right key when cursor is at SAVE
F-8.
TOUR SET - EXIT
To escape this page, move the joystick right or press the pan right key.
Website: www.Veilux.net
Phone # 1-800-510-6528
31
Veilux Model # VP-58CND12X User Manual
OSD MENU SETTING
G. PRIVACY SET
4 Privacy masking zones can be set.
PRIVACY SET
PRIVACY NO
DISPLAY
ACTION
SAVE
EXIT
: 01
: OFF
: MOVE
DEFAULT SETTING
G-1. PRIVACY SET - PRIVACY NO.
Up to 4 privacy masking zones can be set.
G-2. PRIVACY SET - DISPLAY.
Move the joystick right or left or press pan right/left to set ON in order to show the selectable
block in the center of the monitor. This block appears as a translucent square with blue color
when set ON. The default setting is OFF.
G-3. PRIVACY SET - ACTION (MOVE / ADJUST)
To set the blocking area, press FOCUS FAR button when MOVE MODE is displayed.
Then use the joystick or pan keys to the user defined area in order to set the blocking area.
Then press FOCUS FAR button again to escape from MOVE MODE.
To adjust the size of the blocking area, move the joystick or use the pan keys when the cursor is
on ACTION. After it has changed to ADJUST MODE, press FOCUS FAR button in order to
adjust the size of the blocking area. The size of the blocking area can be adjusted by using
joystick up/down or left right – or the pan and tilt keys. After adjusting the size of the blocking
area, press FOCUS FAR button to escape the ADJUST mode.
● ADJUST : You can change the masking size by using the joystick or pan keys
● MOVE : You can move the masking area by using the joystick or pan keys (Default)
G-4. PRIVACY SET - SAVE
After setting the privacy masking zone, to save the data, move the joystick right or pan right key
when the cursor is on SAVE. After saving the data, the cursor moves to PRIVACY NO.2
automatically to prepare for the next privacy masking zone.
G-5. PRIVACY SET - EXIT
To escape this page, move the joystick right.
Website: www.Veilux.net
Phone # 1-800-510-6528
32
Veilux Model # VP-58CND12X User Manual
OSD MENU SETTING
H. PATTERN SET
8 programmable patterns are available, each with a programmable title.
After setting up each pattern # 1~8, 81~88+ preset buttons will recall Patterns # 1~8.
PATTERN SET
PATT NO
: 01
PATT TITLE: PATTERN01□□□□□□□
DATA FILL : 0%
SAVE
EXIT
DEFAULT SETTING
H-1. PATTERN SET - PATT NO.
Up to 8 programmable user-defined patterns are available.
H-2. PATTERN SET - PATT TITLE
To set PATTERN TITLE move Joystick left/right or use the pan keys.
Press ZOOM TELE button moves to the next character from the left / right and ZOOM WIDE
button moves to the next character from the right / left (Space displays when  appears)
The pattern title is not displayed on the monitor, but only for the reference of the user.
H-3. PATTERN SET - DATA FILL
To memorize a pattern, press FOCUS FAR button in order to start the process.
The progress is shown as % filled. Press FOCUS FAR button again in order to escape.
H-4. PATTERN SET - SAVE
To save the memorized pattern data, move the joystick right or press the pan right key when the
cursor is on SAVE. Then the cursor moves to the PATT NO.02 in order to prepare for the next
pattern.
H-5. PATTERN SET - EXIT
To escape this page, move the joystick right or press the pan right key.
Website: www.Veilux.net
Phone # 1-800-510-6528
33
Veilux Model # VP-58CND12X User Manual
OSD MENU SETTING
I.
ALARM SET
4 Alarm inputs are available and each input can activate presets, group tours or patterns.
ALARM SET
ALARM NO
ALARM INPUT
ALARM ACT
SAVE
EXIT
: 01
: OFF
: 001
DEFAULT SETTING
I-1.
ALARM SET - ALARM NO.
Up to 4 alarms are selectable by using joystick right or pressing the pan right key when the
cursor is on ALARM NO.
I-2.
ALARM SET - ALARM INPUT
Alarm inputs can be programmed as NC (Normally Close) or NO (Normally Open)
The default setting is OFF.
I-3.
ALARM SET - ALARM ACT
Active alarms can trigger modes such as presets, Group tours 1-8, and Patterns 1-8.
Use the joystick or pan keys to select any preset number, group tour no. or pattern no.
I-4.
ALARM SET - SAVE
After setting up the alarm features, to save the data move the joystick right or press the pan
right key when the cursor is on SAVE. After saving the data, the cursor moves to Alarm NO.2
automatically to prepare for the next alarm.
I-5.
ALARM SET - EXIT
To escape this page, move the joystick right or press the pan right key.
* Before activating Alarms, you must set ALARM ENABLE at DOME SET – ALARM – ENABLE
(Refer to page 23)
Website: www.Veilux.net
Phone # 1-800-510-6528
34
Veilux Model # VP-58CND12X User Manual
OSD MENU SETTING
J.
SECTOR SET
Up to 8 programmable sectors are available, each with a 16 character title.
This feature allows the various areas of the domes 360° rotation to be given logical titles.
When the dome is moved the relevant title for each area is displayed as the dome
passes through the area.
SECTOR SET
SECTOR
SECTOR
SECTOR
SECTOR
SAVE
EXIT
Start Position
NO
: 01
ID: SECTOR01□□□□□□□□
START: XXX.X.XX.X
END : XXX.X.XX.X
End Position
DEFAULT SETTING
J-1. SECTOR SET - SECTOR NO.
Up to 8 programmable sectors are available.
J-2. SECTOR SET - SECTOR ID
To set a SECTOR ID, use the joystick or pan left/right keys.
Press ZOOM TELE button to move to the next character from left to right and ZOOM WIDE
button to move to the next character from right to left (Space displays when  appears)
J-3. SECTOR SET - SECTOR START
To set a SECTOR START position, press FOCUS FAR button then move the joystick or pan
keys to set the position. Press FOCUS FAR button again to escape.
J-4.
SECTOR SET - SECTOR END
To set a SECTOR END position, press FOCUS FAR button then move the joystick or pan keys
to set the position. To press FOCUS FAR button again to escape.
J-5. SECTOR SET - SAVE
After setting the SECTOR positions, to save the data move the joystick right or press the pan
right key when the cursor is on SAVE. After saving the data, the cursor moves to SECTOR NO.2
automatically to prepare for the next SECTOR.
J-6.
SECTOR SET - EXIT
To escape this page, move the joystick right or press the pan right key.
K. EXIT
To escape OSD Main Menu, move joystick to the right or left direction then this camera is
Ready to operate.
Website: www.Veilux.net
Phone # 1-800-510-6528
35
Veilux Model # VP-58CND12X User Manual
DIP SWITCH SETTING
A. FACTORY DEFAULT SETTING
The dome cameras RS 485 address is set using switches 1-6 of DIP SW 1, refer to the
table below...
Open the camera case to set ID using DIP SW 1.
* Factory default: Camera ID = 1, PELCO-D Baud Rate: 2400bps
Termination
Baud rate
Protocol
ID Set
B.
ID SETTING (1-ON, 0-OFF) (110)
DIP SW
100000XXXX
010000XXXX
110000XXXX
001000XXXX
101000XXXX
011000XXXX
111000XXXX
000100XXXX
100100XXXX
010100XXXX
110100XXXX
001100XXXX
101100XXXX
011100XXXX
111100XXXX
000010XXXX
100010XXXX
010010XXXX
110010XXXX
001010XXXX
101010XXXX
011010XXXX
ID VALUE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
DIP SW
ID VALUE
111010XXXX
000110XXXX
100110XXXX
010110XXXX
110110XXXX
001110XXXX
101110XXXX
011110XXXX
111110XXXX
000001XXXX
100001XXXX
010001XXXX
110001XXXX
001001XXXX
101001XXXX
011001XXXX
111001XXXX
000101XXXX
100101XXXX
010101XXXX
110101XXXX
001101XXXX
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
DIP SW
101101XXXX
011101XXXX
111101XXXX
100011XXXX
100011XXXX
010011XXXX
110011XXXX
001011XXXX
101011XXXX
011011XXXX
111011XXXX
000111XXXX
100111XXXX
010111XXXX
110111XXXX
001111XXXX
101111XXXX
011111XXXX
111111XXXX
ID VALUE
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
44
Website: www.Veilux.net
Phone # 1-800-510-6528
36
Veilux Model # VP-58CND12X User Manual
DIP SWITCH SETTING
C. PROTOCOL SETTING
th
th
7 ~8 dip switches are used for Protocol Setting.
Factory Default: Pelco-D or Pelco-P (Auto detection)
DIP SW1- 7
DIP SW1- 8
OFF
OFF
Pelco-D or Pelco-P
ON
OFF
VICON
OFF
ON
SAMSUNG
ON
ON
D. BAUD RATE SETTING
th
The 9 Dip Switch is used for BAUD RATE setting.
DIP SW can be changeable to 2400bps, 9600bps.
Factory Default: 2400bps. (If user selects Vicon protocol, then Baud rate is automatically set
as 4800bps.
DIP SW1 9th
BAUD RATE
2400bps(Default)
4800bps(VICON)
9600bps
OFF
ON
E. 485 TERMINATIONS
th
10 Dip Switch is used for 100Ω termination.
th
Set on 10 Dip Switch only for the last looped camera from the controller.
th
Even in case of only one camera, set on 10 Dip Switch of the camera.
TERMINATION
SW-ON
CAM 1
CAM 2
Website: www.Veilux.net
CAM n-1
CAM n
Phone # 1-800-510-6528
37
Veilux Model # VP-58CND12X User Manual
TROUBLE SHOTING
If you have trouble setting up or operating the camera, refer to the following.
PROBLEM
SOLUTION
Check if the power supply is DC12V.
No operation
Check if RS-485 communication cable is connected correctly.
Check camera ID setting.
Check the RS 485 termination.
Check if all the cables are connected correctly.
No picture
Check if the monitor is adjusted correctly.
Check for video locally at the dome.
Dark screen
Check video termination and monitor settings
Abnormal camera
Check if PSU voltage level at the dome
operation
Check the RS 485 termination.
Website: www.Veilux.net
Phone # 1-800-510-6528
38
Veilux Model # VP-58CND12X User Manual
SPECIFICATIONS
MODEL
12X Mini Speed Dome Camera
Pan Rotation Angle
Pan Speed
PAN /TILT
Manual
Preset
Tilt Rotation Angle
Tilt Speed
Manual
Preset
Presets
Privacy Masking Zones
Pattern
Sector
Group Scanning
FUNCTIONS
POWER
OTHERS
Auto scan
Password Protection
Alarm Input
Alarm Actions
Auto Flip
OSD Menu
Communication
Protocol
Power Consumption
12V DC
750mA, 10W MAX (1.3A, 16W MAX with Heater)
12V DC 750mA (1.3A with Heater)
Anti-vandal bubble (Poly carbonate), Body (Aluminum)
Stepper Motor
-10ºC ~ 50ºC (-40ºC ~60ºC with heater)
IP66,CE,FCC
1/4" Sony Super HAD CCD
811(H) * 508(V) 410K
795(H) * 596(V) 470K
768(H) * 494(V) 380K
752(H) * 582(V) 440K
580 TV Lines/ B/W 660 TV Lines
12x Optical Zoom f=3.94 ~ 46.05mm (F1.67~1.88)
12x (192x with optical)
Auto/ Day/ Night
ON / OFF
0.2Lux / F1.6 (Color: 50IRE)
0.04Lux / F1.6 (B/W : IRC ON)
More than 502B
Composite video output 75Ω Terminated
ON / OFF
ON / OFF (1/100)
ON / OFF (1/120)
ATW/AWC/INDOOR/OUTDOOR
Power Supply
Construction
Motor Type
Operating Temperature
Certifications
Image Sensor
Total Image Pixels
Number Of Effective
Pixels
Horizontal resolution
Lens
CAMERA
MODULE
360º Endless
Max 150º /sec
Max 200º /sec
0º ~ 90º
Max 150º /sec
Max 150º /sec
165 positions with a 16-character label available for each
position
4 Programmable privacy masking zones
8 Programmable pattern tour
8 Programmable sectors
Max.8 Programmable group tours (each one consisting of up to
60 preset steps with different steps)
Programmable Auto scan
Yes
4 alarms OFF/NC/NO (with various programmable states)
Activate preset, tour and patterns
ON / OFF
Multiple Languages on screen
RS-485
Pelco D/P, VICON, SAMSUNG
NTSC
PAL
NTSC
PAL
Optical
Digital
Day & Night (ICR)
Digital Slow Shutter
Min. illumination
Normal mode
Night mode
Luminance S/N Ratio
Video Output
BLC
Flicker less
NTSC
PAL
WHITE BALANCE
DIMENSIONS
Website: www.Veilux.net
Phone # 1-800-510-6528
39
Veilux Model # VP-58CND12X User Manual
UNITS : mm
Website: www.Veilux.net
Phone # 1-800-510-6528
40
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
