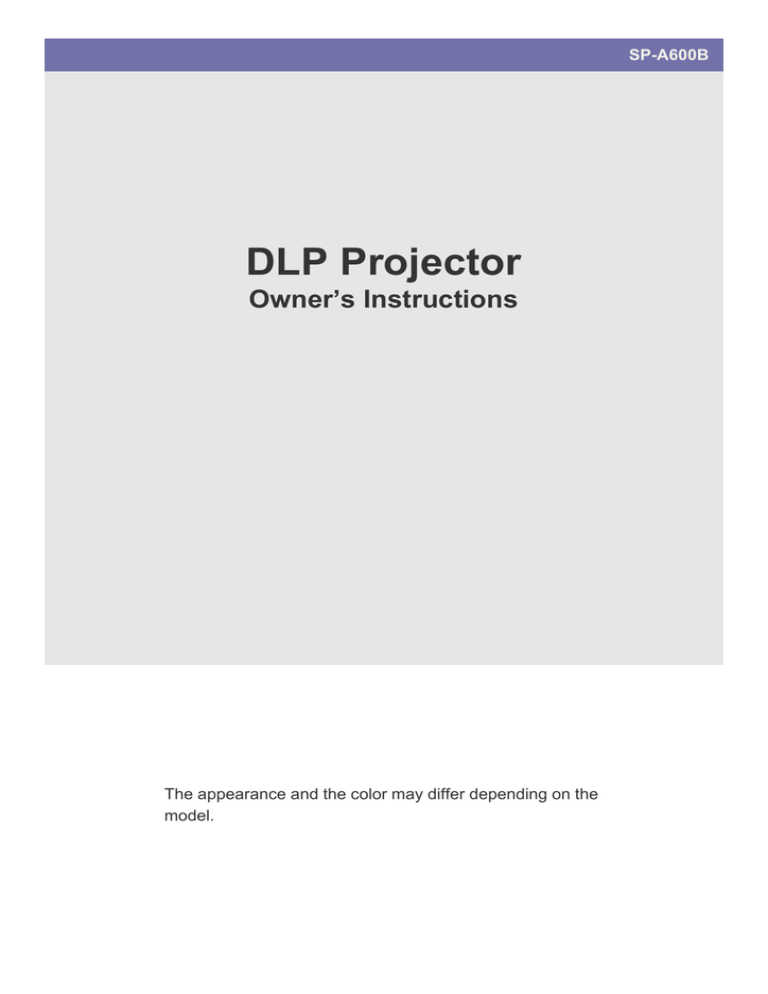

SP-A600B
DLP Projector
Owner’s Instructions
The appearance and the color may differ depending on the
model.
Table Of Contents
MAJOR SAFETY PRECAUTIONS
Before You Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
INSTALLATION AND CONNECTION
Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
Installing the Projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Leveling with Adjustable Feet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
Zoom and Focus Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
Screen Size and Projection Distance
. . . . . . . . . . . . . . . . . . . . . . . . . 2-5
Lamp Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6
Connecting with a PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7
Setting up the PC Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
Supported Display Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
Connecting the Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10
Connecting a DVD player/Cable/Satellite Box to HDMI/DVI . . . . . . . 2-11
Connecting a DVD player/Cable/Satellite Box via Component . . . . 2-12
Connecting to VCR/Camcorder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13
USING
Product Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
Front, Upper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
LED Indications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
Using the Screen Adjustment Menu (OSD: On Screen Display) . . . . 3-5
TROUBLESHOOTING
Before Requesting Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
MORE INFORMATION
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
RS-232C Command Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
Contact SAMSUNG WORLDWIDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3
Correct Disposal - Europe only . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4
1
Major Safety Precautions
1-1
Before You Start
Icons used in this manual
Icon
NAME
Caution
Note
MEANING
Indicates cases where the function may not work or the setting may be canceled.
Indicates a hint or tip to operate a function.
Using this Manual
•
Make yourself fully aware of the safety precautions before using this product.
•
If a problem occurs, refer to the 'Troubleshooting' section.
Copyright Notice
The contents of this manual are subject to change without prior notice for performance improvement.
Copyright © 2009 Samsung Electronics Co., Ltd. All rights reserved.
The copyright of this manual is reserved by Samsung Electronics, Co., Ltd.
The contents of this manual may not be partially or in whole reproduced, distributed or used in any form without the written
permission of Samsung Electronics, Co., Ltd.
1-2
Care and Maintenance
Cleaning the Surface and the Lens
Major Safety Precautions
1-1
Clean the projector using a soft dry cloth.
•
Avoid cleaning the product with an inflammable substance such
as benzene or thinner or with a wet cloth. This may result in a
problem with the product.
•
Avoid scratching the screen with your fingernails or a sharp
object.
This may result in scratches or damage to the product.
•
Avoid cleaning the product directly by spraying water onto the
product.
If water enters the product, it may result in fire, electric shock or a
problem with the product.
•
A white stain may be generated on the surface of the projector if
water gets on it.
The appearance and the color may differ depending on
models.
Cleaning Inside the Projector
For cleaning the interior of the projector, contact a Service Center.
•
1-3
Contact a Service Center if dust or other substances are inside
the projector.
Safety Precautions
Icons used for safety precautions
Icon
NAME
MEANING
Warning
Failing to follow the precautions marked with this sign, may result in a serious injury or even a
fatality.
Caution
Failing to follow the precautions marked with this sign may result in a personal injury or property
damage.
Meaning of Signs
1-3
Do not perform.
Must be followed.
Do not disassemble.
The power plug must be unplugged from the
wall outlet.
Major Safety Precautions
Do not touch.
Must be grounded to prevent electric shock.
Power Related
The following images are for your reference and may differ depending on models and countries.
Warning
Plug the power plug in firmly.
•
Otherwise, it may result in fire.
Avoid connecting multiple electric appliances to a single wall outlet.
•
Avoid using a damaged power cord or plug
or a loose power outlet.
•
Otherwise, it may result in electric
shock or fire.
Avoid plugging in or unplugging the power
supply with wet hands.
•
Otherwise, it may result in electric
shock.
Otherwise, it may result in fire due to
overheating of the wall outlet.
Avoid bending or twisting the power cord
excessively and avoid placing heavy
objects on the cord.
•
Otherwise, it may result in electric
shock or fire due to a damaged power
cord.
To move the product, turn the power off
and unplug the power cord and any other
wires connected to the product.
•
Otherwise, it may result in electric
shock or fire due to the damaged
power cord.
Make sure to connect the power cord to a
grounded wall outlet (for insulation class 1
equipment only).
•
Otherwise, it may result in electric
shock or injury.
Caution
When unplugging the power plug from the
wall outlet, make sure to hold the power
plug by the plug and not by the cord.
•
Failing to do so may result in electric
shock or fire.
Unplug the power plug before cleaning the
product.
•
Do not turn the product on or off by plugging or unplugging the power plug. (Do not
use the power plug as a power switch.)
Keep the power cord away from sources of
heat.
There is a danger of electric shock or
fire.
Connect the power plug to a wall outlet
that can be easily reached.
•
When a problem occurs with the
product, you must unplug the power
plug to cut the power off completely.
You cannot cut the power off
completely using only the power button
on the product.
Major Safety Precautions
1-3
Installation Related
Warning
Avoid installing the product in a location
exposed to direct sunlight and installing
the product near a heat source such as a
fire or heater.
•
Avoid installing the product in a badly-ventilated location such as inside a bookshelf
or closet.
•
This may shorten the product life cycle
or cause fire.
Otherwise, it may result in fire due to
internal overheating.
When installing the product in a cabinet or
shelf, take care so that the front end of the
product is completely supported by the
cabinet or shelf.
When installing the product on a console
or shelf, make sure that the front of the
product does not protrude out of the console or shelf.
•
Failing to do so may result in the
product falling and resulting in damage
to the product or injury.
•
•
Make sure to use a cabinet or shelf
suitable to the size of the product.
Otherwise, this may cause the product
to fall off and result in a malfunction or
injury.
Keep the power cord away from heaters.
When thunder or lighting occurs, unplug
•
the power cord.
The coating of the power cord may
melt and cause electric shock or fire.
Do not install the product in a location
exposed to dust, moisture (sauna), oil,
•
Failing to do so may result in electric
shock or fire.
Do not install the product in areas with
heavy dust.
smoke or water (rain drops) and do not
install it in a vehicle.
•
This may result in electric shock or fire.
Caution
Take care not to block the vent with a table
cloth or curtain.
•
1-3
Do not let the product drop while moving it.
•
Otherwise, it may result in fire due to
internal overheating.
This may result in a problem with the
product or injury.
When putting the product down, place it
gently.
Do not install the product at a height where
children may reach it.
•
•
Failing to do so may result in a problem
with the product or injury.
If a child touches the product, the
product may fall and this may result in
injury.
Major Safety Precautions
Usage Related
Avoid inserting metal objects such as a
chopsticks, coins or hairpins, or inflammable objects into the product (the vents,
ports, etc).
•
If water or an alien substance enters
the product, turn the power off, unplug
the power cord and contact a Service
Center.
•
Otherwise, it may result in a problem
with the product, electric shock or fire.
Do not disassemble, or attempt to fix or
modify the product.
•
When the product requires repairs,
contact a Service Center.
Avoid using or placing inflammable spray
or objects near the product.
•
This may result in an explosion or fire.
Do not let children place objects such as
toys or cookies on the product.
•
If a child tries to reach for any of these
objects, the product may fall and cause
harm.
Do not look directly at the light of the lamp
nor project the picture into someone's
eyes.
•
This is dangerous, especially for
children.
When you remove batteries from the
remote, be careful that they are not swallowed by children. Keep batteries out of
the reach of children.
•
If swallowed, see a doctor immediately.
Avoid placing a liquid container such as a
vase, flowerpot, beverage, cosmetics or
drugs, or a metal object over the product.
•
If water or an alien substance enters
the product, turn the power off, unplug
the power cord and contact a Service
Center.
•
Otherwise, it may result in a problem
with the product, electric shock or fire.
Caution
If the product generates a strange noise, a
burning smell, or smoke, unplug the power
plug immediately and contact a Service
Center.
•
If water or a foreign substance enters the
product, turn the product off, unplug the
power cord from a wall outlet, and contact
a Service Center.
Failing to do so may result in electric
shock or fire.
If the power plug pin or jack is exposed to
dust, water or alien substances, clean it
thoroughly.
Do not use the product while it indicates a
malfunction, such as no sound or no picture.
•
•
There is a danger of electric shock or
fire.
Major Safety Precautions
Turn the product off immediately,
unplug the power cord from a wall
outlet, and contact a Service Center.
1-3
When cleaning the product, disconnect the
power cord and clean the product with a
soft dry cloth.
When a gas leak occurs, do not touch the
product or the power plug and ventilate
immediately.
•
Avoid using chemicals such as wax,
benzene, alcohol, thinner, mosquitorepellent, fragrance, lubrication or
cleansing agent when cleaning the
product.
This may result in the exterior being
deformed or the print being removed.
•
A spark may result in an explosion or
fire.
•
During a thunder or lighting storm, do
not touch the power cord or antenna
cable
When not using the product for a long
time, such as leaving your home, unplug
the power cord from the wall outlet.
Do not touch the lens on the product.
•
Ask a Service Center to clean the interior
of the projector at least once per year.
The lens could get damaged.
Make sure to place your remote control on
a table or desk.
•
To clean dirt or stains on the front projection lens, use spray or a wet cloth dampened with neutral detergent and water.
Failing to do so may result in fire or
electric shock.
Take care not to lose the lens cover of the
product.
•
Do not touch any outer part of the product
with tools such as a knife or a hammer.
Places exposed to microscopic dust,
chemicals, too high or low temperature,
high humidity, such as airports or
stations where the product is
continuously used for a long time etc..
If you drop the product or the case is damaged, turn the power off and unplug the
power cord. Contact a Service Center.
•
This may cause damage to the lens.
Otherwise, it may cause dust
accumulation and result in fire caused
by overheating or a short circuit or
result in an electric shock.
If the product is installed in a location
where the operating conditions vary considerably, a serious quality problem may
occur due to the surrounding environment.
In this case, install the product only after
consulting our Call Center.
•
•
If you step on the remote control, you
may fall and hurt yourself or the
product may be damaged.
To avoid burning yourself, do not touch the
Do not clean the product using water spray
or a wet cloth. Avoid using any chemicals
such as detergents, industrial or automotive polish, abrasive, wax, benzene, alcohol on any plastic part of the product such
as projector case, since this may cause
damage.
Do not use any undesignated battery.
vents or lamp cover while operating or
right after turning off the product.
Do not open any cover on the product.
•
This would prove hazardous because
of high-voltage current inside the
product.
The ventilation hole is hot for some time
though the projector is turned off. Keep
you hands or body off the ventilation hole.
1-3
Be careful not to touch the ventilation hole
while the projector is on as hot air comes
out.
Do not place objects vulnerable to heat
near the projector.
Major Safety Precautions
Be careful to keep your body away from
the projector lamp. The lamp is hot.
(Children and those who have sensitive
skin should be more careful.)
Major Safety Precautions
1-3
2
Installation and Connection
2-1
Package Contents
•Unpack the product and check if all of the following contents have been included.
• Store the packaging box in case you need to move the product at a later stage.
Projector
CONTENTS
Quick Guide
Product Warranty
Remote Control (BP5900132A) / 1 Battery (CR
2025)
Cleaning Cloth (BN6301798B)
User Manual (BP59-00137A)
Power Cord
SOLD SEPARATELY
D-Sub Cable
HDMI Cable
Component(PR, PB, Y) Cable
S-VIDEO Cable
VIDEO Cable
2-1
Installation and Connection
2-2
Installing the Projector
Install the projector so that the beam from the projector is perpendicular to the screen.
•Place the projector so that the lens is at the center of the screen. If the screen is not vertically installed, the picture on the
screen may not be a rectangle.
•Do not install the screen in bright surroundings. If the screen is too bright, the picture on the screen will not be displayed
clearly.
•When installing the screen in bright surroundings, use curtains.
•You can install the projector in the following locations: Front-Floor / Front-Ceiling / Rear-Floor / Rear-Ceiling.(To view the
installation position settings)
To view the picture when installing the projector behind the screen
Install a semi-transparent screen.
Select Menu > Setup > Install > Rear-Floor
To view the picture when installing the projector in the front of the screen
Install the projector in the front where you are watching the
screen.
Select Menu > Setup > Install > Front-Floor
2-3
Leveling with Adjustable Feet
For level placement of the projector, adjust the Adjustable Feet of
the projector.
You may adjust the level of the projector up to 3 degrees.
Depending on the position of the projector, Keystone distortion of the image may appear.
Installation and Connection
2-2
2-4
Zoom and Focus Adjustment
Zoom Knob : You can adjust the size of the image within the
zoom range by manipulating the Zoom Knob.
Focus Ring : Focus the picture on the screen using the
Focus Ring.
If your product is installed at a location out of the specified projection distance (refer to Screen Size and Projection
Distance), the focus cannot be adjusted correctly.
2-5
Screen Size and Projection Distance
Install the projector on a flat, even surface and level the projector using the adjustable feet to realize optimal picture quality. If
images are not clear, adjust them using the Zoom Knob or Focus Ring, or move the projector forward and backward.
A. Screen / Z. Throw Distance / Y’. Distance from Lens Center to Image Bottom
X. Screen width / Y. Screen height / M. Screen Diagonal length
HORIZONTAL
VERTICAL
X
Y
TELE
WIDE
OFFSET '
SCREEN SIZE
2-4
Z
Y'
INCHES
MM
(MM /
INCHES)
(MM /
INCHES)
(MM /
INCHES)
(MM /
INCHES)
(MM /
INCHES)
40
1016
886 / 34.9
498 / 19.6
1762 / 69.4
1355 / 53.3
62 / 2.4
50
1270
1107 / 43.6
623 / 24.5
2203 / 86.3
1694 / 66.7
78 / 3.1
60
1524
1328 / 52.3
747 / 29.4
2643 / 104.1
2032 / 80
93 / 3.7
70
1778
1550 / 61.0
872 / 34.3
3084 / 121.4
2371 / 93.3
109 / 4.3
80
2032
1771 / 69.7
996 / 39.2
3524 / 138.7
2710 / 106.7
125 / 4.9
90
2286
1992 / 78.4
1121 / 44.1
3965 / 156.1
3048 / 120
140 / 5.5
100
2540
2214 / 87.2
1245 / 49.0
4405 / 173.4
3387 / 133.3
156 / 6.1
110
2794
2435 / 95.9
1370 / 53.9
4846 / 190.8
3726 / 146.7
171 / 6.7
120
3048
2657 / 104.6
1494 / 58.8
5287 / 208.1
4065 / 160.0
187 / 7.4
Installation and Connection
HORIZONTAL
VERTICAL
X
Y
TELE
WIDE
OFFSET '
SCREEN SIZE
Z
Y'
INCHES
MM
(MM /
INCHES)
(MM /
INCHES)
(MM /
INCHES)
(MM /
INCHES)
(MM /
INCHES)
130
3302
2878 / 113.3
1619 / 63.7
5727 / 225.5
4403 / 173.3
202 / 8.0
140
3556
3099 / 122.0
1743 / 68.6
6168 / 242.8
4742 / 186.7
218 / 8.6
150
3810
3321 / 130.7
1868 / 73.5
6608 / 260.2
5081 / 200.0
233 / 9.2
160
4064
3542 / 139.4
1992 / 78.4
7049 / 277.5
5419 / 213.3
249 / 9.8
170
4318
3763 / 148.1
2117 / 83.3
7489 / 294.8
5758 / 226.7
265 / 10.4
180
4572
3985 / 156.9
2241 / 88.2
7930 / 312.2
6097 / 240.0
280 / 11.0
190
4826
4206 / 165.6
2366 / 93.1
8370 / 329.5
6436 / 253.4
296 / 11.7
200
5080
4428 / 174.3
2491 / 98.1
8811 / 346.9
6774 / 266.7
311 / 12.2
210
5334
4649 / 183.0
2615 / 103.0
9251 / 364.2
7113/ 280.0
327 / 12.9
220
5588
4870 / 191.7
2740 / 107.9
9692 / 381.6
7452/ 293.4
342 / 13.5
230
5842
5092 / 200.5
2864 / 112.8
10133 / 398.9
7790 / 306.7
358 / 14.1
240
6096
5313 / 209.2
2989 / 117.7
10573 / 416.3
8129 / 320.0
374 / 14.7
250
6350
5535 / 217.9
3113 / 122.6
11014 / 433.6
8468 / 333.4
389 / 15.3
300
7620
6641 / 261.5
3736 / 147.1
13216 / 520.3
10161 / 400.0
467 / 18.4
This projector is designed to show images optimally on a 100 ~ 120 inch screen.
2-6
Lamp Replacement
Cautions on Lamp Replacement
•
The projector lamp is an expendable item. For best operating performance, replace the lamp according to the usage time.
You can view the lamp usage time in the Information Display (INFO button).
•
Use the recommended lamp when replacing. Replace with the same model provided with the projector.
- Lamp Model Name : 220W Philips fusion lamp (BP96-02183A)
- Lamp Manufacture : Philips Lighting
- Lamp Life Time : 3000Hrs
- Lamp Type : 220W UHP
•
Check that the power cord is unplugged before replacing the lamp.
•
Even after the power cord has been disconnected, the lamp will be hot. Allow it to cool down for at least 1 hour before
changing the lamp.
•
The lamp is located at the bottom of the product.
•
Before you turn the projector over to change the lamp, cover the projector with a soft cloth on a flat surface.
•
Do not leave the old lamp near inflammables or in reach of children. There is a danger of burn or injury.
•
Remove dirts or foreign materials around or inside the lamp unit using a proper vacuum device.
•
When handling the lamp, avoid touching any part of it except for the handles. If you handle the lamp incorrectly, it may affect
the screen quality and shorten its lifetime.
Contains Mercury, Dispose According to Local, State or Federal Laws
Installation and Connection
2-6
Lamp Replacement Procedure
1. The lamp is very hot and operates with a high voltage. Allow it to cool down for at least 1 hour after disconnecting the power
cord before changing the lamp.
2. The lamp is located at the bottom of the product.
Place the product so that its bottom looks upward and remove the screws that hold the lamp cover in place.
* When placing the product with the bottom upwards, make sure to place a soft cloth on the surface to prevent scratches.
3. Slide and open the cover in the direction of the arrow, as shown in the figure.
4. Remove the screws indicated in the figure.
5. Hold and pull the lamp handle slightly, as shown in the figure.
Inserting a new lamp is in the reverse order of the removal.
2-6
Installation and Connection
2-7
Connecting with a PC
1. Connect [PC IN] port on the rear side of the projector to the monitor output port of the PC using a PC video cable.
2. When connections are all completed, connect both power cords of the projector and the PC.
This product supports plug and play and therefore, if you use Windows XP, you do not need to setup the driver on your PC.
Using the Projector
1. Turn on the projector and press the [PC] button to select <PC>.
If PC Mode is not available, check if the PC video cable is in place.
2. Turn on the PC and set the PC Environment when necessary.
3. Adjust the screen.(Auto Adjustment)
2-8
•
Sound comes out from PC speakers.
•
To avoid experiencing a blank screen when connecting a PC, set <PC> in the Edit Name menu. See section 3-5-1 for
more detail.
Setting up the PC Environment
Check the following items before connecting your PC to your projector.
1. Click the right mouse button on the Windows desktop and click on [Properties].
<Display Properties> tab will appear.
2. Click on [Settings] tab and set the <Screen resolution> by referring to <Resolution> described in the display mode table
supported by this projector.
You do not have to change the <Color quality> setup.
Installation and Connection
2-7
3. Press the [Advanced] button. Another property window will appear.
4. Click on [Monitor] tab and set the <Screen refresh rate> by referring to <Vertical Frequency> described in the Supported
Resolution/Size Modes table.
This will set both the vertical and horizontal frequencies.
5. Click the [OK] button to close the window, and click the [OK] button of the <Display Properties> window to close the window.
The computer may restart automatically.
6. Shut down the PC and connect to the projector.
•Process might vary depending on your type of computer or Windows version.
(For example, [Properties] appears instead of [Properties (R)] as shown in 1.)
•This product supports up to 32 bits per pixel when it is used as a PC monitor.
•Projected images may differ from the monitor depending on the monitor manufacturer or Windows versions.
•For connecting it to your PC, you must set your PC display properties to the values supported by the projector or <Mode
Not Supported> may be displayed.
2-9
Supported Display Modes
DISPLAY MODE
2-9
DISPLAY
FORMAT
HORIZONTAL
FREQUENCY
(KHZ)
VERTICAL
FREQUENCY
(HZ)
CLOCK
FREQUENCY(
MHZ)
POLARITY
(H/V)
IBM
640 x 350
70Hz
31.469
70.086
25.175
+/-
IBM
720 x 400
70Hz
31.469
70.087
28.322
-/+
VESA
DMT
640 x 480
60Hz
31.469
59.940
25.175
-/-
Installation and Connection
DISPLAY MODE
DISPLAY
FORMAT
HORIZONTAL
FREQUENCY
(KHZ)
VERTICAL
FREQUENCY
(HZ)
CLOCK
FREQUENCY(
MHZ)
POLARITY
(H/V)
-/-
MAC
640 x 480
67Hz
35.000
66.667
30.240
VESA GTF
640 x 480
70Hz
35.000
70.000
28.560
VESA
DMT
640 x 480
72Hz
37.861
72.809
31.500
-/-
VESA
DMT
640 x 480
75Hz
37.500
75.000
31.500
-/-
VESA CVT
720 x 576
60Hz
35.910
59.950
32.750
-/+
VESA
DMT
800 x 600
56Hz
35.156
56.250
36.000
+/+
VESA
DMT
800 x 600
60Hz
37.879
60.317
40.000
+/+
VESA GTF
800 x 600
70Hz
43.750
70.000
45.500
VESA
DMT
800 x 600
72Hz
48.077
72.188
50.000
+/+
VESA
DMT
800 x 600
75Hz
46.875
75.000
49.500
+/+
MAC
832 x 624
75Hz
49.726
74.551
57.284
-/-
VESA
DMT
1024 x 768
60Hz
48.363
60.004
65.000
-/-
VESA
DMT
1024 x 768
70Hz
56.476
70.069
75.000
-/-
VESA GTF
1024 x 768
72Hz
57.672
72.000
78.434
VESA
DMT
1024 x 768
75Hz
60.023
75.029
78.750
+/+
VESA CVT
1152 x 864
60Hz
53.783
59.959
81.750
-/+
VESA GTF
1152 x 864
70Hz
63.000
70.000
96.768
VESA GTF
1152 x 864
72Hz
64.872
72.000
99.643
VESA
DMT
1152 x 864
75Hz
67.500
75.000
108.000
+/+
MAC
1152 x 870
75Hz
68.681
75.062
100.000
-/-
VESA CVT
1280 x 720
60Hz
44.772
59.855
74.500
-/+
VESA GTF
1280 x 720
70Hz
52.500
70.000
89.040
VESA GTF
1280 x 720
72Hz
54.072
72.000
91.706
VESA CVT
1280 x 720
75Hz
56.456
74.777
95.750
-/+
VESA
DMT
1280 x 768
60Hz
47.776
59.870
79.500
-/+
VESA
DMT
1280 x 768
75Hz
60.289
74.893
102.250
-/+
VESA
DMT
1280 x 800
60Hz
49.702
59.810
83.500
-/+
VESA
DMT
1280 x 800
75Hz
62.795
74.934
106.500
-/+
Installation and Connection
2-9
DISPLAY MODE
DISPLAY
FORMAT
HORIZONTAL
FREQUENCY
(KHZ)
VERTICAL
FREQUENCY
(HZ)
CLOCK
FREQUENCY(
MHZ)
POLARITY
(H/V)
+/+
VESA
DMT
1280 x 800
60Hz
60.000
60.000
108.000
VESA GTF
1280 x 960
70Hz
69.930
70.000
120.839
VESA GTF
1280 x 960
72Hz
72.072
72.000
124.540
VESA CVT
1280 x 960
75Hz
75.231
74.857
130.000
-/+
VESA
DMT
1280 x 1024
60Hz
63.981
60.020
108.000
+/+
VESA GTF
1280 x 1024
70Hz
74.620
70.000
128.943
VESA GTF
1280 x 1024
72Hz
76.824
72.000
132.752
VESA
DMT
1280 x 1024
75Hz
79.976
75.025
135.000
+/+
VESA
DMT
1440 x 900
60Hz
55.935
59.887
106.500
-/+
VESA
DMT
1440 x 900
75Hz
70.635
74.984
136.750
-/+
VESA
DMT
1600 x 1200
60Hz
75.000
60.000
162.000
+/+
VESA
DMT
1680 x 1050 RB
60Hz
64.674
59.883
119.000
+/-
VESA
DMT
1680 x 1050
60Hz
65.290
59.954
146.250
-/+
VESA CVT
1920 x 1080RB
60Hz
66.587
59.934
138.500
+/-
VESA
DMT
1920 x 1200 RB
60Hz
74.038
59.950
154.000
+/-
2-10 Connecting the Power
2-10
Installation and Connection
1. Plug the power cord into the power terminal on the rear side of the projector.
2-11 Connecting a DVD player/Cable/Satellite Box to HDMI/DVI
1. Connecting using an HDMI/DVI cable
•
Connect the [HDMI 1/DVI IN] terminal on the back of the projector and the DVI output terminal of the DVD player/Cable/
Satellite box using an HDMI/DVI cable.
Connecting using an HDMI cable
•
Connect the [HDMI 1/DVI IN] or [HDMI IN 2] terminal on the back of the projector and the HDMI output terminal of the DVD
player/Cable/Satellite box using an HDMI cable.
2. When the connection is finished, connect the power of your projector and DVD player/Cable/Satellite box.
Using the Projector
1. Turn on the projector and press the [HDMI] button to select <HDMI1> or <HDMI2>.
•
This projector does not support sound. (Separate audio system is needed for sound.)
2-12 Connecting a DVD player/Cable/Satellite Box via Component
1. Connect the [COMPONENT IN (Y/PB/ PR)] input port at the back of the projector to the Component port at the back of the
DVD player/Cable/Satellite box with a Component cable.
2. When the connection is finished, connect the power of your projector and DVD player/Cable/Satellite box.
Using the Projector
1. Turn on the projector and press the [COMP] button to select <Component>.
Component Ports are marked as (Y/PB/PR), (Y, B-Y, R-Y) or (Y, Cb, Cr), depending on the manufacturer.
Installation and Connection
2-11
2-13 Connecting to VCR/Camcorder
1. Connect [VIDEO IN(yellow)] input port of the projector to the VIDEO (yellow) OUT port of video equipment using a video
cable.
If the video equipment has S-VIDEO OUT port, connect it to [S-VIDEO IN] input port of the projector.
Using the S-VIDEO connection provides a higher visual quality.
2. When finishing connecting the devices, connect the power of the projector and the VCR/Camcorder.
Using the Projector
1. Turn on the projector and press the [Video] button to select <Video>.
or
Press the [S-VIDEO] button to select <S-Video>.
2-13
•
Check that the projector and the video equipment are turned off before connecting cables.
•
This projector does not support sound. (Separate audio system is needed for sound.)
Installation and Connection
3
Using
3-1
Product Features
•
Optical engine with advanced DLP technology
•Full 1920x1080 HD panel.
•6 segment color wheel to implement optimal colors.
•220W Lamp designed to improve luminance
•
Vivid colors
•Quality picture tuning focused on improving color - this unit aims at realizing color coordinates that meet broadcasting standards on
video production.
•
Minimized fan noise and light leakage
•The airflow and fan installation structure are optimized to minimize fan noise and beam leakage.
•
Various Input Ports
•Abundant input terminals are available, such as two HDMI (supporting HDCP) terminals and a component terminal, etc., to
enhance connectivity with peripheral devices.
•
User adjustments
•This unit allows adjustment of each input port.
•The unit has a reference pattern that can be used for positioning and adjustment.
3-2
Using
Front, Upper
3-1
NAME
DESCRIPTION
1.Indicators
- STAND BY (Blue LED)
- LAMP (Blue LED)
- TEMP (Red LED)
Refer to the LED Indications.
2. Focus Ring
Used for Focus Adjustment.
3. Remote Control Signal
Receiver
-
4. Lens
-
5. Adjustable Feet
You can adjust the screen position by moving the adjustable feet up and down.
6. Zoom Knob
Used to enlarge or reduce image size.
7. POWER (
) Button
Used to turn the projector on or off.
8. SOURCE Button
Use this button to select the external device signal.
9. MENU Button
Used to display Menu Screen.
10. Move
button
/ Select
/
: Use this button to move to or select an item within a menu.
•The buttons on the top of the projector are touch buttons. Touch them lightly with your fingers to use them.
3-2
Using
3-3
Remote Control
1. ON Button (|)
Used to turn on the projector.
2. AUTO Button
Adjusts the Picture automatically. (Available in < PC> Mode Only)
3. MENU Button (
)
Used to display the Menu Screen.
4. Move (
)/ ( ) Button
Used to move to or select each menu item.
5. V. KEYSTONE Button (
)
Use this when the screen is displayed in a trapezoid shape.
6. VIDEO Button
Used to switch to <VIDEO> Mode.
7. S-VIDEO Button
Used to switch to <S-VIDEO> Mode.
8. P.SIZE Button
Used to adjust the size of picture screen.
9. COMP Button
Used to switch to <COMPONENT> Mode.
10. OFF Button ( )
Used to turn off the projector.
11. RETURN Button ( )
Returns to the previous menu.
12. EXIT Button (
)
Used to make Menu Screen disappear.
13. INFO STILL Button
INFO: Used to check source signals, picture setup, PC screen
adjustment and lamp lifespan.
STILL: Used to see still images.
14. HDMI Button
Used to switch to <HDMI> Mode.
15. INSTALL Button
Used to flip or reverse the projected image.
16. P.MODE Button
Used to select Picture Mode.
17. PC Button
Used to switch to <PC> Mode.
Make sure to place your remote control on a table or desk.
If you step on the remote control, you may fall and hurt
yourself or the product may be damaged.
You can use the remote control up to a distance of about 23
feet(7 m) from the product.
Using
3-3
3-4
LED Indications
LED Indications
:Light is On
STAND BY
:Light is Blinking
LAMP
:Light is Off
TEMP
INFORMATION
If you press the POWER button on the remote control or projector, the screen
appears within 30 seconds.
The projector is in normal operating condition.
This state appears when the projector is preparing an operation after the
POWER button on the projector or the remote control has been pressed.
The POWER button is pressed to turn off the projector, and the cooling system
is in operation to cool off the inside of the projector. (Lasts for about 1 minute)
Refer to Action 1 below if the cooling fan inside the projector is not in normal
operation condition.
Refer to Action 2 below if the lamp cover protecting the lamp unit is not closed
properly.
Power is turned off automatically when temperature inside of the projector goes
beyond the control limit. Refer to Action 3.
A problem has occurred when operating the IC in the product. Refer to Action 4.
A problem has occurred with the operation of the lamp. Refer to Action 5.
The lifetime of the lamp has expired. Refer to Action 6.
The memory in the product is not operating normally. Contact a Service Center.
The power for the product is not operating normally. Contact a Service Center.
A problem has occurred when operating the color wheel in the product. Refer to
Action 4.
Clearing Indicator Problems
3-4
Using
CLASSIFICA
TION
STATE
MEASURES
Action 1
When the cooling fan system is
not in normal operating condition.
If the symptom remains even after disconnecting and then reconnecting
the power cord and turning the projector on again, contact a Samsung service center.
Action 2
When the lamp cover protecting
the lamp unit is not properly
closed or the sensor system is
not in normal operating condition.
Check whether the screws at the bottom side of the projector are fastened
correctly. If they are abnormally fastened, contact a Samsung service center.
Action 3
When temperature inside of the
projector becomes too high.
Adjust the installation state of your projector by referring to the Installation
Precautions section listed above. Cool down your projector sufficiently and
then operate it again. If the same problem occurs continually, contact a
Samsung service center.
Action 4
No video
Disconnect and reconnect the power cord and start the projector again. If
the same symptom still occurs, contact a Samsung service center.
Action 5
The lamp malfunctions after
power turns off abnormally or
after powering on right after
turning off the projector.
Turn the power off, wait for a sufficient amount of cooling time and then
turn the power on to operate. If the same problem occurs continually, contact a Samsung service center.
Action 6
When the screen becomes
darker
Check the lamp usage time on the Information Display screen. If you need
to replace the lamp, contact a Samsung service center.
This Projector uses a cooling fan system to keep the unit from overheating. Operation of the cooling fan may cause noise,
which does not affect the product performance and is part of normal operation.
3-5
Using the Screen Adjustment Menu (OSD: On Screen Display)
The Screen Adjustment Menu (OSD: On Screen Display) Structure
MENU
Input
Setup
Option
Using
SUB-MENU
Source List
Edit Name
Mode
Size
Position
Digital NR
Color Pattern
Overscan
1080/24fps
Mode
Film Mode
Install
Lamp Mode
V-Keystone
Background
Test Pattern
PC
Color Standard
Factory Default
Language
Menu Position
Menu Transparency
Menu Display
Time
Auto Power On
Sleep Timer
LED Indicator
Buzz
Information
Black Level
3-5
3-5-1. Input
MENU
Source List
DESCRIPTION
You can select a device connected to the projector to display.
<HDMI1>- <HDMI2>-<Component>- <S-Video>-<Video>-<PC>
Edit Name
You can edit the names of devices connected to the projector.
•
<VCR>- <DVD>-<Cable STB>- <Satellite STB>-<PVR STB>-<AV Receiver>-<Game><Camcorder>-<PC>-<TV>-<IPTV>-<Blu-Ray>-<HD DVD>-<DMA>
To avoid experiencing a blank screen when connecting a PC, set <PC> in the <Edit Name>
menu.
3-5-2. Picture
3-5
Using
MENU
Mode
DESCRIPTION
Select a desired picture mode.
•<Mode>
•
<Vivid> : Select this mode for a more vivid picture.
•
<Dynamic > : Select this mode for a brighter and sharper picture than Standard Mode.
•
<Standard> : This is the picture mode optimized to the standard broadcast signal.
•
<Movie1>,<Movie2> : Optimize the picture for watching movies.
•
<User 1>,<User 2>,<User 3> : Select when you adjust the picture to suit your preference.
•<Contrast > : Used to adjust the contrast between the object and the background.
•<Brightness > : Used to adjust brightness of the entire picture.
•<Sharpness > : Used to adjust the sharpness of the picture.
You can not set in <PC> mode.
•<Color > : Used to adjust color lighter or darker.
You can not set in <PC> mode.
•<Tint> : Used to obtain more natural color of objects using Green or Red enhancement.
You can not set in <PC> mode.
•
<Color Temperature> : You can change tint of the entire screen to suit your needs.
•<Color Temperature>
•
<9300K> : The color temperature appropriate to very bright places such as a shop.
•
<8000K > : This color temperature is appropriate for very bright places and is the defaut
setting for Dynamic Picture Mode. The sharpness and brightness are emphasized.
•
<6500K > : This temperature is used for most video productions. It is the default setting for
Movie1, and may deliver the most precise tint.
•
<5500K > : Used to deliver optimal image quality for black-and-white films.
•<R-Gain >-<G-Gain >-<B-Gain >-<R-Offset >-<G-Offset >-<B-Offset >
•
<Gamma > : An image compensation function that controls the settings according to the video
properties.
•<Film >: The best setting for watching a film.
•<Video > : The best setting for watching a TV program.
•<Graphic >: The best setting when you have a PC connected.
•
<Save > : Used to save custom picture settings.
•<User1>-<User2>-<User3>
•
<Reset > : Restores the mode settings to the factory defaults.
•<OK>-<Cancel>
Size
You can select a screen size according to the type of scene.
<16:9>-<Zoom 1 >-<Zoom 2 >-<Wide Fit>-<Anamorphic>-<4:3>
Position
Using
•
In the <PC> mode, only the <16:9> and <4:3> modes are supported.
•
In the <HDMI1,2>(576p,480p,576i,480i resolutions) and
<Component>(576p,480p,576i,480i resolutions) modes, the <Wide Fit> mode is not
supported.
•
In the <Video> and <S-Video> mode, the <Wide Fit> and <Anamorphic> modes are not
supported.
Adjust the screen position if it is not aligned.
3-5
MENU
Digital NR
DESCRIPTION
When a dotted line is displayed or the screen shakes, you can view the picture with better visual quality by enabling Noise Reduction.
•
<Off >-<On>
You can not set in <PC> mode.
Black Level
If the picture seems too dark, you can set a brighter black level.
•
You can not set in <PC> mode.
•
The Black Level can only be selected in <Component>, <Video>, <S-Video>, <HDMI 1>
and <HDMI 2> modes.
For <Video>, <Component> and <S-Video> Modes
•
<0 IRE> : Default black level.
•
<7.5 IRE> : Set the black level so it is darker.
For <HDMI 1>, <HDMI 2> Modes
•
<Low > : Set the brightness standard for dark signals to a low setting.
If the input signal is an [HDMI-Video] type, unclear screens are displayed normally.
•
<Normal > : Set the brightness standard for dark signals to a high setting.
If the input signal is an [HDMI-PC] type, dark screens are displayed bright.
Color Pattern
You can filter the color of the entire screen according to your taste. Make optimal display settings for
movies.
You can not set in <PC> mode.
Overscan
•
<Off >: Shows the picture in the original color.
•
<Monochrome >: Shows the picture in black and white by filtering out all color signals.
•
<Red >: Shows the picture in red by filtering out the green and blue color signals.
•
<Green >: Shows the picture in green by filtering out the red and blue color signals.
•
<Blue >: Shows the picture in blue by filtering out the red and green color signals.
Using this function, you can cut the edge of the picture when unnecessary information or images
appear on the edge of the picture.
You can not set in <PC> mode.
•
1080/24 fps Mode
<Off >-<On>
This function displays the full [email protected] native HD signals which have 24 frames per second with
minimal scene distortion, as in a movie. Though the difference is small, this function implements the
highest screen quality.
You can adjust <1080p/24 fps Mode> mode in <HDMI 1>, <HDMI 2> and <Component>
modes only.
Film Mode
•
<Off >: Displays scenes where 24 frames are lengthened to 60 frames. Because of this process,
screen judder may be generated.
•
<On >: Displays scenes where 24 frames are lengthened to 48 frames. All scenes are displayed
regularly without any screen judder.
Using this function, you can set the display mode optimized for playing movies. <Film Mode> provides optimal display settings for movies.
Film Mode is only supported for <Video>, <S-Video> and <Component>(480i,576i).
•
3-5
<Off >-<On>
Using
3-5-3. Setup
Using
3-5
MENU
Install
Lamp Mode
DESCRIPTION
To tailor the picture to the installation location, you can invert the projected images vertically/horizontally.
•
<Front-Floor >: Normal Image
•
<Front-Ceiling >: Horizontally/Vertically Reversed Image
•
<Rear-Floor>: Horizontally Reversed Image
•
<Rear-Ceiling > : Vertically Reversed Image
Used to set the image brightness by adjusting the amount of light generated by the lamp.
<Theater >: This mode is for reducing the brightness of the lamp in dark environments to prevent glare when
viewing pictures. It also reduces the lamp power consumption, resulting in a decrease in the general
power output of the projector.
<Bright >: This feature increases the lamp brightness. You may hear increased fan noise in this
mode.
V-Keystone
If video scenes are distorted or tilted, you can compensate for this using the vertical Keystone function.
As the Vertical Keystone function compensates for screen distortions via software, we recommend
installing the projector so that no screen distortions occur in the horizontal and vertical directions,
rather than using the vertical keystone function.
Background
If there is no signal from a TV station or an external device connected to the projector, the screen will
have the Samsung logo or will turn blue or black. If there is a signal, the logo or color will disappear to
display normal pictures.
•
Test Pattern
<Logo > -<Blue > -<Black >
Generated by the projector itself. Utilized as standard to optimize the installation of the projector.
•
<Crosshatch > - You can check whether the picture is distorted or not.
•
<Screen Size > - You can refer to picture format sizes such as 1.78 : 1 or 1.33 : 1.
•
<Red> - Red Screen, only for color adjustment.
•
<Green > - Green Screen, only for color adjustment.
•
<Blue > - Blue Screen, only for color adjustment.
•
<White > - White Screen, only for color adjustment.
•
<6500K_White > - White Screen, brings out the white tones for a more real white.
The Red/Green/Blue colors of the test patterns are only for the color adjustment procedures, and may
not comply with the actual colors displayed during video playback.
PC
Eliminates or reduces noise that causes unstable screen quality, such as screen shaking. If the noise
is not removed using Fine Adjustment, adjust the frequency to the maximum and then perform Fine
Adjustment again.
Only activated in the PC environment. (Component signals are not supported)
Color Standard
Factory Default
3-5
•
<Auto Adjustment> : Used to adjust frequency and phase of PC screen automatically.
•
<Coarse > : Used to adjust frequency when vertical lines appear on PC screen.
•
<Fine> : Used to fine tune the PC screen.
•
<Zoom> : Used to extend PC screen from the center.
•
<Reset > : Using this function, you can reset the PC menu settings to the factory default settings.
You may adjust the color standard to suit the color standard of the input signal.
•
<HD> : High Definition, 1125 scan lines.
•
<SMPTE_C> : Standardized for Video Equipment by the Society of Motion Picture and Television
Engineers.
•
<EBU> : Regulations and standards for European Broadcasting Production and Technology,
standardized by the European Broadcasting Union.
Using this function, you can reset various settings to the factory default.
Using
3-5-4. Option
MENU
DESCRIPTION
Language
You can select the language used for the menu screen.
Menu Position
You can move Menu Position up/down/left/right.
Menu Transparency
You can set the transparency of menu.
•
Menu Display Time
You can set the display time of the menu.
•
Auto Power On
<5 sec> - <10 sec> - <30 sec> - <60 sec> - <90 sec> - <120 sec> - <Stay On >
If the power is supplied to the projector, it is turned on automatically without pressing the Power button.
•
Sleep Timer
<High> - <Medium> - <Low> - <Opaque>
<Off> - <On>
If there is no input signal for the specified time, the projector is turned off automatically.
(There must be no button input from the remote control or on the top of the projector for the specified
time.)
•
LED Indicator
Buzz
You can turn the LED indicators on your projector on or off according to your requirements.
•
<Off> : This mode disables the operating LED. However, the LED will come on regardless of the
LED setting when the power is turned on or off or when the projector is in an abnormal state.
•
<On> : This mode enables the operating LED so that it can display the current operating state of
the projector.
You can turn on or off the sound when pressing one of the buttons on your projector.
•
Information
Using
<Off> - <10 min> - <20 min> - <30 min>
<Off> - <On>
You can check external source signals, picture setup, PC picture adjustment.
3-5
4
Troubleshooting
4-1
Before Requesting Service
Please check the following before requesting After-Sales service. If the problem continues, please contact your nearest
Samsung Electronics Service Center.
Symptoms
Installation
and Connection
Menu and
Remote
Control
Troubleshooting
No Power.
Check the power cable connections.
I want to install my projector on the ceiling.
The ceiling installation support is sold separately. Contact your
local product distributor.
External Source can not be selected.
Be sure that the connection cable(s) is properly connected to
the proper port. If the device is not connected properly, it can
not be selected.
Remote control does not work.
Be sure that the proper external source is selected.
Check the remote control battery. If there is something wrong
with it, replace it with a new battery of the recommended size.
Be sure to aim the remote at sensor on the front or back of the
unit and at a distance of no more than approximately 23 feet(7
m). Remove any obstacles between your remote control and
the product.
Direct light from 3-way light bulbs or other lighting devices on
the remote sensor of the projector may affect the sensitivity
and cause the remote control to malfunction.
Check if the remote control battery compartment is empty.
Check whether the LED indicator on the top of the projector is
turned on.
I cannot select a menu.
4-1
Check if the menu is displayed in gray. A gray-colored menu is
unavailable.
Troubleshooting
Symptoms
Screen and
External
Source
Cannot see picture images.
Troubleshooting
Be sure that the power cord of the projector is connected.
Be sure that the proper input source is selected.
Check that the connectors are properly connected to the ports
at the back of the projector.
Check the Remote Control batteries.
Be sure that the <Color>, <Brightness> settings are not at their
lower limit.
Poor color.
Adjust the <Tint> and <Contrast>.
Images are not clear.
Adjust the focus.
Check that the projection distance is either too far or too near
to the screen.
Strange noise.
If a strange sound continues, contact our Service Center.
The operating LED is lit up.
Refer to Corrective Actions According to LED Indications.
Lines appear on screen.
Because noise may occur when using your PC, adjust the frequency of the screen.
No external device screen is displayed.
Check the operating status for the external device and check
whether the adjustment items, such as the Brightness and the
Contrast have been changed correctly in the <Mode> command screen of the Projector menu.
Only blue screen appears.
Be sure to properly connect the external devices. Check the
connection cables again.
Screen appears in black and white or odd
color./ screen is too dark or bright.
As mentioned above, check the adjustment items such as the
<Brightness>, <Contrast > and <Color> in the menu.
Check <Color Pattern> in the OSD menus.
If you want to restore various settings to their factory defaults,
run <Factory Default>from the menu.
Troubleshooting
4-1
5
More Information
5-1
Specifications
MODEL
Panel
Lamp
Size
16.5 mm / 0.65 inches
Resolution
FHD (1920x1080)
Manufacturer
Texas Instrument
Type
220 W UHP (Theater mode : 187 W)
Life Time
3,000 Hours
Manufacturer
Philips
Color
Resolution
SP-A600B
62.2 M (1920 x 1080 x 3 x 10bit)
Optimum resolution
1920 x 1080 @ 60 Hz
Maximum resolution
1920 x 1200 @ 60 Hz (Reduce Blanking)
Input video signal
Video, S-Video, Component, Analog PC, 2 x HDMI
Input synchronization signal
Separate H/V sync
Maximum Pixel Clock
162 MHz
Diagonal screen size
1016 ~7620 mm (40 ~ 300 inches)
Projection Range
1.3 m ~ 13 m (53.3 ~ 520.3 inches)
Power
Power Consumption
Less than 275 W
Voltage
110/220 Vac +/-10 %, 50/60 Hz +/-3 Hz
Noise
24dB(Theater)
Dimensions
343.1 mm(W) x 162.4 mm(H) x 347.2 mm(D) / 13.5 inches(W) x 6.4
inches(D) x 13.7 inches(H)
Weight
4.7 kg / 10.4 lbs
Key Features
User Environment
Brightness
1000 ANSI
Contrast
3000:1
Keystone
Vertical
Temperature and Humidity
Operating: Temperature 32 °F ~ 104 °F (0 °C ~ 40 °C),
Humidity (10 % ~ 80 %)
Storage : Temperature -4 °F ~ 113 °F (-20 °C ~ 45 °C) ,
Humidity (5 % ~ 95 %)
This Class B equipment is designed for home and office use. The equipment has been registered regarding EMI for
residential use. It may be used in all areas. Class A is for office use. Class A is for business while class B emits less
electromagnetic waves than class A.
The DMD Panel used in DLP Projectors consists of several hundred thousand micro mirrors. As with other visual display
elements, the DMD Panel may include a few bad pixels. Samsung and the DMD Panel manufacturer have a rigid, bad pixel
identification and limitation procedure in place and products will not exceed the maximum number of bad pixels set by our
standards. Rarely, non-displayable pixels may exist, however it does not affect the picture quality nor the lifespan of the
product.
5-1
More Information
5-2
RS-232C Command Table
Communication Format (Complies with the RS232C Standard)
•
Baud rate : 9,600 bps
•
parity : None
•
Data bits : 8, stop bit : 1
•
Flow Control : None
Serial Communication Protocol
1. Command Packet Structure [7bytes]
0x08
0x22
cmd1
cmd2
cmd3
value
•
A command packet consists of 7 bytes in total.
•
The two bytes 0x08 and 0x22 signify that the packet is for serial communication.
•
The following 4 bytes represent a pre-defined command that can be defined by the user.
•
The last byte is the checksum which checks the validity of the current packet.
•
Header [2 Byte]: Pre-defined values fixed to 0x08 and 0x22.
•
Cmd1 [1 Byte]: The first value of the code defined in the command list (Hexadecimal)
•
Cmd2 [1 Byte]: The second value of the code defined in the command list (Hexadecimal)
•
Cmd3 [1 Byte]: The third value of the code defined in the command list (Hexadecimal)
•
Value [1 Byte]: Input parameter for the command (Default: 0) (Hexadecimal)
•
CS [1 Byte]: Checksum (the 2’s complement of the sum of all the values except for the CS value.)
CS
2. Response Packet Structure [3 Bytes]
1. Success
0x03
0x0C
0xF1
0x0C
0xFF
2. Fail
0x03
•
When the received packet from an external device has a valid value, a Success packet is sent. Otherwise, a Fail
packet is sent.
•
A Fail packet is sent if:
•The received packet length is not equal to 7 bytes.
•The 2 byte packet header value is not equal to 0x08, 0x22.
•The check sum is incorrect.
•
Failure detection by an external device
•An external device classifies the packet as Fail if it does not receive a Success packet within 100ms.
•
Transmit the following control command to transmit one or more control commands if there was a successful response
for the previous transmission or there was no response in over 3 seconds.
•
While controlling the Projector using a Computer, you cannot check the Projector’ s status change using the Computer nor will it
be displayed on the Projector's screen. Transmit the INFORMATION command to display the current information on the
Projector's screen.
•
All the control commands apply to the input source and the Projector's status currently displayed.
More Information
5-2
Command Table
CONTROL ITEM
General
Input
Power
Source List
Power
HDMI
CMD1
Display OSD
0x00
CMD2
0x00
CMD3
0x00
1
Cancel
2
HDMI 1
0x0A
0x00
0x01
1
Component
0x02
0
S-Video
S-Video
0x03
0
Video
Video
0x04
0
PC
PC
0x05
0
CMD1
Vivid
0x0B
Dynamic
CMD2
CMD3
VALUE
0X00
0x00
0
0X00
0X00
1
Standard
2
Movie1
3
Movie2
4
User1
5
User2
6
User3
7
Contrast
0~100
0X01
0x00
(0~100)
Brightness
0~100
0X02
0x00
(0~100)
Sharpness
0~100
0X03
0x00
(0~100)
Color
0~100
0X04
0x00
(0~100)
Tint (G/R)
G50 / R50
0X05
0x00
(0~100)
Color Temperature
9300K
0x06
0x00
0
8000K
0x06
0x00
1
WB
Gamma
5-2
0
Component
CONTROL ITEM
Mode
0
OK
HDMI 2
VALUE
6500K
2
5500K
3
R-Offset
'-50~50
G-Offset
B-Offset
0x00
(0~100)
'-50~50
0x01
(0~100)
'-50~50
0x02
(0~100)
R-Gain
0x03
(0~100)
G-Gain
0x04
(0~100)
B-Gain
0x05
(0~100)
0x00
0
Film
0x07
0x08
Video
1
Graphic
2
More Information
CONTROL ITEM
Save
User1
User2
User3
CMD1
Display OSD
Digital NR
0x09
CMD3
0x00
Cancel
2
Display OSD
0x01
Overscan
1
Cancel
2
Display OSD
0x02
1
Cancel
2
16:9
0x0A
0x00
0
0x0B
0x00
0
Zoom1
1
Zoom2
2
Wide Fit
3
Anamorphic
4
4:3
5
Off
0x0C
0x00
0
1
0 IRE/NORMAL
0x0D
0x00
0
1
Off
0x0E
0x00
0
Monochrome
1
Red
2
Green
3
Blue
4
Off
0x0F
0x00
1080/24fps
Mode
Off
Film Mode
Off
0x10
0x00
On
(Continuous)
0
1
0x11
0x00
0
1
LEFT
0x12
0x00
RIGHT
(Continuous)
0
1
On
DOWN
Up
More Information
0
OK
On
Position
0
OK
7.5 IRE/LOW
Color Pattern
0
1
On
Black Level
VALUE
OK
Reset
Size
0x0B
CMD2
0
1
0x13
0x00
0
1
5-2
CONTROL ITEM
Setup
install
Lamp Mode
CMD1
Front-Floor
0x0C
CMD2
0x00
CMD3
0x00
1
Rear-Floor
2
Rear-Ceiling
3
Theater
V-Keystone
Test Pattern
PC
0x01
0x00
Logo
0x02
0x00
(0~100)
0x03
0x00
0
Blue
1
Black
2
Crosshatch
0x04
0x00
0
Screen size
1
Red
2
Green
3
Blue
4
White
5
6500K_Whit
e
6
Off
7
Auto Adjustment
UP
0x05
0x00
0
0x06
0x00
0
DOWN
Fine
UP
1
0x07
0x00
DOWN
Reset
X1
Display OSD
0
1
0x08
0x00
0
OK
1
Cancel
2
0x09
0x00
0
X2
1
X3
2
X4
3
LEFT
5-2
0
1
'-50~50
Coarse
Zoom
0
Front-Ceiling
Bright
Background
VALUE
0x0A
0x00
0
RIGHT
1
UP
2
DOWN
3
More Information
CONTROL ITEM
Setup
Color Standard
Factory
Default
Option
Language
Menu Position
Menu Transparency
Menu Display Time
More Information
HD
CMD1
0x0C
CMD2
0x0B
CMD3
0x00
VALUE
0
SMPTE-C
1
EBU
2
Display OSD
0x0C
0x00
0
OK
1
Cancel
2
English
0x0D
0x00
0x00
0
Deutsch
1
Nederlands
2
Español
3
Français
4
Italiano
5
Svenska
6
Português
7
Русский
8
中国语
9
中國語 (繁
體)
A
한국어
B
LEFT
0x01
0x00
0
RIGHT
1
UP
2
DOWN
3
High
0x02
0x00
0
Medium
1
Low
2
Opaque
3
5 sec
0x03
0x00
0
10 sec
1
30 sec
2
60 sec
3
90 sec
4
120 sec
5
Stay On
6
5-2
CONTROL ITEM
Option
Auto Power
On
OFF
Sleep Timer
OFF
CMD1
0x0D
CMD2
0x04
CMD3
VALUE
0x00
0
ON
1
0x05
0x00
0
10 min
1
20 min
2
30 min
3
LED Indicator
OFF
Buzz
OFF
0x06
0x00
0
ON
1
0x07
0x00
0
ON
1
Information
5-3
0x08
0x00
0
Contact SAMSUNG WORLDWIDE
•If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care
center.
NORTH AMERICA
U.S.A
1-800-SAMSUNG(726-7864)
http://www.samsung.com/us
CANADA
1-800-SAMSUNG(726-7864)
http://www.samsung.com/ca
MEXICO
01-800-SAMSUNG(726-7864)
http://www.samsung.com/mx
LATIN AMERICA
ARGENTINA
0800-333-3733
http://www.samsung.com/ar
BRAZIL
0800-124-421
http://www.samsung.com/br
4004-0000
CHILE
800-SAMSUNG(726-7864)
http://www.samsung.com/cl
COLOMBIA
01-8000112112
http://www.samsung.com/co
COSTA RICA
0-800-507-7267
http://www.samsung.com/latin
ECUADOR
1-800-10-7267
http://www.samsung.com/latin
EL SALVADOR
800-6225
http://www.samsung.com/latin
GUATEMALA
1-800-299-0013
http://www.samsung.com/latin
HONDURAS
800-7919267
http://www.samsung.com/latin
JAMAICA
1-800-234-7267
http://www.samsung.com/latin
NICARAGUA
00-1800-5077267
http://www.samsung.com/latin
PANAMA
800-7267
http://www.samsung.com/latin
PUERTO RICO
1-800-682-3180
http://www.samsung.com/latin
REP. DOMINICA
1-800-751-2676
http://www.samsung.com/latin
5-3
More Information
LATIN AMERICA
TRINIDAD & TOBAGO
1-800-SAMSUNG(726-7864)
http://www.samsung.com/latin
VENEZUELA
0-800-100-5303
http://www.samsung.com/latin
EUROPE
AUSTRIA
0810 - SAMSUNG(7267864, € 0.07/min)
http://www.samsung.com/at
BELGIUM
02 201 2418
http://www.samsung.com/be (Dutch)
http://www.samsung.com/be_fr (French)
CZECH REPUBLIC
800 - SAMSUNG (800-726786)
http://www.samsung.com/cz
DENMARK
8 - SAMSUNG (7267864)
http://www.samsung.com/dk
EIRE
0818 717 100
http://www.samsung.com/ie
FINLAND
30 - 6227 515
http://www.samsung.com/fi
FRANCE
01 4863 0000
http://www.samsung.com/fr
GERMANY
01805 - SAMSUNG (7267864, € 0.14/Min)
http://www.samsung.de
HUNGARY
06-80-SAMSUNG(726-7864)
http://www.samsung.com/hu
ITALIA
800-SAMSUNG(726-7864)
http://www.samsung.com/it
LUXEMBURG
02 261 03 710
http://www.samsung.com/lu
NETHERLANDS
0900 - SAMSUNG (0900-7267864) (€ 0.10/
Min)
http://www.samsung.com/nl
NORWAY
3 - SAMSUNG (7267864)
http://www.samsung.com/no
POLAND
0 801 1SAMSUNG (172678)
http://www.samsung.com/pl
022 - 607 - 93 - 33
PORTUGAL
808 20 - SAMSUNG (7267864)
http://www.samsung.com/pt
SLOVAKIA
0800-SAMSUNG(726-7864)
http://www.samsung.com/sk
SPAIN
902 - 1 - SAMSUNG (902 172 678)
http://www.samsung.com/es
SWEDEN
075 - SAMSUNG (726 78 64)
http://www.samsung.com/se
SWITZERLAND
0848-SAMSUNG(7267864, CHF 0.08/min)
http://www.samsung.com/ch
U.K
0845 SAMSUNG (7267864)
http://www.samsung.com/uk
CIS
ESTONIA
800-7267
http://www.samsung.com/ee
LATVIA
8000-7267
http://www.samsung.com/lv
LITHUANIA
8-800-77777
http://www.samsung.com/lt
KAZAKHSTAN
8-10-800-500-55-500
http://www.samsung.com/kz_ru
KYRGYZSTAN
00-800-500-55-500
RUSSIA
8-800-555-55-55
TADJIKISTAN
8-10-800-500-55-500
UKRAINE
8-800-502-0000
http://www.samsung.ua
UZBEKISTAN
8-10-800-500-55-500
http://www.samsung.com/kz_ru
More Information
http://www.samsung.ru
5-3
ASIA PACIFIC
AUSTRALIA
1300 362 603
http://www.samsung.com/au
CHINA
800-810-5858
http://www.samsung.com/cn
400-810-5858
010-6475 1880
INDIA
HONG KONG:3698 - 4698
http://www.samsung.com/hk
3030 8282
http://www.samsung.com/in
1800 110011
1-800-3000-8282
INDONESIA
0800-112-8888
http://www.samsung.com/id
JAPAN
0120-327-527
http://www.samsung.com/jp
MALAYSIA
1800-88-9999
http://www.samsung.com/my
NEW ZEALAND
0800 SAMSUNG (0800 726 786)
http://www.samsung.com/nz
PHILIPPINES
1-800-10-SAMSUNG(726-7864)
http://www.samsung.com/ph
1-800-3-SAMSUNG(726-7864)
02-5805777
SINGAPORE
1800-SAMSUNG(726-7864)
http://www.samsung.com/sg
THAILAND
1800-29-3232
http://www.samsung.com/th
02-689-3232
TAIWAN
0800-329-999
http://www.samsung.com/tw
VIETNAM
1 800 588 889
http://www.samsung.com/vn
MIDDLE EAST & AFRICA
