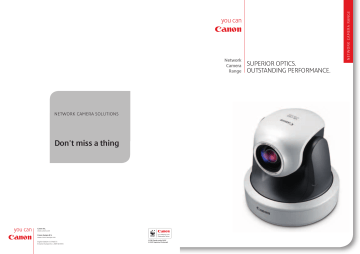

NETWORK CAMERA SOLUTIONS
Don't miss a thing
Canon Inc.
www.canon.com
Canon Europa N.V.
www.canon-europe.com
English Edition 0131W275
© Canon Europa N.V., 2009 (0109)
©1986 Panda symbol WWF
® WWF Registered Trademark
SUPERIOR OPTICS.
OUTSTANDING PERFORMANCE.
NETWORK CAMERA RANGE
Network
Camera
Range
Capability without Boundaries
Today, the need has never been greater for effective, reliable security.
That’s a given. And Canon Network Video Solutions certainly answer the
call. And yet, these products are so flexible and versatile in performance,
their capabilities extend beyond security surveillance and are utilised in
a host of industries and purposes, including:
• Remote monitoring for quality assurance at manufacturing
and retail locations
LAN INTERNET ENVIRONMENT
VB-C60
Router
Internet
• Web-based property observation applications for use by
hotel and resort guests
• Distance learning and other video sharing operations
Router
VB-C50iR
Web Server
@
Viewer PC
• Traffic reporting for broadcast by TV and municipalities
The possibilities are endless. Wherever there’s a need for dependable
capture, recording and distribution of video, Canon Network Video
Solutions deliver on all counts.
VB-C50FSi
Router
Viewer PC
Advanced Canon technology lets you maximise every opportunity. Our
Network Video Solutions are operated — on site or remotely — with
intuitive single-point-of-management convenience. They come fully
Web-enabled for easy networking across LAN or WAN environments.
And proprietary Canon breakthroughs like DIGIC NET allow for quality
video capture and streaming at full 30fps. These advances, and so many
more — like ingenious power options for reducing installation costs —
all make Canon your reliable, flexible, compatible choice for Network
Video Solutions.
Focused on Leadership
Looking for excellence in Network Video Solutions?
You’ve come to the right source. For over 70 years,
Canon’s heritage in optics and colour management have
remained unrivalled. Unlike other manufacturers, Canon’s
main focus is the optical sciences. We spend significant
R&D resources in cultivating growth in the five “imaging
engines” — image capturing, electrophotography, inkjet
printing, photolithography and displays — and these
exciting breakthroughs benefit every Canon product. Our
full line of Network Video Solutions is no exception. From
the creation of the incomparable Canon lens to Canon’s
high-accuracy colour management system, Canon optics
are best-of-breed. The image of perfection.
2
3
An Eye on Performance
At the heart of each Canon Network Video
Solution is a powerful Canon camera. These
models represent technology’s finest for
commercial and industrial applications. And
with world-class Canon engineering and
design, form and function come together to
achieve unparalleled results. Compact bodies
with stylish designs assure unobtrusive
installation. Super-wide-angle lenses,
enhanced by the industry’s most powerful
zooms plus auto-focus help you increase
clarity and coverage while deploying less gear.
Powerful software solutions put more control
in your hands. Our lineup of Network Video
Solutions covers every need.
VK Network Video Monitoring
& Recording Software
Canon offers software to accommodate the
needs of any size operation. For large-scale,
multi-location operations requiring the use
of up to 64 of our network cameras, choose
the VK-64. For smaller operations, our VK-16
software offers all of the same capabilities,
but does so for up to 16 network cameras.
Our VK-Lite software, which provides basic
monitoring for no more than four cameras,
comes bundled with VB-C60 and VB-C500D
models.
4
VB-C60
PTZ Network Camera
VB-C50i/R
PTZ Network Camera
VB-C300
Wide-Angle PTZ Network Camera
VB-C50FSi
Fixed Network Camera
VB-C500D
Fixed Dome Network Camera
Item Code: 2812B004AA
Item Code: VB-C50i 9781A008AA / VB-C50iR 9782A007AA
Item Code: 1867B002AA
Item Code: 0777B002AA
Item Code: 3934B003AA
The VB-C60 is an extremely flexible and
versatile camera, capable of capturing,
recording, and distributing video for a
wide range of purposes both indoors
and outdoors.
One of Canon’s most advanced network
cameras, the VB-C50i combines a
high-precision PTZ (pan, tilt, zoom)
camera and a built-in Web and FTP
server — all in one sleek, attractive,
compact unit. The VB-C50iR is the
ceiling-mounted version of the
VB-C50i.
The VB-C300 offers wide coverage and
superior image quality to meet the
needs of diverse applications. It’s ideal
for on-site or remote monitoring in
tight spaces as well as comprehensive
surveillance of large sites.
For monitoring applications that require
high image quality and clarity, the
VB-C50FSi is a powerful, cost-effective
solution. It’s ideal for securing building
entrances, ATMs, and other locations
that don’t require pan and tilt control.
Featuring a wide-angle varifocal lens, 2.4x
optical zoom and colour video recording in
light levels as low as 0.2 lux, the VB-C500D
is an ideal camera for fixed-mount security
monitoring applications.
•
•
•
•
• 26x Optical Zoom /12x Digital Zoom
• Fast, Pinpoint Auto-Focus
• Low-Light Sensitivity – Colour Imaging with Only
1 Lux Illumination
• PoE (Power over Ethernet)
• Motion Detection
• 10 Zoom Presets
• Built-In Network Camera Server
• Two-Way Audio Capability (with optional
VB-EX50)
• Viewer & Admin tools
• JPEG Streaming at Full 25fps
• PoE (Power over Ethernet), DC or AC
• Audio Playback
• 40x Optical Zoom — Industry’s Most
Powerful
• 56° Field-of-View Wide-Angle Lens
• Full 360° Horizontal Coverage with Extreme
Pan & Tilt
• Fast, Pinpoint Auto-Focus
• 3 Metering Modes – Centre-Weighted /
Average / Spot Metering
• Shutter Speed Priority AE
• Low-light sensitivity – Minimum Illumination
0.7 lux
• Auto Day and Night Mode
• 7 Levels of Exposure Compensation
• Motion Detection and Auto-Tracking
• Event-Based Notification by Email
• Powerful DIGIC NET Processor
• Two-Way Audio Capability
• Audio Playback
• IPv6 and Internet Protocol Security (IPsec)
• Image Upload via FTP, http or SMTP
• Simultaneous JPEG & MPEG-4 Video
• Multiple client streaming
• Streaming at Full 30fps
• Smart Shade Control
• Progressive Scan
• Viewer & Admin tools
• 3 User Authority Levels
• PoE (Power over Ethernet), DC or AC
• 26x Optical Zoom
• Low-Light Sensitivity — Colour Imaging with
Only 1 Lux Illumination
• High-precision Pan, Tilt and Zoom
• 3 Levels of Exposure Compensation
• JPEG Streaming at Full 25fps
• Audio Playback
• Fast, Pinpoint Auto-Focus
• Infrared Image Capture in Night Mode
• Motion Detection and Auto-Tracking
• Preset Tours For Auto-Movement through 20
Viewing Angles
• Built-In Network Camera Server
• Two-Way Audio Capability (with optional
VB-EX50)
• Viewer & Admin tools
•
•
•
•
•
•
•
•
•
•
•
•
70° Wide-Angle AF Lens
2.4x Optical Zoom / 4x Digital Zoom
Fast, Pinpoint Auto-Focus
Low-Light Sensitivity — Colour Imaging with
Only 1 Lux Illumination
Full 360° Horizontal Coverage with Extreme
Pan & Tilt
3 Levels of Exposure Compensation
JPEG Streaming at Full 30fps
PoE (Power over Ethernet), DC or AC
Progressive Scan
Auto Day and Night Mode
3 Metering Modes – Centre-Weighted /
Average / Spot Metering
Fast, Pinpoint Auto-Focus
Built-In Network Camera Server
Two-Way Audio Capability
Optional Dome Cover
Viewer & Admin tools
• Canon wide-angle varifocal 2.4x zoom lens
• Motion JPEG & MPEG-4 video up to 640 x 480
pixels
• Progressive scan CCD, up to 30 fps
• Colour video in low light, down to 0.2 lux
• Automatic Digital Night Mode
• Power over Ethernet
• Full-duplex audio
5
Versatile Features for Viewing Excellence
These features are shared by many of our Network Video Solutions. Be sure to refer to the chart in the back for a detailed listing of specifications.
GENUINE CANON OPTICS
IMAGING TECHNOLOGY
Industry’s Most Powerful Zooms
With all of our network cameras, you get
the superior optics that have become
synonymous with the Canon brand. For
optimal monitoring and recording of key
moments and details at faraway distances,
we offer a wide range of zoom lenses on
our network cameras, from the powerful
26x on the VB-C50i/R and VB-C50FSi, to the
industry’s most powerful 40x on the VB-C60.
Smart Shade Control
If the background of an
image is too bright to discern
the main subjects, you can
adjust the contrast of the
darker areas to make it easier to see. Unlike
backlight compensation, Smart Shade Control
adjusts darker areas of the image while maintaining the brightness of the brighter areas, so
the background image remains clear without
being “blown-out.”
Three Metering Modes
In order to more accurately set camera exposures, Canon offers three selectable metering
modes for measuring the brightness (amount
of light) of subjects — a first in this class of
network cameras. Choose from “Average”,
“Center-Weighted” or “Spot”, depending on
given conditions.
VB-C60
Industry’s Widest Lenses
Featuring the industry’s widest angle
lenses for PTZ network video cameras,
Canon cameras have horizontal fields of
view ranging from 56° on the VB-C60 to
an astonishing 82° on the VB-C500D. The
broadened visibility offered by these wide
lenses ensures expanded monitoring of your
location site.
Progressive-Scan CCD Video
Progressive-Scan CCD technology allows for
the capture of noiseless, high-quality video
of moving subjects. Genuine Canon optics
combined with high-sensitivity CCD provides
optimal contrast, and primary-color CCD also
delivers excellent colors and tonal quality,
even in low light.
Multi-Level Exposure Compensation
For automatic exposure compensation, Canon
technology offers distinct levels of correction ranging from three with the VB-C50i/R,
VB-C300, to seven with the VB-C60 and
VB-C500D. In addition to positive correction
for backlit situations, select models provide
negative correction, as well, for overly bright
conditions. The installer can also set the white
balance and the light source to perfectly
match the environment.
VB-C60, VB-C300, VB-C500D
VB-C60, VB-C300, VB-C500D
VB-C60, VB-C50i/R, VB-C300, VB-C50FSi, VB-C500D
Auto Focus
Canon’s Auto Focus system achieves smooth
and immediate focus while maintaining
edge-to-edge tonal accuracy and clarity
throughout the entire zoom range. The
VB-C60 is equipped with an advanced Auto
Focus feature that accomplishes this even
faster.
Image Stabilization
Canon’s Image Stabilization feature effectively
works to compensate for image blur caused
by shaking of camera when mounted on ceilings, poles, or other places subject to vibration.
Shutter Priority Auto Exposure
This function allows you to select a desired
shutter speed, and the camera will then set
the matching aperture value for the proper
exposure. If you change the shutter speed, or
the light level changes, the camera adjusts
the aperture value automatically. This is ideal
for fast-moving subjects, such as cars in
motion, where setting a faster shutter speed
will ensure blur-free capture.
VB-C60, VB-C50i/R, VB-C50FSi
VB-C60, VB-C500D
VB-C60
VB-C60, VB-C50i/R, VB-C300, VB-C50FSi, VB-C500D
Exceptional Low-Light Performance
Canon’s bright lenses combined with highsensitivity CCD technology, as well as Canon’s
proprietary imaging engine, all work together
to provide clear visibility of subjects and
surroundings even in low-light conditions.
In fact, the VB-C500D provides clear colour
images in just 0.2 lux of available light, and
the VB-C50i/R, VB-C300 and VB-C50FSi in
1 lux.
VB-C60, VB-C50i/R, VB-C300, VB-C50FSi, VB-C500D
Auto Day/Night Capability
The Auto Day/Night feature switches settings
automatically when needed for dark nighttime conditions. You can select up to five
different brightness levels for Auto Day/Night
switching, delivering more options for a wider
range of environments. Select models are
equipped with infrared technology, which
allows for exceptional night-time capture.
Day/Night switching is done manually on the
VB-C50i/R and VB-C50FSi.
VB-C60, VB-C300, VB-C500D
SMART SHADE CONTROL
*The VB-C50i/R has a pan range of ±100º.
Image Upload & E-mail Notification
When a subject’s motion is detected, or if
an external sensor is triggered, the VB-C60,
VB-C500D, VB-C50i/R, and VB-C50FSi can
automatically send the images to any desired
location via e-mail – -even to a mobile phone,
PDA, or other portable e-mail address. The
VB-C60 can also be set to upload these
images to a website. With all four cameras,
pre-recorded audio can be set to playback on
site.
VB-C60, VB-C50i/R, VB-C300, VB-C50FSi, VB-C500D
VB-C60, VB-C50i/R, VB-C50FSi, VB-C500D
Motion Detection
with Subject Auto-Tracking
Motion detection capability enables you to set
up to four motion detection areas, each with
varying levels of sensitivity. When subject
motion (a change in pixels) is detected, the
camera can be set to pan and tilt to follow the
subject’s movement. Pre-recorded audio can
also be set to playback on cue. The VB-C50FSi
has motion detection capabilities without the
auto-tracking feature.
Multiple Audio Functions
Advanced audio features allow for realtime audio transmission, both to and from
an authorized network PC. Full duplex,
two-way audio allows administrators who
are logged into the Administration Viewer
interface to listen in on a camera site, make
announcements to that scene, or do both at
the same time. Pre-recorded audio can also
be set to play back when triggered by an
event, such as motion detection. An optional
adaptor is needed to accomplish this with the
VB-C50i/R and VB-C50FSi.
PTZ – Pan/Tilt/Zoom
PTZ capability moves the camera right-toleft and up-and-down, making it easy to
adjust the angle of view. In many cases, this
expands coverage to a full 360º horizontal
field of view (pan range ±170º).* The
camera’s viewing angle can be easily adjusted
via software, and images remain exceptionally
clear and blur-free during PTZ movement.
VB-C60, VB-C50i/R, VB-C300,
Sensor & Alarm Trigger
The VB-C60, VB-C300 and VB-C500D
are equipped with built-in terminals for
connecting various external devices such
as sensors and alarms. An optional adaptor
is needed to perform this function with the
VB-C50i/R and VB-C50FSi.
VB-C60, VB-C50i/R, VB-C50FSi, VB-C500D
VB-C60, VB-C300, VB-C500D
VB-C60, VB-C500D
INDUSTRY’S MOST POWERFUL ZOOMS
CAMERA CONTROL &
FUNCTIONALITY
AUTO DAY/NIGHT CAPABILITY
IMAGE STABILIZATION
E-MAIL >>> ALARM
Motion detection and alarm
features may notify you of an
event via PDA or cell phone.
26x zoom
40x (maximum) zoom
Original
Smart Shade Control
Original
Image Stabilization
Original
Low-light Performance
PROGRESSIVE-SCAN CCD VIDEO
1x wide angle
6
Interlaced Scan
Progressive Scan
7
BUNDLED SOFTWARE
DATA ENCODING &
TRANSMISSION
Powerful DIGIC NET Processor
DIGIC NET is a powerful, proprietary,
hardware-based compression engine that
performs all image processing and encoding.
Many cameras process or encode images via
PC software, which expends extensive CPU
capacity and results in lowered frame rate.
With DIGIC NET, each step of the imaging
process — capturing, processing, encoding
and transmitting — uses virtually zero CPU
capacity.
Simultaneous Data Distribution
With simultaneous data distribution, image
capture can be delivered in both M-JPEG
and MPEG-4 video, and in high-quality VGA
size (640 x 480 pixels), all at the maximum
frame rate of 30fps. The high-image quality
of M-JPEG video is ideal for live monitoring,
while the MPEG-4 format is better suited for
recording, due to its smaller file size and
lighter network load. Up to 30 simultaneous
users can access and view video images at
the same time.
VB-C60, VB-C500D
VB-C60, VB-C500D
POWERFUL DATA TRANSMISSION CAPABILITIES
Multi-Streaming
Cameras with the multi-streaming feature
can distribute JPEG images in three sizes
simultaneously. The smallest size, 160 x
120, is used for cell phones or PDAs. The
320 x 240 middle size proves useful when
monitoring multiple cameras on a single
screen. And the larger size, 640 x 480, is
ideal for storing high-resolution images.
VB-C60, VB-C50i/R,, VB-C50FSi, VB-C500D
Recorded Stream Functionality –
Only available with Canon
In addition to basic live video streaming,
Canon lets you stream recorded video. This
feature is useful when recorded images
are viewed after the fact (rather than live),
because it greatly minimises the chance of
experiencing dropped frames due to data
transmission interruptions caused by network
congestion. This feature lets the camera
buffer, save, and restore missing frames
(up to 10fps, up to 1 minute) when the
congestion is alleviated. When recorded video
is later played back, all frames are included at
the proper frame rate.
Viewer and Administration Tools
The proprietary software engines that
drive Canon’s Network Video Solutions are
designed to maximise user control and to
customize camera operation, addressing the
unique surveillance and recording challenges
of every application. Canon offers a wide
range of software options to satisfy your
diverse image capture requirements. Some
come packaged with our cameras, and others
can be integrated separately.
VB-C60,VB-C50i/R, VB-C300, VB-C50FSi
• Panorama Image Creation Tool
This useful tool creates a single image that
displays the full field of view of the camera’s
capture area.
VB-C60, VB-C50i/R, VB-C300
• View Restriction Tool
Set restrictions on the pan/tilt/zoom range
(VB-C60 and VB-C50i/R) or zoom range
(VB-C50FSi) that is accessible by viewers.
• Preset Setting Tool
Administrator can appoint up to 20 preset
viewing angles. Once registered, clicking
on a preset automatically moves the
camera to a desired position for immediate
monitoring.*
• Viewer for Administrators
Features special privilege functions such
as exclusive access to camera control
functions, and external device and motion
detection operation.
VB-C60, B-C50i/R, VB-C300, VB-C50FSi
*The VB-C50FSi only offers 10 zoom presets.
VB-C60, VB-C50i/R, VB-C300, VB-C50FSi
• Schedule Setting Tool
Provides the ability to set up Timer, Motion
Detection, Night Mode, External Device
Input, and External Device Output services to
automatically perform on a specified day of
the week or at a certain time of day.
• NC Viewer
Permits viewing of live video images from
the network camera and features an easyto-use interface for controlling camera
functions such as PTZ. There are two
viewing modes, one for a regular user and
one for an administrator.
VB-C300
VB-C50i/R, VB-C50FSi
• Log Viewer
This function gives the Administrator
greater control by allowing for viewing and
searching of the camera activity log file.
VB-C60, VB-C50i/R, VB-C300, VB-C50FSi
• VK-Lite v2.0 Software
Gives administrator the ability to monitor,
record, and play back images from up
to four cameras on a single screen. This
software is included with the VB-C60.
VB-C60
• Preset Tour Capabilities
Lets administrator establish a tour of preset
locations with specified times and varying
intervals for the system to cycle through
VB-C60, VB-C50i/R, VB-C50FSi
VB-C60
VB-C60, VB-C50i/R
VB-C60
VB-C50i/R
MPEG-4*
QVGA
VB-C50FSi
JPEG
VB-C60 and VB-C500D
VGA
VB-C300
VGA
640x480
QVGA
320x240
QQVGA
160x120
*Only 1resolution at one time
SECURITY
CONNECTIVITY & INSTALLATION
IPsec Support
IPsec, or IP security, is a set of protocols for encrypting data streams
to secure IP communications. IPsec secures the data flow to and
from the camera, and permits access only to authorized users.
PoE (Power over Ethernet)
Canon’s Power over Ethernet (PoE) technology with IEEE802.3af
Compliance allows the use of a single LAN cable to both power the
camera and transfer video and audio data when connected to a PoE
midspan or switch. Because a power cable is not required, the camera
can be installed at sites without readily accessible AC outlets. And,
because PoE eliminates the cost of running expensive power cabling to
the device, installation costs are kept to a minimum.
VB-C60
User Access Restriction
User access restriction provides three levels of user access to
ensure maximum but customisable security. In addition to the
Administrator, who has control over the entire system, other users
on the system can be divided into registered (authorised) users
and general (anonymous) users. Each type of user has access to
different monitoring functions and camera controls as specified
by the Administrator. Since the general user level doesn’t require
registration, it is well-suited for Web casting applications.
VB-C60
VB ADMINISTRATION TOOLS
Schedule Setting Tool
Motion Detecting Setting Tool
Panorama Creation Tool
View Restriction Setting Tool
VB-C60, VB-C300, VB-C50FSi, VB-C500D
Built-in Reverse Camera Modes
The VB-C60 and VB-C300 have a built-in reverse mode, giving the
installer more flexible options for achieving optimal coverage when
working in challenging physical locations. The VB-C50i has a convenient
“R” version for reverse mounting. Canon also offers a host of mounting
options and accessories to facilitate installation for its entire line of
Network Video Solutions.
VB-C50i, B-C60, VB-C300
8
9
Smart Software: Brilliant Capabilities.
CUSTOMISABLE VIEWING SCREENS
VK-64 | NETWORK VIDEO MONITORING & RECORDING SOFTWARE
Camera
Selection Area
Item Code: 3099B001
For large-scale, multi-location operations in which you can utilise up to 64 Canon
network cameras, choose our VK-64 Network Video Monitoring & Recording Software. In
addition to a variety of easy-to-use image and camera control functions, you’ll find many
unique features that set Canon software apart.
Camera Control
Location
Zone
• Camera Control
Take control of each camera directly from the live video window, or use the convenient
camera control panel for quick and easy control.
Camera
Control
Panel
• Smart Shade Control
Smart Shade Control enables you to fine-adjust background brightness and contrast, so
you can see your main subjects more clearly in the foreground.
• Remote Monitoring & Recording
Using an IP network, you can record captured video from a remote camera server, and
then use this recorded content as a crucial off-site backup.
Event
Indicator
Live
Event
Display
Display
Area
Recording Settings
Extract
Video
Return
to Live
• Customisable Viewing Screens
Customise the quantity, size and placement of image windows in the image display
area to set up viewing formats that best suit your needs. (See image on page 11.)
• Simultaneous Image Display & Playback
With an SXGA monitor, up to 35 screens of live or recorded images can be displayed or
played back simultaneously.
Incremental
Time Controls
VK-16 | NETWORK VIDEO MONITORING & RECORDING SOFTWARE
Camera
Currently
Selected
Playback
Controls
Timeline
Event
Search
Timeline
Play Head
AUTOMATIC LAYOUT SWITCHING
Item Code: 3099B002
For smaller operations, there’s our VK-16 Network Video Monitoring & Recording
Software. It covers all the functionality of our VK-64 solution, but does so for up to 16
network cameras only.
Choose Canon
and Witness
the Difference.
VK-Lite | NETWORK VIDEO MONITORING & RECORDING SOFTWARE
Item Code: 3331B001
With setups requiring basic monitoring, recording and playback capability for no more
than four network cameras, Canon offers the VK-Lite Network Video Monitoring &
Recording Software. VK-Lite comes bundled with our VB-C60 camera.
Clear, crisp video capture for monitoring,
recording and playback. Superior camera and
image management for maximum system
performance. Remote or onsite viewing and
control of multiple images at once. Choose
Canon Network Video Solutions and witness
the difference yourself.
VK-64 / VK-16 RECORDING SOFTWARE
VK Viewer | NETWORK VIDEO & MONITORING SOFTWARE
Item Code: 1-license 3099B003 / 5-license 3099B004
For those that only require viewing capability, the VK Viewer displays exactly what you
need to see, allowing you to monitor several cameras on one screen. Size and arrange
multiple video windows for easy monitoring. Can also be used to access VK-64/16
storage servers.
VB-C60
VK-64/VK-16
Viewer
VB-C50i/R
CAPACITY CHART
NO. OF CAMERAS
IMAGE SIZE
FRAME SIZE
VB-C300
1
VK-64/VK-16
Recording Server
VB-C50Fi
VB-C50FSi
10
10
NETWORK TRAFFIC
STORAGE VOLUME
FPS
CAPACITY
1 DAY
1 MONTH
320x240
15kb
1fps
5fps
120kbps
600kbps
1GB
6GB
37GB
187G
640x480
50kb
1fps
5fps
420kbps
2Mbps
4GB
20GB
122GB
608GB
320x240
15kb
1fps
5fps
1.2Mbps
6Mbps
12GB
62GB
373GB
1,866GB
640x480
50kb
1fps
5fps
4Mbps
20Mbps
41GB
203GB
1,216GB
6,081GB
11
Extend System Value with
Flexible Options & Accessories.
Every application poses unique
installation and system integration
challenges, but Canon has
prepared for all contingencies
with an expansive set of options
and accessories. Talk about
flexibility. Installers will find all
they need and more to ensure
smooth, hassle-free, cost-efficient
installations – and that includes a
knowledgeable technical support
team that backs up every system.
EXPANSION BOX
VB-EX50
Multi Terminal Module
Item Code: 9783A003AA
ACCESSORY COMPATIBILITY CHART
WIDE CONVERTER
The Multi Terminal Module VB-EX50 enables
connection of various types of external devices
to the VB-C50i/R and VB-C50FSi.
• Audio In for microphone
• Audio Out for speakers
• Video In/Out (BNC) for analog video
cameras already in use
• External Sensor In/Out for sensors and
alarms
WL-37
Wide Converter Lens
Item Code: 4674A001AA
VB-C60
A wider angle of image capture can be
achieved by attaching the optional Wide
Converter WL-37 to the VB-C50i/ VB-C50FSi.
This option is useful when the camera is
installed too close to the area that requires
monitoring.
• Lens magnification: 0.74x
• Expands field-of-view to 65°
For safety reasons, this optional
item cannot be used with ceilingmounted models
Wide Converter Lens WL-37
Multi-Terminal Module VB-EX50
•
AC Adaptor PA-V17
AC Adaptor PA-V16
•
•
Indoor Recessed Dome (Smoked) VB-RD51S-S
Indoor Recessed Dome (Clear) VB-RD51S-C
VB-C50i
VB-C50iR
•
•
•
•
•
VB-C300
•
•
•
Indoor Recessed Dome (Clear) VB-RD41S-C
•
•
•
•
•
•
•
Recessed Mounting Kit SR500-S-VB
AC ADAPTORS
PA-V17
AC Adaptor
Item Code: 2245B001AA
I/O Interface cable WC500-VB
AC adaptor for the VB-C60, VB-C300 and
VB-C500D.
• Input: 100-240 V AC 50/60Hz
• Output: 13V DC 1.8 A (max.)
• Dimension: 2.28in. x 4.65in. x 0.98in. (W
x D x H)
• Weight: Approx. 0.47 lb.
PA-V16
AC Adaptor
Item Code: 6588A001AA
AC adaptor for the VB-C50i/R and VB-C50FSi.
• Input: 100-240 V AC 50/60Hz
• Output: 13V DC 1.8 A (max.)
• Dimension: 2.28in. x 4.65in. x 0.98in.
(W x D x H)
• Weight: Approx. 0.50 lb.
Power Interface Cable WC500-VB
Audio Interface Cable WA500-VB
MEASUREMENT CHART
CONNECTIVITY
VB-C50FSi
VB-C60
4.13”
2.13”
VB-C500D
•
•
Indoor Recessed Dome (Smoked) VB-RD41S-S
Ceiling Mount Cover SS60-B-VB
VB-C50FSi
Rear view of VB-C60
5.28”
105mm (4.13inch)
1.65”
VB-C50i
2.06”
1.94”
LINE IN/
MIC IN
Rear view of VB-C50i
VB-C500D
3.07”
CU1/4
5.35"
2.52"
Item Code: 2823B002AA
The optional ultra-compact clear dome
housing designed for the VB-C60 can be
used for indoor recessed ceiling installation.
The dome can help minimise the appearance
of the camera, and protect the camera from
dust. With a diameter of just 5.24 inches, the
new domes still allow for smooth full-range
PTZ movement. The clear dome is 100%
transparent.
• User Environment:
Temperature: 14 to 122°F
Humidity: 20 to 85% RH (no condensing)
• Dimensions:
Entire Unit: 8.27 x 7.01in. (D x H)
Dome Portion: 5.24 x 3.78in. (D x H)
• Weight: 1.151 lb. (excluding the camera)
4.32”
VB-RD51S-C
Indoor Dome
Housing (Clear)
142mm (5.60inch)
3.19”
The optional ultra-compact smoked dome
housing designed for the VB-C60 can be
used for indoor recessed ceiling installation.
The dome can help minimise the appearance
of the camera, and protect the camera from
dust. With a diameter of just 5.24 inches,
the new domes still allow for smooth fullrange PTZ movement. The smoked dome is
approximately 50% transparent compared to
the clear dome.
• User Environment:
Temperature: 14 to 122°F
Humidity: 20 to 85% RH (no condensing)
• Dimensions:
Entire Unit: 8.27 x 7.0in. (D x H)
Dome Portion: 5.24 x 3.7in. (D x H)
• Weight: 1.151 lb. (excluding the camera)
(10/100Mbps
Automatic Switching)
2.8”
71mm (2.80inch)
5.59”
142mm (5.59inch)
Item Code: 2823B001AA
LINE OUT
PoE
DOMES FOR VB-C60
VB-RD51S-S
Indoor Dome
Housing (Smoked)
External
Sensor
IN/OUT
DC In
Terminal
2.44”
5.86”
149mm (5.87inch)*
1.38”
54mm (2.13inch)
DC In
Terminal
Ethernet (10/100Mbps
Automatic Switching)
Multi-terminal
Input
Ø 0.16-0.18"
4.12”
2.06”
VB-C50iR
2.06”
Ø 3.74"
5.13”
4.33"
Rear view of VB-300
5.35”
4.72”
External
Sensor
IN/OUT
DC In
Terminal
5.13”
LINE OUT
3.15”
PoE
(10/100Mbps
Automatic Switching)
LINE IN/
MIC IN
DOMES FOR VB-C300
VB-RD41S-C
Indoor Dome
Housing (Clear)
Item Code:
2112B004AA
The optional ultra-compact clear dome
housing designed for the VB-C300 can be
used for indoor recessed ceiling installation.
The dome can help minimise the appearance
of the camera, and protect the camera from
dust. With a diameter of just 4.33 inches, the
new domes still allow for smooth full-range
PTZ movement. The clear dome is 100%
transparent.
• User Environment:
Temperature: 32 to 113°F
Humidity: 20 to 85% RH (no condensing)
• External Dimensions:
Entire Unit: 7.20 x 5.86in. (D x H
Dome Portion: 4.33 x 3.26in. (D x H)
• Weight: 0.82 lb. (excluding the camera)
Rear view of VB-C50FSi
VB-C300
3.41”
1.84”
4.82”
Item Code: 2112B001AA
The optional ultra-compact smoked dome
housing designed for the VB-C300 can be
used for indoor recessed ceiling installation.
The dome can help minimise the appearance
of the camera, and protect the camera from
dust. With a diameter of just 4.33 inches,
the new domes still allow for smooth fullrange PTZ movement. The smoked dome is
approximately 50% transparent compared to
the clear dome.
• User Environment:
Temperature: 32 to 113°F
Humidity: 20 to 85% RH (no condensing)
• External Dimensions:
Entire Unit: 7.20 x 5.86in. (D x H)
Dome Portion: 4.33 x 3.26in. (D x H)
• Weight: 0.82 lb. (excluding the camera)
DC In
Terminal
PoE (10/100Mbps
Automatic Switching)
3.57”
VB-RD41S-S
Indoor Dome
Housing (Smoked)
5.19”
2.52”
5.19”
Multi-terminal
Input
VB-EX50 Multi-Terminal
Multi-terminal
Input
Audio/IN
Microphone
Audio/OUT
Speaker
COVER FOR VB-C60
Video/IN
(BNC Terminal)
SS60-B-VB
Ceiling Mount Cover
Item Code: 3121B002AA
The SS60-B-VB ceiling mount cover is
designed to fit around the VB-C60. The
ceiling mount cover helps to minimize the
appearance of the camera.
• Dimensions: 7.72in. x 1.61in. (H)
• Weight: 0.598 lb. (excluding the camera)
(external camera
image input)
Video/OUT
(BNC Terminal)
Contact/IN x2
Contact/OUT x3
12
13
SPECIFICATIONS NETWORK CAMERAS
SPECIFICATIONS NETWORK VIDEO MONITORING & RECORDING SOFTWARE
Network Video Monitoring
& Recording Software
Network Cameras
VB-C60
VB-C50i / VB-C50iR
VB-C300
VB-C50FSi
VB-C500D
Product Class
IMAGE SENSOR
PTZ Network Camera
PTZ Network Camera
PTZ Network Camera
Fixed Network Camera
Fixed Dome Network Camera
Type
Number of Pixels
Scanning System
OPTICS
¼ inch CCD with primary colour filter
310,000 effective
Progressive
¼” CCD
400,000 effective
2:1 Interlaced
¼” CCD with primary colour filter
310,000 effective
Progressive
¼” CCD
400,000 effective
2:1 Interlaced
¼ inch CCD with primary colour filter
310,000 effective
Progressive
Zoom Magnification and
Control
Focal Length
Horizontal Field of View
Lens F-Number
Minimum Subject
Illumination
40x Powered Zoom Lens
26x Powered Zoom Lens
2.4x Powered Zoom Lens
26x Powered Zoom Lens
2.4x Powered Zoom Lens
3.4mm (wide) – 136.0mm (telephoto)
55.8° (wide) - 1.5° (telephoto)
f/1.6 – f/5.6
Day Mode: 0.7 lux (Colour, f/1.6 at 1/30 sec)*
Night Mode: 0.2 lux (Mono, f/1.6 at 1/30 sec)*
3.5mm (wide) – 91mm (telephoto)
41.0° (wide) - 2° (telephoto)
f/1.6 - f/4.0
Day Mode: 1 lux (Colour, at 1/30 sec shutter)
Night Mode: 0 lux (Mono, at 1/30 sec, IR
illuminator ON)
3.5mm (wide) – 91mm (telephoto)
41.0° (wide) - 2° (telephoto)
f/1.6 - f/4.0
Day Mode: 1 lux (Colour, at 1/30 sec shutter)
Auto / Manual / One-Shot AF / Fixed at Infinity
(for dome)
Day Mode: 0.3m – infinity / Night Mode:
0.5m - infinity
1/1 - 1/8000 sec
Auto / Manual Preset / Lock (One-Shot)
Day Mode, Night Mode (Auto / Manual /
Scheduled)
Centre-Weighted / Average / Spot Metering
-
Auto / Manual / Fixed at Infinity / Auto (Dome
Mode)
Day Mode: 0.01m – infinity / Night Mode:
0.02m - infinity
Auto / Manual Preset / Lock (One-Shot)
Day Mode, Night Mode (Manual / Scheduled)
2.6mm (wide) – 6.2mm (telephoto)
82.0° (wide) – 34.0° (telephoto)
f/1.1 – f/1.4
Day Mode: 0.2 lux
(Colour, f/1.1 at 1/30 sec, SSC on)**
Night Mode: 0.1 lux
(Mono, f/1.1 at 1/30 sec, SSC on)**
Manual
4 x Infrared LEDs, 3m effective range
3.0mm (wide) – 7.2mm (telephoto)
70.8° (wide) - 29.6° (telephoto)
f/2.0 - f/3.4
Day Mode: 1 lux
(Colour, at 1/30 sec shutter speed)
Night Mode: 0.25 lux
(Mono, at 1/30 sec shutter speed)
Auto / Manual / Fixed at Infinity / Auto (Dome
Mode)
Day Mode: 0.3m – infinity / Night Mode:
0.6m - infinity
Auto / Manual Preset / Lock (One-Shot)
Day Mode, Night Mode (Auto / Manual /
Scheduled)
-
Electronic (ON1 / ON2 / OFF)
-
Focus Control
Focusing Region
Shutter Speed
White Balance
Imaging Modes
Metering Modes
IR Illuminator Type and
Range
Image Stabilizer
SERVER UNIT
Video Compression
Method
Video Output Size
Frame Rate
Simultaneous Distribution
Audio Compression
Method
Supported Protocols
Auto / Manual / Fixed at Infinity / Auto (Dome
Mode)
Day Mode: 0.01m – infinity / Night Mode:
0.02m - infinity
Auto / Manual Preset / Lock (One-Shot)
Day Mode, Night Mode (Manual / Scheduled)
0.7m – infinity
1/1 - 1/8000 sec
Auto / Manual Preset / Lock (One-Shot)
Day Mode, Night Mode (Manual / Scheduled)
-
Centre-Weighted / Average / Spot Metering
-
-
-
-
Motion-JPEG (video), MPEG4, JPEG (still images) Motion-JPEG (video), JPEG (still images)
Motion-JPEG (video), JPEG (still images)
Motion-JPEG (video), JPEG (still images)
Motion-JPEG (video), MPEG4, JPEG (still images)
768 x 576 / 384 x 288 / 192 x 144 pixels
MJPEG: 640 x 480 / 320 x 240 / 160 x 120
(multicast) MPEG4: 640 x 480 / 320 x 240
(fixed size)
MJPEG: 0.1 fps - 30 fps (max) / MPEG4: 10 /
0.1fps - 25 fps (max)
15 / 30 fps
MJPEG: 30 clients max / MPEG4: 10 clients max 50 clients
G.711 μ-law (64Kbps), Full duplex
G.711 μ-law (64Kbps), Full duplex
640 x 480 / 320 x 240 / 160 x 120 pixels
768 x 576 / 384 x 288 / 192 x 144 pixels
0.1fps - 25 fps (max)
0.1fps - 25 fps (max)
5 clients at 25 fps / 15 clients (max) at 10 fps
G.711 μ-law (64Kbps), Full duplex
50 clients
G.711 μ-law (64Kbps), Full duplex
MJPEG: 640 x 480 / 320 x 240 / 160 x 120
(multicast) MPEG4: 640 x 480 / 320 x 240
(fixed size)
MJPEG: 0.1 fps - 30 fps (max) / MPEG4: 10 /
15 / 30 fps
MJPEG: 30 clients max / MPEG4: 10 clients max
G.711 μ-law (64Kbps), Full duplex
HTTP, DHCP, WV-HTTP (Canon)
TCP/IP, HTTP, DHCP, FTP, WebView (Canon)
TCP/IP, HTTP, DHCP, FTP, WebView (Canon)
IPv4 and IPv6: TCP/IP, UDP, HTTP, FTP, SNMP
(MIB2), SMTP (client), DHCP (IPv4 only), DNS
(client), ARP, ICMP, POP3, NDP (IPv6 only), NTP,
SMTP authentication, WV-HTTP (Canon)
IPv4 and IPv6: TCP/IP, UDP, HTTP, FTP, SNMP
(MIB2), SMTP (client), DHCP (client - IPv4 only),
DNS (client), ARP, ICMP, POP3, NDP (IPv6 only),
NTP (IPv4 only), SMTP authentication, WV-HTTP
(Canon)
Administrator, Authorised User, Guest User
Yes
6MB
Yes (HTTP / SMTP protocols)
Camera Access Levels
Motion Detection
Internal Memory Buffer
Event Notification
CONNECTORS
Administrator, Authorised User, Guest User
Yes
6MB
Yes (HTTP / SMTP protocols)
Yes (with Auto Tracking)
14MB
Yes (HTTP / SMTP protocols)
No
None
Yes (HTTP / SMTP protocols)
Yes
14MB
Yes (HTTP / SMTP protocols)
Network Interface
Composite Video Output
Audio Input (Line In)
RJ-45 Ethernet, 10/100TX Auto-Negotiation
3.5mm mini-jack
RJ-45 Ethernet, 10/100TX Auto-Negotiation
Via optional VB-EX50 Multi-Terminal Module
-
RJ-45 Ethernet, 10/100TX Auto-Negotiation
3.5mm mini-jack
3.5mm mini-jack
RJ-45 Ethernet, 10/100TX Auto-Negotiation
Via optional VB-EX50 Multi-Terminal Module
-
Audio Output (Line Out)
3.5mm mini-jack
Via optional VB-EX50 Multi-Terminal Module
3.5mm mini-jack
Via optional VB-EX50 Multi-Terminal Module
External Devices
Built-in 8-pin multi-connector: 2 x Inputs / 2
x Outputs
Via optional VB-EX50 Multi-Terminal Module
Built-in 6-pin multi-connector: 2 x Inputs /
1 x Output
Via optional VB-EX50 Multi-Terminal Module
RJ-45 Ethernet, 10/100TX Auto-Negotiation
Via optional Audio Interface Cable: 3.5mm
mini-jack
Via optional Audio Interface Cable: 3.5mm
mini-jack
Via optional I/O Cable: 2x Inputs, 2x Outputs
340° (-170º to +170º)
115° (Upright: -25° to +90° / Ceiling: -90°
to +25°)
Pan: 150° per sec / Tilt: 150° per sec
Power-driven insertion and removal (Day /
Night Modes)
20 presets (Pan, Tilt, Zoom)
VB-C50i: 200° / VB-C50iR: 340°
VB-C50i: 120° / VB-C50iR: 100°
340° (-170º to +170º)
115° (-25° to +90°)
-
-
Pan: 90° per sec / Tilt: 70° per sec
Power-driven insertion and removal (Day /
Night Modes)
20 preset positions (Pan, Tilt, Zoom)
Pan: 90° per sec / Tilt: 70° per sec
Power-driven insertion and removal (Day /
Night Modes)
20 preset positions (Pan, Tilt, Zoom)
Power-driven insertion and removal (Day /
Night Modes)
10 preset positions (Zoom only)
Manual Day / Night switching
VB-C50i: 105mm x 109mm x 130mm
VB-C50iR: 136mm x 111mm x 130mm
VB-C50i: 620g / VB-C50iR: 700g
No
132mm x 122mm x 130mm
66mm x 97mm x 134mm
136mm x 108mm x 148mm
780g / 975g with ceiling mounting hardware
Yes (Conforms to IEEE 802.3af)
480g
Yes (Conforms to IEEE 802.3af)
600g
Yes (Conforms to IEEE 802.3af)
100V – 240V AC, 50/60Hz (via supplied AC
Adaptor)
13V DC (via DC barrel connector)
-
100V – 240V AC, 50/60Hz (via optional AC
Adaptor)
12V DC or 24V AC (via supplied two-pin
connector)
Power over Ethernet (via RJ-45 connector)
10W Max (on PoE) / 13W Max (on AC Adaptor)
Temperature: -10°C to +45°C, Humidity: 20%
to 85%RH
100V – 240V AC, 50/60Hz (via optional AC
Adaptor)
13V DC (via DC barrel connector)
Power over Ethernet (via RJ-45 connector)
100V – 240V AC, 50/60Hz (via optional AC
Adaptor)
12V DC or 24V AC (via optional Power Interface
Cable)
Power over Ethernet (via RJ-45 connector)
3.3W Max (on PoE) / 3.5W Max (on AC Adaptor)
Temperature: -10°C to +50°C, Humidity: 20%
to 85% RH
Product Class
SUPPORTED EQUIPMENT
Compatible Network Cameras
Compatible Camera Servers
No of Storage Servers per client
No of Viewer sessions to Server
RECORDING SPECIFICATION
Number of Inputs
Resolution of Recorded Image
Recording Media
Maximum Supported Capacity
Frame Rate of Recorded Image
Selectable Recording Modes
VK-64 / VK-16
Network Video Recording Software
Canon VB-C60 / VB-C50i(R) / VB-C300 / VB-C500D / VB-C50FSi / VB-C50Fi / VB-C10 / VB-C10R
Canon VB150 / VB101
Maximum 3 Servers
Maximum 5 simultaneous viewers
Maximum 64 video inputs (VK-64)
Maximum 16 video inputs (VK-16)
192 x 144 pixels (min) - 768 x 576 pixels (max)
Hard Disk Drive (local)
9999 GB, subject to attached storage hardware
25 frames per second (max)
Scheduled, Sensor Event, Motion Detection
Pre-Event Recording (max 30 seconds at 25 fps)
Post-Event Recording (max 999 seconds at 25 fps)
DISPLAY - COMMON
Number of Video Windows
Layout Sequencer
Full Screen Video
Task Area
DISPLAY – VIDEO PLAYBACK
Playback while Recording
Monitoring while Recording
Rewind / Fast Forward Search
Search Options
Maximum 24 separate windows (XGA display required)
Supported
Supported
Can be shown or hidden as required
Yes: simultaneous playback and recording
Yes: watch live footage during recording
2x, 5x, 10x search speeds
Date and Time
Event Priority and Type
Location or Zone
DISPLAY – CONTROL
PTZ Camera Control
Preset Tour
Event Notification
External Device Output Control
IMAGE ENHANCEMENT
Supported on all compatible Canon Network cameras
Yes
Yes
Yes
Support for Night Mode
Yes, on compatible Canon Network cameras
Includes Infrared cut filter and on-board IR illuminator
3 levels
Yes
Video Playback – Yes
Monitoring Live Video – Yes
Backlight Compensation
Multi-streaming
Shade Correction
EXTRACTION FACILITIES
Video Export Formats
QuickTime ™ moving image file format (.MOV)
MECHANISMS
Pan Angle Range
Tilt Angle Range
Maximum Rotation Speed
Infrared Cut Filter
Preset Positions
RATINGS
Dimensions (W x H x D)
142mm x 149mm x 142mm
Weight
Power over Ethernet
Compatible
Power Sources
840g
Yes (Conforms to IEEE 802.3af)
Power Consumption
Operating Environment
100V – 240V AC, 50/60Hz (via optional AC
Adaptor)
12V DC or 24V AC (via supplied two-pin
connector)
Power over Ethernet (via RJ-45 connector)
10W Max (on PoE) / 13W Max (on AC Adaptor)
Temperature: -10°C to +50°C, Humidity: 20%
to 85% RH
14W Max
Temperature: 0°C to +40°C, Humidity: 20%
to 85% RH
12.95W Max
Temperature: 0°C to +40°C, Humidity: 20%
to 85%RH
-
* Use of the optional VB-RD41S-S ‘Smoked Indoor Recessed Ceiling Dome Housing’ with the VB-C300 increases the minimum required illumination to 2 lux in Day Mode and 0.5 lux in Night mode
** SSC = Smart Shade Control. Disabling this function increases minimum illumination requirements to 0.5 lux in Day Mode and 0.2 lux in Night mode
NOTICE ABOUT THE MPEG-4 VISUAL STANDARD: THIS PRODUCT IS LICENSED UNDER THE MPEG-4 VISUAL PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER TO (i) ENCODING VIDEO IN COMPLIANCE WITH THE MPEG-4 VISUAL STANDARD ("MPEG-4
VIDEO") AND/OR (ii) DECODING MPEG-4 VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION INCLUDING THAT RELATING TO PROMOTIONAL,
INTERNAL AND COMMERCIAL USES AND ADDITIONAL LICENSING MAY BE OBTAINED FROM MPEG LA, LLC. SEE HTTP://WWW.MPEGLA.COM.
Specifications are subject to change without notice. Weight and dimensions are approximate. Images are simulated. Canon and imageANYWARE are registered trademarks of Canon Inc. in the United States and may also be registered marks in other countries. Microsoft and Windows are either
registered trademarks or trademarks of the Microsoft Corporation in the United States and/or other countries. Other names and products not mentioned above may be registered trademarks or trademarks of their respective companies. Warning: Unauthorized recording of copyrighted materials
may infringe on the rights of copyright owners and be contrary to copyright laws.
14
15
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
