English

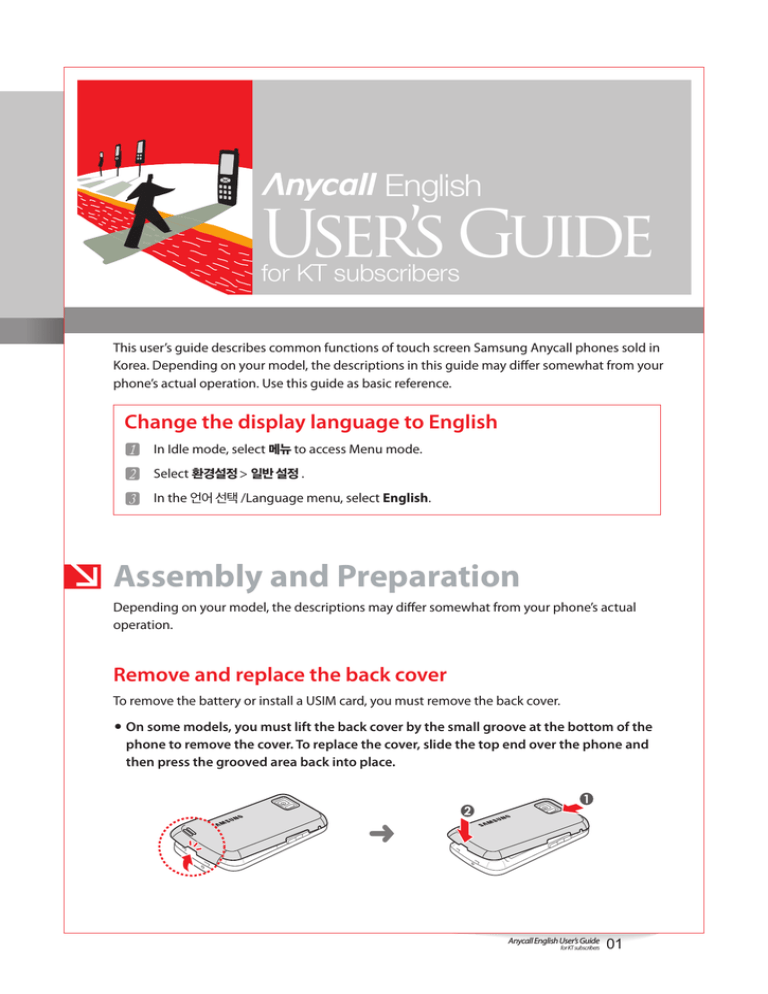

User’s Guide
for KT subscribers
This user’s guide describes common functions of touch screen Samsung Anycall phones sold in
Korea. Depending on your model, the descriptions in this guide may differ somewhat from your
phone’s actual operation. Use this guide as basic reference.
Change the display language to English
1 In Idle mode, select 메뉴 to access Menu mode.
2 Select 환경설정 > 일반 설정 .
3 In the 언어 선택 /Language menu, select English.
Assembly and Preparation
Depending on your model, the descriptions may differ somewhat from your phone’s actual
operation.
Remove and replace the back cover
To remove the battery or install a USIM card, you must remove the back cover.
●
On some models, you must lift the back cover by the small groove at the bottom of the
phone to remove the cover. To replace the cover, slide the top end over the phone and
then press the grooved area back into place.
➜
Anycall English User’s Guide
for KT subscribers
0
Assembly and Preparation
●
On some models, you must press the back cover to disengage it.
Example 1
➜
To remove the back cover, press down
on the center
of the cover and slide
it in the direction of the arrow.
To replace the cover, align the cover as
shown in the picture and then slide the
cover in the opposite direction of the
arrow, while pressing down the top
of the back cover.
Example 2
➜
To remove the back cover, press down
at the bottom of the back cover and
slide it in the direction of the arrow.
To replace the cover, align the cover as
shown in the picture and then slide the
cover in the opposite direction of the
arrow.
Install or remove a USIM card
Before using the phone, you should install the USIM card provided by KT. To install or remove a
USIM card,
1 Remove the back cover (see the previous section).
2 If necessary, remove the battery.
3 Insert the USIM card with the gold-coloured contacts facing the phone.
4 If necessary, replace the battery.
5 Replace the back cover.
Anycall English User’s Guide
for KT subscribers
0
Assembly and Preparation
Notes
●
A Universal Subscriber Identity Module (USIM) card is required to access advanced
wireless networks and services, such as WCDMA, WiBro, or World Phone. The USIM
subscriber is responsible for all call charges and services fees incurred while using
network services.
●
When you turn the phone on after first installing a USIM card, the phone will take about
1 minute to scan information stored on the card. During this time, you can make or
receive calls but you cannot access phone numbers or other data stored on the card.
This is not a malfunction of the USIM card and normal operation will resume soon.
●
When you insert a third party USIM card into the phone, you can use voice calling,
video calling, and text message functions, but cannot access some functions, including
wireless internet and multimedia messaging. For more details, contact KT.
Charge the battery
With a battery charger
If your phone includes a standard battery charger or a charging adapter and standard battery
charger,
1 If necessary, connect the charging adapter to your phone.
2 Connect the small end of the supplied standard charger to the phone or charging adapter
and the large end to a power outlet.
3 When the battery is fully charged (the light on the charger is green), unplug the charger
and remove the charging adapter (if necessary).
With a battery holder
If your phone includes a battery holder and charger,
1 Remove the battery from your phone.
2 Insert the battery into the battery holder. Ensure that the battery is inserted according to
the diagram on the battery holder.
3 Connect the small end of the supplied standard charger to the battery holder and the
large end to a power outlet.
4 When the battery is fully charged (the light on the charger is green), unplug the charger
and remove the battery from the battery holder.
Anycall English User’s Guide
for KT subscribers
0
Assembly and Preparation
Attach accessories
You can attach various accessories to the accessory loop of your phone, such as a charging
adapter, a stylus pen, or a DMB antenna.
●
On some models, you must remove the back cover to attach an accessory.
1 Remove the back
2 Slide the accessory strap through
cover.
●
the loop and over the small post.
Pull the accessory strap tight to
secure the accessory.
3 Replace the back
cover.
On some models, you can attach accessories without removing the back cover.
Slide the accessory strap through the accessory loop and back over the accessory.
Pull the strap tight to secure the accessory.
Note
Do not dangle or swing the phone by an attached accessory. Doing so may damage the
phone or the accessory.
Insert a memory card
You can insert a microSD or microSDHC memory card to store additional data or back up your
important information. Your phone may not support all makes of memory cards. To insert a
memory card,
1 Remove the back cover.
2 Insert the memory card into the memory card slot. Ensure that you insert the card
properly. Forcing the card into the slot improperly can damage your phone and the
memory card.
Note
The capacity of a memory card that is compatible with your phone may vary.
Anycall English User’s Guide
for KT subscribers
0
Getting started
Depending on your model, the descriptions in this guide may differ somewhat from your
phone’s actual operation.
Getting started
Turn the phone on or off
Press and hold
Note
to turn the phone on or off.
When the phone’s buttons are locked, you must first unlock the keys before you can turn
the phone off.
Keys
■ Answer or receive calls
■ Access the call log
■ Redial the last called number (press and hold)
■ Return to the previous menu
■ Turn the phone on or off (press and hold)
■ End a call
■ Adjust the volume of phone sounds
■ During an incoming call
/
- Adjust the volume of ringtone
- Silence the ringtone (press and hold)
■ During a call, adjust the call volume
■ When the keys are locked or the phone is closed (slider-type
phones), announce the current time (press and hold)
■ Lock or unlock keys (press and hold)
■ When the keys are locked, turn the display on or off
■ Activate the camera
■ In camera mode, press to take a photo
■ During an incoming call, reject the call (press and hold)
■ During a call, record the call (press and hold)
Anycall English User’s Guide
for KT subscribers
0
Display
Standby screen
When you first turn the phone on or the phone is idle, the Standby screen will appear.
Getting started
Menu screen
From the Standby screen, tap Menu to access the Menu screen.
Widgets screen
On the Widgets screen, you can access various kinds of widgets. To access the Widgets screen,
tap Widgets from the Standby screen.
Icons
The following icons may appear at the top of the display to indicate the status of phone
functions or the wireless network.
Icon
Description
Signal strength
Flight mode (network connection disabled)
No network service available
USIM card not installed
Missed call
Anycall SOS message feature activated
Audible sound profiles (Ringtone or Louder) activated
Text-to-speech sound profile (TTS Bell) activated
Dual alert sound profile (Ring After Vibration) activated
Silent sound profile (No Ring) activated
Etiquette mode (vibration only) activated
Alarm activated
New text message
New SOS message
New multimedia message
New voice message
New video message
Anycall English User’s Guide
for KT subscribers
06
Icon
Description
Keys are locked
Multi-task function activated
Bluetooth mode activated
Getting started
Wireless internet connected
Memory card inserted
Unrecognizable memory card inserted
Phone is locked
Key lock
The phone turns off the display and locks the keys automatically when the phone is idle for
some time. To unlock the keys, press and hold
.
Lock the phone
To protect your phone from unauthorized use, you can set a password and lock your phone. To
lock the phone,
1 From the Standby screen, tap Menu > Settings > Security.
2 Enter a password and tap OK.
3 In the Phone Lock drop-down menu, tap Manual (Press #) to set a lock option.
When you attempt to unlock your phone, you will be prompted to enter the password you
created.
Access menus or launch applications
Depending on your phone model, you can access menus or launch applications in various
ways.
From the menu bar on the Standby screen
If your phone has a menu bar on the Standby screen, you can tap the menu bar to access
functions or applications.
From the Menu screen
On the Standby screen, tap Menu to access functions and applications.
Anycall English User’s Guide
for KT subscribers
07
From a pop-up window
On some phones, you can tap the top of display on the Standby screen to open a pop-up
window. In the pop-up window, you can access functions or applications.
With widgets
Getting started
You can use widgets to easily access applications or functions by tapping Widgets from the
Standby screen. Open the widget tool bar and drag the widget to the Standby screen.
With the Cube
Some phones include the Cube launcher for accessing applications. To open the Cube launcher,
press and hold
. To launch an application or activate a function, spin the cube or tap the
appropriate icon at the bottom.
Enter text
Your mobile phone offers you various ways to enter text, such as tapping characters on the
virtual keypad or writing text directly on the touch screen. To change the text input method,
tap and hold Keypad and select one of the following options:
●
Keypad: Tap 가 or a/A to select a language and tap the corresponding keys on the virtual
keyboard to enter text. To switch to symbol mode, tap */1.
●
Box mode: Write individual characters in the input box.
●
Cont. mode: Write whole words in the input area.
●
Screen mode: Write your text anywhere on the screen.
Adjust volume or vibration level
While the phone is in idle mode, press
/
to adjust phone volume or vibration levels for
touch inputs, ringtones, message alerts, and alarms. To adjust the level, press
/ , drag
around the dial image, or tap a level on the dial image.
Change the ringtone
To change the type of incoming call alert and ringtone,
1 From the Standby screen, tap Menu > Settings > Sound Settings > Ring Tone Settings.
2 Set the Bell/Vibration, Bell Sound, and Volume.
3 When you are finished making changes, tap Save.
Anycall English User’s Guide
for KT subscribers
0
Set wallpaper for Idle mode
You can select wallpapers and set various options for the Standby or Widgets screens. To set
the wallpaper and change options,
1 From the Standby screen, tap Menu > Settings > Display Settings > Wallpaper.
Getting started
2 Set the options for various screens as desired.
Calling
Learn to make or answer a voice or video call.
Make or answer a video call
Make a video call
Video calling is available if the other party’s phone supports the feature. To make a video call,
1 From the Standby screen, tap Dial and enter a phone number.
2 Press
or
.
3 When the call is connected, point the camera lens at your face and talk to the other party
via the speakerphone feature.
You can change video call preferences by tapping the appropriate icons on the screen.
Note
4 Press
Notes
to end the call.
●
The image and audio quality of video calls may vary depending on the strength of the
network signal.
●
For improved communication in noisy environments, use a stereo headset.
●
Some functions may unavailable if the other party’s phone does not support them.
Answer a video call
1 Press
Note
to answer a video call.
When a video call is incoming,
will appear at the top of the screen.
2 When the call is connected, point the camera lens at your face and talk via the
speakerphone feature.
Note
To turn off the speakerphone feature, tap
3 Press
.
to end the call.
Use options during a video call
●
Video Chatting: Tap Chatting to enable the text chat feature.
●
Options during a video call: Tap Menu to change various options or access other functions,
such as recording the video call, switching cameras, writing memos, changing the frame
rate, or accessing your Organizer, Message, or Phonebook applications.
Anycall English User’s Guide
for KT subscribers
09
Make a voice call
Call with a speed-dial location
You can dial a contact’s phone number by entering the corresponding speed-dial number:
Getting started
●
For numbers stored in Phonebook locations 001-009: From the Standby screen, tap Dial
and then tap and hold the key that corresponds to the last digit of the speed-dial location.
●
For numbers stored in Phonebook locations 000 or 010-999: From the Standby screen, tap
Dial. Next, tap the key corresponds to the first digit and then tap and hold the key that
corresponds to the last digit of the speed-dial location.
●
For numbers stored on a USIM card: From the Standby screen, tap Dial, and then tap and
hold 0 to display the plus sign (+). Next, tap the key that corresponds to the first digit and
then tap and hold the key that corresponds to the last digit of the speed-dial location.
Call with a contact’s initials
In idle mode, you can search for a contact by entering his or her initials. To make a call with a
contact’s initials,
1 From the Standby screen, tap Dial.
2 Tap the numerical keys that correspond to the contact’s initials.
For example, tap ㅎ (8), ㄱ (4), and ㄷ (6) to search for “ 홍길동 .”
3 Tap the contact’s phone number and press
●
.
To make a video call, tap the contact’s phone number and press
.
Call with 4-digit dialing
In idle mode, you can search for a contact by entering the first or last four digits of the number.
When you have located the contact’s number, press
to make the call.
Redial the last number called
In idle mode, Press and hold
to redial to the last number you called.
View a missed calls or messages
When you have missed calls or messages, tap the screen to open the missed call or message
window and view details.
Note
To view histories of recent or missed calls or messages, press
or Menu screen.
from the Standby screen
SHOW roaming service
You can use voice calling, video calling, text messaging, and internet services in regions where
Wideband CDMA (WCDMA) or GSM networks are supported.
Note
Available services and fees may vary by region. For details, visit www.show.co.kr or contact
the roaming service center at 1588-0608. (Outside of Korea, dial +82-2-2190-0901.)
Anycall English User’s Guide
for KT subscribers
010
Select a network service
1 From the Standby screen, tap Menu > Settings > Call Settings > Network > Network
Mode.
2 Tap a network service option:
●
Getting started
●
Auto: Search for and access network services automatically.
Manual: Search for available networks and manually select a network service.
3 Tap Save.
Make a call when roaming
To make a call in Idle mode, enter a phone number and tap
.
To make an international call,
1 In Idle mode, tap and hold 0 to display the plus sign (+).
2 Enter an international code, regional code, and phone number and then tap
Note
.
To make a call with a local phone to your phone when you are abroad, enter a recipient’s
international code, 82 (Korea international code), and phone number without the first 0.
Send a text message to a Korean phone number when roaming
1 From the Standby screen, tap and hold Msg.
2 Enter your text message and tap OK (refer to Enter Text for more details).
3 Enter a recipient’s international code, regional code, and phone number (without the first
0), and then tap OK.
4 Tap Send to send your message.
Note
Sending Korean text or multimedia messages may not possible in some regions. For
details, visit www.show.co.kr.
Messaging
Send a text message
You can send or receive text messages with your phone. You can also manage messages stored
on the USIM card or the phone’s memory.
Send a text message
1 From the Standby screen or Menu screen, tap Msg > New msg, or tap and hold Msg to
open a window for composing messages.
2 Enter your text message and tap OK (refer to Enter Text for more details).
3 Enter a recipient’s phone number and tap OK.
4 When you are finished, tap Send to send your message.
Anycall English User’s Guide
for KT subscribers
011
View a received message
1 From the Standby screen or Menu screen, tap Msg.
2 Tap Received... and then tap Received Msgs.
3 Select a message.
Getting started
Send a multimedia (MMS) message
You can send multimedia messages with images or files attached. Any time you exceed 90
English characters (45 Hangeul characters) or attach a multimedia item to a text message, the
message will be automatically converted to a multimedia message. Messages sent to email
addresses are also converted to MMS messages.
Send a multimedia message
1 From the Standby screen or Menu screen, tap Msg > New msg.
2 Enter your message contents.
●
●
●
●
Enter text (Refer to Enter text for more details) or attach multimedia files.
Tap Emoticon to apply an emoticon.
Tap Text color to change the color of the text or background.
Tap Letter or Color to apply a wallpaper or decorative image to your message.
3 Enter a recipient’s phone number or email address and tap OK.
4 When you are finished, tap Send to send the message.
View a received message
1 From the Standby screen or Menu screen, tap Msg.
2 Tap Received... and then tap Received Msgs.
3 Select a message.
Note
Depending on your service plan, you may be charged more for multimedia messages than
text messages. For details, refer to your service plan or contact KT.
Send an email message
You can send or receive email on your mobile phone by registering an email account. You can
also manage email messages and customize various settings. (Korean only)
Anycall English User’s Guide
for KT subscribers
012
Mobile messenger
You can chat directly with other KT users that are stored as contacts in your Phonebook or
those that you add manually to the Mobile messenger. You can also send photos and use
emoticons or flash icons during chats. To chat with the Mobile messenger,
1 From the Standby screen, tap Menu > SHOW > Message > Mobile Messenger.
Getting started
2 Tap 예 from the Mobile messenger screen.
3 Tap 다운로드 to download the mobile messenger.
●
Note
For more information about using the mobile messenger, contact KT.
If the other party does not subscribe to the Mobile messenger service or does not use the
KT network, your chat text will be sent as a text message.
Use the phonebook
With the Phonebook application, you can create contacts and search for them by name, phone
number, or email address. You can also organize your contacts into groups and specify which
contacts you use most often.
Note
To view statistics for your communication, tap Log Mgr. You will see the call and message
logs and graphs indicating the frequency of calls and messages by contact.
Create a contact
1 From the Standby screen, tap Phonebook.
2 On the Search tab, tap New.
3 Enter the details for the new contact.
4 Tap Save to save the contact.
Search for a contact
1 From the Standby screen, tap Phonebook.
2 Tap Touch here to enter a name, phone number or email address.
3 Tap a contact’s phone number in the list of search results.
Use the camera
Your phone includes a digital camera for capturing still images and videos. Depending on your
phone model, the camera may include a general shooting mode, as well as Continuous, Mosaic,
Smile shot, Panorama, and video recording modes. After capturing images with the camera,
you can edit them with the Photo Studio application, transform multiple photos into a video,
send photos, or set a photo as your wallpaper.
Anycall English User’s Guide
for KT subscribers
013
Capture a photo
1 From the Standby screen, press
.
2 To use preset options by scene, tap the screen to display camera options and then tap
Menu descriptions
and select a shooting mode.
3 Press
to capture a photo.
View a photo
1 From the Standby screen, tap Menu > Album.
2 Scroll to and tap a photo.
●
●
●
Note
To send a photo as a multimedia message or email, tap Send.
To set a photo as your wallpaper, tap Setting.
To edit photos with the Image editor or Make movie applications, or draw a picture, tap Edit.
You can use the One-Finger Zoom feature to magnify an image up to 10 times. While
viewing a photo, tap and hold the screen until the arrows appear. Then, drag your finger
up or down to zoom in or out.
Menu descriptions
Depending on your model, the descriptions may differ somewhat from your phone’s actual
operation. The following menus are listed alphabetically.
Alarm/Clock
Set alarms or view the current time in other parts of the world. You can also record the time of
an event with the stopwatch.
Alarm
Set alarms and specify alarm types and repeat options. To access the Alarm from the Standby
screen, tap Menu > Diary > Alarm/Clock and then tap the Alarm tab.
World Clock
View the current time in other parts of the world and create a world clock for your favorite city.
To access the World Clock from the Standby screen, tap Menu > Diary > Alarm/Clock and then
tap the World Clock tab.
Stop Watch
Record the time of an event. To access the stopwatch from the Standby screen, tap Menu >
Diary > Alarm/Clock and then tap the Stop Watch tab.
Anycall English User’s Guide
for KT subscribers
014
Anycall functions
My Pet2
Adopt, feed, play with, and train your own cyber dog.
Menu descriptions
Photo Dial
Take a photo and assign it to a phone number. You can then tap the photo to make a call or
send a message.
Assign a photo to photo dial
1 From the Standby screen, tap Menu > Applications > Photo Dial.
2 Tap Add to select a photo, and then tap Select.
3 Tap Add to adjust the location and size of the dial area.
4 When you are finished, tap Save.
5 Tap a photo dial options:
●
●
Link to phonebook: assign a phone number to the photo dial area.
Add name only: display a name in the photo dial area.
Movie Player
The embedded DivX player allows you to play supported video files. The following file types
and codecs are supported:
●
File format: mp4, avi (DivX+MP3, DivX+AC3), DivX (DivX+MP3, DivX+AC3), skm, k3g, 3gp
●
Video: MPEG4 SP, H.263 BL, H.264 BL, DivX4, 5
●
Video Resolution: 640X480, 24fps, 1.5Mbps
●
Audio: MP3, AC3, AAC, AAC+, EVRC, AMR, QCELP
●
Audio Resolution: 48KHz, 192Kbps
The DivX player will not play MP4 or AVI videos without the proper codec. When
converting video files to use with your phone, ensure that you use a common encoding
program and a supported codec.
Note
Play a video
1 From the Standby screen, tap Menu > Applications > Movie Player.
2 Tap a video.
●
To change brightness or subtitle settings, tap the screen to display and then tap
Anycall English User’s Guide
for KT subscribers
.
015
My HapticTone
Create a custom haptic feedback and set options for using the feedback.
1 From the Standby screen, tap Menu > Applications > My Haptic Tone.
Menu descriptions
2 Tap Make to create a custom haptic feedback.
You cannot rename or delete the default feedback patterns (Pattern1, Pattern2, Pattern3,
나만의 햅틱 1, 나만의 햅틱 2).
Note
Bluetooth
Activate Bluetooth
From the Standby screen, tap Menu > Applications > Bluetooth and then tap
.
Connect to Bluetooth headset
1 From the Standby screen, Menu > Applications > Bluetooth.
2 Tap
to search for a device.
3 Drag the device name or icon to
.
4 If necessary, select one of the following services:
●
●
●
Stereo Headset: Listen to music, videos, or television stations.
Hands-free: Use voice dialing and other hands-free functions to make or answer calls.
Headset: Use a headset while making or answering calls.
5 Tap Connect.
The phone is connected with the device.
Send or receive data
Send or receive data to a paired Bluetooth-enabled device within range of the Bluetooth
wireless feature.
1 From the Standby screen, tap Menu > Applications > Bluetooth.
2 Tap
to search for a device.
3 Drag the device name or icon to
.
4 In the service list, tap Data Communication.
5 Tap Connect.
6 Tap Send Data or Receive Data and enter your password.
7 Enter the same password on the other party’s device.
8 Select data to send or receive then tap Move.
●
To move to the default folder for that type of data, tap Yes.
Anycall English User’s Guide
for KT subscribers
016
Game
Play games or access G-Fun or MyPet.
Menu descriptions
Subway Map
View subway maps (in Korean only). The phone automatically switches the maps to landscape
orientation when you rotate the phone. Add a favorite station to view train schedules
and information about transfers or exits. Add a favorite route to see travel time, fares, and
information about transfers or exits.
Add a favorite station or route
1 From the Standby screen, tap Menu > Diary > Subway Map.
2 Tap 즐겨찾기 .
3 Tap 역 to add a station or 경로 to add a route.
4 Tap 추가 to assign the station or route.
Search for a route
Set departure and destination stations to view travel time, fares, and transfer information.
Search for a station
Set a favorite station to see train schedules and information about transfers and exits.
Time/Money Calculator
Perform simple calculations for currencies, discounts, and time.
Samsungmobile.com
Download and manage content or messages from the Samsung mobile website.
Anycall Service Center
Search for Anycall service centers nationwide, contact service centers, and make service
reservations.
My Diary
View and manage your schedule, reminders (D-day), and events from the Today menu or
create memos from the Diary or Notes menu.
Anycall English User’s Guide
for KT subscribers
017
Settings
Call settings
Menu descriptions
Call rejection
You can reject calls in various ways, including manually rejecting incoming calls or blocking all
calls from specified numbers.
Manually reject an incoming call
To reject an incoming call, press and hold
. To set the call rejection setting to manual,
1 From the Standby screen, tap Menu > Settings > Call Settings > Call Rejection.
2 Enter your password and tap OK.
3 Tap Manual and then tap a call rejection option.
4 When you are finished, tap Save.
Automatically reject incoming calls
1 From the Standby screen, tap Menu > Settings > Call Settings > Call Rejection.
2 Enter your password and tap OK.
3 Tap Automatic and then tap Reject List to select a condition for call rejection.
4 When you are finished, tap Save.
International call
You can specify an international calling code to automatically enter when calling international
numbers.
1 From the Standby screen, tap Menu > Settings > Call Settings > Auto International
Code.
2 Tap On.
3 Enter an international code and tap OK.
Note
To select an international code from the list, tap List.
4 When you are finished, tap Save.
Display settings
My theme
Specify a theme for the main menu.
Font Type
Set the font type.
Anycall English User’s Guide
for KT subscribers
018
Power Save Mode
Set the display brightness and options for saving battery power by dimming or turning off the
display.
Menu descriptions
Backlighting Duration
Set how long the backlight will remain on when the phone is idle and whether or not to lock
the phone automatically when turning off the display.
Screen Brightness
Adjust the display brightness or set the phone to automatically adjust the brightness based on
ambient lighting.
Touch Calibration
Calibrate the display to recognize your touch inputs.
Sound settings
Touch Alert Tones
Select a touch alert tone and adjust the levels of volume and vibration.
Hourly Chime
Set your phone to emit a chime each hour. You can set the alert time, alert tone, and volume of
the chime.
Anycall SOS
The Anycall SOS feature allows you to send a message to specified contacts when you are in
trouble or need help.
Note
Use this function in case of a real emergency only.
Sending options for SOS messages
1 From the Standby screen, tap Menu > Settings > Anycall SOS > Sending Options.
2 Tap On and enter a phone number.
Note
You can enter up to 5 phone numbers.
3 When you are finished, tap Save.
Notes
●
To send a notification message to the registered number, tap Yes.
●
To see help information, tap Help.
Anycall English User’s Guide
for KT subscribers
019
Receiving options for SOS messages
1 From the Standby screen, tap Menu > Settings > Anycall SOS > Receiving Options.
2 Tap On and tap the type of alert (sound/vibration).
Menu descriptions
3 Tap Save.
To see help information, tap Help.
Note
Siren
Activate or deactivate the SOS siren.
Fake Call
You can simulate fake incoming calls when you want to get out of meetings or unwanted
conversations or when you are in an emergency. To activate the fake call feature and change
the setting,
1 From the Standby screen, tap Menu > Settings > Anycall SOS > Fake Call.
2 Select On.
3 Set the length of the delay and a contact to be displayed as the caller for the fake call and
tap OK.
To make a fake call, tap Dial from the Standby screen or Menu screen, and then tap ✽ three
times. After the specified delay, the phone rings for the fake call.
Send an Anycall SOS message
Before sending an Anycall SOS message, the touch screen must be locked. To send an Anycall
SOS message, quickly press
/
four or more times.
When you sent an Anycall SOS message, the phone will vibrate and the
icon will flash at
the top of the display. After a five second delay, the message will be sent to your specified
recipients (to cancel the message, press
within five seconds of activating the SOS). When
a recipient of the SOS message calls you back, the phone will vibrate and the call will be
answered automatically.
When the recipient calls you after you sent an Anycall SOS message, the phone vibrates and
answers the call automatically.
Time Setting
Set whether to automatically update the clock to the network time or to manually enter the
current time.
Security
Create a password or change locking settings. Once you have created a phone password, you
must enter the password to access this menu.
Anycall English User’s Guide
for KT subscribers
00
Change the phone lock settings
1 From the Standby screen, tap Menu > Settings > Security.
2 Enter your password and tap OK.
Menu descriptions
3 On the Phone Lock, tap Manual (Press#) and select a phone lock option.
Change USIM settings
You can change the following USIM lock settings:
●
USIM PIN Lock: Set the phone to automatically lock the USIM card when you turn off the
phone. This setting protects your USIM card from unauthorized access if your phone is lost
or stolen.
●
Change PIN Password: Set a four- to eight-digit password for locking the USIM card.
●
Use Phone Without USIM: Set whether or not you can access menus without installing a
USIM card.
●
Change USIM Lock Password: Set a four digit password to restrict use of other USIM
cards. The default password is 0000.
●
USIM Lock: Set the phone to allow or prevent the use of other USIM cards.
International call lock
Set the phone to block international calls.
Functions lock
Lock phone functions. To use locked functions, you must enter your password.
Reset removable memory
Format a memory card.
Reset to default settings
Restore the factory default settings for your phone.
Note
When you reset the phone, the phone will restart and then display the touch
screen tutorial.
Reset and delete all data
Restore the factory default settings for your phone and delete all data stored in the phone.
Note
When you reset the phone, the phone will restart and then display the touch
screen tutorial.
Anycall English User’s Guide
for KT subscribers
021
General settings
Select a display language and set convenience functions, such as Touch Auto Lock and
Etiquette Mode.
Menu descriptions
Touch auto lock
Set the phone to automatically turn off the display and lock the keys when the phone is idle for
some time. To unlock the keys, press and hold
.
●
When you set Touch Auto Lock to Off, the phone will turn off the display when the phone
is idle for some time, but will not lock the keys. To use the phone, press any key.
Etiquette mode
Set the phone to silence an incoming ringtone when you place the phone face down on a flat
surface.
Flight mode
Disable network services such as calling, messaging, and wireless internet browsing. In Flight
mode, you can use non-network services.
SHOW
Help Desk
This service allows you to view the phone number for the KT Customer Center or connect to it
directly. With Help Desk, you can view your bills and subscribe to or modify additional services
and rate plans.
Search
Enter a keyword to find news, music, videos, and information on blogs.
Life Service
This service allows you to look up news, weather or securities information in real time. You can
also search for traffic and transportation information.
Call Service
This service allows you to specify additional call-related services such as ringback tones or
automatic answers. When you select a menu, the phone accesses the wireless internet service
center automatically.
Anycall English User’s Guide
for KT subscribers
022
Message
Menu descriptions
This service allows you to decorate your text message with contents downloaded from the
wireless internet, or view email messages. You can also use a mobile messenger to chat directly
with other people.
SHOW Mobile Site
This menu allows you to access various SHOW wireless internet sites such as SHOW Internet,
SHOW Video, SHOW Download pack, and dosirak.
SHOW internet
Access the SHOW internet portal to download various contents and access services. To access
the SHOW portal from the Standby screen, tap
and then select a service.
Note
When accessing the SHOW internet portal, touch functions may not available for some
menus. When the touch function is unavailable, use the navigation menu at the bottom of
the screen.
Favorites
Bookmark your favorite websites and access them conveniently.
Video
Access the SHOW Video site to enjoy and download music, videos, ringtones, and games.
Internet
The SHOW wireless internet allows you search for news, download enhancements for your
phone, download videos, access portals, and use financial and shopping services.
Download pack
Download various programs, such as games, messengers, e-books, and securities-related
programs. After installing a downloaded program, you can launch the program by tapping an
appropriate icon from the Standby screen.
Navigation
This service allows you to use your phone as a navigational device. You can access maps, road
guides, and real-time traffic information or locate speed cameras, bus lanes, and businesses.
Anycall English User’s Guide
for KT subscribers
023
USIM
With a USIM card installed in your phone, you can access secure banking, transportation, credit
card, and securities services.
Menu descriptions
Notes
●
Available services may vary by financial institution.
●
Because your USIM card contains sensitive information, such as credit card and bank
accounts numbers, take care not to lose or damage your card and do not give out your
USIM password to other. Samsung cannot be held liable for the loss, theft, or corruption
of your sensitive information.
●
If you enter your USIM password incorrectly more than three times, you will be unable
to access financial services. To retrieve your USIM password, contact KT.
●
Even when the phone is turned off, you can use the transportation function.
Web surfing
This service provides access to the internet via a mobile web browser. You can enter
URL addresses manually, access web services, play videos, and open multiple browsers
simultaneously. To surf the web,
1 From the Standby screen, drag the screen left or right and tap Web Surfing.
2 Access a website by selecting a link or entering a URL address manually in the address
field.
Note
If the address field and the control icons disappear while navigating the web, tap the up
and down arrows to show them again.
Open NET
This service allows you to access a web portal for independent wireless network services.
My home1/My home2
Set your favorite websites as home pages.
SHOW pop up
Set the SHOW pop-up service to appear on your Standby screen and access the service to
download web content. To access the SHOW pop-up service, tap
from the Standby screen.
Anycall English User’s Guide
for KT subscribers
024
SHOW Video
Menu descriptions
SHOW Video is a KT-only service that allows you to enjoy various videos and television
programs. Individual contents or TV programs may be free or may require a fee. You may also
incur additional network charges for accessing SHOW Video.
You can capture the current screen from SHOW Video contents during playback and quickly
access them later. While viewing content, tap the top right corner of the screen. When the leaf
icon appears, drag the icon across the screen to the bottom left. To view screen captures, press
and hold
in Idle mode.
SHOW Video
This service allows you to access SHOW Video, a multimedia web site where you can find
various multimedia contents, such as ringtones, videos, and photos.
dosirak
This service allows you to access dosirak, a music web site provided by KT where you can access
the latest music, ringtones, and music videos.
Contents Box
Use this menu to play or manage content you have downloaded or recorded from SHOW Video.
Config Setting
Use this menu to specify the settings for SHOW Video, such as backlighting and play time.
Memory Info
Use this menu to view the amount of used and available memory for SHOW Video contents.
Help
Use this menu to see help information for icons displayed on the Contents Box or SHOW Video
list.
Text memo
Create and view text memos.
Using the clipper feature while creating a text memo
You can save memo screens as drafts to quickly access them later. While creating a memo,
tap the top right corner of the screen. When the leaf icon appears, drag the icon across the
screen to the bottom left. The phone will save the current memo screen. To view clipped memo
screens, press and hold
in Idle mode.
Anycall English User’s Guide
for KT subscribers
025
TV (TDMB)
Use the TDMB service to watch mobile broadband television or listen to radio stations. Extend
your phone’s antenna completely to improve reception.
Menu descriptions
Automatically scan for available TV stations
1 From the Standby screen, tap Menu > Applications > TV (TDMB).
When you launch this application for the first time, your phone will begin to automatically
scan for stations. If you have launched this application previously, the phone will tune to
the last station you were watching.
Note
2 If necessary, tap Ch Scanning.
Watch TV or listen to radio
1 From the Standby screen, tap Menu > Applications > TV (TDMB).
2 Tap TV or Radio and select a station.
●
To switch to full screen mode, tap Full Scr.
Record television
1 From the Standby screen, tap Menu > Applications > TV (TDMB).
2 Select a station.
3 Tap Full Scr to switch to full screen mode.
4 Tap the screen to display icons.
5 Tap Record at the bottom of the screen.
●
To view a recorded file, tap Contents on the Ch list screen.
Capture a still image from television
1 From the Standby screen, tap Menu > Applications > TV (TDMB).
2 Select a station.
3 Tap Full Scr to switch to full screen mode.
4 Tap the screen to display icons.
5 Tap Capture at the bottom of the screen.
6 To save the image, tap
●
.
To view a captured file, tap Contents on the Ch list screen.
Anycall English User’s Guide
for KT subscribers
026
Appendix
Safety and usage information
This safety and usage information should be followed to safely use your phone.
Appendix
Safety warnings
Keep your phone away from small children and pets
Keep your phone and all accessories out of the reach of small children or animals. Small parts
may cause choking or serious injury if swallowed.
Protect your hearing
Excessive exposure to sound at high volumes can cause hearing damage. Always turn
the volume down before plugging the earphones into an audio source and use only the
minimum volume setting necessary to hear your conversation or music.
Install mobile phones and equipment with caution
Ensure that any mobile phones or related equipment installed in your vehicle are securely
mounted. Avoid placing your phone and accessories near or in an air bag deployment area.
Improperly installed wireless equipment can cause serious injury when air bags inflate rapidly.
Handle and dispose of batteries and chargers with care
●
Use only Samsung-approved batteries and chargers specifically designed for your phone.
Incompatible batteries and chargers can cause serious injuries or damage to your phone.
●
Never dispose of batteries or phones in a fire. Follow all local regulations when disposing
of used batteries or phones.
●
Never place batteries or phones on or in heating devices, such as microwave ovens, stoves,
or radiators. Batteries may explode when overheated.
●
Never crush or puncture the battery. Avoid exposing the battery to high external pressure,
which can lead to an internal short circuit and overheating.
Avoid interference with pacemakers
Maintain a minimum of 15 cm (6 inches) between mobile phones and pacemakers to avoid
potential interference, as recommended by manufacturers and the independent research
group, Wireless Technology Research.
If you have any reason to suspect that your phone is interfering with a pacemaker or other
medical device, turn off the phone immediately and contact the manufacturer of the
pacemaker or medical device for guidance.
Anycall English User’s Guide
for KT subscribers
027
Turn off the phone in potentially explosive environments
Do not use your phone at refuelling points (service stations) or near fuels or chemicals. Turn
off your phone whenever directed by warning signs or instructions. Your phone could cause
explosions or fire in and around fuel or chemical storage and transfer areas or blasting areas.
Do not store or carry flammable liquids, gases, or explosive materials in the same compartment
as the phone, its parts, or accessories.
Reduce the risk of repetitive motion injuries
Appendix
While using your phone, hold the phone with a relaxed grip, press the keys lightly, use special
features that reduce the number of keys you have to press (such as templates and predictive
text), and take frequent breaks.
Do not use the phone if the screen is cracked or broken
Broken glass or acrylic could cause injury to your hand and face. Bring the phone to a Samsung
service centre to replace the screen. Damage caused by careless handling will void your
manufacturer’s warranty.
Safety precautions
Drive safely at all times
Avoid using your phone while driving and obey all regulations that restrict the use of mobile
phones while driving. Use hands-free accessories to increase your safety when possible.
Follow all safety warnings and regulations
Comply with any regulations that restrict the use of a mobile phone in a certain area.
Use only Samsung-approved accessories
Using incompatible accessories may damage your phone or cause injury.
Turn off the phone near medical equipment
Your phone can interfere with medical equipment in hospitals or health care facilities. Follow
all regulations, posted warnings, and directions from medical personnel.
Turn off the phone or disable the wireless functions when in an aircraft
Your phone can cause interference with aircraft equipment. Follow all airline regulations and
turn off your phone or switch to a mode that disables the wireless functions when directed by
airline personnel.
Anycall English User’s Guide
for KT subscribers
028
Protect the phone and batteries from damage
Appendix
●
Avoid exposing your phone and batteries to very cold or very hot temperatures (below 0°
C/32° F or above 45° C/113° F).
●
Extreme temperatures can cause the deformation of the phone and reduce the charging
capacity and life of your phone and batteries.
●
Prevent batteries from contacting metal objects, as this can create a connection between
the + and - terminals of your batteries and lead to temporary or permanent battery
damage.
●
Never use a damaged charger or battery.
Handle your phone carefully and sensibly
●
Do not disassemble your phone due to a risk of electric shock.
●
Do not allow your phone to get wet—liquids can cause serious damage and will change
the colour of the label that indicates water damage inside the phone. Do not handle
your phone with wet hands. Water damage to your phone can void your manufacturer’s
warranty.
●
Avoid using or storing your phone in dusty, dirty areas to prevent damage to moving parts.
●
Your phone is a complex electronic device—protect it from impacts and rough handling to
avoid serious damage.
●
Do not paint your phone, as paint can clog moving parts and prevent proper operation.
●
If your phone has a camera flash or light, avoid using it close to the eyes of children or
animals.
●
Your phone may be damaged by exposure to magnetic fields. Do not use carrying cases or
accessories with magnetic closures or allow your phone to come in contact with magnetic
fields for extended periods of time.
Avoid interference with other electronic devices
Your phone emits radio frequency (RF) signals that may interfere with unshielded or improperly
shielded electronic equipment, such as pacemakers, hearing aids, medical devices, and other
electronic devices in homes or vehicles. Consult the manufacturers of your electronic devices
to solve any interference problems you experience.
Anycall English User’s Guide
for KT subscribers
029
Important usage information
Use your phone in the normal position
Avoid contact with your phone’s internal antenna.
Allow only qualified personnel to service your phone
Appendix
Allowing unqualified personnel to service your phone may result in damage to your phone and
will void your manufacturer’s warranty.
Ensure maximum battery and charger life
●
Avoid charging batteries for more than a week, as overcharging may shorten battery life.
●
Over time, unused batteries will discharge and must be recharged before use.
●
Disconnect chargers from power sources when not in use.
●
Use batteries only for their intended purpose.
Handle SIM cards or memory cards with care
●
Do not remove a card while the phone is transferring or accessing information, as this
could result in loss of data and/or damage to the card or phone.
●
Protect cards from strong shocks, static electricity, and electrical noise from other devices.
●
Frequent writing and erasing will shorten the life span of memory cards.
●
Do not touch gold-coloured contacts or terminals with your fingers or metal objects. If
dirty, wipe the card with a soft cloth.
Ensure access to emergency services
Emergency calls from your phone may not be possible in some areas or circumstances. Before
travelling in remote or undeveloped areas, plan an alternate method of contacting emergency
services personnel.
Anycall English User’s Guide
for KT subscribers
030
New PC Studio
New PC Studio allows you to transfer data to and from PC, manage important information, and
upgrade the phone’s software.
Accessory information
Appendix
Use Samsung-approved accessories from a Samsung Electronics service center. Samsung is not
responsible damage or breakage caused by using an unapproved accessory. For further details
about accessories available for your phone, contact a Samsung Electronics service center.
Service center information
Samsung customer center
When calling for service, let the operator know your phone’s model name, problems, and your
contact information.
●
Anycall A/S center: 1588-7285
●
Samsung Electronics service center: 1588-3366
●
Customer care center: 02-541-3000/080-022-3000
KT customer center
Contact the KT customer center to manage your service subscriptions, inquire about your
phone bill, recover a lost or stolen phone, change your address, retrieve passwords, or learn
about addtional services.
●
Via KT mobile phone: 114
Anycall English User’s Guide
for KT subscribers
031
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
