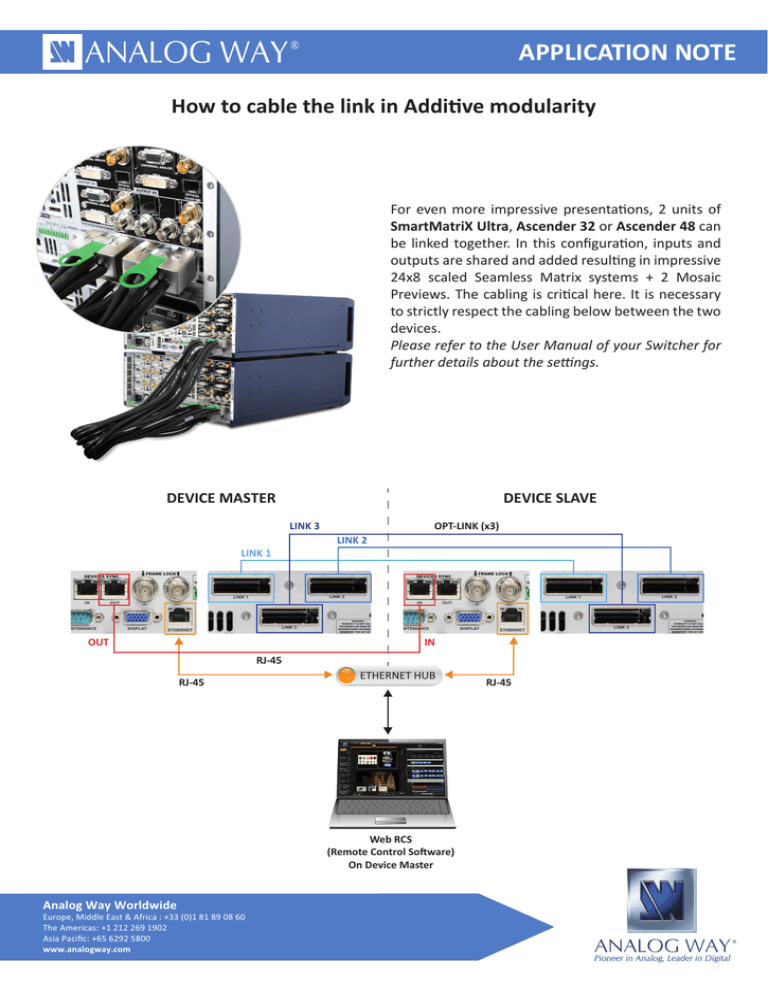

APPLICATION NOTE
How to cable the link in Additive modularity
For even more impressive presentations, 2 units of
SmartMatriX Ultra, Ascender 32 or Ascender 48 can
be linked together. In this configuration, inputs and
outputs are shared and added resulting in impressive
24x8 scaled Seamless Matrix systems + 2 Mosaic
Previews. The cabling is critical here. It is necessary
to strictly respect the cabling below between the two
devices.
Please refer to the User Manual of your Switcher for
further details about the settings.
DEVICE MASTER
DEVICE SLAVE
LINK 3
OPT-LINK (x3)
LINK 2
LINK 1
OUT
IN
RJ-45
RJ-45
ETHERNET HUB
Web RCS
(Remote Control Soware)
On Device Master
Analog Way Worldwide
Europe, Middle East & Africa : +33 (0)1 81 89 08 60
The Americas: +1 212 269 1902
Asia Pacific: +65 6292 5800
www.analogway.com
RJ-45
