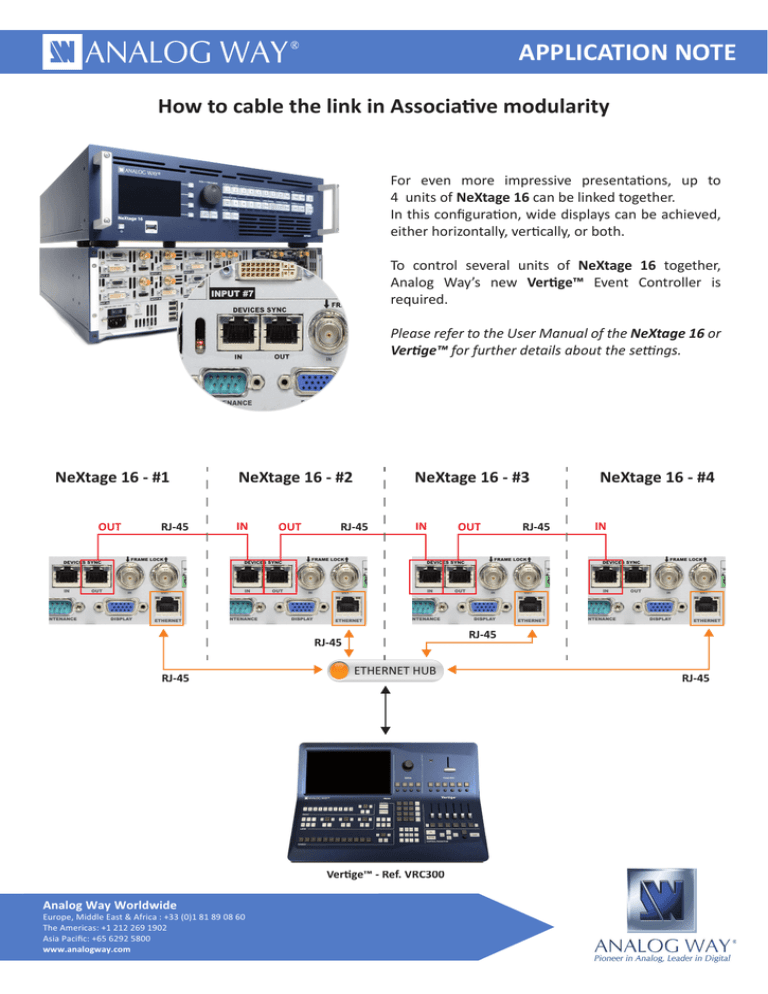

APPLICATION NOTE
How to cable the link in Associative modularity
For even more impressive presentations, up to
4 units of NeXtage 16 can be linked together.
In this configuration, wide displays can be achieved,
either horizontally, vertically, or both.
To control several units of NeXtage 16 together,
Analog Way’s new Vertige™ Event Controller is
required.
Please refer to the User Manual of the NeXtage 16 or
Vertige™ for further details about the settings.
NeXtage 16 - #1
OUT
RJ-45
NeXtage 16 - #2
NeXtage 16 - #3
IN
IN
OUT
RJ-45
Analog Way Worldwide
Europe, Middle East & Africa : +33 (0)1 81 89 08 60
The Americas: +1 212 269 1902
Asia Pacific: +65 6292 5800
www.analogway.com
RJ-45
IN
RJ-45
RJ-45
RJ-45
OUT
NeXtage 16 - #4
ETHERNET HUB
Verge™
- Ref.
f VRC300
The new Remote Controller allows to control
all devices (Preview & Program)
RJ-45
