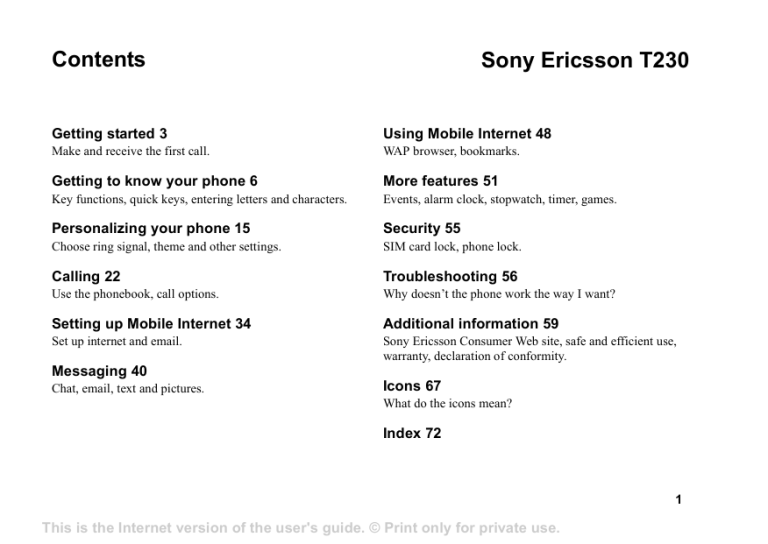

Contents
Sony Ericsson T230
Getting started 3
Using Mobile Internet 48
Make and receive the first call.
WAP browser, bookmarks.
Getting to know your phone 6
More features 51
Key functions, quick keys, entering letters and characters.
Events, alarm clock, stopwatch, timer, games.
Personalizing your phone 15
Security 55
Choose ring signal, theme and other settings.
SIM card lock, phone lock.
Calling 22
Troubleshooting 56
Use the phonebook, call options.
Why doesn’t the phone work the way I want?
Setting up Mobile Internet 34
Additional information 59
Set up internet and email.
Sony Ericsson Consumer Web site, safe and efficient use,
warranty, declaration of conformity.
Messaging 40
Chat, email, text and pictures.
Icons 67
What do the icons mean?
Index 72
1
This is the Internet version of the user's guide. © Print only for private use.
Sony Ericsson T230
GSM 900/1800
Second edition (January 2004)
This manual is published by Sony Ericsson Mobile
Communications AB, without any warranty.
Improvements and changes to this manual
necessitated by typographical errors, inaccuracies
of current information, or improvements to programs
and/or equipment, may be made by Sony Ericsson
Mobile Communications AB at any time and without
notice. Such changes will, however, be incorporated
into new editions of this manual.
© 2004 Sony Ericsson Mobile Communications AB
All rights reserved.
Publication number: EN/LZT 108 6574 R2A
Please note:
Some of the services in this manual are not
supported by all networks. This also applies to
the GSM International Emergency Number 112.
Please contact your network operator or service
provider if you are not sure whether you can use
a particular service or not.
Please read the Guidelines for safe and efficient
use and the Limited warranty chapters before you
use your mobile phone.
The marble logo is a trademark of Sony Ericsson
Mobile Communications AB. Sony is a trademark
of Sony Corporation and Ericsson is a trademark
of Telefonaktiebolaget L M Ericsson.
T9™ Text Input is a trademark or a registered
trademark of Tegic Communications.
T9™ Text Input is licensed under one or more of
the following: U.S. Pat. Nos. 5,818,437, 5,953,541,
5,187,480, 5,945,928, and 6,011,554; Canadian
Pat. No. 1,331,057, United Kingdom Pat.
No. 2238414B; Hong Kong Standard Pat.
No. HK0940329; Republic of Singapore Pat.
No. 51383; Euro. Pat. No. 0 842 463 (96927260.8)
DE/DK, FI, FR, IT, NL, PT, ES, SE, GB;
and additional patents are pending worldwide.
Other product and company names may
be the trademarks of their respective owners.
Any rights not expressly granted herein are reserved.
2
This is the Internet version of the user's guide. © Print only for private use.
Getting started
About this user’s guide
For ease of reference, the “Getting to know your
phone” chapter gives a quick overview of the main
functions of the phone, shortcuts and general
information.
More information and downloads are available at
www.SonyEricsson.com or wap.SonyEricsson.com.
Note: Throughout this manual, WAP and Web are
used interchangeably to refer to internet services.
Available services
Some services and functions described in this user’s
guide are network- or subscription-dependent. Because
of this, some menus may not be available in your phone.
This symbol indicates that a service or function
is network or subscription-dependent.
Please consult your network operator for
more information about your subscription.
The SIM card
When you register as a subscriber with a network
operator, you get a SIM (Subscriber Identity Module)
card. The SIM card contains a computer chip that
keeps track of your phone number, the services
included in your subscription, and your phonebook
information.
Tip: Check if your information is saved to the
SIM card before you remove it from another phone.
For example, phonebook entries may be saved
in the phone memory.
Assembly
Before you can use your phone you need to:
• Insert the SIM card.
• Attach and charge the battery. See “SIM card and
battery information” on page 4.
Note: Always turn off the phone and detach the
charger before you insert or remove a SIM card.
Getting started
This is the Internet version of the user's guide. © Print only for private use.
3
SIM card and battery information
1.
2.
3.
4.
5.
6.
It may take up to 30 minutes before an icon
appears when charging if the battery
is completely discharged.
Insert the SIM card. Make sure the SIM card is placed
under the metal clips.
Place the battery on the back of the phone with
the connectors facing each other (label side up).
Place the back cover into the bottom of the phone
and slide it up until it clicks into place.
Connect the charger to the phone at the flash symbol.
The flash symbol on the charger plug must face upwards.
It may take up to 30 minutes before the battery charging
icon appears in the display. Wait approximately 4 hours
or until the icon indicates that the battery is fully
charged. If you do not see the battery icon after this
time, press any key or the centre select key to activate
the display. The display will “sleep” during charging.
Remove the charger by tilting the plug upwards.
Note: You have to insert the SIM card and charge
the battery before you can use the phone.
4
Getting started
This is the Internet version of the user's guide. © Print only for private use.
Holding the Phone
Hold your mobile phone
as you would any other
telephone. While speaking
into the mouthpiece, angle
the phone up and over
your shoulder.
If your PIN starts with the same digits as an emergency
number, for example 911, the digits are not hidden
with an * when you enter them. This is so that you can
see and call an emergency number without entering
a PIN. See “Emergency calls” on page 23 for more
information.
Internal Antenna
Your phone is equipped with an internal antenna.
For best reception, try to hold your phone so your
hand does not cover the internal antenna. The antenna
is located on the back of the phone above the back cover.
Turning On the Phone
Press and hold NO until you hear
a tone. Enter your PIN (Personal
Identity Number), if you have
one for your SIM card. Your PIN
is provided by your network
operator.
If you make a mistake while
entering your PIN, delete the
wrong number by pressing
.
Welcome
PIN:
Note: If you enter the wrong PIN three times in a row,
the SIM card is blocked and the message PIN blocked
appears. To unblock it, you need to enter your PUK
(Personal Unblocking Key). Your PUK is provided
by your network operator.
To make and receive calls
• Enter the area code and phone number, and press YES
to make the call.
• Press NO to end the call.
• When the phone rings, press YES to answer the call.
My Network
12:18
Getting started
This is the Internet version of the user's guide. © Print only for private use.
5
Getting to know your phone
Key functions
Volume Increase/decrease the earpiece
key
volume during a call. Scroll
through lists under menus.
Enter the Phone status menu
in standby. Press once to mute
the ring signal when receiving
a call. Press twice to reject
an incoming call.
Make and answer calls. Select
a menu, submenu or an option.
Press for options, help.
Press and hold for WAP.
1–9, 0
6
Enter digits, 0–9, and letters.
Press and hold
to enter
the international prefix +. Move
through menus using shortcuts.
Press and hold (2-9) to find a
contact beginning with the first
letter on that key.
Tilt the navigation key up, down,
left or right to move through the
menus, lists and texts. Press the
centre select key as an alternative
to YES to select an option.
Press and hold to turn the phone
on or off (in standby) or to go
back to standby mode from menus.
Press to end or reject a call,
go back one level in the menus
or leave an option unchanged.
Delete numbers, letters or an
(clear) item from a list. Press and hold
to mute the microphone (during
calls) or mute the phone or lock
the keypad (standby menu).
Enter # or a space.
Getting to know your phone
This is the Internet version of the user's guide. © Print only for private use.
Quick keys
Useful key combinations are described below.
To...
When in standby:
reach a phone number
at a specific position
on the SIM card.
press the position number
and
speed dial
press any of the number
–
and YES
keys
press and hold
To...
When in standby:
make an emergency call
enter the international
emergency number
and press YES
enter and move through
the main menus
press
or
find a contact in the
Call contact list
enter Call contact
press
or
enter Call list
press YES
call your voice mail
press and hold
enter the + sign
press and hold
enter the Phone status
press the volume key up
menu to see today’s date or down
and the model name of the
phone (may also indicate
GPRS availability)
mute the ring signal when press
, or press one of
the side volume keys once
receiving a call
reject a call
quickly press the upper
or lower side volume key
twice when receiving
a call or press NO
silence call ringer
quickly press the upper
or lower side volume key
once when receiving a call
change the language
to Automatic
press
write a new text message press and hold
set the phone to silent
or lock the keypad
press and hold
reach a contact beginning press and hold any of the
–
with a specific letter
keys
8888
Getting to know your phone
This is the Internet version of the user's guide. © Print only for private use.
7
To...
When in standby:
change the language
to English
press
0000
change the language
to Chinese
press
0008
To...
During a call:
put a call on hold
press YES
retrieve the held call
press YES again
mute the microphone
press and hold
To...
When in the menus:
move through menu lists
use the navigation key or
press (and hold) the upper
or lower side volume key
8
press and hold
in lists
go back to standby
press and hold NO
When entering letters
using multitap text input:
reach the second letter
or character of a key
press and hold the upper
side volume key and press
any of the number keys
press and hold the lower
side volume key and press
any of the number keys
press
, then the letter
reach the third letter
or character of a key
shift between capital
and lower-case letters
enter numbers
enter a quick options menu press
or help, if available.
delete an item
To...
when
press and hold any of the
number keys
enter a question mark
press the upper side volume
key and press
enter the @-sign
press the lower side volume
key and press
enter a space
press
delete letters and numbers press
shift between multitap
press and hold
or T9 Text input methods
(assuming T9 Text input
is set to On)
Getting to know your phone
This is the Internet version of the user's guide. © Print only for private use.
To...
When entering letters
using multitap text input:
To...
shift between input
languages and other
character or numeric
input methods
press and hold
shift between multitap
press and hold
or T9 Text input methods
To...
When entering letters
using T9 Text Input:
view alternative words
press
accept a word and add
a space
press
enter a period
press
view alternative
punctuation marks
press
, then
repeatedly
shift between capital
and lower-case letters
press
enter numbers
press and hold any
of the number keys
delete letters and numbers press
or
or
, then the letter
When entering letters
using T9 Text Input:
shift between input
languages and other
character or numeric
input methods
press and hold
To...
When entering numbers:
enter a p (pause)
press and hold
when
entering numbers or saving
codes
Help texts/Icons
More information, explanations or tips about selected
menus or functions are available in your phone.
To get help
1. Scroll to the menu or function and press
2. Select Help (if available), YES.
Getting to know your phone
This is the Internet version of the user's guide. © Print only for private use.
.
9
To access the Icon Glossary
1. Scroll to the menu or function and press
2. Select Icon glossary.
.
Delete, edit and rename
If you add items, for example, a contact, an event or
a web bookmark, it can be deleted, edited or renamed.
There are two ways to delete items:
• Select an item and press
.
• Select an item, press
, select Delete or Delete all.
There are two ways to edit items:
• Select an item, press
, select Edit.
• Scroll to the item you want to edit and press YES twice,
select Edit.
Tip: You can rename an item in the same way.
10
Getting to know your phone
This is the Internet version of the user's guide. © Print only for private use.
Menu overview
(1) Phonebook**
1 Call contact
2 Add contact
3 Manage contact
4 Pictures
5 Personal rings
6 Special numbers
7 Advanced
8 Options
Find and send*
(4) Pictures&Sounds
1 My pictures
2 More Pictures
3 My sounds
4 More Sounds
5 Themes
6 More Themes
7 Composer
8 Record sound
9 CommuniCam™
(2) Messages
1 Text
2 MMS
3 Call voice mail
4 E-mail
5 Chat
6 Push inbox
7 Area info **
8 Options
(5) Settings
1 Sounds & alerts
2 Display
3 Language
4 Time and date
5 Locks
6 Handsfree
7 Master reset
(3) Calls
or Ongoing call*
1 Missed calls
2 Call list
3 Manage calls
4 Time and cost
5 Next call
6 Options
Calling local**
Switch to line 1**
Switch to line 2**
1 Turn off tones*
2 Hold call*
3 Switch calls*
4 Release active*
5 Join calls*
6 Transfer call*
7 Release all*
Extract part*
Release party*
Parties in conf.*
8 Calls*
9 Phone status
(6) Web services**
(7) Organizer
1 Sony Ericsson
2 Bookmarks
3 Push inbox
4 Enter address
5 Resume
6 Advanced
7 Options
1 Events
2 Alarms
3 Timer
4 Stopwatch
5 Calculator
Note:
(1) Main menu numbering
does not appear (menu
numbering may change with
certain functions or services).
*Only available during a call
or conference call.
**Network- and subscriptiondependent.
(8) Connect
(9) Games**
1GSM Networks
2 Data comm.
3 Accessories
(if attached)
Getting to know your phone
This is the Internet version of the user's guide. © Print only for private use.
11
Entering letters and characters
You can enter letters, for example, when you add names
to the phonebook, write text messages or enter web
addresses.
In addition to the way you normally enter letters
in your phone, using multitap text input, you can use
T9™ Text Input to enter text messages and e-mail,
for example, if the input language you select supports
this. T9 Text Input is a predictive input method and is
a quicker way to write texts.
Input languages
Before you start entering letters, you need to select
the input languages that you want to use when writing.
To select input languages
1. Scroll to Settings, YES, Language, YES, Input, YES.
2. Scroll to the language or alphabet that you want to use
for each language
for entering letters and press
you want.
3. Press YES to exit the menu.
When writing, you can switch to one of your selected
and then selecting
input languages by pressing
Language. See “The list of options” on page 14.
12
Multitap text input
When saving names in the phonebook or when writing
web addresses, you enter letters using multitap text
input. You press each key as many times as needed
to show the letter you want. The following example
shows how to write a name in the Phonebook.
To enter letters using multitap text input
1. Scroll to Phonebook, YES, Manage contact, YES,
Add contact, YES, YES again.
2. Press the appropriate key,
–
,
or
,
repeatedly until the character you want appears.
You can view the characters in the row that appears
briefly at the top of the display when you press a key.
Note: Your selection of input languages and character
or numeric input methods determines what you can see
or enter.
See the Latin alphabet, abc, table below:
Press…
to see/enter…
-?!‚.:;"'<=>()_1
ABCÅÄÆàÇ2Γ
Getting to know your phone
This is the Internet version of the user's guide. © Print only for private use.
Press…
to see/enter…
DEFèÉ3∆Φ
GHIì4
JKL5Λ
MNOÑÖØò6
PQRSß7ΠΣ
TUVÜù8
WXYZ9
+&@/¤%$€£¥\§¿¡0ΘΞΨΩ
Space # * ↵ ¶
to delete letters and numbers
to shift between capital and lower-case
letters
–
press and hold to enter numbers
Example:
• To enter an ‘A’, press
once.
• To enter a ‘B’, quickly press
twice.
• To shift between capital and lower-case letters,
, then enter the letter.
press
Tip: You can also use the volume key as a shortcut to
certain letters. To enter a ‘B’, press and hold the upper
. To enter a ‘C’, press
side volume key and press
and hold the lower side volume key and press
.
T9™ Text Input
You can use T9 Text Input when writing, for example,
text messages and e-mail. The T9 Text Input method
uses a built-in dictionary to recognize the most commonly
used word for each sequence of key presses. This way,
you press each key only once, even if the letter you
want is not the first letter on the key.
Note: A language must be selected to be able
to use the T9 Text Input method.
To turn T9 Text Input on or off
Note: You can toggle T9 Text Input on/off by pressing
.
and holding
The following example shows how to start writing
a text message:
Getting to know your phone
This is the Internet version of the user's guide. © Print only for private use.
13
To enter letters using T9 Text Input
1. Scroll to Messages, YES, Text, YES, Write new, YES.
2. For example, if you want to write “lane”,
,
,
,
.
press
3. Press
or
repeatedly to view alternative words
(candidates).
4. If the word shown is the one you want:
• press
to accept and add a space.
• press
or YES to accept without a space.
Tip: Press
to enter a period. To enter other
punctuation marks, press
and then
or
repeatedly. Press
to accept and add a space.
Press and hold
to select an input method for
the text you are currently writing.
•
If the candidates do not include a word you want,
you can add a new word to the list during selection.
•
Note: To enter a digit while typing text, press and hold
the digit key. For example, to enter a ‘5’, press and
.
hold
•
To add a word to candidates
1. Scroll to a similar candidate to the word you want
, select Spell word, YES.
to add, press
2. Press
repeatedly to delete one letter at a time.
Write the new word using multitap text input, YES.
The word is added to the dictionary. The next time
you enter the word you just added to the dictionary,
it appears as one of the alternative words.
3. Continue writing your message. See also “Sending text
messages” on page 40.
•
•
14
•
•
•
The list of options
Press
when writing to enter a list of options:
Add symbol – Symbols and punctuation marks are shown.
Move between symbols with the centre select key.
Insert item – Add a picture, sound effect, melody or
animation to a message.
Spell word – For T9 Text Input only. Edit the suggested
word by using multitap text input.
Text format – Edit size, style, alignment or start a new
paragraph.
Language – Show the input language selected earlier.
Input method – A list of input methods available for
the current input language is shown.
Candidates – For T9 Text Input only. A list of alternative
words is shown.
Help.
Getting to know your phone
This is the Internet version of the user's guide. © Print only for private use.
Personalizing your phone
You can adjust the phone settings to suit your own
requirements.
Themes
You can change the appearance of the display,
for example, the colours and background picture,
by using themes. Your phone comes with some pre-set
themes. You cannot delete these, but you can create
new themes on the Sony Ericsson Mobile Internet and
download them to your phone. For more information,
visit wap.SonyEricsson.com.
1.
2.
3.
4.
Note: You are not allowed to exchange
copyright-protected material.
•
•
To select a theme
• Scroll to Pictures&Sounds, YES, Themes.
Note: If you need to adjust the display contrast,
scroll to Settings, YES, Display, YES, Contrast.
Exchanging themes
You can send and receive a theme via multimedia
messaging (MMS), interchangeable with picture
messaging, and e-mail or download it via WAP.
For more information on sending themes in messages,
see “Messaging” on page 40.
To send a theme
Scroll to Pictures&Sounds, YES, Themes.
Highlight a theme, press
.
Select Send, YES.
Select a transfer method, YES.
•
•
Pictures
Your phone comes with a number of pictures. You can:
Set a picture as background when in standby mode.
Assign a picture to a contact in the phonebook. When
that person calls, the picture appears in the display
(provided your subscription supports the Calling Line
Identification service). See “To add a picture to a
phonebook contact” on page 26.
Enclose a picture in a text message.
Send a picture via picture messaging or e-mail.
All pictures and are saved in Pictures&Sounds, YES,
My pictures.
Personalizing your phone
This is the Internet version of the user's guide. © Print only for private use.
15
Handling pictures
You can also add, delete or rename pictures in
My pictures. The number of pictures that can be
saved depends on the size of the pictures. File types
supported are GIF, JPEG and WBMP.
To view your pictures
• Scroll to Pictures&Sounds, YES, My pictures.
The pictures are shown in thumbnail view. To get a full
view, press YES.
Note: Animations for picture messages can be viewed
in My pictures. Animations for text messages can only
be viewed when inserting an item in a text message.
See “To insert an item in a text message (EMS)”
on page 41.
To view your camera pictures (if connected)
• Scroll to Pictures&Sounds, YES, CommuniCam™ or
• Scroll to Connect, YES, Accessories.
To select a picture as background
1. Scroll to Settings, YES, Display, YES, Wallpaper.
2. Select Set picture, YES.
3. Select a picture, YES.
16
Tip: When viewing your pictures, you can set
.
a background by pressing
To turn the background picture On or Off
• Scroll to Settings, YES, Display, YES, Wallpaper,
YES, Activate.
Exchanging pictures
You can send pictures via picture messaging or e-mail
and receive via picture messaging. For more information
on sending pictures in messages, see “Messaging”
on page 40.
Note: You are not allowed to exchange
copyright-protected material.
To send a picture
1. Scroll to Pictures&Sounds, YES, My pictures
or CommuniCam™.
2. Highlight a picture, YES. Press
.
3. Select Send, YES.
4. Select a transfer method.
• When you receive a picture via a text message or a picture
message, a new message appears in your Inbox.
Highlight the picture in the message, press
and select Save to save in My pictures.
Personalizing your phone
This is the Internet version of the user's guide. © Print only for private use.
Ring signals and melodies
Your phone comes with a number of standard and
polyphonic melodies that can be used as ring signals.
You can create and edit standard melodies, and send
them to a friend in a text or picture message. You
can also download standard and polyphonic melodies
via WAP.
Note: You are not allowed to exchange
copyright-protected material.
To select a ring signal
• Scroll to Settings, YES, Sounds & alerts,
YES , Ringtones.
To set the ring signal volume
1. Scroll to Settings, YES, Sounds & alerts, YES,
Ring volume, YES.
2. Press
or
to increase or decrease the volume.
3. Press YES to save the setting.
Warning! Exposure to excessive ring volume may
damage hearing. Answer the call or lower the volume
before placing the phone at your ear.
To turn the ring signal on or off
• Press and hold
from standby and select
Turn on silent or Turn off silent. All signals except
the alarm and timer signals are turned off.
To compose a ring signal or melody
1. Scroll to Pictures&Sounds, YES,
Composer, YES.
• Press
–
to enter
a note.
• Press
or
to make
the note shorter or longer.
There are six different lengths
of notes.
• Press
to change octave.
• Press
once to raise the note one semitone.
• Press
twice to lower the note one semitone.
• Press
to add a melody effect, and to set the
tempo, volume, style and duration.
• Press
to enter a pause (rest).
• Press
to remove notes.
2. To listen to your melody, press YES.
3. Press YES again to save and name it, or press NO
to continue composing.
Personalizing your phone
This is the Internet version of the user's guide. © Print only for private use.
17
Note: To edit a melody, scroll to Pictures&Sounds,
YES, My sounds, select the melody and press
.
To use the piano
1. In the Composer, press the
upper or lower side
volume key to activate the
piano.
2. Use the centre select key
to move between the keys. See “Icons” on page 67.
3. Press YES to select a note.
4. Press the upper or lower side volume key to deactivate
the piano.
Exchanging melodies
You can send and receive a sound or melody via SMS
or MMS, or download it via WAP.
Note: You cannot exchange a polyphonic melody
via SMS.
1.
2.
3.
4.
18
To send a melody
Scroll to Pictures&Sounds, YES, My sounds, YES.
Select a melody and press
.
Select Send, YES.
Select a transfer method.
Note: To send a ring signal or melody in a text
message, see “To insert an item in a text message
(EMS)” on page 41.
Increasing ring
You can choose a ring signal that rises in steps from
the lowest volume to the highest.
To turn increasing ring On or Off
• Scroll to Settings, YES, Sounds & alerts, YES,
Increasing ring.
Specific ring signals for personal calls
If you subscribe to the Two Line Service, you
can set different ring signals for the two voice
lines. Line 1 and Line 2 are displayed instead
of Voice calls.
If your subscription includes the Calling Line
Identification (CLI) service, you can assign
a personal ring signal to numerous callers.
To set a specific ring signal for a caller
1. Scroll to Phonebook, YES, Personal rings, YES,
Add new?, YES.
2. Enter the first letter of the contact name, YES.
3. Select a contact, YES.
4. Select a ring signal, YES.
Personalizing your phone
This is the Internet version of the user's guide. © Print only for private use.
Note: You cannot assign a ring signal to a number
stored only on your SIM card.
Sounds & alerts
You can choose to be notified of an incoming call
by the buzzing of the vibrating alert. You can set
the phone’s vibrating alert to one of the following:
• On – all the time.
• On if silent – on when the ring volume is turned off
or when you have set the phone to silent.
• Off – all the time.
To set the vibrating alert
1. Scroll to Settings, YES, Sounds & alerts, YES,
Vibrating alert, YES.
2. Select the setting you want, YES.
•
•
•
•
From Settings, YES, Sounds & alerts, you can also
select:
Alarm signal that you hear during an alarm.
Message alert when messages are received.
Key sound when using the keypad.
Minute minder to beep after every minute during calls.
Menu language
Most SIM cards automatically set the menu language
to the language of the country where you bought your
SIM card. If this is not the case, the preset language
is English.
To change the menu language
1. Scroll to Settings, YES, Language, YES, Menu, YES.
2. Select a language, YES.
Display light
The display light can be set to automatic, off, or on.
In automatic mode, the display light is turned off a few
seconds after you press the last key.
Note: The display light, if set to On, consumes extra
battery power and reduces standby time.
Note: If keylock is on, the display light will only
is pressed.
activate when
To set the display light
• Scroll to Settings, YES, Display, YES, Light.
Personalizing your phone
This is the Internet version of the user's guide. © Print only for private use.
19
To set the display contrast
• Scroll to Settings, YES, Display, YES, Contrast.
Time settings
The time is always displayed in standby.
To set the time
• Scroll to Settings, YES, Time and date, YES, Set time.
To set the date and/or date format
• Scroll to Settings, YES, Time and date.
Advanced time settings
Under Advanced in the Settings, YES,
Time and date menu, you can set time
zone and daylight savings time. Making these
changes alters the time accordingly, if your network
operator supports this service.
You can choose a 12-hour clock or a 24-hour clock.
To set the time format
• Scroll to Settings, YES, Time and date, YES,
Time format.
Note: If you select the 12-hour clock, you can
alternate between am and pm by pressing
when setting the time.
Date
When the phone is in standby mode, you can press
the upper or lower side volume key to see today’s
date in the Status menu.
20
Note: Contact your network operator for more
information.
Answering mode
When using a portable handsfree kit, you can choose
to answer a call by pressing any key (except the NO key)
or set the phone to answer the call automatically.
To select answering mode
• Scroll to Settings, YES, Handsfree, YES,
Answering mode.
• Scroll to the option that you want.
• Press the left softkey to select.
Personalizing your phone
This is the Internet version of the user's guide. © Print only for private use.
User greeting
When you turn your phone on or off, the
Sony Ericsson greeting appears. Your network
operator’s own greeting may be shown instead.
To select a greeting
1. Scroll to Settings, YES, Display, YES,
Start-up picture, YES.
2. Select a greeting, YES.
Your selected greeting will be shown when the phone
is turned on.
My phone numbers
You can check your own phone number(s).
To check your phone number
• Scroll to Phonebook, YES, Special numbers, YES ,
My numbers. If your number is not saved on your
SIM card, you can enter it yourself.
Keypad lock
You can lock the keypad to avoid dialling a number
by accident.
Note: Calls to emergency numbers can still be made,
even when the keypad is locked.
Automatic keylock
Automatic keylock means the keypad is locked
25 seconds after you last press a key.
To turn automatic keylock On or Off
• Scroll to Settings, YES, Locks, YES, Auto keylock.
To lock the keypad manually
• Press and hold
in standby, and select
Lock keypad, YES.
The keypad remains locked until you answer an
incoming call or until you unlock the keypad manually.
To unlock the keypad
• Press
when prompted with Unlock keypad?,
press YES.
Master reset
Reset settings allows you to reset all the settings
in the phone to the factory defaults. Factory defaults
are not necessarily the same settings as when you
purchased your phone.
Reset all allows you to reset all the settings in the
phone to the factory defaults, resets your data and
WAP account settings, and may delete user- downloaded
images, ringtones and templates.
Personalizing your phone
This is the Internet version of the user's guide. © Print only for private use.
21
Note: Before choosing Reset all, check with your
service provider.
To reset the phone
1. Scroll to Settings, YES, Master reset.
2. Select Reset settings or Reset all, YES.
3. Enter the phone lock code (0000 or the new code
if you have changed it) and press YES.
Calling
Before you can make or receive any calls, you must
turn on the phone and be within range of a network.
See “Holding the Phone” on page 5.
Making calls
1. Enter the area code and the phone number.
2. Press YES to make the call.
3. Press NO to end the call.
Tip: You can call numbers from the call list and
the phonebook. See “Call list” on page 24 and
“Phonebook” on page 25.
To change the earpiece volume during a call
• Press the upper or lower side volume key to increase
or decrease the earpiece volume.
To mute the microphone during a call
• Press and hold
until the display shows Muted.
Press
again to resume the conversation. To mute
the ringer, see “To mute the ringer” on page 24.
22
Calling
This is the Internet version of the user's guide. © Print only for private use.
Automatic re-dialling
If the connection of the call failed and the display
shows Retry?, press YES.
Note: Do not hold the phone to your ear while waiting.
When the call is connected, the phone gives a loud
signal.
The phone re-dials the number (up to ten times) or until:
• The call is connected.
• You press a key or receive a call.
Note: Automatic re-dialling is not available for data
calls.
Making international calls
1. Press and hold
until a + sign appears in the
display. The + replaces the international prefix number
of the country from which you are calling.
2. Enter the country code, area code (without the leading
zero) and phone number, YES.
Tip: It is useful to enter the + sign and country code
for all numbers in the phonebook as they can then
be easily used whether home or abroad.
Emergency calls
To make an emergency call
• Enter 112, YES.
Your phone supports the international emergency
numbers, 112, 911 and 08. This means that these
numbers can normally be used to make an emergency
call in any country, with or without a SIM card
inserted, if a GSM network is within range.
Note: Some network operators may require that
a SIM card be inserted, and in some cases that the
PIN has been entered as well.
In some countries, other emergency numbers may also
be promoted. Your operator may therefore have saved
additional local emergency numbers on the SIM card.
To view your local emergency numbers
• Scroll to Phonebook, YES, Special numbers, YES,
SOS numbers.
Voice mail
If your subscription includes an answering
service, callers can leave a voice mail
message when you cannot answer a call.
Calling
This is the Internet version of the user's guide. © Print only for private use.
23
Receiving a voice mail message
Depending on your network operator, you are informed
that someone has left a message by a text message
(SMS) or by a voice mail icon that indicates the
).
number of voice mail messages waiting (
Calling your voice mail service
You can easily call your voice mail service by pressing
, if you have saved your voice mail
and holding
number in the phone. You get the number from your
service provider.
To enter a voice mail number
• Scroll to Messages, YES, Options, YES, Voice mail no.
Note: The voice mail number can be obtained from
your service provider.
Receiving calls
When you receive a call, the phone rings and Answer?
appears. If the number is a restricted number, Withheld
or Unknown appears.
To reject a call
• Press NO.
To mute the ringer
• Press the upper or lower side volume key. To mute
the microphone during a call, see “To mute the
microphone during a call” on page 22.
Missed calls
If you have missed a call, Missed calls:1 appears
in standby, indicating the number of missed calls.
To check your missed calls
1. When Missed calls:1 is displayed, press YES to display
the missed calls.
2. To call a number from the list, scroll to the number, YES.
Call list
The numbers of the last calls that you have made or
received are saved in the call list. If your subscription
includes the Calling Line Identification service, and
the caller’s number is identified, you will also find the
numbers of answered and missed calls in the call list.
To answer a call
• Press YES.
24
Calling
This is the Internet version of the user's guide. © Print only for private use.
Note: Your last outgoing call will always be listed
first. All other incoming/outgoing calls are listed
in time-sequential order.
Note: When you copy contacts to your SIM card,
existing contacts on the SIM card will be deleted.
The memory capacity of your SIM card varies.
Note: If a number is stored on your SIM card,
icon will display next to the number.
the
There are some other functions, such as assigning
personal ring signals and picture phonebook that can
only be used for contacts stored in the phone’s internal
phonebook. Personal ring signals and pictures are
deleted from the contact information when you copy
the contacts to the SIM card.
To call a number from the call list
1. To enter the call list, press YES from standby.
2. Scroll to the number you want to call, YES.
To clear the call list
• Scroll to Calls, YES, Options, YES, Clear call list, YES.
To turn the call list on or off
• Scroll to Calls, YES, Options, YES, Call listing, YES.
Phonebook
You can store contact information (names, phone
numbers, e-mail addresses, and so on) in the phone’s
internal phonebook. There is space for up to 250
contacts.
You can copy the complete list of contacts from
your internal phonebook to the SIM card and vice
versa. Information on the SIM card is more portable
since you can easily move your SIM card from one
phone to another.
1.
2.
3.
4.
5.
To add a contact
Scroll to Phonebook, YES, Add contact, YES.
Scroll to the field you want to fill in, press YES.
Enter the information, YES.
Select the next field and so on.
When you have entered the information, scroll
to Save and exit?, YES.
Tip: To enter an unsaved number, press
when
you are in a number field, and select a number
in the unsaved numbers list.
Ask to save
You have the option of storing a dialled number as
a phonebook contact upon call completion. If the phone
number is already saved in your phonebook you will
not be prompted to save it in your phonebook again.
Calling
This is the Internet version of the user's guide. © Print only for private use.
25
1.
2.
3.
4.
To turn off Ask to Save
Scroll to Phonebook, YES, Options, YES.
Select Ask to save by pressing YES.
Select on or off by tilting the navigation key up or down.
Press YES to select.
Pictures and personal rings
You can add a picture and a personal ring signal
to a contact.
1.
2.
3.
4.
To add a picture to a phonebook contact
Scroll to Phonebook, YES, Pictures, YES.
Enter the first letters of the contact, YES.
When the contact is highlighted, press YES.
This takes you to My pictures. Select a picture
and press YES twice.
To add a personal ring to a phonebook contact
1. Scroll to Phonebook, YES, Personal rings, YES,
Add new?, YES.
2. Enter the first letters of the contact, YES.
3. Scroll to the contact you want to select and press YES.
4. Scroll to the personal ring that you would like
to select, YES.
26
To call a contact from your contact list
1. From standby, press and hold one of the number keys
(2-9) to find a contact beginning with the first letter
on that key (or closest following).
• For example, press and hold 5 to go to the first
contact beginning with “J”. To go to a contact
beginning with “L” press 5 three times after you
have entered the list of contacts.
2. When the contact you want to call is highlighted,
press YES.
3. Select the number you want to call, YES.
If only one number is linked to the contact,
press and hold YES at step 2.
Note: You can also use the Call contact option
in the Phonebook menu to call a contact.
To call an entry on your SIM card
1. Scroll to Phonebook, YES, Advanced, YES,
Call from SIM, YES.
2. Enter the first letters of the entry on the SIM card that
you want to call. Press YES.
3. When the SIM card entry you want to call is highlighted,
press YES.
Calling
This is the Internet version of the user's guide. © Print only for private use.
Updating the phonebook
When needed, you can easily update or delete
any contact information.
To edit a contact
1. You can edit a contact that is stored in your
phonebook. Scroll to Phonebook, YES,
Manage contact, YES, Edit contact, YES.
2. Enter the first letters of the contact, YES.
3. When the contact is highlighted, press YES.
4. Select Edit info, YES.
5. Scroll to the field you want to fill in, YES.
6. Enter the information, YES.
7. When you have entered the information, scroll down
to Save and exit?, YES.
• To delete a contact, scroll to Phonebook, YES,
Manage contact, YES, Delete contact. Then select
the contact and press YES twice.
• To delete all contacts, scroll to Phonebook, YES,
Advanced, YES, Delete all. Then press YES twice,
insert your phone lock code and press YES.
Note: Entries on the SIM card are not deleted when
you select Delete all.
Default (standard) number
Each contact has a default phone number. The first
phone number you link to a contact automatically
becomes the default number. If you scroll to a certain
contact in the Call contact list and then press and hold
YES, the default number is dialled.
To set the default number
1. Scroll to Phonebook, YES, Manage contact, YES,
Edit contact, YES.
2. Enter the first letter of the contact, YES.
3. When the contact is highlighted, press YES.
4. Select Default number, YES. Select the number
you want as default, YES.
Groups
You can create a group of contacts. By doing so,
you can send text messages to several recipients at the
same time. See “Sending text messages” on page 40.
To create a group of contacts
1. Scroll to Phonebook, YES, Manage contact, YES,
Groups, YES, New group, YES.
2. Enter a name for the group, YES.
3. Select New member, YES.
Calling
This is the Internet version of the user's guide. © Print only for private use.
27
4. Enter the first letters of the contact you want to add,
press YES.
5. Press YES to select the contact.
6. Select a phone number, press YES.
7. Repeat steps 3-6 to add more members.
8. Press NO to finish.
Business cards
You can add your own business card to the phonebook.
To add your own business card
• Scroll to Phonebook, YES, Manage contact, YES ,
My card, YES. Select Add, YES.
Exchanging business cards
You can exchange business cards as a text message
or a picture message.
To send a contact
1. Scroll to Phonebook, YES, Manage contact, YES,
Send contact, YES.
2. Enter the first letters of the contact you want to send, YES.
3. Press YES to select the contact.
4. Select transfer method, YES.
Copy contacts
You can copy the names and numbers in your
phonebook between your phone’s memory and the
SIM card. The number of phone numbers that can
be saved depends on the type of SIM card.
Note: When you copy contacts to your SIM card,
existing contacts on the SIM card will be deleted.
Be careful not to replace details by mistake.
To send your business card
1. Scroll to Phonebook, YES, Manage contact, YES ,
My card, YES, Send, YES.
2. Select a transfer method, YES.
To copy names and phone numbers
to the SIM card
• Scroll to Phonebook, YES, Advanced, YES,
Copy all to SIM.
To save a business card in a picture message
1. Scroll to Messages, YES, MMS, YES.
2. Scroll to Inbox, YES, select the message, YES.
3. Scroll to the business card item, press YES to accept it.
To copy names and phone numbers to the phone
• Scroll to Phonebook, YES, Advanced, YES,
Copy from SIM.
28
Calling
This is the Internet version of the user's guide. © Print only for private use.
Tip: When you have selected a name in the Call from
SIM menu, you can copy name and phone number
to the phone by pressing
and then selecting
Copy to phone.
Speed dialling
You can save the phone numbers that you want
to reach easily in positions 2-9 on your SIM card.
Note: Position 1 is reserved for voice mail access.
To call any of these phone numbers from standby
• Enter the position number and press YES.
To change position numbers
1. Scroll to Phonebook, YES, Advanced, YES,
Position list, YES.
2. Select the phone number you want to move, YES .
3. Select the position to which you want to move the
phone number, press YES.
4. When finished press NO to exit, YES to save to SIM.
Call time
During a call, the duration of the call is shown
in the display.
You can check the duration of your last call, outgoing
calls and the total time.
To check and reset the call time
• Scroll to Calls, YES, Time and cost, YES, Call timers
and select an option.
• Select Reset timers to reset the call time metre.
Diverting calls
If you cannot answer incoming voice or data
calls, you can divert them to another number:
for example, your answering service.
For voice calls, you may be able to choose between
the following divert alternatives:
• Divert always – divert all voice calls.
• When busy – divert calls if you are already
on the phone.
• Not reachable – divert calls if your phone is turned
off or if you are unreachable.
• No reply – divert calls that you do not answer within
a specified time limit (operator-dependent).
Note: When the Restrict calls function is on, some
Divert calls options cannot be activated.
To turn on call diverting
1. Scroll to Calls, YES, Manage calls, YES,
Divert calls, YES.
2. Select a call category and then a divert alternative, YES.
Calling
This is the Internet version of the user's guide. © Print only for private use.
29
3. Select Activate, YES.
4. Enter the phone number to which you want your calls
to be diverted and press YES, or retrieve it from the
phonebook.
Call waiting service
If the call waiting service is activated, you hear a beep
in the earpiece if you receive a second call during an
ongoing call.
To turn off a call diverting option
• Select a diverting option and select Cancel.
To activate or deactivate the call waiting service
• Scroll to Calls, YES, Manage calls, YES , Call waiting.
To check status
1. Scroll to Calls, YES, Manage calls, YES,
Divert calls, YES.
2. Select a call type, YES.
3. Scroll to the diverting you want to check, YES.
Select Get status, YES.
To make a second call
1. Press YES to put the ongoing call on hold.
2. Enter the number you want to call and press YES,
or retrieve a number from the phonebook.
To check the status of all call diverting
• Select Check all in the Divert calls menu.
More than one call
You can handle more than one call
simultaneously. For example, you can put an
ongoing call on hold, while you make or answer
a second call, and then switch between the two calls.
Note: You can only put one call on hold. You can also
.
reach different options by pressing
Receiving a second call
• To answer the second call and put the ongoing call
on hold, press YES.
• To reject the second call and continue the ongoing call,
select Busy.
• To answer the second call and to end the ongoing call,
select Release&answer.
Note: During a call, the Ongoing call menu replaces
the Calls menu.
30
Calling
This is the Internet version of the user's guide. © Print only for private use.
•
•
•
•
•
Handling two calls
When you have one ongoing call and one call on hold,
you can do the following:
Press YES to switch between the two calls.
Press
, then select Join calls to join the two calls
into a conference call.
Press
, then select Transfer call, to connect the
two calls. You are disconnected from both calls.
Press NO to end the ongoing call, then press YES
to retrieve the held call.
Press NO twice to end both calls.
Note: You cannot answer a third call without ending
one of the first two calls.
Conference calls
In a conference call, you can have a joint
conversation with up to four other people.
You can also put a conference on hold and
make another call.
Creating a conference call
To create a conference call, you must first have
one ongoing call and one call on hold.
To join the two calls into a conference call
• Scroll to Ongoing call, YES, Join calls, YES.
To add a new participant
1. Press YES to put the conference call on hold.
2. Call the next person you want on the conference call.
3. Press
, select Join calls, YES.
Repeat steps 1 to 3 to include more participants.
To release a participant
1. Press
, select Release party, YES.
2. Select the participant, YES.
To end the conference call
• Press NO.
Having a private conversation
You can have a private conversation with one of the
participants and put the other participants on hold.
• Press
, then select Extract part to select the
participant that you want to talk with.
• Select Join calls to resume the conference call, again.
Calling
This is the Internet version of the user's guide. © Print only for private use.
31
Restricted dialling
You can use the restrict calls service to restrict
outgoing and incoming calls. This may be
useful, for example, when you are abroad. To
use this service, you need a password which you get
from your service provider.
Fixed dialling
The fixed dialling function allows calls to
be made only to certain numbers saved on the
SIM card. Fixed dialling requires a SIM card
that allows fixed numbers to be saved. The
fixed numbers are protected by your PIN2.
Note: If you divert incoming calls, you cannot activate
some Restrict calls options.
Note: Calls to emergency numbers can still be made,
even when the fixed dialling function is on.
The following calls can be restricted:
• All outgoing calls – All outgoing.
• All outgoing international calls – Outgoing intl.
• All outgoing international calls except to your home
country – Outg. intl roam.
• All incoming calls – All incoming.
• All incoming calls when you are abroad
(when roaming) – Inc. when roam.
1.
2.
3.
4.
32
To turn a call restriction on or off
Scroll to Calls, YES, Manage calls, YES,
Restrict calls, YES.
Select an option, YES.
Select Activate or Cancel, YES.
Enter your password, YES.
• To turn off all call restrictions, select Cancel all.
• To change the password, select Change passwd.
• Partial numbers can be saved. For example, saving
0123456 allows calls to be made to all numbers
starting with 0123456.
• Numbers with question marks can be saved. For example,
saving 01234567?0, allows calls to be made to numbers
from 0123456700 to 0123456790. To enter a question
.
mark, press and hold
To turn fixed dialling on or off
1. Scroll to Phonebook, YES, Options, YES,
Fixed dialling, YES.
2. Enter your PIN2, YES.
3. Select On or Off, YES.
To save a fixed number
• Scroll to Phonebook, YES, Special numbers, YES,
Fixed numbers. Select Add new? and enter the number.
Calling
This is the Internet version of the user's guide. © Print only for private use.
Note: You can view fixed numbers when fixed dialling
is on, but fixed dialling must be off to add new numbers
to the list or to edit numbers already in the list.
Closed user groups
The Closed User Group function is a way
of lowering call costs. On some networks
it is cheaper to make calls within a call group.
You can save ten groups.
To add a group
1. Scroll to Calls, YES, Manage calls, YES,
Closed groups, YES, Edit list, YES.
2. Scroll to Add new?, YES.
3. Enter the name of the user group, YES.
4. Enter the index number, YES .
You get the index number from your operator.
To activate a group
1. Scroll to Calls, YES, Manage calls, YES,
Closed groups, YES, Edit list, YES.
2. Select a group, YES.
3. Select Activate, YES.
Calls can only be made within the selected group.
To call outside a Closed User Group
• Select Open calls and then select On.
Accept calls
With the accept calls service, you can choose to
receive calls only from certain numbers or from
members of a group. Other calls are automatically
rejected by a busy tone. The phone numbers of calls
you have rejected are saved in the Call List.
To add numbers to the accepted callers list
1. Scroll to Calls, YES, Manage calls, YES, Accept calls,
YES, Accepted list, YES.
2. Scroll to Add new?, YES. This takes you
to the phonebook.
3. Select an entry, YES.
To select an accept option
• Scroll to Calls, YES, Manage calls, YES, Accept calls,
YES, Accept options.
Showing or hiding your number
If your subscription supports the Calling Line
Identification Restriction (CLIR) service,
you can hide your phone number when
making a call.
Calling
This is the Internet version of the user's guide. © Print only for private use.
33
To show or hide your phone number
1. Enter the phone number you want to call.
2. Scroll to Calls, YES, Next call, YES.
3. Select Hide my number or Call and show ID and
press YES to make the call.
Setting up Mobile Internet
In order to use the Internet, browse via
Web services or send and receive picture and e
mail messages, the following are required:
1. A phone subscription that supports data
transmission.
2. Settings entered in your phone.
• Settings may already be entered when you
buy your phone.
• You can receive settings in a text message from your
network operator or service provider.
• Settings are also available at
www.SonyEricsson.com
3. You may also have to register as a WAP/e-mail user
with your service provider or network operator.
Note: This Sony Ericsson mobile phone does not
support tethered data mode or synchronization.
Note: It is strongly recommended that you contact
your service provider before editing or adjusting
any data settings included in your phone at the time
of purchase.
34
Setting up Mobile Internet
This is the Internet version of the user's guide. © Print only for private use.
Set up with the wizard
If your phone is not set up for WAP, you can ask your
network operator or service provider to provide you
with WAP settings information. Then you can simply
use the wizard in your phone to help guide you through
the relevant settings.
To use the wizard for setting up WAP
1. Scroll to Web services, YES, homepage (operator
dependent), YES. The wizard now starts if no
WAP settings exist.
2. Enter and save settings when asked, press YES
to confirm.
Advanced setting information
To use the WAP browser, via a WAP service provider,
you need settings for:
• a specific data account for WAP, and a WAP profile.
To use e-mail messaging, via an Internet service
provider, you need settings for:
• a specific data account for e-mail, and an e-mail
account.
To send a text message (SMS) to an e-mail address
via your network operator, you need to set:
• an e-mail gateway phone number.
Note: Some advanced settings that are described in the
following instructions are not necessarily mandatory;
please consult your network operator or service
provider for more information.
A data account includes connection settings for
access to a server at your service provider, for example
via WAP (Mobile Internet) or via e-mail (Internet).
A WAP profile includes user settings that allow
WAP browsing and picture messaging.
An e-mail account includes user settings that allow
e-mail messaging direct from your phone, such as
those provided by your Internet service provider.
Alternatively, e-mail via WAP includes user settings
that also allow e-mail messaging, such as those
provided by your Internet service provider. However
this is set up on your service provider’s WAP site.
Note: Check with your WAP service provider if their
site supports e-mail.
Setting up Mobile Internet
This is the Internet version of the user's guide. © Print only for private use.
35
Data account settings
You can have several data accounts saved
in your phone, with different settings for
different purposes. The main setting for a data
account is the Account type (connection method).
Tip: If there are no data account or WAP profile
settings in your phone, you can enter data account
settings when you enter WAP profile settings. See
Web services, YES , Options, YES, WAP profiles, YES,
New profile, YES, Enter a name, YES, Connect using,
YES, New account, YES.
You can choose from GPRS data or GSM data account
types.
Note: Please contact your network operator
for charging details.
GPRS (General Packet Radio Service) allows
fast and efficient access where you can
always be online.
GPRS settings that are available:
• APN (Access point name address) – the address
of the external data network you want to connect to,
either an IP address or a text string.
• User id – your user id to log on to the external data
network.
• Password – your password to log on to the external
data network.
• Passwd request (Password request) – if this setting
is on, you are asked for a password each time you
log on to the external data network.
• Allow calls (Preferred service) – if you want to
be able to accept incoming calls during a GPRS
session, select Automatic. If not, select GPRS only.
• IP address – the IP address that the phone uses
when communicating with the network. If you do
not enter an address, the network provides you with
a temporary IP address.
• DNS address – if the network does not provide
the IP address to the DNS server automatically,
you may enter it here.
• Advan. settings (Advanced settings) – these
are optional. Consult your network operator.
Note: You need a subscription that supports GPRS.
36
Setting up Mobile Internet
This is the Internet version of the user's guide. © Print only for private use.
GSM settings include some settings that are
similar to GPRS settings and some that are
GSM-specific as follows:
• Phone number – the phone number of your
Internet service provider.
• Data rate – select the speed you want for the
connection.
• Dial type – select analogue or ISDN connection.
Note: If you want to change access type, you have
to create a new data account and select the access
type you want to use.
1.
2.
3.
4.
5.
To create a data account manually
Scroll to Connect, YES, Data comm., YES,
Data accounts, YES, New account, YES.
Select an account type for access.
Enter a name for the data account.
Enter the settings that you have received from
your network operator or service provider.
Confirm each setting by pressing YES.
Scroll to Save?, YES.
To edit a data account
1. Scroll to Connect, YES, Data comm., YES,
Data accounts, YES.
2. Select a data account, YES.
3. Select Edit.
4. Select the setting you want to edit, YES. Edit the
setting, YES.
5. Repeat step 4 for other settings you want to edit.
Preferred service
You can set GPRS or GSM as the preferred service.
To select preferred mode
• Scroll to Connect, YES, Data comm., YES,
Pref. service and select GPRS and GSM or GSM only.
Note: To see the status of GPRS coverage and
connection, press the upper or lower side volume
key from standby to enter the Status menu and then
scroll to GPRS.
WAP profile settings
The WAP settings are stored in a WAP profile.
In most cases you only need to use one profile
to access the Internet.
Setting up Mobile Internet
This is the Internet version of the user's guide. © Print only for private use.
37
Tip: If there are no data account or WAP profile
settings in your phone, you can enter data account
settings when you enter WAP profile settings. See
Web services, YES , Options, YES, WAP profiles, YES,
New profile, YES, Enter a name, YES, Connect using,
YES, New account, YES.
To enter WAP profile settings manually
1. Make sure you have a data account set up between
your phone and the Internet server, as described
in “Data account settings” on page 36.
2. Scroll to Web services, YES, Options, YES,
WAP profiles, YES.
3. Select New profile to add a new profile or select
an existing profile that you want to edit, YES.
When selecting New profile enter a name for the profile,
YES, Connect using, YES, select the data account
to be used, YES and enter the IP address, YES.
A list appears. Scroll to Save?, YES.
When selecting an existing profile, you can
do the following:
• Rename – Change the name of the profile.
• Connect using – Select data account.
38
• IP address – WAP gateway server address.
• Advanced – More profile settings, see below.
• Delete – Remove the profile.
If you select Advanced you can also do the following:
• Chg. homepage – Enter the address of the WAP site
you want as the homepage.
• Second account – Select an alternative data account,
if the first in Connect using fails.
• User id – Enter your user id for the WAP gateway.
• Password – Enter your password for the WAP
gateway.
• Security – Ensure the security of your WAP
connection.
• Show pictures – View pictures while browsing.
E-mail account settings
An e-mail account specifies, for example, the server
that is used for your e-mail messages.
To create an e-mail account
1. Scroll to Messages, YES, E-mail, YES, Options, YES.
2. Select Edit account, YES .
3. Select Add new?, YES.
Setting up Mobile Internet
This is the Internet version of the user's guide. © Print only for private use.
4. Enter a name for the account, for example Home
or Office.
5. Select Connect using, YES.
A list appears with the data accounts that you have
saved in your phone.
6. Select the data account you want to use with this
e-mail account, YES.
7. Enter the rest of the settings in the list, some of which
are optional. To enter the settings, scroll to the setting,
press YES and enter the information. Press YES to
confirm. Repeat this for each required setting. You use
the same e-mail settings in your phone as in your PC
e-mail program. If you do not have an e-mail service,
contact your operator to get all the necessary settings.
• Protocol – select POP3 or IMAP4.
• Inc. server (Incoming server)– enter the name or IP
address of the service provider for incoming e-mail
messages. For example, mail.server.com or 10.1.1.1.
• Incoming port – if needed, change the number of the
port used by the protocol you are using.
• Mailbox – enter a user name for your e-mail account.
• Password – enter a password for your e-mail account.
Your service provider may alternatively request a
password on connection.
• Outgoing server – enter the name or IP address of the
SMTP server to be able to send e-mail messages.
• Outgoing port – if needed, change the number of the
port used by the SMTP protocol.
• E-mail address – enter your e-mail address.
• Download – select whether to receive headers and text
or headers only.
• From name: – enter your name.
• Signature – select if you want to add your business
card to your e-mail messages.
• Copy outgoing – Select On, if you want e-mail
messages sent from your phone also to be sent to
an e-mail address of your choice. This way, your sent
messages are copied and can be saved for future
reference.
• Check interval – Select how often you want the phone
to connect to your e-mail server and check for
incoming e-mail messages.
If you have both an office and a home e-mail account,
you can set one of them as default:
• Select Set account from the Messages, YES, E-mail,
YES, Options menu and select the account.
See “E-mail” on page 45 for information about how
to use e-mail.
Setting up Mobile Internet
This is the Internet version of the user's guide. © Print only for private use.
39
Messaging
Your phone supports various messaging
services – text messages, chat messages,
picture messages and e-mail. Please contact
your service provider for details on which
services you can use.
Text messages
Text messages are sent via SMS (Short Message
Service). They can be sent to one person or to a number
of recipients, for example, that you may have saved
in the phonebook.
You can add pictures, animations, melodies,
and sound effects to a text message, and format
the text using EMS (Enhanced Messaging Service).
Note: Text messages with EMS functionality can only
be sent to other compatible phones supporting the
EMS standard.
Before you start
First make sure that the number of your service centre
is set. The number is supplied by your service provider
and is usually saved on the SIM card.
40
To set the service centre number
1. Scroll to Messages, YES, Text, YES, Options, YES,
Service centres, YES. The service centre number
appears if it is saved on the SIM card.
2. If there is no number in the list, select Add new?, YES.
3. Enter the number, including the international “+” sign
and country code, YES.
Sending text messages
For information about entering letters, see “Entering
letters and characters” on page 12.
Tip: A quick and easy way to write a new text message
from the standby screen
is to press and hold
To enable text message subject line
1. Scroll to Messages, YES, Text, YES, Options, YES,
Subject, YES.
To write and send a text message
1. Scroll to Messages, YES, Text, YES, Write new, YES.
2. Write your message, YES.
3. Enter a recipient or more as follows:
• Enter a recipient’s phone number, YES.
Messaging
This is the Internet version of the user's guide. © Print only for private use.
• For more recipients, scroll to Add recipient, YES ,
enter the number, YES.
• Press
to retrieve a number from the phonebook
or other options.
4. Select Send, YES.
Note: You may be charged per recipient for sending
text messages.
1.
2.
3.
4.
5.
To insert an item in a text message (EMS)
Scroll to Messages, YES, Text, YES, Write new, YES.
While writing your message press
.
Select Insert item, YES.
Select Picture, Sound effect, Melody, Animation
or Picture, YES.
Select an item, YES. Then press YES again to confirm.
After inserting an item, press
to select, delete
or replace options.
E-mail gateway
Your network operator may have a phone number
to an e-mail gateway that allows you to send a text
message to an e-mail address.
To set up an e-mail gateway
1. Scroll to Messages, YES, Text, YES, Options, YES,
E-mail gateways, YES.
2. If there is no number in the list, select Add new?, YES.
3. Enter the number, including the international “+” sign
and country code, YES.
You can activate, edit or delete e-mail gateways.
Text formatting (EMS)
You can change the style, size and alignment of the
text, and create new paragraphs, in a text message.
To format the text in a text message
1. Scroll to Messages, YES, Text, YES, Write new, YES.
2. Write the text message. Highlight the text you want
to format by pressing the volume key down while
scrolling back with the navigation key.
3. Press
.
4. Select Text format, YES. Then select Text style,
Text size, Alignment or New paragraph, YES.
5. Select a text format, YES.
Tip: You can also select text formats before you start
writing the text message.
Messaging
This is the Internet version of the user's guide. © Print only for private use.
41
Receiving text messages
When you receive a text message, the phone will give
you an audio alert (if the phone is not in ‘Silent’ mode)
and the message New messages Read now? appears
in the display. If you receive a text message from
someone you have saved as a contact in your
phonebook, the name of that contact appears
in the display along with the text message.
To save from a text message
When the melody, phone number, WAP address, picture
or animation is highlighted, press YES. Then select
YES .
to save the item and press
• A melody is saved in My sounds.
• A phone number is saved in Phonebook.
• A WAP address is saved in Bookmarks.
• All pictures are saved in My pictures.
To read the text message
Press YES to read the text message, or NO if you want
to read the message later. The message is saved in Inbox
in the Text menu.
Note: Animations can only be viewed when inserting
an item in a text message. See “To insert an item in a
text message (EMS)” on page 41.
While reading the text message you can, for example,
start a chat session with the sender or go to a WAP
address found in the text message.
When you have read the text message, press YES
to select one of the following options, for example,
Reply, Forward or Delete the text message. Press NO
to close the text message.
Long messages
A single text message can contain up to 160 characters.
You may not receive all parts of a long message at the
same time. You can send a longer message where two
or more messages are linked together.
Saving incoming text messages
Incoming text messages are saved in the phone memory.
You can also save messages on the SIM card. Messages
that you have saved on the SIM card remain there until
you delete them.
42
Note: You are charged for the number of linked
messages.
To turn long messages off
• Scroll to Messages, YES, Text, YES, Options, YES,
Long messages, YES, select Off, YES.
Messaging
This is the Internet version of the user's guide. © Print only for private use.
Templates
If you have one or more messages that you send often,
you can save these as templates. Your service provider
may also have saved some templates in your phone.
To create a template
1. Scroll to Messages, YES, Text, YES, Templates, YES,
Add new?, YES.
2. Write the message, YES.
3. Press YES if you want to send the message now.
Press NO to save the template.
Picture messages
Picture messages can be sent to a mobile
phone and/or an e-mail account via MMS
(Multimedia Messaging Service). A picture
message can contain text, pictures,
animations, melodies and sound. You can also
send contacts and event entries as attachments.
Before you start
Make sure you have the following settings:
• An address to your service centre.
• A specific WAP profile for picture messages.
Note: Contact your network operator to automatically
download settings or for more information.
To enter the service centre address
• Scroll to Messages, YES, MMS, YES, Options, YES,
Message server.
To select or enter settings for MMS
• Scroll to Messages, YES, MMS, YES, Options, YES,
WAP profile and select Select or Create new. See
“To enter WAP profile settings manually” on page 38
for information how to create a WAP profile.
More Options
You can set different options for sending and receiving
picture messages.
To edit an option
• Scroll to Messages, YES, MMS, YES, Options.
To compose and send a new picture message
1. Scroll to Messages, YES, MMS, YES, Write new, YES.
2. Select from the submenus, press YES.
3. Enter the information you want to send, press YES.
Press YES again to continue.
4. Select
, YES to add other items or more options.
5. Scroll to Send, YES.
Messaging
This is the Internet version of the user's guide. © Print only for private use.
43
6. Enter the recipients phone number or press
to retrieve a phone number or e-mail address from
the phonebook.
7. Press YES to send the message.
Tip: Highlight a part of the message and press
if you are not satisfied and want to delete a part while
writing.
To use a pre-defined template for a picture
message
• Scroll to Messages, YES, MMS, YES, Templates, YES.
To edit the message before sending it
• To edit an item, select it and press YES.
• Pictures – Add or replace an existing picture with
one from My pictures.
• Text – Add or edit existing text. To change text size,
select the text and press
. Select Text size, YES.
• Sound – Add or replace an existing sound with an
alternative from My sounds.
• Page – Insert a new page.
• Timing – To set how many seconds you want an
.
item to be displayed, select the item and press
Select Item timing, YES. To set the timing for the
page, select the cursor icon in the message, press
YES and select Page timing, YES.
44
•
•
•
•
Colour – Set the background colour.
Delete page – Remove a page.
Preview page – View a page before sending.
Preview – View the message.
Receiving picture messages
When you receive a picture message, the phone will
notify you that you have a new message. Press YES
to read the message.
Note: Memory capacity is limited. You may have to
delete old messages before you can receive new ones.
Automatic download options
There are two ways to change the automatic download
options. The set of instructions that is available to you
depends on your network operator.
From the Messages, YES , MMS, YES, Options, YES,
Auto download menu select one of the following:
• On – Messages are automatically downloaded to your
phone by default.
• Confirm – Press YES to download or NO to save
it on your network operator’s server.
• Off – A new message icon appears in the inbox.
Select the message and press YES to download.
Messaging
This is the Internet version of the user's guide. © Print only for private use.
or
From the Messages, YES, MMS, YES, Options, YES,
Restrict msg, YES, Home network or Roaming net.
menu select one of the following:
• Allow – Messages are automatically downloaded
to your phone by default.
• Always ask – Press YES to download or NO to save
it on your network operator’s server.
• Restrict – A new message icon appears in the inbox.
Select the message and press YES to download.
Note: Check with your network operator regarding
how many messages can be saved or the space available
on the network server.
To view a picture message
1. Press YES. The message is automatically played.
2. Press any key to stop.
When you have viewed a picture message, you can use
the navigation key to scroll through the message again.
to save it in
When an item is highlighted, press
your phone.
Tip: You can also select a message from the list of
to delete the entire message.
messages and press
E-mail
You can use your phone to send and receive e-mail
messages via the Internet, as you would from a PC.
Note: This Sony Ericsson phone supports e-mail
services using POP3, IMAP4, and SMTP protocols.
Certain e-mail services use proprietary systems that
are not supported.
Before you start
First make sure that you have:
• A subscription that supports data transmission.
For more information, consult your service provider.
• Set up a data account. See “Data account settings”
on page 36.
• Set up and selected an e-mail account. See “E-mail
account settings” on page 38.
Sending and receiving e-mail messages
The Send & receive option offers the fastest way
to send e-mail messages saved in the Outbox and
check for new e-mail messages.
Messaging
This is the Internet version of the user's guide. © Print only for private use.
45
To write and send an e-mail message
1. Scroll to Messages, YES, E-mail, YES, Write new, YES.
2. Select:
• To: – Then add name, enter an e-mail address,
or retrieve an e-mail address from the phonebook.
You can also retrieve a saved address from received
messages in your inbox.
• Cc: – If you want to send a copy of the message
to someone.
• Priority: – Set the message priority.
• Subject: – Write a title, YES.
• Text: – Write your message, YES .
• Attachments – Add up to five items to a message.
3. Highlight and select Continue? to proceed.
4. Select one of the following:
• Send now – The e-mail message is sent.
• Send w. attach. – You can attach a picture from
My pictures or from your CommuniCam™
accessory. Select a picture and press YES to send.
• Save to outbox – The e-mail message is saved
in the Outbox.
• Saved to drafts – The e-mail message is saved
in the Drafts folder
5. Send & receive in the E-mail menu – All e-mail
messages in the Outbox are sent and any new e-mail
messages are received in the Inbox.
46
To receive and read e-mail messages
1. Scroll to Messages, YES, E-mail, YES,
Send & receive, YES.
2. When the e-mail messages have been downloaded
to the phone, scroll to Messages, YES, E-mail, YES,
Inbox to read them.
3. Although your phone can send attachments, you
cannot receive attachments attached to e-mails.
Note: The phone can save up to six complete e-mail
messages depending on the size. You can modify
settings to download headers only, see “E-mail
account settings” on page 38. All e-mail messages
are also saved on your e-mail server.
More messages on the server are indicated by:
• Arrows in the top or bottom left corners.
• Numbers in brackets for the previous and following
messages in the list.
Note: If you select a WAP address when reading an
e-mail message, e-mail disconnects and WAP starts.
To retrieve more messages
• Scroll to the arrow and press YES.
Messaging
This is the Internet version of the user's guide. © Print only for private use.
To reply to an e-mail message
Open the e-mail message.
Place the cursor in the text and press
.
Select Reply or Reply all, YES.
Select Write new or Include this msg to include
the message you received, press YES.
5. Write a message, YES.
1.
2.
3.
4.
To save an e-mail address or a phone number
• When the e-mail address or phone number is
highlighted, press YES. Select Save, YES.
To delete an e-mail message (POP3 users)
1. Scroll to Messages, YES, E-mail, YES, Inbox, YES.
2. Scroll to the message and press
.
3. Select Mark f.deletion, YES.
The message is deleted the next time you connect
to your e-mail server by selecting Send & receive.
To delete e-mail messages (IMAP4 users)
1. Scroll to Messages, YES, E-mail, YES, Options, YES .
2. Select Empty inbox, YES.
3. Select whether to delete with Send & receive or not.
Archiving
You can archive an e-mail message in order to read
it later, or if you want to save important information.
You can archive only as much text as the display
shows.
To archive an e-mail message
1. Open the e-mail message.
2. Make sure that the text you want to archive is visible
in the display.
3. Place the cursor in the text and press
.
4. Select Copy to arch., YES. The text can be found
in Archive in the E-mail menu.
Messaging
This is the Internet version of the user's guide. © Print only for private use.
47
Using Mobile Internet
Your phone has a WAP (Wireless Application
Protocol) browser and e-mail messaging
which are designed to bring a modified Internet to your
mobile phone. A wide range of services are available,
including news, entertainment, timetables,
reservations, banking, e-commerce,
and e-mail.
Before you start
You should already have a phone subscription that
supports data transmission and you should also have
default settings to access your Mobile Internet.
For troubleshooting your Mobile Internet settings,
see “Setting up Mobile Internet” on page 34.
• For correct settings in your phone for Mobile Internet,
WAP and/or e-mail messaging, see “Setting up Mobile
Internet” on page 34.
• You may additionally need to register as a WAP/e-mail
user with your network operator or service provider
specifically for e-mail.
Note: See “E-mail account settings” on page 38 or
“E-mail” on page 45 for more information about email set-up and messaging.
48
Using the WAP browser
To start browsing
1. Press and hold the
key.
To reset your WAP Profile, do the following:
1. First select the WAP profile you want to use. Scroll to
Web services, YES, Options, YES, WAP profiles, YES.
2. Then select one of the following:
• Open your homepage.
• Go to one of your bookmarks. Select Bookmarks, YES.
• Enter the address of a WAP site. Select Enter address,
YES, New address to enter a new WAP address
or select one of the 10 latest entered addresses.
Tip: When you enter a WAP address, the normal
http:// prefix is not needed.
To exit WAP and disconnect
• Press and hold NO or
• Press
, select Exit WAP.
Options when browsing
When you have started browsing, you can reach
.
different browsing options by pressing
Using Mobile Internet
This is the Internet version of the user's guide. © Print only for private use.
• Home – Go to the homepage set for the current
WAP profile.
• Back – Go back to the previous page.
• Bookmarks – Add the site you are currently browsing
to your list of bookmarks, or see the list of bookmarks
for the current profile.
• Enter address – Enter the WAP address of a site
you want to visit.
• Save picture – Save a picture from the site.
• SendAsTextMsg – Send a text message with a link
to the current WAP page to another phone.
• Send link – Send a link to the current site to another
phone.
• Reload – Refresh the contents of the WAP page.
• Exit WAP – Disconnect and go to standby.
• Status – Display current status information,
for example, profile, access type, connection time,
data rate, security, address.
• Set as homepg – Set the current site as the homepage
of the WAP profile you are using.
• Push inbox – Receive messages via push inbox.
Note: If you select an e-mail address when browsing
a WAP site, you can reply with a text message.
Using bookmarks
You use bookmarks in your mobile phone just
as you do with a PC Internet browser. You can have
up to a maximum of 25 bookmarks.
To work with bookmarks
1. Scroll to Web services, YES, Bookmarks, YES.
2. Select the bookmark you want to work with,
.
3. Select one of the following options and press YES:
• Go to – Go to the marked WAP address.
• Edit – Edit the name and/or the WAP address
of the bookmark. See “Options when browsing”
on page 48 for more information.
• Delete – Delete the bookmark.
• SendAsTextMsg – Send a link to the WAP address
in a text message.
• Send – Send a link to the current WAP address.
• Set as homepg – Set the WAP address as the
homepage.
Downloading
You can download, for example, pictures, themes,
games and ring signals, from WAP sites directly
to your phone.
Using Mobile Internet
This is the Internet version of the user's guide. © Print only for private use.
49
To download from wap.sonyericsson.com
1. Scroll to Web services, YES, Bookmarks, YES,
Mobile Internet, YES.
2. Select what you want to download and follow
the instructions that appear, YES.
Note: Make sure the file sizes do not exceed the
free memory in your phone, see “Memory Status”
on page 58 for more information.
WAP push messages
You can receive push messages via Web Services.
This means that a service provider sends WAP content
(information) to your phone without you having to
do anything. You can, for example, get updated news
or new WAP settings from your service provider.
There are two kinds of push messages:
• Text messages that inform you about Web services,
by sending a link. To go to Web services, click the
link and select Load.
• Updated information from a Web service is sent
to appear in the browser.
50
Receiving a push message
You can set your phone to either accept or reject push
messages. This is valid for all your WAP profiles.
To set push message acceptance
1. Scroll to Web services, YES, Options, YES, Common,
YES, Push access, YES.
2. Select one of the following settings:
• On – You allow push messages to be automatically
loaded.
• Prompt – You allow push messages, but only when
you confirm.
• Off – You do not allow push messages.
To respond to a push message
• Scroll to Web services, YES, Push inbox, YES,
scroll to any push message, YES and select one
of the following:
• Load – The browser starts and loads the WAP site
so that you can see the push content.
• Delete – Deletes the push message.
• Postpone – Save the message, to be loaded later.
To receive a call when browsing
• When you are browsing and a call is received,
a menu will prompt you with Answer or Busy.
Using Mobile Internet
This is the Internet version of the user's guide. © Print only for private use.
Stored information
The following information can be saved in your phone:
• Cache – improves memory efficiency.
• Passwords – improves server access efficiency.
• Cookies – improves site access efficiency.
To allow Mobile Internet information in your phone
1. Scroll to Web services, YES, Options, YES,
Common, YES.
2. Select the information to allow, YES.
It is advisable to clear any sensitive information about
previously visited Web services. This is to avoid
a security risk if your phone is misplaced, lost or stolen.
To clear cache, password list, cookies or push
inbox
1. Scroll to Web services, YES, Advanced, YES.
2. Select the information to be cleared.
3. Press YES to confirm.
More features
Alarm clock
The alarm can be set to ring at a specific time within
24 hours, or recurrently at a specific time on several
days. You can have both these alarms set at the same
time. Even if you have set your phone to silent, the
alarm and timer signals ring. The alarm clock also
rings if the phone is turned off.
To set an alarm
1. Scroll to Organizer, YES, Alarms, YES,
One-time alarm or Recurrent alarm, YES.
2. Enter the time, YES and day, if recurrent, by scrolling
, YES.
and pressing
• To change the alarm time, scroll to Organizer, YES ,
Alarms, YES, One-time alarm, YES, Set new time.
• Press any key to turn the alarm signal off when it rings.
If you do not want the alarm to be repeated, press YES.
• To cancel the alarm, scroll to Organizer, YES, Alarms,
YES, One-time alarm or Recurrent alarm, YES, Cancel.
• To select an alarm signal, scroll to Settings, YES,
Sounds & alerts, YES, Alarm signal.
More features
This is the Internet version of the user's guide. © Print only for private use.
51
•
•
•
•
Stopwatch
Scroll to Organizer, YES, Stopwatch, YES.
To start, stop or re-start the stopwatch, press YES.
To save up to nine lap times, press
.
To check saved lap times, scroll using the centre select
key or simply select the lap number from your keypad.
To reset the stopwatch, press
or NO.
• Press the right or left arrow key repeatedly to highlight
one of the options on the bottom row of the display.
• Select an option by pressing YES or by pressing the
centre select key.
• Clear the calculator screen by pressing
.
Note: The stopwatch is turned off when you answer
an incoming call or when you exit the stopwatch menu.
Events
Keep track of important things that you need to do.
You can choose to add, reschedule, edit, send or delete
events.
Timer
The phone has a built-in 24-hour timer.
Note: This Sony Ericsson phone does not support PC
synchronization.
To set the timer
• Scroll to Organizer, YES, Timer. When the signal
rings, press any key to turn it off.
Note: Events can only be sent as picture messages.
Calculator
The phone has a built-in calculator, which can add,
subtract, multiply, divide and calculate percentages.
To add a new event
1. Scroll to Organizer, YES, Events, YES, New?, YES.
2. Enter the appropriate information: date, time, subject,
icon, reminder.
Confirm each entry with YES.
To use the calculator
• Scroll to Organizer, YES, Calculator, YES.
• Enter digit keys by pressing the digit keys on the keypad.
To view or edit your events
• Scroll to Organizer, YES, Events, YES and then select
an event, YES:
52
More features
This is the Internet version of the user's guide. © Print only for private use.
Events options
• Scroll to an event, press
and then select one of
the options to reschedule, edit, send, delete or delete all.
To send an event
1. Scroll to the item you want to send and press
2. Scroll to Send, YES.
.
Note: If the events list is full, you must remove events
before you can save any new ones.
Sound recorder
With the Sound recorder function, you can record
either your own memos or ring tones. The recordings
are saved in your mobile phone and can be accessed
even if you change your SIM card.
Note: You cannot record a phone conversation.
To start a sound recording
• Scroll to Pictures&Sounds, YES, Record sound, YES.
Recording starts and the display shows Recording
together with the time of the current recording
(increasing).
Note: Recordings are saved in Pictures&Sounds, YES,
My sounds.
To end the recording
• Press NO.
To set a recording as a ring tone
• Scroll to Pictures&Sounds, YES, My sounds.
• Press
, scroll to Set as Ring Tone, YES.
The recording stops automatically if you receive an
incoming call. You hear a tone a few seconds before
the memory is full.
To listen to your recordings
1. Scroll to Pictures&Sounds, YES, My sounds, YES.
2. Scroll to Recording or go to next or previous by
moving the centre select key up or down, respectively.
3. Press NO to stop playback.
You can listen to your recordings at any time, even
during a call, and you and the person you are talking
to will hear them.
Note: You can also send, delete, rename, check sound
information and memory status.
More features
This is the Internet version of the user's guide. © Print only for private use.
53
To send a recording
1. Scroll to Pictures&Sounds, YES, My sounds, YES.
2. Scroll to the recording you wish to send.
3. Press
and select Send.
1.
2.
3.
4.
To erase or rename a sound recording
Scroll to Pictures&Sounds, YES, My sounds, YES.
Scroll to the recording you wish to erase or rename.
Press
when the recording is highlighted.
Select Delete or Rename, YES.
To download a new game
1. Make sure you have entered WAP settings,
see “Setting up Mobile Internet” on page 34.
2. Scroll to Games, YES, Sony Ericsson, YES.
3. Press YES to download a new game via WAP.
A WAP session starts. You will see the phone’s
memory status and you will be asked if you want
to save it to your phone.
4. Select a game from the WAP site, YES.
The game is downloaded and saved in Games.
Games
Your phone has games and you can download
additional games.
1.
2.
3.
4.
To start a game
Scroll to Games, YES.
Select a game, YES.
Select New game, YES.
Start the game.
Note: Press
54
to manage downloaded games.
More features
This is the Internet version of the user's guide. © Print only for private use.
Security
SIM card lock
The SIM card lock protects your subscription,
but not your phone itself, from unauthorized use.
If you change SIM cards, the phone still works
with the new SIM card.
1.
2.
3.
4.
To unblock your SIM card
PIN blocked appears.
Enter your PUK and press YES.
Enter a new four- to eight-digit PIN and press YES.
Re-enter the new PIN to confirm and press YES.
Note: Your PUK is provided by your network operator.
To edit your PIN
• Scroll to Settings, YES, Locks, YES, SIM lock, YES,
Change PIN.
Note: If the message “Codes do not match” appears,
you entered the new PIN incorrectly. If the message
“Wrong PIN” appears, followed by “Old PIN:”,
you entered your old PIN incorrectly.
PIN2
Certain services are protected by a second PIN.
To edit your PIN2
• Scroll to Settings, YES, Locks, YES, SIM lock, YES,
Change PIN2.
To turn the SIM card lock on or off
1. Scroll to Settings, YES, Locks, YES, SIM lock,
YES, Protection, YES.
2. Select On or Off, and press YES.
3. Enter your PIN and press YES.
Phone lock
The phone lock protects the phone against
unauthorized use if it is stolen and the SIM card is
exchanged. It is not on when you buy the phone.
You can change the phone lock code (0000) to
any four- to eight-digit personal code. The phone
lock can be set to on, automatic or off.
Phone lock on
If the phone lock is on, the message Phone locked
appears each time you turn on the phone. You have
to enter your code followed by YES to use your phone.
Security
This is the Internet version of the user's guide. © Print only for private use.
55
Automatic
If the phone lock is set to automatic, you do not need
to enter your phone lock code until a different SIM card
is inserted in the phone.
To edit your phone lock code
• Scroll to Settings, YES, Locks, YES, Phone lock, YES,
Change code.
Note: It is important that you remember your new
code. If you should forget it, contact your service
provider.
To set the phone lock
1. Scroll to Settings, YES, Locks, YES, Phone lock, YES,
Protection, YES.
2. Select an alternative and press YES.
3. Enter the phone lock code and press YES.
56
Troubleshooting
This chapter lists some problems that you might
encounter while using your phone. Some problems
require that you call your service provider, but most
of the problems you can easily correct yourself.
The phone cannot be switched on
Recharge or replace the battery. See “SIM card and
battery information” on page 4.
No indication of charging
When charging a fully-discharged battery, it may take
up to 30 minutes before the battery icon appears in
the display.
Grey menu options
Grey text indicates a function is temporarily
unavailable. This may be because the service
is not included in your phone service
subscription, or because a certain phone setting has
not been turned on, or is otherwise not selectable.
For example, the Send menu may be displayed in grey
if you selected a copyright-protected theme, picture
or sound.
Troubleshooting
This is the Internet version of the user's guide. © Print only for private use.
Display Messages
Insert SIM
There is no SIM card in the phone or you may have
inserted it incorrectly. See “SIM card and battery
information” on page 4.
Codes do not match
When you want to change a security code (for example
your PIN) you have to confirm the new code by
entering it again. The two codes that you have entered
do not match. See “SIM card lock” on page 55.
Insert correct SIM card
The phone is set to work only with operator-specific
SIM cards. Insert the correct SIM card.
PIN blocked/PIN2 blocked
You have entered your PIN or PIN2 incorrectly three
times in a row. To unblock, see “SIM card lock”
on page 55.
SOS calls only
You are within range of a network, but you are not
allowed to use it. However, in an emergency, some
operators allow you to call an emergency number.
See “Emergency calls” on page 23.
PUK blocked- contact operator
You entered your personal unblocking key code (PUK)
incorrectly 10 times in a row. Contact your network
operator or service provider.
No network (or no operator name displayed)
There is no network within range or the received signal
is too weak. You have to move to get a signal that
is strong enough.
Wrong PIN/Wrong PIN2
You have entered your PIN or PIN2 incorrectly.
Enter the correct PIN or PIN2, and press YES.
See “SIM card lock” on page 55.
Phone locked
The phone is locked. To unlock the phone,
see “Phone lock” on page 55.
Phone lock
Your phone comes with the phone lock code, 0000.
You can change it to any four- to eight-digit code.
See “Phone lock” on page 55.
Troubleshooting
This is the Internet version of the user's guide. © Print only for private use.
57
Number not permitted
The Fixed Dialling function is on and the number
you have dialled is not on your fixed numbers list.
See “Fixed dialling” on page 32.
Charging, alien battery
The battery you are using is not a Sony Ericssonapproved battery and is charging slowly for safety
reasons.
Cannot connect to server
If your settings have previously worked, try again
later as the network server may be temporarily busy
or experiencing problems.
Memory full
Free memory by deleting unused files or information.
See the following section.
To check the phonebook memory
• Scroll to Phonebook, YES, Advanced, YES,
Memory status.
To check themes, pictures, sounds
and games memory
• Scroll to Pictures&Sounds, YES, select one of
the menus, YES,
, select Memory status, YES.
To check memory for text/picture messages
• Scroll to Messages, YES, select one of the menus, YES,
Memory status, YES .
To delete saved files or information
• Select a file or information, press
, YES.
• Select a submenu option or advanced option to delete.
Note: Some factory default files and information
cannot be deleted.
Memory Status
You can check for example, how many positions are
left in your phonebook or how much memory is used.
58
Troubleshooting
This is the Internet version of the user's guide. © Print only for private use.
Additional information
Sony Ericsson Consumer web site
On www.SonyEricsson.com there is a support section
where help and tips are only a few clicks away. Here
you find the latest software updates, tips on how to
use your product more efficiently, function guides
for some of the products and additional help when
you require it.
Additional information
This is the Internet version of the user's guide. © Print only for private use.
59
Guidelines for Safe and Efficient Use
Please read this information before using
your mobile phone.
RECOMMENDATIONS
• Always treat your product with care and
keep it in a clean and dust-free place
• Do not expose your product to liquid or
moisture or humidity.
• Do not expose your product to extreme high
or low temperatures.
• Do not expose your product to open flames
or lit tobacco products.
• Do not drop, throw or try to bend your
product.
• Do not paint your product.
• Do not use your product near medical equipment without
requesting permission.
• Do not use your product in an area where
a potentially explosive atmosphere exists.
• Do not place your product or install wireless
equipment in the area above your car’s
air bag.
• Do not attempt to disassemble your
product. Only Sony Ericsson authorised
personnel should perform service.
ANTENNA
Only use an antenna that has been
specifically designed by Sony Ericsson for your mobile
phone. Use of unauthorised or modified antennas could
damage your mobile phone and may violate regulations,
causing loss of performance and SAR levels above the
recommended limits (see below).
EFFICIENT USE
Hold your mobile phone as you would any other phone.
Do not cover the top of the phone when in use, as this
affects call quality and may cause the phone to operate
at a higher power level than needed, thus shortening talk
and standby times.
• Do not use your product when in, or around aircraft,
or areas posted “turn off two-way radio”.
60
Additional information
This is the Internet version of the user's guide. © Print only for private use.
RADIO FREQUENCY (RF) EXPOSURE AND
SAR
Your mobile phone is a low-power radio transmitter and
receiver. When it is turned on, it emits low levels of radio
frequency energy (also known as radio waves or radio
frequency fields).
Governments around the world have adopted
comprehensive international safety guidelines,
developed by scientific organizations, e.g. ICNIRP
(International Commission on Non-Ionizing Radiation
Protection) and IEEE (The Institute of Electrical and
Electronics Engineers Inc.), through periodic and
thorough evaluation of scientific studies. These
guidelines establish permitted levels of radio wave
exposure for the general population. The levels include
a safety margin designed to assure the safety of all
persons, regardless of age and health, and to account
for any variations in measurements.
Specific Absorption Rate (SAR) is the unit of
measurement for the amount of radio frequency energy
absorbed by the body when using a mobile phone. The
SAR value is determined at the highest certified power
level in laboratory conditions, but the actual SAR level
of the mobile phone while operating can be well below
this value. This is because the mobile phone is designed
to use the minimum power required to reach the network.
Variations in SAR below the radio frequency exposure
guidelines do not mean that there are variations in safety.
While there may be differences in SAR levels among
mobile phones, all Sony Ericsson mobile phone models
are designed to meet radio frequency exposure
guidelines.
A separate leaflet with SAR information for this mobile
phone model is included with the material that comes
with this mobile phone. This information can also be
found, together with more information on radio frequency
exposure and SAR, on: www.SonyEricsson.com.
DRIVING
Please check if local laws and regulations restrict the use
of mobile phones while driving or require drivers to use
handsfree solutions. We recommend that you use only
Ericsson or Sony Ericsson handsfree solutions intended
for use with your product. Please note that because of
possible interference to electronic equipment, some
vehicle manufacturers forbid the use of mobile phones
in their vehicles unless a handsfree kit with an external
antenna supports the installation.
Always give full attention to driving and pull off the road
and park before making or answering a call if driving
conditions so require.
PERSONAL MEDICAL DEVICES
Mobile phones may affect the operation of cardiac
pacemakers and other implanted equipment. Please
avoid placing the mobile phone over the pacemaker,
Additional information
This is the Internet version of the user's guide. © Print only for private use.
61
e.g. in your breast pocket. When using the mobile phone,
place it at the ear opposite the pacemaker. If a minimum
distance of 15 cm (6 inches) is kept between the mobile
phone and the pacemaker, the risk of interference is
limited. If you have any reason to suspect that
interference is taking place, immediately turn off your
mobile phone. Contact your cardiologist for more
information.
For other medical devices, please consult the
manufacturer of the device.
POWER SUPPLY
CHILDREN
EMERGENCY CALLS
DO NOT ALLOW CHILDREN TO PLAY
WITH YOUR MOBILE PHONE OR ITS
ACCESSORIES. THEY COULD HURT
THEMSELVES OR OTHERS, OR COULD
ACCIDENTALLY DAMAGE THE MOBILE PHONE OR
ACCESSORY. YOUR MOBILE PHONE OR ITS
ACCESSORY MAY CONTAIN SMALL PARTS THAT
COULD BE DETACHED AND CREATE A CHOKING
HAZARD.
DISPOSING OF THE PRODUCT
Your mobile phone should not be placed in
municipal waste. Please check local
regulations for disposal of electronic
products.
62
Connect the AC power adapter only to designated power
sources as marked on the product. Make sure the cord is
positioned so that it will not be subjected to damage or
stress. To reduce risk of electric shock, unplug the unit
from any power source before attempting to clean it. The
AC power adapter must not be used outdoors or in damp
areas. Never alter the cord or plug. If the plug will not fit
into the outlet, have a proper outlet installed by a
qualified electrician.
Mobile phones operate using radio signals, which cannot
guarantee connection under all conditions. Therefore you
should never rely solely upon any mobile phone for
essential communications (e.g. medical emergencies).
Emergency calls may not be possible on all cellular
networks or when certain network services and/or mobile
phone features are in use. Check with your local service
provider.
BATTERY USE AND CARE
We recommend that you fully charge the battery before
you use your mobile phone for the first time. The battery
can only be charged in temperatures between +5°C
(+41°F) and +45°C (+113°F).
A new battery or one that has not been used for a long
time could have reduced capacity the first few times it is
used.
Additional information
This is the Internet version of the user's guide. © Print only for private use.
The talk and standby times depend on the actual
transmission conditions when using the mobile phone.
If the mobile phone is used near a base station, less
power is required and talk and standby times are
prolonged.
• Warning! May explode if disposed of in fire.
• Use only Sony Ericsson branded original batteries and
chargers intended for use with your mobile phone.
Other chargers may not charge sufficiently or may
produce excessive heat. Using other batteries and
chargers could be dangerous.
• Do not expose the battery to liquid.
• Do not let the metal contacts on the battery touch another
metal object. This could short-circuit and damage the
battery.
• Do not disassemble or modify the battery.
• Do not expose the battery to extreme
temperatures, never above +60°C (+140°F).
For maximum battery capacity, use the
battery in room temperature.
• Turn off your mobile phone before removing
the battery.
• Keep out of children’s reach.
• Use the battery for the intended purpose only.
• Do not allow the battery to be put into the
mouth. Battery electrolytes may be toxic if swallowed.
DISPOSING OF THE BATTERY
Please check local regulations for disposal
of batteries or call your local Sony Ericsson
Customer Care Center for information.
The battery should never be placed in
municipal waste. Use a battery disposal facility
if available.
Limited Warranty
Sony Ericsson Mobile Communications AB, S-221 88
Lund, Sweden, (Sony Ericsson), provides this Limited
Warranty for your mobile phone and original accessory
delivered with your mobile phone (hereinafter referred
to as “Product”).
Should your Product need warranty service, please
return it to the dealer from whom it was purchased, or
contact your local Sony Ericsson Customer Care Centre
(national rates may apply) or visit
www.SonyEricsson.com to get further information.
Additional information
This is the Internet version of the user's guide. © Print only for private use.
63
Our Warranty
Subject to the conditions of this Limited Warranty,
Sony Ericsson warrants this Product to be free from
defects in design, material and workmanship at the
time of its original purchase by a consumer, and for
a subsequent period of one (1) year.
2.
What We Will Do
If, during the warranty period, this Product fails to
operate under normal use and service, due to defects
in design, materials or workmanship, Sony Ericsson
authorised distributors or service partners, in the country/
region* where you purchased the Product, will, at their
option, either repair or replace the Product in accordance
with the terms and conditions stipulated herein.
Sony Ericsson and its service partners reserve the right
to charge a handling fee if a returned Product is found
not to be under warranty according to the conditions
below.
Please note that your personal settings/downloads might
be lost when the Product is repaired or replaced.
Conditions
1. The warranty is valid only if the original proof of purchase
issued to the original purchaser by an, for this Product,
Sony Ericsson authorised dealer, specifying the date
of purchase and serial number**, is presented with the
Product to be repaired or replaced. Sony Ericsson
reserves the right to refuse warranty service if this
64
3.
4.
5.
6.
information has been removed or changed after the
original purchase of the Product from the dealer.
If Sony Ericsson repairs or replaces the Product, the
repaired or replaced Product shall be warranted for the
remaining time of the original warranty period or for
ninety (90) days from the date of repair, whichever is
longer. Repair or replacement may involve the use of
functionally equivalent reconditioned units. Replaced
parts or components will become the property of
Sony Ericsson.
This warranty does not cover any failure of the Product
due to normal wear and tear, or due to misuse, including
but not limited to use in other than the normal and
customary manner, in accordance with the Sony Ericsson
instructions for use and maintenance of the Product.
Nor does this warranty cover any failure of the Product
due to accident, software or hardware modification or
adjustment, acts of God or damage resulting from liquid.
Since the cellular system on which the Product is to
operate is provided by a carrier independent from
Sony Ericsson, Sony Ericsson will not be responsible
for the operation, availability, coverage, services or range
of that system.
This warranty does not cover Product failures caused
by installations, modifications, or repair or opening of
the Product performed by a non-Sony Ericsson
authorised person.
The warranty does not cover Product failures which have
been caused by use of accessories or other peripheral
Additional information
This is the Internet version of the user's guide. © Print only for private use.
devices which are not Ericsson or Sony Ericsson
branded original accessories intended for use with
the Product.
7. Tampering with any of the seals on the Product will void
the warranty.
8. THERE ARE NO EXPRESS WARRANTIES, WHETHER
WRITTEN OR ORAL, OTHER THAN THIS PRINTED
LIMITED WARRANTY. ALL IMPLIED WARRANTIES,
INCLUDING WITHOUT LIMITATION THE IMPLIED
WARRANTIES OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE, ARE LIMITED TO
THE DURATION OF THIS LIMITED WARRANTY. IN NO
EVENT SHALL SONY ERICSSON OR ITS LICENSORS
BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL
DAMAGES OF ANY NATURE WHATSOEVER,
INCLUDING BUT NOT LIMITED TO LOST PROFITS OR
COMMERCIAL LOSS, TO THE FULL EXTENT THOSE
DAMAGES CAN BE DISCLAIMED BY LAW.
Some countries/states do not allow the exclusion or
limitation of incidental or consequential damages, or
limitation of the duration of implied warranties, so the
preceding limitations or exclusions may not apply to you.
The warranty provided does not affect the consumer's
statutory rights under applicable legislation in force,
nor the consumer's rights against the dealer arising from
their sales/ purchase contract.
* EUROPEAN UNION (EU)
If you have purchased your Product in an EU country you
can have your Product serviced, under the conditions set
out above, within the warranty period in any EU country
where an identical Product is sold by an authorised
Sony Ericsson distributor. To find out if your Product is
sold in the EU country you are in, please call the local
Sony Ericsson Customer Care Centre. Please observe
that certain services may not be possible elsewhere than
in the country of original purchase, for example due to
the fact that your Product may have an interior or exterior
which is different from equivalent models sold in other
EU countries. It may not be possible to repair SIM-locked
Products.
** In some countries/regions additional information is
requested. If so, this is clearly shown on the valid proof
of purchase.
Additional information
This is the Internet version of the user's guide. © Print only for private use.
65
Declaration of Conformity
We, Sony Ericsson Mobile Communications AB of
Nya Vattentornet
S-221 88 Lund, Sweden.
declare under our sole responsibility that our product
Sony Ericsson type AAA-1001012-BV
and in combination with our accessories, to which this
declaration relates is in conformity with the appropriate
standards 3GPP TS 51.010-1, EN 301 489-7 and EN
60950, following the provisions of, Radio Equipment
and Telecommunication Terminal Equipment directive
99/5/EC with requirements covering EMC directive
89/336/EEC, and Low Voltage directive 73/23/EEC.
Lund, January 2004
Place & date of issue
0682
Hiroshi Yoshioka, Head of Product Business Unit GSM/UMTS
We fulfil the requirements of the R&TTE Directive
(99/5/EC).
66
Additional information
This is the Internet version of the user's guide. © Print only for private use.
Icons
The table below shows icons which may appear
in standby or in the menus.
You can access the Icon Glossary by scrolling
to a particular menu or function and pressing
Then select Icon glossary.
Icon
Icon
Description
Gives you access to Web services
on the Internet.
.
Description
Main menus
Your personal phonebook.
Handling of text, picture, e-mail messages,
and voice messages.
Events, alarm clock and other extras.
Networks, data communications settings
and accessories.
Play games on your phone.
Standby
Tells you the strength of the GSM network
signal.
GPRS is within range.
Handling of outgoing/incoming calls, call time
and cost information.
GPRS is within range and can be used.
Handling of ongoing calls. Alternates with the
Calls menu, that is only available during calls.
Tells you the status of the battery.
Handling of pictures, sounds and themes.
You cannot receive any incoming calls.
Personal settings including display, language,
time and locks.
You have missed an incoming call.
Icons
This is the Internet version of the user's guide. © Print only for private use.
67
Icon
Description
Icon
Description
All incoming calls are diverted
to a defined number.
You have received a picture message.
No calls or only certain calls from numbers
in a list are received.
You have received a WAP push message.
All sounds are off, except the alarm and timer.
A GPRS session is in progress.
The alarm clock has been set and is on.
Line 1 is in use for outgoing calls.
The timer has been set and is on.
Line 2 is in use for outgoing calls.
The keypad is locked.
Encoding is currently not being provided
by the network.
The card lock or phone lock is on.
A secure WAP connection is established.
The network is preferred and can be used.
You have received voice mail messages
(number indicates the number of received
voice mail messages).
The network is forbidden and cannot be used.
You have received a text message.
Your home network is within range and can
be used.
An ongoing call.
You have received an e-mail message.
68
Icons
This is the Internet version of the user's guide. © Print only for private use.
Icon
Description
Icon
A chat session is in progress.
A message has not been read.
Phonebook
A message has been read.
A group of contacts in the phonebook.
You can enter the phonebook by pressing
A home number in the phonebook.
A work number in the phonebook.
A mobile number in the phonebook.
An e-mail address in the phonebook.
A picture is connected to the contact.
Messages
A text message is saved on the SIM card.
Description
.
Only part of a read e-mail message or
a multimedia message is saved in the phone.
Only part of an unread e-mail message or
a multimedia message is saved in the phone.
A read message will be deleted the next time
you connect to the server.
An unread message will be deleted the next
time you connect to the server.
A damaged message.
A read picture message.
An unread picture message.
The message has not been sent.
Icons
This is the Internet version of the user's guide. © Print only for private use.
69
Icon
Description
Icon
Description
The message has been sent.
An event is attached to a multimedia message.
A message has been delivered or read
by the recipient.
A theme is attached to a multimedia message.
A sent message that has expired or been
rejected by the recipient.
A multimedia message contains a melody.
Pre-defined message template (not editable).
A multimedia message contains
a recorded sound.
User-defined message template.
Cursor in a multimedia message.
A multimedia message is playing.
More message options.
A multimedia message has been stopped.
Chat message prompt.
A multimedia message has been paused.
Calls
A missed call in the call list.
Picture could not be shown.
A business card is attached to a multimedia
message.
70
An answered call in the call list.
A dialled number in the call list.
Icons
This is the Internet version of the user's guide. © Print only for private use.
Icon
Description
Pictures&Sounds
A standard melody saved in My Sounds.
A polyphonic melody saved in My Sounds.
Pictures&Sounds/Composer
Turns backlight on and off.
Turns vibrating alert on and off.
Starts and stops a melody loop.
Increases and decreases the volume one step.
A volume between 0 and 15 has been selected.
Whole note, half note, 1/4 note.
1/8 note, 1/16 note, 1/32 note.
Icons
This is the Internet version of the user's guide. © Print only for private use.
71
Index
A
Alarm clock 51
Animations 16
Answering mode 20
B
Battery 4
Business cards 28
C
Calculator 52
Call costs 29
minute minder 19
Call time 29
Calls
accept 33
answer 5, 24
automatic redialing 23
call list 24
emergency 23
fixed dialing 32
forward 29
groups 27
international 23
72
make 5, 22
missed 24
put on hold 30
receive 5, 24
reject 24
restrict 32
speed dialing 29
Charging (battery) 4
Conference calls 31
Contacts 25
Contrast (display) 20
D
Declaration of conformity 66
Display
contrast 20
greeting 21
help texts 9
icons 67
light 19
Display messages 57
Downloading 49
E
Email 45
gateway 35, 41
settings 35, 38
Emergency calls 23
Events 52
F
Fixed dialing 32
Forwarding calls 29
G
Games 54
GPRS 36
Greeting 21
Groups 27
closed user groups 33
conference calls 31
H
Handsfree 20
Help texts 9
I
Icons (display) 67
International
calls 23
emergency number 23
K
Key functions 6
Key sound 19
Keypad lock 21
Index
This is the Internet version of the user's guide. © Print only for private use.
L
Language (display) 19
Locks
keypad 21
phone 55
SIM card 55
M
Melodies, see Ring signals 17
Memory
full 58
Menu language 19
Menu overview 11
Minute Minder 19
Missed calls 24
MMS, see Multimedia messages 43
Mobile Internet 48
bookmarks 48
downloading 49
email settings 35, 38
options 48
settings 34
Multimedia messages 43
Multitap text input 12
Mute 6, 7, 8, 22
My numbers 21
My own number 21
N
Networks 5
P
Pause 9
Personal ring signal 18
Phone lock 55
Phonebook 25
Picture messages 41
Pictures 15
animations 16
background picture 16
exchange 16
PIN
change 55
enter 5
PIN2 55
PUK 55
Q
Quick keys 7
R
Redialing 23
Reset 21
Ring signals 17
S
Security
phonelock 55
SIM card 55
Shortcuts 7
Silent ring signal 17
SIM card 4
copy contacts 28
lock 55
unblock 55
SMS, see Text messages 40
Sony Ericsson
Mobile Internet 15
web site 59
Sound recorder 53
Speed dialing 29
Stopwatch 52
T
T9 Text input 13
Text messages 40
Email gateway 35, 41
Themes 15
Time settings 20
Timer 52
Turning the phone on/off 5
Index
This is the Internet version of the user's guide. © Print only for private use.
73
V
Vibrating alert 19
Voicemail 29
W
WAP, see Mobile Internet 48
74
Index
This is the Internet version of the user's guide. © Print only for private use.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
