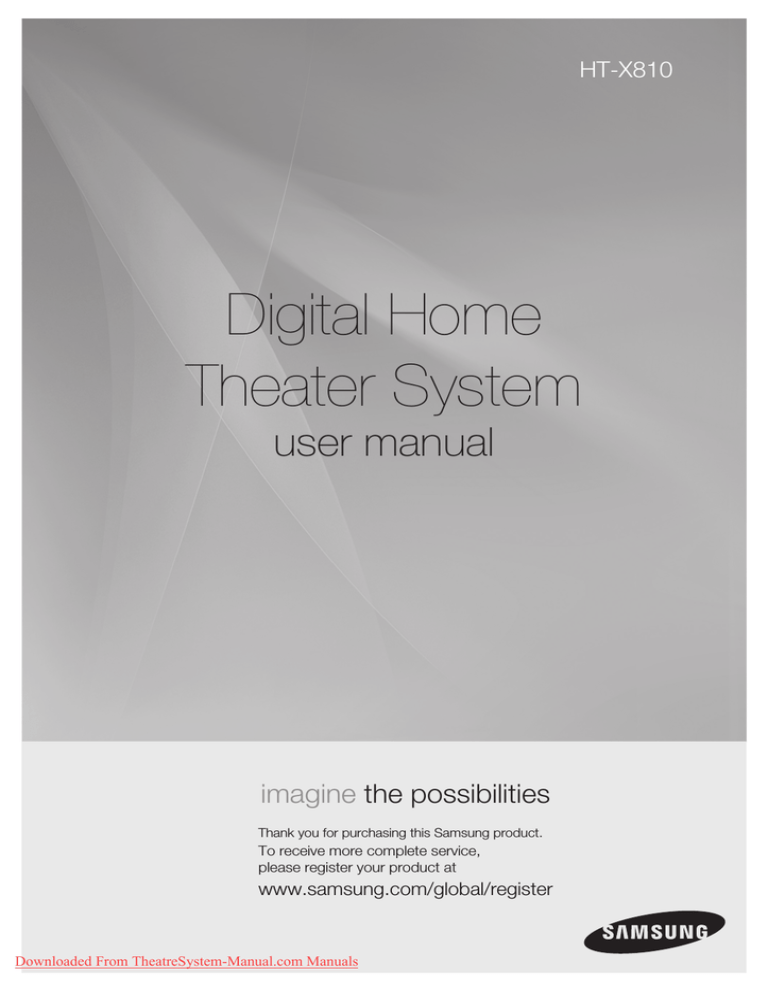

HT-X810
Digital Home
Theater System
user manual
imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service,
please register your product at
www.samsung.com/global/register
Downloaded From TheatreSystem-Manual.com Manuals
features
Playback of many disc types
This Home Theater System allows you to play back various discs, including DVD-AUDIO, DVD-VIDEO, CD, MP3-CD,
WMA-CD, DivX, CD-R/RW, and DVD±R/RW.
DVD-Audio compatible
Experience the super high-quality audio performance of DVD-Audio. The on-board 24-bit/192kHz DAC enables this player to
deliver exceptional sound quality in terms of dynamic range, low-level resolution and high-frequency detail.
USB Host support
You can connect and play files from external USB storage devices such as MP3 players, USB flash memory, etc.
using the Home Theater's USB HOST function.
TV Screen Saver Function
If the main unit remains in Stop mode for 3 minutes, Samsung logo appears on the TV screen.
The HT-X810 automatically switches itself into the power saving mode after 20 minutes in the Screen Saver mode.
Power Saving Function
The HT-X810 automatically shuts itself off after 20 minutes in Stop mode.
Customized TV Screen Display
The HT-X810 allows you to select your favorite image during JPEG, DVD playback and set it as your background
wallpaper.
HDMI
HDMI transmits DVD video and audio signals simultaneously, and provides a clearer picture.
AV SYNC Function
Video may lag behind the audio if the unit is connected to a digital TV.
To compensate for this, you can adjust the audio delay time to sync up with the video.
Anynet+(HDMI-CEC) Function
Anynet+ is a function that can be used to operate the main unit using a Samsung TV remote control, by connecting the
Home Theater to a SAMSUNG TV using an HDMI Cable. (This is only available with SAMSUNG TVs that support Anynet+.)
Bluetooth Function
You can use a Bluetooth device to enjoy music with high quality stereo sound, all without wires!
Wireless Subwoofer
You can hear powerful sound from the subwoofer without having to use speaker cables.
What’s included
Check for the supplied accessories below.
Video Cable
(AH39-40001V)
FM Antenna
(AH42-00017A)
User's Manual
(AH68-02062R)
Downloaded
From TheatreSystem-Manual.com Manuals
Remote Control
(AH59-01907T)
/ Batteries (AAA size)
(4301-000116)
Bracket-Wall Mount
(AH61-02574A)
/ Mounting Studs (2EA)
(AH97-02638A)
EnG
safety information
Safety Warnings
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER(OR BACK). NO USER-SERVICEABLE PARTS ARE
INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lighting flash and Arrowhead within
Triangle Is a warning sign alerting you of
dangerous voltage inside the product
CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK) NO USER
SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QULAIFIED SERVICE
PERSONNEL.
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
PRODUCTO LASER CLASE 1
The explanation point within the triangle
is a warning sign alerting you of
important instructions accompanying the
product.
CLASS 1 LASER PRODUCT
This Compact Disc player is classified as a CLASS 1 LASER
product.
Use of controls, adjustments or performance of procedures
other than those specified herein may result in hazardous
radiation exposure.
CAUTION : INVISIBLE LASER RADIATION WHEN OPEN
AND INTERLOCKS DEFEATED, AVOID
EXPOSURE TO BEAM.
WARNING
~ To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.
~ To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions.
~ If this power supply is used at 240V ac, a suitable plug adapter should be used.
CAUTION
~ Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be
placed on the apparatus.
~ The Mains plug is used as a disconnect device and shall stay readily operable at any time.
This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to other
equipment. To prevent electromagnetic interference with electric appliances, such as radios and televisions, use
shielded cables and connectors for connections.
FCC NOTE (for U.S.A):
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
~ Reorient or relocate the receiving antenna.
~ Increase the separation between the equipment and receiver.
~ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
~ Consult the dealer or an experienced radio/TV technician for help.
Caution : FCC regulations state that any unauthorized changes or modifications to this equipment may void the
user's authority to operate it.
Downloaded From TheatreSystem-Manual.com Manuals
safety information
Important Safety Instructions
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause undesired operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Canadian Department of Communications Radio Interference Regulations
This digital apparatus (Wireless Internet Radio) does not exceed the Class B limits for radio-noise emissions from
digital apparatus as set out in the Radio Interference Regulations of the Canadian Department of Communications.
Read these operating instructions carefully before using the unit. Follow all the safety instructions listed below. Keep
these operating instructions handy for future reference.
1) Read these instructions.
2) Keep these Instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7)Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9)Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with
one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade
or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and
the point where they exit from the apparatus.
11) Only use attachment/accessories specified by the manufacturer.
12)Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or
sold with the apparatus. When a cart is used, use caution when moving the cart/
apparatus combination to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14)Refer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in any way, such as power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been dropped.
Downloaded
From TheatreSystem-Manual.com Manuals
ENG
PrECAUTIONS
Ensure that the AC power supply in your house complies with the identification sticker located on the back of your player. Install your
player horizontally, on a suitable base (furniture), with enough space around it for ventilation (3~4 inches). Make sure the ventilation slots
are not covered. Before moving the player, ensure the disc tray is empty. This player is designed for continuous use. Switching off the DVD
player to the stand-by mode does not disconnect the electrical supply. In order to disconnect the player completely from the power supply, remove the main plug from the wall outlet, especially when left unused for a long period of time.
During thunderstorms, disconnect the AC main plug from the
wall outlet. Voltage peaks due to lightning could damage the unit.
Do not expose the unit to direct sunlight or other heat sources.
This could lead to overheating and malfunction of the unit.
Protect the player from moisture (i.e. vases) , and excess heat
(e.g.fireplace) or equipment creating strong magnetic or electric fields
(i.e.speakers...). Disconnect the power cable from the AC supply if the
player malfunctions. Your player is not intended for industrial use. Use of
this product is for personal use only.
Condensation may occur if your player or disc has been stored in
cold temperatures. If transporting the player during the winter,
wait approximately 2 hours until the unit has reached room temperature
before using.
The batteries used with this product contain chemicals that are harmful to
the environment.
Do not dispose of batteries in the general household trash.
.
Downloaded From TheatreSystem-Manual.com Manuals
5
contents
features
2
What’s included
safety information
3
4
5
Safety Warnings
Important Safety Instructions
Precautions
8
9
9
9
10
Before Reading the User’s Manual
Playable Discs
Do not use the following types of discs!
Copy Protection
Disc Type and Characteristics
2
3
getting started
8
description
11
13
remote control
11 Front Panel
12 Rear Panel
13 Setting the Remote Control
14 Tour of the Remote Control
connections
17
18
19
21
22
24
Connecting the Wireless Subwoofer
Installing the Wall Mount
Connecting the Video Out to your TV
HDMI Function
Connecting Audio from External Components
Connecting the FM Antenna
before using your home
theater
25
Before Using Your Home Theater
playback
26
27
28
29
31
39
41
Disc Playback
MP3/WMA-CD Playback
JPEG File Playback
DivX Playback
Using the Playback Function
Using Bluetooth
Playing Media Files using the USB Host
Feature
17
25
26
Downloaded
From TheatreSystem-Manual.com Manuals
43
43
44
45
45
46
46
47
47
48
48
48
radio
49
Setting the Language
Setting TV Screen Type
Setting Parental Controls (Rating Level)
Setting the Password
Setting the Wallpaper
To Select One of the 3 Wallpaper Settings
You've Made
DVD Playback Mode
Setting the DRC (Dynamic Range
Compression)
Setting the AV SYNC
Setting the HDMI Audio
Setting the Audio
49 Listening to Radio
49 Presetting Stations
convenient function
50
50
50
51
51
51
Sleep Timer Function
Adjusting Display Brightness
Mute Function
V-SOUND (Virtual Sound)
S.VOL (Smart Volume)
P.BASS/Audio Upscaling
troubleshooting
52
52
Troubleshooting
Language Code list
54
Language Code List
50
54
USB host feature supported
products
55
appendix
56
Downloaded From TheatreSystem-Manual.com Manuals
EnG
system setup
55 Digital Camera
55 USB Flash Disc
55 MP3 Player
56 Cautions on Handling and Storing Discs
57 Specifications
58 Warranty
getting started
Before Reading the User’s Manual
Make sure to check the following terms before reading the user manual.
Icons that will be used in manual
Icon
B
A
G
D
M
M
Term
Definition
DVD
This involves a function available with DVD or DVD-R/DVD-RW discs that
have been recorded and finalized in Video Mode.
CD
This involves a function available with a data CD (CD-R or CD-RW).
MP3
This involves a function available with CD-R/-RW discs.
JPEG
This involves a function available with CD-R/-RW discs.
DivX
This involves a function available with MPEG4 discs.
(DVD±R/RW, CD-R or CD-RW)
Caution
This involves a case where a function does not operate or settings may be
cancelled.
Note
This involves tips or instructions on the page that help each function
operate.
` In this manual, the instructions marked with "DVD (
)" are applicable to DVD-VIDEO, DVD-AUDIO and
DVD-R/-RW discs that have been recorded in Video Mode and then finalized. Where a particular DVD type is
mentioned, it is indicated separately.
` If a DVD-R/-RW disc has not been recorded properly in DVD Video format, it will not be playable.
About the use of this user’s manual
1) Be sure to be familiar with Safety Instructions before using this product. (See pages 3~4)
2) If a problem occurs, check the Troubleshooting. (See pages 52~53)
Copyright
©2008 Samsung Electronics Co.,Ltd.
All rights reserved; No part or whole of this user’s manual may be reproduced or copied without the
prior written permission of Samsung Electronics Co.,Ltd.
Downloaded
From TheatreSystem-Manual.com Manuals
1
~ 6
EnG
DVD (Digital Versatile Disc) offers fantastic audio and video, thanks to Dolby Digital
surround sound and MPEG-2 video compression technology. Now you can enjoy these
realistic effects in the home, as if you were in a movie theater or concert hall.
DVD players and the discs are coded by region. These regional codes must match in order for the
disc to play. If the codes do not match, the disc will not play.
The Region Number for this player is given on the rear panel of the player.
(Your DVD player will only play DVDs that are labeled with identical region codes.)
Disc Type
Mark (Logo)
Recorded Signals
Disc Size
5 inches
DVD-AUDIO
AUDIO + VIDEO
DVD-VIDEO
3 1/2 inches
AUDIO-CD
COMPACT
AUDIO
DIGITAL AUDIO
DivX
AUDIO + VIDEO
● getting started
Playable Discs
Max. Playing Time
Approx. 240 min. (single-sided)
Approx. 480 min. (double-sided)
Approx. 80 min. (single-sided)
Approx. 160 min. (double-sided)
5 inches
74 min.
3 1/2 inches
20 min.
5 inches
—
3 1/2 inches
—
Do not use the following types of discS !
~ LD, CD-G, CD-I, CD-ROM, DVD-RAM and DVD-ROM discs cannot be played on this player.
If such discs are played, a <WRONG DISC FORMAT> message appears on the TV screen.
~ DVD discs purchased abroad may not play on this player.
If such discs are played, a <CAN'T PLAY THIS DISC PLEASE, CHECK REGION CODE> message appears on the
TV screen.
Copy Protection
~ Many DVD discs are encoded with copy protection. Because of this, you should only connect your DVD player
directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy-protected DVD
discs.
~ This product incorporates copyright protection technology that is protected by methods claims of certain U.S.
patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.
Downloaded From TheatreSystem-Manual.com Manuals
getting started
Disc Type and Characteristics
This product does not support Secure (DRM) Media files.
❖ CD-R Discs
~ Some CD-R discs may not be playable depending on the disc recording device (CD-Recorder or PC) and the
condition of the disc.
~ Use a 650MB/74 minute CD-R disc.
Do not use CD-R discs over 700MB/80 minute as they may not be played back.
~ Some CD-RW (Rewritable) media, may not be playable.
~ Only CD-Rs that are properly "closed" can be fully played. If the session is closed but the disc is left open, you
may not be able to fully play the disc.
❖ CD-R MP3 Discs
~ Only CD-R discs with MP3 files in ISO 9660 or Joliet format can be played.
~ MP3 file names should be 8 characters or less in length and contain no blank spaces or special characters
(. / = +).
~ Use discs recorded with a compression/decompression data rate greater than 128Kbps.
~ Only files with the ".mp3" and ".MP3" extensions can be played.
~ Only a consecutively written multisession disc can be played. If there is a blank segment in the Multisession
disc, the disc can be played only up to the blank segment.
~ If the disc is not closed, it will take longer to begin playback and not all of the recorded files may be played.
~ For files encoded in Variable Bit Rate (VBR) format, i.e. files encoded in both low bit rate and high bit rate
(e.g., 32Kbps ~ 320Kbps), the sound may skip during playback.
~ A maximum of 500 tracks can be played per CD.
~ A maximum of 300 folders can be played per CD.
❖ CD-R JPEG Discs
~ Only files with the "jpg" extensions can be played.
~ If the disc is not closed, it will take longer to start playing and not all of the recorded files may be played.
~ Only CD-R discs with JPEG files in ISO 9660 or Joliet format can be played.
~ JPEG file names should be 8 characters or less in length and contain no blank spaces or special characters
(. / = +).
~ Only a consecutively written multisession disc can be played. If there is a blank segment in the multisession
disc, the disc can be played only up to the blank segment.
~ A maximum of 9,999 images can be stored on a single CD.
~ When playing a Kodak/Fuji Picture CD, only the JPEG files in the picture folder can be played.
~ Picture discs other than Kodak/Fuji Picture CDs may take longer to start playing or may not play at all.
❖ DVD±R/RW, CD-R/RW DivX Discs
~ Since this product only provides encoding formats authorized by DivX Networks, Inc., a DivX file created by the
user might not play.
~ Software updates for incompatible formats are not supported.
(Example : QPEL, GMC, resolution higher than 800 x 600 pixels, etc.)
~ Sections with a high frame rate might not be played while playing a DivX file.
~ For more information about the formats authorized by DivX Networks, Inc., please visit "www.divxnetworks.
net".
10 From TheatreSystem-Manual.com Manuals
Downloaded
ENG
description
FrONT PANEl
7
9
8
● DESCrIPTION
10
11
POWER( ) BUTTON
TUNING DOWN & SKIP ( )
BUTTON
DISC SLOT (behind cover)
STOP (T) BUTTON
10
SPEAKERS
EJECT BUTTON
PLAY/PAUSE (
11
AUX IN 1 Jack
FUNCTION BUTTON
TUNING UP & SKIP ( ) BUTTON
1
USB Port
Downloaded From TheatreSystem-Manual.com Manuals
) BUTTON
12
Volume Control
11
description
Rear Panel
1
2
3
4
5
HDMI OUT
HDMI OUT
6
FM 75Ω COAXIAL JACK
Connect the FM antenna.
EXTERNAL DIGITAL OPTICAL INPUT JACK
Use this to connect external equipment capable of digital output.
COMPONENT VIDEO OUTPUT JACKS
Connect a TV with Component video inputs to these jacks.
VIDEO OUTPUT JACK
Connect the TV's Video Input jack (VIDEO IN) to the VIDEO OUT jack.
AUX IN 2 JACKS
Connect to the 2CH analog output of an external device (such as a VCR)
HDMI OUT JACK
Using an HDMI cable, connect this HDMI output terminal to the HDMI
input terminal on your TV for the best quality picture.
12 From TheatreSystem-Manual.com Manuals
Downloaded
ENG
remote control
SETTING THE rEMOTE CONTrOl
You can control certain functions of your TV with this remote control.
When operating a TV with the remote control
● rEMOTE CONTrOl
1. Press the TV button to set the remote to TV mode.
2. Press the POWEr button to turn on the TV.
3. While holding down the POWEr button, enter the code
corresponding to your brand of TV.
~ If there is more than one code listed for your TV in the
able, enter one at a time to determine which code works.
Example : For a Samsung TV
While holding down the POWEr button, use the number
buttons to enter 00, 15, 16, 17 and 40.
4. If the TV turns off, the setting is complete.
~ You can use the TV POWER, VOLUME, CHANNEL, and
Numeric buttons (0~9).
M
` The remote control may not work on some brands of TVs. Also, some operations may not be possible
depending on your brand of TV.
` If you do not set the remote control with the code for your brand of TV, the remote control will work on a
Samsung TV by default.
Operation range of the remote Control
The remote control can be used up to approximately
23 feet (7 meters) in a straight line. It can also be operated at a
horizontal angle of up to 30° from the remote control sensor.
Downloaded From TheatreSystem-Manual.com Manuals
1
remote control
Tour of the Remote Control
1
2
3
17
18
19
20
4
5
6
7
21
22
23
8
24
9
25
26
27
28
10
29
11
30
12
13
14
15
16
31
32
33
34
14 From TheatreSystem-Manual.com Manuals
Downloaded
35
DVD RECEIVER button
18
PORt button
2
TV button
19
TV/VIDEO button
3
POWER button
20
EJECT button
4
Number (0~9) buttons
21
CANCEL button
5
REMAIN button
22
PAUSE button
6
STEP button
7
Tuning Preset/CD Skip buttons
8
VOLUME button
24
TUNING/CH button
9
MENU button
25
MUTE button
10
AUDIO button
26
RETURN button
11
TUNER MEMORY, SD(Standard
Definition)/HD(High Definition) button
27
Cursor/ENTER button
12
LOGO button
28
SUBTITLE button
13
V-SOUND(Virtual Sound) button
29
EXIT button
14
AUDIO UPSCALE/P.BASS button
30
INFO button
15
SLEEP button
31
REPEAT button
16
SLOW, MO/ST button
32
SOUND EDIT button
DVD button
TUNER button
AUX button
33
ZOOM button
34
DIMMER button
35
S.VOL(Smart Volume) button
17
DVD
DVD
PLAY button
STOP button
SEARCH buttons
● remote control
DVD
23
EnG
1
Insert Remote Batteries
1. Remove the battery
cover in the direction
of the arrow.
M
2. Insert two 1.5V AAA batteries, paying
attention to the correct polarities
(+ and –).
3. Replace the battery
cover.
Follow these precautions to avoid leaking or cracking cells:
`
`
`
`
Place batteries in the remote control so they match the polarity : (+) to (+) and (–) to (–).
Use the correct type of batteries. Batteries that look similar may differ in voltage.
Always replace both batteries at the same time.
Do not expose the batteries to heat or a flame.
Downloaded From TheatreSystem-Manual.com Manuals
15
remote control
TV Brand Code List
No.
No.
Brand
1
Admiral (M.Wards)
56, 57, 58
44
MTC
18
2
A Mark
01, 15
45
NEC
18, 19, 20, 40, 59, 60
3
Anam
01, 02, 03, 04, 05, 06, 07, 08, 09, 10, 11,
46
Nikei
03
12, 13, 14
47
Onking
03
Code
Brand
Code
4
AOC
01, 18, 40, 48
48
Onwa
03
5
Bell & Howell (M.Wards)
57, 58, 81
49
Panasonic
06, 07, 08, 09, 54, 66, 67, 73, 74
6
Brocsonic
59, 60
50
Penney
18
7
Candle
18
51
Philco
03, 15, 17, 18, 48, 54, 59, 62, 69, 90
8
Cetronic
03
52
Philips
15, 17, 18, 40, 48, 54, 62, 72
9
Citizen
03, 18, 25
53
Pioneer
63, 66, 80, 91
10
Cinema
97
54
Portland
15, 18, 59
11
Classic
03
55
Proton
40
12
Concerto
18
56
Quasar
06, 66, 67
13
Contec
46
57
Radio Shack
17, 48, 56, 60, 61, 75
14
Coronado
15
58
RCA/Proscan
18, 59, 67, 76, 77, 78, 92, 93, 94
15
Craig
03, 05, 61, 82, 83, 84
59
Realistic
03, 19
16
Croslex
62
60
Sampo
40
17
Crown
03
61
Samsung
00, 15, 16, 17, 40, 43, 46, 47, 48, 49,
18
Curtis Mates
59, 61, 63
19
CXC
03
62
Sanyo
19, 61, 65
20
Daewoo
02, 03, 04, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24,
63
Scott
03, 40, 60, 61
25, 26, 27, 28, 29, 30, 32, 34, 35, 36, 48, 59, 90
64
Sears
15, 18, 19
21
Daytron
40
65
Sharp
15, 57, 64
22
Dynasty
03
66
Signature 2000 (M.Wards)
57, 58
23
Emerson
03, 15, 40, 46, 59, 61, 64, 82, 83, 84, 85
67
Sony
50, 51, 52, 53, 55
24
Fisher
19, 65
68
Soundesign
03, 40
25
Funai
03
69
Spectricon
01
26
Futuretech
03
70
SSS
18
27
General Electric (GE)
06, 40, 56, 59, 66, 67, 68
71
Sylvania
18, 40, 48, 54, 59, 60, 62
28
Hall Mark
40
72
Symphonic
61, 95, 96
29
Hitachi
15, 18, 50, 59, 69
73
Tatung
06
30
Inkel
45
74
Techwood
18
31
JC Penny
56, 59, 67, 86
75
Teknika
03, 15, 18, 25
32
JVC
70
76
TMK
18, 40
33
KTV
59, 61, 87, 88
77
Toshiba
19, 57, 63, 71
59, 60, 98
34
KEC
03, 15, 40
78
Vidtech
18
35
KMC
15
79
Videch
59, 60, 69
36
LG (Goldstar)
01, 15, 16, 17, 37, 38, 39, 40, 41, 42, 43, 44
80
Wards
15, 17, 18, 40, 48, 54, 60, 64
37
38
Luxman
18
81
Yamaha
18
LXI (Sears)
19, 54, 56, 59, 60, 62, 63, 65, 71
82
York
40
39
Magnavox
15, 17, 18, 48, 54, 59, 60, 62, 72, 89
83
Yupiteru
03
40
Marantz
40, 54
84
Zenith
58, 79
41
Matsui
54
85
Zonda
01
42
MGA
18, 40
86
Dongyang
03, 54
43
Mitsubishi/MGA
18, 40, 59, 60, 75
16 From TheatreSystem-Manual.com Manuals
Downloaded
ENG
connections
This section involves various methods of connecting the Digital Home Theater to other external components.
Before moving or installing the product, be sure to turn off the power and disconnect the power cord.
● CONNECTIONS
CONNECTING THE WIrElESS SUBWOOFEr
Press the POWEr button on the rear of the subwoofer to turn it on.
~ If the main unit is turned on
The subwoofer will be automatically connected to the product and
the Link LED on its front will blink blue for a few seconds.
~ If the main unit is turned off
The Link LED on the front of the subwoofer will blink blue for about
30 seconds, then will change to red as the sub switches to
STANDBY mode.
ID SET button
M
POWER button
` If the subwoofer is turned off, you will see S/W CHECK on the display panel of the main unit.
` Place the wireless subwoofer under the main unit.
` If you use a device such as a microwave oven, wireless LAN Card, Bluetooth equipment, or any other
device that uses the same frequency (5.8GHz) near the system, some sound interruption may be
heard due to interference.
` The transmission distance of radio wave is about 32 feet, 9.7 inches, but may vary depending on
your operating environment. If a steel-concrete wall or metallic wall is between the main unit and the
wireless subwoofer, the system may not operate at all, because the radio wave cannot penetrate
metal.
` If the main unit doesn't make wireless connection, the system needs ID Setting between the main
unit and wireless subwoofer. With the main unit turned off, press the remote control's
"0""1""3""5" number buttons and the unit will turn on. With the wireless subwoofer turned on,
press ID SET button on the back of the unit for 5 seconds.
` The wireless receiving antenna is built into the wireless subwoofer. Keep the unit away from water and
moisture.
` For optimal listening performance, make sure that the area around the wireless subwoofer location is clear
of any obstructions.
Downloaded From TheatreSystem-Manual.com Manuals
1
connections
INSTAllING THE WAll MOUNT
1. Place the Mounting Studs on the rear of the product and
turn them clockwise to fix.
Mounting Studs (2EA)
(supplied)
. Place the wall mount bracket on a wall surface so that
the arrow on it points upward, and then secure it with
four screws (not supplied).
. Then, fit the product (Mounting Studs installed) into the
corresponding hole of the wall mount bracket.
For secure installation, make sure the mounting studs
go down to the bottom of the hole.
. This is the completion of the wall mount installation.
` Secure the Home Theater firmly to the wall so that it does not fall off.
If the Home theater falls off, it may result in an injury or damage to the product.
` When the Home Theater is installed on wall, please make sure that a child does not pull any of
connecting cables. as it may cause it to fall.
1 From TheatreSystem-Manual.com Manuals
Downloaded
ENG
CONNECTING THE VIDEO OUT TO YOUr TV
Choose one of the three methods for connecting to a TV.
HDMI OUT
● CONNECTIONS
HDMI OUT
METHOD1
METHOD2
METHOD3
(supplied)
METHOD 1 : HDMI (BEST QUALITY)
Connect the HDMI cable (not supplied) from the HDMI OUT jack on the back of the DVD Player to the
HDMI IN jack on your TV.
METHOD 2 : Component Video (BETTER QUALITY)
If your television is equipped with Component Video inputs, connect a Component video cable(not
supplied) from the Component Video Output (Pr, Pb and Y) jacks on the back of the DVD Player to the
Component Video Input jacks on your TV.
METHOD 3 : Composite Video (GOOD QUALITY)
Connect the supplied Video cable from the VIDEO OUT jack on the back of the DVD Player to the
VIDEO IN jack on your TV.
M
` This product operates in Interlace scan mode (480i) for Component output.
` If you use an HDMI cable to connect a Samsung TV to the DVD Player, you can operate the Home
Theater using the TV's remote control. This is only available with SAMSUNG TVs that support
Anynet+(HDMI-CEC).
` Please check the
logo (If your TV has an
Downloaded From TheatreSystem-Manual.com Manuals
logo, then it supports the Anynet+ function.)
1
connections
Connecting the Video Out to your TV (con't)
HDMI Auto Detection Function
The player's video output will automatically change to HDMI mode when connecting an HDMI cable
while power is on.
~ HDMI (High Definition Multimedia Interface)
HDMI is an interface that enables the digital transmission of video and audio data with just a single connector.
Using HDMI, the DVD Home Theater transmits a digital video and audio signal and displays a vivid
picture on a TV having an HDMI input jack.
~ HDMI connection description
HDMI connector - Supports video and digital audio data.
- HDMI outputs only a pure digital signal to the TV.
- If your TV does not support HDCP (High-bandwidth Digital Content Protection), random noise
appears on the screen.
~ Why does Samsung use HDMI?
Analog TVs require an analog video/audio signal. However, when playing a DVD, the data transmitted
to a TV is digital. Therefore either a digital-to-analog converter (in the DVD Home Theater) or an
analog-to-digital converter (in the TV) is required. During this conversion, the picture quality is
degraded due to noise and signal loss. HDMI technology is superior because it requires no D/A
conversion and is a pure digital signal from the player to your TV.
~ What is the HDCP?
HDCP (High-band width Digital Content Protection) is a system for protecting DVD content outputted
via HDMI from being copied. It provides a secure digital link between a video source (PC, DVD. etc)
and a display device (TV, projector. etc). Content is encrypted at the source device to prevent
unauthorized copies from being made.
~ What is Anynet+?
Anynet+ is a convenient function that offers linked operation of this unit through Samsung TVs with the
Anynet+ feature.
- If your Samsung TV has an
logo, then it supports the Anynet+ function.
-If you turn on the player and insert a disc, the player will start playing the disc, and the TV will turn on
automatically and switch to HDMI mode.
- If you turn on the player and press the Play button with a disc already inserted, the TV will
immediately turn on and switch to HDMI mode.
20 From TheatreSystem-Manual.com Manuals
Downloaded
ENG
HDMI FUNCTION
resolution Selection
This function allows the user to select the screen resolution for
HDMI output.
M
` If the TV does not support the configured resolution, you will
not be able to see the picture properly.
` When an HDMI cable is connected, composite and component
video signals are not output.
` See your TV owner's manual for more information on how to select
the TV's Video Input source.
● CONNECTIONS
In Stop mode, press and hold the SD/HD (Standard
Definition/High Definition) button on the remote control.
~ Resolutions available for the HDMI output are 480p,
720p, 1080i/1080p.
~ SD(Standard Definition) resolution is 480p and HD
(High Definition) resolution is 720p, 1080i/1080p.
The default value of HDMI output is 480p.
Why use HDMI (High Definition
Multimedia Interface)?
This device transmits a DVD video
signal digitally without the process
of converting to analog. You will get
sharper digital pictures when using
an HDMI connection.
Using Anynet+(HDMI-CEC)
Anynet+ is a function that enables you to control other Samsung Devices with your Samsung TV's remote
control. Anynet + can be used by connecting this Home Theater to a SAMSUNG TV using an HDMI Cable.
This is only available with SAMSUNG TVs that support Anynet+.
1. Connect the main unit of the Home Theater to a Samsung
With Anynet+
TV with an HDMI cable. (See page 19)
You can operate this unit, power
. Set the Anynet+ function on your TV.
on your TV, or watch a movie by
(See the TV instruction manual for more information.)
pressing the Play button on your
~ You can operate the Home Theater by using the TV
Samsung TV's remote control.
remote control. (Available TV buttons : ,
,
,
,
, and , buttons, ~ button)
If you select the TV
Set the Anynet+(HDMI-CEC) to On by pressing the Anynet+
button on your TV remote control.
• receiver : On : You can listen to audio through the Home Theater.
• receiver : Off : You can listen to audio through the TV.
MOVE
MOVE
ENTEr
ENTEr
EXIT
EXIT
MOVE
ENTEr
EXIT
Move
Enter
Exit
Enter
Exit
If you select the THEATEr
Select THEATEr to connect and set the option of each item below.
• View TV : If Anynet+(HDMI CEC) is set to on and you select View TV,
the home theater will automatically switch to digital in mode.
• Theater Menu : you can access and control the Home theater menu.
• Theater Operation : The Home Theater disc playback
information will be displayed. You can
control the Disc operation of the
Home Theater such as title, chapter
and subtitle change.
• receiver : On : You can listen to audio through the Home Theater.
• receiver : Off : You can listen to audio through the TV.
M
` If you chose 'View TV' and you want to listen to TV sound through Digital In of the Home theater, you have to
connect an optical cable between the TV and the Home Theater.
Downloaded From TheatreSystem-Manual.com Manuals
Move
1
connections
CONNECTING AUDIO FrOM EXTErNAl COMPONENTS
AUX1 : Connecting an External Component/MP3 player
Components such as an MP3 Player
Audio Cable
(not supplied)
Audio OUT
1. Connect AUX IN 1 (Audio) on the Home Theater to the Audio Out of the external component/MP3
player.
. Press the AUX button on the remote control to select AUX1 input.
~ You can also use the FUNCTION button on the main unit.
The mode switches as follows :
DVD/CD  D.IN  AUX 1  AUX 2  USB  BT AUDIO  FM.
From TheatreSystem-Manual.com Manuals
Downloaded
ENG
AUX2 : rear Panel
OPTICAl : rear Panel
● CONNECTIONS
HDMI OUT
HDMI OUT
Audio Cable (not supplied)
If the external analog component
has only one Audio Out, connect
either left or right.
External Analog Component
Optical Cable
(not supplied)
External Digital Component
AUX2 : Connecting an External Analog Component
Analog signal components such as a VCR.
1. Connect AUX IN 2 (Audio) on the Home Theater to the Audio Out of the external analog component.
~ Be sure to match connector colors.
. Press the AUX button on the remote control to select AUX 2 input.
~ You can also use the FUNCTION button on the main unit.
The mode switches as follows :
DVD/CD  D.IN  AUX 1  AUX 2  USB  BT AUDIO  FM.
M
` You can connect the Video Output jack of your VCR to the TV, and connect the Audio Output jacks of the VCR
to this product.
OPTICAl : Connecting an External Digital Component
Digital signal components such as a Cable Box/Satellite receiver (Set-Top Box).
1. Connect the Digital Input (OPTICAL) on the Home Theater to the Digital Output of the external digital
component.
. Press the AUX button on the remote control to select DIGITAl IN.
~ You can also use the FUNCTION button on the main unit.
The mode switches as follows :
DVD/CD  D.IN  AUX 1  AUX 2  USB  BT AUDIO  FM.
Downloaded From TheatreSystem-Manual.com Manuals
connections
Connecting the FM Antenna
1. Connect the FM antenna supplied to the FM 75Ω COAXIAL Jack.
. S
lowly move the antenna wire around until you find a location where reception is good, then fasten it
to a wall or other rigid surface.
HDMI OUT
FM Antenna
(supplied)
M
` This unit does not receive AM broadcasts.
24 From TheatreSystem-Manual.com Manuals
Downloaded
ENG
before using your home theater
The DVD Home Theater's remote can be used to control Samsung TVs.
1. Plug the main unit's power cord into the AC power supply.
● BEFOrE USING YOUr HOME THEATEr
. Press the DVD rECEIVEr button to switch to DVD
RECEIVER mode to operate the DVD Home Theater.
. Press the FUNCTION button on the main unit or DVD button
on the remote to enable DVD/CD playback.
. Press the TV button to set the remote to TV mode.
5. Press the POWEr button to turn on your Samsung TV
with this remote.
. Press the TV/VIDEO button to select VIDEO mode
on your TV.
Downloaded From TheatreSystem-Manual.com Manuals
VIDEO
5
playback
DISC PlAYBACK
B
1. Press the EJECT (
) button to open the Disc Slot cover.
. Load a disc vertically into the Disc Insert Hole.
~ Place a disc gently into the tray with the disc’s label
facing up.
. Close the compartment by pressing the PlAY (
~ Playback starts automatically.
) button.
To stop playback, press the STOP ( ) button during playback.
~ If pressed once, PrESS PlAY is displayed and the stop position will be stored in memory.
If the PlAY ( ) button or ENTEr button is pressed, playback resumes from the stop position.
(This function works only with DVDs.)
~ If pressed twice, STOP is displayed, and if the PlAY ( ) button is pressed, playback starts from the
beginning.
To temporarily pause playback, press the PAUSE (
) button during playback.
~ To resume playback, press the PlAY ( ) button.
M
` Depending on the content of the disc, the initial screen may appear different.
` Pirated discs will not run in this player because it violates the CSS (Content Scrambling System :
a copy protection system) recommendations.
` Do not put force on or pull out the door. This may cause damage to the door.
From TheatreSystem-Manual.com Manuals
Downloaded
ENG
MP3/WMA-CD PlAYBACK
Data CDs (CD-R, CD-RW) encoded in MP3/WMA format can be played.
A
● PlAYBACK
1. Load an MP3/WMA disc.
~ The MP3/WMA menu screen will appear and
playback will start.
~ The appearance of the menu depends on the
MP3/WMA disc.
~ WMA-DRM files cannot be played.
. In Stop mode, use the Cursor ,,, button
to select the album, and then press the ENTEr button.
~ Use the Cursor , button to select the track.
. To change the album, use the Cursor ,,,
button to select another album in Stop mode, and then
press the ENTEr button.
. Press the STOP (@) button to stop playback.
M
` Depending on the recording mode, some MP3/WMA-CDs may not play.
` Table of contents of a MP3-CD varies depending on the MP3/WMA track format recorded on the disc.
To play a file icon in the screen,
~ Press the Cursor ,,, button when it is in Stop mode and select a desired icon from
the top part of the menu.
Music File Icon : To play music files only, select the
Icon.
Image File Icon : To view image files only, select the
Icon.
Movie File Icon : To view movie files only, select the
Icon.
All File Icon : To view all files, select the
Downloaded From TheatreSystem-Manual.com Manuals
Icon.
playback
JPEG FIlE PlAYBACK
Images captured with a digital camera or camcorder, or JPEG files on a PC can be stored on a CD and then played back
with this Home Theater.
G
rotate/Flip Function
Press the Cursor ,,, button during playback.
button: Flip Vertically
button: Rotate 90°
Counterclockwise
button: Rotate 90°
Clockwise
Original Image
button: Flip Horizontally
M
ENTER SELECT
` The maximum resolutions supported by this product are 5120 x 3480 (or 19.0 MPixel) for
standard JPEG files and 2048 x 1536 (or 3.0 MPixel) for progressive image files.
` If a JPEG file is played when the HDMI output resolution is 720p/1080i/1080p, the mode is
automatically converted to 480p mode.
From TheatreSystem-Manual.com Manuals
Downloaded
The functions on this page apply to DivX disc playback.
D
Skip Forward/Back
Fast Playback
● PlAYBACK
During playback, press the [,] button.
~ Goes to the next file whenever you press the ] button,
if there are over 2 files in the disc.
~ Goes to the previous file whenever you press the
[ button, if there are over 2 files in the disc.
D
During playback, press the (,) button.
To play back the disc at a faster speed, press the ( or
) button during playback.
~ Each time you press either button, the playback speed
will change as follows:
2x  4x  8x  32x  Normal.
5 Minutes Skip function
D
During playback, press the Cursor , button.
~ Playback skips 5 minutes forward whenever you press the Cursor  button.
~ Playback skips 5 minutes back whenever you press the Cursor  button.
Audio Display
D
Press the AUDIO button.
~ If there are multiple audio tracks on a disc, you can
toggle between them.
~ Each time you press the button, your selection will toggle
between AUDIO (1/N, 2/N ...) and .
M`
is displayed when there is only one supported language in the disc.
Subtitle Display
D
Press the SUBTITlE button.
~ Each time you press the button, your selection will toggle
between SUBTITlE (1/N, 2/N ...) and SUBTITlE OFF.
~ If the disc has only one subtitle file, it will be played automatically.
~ See number 2 (Caption Function) below for more details
concerning Subtitle usage with DivX discs.
Downloaded From TheatreSystem-Manual.com Manuals
ENG
DIVX PlAYBACK
playback
DIVX PlAYBACK (CON'T)
D
If the Disc has more than One Subtitle File
If the disc has more than one subtitle file, the default
subtitle may not match the movie and you will have
to select your subtitle language as follows:
1. In Stop mode, press the Cursor , button, select the
desired subtitle ( ) from the TV screen, and then
press the ENTEr button.
. When you select the desired DivX file from the TV
screen, the movie will be played normally.
DivX(Digital internet video eXpress)
DivX is a video file format developed by Microsoft and is based on MPEG4 compression technology to
provide audio and video data over the Internet in real-time.
MPEG4 is used for video encoding and MP3 for audio encoding so that the users can watch a movie at
near DVD-quality video and audio.
1. Supported Formats
This product only supports the following media formats.If both video and audio formats are not
supported, the user may experience problems such as broken images or no sound.
Supported Video Formats
Format
AVI
WMV
Supported Versions
DivX3.11~DivX5.1, XviD
V1/V2/V3/V7
Supported Audio Formats
Format
MP3
WMA
AC3
Bit Rate
80~384kbps
56~128kbps
128~384kbps
Sampling Frequency
44.1khz
44.1/48khz
~ Aspect Ratio : Although the default DivX resolution is 640x480 pixels (4:3), this product supports
up to 800x600 pixels (16:9). TV screen resolutions higher than 800 will not be supported.
~ When you play a disc whose sampling frequency is higher than 48khz or 320kbps, you may
experience shaking on the screen during playback.
. Caption Function
~ You must have some experience with video extraction and editing in order to use this feature
properly.
~ To use the caption function, save the caption file (*.smi) in the same file name as that of the DivX
media file (*.avi) within the same folder.
Example. Root
Samsung_007CD1.avi
Samsung_007CD1.smi
~ Up to 60 alphanumeric characters or 30 East Asian characters (2 byte characters such as Korean
and Chinese) for the file name.
~ Official DivX® Certified product
~ Plays all versions of DivX® video (including DivX® 6) with standard playback of DivX® media files
0 From TheatreSystem-Manual.com Manuals
Downloaded
Displaying Disc Information
BAGD
ENG
USING THE PlAYBACK FUNCTION
You can view disc playback information on the TV screen.
Press the INFO button.
● PlAYBACK
M
` Depending on the disc, the disc information display may
appear different.
` Depending on the disc, you can also select DOLBY DIGITAL,
or PRO LOGIC.
appears on the TV screen!
If this symbol appears on the TV screen when pressing
a button, that operation is not possible with the disc
currently being played.
Checking the remaining Time
BA
Press the rEMAIN button.
~ For checking the total and remaining time of a title or
chapter being played.
Each time the remain button is pressed
DVD-VIDEO
DVD-AUDIO
TITlE ElAPSED ➞ TITlE rEMAIN ➞ CHAPTEr ElAPSED ➞ CHAPTEr rEMAIN
GrOUP ElAPSED ➞ GrOUP rEMAIN ➞ TrACK ElAPSED ➞ TrACK rEMAIN
B TrACK ElAPSED ➞ TrACK rEMAIN ➞ TOTAl ElAPSED ➞ TOTAl rEMAIN
A TrACK rEMAIN ➞ TrACK ElAPSED
Downloaded From TheatreSystem-Manual.com Manuals
1
playback
USING THE PlAYBACK FUNCTION (CON'T)
Fast Playback
BAD
Press the (, ) button.
~ Each time the button is pressed during playback, the
playback speed changes as follows:
( 2X  ( 4X  ( 8X  ( 32X   PlAY
) 2X  ) 4X  ) 8X  ) 32X   PlAY
M
` During fast playback of a CD or MP3-CD, sound is heard only at 2x speed, and not at 4x, 8x, and 32x speeds.
Slow Playback
D
Press the SlOW button.
~ Each time the button is pressed during playback, the
playback speed changes as follows:
➞*1/4 ➞*1/8 ➞&1/2 ➞&1/4 ➞&1/8 ➞
d *1/2
PlAY
D *1/2 ➞*1/4 ➞*1/8 ➞  PlAY
M
` No sound is heard during slow playback.
` Reverse slow playback does not work with DivX.
Skipping Scenes/Songs
Press the [,] button.
~ Each time the button is pressed during playback, the
previous or next chapter, track or directory (file) will be
played.
~ You cannot skip chapters consecutively.
From TheatreSystem-Manual.com Manuals
Downloaded
A
BAGD
Repeat playback allows you to repeatedly play a chapter, title,
track (song), or directory (MP3 file).
ENG
repeat Playback
Press the rEPEAT button.
~ Each time the button is pressed during playback, the repeat
playback mode changes as follows:
rEPEAT : CHAPTEr  rEPEAT : TITlE  rEPEAT : OFF
DVD-AUDIO
rEPEAT : TrACK  rEPEAT : GrOUP  rEPEAT : OFF
B
AGD
● PlAYBACK
DVD-VIDEO
rEPEAT : TrACK  rEPEAT : DISC  rEPEAT : OFF
rEPEAT : OFFrEPEAT : rANDOM  rEPEAT : TrACK  rEPEAT : DIr
 rEPEAT : DISC  rEPEAT : OFF
repeat Playback Options
CHAPTEr : Repeatedly plays the selected chapter.
TITlE : Repeatedly plays the selected title.
GrOUP : Repeatedly plays the selected group.
rANDOM : Plays tracks in random order. (A track that has already been played may be played again.)
TrACK : Repeatedly plays the selected track.
DIr : Repeatedly plays all tracks in the selected folder.
DISC : Repeatedly plays the entire disc.
OFF : Cancels Repeat Playback.
To Select a repeat Playback Mode in the Disc Information Screen
B
1. Press the INFO button twice.
. Press the Cursor  button to move to REPEAT
PLAYBACK ( ) display.
. Press the Cursor  button to select the desired Repeat
Playback mode.
~ To select another album and track, repeat Steps 2 and
3 above.
. Press the ENTEr button.
OFF  A-  CHAP  TITlE  OFF
B OFF  A-  TrACK  DISC  OFF
M
` For DivX, MP3 and JPEG discs, you cannot select Repeat Play from the information display screen.
Downloaded From TheatreSystem-Manual.com Manuals
playback
USING THE PlAYBACK FUNCTION (CON'T)
A-B repeat Playback
You can repeatedly play back a designated section of a DVD.
1. Press the INFO button twice.
A. Press the Cursor  button to move to
REPEAT PLAYBACK
( ) display.
. Press the Cursor , button to select A- and then press
the ENTEr button.
A -? the selected position
~ When the ENTEr button is pressed,
REPEAT
: AÐ
will
be stored
in memory.
. Press the ENTEr button at the end of the desired segment.
~ The specified segment will be played repeatedly.
A-B
d To return to normal playback, press the Cursor , button to select
M
A TO B REPEAT ON
` The A-B Repeat function does not operate with DivX,
MP3 or JPEG discs.
Step Function
Press the STEP button.
~ The picture moves forward one frame each time the button is
pressed during playback.
M
OFF.
` No sound is heard during step motion playback.
From TheatreSystem-Manual.com Manuals
Downloaded
D
ENG
Angle Function
This function allows you to view the same scene in different
angles.
1. Press the INFO button.
. Press the Cursor  button to move to ANGLE (
display.
)
1/3 
M
2/3 
3/3 
● PlAYBACK
. Press the Cursor , button or numeric buttons to select
the desired angle.
~ Each time the button is pressed, the angle changes as
follows:
1/3
` The Angle function works only with discs on which multiple angles have been recorded.
Zoom (Screen Enlarge) Function
This function allows you to enlarge a particular area of the
displayed image.
1. Press the ZOOM button.
. Press the Cursor $, %, _, + button to move to the area
you want to enlarge.
. Press the ENTEr button.
~ Each time the button is pressed, the zoom level changes
as follows:
ZOOM X 1.5 ZOOM X 2 ZOOM X 3
SELECT ZOOM POSITION
ZOOM OFF
ENTER SELECT
Downloaded From TheatreSystem-Manual.com Manuals
5
playback
USING THE PlAYBACK FUNCTION (CON'T)
Bonus Group
Some DVD-Audio discs have an extra ‘bonus’ group that requires a 4-digit
key number to access. See the disc packaging for details and the key
number.
DVD-AUDIO
BONUS GROUP�
KEY NUMBER :
When you play a DVD-Audio disc that has a bonus group, the key number
input screen appears automatically.
M
` If you eject the disc, switch the power off, or unplug the player, you will need to re-enter
the key number.
Navigating Pages
During playback, press the .,, button on the remote control.
~ You can select the desired image from a DVD-Audio disc
containing still images.
~ With some discs, you may not be able to select images.
Audio language Selection Function
1. Press the INFO button twice.
. Press the Cursor , button or numeric buttons to select
the desired audio language.
~ Depending on the number of languages on a DVD disc,
a different audio language (ENGLISH, SPANISH,
FRENCH, etc.) is selected each time the button is
pressed.
EN 1/3  SP 2/3  Fr 3/3  EN 1/3
M
` To operate this function, you can also press the AUDIO buttons on the remote control.
` Depending on the disc, the Audio Language functions may not be available.
From TheatreSystem-Manual.com Manuals
Downloaded
DVD-AUDIO
ENG
Subtitle language Selection Function
1. Press the INFO button twice.
. Press the Cursor  button to move to SUBTITlE (
display.
)
. Press the Cursor  button or numeric buttons to select the
desired subtitle.
● PlAYBACK
EN 01/03  SP 02/03  Fr 03/03  OFF/03 
EN 01/03
M
` To operate this function, you can also press the SUBTITLE buttons on the remote control.
` Depending on the disc, the Subtitle Language functions may not be available.
BAG
Moving Directly to a Scene/Song
B
1. Press the INFO button.
. Press the Cursor , button or numeric buttons to select
the desired title/track ( ) and then press the ENTEr
button.
. Press the Cursor , button to move to the Chapter
( ) display.
. Press the Cursor , button or numeric buttons to select
the desired chapter and then press the ENTEr button.
5. Press the Cursor , button to move to time (
) display.
. Press the numeric buttons to select the desired time
and then press the ENTEr button.
AG
Press the numeric buttons.
~ The selected file will be played.
~ When playing an MP3 or JPEG disc, you cannot use the Cursor ,
button to move to a folder.
To move a folder, press the STOP (@) and then press the Cursor ,
button.
M
` You can press the [,] button on the remote control to move directly to the desired title, chapter, or track.
` Depending on the disc, you may not be able to move to the selected title or time.
Downloaded From TheatreSystem-Manual.com Manuals
playback
USING THE PlAYBACK FUNCTION (CON'T)
Using the Disc Menu
You can use the menus for the audio language, subtitle
language, profile, etc.
DVD menu contents differ from disc to disc.
1. In Stop mode, press the MENU button.
. Press the Cursor , button or numeric buttons
to move to Disc Menu and then press the
ENTEr button.
~ When you select Disc Menu and it is not supported by
the disc, the "This menu is not
supported" message appears on the screen.
. Press the Cursor ,,, button to select the desired
item.
. Press the ENTEr button.
d Press the EXIT button to exit the setup screen.
MOVE
M
ENTEr
EXIT
` The disc menu display may be different depending on the disc.
Using the Title Menu
For DVDs containing multiple titles, you can view the title of
each movie. Depending on the disc, the availability of this
feature may vary.
1. In Stop mode, press the MENU button.
. Press the Cursor , button to move to Title Menu.
. Press the ENTEr button.
~ The title menu appears.
d Press the EXIT button to exit the setup screen.
MOVE
M
` The Title menu display may be different depending on the disc.
From TheatreSystem-Manual.com Manuals
Downloaded
ENTEr
EXIT
EnG
USING BLUETOOTH
You can use a Bluetooth device to enjoy music with high quality stereo sound, all without wires!
What is Bluetooth?
To connect the Home Theater System to a bluetooth device
Check if the Bluetooth device supports the Bluetooth-compliant stereo headset function.
1. Press the FUNCTION button on the front panel of the home theater system repeatedly until "BT
AUDIO" appears.
~ The mode switches as follows :
DVD/CD ➞ D. IN ➞ AUX 1 ➞ AUX 2 ➞ USB
➞ BT AUDIO ➞ TUNER
~ You will see “WAIT” for 2 seconds and then “READY”
on the front display of th me Theater System.
. Select the Bluetooth menu on the Bluetooth device you
want to connect. (refer to bluetooth device's user manual)
. Select a Stereo headset menu in a Bluetooth device.
~ You will see a list of scanned devices.
. Select "Samsung Home Theater" from the searched list.
~ When the Home Theater System is connected to the
Bluetooth device, the Home Theater System will display
"CONNECT" on the front display, followed by the device
name of the connected Bluetooth device.
~ The Home Theater System connection is complete.
Connect
Bluetooth
Device
5. Play music on the connected device.
~ You can listen to the music playing on the connected Bluetooth device over the home theater system.
M
` You may be required to enter a PIN code(password) when connecting the Bluetooth device to the home
Theater system. If the PIN code input window appears, enter <0000>.
` The Home Theater System may control play related function only when connected device supports the
function.
` If connected device dose not support some play related function, the Home Theater System can't control the
device.
` The Home Theater System only supports Middle Quality SBC data(up to [email protected]), and does not
support High Quality SBC data([email protected]).
Downloaded From TheatreSystem-Manual.com Manuals
39
● playback
Bluetooth is a new technology that enables Bluetooth-compliant devices to easily interconnect
with each other using a short wireless connection.
~ A Bluetooth device may cause a noise or malfunction, depending on usage.
~ When a part of the body is in contact with the receiving/transmitting system of the Bluetooth device
or the Home Theater System.
~ Electrical variation from electrical jamming by the wall, corner or office partitioning.
~ Electrical interference from the same frequency-band devices including medical equipment,
microwave oven and wireless LAN.
~ Pair the Home Theater System with the Bluetooth device while maintaining a close distance.
~ The further the distance is between Home Theater System and Bluetooth device, the worse the
quality. If the distance exceeds the Bluetooth operational range, the connection is lost.
~ In poor reception-sensitivity areas, the Bluetooth connection may not work properly.
~ The Home Theater System has an effective reception range of up to 33 feet in all directions if there are
no obstacles. The connection will be automatically cut off if the distance is out of this range. Even
within this range, the sound quality may be deteriorated by obstacles such as walls or doors.
playback
USING BLUETOOTH (con't)
To disconnect the Bluetooth device from the Home Theater System
You can disconnect the Home Theater System from the
Bluetooth device. (refer to bluetooth device's user manual)
~ The Home Theater System will be disconnected.
~ When the Home Theater System is disconnected from the
Bluetooth device, the Home Theater System will display
"DISCONNECT" on the front display.
To disconnect the Home Theater System from the Bluetooth device
Press the FUNCTION button on the front panel of the home theater system to switch from “BT AUDIO”
to another mode.
~ The bluetooth device connected will wait a certain time for response from the home theater system
before terminating the connection. (Time to disconnection may differ, depending on the bluetooth
device)
~ The currently connected device will be disconnected.
M
` In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the Home Theater
System and the Bluetooth device exceeds 33 feet. If the distance is returned to the effective range or you
restart the Bluetooth device, the Bluetooth connection can be restored.
` With some bluetooth devices, some functions may not work properly.
40 From TheatreSystem-Manual.com Manuals
Downloaded
ENG
PlAYING MEDIA FIlES USING THE USB HOST FEATUrE
You can enjoy media files such as pictures, movies and music saved on an MP3 player, USB memory stick or digital
camera in high quality video by connecting the storage device to the USB port of the Home Theater.
1. Connect the USB device to the USB port on the
side of the unit.
● PlAYBACK
. Press the FUNCTION button on the DVD Player or
the POrT button on the remote control to select
the USB mode.
~ USB appears on the display screen and then
disappears.
~ The USB MENU screen appears on the TV
screen and the saved file is played.
. To stop playback, press the STOP (@) button.
Safe USB removal
To prevent damage to the memory stored in the USB device,
perform safe removal before disconnecting the USB cable.
~ Press the STOP (@) button twice in a row.
The display will show rEMOVE USB.
~ Remove the USB cable.
Skip Forward/Back
During playback, press the [,] button.
~ When there is more than one file and you press the ]
button, the next file is selected.
~ When there is more than one file and you press the [
button, the previous file is selected.
Downloaded From TheatreSystem-Manual.com Manuals
1
playback
PlAYING MEDIA FIlES USING THE USB HOST FEATUrE (CON'T)
Fast playback
During playback, press the (,) button.
~ Each time you press either button, the playback speed
will change as follows:
2x 4x 8x 32x Normal.
Compatible Devices
1. USB devices that support USB Mass Storage v1.0. (USB devices that operate as a removable disc
in Windows (2000 or later) without additional driver installation.)
. MP3 Player: HDD and flash type MP3 players.
. Digital camera: Cameras that support USB Mass Storage v1.0.
~ Cameras that operate as a removable disc in Windows (2000 or later) without additional driver installation.
. USB HDD and USB Flash Drive: Devices that support USB2.0 or USB1.1.
~ You may experience a difference in playback quality when you connect a USB1.1 device.
~ For a USB HDD, make sure to connect an auxiliary power cord to the USB HDD for proper operation.
5. USB card Reader: One slot USB card reader and Multi slot USB card reader.
~ Depending on the manufacturer. the USB card reader may not be supported.
~ If you install multiple memory devices into a multi card reader, you may experience problems.
. If you use a USB extension cable, the USB device might not be recognized.
Supported Formats
Format
File name
File
extension
Bit rate
Version
Pixel
Sampling
Frequency
Still Picture
JPG
JPG .JPEG
–
–
640x480
–
MP3
.MP3
80~384kbps
–
–
44.1kHz
WMA
.WMA
56~128kbps
V8
–
44.1kHz
WMV
.WMV
4Mbps
V1,V2,V3,V7
720x480
44.1KHz~48KHz
DivX
.AVI,.ASF
4Mbps
DivX3.11~
DivX5.1, XviD
720x480
44.1KHz~48KHz
Music
Movie
~ CBI (Control/Bulk/Interrupt) is not supported.
~ Digital Cameras that use PTP protocol or require additional program installation when connected to a
PC are not supported.
~ A device using NTFS file system is not supported. (Only FAT 16/32 (File Allocation Table 16/32) file
system is supported.)
~ Some MP3 players, when connected to this product, may not operate depending on the sector size
of their file system.
~ The USB host function is not supported if a product that transfers media files by its manufacturerspecific program is connected.
~ Does not operate with Janus enabled MTP (Media Transfer Protocol) devices.
~ The USB host function of this product does not support all USB devices. For information on
the supported devices, see page 55.
From TheatreSystem-Manual.com Manuals
Downloaded
EnG
system setup
For your convenience, you can set this Home Theater's features for the best use in your home environment.
Setting the Language
OSD(On-Screen Display) language is set to English by default.
● system setup
1. In Stop mode, press the MENU button.
. Press the Cursor % button to move to Setup and then press the
ENTER or + button.
. Select Language and then press the ENTER or + button.
. Press the Cursor $,% button to select OSD Language and then
press the ENTER or + button.
MOVE
ENTER
RETURN
EXIT
MOVE
ENTER
RETURN
EXIT
MOVE
ENTER
RETURN
EXIT
MOVE
SELECT
RETURN
EXIT
5. Press the Cursor $,% button to select the desired language
and then press the ENTER button.
~ Once the setup is complete, the OSD will be English if English
has been selected as the language.
d Press the RETURN button to return to the previous level.
d Press the EXIT button to exit the setup screen.
~ OSD LANGUAGE : Selecting the OSD Language
~ AUDIO : Selecting the Audio Language (recorded on the disc)
~ SUBTITLE : Selecting the Subtitle Language (recorded on the disc)
~ DISC MENU : Selecting the Disc Menu Language (recorded on the disc)
a If the language you selected is not recorded on the disc, menu
language will not change even if you set it to your desired language.
~ OTHERS : To select another language, select OTHERS and
enter the language code of your country (see page 54).
AUDIO, SUBTITLE and DISC MENU languages can be
selected.
Downloaded From TheatreSystem-Manual.com Manuals
43
system setup
Setting TV Screen Type
Depending on your TV type (Wide Screen or conventional 4:3), you can select the TV's aspect ratio.
1. In Stop mode, press the MENU button.
. Press the Cursor % button to move to Setup and then press the
ENTER or + button.
. Press the Cursor % button to move to TV DISPLAY and then
press the ENTER or + button.
. Press the Cursor $,% button to select the desired item
and then press the ENTER button.
~ Once the setup is complete, you will be taken to the
previous screen.
MOVE
ENTER
RETURN
EXIT
MOVE
SELECT
RETURN
EXIT
d Press the RETURN button to return to the previous level.
d Press the EXIT button to exit the setup screen.
Adjusting the TV Aspect Ratio (Screen Size)
The horizontal to vertical screen size ratio of conventional TVs is 4:3, while that of widescreen and high
definition TVs is 16:9. This ratio is called the aspect ratio. When playing DVDs recorded in different
screen sizes, you should adjust the aspect ratio to fit your TV or monitor.
For a standard TV, select either 4:3PS or 4:3LB option according to personal preference.
Select WIDE/HDTV if you have a widescreen TV.
4:3PS (4:3 Pan&Scan)
Select this to play a 16:9 picture in the pan & scan mode on a
conventional TV.
~ You can see the central portion of the screen only (with the sides of
the 16:9 picture cut off).
4:3LB (4:3 Letterbox)
Select this to play a 16:9 picture in the letter box mode on a
conventional TV.
~ Black bars will appear at the top and bottom of the screen.
WIDE/HDTV
Select this to view a 16:9 picture in the full-screen mode on your
widescreen TV.
~ You can enjoy the widescreen aspect.
M
` If a DVD is in the 4:3 ratio, you cannot view it in widescreen.
` Since DVD discs are recorded in various image formats, they will look different depending on the software, the
type of TV, and the TV aspect ratio setting.
` When using HDMI, the screen is automatically converted to Wide mode.
44 From TheatreSystem-Manual.com Manuals
Downloaded
EnG
Setting Parental Controls (Rating Level)
Use this to restrict playback of adult or violent DVDs you do not want children to view.
1. In Stop mode, press the MENU button.
. Press the Cursor % button to move to Setup and then press the
ENTER or + button.
. Press the Cursor % button to move to PARENTAL and then press
the ENTER or + button.
5. E
nter the password and then press the ENTER button.
~ The password is set to "7890" by default.
~ Once the setup is complete, you will be taken to the previous screen.
MOVE
ENTER
RETURN
EXIT
MOVE
SELECT
RETURN
EXIT
MOVE
ENTER
RETURN
EXIT
● system setup
. Press the Cursor $,% button to select the desired rating level and
then press the ENTER button.
~ If you have selected Level 6, you cannot view DVDs with Level 7
or higher.
~ The higher the level, the closer the content is to violent or adult
material.
d Press the RETURN button to return to the previous level.
d Press the EXIT button to exit the setup screen.
M
` This function works only if a DVD disc contains rating level information.
Setting the Password
You can set the password for the Parental (rating level) setting.
1. In Stop mode, press the MENU button.
. Press the Cursor % button to move to Setup and then press the
ENTER or + button.
. Press the Cursor % button to move to PASSWORD and then
press the ENTER or + button.
. Press the ENTER button.
5. Enter the password and then press the ENTER button.
~ Enter the old password, a new password, and confirm new
password.
~ The setting is complete.
M
` The password is set to "7890" by default.
MOVE
SELECT
RETURN
EXIT
If you have forgotten the rating level password, do the following
~ While the player is in No DIsc mode, hold the DVD Players STOP (@) button for longer than
5 seconds. INITIAL appears on the display and all settings will return to the default values.
~ Press the POWER button.
Using the RESET function will erase all stored settings.
Do not use this unless necessary.
Downloaded From TheatreSystem-Manual.com Manuals
45
system setup
SETTING THE WAllPAPEr
G
While watching a DVD or JPEG CD, you can set the image you like as background wallpaper.
1. During playback, press the PAUSE (
an image you like appears.
) button when
. Press the lOGO button.
~ COPY lOGO DATA will be displayed on the TV screen.
. The power will turn off and then back on.
~ The selected wallpaper will be displayed.
~ You can select up to 3 wallpaper settings.
COPY lOGO DATA
II PAUSE
M
lOGO IS COPIED
II PAUSE
` This function will not work when the HDMI output is 720p, 1080i or 1080p.
TO SElECT ONE OF THE 3 WAllPAPEr SETTINGS YOU'VE MADE
1. In Stop mode, press the MENU button.
. Press the Cursor % button to move to Setup and then press the
ENTEr or + button.
. Press the Cursor % button to move to lOGO and then press the
ENTEr or + button.
. Press the Cursor $,% button select the desired USEr, and then
press the ENTEr button.
MOVE
ENTEr
rETUrN
EXIT
MOVE
SElECT
rETUrN
EXIT
~ This selects one of the 3 wallpaper screens.
5. Press the EXIT button to exit the setup screen.
~ OrIGINAl : Select this to set the Samsung Logo image as
your wallpaper.
~ USEr : Select this to set the desired image as your
wallpaper.
d Press the rETUrN button to return to the previous level.
d Press the EXIT button to exit the setup screen.
From TheatreSystem-Manual.com Manuals
Downloaded
EnG
DVD Playback Mode
Some DVD-Audio discs contain DVD-Video as well as DVD-Audio.
To play back the DVD-Video portion of the DVD-Audio disc, set the unit to
DVD-Video mode.
1. Press the MENU button while the disc tray is open.
. Press the Cursor % button to move to Setup and then press the
ENTER or + button.
MOVE
ENTER
RETURN
EXIT
MOVE
ENTER
RETURN
EXIT
● system setup
. Press the Cursor % button to move to DVD TYPE and then press the ENTER or + button.
. Press the Cursor $,% button to move to DVD VIDEO and then press
the ENTER button.
~ Set steps 1 ~ 4 again if you want to switch to DVD AUDIO Play mode.
~ DVD VIDEO : Set to play the DVD video contents contained on
a DVD audio disc.
~ DVD AUDIO : Set to play the default DVD audio.
M
` DVD Play mode is set to DVD Audio as factory default setting.
` Powering off the main unit will automatically switch to the DVD Audio mode.
DviX (R) Registration
Please use the Registration code to register this player with the DivX (R) video on demand format.
To learn more, go to www.divx.com/vod.
Setting the DRC (Dynamic Range Compression)
This feature balances the range between the loudest and quietest sounds. You can use this function to enjoy Dolby
Digital sound when watching movies at low volume at night.
1. In Stop mode, press the MENU button.
. Press the Cursor % button to move to Audio and then press the
ENTER or + button.
. Press the Cursor % button to move to DRC and then press the
ENTER or + button.
. Press the Cursor , to adjust the DRC.
~ When the Cursor  button is pressed, the effect is greater, and
when the Cursor  button is pressed, the effect is smaller.
MOVE
ENTER
RETURN
EXIT
RETURN
EXIT
d Press the RETURN button to return to the previous level.
d Press the EXIT button to exit the setup screen.
CHANGE
Downloaded From TheatreSystem-Manual.com Manuals
47
system setup
SETTING THE AV SYNC
Video may look slower than the audio if it is connected to a digital TV. If this occurs,
adjust the audio delay time to to match the video.
1. In Stop mode, press the MENU button.
. Press the Cursor % button to move to Audio and then press the
ENTEr or + button.
. Press the Cursor % button to move to AV-SYNC and then press the
ENTEr or + button.
. Press the Cursor , button to select the AV-SYNC Delay Time
and then press the ENTEr button.
~ You can set the audio delay time between 0 ms and 300 ms.
Set it to the optimal status.
d Press the rETUrN button to return to the previous level.
d Press the EXIT button to exit the setup screen.
MOVE
ENTEr
rETUrN
EXIT
MOVE
SElECT
rETUrN
EXIT
MOVE
ENTEr
rETUrN
EXIT
MOVE
SElECT
rETUrN
EXIT
SETTING THE HDMI AUDIO
The audio signals transmitted over the HDMI Cable can be toggled ON/OFF.
1. In Stop mode, press the MENU button.
. Press the Cursor  button to move to Audio and then press
the ENTEr or + button.
. Press the Cursor  button to move to HDMI AUDIO and then
press the ENTEr or + button.
. Press the Cursor , button to select ON or OFF and then press
the ENTEr button.
• ON : Both video and audio signals are transmitted over the HDMI
connection cable, and audio is output through your
TV speakers only.
• OFF : Video is transmitted over the HDMI connection cable only,
and audio is output through the home theater speakers only.
d Press the rETUrN button to return to the previous level.
d Press the EXIT button to exit the setup screen.
M
` The default setting of this function is HDMI AUDIO OFF.
` HDMI AUDIO is automatically down-mixed to 2ch for TV speakers.
SETTING THE AUDIO
Manually Adjusting the Speaker Volume and Balance with the SOUND EDIT Button.
Press the SOUND EDIT button and then press the Cursor
, button.
Adjusting Front Speaker Balance
` You can select between 00, -06, and OFF.
` The volume decreases as you move closer to –6.
Adjusting Subwoofer Speaker level
` The volume level can be adjusted in steps from +6dB to –6dB.
` The sound gets louder as you move closer to +6dB and quieter as you get closer to -6dB.
From TheatreSystem-Manual.com Manuals
Downloaded
ENG
radio
lISTENING TO rADIO
remote Control
● rADIO
1. Press the TUNEr button to select the FM band.
. Tune in to the desired station.
~ Automatic Tuning 1 : When the [,] button
is pressed, a preset broadcast station is
selected.
~ Automatic Tuning 2 : Press and hold the ,,.
button to automatically search for active
broadcasting stations.
~ Manual Tuning : Briefly press the ,,. button
to increase or decrease the frequency
incrementally.
Main Unit
1. Press the FUNCTION button to select the FM band.
. Select a broadcast station.
~ Automatic Tuning 1 : Press the STOP (@) button to
select PrESET and then press the [,] button to
select the preset station.
~ Automatic Tuning 2 : Press the STOP (@) button to
select MANUAl and then press and hold the [,]
button to automatically search the band.
~ Manual Tuning : Press the STOP (@) button to select MANUAl and then briefly press the
button to tune in to a lower or higher frequency.
Press the MO/ST button to listen in Mono/Stereo.
• Each time the button is pressed, the sound switches between STErEO and MONO.
• In a poor reception area, select MONO for a clear, interference-free broadcast.
PrESETTING STATIONS
Example : Presetting FM 89.10 in the memory
1. Press the TUNEr button to select the FM band.
. Press the ,,. button to select 89.10.
. Press the TUNEr MEMOrY button.
~ 01 flashes in the display.
. Press the [,] button to select preset number.
~ You can select between 1 and 15 presets.
5. Press the TUNEr MEMOrY button again.
~ Press the TUNEr MEMOrY button before Number
disappears from the display.
~ Number disappears from the display and the station is
stored in memory.
. To preset another station, repeat steps 2 to 5.
~ To tune in to a preset station, press the [,] button on the remote control to select a channel.
M
` This unit does not receiveManuals
AM broadcasts.
Downloaded From TheatreSystem-Manual.com
convenient function
SlEEP TIMEr FUNCTION
You can set the time that the Home Theater will shut itself off.
Press the SlEEP button.
~ SlEEP will be displayed. Each time the button is pressed, the preset
time changes as follows :
10  20  30  60  90  120  150  OFF
To confirm the sleep timer setting, press the SlEEP button.
~ The remaining time before the Home Theater will shut itself off is
displayed.
~ Pressing the button again changes the sleep time from what you
have set earlier.
To cancel the sleep timer, press the SlEEP button until OFF appears on the display.
ADJUSTING DISPlAY BrIGHTNESS
You can adjust the brightness of the display on the main unit so it won't
interfere with your movie viewing.
Press the DIMMEr button.
~ Each time the button is pressed, the front display brightness will be
adjusted.
MUTE FUNCTION
This is useful when answering a doorbell or telephone call.
Press the MUTE button.
~ MUTE appears in the display.
~ To restore the sound, press the MUTE button again.
50 From TheatreSystem-Manual.com Manuals
Downloaded
ENG
V-SOUND (VIrTUAl SOUND)
This feature provides virtual surround sound over 2.1 speakers.
Press the V-SOUND button.
~ Each time the button is pressed, the selection changes as
follows :
V-SO ON  V-SO OFF
● CONVENIENT FUNCTION
S.VOl (SMArT VOlUME)
This will regulate and stabilize the volume level against a drastic
volume change when changing channels or during a scene transition.
Press the S.VOl button.
~ Each time the button is pressed, the selection changes as
follows :
SVOl ON  SVOl OFF
P.BASS/AUDIO UPSCAlING
P.BASS
The P.BASS feature provides a bass boost to reinforce the
low frequencies.
Press the P.BASS/AUDIO UPSCAlE button to select
P.BASS mode.
~ Each time the button is pressed, the selection
changes as follows :
P BAS ON  UPSC ON  OFF
AUDIO UPSCAlING
This also helps enhance your sound experience (ex. mp3 music).
You can upscale your MP3 level sound(24 kHz, 8bit) to CD level sound(44.1 kHz, 16bit).
Press the P.BASS/AUDIO UPSCAlE button to select AUDIO UPSCAlE mode.
~ Each time the button is pressed, the selection changes as follows :
P BAS ON  UPSC ON  OFF
M
` The P.BASS function is only available with 2 channel LPCM sources such as mp3,Divx,cd and wma.
Press P.BASS button and "POWER BASS ON" will be displayed on the screen.
Downloaded From TheatreSystem-Manual.com Manuals
51
troubleshooting
Refer to the chart below when this unit does not function properly. If the problem you are experiencing is not listed
below or if the instruction below does not help, turn off the unit, disconnect the power cord, and contact the nearest
authorized dealer or Samsung Electronics Service Center.
SYMPTOM
Check/Remedy
I cannot eject the disc.
• Is the power cord plugged securely into the outlet?
• Turn off the power and then turn it back on.
Playback does not start.
• Check the region number of the DVD.
DVD discs purchased from abroad may not be playable.
• CD-ROMs and DVD-ROMs cannot be played on this DVD
player.
• Make sure that the rating level is correct.
Playback does not start
immediately when the
Play/Pause button is pressed.
• Are you using a deformed disc or a disc with scratches on
the surface?
• Wipe the disc clean.
Sound is not produced.
• No sound is heard during fast playback, slow playback, and
step motion playback.
• Are the speakers connected properly? Is the speaker setup
correctly customized?
• Is the disc severely damaged?
The remote control does not
work.
• Is the remote control being operated within its operation
range of angle and distance?
• Are the batteries exhausted?
• Have you selected the mode(TV/DVD) functions of the
remote control (TV or DVD) correctly?
• Disc is rotating but no
picture is produced.
• Picture quality is poor and
picture is shaking.
• Is the TV power on?
• Are the video cables connected properly?
• Is the disc dirty or damaged?
• A poorly manufactured disc may not be playable.
Audio language and subtitles do
not work.
• Audio language and subtitles will not work if the disc does
not contain them.
Menu screen does not appear
even when the menu function is
selected.
• Are you using a disc that does not contain menus?
Aspect ratio cannot be changed.
• You can play 16:9 DVDs in 16:9 WIDE mode, 4:3 LETTER
BOX mode, or 4:3 PAN SCAN mode, but 4:3 DVDs can be
seen in 4:3 ratio only. Refer to the DVD disc jacket and then
select the appropriate function.
52 From TheatreSystem-Manual.com Manuals
Downloaded
• The main unit is not working.
(Example: The power goes out
or strange noise is heard.)
• The DVD player is not working
normally.
• Turn off the power and hold the STOP (@) button on the
main unit for longer than 5 seconds.
Using the RESET function will erase all stored settings.
Do not use this unless necessary.
• While “NO DISC” message appears on the display of main
unit, hold the main unit's STOP (@) button for longer than 5
seconds. “INITIAL” appears on the display and all settings will
return to the default values.
• Press the POWER button.
Using the RESET function will erase all stored settings.
Do not use this unless necessary.
Can't receive radio broadcast.
• Is the antenna connected properly?
• If the antenna's input signal is weak, install an external FM
antenna in an area with good reception.
Downloaded From TheatreSystem-Manual.com Manuals
53
● troubleshooting
The rating level password has
been forgotten.
Check/Remedy
EnG
SYMPTOM
language code list
Enter the appropriate code number for the initial settings “Disc Audio”, “Disc Subtitle” and/or “Disc Menu”
(See page 43).
Code
Language
Code
1027
Afar
1181
1028
Abkhazian
1032
Afrikaans
1039
Language
Code
Language
Code
Language
Frisian
1334
Latvian, Lettish
1506
Slovenian
1183
Irish
1345
Malagasy
1507
Samoan
1186
Scots Gaelic
1347
Maori
1508
Shona
Amharic
1194
Galician
1349
Macedonian
1509
Somali
1044
Arabic
1196
Guarani
1350
Malayalam
1511
Albanian
1045
Assamese
1203
Gujarati
1352
Mongolian
1512
Serbian
1051
Aymara
1209
Hausa
1353
Moldavian
1513
Siswati
1052
Azerbaijani
1217
Hindi
1356
Marathi
1514
Sesotho
1053
Bashkir
1226
Croatian
1357
Malay
1515
Sundanese
1057
Byelorussian
1229
Hungarian
1358
Maltese
1516
Swedish
1059
Bulgarian
1233
Armenian
1363
Burmese
1517
Swahili
1060
Bihari
1235
Interlingua
1365
Nauru
1521
Tamil
1069
Bislama
1239
Interlingue
1369
Nepali
1525
Tegulu
1066
Bengali; Bangla
1245
Inupiak
1376
Dutch
1527
Tajik
1067
Tibetan
1248
Indonesian
1379
Norwegian
1528
Thai
1070
Breton
1253
Icelandic
1393
Occitan
1529
Tigrinya
1079
Catalan
1254
Italian
1403
(Afan) Oromo
1531
Turkmen
1093
Corsican
1257
Hebrew
1408
Oriya
1532
Tagalog
1097
Czech
1261
Japanese
1417
Punjabi
1534
Setswana
1103
Welsh
1269
Yiddish
1428
Polish
1535
Tonga
1105
Danish
1283
Javanese
1435
Pashto, Pushto
1538
Turkish
1109
German
1287
Georgian
1436
Portuguese
1539
Tsonga
1130
Bhutani
1297
Kazakh
1463
Quechua
1540
Tatar
1142
Greek
1298
Greenlandic
1481
Rhaeto-Romance
1543
Twi
1144
English
1299
Cambodian
1482
Kirundi
1557
Ukrainian
1145
Esperanto
1300
Kannada
1483
Romanian
1564
Urdu
1149
Spanish
1301
Korean
1489
Russian
1572
Uzbek
1150
Estonian
1305
Kashmiri
1491
Kinyarwanda
1581
Vietnamese
1151
Basque
1307
Kurdish
1495
Sanskrit
1587
Volapuk
1157
Persian
1311
Kirghiz
1498
Sindhi
1613
Wolof
1165
Finnish
1313
Latin
1501
Sangro
1632
Xhosa
1166
Fiji
1326
Lingala
1502
Serbo-Croatian
1665
Yoruba
1171
Faeroese
1327
Laothian
1503
Singhalese
1684
Chinese
1174
French
1332
Lithuanian
1505
Slovak
1697
Zulu
54 From TheatreSystem-Manual.com Manuals
Downloaded
EnG
USB host feature supported products
Digital Camera
Product
Type
Fuji
Fuji
Fuji
Fuji
Fuji
Fuji
Konica
Kyocera
Kyocera
Kyocera
Kyocera
Minolta
Minolta
Minolta
Nikon
Nikon
Nikon
Nikon
Nikon
Nikon
Nikon
Olympus
Olympus
Olympus
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Product
U300
X-350
C-760
C-5060
X1
U-mini
Lumix-FZ20
DMC-FX7GD
Lumix LC33
LUMIX DMC-F1
Optio-S40
Optio-S50
Optio 33LF
Optio MX
Digimax-420
Digimax-400
Sora PDR-T30
Coolpix 5900
Coolpix S1
Coolpix 7600
DMC-FX7
Dimage Xt
AZ-1
Company
Olympus
Olympus
Olympus
Olympus
Olympus
Olympus
Panasonic
Panasonic
Panasonic
Panasonic
Pentax
Pentax
Pentax
Pentax
Samsung
Samsung
Toshiba
Nikon
Nikon
Nikon
Panasonic
Minolta
Olympus
Type
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
● USB host feature supported products
Finepix-A340
Finepix-F810
Finepix-F610
Finepix-f450
Finepix S7000
Finepix A310
KD-310Z
Finecam SL300R
Finecam SL400R
Finecam S5R
Finecam Xt
Dimage-Z1
Dimage Z1
Dimage X21
Coolpix4200
Coolpix4300
Coolpix 2200
Coolpix 3500
Coolpix 3700
Coolpix 4100
Coolpix 5200
Stylus 410 digital
300-digital
300-digital
Company
USB Flash Disc
Product
Cruzer Micro
Cruzer Mini Cruzer Mini SONY Micro Vault
FLEX DRIVE
AnyDrive
Company
Sandisk
Sandisk
Sandisk
Sony
Serotech
A.L tech
Type
USB 2.0 USB Flash Drive 128M
USB 2.0 128M
USB 2.0 256M
USB 2.0 64MB
USB 2.0 32MB
USB 2.0 128MB
Product
XTICK
Micro Mini
iFlash
LG
RiDATA
Company
LG
Iomega
Imation
XTICK(M)
EZDrive
Type
USB 2.0 128M
USB 2.0 128M
USB 2.0 64M
USB 2.0 64M
USB 2.0 64M
MP3 Player
Product
Creative MuVo NX128M
Iriver H320
YH-920
YP-T7
YP-MT6
YP-T6
YP-T9
YP-ST5
YP-T5
YP-K5
Company
Type
Creative 128 MB MP3 Player
Iriver
20G HDD MP3 Player
Samsung 20G HDD MP3 Player
Samsung
MP3 Player
Samsung
MP3 Player
Samsung
MP3 Player
Samsung
MP3 Player
Samsung
MP3 Player
Samsung
MP3 Player
Samsung
MP3 Player
Downloaded From TheatreSystem-Manual.com Manuals
Product
YP-K3
YP-U3
YP-Z5F
iAUDIO U2
iAUDIO G3
iAudio M3
SI-M500L
H10
YP-T10
YP-P2
Company
Samsung
Samsung
Samsung
Cowon
Cowon
Cowon
Sharp
Iriver
Samsung
Samsung
Type
MP3 Player
MP3 Player
MP3 Player
MP3 Player
MP3 Player
HDD MP3 Player
256MB MP3 Player
MP3 Player
MP3 Player
MP3 Player
55
appendix
Cautions on Handling and Storing Discs
Small scratches on the disc may reduce sound and picture quality or cause skipping.
Be especially careful not to scratch discs when handling them.
Handling discs
Do not touch the playback side of the disc.
Hold the disc by the edges so that fingerprints will not get on the surface.
Do not stick paper or tape on the disc.
Disc Storage
Do not keep in direct sunlight
M
Keep in a cool
ventilated area
Keep in a clean Protection jacket.
Store vertically.
` Do not allow the discs to become contaminated with dirt.
` Do not load cracked or scratched discs.
Handling and Storing Discs
When you get fingerprints or dirt on the disc, clean it with a mild detergent diluted in water and wipe with
a soft cloth.
~ When cleaning, wipe gently from the inside to the outside of the disc
M
` Condensation may form if warm air comes into contact with cold parts inside the player. When condensation
forms inside the player, the player may not operate correctly. If this occurs, remove the disc and let the player
stand for 1 or 2 hours with the power on.
56 From TheatreSystem-Manual.com Manuals
Downloaded
Power Requirements
Power Consumption
General
DVD (Digital Versatile Disc)
Disc
CD : 5 inches (COMPACT DISC)
CD : 3 1/2 inches (COMPACT DISC)
Composite Video
Video Output
Component Video
HDMI
Amplifier
Front speaker output
Subwoofer speaker output
Frequency range
S/N Ratio
Channel separation
Input sensitivity
Speaker system
Speaker
Subwoofer
Impedance
Frequency range
Output sound pressure level
Rated input
Maximum input
Weight
Dimensions
AC 120V, 60Hz
Main Unit : 55 W
Subwoofer: 50 W
16.4 lbs
39.3 (W) x 7.1 (H) x 5.6 (D) inches
+41°F to +95°F
10 % to 75 %
Reading Speed : 3.49 ~ 4.06 m/sec.
Approx. Play Time (Single Sided, Single Layer Disc) : 135 min.
Reading Speed : 4.8 ~ 5.6 m/sec.
Maximum Play Time : 74 min.
Reading Speed : 4.8 ~ 5.6 m/sec.
Maximum Play Time : 20 min.
1.0 Vp-p (75 Ω load)
Y : 1.0 Vp-p (75 Ω load)
Pr : 0.70 Vp-p (75 Ω load)
Pb : 0.70 Vp-p (75 Ω load)
Impedance: 85~115 Ω
75W X 2(3Ω)
150W(3Ω)
● APPENDIX
Weight
Dimensions
Operating Temperature Range
Operating Humidity Range
ENG
SPECIFICATIONS
20Hz~20KHz
70dB
55dB
(AUX)600mV
2.1ch speaker system
Front
3Ω
140Hz~20KHz
86dB
75W
150W
9.8 lbs
7 (W) x 15(D) x 12.7 (H) inches
*: Nominal specification
Subwoofer
3Ω
35Hz~160Hz
86dB
150W
300W
- Samsung Electronics Co., Ltd reserves the right to change the specifications without notice.
- Weight and dimensions are approximate.
Downloaded From TheatreSystem-Manual.com Manuals
5
Warranty
LIMITED WARRANTY TO ORIGINAL PURCHASER
This SAMSUNG brand product, as supplied and distributed by Samsung Electronics America, Inc. (SAMSUNG) and delivered new,
in the originalcarton to the original consumer purchaser, is warranted by SAMSUNG against manufacturing defects in materials and
workmanship for a limited warranty period of:
One (1) Year Parts and Labor*
(*90 Days Parts and Labor for Commercial Use)
This limited warranty begins on the original date of purchase, and is valid only on products purchased and used in the United States.
To receive warranty service, the purchaser must contact SAMSUNG for problem determination and service procedures. Warranty
service can only be performed by a SAMSUNG authorized service center. The original dated bill of sale must be presented upon
request as proof of purchase to SAMSUNG or SAMSUNG's authorized service center. Transportation of the product to and from
the service center is the responsibility of the purchaser.
SAMSUNG will repair or replace this product, at our option and at no charge as stipulated herein, with new or reconditioned parts
or products if found to be defective during the limited warranty period specified above. All replaced parts and products become
the property of SAMSUNG and must be returned to SAMSUNG. Replacement parts and products assume the remaining original
warranty, or ninety (90) days, whichever is longer.
SAMSUNG’s obligations with respect to software products distributed by SAMSUNG under the SAMSUNG brand name are set forth in the
applicable end user license agreement. Non-SAMSUNG hardware and software products, if provided, are on an “AS IS” basis.
Non-SAMSUNG manufacturers, suppliers, publishers, and service providers may provide their own warranties.
This limited warranty covers manufacturing defects in materials and workmanship encountered in normal, and except to the extent
otherwise expressly provided for in this statement, noncommercial use of this product, and shall not apply to the following, including,
but not limited to: damage which occurs in shipment; delivery and installation; applications and uses for which this product was not
intended; altered product or serial numbers; cosmetic damage or exterior finish; accidents, abuse, neglect, fire, water, lightning or
other acts of nature; use of products, equipment, systems, utilities, services, parts, supplies, accessories, applications, installations,
repairs, external wiring or connectors not supplied and authorized by SAMSUNG, or which damage this product or result in service
problems; incorrect electrical line voltage, fluctuations and surges; customer adjustments and failure to follow operating instructions,
cleaning, maintenance and environmental instructions that are covered and prescribed in the instruction book; product removal
or reinstallation; reception problems and distortion related to noise, echo, interference or other signal transmission and delivery
problems. SAMSUNG does not warrant uninterrupted or error-free operation of the product.
THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED AND DESCRIBED ABOVE, AND NO WARRANTIES
WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE, SHALL APPLY AFTER THE EXPRESS WARRANTY PERIODS STATED ABOVE,
AND NO OTHER EXPRESS WARRANTY OR GUARANTY GIVEN BY ANY PERSON, FIRM OR CORPORATION WITH RESPECT TO
THIS PRODUCT SHALL BE BINDING ON SAMSUNG. SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS,
FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES
CAUSED BY THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH
THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR SHALL
RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT
SOLD BY SAMSUNG AND CAUSING THE ALLEGED DAMAGE. WITHOUT LIMITING THE FOREGOING, PURCHASER ASSUMES
ALL RISK AND LIABILITY FOR LOSS, DAMAGE OR INJURY TO PURCHASER AND PURCHASER’S PROPERTY AND TO OTHERS
AND THEIR PROPERTY ARISING OUT OF THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT SOLD BY SAMSUNG NOT
CAUSED DIRECTLY BY THE NEGLIGENCE OF SAMSUNG. THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER
THAN THE ORIGINAL PURCHASER OF THIS PRODUCT, IS NONTRANSFERABLE AND STATES YOUR EXCLUSIVE REMEDY.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential
damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also
have other rights which vary from state to state.
To obtain warranty hardware service, please contact SAMSUNG at:
Samsung Electronics America, Inc.
105 Challenger Road Ridgefield Park, NJ 07660-0511
1-800-SAMSUNG (726-7864) and www.samsung.com/us
58 From TheatreSystem-Manual.com Manuals
Downloaded
Contact SAMSUNG WORLD WIDE
If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer
care center.
Region
North America
Latin America
Country
CANADA
MEXICO
U.S.A
ARGENTINE
BRAZIL
CHILE
NICARAGUA
HONDURAS
COSTA RICA
ECUADOR
EL SALVADOR
GUATEMALA
JAMAICA
PANAMA
PUERTO RICO
REP. DOMINICA
TRINIDAD & TOBAGO
VENEZUELA
COLOMBIA
BELGIUM
CZECH REPUBLIC
DENMARK
FINLAND
FRANCE
Europe
CIS
Asia Pacific
Middle East &
Africa
Customer Care Center 
1-800-SAMSUNG(726-7864)
01-800-SAMSUNG(726-7864)
1-800-SAMSUNG(726-7864)
0800-333-3733
0800-124-421 , 4004-0000
800-SAMSUNG(726-7864)
00-1800-5077267
800-7919267
0-800-507-7267
1-800-10-7267
800-6225
1-800-299-0013
1-800-234-7267
800-7267
1-800-682-3180
1-800-751-2676
1-800-SAMSUNG(726-7864)
0-800-100-5303
01-8000112112
0032 (0)2 201 24 18
844 000 844
Distributor pro Českou republiku:
Samsung Zrt., česka organizační složka
Vyskočilova 4, 14000 Praha 4
70 70 19 70
030-6227 515
3260 SAMSUNG ( 0,15/Min),
08 25 08 65 65 ( 0,15/Min)
Web Site
www.samsung.com/ca
www.samsung.com
www.samsung.com
www.samsung.com/ar
www.samsung.com
www.samsung.com/cl
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com.co
www.samsung.com/be
www.samsung.com/cz
www.samsung.com/dk
www.samsung.com/fi
www.samsung.com
GERMANY
HUNGARY
ITALIA
LUXEMBURG
NETHERLANDS
NORWAY
POLAND
PORTUGAL
SLOVAKIA
SPAIN
SWEDEN
U.K
EIRE
AUSTRIA
SWITZERLAND
RUSSIA
KAZAHSTAN
UZBEKISTAN
KYRGYZSTAN
TADJIKISTAN
UKRAINE
LITHUANIA
LATVIA
ESTONIA
AUSTRALIA
NEW ZEALAND
CHINA
HONG KONG
INDIA
INDONESIA
JAPAN
