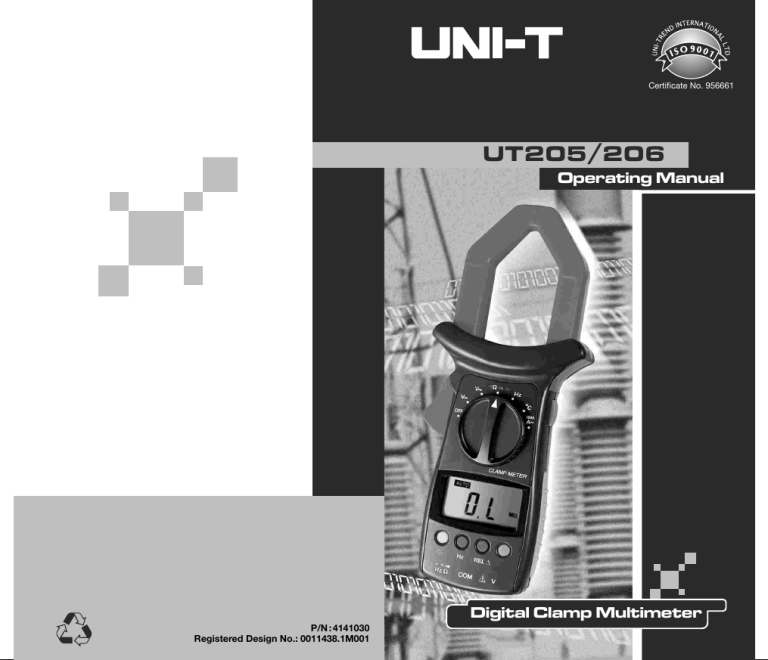

Certificate No. 956661
UT205/206
Operating Manual
Digital Clamp Multimeter
P/N : 4141030
Registered Design No.: 0011438.1M001
Model UT205/UT206: OPERATING MANUAL
Table of Contents
Title
Overview
Unpacking Inspection
Safety Information
Rules For Safe Operation
International Electrical Symbols
The Meter Structure
Rotary Switch
Functional Buttons
Display Symbols
Measurement Operation
A. DC Voltage Measurement
B. AC Voltage Measurement
C. Measuring Resistance
D. Testing for Continuity
E. Testing Diodes
F. Capacitance Measurement
G. Frequency Measurement
H. Measuring Duty Cycle
I. Temperature Measurement (Model UT206)
J. AC Current Measurement
Operation of Hold Mode
The Use of Relative Value Mode
The BLUE Button
Turning on the Display Backlight
Sleep Mode
General Specifications
Accuracy Specifications
A. DC Voltage
B. AC Voltage
C. Resistance
D. Continuity Test
E. Diode Test
F. Capacitance
G. Frequency & Duty Cycle
H. Temperature (Model UT206)
I. AC Current
Maintenance
A. General Service
B. Replacing the Battery
Page
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
2
3
4
5~6
6
7
8
9~10
11~12
13~22
13
14
15
16
17
18
19
20
21
22
23
23
24
24
24
25
26~28
26
26
26
27
27
27
28
28
28
29
29
29
1
Model UT205/UT206: OPERATING MANUAL
Overview
This Operating Manual covers information on safety and
cautions. Please read the relevant information carefully and
observe all the Warnings and Notes strictly.
Warning
To avoid electric shock or personal injury, read the
“Safety Information” and “Rules for Safe Operation”
carefully before using the Meter.
The Model UT205 and UT206 (hereafter referred to as
“the Meter”) are 4000 counts, 3 3/4 digits hand-held digital
auto ranging clamp multimeters with stabilize functions,
safety operations, and reliable performance.
In addition to the conventional measuring functions, there is
a unique jaw opening light and display backlight features
enabling user to work in a dim condition. This is also a
highly applied digital clamp multimeter of good performance
with full overload protection and sleep mode. The Model
UT206 also has temperature measurement function.
Except where noted, the descriptions and instructions in this
Operating Manual apply to both the Model UT205/UT206.
2
Model UT205/UT206: OPERATING MANUAL
Unpacking Inspection
Open the package case and take out the Meter. Check the
following items carefully to see any missing or damaged
part:
Item
1
2
3
4
5
6
7
Description
Operating Manual
Test Lead
Test Clip
Model UT206: Point Contact Temperature
Probe
9V Battery (NEDA 1604, 6F22 or 006P)
(installed)
1.5V Battery (AAA)
(installed)
Vinyl Bag
1
1
1
1
Qty
piece
pair
pair
piece
1 piece
1 piece
1 piece
In the event you find any missing or damage, please contact
your dealer immediately.
3
Model UT205/UT206: OPERATING MANUAL
Safety Information
This Meter complies with the standards IEC61010: in
pollution degree 2, overvoltage category (CAT. III 600V)
and double insulation.
CAT. III: Distribution level, fixed installation, with smaller
transient overvoltages than CAT. IV
Use the Meter only as specified in this operating manual,
otherwise the protection provided by the Meter may be
impaired.
In this manual, a Warning identifies conditions and actions
that pose hazards to the user, or may damage the Meter or
the equipment under test.
A Note identifies the information that user should pay
attention on.
International electrical symbols used on the Meter and in this
Operating Manual are explained on page 6.
4
Model UT205/UT206: OPERATING MANUAL
Rules For Safe Operation (1)
Warning
To avoid possible electric shock or personal injury, and
to avoid possible damage to the Meter or to the equipment
under test, adhere to the following rules:
• Never measure current while the test leads are
inserted into the input terminals.
• Before using the Meter inspect the case. Do not use
the Meter if it is damaged or the case (or part of the
case) is removed. Look for cracks or missing plastic.
Pay attention to the insulation around the connectors.
• Inspect the test leads for damaged insulation or
exposed metal. Check the test leads for continuity.
Replace damaged test leads with identical model
number or electrical specifications before using the
Meter.
• Do not apply more than the rated voltage, as marked
on the Meter, between the terminals or between any
terminal and grounding.
• The rotary switch should be placed in the right
position and no any changeover of range shall be made
during measurement is conducted to prevent damage
of the Meter.
• When the Meter working at an effective voltage over
60V in DC or 30V rms in AC, special care should be
taken for there is danger of electric shock.
• Use the proper terminals, function, and range for your
measurements.
• Do not use or store the Meter in an environment of
high temperature, humidity, explosive, inflammable
and strong magnetic field. The performance of the
Meter may deteriorate after dampened.
• When using the test leads, keep your fingers behind
the finger guards.
• Disconnect circuit power and discharge all highvoltage capacitors before testing resistance, continuity,
diodes, or capacitance.
• Replace the battery as soon as the battery
indicator appears. With a low battery, the Meter
might produce false readings that can lead to electric
shock and personal injury.
5
Model UT205/UT206: OPERATING MANUAL
Rules For Safe Operation (2)
• Remove test leads, temperature probe and test clip
from the Meter and turn the Meter power off before
opening the Meter case.
• When servicing the Meter, use only the same model
number or identical electrical specifications
replacement parts.
• The internal circuit of the Meter shall not be altered
at will to avoid damage of the Meter and any accident.
• Soft cloth and mild detergent should be used to clean
the surface of the Meter when servicing. No abrasive
and solvent should be used to prevent the surface of
the Meter from corrosion, damage and accident.
• The Meter is suitable for indoor use.
International Electrical Symbols
AC (Alternating Current)
DC (Direct Current)
AC or DC
Deficiency of Built-In Battery
Continuity Test
Diode
Grounding
Capacitance Test
Double Insulated
Warning. Refer to the Operating Manual
Conforms to Standards of European Union
6
Model UT205/UT206: OPERATING MANUAL
The Meter Structure
(See figure 1)
Transformer Jaws designed to pick up the AC current
flowing through the conductor.
The Jaw Opening Light.
HOLD button.
LCD Display.
Function Button.
V Input Terminal:
Input for voltage measurement.
COM Input Terminal:
Return terminal for all measurements.
HzΩ:
Model UT205: Input for capacitance, continuity, diode,
frequency/duty cycle and resistance measurements.
Model UT206: Input for capacitance, continuity, diode,
frequency/duty cycle, resistance and temperature measurements.
Rotary Switch.
Trigger. Press the lever to open the transformer jaws and
turn the jaw opening light on. When the pressure on the
lever is released, the jaws will close and the light will
off again.
7
Model UT205/UT206: OPERATING MANUAL
Rotary Switch
Below table indicated for information about the rotary switch positions.
Rotary Switch
Position
Function
OFF
Turn on or off the Meter.
V
AC voltage measurement range from
4.000V to 600.0V or
DC voltage measurement range from
400.0mV to 600.0V
V
Model UT206: DC voltage measurement
range from 400.0mV to 600.0V
V
Model UT206: AC voltage measurement
range from 4.000V to 600.0V
Ω
Continuity test
Ω Resistance measurement range from
400.0Ω to 40.00MΩ
Diode test
Capacitance test range from
4.000nF to 200.0µF
˚C
Model UT206: Temperature in celsius
from -40˚C ~ 1000˚C
Hz
Frequency measurement range from
10.00Hz to 10.00MHz
1000A
AC current measurement range 400.0A to
1000A
8
Model UT205/UT206: OPERATING MANUAL
Functional Buttons (1)
Below table indicated for information about the functional button
operations.
Measuring
Operation Performed
Function
Any rotary Turn the display backlight on and off.
switch
(Yellow) position
Hz
Hz
1. Press to start the frequency counter;
the Meter beeps.
2. Press again to enter duty cycle
mode; the Meter beeps.
3. Press again to return to the
frequency counter mode; the Meter
beeps.
V
, 1. Press to start the frequency counter,
V
, the range is between 1Hz ~1kHz; the
V
or Meter beeps.
1000A
2. Press again to enter duty cycle
mode; the Meter beeps.
3. Press again to return voltage or
current mode; the Meter beeps.
REL∆ Any rotary Press REL∆ to enter and exit the
switch REL mode in any measuring mode
position except in frequency/duty cycle, diode
except Hz, and continuity; the Meter beeps.
,
Button
9
Model UT205/UT206: OPERATING MANUAL
Functional Buttons (2)
Measuring
Operation Performed
Function
V
Switches between DC and AC voltage;
the Meter beeps. DC voltage is
(Blue)
default.
Model UT205: Switches between
diode and continuity measurements;
the Meter beeps. Diode is default.
Ω
Model UT206: Switches between
resistance and diode and continuity
and capacitance measurements; the
Meter beeps. Resistance is default.
HOLD Any rotary Press HOLD to enter and exit the
switch Hold mode in any mode, the Meter
position beeps.
Button
10
Model UT205/UT206: OPERATING MANUAL
Display Symbols (1)
(See figure 2)
∆
Symbol
Meaning
AC
Indicator for AC voltage or current.
The displayed value is the mean value.
DC
Indicator for DC voltage. The
displayed value is the mean value.
AUTO The Meter is in the auto range mode
in which the Meter automatically
selects the range with the best
resolution.
%
Percent: Used for duty cycle
measurements.
Data hold is active.
The relative value mode is on to
∆
display the stored value minus the
present
The battery is low.
˚C
Warning To avoid false
readings, which could lead to
possible electric shock or personal
injury, replace the battery as soon
as the battery indicator appears.
Centigrade. The unit of temperature.
Test of diode
The continuity buzzer is on.
11
Model UT205/UT206: OPERATING MANUAL
Display Symbols (2)
(See figure 2)
Number
12
Symbol
Meaning
Ω, kΩ, Ω: Ohm. The unit of resistance.
MΩ
kΩ: kilohm. 1 x 103 or 1000 ohms.
MΩ: Megaohm. 1 x 106 or
1,000,000 ohms.
F, µF, F:
Farad. The unit of capacitance.
nF
µF: Microfarad. 1 x 10-6 or
0.000001 farads.
nF: Nanofarad. 1 x 10-9 or
0.000000001 farads.
Hz, kHz, Hz: Hertz. The unit of frequency.
Mhz
kHz: Kilohertz. 1 x 103 or 1000 hertz.
MHz:Megahertz. 1 x 106 or
1,000,000 hertz.
V, mV V: Volts. The unit of voltage.
mV: Millivolt. 1 x 10-3 or 0.001 volts.
A, mA, A: Amperes (amps).
µA
The unit of current.
mA: Milliamp. 1 x 10-3 or
0.001 amperes.
µA: Microamp. 1x 10-6 or
0.000001 amperes.
Indicates negative reading.
The input value is too large for the
selected range.
Model UT205/UT206: OPERATING MANUAL
Measurement Operation (1)
A. DC Voltage Measurement (See figure 3)
red
black
red
black
Warning
To avoid harms to you or damages to the Meter from electric
shock, please do not attempt to measure voltages higher than 600V
/ 600V rms although readings may be obtained.
The DC Voltage ranges are: 400.0mV, 4.000V, 40.00V, 400.0V and
600.0V. To measure DC voltage, connect the Meter as follows:
1. Insert the red test lead into the V terminal and the black test lead
into the COM terminal.
; DC measurement
2. Model UT205: Set the rotary switch to V
is default or press BLUE button to select DC measurement mode.
Model UT206: Set the rotary switch to V
3. Connect the test leads across with the object being measured.
The measured value shows on the display.
Note
• In each range, the Meter has an input impedance of 10M . This
loading effect can cause measurement errors in high impedance
circuits. If the circuit impedance is less than or equal to 10k , the
error is negligible (0.1% or less).
• When DC voltage measurement has been completed, disconnect the
connection between the testing leads and the circuit under test, and
remove the testing leads away from the input terminals of the Meter.
13
Model UT205/UT206: OPERATING MANUAL
Measurement Operation (2)
B. AC Voltage Measurement (See figure 4)
red
black
black red
Warning
To avoid harms to you or damages to the Meter from electric
shock, please do not attempt to measure voltages higher than 600V
/ 600V rms although readings may be obtained.
The AC voltage ranges are: 4.000V, 40.00V, 400.0V and 600.0V. To
measure AC Voltage, connect the Meter as follows:
1. Insert the red test lead into the V terminal and the black test lead
into the COM terminal.
2. Model UT205: Set the rotary switch to V
and press BLUE
button to select AC measurement mode.
Model UT206: Set the rotary switch to V .
3. Connect the test leads across with the object being measured.
The measured value shows on the display.
Note
• In each range, the Meter has an input impedance of 10M . This
loading effect can cause measurement errors in high impedance
circuits. If the circuit impedance is less than or equal to 10k , the
error is negligible (0.1% or less).
• When AC voltage measurement has been completed, disconnect the
connection between the testing leads and the circuit under test, and
remove the testing leads away from the input terminals of the Meter.
• Root mean square value stability period:
When the reading obtained is less than 100 digits, the root mean
square value converter needs a longer time to stabilize. When there
is no input voltage, the maximum reading displayed is 10 digits.
14
Model UT205/UT206: OPERATING MANUAL
Measurement Operation (3)
C. Measuring Resistance (See figure 5)
black red
black
red
Warning
To avoid damages to the Meter or to the devices under test,
disconnect circuit power and discharge all the high-voltage
capacitors before measuring resistance.
The resistance ranges are: 400.0Ω , 4.000kΩ , 40.00kΩ , 400.0kΩ ,
4.000MΩ and 40.00MΩ . To measure resistance, connect the Meter
as follows:
1. Insert the red test lead into the
HzΩ terminal and the black
test lead into the COM terminal.
2. Model UT205: Set the rotary switch to Ω.
, resistance
Model UT206: Set the rotary switch to Ω
measurement (Ω) is default or press BLUE button to select Ω
measurement mode.
3. Connect the test leads across with the object being measured.
The measured value shows on the display.
Note
• The test leads can add 0.1Ω to 0.2Ω of error to resistance
measurement. To obtain precision readings in low-resistance
measurement, that is the range of 400.0Ω , short-circuit the input
terminals beforehand, using the relative measurement function button
REL∆ to automatically subtract the value measured when the
testing leads are short-circuited from the reading.
• If Ω reading with shorted test leads is not ≤0.5Ω , check for
loose test leads, incorrect function selection, or enabled Data Hold
function.
• For high-resistance measurement (>1MΩ ), it is normal to take
several seconds to obtain a stable reading.
• The LCD displays
indicating open-circuit for the tested resistor
or the resistor value is higher than the maximum range of the Meter.
15
Model UT205/UT206: OPERATING MANUAL
Measurement Operation (4)
• When resistance measurement has been completed, disconnect the
connection between the testing leads and the circuit under test, and
remove the testing leads away from the input terminals of the Meter.
D. Testing for Continuity (See figure 6)
black
red
Warning
To avoid damages to the Meter or to the devices under test,
disconnect circuit power and discharge all the high-voltage
capacitors before testing for continuity.
To test for continuity, connect the Meter as below:
1. Insert the red test lead into the
HzΩ terminal and the black
test lead into the COM terminal.
and press BLUE
2. Model UT205: Set the rotary switch to
button to select
measurement mode.
Model UT206: Set the rotary switch to Ω
and press BLUE
button to select
measurement mode.
3. The buzzer sounds if the resistance of a circuit under test is less
than around 70Ω.
Note
indicating the circuit being tested is open.
• The LCD displays
• When continuity testing has been completed, disconnect the
connection between the testing leads and the circuit under test, and
remove the testing leads away from the input terminals of the Meter.
16
Model UT205/UT206: OPERATING MANUAL
Measurement Operation (5)
E. Testing Diodes (See figure 7)
black
red
Warning
To avoid possible damage to the Meter and to the device under
test, disconnect circuit power and discharge all high-voltage
capacitors before testing diodes.
Use the diode test to check diodes, transistors, and other semiconductor
devices. The diode test sends a current through the semiconductor
junction, and then measures the voltage drop across the junction. A
good silicon junction drops between 0.5V and 0.8V.
To test a diode out of a circuit, connect the Meter as follows:
1. Insert the red test lead into the
HzΩ terminal and the black
test lead into the COM terminal.
, diode measurement
2. Model UT205: Set the rotary switch to
( ) is default or press BLUE button to select
measurement
mode.
Model UT206: Set the rotary switch to Ω
and press BLUE
measurement mode.
button to select
3. For forward voltage drop readings on any semiconductor component,
place the red test lead on the component's anode and place the
black test lead on the component's cathode.
The measured value shows on the display.
Note
• In a circuit, a good diode should still produce a forward voltage
drop reading of 0.5V to 0.8V; however, the reverse-voltage drop
reading can vary depending on the resistance of other pathways
between the probe tips.
• Connect the test leads to the proper terminals as said above to avoid
error display. The LCD will display
indicating diode being
tested is open or polarity is reversed. The unit of diode is Volt (V),
displaying the forward voltage drop readings.
17
Model UT205/UT206: OPERATING MANUAL
Measurement Operation (6)
• When diode testing has been completed, disconnect the connection
between the testing leads and the circuit under test, and remove the
testing leads away from the input terminals of the Meter.
F. Capacitance Measurement (See figure 8)
black
red
black
red
Warning
To avoid damage to the Meter or to the equipment under test,
disconnect circuit power and discharge all high-voltage capacitors
before measuring capacitance. Use the DC Voltage function to
confirm that the capacitor is discharged.
The Meter's capacitance ranges are: 4.000nF, 40.00nF, 400.0nF,
4.000µF, 40.00µF, and 200.0µF. To measure capacitance, connect the
Meter as follows:
1. Insert the red test lead into the
HzΩ terminal and the black
test lead into the COM terminal.
2. Model UT205: Set the rotary switch to .
and press BLUE
Model UT206: Set the rotary switch to Ω
button to select
measurement mode.
3. Connect the test leads across with the object being measured.
The measured value shows on the display.
Note
• For testing the capacitor with polarity, connect the red clip to anode
& black clip to cathode instead of test leads as mentioned above.
• To minimize the effect of capacitance stored in the test leads, the
test lead should be as short as possible. To measure a small value
of capacitor, use REL mode to remove the test leads capacitance.
Remaining voltage, insulated impedance, & dielectric absorption
from the capacitor may cause the measurement error.
• It takes a longer time when testing a high capacitor value. The
testing time is around 30 seconds in 200µF range.
18
Model UT205/UT206: OPERATING MANUAL
Measurement Operation (7)
• The LCD displays
indicating the tested capacitor is shorted or
it exceeds the maximum range.
• When capacitance measurement has been completed, disconnect the
connection between the testing leads and the circuit under test and
remove the testing leads away from the input terminals of the Meter.
G. Frequency Measurement (See figure 9)
black
red
The measurement range is from 10Hz, 100Hz, 1kHz, 10kHz, 100kHz,
1MHz and 10MHz. To measure frequency, connect the Meter as
follows:
1. Insert the red test lead into the
HzΩ terminal and the black
test lead into the COM terminal.
2. Set the rotary switch to Hz; frequency measurement (Hz) is default
or press Hz button to select Hz measurement mode.
3. Connect the test leads across with the object being measured.
The measured value shows on the display.
Note
• When frequency measurement has been completed, disconnect the
connection between the testing leads and the circuit under test, and
remove the testing leads away from the input terminals of the Meter.
• When making frequency measurement at voltage or current range,
please mind the following signal requirement table:
Range
400mV
4V
40V
400V
600V
1000A
Signal Requirement
≥ 100mV
≥ 0.45V
≥ 4.5V
≥ 45V
≥ 450V
≥ 450A
Frequency Range
1Hz~1kHz
1Hz~1kHz
1Hz~1kHz
1Hz~1kHz
1Hz~200Hz
45Hz~65Hz
19
Model UT205/UT206: OPERATING MANUAL
Measurement Operation (8)
H. Measuring Duty Cycle (See figure 10)
black
red
The duty cycle measurement range is: 0.1%~99.9%. To measure duty
cycle, do the following:
1. Set up the Meter to measure frequency.
2. To select duty cycle, press Hz until the % symbol is shown on the
display.
3. Connect the test leads across with the object being measured.
The measured value shows on the display.
Note
• The LCD displays 000.0% indicating the input signal is high or low
level.
• When duty cycle measurement has been completed, disconnect the
connection between the testing leads and the circuit under test, and
remove the testing leads away from the input terminals of the Meter.
20
Model UT205/UT206: OPERATING MANUAL
Measurement Operation (9)
I. Model UT206: Temperature Measurement
(See figure 11)
The temperature measurement range is -40˚C~1000˚C. To measure
temperature, connect the Meter as follows:
HzΩ terminal
1. Insert the red temperature probe into the
and the black temperature probe into the COM terminal.
2. Set the rotary switch to ˚C.
3. Place the temperature probe to the object being measured.
The measured value shows on the display.
Note
• The Meter automatically displays the temperature value inside the
Meter when there is no temperature probe connection.
• The included point contact temperature probe can only be used up
to 250˚C. For any measurement higher than that, the rod type
temperature probe must be used instead.
• When temperature measurement has been completed, disconnect the
connection between the testing leads and the circuit under test, and
remove the testing leads away from the input terminals of the Meter.
21
Model UT205/UT206: OPERATING MANUAL
Measurement Operation (10)
J. AC Current Measurement (See figure 12)
Warning
To avoid electric shock, never measure current while the test leads
are inserted into the input terminals and disconnect test leads and
tested circuit connection.
Never attempt an in-circuit current measurement where the opencircuit voltage between the circuit and ground is greater than 600V.
Use proper function, and range for the measurement.
The measurement ranges of current are: 400.0A and 1000A. To measure
current, do the following:
1. Set the rotary switch to 1000A .
2. Press the lever to open the transformer jaws.
3. Center the conductor within the transformer jaw.
The measured value shows on the display, it is a effective value of
sine wave (mean value response).
Note
• When current measurement has been completed, disconnect the
connection between the conductor under test and the jaw, and
remove the conductor away from the transformer jaw of the Meter.
22
Model UT205/UT206: OPERATING MANUAL
Operation of Hold Mode
Warning
To avoid possibility of electric shock, do not use Hold
mode to determine if circuits are without power. The
Hold mode will not capture unstable or noisy readings.
The Hold mode is applicable to all measurement functions.
• Press HOLD to enter Hold mode; the Meter beeps.
• Press HOLD again or turn the rotary switch to exit Hold
mode; the Meter beeps.
• In Hold mode,
is displayed.
The Use of Relative Value Mode
The REL mode applies to all measurement functions except
frequency/duty cycle, diode and continuity measurement. It
subtracts a stored value from the present measurement value
and displays the result.
For instance, if the stored value is 20.0V and the present
measurement value is 22.0V, the reading would be 2.0V. If
a new measurement value is equal to the stored value then
display 0.0V.
To enter or exit REL mode:
• Use rotary switch to select the measurement function
before selecting REL∆. If measurement function changes
manually after REL∆ is selected, the Meter exits the REL
mode.
• Press REL∆ to enter REL mode, auto ranging turns off
except under capacitance testing mode, and the present
measurement range is locked and display ‘0’ as the
stored value.
• Press REL∆ again or turn the rotary switch to reset the
stored value and exit REL mode.
Pressing HOLD in REL mode makes the Meter stop updating.
Pressing HOLD again to resume updating.
23
Model UT205/UT206: OPERATING MANUAL
The BLUE button
It uses for selecting the required measurement function when
there is more than one function at one position of the rotary
switch.
Turning on the Display Backlight
Warning
In order to avoid the hazard arising from mistaken
readings in insufficient light or poor vision, please use
Display Backlight function.
• Press and hold YELLOW button for over 2 seconds to
turn the Display Backlight on.
• Press YELLOW button again to turn the Display
Backlight off, otherwise it will stay on continuously.
Sleep Mode
To preserve battery life, the Meter automatically turns off if
you do not turn the rotary switch or press any button for
around 15 minutes.
The Meter can be activated by turning the rotary switch or
pressing the YELLOW, Hz or REL∆ button, it will display
the present measurement value.
To disable the Sleep Mode function, press BLUE button
while turning on the Meter.
24
Model UT205/UT206: OPERATING MANUAL
General Specifications
Max. Voltage
600V rms.
between any Terminals
and Grounding:
Max. Current
1000A AC rms continuous.
Measurement of
Transformer Jaw:
Max. Jaw Size:
40mm.
Max. Display:
Digital: 3999
Measurement Speed: Updates 3 times/second.
Temperature:
Operating: 5˚C to +35˚C
(41˚F to +95˚F).
Storage: -10˚C to +50˚C
(14˚F to +122˚F).
Relative Humidity:
≤75% @ 0 - 30˚C ;
≤50% @ 31˚C - 40˚C.
Altitude:
Operating: 2000 m.
Storage: 10000 m.
Battery Type:
The Meter: One piece of 9V
(NEDA1604 or 6F22 or 006P).
The Jaw Opening Light:
One piece of 1.5V (AAA)
Battery Deficiency:
Display
Dimensions (HxWxL): 260 x 104 x 52 mm.
Weight:
Approximate 530g
(battery included).
Safety/Compliances: IEC61010 CAT. III 600V
overvoltage and double insulation
standard.
Certifications:
,
(UL/CUL pending)
25
Model UT205/UT206: OPERATING MANUAL
Accuracy Specifications (1)
Accuracy: ± (a% reading + b digits), guarantee for 1 year.
Operating temperature 23˚C±5˚C.
Relative humidity <75%.
Temperature coefficient: 0.1 x (specified accuracy)/ 1˚C.
A. DC Voltage
Range Resolution
Accuracy Overload Protection
400mV
100µV
±(0.8%+3)
4V
1mV
600V DC
40V
10mV
±(0.8%+1)
600V AC rms
400V
100mV
continuous.
600V
1V
±(1%+3)
Remarks: Input impedance ≥10MΩ.
B. AC Voltage
Range Resolution
Accuracy Overload Protection
4V
1mV
600V DC
40V
10mV
±(1.2%+5)
600V AC rms
400V
100mV
continuous
600V
1V
±(1.5%+5)
Remarks:
• Input impedance ≥10MΩ.
• Displays effective value of sine wave
(mean value response).
• Frequency response:
When <400V: 40Hz~400Hz;
When ≥400V: 40Hz~100Hz
C. Resistance
Range Resolution
400Ω
0.1Ω
4kΩ
1Ω
40kΩ
10Ω
400kΩ
100Ω
4MΩ
1kΩ
40MΩ
10kΩ
Remarks: Open circuit
26
Accuracy Overload Protection
±(1.2%+2)
±(1%+2)
600Vp
±(1.2%+2)
±(1.5%+2)
voltage approximate 0.45V.
Model UT205/UT206: OPERATING MANUAL
Accuracy Specifications (2)
D. Continuity Test
Range Resolution
400.0Ω
0.1Ω
Accuracy Overload Protection
600Vp
Approximate
<70Ω
Remarks:
• Buzzer beeps continuous.
• Open circuit voltage approximate 0.45V.
E. Diode Test
Range
Resolution
Overload Protection
Diode
1mV
600Vp
Remarks:
• Open circuit voltage approximate 1.48V.
• Displays approximate forward voltage drop: 0.5V~0.8V.
F. Capacitance
Range
4nF
Resolution
1pF
40nF
400nF
4µF
40µF
200µF
10pF
100pF
1nF
10nF
100nF
Overload
Protection
Accuracy
Measure at REL mode
±(5%+40)
600Vp
±(3%+5)
±(4%+10)
Remarks:
• 40nF~200µF:
Reading < 1nF is only for reference purpose.
27
Model UT205/UT206: OPERATING MANUAL
Accuracy Specifications (3)
G. Frequency & Duty Cycle
Range Resolution
Accuracy Overload Protection
10Hz
0.001Hz
100Hz
0.01Hz
1kHz
0.1Hz
10kHz
1Hz
±(0.1%+3)
600Vp
100kHz
10Hz
1MHz
100Hz
10MHz
1kHz
0.1%
0.01%
~99.9%
Remarks:
• 10Hz~10MHz Range:
Input sensitivity as follows:
≤1MHz: ≤300mV rms;
>1MHz: ≤600mV rms.
• 0.1% ~ 99.9%:
Reading is only for reference purpose.
H. Temperature (Model UT206)
Range
Resolution
-40˚C~1000˚C
1˚C
Accuracy
-40˚C~0˚C
±(3%+4)
0˚C~400˚C
±(1%+3)
400˚C~1000˚C
±(2%+10)
Input Protection: 600Vp
I. AC Current
Range Resolution
Overload Protection
Accuracy
400A
0.1A
1000A AC rms
±(1.5%+5)
1000A
1A
continuous
≤800A: ±(2%+5)
>800A: ±(3%+5)
Remarks:
• Frequency response 50Hz~60Hz.
• Display effective value of sine wave
(mean value response)
28
Model UT205/UT206: OPERATING MANUAL
MAINTENANCE
This section provides basic maintenance information
including battery replacement instruction.
Warning
Do not attempt to repair or service your Meter unless
you are qualified to do so and have the relevant
calibration, performance test, and service information.
To avoid electrical shock or damage to the Meter, do you
get water inside the case.
A. General Service
• Periodically wipe the case with a damp cloth and mild detergent.
Do not use abrasives or solvents.
• To clean the terminals with cotton bar with detergent, as dirt or
moisture in the terminals can affect readings.
• Turn the Meter to OFF position when it is not in use.
• Take out the battery when it is not using for a long time.
• Do not use or store the Meter in a place of humidity, high
temperature, explosive, inflammable and strong magnetic field.
B. Replacing the Battery
Warning
To avoid false readings, which could lead to possible
electric shock or personal injury, replace the battery as
soon as the battery indicator “ ” appears.
Make sure the transformer jaw and the test leads are
disconnected from the circuit being tested before opening
the case bottom.
Make sure the test leads are removed from the input
terminals.
To replace the battery:
1. Turn the rotary switch of the Meter to OFF position and remove
all the connections from the terminals.
2. Remove the screw from the battery compartment, and separate the
battery compartment from the case bottom.
3. Remove the battery from the battery compartment.
4. Replace the battery with a new 9V battery (NEDA1604, 6F22 or
006P) and or a 1.5V battery (AAA).
5. Rejoin the case bottom and battery compartment, and reinstall the
screw.
29
Model UT205/UT206: OPERATING MANUAL
~ END ~
This operating manual is subject to change without notice.
© Copyright 2001 Uni-Trend International Limited.
All rights reserved.
30
Model UT205/UT206: OPERATING MANUAL
31
Model UT205/UT206: OPERATING MANUAL
Manufacturer:
Uni-Trend International Limited
Rm901, 9/F, Nanyang Plaza
57 Hung To Road, Kwun Tong
Kowloon, Hong Kong
Tel.: (852) 2950 9168
Fax.: (852) 2950 9303
Email: info@uni-trend.com
http://www.uni-trend.com
32
Download PDF
