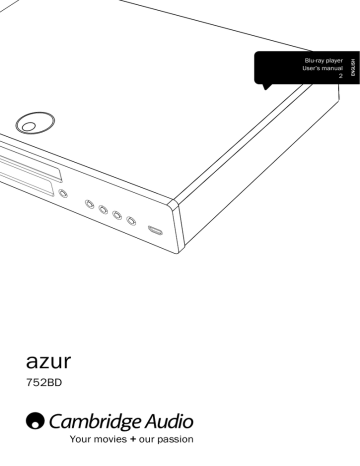

azur
752BD
Your movies + our passion
ENGLISH
Blu-ray player
User’s manual
2
Contents
Introduction.................................................................................................. 3
Make sure you register your purchase.
Visit: www.cambridge-audio.com/care
By registering, you’ll be the first to know about:
•Future product releases
•Software upgrades
•News, events and exclusive offers plus
competitions!
Important safety instructions...................................................................... 3
Wi-Fi information.......................................................................................... 5
Limited warranty.......................................................................................... 6
Compatible disc types.................................................................................. 6
Rear panel connections............................................................................... 8
Front panel................................................................................................... 9
Front panel display...................................................................................... 9
Remote control...........................................................................................10
Connecting to the Internet/Network.........................................................11
This guide is designed to make installing and using this product as
easy as possible. Information in this document has been carefully
checked for accuracy at the time of printing; however, Cambridge
Audio’s policy is one of continuous improvement, therefore design
and specifications are subject to change without prior notice.
Audio output connections..........................................................................12
This document contains proprietary information protected by
copyright. All rights are reserved. No part of this manual may be
reproduced by any mechanical, electronic or other means, in any
form, without prior written permission of the manufacturer. All
trademarks and registered trademarks are the property of their
respective owners.
Operating instructions...............................................................................15
© Copyright Cambridge Audio Ltd 2013
Manufactured under license from Dolby Laboratories. "Dolby" and
the double-D symbol are trademarks of Dolby Laboratories.
Manufactured under license under U.S. Patent Nos: 5,956,674;
5,974,380; 6,226,616; 6,487,535; 7,212,872; 7,333,929;
7,392,195; 7,272,567 & other U.S. and worldwide patents
issued & pending. DTSHD, the Symbol, & DTS-HD and the Symbol
together are registered trademarks & DTS-HD Master Audio is a
trademark of DTS, Inc. Product includes software. © DTS, Inc. All
Rights Reserved.
"HDMI","HDMI logo" and "High-Definition Multimedia Interface"
are trademarks or registered trademarks of HDMI Licensing LLC.
"Blu-ray Disc", "Blu-ray", "Blu-ray 3D", "BD-Live", "BONUSVIEW",
and the logos are trademarks of Blu-ray Disc Association.
Java and all Java-based trademarks and logos are trademarks
or registered trademarks of Sun Microsystems, Inc. in the United
States and other countries.
HDMI connections......................................................................................13
Setting up the player..................................................................................15
Selecting the best output resolution....................................................15
Getting started.......................................................................................15
On-Screen Display..................................................................................16
Audio language (soundtrack) selection................................................16
Subtitle selection...................................................................................16
Subtitle Shift...........................................................................................16
Angle selection.......................................................................................17
Zoom.......................................................................................................17
Blu-ray disc menu..................................................................................17
DVD disc menu.......................................................................................17
Memory and automatic resume............................................................17
HDMI / MHL INPUT selection................................................................17
Audio Return Channel (ARC) Selection.................................................17
Playback by Chapter or Track Number.................................................17
Playback from a Specific Location on DVD and Blu-ray Discs............18
Picture-in-Picture and Secondary Audio...............................................18
DVD Logo is a trademark of DVD Format/Logo Licensing Corp.,
registered in the U.S., Japan and other countries.
Output resolution...................................................................................18
Super Audio CD, SACD and the SACD logo are joint trademarks
of Sony Corporation and Philips Electronics N.V. Direct Stream
Digital (DSD) is a trademark of Sony Corporation.
Viewing pictures on DVD-Audio discs...................................................19
TV system selection...............................................................................19
Pure Audio mode....................................................................................19
"AVCHD" and the "AVCHD" logo are trademarks of Panasonic
Corporation and Sony Corporation.
Media playback from USB Devices...........................................................19
Designed for Windows Media, Microsoft, HDCD, and the HDCD
logo are trademarks or registered trademarks of Microsoft
Corporation in the United States and/or other countries.
Network Media Playback...........................................................................19
"DivX" is a trademark of DivX, Inc.
"Qdeo" and "QuietVideo" are trademarks of Marvell or its affiliates.
"Cinavia" is trademark of Verance Corporation.
All other trademarks are the properties of their respective owners.
Connecting a USB Drive.........................................................................19
Using the Home Menu...............................................................................20
Playing music files..................................................................................20
Playing movie files..................................................................................21
Viewing Photo Files................................................................................21
Adding Background Music.....................................................................21
Setup Menu................................................................................................22
Playback Setup...........................................................................................23
Video Setup................................................................................................24
Audio Format Setup...................................................................................27
Audio signal reference chart.....................................................................29
Recommended audio format options.......................................................30
Speaker Configuration (7.1 channel analogue audio output only).........31
Other Audio Processing Settings...............................................................32
Device Setup..............................................................................................33
Network Setup............................................................................................34
Filters..........................................................................................................36
Troubleshooting.........................................................................................37
Appendix - language code list...................................................................38
Technical specifications............................................................................39
2
752BD
Introduction
Important safety instructions
Thank you for purchasing this Cambridge Audio Azur 752BD Blu-ray
Player. Like all Cambridge Audio products, our Blu-ray players adhere
to our three core principles – stunning performance, ease of use and
incredible value.
For your own safety please read the following important safety
instructions carefully before attempting to connect this unit to the mains
power supply. They will also enable you to get the best performance from
and prolong the life of the unit:
The 752BD features almost universal disc/file compatibility and can
play back CD, HDCD, DVD-Video, DVD-Audio, Super Audio CD and
Blu-ray discs including those with 3D content plus most audio and
video file formats from both USB connected hard-drives and network
connected NAS drivers or servers.
1. Read these instructions.
Five WM8740 2-channel DACs from Wolfson Microelectronics are
featured giving both a permanent 7.1 and a separate Stereo analog
output. All analog outputs are also up-sampled via an Analog Devices
DSP running our proprietary ATFTM upsampling and jitter suppression
algorithm from Anagram Technologies to 24 bits and 192kHz.
This careful audio design ensures that the 752BD can reproduce the
dynamics and scale required for modern movie soundtracks whilst also
being able to reproduce a genuinely musical performance with either
stereo or multi-channel music discs.
Twin HDMI outputs allow two screens or a screen and a projector to be
connected at the same time. Both are fully compatible with the HDMI 1.4
standard for 3D TV and deep-colour support and both can receive Audio
Return Channels (ARC) from TVs that support this feature.
ARC allows the TV to become an audio source to the BD Player allowing
you to listen to music or video streaming services that your TV may
feature in the best possible quality when up-sampled and output by the
752BD player.
The primary HDMI output also features a Marvell QDEO scaler with
motion adaptive noise reduction and a host of technologies to further
improve the picture quality for this output from any source. Up-scaling
to 4K x 2K is possible for the very latest TVs that support this resolution.
S/P DIF, Toslink and two HDMI inputs (one of which also supports
MHL) plus the two ARC inputs allow the 752BD to be your digital hub
connecting a wide range of audio and video sources all of which can be
up-sampled and up-scaled by the 752BD for the best possible audio or
audio-visual experience.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type
plug. A polarized plug has two blades with one wider than the other.
A grounding-type plug has two blades and a third grounding prong.
The wide blade or the third prong are provided for your safety. If the
provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched, particularly
at plugs, convenience receptacles and the point where they exit from
the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12.Use with only the cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/
apparatus combination to avoid injury from tip-over.
13.Unplug this apparatus during lightning storms or when
unused for long periods of time.
An Ethernet connection is provided for BD Live, Network playback from
UPnP/DNLA servers and NAS drives and other interactive features via
the internet such as Picasa and YouTube. Additionally the 752BD is
supplied with a USB Wi-Fi dongle.
14.Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way, such
as the power-supply cord or plug having been damaged, liquid has
been spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate normally, or
has been dropped.
The latest surround-sound formats are supported including decoding of
Dolby True HD, Dolby Digital Plus, DTS-HD Master Audio and DTS-HD
High Resolution Audio in Stereo, 5.1 or 7.1 variants. In particular support
for the true lossless Dolby True HD and DTS HD Master Audio formats
provides unprecedented audio fidelity from Blu-ray discs.
This product utilises a Laser. Use of controls or
adjustments or performance of procedures other
than those specified herein may result in hazardous
radiation exposure. Do not open covers and do not
repair yourself. Refer servicing to qualified personnel.
The 752BD is also capable of outputting all of these formats as
bitstreams over HDMI for decoding in a suitable AV Receiver.
Lastly, the 752BD features an environmentally friendly low power
(<0.5W) standby circuit.
All this proprietary engineering is housed within our low resonance,
acoustically damped chassis. A backlit Azur Navigator remote control is
provided, giving full remote control of your Blu-ray player and if required
a Cambridge Audio amplifier or AV receiver in an attractive and easy to
use handset.
Remember your 752BD can only be as good as the system it is connected
to. Please do not compromise on your AV receiver or speaker package and
always use good quality video and audio cabling. Naturally we particularly
recommend AV receivers such as those from the Cambridge Audio Azur
range, which has been designed to the same exacting standards as this
product. Your dealer can also supply excellent quality Cambridge Audio
interconnects to ensure your system realises its full potential.
Thank you for taking the time to read this manual; we recommend you
keep it for future reference.
Matthew Bramble
Cambridge Audio Technical Director
and the 752BD design team
This label is located on the laser protective housing inside the product.
WARNING – To reduce the risk of fire or electric shock, do not expose this unit to
rain or moisture.
– Batteries (battery pack or batteries installed) shall not be exposed to
excessive heat such as sunshine, fire or the like.
The unit must be installed in a manner that makes disconnection of
the mains plug from the mains socket outlet (or appliance connector
from the rear of the unit) possible. Where the mains plug is used as the
disconnect device, the disconnect device shall remain readily operable.
Only use the mains cord supplied with this unit.
Please ensure there is ample ventilation (at least 10cm clearance all
round). Do not put any objects on top of this unit. Do not situate it on
a rug or other soft surface and do not obstruct any air inlets or outlet
grilles. Do not cover the ventilation grilles with items such as newspapers,
tablecloths, curtains, etc.
This unit must not be used near water or exposed to dripping or splashing
water or other liquids. No objects filled with liquid, such as vases, shall
be placed on the unit.
3
ENGLISH
azur
Power sources
The unit should be operated only from the type of power source indicated
on the marking label. If you are not sure of the type of power-supply to
your home, consult your product dealer or local power company.
The lightning flash with the arrowhead symbol within an equilateral
triangle is intended to alert the user to the presence of un-insulated
‘dangerous voltage’ within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
instructions in the service literature relevant to this appliance.
The symbol on this product indicates that it is of CLASS II
(double insulated) construction.
WEEE symbol
The crossed-out wheeled bin is the European Union symbol
for indicating separate collection for electrical and electronic
equipment. This product contains electrical and electronic
equipment which should be reused, recycled or recovered
and should not be disposed of with unsorted regular waste.
Please return the unit or contact the authorised dealer from whom you
purchased this product for more information.
CE mark
This product complies with European Low Voltage (2006/95/
EC), Electromagnetic Compatibility (2004/108/EC) and
Environmentally-friendly design of Energy-related Products (2009/125/
EC) Directives when used and installed according to this instruction
manual. For continued compliance only Cambridge Audio accessories
should be used with this product and servicing must be referred to
qualified service personnel.
C-Tick mark
This product meets the Australian Communications Authority’s
Radio communications and EMC requirements.
Gost-R Mark
This product meets Russian electronic safety approvals.
Ventilation
IMPORTANT – The unit will become hot when in use. Do not stack multiple
units on top of each other. Do not place in an enclosed area such as a
bookcase or in a cabinet without sufficient ventilation.
Ensure that small objects do not fall through any ventilation grille. If this
happens, switch off immediately, disconnect from the mains supply and
contact your dealer for advice.
Positioning
Choose the installation location carefully. Avoid placing it in direct
sunlight or close to a source of heat. No naked flame sources, such
as lighted candles, should be placed on the unit. Also avoid locations
subject to vibration and excessive dust, cold or moisture. The unit can
be used in a moderate climate.
This unit must be installed on a sturdy, level surface. Do not place in a
sealed area such as a bookcase or in a cabinet. Do not place the unit on
an unstable surface or shelf. The unit may fall, causing serious injury to
a child or adult as well as serious damage to the product. Do not place
other equipment on top of the unit.
Due to stray magnetic fields, turntables or CRT TVs should not be located
nearby due to possible interference.
Electronic audio components have a running in period of around a week
(if used several hours per day). This will allow the new components to
settle down and the sonic properties will improve over this time.
4
This unit can be left in Standby mode when not in use and will draw
<0.5W in this state. To turn the unit off, unplug it from the mains socket.
Overloading
Do not overload wall outlets or extension cords as this can result in a risk
of fire or electric shock. Overloaded AC outlets, extension cords, frayed
power cords, damaged or cracked wire insulation and broken plugs are
dangerous. They may result in a shock or fire hazard.
Be sure to insert each power cord securely. To prevent hum and noise, do
not bundle the interconnect leads with the power cord or speaker leads.
Cleaning
To clean the unit, wipe its case with a dry, lint-free cloth. Do not use any
cleaning fluids containing alcohol, ammonia or abrasives. Do not spray
an aerosol at or near the unit.
Battery disposal
Please dispose of any discharged batteries according to local
environmental/electronic waste disposal guidelines.
Connections
Before making any connections, make sure all power is turned off and
only use suitable interconnects.
Servicing
These units are not user serviceable. Never attempt to repair,
disassemble or reconstruct the unit if there seems to be a problem.
A serious electric shock could result if this precautionary measure is
ignored. In the event of a problem or failure, please contact your dealer.
azur
752BD
ENGLISH
Wi-Fi information
IMPORTANT NOTE:
FCC Statement
IC Radiation Exposure Statement:
DECLARATION OF CONFORMITY WITH FCC RULES FOR
ELECTROMAGNETIC COMPATIBILITY
We, Cambridge Audio, of Gallery Court, Hankey Place, London SE1 4BB,
declare under our sole responsibility that this device,
752BD with Wi-Fi dongle
to which this declaration relates, complies with Part 15 of the FCC
Rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause
undesired operation.
Caution: Exposure to Radio Frequency Radiation.
The device shall be used in such a manner that the potential for human
contact during normal operation is minimized.
When connecting an external antenna to the device, the antenna shall
be placed in such a manner to minimize the potential for human contact
during normal operation. This transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter.
Federal Communications Commission Notice
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy,
and if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on,
the user is encouraged to try and correct the interference by one or more
of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the distance between the equipment and the receiver.
• Connect the equipment to an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by
the party responsible for compliance could void the user’s authority to
operate this equipment.
This equipment complies with Canada radiation exposure limits set forth
for uncontrolled environments. This equipment should be installed and
operated with a minimum distance of 20cm between the radiator and
your body.
This transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
Cet appareil numérique de la classe B conforme á la norme NMB-003
du Canada.
Europe-European Union Notice
Radio products with the CE 0889 or CE alert marking comply with the
R&TTE Directive (1995/5/EC) issued by the Commission of the European
Community.
Compliance with this directive implies conformity to the following
European Norms.
• EN 60950-1 – Product Safety.
• EN 300 328 – Technical requirement for radio equipment.
• EN 301 489 – General EMC requirements for radio equipment.
To determine the type of transmitter, check the identification label on
your Cambridge Audio product.
Products with the CE marking comply with European Low Voltage
(2006/95/EC), Electromagnetic Compatibility (2004/108/EC) and
Environmentally-friendly design of Energy-related Products (2009/125/
EC) Directives issued by the Commission of the European Community.
Compliance with these directives implies conformity to the following
European Norms.
• EN 55022 – Electromagnetic Interference.
• EN 55024 – Electromagnetic Immunity.
• EN 61000-3-2 – Power Line Harmonics.
• EN 61000-3-3 – Power Line Flicker.
•
EN 60950-1 – Product Safety Products that contain the radio
transmitter are labeled with CE 0889 or CE alert marking and may
also carry the CE logo.
• EN 62301:2005 - Household electrical appliances. Measurement of
standby power.
•
1275/2008 - Implementing EuP Directive for Standby Power
Consumption.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for
an uncontrolled environment. This equipment should be installed and
operated with a minimum distance of 20cm between the radiator and
your body.
This transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
2.4GHz operation of this product in the USA is firmware-limited to
channels 1 through 11.
Modifications
The FCC requires the user to be notified that any changes or modifications
to this device that are not expressly approved by Cambridge Audio, may
void the user’s authority to operate the equipment.
Canada-Industry Canada (IC)
The wireless radio of this device complies with RSS 210 Industry Canada.
This Class B digital apparatus complies with Canadian ICES-003.
Operation is subject to the following two conditions:
1) this device may not cause interference, and
2) this device must accept any interference, including interference that
may cause undesired operation of the device.
5
Limited warranty
Compatible disc types
Cambridge Audio warrants this product to be free from defects in
materials and workmanship (subject to the terms set forth below).
Cambridge Audio will repair or replace (at Cambridge Audio’s option) this
product or any defective parts in this product. Warranty periods may vary
from country to country. If in doubt consult your dealer and ensure that
you retain proof of purchase.
BD-Video
To obtain warranty service, please contact the Cambridge Audio
authorised dealer from which you purchased this product. If your dealer
is not equipped to perform the repair of your Cambridge Audio product,
it can be returned by your dealer to Cambridge Audio or an authorised
Cambridge Audio service agent. You will need to ship this product in
either its original packaging or packaging affording an equal degree of
protection.
Discs supporting 3D Blu-ray content playback.
3D-compatible displays and active shutter glasses are
required for 3D playback.
High Definition Blu-ray movie and music discs in BD-ROM,
BD–RE and BD–R formats.
Blu-ray 3D
Discs supporting BONUSVIEW that allows Virtual
packages or Picture-in-Picture functions to be
used.
Proof of purchase in the form of a bill of sale or receipted invoice, which
is evidence that this product is within the warranty period, must be
presented to obtain warranty service.
Blu-ray Discs with interactive features when the player is
connected to the Internet.
This warranty is invalid if (a) the factory-applied serial number has
been altered or removed from this product or (b) this product was not
purchased from a Cambridge Audio authorised dealer. You may call
Cambridge Audio or your local country Cambridge Audio distributor to
confirm that you have an unaltered serial number and/or you made a
purchase from a Cambridge Audio authorised dealer.
DVD-Video
DVD movie discs in DVD+RW/DVD+R/DVD-RW/DVD-R
formats.
This warranty does not cover cosmetic damage or damage due to
acts of God, accident, misuse, abuse, negligence, commercial use, or
modification of, or to any part of, the product. This warranty does not
cover damage due to improper operation, maintenance or installation, or
attempted repair by anyone other than Cambridge Audio or a Cambridge
Audio dealer, or authorised service agent which is authorised to do
Cambridge Audio warranty work. Any unauthorised repairs will void this
warranty. This warranty does not cover products sold AS IS or WITH ALL
FAULTS.
DVD-Audio
VD format discs containing multi-channel or stereo high
D
resolution audio of up to 24/96 5.1 or 24/192 resolution
with video or still pictures. Some DVD-Audio discs also
contain a DVD-Video portion.
Super Audio CD
igh resolution audio-only discs with stereo and/or multiH
channel audio recorded in a special bitstream format called
DSD. Hybrid discs with both high resolution DSD and CDcompatible layers are supported.
REPAIRS OR REPLACEMENTS AS PROVIDED UNDER THIS WARRANTY
ARE THE EXCLUSIVE REMEDY OF THE CONSUMER. CAMBRIDGE AUDIO
SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL
DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY IN
THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY LAW, THIS
WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS AND
IMPLIED WARRANTIES WHATSOEVER INCLUDING, BUT NOT LIMITED TO,
THE WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PRACTICAL
PURPOSE.
Compact Disc
Compact Discs (CD-DA) and CD-R, CD-RW discs.
High-definition digital video camera format.
Some countries and US states do not allow the exclusion or limitation of
incidental or consequential damages or implied warranties so the above
exclusions may not apply to you. This warranty gives you specific legal
rights, and you may have other statutory rights, which vary from state to
state or country to country.
For any service, in or out of warranty, please contact your dealer.
CD discs containing HDCDTM encoded material.
Discs that cannot be played
• BDs with cartridge
• DVD-RAMs
• HD DVDs
• Data portion of CD-Extras
Plug-fitting Instructions (UK only)
The cord supplied with this appliance is factory-fitted with a UK mains plug fitted
with a 3-amp fuse inside. If it is necessary to change the fuse, it is important that a
3-amp fuse is used. If the plug needs to be changed because it is not suitable
for your socket, or becomes damaged, it should be cut off and an appropriate
plug fitted following the wiring instructions below. The plug must then be disposed
of safely, as insertion into a mains socket is likely to cause an electrical hazard.
Should it be necessary to fit a 3-pin BS mains plug to the power cord, the wires
should be fitted as shown in this diagram. The colours of the wires in the mains lead
of this appliance may not correspond with the coloured markings identifying the
terminals in your plug. Connect them as follows:
The wire which is coloured BLUE must be
connected to the terminal which is marked with
the letter ‘N’ or coloured BLACK.
The wire which is coloured BROWN must be
connected to the terminal which is marked with
the letter ‘L’ or coloured RED.
The wire which is coloured GREEN/YELLOW
must be connected to the terminal which is
marked with the letter ‘E’ or coloured GREEN.
If a standard 13-amp (BS 1363) plug is used, a
3-amp fuse must be fitted or, if any other type of plug is used, a 3-amp or 5-amp
fuse must be fitted, either in the plug or adaptor, or on the distribution board.
6
• BD-Video/DVD-Video with a different region code to the Blu-ray player
you have purchased.
• Some DualDiscs: A DualDisc is a two sided disc with DVD on one side
and digital audio on the other side. The digital audio side does not
generally meet the technical specifications of the Compact Disc Digital
Audio (CD-DA) format so playback is not guaranteed.
• Music discs encoded with copyright protection technologies: among
such discs, some again do not conform to the CD standard so playback
is not guaranteed.
752BD
BD-ROM compatibility
Cinavia Notice
Since the Blu-ray Disc specifications are new and evolving, some
discs may not play properly depending on the disc type, version and
encoding. It is possible that a Blu-ray disc manufactured after the
player was manufactured uses certain new features of the Blu-ray Disc
specifications. To ensure the best possible viewing experience, the player
may need a firmware or software update from time to time.
This product uses Cinavia technology to limit the use of unauthorized
copies of some commercially-produced film and videos and their
soundtracks. When a prohibited use of an unauthorized copy is detected,
a message will be displayed and playback or copying will be interrupted.
Copyright protection
More information about Cinavia technology is provided at the Cinavia
Online Consumer Information Center at http://www.cinavia.com. To
request additional information about Cinavia by mail, send a postcard
with your mailing address to: Cinavia Consumer Information Center, P.O.
Box 86851, San Diego, CA, 92138, USA.
This Product incorporates copy protection technology that is protected
by U.S. patents and other intellectual property rights of Rovi Corporation.
The use of Rovi Corporation’s copy protection technology in the product
must be authorized by Rovi Corporation. Reverse engineering and
disassembly are prohibited.
Region management information
This player is designed and manufactured to respond to the region
management information of DVD or BD discs. If the region number of a
BD-Video or DVD disc does not correspond to the region number of this
player, this player cannot play the disc.
BD-Video – This player plays BD-Video with marks that match the code
on the back of the unit (i.e. A, B or C).
Discs that have no region coding are also playable. These usually have
all 3 region codes on the packaging in a pyramid.
DVD-Video – This player plays DVD-Video with marks that match the
region code on the back of the unit (i.e. 1, 2, 3, 4 or 5).
Discs that are encoded for All regions are also playable.
Disc care and handling
• T o keep the disc clean from scratches or fingerprints, handle the disc
by its edge. Do not touch the recording surface.
• Blu-ray Discs record data in very high density and the record layer is
very close to the disc surface. For this reason, Blu-ray Discs are more
sensitive to dust and fingerprints than DVD. Should you encounter
playback problems and see dirty spots on the disc surface, clean the
disc with a cleaning cloth. Wipe the disc from the centre out along the
radial direction. Do not wipe the disc in a circular motion.
•Do not use record cleaning sprays or solvents such as benzene, thinner
and anti-static spray.
• Do not attach labels or stickers to discs as this may cause the disc to
warp, become imbalanced or too thick, resulting in playback problems.
• Avoid exposing the discs to direct sunlight or heat sources.
• Do not use the following discs:
– Discs with exposed adhesive from removed stickers or labels. The
disc may get stuck inside the player.
– Warped or cracked discs.
– Irregularly shaped discs, such as heart or business card shapes.
7
ENGLISH
azur
Rear panel connections
10
1
2
3
5
6
12
7
13
4
8
9
11
1. Ethernet LAN port
7. USB port 1 and 2
Used for Playback of context from the Internet or Network attached
storage drives and servers, also used for discs supporting BD-Live that
provide interactive features when the player is connected to the Internet.
Port for interfacing to a flash/memory card or Mass Storage Device (such
as a portable hard-drive).
2. HDMI input
• This unit supports USB Mass Storage Class Bulk Transport devices
only. Most USB thumb drives, portable hard disk drives and card
readers conform to this device class. Other USB devices such as MP3
players, digital cameras, and mobile phones that include their own
memory management may not be compatible.
This input is used to connect to a source device such as a set-top box or
other HDMI Source.
3. Diagnostic video
Use for diagnostic purposes. Connect to a TV/Monitor via a 75 ohms
RCA/Phono cable designed specifically for video use.
4. Digital outputs
Optical and Coaxial digital audio outputs, optionally used to connect to
a suitable Audio/Video Receiver for surround sound decoding (output
must be set for "Bitstream" - refer to the "Audio setup" section). HDMI is
however the preferred correction to AV Receivers as the latest lossless
CODECS are only supported over HDMI. These outputs can also be used
to connect to a separate DAC or digital recording device (output must be
set for "LPCM" - refer to the "Audio setup" section).
Toslink Optical - Use a high quality TOSLINK fibre optic cable.
S/P DIF Co-Axial Digital - Use a high quality 75 ohm digital RCA/Phono
interconnect cable designed specifically for digital audio use.
5. HDMI output 2
Secondary HDMI output. Both outputs 1 and 2 can be used at the same
time to send the same audio/video to two displays (with both being 3D
TV compatible) or to send audio over one HDMI link and video over the
other.
Always use a "HDMI 1.4 High Speed" certified Cable.
HDMI 1 and 2 both support Audio Return Channel from TVs that have this
function. See later section.
6. HDMI output 1 (primary output)
The HDMI (High-Definition Multi-Media Interface) is a purely digital
connection that can carry both audio and video. Use a dedicated HDMI
cable to connect to a TV/Monitor or AV Receiver with a compatible HDMI
input.
Always use a "HDMI 1.4 High Speed" certified Cable.
Note:
• Supported USB drives must be formatted with the FAT (File Allocation
Table), FAT32 or NTFS (New Technology File System) file system.
• In some cases, an incompatible USB device may cause the player to
stop responding. If this occurs simply turn off the power, remove the
USB device, and turn the player back on.
• The player accesses the USB drive in read-only mode. In order to
minimize the risk of data corruption, it is recommended that you only
unplug the USB device when playback has completely stopped.
8. IR (Infra-Red) emitter in
Allows modulated IR commands from multi-room systems or IR repeater
systems to be received by the unit.
9. RS232C
Used for control of the 752BD in Custom Install situations. A full protocol
is available for the 752BD on our website.
10. 7.1 channel analogue audio output
If Down-mix is set to "7.1 CH" in the Speaker Setup page (Down-mix mode
section) of the 752BD’s Setup menus, these sockets provide 7.1 output
from the 752BD’s built in Surround-Sound decoder. This can be used to
connect to the 7.1 audio line-level inputs of an amplifier/AV receiver or
amplified speaker package if required. Similarly, Down-mix can be set
to "5.1 CH" to provide 5.1 output. If Down-mix is set to "LT/RT", "Stereo"
or "V.Surround" the Left and Right outputs only are active and provide a
stereo or stereo downmixed output. Refer to the "Speaker configuration"
section of this manual for more information.
11. Digital input
Optical and Coaxial digital audio inputs, used to connect to:
Toslink Optical - Use a high quality TOSLINK fibre optic cable.
This output is the primary output and benefits from the Marvell QDEO
video processor. Both this output and output 2 are 3D TV compatible.
S/P DIF Co-Axial Digital - Use a high quality 75 ohm digital RCA/Phono
interconnect cable designed specifically for digital audio use.
HDMI 1 and 2 both support Audio Return Channel from TVs that have this
function. See later section.
12. Stereo audio out
Permanent stereo outputs for use with Stereo material.
13. AC power socket
Once you have made all audio and video connections, plug the IEC type
AC power cable into the rear of the unit and an appropriate mains socket
then switch on. Your 752BD is now ready for use.
8
azur
752BD
ENGLISH
Front panel
azur 752BD
Blu-ray Disc Player
6
Standby / On
MHL/HDMI In
5
1
2
3
4
7
8
9
10
11
1. Standby/On
5. Display
Switches the unit between Standby mode (indicated by a dim power LED)
and On (indicated by a bright power LED). Standby is a low power mode
where the power consumption is less than <0.5W. The unit should be left
in Standby mode when not in use.
Used to display the 752BD’s functions and playback state, etc. Please
refer to the front panel display section below for more information.
2. IR sensor
Use the Open/Close button to activate.
Receives IR commands from the supplied Azur Navigator remote control.
A clear unobstructed line of sight between the remote control and the
sensor is required.
7. Open/Close
3. USB port
Port for interfacing to a flash/memory card or “Mass Storage Devices”
(such as a portable hard-drive).
Notes:
• Only USB 2.0 certified products with the USB 2.0 logo on them are
supported by the 752BD. Please either consult the manufacturer of
the USB 2.0 product to make sure it is properly certified, or go to www.
usb.org for a list of approved products. We cannot be held responsible
for any incompatibility issues.
• This unit supports “USB Mass Storage Class Bulk-Only Transport”
devices only. Most USB thumb drives, portable hard disk drives and
card readers conform to this device class. Other USB devices such
as MP3 players, digital cameras, and mobile phones may not be
compatible.
•S
ee USB port section for file system compatibility.
4. Filter select
Press to select between three different digital filter modes: linear phase,
minimum phase or steep. The corresponding LED will light up to show
which filter has been selected. There affect the analog outputs only.
See later section for details.
6. Disc tray
Allows opening and closing of the disc tray for loading of discs. Pressing
Play will also close the tray and start playing a disc if one is loaded.
8. Play/Pause
Plays the disc and pauses (freezes) playback.
9. Stop
Press once to stop playback. Pressing Play will cause the playback to
be re-started from the same position. Press Stop again to fully stop
playback.
10. Skip
Press once to skip between tracks/chapters.
11. MHL (Mobile High-definition Link)/HDMI Input
This input is used to connect to a mobile source device such as a mobile
phone or a digital camcorder.
The combined socket allows either a standard HDMI source to be
connected to the 752BD or alternatively an MHL device (such as some
new phones) in which case the device can also be charged whilst sending
digital audio/video to the 752BD.
Note: To utilise the MHL capability, the source device needs to be MHL
enabled and a MHL cable/adaptor is required.
Front panel display
1
2
3
2 4
5
6
7
8
9 10
6. Playback Status – Indicates playback status such as Play, Pause,
Repeat, Repeat All, Random/Shuffle, and A-B Repeat.
7. Angle Icon – Indicates that the scene contains additional camera
angle(s) that can be selected.
8. HDMI – Indicates that the HDMI output is active.
11 12
13
14
1. Disc Type Indication – Indicates the currently playing disc type.
2. Track/Chapter – When illuminated, the displayed time applies to
a track or chapter.
3. T itle/Group – When illuminated, the displayed time applies to a
title or group.
4. Total – When illuminated, the displayed time is the total play time.
9. Network – Indicates that the unit is connected to a network.
10. Wireless – Indicates a connection to a wireless network.
11. Mute Icon – Indicates that the audio is muted.
12. Audio Channel Indication – Indicates whether the audio is 2ch
stereo or multi-channel surround.
13. Main Display – Text messages and numeric display.
14. Audio Type Indication – Indicates the type of audio tracks playing.
5. R
emaining – When illuminated, the displayed time is the remaining
play time.
9
Remote control
The Azur 752BD is supplied with an Azur Navigator remote
control. Insert the 3 supplied AAA batteries to activate.
For further details of the various adjustment functions
available, refer to the later sections of this manual.
Press to return to the previous menu.
Pure audio
Turn off the video outputs and Front panel display.
Press to turn the backlight on and illuminate the remote
control buttons.
Filter
Press to select between three different digital filter
modes: linear phase, minimum phase or steep. The
corresponding LED will light up on the front of the unit to
show which filter has been selected. The filter affect the
analog outputs only. See later section for details.
Opens and closes the disc tray.
Switches the unit between on and standby modes.
Sound track
Info
Press to change soundtracks where available.
0-9 Numerical buttons
Press to access Subtitles where available.
Press to show/hide the on screen information display.
Subtitle
Used to enter numeric values such as the number of a
desired chapter or track to go to.
Digital inputs
Press to cycle between Playback from the BD player itself
and the different digital inputs.
Page/ Page
Show previous/next page.
Options
For Blue-ray/DVD disc, Press to access Subtitle Shift, Pic
Adj, Zoom, Angle.
Press to go to the Home menu. The home menu allows
access to Playback from disc, connected hard-drives,
network or the internet.
For CD disc, press to access Shuffle/Random, Repeat.
This button vary by disc type.
Go To
Press once to bring up an OSD bar showing (from left to
right) Playing Status, Title, Chapter, Time Counter, Progress
Indicator, and Total Time. After pressing the Go To button
for the first time, the cursor will be positioned at the Time
Counter. This is the “Time Search” mode. Each subsequent
press of the Go To button moves the cursor from Time to
Chapter to Title and back round. Use the Numerical or
Navigation button to enter the hours, minutes and seconds
for your specified search and press the Enter button.
Colour buttons
These button functions vary by the content. See later
section of the manual.
A/B
Press to mark a segment between A and B for repeated
playback. The first press marks point A, the second press
marks point B.
Repeat
Press to access Repeat function. Pressing the Repeat
function again will cycle as follows:
Clear
Press to remove current track programs.
DVD and DVD-Audio – Repeat Chapter, Repeat Title,
Repeat All, Repeat Off.
Increases and decreases the volume of the player.
(Analog outputs only)
Blu-ray Disc – Repeat Chapter, Repeat Title, Repeat Off.
CD and SACD – Repeat One, Repeat All, Repeat Off.
Scan forwards and backwards.
3D
Press to enable 3D conversion or bring up the 3D
adjustment menu.
Right Skip – Press once to skip forward by one track/
chapter on the disc.
DIM
Press to dim the front panel display.
Left Skip – Press once to skip backward by one track/
chapter on the disc.
Angle
Navigation
Press to access various camera angles (if available on the
disc).
Press the directional arrows to move around menus.
Enter
Press to accept the item/function highlighted in the menu.
Zoom
Press to play or pause playback.
Note: The Angle and Zoom features may not be available with certain
DVD or Blu-ray discs.

Res
Press to stop current playback.
Top menu
Show BD top menu or DVD title menu.
Pop Up menu
Show BD pop-up menu or DVD menu.
Setup menu
Press to enter the Setup menu. Please refer to the “Blu-ray player setup”
section of this manual for more information.
10
Press to cycle through the various zoom magnifications (and back to
normal display).
Press to switch the output resolution to the TV.
TV type
Press to cycle the TV system output between PAL, NTSC or Multi. Refer
to later section of this manual.
Note: When a buttom is pressed, but the function is currently
unavaiable or not relevant, the TV screen displays a ‘ ’ symbol in
the top left corner.
752BD
• Refer to the operating instructions supplied with the broadband router
or modem, or contact the Internet service provider for questions
related to setting up of a router or modem.
Amp/AVR control buttons
The 752BD remote volume up down buttons can be made to control a
Cambridge Audio azur amplifier or AV receiver.
Note: These buttons are by default set to transmit the codes for the
752BD itself.
To select azur AV receiver mode remove the batteries and leave for 5
minutes before re- inserting the batteries while holding down the red
button. For azur amplifier mode remove the batteries and leave for 5
minutes before re- inserting the batteries while holding down the green
button.
Note: Only connect the LAN port of the player to an Ethernet port that
supports 10BASE-T or 100BASE-TX. Connecting to any other ports or
jacks, such as a phone jack, can damage the player.
Using the wireless adaptor instead
Wi-Fi USB
Dongle
Once you have done this the volume buttons will control your Cambridge
Audio azur AV receiver or Amplifier instead. The buttons below will also
be available as follows:
Press to switch the amplifier/AV receiver between Standby mode and On.
Rear Panel
Press repeatedly to scroll through the amplifier/AV source inputs one
by one.
Zone 2
Press to control Zone 2 functions of the AV receiver (if it has Zone 2).
Internet
Wireless Broadband Router/
Modem
Press to mute/un-mute the amplifier/AV receiver.
Connecting to the Internet/Network
The 752BD supports the BD-Live feature offered on some Blu-ray Disc
titles. BD-Live offers extra downloadable content and additional online
interactive programs. The available BD-Live content varies by disc and
studios, and may include additional subtitles, commentaries, movie
trailers, games, and/or online chat.
Broadband Internet
connection
The wireless adaptor included with the 752BD has been pre-configured
to work with your player. Other wireless adaptors will not work.
Connecting the player to the Internet will also allow the player to obtain
firmware updates via the Internet.
If the network storage drives or servers conforming to the UPnP A/V
or DNLA standards are connected to the network, these can also be
accessed.
In order to utilize the BD-Live feature or update firmware via the Internet,
the player needs to be connected to a broadband Internet connection.
It is not necessary to connect to the Internet if you do not intend to use
the BD-Live and online firmware updating functionality and only wish to
use UPnP/DNLA.
Ethernet connection
USB extension cable
A USB extension cable is provided with your 752BD. This can be used
if desired to move the wireless dongle to a more convenient location.
Note:
• Make sure the broadband Internet connection is available and the
Wi-Fi function on your wireless router or access point has been turned
on, and plug the adaptor into the rear USB 2.0 port of your 752BD.
Rear Panel
•A
fter connecting the adaptor, some network configuration is required.
Please refer to the ‘Network Setup’ section of this manual.
Network Cable
(Ethernet)
Internet
Wireless Broadband Router/
Modem
Broadband Internet
connection
• Plug one end of a network cable (Category 5/5E straight through
Ethernet cable) into the LAN port on the back of the unit.
• Plug the other end of the network cable into a LAN port on your
broadband router or modem.
• If you do not use DHCP (Auto IP), some network configuration may be
required. Please refer to the Network Setup section of the manual for
more details.
11
ENGLISH
azur
Audio output connections
Do not plug in the mains power lead or turn the unit on until all
connections have been made.
Note: It is also possible to make an HDMI audio/video connection which
carries both audio and video in the same cable. See later section.
Three types of audio only connection can be made between the 752BD
and your stereo/AV system:
However, when making an HDMI connection i.e. to an AV receiver, it is
also often preferable to make an additional audio connection as well for
CD and/or SACD/DVD-A playback.
In
1 Separate Analogue Stereo
In
AV receiver
1
2
2 Digital Audio
3 Analogue 2 ch/5.1/7.1
OR
Phono cable
(2RCA-2RCA)
Front left
speaker
3
7.1
AV receiver with
5.1/7.1 analogue
inputs
Front right
speaker
Centre speaker
Surround left
speaker
Surround right
speaker
Subwoofer
Speaker diagram shown for 5.1 channel setup. For 7.1 add two rear speakers.
1
Separate analogue stereo
The analogue stereo outputs should be used for play back of CDs,
DVDs etc in stereo through a conventional amplifier or AV receiver with
analogue stereo inputs.
Analogue stereo is also usually the best connection method for listening
to CDs and other stereo discs for best possible sound quality. It is often a
good idea to connect both the analogue stereo outputs (for CD playback)
and digital audio outputs or HDMI (for surround sound decoding) at the
same time.
To connect an analogue stereo system to the 752BD, use stereo phono
cables (stereo 2RCA-2RCA).
2
Digital audio
The digital audio outputs should be used to decode the surround-sound
soundtracks of BD/DVDs with an external AV Receiver (Note: Digital output
must be set to "RAW" in the Audio setup page). The 752BD sends an
undecoded audio bitstream to the AV Receiver for decoding into 5.1/7.1
etc.
Note: The latest HD audio types, SACD and DVD-A cannot be output over
SPDIF/TOSlink and an HDMI connection must be used for these.
Either a 75ohm co-axial cable designed for digital audio or a TOSlink fibre
optic cable should be used (only one at a time).
12
Note: It is also possible to output stereo digital audio from the Digital
Outputs for recording on conventional CD-R/MD etc. machines, see
section on 752BD setup.
3
Analogue 2 ch/5.1/7.1
The 752BD is also capable of decoding Surround-Sound soundtracks
itself and outputting these as analogue Stereo, 5.1 or 7.1 depending on
the settings in the Speaker setup page in the 752BD setup menu.
For 5.1, connect to an AV receiver or amplified speaker system, use 6 x
phono/RCA cables.
For 7.1, connect to an AV receiver or amplified speaker system, use 8 x
phono/RCA cables.
azur
752BD
Note: The Dolby Digital Plus, Dolby True HD, DTS HD High Resolution
and DTS HD Master Audio can only be passed by the 752BD over HDMI.
HDMI (High-Definition Multi-Media Interface) is a digital connection that
can carry both audio and video in one cable. Direct digital transfer of
video and support for various types of high definition video content make
this the best connection type for picture quality.
As HDMI can carry both digital audio and video, HDMI can be used to
connect to AV receivers that support this function for external decoding.
The 752BD supports two HDMI outputs, both are 3D TV and ARC
compatible. For normal use with a single TV or TV and AV Receiver use
HDMI output 1 (Primary Output) as this benefits from the Marvell QDEO
Video processor, as shown below.
Set the Dual HDMI Output option in the video setup menu to
‘Dual Display’, see later section.
a Direct connection to a TV for HDMI 1
b
HDMI cable
onnection to a TV via an AV Receiver
b C
for HDMI 1.
Out
In
AV receiver
In
TV/Monitor with HDMI input
HDMI cable
a
TV/Monitor
with HDMI
input
HDMI cable
In
HDMI 2, the secondary HDMI output of the 752BD can be used either to
allow connection of two display devices or to allow separate HDMI audio
and video outputs as shown in the two examples below.
Connecting to two displays using dual HDMI
The 752BD features two HDMI outputs.
Both outputs can pass 3D TV signals and both can recieve ARC.
Set the Dual HDMI Output option in the video setup menu to
‘Dual Display’, see later section.
This is necessary to allow HDMI 2 to output high resolution audio.
If is therefore possible to connect two TVs or a TV and Projector etc. you
should treat output 1 as the Primary highest quality output as it benefits
from the in-built Marvell QDeo scaler.
b
a Connection to a Primary TV/Monitor.
b Connection to a Secondary TV/Monitor.
In
Secondary
TV/Monitor
with HDMI
input
HDMI cable
a
Primary TV/
Monitor with
HDMI input
HDMI cable
In
13
ENGLISH
HDMI connections
HDMI connection cont.
Connecting separately to a display and audio system
using dual HDMI
Set the Dual HDMI Output option in the video setup
menu to ‘Split AV’, see later section.
If your AV Receiver cannot pass 3D TV HDMI signals it is possible to
configure the 752BD to output Video (inc 3D TV) via HDMI 1 directly to a
3D compatible display and Audio via HDMI 2 directly to the AV Receiver.
b
a Connection to a TV/Monitor.
AV Receiver with
HDMI 1.3 input.
b Connection to an AV Receiver.
HDMI cable
a
TV/Monitor
with HDMI
1.4 input.
HDMI cable
In
MHL/HDMI inputs.
The 752BD has two HDMI inputs. One on the front panel which also
features MHL and one on the rear panel.
The 752BD is pre-configured from the factory for the best settings for
most modern TVs and AV Receivers.
Both can accept up to 1080p video and digital audio.
However to ensure you have the basic settings right please read the
following sections on setting the best output resolution, display aspect
ratio and audio settings. Many more advanced options are also covered
later in the manual.
The front panel HDMI is combined with an MHL input, either type of
connection can be used with portable devices such as digital camcorders.
For HDMI devices the 752BD can received audio and video in the normal
way, for MHL devices the 752BD receives audio and video and also
powers or charges the device.
azur 752BD
Blu-ray Disc Player
Standby / On
MHL/HDMI In
MHL cable
Set-top box with HDMI output
Camcorder with MHL output
HDMI
cable
14
Diagnostic Video output.
The 752BD features a composite (CVBS) diagnostic video output.
Optionally you can connect this to your TV as well as making an HDMI
connection. This output can be useful if you lose the HDMI output
752BD
(perhaps by selecting an output type your TV cannot display). The
diagnostic video output will still work and can be used to display the
OSD and change settings. Only the OSD is shown via the diagnostic video
output it is not used for video playback.
TV/Monitor
In
Setting up the player
Operating instructions
Selecting the best output resolution
Getting started
For the latest generation of 1080p, "Full HD" or "True HD" TV displays,
the best output resolution will naturally be 1080p. For earlier “HD Ready”
digital televisions this might be 720p or 1080i. It is usually best to set
the output of the 752BD to the native resolution of the TV, consult the
TVs manual for details of the actual resolution of its panel. Large TVs
are often 1080p (1920 x 1080) but smaller TVs are sometimes 720p
(1280 x 720). These are general recommendations that work for most
users, but there can be exceptions. Advanced users may want to try all
supported resolutions and choose the one that provides the best visual
result.
Turn on the power of the 752BD, TV, amplifier/AV receiver and any other
components which are connected to the 752BD. Make sure the TV and
the audio receiver are set to the correct input channel.
The 752BD also supports a special "Source Direct" output mode via its
HDMI output. This mode is recommended for use with external video
processors or high-end TVs with high quality scalers. In "Source Direct"
mode, the player works as a "transport". It decodes video from the discs
and then sends the raw video signal in its native resolution and format,
without extra processing, to the external video processor or TV. The
actual output resolution thus varies by content:
Content PAL DVD NTSC DVD Most Blu-ray Movies (film-source) Most Blu-ray TV shows or Concerts
(video-source)
SACD and DVD-Audio Source Direct Output Resolution
576i
480i
1080p 23.976Hz or 1080p 24Hz
1080i
1080i
For both HDMI outputs, the following output resolutions are available:
4Kx2K, Auto, 1080p, 1080i, 720p,480p/576p, 480i/576i, and Source
Direct.
If Auto is selected, the player will determine the output resolution based
on the best signal resolution that the TV can display. It does this by
reading the EDID of the TV via the HDMI connection, if all is well the TV
will tell the 752BD the range of video outputs it can support and the
752BD will pick the highest one. The 752BD will then allways scale the
output to this resolution.
If any of the other resolutions is selected the 752BD will always scale
the output to the resolution you select. Note that 4K x 2K is a very new
standard and only a handful of TVs currently support this. For most TVs
selecting this option will cause the picture to be lost.
To change the output resolution, press the Res button on the remote to
bring up the Resolution Menu, then press the  or  buttons on the
remote to highlight the desired output, press the Enter button to confirm
and return. If your TV does not support the selected resolution, you may
see a black screen or an error message. In this case, try a different
resolution that your TV can support.
Note:
• In case you are not able to get a picture using the HDMI outputs, please
connect the player to the TV using the diagnostic composite video
output, and then use the Setup Menu to adjust the player settings.
1. Press the Open/Close button to open the disc tray.
2. Place the disc on the tray, label side facing up.
3. The player will read the disc information and start playback.
4. Depending on the content of the disc, a menu or navigation screen
may appear. Please use the () navigation and Enter button
to select the content to play.
5. To stop playback, press the  button.
6. To turn off the player, press the Standby/On button.
Note:
• During DVD and some Blu-ray Disc playback, pressing the  button
for the first time brings the player to a pre-stop mode. You can resume
playback from the stopped point by pressing the / button. This
pre-stop mode allows you to change the player settings and then
resume playback. To completely stop playback, press the  button
twice.
• Certain Blu-ray Discs with BD-Java technology do not support the prestop mode. Pressing the  button during playback of such discs will
completely stop the disc. Pressing the /button once the disc is
stopped will restart it from the very beginning.
• This unit featured an environmentally friendly low power (<0.5W)
standby circuit. If it is not to be used for a long time, unplug it from the
household AC outlet.
• Do not put anything except a BD/DVD/CD sized disc into the tray,
foreign objects may damage the mechanism.
• Do not force the tray by hand during the opening and closing operations.
• To avoid dirt and dust entering the mechanism, keep the disc tray
closed when not in use.
• If the disc is seriously scratched or too dirty, the player may not be able
to read it or play it.
• Never load more than one disc into the disc tray at one time.
Options Menu
During disc or file playback or when using the HDMI inputs pressing
the Options button on the remote handset opens up a menu bar at
the bottom of the screen for convenient access to various settings and
playback features.
When the Options menu is displayed, press the or buttons on the
remote handset to highlight a particular item, then press the Enter
button to confirm.
15
ENGLISH
azur
The Options menu selections differ depending on content type.
A-B Repeat
For video disc or video file playback the following options appear:
1. Press the A-B button at your desired starting point. "A" appears briefly
on the TV screen.
Subtitle shift – Adjusts the position of subtitles on the screen.
Picture Adj. – Allows adjustment of the picture for brightness, contrast
etc. both HDMI1 and HDMI2 can be adjusted separately.
Zoom – Opens the image zoom level menu.
Angle – Changes the viewing angle. This function is only available if the
DVD/BD has been recorded with multiple angles.
For photo file playback the following options appear:
Zoom – Displays the image at different zoom levels.
Rotate-Left / Right / Mirror / Flip – Rotates the image on the screen.
For video playback from an HDMI input the following option appears:
Picture Adj. – Allows adjustment of the picture for brightness, contrast
etc. both HDMI1 and HDMI2 can be adjusted separately.
Fast Forward/Rewind search
Press repeatedly to cycle between 1X, 2X, 3X, 4X and 5X playback
speed (without sound) and back to normal playback. Press
 button for backwards playback options, or the  button for forwards
playback.
Note: Certain Blu-ray discs utilising the BD-Java technology may have
their own fast forwarding and reversing control. The actual speed varies
by disc, and a progress scale may be displayed by the disc.
Skip playback
1. Press  once to skip forward by one track/chapter on the disc. Press
and hold to skip forwards through several tracks.
2. Press the A-B button at your desired end point. "A-B" appears briefly on
the TV screen, and the repeat sequence begins.
3. To exit the sequence, press the A-B button.
Note:
• The A-B repeat section can only be set within the current title (for BD/
DVD video) or current track (for BD/DVD audio, Video CD and Audio CD).
• A-B repeat playback is not available with some scenes on BD/DVD.
• A-B repeat playback does not function during title, chapter, track or all
repeat playback.
On-Screen Display
1. During the playback of a BD/DVD disc, press the Info button on the
remote control to show status information; For CD and SACD, the
status information is shown automatically.
2. While the status information is shown, press the   buttons to
scroll through several display formats. The playback time information
displayed on the front panel changes together with the on-screen
display.
3. Press the Info button again to hide the on-screen display. The playback
time information display on the front panel will remain in the selected
format.
In addition to the playback time, the on-screen display may also contain
the following information about the content currently playing:
Playback status – an icon indicating play, pause, and fast forward/
reverse status.
2. Press  once to skip backward by one track/chapter on the disc.
Press and hold to skip backwards through several tracks.
Bit rate meter – an indication of the bit rate of the audio and video
stream.
Go To
Current and total title numbers (DVD and Blu-ray Discs), title chapters
(DVD and Blu-ray Discs) and total tracks (CD and SACD).
Press the GoTo button on the remote once to access Time Search
and enter the required time from the start of the disc as H:MM:SS
(Hours, Minutes, Seconds) using the numerical keys or the ()
navigational buttons. Press twice to access Chapter Time Selection and
enter the required time from the start of the chapter. Press three times
to access the Display information.
Slow
Audio information – current and totally available number of audio tracks,
language, format, and channels.
Subtitle information – current and totally available number of subtitle
tracks and language.
Video format information – encoding type, frame rate and original aspect
ratio.
When playing a BD/DVD, press the  button to pause playback and
then press the  or  button to cycle round the various speeds of slow
motion (1/16, 1/8, 1/4 and 1/2), forwards and backwards and back to
normal speed. To exit playback, press the / button.
Audio language (soundtrack) selection
Note: Certain Blu-ray discs utilising the BD-Java technology may not
support slow playback.
2. Repeatedly pressing the soundtrack button cycles through all available
audio soundtracks on the disc.
Pause and frame by frame
1. During playback, press the / button to temporarily pause the
program. In this mode, a Pause icon will appear on the TV screen.
2. While a DVD or Blu-ray Disc is paused, press the  or  button to
reverse or advance the video frame-by-frame.
1. To select the audio language, press the soundtrack button on the
remote control during playback.
Note: The availability of languages and audio soundtracks varies by
disc. Some BD/DVD-Audio discs allow audio track selection with the
soundtrack button, while others require the user to select from the audio
setup menu of the disc. When playing a SACD with both multi-channel
and stereo contents, the soundtrack button can be used to switch
between the two formats.
3. Press the / button to resume normal playback.
Subtitle selection
Repeat
Note: The Repeat function is available only during playback.
1. When playing a DVD, Blu-ray disc or other video programs recorded
with subtitles, press the Subtitle button on the remote control to select
the desired subtitle.
Press the Repeat button to access Repeat function. When pressed
repeatedly the Repeat function will cycle as follows:
2. Repeatedly pressing the Subtitle button will cycle through all available
subtitles.
DVD and DVD-Audio – Repeat Chapter, Repeat Title, Repeat All, Repeat Off.
3. To turn off subtitles, press the Subtitle button until the subtitle is
turned off.
Blu-ray Disc – Repeat Chapter, Repeat Title, Repeat Off.
CD and SACD – Repeat One, Repeat All, Repeat Off.
Note: The repeat chapter/title setting will be cleared when moving to other
chapter or title. Certain Blu-ray discs may not allow the Repeat function.
16
Subtitle Shift
Sometimes such as when using a 2.35:1 "Constant Image Height" video
projection system, subtitles may get cut off because they are positioned
outside of the active video area.
The Subtitle Shift feature can be used to shift subtitles up or down so
they are displayed within the active video area.
To shift the display position of subtitles, follow these steps:
1. When playing a DVD, Blu-ray Disc or other video programs recorded
with subtitles, select the desired subtitle from the disc menu or by
using the remote.
2. Press and hold the Subtitle button on the remote control until the Shift
Subtitle Position prompt appears on the screen.
3. Wait until some subtitle text is visible on the screen, and then use
the / buttons to move the subtitle text to a desired new position.
4. Press the Enter button to set the subtitle display position. Once the
Subtitle Shift position is set, it is saved by the player in the Video Setup
> Display Options > Subtitle Shift setup menu option. The setting will
be applied to subtitles of all future DVD and Blu-ray Discs. You can
also change the setup menu item directly. Refer to the Video Setup
for more information.
Angle selection
1. When playing a DVD or Blu-ray Disc, an angle mark will be displayed
on the screen when the player detects scenes recorded with multiple
possible angles.
The angle mark is also shown on the front panel display.
2. Press and hold the Angle button on the remote control to select the
desired playing angle.
3. To resume normal playback, hold the Angle button until the default
angle is displayed.
Note: This function is available only when the discs are recorded with
multiple angles. The Angle mark display shows when an alternative angle
is available. The Angle mark display on the screen can be turned off
using the Setup Menu of the player.
Zoom
To change the zoom level, press the Zoom button on the remote control.
repeatedly pressing the Zoom button will switch the zoom level in the
following sequence: 2x, 3x, 4x, 1/2, 1/3, 1/4 then back to normal.
The zoom level is reset to 1:1 when the disc is ejected, or when the player
is turned off.
Note: The Zoom feature may not be available when certain DVD or Bluray Discs are played because the disc author chooses to disable Zoom.
Blu-ray disc menu
1. Blu-ray discs usually contain a top menu and a pop-up menu. The top
menu normally appears at the beginning of the playback, after the
previews and copyright messages and allows access to different film
presentations or extras etc. The Pop-up Menu can be accessed during
playback without interruption and usually allows access to different
chapters with in a film.
2. During playback, press the Pop-up Menu button to access the pop-up
menu. Press the Top Menu button to access the top menu.
3. Navigate the menu using the () Navigation buttons, and then
press the Enter button to make the selection.
4. Some menus make use of the colour buttons. You can select menu
functions by pressing the corresponding Colour button on the remote
control.
DVD disc menu
1. Some DVD discs also contain title menu or chapter menu functions.
2. During playback, press the Top Menu button to return to the disc title
menu. Press the Pop-Up Menu button to display the chapter menu.
Depending on the disc, one or both menus may not exist.
3. Navigate the menu using the () Navigation buttons, and then
press the Enter button to make the selection.
4. Press the Return button to return to the previous menu. The return
location varies by disc.
752BD
Memory and automatic resume
The player automatically remembers the current position for a disc when
playback is interrupted. Operations such as Open/Eject or turning Power
off will cause the player to save the current playing position for that disc.
The position is memorised even after turning off the unit or changing
the disc.
When the next time the same disc is played back, the player will recognize
the saved playing position. Playback will automatically resume from this
saved position. However if you wish to cancel the automatic resume and
start playback from the beginning, you may press the  button when
prompted.
The player can remember playback position for up to five discs. When the
sixth disc is memorised, the oldest one is replaced.
Note: Some Blu-ray discs do not support resuming and will always play
from the beginning.
HDMI / MHL INPUT selection
1. Press the Digital Inputs button on the
remote to bring up the "Input" source
menu.
2. Use the / buttons to choose the required digital input from the list.
3. You can always select the BLU-RAY Player
to return to home menu for disc or file
playback.
Note: The front HDMI IN port is MHL (Mobile
High-definition Link) compatible. A dedicated MHL cable or adapter is required (not
included) and some configuration may be
required on the mobile device.
Audio ReturnInput
Channel (ARC)
Selection
BLU-RAY PLAYER
Input
BLU-RAY PLAYER
HDMI/MHL IN-FRONT
HDMI IN-BACK
ARC: HDMI OUT 1
ARC: HDMI OUT 2
OPTICAL IN
COAXIAL IN
Input
BLU-RAY PLAYER
1. The ARC sources are also available in
HDMI/MHL IN-FRONT
HDMI/MHL IN-FRONT
the Digital Inputs menu. Press the Digital
HDMI IN-BACK
HDMI IN-BACK
Inputs button
on the remote to bring up
the Input
Source
ARC:
HDMImenu.
OUT 1
ARC: HDMI OUT 1
2. Use the / buttons to choose the
ARC: HDMI OUT 2
ARC: HDMI OUT 2
required ARC channel.
IN
OPTICAL IN
3. You canOPTICAL
always select
Blu-ray Player to
return toCOAXIAL
the 752BD
IN home menu for disc
COAXIAL IN
or file Playback.
Note:
• Audio Return Channel (ARC) is a feature introduced in HDMI V1.4,
which allows you to send digital audio signals from the television back
to the player or receiver. Instead of listening through TV speakers, ARC
allows the sound to be processed and produced by the home theater
audio system.
• A HDMI 1.4 cable is required and you need to make sure the HDMI
input port on the TV is ARC capable . Usually, ARC also has to be
enabled in the TV’s settings.
The volume control buttons on the remote handset only affect the analog
audio outputs. Volume control does not apply to the digital audio/video
outputs (HDMI, Co-axial and Optical). The remote can alternatively be
made to control the volume (plus source change, mute, on/off and zone
2 where available) of most Cambridge Audio azur range AV Receivers and
amplifiers See the previous section on the remote control for full details.
Playback by Chapter or Track Number
During the playback of a disc, you can use the numerical buttons on the
remote control to directly jump to a specified chapter or track number.
For example:
• To select the seventh track, press the [7] button.
• To select the 16th track, press [1] followed by [6] in quick succession.
Note: Certain DVD-Audio and Blu-ray Discs may not allow for direct
chapter selection.
17
ENGLISH
azur
Operating instructions cont.
Playback from a Specific Location on DVD and Blu-ray
Discs
During the playback of a DVD or Blu-ray Disc, you may specify a location
to start playback by entering the title, chapter or time directly. Press the
GoTo button to bring up the on-screen display.
At the top of the video screen, an on-screen display status banner will
appear with the following components (from left to right): Playing Status,
Title (for instance 1/2 meaning 1st of 2 titles currently playing), Chapter
(for instance 3/12 meaning the 3rd of 12 chapters is currently playing),
the Time Counter, a Progress Indicator bar, and the Total Time.
After pressing the GoTo button for the first time, the cursor will be
positioned at the Time Counter. This is the Time Search mode.
Each subsequent press of the GoTo button will switch the search mode
in the following sequence: Chapter Search, Title Search and back to
Time Search. The back and forward arrows can also be used to switch
between the different modes.
1. Time search. Searches for a specific time within the currently playing
title. Use the Number or Arrow buttons to enter the hours, minutes
and seconds for your specific search and press the ENTER button to
go there.
2. Chapter search. Allows you to search for a particular chapter. Use the
Number or Arrow buttons to enter or select the chapter number and
press the Enter button to go there.
3. Title search. Allows you to search for a particular title. Use the Number
or Arrow buttons to enter or select the title number and press the
Enter button to go there.
Notes:
• Some discs may prohibit the search operation. You will not be able
to select a search location, or you may get an "invalid operation" icon
after specifying a search location.
• Some Blu-ray Discs feature their own search.
Some Blu-ray disc titles are released with the BD-Live feature. BD-Live
offers extra downloadable contents and additional online interactive
programs. The available BD-Live content varies by disc and studio, and
may include additional subtitles, commentaries, preview trailers, games,
and online chat. The player needs to be connected to the Internet in
order to play BD-Live contents.
Depending on how the studios organise their BD-Live contents, some Blu-ray
discs may start downloading BD-Live content when playback starts; some
have a BD-Live selection on its main menu; some may show a prompt to ask
whether you would like to start downloading; and some may ask you to sign
up for a membership or account. Please follow the instructions that come
with the disc to enjoy BD-Live contents.
Your Internet connection speed, the overall Internet traffic situation and
the capacity of the BD-Live content servers can all affect how fast BDLive content can be downloaded. If you encounter slow downloading or
intermittent playback, please play the disc without accessing the BD-Live
features, or try again at a different time.
When you use the BD-Live feature, the player or disc ID and your IP
(Internet Protocol) address may be sent to the content provider via
the Internet. Generally, no personally identifiable information is sent.
However technologies exist to match your IP address to a certain
geographical area or service provider. Your Internet service provider
also has the knowledge of who is using which IP address. If the BD-Live
content provider requires you to login using a membership or account,
the content provider will have access to your membership or account
information. Please check with your Internet service provider and the
BD-Live content providers for their privacy policy.
You can also choose to restrict BD-Live access using the player’s Setup Menu.
Output resolution
If you would like to change the output resolution, you may do so by
pressing the Res button on the remote control:
Picture-in-Picture and Secondary Audio
Certain Blu-ray discs contain secondary video (Picture-in-Picture/PIP) and
secondary audio. This feature is often called BONUSVIEW. When such
a disc is played, a Picture-in-Picture mark (PIP Mark) and a Secondary
Audio Program Mark (SAP Mark) may be displayed on the screen to alert
you to the availability of the secondary audio/video content.
1. Make sure the video cable is properly connected.
2. Turn on the TV. Make sure the correct input is selected.
T he disc menu usually features interactive controls to turn on/off the
Picture-in-Picture video and Secondary Audio Program. Please use those
controls to select the desired secondary audio/video content.
3. Make sure that the player is turned on. Although the output resolution
can be changed "on the fly", it is recommended that you stop playback
and take out the disc before changing the output resolution. Press the
Res button. A "Resolution Setting" menu appears on the TV screen. In
case the TV does not support the current resolution and you cannot
see the "Resolution Setting" menu, the current resolution is also
displayed on the front panel to the unit.
There is also a PIP button on the remote control. If the disc menu does
not offer interactive Picture-in-Picture controls, please use this button
to turn on/off Picture-in-Picture or select from multiple secondary video
programs.
4. Use the   buttons to select the new output resolution. Pressing
the Res button cycles through the available output resolutions. The
new resolution is displayed on the front panel just in case you cannot
see the "Resolution Setting" menu (if it is incompatible with your TV).
Similarly there is a SAP button on the remote control. If the disc menu
does not offer interactive secondary audio controls, please use this
button to turn on/off Secondary Audio Program or select from multiple
secondary audio tracks. Secondary Audio Programs are generally only
available when Picture-in-Picture is shown.
5. Press the Enter button to apply the selected output resolution. Or, if
you do not want to change the output resolution, press the button.
Note:
• This function is available only when the discs are recorded with
secondary video and audio programs.
• Discs may not always be played back according to the PIP and SAP
remote buttons. Certain discs can ignore or override the remote
control commands.
• The PIP and SAP Marks on the screen (which alert the user to the
presence of these functions on the disc) can be turned off using the
Setup Menu of the player.
18
The following output resolutions are available:
PAL output via HDMI 1 or 2– 4k x 2k, Auto, 1080p, 1080i, 720p, 576p,
576i, Source Direct.
NTSC output via HDMI 1 or 2 – 4k x 2k, Auto, 1080p, 1080i, 720p,
480p, 480i, Source Direct.
Note:
• Some TV sets do not support some output resolutions (4k x 2k is
currently rarely supported). If an incompatible output resolution is
selected, you will get a blank screen or an error message. In this case
please select an output resolution that is supported by the TV. You will
still be able to see the resolution selected on the front panel display.
• In case you are still not able to get a picture using the HDMI outputs,
please connect the player to the TV using the composite video output,
then use the Setup menu to adjust the player settings.
azur
752BD
TV system selection
The 752BD can be set to output all video as PAL or NTSC or output
the video in the same format it was recorded in (Multi). Some TVs only
support PAL or NTSC and not both so forcing the output type to one or
the other can be useful.
Press the TV Type button on the remote control to cycle the video output
to PAL, NTSC or "Multi" system. The TV screen displays the selected
system name.
Some points to keep in mind:
• When the video output is set to PAL or NTSC, the player will convert the
disc content if different to the selected system.
• When the video output is set to "Multi", the player will not perform system
conversion and will output the video in its native format on the disc. The
"Multi" mode should only be used if your TV supports both NTSC and PAL
systems.
• Some TV sets only support one of the PAL or NTSC systems. If the
wrong output is selected, the TV may not display a picture. In this case
keep pressing the TV Type button until a supported system is selected.
• The output system selected with the TV Type button will be remembered
when the player is turned off. The output system selection can also be
done by setting the "TV System" item in the "Video Setup" section of
the player’s Setup Menu.
Viewing pictures on DVD-Audio discs
Some DVD-Audio discs contain static pictures, such as photos of the
band or narration of the album. When a DVD-Audio track is playing, you
may use the Page  and Page  buttons to select the picture.
As well as normal CD’s, SACD’s, DVD’s and BD’s the 752BD can play
some music, movies and photo files either from optical datadiscs (such
as CD-R, DVD-R etc.) or external memory such as USB flash-drives/
thumb-drives or hard-drives.
Connecting a USB Drive
The 752BD is equipped with three USB 2.0 ports, one on the front of the
unit and two on the back. You may use any USB port to plug in a USB
drive loaded with digital music, movies and photo files.
The USB ports are rated to provide a maximum of 5V, 1A power to the
attached device. This is usually sufficient to bus power (i.e. self power)
USB flash drives and flash memory card readers, but may not be
sufficient for all USB hard disks.
Note:
• This unit supports Mass Storage Class Bulk Transport devices only.
Most USB thumbs drives, portable hard disk drives and card readers
conform to this device class. Other devices such as MP3 players,
digital cameras, and mobile phones that include their own memory
management may not be compatible.
• Supported USB drives must be formatted with the FAT (File Allocation
Table), FAT32 or NTFS (New Technology File System) file system.
• In some cases, an incompatible device may cause the player to stop
responding. If this occurs simply turn off the power, remove the device,
and turn the player back on.
• The player accesses the USB drive in read-only mode. In order to
minimize the risk of data corruption, it is recommended that you only
unplug the USB device when playback has completely stopped.
Note: Availability of static pictures depends on the DVD-Audio disc.
Network Media Playback
Pure Audio mode
1. Press the Pure Audio button on the remote control to turn off video and
enter Pure Audio mode. Video output will be turned off.
T he 752BD can remotely Playback music, photos, and video files stored
on media devices that are connected to the same home net work. Set
the My Network selection to On in the Setup Menu. Press the
button
on the remote to bring up the Home Menu, select the Network icon
and press Enter button to show the list of available servers and shared
folders. In some cases, you might need to disable your firewall to allow
the 752BD to see your devices.
2. Press the Pure Audio button again to resume video and cancel Pure
Audio mode.
The 752BD can perform Network Playback in one of the following three
ways:
Note:
• As a digital media player (DMP): the 752BD can actively search, access
and pull content from media servers on you network.
You can enjoy higher quality audio by turning off the video processing
and front panel display. The Pure Audio mode reduces any potential
interference between the video and audio signals.
• Pure Audio mode is automatically cancelled when the unit is switched
off or when playback is stopped.
• Since HDMI carries audio together with video, the HDMI output cannot
be completely turned off. A black screen (inactive video but sync is still
present) is transmitted instead to minimize any potential interference.
Shuffle
When playing a CD or SACD, press the Blue button on the remote control
to activate the Shuffle and Random modes. Each press of the Blue
button switches the playback mode in the following sequence: Shuffle
, Random and Normal.
• As a digital media renderer (DMR): the 752BD plays content received
(‘pushed‘)from a digital media controller (DMC). A DMC-capable UPNP/
DNLA media server is required. Plus the control APP you wish to use
which must be connected to the same network as the server and
752BD. Refer to the server and APPs respective user instructions for
correct configuration and operation.
• Accessing a SMB/CIFS client: the player can directly access files
shared by computers through SMB/CIFS clients over the network, as
if accessing a local USB hard drive. Most computers especially those
installed with Windows, already have an SMB client embedded. Please
refer to your respective OS instructions to set up the SMB/CIFS shared
file/folder.
Note:
• A NAS is a network attached storage device that provides file-based
data storage services to other devices on the network. Commercial
products are available that often incorporate a UPnP/DNLA Server.
• SMB (Server Message Block) or Cifs (Common Internet File System) is
mostly known as the folder sharing method of Microsoft Windows. It
does not require an extra media server or perform any media format
transcoding.
• Compatibility with local network sharing hardware/software is on a
best effort basis with no guarantee, due to variations in NAS devices,
media servers and their configurations
19
ENGLISH
Media playback from USB Devices
Using the Home Menu
In the music browser, you can perform the following operations:
Press the / button to move the cursor and select music files.
Press the Options button to gain access to features such as music
information and sort order. For more details, see later section of the
manual.
Press the Top Menu button to move the cursor to the category menu in
the top of the screen. This menu contains the following choices:
BD/DVD
Music
Movie
Network
Setup
Source – Allows you to switch between different connected storage
devices.
View – Allows you to switch between list and folder view modes.
YouTube
Sort – Lists music files/folders by different categories, such as song
name, artist, album and genre.
Picasa
When a drive or an optical disc stored with media files is inserted, the
player presents a “Home menu” to assist you in navigating and playing
the files. You can also bring up the Home menu with the button on the
remote control. The Home menu is the starting point for accessing media
files.
Depending on what type of media files that you intend to play, you can
choose from BD or DVD (i.e. a BD or DVD disc loaded in the 752BD) or
three files types that automatically only display the relevant file types
from any attached USB Drives or computer discs (i.e. a CD-ROM or DVDROM with mp3 or other files loaded in the 752BD).
The Network item shows any UPnP AV or DNLA servers the 752BD can
find on your local Network. The “Setup” selection will bring you to the
player’s setup menu just like pressing the Setup Menu button on the
remote control.
The items on the second line are streaming audio/video services that are
supported by the 752BD. Currently YouTube and Picasa are supported,
more may be added over time. See the 752BD support page at
www.cambridgeaudio.com for the latest details on these menus and any
software updates available from Cambridge Audio.
Note: Streaming services are usually regional so any services that may
be made available will usually vary from country to country also.
When a music file is highlighted by the cursor, press the Enter or 
button to start playback.
Note:
• When a data disc or USB drive is inserted, the player automatically
starts to index files and build a database in the background. Depending
on the number and size of files, this process could take up to several
minutes. Customers can only access the Category list (Artist, Album
and Genre) when the database has been built, otherwise, a warning
message will appear.
If a music file starts playing and there is no other user operation, the Now
Playing screen will appear after a few seconds. You can also get to this
screen by pressing the Options button and then selecting Now Playing.
This screen provides the following information:
Shows playback status – , , , Track and Time.
Display and change playback mode – Shuffle/Random, Repeat One and
Repeat All.
Music information – Displays information like album art and tags.
The following operations are available while the Now Playing screen is
shown:
Playing music files
01 High.mp3
1 / 10
00:00:09 / 00:04:03
Title:
High
Artist:
James Blunt
Album:
Back To Bedlam
Genre:
Pop
Normal playback control – , , , /, , and .
To play digital music files stored on an optical disc or USB drive, select
“Music” from the Home Menu. A file browser will appear to assist you in
navigating the files and folders.
The first step is to select the “Data Disc” or USB device that contains the
music files. The player will take a moment to read the disc and list the
folders and music files.
Special playback modes – Repeat and Shuffle/Random (Blue colour
button).
Press the Options button to access the Option menu. For more details,
see later section of the manual.
Return to the browser without stopping the music: Press the Return
button.
Stop playback and return to the browser: Press the  button once.
01 High.mp3
1 / 10
00:00:09 / 00:04:03
Title:
High
Artist:
James Blunt
Album:
Back To Bedlam
Genre:
Pop
01 High.mp3
20
1 / 10
00:00:09 / 00:04:03
azur
752BD
01 High.mp3
Playing movie files
00:00:09 / 00:04:03
Title:
High
Artist:
James Blunt
Album:
Back To Bedlam
Genre:
1
/ 10
Pop
Genre:
Pop
01 High.mp3
00:00:09 / 00:04:03
To play movie files stored on an optical disc or USB drive, select Movie
Title:
Highwill appear to assist you in navigating
from the Home Menu. A file browser
James Blunt
through the files and folders.Artist:
Album:
Back To Bedlam
The first step is to select the Data Disc or USB device that contains the
movie files. The player will take a moment to read the media and list the
folders and movie files.
To view digital photo files stored on an optical disc or USB drive, select
Photo from the Home Menu. A file browser will appear to assist you in
navigate the files and folders.
The first step is to select the Data Disc or USB device that contains the
photo files. The player will take a moment to read the media and list the
folders and photo files.
In the photo browser, you can perform the following operations:
1. Press the / button to move the cursor and select photo files.
01 High.mp3
1 / 10
00:00:09 / 00:04:03
Title:
High
Artist:
James Blunt
Album:
Back To Bedlam
Genre:
Pop
2. Press the Options button to access features like sort order.
3. Press the Top Menu button to move the cursor to the category menu
in the top of the screen.
4. When a photo file is highlighted by the cursor, press the Enter or
button to play back the photos as a full screen slideshow.
The following operations are available during the photo slideshow:
Display the help screen – Info button.
Normal playback controls – , , , / buttons.
Adjust slideshow speed –  and  buttons.
In the movie browser, you can perform the following operations:
1. Press the / buttons to move the cursor and select the movie file.
2. Press the Options button to access features like video information. For
more details, see later section of the manual.
3. Press the Top Menu button to move the cursor to the category menu
in the top of the screen. This menu function is the same as the one
discussed in “Playing music files” on page 20.
4. When a movie file is highlighted by the cursor, press the Enter or 
buttons to start playback.
Once a movie file starts playing, the normal playback control functions
are available:
• T o stop the movie and return to the file browser, press the  button.
You can also press the Home button at any time to stop the playback
and return to the Home Menu.
• Press the Options button to access features such as Video Information,
Subtitle Shift, Picture Adjustment and Picture Zooming. For more
details, see later section of the manual.
Viewing Photo Files
Zoom – Zoom. Once zoomed in, the navigational buttons can
be used to pan around the photo.
Reflect (flips the photo horizontally to make it upside-down) – button.
Mirror (flips the photo vertically to make it a mirror image) – .button.
Rotate left (counterclockwise) – button.
Rotate right (clockwise) – button.
Repeat – Repeat button.
Show photos in Digest mode – Red colour button. The Digest mode
shows the photo thumbnails on the screen to make visual navigation
easy.
Show EXIF information – Green colour button
Play in random sequence – Blue colour button
Change slideshow transition effect – Yellow colour button.
Press the Options button to access the features like Image Zooming and
Image Rotation. For more details, see later section of the manual.
Adding Background Music
You can also add background music to the photo slideshow. To do so,
you will need to prepare digital music files. The music files can be stored
on the same disk as the photos, or on a different USB drive. Start music
playback first by selecting Music from the Home Menu. Once the music is
playing, press the Home button to get back to the Home Menu, and start
the photo slideshow by selecting Photo in the usual manner.
21
ENGLISH
1 / 10
Setup Menu
Note: It is possible that some setup items are greyed-out and inaccessible.
This can be caused by a disc still being played back or interlocking with
mutually exclusive setup items. Please stop playback or eject the disc
before trying to change these setup items. If you still cannot access the
setup item, please check for configuration conflicts and consistency. For
example, if "Video Setup > 1080p24 Output" is set to "Off", the "DVD 24p
conversion" menu items "Auto" and "Source Direct" will be grayed-out.
Setting "1080p24 Output" to "On" will enable the "DVD 24p conversion"
menu items "Auto" and "Source Direct" to be set.
Setup
1. Press the Setup Menu button on the remote control, and the TV screen
displays the following:
Setup Menu
To access the player’s setup menu simply press the Setup Menu button
on the remote control. Since some Setup Menu options can become
inaccessible when the player is playing a disc, it is recommended that
you operate the Setup Menu when playback is fully stopped or when
there is no disc in the player.
The Setup Menu presents many setup and configuration options. For
most users, the default configuration will be sufficient and will often not
require changes to the settings.
However if you wish to configure the player to perfectly match your home
theatre settings and viewing preferences, please refer to the following
sections for details about each configuration option.
Using the Setup Menu System
When performing menu adjustments, we will use the following
terminology to indicate the location of the desired function:
Setup Menu Section > Menu Item > Selection
Playback Setup
SACD Priority
Multi-Channel
Video Setup
DVD-Audio Mode
DVD-Audio
Audio Format Setup
Auto Play Mode
On
Audio Processing
Auto Resume
On
Device Setup
Parental Control
Network Setup
Language
Exit
Configure playback preferences
Exit
2. Press the / buttons to select the section. There are six sections:
Playback Setup, Video
Setup Setup,
Menu Audio Format Setup, Audio Processing,
Setup
MenuSetup. Press the Enter button or the 
Device Setup, and
Network
button to enter
theSetup
selected section.
Multi-Channel
SACD Priority
Playback
SACD Priority
Playback Setup
Multi-Channel
DVD-Audio
DVD-Audio
Video buttons
Setup
3. Press the /
to select
theMode
setup item
to be changed, and
DVD-Audio
Mode
Video Setup
On
Auto
Play Mode the setting.
Audio or
Format
press the Enter
Setup
button DVD-Audio
to change
When the scroll
Auto Play
Format
Setup
icon is shownAudio
at the
top
or bottom
ofMode
the SetupOn
OnMenu, it indicates that
Auto Resume
Audio
Processing
Autocan
Resume
On
Audio
Processing
there are more
menu
be accessed
by scrolling with the
Parental Control
Device
Setup items that
/ buttons.
Parental Control
Device Setup
Language
Network Setup
Language
Network from
Setup the list
4. To select a value
of available settings, press the /
Exit
Exit
buttons and then
press the Enter button to confirm. For example, to
Configure
playback
preferences
select "On" for "Auto Play Mode
", use
the
/ buttonsExitto highlight the
the auto play mode for CD and SACD
"On" selection and press Set
the
Enter button.
Exit
Setup Menu
Setup Menu
Playback Setup
SACD Priority
Video Setup
DVD-Audio Mode
Audio Format Setup
Playback Setup
SACD Priority
Multi-Channel
Video Setup
DVD-Audio Mode
DVD-Audio
Auto Play Mode
Audio Format Setup
Auto Play Mode
On
Audio Processing
Auto Resume
Audio Processing
Auto Resume
On
Device Setup
Parental Control
Device Setup
Parental Control
Network Setup
Language
Network Setup
Language
Exit
Exit
Set the auto play mode for CD and SACD
Playback starts when the PLAY button is pressed
Setup Menu Section is the uppermost Setup Menu level. With the 752BD
there are six Setup Menu sections listed in the left column of the Setup
Menu screen. They are: Playback Setup, Video Setup, Audio Format
Setup, Audio Processing, Device Setup, and Network Setup.
Menu Item is the parameter to be adjusted which appears in the centre
column of the Setup Menu. Once you enter a Setup Menu Section, the list
of Menu Items and their current value are displayed in a box.
Selection is the actual numeric or descriptive element that represents
the change being made to the selected parameter. It is the item located
to the right of its corresponding Menu Item.
A scroll icon appears at the top or bottom of the menu when there
are more Menu Items or Selections than what can fit in a screen. You
may use the  and  buttons to scroll the display in order to access
additional items.
22
Exit
Exit
5. To exit the Setup menu at any time, press the Setup Menu button on
the remote control or select Exit from the Setup menu sections.
The settings are permanently saved when the player is turned off using
either the front panel Standby/On button or the same button on the
remote control. If the AC power is interrupted before the player enters
standby status, the settings will not be saved.
azur
752BD
5. Parental Control
Setup Menu
Playback Setup
SACD Priority
Multi-Channel
This is used to set parental control ratings in order to prevent minors
from watching inappropriate content. This function does depend on the
disc being properly rated and encoded.
Video Setup
DVD-Audio Mode
DVD-Audio
Press the Enter button to bring up the rating selection menu.
Audio Format Setup
Auto Play Mode
On
Audio Processing
Auto Resume
On
Device Setup
Parental Control
To adjust the parental control settings, you must enter the current
parental control password. If you have not set a parental control
password yet, the default password is "0000".
Network Setup
Language
The parental control menu contains the following sub-items:
Exit
Choose default SACD layer to play
Exit
BD Ratings - Press the / buttons to select the rating allowed for
Blu-ray Discs. "Off" means no ratings control and all discs are allowed to
play. Numbers 1 to 21 corresponds to the age limit. Discs encoded with
an age limit that is equal to or above the selected age will be blocked,
and any rating below the selected age will be allowed.
MenusSettings
DVD Ratings - Press the / buttons to select the rating to allow for
DVD. The available ratings are Kid, G, PG, PG-13, PGR, R, NC17, Adult
and Off. The selected rating and below will be allowed, and any rating
above will be blocked. If "Off" is selected, all discs are allowed to play.
SACD Priority................................................ Multi-Channel
Stereo
CD Mode
Area Code – Some Blu-ray Discs may have different parental control
ratings for different geographical areas. At this time the player only
supports the parental control ratings used in the United Kingdom.
DVD-Audio Mode.......................................... DVD-Audio
DVD-Video
Auto Play Mode............................................ On
Off
Change Password – To change the parental control password, enter a
4-digit number as the new password. Enter the new password again to
confirm. If the two entries are matching, the new password replaces the
old parental control password.
Auto Resume................................................ On
Off
6. Language
Parental Control........................................... BD Ratings
(default password: "0000")
DVD Ratings
Area Code
Change Password
Player Language – To choose the display language for the player’s
Setup Menu and onscreen display.
The "Playback Setup" section is designed to configure playback
preferences for various contents. The setup items in this section are:
Language...................................................... Player Language
Disc Menu Language
Audio Language
Subtitle Language
1. SACD Priority
To select which audio layer to play by default for SACD (Super Audio CD)
discs which often have multiple soundtracks. The options are:
Multi-Channel – Play the DSD multi-channel surround audio layer.
Stereo – Play the 2-channel DSD stereo audio layer.
CD Mode – Play the 2 channel PCM CD layer of a hybrid SACD disc.
This is used to configure language preferences:
Disc Menu Language – To choose the preferred language for displaying
DVD and Blu-ray Disc menus. If a disc menu of the selected language is
available, that menu will be shown instead of the default disc menu.
Audio Language – To choose the preferred audio language for DVD and
Blu-ray Discs. If an audio track of the selected language is available on
the disc, the Audio track will be played back.
Subtitle Language – To choose the preferred subtitle language for
DVD. If a subtitle of the selected language is available on the disc,
it will be displayed. When "Auto" is selected, the subtitle display is
decided by the disc.
Note: If your preferred language is not listed in the Audio, Subtitle or
Disc Menu options, select "Other" and enter the Language Code found
on the later section of this manual.
2. DVD-Audio Mode
To select which portion of a DVD-Audio disc to play. The options are:
DVD-Audio – Play the DVD-Audio portion of the disc with high-resolution
audio.
DVD-Video – Play the DVD-Video portion of the disc with Dolby Digital or
DTS audio.
3. Auto Play Mode (on/off)
To select whether the player will start playing an audio CD or SACD
automatically. When auto play mode is turn on, these discs will start
playing upon insertion into the player. When auto play mode is turned
off, the player will wait for the user to start playback by pressing the
PLAY button.
4. Auto Resume (on/off)
To select whether the disc playback shall start from the previously saved
point or not. This setting applies to CD, SACD, DVD and certain Blu-ray
disc. When auto resume is turned on, the playback automatically starts
from the previously saved point. When auto resume is turned off ,the
playback starts from the beginning.
Note: Some Blu-ray discs do not support resuming and will always play
from the beginning.
23
ENGLISH
Playback Setup
Setup menu continued
Video Setup
Display Options............................................ Subtitle Shift
OSD Position
OSD Mode
Normal
Minimal
Remaining
Angle Mark
On
Off
Screen Saver
On
Off
Energy Saver
Setup Menu
Playback Setup
Picture Adjustment
Video Setup
Dual HDMI Output
Split A/V
Audio Format Setup
3D Output
Auto
Audio Processing
3D Setting
Device Setup
TV Aspect Ratio
16:9 Wide
Network Setup
TV System
Multi-system
Exit
Output Resolution
Auto
Adjust picture control parameters
1. Picture adjustment
Exit
The "Video Setup" section of the Setup Menu system allows you to
configure various video output options. The menu items in this section
are:
Picture adjustment is a special section of the video setup menu. It allows
you to fine tune many picture control parameters in order to achieve
the optimal picture quality and visual result. To use Picture adjustment,
press the Setup Menu button on the remote control to enter the player’s
Setup Menu, and then choose "Video Setup" – "Picture adjustment", then
select the HDMI output to be adjusted.
MenusSettings
Picture Adjustment...................................... HDMI 1
HDMI 2
Dual HDMI Output........................................ Split A/V
Dual Display
3D Output..................................................... Auto
Off
Forced
3D Setting..................................................... Blank HDMI 2
2D->3D Depth
3D TV Size
Depending on your primary video output, the detailed Picture Adjustment
menu will be slightly different as HDMI1 uses the Marvell QDEO scaler
which has more sophisticated features and algorithms for adjustment
as below.
Menu for HDMI 1
Menu for HDMI 2
TV Aspect Ratio............................................ 16:9 Wide
16:9 Wide/Auto
TV System..................................................... PAL (default)
NTSC
Multi-system
Output Resolution........................................ 4Kx2K
Auto
1080p
1080i
720p
480p/576p
480i/576i
Source Direct
1080p24 Output.......................................... Auto (default)
On
Off
DVD 24p Conversion.................................... On
Off
HDMI Options............................................... Colour Space (HDMI 1 & 2)
Auto
RGB Video Level
RGB PC Level
YCbCr 4:4:4
YCbCr 4:2:2
Deep Colour (HDMI 1 & 2)
36 Bits
30 Bits (Dithered)
30 Bits
Off (Dithered)
Off (default)
To change a picture adjustment parameter, use the / buttons to
highlight the parameter, and use the / buttons to change its value.
To aid in the adjustment of picture control parameters, the picture
adjustment menu will be reduced to only show the parameter being
adjusted once you press the / buttons. The reduced menu will be
positioned near the bottom of the screen.
24
You can continue adjusting the current parameter by pressing the /
buttons. To select another parameter, press the / buttons. Press the
Enter button to return to the large Picture Adjustment menu.
To exit the Picture Adjustment menu and return to the Setup Menu,
either select "Exit" or press the Return button.
The following picture adjustment controls are available, for HDMI1 and
HDMI2:
Picture Mode – The 752BD allows you to save up to three (3) customized
video modes.
Press the / buttons to switch the mode and all parameters will be
automatically adjusted to their stored values. Changes to the current
parameter values will be stored automatically when you exit the Picture
Adjustment screen or, switch to another Picture Mode.
Brightness – To adjust the brightness (black level) of the video output.
Contrast – To adjust the contrast (white level) of the video output.
Note: Proper brightness and contrast settings are necessary for a quality
video output. If you do not have the correct black and white levels, your
images can appear washed out or can lose detail in shadows when
watching darker scenes. Televisions have brightness (black level) and
contrast (white level) controls; however it may require a combination of
tweaking both the player and your television to get the optimal result.
First adjust the television’s picture controls for the best possible picture.
Once that is done, try changing the player’s settings to further refine the
picture to the optimal result.
Hue – To adjust the hue (tint) of the video output.
Saturation –To adjust the saturation (colour intensity level) of the video
output.
Sharpness – To set the sharpness of the video output (Detail/Edge
Enhancement), this a video processing function that can control the
image sharpness but if overdone may cause unwanted artifacts.
For HDMI 1, the sophisticated QDEO video scaler is used sharpness level
can be set between -16 and +16. The default is level 0, which turns off
sharpness enhancement. The negative levels may be used to reduce
or eliminate overly sharpened video, the picture being progressively
softened.
The positive levels increase the sharpness. At level 1, the player applies
low level Detail Enhancement, during which the video processor isolates
the detailed parts from the original image, processes them separately and
integrates back before the final output. At level 2, the player increases
Detail Enhancement to a higher level. Generally, to make an image
"sharper", we recommend using level 1 and 2. At level 3 and above,
the player adds Luminance Transition Improvement (LTI) and Chroma
Transition Improvement (CTI), which further sharpen the luminance
transition and chroma transition. However, we do not recommend using
level 3 and above unless the source content is from a poor source.
For HDMI 2, the Mediatek chipsets in-built scaler is used and sharpness
level can be set between 0 and +2. The default is level 0. The higher the
level, the sharper the video details are. However, too high a sharpness
level may cause white line etching around objects.
752BD
For HDMI 2, the noise reduction level can be set between 0 and +3.
The default is level 0. When user increases the level, the player adjusts
the picture quality by applying mosquito noise reduction, random noise
reduction and MPEG block noise reduction at the same time. The higher
level user sets, the more aggressive noise reduction functions apply.
Colour Enhancement (HDMI 1 video output only) – Used to select a
colour enhancement level (enhance certain colours in the spectrum) of
the video output. It provides the ability to make more vivid some colours
without causing hue shifts, loss of details or changes in skin tones.
Contrast Enhancement (HDMI 1 video output only) – Used to select a
colour enhancement level (expands details in the shadows) on the video
output.
2. Dual HDMI Output
Allows you to select the output mode when both HDMI Output ports are
in use. If only one HDMI Output is active, this selection will not apply.
The options are:
Split A/V (Recommended) – Use HDMI 1 Out as the dedicated video
output port and HDMI 2 Out as the dedicated audio output port. This
setting will ensure the best possible picture quality and the highest
possible audio resolution.
Dual Display – Send digital audio and video signals to both HDMI
Outputs simultaneously. This setting is only recommended when two
HDMI displays are required, since the surround sound audio signal may
be down-mixed to stereo and the original audio quality may be lost.
Note: The player can automatically adjust the resolution of digital audio
and video signals depending on the capabilities of the connected
television and receivers. For HDMI 1 Out, the dedicated QDEO video
processor will be used unless Source Direct is selected, in which case
QDEO is bypassed.
3. 3D Output
To choose the video output mode for available 3D content at the HDMI
output ports. The options are:
Auto – Output 3D if supported both by the disc content and the display.
The player automatically checks for the existence of 3D content on the
disc and the 3D compatibility of the TV or projector. If both are qualified,
the player sends 3D video from its HDMI output terminals, otherwise only
2D video is sent out. 3D-compatible glasses are required compatible
with your TV.
Off – Always output 2D video format, even when 3D video exists on the
disc. This can guarantee the video quality in case that your TV is not 3D
compatible, or some necessary part (such as the 3D glasses) is missing.
Forced – Always output 3D video format for 3D Blu-ray discs. You
might experience a black screen (no video output) if your TV is not 3D
compatible.
4. 3D Setting
Adjusts the playback settings for better 3D visual quality.
Noise Reduction – To select whether the player shall apply video noise
reduction processing.
Blank HDMI 2 – This allows the 752BD to force HDMI 2 to output a 2D
blank screen when HDMI 1 outputs 3D video.
For HDMI 1, the noise reduction level can be set between 0 and 8. The
default is level 0, which turns off noise reduction. When set to level
1, the QDEO scaler adjusts the picture quality by reducing "mosquito
noise" (artifacts around the outlines of objects) and "block noise"
(mosaic-like patterns caused by video compression). These two noise
reduction are also called Compression Artifacts Reduction (CAR) and
have several levels of aggressiveness. When set to level 2, the player
applies the Motion Adaptive Video Noise Reduction (VNR), which handles
the random noise and the film-grain noise (natural variation of picture
intensity caused by film grain).
2D->3D Depth – Adjusts the 3D depth perception when performing
2D-to-3D conversion (also called "simulated 3D"). The default value is 8.
Its level is automatic because there is a noise estimator circuitry in the
video processor that calculates how much noise presents and adjusts
the level of VNR accordingly. When set to a high level between 3 and
4, the player applies both CAR and Motion Adaptive VNR, with more
aggressive "block noise" reduction at level 4. At level 5, the player applies
aggressive CAR for low quality video content, and adds Motion Adaptive
VNR at level 6. At level 7, the player applies the most aggressive CAR
for very low quality video, and adds Motion Adaptive VNR at level 8.
Remember that excessive noise reduction may cause a loss of detail. We
recommend using the noise reduction function only when you encounter
poorly encoded or compressed video that has apparent noise artifacts.
3D TV Size – To enter the diagonal screen size of your HDTV. This option
applies to 3D mode only, to facilitate the player adjusts the 3D image
for better visual quality. The diagonal size of your TV screen, by default
it is 46 inches.
5. TV Aspect Ratio
To set the aspect ratio of the player’s output image. The options are:
16:9 Wide – Choose this when the display is widescreen 16:9. 16:9
materials will be displayed in its native aspect ratio, and 4:3 materials
will be stretched horizontally.
16:9 Wide/Auto – Choose this when the display is widescreen 16:9.
16:9 materials will be displayed in its native aspect ratio, and 4:3
materials will be displayed with black borders on both sides in order to
maintain the original 4:3 aspect ratio.
25
ENGLISH
azur
Setup menu continued
6. TV System
10. HDMI Options
To choose the output video standard (PAL/NTSC) to match your TV. The
options are:
To configure video options that apply only to the HDMI outputs. To enter
this sub-menu, select "HDMI Options" from the Video Setup menu.
PAL – When playing PAL-encoded discs, no system conversion is
performed. NTSC-encoded contents are converted to PAL output. Blu-ray
discs encoded with 24Hz frame rate are converted to 50Hz frame rate if
neither 1080p24 Output nor Source Direct output resolution is enabled.
To exit this sub-menu, press the
button or the  key. Options are
present for HDMI1 (using the Marvell QDEO scaler) and HDMI2 (using the
scaler built into the Mediatek chipset).
NTSC– When playing NTSC-encoded discs, no system conversion is
performed. PAL encoded contents are converted to NTSC output. Blu-ray
discs encoded with 24Hz frame rate are converted to 60Hz frame rate if
neither 1080p24 Output nor Source Direct output resolution is enabled.
Multi-system – No system conversion is performed. The output video
system is the same as that encoded on the disc. Blu-ray discs encoded
with 24Hz frame rate are converted to 60Hz frame rate if neither
1080p24 Output nor Source Direct output resolution is enabled. This
mode requires a TV that supports both NTSC and PAL systems.
Note: Do not select "Multi-system" if your TV does not support both PAL
and NTSC systems. The TV display may become a black screen upon
inserting a disc encoded in a different system than your TV supports.
Should this happen, you can press the OPEN button to eject the disc tray,
and then use the Setup Menu to correct the "TV System" setting.
7. Output Resolution
To choose the output resolution that best matches your television’s
native resolution. For a detailed description on how to choose a proper
output resolution, please refer to "”Output resolution” on page 18 of
the manual.
8. 1080p24 Output
The following HDMI options are available:
Colour Space (HDMI 1) – Used select the colour space for the HDMI 1
output.
The Marvell QDEO scaler can perform various conversions for this output.
The available options are:
uto (Recommended) – The player checks with the display device to
A
automatically determine what colour spaces it can support and uses
those. Usually avoids extra colour space conversion.
GB Video Level – Forces the HDMI output to use RGB colour space
R
and normal signal range suitable for TV type displays.
GB PC Level – Forces the HDMI output to use RGB colour space and
R
expands the signal range that to suitable for personal computer (PC)
type displays.
ostly used for TVs with DVI inputs designed to be also used as PC
M
monitors, these can expect signal in expanded RGB range when the DVI
input is selected. For these displays if the video signal uses the normal
RGB range, the black-white contrast will be reduced. You can set the
player to use the RGB PC Level output and restore proper contrast.
CbCr 4:4:4 – The HDMI output is forced to use the YCbCr 4:4:4 colour
Y
space.
CbCr 4:2:2 – The HDMI output is forced to use YCbCr 4:2:2 colour
Y
space. Generally this is the colour space that is closest to the colour
space encoded on the discs. (Discs are generally encoded in YCbCr
4:2:0 colour space, and the video decoder decodes it into YCbCr 4:2:2.)
This option only applies to the HDMI output at 1080p resolution. Many
Blu-ray discs that originated from theatrical movies are encoded using
24Hz frame rate, the same number of frames per second as the original
theatrical film. If your TV properly supports 1080p 24Hz, smoother
motion can be achieved by enabling 1080p24 output for such discs.
The available options are:
Colour Space (HDMI 2) – To select the colour space for the HDMI 2
output. The Mediatek decoders own in-built scaler is used for this output.
The available options are the same as those for HDMI 1.
Auto (default)– Video encoded in 24Hz frame rate will be output as
1080p 24Hz if the TV informs the player that it can support the 1080p24
signal.
HDMI Deep Colour (HDMI 1) – To select Deep Colour modes for the
HDMI 1 output. Deep Colour is an OPTION for some TVs or projectors
that feature HDMI v1.3 or higher input.
On – Video encoded in 24Hz frame rate will be output as 1080p 24Hz
without regard to whether the TV can support the 1080p24 signal or
not. This is useful if the TV can actually support 1080p24 but does not
properly state its capability. Please note that if the TV cannot support
1080p24, selecting this option will result in no video.
Normally, each pixel of the video image is transmitted using 24-bit data
(8-bit per channel for R, G, B or Y, Cb, Cr). If Deep Colour is supported
on your TV each pixel of the video image can be transmitted using 30-bit
(10-bit per channel) or 36-bit (12-bit per channel) data. The increased bit
depth should result in smoother colour transitions and better gradients
for better picture quality.
Off – Video encoded in 24Hz frame rate will be converted to 50Hz (PAL)
or 60Hz (NTSC)
9. DVD 24p Conversion
Allows you to enable 24Hz frame rate conversion for DVD. This option
is only available when 1080p24 Output is enabled (set to Auto or On).
Many DVDs that originate from theatrical movies are encoded with a
technique called "3:2 telecine" in order to convert the 24 frames per
second film to 60Hz video signal. The player can convert the 60Hz video
signal back to 24 frames per second film and output as 1080P/24Hz.
Smoother motion may be achieved by enabling this option, if both the TV
and the DVD disc meet the conversion conditions.
The available options are:
On – Converts DVD to 24Hz frame rate when possible. Remember
that motion errors may be observed if the DVD is not suitable for such
conversion.
Off (default) – Does not convert DVD to 24Hz frame rate.
For BD discs with native deep colour on them the extra information will
be passed to the TV. For up-scaled content such as DVDs the deep colour
output will be interpolated but can still result in a smoother picture. The
dithering/limiting options allow discs with deep colour content to be sent
to TVs with limited deep colour support.
Dithering is a way to softly limit any extra colour information in the source
material that the display cannot handle by adding ‘noise’ to prevent an
abrupt step in the levels.
The available options are:
6 Bits – Always use the maximum 36-bit per pixel Deep Colour mode
3
for the output.
0 Bits (Dithered) – Use the 30-bit per pixel Deep Colour mode with
3
dithering of any over 30 bit content.
0 Bits – Use the 30-bit per pixel Deep Colour mode and hard limit
3
output at 8 bits per colour.
ff (Dithered) – Do not use Deep Colour, dithering any over 24 bit
O
content.
Off (default) – Do not use Deep Colour, hard limit output at 8 bits per
colour.
26
HDMI Deep Colour (HDMI 2) – Select the Deep Colour mode for the HDMI
2 output. The options for HDMI 2 are more limited (no QDEO scaler) and
are simply off, 30 bits or 36 bits.
Audio Format Setup
Note: Since the Deep Colour feature is optional and may not be supported
by all TVs, enabling Deep Colour while connected to a TV without this
feature may result in no effect or no video.
Note: At the time of writing, no BD discs are yet encoded with
Deep Colour.
11. Display Options
To configure the options for displaying on-screen information. The
following display options are available:
Subtitle Shift – To set the display position for subtitles. When the
"Subtitle Shift" is set at 0 (default), subtitles are displayed at the original
position as specified on the disc. When it is set at a value between 1
and 5, subtitles are shifted up. When it is set at a value between -1
and -5, subtitles are shifted down. This feature is helpful for instance
to customers using a 2.35:1 "Constant Image Height" video projection
system. Subtitles can be shifted to the active video area so they do not
get cut off.
OSD Position – To set the display position for on-screen display (OSD).
When the "OSD Position" is set at 0, OSD is shown at the top and bottom
of the video screen. When it is set at a value between 1 and 5, OSD
is shifted towards the vertical center line of the video screen. Similar
to the subtitle shift setting above, the "OSD Position" feature is helpful
to customers using a 2.35:1 "Constant Image Height" video projection
system.
OSD Mode – To select how long the on-screen display information, such
as elapsed or remaining time, stays on the TV screen. The available
options are:
ormal – On-screen display information stays on the TV screen until
N
the user cancels it.
inimal – On-screen display information shows on the TV screen
M
for a few seconds and then disappears. The front panel display still
maintains the selected display information.
emaining – On-screen display information stays on the TV screen
R
until the user cancels it. By default display remaining time instead of
elapsed time.
Angle Mark (on/off) – To turn on/off the display of an angle mark when a
DVD or Blu-ray Disc with multiple available angles is played. Keeping the
angle mark off avoids distraction from normal movie watching.
Screen Saver – To turn on/off the screen saver function. The screen
saver is designed to minimize burn-in concerns for plasma and CRT
display devices. The available options are:
n – After about 3 minutes of inactivity, the player will show an
O
animated Cambridge Audio logo moving on a black background. This
allows most areas of the screen to rest and gives all areas an equal
opportunity to refresh.
ff – The screen saver will not be activated. Use this option if your TV
O
does not have a burn-in issue.
nergy Saver – Video output will be turned off after 3 minutes of
E
inactivity. Many projectors and LCD TVs will go into a standby or sleep
mode and turn off their projection lamp or LCD backlight lamp, thus
saving energy and prolonging the lamp life. When you press any button
on the remote control or the player’s front panel, the screen saver will
be cancelled and video output will be restored. If your TV is already in
standby or sleep mode, you may need to wake up the TV by pressing a
button on its remote or control panel.­­
752BD
ENGLISH
azur
Setup Menu
Playback Setup
Secondary Audio
Off
Video Setup
HDMI Audio
AUTO
Audio Format Setup
Coaxial/Optical Output
Bitstream
Audio Processing
SACD Output
PCM
Device Setup
HDCD Decoding
On
Network Setup
Exit
Set the secondary audio program mixing option
Exit
The "Audio Format Setup" section of the Setup Menu system allows you
to configure preferences for audio output formats. The menu items in
this section are:
MenusSettings
Secondary Audio.......................................... On
Off
HDMI Audio................................................... Auto
LPCM
Bitstream
Off
Coaxial/Optical Output................................ 48k LPCM
96k LPCM
192k LPCM
Bitstream
SACD Output................................................. PCM
DSD
HDCD Decoding............................................ On
Off
1. Secondary Audio
To set the Secondary Audio Program mixing option. Some Blu-ray discs
contain a secondary audio and video program, such as a director’s
commentary. Some Blu-ray Discs have a sound effect when you make
menu choices. This Setup Menu item allows you to decide whether to mix
the Secondary Audio Program and menu clicking sound into the primary
audio. The options are:
On – The Secondary Audio Program and menu clicking sound are mixed
into the primary audio. Usually this will cause the primary audio volume
to be slightly reduced. High resolution primary audio will be converted to
a normal resolution in order to mix with the secondary audio.
Off – The Secondary Audio Program and menu clicking sound are not
mixed into the primary audio and you cannot hear the secondary audio
or menu clicking sound. This setting preserves the highest possible audio
quality for the primary audio.
2. HDMI Audio
To select digital audio output format from the HDMI output. The options
are:
Auto (default) – The player checks with the device connecting to HDMI
output to automatically determine which audio format to use.
LPCM – Digital audio output via HDMI will be multi-channel Linear PCM
format. When this option is selected, compressed audio bit streams
will be decoded by the player and then sent as multi-channel PCM. This
setting is recommended when connecting the HDMI output directly to a
TV or to a receiver without advanced audio decoding capabilities.
Bitstream – Digital audio output via HDMI will be in bitstream format.
This option is recommended when connecting the HDMI output to an A/V
receiver or processor that supports advanced audio decoding of Dolby
TrueHD and DTS-HD Master Audio etc.
Off – No digital audio output via HDMI.
27
Setup menu continued
Note: If you use HDMI to connect audio to an HDMI A/V receiver or
audio processor, it is important that you choose 720p or higher HDMI
output resolution when playing high resolution audio content (DVDAudio, SACD, Dolby TrueHD and DTS-HD Master Audio). According to the
HDMI specification, the bandwidth available for audio is proportional to
the total bandwidth used by video. At 480p/576p resolution, the HDMI
specification can only support 2 channels of audio with high sample rate
(up to 192kHz), or 8 channels of audio with standard sample rate (up
to 48kHz). If you play high resolution audio content at the 480p/576p
resolution, you may get reduced audio resolution, incomplete audio
channels, or even no audio/video output at all. Choosing a higher output
resolution such as 720p or above allows enough bandwidth for all high
sample rate audio channels.
3. Coaxial/Optical Output
To set the maximum Linear PCM output frequency for the coaxial/optical
digital output. This menu item is intended to ensure that the audio output
is compatible with equipment that cannot support high sample rates.
It sets an upper limit to decide whether the player shall down-sample
audio. The options are:
Note: When using the Stereo or 7.1 Analog Audio outputs the LPCM
rate limit should always be set to 192kHz to allow the internal playback
engine to feed the up-sampler with the maximum sample-rate the
content supports.
48kHz LPCM– Supported by most equipment. Higher sample rate
material will be downsampled to 48kHz.
96kHz LPCM– Allows a higher sampling rate and frequency response. If
using an externally connected AV receiver or DAC via coaxial or optical,
ensure that the receiver/amplifier can support it. Higher sample rate
material will be downsampled to 96kHz.
192kHz LPCM – Allows the highest sampling rate and frequency
response. If using an externally connected AV receiver or DAC via coaxial
or optical, ensure that the receiver/amplifier can support it.
Bitstream – Passes audio as compressed bitstream format to the
receiver/amplifier. Choose this setting if your receiver/amplifier is
capable of decoding Dolby Digital and/or DTS etc.
4. SACD Output
To select audio output format for SACD. The options are:
PCM – SACD Direct Stream Digital (DSD) data is decoded by the player
and converted into multi-channel, high resolution PCM data. The HDMI
output can be sent to an external AV receiver capable of receiving multi
channel PCM (HDMI 1.1 or higher inputs are required). The 752BD’s own
audio outputs are also active and playback of SACD material is possible
by the 752BD itself.
DSD – SACD DSD data is output over HDMI without any conversion. For
decoding by an external AV receiver capable of receiving DSD (HDMI
1.2a or higher inputs are required and the receiver must actually include
support for DSD as it is not a mandatory requirement of the HDMI spec).
5. HDCD Decoding
To set the audio decoding option for HDCD (High Definition Compatible
Digital) discs. The options are:
On – HDCD is decoded by the 752BD. For HDCD discs, this gives
expanded dynamic range and improved audio resolution.
Off – HDCD is treated as regular CD and output as a native bitstream
preserving the hidden encoding. This is useful when the 752BD is
connected to an HDCD-capable A/V receiver via a digital audio output
link (Coaxial, Optical, or HDMI) the output is unprocessed so the A/V
receiver can perform HDCD decoding instead.
28
752BD
Audio signal reference chart
Blu-ray Discs may contain many types of audio signal formats, some
of which are high resolution types such as Dolby TrueHD and DTS-HD
Master Audio. Blu-ray Discs also have many optional audio components
such as the Secondary Audio Program and menu clicking sound. The
player’s Audio Format setup menu allows you to configure the audio
output to meet your specific preference. The following chart provides a
reference to what type of audio signal can be expected.
When "Secondary Audio" is set to "Off":
HDMI Output
Output Type 
Setting Bitstream
Coaxial/Optical Outputs
LPCM
Bitstream
LPCM
Analog MultiChannel Output
Source format
LPCM 2ch
LPCM 2ch
LPCM 2ch
LPCM 2ch
LPCM 2ch
2ch
LPCM 5.1ch
LPCM 5.1ch
LPCM 5.1ch
LPCM 5.1ch
LPCM 2ch
5.1ch
LPCM 7.1ch
LPCM 7.1ch
LPCM 7.1ch
LPCM 7.1ch
LPCM 2ch
7.1ch
Dolby Digital
Dolby Digital
LPCM 5.1ch
Dolby Digital
LPCM 2ch
5.1ch
Dolby Digital Plus
Dolby Digital Plus
LPCM up to 7.1ch
Dolby Digital
LPCM 2ch
Up to 7.1ch
Dolby True HD
Dolby True HD
LPCM up to 192kHz
24-bit 7.1ch
Dolby Digital
LPCM 2ch
Up to 7.1ch
DTS
DTS
LPCM up to 7.1ch
DTS
LPCM 2ch
Up to 7.1ch
DTS-HD High Resolution
DTS-HD High Resolution
LPCM up to 7.1ch
DTS (core)
LPCM 2ch
Up to 7.1ch
DTS-HD Master Audio
DTS-HD Master Audio
LPCM up to 96kHz 24-bit
7.1ch or 192kHz 24-bit
2cha
DTS (core)
LPCM 2ch
Up to 7.1ch
When "Secondary Audio" is set to "On" and the player encounters a disc with secondary audio track or menu sounds:
HDMI Output
Output Type 
Setting
Coaxial/Optical Outputs
Analog MultiChannel Output
Bitstream
LPCM
Bitstream
LPCM
LPCM 2ch
LPCM 2ch
LPCM 2ch
LPCM 2ch
LPCM 2ch
2ch
LPCM 5.1ch
LPCM 5.1ch
LPCM 5.1ch
LPCM 2ch
LPCM 2ch
5.1ch
LPCM 7.1ch
LPCM 7.1ch
LPCM 7.1ch
LPCM 2ch
LPCM 2ch
7.1ch
Dolby Digital
Dolby Digital*
LPCM up to 5.1ch
Dolby Digital*
LPCM 2ch
5.1ch
Dolby Digital Plus
Dolby Digital*
LPCM up to 7.1ch
Dolby Digital*
LPCM 2ch
Up to 7.1ch
Dolby True HD
Dolby Digital*
LPCM up to 192kHz
24-bit 7.1ch
Dolby Digital*
LPCM 2ch
Up to 7.1ch
DTS
DTS*
LPCM up to 7.1ch
DTS*
LPCM 2ch
Up to 7.1ch
DTS-HD High Resolution
DTS*
LPCM up to 7.1ch
DTS*
LPCM 2ch
Up to 7.1ch
DTS-HD Master Audio
DTS*
LPCM up to 7.1ch
DTS*
LPCM 2ch
Up to 7.1ch
Source format
Note: All audio output signals are mixed with primary, second audio and
menu sounds.
* Denotes mixed audio re-encoded into Dolby Digital and DTS bitstream
format.
29
ENGLISH
azur
Setup menu continued
Recommended audio format options
Depending on your specific audio/video connection method, the audio
format options of the 752BD may need to be adjusted to match your
configuration. Please refer to the video and audio connection methods
described previously in this guide and the following audio setup
guidelines.
Audio connection directly to TV
If the player is connected directly to the TV through HDMI and analogue
L/R audio cables, it is recommended that you use the following audio
format options:
Secondary Audio: HDMI Audio: SACD Output: HDCD Output: Coaxial Optical Output: On
LPCM
PCM
On
(any – not in use)
Multi-channel digital audio to Receiver through HDMI
If your receiver supports HDMI v1.3 with decoding capability for high
resolution lossless audio formats such as Dolby TrueHD and DTS-HD
Master Audio, please set these audio format options:
Secondary Audio: Off (or On if you need secondary audio)
HDMI Audio: Bitstream
SACD Output: PCM (or DSD if the receiver supports DSD over HDMI)
HDCD Decoding: On
Coaxial Optical Output: (any – not in use)
Multi-channel digital audio to Receiver through Coaxial
or Optical SPDIF
If your receiver only supports Coaxial/Optical, Dolby Digital and DTS
decoding, the following audio format setup options are recommended:
Secondary Audio: Off (or On if you need secondary audio)
HDMI Audio: Off
SACD Output: (any – SACD is not available through the optical/coaxial output)
HDCD Decoding: On (or Off if the receiver can decode HDCD)
Coaxial Optical Output: Bitstream
Stereo analogue audio to Receiver
If your receiver/amp only offers stereo audio connections, you will need
to use analogue RCA-style cables to connect to it. The following audio
format options are recommended:
Secondary Audio: HDMI Audio: SACD Output: HDCD Decoding: Coaxial Optical Output: Audio Processing setup
If your receiver supports HDMI v1.1/1.2 Multi-Channel PCM audio, but
not high resolution lossless audio formats such as Dolby TrueHD and
DTS-HD Master Audio, please set these audio format options:
Secondary Audio: Off (or On if you need secondary audio)
HDMI Audio: LPCM
SACD Output: PCM (or DSD if the receiver supports DSD over HDMI)
HDCD Decoding: On
Coaxial Optical Output: (any – not in use)
Multi-channel analogue audio to Receiver
If the player is connected to an A/V receiver through the 7.1ch or 5.1ch
analogue audio jacks using 8 or 6 RCA/Phono cables, you can still play
all the supported audio formats and let the 752BD decode them and
then listen them via your A/V receiver and surround-sound system. The
following audio format setup options are recommended:
Secondary Audio: HDMI Audio: SACD Output: HDCD Decoding: Coaxial Optical Output: Off (or On if you need secondary audio)
Off
PCM (the internal DACs need to use PCM created from the SACDs DSD stream to achieve SACD playback)
On
(any – not in use)
Also set Speaker Configuration in the "Audio Processing" menu:
Set Down Mix to "7.1Ch" or "5.1Ch".
Set the speaker size and subwoofer properly according to your actual
audio hardware as detailed on the following pages.
Enable or select the multi-channel analog inputs on your receiver.
30
Off (or On if you need secondary audio)
Off
PCM (the internal DACs need to use PCM created from the SACDs DSD stream to achieve SACD playback)
On
(any – not in use)
Setup Menu
Playback Setup
Speaker Configuration
Video Setup
Crossover
80Hz
Audio Format Setup
Dynamic Range Control
Auto
Audio Processing
DTS Neo:6 Mode
Off
Device Setup
Output Volume
Variable
Network Setup
Exit
Configure speaker arrangement and settings
for optimal analog audio output
Exit
The "Audio Processing" section of the Setup Menu system allows you to
configure how the player will process audio signals before sending them
to the analogue outputs. The DRC control also affects the HDMI outputs.
MenusSettings
Speaker Configuration
Crossover...................................................... 40Hz­–250Hz
Dynamic Range Control............................... Auto
On
Off
DTS Neo:6 Mode.......................................... Music
Cinema
Off
Output Volume............................................. Variable
Fixed
Speaker Configuration (7.1 channel
analogue audio output only)
The following settings determine how the 752BD’s internal surroundsound decoder operates. They do not affect audio transmitted over
HDMI or S/P DIF/TOSLINK.
In the Speaker Configuration menu you can configure speaker settings
such as down-mix mode, number of speakers, their distance, size and
trim level. The Speaker Configuration menu shows an illustration of the
speaker placements to assist you on properly configuring the speaker
parameters.
Upon entering this menu, the cursor is positioned on the front left
speaker. You may use the / buttons to move the cursor. The 
button moves the cursor in clockwise sequence, and the  button
moves the cursor in counterclockwise sequence.
When the cursor is over the "Down Mix" or "Exit" options, you can also use
the / buttons to highlight these options.
752BD
5.1Ch – This mode enables 5.1ch decoded audio output. The number
of actual output channels depends on the disc. If the source content
has more channels, the surround back channels will be mixed into the
surround channels.
7.1Ch – This mode enables 7.1ch decoded audio output. The number of
actual output channels depends on the disc.
Test Tone
Test tone is a special group of artificially-created sounds that are used
to test your audio speaker system and help to identify any wiring faults.
By default the Test Tone is set to "Off", with the status is displayed in the
lower left corner of the screen.
To begin the test, press the / buttons to highlight the "Test Tone"
option, press the Enter button to change the test tone status to "On".
Then press ARROW buttons to select a speaker, you will hear the test
sounds. To stop the test process, press / buttons to highlight the
"Test Tone" option and press the Enter button to switch the status back
to "Off". Please note these test tones only apply on multi-channel audio
outputs.
Speaker Settings
For each speaker in the home theatre system, you can set its size,
distance and trim level. To configure a speaker, move the cursor to
highlight the speaker and press the Enter button. The Speaker Settings
menu on the right side of the screen will be activated. In the Speaker
Settings menu, use the / buttons to select a parameter, and then
press the Enter button to change it. To exit the Speaker Settings menu
and return to the Speaker Configuration illustration, press the  button
or select the "Exit" option. You can also move on to configure the next
speaker by selecting the "Next Speaker" option.
The following speaker parameters can be configured:
Down Mix Mode
Down mix is the process of converting multi-channel audio to a lesser
number of channels. For example, converting a 5.1ch source to stereo or
converting a 7.1ch source to 5.1ch. Down mixing allows the audio output
from the player to match the exact number of speakers available in your
home theatre system.
The current down mix mode is displayed in the lower right corner of the
speaker placement illustration.
To change the audio down mix setting, press the Enter button while the
cursor is over the "Down Mix" option. The following down mix modes are
available:
1. Size
The speaker size parameter sets bass filtering control for the speakers.
The bass frequency is set in the "Crossover Frequency" option of the
"Audio Processing" section of the Setup menu:
Large – Bass frequencies are passed to the speakers.
Small – Bass frequencies are not passed to the speakers to reduce
possible distortion. If a subwoofer is available, bass frequencies are
redirected to a subwoofer.
On (for subwoofer only) – Specify that a subwoofer is available.
Off – Speaker for the corresponding position does not exist. Audio for
the missing speaker is redirected to other speakers or discarded if
redirection is not possible.
LT/RT – Left Total/Right Total. The centre and surround channels are
decoded and then Matrix encoded into the two front channels. A Dolby
Pro Logic receiver can then decode the two channel audio that is output
back into surround audio.
Note: The front, surround and surround back speakers are configured as
pairs. Changes to the size of one speaker will automatically change the
other speaker of the pair.
Stereo - This mode down-mixes multi-channel audio to 2-channel stereo
output. For original stereo content the output will not change. For original
multi-channel content the surround and centre channels will be mixed
with the left and right front channels. Recommended for use with TV sets
or stereo receiver/amplifiers (without Pro Logic decoding).
31
ENGLISH
azur
Setup menu continued
2. Distance
The speaker distance parameters sets delay control for the
corresponding audio channel. This delay is used to compensate for the
audio propagation time difference caused by the placement of speakers
of different distances from the listening position.
Speaker distance delay is only applied if the player is decoding multichannel audio. If you use bitstream audio output to your A/V receiver, the
bitstream audio is not adjusted for speaker distance delay.
Since the delay is calculated based on the distance difference from each
speaker to the listener’s position, it is important to set the distance for
the front speakers first and then the other speakers. Anytime you change
the distance of the front speakers, the distance of the other speakers
will be automatically adjusted to maintain the same distance difference.
FL
FR
C
SW
1 - Listener to Front
2 - Listener to Centre
3 - Listener to Surround Left
2
1
SL
Speaker Icons:
SR
3
SB
SBR
Distances:
FL - Front Left
FR - Front Right
C - Centre
SW - Subwoofer
SL - Surround Left
SR - Surround Right
SBL - Surround Back Left
SBR - Surround Back Right
For example, in the above diagram, measure the distance (in feet) from
the primary listening position to the Front Left or Front Right Speaker.
Your Front Right and Left speakers must be the same distance from the
listener. Enter the distance of the Front Speakers (1. in the above picture)
into the "Speaker Configuration" menu.
Next, measure the distance (in feet) from the centre speaker (2) to the
listening position. Move the cursor to highlight the Centre speaker in the
Channel Delay setup page, and enter the distance (as close as possible)
in feet. Repeat for each speaker in the system (Centre, Surround
Left, Surround Right, Surround Back Left, Surround Back Right and
Subwoofer) as available. The player will insert appropriate delay to the
center, subwoofer and surround channels to make sure sound waves
from different speakers arrive at the listener at the same time.
Other Audio Processing Settings
1. Crossover Frequency
When the speaker size is set to "Small" in "Speaker Configuration",
bass frequencies are not passed to the speakers to reduce possible
distortion, bass frequencies will instead be redirected to the subwoofer.
The available options are:
40Hz / 60Hz / 80Hz / 90Hz / 100Hz / 110Hz / 120Hz / 150Hz / 200Hz
/ 250Hz – These are the available crossover frequencies. You can press
the / buttons and the Enter buttons to select it. This option applies
to all speakers (center, front, surround, and surround back speakers). By
default the crossover frequency is 80Hz.
2. Dynamic Range Control
To set the Dynamic Range Compression (DRC). DRC can smooth out the
sonic peaks and valleys common with wide-range digital audio. Enabling
DRC may make low level audio more audible during low-level listening.
Turning off DRC restores the sonic energy present in the original
recording. The available options are:
Auto – Play at the dynamic range specified by the disc. This option
applies to Blu-ray Discs only. For other disc types no dynamic range
compression is applied.
On – Turn on dynamic range compression.
Off – Turn off dynamic range compression.
Note: Dynamic Range Compression is applied to the analog audio output
and digital audio outputs (HDMI, Coaxial and Optical) when the audio
format is set to PCM.
3. DTS Neo:6 Mode
Allows you to enable DTS Neo:6 audio processing and select the
listening mode. DTS Neo:6 is a digital signal processing that can
expand the original stereo source to 7.0 (L, R, C, LS, RS, LR, RR) or 7.1
(with Bass Management) surround.
Music – Enables DTS Neo:6 audio processing for stereo music sources.
Cinema – Enables DTS Neo:6 audio processing for digital TV box or
stereo movie sources.
Off (default) – Turns off the DTS Neo:6 to keep the original audio quality.
Notes:
4. Output Volume
– The distance between the surround speakers and the listener must
be shorter than or equal to that between the front speakers and the
listener.
Allows you to enable or disable the analog volume controls (also known
as Variable Audio). The available options are:
– The front, surround and surround back speakers are configured as
pairs. Changes to the distance of one speaker will automatically
change the other speaker of the pair.
3. Trim
The speaker trim level parameters sets the volume of each individual
channel. For most accurate results, it is recommended that you use test
tones from a calibration disc, such as Digital Video Essentials HD Basics,
and a SPL (Sound Pressure Level) meter. The trim level can be set to +/10dB in 0.5dB increments.
32
Variable – Enables the analog volume control. Use the Volume buttons
on the remote to decrease/increase the analog audio output level
(the maximum is 100). Both the 7.1 and dedicated stereo outputs are
affected.
Both the 7.1 and dedicated stereo outputs are affected.
Fixed – Disables the analog volume control. The Volume buttons on the
remote will no longer affect the analog audio output, and the volume
level is fixed to 100.
Device Setup
752BD
3. Firmware Notification
To set whether the player should automatically check if new firmware
versions are available via the Internet server and notify the user about
new firmware. The options are:
Setup Menu
Playback Setup
Firmware Information
Video Setup
Firmware Upgrade
Audio Format Setup
Firmware Notification
On – Check for new firmware version automatically and notify the user
about new firmware. Requires working network connection.
Off – Do not check for new firmware version automatically.
On
4. HDMI CEC
Audio Processing
HDMI CEC
Off
Device Setup
Standby Mode
Energy Efficient
Network Setup
Sleep Timer
Off
Exit
Front Panel Brightness
Standard
View current firmware version and system information
Exit
The "Device Setup" section of the Setup Menu system allows you to
configure additional player options related to the hardware and control
functions. The menu items in this section are:
MenusSettings
Firmware Information
Firmware Upgrade........................................ Via USB
Via Disc
Via Network
Firmware Notification................................... On
Off
HDMI CEC..................................................... HDMI 1
HDMI 1 (Limited)
HDMI 2
HDMI 2 (Limited)
Off
Standby Mode.............................................. Energy Efficient
Quick Start
Sleeper Timer............................................... Off
30 - 120 min
Front Panel Brightness................................ Standard
Dim
Off
Persistent Storage....................................... Storage Device
Internal Flash
USB Drive
Erase Persistent Storage
Auto Power Off.............................................. On
Off
Reset Factory Defaults
1. Firmware Information
To display the currently installed firmware version.
2. Firmware Upgrade
To upgrade the player’s firmware. This operation is only available when
the playback is completely stopped or when there is no disc loaded.
The firmware is the system software that controls the features and
functions of the player. Since the Blu-ray disc specifications are new
and evolving, it is possible that a Blu-ray disc manufactured after the
player was manufactured use certain new features of the Blu-ray disc
specifications. We may also introduce new features from time to time.
There are three ways to upgrade the player’s firmware. The options are:
Via Disc – From time to time, you may be able to download a disc image
from the Cambridge Audio’s website www.cambridge-audio.com/care
and burn an upgrade disc.
CEC (Consumer Electronics Control) is an optional HDMI feature that
can enable convenient remote control and automatic setup of consumer
electronics over the HDMI connection. The remote control function
allows you to use a single remote handset to operate multiple devices
connected via HDMI. For example, you may use the TV remote to control
playback of the Blu-ray disc player. The automatic setup function can
automatically turn on the TV and change to the correct input when you
start playing a disc in the Blu-ray Disc player. It can also turn off the
player automatically when you turn off the TV. The implementation
and compatibility of this feature varies by device manufacturer. Each
may only implement part of the features or add their own proprietary
functions. The manufacturer-specific implementation of the HDMI CEC
function is often given a proprietary name of "…Link" or "…Sync". The
752BD provides three modes for the HDMI CEC function:
HDMI 1 – HDMI CEC is enabled on HDMI 1 output. Use this mode if your
other devices are compatible with the player.
HDMI 1 (Limited) – HDMI CEC is enabled on HDMI 1 output, but the
752BD will only respond to playback control commands. It will not
respond or issue power on/off and input selection commands. Use this
mode if you do not want the automatic setup function to turn on/off your
devices.
HDMI 2 – HDMI CEC is enabled on HDMI 2 output. Similar to HDMI 1.
HDMI 2 (Limited) – HDMI CEC is enabled on HDMI 2 output, but the
752BD will only respond to playback control commands. Similar to HDMI
1 (Limited).
Off (default) – HDMI CEC feature is turned off on both HDMI output
terminals. The player will not respond to HDMI CEC commands from
other devices, nor will it setup other devices automatically.
5. Standby Mode
Allows you to choose the unit’s standby mode between Energy Efficient
and Quick Start Mode. The available options are:
Quick Start – Player starts significantly faster, but uses more power on
standby.
Energy Efficient – Player starts slower, but uses only 0.5W in standby.
6. Sleeper Timer
This allows the 752BD to turn itself off after a specific amount of time.
This function can be disabled (set to Off) or set to a specific time of 30,
45, 60, 90 or 120 mins.
7. Front Panel Brightness
To control the display intensity of the front panel Vacuum Fluorescent
Display (VFD) information window. This option allows you to dim it or turn
it off. The available options are:
Standard - The VFD window is at full brightness.
Dim - The VFD window is at reduced brightness.
Off – The VFD window is turned off. In this mode the display resumes
momentarily when there is any user operation.
Via USB – You may also be able to download the firmware files from
Cambridge Audio’s web site to a USB drive and then use the USB
drive to upgrade the player. For the above two cases closely follow any
instructions on our website.
Via Network – If the player has a working Internet connection, you
may upgrade the player directly over the Internet. Please follow the
instructions on your TV screen.
33
ENGLISH
azur
Setup menu continued
8. Persistent Storage
Persistent storage is a data storage area that holds additional contents
for BonusView and BD-Live features. The data will be kept even if you
turn off the player. The following persistent storage management options
are available:
Storage Device – To select which storage device should be used as the
persistent storage. The 752BD is equipped with 1GB of internal flash
memory. There are also two USB 2.0 ports on the player that can accept
a USB drive to be used as the persistent storage. The choices are:
Network Setup
The "Network Setup" section of the Setup Menu system allows you to
configure the parameters for the Internet connection of the player, test
the connection and restrict BD-Live access. The menu items in this
section are:
Setup Menu
Internal Flash – Use the internal flash memory for persistent storage.
USB Drive – Use a USB drive for persistent storage. To meet the
specification for BD-Live, a USB flash drive of 1GB or larger is required. A
USB hard disk is not recommended.
Note: The new storage device choice becomes effective only after the
player is restarted. Please make sure that you turn off the player and
then turn it back on after changing the "Storage Device" option.
Erase Persistent Storage – To erase the data from the persistent storage.
Playback Setup
Connection Information
Video Setup
Player Name
752BD
Audio Format Setup
BD-Live Network Access
Off
Audio Processing
My Network
On
Device Setup
Internet Connection
Ethernet
Network Setup
Wireless Setting
Exit
IP Setting
9. Auto Power Off
To allow the player to auto-shutdown after 30 minutes of inactivity. This
can help to reduce power consumption and increase player life.
On (default) – Enable the Auto Power Off.
Display connection information
Connection Information
10. Reset Factory Defaults
BD-Live Network Access.............................. On
Limited
Off
Note: The parental control password and ratings will not be reset. This
operation is only available when the playback is completely stopped or
when there is no disc loaded.
Exit
MenusSettings
Off – Disable the Auto Power Off.
To reset all settings to the factory default value.
Auto (DHCP)
Player Name................................................. 752BD (Default)
My Network................................................... On
Off
Internet Connection..................................... Ethernet
Wireless
Off
Wireless Setting
IP Setting...................................................... Auto (DHCP)
Manual
Proxy Setting................................................. On
Off
Connection Test
1. Connection Information
To display the current internet connection information, such as
connection type, IP address, Ethernet MAC, Wireless MAC, etc.
2. BD-Live Network Access
To restrict BD-Live content access. The available options are:
On – BD-Live access is permitted.
Limited – BD-Live access is permitted only for contents that have a
valid content owner certificate. Internet access is prohibited if the BDLive contents do not have a certificate. This option ensures that you are
accessing only authentic content, although it may block your access to
smaller independent content providers.
Off – BD-Live access is prohibited.
3. My Network
To set the My Network (in-home media sharing) client option. My Network
option enables the player to receives streaming audio, video and photo
from UPnP media servers on the home network. The available options
are:
On (default) – Enable the My Network client. The available media servers
are listed in the "My Network" option of Home menu.
Off – Disable the My Network client. No media servers will be shown in
"My Network" option, and a warning message will show after you enter
"My Network" option.
34
752BD
4. Internet Connection
6. IP Setting
To select the internet connection type. The available options are:
To determine how the player obtains its IP address. The available options
are:
Ethernet (default) – Connect to internet through the Ethernet cable,
please refer to the connection instructions of the manual. Choosing this
will make the "Wireless Setting" option grey and un-selectable.
Wireless – Connect to internet through the external wireless adaptor,
please refer to the connection instructions of the manual. Choosing
"Wireless" will start the wireless setting procedure, and also make the
"Wireless Setting" option in the next row selectable.
Off – Internet access is prohibited. This will make all the remaining
options in Network Setup screen grey and un-selectable.
5. Wireless Setting
Note: The 752BD includes a wireless adaptor. Other wireless adaptor
will not work.
To start the wireless setting procedure. The wireless setting procedure
can be started either by selecting the "Wireless Setting" option, or by
selecting "Wireless" in "Connection Method" option, the procedure is
described as follows:
The player first searches for the last successful wireless settings. If any
exist, a message will pop up as below:
Auto (DHCP) - The player automatically obtains its IP address information
using DHCP (Dynamic Host Configuration Protocol). This is the default
setting. In most cases, automatic IP configuration is best and requires
no user intervention.
Manual – Manually enter the numeric IP address information. For more
information on how to manually configure the Internet connection and
what values to use, please consult your broadband router/modem
instruction manuals or call your Internet service provider.
IP Address – The Internet Protocol address of the player. When "IP
Configuration" is set to "Auto (DHCP)", the value displayed here is
obtained using DHCP and cannot be changed.
ubnet Mask – Each IP address has an associated subnet mask. It is
S
used by the player to decide whether to route network traffic through
the router or directly to another device on the same network. When "IP
Setting" is set to "Auto (DHCP)", the value displayed here is obtained
using DHCP and cannot be changed.
ateway – The IP address of the router. It is also called "default gateway"
G
or "default router". When "IP Setting" is set to "Auto (DHCP)", the value
displayed here is obtained using DHCP and cannot be changed.
NS 1 – The IP address of the first (primary) DNS (Domain Name
D
System) server. DNS is the mechanism to translate human-readable
addresses to numeric IP addresses. When "IP Setting" is set to "Auto
(DHCP)", the value displayed here is obtained using DHCP and cannot
be changed.
DNS 2 – The IP address of the second (secondary) DNS server. When
"IP Setting" is set to "Auto (DHCP)", the value displayed here is obtained
using DHCP and cannot be changed.
7. Proxy Setting
Use Previous – To use the last successful wireless setting. A summary of
the previous wireless setting will pop up showing information like SSID
(Service Set Identifier), Security Mode and Security Key (in asterisk *).
Then a connection test will be automatically performed and the test
result shown on the screen.
Start New – To start a new wireless configuration. The 752BD supports
three wireless configuration methods and the available options are:
can – To scan for available wireless networks. The player automatically
S
scans for any available wireless networks nearby and the search results
are listed in a window. You can press the / buttons to highlight
a network then press the Enter button to select it. If this network is
secured, you need to input the security key using the remote control.
Then a connection test will be automatically performed and the test
result is shown on the screen.
anual – To manually set the information for a wireless network. You
M
need to use the remote control to input the SSID, select the Security
Mode and input the Security Key. Then a connection test will be
automatically performed and the test result is shown on the screen.
To configure the proxy server settings. A proxy server works as an
intermediary for network communication between clients and other
servers, which can provide benefits like security, anonymity, speedup or
circumventing regional restrictions.
On – To access the Internet via a proxy server.
Proxy Host: To enter the proxy host name using the remote control.
roxy Port: To enter the proxy host port number using the remote
P
control.
Off (default) – Do not use a proxy server.
8. Connection Test
To test the Internet connection. It is recommended that you test the
connection when you initially connect the player to the Internet, or
whenever changes to "IP Setting" and other network parameters are
made.
PS – To start the Wi-Fi Protected Setup. 752BD supports the WPS
W
standard to provide an easy and secure establishment of a wireless
home network. If you have a router/wireless access point that also
support WPS. The available options are:
PIN – To configure the WPS using a Personal Identification Number.
The player will generate a PIN and you need to input it into the
software control panel of your wireless router or access point. Please
follow the on-screen instruction.
BC - To configure the WPS using Push Button Control. You need to
P
push a PBC button on your wireless router or access point to initiate
the wireless connection. Please follow the on-screen instruction.
Note: – SSID is short for Service Set Identifier. It is an identifier for each wireless
router or access point, and is also referred as a network name.
– WPS is short for Wi-Fi Protected Setup (WPS). It is the latest standard
for easy and secure wireless home network configuration. It is also
named Wi-Fi Simple Config. To use WPS, a WPS compatible router or
access point is required.
35
ENGLISH
azur
Filters
For all sources the 752BD up-samples all internally decoded material to
24/192kHz via an Analog Devices SHARC DSP.
This runs our proprietary code from Anagram Technologies which
performs jitter suppression, up-sampling and anti-alias filtering for all 10
analog outputs (7.1 and Dedicated Stereo).
The three different Filter functions are: Linear Phase, Minimum Phase
and Steep. All three filters are optimised specifically for audio playback.
Each offers excellent sound quality but differs subtly in optimisation,
hence we’ve made all three available to you.
0
-20
-40
Magnitude (dB)
The front panel Filter button allows cycling between three different antialias filters as described below.
Minimum phase filter frequency response
20
Note: For clarity, all diagrams show the theoretical response of the DSP
itself, excluding any analog filtering at the DAC outputs or the anti-aliasing
filter applied during recording and/or mastering of the digital source.
-60
-80
-100
-120
-140
-160
-180
Linear phase filter frequency response
20
-200
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1
frequency/FS (input sampling rate)
0
-20
The Minimum Phase filter is another highly regarded audio filter that
offers even lower ripple in the pass and stop bands. Unlike the Linear
Phase filter, group delay is not constant so some time-coherence is lost;
however, phase shift is low and the particular benefit with this filter is
that the impulse response exhibits no pre-ringing.
Magnitude (dB)
-40
-60
-80
-100
-120
-140
Minimum phaseimpulse response
-160
-180
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1
frequency/FS (input sampling rate)
The Linear Phase filter is a highly regarded audio filter offering low ripple
in both the pass and stop bands, and what is known as constant group
delay. Constant group delay means that audio signals of all frequencies
are always delayed by the same amount when passing through the filter.
All audio is therefore fully time-coherent at the output.
The trade-off with this type of filter is that due to internal feed-forward
in the DSP, its impulse response will exhibit some pre-ringing. In other
words, when excited with a theoretical impulse, the output has both
a small amount of pre- and post-spike amplitude ringing (albeit well
damped).
Amplitude
Linear phase impulse response
0
0
20
40
60
80
100
Time (samples)
36
120
140
160
180
Amplitude
-200
0
0
20
40
60
80
100
Time (samples)
120
140
160
180
azur
752BD
20
Steep filter frequency response
There is no power
Ensure the AC power cord is connected securely.
0
Ensure the plug is fully inserted into the wall socket and is switched on.
-20
Check fuse in the mains plug or adaptor.
Steep filter
-40
Magnitude (dB)
ENGLISH
Troubleshooting
-60
The player will not read the disc
Linear phase filter
Check the disc is not loaded upside down.
-80
-100
Check that the disc is not too scratched or dirty.
-120
The disc type is not supported by this unit.
-140
Check its region and type.
Functions on some discs may not work on this unit. This is not a
malfunction of the player.
-160
-180
-200
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1
There is no sound
Ensure that the amplifier is set correctly.
frequency/FS (input sampling rate)
Check that the interconnects are inserted correctly.
Our Steep filter is a linear phase filter that has been optimised for stop
band attenuation of close-in aliasing images. Here we have traded a
little attenuation of the very highest frequency response (for 44.1kHz
sampled material it would be -2dB at 20kHz) and a little more pre- and
post-ringing for a very steep attenuation just outside the pass band. The
Steep filter is able to attenuate aliasing at 22kHz by some 80dB.
Check if the output has been set incorrectly to Bitstream or LPCM.
The disc is skipping
Check that the disc is not too scratched or dirty.
Ensure that the 752BD is on a firm surface and not subject to vibrations.
A low hum or buzz sound can be heard
Steep filter impulse response
Power cords or lighting placed near this product.
Analogue inputs not connected securely.
No sound from the rear speakers
Amplitude
Source being played is not recorded in surround-sound.
Unit has been put to stereo or other down-mix mode.
No sound from the centre speaker
A stereo mode has been selected.
0
Remote control is not working
0
20
40
60
80
100
120
140
160
180
Time (samples)
The remote is too far from the unit or out of the effective range.
Note: All filters exhibit the same ultimate roll-off of approximately 140dB.
The following table shows the filter stop band attenuation for 44.1kHz
material as an example:
The batteries are flat.
Files on a connected USB device do not play
If the USB drive is incompatible, or the player encounters errors while
reading the USB drive or flash memory card, the screen displays "Device
Error". In this case please verify that the USB drive is compatible, and try
to unplug the device and re-insert again.
Linear Phase
Minimum Phase
Steep
-0.1dB
-0.1dB
-2dB
Roll-off at 22kHz -10dB
-10dB
-82dB
In some cases, an incompatible USB device may cause the 752BD to
stop responding. If this occurs simply turn off the power, remove the USB
device, and turn the player back on.
Ultimate roll-off
140dB
140dB
The file type is incompatible. Check the supported file types.
Roll-off at 20kHz
140dB
The drive requires too much power from the USB socket.
We encourage you to experiment with the filters to determine which
sound best to your ears and using your source equipment/programme
material.
Problems using HDMI
Ensure that your screen supports HDCP (High-Definition Copy Protection).
Ensure your screen is capable of displaying the resolution being output
by the Blu-ray player.
Note: Cables which run over 5m may cause sync or grounding issues.
For more frequently asked questions (FAQs), technical advice and
information on getting the most out of your 752BD, please visit the
Support section on Cambridge Audio’s website:
www.cambridgeaudio.com/support.php
37
Appendix - language code list
Note: These affect the Audio/Subtitle/Disc menu defaults only and not
the On Screen menu language.
Code Language Name
Code Language Name
Code Language Name
6565 Afar
7285 Hungarian
8084 Portuguese
6566 Abkhazian
7289 Armenian
8185 Quechua
6570 Afrikaans
7365Interlingua
8277 Rhaeto-Romance
6577 Amharic
7378 Indonesian
8279 Romanian
6582 Arabic
7383 Icelandic
8285 Russian
6583 Assamese
7384 Italian
8365 Sanskrit
6588 Aymara
7387 Hebrew
8368 Sindhi
6590 Azerbaijani
7465 Japanese
8372 Serbo-Croatian
6665 Bashkir
7473 Yiddish
8373 Singhalese
6669 Byelorussian
7487 Javanese
8375 Slovak
6671 Bulgarian
7565 Georgian
8376 Slovenian
6672 Bihari
7575 Kazakh
8377 Samoan
6678 Bengali, Bangla
7576 Greenlandic
8378 Shona
6679 Tibetan
7577 Cambodian
8379 Somali
6682 Breton
7578 Kannada
8381 Albanian
6765 Catalan
7579 Korean
8382 Serbian
6779 Corsican
7583 Kashmiri
8385 Sundanese
6783 Czech
7585 Kurdish
8386 Swedish
6789 Welsh
7589 Kirghiz
8387 Swahili
6865 Danish
7665 Latin
8465 Tamil
6869 German
7678 Lingala
8469 Telugu
6890 Bhutani
7679 Laothian
8471 Tajik
6976 Greek
7684 Lithuanian
8472 Thai
6978 English
7686 Latvian,Lettish
8473 Tigrinya
6979 Esperanto
7771 Malagasy
8475 Turkmen
6983 Spanish
7773 Maori
8476 Tagalog
6984 Estonian
7775 Macedonian
8479 Tonga
6985 Basque
7776 Malayalam
8482 Turkish
7065 Persian
7778 Mongolian
8484 Tatar
7073 Finnish
7779 Moldavian
8487 Twi
7074 Fi jian
7782 Marathi
8575 Ukrainian
7079 Faroese
7783 Malay
8582 Urdu
7082 French
7784 Maltese
8590 Uzbek
7089 Frisian
7789 Burmese
8673 Vietnamese
7165 Irish
7865 Nauru
8679 Volapuk
7168 Scots Gaelic
7869 Nepali
8779 Wolof
7176 Galician
7876 Dutch
8872 Xhosa
7178 Guarani
7879 Norwegian
8979 Yoruba
7185 Gujarati
7982 Oriya
9072 Chinese
7265 Hausa
8065 Panjabi
9085 Zulu
7273 Hindi
8076 Polish
7282 Croatian
8083 Pashto, Pushto
38
azur
752BD
Disc types Blu-ray (BD) including BD-3D, DVD-Video, DVD-Audio, AVCHD, SACD, CD, HDCD, Kodak Picture CD, CD-R/RW, DVD±R/RW, DVD±R DL, BD-R/RE
BD Profile BD-ROM Version 2.5 Profile 5
(also compatible with Profile 1 Version
1.0 and 1.1)
Architecture
Decoder
Mediatek MTK8580
Video Scaler
Marvell DE2755 QDEO Video Scaler (on
Primary output
Upsampler
Analog Devices ADSP-21261 32
bit SHARC® DSP running Anagram
Technologies™ Q5 up-sampling
to 24 bit/192kHz (All 10 channels)
DACs
5 x Wolfson WM8740 24/192kHz Digital
to Analog converters
Internal Storage 1GB (Actual available storage varies due to system usage)
External Storage 3 x USB 2.0
Analogue audio outputs 7.1 RCA/Phono
Can be set for Stereo, 5.1 or 7.1 output
Dedicated stereo RCA/Phono
Video Frame Rates
24Hz/50H/60Hz
Video format/file format
MPEG2, MPEG 2 HD, MPEG4, MPEG4 HD,
support AVC, VC-1, DIVX, XVID, VCD, AVI, AVC,
MKV (4.1), DAT, VOB, WMV, MOV, MP4,
MPEG-PS, FLV, MTS, M2TS, M2T, M4V, QT
Audio file format supportAAC, WMA, MP3, APE, Ogg Vorbis, FLAC
(inc. 24 bit 32-192kHz), WAV (inc. 24 bit
32-192kHz)
Picture file format support
JPG, BMP, GIF, PNG
ENGLISH
Technical specifications
HDMI outputs (1.4a) x 2
Video
NTSC: 480i/p, 720p, 1080i/p,
1080p24
PAL: 576i/p, 720p, 1080i/p, 1080p24
Audio
Stereo, up to 7.1ch high-resolution
PCM, up to 5.1ch DSD, bitstream or
decoding to PCM of Dolby Digital,
Dolby Digital Plus, Dolby TrueHD, DTS,
DTS-HD High Resolution Audio, and
DTS-HD Master Audio.
Composite Video (Diagnostic only)
1.0V p-p (75 Ω)
Ethernet100BASE-T
IR Emitter In
3.5mm mini jack, isolated, modulated
PSU
Universal switch-mode 100 – 240V AC, IEC inlet
Max power consumption 35W
Standby consumption (Quick Start mode off)
<0.5W
Dimensions (H x W x D)
85 x 430 x 312mm
(3.3 x 16.9 x 12.3’’) with feet
Weight (unboxed)
5.0kg (11.0lbs)
THD+N @ 1kHz
< 0.001%
THD+N 20Hz-20kHz
< 0.003%
IMD 19/20KHz
< 0.0002%
S/N Ratio< -108dB
Crosstalk @ 1kHz
< -100dB
Total Correlated Jitter
< 50pS
Notes:
Wi-Fi802.11 b/g/n compatible via supplied
dongle. 2.4Ghz.
– Whilst we strive to maintain maximum file compatibility, because of
inconsistencies in how some file formats are generated and a constantly
changing industry we CANNOT guarantee the playability of all file formats
above.
Cambridge Audio’s policy is one of continuous improvement. Design
and specifications are therefore subject to change without prior notice.
– BD ISO files are NOT supported for copyright reasons.
– Some forms of M42, WMA or APE with embedded covers are not
supported.
HDMI inputs (1.4a) x 2
HDMI Video
(MHL compatible via the 480i/480p/576i/576p/720p/1080i/
front panel)
1080p/1080p24, 3D frame-packing 720p/ 1080p24.
HDMI Audio
Stereo, up to 5.1ch/192kHz or
7.1ch/96kHz PCM, Dolby Digital, Dolby
Digital Plus, DTS.
MHL Video
480i/480p/576i/576p/720p/1080i/
1080p24/1080p25/1080p30, 3D framepacking 720p/1080p24.
MHL Audio
Stereo, up to 5.1ch/192kHz PCM, Dolby
Digital, Dolby Digital Plus, DTS.
39
Cambridge Audio is a brand of Audio Partnership Plc
Registered Office: Gallery Court, Hankey Place
London SE1 4BB, United Kingdom
Registered in England No. 2953313
© 2013 Cambridge Audio Ltd
AP32235/1-A
www.cambridge-audio.com
Download PDF
