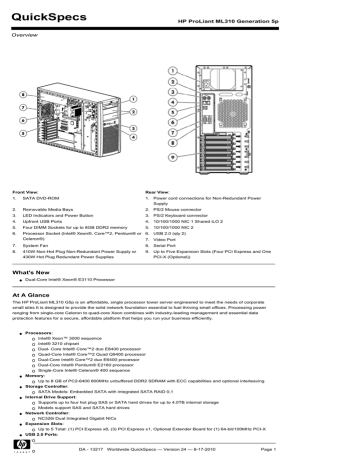

QuickSpecs
HP ProLiant ML310 Generation 5p
Overview
Front View:
Rear View:
1.
SATA DVD-ROM
1.
Power cord connections for Non-Redundant Power
Supply
2.
Removable Media Bays
2.
PS/2 Mouse connector
3.
LED Indicators and Power Button
3.
PS/2 Keyboard connector
4.
Upfront USB Ports
4.
10/100/1000 NIC 1 Shared iLO 2
5.
Four DIMM Sockets for up to 8GB DDR2 memory
5.
10/100/1000 NIC 2
6.
Processor Socket (Intel® Xeon®, Core™2, Pentium® or
Celeron®)
6.
USB 2.0 (qty 2)
7.
Video Port
7.
System Fan
8.
Serial Port
8.
410W Non-Hot Plug Non-Redundant Power Supply or
430W Hot Plug Redundant Power Supplies
9.
Up to Five Expansion Slots (Four PCI Express and One
PCI-X (Optional))
What's New
Dual-Core Intel® Xeon® E3110 Processor
At A Glance
The HP ProLiant ML310 G5p is an affordable, single processor tower server engineered to meet the needs of corporate
small sites It is designed to provide the solid network foundation essential to fuel thriving small offices. Processing power
ranging from single-core Celeron to quad-core Xeon combines with industry-leading management and essential data
protection features for a secure, affordable platform that helps you run your business efficiently.
Processors:
Intel® Xeon™ 3000 sequence
Intel® 3210 chipset
Dual- Core Intel® Core™2 duo E8400 processor
Quad-Core Intel® Core™2 Quad Q9400 processor
Dual-Core Intel® Core™2 duo E6400 processor
Dual-Core Intel® Pentium® E2160 processor
Single-Core Intel® Celeron® 400 sequence
Memory:
Up to 8 GB of PC2-6400 800MHz unbuffered DDR2 SDRAM with ECC capabilities and optional interleaving
Storage Controller:
SATA Models: Embedded SATA with integrated SATA RAID 0,1
Internal Drive Support:
Supports up to four hot plug SAS or SATA hard drives for up to 4.0TB internal storage
Models support SAS and SATA hard drives
Network Controller:
NC326i Dual Integrated Gigabit NICs
Expansion Slots:
Up to 5 Total: (1) PCI Express x8, (3) PCI Express x1, Optional Extender Board for (1) 64-bit/100MHz PCI-X
USB 2.0 Ports:
DA - 13217
Worldwide QuickSpecs — Version 24 — 8-17-2010
Page 1
QuickSpecs
HP ProLiant ML310 Generation 5p
Overview
6 Total: (2) front; (2) rear; (1) internal; (1) dedicated internal for tape
Infrastructure Management:
Convenient slide-out Systems Insight Display for quick and easy front view server diagnostics, along with status
LEDs, Automatic Server Recovery (ASR), ROM Based Setup Utility (RBSU)
HP Integrated Lights-Out 2 management processor for simplified server setup, health monitoring and recovery,
power and thermal control, and lights-out remote administration.
HP Insight Control a product option, delivers essential infrastructure management that can help save time and
money by making it easy to deploy, monitor, control and optimize your IT infrastructure through a single, simple
management console. Insight Control supports both Windows and Linux-based central management servers.
HP Insight Dynamics for ProLiant, a product option, is an integrated command center that enables IT Staff
personnel to continuously analyze and optimize a converged infrastructure, while automating and reducing the
cost of common data center tasks by as much as 40 percent. This ultimately enables them to dynamically keep
pace with the organization's changing business requirements.
Operating Systems and Virtualization Software Support for ProLiant Servers:
Supports Windows, RHEL, SLES, OEL
Deployment/Serviceability:
Customer Self Repair (CSR): HP products are designed with many CSR parts to minimize repair time and allow
for greater flexibility in performing defective parts replacement
Form Factor:
Tower (5U)
Optional Tower-to-Rack Enabling Kit available, system & tray occupy 6U
Security:
Trusted Platform Module Option
This server platform is designed to use the trusted platform module. The HP TPM can be installed tool-free by
inserting the module into a header located on the system board
Warranty:
This product is covered by a global limited warranty and supported by HP Services and a worldwide network of
HP Authorized Channel Partners. Hardware diagnostic support and repair is available for one year, with 1 year
Next Business Day and year on-site support from date of purchase. Support for software and initial setup is
available for 90 days from date of purchase. Expanded support may be covered under the warranty or available
for an additional fee. Enhancements to warranty services are available through HP Care Pack services or
customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific
hard drive QuickSpecs for details
NOTE: Server Warranty includes 1-Year Parts, 1-Year Labor, 1-Year Onsite support with next business day
response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These
parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor
charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also
designed for easy replacement but may involve added complexity. Customers may choose to have HP replace
Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical
support is available at: http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html
DA - 13217
Worldwide QuickSpecs — Version 24 — 8-17-2010
Page 2
QuickSpecs
HP ProLiant ML310 Generation 5p
Standard Features
NOTE: For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information Factory Integrated Models" section.
Processor
One of the following
depending on Model
Quad-Core Processors
Quad-Core Intel® Xeon® processor X3370 Quad (3.0GHz, 12MB cache, 1333MHz FSB)
Quad-Core Intel® Xeon® processor X3360 (2.83GHz, 12MB L2 Cache, 1333MHz FSB)
Quad-Core Intel® Core™2 processor Q9400 (2.66 GHz, 6MB L2 Cache, 1333MHz FSB)
Quad-Core Intel® Xeon® processor X3330 (2.66GHz, 6MB cache, 1333MHz FSB)
Dual-Core Processors
Dual-Core Intel® Xeon® processor E3120 (3.16GHz, 6MB cache, 1333MHz FSB)
Dual-Core Intel® Xeon® processor E3110 (3.00GHz, 6MB cache, 1333MHz FSB)
Dual-Core Intel® Core™2 duo processor E8400 (3.00 GHz, 6MB L2 Cache, 1333MHz FSB)
Dual-Core Intel® Core™2 duo processor E6400 (2.13 GHz, 2MB L2 Cache, 1066MHz FSB)
Dual-Core Intel® Pentium processor E2160 (1.8GHz, 1MB L2 Cache, 800MHz FSB)
Single-Core Processors
Single-Core Intel® Celeron® processor 440 (2.0GHz, 512KB L2 Cache, 800MHz FSB)
Cache Memory
One of the following
depending on Model
12 MB L2 Cache
NOTE: For Models with Intel Xeon processor X3360 and X3370.
6 MB L2 Cache
NOTE: For Models with Intel Xeon processor X3330, and E3120. For Models with Intel Core 2
processor Q9400, E8400.
2 MB L2 Cache
NOTE: For Models with the Intel Core2 processor E6400.
1 MB L2 Cache
NOTE: For Models with the Intel Pentium processor E2160.
512 KB L2 Cache
NOTE: For Models with the Intel Celeron processor 440.
Chipset
Intel® 3210 Chipset
NOTE: For more information regarding Intel® chipsets, please see the following URL:
http://www.intel.com/products/server/chipsets/.
Memory Protection
ECC
Memory
One of the following
depending on Model
Type
PC2-6400 unbuffered DDR2 SDRAM (800MHz)
Standard
1 GB (1 x 1 GB)
Maximum
8 GB
Network Controller
NC326i Dual Integrated Gigabit NICs
DA - 13217
Worldwide QuickSpecs — Version 24 — 8-17-2010
Page 3
QuickSpecs
HP ProLiant ML310 Generation 5p
Standard Features
Expansion Slots
Expansion
Bus
Technology
Slots #
Width***
Connector
Width
Bus
Number*
Device
No.**
Form
Factor
7
PCIe
x1
x8
4
0
Half length,
full height
slot
6
PCIe
x1
x8
7
0
Half length,
full height
slot
5
PCIe
x1
x8
10
0
Full length,
full height
slot
3
PCIe
x8
x8
18
0
Full length,
full height
slot
1
(Optional)
PCI-X
(100MHz,
3.3V)
64-bit
Not
applicable
14
2
Full length,
full height
slot
Notes
* Default bus assignment (in decimal). Inserting cards with PCI bridges may alter the actual bus
assignment number
** Slots are enumerated differently based on OS. MS OS's enumerate from lowest to highest
Device ID by bus (starting with the lowest bus).
*** Indicates the number of physical electrical lanes running to a PCI-e connector.
Storage Controllers
The HP ProLiant ML310 G5p supports Serial ATA (SATA) and Serial Attached SCSI (SAS) hard
drives. Models described as SAS models include an 8 port HBA or controller that supports both
SATA and SAS hard drives in non-RAID, RAID 0, or RAID 1 configurations. Models described as
SATA/SAS support SATA hard drives standard and require the installation of an HBA or controller
to support SAS.
Embedded SATA with integrated SATA RAID 0,1 (SATA/SAS Models)
NOTE: Use of the embedded SATA RAID feature with a Linux operating system requires
installation of a driver from a floppy drive. The supported floppy drive can be a USB drive key
(except Windows 2003), USB floppy drive, half-height internal floppy drive, or virtual floppy via
Integrated Lights-Out 2 (iLO 2).
NOTE: See the "Storage" section of these QuickSpecs for information on required to support
SATA and SAS hard drive configurations.
Storage
Maximum Internal
Storage
Optical Drive
SATA DVD-ROM Drive Standard
Diskette Drive
Optional 1.44 MB Diskette Drive
NOTE: Use of the embedded SATA RAID feature with a Linux operating
system requires installation of a driver from a floppy drive. The
supported floppy drive can be a USB drive key, USB floppy drive, halfheight internal floppy drive, or virtual floppy via Integrated Lights-Out 2
(iLO 2).
Hot Plug SAS (3.5")
4.0TB
4 x 1TB
Hot Plug SATA (3.5")
8.0TB
4 x 2TB
NOTE: See the "Storage" section of these QuickSpecs for information on controllers required to
support SATA and SAS hard drive configurations.
DA - 13217
Worldwide QuickSpecs — Version 24 — 8-17-2010
Page 4
QuickSpecs
HP ProLiant ML310 Generation 5p
Standard Features
Interfaces
Parallel
1 (Optional)
Serial
1 (Optional second serial port available)
Pointing Device (Mouse) 1
Graphics
Graphics
1
Keyboard
1
USB Ports
5 (2 front; 2 rear; 1 internal)
NOTE: Please see the following URL for additional information
regarding USB support:
http://h18004.www1.hp.com/products/servers/platforms/usbsupport.html.
Dedicated USB Port
1 (available for USB tape connectivity)
Network RJ-45
(Ethernet)
2 (1 Shared iLO 2 port)
iLO 2 Remote
Management port
1 (see Network RJ-45 port)
Integrated ATI ES1000, 32 MB video standard
16 bit color: maximum resolution of 1600 x 1200
32 bit color: maximum resolution of 1280 x 1024
NOTE: Maximum resolution available via iLO 2 remote console is 1280 x 1024.
Form Factor
Tower (5U)
Optional Tower-to-Rack Enabling Kit available (system & tray occupy 6U)
HP Insight
HP Foundation Pack
management software
Managing the growing number of servers can be complex and
expensive for your organization. IT managers need to address changing
business needs with tools that meet the challenges of managing today's
complex Datacenters.
HP provides management solutions that are designed to simplify a
server's installation, configuration and maintenance throughout the
entire server lifecycle. This provides the customer with higher levels of
operational efficiency and highly reliable systems:
www.hp.com/go/foundation.
The foundation pack includes:
HP SmartStart
HP Management
HP ProLiant Firmware Maintenance
SmartStart version supported (minimum): SmartStart 7.51
http://www.hp.com/servers/smartstart
HP Integrated Lights-Out HP Integrated Lights-Out (iLO) simplifies server setup, health
(iLO)
monitoring, power and thermal control, and lights-out remote
administration of ProLiant ML, DL, and BL servers. HP iLO functions
without additional software and can be accessed from any location via a
web browser. HP iLO works hand-in-hand with HP Systems Insight
Manager, Insight Control, and Insight Dynamics for ProLiant, helping
customers unleash the value of the ProLiant platform and deliver the
highest possible quality of IT service. For more information, visit:
www.hp.com/go/iLO
HP Insight Control
HP Insight Control, a product option, delivers essential infrastructure
management that can help save time and money by making it easy to
deploy, monitor, remote control, and optimize your IT infrastructure
through a single, simple management console.
Two versions of Insight Control are available, to serve environments
requiring either a Linux-based or a Windows-based central management
servers: HP Insight Control for Linux, and HP Insight Control. See
www.hp.com/go/insightcontrol
HP Insight Control includes one year of 24 x 7 HP Software Technical
Support and Update Service ensuring rapid access to HP support staff
and proactive delivery of software updates. For more information about
this service, please visit: http://www.hp.com/services/insight.
DA - 13217
Worldwide QuickSpecs — Version 24 — 8-17-2010
Page 5
QuickSpecs
HP ProLiant ML310 Generation 5p
Standard Features
HP Insight Dynamics for HP Insight Dynamics for ProLiant, a product option, is an integrated
ProLiant
command center that enables IT Staff personnel to continuously analyze
and optimize a converged infrastructure, while automating and reducing
the cost of common data center tasks by as much as 40 percent. As a
powerfully integrated by design toolkit to accelerate complex technology
projects and simplify daily operations that ultimately enable IT Staff
personnel to dynamically keep pace with the organizations changing
business requirements. It enables them to plan capacity and power
continuously, balance across physical and virtual resources, and ensure
cost-effective high availability. It also enables IT organizations to
provision infrastructure consistently and automatically from pools of
shared resources using a self-service portal. Resources provisioned can
range from a single virtual machine to complex multi-tier environments
and their associated physical and virtual resource requirements. In
addition to the previous functional benefits, it also provides a costeffective disaster recovery for physical and virtual environments that
works with HP StorageWorks Continuous Access software for both the
Enterprise Virtual Array and the XP storage array allowing application
environments to be reactivated in minutes with the touch of a button to a
remote location.
NOTE: For more information, visit:
http://www.hp.com/go/insightdynamics
Industry Standard
Compliance
ACPI V1.0b and 2.0 Compliant
PCI 3.0 Compliant
PCI-X 3.0 Compliant
PCI-Express 3.0 Compliant
PXE Support
WOL Support
Microsoft Logo certifications
Novell Logo certifications
USB 2.0
Manageability
HP Systems Insight Manager
Online ROM Flash Utility
Drive Parameter Tracking (with Smart Array Controller)
Dynamic Sector Repairing (with Smart Array Controller)
Pre-Failure Warranty (covers processors, memory and SAS hard drives)
BIOS Serial Console
Security
Power-on password
Setup password
Diskette boot control
Power switch security
Security - Trusted
Platform Module
Trusted Platform Module option kit
The TPM (Trusted Platform Module) is a microcontroller chip that can securely store artifacts used
to authenticate the server platform. These artifacts can include passwords, certificates and
encryption keys. Windows® BitLocker™ Drive Encryption (BitLocker) is a data protection feature
available in Windows Server® 2008. BitLocker leverages the enhanced security capabilities of a
Trusted Platform Module (TPM) version 1.2. The TPM works with BitLocker to help protect user
data and to ensure that a server running Windows Server 2008 has not been tampered with while
the system was offline.
For more information about TPM, including a white paper, go to: www.hp.com/go/TPM
NOTE: ProLiant OS pre-installed units will come with the partition required for TPM deployment.
NOTE: The TPM key is unique to every TPM deployed server and must be retained. Misplacing or
loosing the key could result in data loss.
Server Power Cords
All models ship with one 1.8m (6 foot) standard low-line, country specific power cord. Localized
cables included with geographic specific models in other world regions.
NOTE: HP ProLiant ML310 a C13 to C14 2.8M jumper cord ships standard. If customers require a
local power cord, they can check the power cord matrix for the appropriate country specific sku.
Please see the following power cord matrix: http://www.hp.com/go/powercordmatrix.
DA - 13217
Worldwide QuickSpecs — Version 24 — 8-17-2010
Page 6
QuickSpecs
HP ProLiant ML310 Generation 5p
Standard Features
Power Specifications
NOTE: To review typical system power ratings use the HP Power Advisor which is available online
located at url: www.hp.com/go/proliant-energy-efficient or www.hp.com/go/hppoweradvisor
Power Supply
410 Watt PFC (Power Factor Correcting) non-hot plug non-redundant power supply or 430 Watt
PFC hot plug redundant power supplies (ships with two power supplies)
UPS and PDU Power
Cord Matrix
Please see the UPS and PDU cable matrix's on the HP Power Protection and Management page.
Under Power Cords, click on the "HP Power Cord Matrix" link. That link will list cable descriptions,
requirements, and specifications for UPS and PDU units. Please see the following link:
www.hp.com/products/powercords.
System Fans
1 - Non-hot plug, Non-redundant system fans; 1 optional fan for PCI-X Extender Board
NOTE: Does not include fan in power supply.
Operating Systems and Microsoft Windows Server
Virtualization Software Microsoft Windows Server Hyper V
Support for ProLiant
Red Hat Enterprise Linux (RHEL)
Servers
SUSE Linux Enterprise Server (SLES)
Oracle Enterprise Linux (OEL)
NOTE: For more information on HP's Certified and Supported ProLiant Servers for OS and
Virtualization Software and latest listing of software drivers available for your server, please visit
our Support Matrix at: http://www.hp.com/go/ossupport and our driver download page
www.hp.com/support/ML310G5p.
Factory Express
Portfolio for Servers
and Storage
HP Factory Express offers configuration, customization, integration and deployment services for
HP servers and storage products. Customers can choose how their factory solutions are built,
tested, integrated, shipped and deployed.
Factory Express offers service packages for simple configuration, racking, installation, complex
configuration and design services as well as individual factory services, such as image loading,
asset tagging, and custom packaging. HP products supported through Factory Express include a
wide array of servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP
BladeSystem, HP 9000 servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries
and configurable network switches.
For more information on Factory Express services for your specific server model please contact
your sales representative or go to: http://www.hp.com/go/factory-express.
Rack and Rack Options Rack Cabinets:
For information regarding Rack Cabinets, please see the following URL:
http://www.hp.com/go/rackandpower
KVM Switches, Serial Console Servers, Rackmount Monitors, Keyboards:
For additional information regarding KVM switches, Serial Console servers, rack mount
monitors, keyboards and all related options please see the following URL:
http://www.hp.com/go/kvm.
HP Enterprise
Configurator
The HP eConfigure-Enterprise Configurator now provides factory default racking for our HP
hardware portfolio. This approach is aligned with our strategic direction to meet the needs and
expectations of our valued customers. If you require "custom" rack configuration, please contact
HP's Customer Business Center or an Authorized Partner for assistance.
http://www.hp.com/products/configurator.
DA - 13217
Worldwide QuickSpecs — Version 24 — 8-17-2010
Page 7
QuickSpecs
HP ProLiant ML310 Generation 5p
Standard Features
Service and Support
HP Care Pack Services provide total care and support expertise with committed response times
designed to meet your IT and business needs.
HP Care Pack services include coverage for the HP branded hardware options qualified for the
server that are purchased at the same time or afterward and internal to the enclosure. It also
includes the 22-inch and smaller external monitors and tower UPS options up to 3kVA. These
items will be covered at the same service level and for the same coverage period as the server.
Coverage of UPS Battery is not included and standard warranty terms & conditions apply. For
servers or storage systems installed within a rack, service also covers all HP qualified rack options
installed within the same rack.
To fully capitalizing on your HP ProLiant servers' capabilities requires a service partner who
thoroughly understands your server technology and systems environment. HP Services, an
industry leader in provision of support solutions provides a range of support services designed to
meet the varying needs of your business. Whether an SMB, or large global corporation, HP has
ProLiant server support offers to help you speedily deploy and maximize system uptime.
Recommended Service - simplify ProLiant solution implementation, maintenance, and
management.
Support - 3-Year 9x5 Next Business Day coverage, excluding HP holidays only
Deployment Service - HW Installation only
Enhanced Service - optimize service level to increase IT performance and availability.
Support - 3-Yyear 13x5 Same Business Day, 4-Hour response coverage only
Deployment Service - Installation and Start up only
Refer to the information on the Installation of a ProLiant on the ProLiant Data Sheet; to be
delivered on a scheduled basis 8am-5pm, M-F, excluding HP holidays.
NOTE: For a complete listing of service offerings and information visit:
http://www.hp.com/services/proliantservices
http://www.hp.com/go/proliant/carepack
DA - 13217
Worldwide QuickSpecs — Version 24 — 8-17-2010
Page 8
QuickSpecs
HP ProLiant ML310 Generation 5p
Models
NOTE: For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information Factory Integrated Models" section.
NOTE: Not all models are available in all regions. Check with your local country HP offices for availability.
HP ML310G5p Q9400
1GB SATA
515866-xx1
HP ML310G5p E8400
1GB SATA
515867-xx1
Country Code Key
Processor(s)
Quad-Core Intel® Core™2 processor Q9400 (2.66 GHz, 6MB L2
Cache, 95 Watts, 1333MHz FSB)
Cache Memory
6MB L2
Memory
1GB (1x1GB) UDIMM
Network Controller
Embedded NC326i Dual Integrated Gigabit NICs
Storage Controller
Embedded SATA with integrated SATA RAID 0, 1
Hard Drives
None ship standard (Up to 4 hot plug SATA 3.5" drives supported
standard. SAS 3.5" drives supported with optional HBA or controller)
Internal Storage
SAS: 4.0TB maximum; SATA: 8.0TB maximum
Optical Drive
SATA DVD-ROM Drive
Diskette Drive
None ship standard (Optional 1.44 MB Diskette Drive)
Power Supply
430W redundant power supply
Form Factor
Tower (5U) (Optional Tower to Rack Enabling Kit available, system &
tray occupy 6U)
Processor(s)
Dual-Core Intel® Core™2 duo processor E8400 (3.00 GHz, 6MB L2
Cache, 65 Watts, 1333MHz FSB)
Cache Memory
6MB L2
Memory
1GB (1x1GB) UDIMM
Network Controller
Embedded NC326i Dual Integrated Gigabit NICs
Storage Controller
Embedded SATA with integrated SATA RAID 0, 1
Hard Drives
None ship standard (Up to 4 hot plug SATA 3.5" drives supported
standard. SAS 3.5" drives supported with optional HBA or controller)
Internal Storage
SAS: 4.0TB maximum; SATA: 8.0TB maximum
Optical Drive
SATA DVD-ROM Drive
Diskette Drive
None ship standard (Optional 1.44 MB Diskette Drive available)
Power Supply
410W non-hot plug non-redundant power supply
Form Factor
Tower (5U) (Optional Tower to Rack Enabling Kit available, system &
tray occupy 6U)
xx=00
US
xx=01
Australia
xx=03
UK
xx=04
Germany
xx=05
France
xx=29
Japan
xx=37
AP
xx=42
Europe
DA - 13217
Worldwide QuickSpecs — Version 24 — 8-17-2010
Page 9
QuickSpecs
HP ProLiant ML310 Generation 5p
Configuration Information - Factory Integrated Models
NOTE: This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid
configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales
representative for information on CTO product offerings and requirements.
NOTE: HP does not allow factory integration of options into standard models listed above. Configure-to-order servers must
start with a CTO Chassis.
NOTE: FIO indicates that this option only available as a Factory Installable Option.
Step 1: Base Configuration
HP Models
HP ProLiant ML310G5p Model X CTO Chassis
445343-B22
Factory Integrated Models ship with:
Embedded NC326i Gigabit Server Adapter
Integrated Four Port SATA Controller (HP-SATA/SAS chassis only)
Keyboard and Mouse
NOTE: The ML310G5p CTO chassis offers pluggable SATA/SAS Drives. It is
required to purchase a Smart Array controller if hot plug function is needed.
Step 2: Choose Required Options (only one of the following from each list unless
otherwise noted)
HP Processors
HP Memory
HP Power Supplies
HP 440 ML310G5p FIO Kit
519647-L21
HP E2160 ML310G5p FIO Kit
519649-L21
HP E3120 ML310G5p FIO Kit
519651-L21
HP X3330 ML310G5p FIO Kit
519655-L21
HP E8400 ML310G5p FIO Kit
517494-L21
HP Q9400 ML310G5p FIO Kit
517495-L21
HP E6400 ML310G5p FIO Kit
519170-L21
HP E3110 ML310G5p FIO Kit
577026-L21
HP 2GB (1x2GB) Dual Rank PC2-6400 (DDR2-800) Unbuffered Memory Kit
450260-B21
HP 1GB (1x1GB) Dual Rank PC2-6400 (DDR2-800) Unbuffered Memory Kit
450259-B21
430W Hot-plug Redundant Power Supply Kit, FIO
NOTE: Hot plug redundant power supply Kit ships with two power supplies.
431652-B21
410W Non-hot-plug Power Supply, FIO
NOTE: Non-hot plug power supply ships with one power supply.
459902-B21
Step 3: Choose Additional Factory Integratable Options
HP Controllers
NOTE: When hot-plug SATA hard drives are installed, SATA LED functionality
and full SATA hot-plug capability are not supported with the embedded
controller. For full LED and hot-plug support, an optional SATA/SAS RAID
controller must be installed. SAS Controllers support both SAS and SATA hard
drives. Some SAS Controllers also have SAS tape support. Please refer to the
"Tape and Disk-Based Backup" table in the Storage section for a list of SAS
Controllers with tape support.
HP Smart Array E200/128 BBWC Controller
NOTE: RAID 0, 1, 1+0, 5.
411508-B21
HP Smart Array P400/256MB Controller
NOTE: RAID 0, 1, 1+0, 5.
405132-B21
HP Smart Array P400/512MB BBWC Controller
NOTE: RAID 0, 1, 1+0, 5, 6.
411064-B21
HP Smart Array E500/256MB Controller
NOTE: RAID 0, 1, 1+0 standard, 5 optional.
435129-B21
HP Smart Array P800/512MB BBWC Controller
NOTE: RAID 0, 1, 1+0, 5, 6.
381513-B21
HP Smart Array P212/256MB Controller
NOTE: RAID 0, 1, 1+0, 5, 5+0.
462834-B21
HP Smart Array P212/Zero Memory Controller
NOTE: RAID 0, 1, 1+0.
462828-B21
HP P411/256 FIO SA Cntrlr w/Battery
NOTE: RAID 0, 1, 1+0, 5, 5+0.
491193-B21
HP Smart Array P411/256MB Controller
NOTE: RAID 0, 1, 1+0, 5, 5+0.
462830-B21
HP Smart Array P411/512MB BBWC
NOTE: RAID 0, 1, 1+0, 5, 5+0.
462832-B21
DA - 13217
Worldwide QuickSpecs — Version 24 — 8-17-2010
Page 10
QuickSpecs
HP ProLiant ML310 Generation 5p
Configuration Information - Factory Integrated Models
HP P410/256 FIO SA Cntrlr w/Battery
NOTE: RAID 0, 1, 1+0, 5, 5+0.
491195-B21
HP Smart Array P410/256MB Controller
NOTE: RAID 0, 1, 1+0, 5, 5+0.
462862-B21
HP Smart Array P410/512MB with BBWC
NOTE: RAID 0, 1, 1+0, 5, 5+0.
462864-B21
HP P410/ZM FIO Smart Array Controller
NOTE: RAID 0, 1, 1+0.
462860-B21
HP ML310 G5 SAS Cable
NOTE: This part number must be used with Smart Array E200 or SAS HBA for
SAS models.
460310-B21
HP Mini SAS to 8484 18in, 24in Cable As
NOTE: This part number must be used with Smart Array P212/P411 Controller
for SAS models.
496015-B21
SAS HBA
HP Insight Software
HP SC08Ge Host Bus Adapter
488765-B21
HP SC44Ge Host Bus Adapter
NOTE: RAID 0, 1.
NOTE: When using the SC44Ge with SATA Hard Drives, 1.5G SATA Hard
Drives are required. Transfer rate: 1.5 Gb/s SATA, 3 Gb/s SAS.
416096-B21
HP 8 Internal Port SAS HBA with RAID
NOTE: When using the 8 Internal Port SAS HBA with SATA Hard Drives, 1.5G
SATA Hard Drives are required.
NOTE: Transfer rate: 1.5 Gb/s SATA, 3 Gb/s SAS.
347786-B21
HP Insight Control, No Media 1-Server License Factory-Integratable Option (FIO)
including 1 year of 24x7 Technical Support and Updates
582765-B21
Step 4: Choose Additional Options for Factory Integration
NOTE: For additional options, please refer to the "Core Options" and "Additional Options" section below.
DA - 13217
Worldwide QuickSpecs — Version 24 — 8-17-2010
Page 11
QuickSpecs
HP ProLiant ML310 Generation 5p
Core Options
NOTE: Some options may not be factory integrated. Please contact your local sales representative for additional information.
HP Memory
HP 2GB (1x2GB) Dual Rank PC2-6400 (DDR2-800) Unbuffered Memory Kit
450260-B21
HP 1GB (1x1GB) Dual Rank PC2-6400 (DDR2-800) Unbuffered Memory Kit
450259-B21
HP Floppy Drives
1.44MB Diskette Drive Option Kit
379257-B21
HP Optical Drives
HP Half-Height SATA DVD-ROM Optical Drive
447326-B21
HP Half-Height SATA DVD RW Optical Drive
447328-B21
HP Hard Drives
NOTE: The components of a storage subsystem (e.g. the drive, the
HBA/controller, firmware, and the server backplane) should operate at the same
data transfer rate or the system bandwidth will be negotiated down to an
acceptable level for all components.
NOTE: Hard drives have either a one year or three year warranty; refer to the
specific hard drive QuickSpecs for details.
NOTE: A HP Smart Array Controller is required for hot plug functionality.
SAS Hot Plug LFF (3.5-inch) Enterprise (ENT) Drives
HP 600GB 6G SAS 15K rpm LFF (3.5-inch) Dual Port Enterprise 3yr Warranty
Hard Drive
516828-B21
HP 450GB 6G SAS 15K rpm LFF (3.5-inch) Dual Port Enterprise 3yr Warranty
Hard Drive
516816-B21
HP 450GB 3G SAS 15K rpm LFF (3.5-inch) Dual Port Enterprise 3yr Warranty
Hard Drive
454232-B21
HP 300GB 6G SAS 15K rpm LFF (3.5-inch) Dual Port Enterprise 3yr Warranty
Hard Drive
516814-B21
HP 300GB 3G SAS 15K rpm LFF (3.5-inch) Dual Port Enterprise 3yr Warranty
Hard Drive
416127-B21
HP 146GB 3G SAS 15K rpm LFF (3.5-inch) Dual Port Enterprise 3yr Warranty
Hard Drive
384854-B21
SAS Hot Plug LFF (3.5-inch) Midline (MDL) Drives
HP 1TB 6G SAS 7.2K rpm LFF (3.5-inch) Dual Port Midline 1yr Warranty Hard
Drive
507614-B21
HP 1TB 3G SAS 7.2K rpm LFF (3.5-inch) Dual Port Midline 1yr Warranty Hard
Drive
461137-B21
HP 750GB 3G SAS 7.2K rpm LFF (3.5-inch) Dual Port Midline 1yr Warranty
Hard Drive
461135-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/12244_div/12244_div.html
(Worldwide)
SATA Hot Plug LFF (3.5-inch) Midline (MDL) Drives
HP 2TB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive
507632-B21
HP 1TB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive
454146-B21
HP 500GB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive
458928-B21
SATA Hot Plug LFF (3.5-inch) Entry (ETY) Drives
HP 250GB 3G SATA 7.2K rpm LFF (3.5-inch) Entry 1yr Warranty Hard Drive
571230-B21
HP 160GB 3G SATA 7.2K rpm LFF (3.5-inch) Entry 1yr Warranty Hard Drive
458945-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/13021_div/13021_div.html
(Worldwide)
SATA Hot Plug 3.5" Midline (MDL) Solid State Drives
HP 60GB 3G SATA LFF (3.5-inch) Midline 1yr Warranty Solid State Drive
570761-B21
HP 120GB 3G SATA LFF (3.5-inch) Midline 1yr Warranty Solid State Drive
570763-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/13415_div/13415_div.html
(Worldwide)
DA - 13217
Worldwide QuickSpecs — Version 24 — 8-17-2010
Page 12
QuickSpecs
HP ProLiant ML310 Generation 5p
Core Options
HP Networking
Gigabit Ethernet Adapters
HP NC112T PCIe Gigabit Server Adapter
503746-B21
HP NC360T PCI Express Dual Port Gigabit Server Adapter
412648-B21
HP NC364T PCI Express Quad Port Gigabit Server Adapter
435508-B21
HP NC365T 4-port Ethernet Server Adapter
593722-B21
HP NC373F PCI Express Multifunction Gigabit Server Adapter
394793-B21
HP NC373T PCI Express Multifunction Gigabit Server Adapter
394791-B21
HP NC375T PCI Express Quad Port Gigabit Server Adapter
538696-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional
information: www.hp.com/go/ProLiantNICs
DA - 13217
Worldwide QuickSpecs — Version 24 — 8-17-2010
Page 13
QuickSpecs
HP ProLiant ML310 Generation 5p
Additional Options
HP Insight Software
HP Insight Control
HP Insight Control, Single-Server License including 1 year of 24x7 Technical
Support and Updates
452148-B22
HP Insight Control suite, No Media, Electronic License including 1 year of 24x7
Technical Support and Updates
T9074BAE
HP Insight Control, Electronic License for bundling with ProLiant ML/DL server,
including 1 year of 24x7 Technical Support and Updates
TC278AAE
HP Insight Control, Tracking License for bundling with ProLiant ML/DL server,
including 1 year of 24x7 Technical Support and Updates
HP Insight Software Media Kit
NOTE: Insight Software DVD media without licenses. Contains HP Systems
Insight Manager, HP Insight Control, HP Insight Dynamics, HP Insight Control for
Microsoft System Center, and Virtual Connect Enterprise Manager software.
Uses an integrated installer to perform quick and accurate software installation
and updates.
TC275A
436222-B21
NOTE: Electronic and Flexible-Quantity licenses can be used to purchase
multiple licenses with a single activation key.
NOTE: Electronic software is available in all countries except China and Japan.
Customers in China and Japan should order the physical equivalent.
NOTE: Customer will receive a license entitlement certificate. The license
entitlement certificate must be redeemed online or via fax in order to obtain the
license activation key(s). Includes one year of 24 x 7 HP Software Technical
Support and Update Service.
NOTE: Licenses ship without media. The HP Insight Control Media Kit can be
ordered separately, or can be downloaded at:
http://www.hp.com/go/insightupdates.
NOTE: For additional license options please see the Insight Control QuickSpecs
at: http://h18000.www1.hp.com/products/quickspecs/12631_div/12631_div.html
HP Insight Control for Linux
HP Insight Control for Linux, 1-server license, including one year of 24x7
Technical Support and Updates, Electronic
TC213AAE
HP Insight Control for Linux, No Media, 1-Server license, including one year of
24x7 Technical Support and Updates
TC209A
HP Insight Control for Linux, Media pack (DVD) - No licenses included
NOTE: Media pack DVD contains the ISO image for HP Insight Control for Linux,
HP Systems Insight Manager, HP Insight Control power management, HP
Insight Control virtual machine management, and an integrated installer. Servers
must be acquired separately.
TC208A
NOTE: Licenses ship without media. The Media Kit for Insight Control for Linux
can be ordered separately, or can be downloaded at: http://www.hp.com/go/iclinux (click on Download button).
NOTE: Electronic software is available in all countries except China and Japan.
Customers in China and Japan should order the physical equivalent.
NOTE: Electronic and Flexible-Quantity licenses can be used to purchase
multiple licenses with a single set of activation keys.
NOTE: For additional License Kits, including electronic licensing options, please
see the QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/13019_div/13019_div.html
HP Integrated Lights-Out (iLO) Advanced
HP Integrated Lights-Out Advanced, No Media, 1-Server License, including 1
year of 24x7 Technical Support and Updates
HP ProLiant Essentials Integrated Lights-Out Advanced Pack, Electronic,
including 1 year of 24x7 Technical Support and Updates
512485-B21
TA850AAE
NOTE: This license allows 1 server to be deployed and managed via HP iLO
Advanced. Customer will receive a printed license entitlement certificate via
physical shipment. The license entitlement certificate must be redeemed online
or via fax in order to obtain the license activation key(s). Includes one year of 24
x 7 HP Software Technical Support Service
NOTE: Electronic software is available in all countries except China and Japan.
Customers in China and Japan should order the physical equivalent.
NOTE: For additional license kits, including electronic delivery options, please
see the QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/12362_div/12362_div.html
DA - 13217
Worldwide QuickSpecs — Version 24 — 8-17-2010
Page 14
QuickSpecs
HP ProLiant ML310 Generation 5p
Additional Options
HP Security - TPM
HP Trusted Platform Module Option Kit
488069-B21
NOTE: Data security in HP ProLiant servers using the Trusted Platform Module
and Microsoft® Windows ® BitLocker™ Drive Encryption.
http://h20000.www2.hp.com/bc/docs/support/SupportManual/c01681891/c016
81891.pdf
HP Storage Controllers SAS Cable
NOTE: A SAS HBA or Controller is required if SAS hard drives are selected.
SAS HBAs support both SAS and SATA hard drives. Some SAS HBAs also have
SAS tape support. Please refer to the "Tape and Disk-Based Backup" table in
the Storage section for a list of SAS HBAs with tape support.
SAS Controllers
NOTE: Any Smart Array Controller or SAS HBA requires the purchase of the HP
SAS Cable (p/n 460310-B21) for the ML310 G5p. Smart Array P212/P410/P411
Controller for SAS models require the purchase of the HP mini SAS Cable (p/n
496015-B21) for the ML310 G5p.
Smart Array E200 Controller
HP Smart Array E200/128 BBWC Controller
411508-B21
Smart Array E500 Controller
HP Smart Array E500/256MB Controller
435129-B21
Smart Array P400 Controller
HP Smart Array P400/256MB Controller
405132-B21
HP Smart Array P400/512MB BBWC Controller
411064-B21
Smart Array P800 Controller
HP Smart Array P800/512 BBWC Controller
381513-B21
Smart Array P212 Controller
HP Smart Array P212/Zero Memory Controller
462828-B21
HP Smart Array P212/256 MB Controller
462834-B21
Smart Array P410 Controller
HP Smart Array P410/256 MB Controller
462862-B21
HP Smart Array P410/512 MB with BBWC Controller
462864-B21
HP Smart Array P410/512MB with FBWC
578230-B21
HP Smart Array P410/1G with FBWC
572532-B21
Smart Array P411 Controller
HP Smart Array P411/256 MB Controller
462830-B21
HP Smart Array P411/512 MB with BBWC Controller
462832-B21
HP Smart Array P411/512MB Flash Backed Write Cache
578229-B21
HP Smart Array P411/1G Flash Backed Write Cache
572531-B21
Smart Array P812 Controller
HP Smart Array P812/1G Flash Backed Cache Controller
487204-B21
Optional Upgrades
HP SA-P400 and SA-E500 24 In Battery Cable Kit
NOTE: This option kit contains a 24" battery cable and adhesive material for
installing a batter into the server if a Smart Array E500 is integrated outside of
the factory. For all solutions, please refer to the server QuickSpecs and User's
Manual for detailed installation instructions.
417836-B21
Battery-backed write cache upgrade
NOTE: For Smart Array P400 Controller only.
383280-B21
512MB Battery-backed cache upgrade
NOTE: For Smart Array P400 Controller only.
405148-B21
256 MB Cache Module
NOTE: Supported on HP Smart Array P212 Controller only.
462968-B21
512MB BBWC
NOTE: Supported on HP Smart Array P410 Controller and HP Smart Array P411
Controller only.
462967-B21
512MB Flash Backed Write Cache
534916-B21
1G Flash Backed Write Cache
534562-B21
HP Mini SAS to 8484 18in, 24in Cable As
NOTE: This part number must be used with Smart Array P212/P411 Controller
for SAS models.
496015-B21
HP Smart Array Advanced Pack No Media 1-Server license including 1yr 24x7
Technical Support
NOTE: This part number can be used to purchase a single license or to order
multiple licenses with a single activation key. Customers will receive a license
516471-B21
DA - 13217
Worldwide QuickSpecs — Version 24 — 8-17-2010
Page 15
QuickSpecs
HP ProLiant ML310 Generation 5p
Additional Options
entitlement certificate via e-mail. The license entitlement certificate must be
redeemed online or via fax in order to obtain the license activation key(s).
Include one year of 24x7 HP Software Technical Support Services.
NOTE: Please see the following QuickSpecs for Technical Specifications and
additional information:
http://h18000.www1.hp.com/products/quickspecs/12460_div/12460_div.html
(Smart Array E200 Controller)
http://h18000.www1.hp.com/products/quickspecs/12700_div/12700_div.html
(Smart Array E500 Controller)
http://h18000.www1.hp.com/products/quickspecs/12400_div/12400_div.html
(Smart Array P400 Controller)
http://h18000.www1.hp.com/products/quickspecs/12616_div/12616_div.html
(Smart Array P800 Controller)
http://h18000.www1.hp.com/products/quickspecs/13203_div/13203_div.html
(Smart Array P212 Controller)
http://h18000.www1.hp.com/products/quickspecs/13201_div/13201_div.html
(Smart Array P410 Controller)
http://h18000.www1.hp.com/products/quickspecs/13202_div/13202_div.html
(Smart Array P411 Controller)
http://h18000.www1.hp.com/products/quickspecs/13558_div/13558_div.html
(Smart Array P812 Controller)
http://h18000.www1.hp.com/products/quickspecs/13200_div/13200_div.html
(Smart Array Advanced Pack)
SAS HBA
HP SC08Ge Host Bus Adapter
488765-B21
HP SC44Ge Host Bus Adapter
NOTE: When using the SC44Ge with SATA Hard Drives, 1.5G SATA Hard
Drives are required. Transfer rate: 1.5 Gb/s SATA, 3 Gb/s SAS.
416096-B21
HP 8 Internal Port SAS HBA with RAID
NOTE: When using the 8 Internal Port SAS HBA with SATA Hard Drives, 1.5G
SATA Hard Drives are required.
NOTE: Transfer rate: 1.5 Gb/s SATA, 3 Gb/s SAS.
347786-B21
NOTE: Please see the HBA QuickSpecs for additional information:
http://h18004.www1.hp.com/products/quickspecs/13082_div/13082_div.html
(SC08Ge HBA)
http://h18004.www1.hp.com/products/quickspecs/12617_div/12617_div.html
(SC44Ge HBA)
http://h18004.www1.hp.com/products/quickspecs/12332_div/12332_div.html
(8 Internal Port SAS HBA)
SCSI Controllers for External Drive/Storage Support
64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2
NOTE: If a Non-Hot Plug SCSI Tape Drive is selected in any model, then
customer must add either 374654-B21 or 412911-B21.
374654-B21
SCSI HBA
HP SC11Xe Host Bus Adapter
NOTE: Recommended HBA for SCSI tape drive connect.
NOTE: If a Non-Hot Plug SCSI Tape Drive is selected in any model, then
customer must add either 374654-B21 or 412911-B21.
412911-B21
NOTE: Please see the following QuickSpecs for additional information:
http://h18004.www1.hp.com/products/quickspecs/11943_div/11943_div.html
(SCSI HBA)
http://h18000.www1.hp.com/products/quickspecs/12566_div/12566_div.html
(SC11Xe HBA)
HP PCI-X Slot
HP ML310 G5p PCI-X Extender Board Kit
NOTE: An additional fan is required with PCI-X Extender Board. This fan is
included in the HP ML310 G5p PCI-X Extender Board Kit.
451778-B21
HP Interconnect
HP ProLiant Second Serial / Parallel port option kit
401222-B21
DA - 13217
Worldwide QuickSpecs — Version 24 — 8-17-2010
Page 16
QuickSpecs
HP ProLiant ML310 Generation 5p
Additional Options
HP Backup & Recovery HP Data Protector Express
Software
HP Data Protector Express 4.0 SP1 Backup Server
BB117BA
HP Data Protector Express 4.0 SP1 for Microsoft Small Business Server
BB118BA
HP Data Protector Express Backup Server 4.0 SP1Upgrade from Data Protector
Express Single Server Edition
BB117BT
NOTE: One of these Data Protector Express base products is required. To see
available options: http://www.hp.com/go/dataprotectorexpress
HP Tape Backup
NOTE: For the complete range of StorageWorks tape drives, autoloaders,
libraries and media see: http://www.hp.com/go/tape. For hardware and software
compatibility of HP StorageWorks tape backup products see:
http://www.hp.com/go/connect.
Rack-Mount Tape Solutions
HP StorageWorks DAT 320 USB Internal Tape Drive
AJ825A
HP StorageWorks DAT 320 SAS Internal Tape Drive
NOTE: Connection using HP SC44Ge SAS Host Bus Adapter (416096-B21)
recommended.
AJ830A
HP StorageWorks LTO-3 Ultrium 920 SAS Internal Tape Drive
NOTE: Connection using HP SC44Ge SAS Host Bus Adapter (416096-B21)
recommended.
EH847A
HP StorageWorks LTO-4 Ultrium 1760 SAS Internal Tape Drive
NOTE: Connection using HP SC44Ge SAS Host Bus Adapter (416096-B21)
recommended.
EH919A
HP StorageWorks LTO-4 Ultrium 1840 SAS Internal Tape Drive
NOTE: Connection using HP SC44Ge SAS Host Bus Adapter (416096-B21)
recommended.
EH860A
HP StorageWorks LTO-5 Ultrium 3000 SAS Internal Tape Drive
NOTE: Connection using HP SC44Ge SAS Host Bus Adapter (416096-B21)
recommended.
EH957A
HP StorageWorks 1/8 G2 LTO-5 Ultrium 3000 SAS Tape Autoloader
NOTE: Requires HP 1U Tape Autoloader Rack Kit (AH166A) for rack installation.
Connection using HP SC44Ge SAS Host Bus Adapter (416096-B21)
BL536A
recommended.
HP Disk Backup
HP StorageWorks MSL2024 Tape Library with one LTO-5 Ultrium 3000 SAS
Drive
NOTE: Connection using HP SC44Ge SAS Host Bus Adapter (416096-B21)
recommended.
BL537A
HP StorageWorks MSL4048 Tape Library with one LTO-5 Ultrium 3000 SAS
Drives
NOTE: Connection using HP SC44Ge SAS Host Bus Adapter (416096-B21)
recommended.
BL538A
NOTE: For the complete range of StorageWorks D2D Backup Systems see:
http://www.hp.com/go/d2d. For the complete range of StorageWorks RDX drives
and media see: http://www.hp.com/go/rdx. For hardware and software
compatibility of HP StorageWorks disk backup products see:
http://www.hp.com/go/connect.
HP StorageWorks D2D Backup Systems with Backup Data Deduplication
HP StorageWorks D2D2502i Backup System
NOTE: 1.5 TB of useable network disk backup capacity. Network connected
appliance with connectivity using the iSCSI protocol. If the server requires a
hardware iSCSI initiator, the QLogic QLA4050 Host Bus Adapter is
recommended.
EJ001B
HP StorageWorks D2D2504i Backup System
NOTE: 3.0TB of useable network disk backup capacity. Network connected
appliance with connectivity using the iSCSI protocol. If the server requires a
hardware iSCSI initiator, the QLogic QLA4050 Host Bus Adapter is
recommended.
EJ002B
HP StorageWorks D2D4004i Backup System
NOTE: 3.0TB (expandable to 7.5TB) of useable network disk backup capacity.
Network connected appliance with connectivity using the iSCSI protocol. If the
server requires a hardware iSCSI initiator, the QLogic QLA4050 Host Bus
Adapter is recommended.
EH938A
HP StorageWorks D2D4112fc Backup System
NOTE: 9.0TB (expandable to 18.0TB) of useable network disk backup capacity.
Fibre Channel SAN connected appliance. Direct server attach is not supported,
requires connection via SAN fabric.
EH993B
DA - 13217
Worldwide QuickSpecs — Version 24 — 8-17-2010
Page 17
QuickSpecs
HP ProLiant ML310 Generation 5p
Additional Options
HP StorageWorks RDX Removable Disk Backup Systems USB
HP StorageWorks RDX320 Internal Removable Disk Backup System
NOTE: For installation into 1U USB Rack-Mount Kit (A8007A). No peripheral bay
available for drive installation into the server. 320GB of disk capacity per data
cartridge.
AJ767A
HP StorageWorks RDX500 Internal Removable Disk Backup System
NOTE: For installation into 1U USB Rack-Mount Kit (A8007A). No peripheral bay
available for drive installation into the server. 500GB of disk capacity per data
cartridge.
AJ934A
HP StorageWorks RDX750 Internal Removable Disk Backup System
NOTE: For installation into 1U USB Rack-Mount Kit (A8007A). No peripheral bay
available for drive installation into the server. 750GB of disk capacity per data
cartridge.
AW577A
HP StorageWorks
Options
StorageWorks SCSI HBA
HP Disk Storage
Systems
MSA SAN Storage Arrays
HP U320e SCSI Host Bus Adapter
NOTE: Recommended HBA for MSL SCSI Tape Library connect.
HP StorageWorks 60 Modular Smart Array
AH627A
418408-B21
NOTE: Supports 12 SFF drives, and SAS 3 Gb/s and SATA 1.5 Gb/s.
NOTE: Please see the QuickSpecs for additional options and configuration
information at:
http://h18000.www1.hp.com/products/quickspecs/12627_div/12627_div.html
HP StorageWorks 70 Modular Smart Array
418800-B21
NOTE: Supports 25 SFF drives, and SAS 3 Gb/s and SATA 1.5 Gb/s.
NOTE: Please see the QuickSpecs for additional options and configuration
information at:
http://h18000.www1.hp.com/products/quickspecs/12652_div/12652_div.html
HP Disk Storage Systems
HP StorageWorks D2600 Disk Enclosure
AJ940A
NOTE: Please see the QuickSpecs for additional options and configuration
information at:
http://h18000.www1.hp.com/products/quickspecs/13404_div/13404_div.html
(Worldwide)
HP Uninterruptible
Power Systems
HP Tower UPS
HP T750 G2 UPS
HP T750 G2 UPS, NA/JPN
AF446A
NOTE: Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/13160_div/13160_div.html
(Worldwide)
NOTE: For additional information on HP Uninterruptible Power Systems please
go to: www.hp.com/servers/rackups.
NOTE: For additional information on sizing your server, please reference:
http://www.upssizer.com.
HP Rack Options
Rack Kits
ProLiant Rack Enabling Kit (RoHS Compliant)
417705-B21
NOTE: This is a Rack Enabling Kit that supports the HP ProLiant ML110 and HP
ProLiant ML310 servers (system & tray occupy 6U).
NOTE: Support for racks with round or square mounting holes (including all
Compaq and HP Rack System /E and HP Systems), with an adjustment range of
24" - 36".
HP USB and SD
Options
HP 2GB USB Flash Media Drive Key
NOTE: HP qualified blank USB key for use with HP ProLiant servers that support
the VMware virtualization environment and other HP value-add software like
SmartStart. HP recommends this industry standard USB flash device for use
with VMware ESXi. USB device must be installed in the internal slot of the
ProLiant server for use with VMware ESXi. Refer to HP VMware Getting Started
Guide for installation instructions.
DA - 13217
Worldwide QuickSpecs — Version 24 — 8-17-2010
608447-B21
Page 18
QuickSpecs
HP ProLiant ML310 Generation 5p
Additional Options
HP Care Pack Services Hardware Services On-site Service
Next Business Day On-site Service, 5-Day x 9-Hour Coverage, 3 Years,
Electronic
U4445E
4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic
U4446E
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
U4447E
6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years,
Electronic
U4448E
Installation & Start-up Services
Hardware Installation, Electronic
U4456E
Installation & Start-Up of a ProLiant server and Microsoft or Linux O/S per the
Customer Description and/or Data Sheet. To be delivered on a scheduled basis
8am-5pm, M-F, excl. HP holidays, Electronic
U4457E
Support Plus
Onsite HW support, 8am-9pm, M-F, 4hr response and Microsoft O/S SW Tech
support offsite, onsite at HP's discretion, 8am-9pm, M-F 2hr response time excl.
HP holidays, Electronic
U4458E
Support Plus 24
Onsite HW support 24x7, 4hr response and Microsoft O/S SW Tech support
offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays,
Electronic
U4459E
Onsite HW support 24x7, 4hr response and SuSE Linux SW Tech support
offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays,
Electronic
U6306E
NOTE: For more information, customer/resellers can contact:
http://www.hp.com/services/carepack.
DA - 13217
Worldwide QuickSpecs — Version 24 — 8-17-2010
Page 19
QuickSpecs
HP ProLiant ML310 Generation 5p
Memory
NOTE: Memory configurations listed do not apply to "Factory Integrated Models".
HP ProLiant ML310 G5p Memory Configuration
Standard Memory
All HP ProLiant ML310 G5p models ship with unbuffered, ECC PC2-6400 DDR2 SDRAM running at 800MHz.
All models include a single 1GB DIMM.
Factory Integrated Models include the memory capacity of your choice.
Standard Memory Replaced with Optional Memory
Up to 8 GB memory is available with the optional installation of four 2 GB PC2-6400 Unbuffered ECC DDR2 SDRAM DIMM
kits.
DIMM upgrades do not need to be installed in pairs although installation of pairs (an equal size DIMM for each channel)
provides the best performance. The BIOS will detect the DIMM population and initialize the system accordingly as follows:
Single-channel mode - DIMMs installed for one channel only
Dual-channel asymmetric mode - DIMMs installed for both channels but of unequal channel capacities.
Dual-channel interleaved mode (recommended) - DIMMs installed for both channels and offering equal channel
capacities, providing the highest performance.
The first DIMM should be installed in Socket 1. A DIMM should not be installed in Socket 2 without a DIMM in Socket 1.
Likewise a DIMM should not be installed in Socket 4 without a DIMM in Socket 3. A DIMM need not be installed in Socket 2
in order to install a DIMM in Socket 3.
Table 3-1 shows some of the suggested memory configurations for these systems.
NOTE: Table 3-1 does not list all possible configurations. Balanced-capacity, dual-channel loading yields best performance.
Channel A
Channel B
Total
Mode
none
512 MB
Single-channel
512 MB
none
1 GB
Single-channel
interleaved
none
none
none
1 GB
Single-channel
1 GB
none
1 GB
none
2 GB
Single-channel
interleaved
1 GB
1 GB
1 GB
none
3 GB
Dual-channel
asymmetric
1 GB
1 GB
1 GB
1 GB
4 GB
Dual-channel
interleaved
1 GB
2 GB
1 GB
2 GB
6 GB
Dual-channel
interleaved
2 GB
2 GB
2 GB
2 GB
8 GB
Dual-channel
interleaved
Socket 1
Socket 2
Socket 3
Socket 4
512 MB
none
none
512 MB
none
1 GB
Following are memory options available from HP:
HP Memory
HP 2GB (1x2GB) Dual Rank PC2-6400 (DDR2-800) Unbuffered Memory Kit
450260-B21
HP 1GB (1x1GB) Dual Rank PC2-6400 (DDR2-800) Unbuffered Memory Kit
450259-B21
DA - 13217
Worldwide QuickSpecs — Version 24 — 8-17-2010
Page 20
QuickSpecs
HP ProLiant ML310 Generation 5p
Storage
B, C
A
1-4
Removable Media Bays (1.6" each)
SATA DVD-ROM
Four Hot Plug Hard Drive Bays
Drive Support
Quantity
Supported
Position
Supported
Controller
1.44-MB Diskette Drive
Up to 1
A, B, or C
Integrated
HP Half-Height SATA
DVD-ROM Optical Drive
Up to 2
A, B, or C
Integrated SATA
HP Half-Height SATA
DVD RW Optical Drive
Up to 2
A, B, or C
Integrated SATA
Removable Media
Hard Drives
NOTE: The components of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and the server backplane)
should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all
components.
NOTE: Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.
SAS Hot Plug LFF (3.5-inch) Enterprise (ENT) Drives
600GB
450GB
450GB
300GB
300GB
146GB
6G
6G
3G
6G
3G
3G
SAS
SAS
SAS
SAS
SAS
SAS
15K
15K
15K
15K
15K
15K
DP
DP
DP
DP
DP
DP
Quantity
Supported
Position
Supported
Up to 4
1-4
Controller
HP SC40Ge SAS HBA with RAID 0, 1
NOTE: When using the SC40Ge with SATA Hard Drives, 1.5G
SATA Hard Drives are required. Transfer rate: 1.5 Gb/s SATA,
3 Gb/s SAS.
HP 8 Internal Port SAS HBA with RAID
NOTE: Transfer rate: 1.5 Gb/s SATA, 3 Gb/s SAS.
HP Smart Array P212 0 MB Controller
HP Smart Array E200/128 BBWC Controller
HP Smart Array P212/256 MB Controller
HP Smart Array P400/256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array E500/256 MB Controller
HP Smart Array P400/512 MB BBWC Controller
HP Smart Array P800/512 BBWC Controller
NOTE: Use of SAS hard drives in SATA/SAS models requires installation of one of the controllers or HBAs listed above.
SAS Hot Plug LFF (3.5-inch) Midline (MDL) Drives
1TB 6G SAS 7.2K DP
1TB 3G SAS 7.2K DP
750GB 3G SAS 7.2K DP
Quantity
Supported
Position
Supported
Up to 4
1-4
DA - 13217
Controller
HP SC40Ge SAS HBA with RAID
NOTE: When using the SC40Ge with SATA Hard Drives, 1.5G
SATA Hard Drives are required. Transfer rate: 1.5 Gb/s SATA,
3 Gb/s SAS.
HP 8 Internal Port SAS HBA with RAID
NOTE: Transfer rate: 1.5 Gb/s SATA, 3 Gb/s SAS.
HP Smart Array E200/128 BBWC Controller
HP Smart Array E500/256 MB Controller
HP Smart Array P400/256 MB Controller
HP Smart Array P400/512 MB BBWC Controller
HP Smart Array P800/512 BBWC Controller
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/256 MB Controller
Worldwide QuickSpecs — Version 24 — 8-17-2010
Page 21
QuickSpecs
HP ProLiant ML310 Generation 5p
Storage
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
NOTE: Use of SAS hard drives in SATA/SAS models requires installation of one of the controllers or HBAs listed above.
SATA Hot Plug LFF (3.5-inch) Midline (MDL) Drives
2TB 3G SATA 7.2K
1TB 3G SATA 7.2K
500GB 3G SATA 7.2K
Quantity
Supported
Position
Supported
Up to 2
Up to 4
NOTE:
depending on
model.
1-2
1-4
NOTE:
depending on
model.
Controller
HP
HP
HP
HP
HP
HP
HP
HP
Smart Array E200/128 BBWC Controller
Smart Array P400/256MB Controller
Smart Array P400/512MB BBWC Controller
Smart Array P800/512MB BBWC Controller
Smart Array P212/Zero Memory Controller
Smart Array P212/256 MB Controller
Smart Array P410/256 MB Controller
Smart Array P410/512 MB BBWC Controller
NOTE: Hot plug capability and drive LED status support requires installation of one of the controllers or HBAs listed above.
SATA Hot Plug 3.5" Midline (MDL) Solid State Drives
Quantity
Supported
Position
Supported
Up to 4
1-4
Quantity
Supported
Position
Supported
60 Modular Smart Array
Up to 8
Up to 8
Up to 4
External
External
External
HP
HP
HP
HP
HP
HP
Smart Array P800/512 BBWC Controller
Smart Array E500/256 MB Controller
Smart Array P212/Zero Memory Controller
Smart Array P212/256 MB Controller
Smart Array P411/256 MB Controller
Smart Array P411/512 MB BBWC Controller
70 Modular Smart Array
Up to 4
Up to 4
Up to 2
External
External
External
HP
HP
HP
HP
HP
HP
Smart Array P800/512 BBWC Controller
Smart Array E500/256 MB Controller
Smart Array P212/Zero Memory Controller
Smart Array P212/ 256 MB Controller
Smart Array P411/256 MB Controller
Smart Array P411/512 MB BBWC Controller
60GB 3.0G SATA SSD
120GB 3.0G SATA SSD
Controller
HP
HP
HP
HP
Smart Array P212/Zero Memory Controller
Smart Array P212/256 MB Controller
Smart Array P410/256 MB Controller
Smart Array P410/512 MB BBWC Controller
External Storage
Controller
Tape and Disk Backup
NOTE: For the complete range of StorageWorks tape drives, autoloaders, libraries and media, including the internal fitting
models, see: http://www.hp.com/go/tape. For the complete range of StorageWorks D2D Backup Systems see:
http://www.hp.com/go/d2d. For the complete range of StorageWorks RDX drives and media see: http://www.hp.com/go/rdx.
For hardware and software compatibility of HP StorageWorks disk and tape backup products see:
http://www.hp.com/go/connect.
Position
Supported
HP StorageWorks SCSI
Tape Drives
LTO-1 Ultrium 232
LTO-2 Ultrium 448
LTO-3 Ultrium 920
LTO-3 Ultrium 960
LTO4 Ultrium 1760
LTO-4 Ultrium 1840
DAT 40
DAT 72
DAT 160
Internal or
External
HP StorageWorks SCSI
Rack Mount Kits
1U Rack-Mount Kit
3U Rack-Mount Kit
External
Controller
HP SC11Xe Host Bus Adapter
Part
Number
412911-B21
NOTE: Please check the full compatibility information at:
http://www.hp.com/go/connect
DA - 13217
HP SC11Xe Host Bus Adapter
Worldwide QuickSpecs — Version 24 — 8-17-2010
412911-B21
Page 22
QuickSpecs
HP ProLiant ML310 Generation 5p
Storage
HP StorageWorks USB
Tape Drives
DAT 40
DAT 72
DAT 160
DAT 320
Internal or
External
USB 2.0 Port
N/A
HP StorageWorks USB
Rack Mount Kits
1U USB Rack-Mount Kit
External
USB 2.0 Port
N/A
HP StorageWorks SAS
Tape Drives
DAT 160
DAT 320
LTO-2 Ultrium 448
LTO-3 Ultrium 920
LTO-4 Ultrium 1760
LTO-4 Ultrium 1840
LTO-5 Ultrium 3000
LTO-5 Ultrium 3280
Internal or
External
HP StorageWorks SAS
Rack Mount Kits
1U Rack-Mount Kit
3U Rack-Mount Kit
External
HP StorageWorks SCSI
Tape Autoloaders
DAT 72x10 Autoloader
1/8 G2 Autoloader
External
HP StorageWorks SCSI
Tape Libraries
External
HP SC44Ge Host Bus Adapter
416096-B21
NOTE: Please check the full compatibility information at:
http://www.hp.com/go/connect
HP SC44Ge Host Bus Adapter
416096-B21
NOTE: Please check the full compatibility information at:
http://www.hp.com/go/connect
HP SC11Xe Host Bus Adapter
412911-B21
NOTE: Please check the full compatibility information at:
http://www.hp.com/go/connect
MSL2024
MSL4048
MSL8096
MSL6000
HP U320e SCSI Dual Channel Controller
AH627A
NOTE: Please check the full compatibility information at:
http://www.hp.com/go/connect
HP StorageWorks SAS
Tape Autoloaders and
Libraries
1/8 G2 Autoloader
MSL2024
MSL4048
MSL8096
External
HP StorageWorks Fibre
Channel Tape Libraries
MSL2024
MSL4048
MSL8096
MSL6000
External
HP SC44Ge Host Bus Adapter
416096-B21
NOTE: Please check the full compatibility information at:
http://www.hp.com/go/connect
HP StorageWorks USB
RDX Removable Disk
Backup System
RDX160
RDX320
RDX500
RDX750
Internal or
External
HP StorageWorks D2D
Backup Systems, iSCSI
D2D2500i
D2D4000i
External
DA - 13217
Please consult the EBS connectivity matrix at:
http://www.hp.com/go/ebs for connectivity information and the
supported Fibre Channel HBAs shown in this QuickSpecs.
USB 2.0 Port
N/A
Embedded Network Controller. If the server requires a
hardware iSCSI initiator, the QLogic QLA4050 Host Bus
Adapter is recommended.
Worldwide QuickSpecs — Version 24 — 8-17-2010
Page 23
QuickSpecs
HP ProLiant ML310 Generation 5p
Storage
HP StorageWorks D2D
Backup Systems, Fibre
Channel
D2D4000fc
External
DA - 13217
Direct server attach is not supported, requires connection via
SAN fabric. See: http://www.hp.com/go/connect
Worldwide QuickSpecs — Version 24 — 8-17-2010
Page 24
QuickSpecs
HP ProLiant ML310 Generation 5p
Technical Specifications
System Unit
Dimensions (H x W x D) 17.0 x 7.9 x 24.0 in (43.2 x 20.0 x 61.0 cm)
(with bezel)
Tower Weight
(approximate)
Maximum
(two hard drives, power
supply, and processor
installed)
50 lb (22.7 kg)
Minimum
(one hard drive, power
supply, and processor
installed)
33.1 lb (15.0 kg)
Rated Line Voltage
90 VAC - 264 VAC
Rated Input Current
6.5 A (at 100 VAC),
3 A (at 230 VAC)
Rated Input Frequency
47 to 63 Hz
Rated Input Power
<527W @115/230 VRMS
BTU Rating
Maximum
1836 BTU/hr (at 100 VAC),
1706 BTU/hr (at 200 VAC)
Power Specifications
NOTE: To review typical system power ratings use the HP Power
Advisor which is available online located at url: www.hp.com/go/proliantenergy-efficient or www.hp.com/go/hppoweradvisor
Input Requirements
(per power supply)
- Click on the system of interest. Example: ML310 G5p
- Follow the instructions of the next screens.
Power Supply Output
(per power supply)
System Inlet
Temperature
Rated Steady-State
Power
400 W (at 100 VAC),
400 W (at 200 VAC)
Maximum Peak Power
400 W (at 100 VAC),
400 W (at 200 VAC)
Operating
10° to 35°C (50° to 95°F) at sea level with an
altitude derating of 1.0°C per every 305 m
(1.8°F per every 1000 ft) above sea level to a
maximum of 3050 m (10,000 ft), no direct
sustained sunlight. Maximum rate of change
is 10°C/hr (18°F/hr). The upper limit may be
limited by the type and number of options
installed.
System performance may be reduced if
operating with a fan fault or above 30°C
(86°F).
Relative Humidity
(non-condensing)
Altitude
Acoustic Noise
Non-operating
-30° to 60°C (-22° to 140°F). Maximum rate of
change is 20°C/hr (36°F/hr).
Operating
10 to 90% relative humidity (Rh), 28°C
(82.4°F) maximum wet bulb temperature, noncondensing.
Non-operating
5 to 95% relative humidity (Rh), 38.7°C
(101.7°F) maximum wet bulb temperature,
non-condensing.
Operating
3050 m (10,000 ft). This value may be limited
by the type and number of options installed.
Maximum allowable altitude change rate is
457 m/min (1500 ft/min).
Non-operating
9144 m (30,000 ft). Maximum allowable
altitude change rate is 457 m/min (1500
ft/min).
Listed are the declared A-Weighted sound power levels (LWAd) and
declared average bystander position A-Weighted sound pressure levels
(LpAm) when the product is operating in a 23°C ambient environment.
Noise emissions were measured in accordance with ISO 7779 (ECMA
74) and declared in accordance with ISO 9296 (ECMA 109).
Idle
L WAd (BELS)
L pAm (dBA)
5.0 B
32 dBA
Operating
L WAd (BELS)
L pAm (dBA)
Emissions
Classification (EMC)
DA - 13217
FCC Rating
5.0 B
32 dBA
B
Worldwide QuickSpecs — Version 24 — 8-17-2010
Page 25
QuickSpecs
HP ProLiant ML310 Generation 5p
Technical Specifications
Classification (EMC)
Normative Standards
CISPR 22; EN55022; EN55024; FCC CFR 47,
Pt 15; ICES-003; CNS13438; GB9254;
K22;K24; EN 61000-3-2; EN 61000-3-3; EN
60950-1; IEC 60950-1
NOTE: Product conformance to cited product specifications is based on
sample (type) testing, evaluation, or assessment. This product or family
of products is eligible to bear the appropriate compliance logos and
statements.
HP SATA DVD-ROM
Optical Drive
Applicable Disk
DVD-ROM
DVD-R /-RW (Read Only) DVD+R /+RW (Read Only)
2.6 GB/side DVD-RAM (Read Only)
5.2 GB/side DVD-RAM (Read Only)
CD-ROM Mode-1 data disc
CD-ROM Mode-2 data disc
CD Audio disc
CD-Extra
CD-RW (Read Only)
CD-R (Read Only)
CD Text
PhotoCD
CD-I (mode 2)
CD-I Ready
CD-Bridge
Capacity
DVD-ROM
DVD-SL
4.7 GB/side
DVD-DL
8.5 GB/side
Double Sided
9.40 GB/side
DVD-R/-RW
4.7 GB/side
DVD-RAM
2.6 GB/5.2 GB/side
DVD+R/+RW
4.7 GB
CD-ROM
Mode-1
650 (700 MB)
Mode-2
742 MB (640 MB)
Block Size
DVD
CD
Diameter
120 mm, 80 mm (with adapter at vertical mounting mode)
Loading Mechanism
Tray type Auto Loading
Interface
SATA 1.5
Access Times (typical)
Random
DVD-ROM < 140 ms, CD-ROM < 125 ms
Full-Stroke
DVD-ROM < 250 ms, CD-ROM < 210 ms
Data Transfer Rate
(sustained)
DVD-ROM
21.6 MB/sec. Max.
CD-ROM
6 MB/sec. Max.
Cache Buffer
2 MB
Spin-up Time (typical)
less than 10 seconds
MTBF
125,000 Power On Hours (POH)
Ambient Temperature Operating
Relative Humidity
Drive Dimensions
(HxWxD, maximum)
DA - 13217
2,048 bytes
2,352 (Mode-0)
2352, 2340, 2336,
2048 bytes (Mode-1)
2352, 2340, 2336,
2048 bytes (Mode-2)
41° to 122° F (5° to 50° C)
Storage/Transportation
-40° to 120° F (-40° to 60° C)
Operating
10% to 90%
Storage/Transportation
5% to 95%
1.62 x 5.75 x 7.87 in (41.3 x 146 x 200 mm)
Worldwide QuickSpecs — Version 24 — 8-17-2010
Page 26
QuickSpecs
HP ProLiant ML310 Generation 5p
Technical Specifications
HP SC40Ge SAS Host RAID Support
Bus Adapter with RAID
RAID 1 (Mirroring)
RAID 0 (Striping)
Logical Drives
Supported
Up to 2 Logical Volumes
Up to 10 drives total in all RAID volumes
Up to 2 Drives per RAID 1
Up to 8 Drives per RAID 0
Maximum Capacity
4TB (4 x 1TB)
Data Transfer Method
64-bit wide, PCIe 133 MHz (1 GB/s maximum bandwidth)
Port Transfer Rate
12 Gb/s per x4 Wide SAS Port (4 x 3 Gb/s)
Simultaneous Drive
Transfer Ports
2 x4 Wide SAS Connectors
Protocols
3 Gbps SAS (Serial Attached SCSI)
1.5 Gbps SATA (Serial Advanced Technology Attachment)
External SAS
Connectors
None
Internal SAS
Connectors
2 internal SFF8484 x4 SAS Connectors
Upgradeable Firmware 4MB flashable ROM
Embedded NC326i
Network Interface
Gigabit Server Adapter Compatibility
10Base-T/100Base-TX/1000Base-TX
IEEE 802.3 10Base-T
IEEE 802.3ab 1000Base-T
IEEE 802.3u 100Base-TX
Data Transfer Method
Four lane (x4), 100MHz PCI Express Reference Clock
Controller
BCM5715C
Network Transfer Rate 10Base-T (Half-Duplex)
10 Mb/s
10Base-T (Full-Duplex)
20 Mb/s
100Base-TX (HalfDuplex)
100 Mb/s
100Base-TX (FullDuplex)
200 Mb/s
1000Base-TX (Half and
Full-Duplex)
2000Mb/s
Connector
RJ-45
Cable Support
10Base-T
Categories 3, 4 or 5 UTP; up to 328 ft (100 m)
10/100/1000Base-TX
Category 5 UTP; up to 328 ft (100 m)
HP Integrated Lights- Architecture
Out 2 (iLO 2) integrated Processor
on system board
Upgradeability
32-bit PCI-based health and remote management ASIC
32-bit RISC processor core running at 66MHz
Option firmware upgradeable via Flash ROM
Operating System
Support
Microsoft Windows Server 2008 Standard Edition (32bit and 64bit)
Microsoft Windows Server 2008 Enterprise Edition (32bit and 64bit)
Microsoft Windows Server 2003 and Windows Server 2003 R2, and
Windows Server 2003 for Extended Systems Standard Edition,
Enterprise Edition
Red Hat Enterprise Linux 5.4 (32bit and 64bit)
SUSE LINUX Enterprise Server 11 (32bit and 64bit)
SUSE LINUX Enterprise Server 10 (32bit and 64bit)
VMware ESX 4.0
VMware ESX 3.5.0
Microsoft Windows XP Professional Edition
Microsoft Windows Vista Business and Ultimate Editions
Red Hat Enterprise Linux Desktop 5.00
SUSE Linux Enterprise Desktop 11
SUSE Linux Enterprise Desktop 10
Client Browser Support Microsoft Internet Explorer 7
Microsoft Internet Explorer 6
Firefox 3.5 (on supported Windows and Linux systems)
Firefox 3.0 (on supported Windows and Linux systems)
DA - 13217
Worldwide QuickSpecs — Version 24 — 8-17-2010
Page 27
QuickSpecs
HP ProLiant ML310 Generation 5p
Technical Specifications
Command Line
Support
Telnet, Secure Shell and serial port access
Secure Socket Layer
Secure Shell version 2 (Password and certificate)
Security
Advanced Encryption Standard (AES) and Triple Data Encryption
Standard (3DES) on browser, CLP and XML scripting interface
RC4 encryption of video
Directory Support
Services
Active Directory v1.0 (Windows 2003)
Driver Support
Health Driver (HP ProLiant iLO 2 Management Controller Driver)
iLO Management Channel Interface Driver
Management protocols SNMP 2, IPMI 2.0 (KCS interface), DMTF Server Management
supported
Command Line Protocol Specification
(SM CLP), DMTF Web Services Management Specification (WS
Management)
Environment-friendly
Products and
Approach
End-of-life
Management and
Recycling
Hewlett-Packard offers end-of-life HP product return, trade-in, and
recycling programs in many geographic areas. For trade-in information,
please go to: http://www.hp.com/go/green. To recycle your product,
please go to: http://www.hp.com/go/green or contact your nearest HP
sales office. Products returned to HP will be recycled, recovered or
disposed of in a responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to
provide treatment information for each product type for use by treatment
facilities. This information (product disassembly instructions) is posted
on the Hewlett Packard web site at: http://www.hp.com/go/green. These
instructions may be used by recyclers and other WEEE treatment
facilities as well as HP OEM customers who integrate and re-sell HP
equipment.
© Copyright 2010 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
Microsoft and Windows NT are US registered trademarks of Microsoft Corporation. Intel is a US registered trademark of
Intel Corporation.
Intel, the Intel logo, Xeon and Xeon Inside are trademarks of Intel Corporation in the U.S. and other countries.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such
products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for
technical or editorial errors or omissions contained herein.
For hard drives, 1GB = 1 billion bytes. Actual formatted capacity is less.
DA - 13217
Worldwide QuickSpecs — Version 24 — 8-17-2010
Page 28
Download PDF
