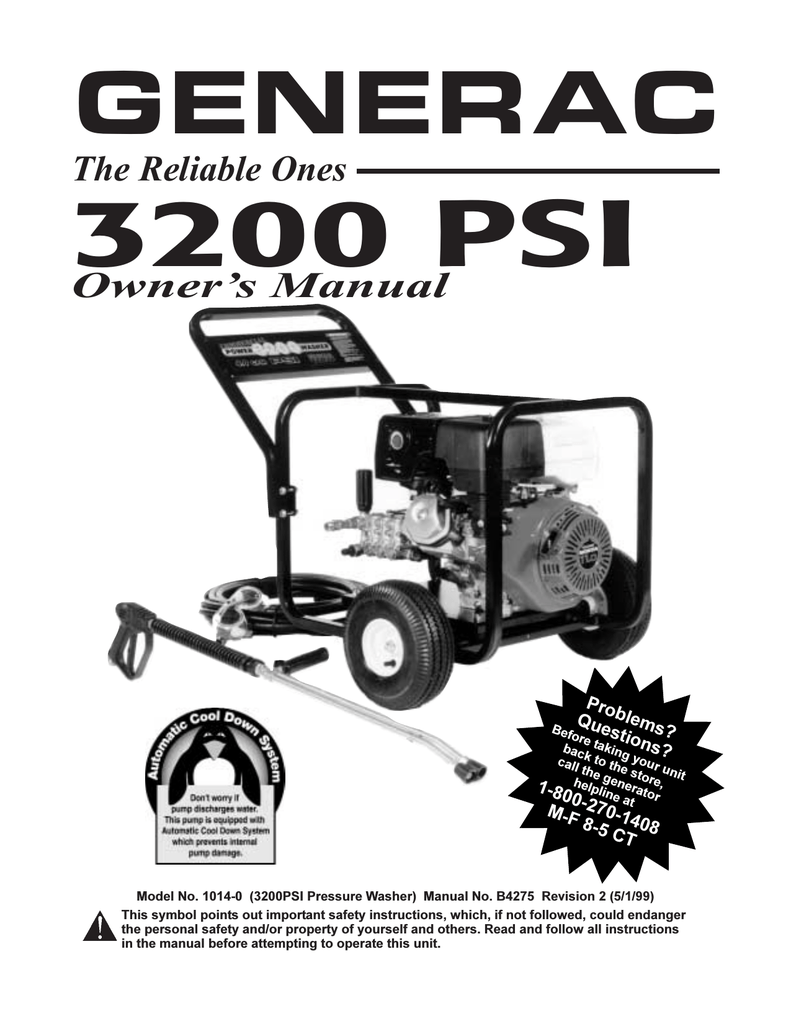

All-Power 3200 PSI Owner`s manual

GENERAC
3200 PSI
The Reliable Ones
Owner’s Manual
Pro
Q blems
Bef ues
ore
tio ?
bac taking ns?
kt
y
ou
o
the the st r unit
o
g
1-80 helplineeneratorer ,
at
0-2
call
M-F 70-1
8-5 408
CT
Model No. 1014-0 (3200PSI Pressure Washer) Manual No. B4275 Revision 2 (5/1/99)
This symbol points out important safety instructions, which, if not followed, could endanger
the personal safety and/or property of yourself and others. Read and follow all instructions
in the manual before attempting to operate this unit.
Generac Portable Products 3200PSI Pressure Washer
Important! — Safety Rules — Important!
•
WARNING:
The engine exhaust from this product
contains chemicals known to the State
of California to cause cancer, birth
defects, or other reproductive harm.
•
CAUTION! Always disconnect spark plug
wire and place wire where it cannot contact
spark plug to prevent accidental starting when
setting up, transporting, adjusting or making
repairs to your high pressure washer.
•
•
• Engine exhaust gases contain DEADLY carbon
monoxide gas. This dangerous gas, if breathed in
sufficient concentrations, can cause
unconsciousness or even death. Operate this
equipment only in the open air where adequate
ventilation is available.
• Gasoline is highly FLAMMABLE and its vapors are
EXPLOSIVE. Do not permit smoking, open flames,
sparks or heat in the vicinity while handling gasoline.
Avoid spilling gasoline on a hot engine. Allow unit to
cool for 2 minutes before refueling. Comply with all
laws regulating storage and handling of gasoline.
• Locate this pressure washer in areas away from
combustible materials, combustible fumes or dust.
• The high pressure equipment is designed to be used
with authorized parts only. If you use this equipment
with parts that do not comply with minimum
specifications, the user assumes all risks and
liabilities.
• Some chemicals or detergents may be harmful if
inhaled or ingested, causing severe nausea, fainting
or poisoning. The harmful elements may cause
property damage or severe injury.
• Do not allow CHILDREN to operate the Pressure
Washer at any time.
•
•
•
•
•
2
Operate engine only at governed speed. Running the
engine at excessive speeds increases the hazard of
personal injury. Do not tamper with parts which may
increase or decrease the governed speed.
Adjustments should be made by authorized service
personal only.
Do not wear loose clothing, jewelry or anything that
may be caught in the starter or other rotating parts.
Before starting the Pressure Washer in cold weather,
check all parts of the equipment and be sure ice has
not formed anywhere.
Units with broken or missing parts, or without
protective housing or covers should NEVER be
operated.
The muffler and air cleaner must be installed and in
good condition before operating the Pressure
Washer. These components act as spark arrestors if
the engine backfires.
Check the fuel system for leaks or signs of
deterioration such as chafed or spongy hose, loose
or missing clamps or damaged tank or cap. Correct
all defects before operating the Pressure Washer.
Do not spray flammable liquids.
Never aim the gun at people, animals or plants.
High pressure spray can cause paint chips or other
particles to become airborne and fly at high speeds.
Generac Portable Products 3200PSI Pressure Washer
Important! — Safety Rules — Important!
•
•
•
•
•
•
•
•
•
•
Never allow any part of the body to come in contact
with the fluid stream. DO NOT come in contact with a
fluid stream created by a leak in the high pressure
hose.
The high pressure stream of fluid that this equipment
produces can pierce skin and its underlying tissues,
leading to serious injury and possible amputation.
Always wear eye protection when you use this
equipment or when you are in the vicinity where the
equipment is in use.
Operate the pressure at no more than the PSI fluid
pressure rated for your pressure washer.
Never move the machine by pulling on the high
pressure hose. Use the handle provided on the top of
the unit.
Always be certain the spray gun, nozzles and
accessories are correctly attached.
Never use a spray gun which does not have a trigger
lock or trigger guard in place and in working order.
Use a respirator or mask whenever there is a chance
that vapors may be inhaled. Read all instructions with
mask so you are certain the mask will provide the
necessary protection against inhaling harmful vapors.
High pressure spray may damage fragile items
including glass. Do not point spray gun at glass when
in the jet spray mode.
Keep the hose connected to machine or the spray
gun while the system is pressurized. Disconnecting
the hose while the unit is pressurized is dangerous.
•
•
•
•
•
•
•
•
3
Hold the spray gun firmly in your hand before you
start the unit. Failure to do so could result in an injury
from a whipping spray gun. Do not leave the spray
gun unattended while the machine is running.
The cleaning area should have adequate slopes and
drainage to reduce the possibility of a fall due to
slippery surfaces.
Keep water spray away from electric wiring or fatal
electric shock may result.
Do not secure gun trigger in the pull-back (open)
position.
Do not by-pass any safety device on this machine.
The muffler and engine heat up during operation and
remain hot immediately after shutting it down. Avoid
contact with a hot muffler or engine or you could be
severely burned.
Operate and store this unit on a stable surface.
High pressure hose can develop leaks from wear,
kinking, abuse, etc. Water spraying from a leak is
capable of injecting material into skin. Inspect hose
each time before using it. Check all hoses for cuts,
leaks, abrasions or bulging of cover, or damage or
movement of couplings. If any of these conditions
exist, replace the hose immediately. Never repair a
high pressure hose. Replace it with another hose that
meets minimum pressure rating of your pressure
washer.
Generac Portable Products 3200PSI Pressure Washer
PRODUCT
SPECIFICATIONS
CONGRATULATIONS on your purchase of a Honda
Powered High Pressure Washer. It has been
designed, engineered and manufactured to give you
the best possible dependability and performance.
Pressure Washer Specifications
Should you experience any problem you cannot
easily remedy, please contact your nearest
Authorized Service facility. We have competent, welltrained technicians and the proper tools to service or
repair this unit.
Please read and retain this manual. The instructions
will enable you to assemble and maintain your high
pressure washer properly. Always observe the
“SAFETY RULES.”
CUSTOMER
RESPONSIBILITIES
•
•
•
•
Read and observe the safety rules.
Read and observe all the instructions in this
manual.
Follow regular schedule in maintaining, caring for
and using your high pressure washer.
Follow the instructions under “Customer
Responsibilities” and “Storage” sections of this
Owner's Manual.
Model Number
Serial Number
Date Of Purchase
Outlet Pressure
3200PSI
Flow Rate
4.0 Gallons per minute (gpm)
Detergent
Use detergent approved for
pressure washers.
Water Supply
Temperature
Not to exceed 140°F
Pump Oil
SAE 20-30w
Automatic Cool
Down System
Will cycle when water
reaches 140°-145°F
Hose Length
50ft.
Engine Specifications
Engine Model
Rated Horsepower
Displacement
Spark Plug
Type
Set Gap To:
Gasoline Capacity
Oil
1014-0
____________________
____________________
The model and serial numbers will be found on a
decal attached to the pressure washer. Record
both serial number and date of purchase and keep
in a safe place for future reference.
Honda GX340
11HP
337cc (20.6 cu. in.)
BPR6ES (NGK)
.028-.031 inch. (.7-.8mm)
1.7 U.S. Gallons (6.5l)
SAE 10W30
In the State of California a spark arrestor is required
by law (Section 4442 of the California Public
Resources Code). Other states may have similar
laws. Federal laws apply on federal lands.
NOTE: The engine of your pressure washer is
equipped with a spark arresting muffler. The spark
arrestor must be maintained in effective working order
by the owner/operator. You can order a spark arrestor
through your authorized Honda service dealer.
4
Generac Portable Products 3200PSI Pressure Washer
KNOW YOUR PRESSURE WASHER
Read this owner’s manual and safety rules before operating your high pressure washer.
Compare this illustration with your high pressure washer to familiarize yourself with the location of the controls.
Save this manual for future reference.
Guide Handle
Muffler
Pressure Regulator
Air Cleaner
High Pressure Outlet
Engine RUN/STOP
Switch
Water Inlet
High Pressure Hose
Recoil Starter
Gun and Wand Assembly
Air Cleaner — Dry type filter element limits the
amount of dirt and dust that gets in the engine.
Engine RUN/STOP Switch — Enables and disables
the ignition system.
Guide Handle — Provides ease of handling when
moving or storing pressure washer.
Gun and Wand Assembly — Controls the
application of water onto cleaning surface with trigger
device. Includes safety latch.
High Pressure Hose— Transfers water under high
pressure to gun assembly.
High Pressure Outlet — Connection for high
pressure hose.
Muffler — Disperses exhaust gas and quiets engine.
Pressure Regulator — Allows you to adjust the
pressure of the outlet stream.
Recoil Starter — Pulling the starter grip operates the
recoil starter to crank the engine.
Water Inlet — Connection for garden hose.
5
Generac Portable Products 3200 PSI Pressure Washer
Warning! Read entire owner’s manual before
you attempt to assemble or operate your new
pressure washer.
•
Parts Bag (containing hardware to attach handle
to pressure washer)
•
Wand - Dual
•
Spark Plug Wrench
•
Crank Key
•
Exhaust Deflector with three screws.
If any of the above parts are missing or damaged, call
the pressure washer helpline at 1-800-270-1408.
REMOVE PRESSURE
WASHER FROM CARTON
•
•
•
Remove the accessory and parts box included with
the pressure washer.
Slice two corners at the guide handle end of carton
from top to bottom so the panel can be folded down
flat, then remove all packing material.
Roll the pressure washer out of the carton.
PREPARING THE
PRESSURE WASHER
FOR USE
CARTON CONTENTS
If you have any problems with the assembly of your
pressure washer of if parts are missing or damaged,
call the Pressure Washer Helpline at
1-800-270-1408
Items in the carton include:
• Main unit
• High Pressure Hose
• Handle
• Parts Box (includes the following):
•
Goggles
•
Nozzle Cleaning Kit
•
Owner’s Manual
•
Engine Manual
•
Engine Warranty
•
Emissions Control Warranty
•
Spray Gun
To prepair your pressure washer for operation you will
need to perform these tasks:
• Attach the handle to the main unit.
• Add oil to the engine.
• Add fuel to the fuel tank.
• Connect the high pressure hose to the spray gun and
the pump.
• Connect the water supply to the pump.
6
Generac Portable Products 3200 PSI Pressure Washer
Attach Handle To Pressure Washer
•
•
Connect Hose and water supply to
pump
Place the handle on the pump side of the
pressure washer in the center of the frame.
Attach the handle to the frame using the supplied
bolts (Figure 1).
Important: You must assemble the wand and attach
all hoses before you start engine. Starting engine
without all hoses connected and water supplied will
damage pump.
Figure 1 — Attach the Guide Handle
•
•
Unravel the high pressure hose.
Attach the gun to the high pressure hose using
the quick connect fitting. Pull back on the quick
connect sleave and push the fitting all the way in.
Tug on the gun to ensure a secure connection
(Figure 3).
Figure 3 — Connect high pressure hose to spray
gun
Attach the Exhaust Deflector
Note: This Step is optional.
The exhaust deflector channels the hot air coming
from the muffler to the ground. To install the exhaust
deflector:
• Attach the deflector to the muffler using the three
screws provided (Figure 2).
Figure 2 — Attach the exhaust deflector
•
Connect the hose to the water outlet. Tighten by
hand (Figure 4).
Figure 4 — Connect high pressure hose to pump
7
Generac Portable Products 3200 PSI Pressure Washer
•
•
Inspect the Inlet Screen on the water inlet. Clean
it if it contains debris or have it replaced if
damaged. Do not run the pressure washer if
the screen is damaged.
Connect the garden hose tightly to the water inlet
and turn on the water (Figure 5).
•
Connect the nozzle extension to the spray gun
(Figure 7).
Figure 7 — Connect nozzle extension to spray
gun
Figure 5 — Connect garden hose tightly to water
inlet and turn ON the water
BEFORE STARTING THE
ENGINE
Caution: Before starting the pressure washer,
be sure you are wearing adequate eye
protection. Goggles are included with this unit.
Note: Your Water valve must be opened completely.
•
Squeeze the trigger until a steady stream of water
appears to purge the pump of air and impurities
(Figure 6).
Before you operate your pressure washer,you should
prepare the engine for the initial starting. Consult the
engine owner’s manual for details about
preparing the engine. To operate the engine you will
need the following:
Figure 6 — Squeeze trigger to purge pump
system of air and impurities
Add Engine Oil
Warning! Any attempt to crank or start the
engine before it has been properly serviced
with the recommended oil will result in an
engine failure.
8
Generac Portable Products 3200 PSI Pressure Washer
Use only high quality detergent oil rated with API
service classification SF or SG rated 10W30. Do
not use SAE 10W40 oil. Other viscosities shown
in the chart below may be used when the average
temperature in your area is within the
recommended range.
•
•
Fill to the edge of the oil filler hole with the
recommended oil. DO NOT OVERFILL. Engine oil
capacity is 1.16 US qt. (1.1L)
Reinstall the oil fillercap/dipstick, and hand tighten
securely.
Note: Check oil often during engine break-in.
Add Gasoline
WARNING: Never fill fuel tank indoors. Never
fill fuel tank when engine is running or hot. DO
NOT smoke when filling fuel tank.
WARNING: NEVER fill fuel tank completely
full. Fill tank as shown (Figure 9) to provide
space for fuel expansion. Wipe away any fuel
spillage from engine and equipment before
starting.
IMPORTANT: This engine is equipped with the Oil
Alert System. The Oil Alert System is designed to
prevent damage caused by an insufficient amount of
oil in the crankcase. Before the oil level in the
crankcase can fall below a safe limit, the Oil Alert
System will automatically stop the engine (the engine
switch will remain in the ON position).
•
•
Use unleaded gasoline with a pump octane rating
of 86 or higher.
• Use clean fuel and store in approved, clean covered
containers. Use clean fill funnels. Never use “stale”
gasoline left over from last season or gasoline stored
for long periods.
• Clean area around the fuel fill cap, remove the cap
(Figure 9).
Place the pressure washer on a level surface.
Clean the area around the oil fill and remove the oil
fillercap/dipstick (Figure 8).
Figure 9 — Add Regular Unleaded Gasoline to
Fuel Tank
Figure 8 — Add oil to engine crankcase.
•
•
•
Wipe the dipstick clean.
Insert and remove the dipstick without screwing it into
the filler neck. Check the oil level shown on the
dipstick.
•
9
Add regular UNLEADED gasoline, slowly, to fuel
tank.
Install fuel cap and wipe up any spilled gasoline.
Generac Portable Products 3200 PSI Pressure Washer
CHECKLIST BEFORE
STARTING ENGINE
Note: Make sure the valve is opened completely.
WARNING! Do not run the pump without the
water supply connected and turned on. You
must follow this caution or the pump will be
damaged.
When you have reached this point, look back over the
assembly to see if you have performed all of the
following.
• Check for properly tightened hose connections (high
pressure and water supply). Also, check to make
sure that there are no kinks, cuts, or damage to the
high pressure hose.
• Check that oil has been added to the proper level in
engine crankcase before trying to start the pressure
washer.
• Add proper gasoline to fuel tank.
• Provide proper water supply (not to exceed 140°F).
• Be sure to read “Safety Rules” and “How To Use Your
Pressure Washer” sections before using the pressure
washer.
•
•
Squeeze the trigger on the spray gun (make sure the
nozzle is in low pressure mode) to relieve the air
pressure caused by turning ON the water. Water will
spew out of the gun in a thin stream. Hold the trigger
until a steady stream of water appears. This will
make it easier to pull start the engine. Release the
trigger.
Apply the safety latch to the spray gun trigger
(Figure 10).
Figure 10 — Apply safety latch
HOW TO USE YOUR
PRESSURE WASHER
If you have any problems operating your pressure
washer, please call the pressure washer helpline at
1-800-270-1408
Safety Latch
You have assembled your high pressure washer and
have prepared the engine for starting. You are now
ready to clean your car, boat or the outside of a
building or whatever you plan to clean.
•
How to Start Your Engine
Move the fuel valve to the “ON” position (Figure 11).
Figure 11 — Fuel Valve
The best way to start your engine-powered pressure
washer for the first time is to follow these instructions
step-by-step. This starting information also applies
whenever you start the engine after you have let the
pressure washer sit idle for at least a day.
• Place the pressure washer in an area close enough
to an outside water source that can flow at a rate of
4.4 gallons per minute. Connect a garden hose to a
water spout.
• Make sure the unit is in a level position.
• Check that the high pressure hose is tightly
connected to the spray gun and to the pump. See
“Preparing the Pressure Washer for Use.”
(Pages 6-8)
• Connect the garden hose to the water inlet on
pressure washer pump and turn on the water.
10
Generac Portable Products 3200 PSI Pressure Washer
•
Move the throttle lever away from the SLOW (right)
position, about 1/3 of the way to the FAST (left) position (Figure 12).
•
Set the engine switch to the ON position (Figure 14).
Figure 14 — Engine Switch
Figure 12 — Throttle Positions
•
To start a cold engine, move the choke lever to the
CLOSED position. To restart a warm engine, leave
the choke lever in the OPEN position (Figure 13).
•
Figure 13 — Choke Positions
•
•
•
•
11
Grasp the starter grip and pull slowly until you feel
some resistance. Then pull cord out with rapid full
arm stroke. Let rope return slowly. Do not let rope
“snap back” against starter.
If the choke lever has been moved to the CLOSED
position to start the engine, gradually move it to the
OPEN position as the engine warms up.
Set the throttle control to the FAST (left) position.
Allow engine to warm up for 2 minutes before using
unit.
Place safety latch on gun in OFF position.
Generac Portable Products 3200 PSI Pressure Washer
How To Stop Your Pressure Washer
•
•
Cleaning and Applying Chemical
Place the engine switch in the OFF position.
Pull trigger to relieve pressure in the system.
WARNING! You must attach all hoses before
you start the engine. Starting the engine without
all the hoses connected and without the water
turned ON will damage the pump.
Note: A small amount of water will squirt out when you
release the pressure.
•
•
Move the fuel lever to the OFF position.
Move the throttle control lever to the SLOW (right)
position.
IMPORTANT: Use soaps designed specifically for
pressure washers. Household detergents could
damage the pump.
How to Use Spray Gun and Control
Pressure
To apply detergent follow these steps:
•
You now should know how to START your pressure
washer and how to STOP it. The information in this
section will tell you how to use the spray and apply
detergent or any other cleaning chemicals.
Attach the detergent pick-up tube to the pump
(Figure 16). (The attachment is next to the high
pressure outlet.)
Figure 16 — Detergent pick-up tube attachment
IMPORTANT: Do not run pump without the water
supply connected and turned on with the water valve
opened completely. You must follow this caution or the
pump will be damaged.
•
Located on the front of the pump is the pressure
control knob. You can increase the pressure by turning
the knob clockwise or decrease the pressure by turning the knob counterclockwise (Figure 15).
Figure 15 — Using the Pressure Regulator
•
Prepare the detergent solution as required by the
manufacturer.
CAUTION! Keep the chemical injection tube
from coming in contact with the hot muffler.
This will damage the chemical injection tube.
When inserting the filter into the chemical
bottle, route the tube so as to keep it from
inadvertently contacting the hot muffler.
•
For most effective cleaning, keep spray nozzle
between 8 to 24 inches away from cleaning surface.
Note: If you get spray nozzle too close, you may
damage the cleaning surface.
•
Do not get closer than 6 inches when cleaning
automobile tires.
12
Generac Portable Products 3200 PSI Pressure Washer
•
Pressure Washer Rinsing
Place small filter of the clear detergent siphoning tube
into the detergent container (Figure 17).
WARNING! Be extreamly careful if you must
Figure 17 — Detergent filter and cleaning solution
use the pressure washer from a ladder,
scaffolding or any other relatively unstable
location. Pressure in a running washer builds as
you climb. When you press the trigger, the recoil
from the initial spray could force you to fall. The
high pressure spray could also force you to fall if
you are too close to the cleaning surface.
Note: If you get the spray nozzle too close, you may
damage the cleaning surface.
•
IMPORTANT: Detergent cannot be applied without
water source turned ON.
•
•
Open the adjusting knob fully on the gun by turning it
counterclockwise (Figure 18).
•
Figure 18 — Dual lance adjusting knob
Initially clean a small area and then check the surface
for damage. If no damage is found, You can assume it
is okay to continue cleaning.
For rinsing, close the adjustment knob fully and wait for
detergent to clear. Start at the top of area to be rinsed,
working down with the same action as for cleaning.
You can also stop detergent from flowing by simply
removing siphon from bottle.
Automatic Cool Down System
Adjusting Knob
(also known as Thermal Relief)
If you run the engine on your pressure washer for 3-5
minutes without pressing the trigger on the spray gun,
circulating water in the pump can reach temperatures
between 140°-145°F. When the water reaches this
temperature, the automatic cool down system engages
and cools the pump by discharging the warm water
onto the base and ground. This system prevents
internal damage to the pump.
•
•
•
GENERAL MAINTENANCE
RECOMMENDATIONS
Make sure the garden hose is connected to the water
inlet. Check that the high pressure hose is connected
to the spray gun and the pump and start the engine.
Apply the detergent to a dry surface, starting at the
lower portion of the area to be washed and work
upward, using long, even, overlapping strokes. Do not
allow the detergent to dry. This will prevent streaking.
Allow the detergent to soak in between 3-5 minutes
before washing and rinsing. Reapply as needed to
prevent surface from drying.
The warranty of the high pressure washer does not
cover items that have been subjected to operator
abuse or negligence. To receive the full value from the
warranty, the operator must maintain the high pressure
washer as instructed in this manual.
• Some adjustments will need to be made periodically to
properly maintain your high pressure washer.
• All adjustments in the Service and Adjustments section
of this manual should be made at least once each
season.
Note: You cannot adjust the concentration of the
chemical.
13
Generac Portable Products 3200 PSI Pressure Washer
•
Once a year you should clean or replace the spark
plug and clean or replace the air filter and check the
gun and wand assembly for wear. A new spark plug
and clean air filter assure proper fuel-air mixture and
help your engine run better and last longer.
Before Each Use
•
•
•
•
•
•
•
Check engine oil level.
Check pump oil level.
Check inlet screen for damage.
Check high pressure hose for leaks.
Check detergent inlet hose and filter for damage.
Check gun and wand assembly for leaks.
Rinse out garden hose to flush out debris.
1. Detach gun and lance from high pressure hose.
Detach lance from gun and remove o-ring and
screen from lance. Flush the screen, gun and lance
with clean water to clear debris.
2. If the screen is damaged, the o-ring kit contains a
replacement in-line filter screen and o-ring. If
undamaged, reuse screen.
3. Place the in-line filter screen into the threaded end of
the lance. Direction does not matter. Push the
screen in with the eraser end of a pencil until it rests
flat at the bottom of the opening. Take care to not
bend the screen.
4. Place the o-ring into the recess. Push the o-ring
snugly against the in-line filter screen.
PRESSURE WASHER
MAINTENANCE
5. Assemble the lance to the spray gun, as described
earlier in this manual.
Check and Clean Inlet Screen
Examine the hose connection to the gun and make
sure it is secure. Test the trigger by pressing it and
making sure it springs back into place when you
release it. Put the safety latch in the ON position and
test the trigger. You should not be able to press the
trigger.
Check Gun and Wand
Examine the screen on the water inlet. Clean it if the
screen is clogged or replace it if screen is damaged.
Check High Pressure Hose
The high pressure hose can develop leaks form wear,
kinking, or abuse. Inspect the hose each time before
using it. Check for cuts, leaks, abrasions or bulging of
cover, damage or movement of couplings. If any of
these conditions exist, replace the hose immediately.
DANGER! Water spraying from a leak is
capable of injecting material into skin. Inspect
hose each time before using it. Never repair a
high pressure hose. Replace it with another
hose that meets the maximum pressure rating of
your pressure washer.
Check In-Line Filter
Refer to Figure 19 and service the in-line filter if it
becomes clogged, as follows:
Figure 19 — In-Line Filter Assembly
O-Ring
Lance
In-Line Filter
Check Detergent Hose
Examine the filter on the detergent hose and clean if
clogged. The tube should fit tightly on the barbed fitting.
Examine the tube for leaks ot tears. Replace the filter
or tube if either is damaged.
Purge Pump of Air and
Contaminants
To remove the air from the pump, follow these
steps:
• Set up the pressure washer as described in “Preparing
the Pressure Washer for Use” (Pages 6-8) and connect the water supply.
• Remove the wand extension form the gun.
• Pull the trigger on the gun and hold.
To remove the contaminants form the pump, follow
these steps:
• Set up the pressure washer as described in “How to
Use Your Pressure Washer” (Page 10), and connect
the water supply.
14
Generac Portable Products 3200 PSI Pressure Washer
•
•
•
•
Remove the nozzle attachment form the gun.
Start the engine. (See How To Start Your Engine
Page 10.)
Squeeze the trigger on the gun and hold.
When the water supply is steady and constant, engage
the safety latch and refasten the nozzle attachment.
Figure 20 — Nozzle Maintenance
Cleaning Chemical Injection Tube
If you have used the chemical injection tube you must
flush it with clean water before stopping the engine.
• Place the injector filter into a pail of clean water while
running pressure washer with nozzle in low pressure
mode. (Adjusting knob on the gun assembly is open
fully.) Flush for five minutes.
• Shut off the engine. (See “How to Stop Your Pressure
Washer” on page 12).
•
Important: Simply shutting OFF the engine will not
release pressure in the system. When the engine has
shut down, squeeze the trigger on the gun to relieve
pressure in the hose.
Remove additional debris by back flushing water
supply through the nozzle holder (Figure 21). Back
flush between 30 and 60 seconds.
Figure 21 — Backflushing the nozzle
Nozzle Maintenance
If the nozzle becomes restricted or clogged with foreign
materials, such as dirt, excessive pump pressure may
develop. If the nozzle becomes partially clogged, it may
cause a pulsating sensation during use. This generally
is not a pump related problem, but rather a clogged or
partially restricted nozzle.
If the nozzle becomes clogged or partially restricted,
immediately clean the nozzle with the kit included with
your pressure washer by following these instructions:
• Shut off the engine and turn off the water supply.
• Press trigger to relieve pressure.
• Remove the lance form the gun.
• Use the wire included in the kit or a small paper clip to
free the foreign materials clogging or restricting the
nozzle (Figure 20).
•
•
•
Reconnect the lance to the gun.
Reconnect the water supply, turn on the water
completely and start the engine.
Test the pressure washer by operating with nozzle in
the high and in the low position.
ENGINE MAINTENANCE
See Engine Owner’s Manual for Information on how
to properly maintain the engine.
It describes how to check the oil level, as well as
change the oil, how to service the air cleaner, replace
the spark plug and clean the spark arrestor screen.
15
Generac Portable Products 3200 PSI Pressure Washer
SERVICE AND
ADJUSTMENTS
Preparing The Engine For Storage
WARNING! NEVER store engine with fuel in
the tank indoors or in enclosed, poorly
ventilated areas where fumes may reach an
open flame, spark or pilot light as on a furnace,
water heater, clothes dryer or other gas
appliance.
See the Engine Owner’s Manual for instructions on
how to properly service and adjust the engine.
PREPARING THE UNIT FOR
STORAGE
Consult engine owner’s manual for information on
how to properly prepare the engine for storage.
Water should not remain in the unit for long periods of
time. Sediments of minerals can deposit on the pump
parts and “freeze” pump action. If you do not plan to
use the pressure washer for more than 30 days, follow
this procedure:
1. Flush detergent hose by placing the injector filter into
a pail of clean water while running pressure washer
with nozzle in low pressure mode. Flush for five minutes.
2. Shut off the engine and let it cool, then remove all the
hoses.
3. Place the engine switch in the OFF position.
CAUTION! Be sure switch is in OFF position before
you continue. If you start the engine without the
proper water supply connected, you can damage
pump.
4. Empty the pump of all water by pulling the recoil
handle about 6 times. This should remove most of the
liquid in the pump.
NOTE: To protect the unit from freezing
temperatures, draw windshield washer fluid
into the pump by pouring windshield washer
fluid into a 3-foot section of garden hose
connected to the inlet adapter and pulling the
recoil handle twice.
5. Store in a clean dry place
16
Generac Portable Products 3200 PSI Pressure Washer
TROUBLESHOOTING
Problem
Pump has following problems:
failure to produce pressure, erratic
pressure, chattering, loss of pressure,
low water volume.
Cause
Correction
1. Nozzle in low pressure mode.
2. Water inlet is blocked.
3. Inadequate water supply.
4. Inlet hose is kinked or leaking.
5. Clogged inlet hose strainer.
6. Water supply is over 140°F.
7. Outlet hose is blocked or leaks.
8. Gun leaks.
9. Nozzle is obstructed.
10. Pump is faulty.
Detergent fails to mix with spray.
1. Chemical injection tube
is not submerged.
2. Chemical filter is clogged.
3. High pressure nozzle attached.
Engine runs good at no–load but “bogs”
when load is added.
Engine will not start; or starts
and runs rough.
Engine speed is too slow.
1. Low oil level.
2. Dirty air cleaner.
3. Out of gasoline.
4. Stale gasoline.
5. Spark plug wire not connected
to spark plug.
6. Bad spark plug.
7. Water in gasoline.
8. Overchoking.
9. Excessively rich fuel mixture.
10. Intake valve stuck open or closed.
11. Engine has lost compression.
Engine shuts down during operation.
1. Out of gasoline.
2. Low oil level.
1. Pull nozzle backward for high
pressure mode.
2. Clear inlet
3. Provide adequate water flow.
4. Straighten inlet hose, patch leak.
5. Check and clean inlet hose
strainer.
6. Provide cooler water supply.
7. Clear blocks in outlet hose.
8. Replace gun.
9. Clean nozzle.
10. Contact Generac service facility.
1. Insert chemical injection tube into
detergent.
2. Clean or replace filter/detergent
siphoning tube.
3. Use low pressure, black chemical
nozzle to apply detergent.
Move throttle control to FAST .
position. If engine still “bogs down”
contact Honda service facility.
1. Fill crankcase to proper level.
2. Clean or replace air cleaner.
3. Fill fuel tank.
4. Drain gas tank; fill with fresh fuel.
5. Connect wire to spark plug.
6. Replace spark plug.
7. Drain gas tank; fill with fresh fuel.
8. Open choke fully and crank
engine.
9. Contact Honda service facility.
10. Contact Honda service facility.
11. Contact Honda service facility.
1. Fill fuel tank.
2. Fill crankcase to proper level.
Engine lacks power.
Dirty air filter.
Replace air filter.
Engine “hunts” or falters.
Choke is opened too soon.
Move choke to halfway position
until engine runs smoothly.
17
Generac Portable Products 3200 PSI Pressure Washer
EXPLODED VIEW- MAIN UNIT
18
Generac Portable Products 3200 PSI Pressure Washer
PARTS LIST-MAIN UNIT
Item Part No.
Qty. Description
Item Part No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
1
1
1
1
1
8
12
7
1
3
4
4
1
1
1
1
1
1
1
3
2
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
87815
B2140E
B1862
95459
B1411
95458
22259
22129
50190
NSP
52859
22237
23645
B1410
B1554
95457
A1040C
A1041
B1442
92609
64416
88521
Safety Goggles
Dual Lance Extension
Gun W/Moulded Grip
Quick Disconnect For Gun
Hose (3600PSI)
Quick Disconnect For Hose
Hex Nut 5/16-18
Lockwasher
Washer 10GA
Honda Engine
Locking Nut M10
Lockwasher
Bolt 3/8-1x1/4 LG
Annovi Pump
Termal Relief
Adaptor 3/8” NPT-M22
Chemical Hose
Hose Filter
Cradle 1040-0
Vibration Mount 1.5”
Bolt M10-1.5”x45mm LG
Wheel 10”
19
75402
49808
82857
B1482
52858
B1444
27007
42909
63281
39253
51731
B1471
86292
B1472
B1451
93393B
45771
93221
95320
Qty. Description
2
2
3
1
4
1
2
2
1
2
4
1
4
1
1
1
4
2
1
Pushnut .5”
Washer M12
Vibration Mount
Engine Base
Lock Nut M8x1.25
Cradle Support
Vibration Mount
Screw M8x1.25
Key, 1/4” SQx2” LG
Screw M8x1.25
Screw M8x1.25
Logo Decal
Self Drilling Screws
Starting Instruction Decal
Billboard Panel
Handle
Hex Nut M8x1.25
M. C. Decal
Connector, Garden Hose
Generac Portable Products 3200 PSI Pressure Washer
EXPLODED VIEW-PUMP
20
Generac Portable Products 3200 PSI Pressure Washer
PARTS LIST-PUMP
Item
1
2
3
4
5
6
11
12
13
14
15
16
17
18
Part No.
100-B2327
101-B1410
102-B2327
103-B2327
104-B1410
105-B2327
106-B2327
107-B2327
108-B2327
109-B2327
110-B2327
111-B2327
112-B2327
113-B2327
Qty.
6
6
6
6
2
2
3
3
3
3
3
3
8
1
19
20
114-B2327
115-B2327
1
1
21
22
23
24
25
26
27
28
29
30
34
35
116-B2327
117-B2327
118-B2327
119-B2327
120-B2327
121-B2327
122-B1410
123-B2327
124-B2327
125-B2327
126-B2327
127-B2327
1
1
3
3
3
3
3
3
3
3
1
1
Description
O-Ring 17.86x2.62
Valve Plug (XRV H)
Complete Valve
O-Ring 15.54x2.62
Plug 1/4”
O-Ring 10.82x1.78
Support Ring 18
Gasket 18
Piston Guide
O-Ring 31.47x1.78
Gasket 18
Seal 20x28x6
Srew TCEI M8x16
Closed Bearing
Support
O-Ring 60x2.62
Bearing 30205A
25x52x16.25
Pump Housing
Oil Cap
Piston Nut Seal
Washer 8.4x17x1
Piston 18
Spacer
O-Ring 9.25x1.78
Guarding Piston
Piston Pin 10x25.5
Con Rod (Bronze)
Gasket Cover
Rear Cover
Item
36
40
42
43
46
Part No.
128-B2327
132-B2327
134-B2327
135-B2327
135-B2327
Qty.
6
1
2
1
1
46
136-B2327
1
47
48
137-B2327
134-B2126
1
1
48
138-B2327
1
49
135-B1410
1
49
139-B2327
1
50
59
60
140-B2327
142-B1410
137-B1410
8
1
1
61
62
64
138-B1410
139-B1410
150-B2126
1
1
1
65
66
155-B2327
145-B1410
148-B1410
4
8
1
Description
Screw TCEI M5x16
Shim 0,1mm
O-Ring 14x1.78
Plug 3/8”
Plug 3/8”
(ModelXRV)
Plug 3/8”
(Model XRV H)
O-Ring 17.5x2
Plug 1/2” G
(Model XRV)
Plug 1.2” G
(Model XRV H)
Pump Head
(Model XRV)
Pump Head
(Model XRV H)
Screw TCEI M8x70
Hollow Shaft 1”
Bearing
32008x40x68x19
Seal 40x55x7 BA
O-Ring 72,75x1.78
Flange for gas/diesel
engine
Screw TCEI M8x20
Washer
Complete Unloader
(Not Shown)
A
B
C
D
E
200-B1410
Valve Kit
201-B1410
Piston Kit
202-B1410
Oil Seal Kit
203-B1410
Water Seal Kit
204-B1410
Support Ring Kit
Item
Qty.
Item
Qty.
Item
Qty.
Item
Qty.
Item
Qty.
3
4
6
6
25
3
16
19
34
61
62
3
1
1
1
1
12
14
15
3
3
3
11
3
21
Generac Portable Products 3200 PSI Pressure Washer
EXPLODED VIEW-UNLOADER
22
Generac Portable Products 3200 PSI Pressure Washer
PARTSLIST-UNLOADER
Item
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
Part No.
210-B2327
211-B2327
212-B2327
213-B1410
Qty.
1
1
1
1
215-B2327
216-B2327
217-B2327
218-B2327
219-B2327
220-B2327
221-B2327
222-B2327
223-B2327
224-B2327
225-B2327
226-B2327
227-B2327
228-B2327
229-B2327
230-B2327
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
1
Description
Hose Tail
Stainless Steel Ball
Spring
Injector Body
Not Used
Injector Nut
Spring
Plunger
O-Ring
Upper Piston
Spacer Plate
Spring
Spring, Spacer Plate
Pin
Ring
O-Ring
Inlet Bolt
Washer
Valve Housing
Ring
Washer
Item
22
23
24
25
26
27
28
29
30
31
32
33
34
Part No.
231-B2327
232-B2327
233-B2327
234-B2327
235-B2327
236-B2327
237-B2327
238-B2327
239-B2327
240-B2327
241-B2327
242-B2327
243-B2327
Qty.
3
1
1
1
1
1
1
1
1
1
1
1
1
35
36
244-B2327
245-B2327
1
1
37
38
39
40
246-B2327
155-B2327
248-B2327
137-B2327
1
1
1
1
Description
O-Ring
Lower Piston
Piston Guide
O-Ring
O-Ring
Inlet Bolt
Washer
Lower By-Pass Fitting
Washer
O-Ring
Suction Fitting
Spring Guide
Pressure Adjusting
Screw
Pin
Pressure Adjusting
Knob
Nut
Screw
Plug
O-Ring
KIT #2611 or GYMATIC 3/B
Item
Qty.
Item
Qty.
Item
Qty.
9
15
16
18
20
1
1
1
1
2
21
22
25
26
28
1
3
1
1
1
30
31
40
1
1
1
23
Limited Pressure Washer Warranty
Generac Portable Products LLC (hereafter referred to as GENERAC LLC) warrants to the original retail purchaser,
the pressure washer manufactured by GENERAC LLC to be free from defects in material and workmanship for
the period(s) set forth below from the date of original purchase. This warranty is not transferable. The term
“original purchaser” means the person for whom the pressure washer is originally purchased.
Warranty Schedules
Electric Power Washer
All Other Engine-driven
1 year (does not apply to commercial or rental applications)
Engine:
CONSUMER*
Warranted solely by
Engine Manufacturer
COMMERCIAL*
Warranted solely by
Engine Manufacturer
Pump:
1 year
90 days
* NOTE: For the purpose of this warranty “consumer use” means personal residential household use by
original purchaser. “Commercial Use” means all other uses, including rental, construction, commercial
and income producing purposes. Once a pressure washer has experienced commercial use, it shall
thereafter be considered a commercial use pressure washer for the purposes of this warranty.
During said warranty period, GENERAC LLC will, at its option, repair or replace any part which, upon examination
by GENERAC LLC or GENERAC LLC Authorized Dealers, is found to be defective under normal use and
service**. All transportation costs under warranty, including return to the factory if necessary, are to be borne by
the purchaser and prepaid by the purchaser.
** NORMAL WEAR: As with all mechanical devices, pressure washers need periodic parts service and
replacement to perform well. This warranty does not cover repair when normal use has exhausted the life
of a part or pressure washer pump.
This warranty does not include: Used products and demonstration equipment. Parts, such as GUNS, HOSES,
WANDS, NOZZLES or other wear items such as quick couplers, oil, gauges, belts, o-rings, filters, pump packing,
etc. Pumps which have been run without water supplied. Damage or malfunctions resulting from: accidents,
abuse, modifications, alterations, or improper servicing. Freezing or chemical deterioration. Normal maintenance
such as adjustments, fuel system cleaning and obstruction (due to chemical, dirt, carbon or lime, etc.).
THIS WARRANTY IS IN PLACE OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED,
SPECIFICALLY, GENERAC LLC MAKES NO OTHER WARRANTIES AS TO MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE. THE DURATION OF ANY IMPLIED WARRANTIES
WHICH CANNOT BE DISCLAIMED IS LIMITED TO THE TIME PERIOD AS SPECIFIED IN THE
EXPRESS WARRANTY. LIABILITY FOR CONSEQUENTIAL, INCIDENTAL, OR SPECIAL
DAMAGES UNDER ANY AND ALL WARRANTIES IS EXCLUDED, EVEN IF SUCH DAMAGES ARE
A DIRECT RESULT OF GENERAC LLC'S NEGLIGENCE. GENERAC LLC ALSO DISCLAIMS ANY
RESPONSIBILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES SUCH AS THE LOSS OF
TIME OR THE USE OF THE POWER EQUIPMENT, OR ANY COMMERCIAL LOSS DUE TO THE
FAILURE OF THE EQUIPMENT: AND ANY IMPLIED WARRANTIES ARE LIMITED TO THE
DURATION OF THIS WRITTEN WARRANTY.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of
incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty
gives you specific legal rights and you may also have other rights, which vary from state to state.
For service, see your nearest GENERAC LLC authorized warranty service facility or call 1-877-544-0982.
Warranty service can be performed only by a GENERAC LLC authorized service facility. This warranty will not
apply to service at any other facility. At the time of requesting warranty service, evidence of original purchase date
must be presented.
Generac Portable Products LLC
Jefferson, Wisconsin U.S. A.

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
