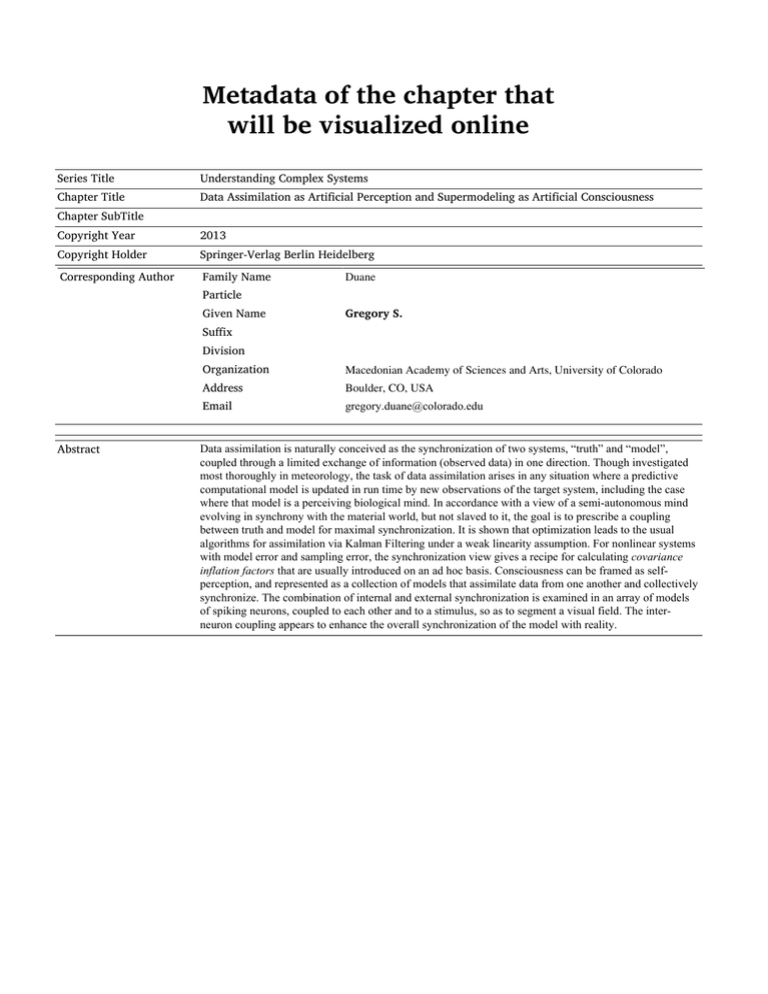

Metadata of the chapter that
will be visualized online
Series Title
Chapter Title
Chapter SubTitle
Understanding Complex Systems
Data Assimilation as Artificial Perception and Supermodeling as Artificial Consciousness
Copyright Year
2013
Corresponding Author
Family Name
Duane
Given Name
Gregory S.
Copyright Holder
Springer-Verlag Berlin Heidelberg
Particle
Suffix
Division
Organization
Macedonian Academy of Sciences and Arts, University of Colorado
Email
[email protected]
Address
Abstract
Boulder, CO, USA
Data assimilation is naturally conceived as the synchronization of two systems, “truth” and “model”,
coupled through a limited exchange of information (observed data) in one direction. Though investigated
most thoroughly in meteorology, the task of data assimilation arises in any situation where a predictive
computational model is updated in run time by new observations of the target system, including the case
where that model is a perceiving biological mind. In accordance with a view of a semi-autonomous mind
evolving in synchrony with the material world, but not slaved to it, the goal is to prescribe a coupling
between truth and model for maximal synchronization. It is shown that optimization leads to the usual
algorithms for assimilation via Kalman Filtering under a weak linearity assumption. For nonlinear systems
with model error and sampling error, the synchronization view gives a recipe for calculating covariance
inflation factors that are usually introduced on an ad hoc basis. Consciousness can be framed as selfperception, and represented as a collection of models that assimilate data from one another and collectively
synchronize. The combination of internal and external synchronization is examined in an array of models
of spiking neurons, coupled to each other and to a stimulus, so as to segment a visual field. The interneuron coupling appears to enhance the overall synchronization of the model with reality.
Data Assimilation as Artificial Perception
and Supermodeling as Artificial Consciousness
Gregory S. Duane
1
2
O
O
F
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
N
C
O
R
R
EC
TE
D
PR
Abstract Data assimilation is naturally conceived as the synchronization of two
systems, “truth” and “model”, coupled through a limited exchange of information
(observed data) in one direction. Though investigated most thoroughly in meteorology, the task of data assimilation arises in any situation where a predictive
computational model is updated in run time by new observations of the target
system, including the case where that model is a perceiving biological mind.
In accordance with a view of a semi-autonomous mind evolving in synchrony
with the material world, but not slaved to it, the goal is to prescribe a coupling
between truth and model for maximal synchronization. It is shown that optimization
leads to the usual algorithms for assimilation via Kalman Filtering under a weak
linearity assumption. For nonlinear systems with model error and sampling error,
the synchronization view gives a recipe for calculating covariance inflation factors
that are usually introduced on an ad hoc basis. Consciousness can be framed as
self-perception, and represented as a collection of models that assimilate data from
one another and collectively synchronize. The combination of internal and external
synchronization is examined in an array of models of spiking neurons, coupled
to each other and to a stimulus, so as to segment a visual field. The inter-neuron
coupling appears to enhance the overall synchronization of the model with reality.
U
1 Data Assimilation as Synchronization of Truth and Model
A computational model of a physical process that provides a stream of new data
to the model as it runs must include a scheme to combine the new data with the
model’s prediction of the current state of the process. The goal of any such scheme
G.S. Duane ()
Macedonian Academy of Sciences and Arts, University of Colorado, Boulder, CO, USA
e-mail: [email protected]
L. Kocarev (ed.), Consensus and Synchronization in Complex Networks,
Understanding Complex Systems, DOI 10.1007/978-3-642-33359-0 8,
© Springer-Verlag Berlin Heidelberg 2013
22
23
24
25
G.S. Duane
U
N
C
O
R
R
EC
TE
D
PR
O
O
F
is the optimal prediction of the future behavior of the physical process. While the
relevance of the data assimilation problem is thus quite broad, techniques have been
investigated most extensively for weather modeling, because of the high dimensionality of the fluid dynamical state space, and the frequency of potentially useful new
observational input. Existing data assimilation techniques (3DVar,4DVar,Kalman
Filtering, and Ensemble Kalman Filtering) combine observed data with the most
recent forecast of the current state to form a best estimate of the true state of the
atmosphere, each approach making different assumptions about the nature of the
errors in the model and the observations.
An alternative view of the data assimilation problem is suggested here. The
objective of the process is not to “nowcast” the current state of reality, but to make
the model converge to reality in the future. Recognizing also that a predictive model,
especially a large one, is a semi-autonomous dynamical system in its own right,
influenced but not determined by observational input from a coexisting reality, it is
seen that the guiding principle that is needed is one of synchronism. That is, we seek
to introduce a one-way coupling between reality and model, such that the two tend to
be in the same state, or in states that in some way correspond, at each instant of time.
The problem of data assimilation thus reduces to the problem of synchronization of
a pair of dynamical systems, unidirectionally coupled through a noisy channel that
passes a limited number of “observed” variables.
While the synchronization of loosely coupled regular oscillators with limit cycle
attractors is ubiquitous in nature [23], synchronization of chaotic oscillators has only
been explored in the last two decades, in a wave of research spurred by the seminal
work of Pecora and Carroll [17]. Chaos synchronization can be surprising because
it implies that two systems, each effectively unpredictable, connected by a signal
that can be virtually indistinguishable from noise, nevertheless exhibit a predictable
relationship. Chaos synchronization has indeed been used to predict new kinds of
weak teleconnection patterns relating different sectors of the global climate system.
[2, 5, 8].
It is now clear that chaos synchronization is surprisingly easy to arrange, in
both ODE and PDE systems [4, 5, 14]. A pair of spatially extended chaotic systems
such as two quasi-2D fluid models, if coupled at only a discrete set of points and
intermittently in time, can be made to synchronize completely. The application of
chaos synchronization to the tracking of one dynamical system by another was
proposed by So et al. [22], so the synchronization of the fluid models suggests a
natural extension to meteorological data assimilation [7, 26].
Since the problem of data assimilation arises in any situation requiring a computational model of a parallel physical process to track that process as accurately
as possible based on limited input, it is suggested here that the broadest view of
data assimilation is that of machine perception by an artificially intelligent system.
In this context, the role of synchronism is reminiscent of the psychologist Carl
Jung’s notion of synchronicity in his view of the relationship between mind and
the material world. Like a data assimilation system, mind forms a model of reality
that functions well, despite limited sensory input. Jung, working in collaboration
with Wolfgang Pauli [13], noted uncanny coincidences or “synchronicities” between
