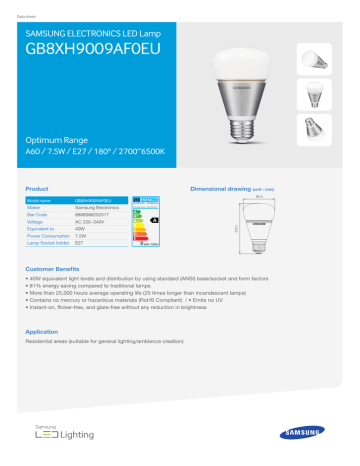

Data sheet
SAMSUNG ELECTRONICS LED Lamp
GB8XH9009AF0EU
Optimum Range
A60 / 7.5W / E27 / 180° / 2700~6500K
Product
Dimensional drawing (unit : mm)
GB8XH9009AF0EU
Maker
Samsung Electronics
Bar Code
8806086252317
Voltage
AC 220~240V
Equivalent to
40W
Power Consumption
7.5W
Lamp Socket holder
E27
65.0
Samsung Electronics GB8XH9009AF0EU
113.0
Model name
8 kWh/1000h
Customer Benefits
• 40W equivalent light levels and distribution by using standard (ANSI) base/socket and form factors
• 81% energy saving compared to traditional lamps
• More than 25,000 hours average operating life (25 times longer than incandescent lamps)
• Contains no mercury or hazardous materials (RoHS Compliant) / • Emits no UV
• Instant-on, flicker-free, and glare-free without any reduction in brightness
Application
Residential areas (suitable for general lighting/ambience creation)
SAMSUNG ELECTRONICS LED Lamp
GB8XH9009AF0EU
Specifications
Lighting Data
Model name
GB8XH9009AF0EU
Nominal luminous flux (lm)
470
Rated luminous flux (lm)
470
(0~180)
Lamp efficacy (lm/W)
62
80 70 60 50 40 30 20
Frequency (Hz)
50/60
Input current (mA)
60
Nominal power consumption(W)
7.5
Rated power consumption (W)
7.5
Power factor
0.5
Lumen Maintenance Factor
L70
Warm-up time (60%)
Instant Full Light
Starting time (s)
0.3
On/Off cycles
50,000
Nominal beam angle (°)
180
Rated beam angle (°)
180
Operating temperature (°C)
-20~+40
Nominal lamp life time (hrs)
25,000
Rated lamp life time (hrs)
25,000
Color description
Warm White~Daylight
Color temperature (K)
2700~6500
CRI (Ra)
80
Dimmable
Yes (Smart Control)
Diameter (mm)
Φ 65.0
Overall length (mm)
113.0
Weight (g)
120
Energy efficiency index
A
Energy consumption (kWh/1000h)
8
Certification
CE, CB, RCM
※Specifications are subject to change without notice.
(90~270)
(uni : cd)
90°
90°
60°
60°
30°
1m
71 lx
2m
17 lx
3m
7 lx
30°
0°
Light Distribution
Illuminance (lx)
Packaging Details
• Single Box (1pc) : 87mm×68mm×153mm / 170g
• Middle Box (6pc/box) : 269mm×144mm×161mm / 1,159g
• Outer Carton (18pc/box) : 459mm×281mm×173mm / 3,930g
