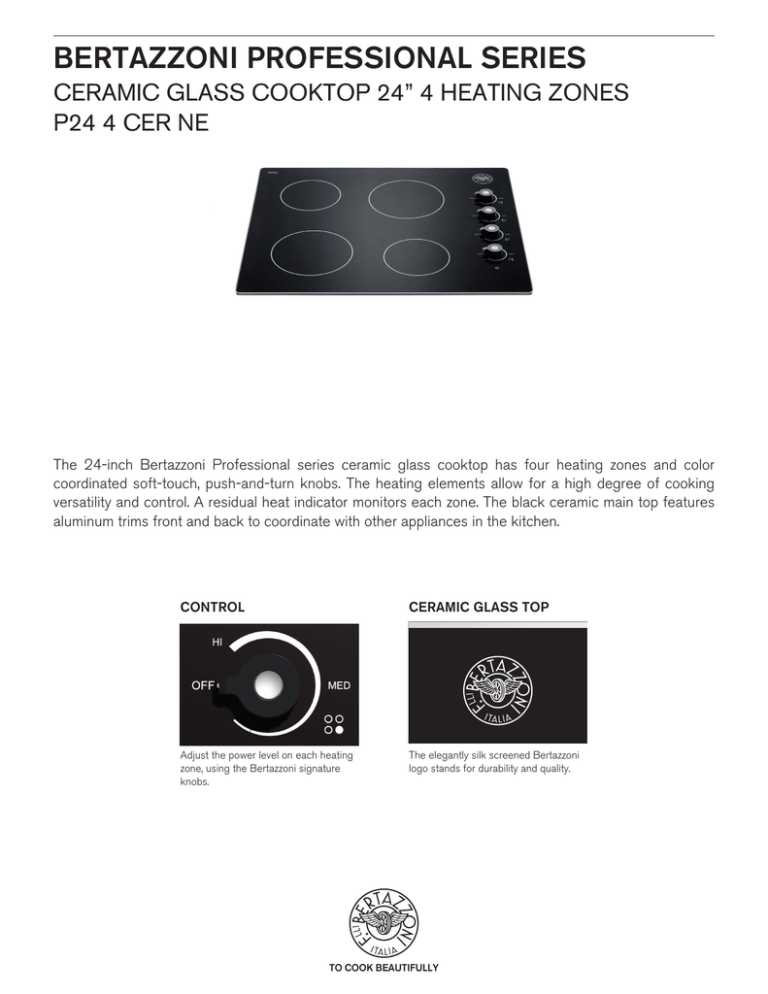

BERTAZZONI PROFESSIONAL SERIES
CERAMIC GLASS COOKTOP 24” 4 HEATING ZONES
P24 4 CER NE
The 24-inch Bertazzoni Professional series ceramic glass cooktop has four heating zones and color
coordinated soft-touch, push-and-turn knobs. The heating elements allow for a high degree of cooking
versatility and control. A residual heat indicator monitors each zone. The black ceramic main top features
aluminum trims front and back to coordinate with other appliances in the kitchen.
CONTROL
CERAMIC GLASS TOP
Adjust the power level on each heating
zone, using the Bertazzoni signature
knobs.
The elegantly silk screened Bertazzoni
logo stands for durability and quality.
TO COOK BEAUTIFULLY
BERTAZZONI PROFESSIONAL SERIES
CERAMIC GLASS COOKTOP 24” 4 HEATING ZONES P24 4 CER NE
X
P30 4 I X
FEATURES
4
Back right
Ø 6” - 1200 W
Front right
Ø 7” - 1800 W
Back left
Ø 7” - 1800 W 6" ⁄ min
3" 5⁄8
38
Front left
⁄2
Technical Specifications
20" 3⁄8
36" ⁄heating zones
Radiant
15 16
Electrical Requirements
31" 1⁄8
120/208 V - 120/240 V, 60Hz
Max Amp Usage
24 A - 25 A, 4500 W - 6000 W
Certification
CSA-UL
Warranty
2 years parts and labor
Ø 6” - 1200 W
Maintop
1" ⁄ minceramic glass and metal trim
9 16
19" ⁄
Worktop control
knobs
Knobs
soft touch
12
29" 1⁄2
P30 4 CER NE
19" 1⁄2
1" 9⁄16 min
P24 4 CER NE
21"
30"
24"
3" 1⁄8
⁄
15 16
19" 1⁄4
1" 1⁄2 min
22" 13⁄16
INSTALLATION INSTRUCTIONS
Bertazzoni recommends to operate the appliance after it has
been installed in a cabinet. The kitchen cabinets shall be made
of materials capable of withstanding temperatures at least 117°F
(65°C) above room temperature in order to avoid possible damage
to the cabinets during appliance usage. For further installation
instructions refer to the installation manual.
19" 11⁄16
1" 1⁄2 min
Disclaimer: while every effort has been made to insure the accuracy of the information contained in
this brochure, Fratelli Bertazzoni reserves the right to change any part of the information at any time
without notice.
Fratelli Bertazzoni, Bertazzoni and the winged wheel brand icon are registered trademarks of
Bertazzoni Spa.
bertazzoni.com
