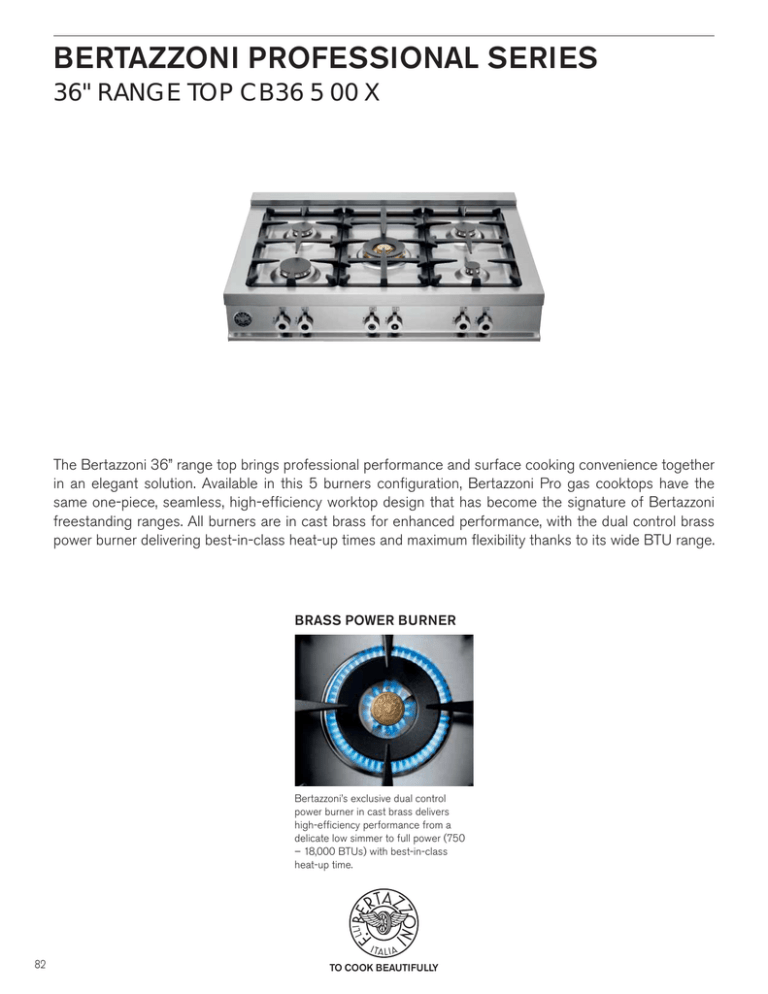

BERTAZZONI PROFESSIONAL SERIES
36" RANGE TOP CB36 5 00 X
The Bertazzoni 36” range top brings professional performance and surface cooking convenience together
in an elegant solution. Available in this 5 burners configuration, Bertazzoni Pro gas cooktops have the
same one-piece, seamless, high-efficiency worktop design that has become the signature of Bertazzoni
freestanding ranges. All burners are in cast brass for enhanced performance, with the dual control brass
power burner delivering best-in-class heat-up times and maximum flexibility thanks to its wide BTU range.
BRASS POWER BURNER
Bertazzoni’s exclusive dual control
power burner in cast brass delivers
high-efficiency performance from a
delicate low simmer to full power (750
– 18,000 BTUs) with best-in-class
heat-up time.
82
TO COOK BEAUTIFULLY
BERTAZZONI PROFESSIONAL SERIES
36" RANGE TOP CB36 5 00 X
FEATURES
TECHNICAL SPECIFICATIONS
Brass burners
5
Electrical Requirements
120V 60Hz
Dual wok (1x)
750-18000 Btu/h
Max. Amp Usage
1 Amp
Rapid (1x)
11000 Btu/h
Certification
CSA
Semi-rapid (2x)
6200 Btu/h
Warranty
2 years parts and labor
Auxiliary (1x)
750-3400 Btu/h
Product weight
79.4 lbs
Box weight
81.0 lbs
ACCESSORIES
Simmer ring (standard)
code 408077
Stainless steel griddle (optional)
code SG36X
Wok ring (standard)
code 408084
DIMENSIONS
Ref.
Description
Dimensions
Inches
mm
D
Cooktop depth
25 /16
640
G1
Distance between gas outlet
connection and frontal side
23 1/4
590
G5
Distance between gas outlet
connection and left side
3
76
L3 (min) Cutout clearance from backwall
1
25
L9 (min) Cutout clearance from cabinetry
6
152
3
L10
Cutout width
36
915
S
Cooktop height
6 /2
165
S4
Chassis height
4 15/16
125
W
Cooktop width
15
35 /16
910
Z5
Adjustable horizontal exit
3 /16
100
1
15
INSTALLATION INSTRUCTIONS
Bertazzoni recommends to operate the appliance after it has been
installed in a cabinet.
The kitchen cabinets shall be made of materials capable of
withstanding temperatures at least 117°F (65°C) above room
temperature in order to avoid possible damage to the cabinets
during appliance usage.
