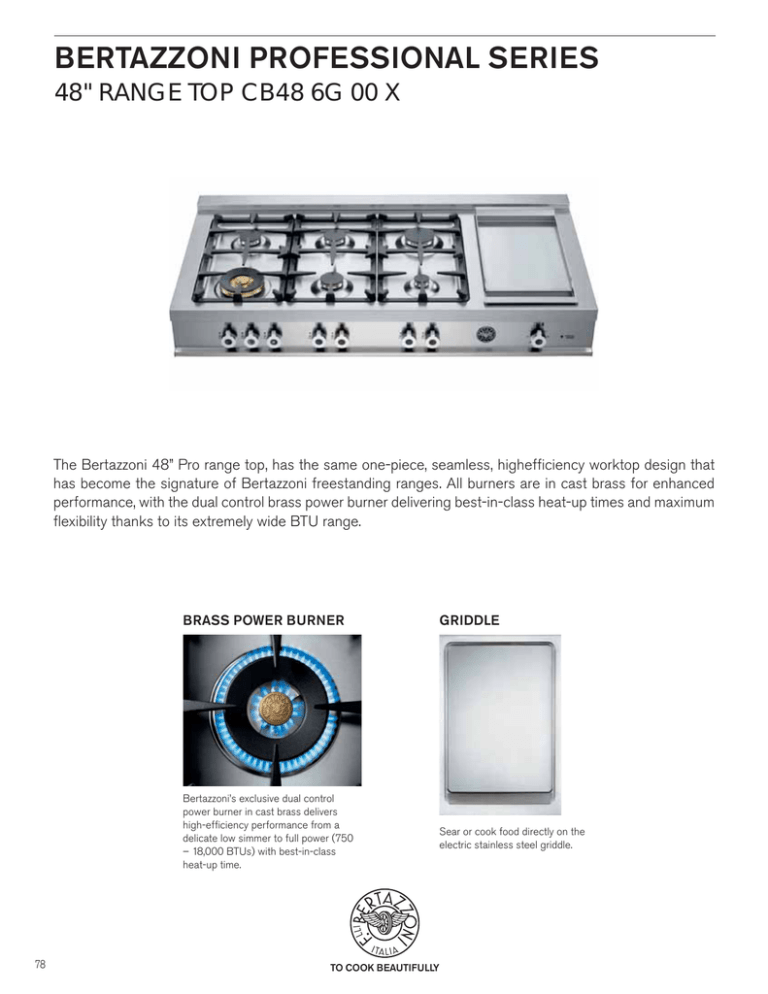

BERTAZZONI PROFESSIONAL SERIES
48" RANGE TOP CB48 6G 00 X
The Bertazzoni 48” Pro range top, has the same one-piece, seamless, highefficiency worktop design that
has become the signature of Bertazzoni freestanding ranges. All burners are in cast brass for enhanced
performance, with the dual control brass power burner delivering best-in-class heat-up times and maximum
flexibility thanks to its extremely wide BTU range.
BRASS POWER BURNER
Bertazzoni’s exclusive dual control
power burner in cast brass delivers
high-efficiency performance from a
delicate low simmer to full power (750
– 18,000 BTUs) with best-in-class
heat-up time.
78
GRIDDLE
Sear or cook food directly on the
electric stainless steel griddle.
TO COOK BEAUTIFULLY
BERTAZZONI PROFESSIONAL SERIES
48" RANGE TOP CB48 6G 00 X
FEATURES
TECHNICAL SPECIFICATIONS
Brass burners
6
Electrical Requirements
120V 60Hz
Dual wok (1x)
750-18000 Btu/h
Max. Amp Usage
10 Amp
Rapid (1x)
11000 Btu/h
Certification
CSA
Semi-rapid (3x)
6200 Btu/h
Warranty
2 years parts and labor
Auxiliary (1x)
750-3400 Btu/h
Product weight
85.6 lbs
1100W
Box weight
88.0 lbs
Griddle
ACCESSORIES
Simmer ring (standard)
code 408077
Stainless steel griddle (standard)
code SG36X
Wok ring (standard)
code 408084
DIMENSIONS
Ref.
Description
Dimensions
Inches
mm
D
Cooktop depth
25 /16
640
G1
Distance between gas outlet
connection and frontal side
23 1/4
590
G5
Distance between gas outlet
connection and left side
15
381
4
102
L3 (min) Cutout clearance from backwall
1
25
L9 (min) Cutout clearance from cabinetry
6
152
48
1220
L1
Cutout depth
3
L10
Cutout width
S
Cooktop height
6 1/2
165
S4
Chassis height
4 15/16
125
W
Cooktop width
47 /16
1215
Z5
Adjustable horizontal exit
25 /8
13
5
651
INSTALLATION INSTRUCTIONS
Bertazzoni recommends to operate the appliance after it has been
installed in a cabinet.
The kitchen cabinets shall be made of materials capable of
withstanding temperatures at least 117°F (65°C) above room
temperature in order to avoid possible damage to the cabinets
during appliance usage.
79
