CBL5300

HCS-5300 Series Digital Infrared Wireless Conference System

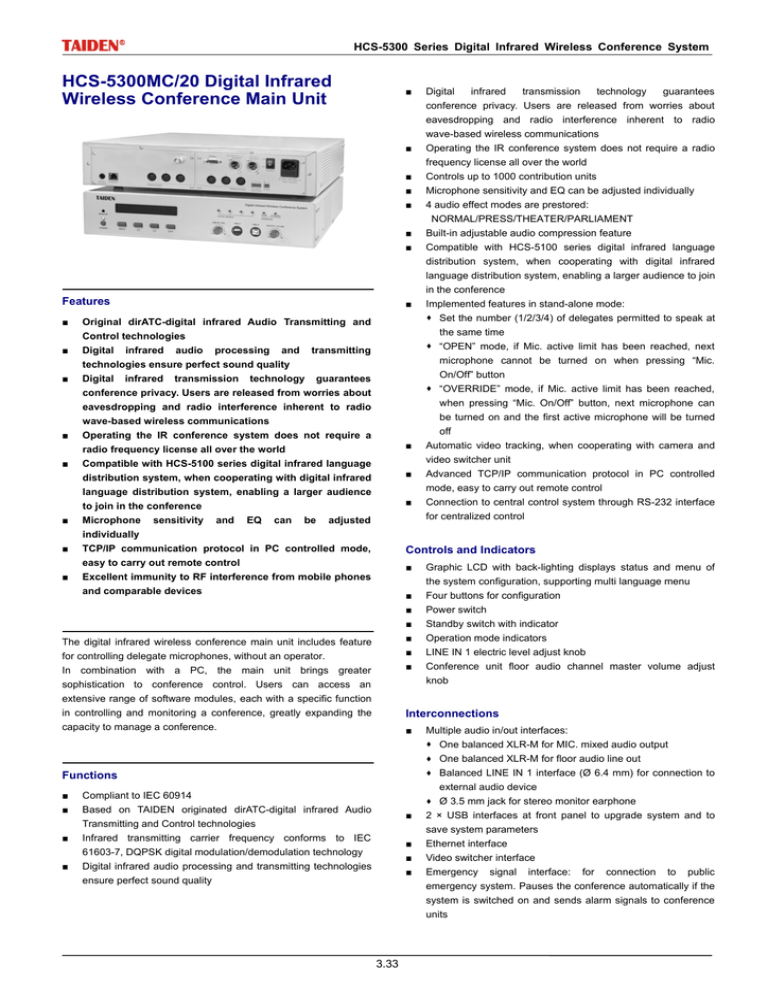

HCS-5300MC/20 Digital Infrared

Wireless Conference Main Unit

Features

■ Original dirATC-digital infrared Audio Transmitting and

Control technologies

■ Digital infrared audio processing and transmitting technologies ensure perfect sound quality

■ Digital infrared transmission technology guarantees conference privacy. Users are released from worries about eavesdropping and radio interference inherent to radio wave-based wireless communications

■ Operating the IR conference system does not require a radio frequency license all over the world

■ Compatible with HCS-5100 series digital infrared language distribution system, when cooperating with digital infrared language distribution system, enabling a larger audience to join in the conference

■ Microphone sensitivity and EQ can be adjusted individually

■ TCP/IP communication protocol in PC controlled mode, easy to carry out remote control

■ Excellent immunity to RF interference from mobile phones and comparable devices

The digital infrared wireless conference main unit includes feature for controlling delegate microphones, without an operator.

In combination with a PC, the main unit brings greater sophistication to conference control. Users can access an extensive range of software modules, each with a specific function in controlling and monitoring a conference, greatly expanding the capacity to manage a conference.

Functions

■ Compliant to IEC 60914

■ Based on TAIDEN originated dirATC-digital infrared Audio

Transmitting and Control technologies

■ Infrared transmitting carrier frequency conforms to IEC

61603-7, DQPSK digital modulation/demodulation technology

■ Digital infrared audio processing and transmitting technologies ensure perfect sound quality

■ Digital infrared transmission technology guarantees conference privacy. Users are released from worries about eavesdropping and radio interference inherent to radio wave-based wireless communications

Operating the IR conference system does not require a radio frequency license all over the world

■ Controls up to 1000 contribution units

■ Microphone sensitivity and EQ can be adjusted individually

■ 4 audio effect modes are prestored:

NORMAL/PRESS/THEATER/PARLIAMENT

■ Built-in adjustable audio compression feature

■ Compatible with HCS-5100 series digital infrared language distribution system, when cooperating with digital infrared language distribution system, enabling a larger audience to join in the conference

■ Implemented features in stand-alone mode:

™ Set the number (1/2/3/4) of delegates permitted to speak at the same time

™ “OPEN” mode, if Mic. active limit has been reached, next microphone cannot be turned on when pressing “Mic.

On/Off” button

™ “OVERRIDE” mode, if Mic. active limit has been reached, when pressing “Mic. On/Off” button, next microphone can be turned on and the first active microphone will be turned off

■ Automatic video tracking, when cooperating with camera and video switcher unit

■ Advanced TCP/IP communication protocol in PC controlled mode, easy to carry out remote control

■ Connection to central control system through RS-232 interface for centralized control

Controls and Indicators

■ Graphic LCD with back-lighting displays status and menu of the system configuration, supporting multi language menu

■ Four buttons for configuration

■ Power switch

■ Standby switch with indicator

■ Operation mode indicators

■ LINE IN 1 electric level adjust knob

■ Conference unit floor audio channel master volume adjust knob

Interconnections

■ Multiple audio in/out interfaces:

™ One balanced XLR-M for MIC. mixed audio output

™ One balanced XLR-M for floor audio line out

™ Balanced LINE IN 1 interface (Ø 6.4 mm) for connection to external audio device

™ Ø 3.5 mm jack for stereo monitor earphone

■ 2 × USB interfaces at front panel to upgrade system and to save system parameters

■ Ethernet interface

■ Video switcher interface

■ Emergency signal interface: for connection to public emergency system. Pauses the conference automatically if the system is switched on and sends alarm signals to conference units

3.33

HCS-5300 Series Digital Infrared Wireless Conference System

■ 6 digital infrared transceiver interfaces, each interface can connect 4 transceivers if operating distributor HCS-5352, thus each main unit can connect up to 24 transceivers

■ Power supply socket

■ HF signal output interface (BNC socket) for connection to

HCS-5100T Digital Infrared Radiator

■ RS-232 interface for connection to central control system

Technical Specifications

Electrical

Frequency response

SNR

Dynamic range

THD at 1 kHz

Isolation

Power supply

America, Japan

Asia, Europe

Power consumption

Audio inputs

LINE IN 1

LINE IN 2

Audio outputs

LINE OUT 1

MIC. MIX (1~4) OUTPUT

20 Hz to 20 kHz (-3dB)

≥80 dBA

≥80 dB

≤0.05%

≥80 dB

AC 110 V ~ 120 V, 60 Hz

AC 220 V ~ 240 V, 50 Hz

Max. 160 W

+10 dBu, BAL.

+10 dBu, UNBAL.

+20 dBu, BAL.

+20 dBu, BAL.

Interface data

Transceivers I/O terminal

External control terminal

HF OUT (Radiator terminal)

Alarm terminal

Video switcher terminal

6P-DIN socket × 6

RS-232 D-sub (9P, male),

USB interface,

RJ-45 (ETHERNET)

BNC connector × 1

3.81 mm Phoenix connectors, 2-pole

3.81 mm Phoenix connectors, 4-pole

Mechanical

Mounting

Dimensions (h x w x d)

For table use, with feet

For 19" rack use, with brackets

Weight

Color

Tabletop or mounted in a 19" rack

99 x 430 x 325 mm

89 x 478 x 350 mm

8.3 kg

White

Ordering Information

HCS-5300MC/20 Digital IR Wireless Conference

System Main Unit (discussion)

3.34

HCS-5300 Series Digital Infrared Wireless Conference System

HCS-5302C

Wireless Chairman Unit

Features

■ Table, stylish and ergonomic design

■ Wireless unit, easy setup and removal

■ Vertical acceptance/emission angle selectable

■ Hi-Fi loudspeaker

■ Priority button

■ Pluggable microphone

■ System controls up to 1000 contribution units

■ Vertical emission angle selectable via LCD menu

■ Broadcast standard microphone and digital infrared audio processing and transmitting technologies ensure 20 Hz to

20 kHz perfect sound quality, extremely low distortion factor

■ Digital infrared transmission technology guarantees privacy, no worries about eavesdropping and radio interference, no radiation, no radio frequency license needed

■ Excellent immunity to RF interference from HF-driven lighting and mobile phones

■ Microphone sensitivity and EQ can be adjusted individually

■ Built-in rechargeable Lithium battery pack

The stylish and ergonomically designed chairman unit has all the necessary facilities to enable the user to chair a conference. Similar in appearance and function to HCS-5302D Delegate Unit, the

HCS-5302C Chairman Unit includes an extra microphone priority button. When pressed, the priority button causes all currently active delegate microphones to be switched off temporarily or permanently, allowing the chairman to take control of the meeting.

Separate rechargeable Lithium battery packs can be removed and replaced in a matter of seconds, providing maximum flexibility in recharge scheduling.

3.13

Functions

■ Compliant to IEC 60914

■ Based on TAIDEN originated dirATC-digital infrared Audio

Transmitting and Control technologies

■ Infrared transmitting carrier frequency conforms to IEC

61603-7, DQPSK digital modulation/demodulation technology

System controls up to 1000 contribution units

■ Vertical emission angle selectable via LCD menu

■ Every delegate unit is assigned an individual ID for convenient setup and to avoid double ID forever

■ Broadcast standard microphone and digital infrared audio processing and transmitting technologies ensure 20 Hz ~ 20 kHz perfect sound quality, extremely low distortion factor

■ Digital infrared transmission technology guarantees privacy, no worries about eavesdropping and radio interference, no radiation, no radio frequency license needed

■ Excellent immunity to RF interference from HF-driven light and mobile phones

■ Stem microphone can be unplugged during adjournment, easy to maintain

■ Mini-microphone, with foam windshield

■ Hi-Fi loudspeaker, minimal feedback, mutes automatically when microphone is active

■ Two Ø 3.5 mm stereo headphone jacks for headphones with separate volume control

■ Microphone On/Off button

■ Microphone sensitivity and EQ can be adjusted individually

■ System when operated in stand-alone mode can implement the following facilities:

™

“ACTIVE MICS”, set the number of delegates permitted to speak at the same time (1/2/3/4)

™

“OPEN” mode, if Mic. active limit has been reached, next microphone cannot be turned on when pressing “Mic.

On/Off” button

™ “OVERRIDE” mode, if Mic. active limit has been reached, when pressing “Mic. On/Off” button, next microphone can be turned on and the first active microphone will be turned off

■ Automatic video tracking, when cooperating with camera and video switcher unit

■ Can be activated at any time provided that the total number of active microphones (including the active microphone of the chairman) is within the maximum of 4 active microphones allowed by the system

■ Priority button can switch off or mute the speaking units according to preset

■ System supports up to 20 chairman units, while only 1 chairman unit has the control facilities listed above

■ Built-in rechargeable Lithium battery operation duration: 14.4

hours when microphone is continuously on; 48 hours when microphone is off

Controls and Indicators

■ Graphic 96×64 LCD with back-lighting for displaying battery capacity, signal icon and emission angle icon

■ Uni-directional electret condenser microphone with two–color illuminated ring (blue/red)

■ Charging indicator

HCS-5300 Series Digital Infrared Wireless Conference System

■ Fully charged indicator

■ Power switch

■ Two headphone volume control buttons

■ Microphone On/Off button with indicator

■ Priority button

Interconnections

■ Socket for pluggable microphone

■ 2 × Ø 3.5 mm stereo headphone jack

■ Power adapter interface

Technical Specifications

Electrical

Headphone connection

Frequency response

Headphone load impedance

Headphone output

Microphone

Transducer

Polar pattern

Sensitivity

Frequency response

Directionality 0°/180°

Equivalent noise

Max.SPL

Interface data

20 Hz to 20 kHz (-3dB)

≥16 Ohm × 2

10 mW

Electret-condenser

Uni-directional

-46 dBV/Pa

50 Hz to 20 kHz

>20 dB (1 kHz)

20 dBA (SPL)

125 dB (THD<3%)

Connector 2 x Ø 3.5 mm stereo jack for headphone

Operation time of battery pack

When mic. is continuously on

Not omnidirectional

Omnidirectional

When mic. is off

15% mic. on + 85% mic. off

Approx. 14.4 hours

Approx. 10 hours

Approx. 48 hours

Approx. 36 hours

Mechanical

Mounting

Dimensions (h x w x d) (w/o Mic.)

Weight

Excl. battery

Incl. battery

Color

Tabletop

68 x 180 x 132 mm

0.46 kg

0.78 kg

Silver/ Charcoal gray

Ordering Information

HCS-5302C_S Digital IR Wireless Chairman Unit (silver)

HCS-5302C_G Digital IR Wireless Chairman Unit (charcoal gray)

3.14

HCS-5300 Series Digital Infrared Wireless Conference System

HCS-5302D

Wireless Discussion Unit

Features

■ Table, stylish and ergonomic design

■ Wireless unit, easy setup and removal

■ Vertical acceptance/emission angle selectable

■ Hi-Fi loudspeaker

■ Pluggable microphone

■ System controls up to 1000 contribution units

■ Vertical emission angle selectable via LCD menu

■ Broadcast standard microphone and digital infrared audio processing and transmitting technologies ensure 20 Hz to

20 kHz perfect sound quality, extremely low distortion factor

■ Digital infrared transmission technology guarantees privacy, no worries about eavesdropping and radio interference, no radiation, no radio frequency license needed

■ Excellent immunity to RF interference from HF-driven lighting and mobile phones

■ Microphone sensitivity and EQ can be adjusted individually

■ Built-in rechargeable Lithium battery pack

This wireless delegate unit meets the basic demands of most conferences. It provides facilities for speaking and listening and has excellent immunity to RF interference from mobile phones. The loudspeaker offers superior acoustics with minimal feedback, for enhanced intelligibility.

Separate rechargeable Lithium battery packs can be removed and replaced in a matter of seconds, providing maximum flexibility in recharge scheduling.

Functions

■ Compliant to IEC 60914

■ Based on TAIDEN originated dirATC-digital infrared Audio

Transmitting and Control technologies

■ Infrared transmitting carrier frequency conforms to IEC

61603-7, DQPSK digital modulation/demodulation technology

System controls up to 1000 contribution units

■ Vertical emission angle selectable via LCD menu

■ Every delegate unit is assigned an individual ID for convenient setup and to avoid double ID forever

■ Broadcast standard microphone and digital infrared audio processing and transmitting technologies ensure 20 Hz ~ 20 kHz perfect sound quality, extremely low distortion factor

■ Digital infrared transmission technology guarantees privacy, no worries about eavesdropping and radio interference, no radiation, no radio frequency license needed

■ Excellent immunity to RF interference from HF-driven light and mobile phones

■ Stem microphone can be unplugged during adjournment, easy to maintain

■ Mini-microphone, with foam windshield

■ Hi-Fi loudspeaker, minimal feedback, mutes automatically when microphone is active

■ Two Ø 3.5 mm stereo headphone jacks for headphones with separate volume control

■ Microphone On/Off button

■ Microphone sensitivity and EQ can be adjusted individually

■ System when operated in stand-alone mode can implement the following facilities:

™

“ACTIVE MICS”, set the number of delegates permitted to speak at the same time (1/2/3/4)

™

“OPEN” mode, if Mic. active limit has been reached, next microphone cannot be turned on when pressing “Mic.

On/Off” button

™ “OVERRIDE” mode, if Mic. active limit has been reached, when pressing “Mic. On/Off” button, next microphone can be turned on and the first active microphone will be turned off

■ Automatic video tracking, when cooperating with camera and video switcher unit

■ Built-in rechargeable Lithium battery operation duration: 14.4

hours when microphone is continuously on; 48 hours when microphone is off

Controls and Indicators

■ Graphic 96×64 LCD with back-lighting for displaying battery capacity, signal icon and emission angle icon

■ Uni-directional electret condenser microphone with two–color illuminated ring (blue/red)

■ Charging indicator

■ Fully charged indicator

■ Power switch

■ Two headphone volume control buttons

■ Microphone On/Off button with indicator

3.15

Interconnections

■ Socket for pluggable microphone

■ 2 × Ø 3.5 mm stereo headphone jack

■ Power adapter interface

Technical Specifications

Electrical

Headphone connection

Frequency response

Headphone load impedance

Headphone output

Microphone

Transducer

Polar pattern

Sensitivity

Frequency response

Directionality 0°/180°

Equivalent noise

Max.SPL

20 Hz to 20 kHz (-3dB)

≥16 Ohm × 2

10 mW

Electret-condenser

Uni-directional

-46 dBV/Pa

50 Hz to 20 kHz

>20 dB (1 kHz)

20 dBA (SPL)

125 dB (THD<3%)

HCS-5300 Series Digital Infrared Wireless Conference System

Interface data

Connector 2 x Ø 3.5 mm stereo jack for headphone

Operation time of battery pack

When mic. is continuously on

Not omnidirectional

Omnidirectional

When mic. is off

15% mic. on + 85% mic. off

Approx. 14.4 hours

Approx. 10 hours

Approx. 48 hours

Approx. 36 hours

Mechanical

Mounting

Dimensions (h x w x d) (w/o Mic.)

Weight

Excl. battery

Incl. battery

Color

Tabletop

68 x 180 x 132 mm

0.46 kg

0.78 kg

Silver/ Charcoal gray

Ordering Information

HCS-5302D_S Digital IR Wireless Delegate Unit (silver)

HCS-5302D_G Digital IR Wireless Delegate Unit (charcoal gray)

Conference Units Function list

Type No.

HCS-5300CE

HCS-5300DE

HCS-5301D

HCS-5302C

HCS-5302D

Status

chairman delegate delegate chairman delegate

Discussion

Sign-in

Voting

Simultaneous interpretation

1+3 CHs

1+3 CHs

(1+3 CHs)×2

3.16

HCS-5300 Series Digital Infrared Wireless Conference System

HCS-5300TD-W

Digital Infrared Transceiver

Indicators

■ Power indicating light

Interconnections

■ Equipped with a 2.0 m specific cable with 6P-DIN male plug.

For extension purposes, 6P-DIN extension cable can be used.

Features

■ Compliant to IEC 60914

■ Infrared transmitting carrier frequency conforms to IEC

61603-7, technology

DQPSK digital modulation/demodulation

■ Transmitting in 2 ~ 8 MHz frequency band, eliminating the interference from HF-driven lights

■ Tripod, wall or ceiling mounting, easy to install

■ Inside the coverage area of infrared signals, also

HCS-5100R/RA digital infrared receivers can be in operation simultaneously to receive (1+3 channels) simultaneous interpretation

HCS-5300TD-W digital infrared transceiver manages communication between main unit and conference units. It can be mounted onto the ceiling and wall for optional coverage or fixed onto a tripod at any appropriate spot.

Technical Specifications

Electrical

Wavelength

Modulation method

Carrier frequency

Voltage

870 nm

DQPSK

2 ~ 8 MHz

33 V DC (supplied from HCS-5300M)

Current consumption

Connector

Max. 550 mA

6P-DIN

Cable 2.0 m specific cable with 6P-DIN male plug

Acceptance/emission angle

Vertical

Horizontal

Communication area

150° (75°+75°)

360°

Approx 13 m in radius from the point underneath the unit

(ceiling height: 2.5 ~ 4.5 m)

Mechanical

Mounting

Dimensions

Weight

Color

Ceiling, wall or tripod mounting

Ø 181 mm, 63 mm (height)

0.5 kg

Silver/ Charcoal gray

Ordering Information

HCS-5300TD-W

HCS-5300TD-WG

Digital Infrared Transceiver (ceiling, wall or tripod-mounted, excl. tripod when ordered, wide-angle, silver)

Digital Infrared Transceiver (ceiling, wall or tripod-mounted, excl. tripod when ordered, wide-angle, charcoal gray)

Footprint of HCS-5300TD-W digital infrared transceiver (If H=2.5 ~ 3.0 m, then R= 13 m; if H=3.5 ~ 4.5 m, then R= 11 m)

3.18

HCS-5300 Series Digital Infrared Wireless Conference System

HCS-5300TD-N

Digital Infrared Transceiver

Indicators

■ Power indicating light

Interconnections

■ Equipped with a 2.0 m specific cable with 6P-DIN male plug.

For extension purposes, 6P-DIN extension cable can be used.

Features

■ Compliant to IEC 60914

■ Infrared transmitting carrier frequency conforms to IEC

61603-7, technology

DQPSK digital modulation/demodulation

■ Transmitting in 2 ~ 8 MHz frequency band, eliminating the interference from HF-driven lights

■ Tripod, wall or ceiling mounting, easy to install

■ Inside the coverage area of infrared signals, also

HCS-5100R/RA digital infrared receivers can be in operation simultaneously to receive (1+3 channels) simultaneous interpretation

HCS-5300TD-N digital infrared transceiver manages communication between main unit and conference units. It can be mounted onto the ceiling and wall for optional coverage or fixed onto a tripod at any appropriate spot.

Technical Specifications

Electrical

Wavelength

Modulation method

Carrier frequency

Voltage

870 nm

DQPSK

2 ~ 8 MHz

33 V DC (supplied from HCS-5300M)

Current consumption

Connector

Max. 550 mA

6P-DIN

Cable 2.0 m specific cable with 6P-DIN male plug

Acceptance/emission angle

Vertical

Horizontal

Communication area

90° (45°+45°)

360°

Approx 9 m in radius from the point underneath the unit

(ceiling height: 5 ~ 7 m)

Mechanical

Mounting

Dimensions

Weight

Color

Ceiling, wall or tripod mounting

Ø 181 mm, 63 mm (height)

0.5 kg

Silver/ Charcoal gray

Ordering Information

HCS-5300TD-N

HCS-5300TD-NG

Digital Infrared Transceiver (ceiling, wall or tripod-mounted, excl. tripod when ordered, silver)

Digital Infrared Transceiver (ceiling, wall or tripod-mounted, excl. tripod when ordered, charcoal gray)

Footprint of HCS-5300TD-N digital infrared transceiver (If H=5 ~ 7 m, then R= 9 m)

3.19

HCS-5300 Series Digital Infrared Wireless Conference System

HCS-5300BAT

Lithium Rechargeable Battery Pack

HCS-5300HT-BAT

Lithium Rechargeable Battery Pack

Features

■ Lithium rechargeable battery pack

■ Used for supplying power to HCS-5300 series digital infrared wireless conference unit

Features

■ Lithium rechargeable battery pack

■ Used for supplying power to HCS-5300HT Portable Digital IR transmitter

Technical Specifications

Electrical

Nominal voltage

Nominal capacity

Mechanical

Dimensions (h x w x d)

Weight

Color

11.1 V DC

4400 mAh

28 × 140 × 58 mm

0.32 kg

Black

Technical Specifications

Electrical

Nominal voltage

Nominal capacity

Mechanical

Dimensions (h x w x d)

Weight

Color

7.4 V DC

2200 mAh

20 × 70 × 38 mm

0.1 kg

Blue

Ordering Information

HCS-5300HT-BAT Lithium Rechargeable Battery Pack

Ordering Information

HCS-5300BAT Lithium Rechargeable Battery Pack

3.36

HCS-ADP15V Power Adapter

HCS-5300 Series Digital Infrared Wireless Conference System

HCS-5300CHG/08 Charging Unit

Features

■ Used for supplying power to HCS-5300 series digital infrared wireless conference unit

Technical Specifications

Electrical

Mains voltage

Output

Connector

AC 100 ~ 240 V, 50/60 Hz

DC 15 V, 2.2 A

UL, CE or VDE type, according to the territory of selling

Mechanical

Cable length

Dimensions (h x w x d)

Weight

Color

3 m

28 × 95 × 45 mm

0.3 kg

Black

Features

■ Used for charging HCS-5300BAT Lithium batteries

■ Charges 8 pcs of HCS-5300BAT batteries per charging

■ Uses universal power supply with automatic voltage matching

Controls and Indicators

■ Power switch

■ Charging indicator (red)

■ Fully charged indicator (green)

Interconnections

■ Power output interface

■ Power input interface

■ Charging lattices

Ordering Information

HCS-ADP15V Power Adapter (DC 15 V, 2.2 A)

Technical Specifications

Electrical

Mains voltage

America, Japan

Asia, Europe

Power consumption

Charging time

Charging capacity

Mechanical

Dimensions (h x w x d)

Weight

Color

AC 110 V to 120 V, 60 Hz

AC 220 V to 240 V, 50 Hz

Max. 380 W

Approx 6 hours

8 HCS-5300BAT batteries

74 × 288 × 300 mm

4.5 kg

White

Ordering Information

HCS-5300CHG/08 Charging Unit (8 pcs/case)

3.37

CBL5300

Dedicated Transceiver Cable

HCS-5300 Series Digital Infrared Wireless Conference System

CBL5304

Dedicated Receiver Cable

Features

■ Dedicated cable for HCS-5300T series Digital Infrared

Transceiver

■ 1 × 6P-DIN plug

■ 1 × 6P-DIN socket

■ Ø 6 mm

■ Color: black

Features

■ Dedicated cable for HCS-5300R series Digital Infrared

Receiver

■ 1 × 6P-DIN plug

■ 1 × 6P-DIN socket

■ Ø 4 mm

■ Color: black

Ordering Information

CBL5300-05

CBL5300-10

CBL5300-20

CBL5300-50

5 m Dedicated Transceiver Cable

10 m Dedicated Transceiver Cable

20 m Dedicated Transceiver Cable

50 m Dedicated Transceiver Cable

Ordering Information

CBL5304-05

CBL5304-10

CBL5304-20

CBL5304-50

5 m Dedicated Receiver Cable

10 m Dedicated Receiver Cable

20 m Dedicated Receiver Cable

50 m Dedicated Receiver Cable

3.39

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
