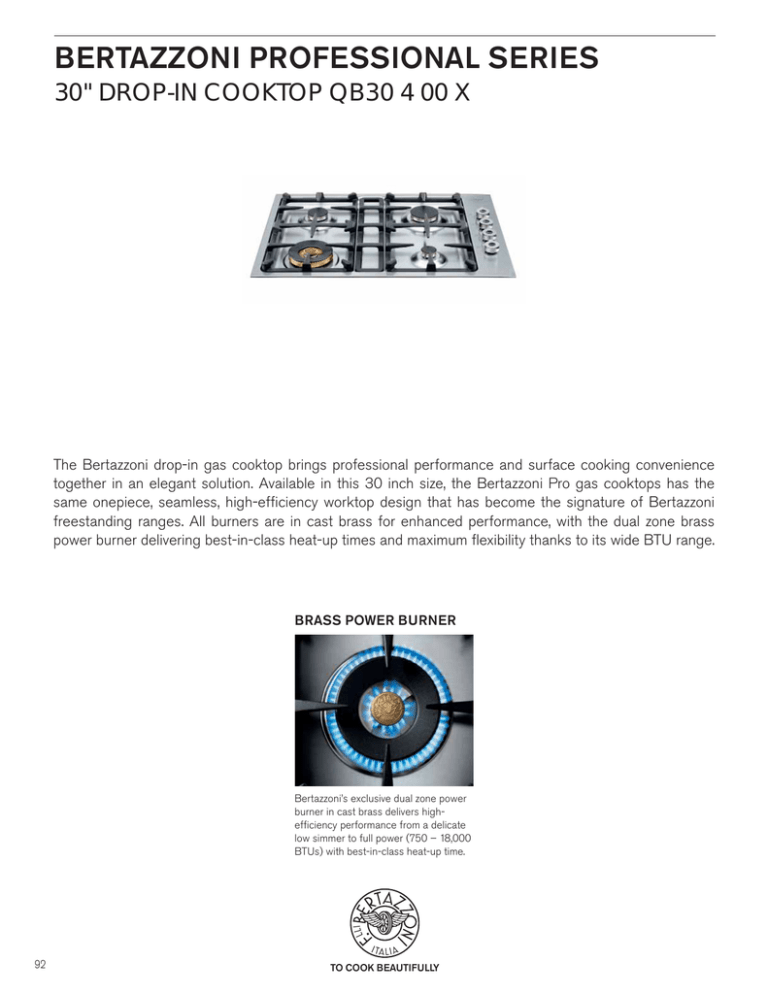

BERTAZZONI PROFESSIONAL SERIES
30" DROP-IN COOKTOP QB30 4 00 X
The Bertazzoni drop-in gas cooktop brings professional performance and surface cooking convenience
together in an elegant solution. Available in this 30 inch size, the Bertazzoni Pro gas cooktops has the
same onepiece, seamless, high-efficiency worktop design that has become the signature of Bertazzoni
freestanding ranges. All burners are in cast brass for enhanced performance, with the dual zone brass
power burner delivering best-in-class heat-up times and maximum flexibility thanks to its wide BTU range.
BRASS POWER BURNER
Bertazzoni’s exclusive dual zone power
burner in cast brass delivers highefficiency performance from a delicate
low simmer to full power (750 – 18,000
BTUs) with best-in-class heat-up time.
92
TO COOK BEAUTIFULLY
BERTAZZONI PROFESSIONAL SERIES
30" DROP-IN COOKTOP QB30 4 00 X
FEATURES
TECHNICAL SPECIFICATIONS
Brass burners
4
Electrical Requirements
120V 60Hz
Dual wok (1x)
750-18000 Btu/h
Max. Amp Usage
1 Amp
Rapid (1x)
11000 Btu/h
Certification
CSA
Semi-rapid (1x)
6200 Btu/h
Warranty
2 years parts and labor
Auxiliary (1x)
750-3400 Btu/h
Product weight
68.3 lbs
Box weight
71.0 lbs
ACCESSORIES
Simmer ring (standard)
code 408077
Stainless steel griddle (optional)
code SG36X
Wok ring (standard)
code 408084
DIMENSIONS
Ref.
Description
Dimensions
Inches
mm
1
D
Cooktop depth
21 /4
540
G1
Distance between gas outlet
connection and frontal side
18 29/32
480
G5
Distance between gas outlet
connection and left side
21 13/32
61
L1
Cutout depth
20 4/8
520
L3 (min) Cutout clearance from backwall
2 /16
55
L9 (min) Cutout clearance from cabinetry
3
6 /8
162
3
L10
Cutout width
28 /16
735
S
Cooktop height
2 5/8
67
S4
Chassis height
2 5/8
67
W
Cooktop width
29 /16
748
Z5
Adjustable horizontal exit
15
7
4 /32
29
125
INSTALLATION INSTRUCTIONS
Bertazzoni recommends to operate the appliance after it has been
installed in a cabinet.
The kitchen cabinets shall be made of materials capable of
withstanding temperatures at least 117°F (65°C) above room
temperature in order to avoid possible damage to the cabinets
during appliance usage.
93
