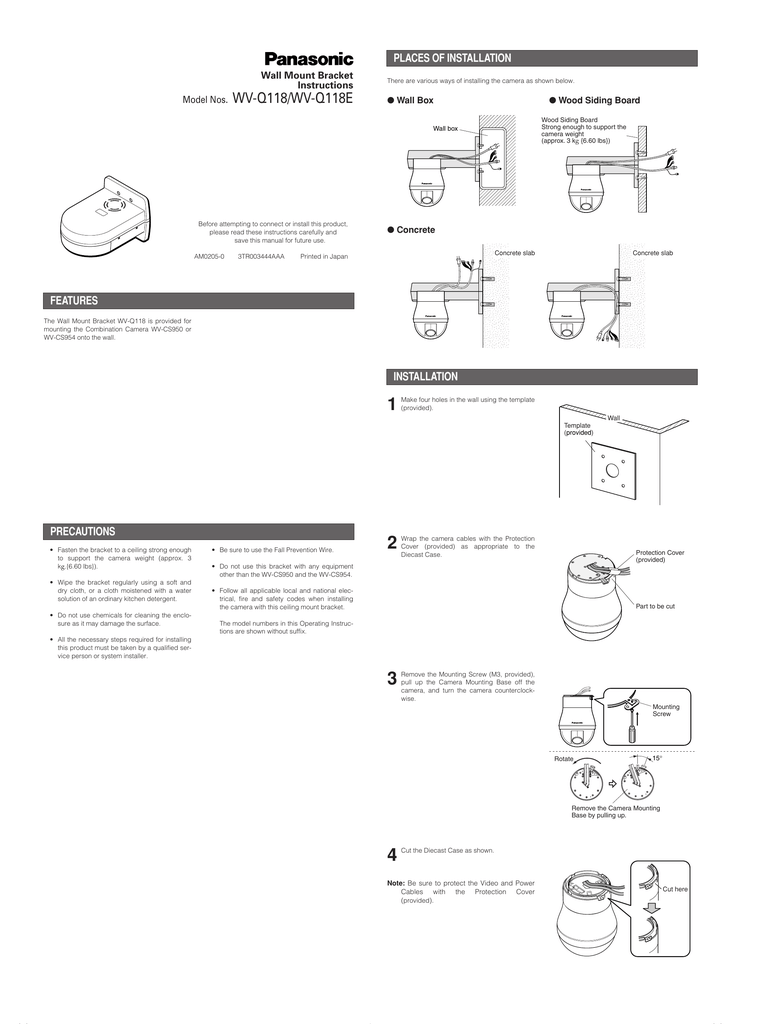

PLACES OF INSTALLATION
Wall Mount Bracket
Instructions
Model Nos.
WV-Q118/WV-Q118E
There are various ways of installing the camera as shown below.
● Wall Box
● Wood Siding Board
Wood Siding Board
Strong enough to support the
camera weight
(approx. 3 kg {6.60 lbs})
Wall box
Before attempting to connect or install this product,
please read these instructions carefully and
save this manual for future use.
AM0205-0
3TR003444AAA
● Concrete
Concrete slab
Printed in Japan
Concrete slab
FEATURES
The Wall Mount Bracket WV-Q118 is provided for
mounting the Combination Camera WV-CS950 or
WV-CS954 onto the wall.
INSTALLATION
1
Make four holes in the wall using the template
(provided).
Wall
Template
(provided)
PRECAUTIONS
• Fasten the bracket to a ceiling strong enough
to support the camera weight (approx. 3
kg.{6.60 lbs}).
• Wipe the bracket regularly using a soft and
dry cloth, or a cloth moistened with a water
solution of an ordinary kitchen detergent.
• Do not use chemicals for cleaning the enclosure as it may damage the surface.
• Be sure to use the Fall Prevention Wire.
2
Wrap the camera cables with the Protection
Cover (provided) as appropriate to the
Diecast Case.
Protection Cover
(provided)
• Do not use this bracket with any equipment
other than the WV-CS950 and the WV-CS954.
• Follow all applicable local and national electrical, fire and safety codes when installing
the camera with this ceiling mount bracket.
Part to be cut
The model numbers in this Operating Instructions are shown without suffix.
• All the necessary steps required for installing
this product must be taken by a qualified service person or system installer.
3
Remove the Mounting Screw (M3, provided),
pull up the Camera Mounting Base off the
camera, and turn the camera counterclockwise.
Mounting
Screw
Rotate
15°
Remove the Camera Mounting
Base by pulling up.
4
Cut the Diecast Case as shown.
Note: Be sure to protect the Video and Power
Cables with the Protection Cover
(provided).
Cut here
WV-Q118 05.2.2 13:48 ページ 3
5
Remove the Decoration Cover in order (1)
then (2).
The Decoration Cover can be removed by
pressing on the points (1) at one place, and
(2) at 4 places.
11
Attach the camera to the Camera Mounting
Base, turn the camera clockwise, and
tighten the Mounting Screw (M3, provided).
Rotate
15°
Decoration cover (1)
Decoration cover (2)
Notes:
• Tigthen the Camera Fixing Screw with a
screwdriver.
• In attaching the camera to the Camera
Mounting Base, loosen the Camera Fixing
Screw (M3), then tighten it back with a screwdriver while keeping it pushed up.
• The bracket is not shown in the illustration.
Camera
Mounting
Base
Camera
Press up
6
Fix the Camera Mounting Base (provided with
the camera) to the bracket with the four M4L8 Screws (provided).
12
Place the removed Decoration Cover (1)
back on the bracket and camera.
Note: Push the Decoration Cover up till it fits over
Note: Be sure to fix the Camera Mounting Base in
the bracket with a click.
the up direction as shown.
Decoration cover (1)
7
Run the cable around the outside and secure
it with the clamp.
Secure the cable with the clamp so it goes
along the inside of the top case so it does not
get in the way when attaching the case and
installing the camera.
Clamp
8
Attach the top case to the wall and run the
cables.
Attach it with four screws. Screws are not
provided. Align it with the position the camera
will be installed.
SPECIFICATIONS
Ambient Operating Temperature:
Dimensions:
Weight:
10˚C - +50˚C {14˚F – 122˚F}
165 (W) x 140 (H) × 217.5 (D) mm
{6-1/2” (W) x 5-33/64” (H) × 8-37/64” (D)}
650 g {1.43 lbs}
Weight and dimensions indicated are approximate.
Specifications are subject to change without notice.
9
Place the removed Decoration Cover(2) back
on the bracket and camera.
STANDARD ACCESSORIES
Note: Push the Decoration Cover up till it fits
over the bracket with a click.
Screw (M4-L8) ..................................................... 4 pcs.
Template ................................................................. 1pc.
Protection Cover ..................................................... 1pc.
Decoration cover (2)
10
Suspend the Fall Prevention Wire from the
Camera Mounting Base.
Notes:
• Make sure that the wire matches the Fall
Prevention Wire Fixing Angle.
• The bracket is not shown in the illustration.
Ring of the Fall
Prevention Wire
