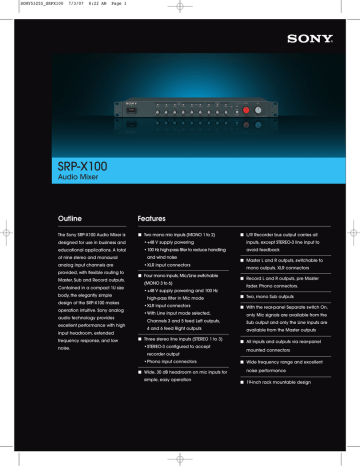

SRP X100
SONY53255_SRPX100
7/3/07
8:22 AM
Page 1
SRP-X100
Audio Mixer
Outline
Features
The Sony SRP-X100 Audio Mixer is
■ Two mono mic inputs (MONO 1 to 2)
■ L/R Recorder bus output carries all
designed for use in business and
• +48 V supply powering
inputs, except STEREO-3 line input to
educational applications. A total
• 100 Hz high-pass filter to reduce handling
avoid feedback
of nine stereo and monaural
analog input channels are
provided, with flexible routing to
Master, Sub and Record outputs.
Contained in a compact 1U size
body, the elegantly simple
design of the SRP-X100 makes
operation intuitive. Sony analog
audio technology provides
excellent performance with high
and wind noise
• XLR input connectors
■ Four mono inputs, Mic/Line switchable
(MONO 3 to 6)
noise.
mono outputs. XLR connectors
■ Record L and R outputs, pre Master
fader. Phono connectors.
• +48 V supply powering and 100 Hz
high-pass filter in Mic mode
• XLR input connectors
• With Line Input mode selected,
■ Two, mono Sub outputs
■ With the rear-panel Separate switch On,
only Mic signals are available from the
Channels 3 and 5 feed Left outputs,
Sub output and only the Line inputs are
4 and 6 feed Right outputs
available from the Master outputs
input headroom, extended
frequency response, and low
■ Master L and R outputs, switchable to
■ Three stereo line inputs (STEREO 1 to 3)
• STEREO-3 configured to accept
recorder output
• Phono input connectors
■ Wide, 30 dB headroom on mic inputs for
simple, easy operation
■ All inputs and outputs via rear-panel
mounted connectors
■ Wide frequency range and excellent
noise performance
■ 19-inch rack mountable design
SONY53255_SRPX100
7/3/07
8:22 AM
Page 2
Specifications
GENERAL
AUDIO INPUTS
Connector
MONO
XLR-3-31
STEREO
Phono
Channel No.
Reference
level
Max. input
level
Input
impedance
1-2 (Mic)
-60 dBu
-30 dBu
2.2 kΩ
-60/+4 dBu
-30/+24 dBu
2.2/10 kΩ
-10 dBu
+24 dBu
47 kΩ
Reference
level
-10 dBu
-5 dBu
+4 dBu
Max. output
level
+10 dBu
+15 dBu
+24 dBu
Output
impedance
Less than 470 kΩ
Less than 470 kΩ
Less than 47 kΩ
3-6 (Mic/Line
selectable)
7-9 (Line)
Signal Indicator
Operating Temperature
Storage Temperature
Power Requirements
Power Consumption
Dimensions
Weight
Supplied Accessories
Green LED indicator illuminates at -20 dB of reference level
+32 to +104 °F (0 to +40°C)
-4 to +140 °F (-20 to +60 °C)
AC 120/230 V switchable, 50/60 Hz (CED/UC2)
19 W
19 (W) x 1 3/4 (H) x 7 (D) inches (482 x 44 x 175 mm)
5 lb 12 oz (2.6 kg)
CED: Power cord (x 2, one each for 120 V and 230 V),
operating instructions (x 1)
UC2: Power cord (x 1), operating instructions (x 1)
AUDIO OUTPUTS
Channel No.
Phono
Phono
XLR-3-32
1 Stereo
2
1 Stereo
0 dBu = 0.775 Vrms
Dimensions
7
REC
SUB
MASTER
Connector
ELECTRICAL CHARACTERISTICS
5 Hz to 100 kHz, +0.5/-2.0 dB
20 Hz to 20 kHz, +0.5/-1.0 dB
Less than 0.01 %, MONO IN to MASTER OUT 1 kHz, -44 dBu input
Total harmonic distortion Less than 0.005 %, MONO IN to MASTER OUT 1 kHz, -44 dBu input
Less than 0.005 %, STEREO IN to MASTER OUT 1 kHz, -10 dBu input
Different input noise
Less than -126 dBu, IHF-A, 150 Ω terminated
Residual Noise
Less than -83 dBu, Master Vol 0 position
Less than -70 dB, 1 kHz, between L-R outputs
Crosstalk
Less than -80 dB, 1 kHz, between channel
More than 90 dB, Channel Vol attenuation
16
175
Frequency response
430
44
MONO 1
–60 dBu
MONO 2
–60 dBu
MASTER R
MONO BUS
REC L
CH
VOLUME
REC R
Signal
IND
LCF
+48 V MIC HA
Fc=100 Hz
MIC
Block Diagram
MASTER L
482
SUB OUTPUT
-5 dBu
SUB
Signal
IND
+48 V
ST R
ST L
Same as MONO 1
MONO 3
–60 dBu/+4 dBu
Unit: mm
REC OUTPUT
–10 dBu
LCF
MIC HA Fc=100 Hz
L
CH
VOLUME
MIC/LINE
SWITCH
+48 V
R
Signal
IND
LINE
MASTER
LCF
MIC HA Fc=100 Hz
MONO 4
–60 dBu/+4 dBu
CH
VOLUME
SEPARATE
SWITCH
LINE
MONO 5
–60 dBu/+4 dBu
Same as MONO 3
MONO 6
–60 dBu/+4 dBu
Same as MONO 4
L
ST 1
–10 dBu
R
L
R
CH
VOLUME
MASTER
Same as ST 1
ST 3
–10 dBu
Same as ST 1
A-1165 (MK07546V2)
PEAK MASTER OUTPUT
+4 dBu
Signal
IND
ST 2
–10 dBu
Sony Electronics Inc.
1 Sony Drive
Park Ridge, NJ 07656
www.sony.com/proaudio
MODE SWITCH
STEREO/MONO
MONO MIX
© 2007 Sony Electronics Inc. All rights reserved.
Reproduction in whole or in part without written permission is prohibited.
Features and specifications are subject to change without notice.
All non-metric weights and measurements are approximate.
Sony is a trademark of Sony.
Printed in USA 7/07
