HCS-5300 Series Digital Infrared Wireless Conference System

HCS-5300 Series Digital Infrared Wireless Conference System 2.3

HCS-5300 Series Digital Infrared Wireless Conference Units 2.6

HCS-5300CE_S

HCS-5300CE_G

HCS-5300DE_S

HCS-5300DE_G

HCS-5301D_S

HCS-5301D_G

HCS-5302C_S

HCS-5302C_G

HCS-5302D_S

HCS-5302D_G

Digital IR Wireless Chairman Unit (5 voting buttons, 1+3 CHs, silver)

Digital IR Wireless Chairman Unit (5 voting buttons, 1+3 CHs, gray)

Digital IR Wireless Delegate Unit (5 voting buttons, 1+3 CHs, silver)

Digital IR Wireless Delegate Unit (5 voting buttons, 1+3 CHs, gray)

2.6

2.6

2.8

2.8

Digital IR Wireless Delegate Unit (1+3 CHs, 2 channel selectors, dual ID, silver) 2.10

Digital IR Wireless Delegate Unit (1+3 CHs, 2 channel selectors, dual ID, gray) 2.10

Digital IR Wireless Chairman Unit (silver) 2.12

Digital IR Wireless Chairman Unit (gray) 2.12

Digital IR Wireless Delegate Unit (silver) 2.14

Digital IR Wireless Delegate Unit (gray) 2.14

HCS-5300T Series Digital Infrared Transceivers 2.16

HCS-5300TA-W Digital Transceiver (ceiling-mounting, wide-angle) 2.16

HCS-5300TA-N Digital Transceiver (ceiling-mounting, narrow-angle) 2.17

HCS-5300TB Digital Infrared Transceiver (tripod)

2.18

Transceiver (wall, tripod or ceiling-mounting) 2.19

HCS-5300TD-W

HCS-5300TD-N

Digital infrared transceiver (wall, tripod or ceiling-mounted, wide-angle)

2.20

Digital infrared transceiver (wall, tripod or ceiling-mounted) 2.21

HCS-5300TDB

HCS-5300TDS-W

HCS-5300TDS-N

Digital Infrared Transceiver (tripod)

2.22

Digital infrared transceiver (suspension, wide-angle) 2.23

Digital infrared transceiver (suspension) 2.24

HCS-5300M Series Digital Infrared Wireless Conference Main units 2.25

HCS-5300MA

HCS-5300MB

HCS-5300MC

Digital IR Wireless Conference System Main Unit (voting, 1+3 CHs) 2.25

Digital IR Wireless Conference System Main Unit (1+3 CHs) 2.28

Digital IR Wireless Conference System Main Unit 2.31

Accessories 2.34

HCS-5300TDP-05

Mounting Suspension of Digital Infrared Transceiver (0.5 m) 2.23, 2.24

HCS-5300TDP-10

HCS-5300TDP-20

HCS-5300BAT

HCS-ADP15V

HCS-5300CHG/08

HCS-5352

CBL5300-05

CBL5300-10

CBL5300-20

CBL5300-50

Mounting Suspension of Digital Infrared Transceiver (1.0 m) 2.23, 2.24

Mounting Suspension of Digital Infrared Transceiver (2.0 m) 2.23, 2.24

Lithium Rechargeable Battery Pack 2.34

Power Adapter (DC 15 V, 2.2 A) 2.34

Charging Unit (8 pcs/case) 2.35

Cable Splitter (1 input & 4 outputs, for HCS-5300 series) 2.35

5 m Dedicated Transceiver Cable 2.36

10 m Dedicated Transceiver Cable 2.36

20 m Dedicated Transceiver Cable 2.36

50 m Dedicated Transceiver Cable 2.36

HCS-5300TZJ Tripod 2.36

HCS-5300 Series Application Software 2.38

HCS-5310/20

HCS-5312/20

HCS-5313/20

HCS-5314/20

HCS-5315/20

HCS-5316/20

HCS-5319/20

HCS-5320/20

HCS-5321/20

HCS-5322/20

HCS-5323/20

Basic System Setup Management Module 2.39

Professional Venue Design Module 2.42

Microphone Management Module 2.43

Voting Management Module 2.44

Video Control Module 2.45

Simultaneous Interpretation Module 2.46

Synchronous Audio Recording Management Module 2.46

Synchronous Video Recording Management Module 2.47

Multi-user Conference Control Management Module 2.48

Dual PC Server Hot Spare Module 2.48

Agenda Control Module 2.49

HCS-5300 Series Digital Infrared Wireless Conference System

Overview

Wireless conference systems – portable, easy to install and convenient to use – are currently trend-setting. Wireless systems do not require structural measures inside a venue.

Two kinds of wireless conference systems are prevailing: RF

(radio frequency) and IR (infrared) technology with analog audio transmission.

RF systems may be interfered (ISM band) or intercepted and operation either needs license or is confined to the public domain

IEC 802.11x band.

Analog IR systems feature frequency responses which are too small for good intelligibility and also lower S/R ratio.

System theory

The core of TAIDEN infrared wireless conference system – dirATC (Digital Infrared Audio

Transmitting and Control

Technologies) - is a new technology originated by

TAIDEN. It digitally encodes and modulates audio and data signals for transmission via infrared light, achieving both multi-channel audio signals and bidirectional data transmission and control. Digitalization and wireless transmission via

Figure 1 TAIDEN TDIR03 digital infrared processing chip infrared technology are combined to be an ideal solution for a wireless conference system. The digital infrared processing chip

(TAIDEN TDIR03) originated by TAIDEN, integrates A/D

(analog/digital) conversion circuit, digital encoding/decoding circuit, digital modulator/demodulator (QPSK or DQPSK), as well as filtering and amplification circuit, and implements TAIDEN infrared audio transmission and control technology (dirATC). (figure 1)

TAIDEN

digital infrared wireless conference system is composed of main unit, one or more transceivers and conference units.

The infrared conference unit features built-in A/D and D/A conversion circuits, digital encoding/decoding and modulator / demodulator (QPSK or DQPSK) circuits. The infrared conference system main unit has built-in demodulator/modulator (QPSK or

DQPSK), digital decoding/encoding circuit and a D/A converter circuit. A mixer circuit is inserted between the decoding circuit and the D/A converter. The main unit can be connected with several infrared transceivers, using a daisy chain or Y connection arrangement (figure 2 and figure 3)

Figure 2 Block diagram of digital infrared conference system

The basic infrared conference unit version with discussion function includes a microphone, a microphone switch button, a loudspeaker and a battery. The infrared discussion unit receives audio and control signals via infrared from the transceiver - signals previously generated by main unit. The discussion unit transmits infrared control signals back to the transceiver which conveys all data to the main unit. When the microphone is turned on, the infrared discussion unit also sends infrared digital audio signals to the main unit. A system can consist of up to 1000 infrared discussion units with 4 units activated at the same time.

Figure 3 Schematic diagram of digital infrared conference system

2.3

HCS-5300 Series Digital Infrared Wireless Conference System

System composition

HCS-5300C/D has speaking, voting and simultaneous interpretation functions; HCS-5301D offers speaking and simultaneous interpretation functions with two channel selectors and two microphone IDs for two delegates: an economic and cost saving solution. HCS-5302C/D has speaking function with speaker and earphone socket.

HCS-5300TA Digital IR Transceiver (ceiling type)

HCS-5300TB Digital IR Transceiver + Camera (tripod type)

HCS-5300C/D Digital IR Wireless Conference Unit

(Mic. / CH Sel. / Vote)

HCS-5301D Digital IR Wireless Conference Unit

(Mic. / 2×CH Sel. / 2×ID)

HCS-5300TC Digital IR Transceiver (tripod, wall or ceiling-mounting)

HCS-5300TD Digital IR Transceiver (tripod, wall or ceiling-mounting)

HCS-5302C/D Digital IR Wireless Conference Unit (Mic.)

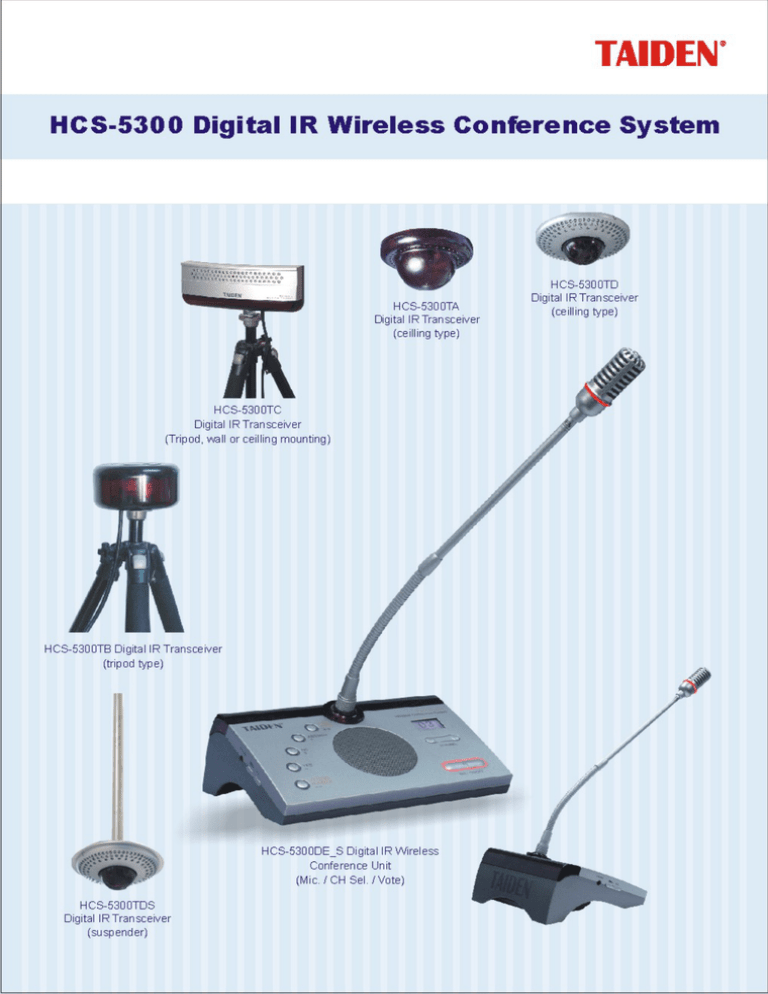

Figure 4 TAIDEN HCS-5300 Series Digital Infrared Wireless

Conference Units

Digital infrared transceiver types feature ceiling-

(HCS-5300TA/TC/TD), tripod- (HCS-5300TB/TC/TD), wall-

(HCS-5300TC/TD) and suspension-mounting (HCS-5300TDS) with a maximum radiation range of 12 meters. HCS-5300TB,

HCS-5300TC and HCS-5300TD tripod digital infrared transceivers can be installed on tabletop and are convenient for installation and maintenance of the infrared discussion system.

HCS-5300TA and HCS-5300TB digital infrared transceivers can be installed with a camera above or below the transceiver. The transceiver and the camera will not interfere with each other.

2.4

HCS-5300TDS Digital IR Transceiver ( suspension mounting)

Figure 5 TAIDEN HCS-5300T Series Digital Infrared Transceivers

Figure 6 TAIDEN HCS-5300M Digital Infrared Wireless

Conference Main unit

HCS-5300 Series Digital Infrared Wireless Conference System

System features

Wireless Conference System

■ Quick set up and removal, free from troubles resulting from cable breaks and cable deteriorations

■ Easy to setup a system for usage limited in time

■ No impact on furniture, interior equipment or building structure

Infrared Transmission Technology

■ The first digital infrared wireless conference system in the world

■ Original dirATC -- digital infrared Audio Transmitting and

Control technologies

■ Wireless system, easy set up and removal

■ Perfect sound quality as CD from the microphone

■ Microphone sensitivity and EQ can be adjusted individually

■ Independent MIC. synchronous recording

■ Infrared transmission technology guarantees privacy

■ Any quantity of infrared wireless conference system can be installed in one building

■ No worries about eavesdropping and radio interference, no radio radiation

■ Full functions (discussion, voting and 1+3 CH interpretation)

■ No radio frequency license needed for operating an infrared system all over the world

■ Undisturbed by HF driven light sources

■ Excellent immunity to RF interference from mobile phones and

RF devices

■ Vertical emission angle of conference unit selectable via LCD menu

System Application

■ Conference privacy is guaranteed as infrared signals do not pass through opaque walls or ceilings

■ Wherever there is a partition between conference rooms, there is no interference

■ Any quantity of infrared wireless conference system can be installed in one building

■ The infrared communication frees users from worries about eavesdropping and radio interference inherent to radio wave-based wireless communications

■ No radio radiation

■ No radio frequency license needed for operating an infrared system all over the world

■ Undisturbed by HF driven light sources and mobile phones

■ Works without errors, even in bright sunlight

Digital Infrared Audio Technology

■ Digital infrared audio processing and transmitting technologies ensure superb sound quality:

™

Freq. Response: 20 Hz ~ 20 kHz

™

S/N: >80 dBA

™

THD:

Full Functions

■ Discussion

■ Vote (5 keys)

■ Simultaneous interpretation (1+3 channels)

■ Isolated audio recording function for all speakers

■ Audio video tracking

■ Compatible with HCS-5100 digital infrared language distribution system (HCS-5100R series digital infrared receivers can work with HCS-5300T series transceivers)

■ Powerful application software

2.5

HCS-5300 Series Digital Infrared Wireless Conference System

HCS-5300CE

Wireless Chairman Unit with Voting and Channel Selection

Functions

■ Compliant to IEC 60914 on originated dirATC-digital infrared Audio

Transmitting and Control technologies

■ Infrared transmitting carrier frequency conforms to IEC

61603-7, DQPSK digital modulation/demodulation technology

■ System controls up to 1000 contribution units

■ Transmitting up to 4 CHs high quality digital audio signals

■ Vertical emission angle selectable via LCD menu

■ Every delegate unit is assigned an individual ID for convenient setup and to avoid double ID forever

■ Broadcast standard microphone and digital infrared audio processing and transmitting technologies ensure 20 Hz ~ 20 kHz perfect sound quality, extremely low distortion factor

■ Digital infrared transmission technology guarantees privacy, no worries about eavesdropping and radio interference, no radiation, no radio frequency license needed

■ Excellent immunity to RF interference from HF-driven light and

Features

mobile phones

■ Microphone stem can be unplugged during adjournment, easy to maintain

Table, stylish and ergonomic design

Wireless unit, easy setup and removal

Hi-Fi loudspeaker

Priority key

Pluggable microphone

System controls up to 1000 contribution units

5 voting keys

Transmitting up to 4 CHs high quality digital audio signals

Vertical emission angle selectable via LCD menu

Built-in channel selector consists of up/down channel

select keys and 2-digit channel indicator display

Broadcast standard microphone and digital infrared audio

processing and transmitting technologies ensure 20 Hz to

20 kHz perfect sound quality, extremely low distortion factor

Digital infrared transmission technology guarantees

privacy, no worries about eavesdropping and radio interference, no radiation, no radio frequency license needed

Excellent immunity to RF interference from HF-driven

lighting and mobile phones

Microphone sensitivity and EQ can be adjusted

individually

Built-in rechargeable Lithium battery pack

■ Hi-Fi loudspeaker, minimal feedback, automatically mutes when microphone is active

■ Two Ø 3.5 mm stereo headphone jacks for headphones with controllable volume independently

■ Microphone On/Off button, 5 voting keys

■ Built-in channel selector

™

Channel selector is operable only when earphone is inserted, built-in speaker will mute automatically on earphone insertion

■ Microphone sensitivity and EQ can be adjusted individually

■ System when operated in stand-alone mode can implement the following facilities:

™

"ACTIVE MICS", set the number of delegates permitted to speak at the same time (1/2/3/4)

™

"OPEN" mode, if Mic. active limit has been reached, next microphone cannot be turned on when pressing “Mic.

On/Off” button

™

"OVERRIDE" mode, if Mic. active limit has been reached, when pressing “Mic. On/Off” button, next microphone can be turned on and the first active microphone will be turned off

™

Simultaneous interpretation

■ In combination with the corresponding software modules, multiform voting can be implemented:

™

For/Against

™

Parliamentary: YES/NO/ABSTAIN

™

Multi choice/Opinion poll: 1/2/3/4/5

™

Audience response/Rating: --/-/0/+/++

The stylish and ergonomically designed chairman unit has all the necessary facilities to enable the user to chair a conference. Similar in appearance and function to HCS-5300DE Delegate Unit, the

HCS-5300CE Chairman Unit includes an extra microphone priority key. When pressed, the priority key causes all currently active delegate microphones to be temporarily or permanently switched off, allowing the chairman to take control of the meeting.

Separate rechargeable Lithium battery packs can be removed and replaced in a matter of seconds, providing maximum flexibility in recharge scheduling.

■ Automatic video tracking, when cooperating with camera and video switcher unit

■ Can be activated at any time provided that the total number of active microphones (including the active microphone of the chairman) is within the maximum of 4 active microphones allowed by the system

■ Priority key can switch off or mute the speaking units according to preset

2.6

HCS-5300 Series Digital Infrared Wireless Conference System

■ System supports up to 20 chairman units, while only 1 chairman unit has the control facilities listed above

■ Built-in rechargeable Lithium battery operation duration: 14.4 hours when microphone is continuously on; 48 hours when microphone is off

Mechanical

Mounting Tabletop

Dimensions (h x w x d) (w/o Mic.) 68 x 180 x 132 mm

Weight

Excl. battery 0.46 kg

Incl. battery 0.78 kg

Color Silver/Gray

Controls and Indicators

■ Graphic 96×64 LCD with back-lighting for displaying channel number, language name, signal strength and battery capacity

■ Built-in channel selector consists of up/down channel select keys and 2-digit channel indicator display

■ Uni-directional electret condenser microphone with two–color illuminated ring (blue/red)

■ Fully charged indicator

Ordering Information

HCS-5300CE_S Digital IR Wireless Chairman Unit

(5 voting buttons, 1+3 CHs, silver)

HCS-5300CE_G Digital IR Wireless Chairman Unit

(5 voting buttons, 1+3 CHs, gray)

■ Two headphone volume control buttons

■ Five voting buttons with indicators

■ Microphone On/Off button with indicator

Interconnections

■ Socket for pluggable microphone

■ 2 × Ø 3.5 mm stereo headphone jack

■ Power adapter interface

Technical Specifications

Electrical

Headphone connection

Frequency response 20 Hz to 20 kHz (-3dB)

Headphone load impedance ≥16 Ohm × 2

Headphone output 10 mW

Recommended external microphone type

Transducer Electret-condenser

Polar pattern Uni-directional

Sensitivity -46 dBV/Pa

Frequency response 30 Hz to 20 kHz

Directionality 0°/180° >20 dB (1 kHz)

Equivalent noise 20 dBA (SPL)

Max.SPL 125 dB (THD<3%)

Interface data

Connector 2 x Ø 3.5 mm stereo jack for headphone

Operation time of battery pack

When mic. is continuously on

Not omnidirectional Approx. 14.4 hours

Omnidirectional Approx. 10 hours

When mic. is off Approx. 48 hours

2.7

HCS-5300 Series Digital Infrared Wireless Conference System

HCS-5300DE

Wireless Discussion Unit with

Voting and Channel Selection

Functions

■ Compliant to IEC 60914 on originated dirATC-digital infrared Audio

Transmitting and Control technologies

■ Infrared transmitting carrier frequency conforms to IEC

61603-7, DQPSK digital modulation/demodulation technology

■ System controls up to 1000 contribution units

■ Transmitting up to 4 CHs high quality digital audio signals

■ Vertical emission angle selectable via LCD menu

■ Every delegate unit is assigned an individual ID for convenient setup and to avoid double ID forever

■ Broadcast standard microphone and digital infrared audio processing and transmitting technologies ensure 20 Hz ~ 20 kHz perfect sound quality, extremely low distortion factor

■ Digital infrared transmission technology guarantees privacy, no worries about eavesdropping and radio interference, no radiation, no radio frequency license needed

■ Excellent immunity to RF interference from HF-driven light and

Features

mobile phones

■ Microphone stem can be unplugged during adjournment, easy to maintain

Table, stylish and ergonomic design

Wireless unit, easy setup and removal

Vertical acceptance/emission angle selectable

Hi-Fi loudspeaker

Pluggable microphone

System controls up to 1000 contribution units

5 voting keys

Transmitting up to 4 CHs high quality digital audio signals

Vertical emission angle selectable via LCD menu

Built-in channel selector consists of up/down channel

select keys and 2-digit channel indicator display

Broadcast standard microphone and digital infrared audio

processing and transmitting technologies ensure 20 Hz to

20 kHz perfect sound quality, extremely low distortion factor

Digital infrared transmission technology guarantees

privacy, no worries about eavesdropping and radio interference, no radiation, no radio frequency license needed

Excellent immunity to RF interference from HF-driven

lighting and mobile phones

Microphone sensitivity and EQ can be adjusted

individually

Built-in rechargeable Lithium battery pack

■ Hi-Fi loudspeaker, minimal feedback, automatically mutes when microphone is active

■ Two Ø 3.5 mm stereo headphone jacks for headphones with separate volume control

■ Microphone On/Off button, 5 voting keys

■ Built-in channel selector

™

Channel selector is operable only when earphone is inserted, built-in speaker will mute automatically on earphone insertion

■ Microphone sensitivity and EQ can be adjusted individually

■ System when operated in stand-alone mode can implement the following facilities:

™

"ACTIVE MICS", set the number of delegates permitted to speak at the same time (1/2/3/4)

™

"OPEN" mode, if Mic. active limit has been reached, next microphone cannot be turned on when pressing “Mic.

On/Off” button

™

"OVERRIDE" mode, if Mic. active limit has been reached, when pressing “Mic. On/Off” button, next microphone can be turned on and the first active microphone will be turned off

™

Simultaneous interpretation

■ In combination with the corresponding software modules, multiform voting can be implemented:

™

For/Against

™

Parliamentary: YES/NO/ABSTAIN

™

Multi choice/Opinion poll: 1/2/3/4/5

™

Audience response/Rating: --/-/0/+/++

The multi-functional wireless delegate unit meets the demands of even the largest conferences and provides facilities for speaking, listening, voting and selecting language channels. It has excellent immunity to RF interference from mobile phones and features a channel selector and two headphone connections. Channel selection is automatically limited to the number of language channels available. The loudspeaker offers superior acoustics with minimal feedback, so increasing intelligibility.

Separate rechargeable Lithium battery packs can be removed and replaced in a matter of seconds, providing maximum flexibility in recharge scheduling.

■ Automatic video tracking, when cooperating with camera and video switcher unit

■ Built-in rechargeable Lithium battery operation duration: 14.4 hours when microphone is continuously on; 48 hours when microphone is off

2.8

HCS-5300 Series Digital Infrared Wireless Conference System

Controls and Indicators

Ordering Information

■ Graphic 96×64 LCD with back-lighting for displaying channel number, language name, signal strength and battery capacity

■ Built-in channel selector consists of up/down channel select keys and 2-digit channel indicator display

■ Uni-directional electret condenser microphone with two–color illuminated ring (blue/red)

HCS-5300DE_S Digital IR Wireless Delegate Unit

(5 voting buttons, 1+3 CHs, silver)

HCS-5300DE_G Digital IR Wireless Delegate Unit

(5 voting buttons, 1+3 CHs, gray)

■ Fully charged indicator

■ Two headphone volume control buttons

■ Five voting buttons with indicators

■ Microphone On/Off button with indicator

Interconnections

■ Socket for pluggable microphone

■ 2 × Ø 3.5 mm stereo headphone jack

■ Power adapter interface

Technical Specifications

Electrical

Headphone connection

Frequency response 20 Hz to 20 kHz (-3dB)

Headphone load impedance ≥16 Ohm × 2

Headphone output 10 mW

Recommended external microphone type

Transducer Electret-condenser

Polar pattern Uni-directional

Sensitivity -46 dBV/Pa

Frequency response 30 Hz to 20 kHz

Directionality 0°/180° >20 dB (1 kHz)

Equivalent noise 20 dBA (SPL)

Max.SPL 125 dB (THD<3%)

Interface data

Connector 2 x Ø 3.5 mm stereo jack for headphone

Operation time of battery pack

When mic. is continuously on

Not omnidirectional Approx. 14.4 hours

Omnidirectional Approx. 10 hours

When mic. is off Approx. 48 hours

Mechanical

Mounting Tabletop

Dimensions (h x w x d) (w/o Mic.) 68 x 180 x 132 mm

Weight

Excl. battery 0.46 kg

Incl. battery 0.78 kg

Color Silver/Gray

2.9

HCS-5300 Series Digital Infrared Wireless Conference System

HCS-5301D

Wireless Discussion Unit with Dual

Channel Selection

The multi-functional wireless delegate unit can be used by two delegates. It provides facilities for speaking, listening and selecting language channels and has excellent immunity to RF interference from mobile phones. It features two separate headphone connections with individual volume control, two separate microphone on/off buttons and two separate channel selectors on both sides of the unit, allowing one unit to serve two delegates. The loudspeaker offers superior acoustics with minimal feedback, so increasing intelligibility.

Separate rechargeable Lithium battery packs can be removed and replaced in a matter of seconds, providing maximum flexibility in recharge scheduling.

Functions

■ Compliant to IEC 60914 on originated dirATC-digital infrared Audio

Transmitting and Control technologies

■ Infrared transmitting carrier frequency conforms to IEC

61603-7, DQPSK digital modulation/demodulation technology

■ System controls up to 1000 contribution units

Features

■ Transmitting up to 4 CHs high quality digital audio signals

■ Vertical emission angle selectable via LCD menu

■ Every delegate unit is assigned an individual ID for convenient

Table, stylish and ergonomic design setup and to avoid double ID forever

Wireless unit, easy setup and removal

■ Broadcast standard microphone and digital infrared audio

Vertical acceptance/emission angle selectable processing and transmitting technologies ensure 20 Hz ~ 20

Hi-Fi loudspeaker kHz perfect sound quality, extremely low distortion factor

Pluggable microphone

■ Digital infrared transmission technology guarantees privacy, no

System controls up to 1000 contribution units worries about eavesdropping and radio interference, no

Transmitting up to 4 CHs high quality digital audio signals radiation, no radio frequency license needed

Vertical emission angle selectable via LCD menu

■ Excellent immunity to RF interference from HF-driven light and

Built-in dual channel selectors consist of up/down channel mobile phones

select keys and 2-digit channel indicator display

The microphone on/off buttons provide dual delegate

identification, used for individual delegate identification on the left and right respectively and easy for automatic video tracking

Can be used as a dual delegate unit

Broadcast standard microphone and digital infrared audio

processing and transmitting technologies ensure 20 Hz to

20 kHz perfect sound quality, extremely low distortion factor

Digital infrared transmission technology guarantees

privacy, no worries about eavesdropping and radio interference, no radiation, no radio frequency license needed

Excellent immunity to RF interference from HF-driven

lighting and mobile phones

Microphone sensitivity and EQ can be adjusted

individually

Built-in rechargeable Lithium battery pack

■ Microphone stem can be unplugged during adjournment, easy to maintain

■ Hi-Fi loudspeaker, minimal feedback, automatically mutes when microphone is active

■ Two Ø 3.5 mm stereo headphone jacks for headphones with separate volume control

■ With two separate microphone on/off buttons for individual microphone control and individual delegate identification

■ Can be used as a dual delegate unit

■ Built-in dual channel selectors

™

Channel selector is operable only when earphone is inserted, built-in speaker will mute automatically on earphone insertion

■ Microphone sensitivity and EQ can be adjusted individually

■ System when operated in stand-alone mode can implement the following facilities:

™

"ACTIVE MICS", set the number of delegates permitted to speak at the same time (1/2/3/4)

™

"OPEN" mode, if Mic. active limit has been reached, next microphone cannot be turned on when pressing “Mic.

On/Off” button

™

"OVERRIDE" mode, if Mic. active limit has been reached, when pressing “Mic. On/Off” button, next microphone can be turned on and the first active microphone will be turned off

™

Simultaneous interpretation

2.10

HCS-5300 Series Digital Infrared Wireless Conference System

■ Automatic video tracking, when cooperating with camera and video switcher unit

■ Built-in rechargeable Lithium battery operation duration: 14.4 hours when microphone is continuously on; 48 hours when microphone is off

Controls and Indicators

Ordering Information

HCS-5301D_S Digital IR Wireless Delegate Unit

(1+3 CHs, 2 channel selectors, dual ID, silver)

HCS-5301D_G Digital IR Wireless Delegate Unit

(1+3 CHs, 2 channel selectors, dual ID, gray)

■ Two graphic 96×64 LCD with back-lighting for displaying channel number, language name, signal strength and battery capacity

■ Built-in two channel selectors consist of up/down channel select keys and 2-digit channel indicator display

■ Uni-directional electret condenser microphone with two–color illuminated ring (blue/red)

■ Fully charged indicator

■ Two headphone volume control buttons

■ Two microphone On/Off buttons with indicator

Interconnections

■ Socket for pluggable microphone

■ 2 × Ø 3.5 mm stereo headphone jack

■ Power adapter interface

Technical Specifications

Electrical

Headphone connection

Frequency response 20 Hz to 20 kHz (-3dB)

Headphone load impedance ≥16 Ohm × 2

Headphone output 10 mW

Recommended external microphone type

Transducer Electret-condenser

Polar pattern Uni-directional

Sensitivity -46 dBV/Pa

Frequency response 30 Hz to 20 kHz

Directionality 0°/180° >20 dB (1 kHz)

Equivalent noise 20 dBA (SPL)

Max.SPL 125 dB (THD<3%)

Interface data

Connector 2 x Ø 3.5 mm stereo jack for headphone

Operation time of battery pack

When mic. is continuously on

Not omnidirectional Approx. 14.4 hours

Omnidirectional Approx. 10 hours

When mic. is off Approx. 48 hours

Mechanical

Mounting Tabletop

Dimensions (h x w x d) (w/o Mic.) 68 x 180 x 132 mm

Weight

Excl. battery 0.46 kg

Incl. battery 0.78 kg

Color Silver/Gray

2.11

HCS-5300 Series Digital Infrared Wireless Conference System

HCS-5302C

Wireless Chairman Unit

Functions

Features

Table, stylish and ergonomic design

Wireless unit, easy setup and removal

Vertical acceptance/emission angle selectable

Hi-Fi loudspeaker

Priority key

Pluggable microphone

System controls up to 1000 contribution units

Vertical emission angle selectable via LCD menu

Broadcast standard microphone and digital infrared audio

processing and transmitting technologies ensure 20 Hz to

20 kHz perfect sound quality, extremely low distortion factor

Digital infrared transmission technology guarantees

privacy, no worries about eavesdropping and radio interference, no radiation, no radio frequency license needed

Excellent immunity to RF interference from HF-driven

lighting and mobile phones

Microphone sensitivity and EQ can be adjusted

individually

Built-in rechargeable Lithium battery pack

The stylish and ergonomically designed chairman unit has all the necessary facilities to enable the user to chair a conference. Similar in appearance and function to HCS-5302D Delegate Unit, the

HCS-5302C Chairman Unit includes an extra microphone priority key. When pressed, the priority key causes all currently active delegate microphones to be temporarily or permanently switched off, allowing the chairman to take control of the meeting.

Separate rechargeable Lithium battery packs can be removed and replaced in a matter of seconds, providing maximum flexibility in recharge scheduling.

■ Compliant to IEC 60914 on originated dirATC-digital infrared Audio

Transmitting and Control technologies

■ Infrared transmitting carrier frequency conforms to IEC

61603-7, DQPSK digital modulation/demodulation technology

■ System controls up to 1000 contribution units

■ Vertical emission angle selectable via LCD menu

■ Every delegate unit is assigned an individual ID for convenient setup and to avoid double ID forever

■ Broadcast standard microphone and digital infrared audio processing and transmitting technologies ensure 20 Hz ~ 20 kHz perfect sound quality, extremely low distortion factor

■ Digital infrared transmission technology guarantees privacy, no worries about eavesdropping and radio interference, no radiation, no radio frequency license needed

■ Excellent immunity to RF interference from HF-driven light and mobile phones

■ Microphone stem can be unplugged during adjournment, easy to maintain

■ Hi-Fi loudspeaker, minimal feedback, automatically mutes when microphone is active

■ Two Ø 3.5 mm stereo headphone jacks for headphones with separate volume control

■ Microphone On/Off button

■ Microphone sensitivity and EQ can be adjusted individually

■ System when operated in stand-alone mode can implement the following facilities:

™

"ACTIVE MICS", set the number of delegates permitted to speak at the same time (1/2/3/4)

™

"OPEN" mode, if Mic. active limit has been reached, next microphone cannot be turned on when pressing “Mic.

On/Off” button

™

"OVERRIDE" mode, if Mic. active limit has been reached, when pressing “Mic. On/Off” button, next microphone can be turned on and the first active microphone will be turned off

■ Automatic video tracking, when cooperating with camera and video switcher unit

■ Can be activated at any time provided that the total number of active microphones (including the active microphone of the chairman) is within the maximum of 4 active microphones allowed by the system

■ Priority key can switch off or mute the speaking units according to preset

■ System supports up to 20 chairman units, while only 1 chairman unit has the control facilities listed above

■ Built-in rechargeable Lithium battery operation duration: 14.4 hours when microphone is continuously on; 48 hours when microphone is off

2.12

HCS-5300 Series Digital Infrared Wireless Conference System

Controls and Indicators

■ Two graphic 96×64 LCD with back-lighting for displaying signal strength and battery capacity

■ Uni-directional electret condenser microphone with two–color illuminated ring (blue/red)

■ Fully charged indicator

■ Two headphone volume control buttons

■ Microphone On/Off button with indicator

Interconnections

■ Socket for pluggable microphone

■ 2 × Ø 3.5 mm stereo headphone jack

■ Power adapter interface

Technical Specifications

Electrical

Headphone connection

Frequency response 20 Hz to 20 kHz (-3dB)

Headphone load impedance ≥16 Ohm × 2

Headphone output 10 mW

Recommended external microphone type

Transducer Electret-condenser

Polar pattern Uni-directional

Sensitivity -46 dBV/Pa

Frequency response 30 Hz to 20 kHz

Directionality 0°/180° >20 dB (1 kHz)

Equivalent noise 20 dBA (SPL)

Max.SPL 125 dB (THD<3%)

Interface data

Connector 2 x Ø 3.5 mm stereo jack for headphone

Operatio n time of battery pack

When mic. is continuously on

Not omnidirectional Approx. 14.4 hours

Omnidirectional Approx. 10 hours

When mic. is off Approx. 48 hours

Mechanical

Mounting Tabletop

Dimensions (h x w x d) (w/o Mic.) 68 x 180 x 132 mm

Weight

Excl. battery 0.46 kg

Incl. battery 0.78 kg

Color Silver/Gray

Ordering Information

HCS-5302C_S Digital IR Wireless Chairman Unit (silver)

HCS-5302C_G Digital IR Wireless Chairman Unit (gray)

2.13

HCS-5300 Series Digital Infrared Wireless Conference System

HCS-5302D

Wireless Discussion Unit

Functions

Features

Table, stylish and ergonomic design

Wireless unit, easy setup and removal

Vertical acceptance/emission angle selectable

Hi-Fi loudspeaker

Pluggable microphone

System controls up to 1000 contribution units

Vertical emission angle selectable via LCD menu

Broadcast standard microphone and digital infrared audio

processing and transmitting technologies ensure 20 Hz to

20 kHz perfect sound quality, extremely low distortion factor

Digital infrared transmission technology guarantees

privacy, no worries about eavesdropping and radio interference, no radiation, no radio frequency license needed

Excellent immunity to RF interference from HF-driven

lighting and mobile phones

Microphone sensitivity and EQ can be adjusted

individually

Built-in rechargeable Lithium battery pack

■ Compliant to IEC 60914 on originated dirATC-digital infrared Audio

Transmitting and Control technologies

■ Infrared transmitting carrier frequency conforms to IEC

61603-7, DQPSK digital modulation/demodulation technology

■ System controls up to 1000 contribution units

■ Vertical emission angle selectable via LCD menu

■ Every delegate unit is assigned an individual ID for convenient setup and to avoid double ID forever

■ Broadcast standard microphone and digital infrared audio processing and transmitting technologies ensure 20 Hz ~ 20 kHz perfect sound quality, extremely low distortion factor

■ Digital infrared transmission technology guarantees privacy, no worries about eavesdropping and radio interference, no radiation, no radio frequency license needed

■ Excellent immunity to RF interference from HF-driven light and mobile phones

■ Microphone stem can be unplugged during adjournment, easy to maintain

■ Hi-Fi loudspeaker, minimal feedback, automatically mutes when microphone is active

■ Two Ø 3.5 mm stereo headphone jacks for headphones with separate volume control

■ Microphone On/Off button

■ Microphone sensitivity and EQ can be adjusted individually

■ System when operated in stand-alone mode can implement the following facilities:

™

"ACTIVE MICS", set the number of delegates permitted to speak at the same time (1/2/3/4)

™

"OPEN" mode, if Mic. active limit has been reached, next microphone cannot be turned on when pressing “Mic.

On/Off” button

™

"OVERRIDE" mode, if Mic. active limit has been reached, when pressing “Mic. On/Off” button, next microphone can be turned on and the first active microphone will be turned off

■ Automatic video tracking, when cooperating with camera and video switcher unit

■ Built-in rechargeable Lithium battery operation duration: 14.4 hours when microphone is continuously on; 48 hours when microphone is off

This wireless delegate unit meets the basic demands of most conferences. It provides facilities for speaking and listening and has excellent immunity to RF interference from mobile phones. The loudspeaker offers superior acoustics with minimal feedback, so increasing intelligibility.

Separate rechargeable Lithium battery packs can be removed and replaced in a matter of seconds, providing maximum flexibility in recharge scheduling.

Controls and Indicators

■ Two graphic 96×64 LCD with back-lighting for displaying signal strength and battery capacity

■ Uni-directional electret condenser microphone with two–color illuminated ring (blue/red)

■ Fully charged indicator

■ Two headphone volume control buttons

■ Microphone On/Off button with indicator

2.14

HCS-5300 Series Digital Infrared Wireless Conference System

Interconnections

■ Socket for pluggable microphone

■ 2 × Ø 3.5 mm stereo headphone jack

■ Power adapter interface

Technical Specifications

Electrical

Headphone connection

Frequency response 20 Hz to 20 kHz (-3dB)

Headphone load impedance ≥16 Ohm × 2

Headphone output 10 mW

Recommended external microphone type

Transducer Electret-condenser

Polar pattern Uni-directional

Sensitivity -46 dBV/Pa

Frequency response 30 Hz to 20 kHz

Directionality 0°/180° >20 dB (1 kHz)

Equivalent noise 20 dBA (SPL)

Max.SPL 125 dB (THD<3%)

Interface data

Connector 2 x Ø 3.5 mm stereo jack for headphone

Operation time of battery pack

When mic. is continuously on

Not omnidirectional Approx. 14.4 hours

Omnidirectional Approx. 10 hours

When mic. is off Approx. 48 hours

Mechanical

Mounting Tabletop

Dimensions (h x w x d) (w/o Mic.) 68 x 180 x 132 mm

Weight

Excl. battery 0.46 kg

Incl. battery 0.78 kg

Color Silver/Gray

Ordering Information

HCS-5302D_S Digital IR Wireless Delegate Unit (silver)

HCS-5302D_G Digital IR Wireless Delegate Unit (gray)

2.15

HCS-5300 Series Digital Infrared Wireless Conference System

HCS-5300TA-W

Digital Infrared Transceiver

Indicators

■ Power indicating light

Interconnections

■ Equipped with a 2.0 m specific cable with 6P-DIN male plug.

For extension purposes, 6P-DIN extension cable can be used.

Technical Specifications

Features

Compliant to IEC 60914

Infrared transmitting carrier frequency conforms to IEC

61603-7, DQPSK digital modulation/demodulation technology

Transmitting in 2 ~ 8 MHz frequency band, eliminating the

interference from HF-driven lights

Inside the coverage area of infrared signals,

HCS-5100R/RA digital infrared receivers can be in operation as well simultaneously to receive (1+3 channels) simultaneous interpretation

Ceiling-mounting, easy to install

HCS-5300TA-W digital infrared transceiver manages communication between main unit and conference units. For optimal coverage, ceiling mounting is recommended.

Electrical

Wavelength 870 nm

Modulation method DQPSK

Carrier frequency 2 ~ 8 MHz

Voltage 33 V DC (supplied from HCS-5300M)

Current consumption Max. 380 mA

Connector 6P-DIN

Cable 2.0 m specific cable with 6P-DIN male plug

Acceptance/emission angle

Vertical 150° (75°+75°)

Horizontal 360°

Communication area Approx 9 ~ 10 m in radius from the point underneath the unit

(ceiling height: 2.5 ~ 4.5 m)

Mechanical

Mounting Ceiling-mounting

Dimensions Ø 150 mm, 71.8 mm (height)

Weight 0.39 kg

Color Red

Ordering Information

HCS-5300TA-W Digital Infrared Transceiver

(ceiling-mounting, wide-angle)

Footprint of HCS-5300TA-W digital infrared transceiver (If H=2.5 ~ 3.0 m, then R= 10 m; if H=3.5 ~ 4.5 m, then R= 9 m)

2.16

HCS-5300 Series Digital Infrared Wireless Conference System

HCS-5300TA-N

Digital Infrared Transceiver

Indicators

■ Power indicating light

Interconnections

■ Equipped with a 2.0 m specific cable with 6P-DIN male plug.

For extension purposes, 6P-DIN extension cable can be used.

Technical Specifications

Electrical

Features

Compliant to IEC 60914

Infrared transmitting carrier frequency conforms to IEC

61603-7, DQPSK digital modulation/demodulation technology

Transmitting in 2 ~ 8 MHz frequency band, eliminating the

interference from HF-driven lights

Inside the coverage area of infrared signals,

HCS-5100R/RA digital infrared receivers can be in operation as well simultaneously to receive (1+3 channels) simultaneous interpretation

Ceiling-mounting, easy to install

Wavelength 870 nm

Modulation method DQPSK

Carrier frequency 2 ~ 8 MHz

Voltage 33 V DC (supplied from HCS-5300M)

Current consumption Max. 380 mA

Connector 6P-DIN

Cable 2.0 m specific cable with 6P-DIN male plug

Acceptance/emission angle

Vertical 90° (45°+45°)

Horizontal 360°

Communication area Approx 8 m in radius from the point underneath the unit

(ceiling height: 5 ~ 7 m)

Mechanical

HCS-5300TA-N digital infrared transceiver manages communication between main unit and conference units. For optimal coverage, ceiling mounting is recommended.

Mounting Ceiling-mounting

Dimensions Ø 150 mm, 71.8 mm (height)

Weight 0.39 kg

Color Red

Ordering Information

HCS-5300TA-N Digital Infrared Transceiver

(ceiling-mounting, narrow-angle)

Footprint of HCS-5300TA-N digital infrared transceiver (If H=5 ~ 7 m, then R= 8 m)

2.17

HCS-5300 Series Digital Infrared Wireless Conference System

HCS-5300TB

Digital Infrared Transceiver

Indicators

■ Three power indicating lights

Interconnections

■ Equipped with a 2.0 m specific cable with 6P-DIN male plug.

For extension purposes, 6P-DIN extension cable can be used.

Technical Specifications

Electrical

Wavelength 870 nm

Modulation method DQPSK

Compliant to IEC 60914

Carrier frequency 2 ~ 8 MHz

Features

Voltage 33 V DC (supplied from HCS-5300M)

Current consumption Max. 380 mA

Connector 6P-DIN

Cable 2.0 m specific cable with 6P-DIN male plug

Infrared transmitting carrier frequency conforms to IEC

Acceptance/emission angle

61603-7, DQPSK digital modulation/demodulation technology

Transmitting in 2 ~ 8 MHz frequency band, eliminating the

Vertical 45°

Horizontal 360°

Communication area Approx 8 m in radius from the unit

interference from HF-driven lights

Tripod-mounting, easy to install

Inside the coverage area of infrared signals,

Mechanical

HCS-5100R/RA digital infrared receivers can be in operation as well simultaneously to receive (1+3 channels) simultaneous interpretation

Mounting

Tripod-mounting

Dimensions Ø 132 mm, 68 mm (height)

Weight 0.54 kg

Color Red

HCS-5300TB digital infrared transceiver manages communication between main unit and conference units. It can be fixed onto a tripod at any appropriate spot.

Ordering Information

HCS-5300TB Digital Infrared Transceiver (tripod-mounting)

Footprint of HCS-5300TB digital infrared transceiver

2.18

HCS-5300 Series Digital Infrared Wireless Conference System

HCS-5300TC

Digital Infrared Transceiver

Indicators

■ Power indicating light

Interconnections

■ Equipped with a 2.0 m specific cable with 6P-DIN male plug.

For extension purposes, 6P-DIN extension cable can be used.

Technical Specifications

Electrical

Wavelength 870 nm

Modulation method DQPSK

Carrier frequency 2 ~ 8 MHz

Voltage 33 V DC (supplied from HCS-5300M)

Features

Current consumption Max. 320 mA

Connector 6P-DIN

Compliant to IEC 60914

Cable 2.0 m specific cable with 6P-DIN male plug

Infrared transmitting carrier frequency conforms to IEC

Acceptance/emission angle

61603-7, DQPSK digital modulation/demodulation

Vertical 50°

technology

Horizontal 120°

Transmitting in 2 ~ 8 MHz frequency band, eliminating the

Communication area A sector within a radius

interference from HF-driven lights

of 12 m from the unit

Tripod, wall or ceiling mounting, easy to install

Adjustable angle of bracket 135°

Equipped with

adjustable angle bracket

Inside the coverage area of infrared signals,

HCS-5100R/RA digital infrared receivers can be in

Mechanical operation as well simultaneously to receive (1+3 channels) simultaneous interpretation

Mounting Tripod, wall or ceiling mounting

Dimensions (h x w x d) 89 × 242 × 80 mm

Weight 0.6 kg

Color Red

HCS-5300TC digital infrared transceiver manages communication between main unit and conference units. It can be mounted onto the ceiling and wall for optional coverage or fixed onto a tripod at any appropriate spot.

Ordering Information

HCS-5300TC Digital Infrared Transceiver

(tripod, wall or ceiling mounting)

Footprint of HCS-5300TC digital infrared transceiver

2.19

HCS-5300 Series Digital Infrared Wireless Conference System

HCS-5300TD-W

Digital Infrared Transceiver

Indicators

■ Power indicating light

Interconnections

■ Equipped with a 2.0 m specific cable with 6P-DIN male plug.

For extension purposes, 6P-DIN extension cable can be used.

Technical Specifications

Electrical

Wavelength 870 nm

Modulation method DQPSK

Carrier frequency 2 ~ 8 MHz

Features

Voltage 33 V DC (supplied from HCS-5300M)

Compliant to IEC 60914

Infrared transmitting carrier frequency conforms to IEC

61603-7, DQPSK digital modulation/demodulation technology

Transmitting in 2 ~ 8 MHz frequency band, eliminating the

interference from HF-driven lights

Tripod, wall or ceiling mounting, easy to install

Inside the coverage area of infrared signals,

HCS-5100R/RA digital infrared receivers can be in

Current consumption Max. 550 mA

Connector 6P-DIN

Cable 2.0 m specific cable with 6P-DIN male plug

Acceptance/emission angle

Vertical 150° (75°+75°)

Horizontal 360°

Communication area Approx 9 ~ 10 m in radius from the point underneath the unit

(ceiling height: 2.5 ~ 4.5 m)

operation as well simultaneously to receive (1+3 channels) simultaneous interpretation

Mechanical

Mounting Tripod, wall or ceiling mounting

Dimensions Ø 181 mm, 63 mm (height)

Weight 0.5 kg

Color Red and gray

HCS-5300TD-W digital infrared transceiver manages communication between main unit and conference units. It can be mounted onto the ceiling and wall for optional coverage or fixed onto a tripod at any appropriate spot.

Ordering Information

HCS-5300TD-W Digital Infrared Transceiver

(tripod, wall or ceiling mounting, wide-angle)

Footprint of HCS-5300TD-W digital infrared transceiver (If H=2.5 ~ 3.0 m, then R= 10 m; if H=3.5 ~ 4.5 m, then R= 9 m)

2.20

HCS-5300 Series Digital Infrared Wireless Conference System

HCS-5300TD-N

Digital Infrared Transceiver

Indicators

■ Power indicating light

Interconnections

■ Equipped with a 2.0 m specific cable with 6P-DIN male plug.

For extension purposes, 6P-DIN extension cable can be used.

Technical Specifications

Electrical

Wavelength 870 nm

Modulation method DQPSK

Carrier frequency 2 ~ 8 MHz

Features

Voltage 33 V DC (supplied from HCS-5300M)

Compliant to IEC 60914

Infrared transmitting carrier frequency conforms to IEC

61603-7, DQPSK digital modulation/demodulation technology

Transmitting in 2 ~ 8 MHz frequency band, eliminating the

interference from HF-driven lights

Tripod, wall or ceiling mounting, easy to install

Inside the coverage area of infrared signals,

HCS-5100R/RA digital infrared receivers can be in

Current consumption Max. 550 mA

Connector 6P-DIN

Cable 2.0 m specific cable with 6P-DIN male plug

Acceptance/emission angle

Vertical 90° (45°+45°)

Horizontal 360°

Communication area Approx 8 m in radius from the point underneath the unit

(ceiling height: 5 ~ 7 m)

operation as well simultaneously to receive (1+3 channels) simultaneous interpretation

Mechanical

Mounting Tripod, wall or ceiling mounting

Dimensions Ø 181 mm, 63 mm (height)

Weight 0.5 kg

Color Red and gray

HCS-5300TD-N digital infrared transceiver manages communication between main unit and conference units. It can be mounted onto the ceiling and wall for optional coverage or fixed onto a tripod at any appropriate spot.

Ordering Information

HCS-5300TD-N Digital Infrared Transceiver

(tripod, wall or ceiling mounting)

Footprint of HCS-5300TD-N digital infrared transceiver (If H=5 ~ 7 m, then R= 8 m)

2.21

HCS-5300 Series Digital Infrared Wireless Conference System

HCS-5300TDB

Digital Infrared Transceiver

HCS-5300TDB digital infrared transceiver manages communication between main unit and conference units. It can be fixed onto a tripod at any appropriate spot.

Indicators

■ Power indicating light

Interconnections

■ Equipped with a 2.0 m specific cable with 6P-DIN male plug.

For extension purposes, 6P-DIN extension cable can be used.

Technical Specifications

Electrical

Wavelength 870 nm

Modulation method DQPSK

Carrier frequency 2 ~ 8 MHz

Features

Voltage 33 V DC (supplied from HCS-5300M)

Compliant to IEC 60914

Infrared transmitting carrier frequency conforms to IEC

61603-7, DQPSK digital modulation/demodulation technology

Transmitting in 2 ~ 8 MHz frequency band, eliminating the

interference from HF-driven lights

Tripod-mounting, easy to install

Inside the coverage area of infrared signals,

HCS-5100R/RA digital infrared receivers can be in operation as well simultaneously to receive (1+3 channels) simultaneous interpretation

Current consumption Max. 550 mA

Connector 6P-DIN

Cable 2.0 m specific cable with 6P-DIN male plug

Acceptance/emission angle

Vertical 40°

Horizontal 360°

Communication area Approx 8 m in radius from the unit

Mechanical

Mounting Tripod-mounting

Dimensions Ø 181 mm, 63 mm (height)

Weight 0.5 kg

Color Red and gray

Ordering Information

HCS-5300TDB Digital Infrared Transceiver (tripod-mounting)

Footprint of HCS-5300TDB digital infrared transceiver

2.22

HCS-5300 Series Digital Infrared Wireless Conference System

HCS-5300TDS-W

Digital Infrared Transceiver

Indicators

■ Power indicating light

Interconnections

■ Equipped with a 2.0 m specific cable with 6P-DIN male plug.

For extension purposes, 6P-DIN extension cable can be used.

Technical Specifications

Electrical

Wavelength 870 nm

Modulation method DQPSK

Carrier frequency 2 ~ 8 MHz

Voltage 33 V DC (supplied from HCS-5300M)

Current consumption Max. 550 mA

Connector 6P-DIN

Cable 2.0 m specific cable with 6P-DIN male plug

Vertical 150° (75°+75°)

Features

Acceptance/emission angle

Horizontal 360°

Compliant to IEC 60914

Communication area Approx 9 ~ 10 m in radius from

Infrared transmitting carrier frequency conforms to IEC the point underneath the unit

61603-7, DQPSK digital modulation/demodulation

(ceiling height: 2.5 ~ 4.5 m)

technology

Transmitting in 2 ~ 8 MHz frequency band, eliminating the

Mechanical interference from HF-driven lights

Suspension mounting, easy to install

Inside the coverage area of infrared signals,

HCS-5100R/RA digital infrared receivers can be in operation as well simultaneously to receive (1+3 channels) simultaneous interpretation

Optional suspension length: 0.5 m, 1.0 m or 2.0 m

Mounting Suspension mounting

Dimensions Ø 201 mm, 100 mm (height)

Weight 0.63 kg

Color Red and gray

Ordering Information

HCS-5300TDS-W Digital Infrared Transceiver

(suspension, wide-angle)

HCS-5300TDS-W digital infrared transceiver manages communication between main unit and conference units. It can be mounted onto the ceiling and wall for optional coverage or fixed onto a tripod at any appropriate spot.

Optional suspension

HCS-5300TDP-05 Mounting Suspension of Digital

Infrared Transceiver (0.5 m)

HCS-5300TDP-10 Mounting Suspension of Digital

Infrared Transceiver (1.0 m)

HCS-5300TDP-20 Mounting Suspension of Digital

Infrared Transceiver (2.0 m)

Footprint of HCS-5300TDS-W digital infrared transceiver (If H=2.5 ~ 3.0 m, then R= 10 m; if H=3.5 ~ 4.5 m, then R= 9 m)

2.23

HCS-5300 Series Digital Infrared Wireless Conference System

HCS-5300TDS-N

Digital Infrared Transceiver

Technical Specifications

Electrical

Wavelength 870 nm

Modulation method DQPSK

Carrier frequency 2 ~ 8 MHz

Voltage 33 V DC (supplied from HCS-5300M)

Current consumption Max. 550 mA

Connector 6P-DIN

Cable 2.0 m specific cable with 6P-DIN male plug

Acceptance/emission angle

Vertical 90° (45°+45°)

Horizontal 360°

Communication area Approx 8 m in radius from the point underneath the unit

(ceiling height: 5 ~ 7 m)

Features

Compliant to IEC 60914

Infrared transmitting carrier frequency conforms to IEC

61603-7, DQPSK digital modulation/demodulation technology

Transmitting in 2 ~ 8 MHz frequency band, eliminating the

interference from HF-driven lights

Suspension mounting, easy to install

Inside the coverage area of infrared signals,

HCS-5100R/RA digital infrared receivers can be in operation as well simultaneously to receive (1+3 channels) simultaneous interpretation

Optional suspension length: 0.5 m, 1.0 m or 2.0 m

Mechanical

Mounting Suspension mounting

Dimensions Ø 201 mm, 100 mm (height)

Weight 0.63 kg

Color Red and gray

Ordering Information

HCS-5300TDS-N Digital Infrared Transceiver (suspension)

Optional suspension

HCS-5300TDP-05 Mounting Suspension of Digital

Infrared Transceiver (0.5 m)

HCS-5300TDP-10 Mounting Suspension of Digital

Infrared Transceiver (1.0 m)

HCS-5300TDP-20 Mounting Suspension of Digital

HCS-5300TDS-N digital infrared transceiver manages communication between main unit and conference units. It can be mounted onto the ceiling and wall for optional coverage or fixed onto a tripod at any appropriate spot.

Indicators

Infrared Transceiver (2.0 m)

■ Power indicating light

Interconnections

■ Equipped with a 2.0 m specific cable with 6P-DIN male plug.

For extension purposes, 6P-DIN extension cable can be used.

Footprint of HCS-5300TDS-N digital infrared transceiver

(If H=5 ~ 7 m, then R= 8 m)

2.24

HCS-5300MA Digital Infrared

Wireless Conference Main Unit

Features

HCS-5300 Series Digital Infrared Wireless Conference System

Original dirATC-digital infrared Audio Transmitting and

Control technologies

Supports up to 4 simultaneous interpretation language

channels (incl. the original floor channel)

Digital infrared audio processing and transmitting

technologies ensure perfect sound quality

Digital infrared transmission technology guarantees

conference privacy. Users are released from worries about eavesdropping and radio interference inherent to radio wave-based wireless communications

Operating the IR conference system does not require a

radio frequency license all over the world

Compatible with HCS-5100 series digital infrared language

distribution system, when cooperating with digital infrared language distribution system, enabling a larger audience to join in the conference

Microphone sensitivity and EQ can be adjusted

individually

Independent Mic. synchronous recording

TCP/IP communication protocol in PC controlled mode,

easy to carry out remote control

Excellent immunity to RF interference from mobile phones

and comparable devices

The digital infrared wireless conference main unit includes features for controlling delegate microphones, distributing simultaneous interpretation and conducting voting sessions, without an operator.

In combination with a PC, the main unit brings greater sophistication to conference control. Users can access an extensive range of software modules, each with a specific function in controlling and monitoring a conference, greatly expanding the capacity to manage a conference.

■ Digital infrared audio processing and transmitting technologies ensure perfect sound quality

■ Digital infrared transmission technology guarantees conference privacy. Users are released from worries about eavesdropping and radio interference inherent to radio wave-based wireless communications

■ Operating the IR conference system does not require a radio frequency license all over the world

■ Supports up to 4 simultaneous interpretation language channels (incl. the original floor channel)

■ Controls up to 1000 contribution units

■ Microphone sensitivity and EQ can be adjusted individually

■ Speech can be recorded individually or the meeting can be recorded as a sum of all audio signals when connected to record devices

■ Compatible with HCS-5100 series digital infrared language distribution system, when cooperating with digital infrared language distribution system, enabling a larger audience to join in the conference

■ System when operated in stand-alone mode can implement the following facilities:

™ "ACTIVE MICS", set the number of delegates permitted to speak at the same time (1/2/3/4)

™ "OPEN" mode, if Mic. active limit has been reached, next microphone cannot be turned on when pressing “Mic.

On/Off” button

™ "OVERRIDE" mode, if Mic. active limit has been reached, when pressing “Mic. On/Off” button, next microphone can be turned on and the first active microphone will be turned off

™ Simultaneous interpretation

■ In combination with the corresponding software modules, multiform voting can be implemented:

™ For/Against

™ Parliamentary: YES/NO/ABSTAIN

™ Multi choice/Opinion poll: 1/2/3/4/5

™ Audience response/Rating: --/-/0/+/++

■ Automatic video tracking, when cooperating with camera and video switcher unit

■ Advanced TCP/IP communication protocol in PC controlled mode, easy to carry out remote control

■ Connection to central control system through RS-232 interface for centralized control

Controls and Indicators

Functions

■ Compliant to IEC 60914 on originated dirATC-digital infrared Audio

Transmitting and Control technologies

■ Infrared transmitting carrier frequency conforms to IEC

61603-7, DQPSK digital modulation/demodulation technology

■ 256 × 32 LCD with back-lighting can display the main unit status and the menu of system configuration

■ Four buttons for configuration

■ Power switch with indicator (red)

■ LINE IN electric level adjust knob

■ Conference unit floor audio channel bass adjust knob

■ Conference unit floor audio channel treble adjust knob

■ Conference unit floor audio channel master volume adjust knob

■ Microphone operation mode indicators (OPEN/OVERRIDE)

■ Indicators of maximum active microphone number (1/2/3/4)

2.25

HCS-5300 Series Digital Infrared Wireless Conference System

Interconnections

■ Video switcher interface

■ Emergency signal interface: for connection to public emergency system. Pauses the conference automatically if the system is switched on and sends alarm signals to conference units

■ 6 digital infrared transceiver interfaces, each interface can connect 4 transceivers if operating distributor HCS-5352, thus each main unit can connect up to 24 transceivers

■ Balanced floor audio output interface (Ø 6.4 mm) for connection to PA

■ Balanced LINE IN interface (Ø 6.4 mm) for connection to an external audio device

■ Power supply socket

■ Interpretation audio input interfaces (1 ~ 3)

■ 4 single mic. output interfaces for recording speech individually

■ 1 mixed audio output interface for recording the meeting

■ HF signal output interface (BNC socket) for connection to

HCS-5100T digital infrared radiator

■ Interpreter’s unit interface for connection up to 3

HCS-850PB/10 interpreter units

■ RS-232 interface for connection to central control system

Technical Specifications

Electrical

Frequency response 20 Hz to 20 kHz (-3dB)

SNR ≥80 dBA

Dynamic range ≥80 dB

THD at 1kHz ≤0.05%

Crosstalk attenuation at 1 kHz ≥80 dB

Power supply

America, Japan AC 110 V ~ 120 V, 60 Hz

Asia, Europe AC 220 V ~ 240 V, 50 Hz

Power consumption Max. 160 W

Audio inputs

LINE IN +6 dBV, BAL.

AUDIO INPUT (CH 1 ~ 3) RCA×3 -12 dBV ~ +12 dBV, UNBAL.

Audio outputs

LINE OUT +6 dBV, BAL.

SINGLE MIC. OUTPUT RCA×4 -3 dBV, UNBAL.

MIX (1~4) OUTPUT RCA×1 +6 dBV, UNBAL.

Interface data

Transceivers I/O terminal 6P-DIN socket × 6

External control terminal RS-232 D-sub (9P, male),

USB interface,

RJ-45 (ETHERNET)

Interpreter’s unit terminal 25P-DIN socket × 1

HF OUT (Radiator terminal) BNC connector × 1

Alarm terminal 3.81 mm Phoenix connectors, 2-pole

Video switcher terminal 3.81 mm Phoenix connectors, 4-pole

Mechanical

Mounting Tabletop or mounted in a 19” rack

Dimensions (h x w x d)

For table use, with feet 99 x 430 x 325 mm

For 19” rack use, with brackets 89 x 478 x 350 mm

Weight 8.3 kg

Color White

Ordering Information

HCS-5300MA Digital IR Wireless Conference System Main Unit

(voting, 1+3 CHs)

2.26

HCS-5300 Series Digital Infrared Wireless Conference System

System Connection

2.27

HCS-5300 Series Digital Infrared Wireless Conference System

HCS-5300MB Digital Infrared

Wireless Conference Main Unit

Functions

■ Compliant to IEC 60914 on originated dirATC-digital infrared Audio

Transmitting and Control technologies

■ Infrared transmitting carrier frequency conforms to IEC

61603-7, DQPSK digital modulation/demodulation technology

■ Digital infrared audio processing and transmitting technologies ensure perfect sound quality

■ Digital infrared transmission technology guarantees conference privacy. Users are released from worries about eavesdropping and radio interference inherent to radio

Features

wave-based wireless communications

■ Operating the IR conference system does not require a radio frequency license all over the world

Original dirATC-digital infrared Audio Transmitting and

■ Supports up to 4 simultaneous interpretation language

Control technologies

Supports up to 4 simultaneous interpretation language

channels (incl. the original floor channel)

Digital infrared audio processing and transmitting

technologies ensure perfect sound quality

Digital infrared transmission technology guarantees

conference privacy. Users are released from worries about eavesdropping and radio interference inherent to radio wave-based wireless communications

Operating the IR conference system does not require a

radio frequency license all over the world

Compatible with HCS-5100 series digital infrared language

distribution system, when cooperating with digital infrared language distribution system, enabling a larger audience to join in the conference

Microphone sensitivity and EQ can be adjusted

individually

TCP/IP communication protocol in PC controlled mode,

easy to carry out remote control

Excellent immunity to RF interference from mobile phones

and comparable devices

The digital infrared wireless conference main unit includes features for controlling delegate microphones and distributing simultaneous interpretation, without an operator.

In combination with a PC, the main unit brings greater sophistication to conference control. Users can access an extensive range of software modules, each with a specific function in controlling and monitoring a conference, greatly expanding the capacity to manage a conference. channels (incl. the original floor channel)

■ Controls up to 1000 contribution units

■ Microphone sensitivity and EQ can be adjusted individually

■ Speech can be recorded individually or the meeting can be recorded as a sum of all audio signals when connected to record devices

■ Compatible with HCS-5100 series digital infrared language distribution system, when cooperating with digital infrared language distribution system, enabling a larger audience to join in the conference

■ System when operated in stand-alone mode can implement the following facilities:

™

"ACTIVE MICS", set the number of delegates permitted to speak at the same time (1/2/3/4)

™

"OPEN" mode, if Mic. active limit has been reached, next microphone cannot be turned on when pressing “Mic.

On/Off” button

™

"OVERRIDE" mode, if Mic. active limit has been reached, when pressing “Mic. On/Off” button, next microphone can be turned on and the first active microphone will be turned off

™

Simultaneous interpretation

■ Automatic video tracking, when cooperating with camera and video switcher unit

■ Advanced TCP/IP communication protocol in PC controlled mode, easy to carry out remote control

■ Connection to central control system through RS-232 interface for centralized control

Controls and Indicators

■ 256 × 32 LCD with back-lighting can display the main unit status and the menu of system configuration

■ Four buttons for configuration

■ Power switch with indicator (red)

■ LINE IN electric level adjust knob

■ Conference unit floor audio channel bass adjust knob

■ Conference unit floor audio channel treble adjust knob

■ Conference unit floor audio channel master volume adjust knob

■ Microphone operation mode indicators (OPEN/OVERRIDE)

■ Indicators of maximum active microphone number (1/2/3/4)

2.28

HCS-5300 Series Digital Infrared Wireless Conference System

Interconnections

■ Emergency signal interface: for connection to public emergency system. Pauses the conference automatically if the system is switched on and sends alarm signals to conference units

Mechanical

Mounting Tabletop or mounted in a 19” rack

Dimensions (h x w x d)

For table use, with feet 99 x 430 x 325 mm

For 19” rack use, with brackets 89 x 478 x 350 mm

Weight 8.3 kg

Color White

Ordering Information

■ Video switcher interface

■ Balanced floor audio output interface (Ø 6.4 mm) for connection to PA

■ 6 digital infrared transceiver interfaces, each interface can connect 4 transceivers if operating distributor HCS-5352, thus each main unit can connect up to 24 transceivers

■ Balanced LINE IN interface (Ø 6.4 mm) for connection to an external audio device

■ Power supply socket

■ Interpretation audio input interfaces (1 ~ 3)

■ 4 single mic. output interfaces for recording speech individually

■ 1 mixed audio output interface for recording the meeting

■ HF signal output interface (BNC socket) for connection to

HCS-5100T digital infrared radiator

■ Interpreter’s unit interface for connection up to 3

HCS-850PB/10 interpreter units

■ RS-232 interface for connection to central control system

Technical Specifications

Electrical

Frequency response 20 Hz to 20 kHz (-3dB)

SNR ≥80 dBA

Dynamic range ≥80 dB

THD at 1kHz ≤0.05%

Crosstalk attenuation at 1 kHz ≥80 dB

Power supply

America, Japan AC 110 V ~ 120 V, 60 Hz

Asia, Europe AC 220 V ~ 240 V, 50 Hz

Power consumption Max. 160 W

Audio inputs

LINE IN +6 dBV, BAL.

AUDIO INPUT (CH 1 ~ 3) RCA×3 -12 dBV ~ +12 dBV, UNBAL.

Audio outputs

LINE OUT +6 dBV, BAL.

SINGLE MIC. OUTPUT RCA×4 -3 dBV, UNBAL.

MIX (1~4) OUTPUT RCA×1 +6 dBV, UNBAL.

Interface data

Transceivers I/O terminal 6P-DIN socket × 6

External control terminal RS-232 D-sub (9P, male),

USB interface,

RJ-45 (ETHERNET)

Interpreter’s unit terminal 25P-DIN socket × 1

HF OUT (Radiator terminal) BNC connector × 1

Alarm terminal 3.81 mm Phoenix connectors, 2 pole

Video switcher terminal 3.81 mm Phoenix connectors, 4 pole

HCS-5300MB Digital IR Wireless Conference System Main Unit

(1+3 CHs)

2.29

HCS-5300 Series Digital Infrared Wireless Conference System

System Connection

2.30

HCS-5300 Series Digital Infrared Wireless Conference System

HCS-5300MC Digital Infrared

Wireless Conference Main Unit

Functions

■ Compliant to IEC 60914 on originated dirATC-digital infrared Audio

Transmitting and Control technologies

■ Infrared transmitting carrier frequency conforms to IEC

61603-7, DQPSK digital modulation/demodulation technology

■ Digital infrared audio processing and transmitting technologies ensure perfect sound quality

■ Digital infrared transmission technology guarantees conference privacy. Users are released from worries about eavesdropping and radio interference inherent to radio

Features

wave-based wireless communications

■ Operating the IR conference system does not require a radio frequency license all over the world

Original dirATC-digital infrared Audio Transmitting and

■ Controls up to 1000 contribution units

Control technologies

Digital infrared audio processing and transmitting

technologies ensure perfect sound quality

Digital infrared transmission technology guarantees

conference privacy. Users are released from worries about eavesdropping and radio interference inherent to radio wave-based wireless communications

Operating the IR conference system does not require a

radio frequency license all over the world

Compatible with HCS-5100 series digital infrared language

distribution system, when cooperating with digital infrared language distribution system, enabling a larger audience to join in the conference

Microphone sensitivity and EQ can be adjusted

individually

TCP/IP communication protocol in PC controlled mode,

easy to carry out remote control

Excellent immunity to RF interference from mobile phones

and comparable devices

■ Microphone sensitivity and EQ can be adjusted individually

■ Speech can be recorded individually or the meeting can be recorded as a sum of all audio signals when connected to record devices

■ Compatible with HCS-5100 series digital infrared language distribution system, when cooperating with digital infrared language distribution system, enabling a larger audience to join in the conference

■ System when operated in stand-alone mode can implement the following facilities:

™

"ACTIVE MICS", set the number of delegates permitted to speak at the same time (1/2/3/4)

™

"OPEN" mode, if Mic. active limit has been reached, next microphone cannot be turned on when pressing “Mic.

On/Off” button

™

"OVERRIDE" mode, if Mic. active limit has been reached, when pressing “Mic. On/Off” button, next microphone can be turned on and the first active microphone will be turned off

■ Automatic video tracking, when cooperating with camera and video switcher unit

■ Advanced TCP/IP communication protocol in PC controlled mode, easy to carry out remote control

■ Connection to central control system through RS-232 interface for centralized control

The digital infrared wireless conference main unit includes feature for controlling delegate microphones, without an operator.

In combination with a PC, the main unit brings greater sophistication to conference control. Users can access an extensive range of software modules, each with a specific function in controlling and monitoring a conference, greatly expanding the capacity to manage a conference.

Controls and Indicators

■ 256 × 32 LCD with back-lighting can display the main unit status and the menu of system configuration

■ Four buttons for configuration

■ Power switch with indicator (red)

■ LINE IN electric level adjust knob

■ Conference unit floor audio channel bass adjust knob

■ Conference unit floor audio channel treble adjust knob

■ Conference unit floor audio channel master volume adjust knob

■ Microphone operation mode indicators (OPEN/OVERRIDE)

■ Indicators of maximum active microphone number (1/2/3/4)

2.31

HCS-5300 Series Digital Infrared Wireless Conference System

Interconnections

■ Video switcher interface

■ Emergency signal interface: for connection to public emergency system. Pauses the conference automatically if the system is switched on and sends alarm signals to conference units

■ 6 digital infrared transceiver interfaces, each interface can connect 4 transceivers if operating distributor HCS-5352, thus each main unit can connect up to 24 transceivers

■ Balanced floor audio output interface (Ø 6.4 mm) for connection to PA

■ Balanced LINE IN interface (Ø 6.4 mm) for connection to an external audio device

■ Power supply socket

■ 4 single mic. output interfaces for recording speech individually

■ 1 mixed audio output interface for recording the meeting

■ HF signal output interface (BNC socket) for connection to

HCS-5100T digital infrared radiator

■ RS-232 interface for connection to central control system

Technical Specifications

Electrical

Frequency response 20 Hz to 20 kHz (-3dB)

SNR ≥80 dBA

Dynamic range ≥80 dB

THD at 1kHz ≤0.05%

Crosstalk attenuation at 1 kHz ≥80 dB

Power supply

America, Japan AC 110 V ~ 120 V, 60 Hz

Asia, Europe AC 220 V ~ 240 V, 50 Hz

Power consumption Max. 160 W

Audio inputs

LINE IN +6 dBV, BAL.

Audio outputs

LINE OUT +6 dBV, BAL.

SINGLE MIC. OUTPUT RCA×4 -3 dBV, UNBAL.

MIX (1~4) OUTPUT RCA×1 +6 dBV, UNBAL.

Interface data

Transceivers I/O terminal 6P-DIN socket × 6

External control terminal RS-232 D-sub (9P, male),

USB interface,

RJ-45 (ETHERNET)

HF OUT (Radiator terminal) BNC connector × 1

Alarm terminal 3.81 mm Phoenix connectors, 2 pole

Video switcher terminal 3.81 mm Phoenix connectors, 4 pole

Mechanical

Mounting Tabletop or mounted in a 19” rack

Dimensions (h x w x d)

For table use, with feet 99 x 430 x 325 mm

For 19” rack use, with brackets 89 x 478 x 350 mm

Weight 8.3 kg

Color White

Ordering Information

HCS-5300MC Digital IR Wireless Conference System Main Unit

2.32

HCS-5300 Series Digital Infrared Wireless Conference System

System Connection

2.33

HCS-5300 Series Digital Infrared Wireless Conference System

HCS-5300BAT

Lithium Rechargeable Battery Pack

HCS-ADP15V Power Adapter

Features

■ Lithium rechargeable battery pack

■ Used for supplying power to HCS-5300 series digital infrared wireless conference unit

Technical Specifications

Electrical

Nominal voltage 11.1 V DC

Nominal capacity 4500 mAh

Mechanical

Dimensions (h x w x d) 28 × 140 × 58 mm

Weight 0.32 kg

Color black

Ordering Information

HCS-5300BAT Lithium Rechargeable Battery Pack

2.34

Features

■ Used for supplying power to HCS-5300 series digital infrared wireless conference unit

Technical Specifications

Electrical

Mains voltage AC 100 ~ 240 V, 50/60 Hz

Output DC 15V, 2.2A

Connector UL, CE or VDE type, according to the territory of selling

Mechanical

Cable length 3 m

Dimensions (h x w x d) 28 × 95 × 45 mm

Weight 0.3 kg

Color black

Ordering Information

HCS-ADP15V Power Adapter (DC 15 V, 2.2 A)

HCS-5300 Series Digital Infrared Wireless Conference System

HCS-5300CHG/08 Charging Unit HCS-5352 1×4 Cable splitter

Features

■ Used for charging HCS-5300BAT Lithium batteries

■ Charges 8 pcs of HCS-5300BAT batteries per charging

■ Uses universal power supply with automatic voltage matching

Controls and Indicators

■ Charging indicator (red)

■ Fully charged indicator (green)

Interconnections

■ Power output interface

■ Power input interface

Technical Specifications

Electrical

Mains voltage

America, Japan AC 110 V to 120 V, 60 Hz

Asia, Europe AC 220 V to 240 V, 50 Hz

Power consumption Max. 380 W

Charging time Approx 6 hours

Charging capacity 8 HCS-5300BAT batteries

Mechanical

Dimensions (h x w x d) 74 × 288 × 300 mm

Weight 4.5 kg

Color white

Ordering Information

HCS-5300CHG/08 Charging Unit (8 pcs/case)

2.35

Features

■ Has one in and four out structure

■ Each main unit has 6 digital infrared transceiver interfaces, each interface can connect 4 transceivers if operating distributor HCS-5352, thus each main unit can connect up to

24 transceivers

Interconnections

■ 4 × 6P-DIN sockets

■ 1 m cable with 6P-DIN male plug

Technical Specifications

Electrical

Voltage 33 V DC (supplied from HCS-5300M)

Number of I/O terminals 1 in / 4 out

Mechanical

Dimensions (h x w x d) 35 × 149 × 90 mm

Weight 0.32 kg

Color black

Ordering Information

HCS-5352 Cable Splitter (1 input & 4 outputs, for HCS-5300 series)

HCS-5300 Series Digital Infrared Wireless Conference System

CBL5300

Dedicated Transceiver Cable

HCS-5300TZJ Tripod

Features

■ Dedicated cable for HCS-5300T series digital infrared transceiver

■ 1 × 6P-DIN male plug

■ 1 × 6P-DIN female socket

■ Ø 6 mm

Features

Ordering Information

■ Used for mounting HCS-5300TB, HCS-5300TC or

HCS-5300TD

■ Max. adjustable height: 1.4 m

■ Weight: 2.55 kg

CBL5300-05 5 m Dedicated Transceiver Cable

CBL5300-10 10 m Dedicated Transceiver Cable

Ordering Information

CBL5300-20 20 m Dedicated Transceiver Cable

CBL5300-50 50 m Dedicated Transceiver Cable

HCS-5300TZJ Tripod

2.36

HCS-5300 Series Digital Infrared Wireless Conference System

System Connection

2.37

HCS-5300 Series Digital Infrared Wireless Conference System

HCS-5300 Series Application Software

HCS-5300 application software is comprehensive, reliable and user-friendly. But it is also an easy care software system which helps the operator to manage the conference efficiently from the very beginning of a meeting until the post-meeting work. With the

PC installed HCS-5300 application software connected into the

FDCS, operator can manage all aspects of the conference centrally.

The operation turns out to be easy and efficient.

HCS-5300 application software is a modularized software with various functional modules:

■ Basic System Setup Management Module (HCS-5310/20)

■ Professional Venue Design Module (HCS-5312/20)

■ Microphone Management Module (HCS-5313/20)

■ Voting Management Module (HCS-5314/20)

■ Video Control Module (HCS-5315/20)

■ Simultaneous Interpretation Module (HCS-5316/20)

■ Synchronous Audio Recording Management Module

(HCS-5319/20)

■ Synchronous Video Recording Management Module

(HCS-5320/20)

■ Multi-user Conference Control Management Module

(HCS-5321/20)

■ Dual PC Server Hot Spare Module (HCS-5322/20)

■ Agenda Control Module (HCS-5323/20)

2.38

HCS-5300 Series Digital Infrared Wireless Conference System

HCS-5310/20

Basic Software Module

Main unit configuration facility

Basic software module consists of an amount of facilities, e.g. venue design (normal edition), conference management, main unit configuration, contribution unit configuration, information display, system report and user management.

Venue design facility

CMU parameters setup

Venue design (normal edition)

Functions

Converts the venue seating into an intuitive, graphical and controllable interface as a basis for further use, according to the actual layout of the venue

■ Self-designing the background picture and color, supporting pictures of any size

■ Microphone number, amount of microphones per line, icon type

- icon transparency optionally

■ Freely drag and drop the microphone icon

■ Reconfiguration of the initialized settings, available at any time

■ Save/open files for file management

■ Especially suitable for small-scale and medium-sized meeting room/hall. The professional edition of venue design module offers more facilities described in HCS-5312/20 Professional

Venue Design Module.

2.39

Main unit control panel

Functions

Module provides CMU parameters setup and CMU control panel sub-modules.

CMU parameters setup:

™

Chairman priority mode: enable All off or All mute operation when chairman presses priority button

ƒ All off: turn off all delegate microphones

ƒ All mute: temporarily mute all delegate microphones; the former state is restored once the button released

™

Ring mode: turn on/off all kinds of ring tones of conference units triggered when pressing priority key

™

Automatically turn off microphone time: the microphone will be automatically switch off after a period of silence and the period shall be setup

™

Compression setup: Setup dynamic range compression parameters. Function: when the sound pressure is exceeding the compression threshold value, the gain level for the audio signal will be reduced by a given ratio.

HCS-5300 Series Digital Infrared Wireless Conference System

CMU control panel: synchronously display and adjust the status of the conference main unit, for flexible control of the

CMU by the operator

™ Active Microphones (1/2/3/4)

™ Operation mode (OPEN/OVERRIDE/APPLY)

™ Original floor channel volume of the contribution unit (dB)

™ Original floor channel treble of the contribution unit (dB)

™ Original floor channel bass of the contribution unit (dB)

™ Line-in volume (dB)

™ Line-in mute

Contribution unit configuration facility

Conference information management

Setup contribution unit interface

Functions

Conference Information

Functions

Setup and reconfigure internal parameters of the contribution unit by the administrator.

Parameters include:

■ Select contribution unit to setup

■ Gain of the contribution unit (dB)

■ Treble of the contribution unit (dB)

■ Bass of the contribution unit (dB)

User management

Comprehensive conference information management facility, for clear and easy user management.

■ Includes conference name and meeting information

■ Each conference consists of several meetings

■ Creation of a new meeting for appointed conference

■ Meeting:

™ Meeting content: meeting name, meeting room name, meeting start time, sign in mode, quorum and conference

■ content

™ Display of convoked meetings in distinct colors

™ Locking a convoked meeting for meeting data protection

Freely switch between the meetings to manage

User management interface

Functions

Create/delete a user, change user password and authorization

■ Create a new user, and set his/her account, password, authority

■ Change user's password and authorization

■ Supports deleting a user

2.40

HCS-5300 Series Digital Infrared Wireless Conference System

Information display Report system

Screen management

Functions

Include screen management: design of a screen and its related activated event.

■ Set distinct screen projects for distinct conferences and languages

■ Predetermination of screen page contents: includes page color, page name, page size, etc

■ Editing screen page contents: includes add text, picture, delegate’s photo, voting results, etc

■ Select the page to display when conference event starts. Each conference event corresponds to a particular screen page

■ Allocation of an alias for each screen for more convenience

Report system

Functions

Conference information output from the software's database, for backup or printout purposes. The conference information includes:

■ Summarizing voting results

Ordering Information

HCS-5310/20 Basic Software Module

2.41

HCS-5300 Series Digital Infrared Wireless Conference System

HCS-5312/20

Professional Venue Design Module

■ Powerful "object attribute" function: object attribute can be set and changed, including:

™ Set group name and object name

™ Set unique ID and ID display mode for every object, supporting different fonts and sizes

™ Set starting object status

™ Set a radian for the object group and design seat layout according to true seating positions

™ Set start index of the object group

™ Change the amount of the units in an object group

™ Set numbering increment

™ Set initial background color and whether transparent or not

™ Set start and end coordinates of object group

■ Object ID check facilities

■ Support object copy, cut, paste and delete operation

■ Object arrangement can be changed

Venue design (professional)

Ordering Information

HCS-5312/20 Professional Venue Design Module

Functions

In distinction from the normal edition of the Venue Design Module, the professional version has additional powerful functions to design manifold layouts of venues. The main difference is the availability of functional buttons for file operation (toolbar buttons) and object operation (buttons below toolbar buttons) in the toolbars. In addition, the functions are also available in the file right-click pop-up menu.

Moreover, the Object Properties dialog box is floating on the window for fast changing the properties of current object.

™

Venue design supports file operation, including: new, open, save as, and print

™

Create a new conference file: set the background color, room size and other parameters, including:

ƒ Background

ƒ Line

ƒ Amount per line

ƒ Seat

ƒ Seat

ƒ Transparent icon or not

ƒ Show as MIC. icon or not

ƒ Re-arrange seat position or not

™

The parameters above can be changed at any time through

“Configuration” menu on the toolbar

™

Add seat/microphone icons line by line, 8 seats/mics per line as default value. The amount of seats/microphones per line can be modified. While the normal edition can add only one seat at one go, the professional venue design module can add groups with more than one seat/microphone per group.

™

Shifting facility for complete layout

™

Picture library with default (customized and/or recurrent) objects

™

Modifiable object information, e.g. object name, image path, distinguishable colors for displaying object images in different states (e.g. signed-in etc.)

2.42

HCS-5300 Series Digital Infrared Wireless Conference System

HCS-5313/20

Microphone Management Module

Functions

Unit arrangement

Delegate information

Microphone control

Seat arrangement

, delegate management and microphone

control sub-modules

Seat arrangement facility includes delegate seating and unit arrangement function modules

™

Delegate seating is used to assign seats for the delegates, e.g.:

ƒ Assign a single seat for each delegate

ƒ Section seating, automatic seat assignment for a group of delegates, supports new assignment – in parts or entirely

ƒ Clear a single seat if required for a new assignment

™

Unit arrangement: assign the conference units to the corresponding positions based on the true delegate seating, current cabling and layout:

ƒ Unit arrangement, assign the conference units to the true delegate seating

ƒ Delete unit, reassign the units

ƒ Locate seat position by menu operation

ƒ Operate the arranged units to check the arrangement

Delegate management includes two sub-modules: delegate information and participants

™

Delegate information: create and manage the delegate’s database

ƒ Edit delegate information: number, type, name, voting weight, leader (yes or no), presidium (yes or no) etc.

Supports individual picture in the database

ƒ Users can customize the options in the above items

ƒ Customer-specific options for above items

ƒ Supports customized delegate grouping

ƒ Fast search facility

ƒ Database

™

Participants: select the delegates to participate in the conference from the database

ƒ List delegate information by group or by delegate type

ƒ Group adding function

Microphone control: combined with venue design, seating arrangement, delegate management, conference management and microphone setup, for controlling and monitoring current microphone status, as well as automatic video tracking. Facility includes:

™

Microphone on/off control

™

Close all active microphone

™

Delegate speech timing

™

Record and save speaking

™

Detailed information available from the delegate database for online display purposes

™

If cooperating with an automatic video tracking system, camera presets can be made for each discussion unit to transmit speaker’s picture simultaneously to a hall display

Ordering Information

HCS-5313/20 Microphone Management Module

2.43

HCS-5300 Series Digital Infrared Wireless Conference System

HCS-5314/20

Voting Management Module

Topics and Voting

Display voting result

Unit arrangement

2.44

Delegate information

Functions

Voting management

, seat arrangement and delegate

management sub modules.

Voting management:

™

Topics information management

ƒ Setup, save, add or delete topics file before the meeting

ƒ Open topics control interface and display topics content to large screen

ƒ Printout the topics list and information and distribute to delegates as meeting information

ƒ Multiple voting facilities available, suitable for various conferences, including:

— For/Against

— Parliamentary:

— Questionnaire /Opinion poll: 1/2/3/4/5

— Audience response/Rating: --/-/0/+/++

ƒ Control modes: chairman control/ operator control/time controlled voting

ƒ Calculation: predefined or in relation to the participants attending the meeting in person

ƒ Register mode: nominative/ballot

ƒ Validity mode: first key press valid/last key press valid

ƒ Pass rate: between 1% and 100%

™

Display voting result to large screen

™

Clear and vivid voting result display modes

(numeric/bar/pie)

™

Print or save voting result

™

Sign-in before the voting to improve the security and validity of voting result

HCS-5300 Series Digital Infrared Wireless Conference System

Seat arrangement facility includes delegate seating and unit arrangement function modules

™ Delegate seating is used to assign seats for the delegates, e.g.:

ƒ Assign a single seat for each delegate

ƒ Section seating, automatic seat assignment for a group of delegates, supports new assignment – in parts or entirely

ƒ Clear a single seat if required for a new assignment

™ Unit arrangement: assign the conference units to the corresponding positions based on the true delegate seating, current cabling and layout:

ƒ Unit arrangement, assign the conference units to the true delegate seating

ƒ Delete unit, reassign the units

ƒ Locate seat position by menu operation

ƒ Operate the arranged units to check the arrangement

Delegate management includes two sub-modules: delegate information and participants

™ Delegate information: create and manage the delegate’s database

ƒ Edit delegate information: number, type, name, voting weight, leader (yes or no), presidium (yes or no) etc.

Supports individual picture in the database

ƒ Customer-specific options for above items

ƒ Supports customized delegate grouping

ƒ Fast search facility

ƒ Database

™ Participants: select the delegates to participate in the conference from the database

ƒ List delegate information by group or by delegate type

ƒ Group adding function

HCS-5315/20 Video Control Module

Video matrix

Camera control

Ordering Information

Functions

HCS-5314/20 Voting Management Module

Carries out automatic video tracking when cooperating with camera and video switch unit.

■ Setup video matrix: set input/output channels for computer, camera and other video apparatus according to the connections between video equipment and video switch unit.

The configuration can be sent to the main unit for synchronization

■ Video switch: switch among different input and output video signals according to the video matrix

■ Camera preset: cooperating with microphone management module to set and adjust the camera preset for each seat/microphone and to transmit speaker’s video picture simultaneously to a hall display

■ Camera control: preset the panorama of the conference venue

Ordering Information

HCS-5315/20 Video Control Module

2.45

HCS-5300 Series Digital Infrared Wireless Conference System

HCS-5316/20

Simultaneous Interpretation Module

HCS-5319/20

Synchronous Recording Module

Interpretation Channel Setup

Functions

Setup the simultaneous interpretation channels:

■ Simultaneous interpretation channel setup:

™

Set the channel number and language for each channel and save into the database

™

Set max. input level of each channel when HCS-850PB/10 is not in use

™

Send the configuration to the main unit for synchronization

■ Display main unit configuration on the window

Ordering Information

HCS-5316/20 Simultaneous Interpretation Module

Voice record interface

Functions

Records speakers’ audio information: into conference management application software, easy to operate

™

Begin/end automatic recording according to microphone on/off

™

Setup record audio quality

™

Once microphone enabled, speaking delegate's voice is recorded in audio file (WAV or MP3 format)

™

Saved audio file available for copying, playback, etc.

™

When using automatic recording function, the number of active microphones is limited to one

■ If automatic audio recording is not activated, operator manually starts/stops recording. Record file name display

™

Integrated file management

™

Search facilities, search audio record file needed to playback quickly (by conference ID, speaker, begin time, continuous time, etc.)

™

“Playback All”: recordings playback one by one

™

Recorded file playback, fast play, pause/stop etc.

™

General file format saving: saved file playback by conventional media player

™

Delete any recorded file or all recorded files

Ordering Information

HCS-5319/20 Synchronous Recording Module

2.46

HCS-5320/20 Professional Digital

Video & Audio Recorder Module

Functions

HCS-5300 Series Digital Infrared Wireless Conference System

Preview interface

Setup channel parameters

■ Includes layout, preview, record, connect DCS, DVR control, capture, playback, setup system parameters, setup channel parameters and DVR channel list functions

™ Layout: setup layout of video preview sub screen – selection of 1, 4, 6, or 8 video preview sub screens

™ Preview: preview video/audio signal of each channel

™ Record: start/stop record for selected channel

™ Connect DCS: connect to DCS server and DCS backup server, ensuring an undisturbed recording process

™ DVR control: control DVR

™ Capture: capture a picture for selected sub screen

™ Playback:

ƒ Select channel number for playback – select anyone or all

ƒ Select file content for playback: panorama, video track, simultaneous interpretation and other

ƒ Select file type for playback: including all files, remote files, local video files and local pictures (local = on PC)

ƒ Search facility: search a video for playback by meeting ID, speaker name, speaking time, etc.

ƒ Play Control: fast play, pause/stop, etc.

™ Setup system parameters:

ƒ Set display format (e.g. sampling rate) for audio and video

ƒ Set DVR parameters

™ Setup channel parameters: set video and audio content for each channel, and record automatically according to conference status

ƒ Video

— Video track: start record when microphone is turned on and stop record when microphone is turned off

— Panorama: start record when conference begins and stop record when conference ends

— Other: start/stop record manually by operator

— Simultaneous interpretation: connect SI output channel of DCS to input channel of DVR, and select language for recording manually

ƒ Audio content: composite or isolated audio

— Isolated

— Composite

ƒ Stream type: video only or video & audio composite

— Video only: record only video signal

— Video & audio: record video and audio composite signal

TAIDEN

conference synchronous digital video & audio recorder integrates several techniques in the IT domain and realizes powerful video/audio compressing, video/audio recording and playback functions.

■ Display of channel states, alarm states, connection status and

DVR parameters (brightness, contrast, hue and saturation)

Ordering Information

Recorder Module

HCS-5320/20 Professional Digital Video & Audio

2.47

HCS-5300 Series Digital Infrared Wireless Conference System

HCS-5321/20

Multi-User Console Module

HCS-5322/20

Dual PC Server Hot Spare Module

The primary window of multi-user console

Functions

If more than one operator is involved, a multi-user console is available for controlling speaking and voting, apart the system application software. A maximum of 5 multi-user consoles can be connected at the same time.

Basic conference control module:

■ System parameters setup and download venue files from the server

Ordering Information

HCS-5321/20 Multi-User Console Module

2.48

Start to backup interface

Functions

HCS-5322/20 dual PC server hot-spare is a disaster protective structure. If the main operating computer breaks down during a conference, the backup computer immediately substitutes the main computer and continues conference management.

After connection to main operating computer, the backup console application first starts an automatic backup (incl. database and conference related information). If there is any change in the database, the backup console application will update backup automatically.

Ordering Information

HCS-5322/20 Dual PC Server Hot Spare Module

HCS-5300 Series Digital Infrared Wireless Conference System

HCS-5323/20

Agenda Management Module

Agenda Information

Functions

Agenda is a list of meeting activities in the order in which they are to be worked off. The agenda is prepared beforehand. It may include sign-in, voting and discussion. Agenda edit prepares all activities and their sequence to ensure convenience and a well arranged course of events. Agenda Management module consists of agenda information management and agenda control sub modules.

Agenda information management: edit agenda content and sequence

™

Includes agenda name, agenda type and activity

™

Sequence of each activity can be adjusted - user can add, modify, delete an activity

Agenda control: control the meeting process according to the pre-defined agenda content and sequence

™

Select an agenda from the agenda list and execute it

™

List the status of each agenda

™

Agenda can be edited, added, modified, or deleted during the meeting

Ordering Information

HCS-5323/20 Agenda Management Module

2.49

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
