UFM 18VDA

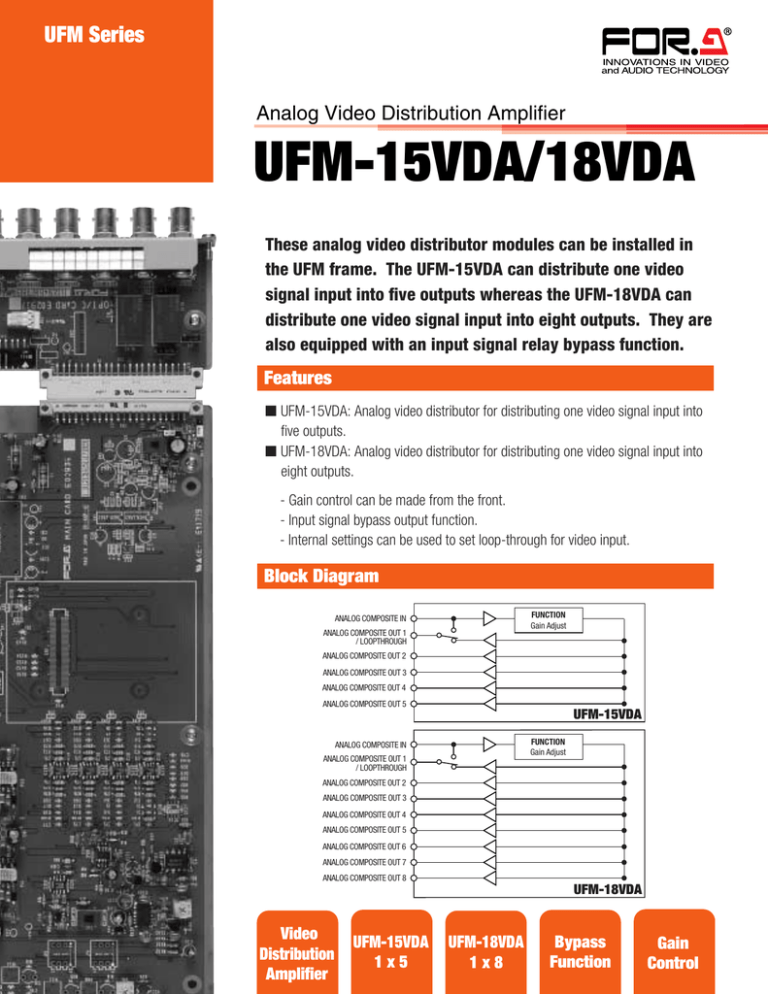

UFM Series
Analog Video Distribution Amplifier
UFM-15VDA/18VDA
These analog video distributor modules can be installed in
the UFM frame. The UFM-15VDA can distribute one video
signal input into five outputs whereas the UFM-18VDA can
distribute one video signal input into eight outputs. They are
also equipped with an input signal relay bypass function.
Features
n UFM-15VDA: Analog video distributor for distributing one video signal input into
five outputs.
n UFM-18VDA: Analog video distributor for distributing one video signal input into
eight outputs.
- Gain control can be made from the front.
- Input signal bypass output function.
- Internal settings can be used to set loop-through for video input. Block Diagram
FUNCTION
Gain Adjust
ANALOG COMPOSITE IN
ANALOG COMPOSITE OUT 1
/ LOOPTHROUGH
ANALOG COMPOSITE OUT 2
ANALOG COMPOSITE OUT 3
ANALOG COMPOSITE OUT 4
ANALOG COMPOSITE OUT 5
UFM-15VDA
FUNCTION
Gain Adjust
ANALOG COMPOSITE IN
ANALOG COMPOSITE OUT 1
/ LOOPTHROUGH
ANALOG COMPOSITE OUT 2
ANALOG COMPOSITE OUT 3
ANALOG COMPOSITE OUT 4
ANALOG COMPOSITE OUT 5
ANALOG COMPOSITE OUT 6
ANALOG COMPOSITE OUT 7
ANALOG COMPOSITE OUT 8
Video
Distribution
Amplifier
UFM-15VDA
1x5
UFM-18VDA
UFM-18VDA
1x8
Bypass
Function
Gain
Control
UFM-15VDA / 18VDA Specifications
UFM-15VDA
UFM-18VDA Composite: 1.0V(p-p), 75Ω or high-impedance loopthrough, 1ea.
Composite: 1.0V(p-p) ±0.3dB, 75Ω, 5ea.(4ea. at Input loopthrough), BNC Composite: 1.0V(p-p) ±0.3dB, 75Ω, 8ea.(7ea. at Input loopthrough), BNC
±3dB for input signal
±10mV (at clamp), ±10mV for input signal (at DC couple), OFF clamp, AC couple output
100kHz - 12MHz ±0.3dB (100Hz base)
Less than 1%
Less than 0.5% / 0.5º (NTSC/PAL)
Better than 60dB(p-p/rms)
0ºC - 40ºC / 30% - 90% (no condensation)
+12VDC - +24VDC ±10% / Approx. 2.9W / +12VDC: Approx. 0.26A, +24VDC: Approx. 0.13A
106 (W) x 303 (D) mm (Front board), 108.5 (W) x 20 (H) x 66.1 (D) mm (Rear board) / Approx. 0.5kg
1 slot
2 slot
Operation manual
l Input
l Output
l Output Gain Range
l Output DC offset
l Frequency
l K Factor
l DG/DP
l S/N Ratio
l Temperature / Humidity
l Power / Consumption / Draw
l Dimensions / Weight
l Require Slot
l Accessories
UFM-15VDA Rear View
1/BY-PASS
VIDEO IN
THRU
UFM-18VDA Rear View
2
3
4
VIDEO OUT
5
6
7
8
3
4
5
UFM-15VDA
1/BY-PASS
VIDEO IN
THRU
2
VIDEO OUT
UFM-18VDA
Universal Frame Line-up
UF-106A
UF-112
Universal frame that can install up to 6 UFM modules,
provides redundancy and universality, and contributes to
reduced system space
Universal frame that can install up to 12 UFM modules,
provides redundancy and universality, and supports remote monitoring with installation of control board
FOR-A COMPANY LIMITED
Head Office : 3-8-1 Ebisu, Shibuya-ku, Tokyo 150-0013, Japan
FOR-A America Corporate Office : 11125 Knott Ave., Suite #A, Cypress, CA 90630, U.S.A.
FOR-A America East Coast Office : 1065 Avenue of the Americas Suite #1701A New York,NY 10018, U.S.A.
FOR-A America Distribution & Service Center : 2400 N.E. Waldo Road, Gainesville, FL 32609, U.S.A.
FOR-A Corporation of Canada : 425 Queen St. W. #211, Toronto, Ontario M5V 2A5, CANADA
FOR-A UK Limited : UNIT C71, Barwell Business Park, Leatherhead Road, Chessington Surrey, KT9 2NY, U.K.
FOR-A Italia S.r.l. : Viale Europa 50 20093, Cologno Monzese (MI), Milan, ITALY
FOR-A Corporation of Korea : 801 Dangsan Bld., 53-1 Dangsan-Dong, Youngdeungpo-Gu, Seoul 150-800, Korea
Homepage:http://www.for-a.com/
+81 (0)3-3446-3936
+1 714-894-3311
+1 212-861-2758
+1 352-371-1505
+1 416-977-0343
+44 (0)20-8391-7979
+39 02-254-3635/6
+82 (0)2-2637-0761
Fax : +81 (0)3-3446-1470
Fax : +1 714-894-5399
Fax : +1 212-861-2793
Fax : +1 352-378-5320
Fax : +1 416-977-0657
Fax : +44 (0)20-8391-7978
Fax : +39 02-254-0477
Fax : +82 (0)2-2637-0760
© 2006 FOR-A Company Ltd. FOR-A is a registered trademark of FOR-A Company, Ltd. Design and specifications subject to change without notice. Printed in Japan. 0603KM1A
