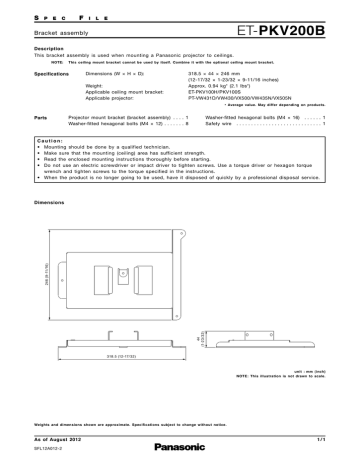

ET PKV200B
S
P
E
F
C
I
L
E
ET-PKV200B
Bracket assembly
­D escription
This bracket assembly is used when mounting a Panasonic projector to ceilings.
NOTE:
This ceiling mount bracket cannot be used by itself. Combine it with the optional ceiling mount bracket.
Specifications
Dimensions (W × H × D):
Weight:
Applicable ceiling mount bracket:
Applicable projector:
318.5 × 44 × 246 mm
(12-17/32 × 1-23/32 × 9-11/16 inches)
Approx. 0.94 kg* (2.1 lbs*)
ET-PKV100H/PKV100S
PT-VW431D/VW430/VX500/VW435N/VX505N
* Average­ value.­ May­ differ­ depending­ on­ products.
Parts
Projector mount bracket (bracket assembly) . . . . 1
Washer-fitted hexagonal bolts (M4 × 12) . . . . . . . 8
Washer-fitted hexagonal bolts (M4 × 16) . . . . . . 1
Safety wire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Caution:
• Mounting should be done by a qualified technician.
• Make sure that the mounting (ceiling) area has sufficient strength.
• Read the enclosed mounting instructions thoroughly before starting.
• Do not use an electric screwdriver or impact driver to tighten screws. Use a torque driver or hexagon torque
wrench and tighten screws to the torque specified in the instructions.
• When the product is no longer going to be used, have it disposed of quickly by a professional disposal service.
44
(1-23/32)
246 ( 9-11/16 )
Dimensions
318.5 (12-17/32)
unit­ : mm­ (inch)
NOTE:­ This­ illustration­ is­ not­ drawn­ to­ scale.
Weights­ and­ dimensions­ shown­ are­ approximate.­ Specifications­ subject­ to­ change­ without­ notice.
As­ of­ August­ 2012
SFL12A012-2
1/1
