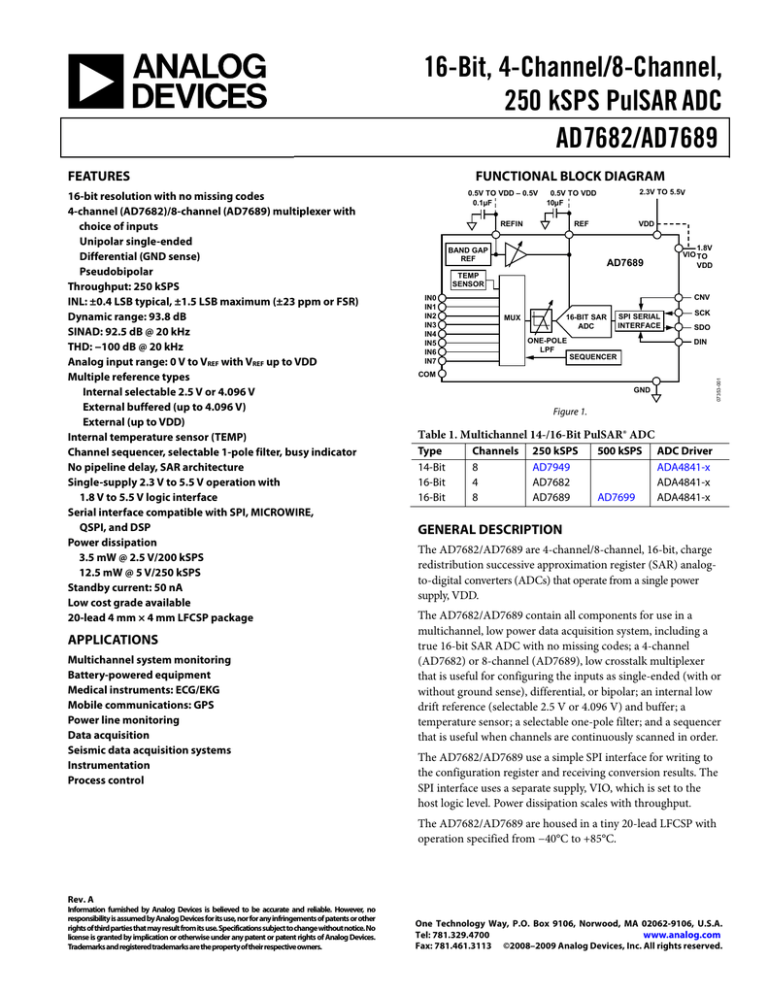

AD7682

AD7682

FEATURES

16-bit resolution with no missing codes

4-channel (AD7682)/8-channel (AD7689) multiplexer with choice of inputs

Unipolar single-ended

Differential (GND sense)

Pseudobipolar

Throughput: 250 kSPS

INL: ±0.4 LSB typical, ±1.5 LSB maximum (±23 ppm or FSR)

Dynamic range: 93.8 dB

SINAD: 92.5 dB @ 20 kHz

THD: −100 dB @ 20 kHz

Analog input range: 0 V to V

REF

with V

REF

up to VDD

Multiple reference types

Internal selectable 2.5 V or 4.096 V

External buffered (up to 4.096 V)

External (up to VDD)

Internal temperature sensor (TEMP)

Channel sequencer, selectable 1-pole filter, busy indicator

No pipeline delay, SAR architecture

Single-supply 2.3 V to 5.5 V operation with

1.8 V to 5.5 V logic interface

Serial interface compatible with SPI, MICROWIRE,

QSPI, and DSP

Power dissipation

3.5 mW @ 2.5 V/200 kSPS

12.5 mW @ 5 V/250 kSPS

Standby current: 50 nA

Low cost grade available

20-lead 4 mm × 4 mm LFCSP package

APPLICATIONS

Multichannel system monitoring

Battery-powered equipment

Medical instruments: ECG/EKG

Mobile communications: GPS

Power line monitoring

Data acquisition

Seismic data acquisition systems

Instrumentation

Process control

16-Bit, 4-Channel/8-Channel,

250 kSPS PulSAR ADC

AD7682/AD7689

FUNCTIONAL BLOCK DIAGRAM

0.5V TO VDD – 0.5V

0.1µF

0.5V TO VDD

10µF

2.3V TO 5.5V

REFIN REF VDD

BAND GAP

REF

TEMP

SENSOR

AD7689

VIO

1.8V

TO

VDD

IN0

IN1

IN2

IN3

IN4

IN5

IN6

IN7

COM

MUX

16-BIT SAR

ADC

ONE-POLE

LPF

SEQUENCER

SPI SERIAL

INTERFACE

CNV

SCK

SDO

DIN

GND

Figure 1.

Table 1. Multichannel 14-/16-Bit PulSAR® ADC

Type Channels 250 kSPS

500 kSPS ADC

14-Bit 8 AD7949 ADA4841-x

16-Bit 4

16-Bit 8

AD7682 ADA4841-x

AD7689 AD7699 ADA4841-x

GENERAL DESCRIPTION

The AD7682/AD7689 are 4-channel/8-channel, 16-bit, charge redistribution successive approximation register (SAR) analogto-digital converters (ADCs) that operate from a single power supply, VDD.

The AD7682/AD7689 contain all components for use in a multichannel, low power data acquisition system, including a true 16-bit SAR ADC with no missing codes; a 4-channel

(AD7682) or 8-channel (AD7689), low crosstalk multiplexer that is useful for configuring the inputs as single-ended (with or without ground sense), differential, or bipolar; an internal low drift reference (selectable 2.5 V or 4.096 V) and buffer; a temperature sensor; a selectable one-pole filter; and a sequencer that is useful when channels are continuously scanned in order.

The AD7682/AD7689 use a simple SPI interface for writing to the configuration register and receiving conversion results. The

SPI interface uses a separate supply, VIO, which is set to the host logic level. Power dissipation scales with throughput.

The AD7682/AD7689 are housed in a tiny 20-lead LFCSP with operation specified from −40°C to +85°C.

Rev. A

Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

Trademarks and registered trademarks are the property of their respective owners.

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.

Tel: 781.329.4700 www.analog.com

Fax: 781.461.3113 ©2008–2009 Analog Devices, Inc. All rights reserved.

AD7682/AD7689

TABLE OF CONTENTS

Features .............................................................................................. 1



Applications ....................................................................................... 1



Functional Block Diagram .............................................................. 1



General Description ......................................................................... 1



Revision History ............................................................................... 2



Specifications ..................................................................................... 3



Timing Specifications .................................................................. 6



Absolute Maximum Ratings ............................................................ 8



ESD Caution .................................................................................. 8



Pin Configurations and Function Descriptions ........................... 9



Typical Performance Characteristics ........................................... 11



Terminology .................................................................................... 14



Theory of Operation ...................................................................... 15



Overview ...................................................................................... 15



Converter Operation .................................................................. 15



Transfer Functions...................................................................... 16



Typical Connection Diagrams .................................................. 17



Analog Inputs .............................................................................. 18



Driver Amplifier Choice ............................................................ 20



REVISION HISTORY

3/09—Rev. 0 to Rev. A

Changes to Features Section, Applications Section, and

Figure 1 .............................................................................................. 1

Added Table 2; Renumbered Sequentially .................................... 3

Changed VREF to V

REF

.................................................................... 4

Changes to Table 3 ............................................................................ 5

Changes to Table 4 ............................................................................ 6

Changes to Table 5 ............................................................................ 7

Deleted Endnote 2 in Table 6 .......................................................... 8

Changes to Figure 4, Figure 5, and Table 7 ................................... 9

Changes to Figure 6, Figure 9, and Figure 10 ............................. 11

Changes to Figure 22 ...................................................................... 13

Changes to Overview Section and Converter Operation

Section .............................................................................................. 15

Changes to Table 8 .......................................................................... 16

Changes to Figure 26 and Figure 27 ............................................. 17

Changes to Bipolar Single Supply Section and Analog Inputs

Section .............................................................................................. 18

Changes to Internal Reference/Temperature Sensor Section ... 20

Added Figure 31; Renumbered Sequentially .............................. 20

Changes to External Reference and Internal Buffer Section and

External Reference Section ............................................................ 21

Voltage Reference Output/Input .............................................. 20



Power Supply ............................................................................... 22



Supplying the ADC from the Reference .................................. 22



Digital Interface .............................................................................. 23



Reading/Writing During Conversion, Fast Hosts .................. 23



Reading/Writing After Conversion, Any Speed Hosts .......... 23



Reading/Writing Spanning Conversion, Any Speed Host .... 23



Configuration Register, CFG .................................................... 23



General Timing Without a Busy Indicator ............................. 25



General Timing with a Busy Indicator .................................... 26



Channel Sequencer .................................................................... 27



Read/Write Spanning Conversion Without a Busy

Indicator ...................................................................................... 28



Read/Write Spanning Conversion with a Busy Indicator ..... 29



Application Hints ........................................................................... 30



Layout .......................................................................................... 30



Evaluating AD7682/AD7689 Performance ............................ 30



Outline Dimensions ....................................................................... 31



Ordering Guide .......................................................................... 31



Added Figure 32 and Figure 33 .................................................... 21

Changes to Power Supply Section ................................................ 22

Changes to Digital Interface Section, Reading/Writing After

Conversion, Any Speed Hosts Section, and Configuration

Register, CFG Section .................................................................... 23

Changes to Table 10 ....................................................................... 24

Added General Timing Without a Busy Indicator Section and

Figure 37 .......................................................................................... 25

Added General Timing With a Busy Indicator Section and

Figure 38 .......................................................................................... 26

Added Channel Sequencer Section and Figure 39 ..................... 27

Changes to Read/Write Spanning Conversion Without a Busy

Indicator Section and Figure 41 ................................................... 28

Changes to Read/Write Spanning Conversion with a Busy

Indicator and Figure 43 ................................................................. 29

Changes to Evaluating AD7682/AD7689 Performance

Section .............................................................................................. 30

Added Exposed Pad Notation to Outline Dimensions ............. 31

Changes to Ordering Guide .......................................................... 31

5/08—Revision 0: Initial Version

Rev. A | Page 2 of 32

SPECIFICATIONS

VDD = 2.3 V to 5.5 V, VIO = 1.8 V to VDD, V

REF

= VDD, all specifications T

MIN

to T

MAX

, unless otherwise noted.

AD7682/AD7689

Table 2.

RESOLUTION

AD7689A AD7682B/AD7689B

Unit

16 16 Bits

ANALOG INPUT

Voltage Range Unipolar mode

Absolute Input Voltage Positive input, unipolar and bipolar modes

Negative or COM input, unipolar mode

Negative or COM input, bipolar mode f

IN

= 250 kHz Analog Input CMRR

Leakage Current at 25°C

Input Impedance 1

Acquisition phase

THROUGHPUT

Conversion Rate

Full Bandwidth 2

¼ Bandwidth

2

Transient Response

VDD = 4.5 V to 5.5 V

VDD = 2.3 V to 4.5 V

VDD = 4.5 V to 5.5 V

VDD = 2.3 V to 4.5 V

Full-scale step, full bandwidth

0 +V

REF

0 +V

REF

V

/2 +V

REF

/2 −V

REF

/2 +V

REF

/2

−0.1 V

REF

+ 0.1 −0.1 V

REF

+ 0.1 V

−0.1 +0.1 −0.1 +0.1 V

V

0

0

0

0

REF

/2 − 0.1 V

1

REF

68

/2 V

REF

250

200

50

/2 + 0.1

62.5

V

1

0

0

0

0

REF

1.8

/2 − 0.

V

1

REF

68

/2 V

REF

250

200

/2 + 0.1

62.5

50

V dB nA kSPS kSPS kSPS kSPS

Full-scale step,

¼ bandwidth

ACCURACY

14.5

No Missing Codes

Integral Linearity Error

Differential Linearity Error

Transition Noise

Gain Error 4

REF = VDD = 5 V

15

−4

0.6

+4

16

−1.5

−1

±0.4 +1.5

±0.25 +1.5

Bits

LSB

3

LSB

0.5 LSB

−8 LSB

Gain Error Match

Gain Error Temperature Drift

Offset Error

4

VDD = 4.5 V to 5.5 V

Offset Error Match

Offset Error Temperature Drift

Power Supply Sensitivity VDD = 5 V ± 5%

AC ACCURACY 5

VDD = 2.3 V to 4.5 V

Dynamic Range

Signal-to-Noise f

IN

= 20 kHz, V

REF

= 5 V f

IN

= 20 kHz, V

REF

= 4.096 V, internal REF f

IN

= 20 kHz, V

REF

= 2.5 V, internal REF

SINAD f

IN

= 20 kHz, V

REF

= 5 V f

IN

= 20 kHz, V

REF

= 5 V,

−60 dB input f

IN

= 20 kHz, V

REF

= 4.096 V internal REF f

IN

= 20 kHz, V

REF

= 2.5 V internal REF

−32

±2

±1

±32

±2

±1

±1.5

90.5

90

89

+32

−4

−8

−4

92.5

91

±0.5

±1

±1

±5

±0.5

±1

±1.5

93.8

93.5

92.5

+4

+8

+4

LSB ppm/°C

LSB

LSB

LSB ppm/°C

LSB

dB

6

dB dB

Rev. A | Page 3 of 32

AD7682/AD7689

Total Harmonic Distortion

(THD)

Spurious-Free Dynamic

Range f f

IN

IN

= 20 kHz

= 20 kHz

Channel-to-Channel Crosstalk f

IN

= 100 kHz on adjacent channel(s)

SAMPLING DYNAMICS

−3 dB Input Bandwidth Full bandwidth

AD7689A AD7682B/AD7689B

Unit

−97 −100 dB

105 110 dB

1.7 1.7 MHz

Aperture Delay 2.5 ns

1

See the Analog Inputs section.

2

The bandwidth is set in the configuration register.

3

LSB means least significant bit. With the 5 V input range, one LSB is 76.3 μV.

4 See the Terminology section. These specifications include full temperature range variation but not the error contribution from the external reference.

5 With VDD = 5 V, unless otherwise noted.

6

All specifications expressed in decibels are referred to a full-scale input FSR and tested with an input signal at 0.5 dB below full scale, unless otherwise specified.

Rev. A | Page 4 of 32

VDD = 2.3 V to 5.5 V, VIO = 1.8 V to VDD, V

REF

= VDD, all specifications T

MIN

to T

MAX

, unless otherwise noted.

AD7682/AD7689

Table 3.

Parameter Conditions/Comments

All Models/Grades

Min Typ Unit

2.490 2.500 2.510 V REF Output Voltage 2.5 V, @ 25°C

REFIN Output Voltage 1

2.5

REF Output Current ±300 μA

Line Regulation

Long-Term Drift

Turn-On Settling Time

VDD = 5 V ± 5%

1000 hours

C

REF

= 10 μF

Voltage Range

Current Drain

2

REF input

REFIN input (buffered)

250 kSPS, REF = 5 V

Output Voltage

3

@

0.5

0.5

±15

50

5

50 ppm/V ppm ms

VDD + 0.3 V

VDD − 0.5 V

μA

V

IL

V

IH

I

IL

I

IH

DIGITAL

Data Format

4

Pipeline Delay 5

V

OL

V

OH

I

I

SINK

= +500 μA

SOURCE

= −500 μA

VDD

VIO

Standby Current

6, 7

Power Dissipation

Specified performance

VDD and VIO = 5 V, @ 25°C

VDD = 2.5 V, 100 SPS throughput

VDD = 2.5 V, 200 kSPS throughput

VDD = 5 V, 250 kSPS throughput

0.7 × VIO

Energy per Conversion

TEMPERATURE RANGE

8

VDD = 5 V, 250 kSPS throughput with internal reference

VDD = 5V

Specified Performance T

MIN

to T

MAX

1 This is the output from the internal band gap.

2 This is an average current and scales with throughput.

3

The output voltage is internal and present on a dedicated multiplexer input.

4 Unipolar mode: serial 16-bit straight binary.

Bipolar mode: serial 16-bit twos complement.

5

Conversion results available immediately after completed conversion.

6

With all digital inputs forced to VIO or GND as required.

7 During acquisition phase.

8 Contact an Analog Devices, Inc., sales representative for the extended temperature range.

1.8

VIO − 0.3

VIO + 0.3 V

0.4 V

V

VDD + 0.3 V

50

1.7

3.5

12.5 18 nA

μW mW mW

15.5 21

60 mW nJ

Rev. A | Page 5 of 32

AD7682/AD7689

TIMING SPECIFICATIONS

VDD = 4.5 V to 5.5 V, VIO = 1.8 V to VDD, all specifications T

MIN

to T

MAX

, unless otherwise noted.

Table 4.

Parameter 1

Conversion Time: CNV Rising Edge to Data Available

Acquisition Time

Time Between Conversions

Data Write/Read During Conversion

CNV Pulse Width

SCK Period

SCK Low Time

SCK High Time

SCK Falling Edge to Data Remains Valid

SCK Falling Edge to Data Valid Delay

VIO Above 2.7 V

VIO Above 2.3 V

VIO Above 1.8 V

CNV Low to SDO D15 MSB Valid

VIO Above 2.7 V

VIO Above 2.3 V

VIO Above 1.8 V

CNV High or Last SCK Falling Edge to SDO High Impedance

CNV Low to SCK Rising Edge

DIN Valid Setup Time from SCK Rising Edge

DIN Valid Hold Time from SCK Rising Edge

1

See Figure 2 and Figure 3 for load conditions.

Symbol Min Typ Max Unit

t

CONV t

ACQ

1.8 t

CYC

4.0 t

DATA t

CNVH t

SCK t

DSDO

+ 2 ns t

SCKL

11 t

SCKH

ns t

HSDO

4 ns t

DSDO

18 ns

23

28 ns ns t

EN

18

22 ns ns

25 ns t

DIS ns t

CLSCK t

SDIN t

HDIN

5

Rev. A | Page 6 of 32

VDD = 2.3 V to 4.5 V, VIO = 1.8 V to VDD, all specifications T

MIN

to T

MAX

, unless otherwise noted.

Table 5.

Parameter

1

Conversion Time: CNV Rising Edge to Data Available

Acquisition Time

Time Between Conversions

Data Write/Read During Conversion

CNV Pulse Width

SCK Period

SCK Low Time

SCK High Time

SCK Falling Edge to Data Remains Valid

SCK Falling Edge to Data Valid Delay

VIO Above 3 V

VIO Above 2.7 V

VIO Above 2.3 V

VIO Above 1.8 V

CNV Low to SDO D15 MSB Valid

VIO Above 3 V

VIO Above 2.7 V

VIO Above 2.3 V

VIO Above 1.8 V

CNV High or Last SCK Falling Edge to SDO High Impedance

CNV Low to SCK Rising Edge

DIN Valid Setup Time from SCK Rising Edge

DIN Valid Hold Time from SCK Rising Edge

1

See Figure 2 and Figure 3 for load conditions.

AD7682/AD7689

Symbol Min Typ Max Unit

t

CONV t

ACQ

1.8 t

CYC

5 t

DATA

1.

2 t

CNVH t

SCK t

DSDO

+ 2 ns t

SCKL

12 t

SCKH

ns t

HSDO

5 ns t

DSDO

24

30 ns ns t

EN

38

48

21 ns ns ns t

DIS

27

35

45 ns ns ns t

CLSCK

10 t

SDIN

5 t

HDIN

500µA I

OL

TO SDO

C

L

50pF

1.4V

500µA I

OH

Figure 2. Load Circuit for Digital Interface Timing

70% VIO

30% VIO t

DELAY

2V OR VIO – 0.5V

1

0.8V OR 0.5V

2 t

DELAY

2V OR VIO – 0.5V

1

0.8V OR 0.5V

2

1

2V IF VIO ABOVE 2.5V, VIO – 0.5V IF VIO BELOW 2.5V.

2

0.8V IF VIO ABOVE 2.5V, 0.5V IF VIO BELOW 2.5V.

Figure 3. Voltage Levels for Timing

Rev. A | Page 7 of 32

AD7682/AD7689

ABSOLUTE MAXIMUM RATINGS

Table 6.

Parameter Rating

Analog Inputs

INx,

1

COM

1

GND − 0.3 V to VDD + 0.3 V or VDD ± 130 mA

REF, REFIN

Supply Voltages

VDD, VIO to GND

VDD to VIO

DIN, CNV, SCK to GND

SDO to GND

Storage Temperature Range

Junction Temperature

θ

JA

Thermal Impedance (LFCSP)

θ

JC

Thermal Impedance (LFCSP)

1

See the Analog Inputs section.

GND − 0.3 V to VDD + 0.3 V

−0.3 V to +7 V

±7 V

−0.3 V to VIO + 0.3 V

−0.3 V to VIO + 0.3 V

−65°C to +150°C

150°C

47.6°C/W

4.4°C/W

Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.

ESD CAUTION

Rev. A | Page 8 of 32

PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS

AD7682/AD7689

VDD

REF

REFIN

GND

GND

1

2

3

4

5

PIN 1

INDICATOR

AD7682

TOP VIEW

(Not to Scale)

15 VIO

14 SDO

13 SCK

12 DIN

11 CNV

VDD

REF

REFIN

GND

GND

1

2

3

4

5

PIN 1

INDICATOR

AD7689

TOP VIEW

(Not to Scale)

15 VIO

14 SDO

13 SCK

12 DIN

11 CNV

NOTES

1. NC = NO CONNECT.

2. THE EXPOSED PAD IS NOT CONNECTED

INTERNALLY. FOR INCREASED

RELIABILITY OF THE SOLDER JOINTS, IT

IS RECOMMENDED THAT THE PAD BE

SOLDERED TO THE SYSTEM

GROUND PLANE.

Figure 4. AD7682 Pin Configuration

NOTES

1. THE EXPOSED PAD IS NOT CONNECTED

INTERNALLY. FOR INCREASED

RELIABILITY OF THE SOLDER JOINTS, IT

IS RECOMMENDED THAT THE PAD BE

SOLDERED TO THE SYSTEM

GROUND PLANE.

Figure 5. AD7689 Pin Configuration

Table 7. Pin Function Descriptions

Pin No.

AD7682

Mnemonic

AD7689

Mnemonic Type

1

Description

1, 20 VDD VDD P Power Supply. Nominally 2.5 V to 5.5 V when using an external reference and decoupled with 10 μF and 100 nF capacitors.

When using the internal reference for a2.5 V output, the minimum should be 3.0 V.

When using the internal reference for 4.096 V output, the minimum should be 4.6 V.

2 REF REF AI/O

When the internal reference is enabled, this pin produces a selectable system reference of

2.5 V or 4.096 V.

When the internal reference is disabled and the buffer is enabled, REF produces a buffered version of the voltage present on the REFIN pin (VDD − 0.5 V maximum), which is useful when using low cost, low power references.

For improved drift performance, connect a precision reference to REF (0.5 V to VDD).

For any reference method, this pin needs decoupling with an external 10 μF capacitor

connected as close to REF as possible. See the Reference Decoupling section.

Output/Input section.

When using the internal reference, the internal unbuffered reference voltage is present and needs decoupling with a 0.1 μF capacitor.

When using the internal reference buffer, apply a source between 0.5 V and (VDD − 0.5 V) that is buffered to the REF pin, as described in the REF pin description.

4, 5 GND GND P Power Supply Ground.

6 NC IN4 AI

AD7689: Analog Input Channel 4.

7 IN2 IN5 AI

AD7689: Analog Input Channel 5.

8 NC IN6 AI

AD7689: Analog Input Channel 6.

9 IN3 IN7 AI

AD7689: Analog Input Channel 7.

10 COM COM AI Common Channel Input. All input channels, IN[7:0], can be referenced to a commonmode point of 0 V or V

REF

/2 V.

11 CNV CNV DI Conversion Input. On the rising edge, CNV initiates the conversion. During conversion, if

CNV is held low, the busy indictor is enabled.

12 DIN DIN DI Data Input. This input is used for writing to the 14-bit configuration register. The configuration register can be written to during and after conversion.

13 SCK SCK DI Serial Data Clock Input. This input is used to clock out the data on SDO and clock in data on DIN in an MSB first fashion.

Rev. A | Page 9 of 32

AD7682/AD7689

Pin No.

AD7682

Mnemonic

AD7689

Mnemonic Type 1 Description

14 SDO SDO DO unipolar modes, conversion results are straight binary; in bipolar modes, conversion results are twos complement.

15 VIO VIO P Input/Output Interface Digital Power. Nominally at the same supply as the host interface

(1.8 V, 2.5 V, 3 V, or 5 V).

16 IN0

17 NC

IN0 AI Analog Input Channel 0.

IN1 AI AD7682: no connection.

AD7689: Analog Input Channel 1.

18 IN1 IN2 AI AD7682: Analog Input Channel 1.

AD7689: Analog Input Channel 2.

19 NC IN3 AI AD7682: no connection.

AD7689: Analog Input Channel 3.

21

(EPAD)

Exposed Pad

(EPAD)

Exposed

Pad (EPAD)

NC The exposed pad is not connected internally. For increased reliability of the solder joints, it is recommended that the pad be soldered to the system ground plane.

1

AI = analog input, AI/O = analog input/output, DI = digital input, DO = digital output, P = power, NC = no internal connection.

Rev. A | Page 10 of 32

TYPICAL PERFORMANCE CHARACTERISTICS

VDD = 2.5 V to 5.5 V, V

REF

= 2.5 V to 5 V, VIO = 2.3 V to VDD, unless otherwise noted.

1.5

INL MAX = +0.34 LSB

INL MIN = –0.44 LSB

1.0

1.5

DNL MAX = +0.20 LSB

DNL MIN = –0.22 LSB

1.0

0.5

0.5

0

0

–0.5

–0.5

–1.0

–1.5

0 16,384 32,768

CODES

49,152 65,536

Figure 6. Integral Nonlinearity vs. Code, V

REF

= VDD = 5 V

200k

180k

160k

140k

120k

100k

80k

60k

40k

135,326

124,689

σ = 0.50

V

REF

= VDD = 5V

20k

0

0

7FFA

0 487 619 0 0 0

7FFB 7FFC 7FFD 7FFE 7FFF 8000 8001 8002

CODE IN HEX

Figure 7. Histogram of a DC Input at Code Center

0

–20

–40

–60

–80 f f

V

REF

= VDD = 5V

S

= 250kSPS

IN

= 19.9kHz

SNR = 92.9dB

SINAD = 92.4dB

THD = –102dB

SFDR = 103dB

SECOND HARMONIC = –111dB

THIRD HARMONIC = –104dB

–100

–120

–140

–160

–180

0 125 25 50 75

FREQUENCY (kHz)

Figure 8. 20 kHz FFT, V

REF

= VDD = 5 V

100

AD7682/AD7689

–1.0

0 16,384 32,768

CODES

49,152 65,536

Figure 9. Differential Nonlinearity vs. Code, V

REF

= VDD = 5 V

160k

σ = 0.78

V

REF

= VDD = 2.5V

140k

135,207

120k

100k

80k

63,257

60k

51,778

40k

–120

–140

–160

–180

0

20k

0

6649

1 78

4090

60 1

7FFB 7FFC 7FFD 7FFE 7FFF 8000 8001 8002 8003

CODE IN HEX

Figure 10. Histogram of a DC Input at Code Center

0

–20

–40

–60

–80 f f

V

REF

= VDD = 2.5V

s

= 200kSPS

IN

= 19.9kHz

SNR = 88.0dB

SINAD = 87.0dB

THD = –89dB

SFDR = 89dB

SECOND HARMONIC = –105dB

THIRD HARMONIC = –90dB

–100

25 50

FREQUENCY (kHz)

75

Figure 11. 20 kHz FFT, V

REF

= VDD = 2.5 V

100

Rev. A | Page 11 of 32

AD7682/AD7689

100

85

80

75

95

90

70

65

60

0

V

REF

= VDD = 5V, –0.5dB

V

REF

V

REF

V

REF

= VDD = 5V, –10dB

= VDD = 2.5V, –0.5dB

= VDD = 2.5V, –10dB

50 100

FREQUENCY (kHz)

Figure 12. SNR vs. Frequency

150 200

84

82

88

86

92

90

96

94

SNR @ 2kHz

SINAD @ 2kHz

SNR @ 20kHz

SINAD @ 20kHz

ENOB @ 2kHz

ENOB @ 20kHz

80

1.0

1.5

2.0

2.5

3.0

3.5

4.0

REFERENCE VOLTAGE (V)

4.5

5.0

5.5

13.0

Figure 13. SNR, SINAD, and ENOB vs. Reference Voltage

96 f

IN

= 20kHz

94

V

REF

= VDD = 5V

15.0

14.5

14.0

13.5

17.0

16.5

16.0

15.5

92

90

88

86

V

REF

= VDD = 2.5V

84

–55 –35 –15 5 25 45 65

TEMPERATURE (°C)

Figure 14. SNR vs. Temperature

85 105 125

100

95

90

85

80

75

70

65

V

REF

= VDD = 5V, –0.5dB

V

REF

V

REF

V

REF

= VDD = 5V, –10dB

= VDD = 2.5V, –0.5dB

= VDD = 2.5V, –10dB

60

0 50 100

FREQUENCY (kHz)

150

Figure 15. SINAD vs. Frequency

200

95

90

85

80

75

70

1.0

130

125

120

115

110

105

100

SFDR = 2kHz

SFDR = 20kHz

THD = 20kHz

THD = 2kHz

1.5

2.0

2.5

3.0

3.5

4.0

REFERENCE VOLTAGE (V)

4.5

5.0

Figure 16. SFDR and THD vs. Reference Voltage

–95

–100

–105

–110

–115

5.5

–120

–60

–65

–70

–75

–80

–85

–90

–90 f

IN

= 20kHz

–95

V

REF

= VDD = 5V

V

REF

= VDD = 2.5V

–100

–105

–110

–55 –35 –15 5 25 45 65

TEMPERATURE (°C)

Figure 17. THD vs. Temperature

85 105

125

Rev. A | Page 12 of 32

–60

–70

–80

–90

–100

–110

–120

0

95

94 f

IN

= 20kHz

89

88

87

86

85

–10

93

92

91

90

–8

50 100

V

REF

= VDD = 5V, –0.5dB

V

REF

V

REF

V

REF

= VDD = 2.5V, –0.5dB

= VDD = 2.5V, –10dB

= VDD = 5V, –10dB

150 200

FREQUENCY (kHz)

Figure 18. THD vs. Frequency

V

REF

= VDD = 5V

V

REF

= VDD = 2.5V

–6 –4

INPUT LEVEL (dB)

–2 0

Figure 19. SNR vs. Input Level

3

2

1

0

–1

–2

UNIPOLAR ZERO

UNIPOLAR GAIN

BIPOLAR ZERO

BIPOLAR GAIN

–3

–55 –35 –15 5 25 45 65

TEMPERATURE (°C)

85 105

125

Figure 20. Offset and Gain Errors vs. Temperature

AD7682/AD7689

3000

2750

2500

2250

2000

1750

1500

2.5V INTERNAL REF

4.096V INTERNAL REF

INTERNAL BUFFER, TEMP ON

INTERNAL BUFFER, TEMP OFF

EXTERNAL REF, TEMP ON

EXTERNAL REF, TEMP OFF

VIO f

S

= 200kSPS

1250

1000

2.5

3.0

3.5

4.0

VDD SUPPLY (V)

4.5

5.0

Figure 21. Operating Currents vs. Supply

3000

2750 f

S

= 200kSPS

2500

VDD = 5V, INTERNAL 4.096V REF

2250

2000

VDD = 5V, EXTERNAL REF

1750

1500

VDD = 2.5, EXTERNAL REF

1250

1000

–55 –35 –15 5

VIO

25 45 65

TEMPERATURE (°C)

85 105

40

125

20

80

60

180

160

140

120

100

40

30

5.5

20

60

50

80

70

100

90

Figure 22. Operating Currents vs. Temperature

25

VDD = 2.5V, 85°C

20

15

VDD = 2.5V, 25°C

10

VDD = 5V, 85°C

VDD = 5V, 25°C

5

VDD = 3.3V, 85°C

VDD = 3.3V, 25°C

0

0 20 40 60 80

SDO CAPACITIVE LOAD (pF)

100

Figure 23. t

DSDO

Delay vs. SDO Capacitance Load and Supply

120

Rev. A | Page 13 of 32

AD7682/AD7689

TERMINOLOGY

Least Significant Bit (LSB)

The LSB is the smallest increment that can be represented by a converter. For an analog-to-digital converter with N bits of resolution, the LSB expressed in volts is

LSB

(V) 

V

REF

2

N

Integral Nonlinearity Error (INL)

INL refers to the deviation of each individual code from a line drawn from negative full scale through positive full scale. The point used as negative full scale occurs ½ LSB before the first code transition. Positive full scale is defined as a level 1½ LSB beyond the last code transition. The deviation is measured from

the middle of each code to the true straight line (see Figure 25).

Differential Nonlinearity Error (DNL)

In an ideal ADC, code transitions are 1 LSB apart. DNL is the maximum deviation from this ideal value. It is often specified in terms of resolution for which no missing codes are guaranteed.

Offset Error

The first transition should occur at a level ½ LSB above analog ground. The offset error is the deviation of the actual transition from that point.

Gain Error

The last transition (from 111 … 10 to 111 … 11) should occur for an analog voltage 1½ LSB below the nominal full scale. The gain error is the deviation in LSB (or percentage of full-scale range) of the actual level of the last transition from the ideal level after the offset error is adjusted out. Closely related is the full-scale error (also in LSB or percentage of full-scale range), which includes the effects of the offset error.

Aperture Delay

Aperture delay is the measure of the acquisition performance. It is the time between the rising edge of the CNV input and the point at which the input signal is held for a conversion.

Transient Response

Transient response is the time required for the ADC to accurately acquire its input after a full-scale step function is applied.

Dynamic Range

Dynamic range is the ratio of the rms value of the full scale to the total rms noise measured with the inputs shorted together.

The value for dynamic range is expressed in decibels.

Signal-to-Noise Ratio (SNR)

SNR is the ratio of the rms value of the actual input signal to the rms sum of all other spectral components below the Nyquist frequency, excluding harmonics and dc. The value for SNR is expressed in decibels.

Signal-to-(Noise + Distortion) Ratio (SINAD)

SINAD is the ratio of the rms value of the actual input signal to the rms sum of all other spectral components below the Nyquist frequency, including harmonics but excluding dc. The value for

SINAD is expressed in decibels.

Total Harmonic Distortion (THD)

THD is the ratio of the rms sum of the first five harmonic components to the rms value of a full-scale input signal and is expressed in decibels.

Spurious-Free Dynamic Range (SFDR)

SFDR is the difference, in decibels, between the rms amplitude of the input signal and the peak spurious signal.

Effective Number of Bits (ENOB)

ENOB is a measurement of the resolution with a sine wave input. It is related to SINAD by the formula

ENOB

= (SINAD dB

− 1.76)/6.02 and is expressed in bits.

Channel-to-Channel Crosstalk

Channel-to-channel crosstalk is a measure of the level of crosstalk between any two adjacent channels. It is measured by applying a dc to the channel under test and applying a full-scale, 100 kHz sine wave signal to the adjacent channel(s). The crosstalk is the amount of signal that leaks into the test channel and is expressed in decibels.

Reference Voltage Temperature Coefficient

Reference voltage temperature coefficient is derived from the typical shift of output voltage at 25°C on a sample of parts at the maximum and minimum reference output voltage (V

REF

) measured at T

MIN

, T (25°C), and T

MAX

. It is expressed in ppm/°C as

TCV

REF

( ppm/

C )

V

V

REF

REF

(

Max

) –

V

REF

(

25

C

)

(

T

MAX

(

Min

)

T

MIN

)

10

6 where:

V

REF

(Max) = maximum V

REF

at T

MIN

, T (25°C), or T

MAX

.

V

REF

(Min) = minimum V

REF

at T

MIN

, T (25°C), or T

MAX

.

V

REF

(25°C) = V

REF

at 25°C.

T

MAX

= +85°C.

T

MIN

= –40°C.

Rev. A | Page 14 of 32

THEORY OF OPERATION

INx+

AD7682/AD7689

REF

GND

32,768C

MSB

16,384C

32,768C 16,384C

MSB

4C

4C

2C

2C

C

C

C

C

LSB SW+

SWITCHES CONTROL

COMP

CONTROL

LOGIC

BUSY

OUTPUT CODE

LSB SW–

CNV

INx– OR

COM

Figure 24. ADC Simplified Schematic

OVERVIEW

The AD7682/AD7689 are 4-channel/8-channel, 16-bit, charge redistribution successive approximation register (SAR) analogto-digital converters (ADCs). These devices are capable of converting 250,000 samples per second (250 kSPS) and power down between conversions. For example, when operating with an external reference at 1 kSPS, they consume 17 μW typically, ideal for battery-powered applications.

The AD7682/AD7689 contain all of the components for use in a multichannel, low power data acquisition system, including

 16-bit SAR ADC with no missing codes

 4-channel/8-channel, low crosstalk multiplexer

 Internal low drift reference and buffer

 Temperature sensor

 Selectable one-pole filter

 Channel sequencer

These components are configured through an SPI-compatible,

14-bit register. Conversion results, also SPI compatible, can be read after or during conversions with the option for reading back the configuration associated with the conversion.

The AD7682/AD7689 provide the user with an on-chip trackand-hold and do not exhibit pipeline delay or latency.

The AD7682/AD7689 are specified from 2.3 V to 5.5 V and can be interfaced to any 1.8 V to 5 V digital logic family. They are housed in a 20-lead, 4 mm × 4 mm LFCSP that combines space savings and allows flexible configurations. They are pin-for-pin compatible with the 16-bit AD7699 and 14-bit AD7949 .

CONVERTER OPERATION

The AD7682/AD7689 are successive approximation ADCs

based on a charge redistribution DAC. Figure 24 shows the

simplified schematic of the ADC. The capacitive DAC consists of two identical arrays of 16 binary-weighted capacitors, which are connected to the two comparator inputs.

During the acquisition phase, terminals of the array tied to the comparator input are connected to GND via SW+ and SW−. All independent switches are connected to the analog inputs.

Thus, the capacitor arrays are used as sampling capacitors and acquire the analog signal on the INx+ and INx− (or COM) inputs. When the acquisition phase is complete and the CNV input goes high, a conversion phase is initiated. When the conversion phase begins, SW+ and SW− are opened first. The two capacitor arrays are then disconnected from the inputs and connected to the GND input. Therefore, the differential voltage between the INx+ and INx− (or COM) inputs captured at the end of the acquisition phase is applied to the comparator inputs, causing the comparator to become unbalanced. By switching each element of the capacitor array between GND and REF, the comparator input varies by binary-weighted voltage steps

(V

REF

/2, V

REF

/4, ... V

REF

/32,768). The control logic toggles these switches, starting with the MSB, to bring the comparator back into a balanced condition. After the completion of this process, the part returns to the acquisition phase, and the control logic generates the ADC output code and a busy signal indicator.

Because the AD7682/AD7689 have an on-board conversion clock, the serial clock, SCK, is not required for the conversion process.

Rev. A | Page 15 of 32

AD7682/AD7689

TRANSFER FUNCTIONS

With the inputs configured for unipolar range (single-ended,

COM with ground sense, or paired differentially with INx− as ground sense), the data output is straight binary.

With the inputs configured for bipolar range (COM = V

REF

/2 or paired differentially with INx− = V

REF

/2), the data outputs are twos complement.

The ideal transfer characteristic for the AD7682/AD7689 is

shown in Figure 25 and for both unipolar and bipolar ranges

with the internal 4.096 V reference.

TWOS

COMPLEMENT

011...111

011...110

011...101

STRAIGHT

BINARY

111...111

111...110

111...101

100...010

100...001

100...000

000...010

000...001

000...000

–FSR

–FSR + 1LSB

–FSR + 0.5LSB

+FSR – 1LSB

+FSR – 1.5LSB

ANALOG INPUT

Figure 25. ADC Ideal Transfer Function

Table 8. Output Codes and Ideal Input Voltages

Description

Unipolar Analog Input

1

V

REF

= 4.096 V

FSR − 1 LSB 4.095938 V

Digital Output Code

(Straight Binary Hex)

Bipolar Analog Input

V

REF

= 4.096 V

2

Digital Output Code

(Twos Complement Hex)

0xFFFF

3

2.047938

3

Midscale + 1 LSB 2.048063 V 0x8001 62.5 μV 0x0001

Midscale 2.048 V

Midscale − 1 LSB 2.047938 V

−FSR + 1 LSB 62.5 μV

0x8000

0x7FFF

0x0001

0x0000 4

1 With COM or INx− = 0 V or all INx referenced to GND.

2 With COM or INx− = V

REF

/2.

3

This is also the code for an overranged analog input ((INx+) − (INx−), or COM, above V

REF

− GND).

4

This is also the code for an underranged analog input ((INx+) − (INx−), or COM, below GND).

0 V

−62.5 μV

−2.047938 V

−2.048 V

0x0000

0xFFFF

0x8001

0x8000 4

Rev. A | Page 16 of 32

TYPICAL CONNECTION DIAGRAMS

10µF

2

100nF

5V 1.8V TO VDD

100nF

100nF

V+

0V TO V

REF

ADA4841-x

3

V–

V+

IN0

REF

REFIN VDD

AD7689

IN[7:1]

VIO

0V TO V

REF

ADA4841-x

3

V–

0V OR

V

REF

/2

COM

DIN

SCK

SDO

CNV

MOSI

SCK

MISO

SS

GND

NOTES

1. INTERNAL REFERENCE SHOWN. SEE VOLTAGE REFERENCE OUTPUT/INPUT SECTION FOR

REFERENCE SELECTION.

2. C

REF

IS USUALLY A 10µF CERAMIC CAPACITOR (X5R).

3. SEE THE DRIVER AMPLIFIER CHOICE SECTION FOR ADDITIONAL RECOMMENDED AMPLIFIERS.

4. SEE THE DIGITAL INTERFACE SECTION FOR CONFIGURING AND READING CONVERSION DATA.

Figure 26. Typical Application Diagram with Multiple Supplies

+5V

1.8V TO VDD

10µF

2

V+

ADA4841-x

V–

3

100nF

REF

IN0

AD7689

100nF

REFIN VDD

IN[7:1]

V+

V–

ADA4841-x

3

100nF

VIO

DIN

SCK

SDO

CNV

V

REF

p-p

V

REF

/2

COM

GND

NOTES

1. INTERNAL REFERENCE SHOWN. SEE VOLTAGE REFERENCE OUTPUT/INPUT SECTION FOR

REFERENCE SELECTION.

2. C

REF

IS USUALLY A 10µF CERAMIC CAPACITOR (X5R).

3. SEE THE DRIVER AMPLIFIER CHOICE SECTION FOR ADDITIONAL RECOMMENDED AMPLIFIERS.

4. SEE THE DIGITAL INTERFACE SECTION FOR CONFIGURING AND READING CONVERSION DATA.

Figure 27. Typical Application Diagram Using Bipolar Input

MOSI

SCK

MISO

SS

AD7682/AD7689

Rev. A | Page 17 of 32

AD7682/AD7689

Unipolar or Bipolar

Figure 26 shows an example of the recommended connection

diagram for the AD7682/AD7689 when multiple supplies are available.

Bipolar Single Supply

Figure 27 shows an example of a system with a bipolar input

using single supplies with the internal reference (optional different VIO supply). This circuit is also useful when the amplifier/signal conditioning circuit is remotely located with some common mode present. Note that for any input configuration, the INx inputs are unipolar and are always referenced to GND (no negative voltages even in bipolar range).

For this circuit, a rail-to-rail input/output amplifier can be used; however, the offset voltage vs. input common-mode range should be noted and taken into consideration (1 LSB = 62.5 μV with

V

REF

= 4.096 V). Note that the conversion results are in twos complement format when using the bipolar input configuration.

Refer to the AN-581 Application Note, Biasing and Decoupling

Op Amps in Single Supply Applications,

at www.analog.com

for additional details about using single-supply amplifiers.

ANALOG INPUTS

Input Structure

Figure 28 shows an equivalent circuit of the input structure of

the AD7682/AD7689. The two diodes, D1 and D2, provide ESD protection for the analog inputs, IN[7:0] and COM. Care must be taken to ensure that the analog input signal does not exceed the supply rails by more than 0.3 V because this causes the diodes to become forward biased and to start conducting current.

These diodes can handle a forward-biased current of 130 mA maximum. For instance, these conditions may eventually occur when the input buffer supplies are different from VDD. In such a case, for example, an input buffer with a short circuit, the current limitation can be used to protect the part.

VDD

INx+

OR INx–

OR COM

D1

R

IN

C

IN

C

PIN

D2

GND

Figure 28. Equivalent Analog Input Circuit

This analog input structure allows the sampling of the true differential signal between INx+ and COM or INx+ and INx−.

(COM or INx− = GND ± 0.1 V or V

REF

± 0.1 V). By using these differential inputs, signals common to both inputs are rejected,

as shown in Figure 29.

60

55

70

65

50

45

40

35

30

1 10 100

FREQUENCY (kHz)

1k

Figure 29. Analog Input CMRR vs. Frequency

10k

During the acquisition phase, the impedance of the analog inputs can be modeled as a parallel combination of the capacitor, C

PIN

, and the network formed by the series connection of R

IN

and C

IN

.

C

PIN

is primarily the pin capacitance. R

IN

is typically 2.2 kΩ and is a lumped component composed of serial resistors and the on resistance of the switches. C

IN

is typically 27 pF and is mainly the ADC sampling capacitor.

Selectable Low-Pass Filter

During the conversion phase, where the switches are opened, the input impedance is limited to C

PIN

. While the AD7682/

AD7689 are acquiring, R

IN

and C

IN

make a one-pole, low-pass filter that reduces undesirable aliasing effects and limits the noise from the driving circuitry. The low-pass filter can be programmed for the full bandwidth or ¼ of the bandwidth with

CFG[6], as shown in Table 10. This setting changes R

IN

to 19 kΩ.

Note that the converter throughput must also be reduced by ¼ when using the filter. If the maximum throughput is used with the bandwidth (BW) set to ¼, the converter acquisition time, t

ACQ

, is violated, resulting in increased THD.

Rev. A | Page 18 of 32

Input Configurations

Figure 30 shows the different methods for configuring the analog

inputs with the configuration register, CFG[12:10]. Refer to the

Configuration Register, CFG, section for more details.

The analog inputs can be configured as

 Figure 30A, single-ended referenced to system ground;

CFG[12:10] = 111

2

.

In this configuration, all inputs (IN[7:0]) have a range of

GND to V

REF

.

 Figure 30B, bipolar differential with a common reference

point; COM = V

REF

/2; CFG[12:10] = 010

2

.

Unipolar differential with COM connected to a ground sense; CFG[12:10] = 110

2

.

In this configuration, all inputs IN[7:0] have a range of

GND to V

REF

.

 Figure 30C, bipolar differential pairs with the negative

input channel referenced to V

REF

/2; CFG[12:10] = 00X

2

.

Unipolar differential pairs with the negative input channel referenced to a ground sense; CFG[12:10] = 10X

2

.

In these configurations, the positive input channels have the range of GND to V

REF

. The negative input channels are a sense referred to V

REF

/2 for bipolar pairs, or GND for unipolar pairs. The positive channel is configured with

CFG[9:7]. If CFG[9:7] is even, then IN0, IN2, IN4, and IN6 are used. If CFG[9:7] is odd, then IN1, IN3, IN5, and IN7 are used, as indicated by the channels with parentheses in

Figure 30C. For example, for IN0/IN1 pairs with the

positive channel on IN0, CFG[9:7] = 000

2

. For IN4/IN5 pairs with the positive channel on IN5, CFG[9:7] = 101

2

.

Note that for the sequencer, detailed in the Channel

Sequencer section, the positive channels are always IN0,

IN2, IN4, and IN6.

 Figure 30D, inputs configured in any of the preceding

combinations (showing that the AD7682/AD7689 can be configured dynamically).

AD7682/AD7689

CH0+

CH1+

CH2+

CH3+

CH4+

CH5+

CH6+

CH7+

IN0

IN1

IN2

IN3

IN4

IN5

IN6

IN7

COM

GND

A—8 CHANNELS,

SINGLE ENDED

CH0+

CH1+

CH2+

CH3+

CH4+

CH5+

CH6+

CH7+

COM–

IN4

IN5

IN6

IN7

COM

GND

IN0

IN1

IN2

IN3

B—8 CHANNELS,

COMMON REFERNCE

CH0+ (–)

CH0– (+)

CH1+ (–)

CH1– (+)

CH2+ (–)

CH2– (+)

CH3+ (–)

CH3– (+)

IN4

IN5

IN6

IN7

IN0

IN1

IN2

IN3

COM

GND

CH0+ (–)

CH0– (+)

CH1+ (–)

CH1– (+)

CH2+

CH3+

CH4+

CH5+

COM–

IN4

IN5

IN6

IN7

IN0

IN1

IN2

IN3

COM

GND

C—4 CHANNELS,

DIFFERENTIAL

D—COMBINATION

Figure 30. Multiplexed Analog Input Configurations

Sequencer

The AD7682/AD7689 include a channel sequencer useful for

scanning channels in a repeated fashion. Refer to the Channel

Sequencer section for further details of the sequencer operation.

Source Resistance

When the source impedance of the driving circuit is low, the

AD7682/AD7689 can be driven directly. Large source impedances significantly affect the ac performance, especially THD.

The dc performances are less sensitive to the input impedance.

The maximum source impedance depends on the amount of

THD that can be tolerated. The THD degrades as a function of the source impedance and the maximum input frequency.

Rev. A | Page 19 of 32

AD7682/AD7689

DRIVER AMPLIFIER CHOICE

Although the AD7682/AD7689 are easy to drive, the driver amplifier must meet the following requirements:

 The noise generated by the driver amplifier must be kept as low as possible to preserve the SNR and transition noise performance of the AD7682/AD7689. Note that the AD7682/

AD7689 have a noise much lower than most of the other

16-bit ADCs and, therefore, can be driven by a noisier amplifier to meet a given system noise specification. The noise from the amplifier is filtered by the AD7682/AD7689 analog input circuit low-pass filter made by R

IN

and C

IN

or by an external filter, if one is used. Because the typical noise of the AD7682/AD7689 is 35 μV rms (with V

REF

= 5 V), the

SNR degradation due to the amplifier is

SNR

LOSS

20 log

 35

2

π

2

35

f

3dB

(

Ne

N

)

2

 where:

f

–3dB

is the input bandwidth in megahertz of the AD7682/

AD7689 (1.7 MHz in full BW or 425 kHz in ¼ BW) or the cutoff frequency of an input filter, if one is used.

N is the noise gain of the amplifier (for example, 1 in buffer configuration).

e

N

is the equivalent input noise voltage of the op amp, in nV/√Hz.

 For ac applications, the driver should have a THD perfor-

mance commensurate with the AD7682/AD7689. Figure 18

shows THD vs. frequency for the AD7682/AD7689.

 For multichannel, multiplexed applications on each input or input pair, the driver amplifier and the AD7682/AD7689 analog input circuit must settle a full-scale step onto the capacitor array at a 16-bit level (0.0015%). In amplifier data sheets, settling at 0.1% to 0.01% is more commonly specified. This may differ significantly from the settling time at a 16-bit level and should be verified prior to driver selection.

Table 9. Recommended Driver Amplifiers

ADA4841-x

AD8655

AD8021

Very low noise, small, and low power

5 V single supply, low noise

Very low noise and high frequency

AD8022

OP184

Low noise and high frequency

Low power, low noise, and low frequency

AD8605 , AD8615 5 V single supply, low power

VOLTAGE REFERENCE OUTPUT/INPUT

The AD7682/AD7689 allow the choice of a very low temperature drift internal voltage reference, an external reference, or an external buffered reference.

The internal reference of the AD7682/AD7689 provide excellent performance and can be used in almost all applications.

There are six possible choices of voltage reference schemes

briefly described in Table 10, with more details in each of the

following sections.

Internal Reference/Temperature Sensor

The precision internal reference, suitable for most applications, can be set for either a 2.5 V or a 4.096 V output, as detailed in

Table 10. With the internal reference enabled, the band gap

voltage is also present on the REFIN pin, which requires an external 0.1 μF capacitor. Because the current output of REFIN is limited, it can be used as a source if followed by a suitable buffer, such as the AD8605. Note that the voltage of REFIN changes depending on the 2.5 V or 4.096 V internal reference.

Enabling the reference also enables the internal temperature sensor, which measures the internal temperature of the

AD7682/AD7689 and is thus useful for performing a system calibration. Note that, when using the temperature sensor, the output is straight binary referenced from the AD7682/AD7689

GND pin.

The internal reference is temperature-compensated to within

10 mV. The reference is trimmed to provide a typical drift of

±10 ppm/°C.

Connect the AD7682/AD7689 as shown in Figure 31 for either

a 2.5 V or 4.096 V internal reference.

10 µ F

REF

100nF

REFIN

AD7682/

AD7689

TEMP

GND

Figure 31. 2.5 V or 4.096 V Internal Reference Connection

Rev. A | Page 20 of 32

External Reference and Internal Buffer

For improved drift performance, an external reference can be

used with the internal buffer, as shown in Figure 32. The

external source is connected to REFIN, the input to the on-chip unity gain buffer, and the output is produced on the REF pin.

An external reference can be used with the internal buffer with

or without the temperature sensor enabled. Refer to Table 10 for

register details. With the buffer enabled, the gain is unity and is limited to an input/output of VDD = −0.2 V; however, the maximum voltage allowable must be ≤(VDD − 0.5 V).

The internal reference buffer is useful in multiconverter applications because a buffer is typically required in these applications.

In addition, a low power reference can be used because the internal buffer provides the necessary performance to drive the

SAR architecture of the AD7682/AD7689.

REF SOURCE

≤ (VDD – 0.5V)

10 µ F

REF

100nF

REFIN

AD7682/

AD7689

TEMP

GND

Figure 32. External Reference Using Internal Buffer

External Reference

In any of the six voltage reference schemes, an external reference

can be connected directly on the REF pin as shown in Figure 33

because the output impedance of REF is >5 kΩ. To reduce power consumption, the reference and buffer should be powered down.

For applications requiring the use of the temperature sensor, the internal reference must be active (internal buffer can be

disabled in this case). Refer to Table 10 for register details. For

improved drift performance, an external reference such as the

ADR43x or ADR44x is recommended.

10 µ F

REF

REF SOURCE

0.5V < REF < (VDD + 0.3V)

NO CONNECTION

REQUIRED

REFIN

AD7682/

AD7689

TEMP

GND

Figure 33.External Reference

Note that the best SNR is achieved with a 5 V external reference as the internal reference is limited to 4.096 V. The SNR degradation is as follows:

SNR

LOSS

20 log

4 .

096

5

AD7682/AD7689

Reference Decoupling

Whether using an internal or external reference, the AD7682/

AD7689 voltage reference output/input, REF, has a dynamic input impedance and should therefore be driven by a low impedance source with efficient decoupling between the REF and GND pins. This decoupling depends on the choice of the voltage reference but usually consists of a low ESR capacitor connected to REF and GND with minimum parasitic inductance.

A 10 μF (X5R, 1206 size) ceramic chip capacitor is appropriate when using the internal reference, the ADR43x/ADR44x external reference, or a low impedance buffer such as the

AD8031 or the AD8605 .

The placement of the reference decoupling capacitor is also important to the performance of the AD7682/AD7689, as explained in

the Layout section. Mount the decoupling capacitor on the same

side as the ADC at the REF pin with a thick PCB trace. The GND should also connect to the reference decoupling capacitor with the shortest distance and to the analog ground plane with several vias.

If desired, smaller reference decoupling capacitor values down to 2.2 μF can be used with a minimal impact on performance, especially on DNL.

Regardless, there is no need for an additional lower value ceramic decoupling capacitor (for example, 100 nF) between the REF and GND pins.

For applications that use multiple AD7682/AD7689 devices or other PulSAR devices, it is more effective to use the internal reference buffer to buffer the external reference voltage, thus reducing SAR conversion crosstalk.

The voltage reference temperature coefficient (TC) directly impacts full scale; therefore, in applications where full-scale accuracy matters, care must be taken with the TC. For instance, a ±10 ppm/°C TC of the reference changes full scale by ±1 LSB/°C.

Rev. A | Page 21 of 32

AD7682/AD7689

POWER SUPPLY

The AD7682/AD7689 use two power supply pins: an analog and digital core supply (VDD) and a digital input/output interface supply (VIO). VIO allows direct interface with any logic between 1.8 V and VDD. To reduce the supplies needed, the

VIO and VDD pins can be tied together. The AD7682/AD7689 are independent of power supply sequencing between VIO and

VDD. Additionally, it is very insensitive to power supply varia-

tions over a wide frequency range, as shown in Figure 34.

75

60

55

50

70

65

45

40

35

30

1 10 100

FREQUENCY (kHz)

Figure 34. PSRR vs. Frequency

1k 10k

The AD7682/AD7689 power down automatically at the end of each conversion phase; therefore, the operating currents and power scale linearly with the sampling rate. This makes the part ideal for low sampling rates (even of a few hertz) and low battery-powered applications.

10,000

1000 VDD = 5V, INTERNAL REF

100

10

1

0.1

0.010

VDD = 5V, EXTERNAL REF

VDD = 2.5V, EXTERNAL REF

VIO

0.001

10 100 1k 10k

SAMPLING RATE (SPS)

100k

Figure 35. Operating Currents vs. Sampling Rate

1M

SUPPLYING THE ADC FROM THE REFERENCE

For simplified applications, the AD7682/AD7689, with their low operating current, can be supplied directly using an

external reference circuit like the one shown in Figure 36. The

reference line can be driven by:

 The system power supply directly

 A reference voltage with enough current output capability, such as the ADR43x / ADR44x

 A reference buffer, such as the

AD8605 , which can also

filter the system power supply, as shown in Figure 36

5V

5V

5V 10kΩ

1µF

AD8605

10µF

1

10Ω

1µF

0.1µF 0.1µF

REF VDD

AD7689

VIO

1

OPTIONAL REFERENCE BUFFER AND FILTER.

Figure 36. Example of an Application Circuit

Rev. A | Page 22 of 32

DIGITAL INTERFACE

The AD7682/AD7689 use a simple 4-wire interface and are compatible with SPI, MICROWIRE™, QSPI™, digital hosts, and DSPs, for example, Blackfin® ADSP-BF53x, SHARC®,

ADSP-219x, and ADSP-218x.

The interface uses the CNV, DIN, SCK, and SDO signals and allows CNV, which initiates the conversion, to be independent of the readback timing. This is useful in low jitter sampling or simultaneous sampling applications.

A 14-bit register, CFG[13:0], is used to configure the ADC for the channel to be converted, the reference selection, and other

components, which are detailed in the Configuration Register,

CFG, section.

When CNV is low, reading/writing can occur during conversion, acquisition, and spanning conversion (acquisition plus conversion), as detailed in the following sections. The CFG word is updated on the first 14 SCK rising edges, and conversion results are output on the first 15 (or 16 if busy mode is selected) SCK falling edges. If the CFG readback is enabled, an additional

14 SCK falling edges are required to output the CFG word associated with the conversion results with the CFG MSB following the LSB of the conversion result.

A discontinuous SCK is recommended because the part is selected with CNV low, and SCK activity begins to write a new configuration word and clock out data.

Note that in the following sections, the timing diagrams indicate digital activity (SCK, CNV, DIN, SDO) during the conversion.

However, due to the possibility of performance degradation, digital activity should occur only prior to the safe data reading/ writing time, t

DATA

, because the AD7682/AD7689 provide error correction circuitry that can correct for an incorrect bit during this time. From t

DATA

to t

CONV

, there is no error correction and conversion results may be corrupted. The user should configure the AD7682/AD7689 and initiate the busy indicator (if desired) prior to t

DATA

. It is also possible to corrupt the sample by having

SCK or DIN transitions near the sampling instant. Therefore, it is recommended to keep the digital pins quiet for approximately

20 ns before and 10 ns after the rising edge of CNV, using a discontinuous SCK whenever possible to avoid any potential performance degradation.

READING/WRITING DURING CONVERSION, FAST

HOSTS

When reading/writing during conversion (n), conversion results are for the previous (n − 1) conversion, and writing the

CFG register is for the next (n + 1) acquisition and conversion.

After the CNV is brought high to initiate conversion, it must be brought low again to allow reading/writing during conversion.

Reading/writing should only occur up to t

DATA

and, because this time is limited, the host must use a fast SCK.

AD7682/AD7689

The SCK frequency required is calculated by

f

SCK

Number

_

SCK

_

Edges t

DATA

The time between t

DATA

and t

CONV

is a safe time when digital activity should not occur, or sensitive bit decisions may be corrupt.

READING/WRITING AFTER CONVERSION, ANY

SPEED HOSTS

When reading/writing after conversion, or during acquisition

(n), conversion results are for the previous (n − 1) conversion, and writing is for the (n + 1) acquisition.

For the maximum throughput, the only time restriction is that the reading/writing take place during the t

ACQ

(minimum) time.

For slow throughputs, the time restriction is dictated by the throughput required by the user, and the host is free to run at any speed. Thus for slow hosts, data access must take place during the acquisition phase.

READING/WRITING SPANNING CONVERSION, ANY

SPEED HOST

When reading/writing spanning conversion, the data access starts at the current acquisition (n) and spans into the conversion (n).

Conversion results are for the previous (n − 1) conversion, and writing the CFG register is for the next (n + 1) acquisition and conversion.

Similar to reading/writing during conversion, reading/writing should only occur up to t

DATA

. For the maximum throughput, the only time restriction is that reading/writing take place during the t

ACQ

+ t

DATA

time.

For slow throughputs, the time restriction is dictated by the user’s required throughput, and the host is free to run at any speed. Similar to reading/writing during acquisition, for slow hosts, the data access must take place during the acquisition phase with additional time into the conversion.

Note that data access spanning conversion requires the CNV to be driven high to initiate a new conversion, and data access is not allowed when CNV is high. Thus, the host must perform two bursts of data access when using this method.

CONFIGURATION REGISTER, CFG

The AD7682/AD7689 use a 14-bit configuration register

(CFG[13:0]), as detailed in Table 10, to configure the inputs,

the channel to be converted, the one-pole filter bandwidth, the reference, and the channel sequencer. The CFG register is latched (MSB first) on DIN with 14 SCK rising edges. The CFG update is edge dependent, allowing for asynchronous or synchronous hosts.

Rev. A | Page 23 of 32

AD7682/AD7689

The register can be written to during conversion, during acquisition, or spanning acquisition/conversion, and is updated at the end of conversion, t

CONV

(maximum). There is always a one deep delay when writing the CFG register. Note that, at power-up, the

CFG register is undefined and two dummy conversions are required to update the register. To preload the CFG register with a factory setting, hold DIN high for two conversions. Thus

CFG[13:0] = 0x3FFF. This sets the AD7682/AD7689 for the following:

 IN[7:0] unipolar referenced to GND, sequenced in order

 Full bandwidth for a one-pole filter

 Internal reference/temperature sensor disabled, buffer enabled

 Enables the internal sequencer

 No readback of the CFG register

Table 10 summarizes the configuration register bit details. See

the Theory of Operation section for more details.

13 12 11 10 9 8 7 6 5 4 3 2 1 0

CFG INCC INCC INCC INx INx INx BW REF REF REF SEQ SEQ RB

Table 10. Configuration Register Description

[13] CFG Configuration update.

0 = keep current configuration settings.

1 = overwrite contents of register.

[12:10] INCC Input channel configuration. Selection of pseudo bipolar, pseudo differential, pairs, single-ended, or temperature sensor. Refer

to the

Input Configurations

section.

Bit 12

0

0

0

1

1

Bit 11

0

1

1

0

1

Bit 10

X 1

0

Function

Bipolar differential pairs; INx− referenced to V

REF

/2 ± 0.1 V.

Bipolar; INx referenced to COM = V

REF

/2 ± 0.1 V.

1 Temperature

X

1

Unipolar differential pairs; INx− referenced to GND ± 0.1 V.

0 Unipolar, INx referenced to COM = GND ± 0.1 V.

[9:7] INx

X

1

X

1

X

1

X

1

Input channel selection in binary fashion.

Bit 9 Bit 8

AD7682 AD7689

Bit 7 Channel Bit 9 Bit 8 Bit 7 Channel

Selectable Low-Pass Filter

section.

0 = ¼ of BW, uses an additional series resistor to further bandwidth limit the noise. Maximum throughput must also be reduced to ¼.

1 = full BW.

[5:3] REF Reference/buffer selection. Selection of internal, external, external buffered, and enabling of the on-chip temperature sensor.

Refer to the

Voltage Reference Output/Input

section.

Bit 5

0

1

1

0

0

0

Bit 4

1

1

1

0

0

1

Bit 3

1

0

1

0

1

0

Function

Internal reference, REF = 2.5 V output.

Internal reference, REF = 4.096 V output.

External reference, temperature enabled.

External reference, internal buffer, temperature enabled.

External reference, temperature disabled.

External reference, internal buffer, temperature disabled.

[2:1] SEQ Channel sequencer. Allows for scanning channels in an IN0 to IN[7:0] fashion. Refer to the Channel Sequencer

section.

Bit 2

0

0

1

1

Bit 1

0

1

0

1

Function

Update configuration during sequence.

Scan IN0 to IN[7:0] (set in CFG[9:7]), then temperature.

Scan IN0 to IN[7:0] (set in CFG[9:7]).

[0] RB Read back the CFG register.

0 = read back current configuration at end of data.

1 = do not read back contents of configuration.

1

X = don’t care.

Rev. A | Page 24 of 32

AD7682/AD7689

GENERAL TIMING WITHOUT A BUSY INDICATOR

Figure 37 details the timing for all three modes: read/write

during conversion (RDC), read/write after conversion (RAC), and read/write spanning conversion (RSC). Note that the gating item for both CFG and data readback is at the end of conversion

(EOC). At EOC, if CNV is high, the busy indicator is disabled.

As detailed previously in the Digital Interface section, the data

access should occur up to safe data reading/writing time, t

DATA

.

If the full CFG word was not written to prior to EOC, it is discarded and the current configuration remains. If the conversion result is not read out fully prior to EOC, it is lost as the ADC updates SDO with the MSB of the current conversion. For

detailed timing, refer to Figure 40 and Figure 41, which depict

reading/writing spanning conversion with all timing details, including setup, hold, and SCK.

PHASE

POWER

UP t

CYC

EOC t

CONV

CONVERSION

(n – 2) UNDEFINED

SOC

ACQUISITION

(n – 1) UNDEFINED t

DATA

CONVERSION

(n – 1) UNDEFINED

EOC

ACQUISITION

(n)

When CNV is brought low after EOC, SDO is driven from high impedance to the MSB. Falling SCK edges clock out bits starting with MSB − 1.

The SCK can idle high or low depending on the clock polarity

(CPOL) and clock phase (CPHA) settings if SPI is used. A simple

solution is to use CPOL = CPHA = 0 as shown in Figure 37 with

SCK idling low.

From power-up, in any read/write mode, the first three conversion results are undefined because a valid CFG does not take place until the 2 nd

EOC; thus two dummy conversions are required. Also, if the state machine writes the CFG during the power-up state (RDC shown), the CFG register needs to be rewritten again at the next phase. Note that the first valid data occurs in Phase (n + 1) when the CFG register is written during

Phase (n − 1).

CONVERSION

(n)

EOC

ACQUISITION

(n + 1)

CONVERSION

(n + 1)

EOC

ACQUISITION

(n + 2)

CNV

DIN

RDC

SDO

SCK

MSB

XXX

XXX

1

DATA (n – 3)

XXX

16

2

CFG (n)

1

DATA (n – 2)

XXX

16

MSB

XXX

CFG (n + 1)

1

DATA (n – 1)

XXX

16

MSB

(n)

CFG (n + 2)

1

DATA (n)

16

MSB

(n + 1)

CNV

DIN

RAC

SDO

SCK

CFG (n)

1

DATA (n – 2)

XXX

16

2

CFG (n + 1)

1

DATA (n – 1)

XXX

16 1

CFG (n + 2)

DATA (n)

16

1

CFG (n + 3)

DATA (n + 1)

CNV

DIN

RSC

SDO

SCK

CFG (n) CFG (n)

1

DATA (n – 2)

XXX n n + 1

DATA (n – 2)

XXX

16

2

CFG (n + 1) CFG (n + 1)

1

DATA (n – 1)

XXX n n + 1

DATA (n – 1)

XXX

16

1

CFG (n + 2)

DATA (n) n n + 1

CFG (n + 2)

DATA (n)

16

1

CFG (n + 3)

DATA (n + 1) n

SEQEUNCER TIMING

READ/WRITE AFTER CONVERT SHOWN

PHASE

CONVERSION

UNDEFINED

ACQUISITION

UNDEFINED

CONVERSION

UNDEFINED

ACQUISITION

(IN0)

CONVERSION

(IN0)

ACQUISITION

(IN1)

CONVERSION

(IN1)

3

ACQUISITION

(IN2)

1

CNV

DIN CFG SEQ

3

SDO

DATA (n – 2)

XXX

DATA (n – 1)

XXX

DATA (IN0)

3

DATA (IN1)

SCK 1

16

1

16 1 16 1

2

NOTES

1. CNV MUST BE HIGH PRIOR TO THE END OF CONVERSION (EOC) TO AVOID THE BUSY INDICATOR.

2. A TOTAL OF 16 SCK FALLING EDGES ARE REQUIRED TO RETURN SDO TO HIGH-Z. IF CFG READBACK IS ENABLED, A TOTAL OF 30 SCK FALLING EDGES IS

REQUIRED TO RETURN SDO TO HIGH-Z.

3. WITH THE SEQUENCER ENABLED, THE NEXT ACQUISITION PHASE WILL BE FOR IN0 AFTER THE LAST CHANNEL SET IN CFG[9:7] IS CONVERTED.

Figure 37. General Interface Timing for the AD7682/AD7689 Without a Busy Indicator

Rev. A | Page 25 of 32

AD7682/AD7689

GENERAL TIMING WITH A BUSY INDICATOR

Figure 38 details the timing for all three modes: read/write

during conversion (RDC), read/write after conversion (RAC), and read/write spanning conversion (RSC). Note that the gating item for both CFG and data readback is at the end of conversion

(EOC). As detailed previously, the data access should occur up to safe data reading/writing time, t

DATA

. If the full CFG word is not written to prior to EOC, it is discarded and the current configuration remains.

At the EOC, if CNV is low, the busy indicator is enabled. In addition, to generate the busy indicator properly, the host must assert a minimum of 17 SCK falling edges to return SDO to high impedance because the last bit on SDO remains active.

Unlike the case detailed in the General Timing Without a Busy

Indicator section, if the conversion result is not read out fully

prior to EOC, the last bit clocked out remains. If this bit is low, the busy signal indicator cannot be generated because the busy generation requires either a high impedance or a remaining bit

PHASE

POWER

UP t

CONV t

CYC

EOC

START OF CONVERSION

(SOC) t

DATA

CONVERSION

(n – 2) UNDEFINED

ACQUISITION

(n – 1) UNDEFINED

CONVERSION

(n – 1) UNDEFINED

EOC

ACQUISITION

(n)

high-to-low transition. A good example of this occurs when an SPI host sends 16 SCKs because these are usually limited to

8-bit or 16-bit bursts; thus the LSB remains. Because the transition noise of the AD7682/AD7689 is 4 LSBs peak to peak (or greater), the LSB is low 50% of the time. For this interface, the

SPI host needs to burst 24 SCKs, or a QSPI interface can be used and programmed for 17 SCKs.

The SCK can idle high or low depending on the CPOL and

CPHA settings if SPI is used. A simple solution is to use CPOL

= CPHA = 1 (not shown) with SCK idling high.

From power-up, in any read/write mode, the first three conversion results are undefined because a valid CFG does not take place until the 2 nd

EOC; thus, two dummy conversions are required. Also, if the state machine writes the CFG during the power-up state (RDC shown), the CFG register needs to be rewritten again at the next phase. Note that the first valid data occurs in Phase (n + 1) when the CFG register is written during

Phase (n − 1).

CONVERSION

(n)

EOC

ACQUISITION

(n + 1)

CONVERSION

(n + 1)

EOC

ACQUISITION

(n + 2)

CNV

DIN

RDC

SDO

SCK

XXX

1

DATA (n – 3)

XXX

17

NOTE 1

CFG (n)

1

DATA (n – 2)

XXX

17

NOTE 2

CFG (n + 1)

1

DATA (n – 1)

XXX

17

CFG (n + 2)

1

DATA (n)

17

CNV

RAC

DIN

SDO

SCK

NOTE 1

CFG (n)

1

DATA (n – 2)

XXX

17

NOTE 2

CFG (n + 1)

1

DATA (n – 1)

XXX

17

CFG (n + 2)

1

DATA (n)

17

CNV NOTE 1

RSC

DIN

SDO

CFG (n)

DATA (n – 2)

XXX

DATA (n – 2)

XXX

CFG (n + 1)

DATA (n – 1)

XXX

DATA (n – 1)

XXX

CFG (n + 2)

DATA (n)

SCK

1 n n + 1 17 1 n n + 1 17 1

NOTE 2

NOTES

1. CNV MUST BE LOW PRIOR TO THE END OF CONVERSION (EOC) TO GENERATE THE BUSY INDICATOR.

2. A TOTAL OF 17 SCK FALLING EDGES ARE REQUIRED TO RETURN SDO TO HIGH-Z. IF CFG READBACK IS ENABLED,

A TOTAL OF 31 SCK FALLING EDGES IS REQUIRED TO RETURN SDO TO HIGH-Z.

n n + 1

Figure 38. General Interface Timing for the AD7682/AD7689 With a Busy Indicator

DATA (n)

17

1

CFG (n + 3)

DATA (n + 1)

1

CFG (n + 3)

DATA (n + 1)

Rev. A | Page 26 of 32

AD7682/AD7689

CHANNEL SEQUENCER

The AD7682/AD7689 include a channel sequencer useful for scanning channels in a repeated fashion. Channels are scanned as singles or pairs, with or without the temperature sensor, after the last channel is sequenced.

Busy Indicator section for more details. The sequencer can also

be used with the busy indicator and details for these timings can

be found in the General Timing with a Busy Indicator section

and the Read/Write Spanning Conversion with a Busy Indicator

section.

The sequencer starts with IN0 and finishes with IN[7:0] set in

CFG[9:7]. For paired channels, the channels are paired depending on the last channel set in CFG[9:7]. Note that in sequencer mode, the channels are always paired with the positive input on the even channels (IN0, IN2, IN4, IN6), and with the negative input on the odd channels (IN1, IN3, IN5, IN7). For example, setting CFG[9:7] = 110 or 111 scans all pairs with the positive inputs dedicated to IN0, IN2, IN4, and IN6.

For sequencer operation, the CFG register should be set during the (n − 1) phase after power-up. On phase (n), the sequencer setting takes place and acquires IN0. The first valid conversion result is available at phase (n + 1). After the last channel set in

CFG[9:7] is converted, the internal temperature sensor data is output (if enabled), followed by acquisition of IN0.

Examples

CFG[2:1] are used to enable the sequencer. After the CFG register is updated, DIN must be held low while reading data out for Bit 13, or the CFG register begins updating again.

With all channels configured for unipolar mode to GND, including the internal temperature sensor, the sequence scans in the following order:

IN0, IN1, IN2, IN3, IN4, IN5, IN6, IN7, TEMP, IN0, IN1, IN2, …

Note that while operating in a sequence, some bits of the CFG register can be changed. However, if changing CFG[11] (paired or single channel) or CFG[9:7] (last channel in sequence), the sequence reinitializes and converts IN0 (or IN0/IN1 pairs) after the CFG register is updated.

For paired channels with the internal temperature sensor enabled, the sequencer scans in the following order:

IN0, IN2, IN4, IN6, TEMP, IN0, …

Figure 39 details the timing for all three modes without a busy

indicator. Refer to the General Timing Without a Busy Indicator

section and the Read/Write Spanning Conversion Without a

PHASE

POWER

UP t

CONV

CONVERSION

(n – 2) UNDEFINED t

CYC

EOC

SOC

ACQUISITION

(n – 1) UNDEFINED t

DATA

CONVERSION

(n – 1) UNDEFINED

EOC

ACQUISITION

(n), IN0

Note that IN1, IN3, IN5, and IN7 are referenced to a GND sense or V

REF

/2, as detailed in the Input Configurations section.

CONVERSION

(n), IN0

EOC

ACQUISITION

(n + 1), IN1

CONVERSION

(n + 1), IN1

EOC

ACQUISITION

(n + 2), IN2

NOTE 1

CNV

DIN

RDC

SDO

SCK

MSB

XXX

XXX

1

DATA (n – 3)

XXX

16

2

CFG (n)

1

DATA (n – 2)

XXX

16

NOTE 2

MSB

XXX

1

DATA (n – 1)

XXX

16

MSB

IN0

1

DATA IN0

16

MSB

IN1

CNV

DIN

RAC

SDO

SCK

CFG (n)

1

DATA (n – 2)

XXX

16

NOTE 2

1

DATA (n – 1)

XXX

16 1

DATA IN0

16

CNV

RSC

DIN

SDO

CFG (n)

DATA (n – 2)

XXX

CFG (n)

DATA (n – 2)

XXX

DATA (n – 1)

XXX

DATA (n – 1)

XXX

SCK 1 n n + 1

16 1 n n + 1

16

NOTE 2

NOTES

1. CNV MUST BE HIGH PRIOR TO THE END OF CONVERSION (EOC) TO AVOID THE BUSY INDICATOR.

2. A TOTAL OF 16 SCK FALLING EDGES ARE REQUIRED TO RETURN SDO TO HIGH-Z. IF CFG READBACK IS ENABLED,

A TOTAL OF 30 SCK FALLING EDGES IS REQUIRED TO RETURN SDO TO HIGH-Z.

1

DATA IN0 n n + 1

DATA IN0

16

Figure 39. General Channel Sequencer Timing Without a Busy Indicator

1

DATA IN1

1

DATA IN1 n

Rev. A | Page 27 of 32

AD7682/AD7689

READ/WRITE SPANNING CONVERSION WITHOUT

A BUSY INDICATOR

This mode is used when the AD7682/AD7689 are connected to any host using an SPI, serial port, or FPGA. The connection

diagram is shown in Figure 40, and the corresponding timing is given in Figure 41. For the SPI, the host should use CPHA =

CPOL = 0. Reading/writing spanning conversion is shown,

which covers all three modes detailed in the Digital Interface

section. For this mode, the host must generate the data transfer based on the conversion time. For an interrupt driven transfer

that uses a busy indicator, refer to the Read/Write Spanning

Conversion with a Busy Indicator section.

A rising edge on CNV initiates a conversion, forces SDO to high impedance, and ignores data present on DIN. After a conversion is initiated, it continues until completion irrespective of the state of CNV. CNV must be returned high before the safe data transfer time, t

DATA

, and then held high beyond the conversion time, t

CONV

, to avoid generation of the busy signal indicator.

After the conversion is complete, the AD7682/AD7689 enter the acquisition phase and power-down. When the host brings

AD7682/

AD7689

CNV

SDO

DIN

SCK

CNV low after t

CONV

(maximum), the MSB is enabled on SDO.

The host also must enable the MSB of the CFG register at this time (if necessary) to begin the CFG update. While CNV is low, both a CFG update and a data readback take place. The first 14

SCK rising edges are used to update the CFG, and the first 15

SCK falling edges clock out the conversion results starting with

MSB − 1. The restriction for both configuring and reading is that they both must occur before the t

DATA

time of the next conversion elapses. All 14 bits of CFG[13:0] must be written, or they are ignored. In addition, if the 16-bit conversion result is not read back before t

DATA

elapses, it is lost.

The SDO data is valid on both SCK edges. Although the rising edge can be used to capture the data, a digital host using the

SCK falling edge allows a faster reading rate, provided it has an acceptable hold time. After the 16 th

(or 30 th

) SCK falling edge, or when CNV goes high (whichever occurs first), SDO returns to high impedance.

If CFG readback is enabled, the CFG register associated with the conversion result is read back MSB first following the LSB of the conversion result. A total of 30 SCK falling edges is required to return SDO to high impedance if this is enabled.

DIGITAL HOST

SS

MISO

MOSI

SCK

CNV t

DATA

> t

CONV t

CONV

FOR SPI USE CPHA = 0, CPOL = 0.

Figure 40. Connection Diagram for the AD7682/AD7689 Without a Busy Indicator

t

CYC t

CONV t

DATA

EOC t

CNVH

RETURN CNV HIGH

FOR NO BUSY t

ACQ

EOC

RETURN CNV HIGH

FOR NO BUSY

ACQUISITION

(n - 1) t

CONVERSION (n – 1)

SCKH t

SCK

(QUIET

TIME)

UPDATE (n)

CFG/SDO

ACQUISITION (n)

SCK

DIN t

SCKL

14 15 t

EN

CFG

LSB

X

END CFG (n)

16/

30

X t

CLSCK t

EN

1

2

CFG

MSB t

SDIN

CFG

MSB – 1 t

HDIN

BEGIN CFG (n + 1) t t

HSDO

DSDO

MSB

MSB – 1

SDO

LSB + 1

LSB t

DIS

END DATA (n – 2) t

DIS

BEGIN DATA (n – 1)

NOTES

1. THE LSB IS FOR CONVERSION RESULTS OR THE CONFIGURATION REGISTER CFG (n – 1) IF

15 SCK FALLING EDGES = LSB OF CONVERSION RESULTS.

29 SCK FALLING EDGES = LSB OF CONFIGURATION REGISTER.

ON THE 16TH OR 30TH SCK FALLING EDGE, SDO IS DRIVEN TO HIGH IMPENDANCE.

t

EN t

DIS

CONVERSION (n)

14

CFG

LSB

X

END CFG (n + 1)

X

LSB + 1

LSB

SEE NOTE

END DATA (n – 1) t

DIS

Figure 41. Serial Interface Timing for the AD7682/AD7689 Without a Busy Indicator

15

SEE NOTE

16/

30

(QUIET

TIME)

ACQUISITION

(n + 1)

UPDATE (n + 1)

CFG/SDO

Rev. A | Page 28 of 32

READ/WRITE SPANNING CONVERSION WITH A

BUSY INDICATOR

This mode is used when the AD7682/AD7689 are connected to any host using an SPI, serial port, or FPGA with an interrupt

input. The connection diagram is shown in Figure 42, and the corresponding timing is given in Figure 43. For the SPI, the

host should use CPHA = CPOL = 1. Reading/writing spanning conversion is shown, which covers all three modes detailed in

the Digital Interface section.

A rising edge on CNV initiates a conversion, ignores data present on DIN and forces SDO to high impedance. After the conversion is initiated, it continues until completion irrespective of the state of CNV. CNV must be returned low before the safe data transfer time, t

DATA

, and then held low beyond the conversion time, t

CONV

, to generate the busy signal indicator.

When the conversion is complete, SDO transitions from high impedance to low (data ready), and with a pull-up to VIO, SDO can be used to interrupt the host to begin data transfer.

After the conversion is complete, the AD7682/AD7689 enter the acquisition phase and power-down. The host must enable the MSB of the CFG register at this time (if necessary) to begin

VIO

AD7682/

AD7689

SDO t

DATA

CNV

DIN

SCK

AD7682/AD7689

the CFG update. While CNV is low, both a CFG update and a data readback take place. The first 14 SCK rising edges are used to update the CFG register, and the first 16 SCK falling edges clock out the conversion results starting with the MSB. The restriction for both configuring and reading is that they both occur before the t

DATA

time elapses for the next conversion. All 14 bits of

CFG[13:0] must be written or they are ignored. Also, if the 16-bit conversion result is not read back before t

DATA

elapses, it is lost.

The SDO data is valid on both SCK edges. Although the rising edge can be used to capture the data, a digital host using the

SCK falling edge allows a faster reading rate, provided it has an acceptable hold time. After the optional 17 th (or 31 st ) SCK falling edge, SDO returns to high impedance. Note that if the optional SCK falling edge is not used, the busy feature cannot

be detected, as described in the General Timing with a Busy

Indicator section.

If CFG readback is enabled, the CFG register associated with the conversion result is read back MSB first following the LSB of the conversion result. A total of 31 SCK falling edges is required to return SDO to high impedance if this is enabled.

DIGITAL HOST

MISO

IRQ

SS

MOSI

SCK

FOR SPI USE CPHA = 1, CPOL = 1.

Figure 42. Connection Diagram for the AD7682/AD7689 with a Busy Indicator

t

CYC t

ACQ t

DATA t

CONV t

CNVH

CNV

CONVERSION

(n – 1) t

SCKH

CONVERSION (n – 1) t

SCK

(QUIET

TIME)

UPDATE (n)

CFG/SDO

ACQUISITION (n)

SCK

DIN

SDO t

SCKL

15

X

16

END CFG (n)

X

LSB

+ 1

END DATA (n – 2)

17/

31

X

LSB t

DIS

1

2

CFG

MSB t

HDIN t

SDIN

CFG

MSB –1

BEIGN CFG (n + 1) t t

HSDO

DSDO

MSB

MSB

– 1

BEGIN DATA (n – 1) t

EN

NOTES:

1. THE LSB IS FOR CONVERSION RESULTS OR THE CONFIGURATION REGISTER CFG (n – 1) IF

16 SCK FALLING EDGES = LSB OF CONVERSION RESULTS.

30 SCK FALLING EDGES = LSB OF CONFIGURATION REGISTER.

ON THE 17TH OR 31st SCK FALLING EDGE, SDO IS DRIVEN TO HIGH IMPENDANCE.

OTHERWISE, THE LSB REMAINS ACTIVE UNTIL THE BUSY INDICATOR IS DRIVEN LOW.

t

EN t

DIS

CONVERSION (n)

15

SEE NOTE

16

17/

31

(QUIET

TIME)

ACQUISITION

(n + 1)

UPDATE (n + 1)

CFG/SDO

X

X

X

END CFG (n + 1)

LSB

+ 1

END DATA (n – 1)

LSB

SEE NOTE t

DIS t

EN

Figure 43. Serial Interface Timing for the AD7682/AD7689 with a Busy Indicator

Rev. A | Page 29 of 32

AD7682/AD7689

APPLICATION HINTS

LAYOUT

The printed circuit board (PCB) that houses the AD7682/AD7689 should be designed so that the analog and digital sections are separated and confined to certain areas of the board. The pinout of the AD7682/AD7689, with all its analog signals on the left side and all its digital signals on the right side, eases this task.

Avoid running digital lines under the device because these couple noise onto the die unless a ground plane under the

AD7682/AD7689 is used as a shield. Fast switching signals, such as CNV or clocks, should not run near analog signal paths. Avoid crossover of digital and analog signals.

At least one ground plane should be used. It can be common or split between the digital and analog sections. In the latter case, the planes should be joined underneath the AD7682/AD7689.

The AD7682/AD7689 voltage reference input REF has a dynamic input impedance and should be decoupled with minimal parasitic inductances. This is done by placing the reference decoupling ceramic capacitor close to, ideally right up against, the REF and GND pins and connecting them with wide, low impedance traces.

Finally, the power supplies VDD and VIO of the AD7682/

AD7689 should be decoupled with ceramic capacitors, typically

100 nF, placed close to the AD7682/AD7689, and connected using short, wide traces to provide low impedance paths and to reduce the effect of glitches on the power supply lines.

EVALUATING AD7682/AD7689 PERFORMANCE

Other recommended layouts for the AD7682/AD7689 are outlined in the documentation of the evaluation board for the

AD7682/AD7689 ( EVAL-AD7682EDZ / EVAL-AD7689EDZ ).

The evaluation board package includes a fully assembled and tested evaluation board, documentation, and software for controlling the board from a PC via the converter and evaluation development data capture board, EVAL-CED1Z .

Rev. A | Page 30 of 32

AD7682/AD7689

OUTLINE DIMENSIONS

4.00

BSC SQ

0.60 MAX

0.60 MAX

PIN 1

INDICATOR

3.75

BSC SQ

0.50

BSC

15

16

EXPOSED

PAD

(BOTTOM VIEW)

20

1

5

11

10 6

PIN 1

INDICATOR

2.65

2.50 SQ

2.35

TOP VIEW

0.50

0.40

0.30

0.25 MIN

1.00

0.85

0.80

12° MAX

SEATING

PLANE

0.80 MAX

0.65 TYP

0.05 MAX

0.02 NOM

COPLANARITY

0.08

0.20 REF

FOR PROPER CONNECTION OF

THE EXPOSED PAD, REFER TO

THE PIN CONFIGURATION AND

FUNCTION DESCRIPTIONS

SECTION OF THIS DATA SHEET.

0.30

0.23

0.18

COMPLIANT TO JEDEC STANDARDS MO-220-VGGD-1

Figure 44. 20-Lead Lead Frame Chip Scale Package (LFCSP_VQ)

4 mm × 4 mm Body, Very Thin Quad

(CP-20-4)

Dimensions shown in millimeters

ORDERING GUIDE

Model

AD7682BCPZ 1

AD7682BCPZRL7

1

AD7689ACPZ

1

AD7689ACPZRL7

1

AD7689BCPZ

1

AD7689BCPZRL7 1

Integral

Nonlinearity

±2 LSB max

±2 LSB max

±6 LSB max

±6 LSB max

±2 LSB max

±2 LSB max

No Missing

Code

16 bits

16 bits

15 bits

15 bits

16 bits

16 bits

Temperature

Range Package Description

−40°C to +85°C 20-Lead QFN (LFCSP_VQ)

−40°C to +85°C 20-Lead QFN (LFCSP_VQ)

−40°C to +85°C 20-Lead QFN (LFCSP_VQ)

−40°C to +85°C 20-Lead QFN (LFCSP_VQ)

−40°C to +85°C 20-Lead QFN (LFCSP_VQ)

−40°C to +85°C 20-Lead QFN (LFCSP_VQ)

Package

Option

CP-20-4

CP-20-4

CP-20-4

CP-20-4

CP-20-4

CP-20-4

Ordering

Quantity

Tray, 490

Reel, 1,500

Tray, 490

Reel, 1,500

Tray, 490

Reel, 1,500

EVAL-AD7682EDZ 1

EVAL-AD7689EDZ

1

EVAL-CED1Z

2

Converter Evaluation and

Development Board

1 Z = RoHS Compliant Part.

2

This controller board allows a PC to control and communicate with all Analog Devices evaluation boards whose model numbers end in ED.

Rev. A | Page 31 of 32

AD7682/AD7689

NOTES

©2008–2009 Analog Devices, Inc. All rights reserved. Trademarks and

registered trademarks are the property of their respective owners.

D07353-0-3/09(A)

Rev. A | Page 32 of 32

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
