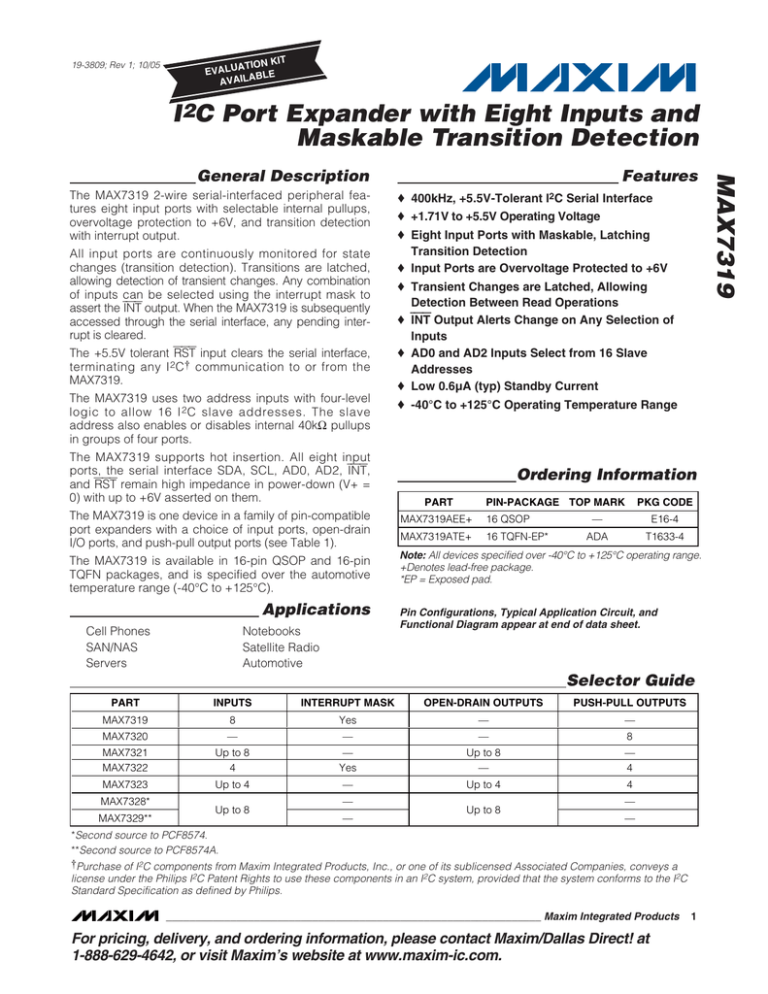

MAX7319

MAX7319

19-3809; Rev 1; 10/05

EVALUATION KIT

AVAILABLE

I

2

C Port Expander with Eight Inputs and

Maskable Transition Detection

General Description

The MAX7319 2-wire serial-interfaced peripheral features eight input ports with selectable internal pullups, overvoltage protection to +6V, and transition detection with interrupt output.

All input ports are continuously monitored for state changes (transition detection). Transitions are latched, allowing detection of transient changes. Any combination of inputs can be selected using the interrupt mask to assert the INT output. When the MAX7319 is subsequently accessed through the serial interface, any pending interrupt is cleared.

The +5.5V tolerant RST input clears the serial interface, terminating any I

2

C

† communication to or from the

MAX7319.

The MAX7319 uses two address inputs with four-level logic to allow 16 I

2

C slave addresses. The slave address also enables or disables internal 40k

Ω pullups in groups of four ports.

The MAX7319 supports hot insertion. All eight input ports, the serial interface SDA, SCL, AD0, AD2, INT, and RST remain high impedance in power-down (V+ =

0) with up to +6V asserted on them.

The MAX7319 is one device in a family of pin-compatible port expanders with a choice of input ports, open-drain

I/O ports, and push-pull output ports (see Table 1).

The MAX7319 is available in 16-pin QSOP and 16-pin

TQFN packages, and is specified over the automotive temperature range (-40°C to +125°C).

Cell Phones

SAN/NAS

Servers

Applications

Notebooks

Satellite Radio

Automotive

Features

400kHz, +5.5V-Tolerant I

2

C Serial Interface

+1.71V to +5.5V Operating Voltage

Eight Input Ports with Maskable, Latching

Transition Detection

Input Ports are Overvoltage Protected to +6V

Transient Changes are Latched, Allowing

Detection Between Read Operations

♦ INT Output Alerts Change on Any Selection of

Inputs

AD0 and AD2 Inputs Select from 16 Slave

Addresses

Low 0.6µA (typ) Standby Current

-40°C to +125°C Operating Temperature Range

Ordering Information

PART PIN-PACKAGE TOP MARK PKG CODE

MAX7319AEE+ 16 QSOP

MAX7319ATE+ 16 TQFN-EP*

ADA

E16-4

T1633-4

Note: All devices specified over -40°C to +125°C operating range.

+Denotes lead-free package.

*EP = Exposed pad.

Pin Configurations, Typical Application Circuit, and

Functional Diagram appear at end of data sheet.

Selector Guide

PART INPUTS INTERRUPT MASK OPEN-DRAIN OUTPUTS PUSH-PULL OUTPUTS

MAX7319

MAX7320

MAX7321

MAX7322

8

Up to 8

4

Yes

Yes

Up to 8

8

4

MAX7323

MAX7328*

Up to 4 —

Up to 4 4

Up to 8 Up to 8

MAX7329** — —

*Second source to PCF8574.

**Second source to PCF8574A.

Purchase of I

2

C components from Maxim Integrated Products, Inc., or one of its sublicensed Associated Companies, conveys a license under the Philips I

2

C Patent Rights to use these components in an I

2

C system, provided that the system conforms to the I

2

C

Standard Specification as defined by Philips.

________________________________________________________________ Maxim Integrated Products 1

For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at

1-888-629-4642, or visit Maxim’s website at www.maxim-ic.com.

I

2

C Port Expander with Eight Inputs and

Maskable Transition Detection

ABSOLUTE MAXIMUM RATINGS

(All voltages referenced to GND.)

Supply Voltage V+....................................................-0.3V to +6V

SCL, SDA, AD0, AD2, RST, INT, I0–I7......................-0.3V to +6V

SDA Input Current.............................................................. 10mA

INT Input Current ................................................................10mA

Total V+ Current..................................................................50mA

Total GND Current ...........................................................100mA

Continuous Power Dissipation (T

A

= +70°C)

16-Pin QSOP (derate 8.3mW/°C over +70°C)..............667mW

16-Pin TQFN (derate 15.6mW/°C over +70°C) ..........1250mW

Operating Temperature Range .........................-40°C to +125°C

Junction Temperature ......................................................+150°C

Storage Temperature Range .............................-65°C to +150°C

Lead Temperature (soldering, 10s) .................................+300°C

Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.

ELECTRICAL CHARACTERISTICS

(V+ = +1.71V to +5.5V, T

A

= -40°C to +125°C, unless otherwise noted. Typical values are at V+ = +3.3V, T

A

= +25°C.) (Note 1)

PARAMETER

Operating Supply Voltage

Power-On Reset Voltage

Standby Current (Interface Idle)

SYMBOL

V+

V

POR

I

STB

CONDITIONS

SCL and SDA and other digital inputs at V+

MIN

1.71

TYP

0.6

MAX

5.50

1.6

1.5

UNITS

V

V

µA

Supply Current

(Interface Running)

I+ f

SCL

= 400kHz; other digital inputs at V+ 23 55 µA

Input High Voltage

SDA, SCL, AD0, AD2, RST, I0–I7

Input Low Voltage

SDA, SCL, AD0, AD2, RST, I0–I7

Input Leakage Current

SDA, SCL, AD0, AD2, RST, I0–I7

V

IH

V

IL

I

IH

, I

IL

V

+

< 1.8V

V

+

≥ 1.8V

V

+

< 1.8V

V

+

≥ 1.8V

SDA, SCL, AD0, AD2, RST, I0–I7 at V+ or

GND

0.8 x V+

0.7 x V+

-0.2

0.2 x V+

0.3 x V+

+0.2

V

V

µA

Input Capacitance

SDA, SCL, AD0, AD2, RST, I0–I7

Output Low Voltage

SDA

Output Low Voltage

INT

Port Input Pullup Resistor

V

OLSDA

I

SINK

= 6mA

V

OLINT

I

SINK

= 5mA

R

PU

25

10

100

40

250

250

55 pF mV mV k

Ω

2 _______________________________________________________________________________________

I

2

C Port Expander with Eight Inputs and

Maskable Transition Detection

PORT AND INTERRUPT

INT TIMING CHARACTERISTICS

(V+ = +1.71V to +5.5V, T

A

= -40°C to +125°C, unless otherwise noted. Typical values are at V+ = +3.3V, T

A

= +25°C.) (Note 1)

CONDITIONS TYP PARAMETER

Port Input Setup Time

Port Input Hold Time

INT Input Data Valid Time

INT Reset Delay Time from STOP

INT Reset Delay Time from

Acknowledge

SYMBOL

t

PSU t

PH t

IV t

IP t

IR

C

L

≤ 100pF

C

L

≤ 100pF

C

L

≤ 100pF

C

L

≤ 100pF

C

L

≤ 100pF

MIN

0

4

MAX UNITS

4

4

µs

µs

µs

µs

4 µs

TIMING CHARACTERISTICS

(V+ = +1.71V to +5.5V, T

A

= -40°C to +125°C, unless otherwise noted. Typical values are at V+ = +3.3V, T

A

= +25°C.) (Note 1)

PARAMETER

Serial Clock Frequency

Bus Free Time Between a STOP and a START Condition

SYMBOL

f

SCL t

BUF

CONDITIONS MIN

1.3

TYP MAX

400

UNITS

kHz

µs

Hold Time (Repeated) START

Condition

Repeated START Condition

Setup Time

STOP Condition Setup Time

Data Hold Time

Data Setup Time

SCL Clock Low Period

SCL Clock High Period

Rise Time of Both SDA and SCL

Signals, Receiving

Fall Time of Both SDA and SCL

Signals, Receiving

Fall Time of SDA, Transmitting t

HD, STA t

SU, STA t

SU, STO t

HD, DAT

(Note 2) t

SU, DAT t

LOW t

HIGH t

R t

F t

F,TX t

SP

(Notes 3, 4)

(Notes 3, 4)

(Notes 3, 4)

(Note 5)

0.6

0.6

0.6

100

1.3

0.7

20 +

0.1C

b

20 +

0.1C

b

20 +

0.1C

b

50

0.9

300

300

250

µs

µs

µs

µs ns

µs

µs ns ns ns ns Pulse Width of Spike Suppressed

Capacitive Load for Each Bus

Line

RST Pulse Width

RST Rising to START Condition

Setup Time

C b t

W t

RST

(Note 3)

500

1

400 pF ns

µs

Note 1: All parameters are tested at T

A

= +25°C. Specifications over temperature are guaranteed by design.

Note 2: A master device must provide a hold time of at least 300ns for the SDA signal (referred to V

IL of the SCL signal) to bridge the undefined region of SCL’s falling edge.

Note 3: Guaranteed by design.

Note 4: C b

= total capacitance of one bus line in pF. t

R and t

F measured between 0.3 x V+ and 0.7 x V+, I

SINK

≤ 6mA.

Note 5: Input filters on the SDA and SCL inputs suppress noise spikes less than 50ns.

_______________________________________________________________________________________ 3

I

2

C Port Expander with Eight Inputs and

Maskable Transition Detection

Typical Operating Characteristics

(T

A

= +25°C, unless otherwise noted.)

STANDBY CURRENT vs. TEMPERATURE

2.0

1.8

f

SCL

= 0kHz

1.6

1.4

1.2

V+ = +5.0V

1.0

0.8

0.6

V+ = +2.5V

V+ = +3.3V

0.4

0.2

V+ = +1.71V

0

-40 -25 -10 5 20 35 50 65 80 95 110 125

TEMPERATURE (

°C)

60

50

SUPPLY CURRENT vs. TEMPERATURE

f

SCL

= 400kHz

V+ = +5.0V

40

30

V+ = +3.3V

20

V+ = +2.5V

10

V+ = +1.71V

0

-40 -25 -10 5 20 35 50 65 80 95 110 125

TEMPERATURE (

°C)

Pin Description

QSOP

PIN

TQFN

1, 3 15, 1

2 16

4–7, 9–12 2–5, 7–10

8

13

6

11

14

15

16

12

13

14

EP

NAME

AD0, AD2

RST

I0–I7

GND

INT

SCL

SDA

V+

EP

FUNCTION

Address Inputs. Select device slave address with AD0 and AD2. Connect AD0 and AD2 to either GND, V+, SCL, or SDA to give four logic combinations (see Table 3).

Reset Input, Active Low. Drive RST low to clear the 2-wire interface.

Input Ports. I0 to I7 are CMOS logic inputs protected to +6V.

Ground

Interrupt Output, Active Low. INT is an open-drain output rated at +6V.

I

2

C-Compatible Serial Clock Input

I

2

C-Compatible Serial Data I/O

Positive Supply Voltage. Bypass V+ to GND with a ceramic capacitor of at least 0.047µF.

Exposed Pad. Connect exposed pad to GND.

4 _______________________________________________________________________________________

I

2

C Port Expander with Eight Inputs and

Maskable Transition Detection

Detailed Description

MAX7319–MAX7329 Family Comparison

The MAX7319–MAX7323 family consists of five pincompatible, eight-port expanders. Each version is optimized for different applications. The MAX7328 and

MAX7329 are second sources to the PCF8574 and

PCF8574A.

The MAX7324–MAX7327 family consists of four pincompatible, 16-port expanders that integrate the functions of the MAX7320 and one of either the MAX7319,

MAX7321, MAX7322, or MAX7323.

Functional Overview

The MAX7319 is a general-purpose port expander, operating from a +1.71V to +5.5V supply that provides eight CMOS input ports that are overvoltage protected to +6V independent of supply voltage.

The MAX7319 is set to one of 16 I

2

C slave addresses

(0x60 to 0x6F) using the address-select inputs AD2 and AD0, and is accessed over an I

2

C serial interface.

The RST input clears the serial interface in case of a hung bus, terminating any serial transaction to or from the MAX7319.

The input ports offer latching transition detection functionality. All input ports are continuously monitored for

Table 1. MAX7319–MAX7329 Family Comparison

PART

I

2

C

SLAVE

ADDRESS

INPUTS

INPUT

INTERRUPT

MASK

OPEN-

DRAIN

OUTPUTS

PUSH-

PULL

OUTPUTS

8-PORT EXPANDERS

MAX7319 110xxxx

MAX7320 101xxxx

MAX7321 110xxxx Up to 8

MAX7322 110xxxx

8

4

Yes

Yes

Up to 8

8

4

APPLICATION

Input-only versions:

Eight input ports with programmable latching transition detection interrupt and selectable pullups.

Offers maximum versatility for automatic input monitoring. An interrupt mask selects which inputs cause an interrupt on transitions, and transition flags identify which inputs have changed (even momentarily) since the ports were last read.

Output-only versions:

Eight push-pull outputs with selectable power-up default levels.

Push-pull outputs offer faster rise time than opendrain outputs, and require no pullup resistors.

I/O versions:

Eight open-drain I/O ports with latching transition detection interrupt and selectable pullups.

Open-drain outputs can level shift the logic-high state to a higher or lower voltage than V+ using external pullup resistors. Any port can be used as an input by setting the open-drain output to logic-high.

Transition flags identify which inputs have changed

(even momentarily) since the ports were last read.

Four input-only, four output-only versions:

Four input ports with programmable latching transition detection interrupt and selectable pullups.

Four push-pull outputs with selectable power-up default levels.

_______________________________________________________________________________________ 5

I

2

C Port Expander with Eight Inputs and

Maskable Transition Detection

Table 1. MAX7319–MAX7329 Family Comparison (continued)

PART

I

2

C

SLAVE

ADDRESS

INPUTS

INPUT

INTERRUPT

MASK

OPEN-

DRAIN

OUTPUTS

PUSH-

PULL

OUTPUTS

MAX7323

MAX7328

MAX7329

110xxxx Up to 4

0100xxx

0111xxx

Up to 8

Up to 4

Up to 8

4

APPLICATION

Four I/O, four output-only versions:

Four open-drain I/O ports with latching transition detection interrupt and selectable pullups.

Four push-pull outputs with selectable power-up default levels.

PCF8574-, PCF8574A-compatible versions:

Eight open-drain I/O ports with nonlatching transition detection interrupt and pullups on all ports.

All ports power up as inputs (or logic-high outputs).

Any port can be used as an input by setting the open-drain output to logic-high.

16-PORT EXPANDERS

MAX7324

MAX7325

MAX7326

101xxxx and

110xxxx

MAX7327

8

Up to 8

4

Up to 4

Yes

Yes

Up to 8

Up to 4

8

8

12

12

Software equivalent to a MAX7320 plus a MAX7321.

Software equivalent to a MAX7320 plus a MAX7319.

Software equivalent to a MAX7320 plus a MAX7322.

Software equivalent to a MAX7320 plus a MAX7323.

changes. An input change sets one of eight flag bits that identify changed input(s). All flags are cleared upon a subsequent read or write transaction to the

MAX7319.

A latching interrupt output, INT, is programmed to flag input data changes on input ports through an interrupt mask register. By default, data changes on any input port force INT to a logic-low. The interrupt output, INT, and all transition flags are cleared when the MAX7319 is next accessed through the serial interface.

Internal pullup resistors to V+ are selected by the address-select inputs, AD0 and AD2. Pullups are enabled on the input ports in groups of four (see Table 3).

Initial Power-Up

On power-up, the transition detection logic is reset, and

INT is released to a high-impedance state. The interrupt mask register is set to 0xFF, enabling the interrupt output for transitions on all eight input ports. The transition flags are cleared to indicate no data changes.

RST Input

The RST input voids any I

2

C transaction involving the

MAX7319, forcing the MAX7319 into the I

2

C STOP condition. A reset does not affect the interrupt output (INT) or change the contents of the interrupt mask register.

RST is overvoltage tolerant to +6V.

Standby Mode

When the serial interface is idle, the MAX7319 automatically enters standby mode, drawing minimal supply current.

Slave Address and Input Pullup Selection

Address inputs AD0 and AD2 determine the MAX7319 slave address and select which inputs have pullup resistors. Pullups are enabled on the input ports in groups of four (see Table 3). The MAX7319, MAX7321,

MAX7322, and MAX7323 use a different range of slave addresses (110xxxx) than the MAX7320 (101xxxx).

The MAX7319 slave address is determined on each I

2

C transmission, regardless of whether the transmission is actually addressing the MAX7319. The MAX7319 distinguishes whether address inputs AD2 and AD0 are connected to SDA or SCL instead of fixed logic levels V+ or GND during this transmission. This means that the

MAX7319 slave address can be configured dynamically in the application without cycling the device supply.

On initial power-up, the MAX7319 cannot decode the address inputs AD2 and AD0 fully until the first I

2

C transmission. AD0 and AD2 initially appear to be connected to V+ or GND. This is important because the address selection determines which inputs have pullups applied. However, at power-up, the I

2

C SDA and SCL bus interface lines are high impedance at the pins of every device (master or slave) connected to the bus, including the MAX7319. This is guaranteed as part

6 _______________________________________________________________________________________

I

2

C Port Expander with Eight Inputs and

Maskable Transition Detection

Table 2. Read and Write Access to Eight-Port Expander Family

PART

I

2

C SLAVE

ADDRESS

INPUTS

INTERRUPT

MASK

OPEN-

DRAIN

OUTPUTS

PUSH-

PULL

OUTPUTS

I

2

C DATA WRITE

MAX7319 110xxxx

MAX7320 101xxxx

MAX7321 110xxxx

MAX7322 110xxxx

MAX7323 110xxxx

MAX7328 0100xxx

MAX7329 0111xxx

8

Up to 8

4

Up to 4

Up to 8

Up to 8

Yes

Yes

Up to 8

Up to 4

Up to 8

Up to 8

8

4

4

I

2

C DATA READ

<I7–I0 interrupt mask>

<O7–O0 port outputs>

<P7–P0 port outputs>

<O7, O6 outputs,

I5–I2 interrupt mask, O1, O0 outputs>

<port outputs>

<I7–I0 port inputs>

<I7–I0 transition flags>

<O7–O0 port inputs>

<P7–P0 port inputs>

<P7–P0 transition flags>

<O7, O6, I5–I2, O1, O0 port inputs>

<0, 0, I5–I2 transition flags,

0, 0>

<O7, O6, P5–P2, O1, O0 port inputs>

<0, 0, P5–P2 transition flags,

0, 0>

<P7–P0 port outputs>

<P7–P0 port outputs>

<P7–P0 port inputs>

<P7–P0 port inputs> of the I

2

C specification. Therefore, address inputs AD2 and AD0 that are connected to SDA or SCL normally appear at power-up to be connected to V+. The pullup selection logic uses AD0 to select whether pullups are enabled for ports I3–I0, and uses AD2 to select whether pullups are enabled for ports I7–I4. The rule is that a logic-high SDA or SCL connection selects the pullups, while a logic-low deselects the pullups (Table 3). The pullup configuration is correct on power-up for a standard I

2

C configuration, where SDA and SCL are pulled up to V+ by the external I

2

C pullup resistors.

There are circumstances where the assumption that

SDA = SCL = V+ on power-up is not true, for example, in true hot-swap applications, in which there is legitimate bus activity during power-up. Also, if SDA and

SCL are terminated with pullup resistors to a different supply voltage than the MAX7319’s supply voltage, and if that pullup supply rises later than the MAX7319’s supply, then SDA or SCL may appear at power-up to be connected to GND. In such applications, use the four address combinations that are selected by connecting address inputs AD2 and AD0 to V+ or GND (shown in

bold in Table 3). These selections are guaranteed to be correct at power-up, independent of SDA and SCL behavior. If one of the other 12 address combinations is used, be aware that an unexpected combination of pullups might be asserted until the first I

2

C transmission (to any device, not necessarily the MAX7319) is put on the bus.

Port Inputs

Port inputs switch at CMOS logic levels as determined by the expander’s supply voltage, and are overvoltage tolerant to +6V, independent of the expander’s supply voltage.

Port-Input Transition Detection

All eight input ports are monitored for changes since the expander was last accessed through the serial interface. The state of the input ports is stored in an internal “snapshot” register for transition monitoring.

The snapshot is continuously compared with the actual input conditions, and if a change is detected for any port input, an internal transition flag is set for that port.

The eight port inputs are sampled (internally latched into the snapshot register) and the old transition flags cleared during the I

2

C acknowledge of every MAX7319 read and write access. The previous port transition flags are read through the serial interface as the second byte of a 2-byte read sequence.

_______________________________________________________________________________________ 7

I

2

C Port Expander with Eight Inputs and

Maskable Transition Detection

Table 3. MAX7319 Address Map

PIN CONNECTION

AD2 AD0

SCL

SCL

SCL

SCL

SDA

SDA

SDA

SDA

GND

GND

GND

GND

V+

GND

V+

SCL

SDA

GND

V+

SCL

SDA

GND

V+

SCL

SDA

GND

V+

V+

V+

V+

SCL

SDA

A6

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

A5

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

DEVICE ADDRESS

A4 A3 A2

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

1

1

1

1

0

0

0

0

0

0

0

0

1

0

0

0

1

1

1

1

1

1

A1

1

1

0

0

1

1

0

0

1

1

0

0

0

0

1

1

A long read sequence (more than 2 bytes) can be used to poll the expander continuously without the overhead of resending the slave address. If more than 2 bytes are read from the expander, the expander repeatedly returns the input port data followed by the transition flags. The inputs are repeatedly resampled and the transition flags repeatedly reset for each pair of bytes read. All changes that occur during a long read sequence are detected and reported.

The MAX7319 includes an 8-bit interrupt mask register that selects which inputs generate an interrupt upon change. Each input’s transition flag is set when its input changes, independent of the interrupt mask register settings. The interrupt mask register allows the processor to be interrupted for critical events, while the inputs and the transition flags can be polled periodically to detect less critical events.

The INT logic ensures that unnecessary interrupts are not asserted, yet data transitions are detected and reported regardless of when the transition occurs. The

INT output is not reasserted during a read sequence to avoid recursive reentry into an interrupt service routine.

If transition occurs during read sequence, the INT assertion is delayed until the STOP condition, however,

INT is not reasserted upon a STOP condition if the changed input data is read before the STOP occurs.

A0

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

I7

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

I6

40k

Ω INPUT PULLUP ENABLED

I5 I4 I3 I2 I1

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Transition-Detection Masks

The transition-detection logic incorporates a transition flag and an interrupt mask bit for each input port. The eight change flags can be read through the serial interface, and the 8-bit interrupt mask is set through the serial interface.

Each port’s transition flag is set when that port’s input changes, and the transition flag remains set even if the input returns to its original state. The port’s interrupt mask determines whether a transition on that input port generates an interrupt. Enable interrupts for high-priority inputs using the interrupt mask. The interrupt allows the system to respond quickly to changes on these inputs. Poll the MAX7319 periodically to monitor lessimportant inputs. The transition flags indicate whether a permanent or transient change has occurred on any input since the MAX7319 was last accessed.

Serial Interface

Serial Addressing

The MAX7319 operates as a slave that sends and receives data through an I

2

C interface. The interface uses a serial data line (SDA) and a serial clock line (SCL) to achieve bidirectional communication between master(s) and slave(s). The master initiates all data transfers to and from the MAX7319 and generates the SCL clock that synchronizes the data transfer (Figure 1).

I0

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

8 _______________________________________________________________________________________

I

2

C Port Expander with Eight Inputs and

Maskable Transition Detection

SDA

SCL t

HD,STA

START CONDITION t

LOW t

SU,DAT t

HIGH t

R t

F t

HD,DAT

Figure 1. 2-Wire Serial-Interface Timing Details

SDA operates as both an input and an open-drain output. A pullup resistor, typically 4.7k

Ω, is required on

SDA. SCL operates only as an input. A pullup resistor, typically 4.7k

Ω, is required on SCL if there are multiple masters on the 2-wire interface, or if the master in a single-master system has an open-drain SCL output.

Each transmission consists of a START condition sent by a master, followed by the MAX7319’s 7-bit slave address plus R/W bit, then 1 or more data bytes, and finally a STOP condition (Figure 2).

START and STOP Conditions

Both SCL and SDA remain high when the interface is not busy. A master signals the beginning of a transmission with a START (S) condition by transitioning SDA from high to low while SCL is high. When the master has finished communicating with the slave, the master issues a STOP (P) condition by transitioning SDA from low to high while SCL is high. The bus is then free for another transmission (Figure 2).

Bit Transfer

One data bit is transferred during each clock pulse.

The data on SDA must remain stable while SCL is high

(Figure 3).

Acknowledge

The acknowledge bit is a clocked 9th bit the recipient uses to acknowledge receipt of each byte of data

(Figure 4). Each byte transferred effectively requires 9 bits. The master generates the 9th clock pulse, and the recipient pulls down SDA during the acknowledge clock pulse, so the SDA line is stable low during the high period of the clock pulse. When the master is transmitting to the MAX7319, the MAX7319 generates the acknowledge bit because the device is the recipient.

t

SU,STA t

HD,STA

REPEATED START CONDITION t

SU,STO t

BUF

STOP

CONDITION

START

CONDITION

SDA

SCL

S

START

CONDITION

Figure 2. START and STOP Conditions

SDA

SCL

DATA LINE STABLE;

DATA VALID

CHANGE OF DATA

ALLOWED

Figure 3. Bit Transfer

P

STOP

CONDITION

SCL

START

CONDITION

SDA BY

TRANSMITTER

SDA BY

RECEIVER S

1

Figure 4. Acknowledge

2

CLOCK PULSE

FOR ACKNOWLEDGMENT

8 9

When the MAX7319 is transmitting to the master, the master generates the acknowledge bit because the master is the recipient.

_______________________________________________________________________________________ 9

I

2

C Port Expander with Eight Inputs and

Maskable Transition Detection

Slave Address

The MAX7319 has a 7-bit slave address (Figure 5). The

8th bit following the 7-bit slave address is the R/W bit. It is low for a write command, and high for a read command.

The 1st (A6), 2nd (A5), and 3rd (A4) bits of the MAX7319 slave address are always 1, 1, and 0. Connect AD2 and

AD0 to GND, V+

,

SDA, or SCL to select slave address bits A3, A2, A1, and A0. The MAX7319 has 16 possible slave addresses (Table 3), allowing up to 16 MAX7319 devices on an I

2

C bus

Accessing the MAX7319

I

2

C-interface access to the MAX7319 is summarized as follows (Table 2).

A single-byte read from the MAX7319 returns the status of the eight input ports, and clears both the internal transition flags and the INT output (Figure 7).

A 2-byte read returns the status of the eight input ports

(as for a single-byte read), followed by the transition flags. The internal transition flags and the INT output are cleared when the MAX7319 acknowledges the slave address byte, but the previous transition flag data is sent as the second byte (Figure 8).

A multibyte read (more than 2 bytes before the I

2

C

STOP bit) repeatedly returns the input port data, alternating with the transition flags. As the input data is resampled for each transmission, and the transition flags are reset each time, a multibyte read continuously returns the current data and identifies any changing input ports.

If a port input data change occurs during the read sequence, INT is reasserted after the I

2

C STOP bit. The

MAX7319 does not generate another interrupt during a single-byte or multibyte read.

.

SDA

1

MSB

SCL

Figure 5. Slave Address

1

0

A3

A2 A1 A0

LSB

R/W ACK

I7 I6 I5

PORT INPUTS

I4 I3 I2 I1 I0 t

IV

S 1 1 0

MAX7319 SLAVE ADDRESS

R/W

1 A D7 D6 D5 D4 D3 D2

PORT SNAPSHOT

D1 D0

PORT SNAPSHOT

N P

SCL t

PH

PORT INPUT

INT OUTPUT t

IR t

PSU

INT REMAINS HIGH UNTIL STOP CONDITION t

IP

S = START CONDITION

P = STOP CONDITION

SHADED = SLAVE TRANSMISSION

N = NOT ACKNOWLEDGE

Figure 6. Reading from the MAX7319 (1 Data Byte)

10 ______________________________________________________________________________________

I

2

C Port Expander with Eight Inputs and

Maskable Transition Detection

Input port data is sampled during the preceding I

2

C acknowledge bit (the acknowledge bit for the I

2

C slave address in the case of a single-byte or 2-byte read).

A single-byte write to the MAX7319 sets the interrupt mask register, and clears both the internal transition flags and the INT output.

A multibyte write to the MAX7319 sets the interrupt mask register repeatedly.

Reading from the MAX7319

A read from the MAX7319 starts with the master transmitting the MAX7319’s slave address with the R/W bit set high. The MAX7319 acknowledges the slave address and samples the input ports during acknowledge bit. INT deasserts during the slave address acknowledge.

Typically, the master reads 1 or 2 bytes from the

MAX7319, with each byte, except the last one, being acknowledged by the master upon reception.

When the master reads 1 byte from the MAX7319 and subsequently issues a STOP condition (Figure 6), the

MAX7319 transmits the current port data, clears the transition flags, and resets the transition detection. INT deasserts during the slave address acknowledge. The new snapshot data is the current port data transmitted to the master; therefore, port transitions ocurring during the transmission are detected. INT remains high until the STOP condition.

When the master reads 2 bytes from the MAX7319 and subsequently issues a STOP condition (Figure 7), the

MAX7319 transmits the current port data, followed by the transition flags. The transition flags are cleared, and transition detection reset. INT deasserts during the slave address acknowledge. The new snapshot data is the current port data transmitted to the master; therefore, port transitions occurring during the transmission are detected. INT remains high until the STOP condition. When the master reads more than 2 bytes, the input port data alternates with the transition flag.

Figure 7. Reading from the MAX7319 (2 Data Bytes)

S = START CONDITION

P = STOP CONDITION

SHADED = SLAVE TRANSMISSION

N = NOT ACKNOWLEDGE

______________________________________________________________________________________ 11

I

2

C Port Expander with Eight Inputs and

Maskable Transition Detection

SCL

SDA

S

1 2 3 4 5 6 7 8

SLAVE ADDRESS

0 A

START CONDITION R/W

DATA TO INTERRUPT MASK

DATA 1 A t

PV

S = START CONDITION

P = STOP CONDITION

DATA TO INTERRUPT MASK

DATA 2 t

PV

A

SHADED = SLAVE TRANSMISSION

N = NOT ACKNOWLEDGE

Figure 8. Writing to the MAX7319

Writing to the MAX7319

A write to the MAX7319 starts with the master transmitting the MAX7319’s slave address with the R/W bit set low. The MAX7319 acknowledges the slave address, and samples the input ports during the acknowledge bit. INT deasserts during the slave address acknowledge. The master can now transmit 1 or more bytes of data. The MAX7319 acknowledges these subsequent bytes of data and updates the interrupt mask register with each new byte until the master issues a STOP condition (Figure 8).

Applications Information

Port Input and I

2

C Interface Level

Translation from Higher or Lower

Logic Voltages

The MAX7319 I

2

C interface (SDA, SCL, AD0, AD2), reset input RST, interrupt output INT, and the eight input ports I0–I7 are overvoltage protected to +6V independent of V+. This allows the MAX7319 to operate from a lower supply voltage, such as +3.3V, while the

I

2

C interface and/or any of the eight input ports are driven from a higher logic level, such as +5V.

The MAX7319 can operate from a higher supply voltage, such as +3V, while the I

2

C interface and/or some of the input ports I0–I7 are driven from a lower logic level, such as +2.5V. Apply a minimum voltage of 0.7 x

V+ to assert a logic-high on any input. For example, a

MAX7319 operating from a +5V supply may not recognize a +3.3V nominal logic-high. One solution for input level translation is to drive the MAX7319 inputs from open-drain outputs. Use a pullup resistor to V+ or a higher supply to ensure a high logic voltage of greater than 0.7 x V+.

Hot Insertion

RST, SCL, SDA, AD0, and AD2 remain high impedance with up to +6V asserted on them when the MAX7319 is powered down (V+ = 0). The MAX7319 can therefore be used in hot-swap applications.

Each of the input ports I0–I7 has a protection diode to

GND (Figure 9). When a port input is driven to a voltage lower than GND, the protection diode clamps the voltage to a diode drop below GND.

Each of the input ports I0–I7 also has a 40k

Ω (typ) pullup resistor that can be enabled or disabled. When a port input is driven to a voltage higher than V+

, the body diode of the pullup enable switch conducts and the 40k

Ω pullup resistor is enabled. When the

MAX7319 is powered down (V+ = 0), every input port appears as a 40k

Ω resistor in series with a diode connected to GND. Input ports are protected to +6V under any of these circumstances (Figure 9).

PULLUP

ENABLE

INPUT

V+ V+

P

Figure 9. Input Port Structure

40k

Ω

MAX7319

I0–I7

12 ______________________________________________________________________________________

I

2

C Port Expander with Eight Inputs and

Maskable Transition Detection

board to work with all these port expanders, providing design flexibility.

Power-Supply Considerations

The MAX7319 operates with a +1.71V to +5.5V supply voltage over the -40°C to +125°C temperature range.

Bypass V+ to GND with a ceramic capacitor of at least

0.047µF as close to the device as possible. For the

TQFN version, connect the exposed pad to GND.

Compatibility with MAX6965, MAX7315, and MAX7316

The MAX7319 is subset pin compatible with the

MAX6965, MAX7315, and MAX7316. The pin differences are shown in Table 4. The MAX7319 is not software compatible with MAX6965, MAX7315, or

MAX7316. In many cases, it is possible to design a PC

Pin Configurations

Table 4. MAX7319, MAX6965, MAX7315, and MAX7316 Pin Compatibility

PIN-PACKAGE PIN FUNCTION

16

QSOP

1

2

3

16

TQFN

15

16

1

MAX7319 MAX7315

AD0

RST

AD2

AD0

AD1

AD2

MAX6965 AND

MAX7316

BLINK

RST

AD0

TOP VIEW

12 11 10

SDA 13

V+ 14

MAX7319

AD0 15

RST 16

+

* EP

1 2 3

9

4

8

I5

7 I4

6

GND

5 I3

TQFN

3mm x 3mm

* EXPOSED PAD CONNECTED TO GND.

AD0

1

RST 2

AD2 3

I0 4

I1 5

I2 6

I3 7

GND 8

+

MAX7319

QSOP

16 V+

15 SDA

14 SCL

13 INT

12 I7

11 I6

10 I5

9 I4

μC

SCL

SDA

RST

INT

Typical Application Circuit

3.3V

47nF

V+

SCL

SDA

RST

INT

MAX7319

AD0

AD2

GND

I5

I4

I3

I7

I6

I2

I1

I0

INPUT 7

INPUT 6

INPUT 5

INPUT 4

INPUT 3

INPUT 2

INPUT 1

INPUT 0

______________________________________________________________________________________ 13

I

2

C Port Expander with Eight Inputs and

Maskable Transition Detection

Functional Diagram

AD0

AD2

SCL

SDA

INPUT

FILTER

I

2

C

CONTROL

INPUT

PORTS

I4

I3

I2

I1

I0

I7

I6

I5

INT

RST

POWER-ON

RESET

MAX7319

Chip Information

PROCESS: BiCMOS

CONNECT EXPOSED PAD TO GND

14 ______________________________________________________________________________________

I

2

C Port Expander with Eight Inputs and

Maskable Transition Detection

Package Information

(The package drawing(s) in this data sheet may not reflect the most current specifications. For the latest package outline information, go to

www.maxim-ic.com/packages

.)

MARKING

E/2

E

D

D/2

AAAA

(NE - 1) X e

(ND - 1) X e e

D2/2

D2 k

L

E2

E2/2 b

0.10 M C A B

0.10 C 0.08 C

A

A2

A1

L L e e

PACKAGE OUTLINE

8, 12, 16L THIN QFN, 3x3x0.8mm

21-0136 I

1

2

PKG

REF.

A b

N

ND

NE

A1

A2 k

D

E e

L

8L 3x3

MIN.

0.70

NOM. MAX.

0.75

0.80

0.25

0.30

0.35

2.90

3.00

2.90

3.00

0.65 BSC.

3.10

3.10

0.35

0.55

0.75

8

2

0

2

0.02

0.25

0.20 REF

-

0.05

-

12L 3x3

MIN.

0.70

NOM. MAX.

0.75

0.80

0.20

0.25

0.30

2.90

2.90

3.00

3.00

0.50 BSC.

3.10

3.10

0.45

0.55

0.65

12

3

0

3

0.02

0.25

0.20 REF

-

0.05

-

16L 3x3

MIN.

0.70

NOM.

MAX.

0.75

0.80

0.20

0.25

0.30

2.90

3.00

3.10

2.90

3.00

0.50 BSC.

3.10

0.30

0.40

0.50

16

4

0

4

0.02

0.25

0.20 REF

-

0.05

-

PKG.

CODES

TQ833-1

T1233-1

T1233-3

T1233-4

T1633-2

T1633F-3

T1633FH-3

T1633-4

T1633-5

0.65

0.65

0.95

0.95

MIN.

0.25

0.95

0.95

0.95

0.95

EXPOSED PAD VARIATIONS

D2

NOM.

0.70

1.10

1.10

1.10

1.10

0.80

0.80

1.10

1.10

MAX.

1.25

1.25

1.25

1.25

1.25

0.95

0.95

1.25

1.25

MIN.

0.25

0.95

0.95

0.95

0.95

0.65

0.65

0.95

0.95

E2

NOM.

MAX.

0.70

1.10

1.10

1.10

1.10

0.80

0.80

1.10

1.10

1.25

1.25

1.25

1.25

1.25

0.95

0.95

1.25

1.25

PIN ID

0.35 x 45

°

0.35 x 45

°

0.35 x 45

°

0.35 x 45

°

0.35 x 45

°

0.225 x 45

°

0.225 x 45

°

0.35 x 45

°

0.35 x 45

°

JEDEC

WEEC

WEED-1

WEED-1

WEED-1

WEED-2

WEED-2

WEED-2

WEED-2

WEED-2

NOTES:

1. DIMENSIONING & TOLERANCING CONFORM TO ASME Y14.5M-1994.

2. ALL DIMENSIONS ARE IN MILLIMETERS. ANGLES ARE IN DEGREES.

3. N IS THE TOTAL NUMBER OF TERMINALS.

4. THE TERMINAL #1 IDENTIFIER AND TERMINAL NUMBERING CONVENTION SHALL CONFORM TO

JESD 95-1 SPP-012. DETAILS OF TERMINAL #1 IDENTIFIER ARE OPTIONAL, BUT MUST BE LOCATED

WITHIN THE ZONE INDICATED. THE TERMINAL #1 IDENTIFIER MAY BE EITHER A MOLD OR

MARKED FEATURE.

5. DIMENSION b APPLIES TO METALLIZED TERMINAL AND IS MEASURED BETWEEN 0.20 mm AND 0.25 mm

FROM TERMINAL TIP.

6. ND AND NE REFER TO THE NUMBER OF TERMINALS ON EACH D AND E SIDE RESPECTIVELY.

7. DEPOPULATION IS POSSIBLE IN A SYMMETRICAL FASHION.

8. COPLANARITY APPLIES TO THE EXPOSED HEAT SINK SLUG AS WELL AS THE TERMINALS .

9. DRAWING CONFORMS TO JEDEC MO220 REVISION C.

10. MARKING IS FOR PACKAGE ORIENTATION REFERENCE ONLY.

11. NUMBER OF LEADS SHOWN ARE FOR REFERENCE ONLY.

12. WARPAGE NOT TO EXCEED 0.10mm.

PACKAGE OUTLINE

8, 12, 16L THIN QFN, 3x3x0.8mm

21-0136 I

2

2

______________________________________________________________________________________ 15

I

2

C Port Expander with Eight Inputs and

Maskable Transition Detection

Package Information (continued)

(The package drawing(s) in this data sheet may not reflect the most current specifications. For the latest package outline information, go to

www.maxim-ic.com/packages

.)

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
