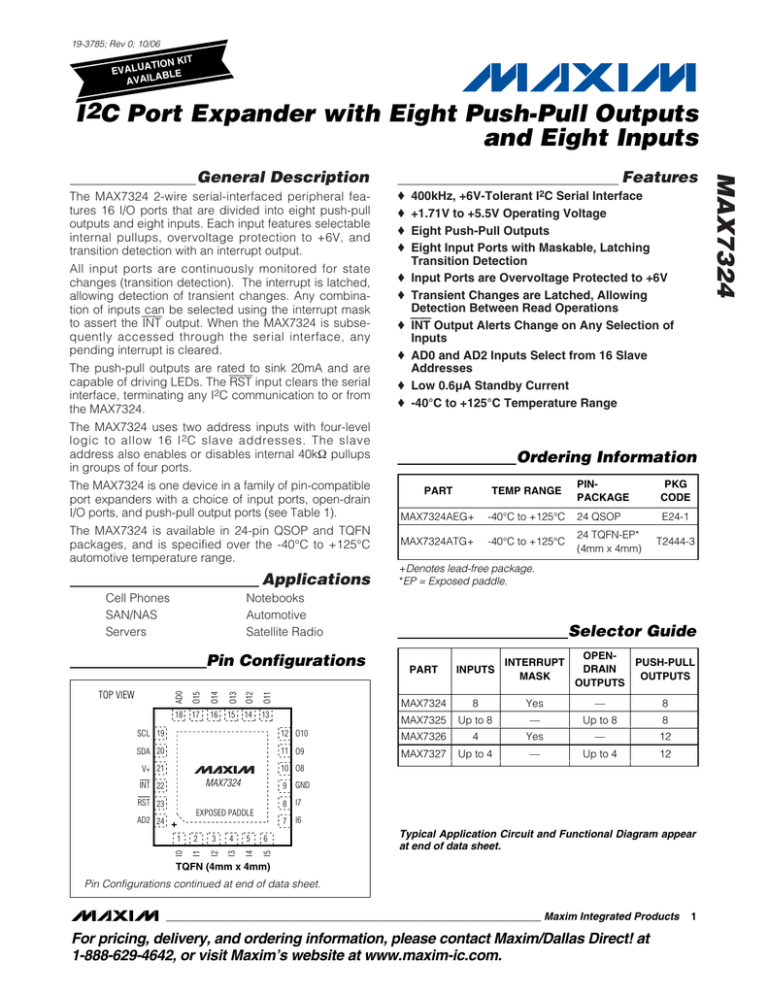

I2C Port Expander with Eight Push-Pull Outputs
and Eight Inputs
The MAX7324 2-wire serial-interfaced peripheral features 16 I/O ports that are divided into eight push-pull
outputs and eight inputs. Each input features selectable
internal pullups, overvoltage protection to +6V, and
transition detection with an interrupt output.
All input ports are continuously monitored for state
changes (transition detection). The interrupt is latched,
allowing detection of transient changes. Any combination of inputs can be selected using the interrupt mask
to assert the INT output. When the MAX7324 is subsequently accessed through the serial interface, any
pending interrupt is cleared.
The push-pull outputs are rated to sink 20mA and are
capable of driving LEDs. The RST input clears the serial
interface, terminating any I2C communication to or from
the MAX7324.
The MAX7324 uses two address inputs with four-level
logic to allow 16 I 2 C slave addresses. The slave
address also enables or disables internal 40kΩ pullups
in groups of four ports.
The MAX7324 is one device in a family of pin-compatible
port expanders with a choice of input ports, open-drain
I/O ports, and push-pull output ports (see Table 1).
The MAX7324 is available in 24-pin QSOP and TQFN
packages, and is specified over the -40°C to +125°C
automotive temperature range.
Applications
Cell Phones
SAN/NAS
Servers
♦
♦
♦
♦
♦
♦
400kHz, +6V-Tolerant I2C Serial Interface
+1.71V to +5.5V Operating Voltage
Eight Push-Pull Outputs
Eight Input Ports with Maskable, Latching
Transition Detection
Input Ports are Overvoltage Protected to +6V
Transient Changes are Latched, Allowing
Detection Between Read Operations
INT Output Alerts Change on Any Selection of
Inputs
AD0 and AD2 Inputs Select from 16 Slave
Addresses
Low 0.6µA Standby Current
-40°C to +125°C Temperature Range
Ordering Information
PINPACKAGE
PKG
CODE
-40°C to +125°C
24 QSOP
E24-1
-40°C to +125°C
24 TQFN-EP*
(4mm x 4mm)
PART
TEMP RANGE
MAX7324AEG+
MAX7324ATG+
AD0
O15
O14
O13
O12
O11
18
17
16
15
14
13
T2444-3
+Denotes lead-free package.
*EP = Exposed paddle.
Notebooks
Automotive
Satellite Radio
Pin Configurations
TOP VIEW
Features
♦
♦
♦
♦
Selector Guide
OPENPUSH-PULL
DRAIN
OUTPUTS
OUTPUTS
PART
INPUTS
INTERRUPT
MASK
MAX7324
8
Yes
—
8
MAX7325
Up to 8
—
Up to 8
8
SCL 19
12 O10
MAX7326
4
Yes
—
12
SDA 20
11 O9
MAX7327
Up to 4
—
Up to 4
12
V+ 21
10 O8
MAX7324
INT 22
RST 23
1
2
3
4
5
6
I0
I1
I2
I3
I4
I5
AD2 24 +
EXPOSED PADDLE
9
GND
8
I7
7
I6
Typical Application Circuit and Functional Diagram appear
at end of data sheet.
TQFN (4mm x 4mm)
Pin Configurations continued at end of data sheet.
________________________________________________________________ Maxim Integrated Products
For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at
1-888-629-4642, or visit Maxim’s website at www.maxim-ic.com.
1
MAX7324
General Description
MAX7324
I2C Port Expander with Eight Push-Pull Outputs
and Eight Inputs
ABSOLUTE MAXIMUM RATINGS
(All voltages referenced to GND.)
Supply Voltage V+....................................................-0.3V to +6V
SCL, SDA, AD0, AD2, RST, INT, I0–I7......................-0.3V to +6V
O8–O15………….…………………………..…-0.3V to (V+ + 0.3V)
O8–O15 Output Current......………………………………...±25mA
SDA Sink Current ............................................................... 10mA
INT Sink Current..................................................................10mA
Total V+ Current..................................................................50mA
Total GND Current ...........................................................100mA
Continuous Power Dissipation
24-Pin QSOP (derate 9.5mW/°C over TA = +70°C) ..761.9mW
24-Pin TQFN (derate 20.8mW/°C over
TA = +70°C) ............................................................1666.7mW
Operating Temperature Range .........................-40°C to +125°C
Junction Temperature ......................................................+150°C
Storage Temperature Range .............................-65°C to +150°C
Lead Temperature (soldering, 10s) .................................+300°C
Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional
operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to
absolute maximum rating conditions for extended periods may affect device reliability.
DC ELECTRICAL CHARACTERISTICS
(V+ = +1.71V to +5.5V, TA = -40°C to +125°C, unless otherwise noted. Typical values are at V+ = +3.3V, TA = +25°C.) (Note 1)
PARAMETER
Operating Supply Voltage
SYMBOL
V+
CONDITIONS
TA = -40°C to +125°C
Power-On Reset Voltage
VPOR
V+ falling
Standby Current (Interface Idle)
ISTB
SCL and SDA and other digital inputs at V+
fSCL = 400kHz; other digital inputs at V+
Supply Current
(Interface Running)
I+
Input High-Voltage
SDA, SCL, AD0, AD2, RST, I0–I7
VIH
Input Low-Voltage
SDA, SCL, AD0, AD2, RST, I0–I7
VIL
Input Leakage Current
SDA, SCL, AD0, AD2, RST, I0–I7
IIH, IIL
MIN
1.71
V+ < 1.8V
0.8 x V+
V+ ≥ 1.8
0.7 x V+
Output High Voltage
O8–O15
UNITS
5.50
V
1.6
V
0.6
1.9
µA
23
55
µA
V
0.2 x V+
V+ ≥ 1.8
0.3 x V+
SDA, SCL, AD0, AD2, RST, I0–I7 at V+ or
GND
+0.2
-0.2
10
VOL
VOH
90
180
V+ = +1.71V, ISINK = 5mA (TQFN)
90
230
V+ = +2.5V, ISINK = 10mA (QSOP)
110
210
V+ = +2.5V, ISINK = 10mA (TQFN)
110
260
V+ = +3.3V, ISINK = 15mA (QSOP)
130
230
V+ = +3.3V, ISINK = 15mA (TQFN)
130
280
V+ = +5V, ISINK = 20mA (QSOP)
140
250
V+ = +5V, ISINK = 20mA (TQFN)
140
300
V+ = +1.71V, ISOURCE = 2mA
V+ - 250 V+ - 30
V+ = +2.5V, ISOURCE = 5mA
V+ - 360 V+ - 70
V+ = +3.3V, ISOURCE = 5mA
V+ - 260 V+ - 100
V+ = +5V, ISOURCE = 10mA
V+ - 360 V+ - 120
VOLSDA
ISINK = 6mA
Output Low-Voltage INT
VOLINT
ISINK = 5mA
Port Input Pullup Resistor
RPU
25
V
µA
pF
V+ = +1.71V, ISINK = 5mA (QSOP)
Output Low-Voltage SDA
2
MAX
V+ < 1.8V
Input Capacitance
SDA, SCL, AD0, AD2, RST, I0–I7
Output Low Voltage
O8–O15
TYP
mV
mV
250
mV
130
250
mV
40
55
kΩ
_______________________________________________________________________________________
I2C Port Expander with Eight Push-Pull Outputs
and Eight Inputs
(V+ = +1.71V to +5.5V, TA = -40°C to +125°C, unless otherwise noted. Typical values are at V+ = +3.3V, TA = +25°C.) (Note 1)
PARAMETER
SYMBOL
CONDITIONS
MIN
TYP
MAX
UNITS
Port-Output Data Valid
tPPV
CL ≤ 100pF
Port-Input Setup Time
tPSU
CL ≤ 100pF
0
µs
Port-Input Hold Time
tPH
CL ≤ 100pF
4
µs
INT Input Data Valid Time
tIV
CL ≤ 100pF
4
µs
INT Reset Delay Time from STOP
tIP
CL ≤ 100pF
4
µs
INT Reset Delay Time from
Acknowledge
tIR
CL ≤ 100pF
4
µs
4
µs
TIMING CHARACTERISTICS
(V+ = +1.71V to +5.5V, TA = -40°C to +125°C, unless otherwise noted. Typical values are at V+ = +3.3V, TA = +25°C.) (Note 1)
PARAMETER
SYMBOL
CONDITIONS
MIN
TYP
MAX
UNITS
400
kHz
Serial-Clock Frequency
fSCL
Bus Free Time Between a STOP
and a START Condition
tBUF
1.3
µs
Hold Time (Repeated) START
Condition
tHD,STA
0.6
µs
Repeated START Condition
Setup Time
tSU,STA
0.6
µs
STOP Condition Setup Time
tSU,STO
Data Hold Time
tHD,DAT
Data Setup Time
tSU,DAT
100
ns
tLOW
tHIGH
1.3
0.7
µs
µs
SCL Clock Low Period
SCL Clock High Period
0.6
µs
(Note 2)
0.9
µs
Rise Time of Both SDA and SCL
Signals, Receiving
tR
(Notes 3, 4)
20 +
0.1Cb
300
ns
Fall Time of Both SDA and SCL
Signals, Receiving
tF
(Notes 3, 4)
20 +
0.1Cb
300
ns
tF,TX
(Notes 3, 4)
20 +
0.1Cb
250
ns
Fall Time of SDA Transmitting
Pulse Width of Spike Suppressed
tSP
(Note 5)
Capacitive Load for Each Bus
Line
Cb
(Note 3)
RST Pulse Width
tW
500
ns
tRST
1
µs
RST Rising to START Condition
Setup Time
50
ns
400
pF
Note 1: All parameters are tested at TA = +25°C. Specifications over temperature are guaranteed by design.
Note 2: A master device must provide a hold time of at least 300ns for the SDA signal (referred to VIL of the SCL signal) to bridge
the undefined region of SCL’s falling edge.
Note 3: Guaranteed by design.
Note 4: Cb = total capacitance of one bus line in pF. tR and tF measured between 0.3 x V+ and 0.7 x V+. ISINK ≤ 6mA.
Note 5: Input filters on the SDA and SCL inputs suppress noise spikes less than 50ns.
_______________________________________________________________________________________
3
MAX7324
PORT AND INTERRUPT INT TIMING CHARACTERISTICS
Typical Operating Characteristics
(TA = +25°C, unless otherwise noted.)
STANDBY CURRENT
vs. TEMPERATURE
1.4
1.2
V+ = +5.0V
1.0
V+ = +3.3V
V+ = +2.5V
0.8
50
0.6
0.4
40
30
V+ = +3.3V
20
V+ = +2.5V
V+ = +1.71V
10
V+ = +1.71V
0.2
V+ = +5.0V
0
MAX7324 toc02
fSCL = 400kHz
0
-40 -25 -10 5 20 35 50 65 80 95 110 125
TEMPERATURE (°C)
-40 -25 -10 5 20 35 50 65 80 95 110 125
TEMPERATURE (°C)
OUTPUT-VOLTAGE LOW
vs. TEMPERATURE
OUTPUT-VOLTAGE HIGH
vs. TEMPERATURE
0.20
V+ = +3.3V
ISINK = 15mA
0.15
0.10
V+ = +2.5V
ISINK = 10mA
0.05
V+ = +1.71V
ISINK = 5mA
V+ = +5.0V
ISOURCE = 10mA
5
OUTPUT-VOLTAGE HIGH (V)
V+ = +5.0V
ISINK = 20mA
6
MAX7324 toc03
0.25
MAX7324 toc04
STANDBY CURRENT (µA)
1.6
60
SUPPLY CURRENT (µA)
fSCL = 0kHz
1.8
SUPPLY CURRENT
vs. TEMPERATURE
MAX7324 toc01
2.0
OUTPUT-VOLTAGE LOW (V)
MAX7324
I2C Port Expander with Eight Push-Pull Outputs
and Eight Inputs
V+ = +3.3V
ISOURCE = 5mA
4
3
V+ = +2.5V ISOURCE = 5mA
V+ = +1.71V ISOURCE = 2mA
2
1
0
0
-40 -25 -10 5 20 35 50 65 80 95 110 125
TEMPERATURE (°C)
-40 -25 -10 5 20 35 50 65 80 95 110 125
TEMPERATURE (°C)
Pin Description
PIN
4
NAME
FUNCTION
QSOP
TQFN
1
22
INT
Active-Low Interrupt Output. INT is an open-drain output.
2
23
RST
Active-Low Reset Input. Drive RST low to clear the 2-wire interface.
3, 21
24, 18
AD2, AD0
4–11
1–8
I0–I7
Input Ports. I0 to I7 are CMOS-logic inputs.
Ground
Address Inputs. Select device slave address with AD0 and AD2. Connect AD0 and AD2
to either GND, V+, SCL, or SDA to give four logic combinations (see Tables 2 and 3).
12
9
GND
13–20
10–17
08–015
22
19
SCL
I2C-Compatible Serial Clock Input
23
20
SDA
I2C-Compatible Serial Data I/O
Output Ports. O8–O15 are push-pull outputs rated at 20mA.
24
21
V+
Positive Supply Voltage. Bypass V+ to GND with a ceramic capacitor of at least 0.047µF.
—
EP
EP
Exposed Paddle. Connect exposed pad to GND.
_______________________________________________________________________________________
I2C Port Expander with Eight Push-Pull Outputs
and Eight Inputs
MAX7324–MAX7327 Family Comparison
The MAX7324–MAX7327 family consists of four pincompatible, 16-port expanders that integrate the function of the MAX7320 and one of either the MAX7319,
MAX7321, MAX7322, or MAX7323.
Functional Overview
The MAX7324 is a general-purpose port expander
operating from a +1.71V to +5.5V supply with eight
push-pull outputs and eight CMOS input ports that are
overvoltage protected to +6V.
The MAX7324 is set to two of 32 I2C slave addresses
(see Tables 2 and 3) using address select inputs AD0
and AD2, and is accessed over an I2C serial interface
up to 400kHz. The eight outputs and eight inputs have
different slave addresses. The eight push-pull outputs
have the 101xxxx addresses and the eight inputs have
the adresses with 110xxxx. The RST input clears the
serial interface in case of a bus lockup, terminating any
serial transaction to or from the MAX7324.
The input ports offer latching transition detection feature. All input ports are continuously monitored for
changes. An input change sets 1 of 8 flag bits that
identify the changed input(s). All flags are cleared upon
a subsequent read or write transaction to the MAX7324.
Table 1. MAX7319–MAX7329 Family Comparison
PART
I2C
INPUT
SLAVE
INPUTS INTERRUPT
MASK
ADDRESS
OPENDRAIN
OUTPUTS
PUSHPULL
OUTPUTS
CONFIGURATION
16-PORT EXPANDERS
8 inputs and 8 push-pull outputs version:
8 input ports with programmable latching transition
detection interrupt and selectable pullups.
8
MAX7324
Yes
—
8
8 push-pull outputs with selectable default logic
levels.
Offers maximum versatility for automatic input
monitoring. An interrupt mask selects which inputs
cause an interrupt on transitions, and transition flags
identify which inputs have changed (even if only for
a transient) since the ports were last read.
8 I/O and 8 push-pull outputs version:
8 open-drain I/O ports with latching transition
detection interrupt and selectable pullups.
101xxxx
and
110xxxx
8 push-pull outputs with selectable default logic
levels.
MAX7325
Up to 8
—
Up to 8
8
Open-drain outputs can level shift the logic-high
state to a higher or lower voltage than V+ using
external pullup resistors, but pullups draw current
when output is low. Any open-drain port can be used
as an input by setting the open-drain output to logichigh. Transition flags identify which open-drain port
inputs have changed (even if only for a transient)
since the ports were last read.
_______________________________________________________________________________________
5
MAX7324
Detailed Description
MAX7324
I2C Port Expander with Eight Push-Pull Outputs
and Eight Inputs
Table 1. MAX7319–MAX7329 Family Comparison (continued)
PART
I2C
INPUT
SLAVE
INPUTS INTERRUPT
MASK
ADDRESS
OPENDRAIN
OUTPUTS
PUSHPULL
OUTPUTS
CONFIGURATION
4 input-only, 12 push-pull output versions:
4 input ports with programmable latching transition
detection interrupt and selectable pullups.
4
MAX7326
Yes
—
12
12 push-pull outputs with selectable default logic
levels.
Offers maximum versatility for automatic input
monitoring. An interrupt mask selects which inputs
cause an interrupt on transitions, and transition flags
identify which inputs have changed (even if only for
a transient) since the ports were last read.
4 I/O, 12 push-pull output versions:
4 open-drain I/O ports with latching transition
detection interrupt and selectable pullups.
101xxxx
and
110xxxx
12 push-pull outputs with selectable default logic
levels.
MAX7327
Up to 4
—
Up to 4
12
Open-drain outputs can level shift the logic-high
state to a higher or lower voltage than V+ using
external pullup resistors, but pullups draw current
when output is low. Any open-drain port can be used
as an input by setting the open-drain output to logichigh. Transition flags identify which open-drain port
inputs have changed (even if only for a transient)
since the ports were last read.
8-PORT EXPANDERS
MAX7319
110xxxx
8
Yes
—
—
Input-only versions:
8 input ports with programmable latching transition
detection interrupt and selectable pullups.
MAX7320
101xxxx
—
—
—
8
Output-only versions:
8 push-pull outputs with selectable power-up default
levels.
MAX7321
110xxxx
Up to 8
—
Up to 8
—
I/O versions:
8 open-drain I/O ports with latching transition
detection interrupt and selectable pullups.
4
4 input-only, 4 output-only versions:
4 input ports with programmable latching transition
detection interrupt and selectable pullups.
4 push-pull outputs with selectable power-up default
levels.
MAX7322
6
110xxxx
4
Yes
—
_______________________________________________________________________________________
I2C Port Expander with Eight Push-Pull Outputs
and Eight Inputs
PART
I2C
INPUT
INPUTS INTERRUPT
SLAVE
ADDRESS
MASK
OPENDRAIN
OUTPUTS
PUSHPULL
OUTPUTS
CONFIGURATION
MAX7323
110xxxx
Up to 4
—
Up to 4
4
4 I/O, 4 output-only versions:
4 open-drain I/O ports with latching transition
detection interrupt and selectable pullups.
4 push-pull outputs with selectable power-up default
levels.
MAX7328
MAX7329
0100xxx
0111xxx
Up to 8
—
Up to 8
—
PCF8574-, PCF8574A-compatible versions:
8 open-drain I/O ports with nonlatching transition
detection interrupt and pullups on all ports.
A latching interrupt output, INT, is programmed to flag
input data changes on input ports through an interrupt
mask register. By default, data changes on any input
port force INT to a logic-low. The interrupt output INT
and all transition flags are cleared when the MAX7324
is next accessed through the serial interface.
Internal pullup resistors to V+ are selected by the
address select inputs, AD0 and AD2. Pullups are
enabled on the input ports in groups of four (see Table 2).
Initial Power-Up
On power-up, the transition detection logic is reset, and
INT is deasserted. The interrupt mask register is set to
0xFF, enabling the interrupt output for transitions on all
eight input ports. The transition flags are cleared to
indicate no data changes. The power-up default states
of the eight push-pull outputs are set according to the
I2C slave address selection inputs, AD0 and AD1 (see
Table 3).
Power-On Reset
The MAX7324 contains an integral power-on-reset
(POR) circuit that ensures all registers are reset to a
known state on power-up. When V+ rises above VPOR
(1.6V max), the POR circuit releases the registers and
2-wire interface for normal operation. When V+ drops
below VPOR, the MAX7324 resets all register contents
to the POR defaults (Tables 2 and 3).
MAX7324
Table 1. MAX7319–MAX7329 Family Comparison (continued)
RST Input
The RST input voids any I2C transaction involving the
MAX7324, forcing the MAX7324 into the I2C STOP condition. A reset does not affect the interrupt output (INT).
Standby Mode
When the serial interface is idle, the MAX7324 automatically enters standby mode, drawing minimal supply
current.
Slave Address, Power-Up Default Logic
Levels, and Input Pullup Selection
Address inputs AD0 and AD2 determine the MAX7324
slave address and select which inputs have pullup
resistors. Pullups are enabled on the input ports in
groups of four (see Table 2).
The MAX7324 slave address is determined on each I2C
transmission, regardless of whether the transmission is
actually addressing the MAX7324. The MAX7324 distinguishes whether address inputs AD0 and AD2 are connected to SDA or SCL instead of fixed logic levels V+
or GND during this transmission. This means that the
MAX7324 slave address can be configured dynamically in the application without cycling the device supply.
On initial power-up, the MAX7324 cannot decode the
address inputs AD0 and AD2 fully until the first I2C
transmission. AD0 and AD2 initially appear to be connected to V+ or GND. This is important because the
_______________________________________________________________________________________
7
MAX7324
I2C Port Expander with Eight Push-Pull Outputs
and Eight Inputs
Table 2. MAX7324 Address Map for Inputs I0–I7
PIN CONNECTION
40kΩ INPUT PULLUP ENABLED
DEVICE ADDRESS
AD2
AD0
A6
A5
A4
A3
A2
A1
A0
I7
I6
I5
I4
I3
I2
I1
I0
SCL
GND
1
1
0
0
0
0
0
Y
Y
Y
Y
—
—
—
—
SCL
V+
1
1
0
0
0
0
1
Y
Y
Y
Y
Y
Y
Y
Y
SCL
SCL
1
1
0
0
0
1
0
Y
Y
Y
Y
Y
Y
Y
Y
SCL
SDA
1
1
0
0
0
1
1
Y
Y
Y
Y
Y
Y
Y
Y
SDA
GND
1
1
0
0
1
0
0
Y
Y
Y
Y
—
—
—
—
SDA
V+
1
1
0
0
1
0
1
Y
Y
Y
Y
Y
Y
Y
Y
SDA
SCL
1
1
0
0
1
1
0
Y
Y
Y
Y
Y
Y
Y
Y
SDA
SDA
1
1
0
0
1
1
1
Y
Y
Y
Y
Y
Y
Y
Y
GND
GND
1
1
0
1
0
0
0
—
—
—
—
—
—
—
—
GND
V+
1
1
0
1
0
0
1
—
—
—
—
Y
Y
Y
Y
GND
SCL
1
1
0
1
0
1
0
—
—
—
—
Y
Y
Y
Y
GND
SDA
1
1
0
1
0
1
1
—
—
—
—
Y
Y
Y
Y
V+
GND
1
1
0
1
1
0
0
Y
Y
Y
Y
—
—
—
—
V+
V+
1
1
0
1
1
0
1
Y
Y
Y
Y
Y
Y
Y
Y
V+
SCL
1
1
0
1
1
1
0
Y
Y
Y
Y
Y
Y
Y
Y
V+
SDA
1
1
0
1
1
1
1
Y
Y
Y
Y
Y
Y
Y
Y
address selection determines which inputs have
pullups applied. However, at power-up, the I2C SDA
and SCL bus interface lines are high impedance at the
inputs of every device (master or slave) connected to
the bus, including the MAX7324. This is guaranteed as
part of the I2C specification. Therefore, address inputs
AD0 and AD2 that are connected to SDA or SCL during
power-up appear to be connected to V+. The pullup
selection logic uses AD0 to select whether pullups are
enabled for ports I0–I3, and uses AD2 to select whether
pullups are enabled for ports I4–I7. The rule is that a
logic-high SDA, or SCL connection selects the pullups,
while a logic-low deselects the pullups (Table 2). The
pullup configuration is correct on power-up for a standard I2C configuration, where SDA and SCL are pulled
up to V+ by the external I2C pullups.
There are circumstances where the assumption that
SDA = SCL = V+ on power-up is not true—for example,
in applications in which there is legitimate bus activity
during power-up. Also, if SDA and SCL are terminated
with pullup resistors to a different supply voltage than
the MAX7324’s supply voltage, and if that pullup supply
rises later than the MAX7324’s supply, then SDA or
SCL may appear at power-up to be connected to GND.
In such applications, use the four address combinations that are selected by connecting address inputs
AD0 and AD2 to V+ or GND (shown in bold in Tables 2
8
and 3). These selections are guaranteed to be correct
at power-up, independent of SDA and SCL behavior. If
one of the other 12 address combinations is used, an
unexpected combination of pullups might be asserted
until the first I2C transmission (to any device, not necessarily the MAX7324) is put on the bus.
Port Inputs
Port inputs switch at CMOS logic levels as determined
by the expander’s supply voltage, and are overvoltage
tolerant to +6V, independent of the device’s supply
voltage.
Port-Input Transition Detection
All eight input ports are monitored for changes since
the expander was last accessed through the serial
interface. The state of the input ports is stored in an
internal “snapshot” register for transition monitoring.
The snapshot is continuously compared with the actual
input conditions, and if a change is detected for any
port input, then an internal transition flag is set for that
port. The eight port inputs are sampled (internally
latched into the snapshot register) and the old transition flags cleared during the I2C acknowledge of every
MAX7324 read and write access. The previous port
transition flags are read through the serial interface as
the second byte of a 2-byte read sequence.
_______________________________________________________________________________________
I2C Port Expander with Eight Push-Pull Outputs
and Eight Inputs
PIN CONNECTION
DEVICE ADDRESS
MAX7324
Table 3. MAX7324 Address Map for Outputs O8–O15
OUTPUTS POWER-UP DEFAULT
AD2
AD0
A6
A5
A4
A3
A2
A1
A0
O15
O14
O13
O12
O11
O10
O9
O8
SCL
GND
1
0
1
0
0
0
0
1
1
1
1
0
0
0
0
SCL
V+
1
0
1
0
0
0
1
1
1
1
1
1
1
1
1
SCL
SCL
1
0
1
0
0
1
0
1
1
1
1
1
1
1
1
SCL
SDA
1
0
1
0
0
1
1
1
1
1
1
1
1
1
1
SDA
GND
1
0
1
0
1
0
0
1
1
1
1
0
0
0
0
SDA
V+
1
0
1
0
1
0
1
1
1
1
1
1
1
1
1
SDA
SCL
1
0
1
0
1
1
0
1
1
1
1
1
1
1
1
SDA
GND
SDA
GND
1
1
0
0
1
1
0
1
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
GND
V+
1
0
1
1
0
0
1
0
0
0
0
1
1
1
1
GND
SCL
1
0
1
1
0
1
0
0
0
0
0
1
1
1
1
GND
SDA
1
0
1
1
0
1
1
0
0
0
0
1
1
1
1
V+
GND
1
0
1
1
1
0
0
1
1
1
1
0
0
0
0
V+
V+
1
0
1
1
1
0
1
1
1
1
1
1
1
1
1
V+
SCL
1
0
1
1
1
1
0
1
1
1
1
1
1
1
1
V+
SDA
1
0
1
1
1
1
1
1
1
1
1
1
1
1
1
A long read sequence (more than 2 bytes) can be used
to poll the expander continuously without the overhead
of resending the slave address. If more than 2 bytes
are read from the expander, the expander repeatedly
returns the 2 bytes of input port data followed by the
transition flags. The inputs are repeatedly resampled
and the transition flags repeatedly reset for each pair of
bytes read. All changes that occur during a long read
sequence are detected and reported.
The MAX7324 includes an 8-bit interrupt mask register
that selects which inputs generate an interrupt upon
change. Each input’s transition flag is set when its input
changes, independent of the interrupt mask register
settings. The interrupt mask register allows the processor to be interrupted for critical events, while the inputs
and the transition flags can be polled periodically to
detect less critical events.
The INT output is not reasserted during a read
sequence to avoid recursive reentry into an interrupt
service routine. Instead, if a data change occurs that
would normally cause the INT output to be set, the INT
assertion is delayed until the STOP condition. INT is not
reasserted upon a STOP condition if the changed input
data is read before the STOP occurs. The INT logic
ensures that unnecessary interrupts are not asserted,
yet data changes are detected and reported no matter
when the change occurs.
Transition-Detection Masks
The transition detection logic incorporates a transition
flag and an interrupt mask bit for each input port. The
eight transition flags can be read through the serial
interface, and the 8-bit interrupt mask is set through the
serial interface.
Each port’s transition flag is set when that port’s input
changes, and the change flag remains set even if the
input returns to its original state. The port’s interrupt
mask determines whether a change on that input port
generates an interrupt. Enable interrupts for high-priority inputs using the interrupt mask. The interrupt allows
the system to respond quickly to changes on these
inputs. Poll the MAX7324 periodically to monitor lessimportant inputs. The transition flags indicate whether a
permanent or transient change has occurred on any
input since the MAX7324 was last accessed.
_______________________________________________________________________________________
9
MAX7324
I2C Port Expander with Eight Push-Pull Outputs
and Eight Inputs
Serial Interface
Serial Addressing
The MAX7324 operates as a slave that sends and
receives data through an I2C interface. The interface
uses a serial-data line (SDA) and a serial-clock line (SCL)
to achieve bidirectional communication between master(s) and slave(s). The master initiates all data transfers
to and from the MAX7324 and generates the SCL clock
that synchronizes the data transfer (Figure 1).
SDA operates as both an input and an open-drain output. A pullup resistor, typically 4.7kΩ, is required on
SDA. SCL operates only as an input. A pullup resistor,
typically 4.7kΩ, is required on SCL if there are multiple
masters on the 2-wire interface, or if the master in a single-master system has an open-drain SCL output.
Each transmission consists of a START condition sent
by a master, followed by the MAX7324’s 7-bit slave
address plus R/W bit, 1 or more data bytes, and finally
a STOP condition (Figure 2).
START and STOP Conditions
Both SCL and SDA remain high when the interface is
not busy. A master signals the beginning of a transmission with a START (S) condition by transitioning SDA
from high to low while SCL is high. When the master
has finished communicating with the slave, the master
issues a STOP (P) condition by transitioning SDA from
low to high while SCL is high. The bus is then free for
another transmission (Figure 2).
Bit Transfer
One data bit is transferred during each clock pulse.
The data on SDA must remain stable while SCL is high
(Figure 3).
SDA
tLOW
tBUF
tSU,STA
tSU,DAT
tHD,STA
tSU,STO
tHD,DAT
tHIGH
SCL
tHD,STA
tR
tF
START CONDITION
REPEATED START CONDITION
STOP
CONDITION
Figure 1. 2-Wire Serial-Interface Timing Details
SDA
SDA
SCL
S
P
START
CONDITION
STOP
CONDITION
Figure 2. START and STOP Conditions
10
SCL
DATA LINE STABLE; CHANGE OF DATA
DATA VALID
ALLOWED
Figure 3. Bit Transfer
______________________________________________________________________________________
START
CONDITION
I2C Port Expander with Eight Push-Pull Outputs
and Eight Inputs
The first (A6), second (A5), and third (A4) bits of the
MAX7324 slave address are always 1, 1, and 0 (I0–I7)
or 1, 0, and 1 (O8–O15). Connect AD0 and AD2 to
GND, V+, SDA, or SCL to select the slave address bits
A3, A2, A1, and A0. The MAX7324 has 16 possible
slave address pairs (Tables 2 and 3), allowing up to 16
MAX7324 devices on an I2C bus.
Accessing the MAX7324
The MAX7324 is accessed though an I2C interface. The
MAX7324 provides two different 7-bit slave addresses
for either the eight input ports (I0–I7) or the eight pushpull ports (O8–O15). See Tables 2 and 3.
A single-byte read from the input ports of the
MAX7324 returns the status of the eight ports and
clears both the internal transition flags and the INT output. A single-byte read from the output ports of the
MAX7324 returns the status of the eight output ports,
read back as inputs.
A 2-byte read from the input ports of the MAX7324
returns the status of the eight ports (as for a single-byte
read), followed by the transition flags. The internal transition flags and the INT output are cleared when the
MAX7324 acknowledges the slave address byte, but
the previous transition flag data is sent as the second
byte. A 2-byte read from the output ports of the
MAX7324 repeatedly returns the status of the eight output ports, read back as inputs.
A multibyte read (more than 2 bytes before the I2C
STOP bit) from the input ports of the MAX7324 repeatedly returns the port data, alternating with the transition
flags. As the input data is resampled for each transmission, and the transition flags are reset each time, a
multibyte read continuously returns the current data
and identifies any changing input ports.
Slave Address
The MAX7324 has two different 7-bit slave addresses
(Tables 2 and 3). The addresses are different for communicating to either the eight push-pull outputs or the
eight inputs. The eighth bit following the 7-bit slave
address is the R/W bit. It is low for a write command
and high for a read command.
CLOCK PULSE
FOR ACKNOWLEDGEMENT
START
CONDITION
SCL
1
2
8
9
SDA BY
TRANSMITTER
SDA BY
RECEIVER
S
Figure 4. Acknowledge
.
SDA
1
A5
A4
A3
A2
A1
A0
R/W
ACK
LSB
MSB
SCL
Figure 5. Slave Address
______________________________________________________________________________________
11
MAX7324
Acknowledge
The acknowledge bit is a clocked 9th bit the recipient
uses to acknowledge receipt of each byte of data
(Figure 4). Each byte transferred effectively requires 9
bits. The master generates the 9th clock pulse, and the
recipient pulls down SDA during the acknowledge
clock pulse, such that the SDA line is stable low during
the high period of the clock pulse. When the master is
transmitting to the MAX7324, the MAX7324 generates
the acknowledge bit because the MAX7324 is the
recipient. When the MAX7324 is transmitting to the
master, the master generates the acknowledge bit
because the master is the recipient. The master does
not generate an acknowledge prior to issuing a stop
condition.
MAX7324
I2C Port Expander with Eight Push-Pull Outputs
and Eight Inputs
Reading from the MAX7324
A read from the input ports of the MAX7324 starts with
the master transmitting the input ports’ slave address
with the R/W bit set to high. The MAX7324 acknowledges the slave address and samples the ports during
the acknowledge bit. INT deasserts during the slave
address acknowledge.
Typically, the master reads 1 or 2 bytes from the
MAX7324 with each byte being acknowledged by the
master upon reception with the exception of the last
byte.
If a port input data change occurs during the read
sequence, INT is reasserted during the I2C STOP bit.
The MAX7324 does not generate another interrupt during a single-byte or multibyte read.
Input-port data is sampled during the preceding I 2C
acknowledge bit (the acknowledge bit for the I2C slave
address in the case of a single-byte or 2-byte read).
A multibyte read (more than 2 bytes before the I 2C
STOP bit) from the output ports of the MAX7324 repeatedly returns the status of the eight output ports, read
back as inputs.
A single-byte write to the input ports of the MAX7324
sets the interrupt mask register and clears both the
internal transition flags and INT output.
When the master reads one byte from the open-drain
ports of the MAX7324 and subsequently issues a STOP
condition (Figure 6), the MAX7324 transmits the current
port data, clears the transition flags, and resets the
transition detection. INT deasserts during the slave
acknowledge. The new snapshot data is the current
port data transmitted to the master, and therefore, port
changes occuring during the transmission are detected. INT remains high until the STOP condition.
A single-byte write to the output ports of the MAX7324
sets the logic state of all eight ports.
A multibyte write to the input ports of the MAX7324
sets the interrupt mask register repeatedly.
A multibyte write to the output ports of the MAX7324
repeatedly sets the logic state of all eight ports.
ACKNOWLEDGE
FROM MAX7324
S
MAX7324 SLAVE ADDRESS
1
R/W
I7
A
D7
I6
D6
I5
D5
PORT SNAPSHOT
I4
D4
I3
D3
I2
D2
I1
ACKNOWLEDGE
FROM MASTER
I0
D1
D0
A
P
PORT SNAPSHOT
SCL
tPH
PORTS
tIV
tPS
tIR
INT OUTPUT
INT REMAINS HIGH UNTIL STOP CONDITION
S = START CONDITION
P = STOP CONDITION
A = ACKNOWLEDGE
Figure 6. Reading Input Ports of the MAX7324 (1 Data Byte)
12
______________________________________________________________________________________
tIP
I2C Port Expander with Eight Push-Pull Outputs
and Eight Inputs
ACKNOWLEDGE
FROM MAX7324
I7
I6
I5
one or more bytes from the output ports of the
MAX7324, and then issues a STOP condition (Figure 8).
The MAX7324 transmits the current port data, read
back from the actual port outputs (not the port output
latches) during the acknowledge. If a port is forced to a
logic state other than its programmed state, the readback reflects this. If driving a capacitive load, the readback port level verification algorithms may need to take
the RC rise/fall time into account.
Typically, the master reads one byte from the ouput
ports of the MAX7324, then issues a STOP condition
(Figure 8). However, the master can read two or more
bytes from the output ports of the MAX7324, and then
issues a STOP condition. In this case, the MAX7324
resamples the port outputs during each acknowledge
and transmits the new data each time.
I4
I3
I1
I2
I0
F7
F6
F5
F4
F3
F2
F1
FLAG
F0
ACKNOWLEDGE
FROM MASTER
S
MAX7324 SLAVE ADDRESS
1
A
D7
D6
D5
D4
D2
D1 D0
D7 D6
A
D5
D4
D3
D2
D1
D0
A
P
PORT SNAPSHOT
PORT SNAPSHOT
PORT SNAPSHOT
R/W
D3
SCL
tPH
PORTS
tPS
tIV
tIR
INT OUTPUT
tIP
INT REMAINS HIGH UNTIL STOP CONDITION
S = START CONDITION
P = STOP CONDITION
A = ACKNOWLEDGE
Figure 7. Reading Input Ports of the MAX7324 (2 Data Bytes)
P7
PORT SNAPSHOT DATA
P6
P5
P4
P3
DATA 1
P2
P1
P0
ACKNOWLEDGE FROM MAX7324
S
MAX7324 SLAVE ADDRESS
1
R/W
A
D7
D6
D5
D4
PORT SNAPSHOT TAKEN
D3
D2
D1
D0
PORT SNAPSHOT TAKEN
A
P
ACKNOWLEDGE
FROM MASTER
SCL
Figure 8. Reading Output Ports of the MAX7324
______________________________________________________________________________________
13
MAX7324
When the master reads 2 bytes from the output ports of
the MAX7324 and subsequently issues a STOP condition (Figure 7), the MAX7324 transmits the current port
data, followed by the transition flags. The transition
flags are then cleared, and transition detection is reset.
INT deasserts during the slave acknowledge. The new
snapshot data is the current port data transmitted to the
master, and therefore, port transitions occuring during
the transmission are detected. INT remains high until
the STOP condition. When the master reads more than
2 data bytes, the input port data alternates with the
transition flag.
A read from the output ports of the MAX7324 starts with
the master transmitting the ports’ slave address with
the R/W bit set high. The MAX7324 acknowledges the
slave address and samples the logic state of the output
ports during the acknowledge bit. The master can read
MAX7324
I2C Port Expander with Eight Push-Pull Outputs
and Eight Inputs
Writing to the MAX7324
A write to the input ports of the MAX7324 starts with the
master transmitting the group’s slave address with the
R/W bit set low. The MAX7324 acknowledges the slave
address and samples the ports during the acknowledge bit. INT deasserts during the slave acknowledge.
The master can now transmit one or more bytes of
data. The MAX7324 acknowledges these subsequent
bytes of data and updates the interrupt mask register
with each new byte until the master issues a STOP condition (Figure 9).
1
SCL
2
3
4
5
6
7
8
DATA TO INTERRUPT MASK
SLAVE ADDRESS
S
SDA
A write to the output ports of the MAX7324 starts with
the master transmitting the group’s slave address with
the R/W bit set low. The MAX7324 acknowledges the
slave address and samples the ports during the
acknowledge bit. The master can now transmit one or
more bytes of data. The MAX7324 acknowledges these
subsequent bytes of data and updates the corresponding group’s ports with each new byte until the master
issues a STOP condition (Figure 10).
0
START CONDITION
DATA TO INTERRUPT MASK
DATA 1
A
DATA 2
A
A
R/W
tPV
tPV
Figure 9. Writing to the Input Ports of the MAX7324
1
SCL
2
3
4
5
6
7
8
DATA TO PORT
SLAVE ADDRESS
SDA
S
START CONDITION
0
R/W
A
DATA TO PORT
DATA 1
A
DATA 2
A
ACKNOWLEDGE
FROM SLAVE
ACKNOWLEDGE
FROM SLAVE
ACKNOWLEDGE
FROM SLAVE
WRITE
TO PORT
DATA OUT
FROM PORT
DATA 1 VALID
tPV
DATA 2 VALID
tPV
Figure 10. Writing to the Output Ports of the MAX7324
14
______________________________________________________________________________________
I2C Port Expander with Eight Push-Pull Outputs
and Eight Inputs
Port Input and I2C Interface Level
Translation from Higher or Lower
Logic Voltages
SDA, SCL, AD0, AD2, RST, INT, and I0–I7 are overvoltage protected to +6V. This allows the MAX7324 to
operate from a lower supply voltage, such as +3.3V,
while the I2C interface and/or any of the eight input
ports are driven from a higher logic level, such as +5V.
The MAX7324 can operate from a higher supply voltage, such as +3V, while the I2C interface and/or some
of the input ports I0–I7 are driven from a lower logic
level, such as +2.5V. For V+ < 1.8V, apply a minimum
voltage of 0.8 x V+ to assert a logic-high on any input.
For V+ ≥ 1.8V, apply a voltage of 0.7 x V+ to assert a
logic-high. For example, a MAX7324 operating from a
+5V supply may not recognize a +3.3V nominal logic
high. One solution for input level translation is to drive
the MAX7324 inputs from open-drain outputs. Use a
pullup resistor to V+ or a higher supply to ensure a high
logic voltage greater than 0.7 x V+.
Port Output Signal Level Translation
RST, SCL, SDA, AD0, and AD2 remain high impedance
with up to +6V asserted on them when the MAX7324 is
powered down (V+ = 0). The MAX7324 can therefore
be used in hot-swap applications.
V+
Each of the eight output ports has protection diodes to
V+ and GND. When a port output is driven to a voltage
higher than V+ or lower than GND, the appropriate protection diode clamps the output to a diode drop above
V+ or below GND. When the MAX7324 is powered
down (V+ = 0), every output port's protection diodes to
V+ and GND continue to appear as a diode clamp from
each output to GND (Figure 11).
Each of the input ports I0–I7 has a protection diode to
GND (Figure 12). When a port input is driven to a voltage lower than GND, the protection diode clamps the
voltage to a diode drop below GND.
Each of the eight input ports I0–I7 also has a 40kΩ (typ)
pullup resistor that can be enabled or disabled. When a
port input is driven to a voltage higher than V+, the
body diode of the pullup enable switch conducts and
the 40kΩ pullup resistor is enabled. When the
MAX7324 is powered down (V+ = 0), every input port
appears as a 40kΩ resistor in series with a diode connected to ground. Input ports are protected to +6V
under any of these circumstances.
Driving LED Loads
When driving LEDs from one of the eight output ports,
O8–O15, a resistor must be fitted in series with the LED to
limit the LED current to no more than 20mA. Connect the
LED cathode to the MAX7324 port, and the LED anode
to V+ through the series current-limiting resistor, RLED.
V+
V+
MAX7324
PULLUP
ENABLE
V+
MAX7324
40kΩ
O8–O15
I0–I7
INPUT
OUTPUT
GND
GND
Figure 11. MAX7324 Output Port Structure
Figure 12. MAX7324 Input Port Structure
______________________________________________________________________________________
15
MAX7324
Applications Information
MAX7324
I2C Port Expander with Eight Push-Pull Outputs
and Eight Inputs
Set the port output low to light the LED. Choose the
resistor value according to the following formula:
RLED = (VSUPPLY - VLED - VOL) / ILED
where:
RLED is the resistance of the resistor in series with the
LED (Ω).
VSUPPLY is the supply voltage used to drive the LED
(V).
VLED is the forward voltage of the LED (V).
VOL is the output low voltage of the MAX7324 when
sinking ILED (V).
ILED is the desired operating current of the LED (A).
For example, to operate a 2.2V red LED at 10mA from
+5V supply:
RLED = (5 - 2.2 - 0.1) / 0.01 = 270Ω
Driving Load Currents Higher than 20mA
The MAX7324 can be used to drive loads such as
relays that draw more than 20mA by paralleling outputs. Use at least one output per 20mA of load current;
for example, a 5V 330mW relay draws 66mA, and
therefore, requires four paralleled outputs. Any combination of outputs can be used as part of a load-sharing
design because any combination of ports can be set or
cleared at the same time by writing to the MAX7324. Do
not exceed a total sink current of 100mA for the device.
Protect the MAX7324 from the negative voltage transient generated when switching off inductive loads
(such as relays) by connecting a reverse-biased diode
across the inductive load. Choose the peak current for
the diode to be greater than the inductive load's operating current.
Power-Supply Considerations
The MAX7324 operates with a supply voltage of
+1.71V to +5.5V over the -40°C to +125°C temperature range. Bypass the supply to GND with a ceramic
capacitor of at least 0.047µF as close as possible to
the device. For the TQFN version, additionally connect
the exposed pad to GND.
16
______________________________________________________________________________________
I2C Port Expander with Eight Push-Pull Outputs
and Eight Inputs
Typical Application Circuit
3.3V
V+
µC
O15
O14
O13
O12
O11
O10
O9
O8
I7
I6
I5
I4
I3
I2
I1
I0
AD0
AD2
SCL
I 2C
CONTROL
INPUT
FILTER
SDA
I/O
PORTS
SCL
SCL
SDA
RST
SDA
RST
INT
INT
MAX7324
INT
POWERON RESET
RST
N
MAX7324
AD0
AD2
GND
Pin Configurations (continued)
O15
O14
013
012
O11
O10
09
08
I7
I6
I5
I4
I3
I2
I1
I0
OUTPUT
OUTPUT
OUTPUT
OUTPUT
INPUT
INPUT
INPUT
INPUT
INPUT
INPUT
INPUT
INPUT
Chip Information
PROCESS: BiCMOS
TOP VIEW
+
INT 1
24 V+
RST 2
23 SDA
AD2 3
22 SCL
I0 4
MAX7324
21 AD0
I1 5
20 015
I2 6
19 014
I3 7
18 013
I4 8
17 012
I5 9
16 011
I6 10
15 010
I7 11
14 O9
GND 12
13 O8
QSOP
______________________________________________________________________________________
17
MAX7324
Functional Diagram
Package Information
(The package drawing(s) in this data sheet may not reflect the most current specifications. For the latest package outline information,
go to www.maxim-ic.com/packages.)
24L QFN THIN.EPS
MAX7324
I2C Port Expander with Eight Push-Pull Outputs
and Eight Inputs
PACKAGE OUTLINE,
12, 16, 20, 24, 28L THIN QFN, 4x4x0.8mm
21-0139
18
______________________________________________________________________________________
E
1
2
I2C Port Expander with Eight Push-Pull Outputs
and Eight Inputs
PACKAGE OUTLINE,
12, 16, 20, 24, 28L THIN QFN, 4x4x0.8mm
21-0139
E
2
______________________________________________________________________________________
2
19
MAX7324
Package Information (continued)
(The package drawing(s) in this data sheet may not reflect the most current specifications. For the latest package outline information,
go to www.maxim-ic.com/packages.)
Package Information (continued)
(The package drawing(s) in this data sheet may not reflect the most current specifications. For the latest package outline information,
go to www.maxim-ic.com/packages.)
QSOP.EPS
MAX7324
I2C Port Expander with Eight Push-Pull Outputs
and Eight Inputs
PACKAGE OUTLINE, QSOP .150", .025" LEAD PITCH
21-0055
F
1
1
Maxim cannot assume responsibility for use of any circuitry other than circuitry entirely embodied in a Maxim product. No circuit patent licenses are
implied. Maxim reserves the right to change the circuitry and specifications without notice at any time.
20 ____________________Maxim Integrated Products, 120 San Gabriel Drive, Sunnyvale, CA 94086 408-737-7600
© 2006 Maxim Integrated Products
is a registered trademark of Maxim Integrated Products, Inc.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
