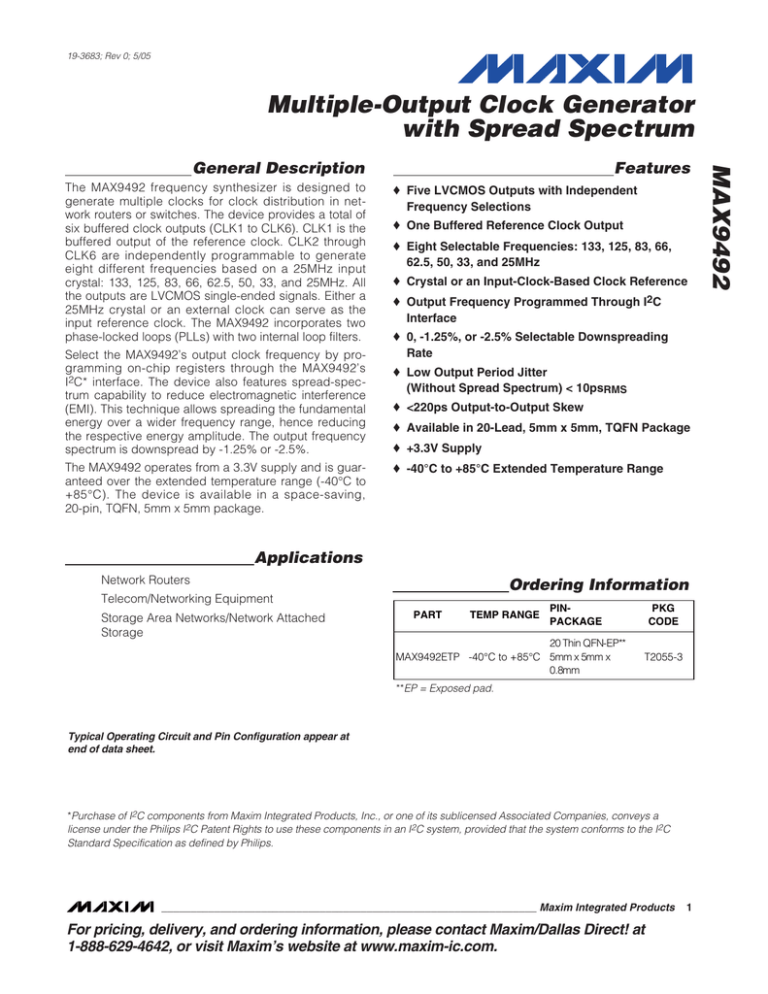

19-3683; Rev 0; 5/05
Multiple-Output Clock Generator
with Spread Spectrum
The MAX9492 frequency synthesizer is designed to
generate multiple clocks for clock distribution in network routers or switches. The device provides a total of
six buffered clock outputs (CLK1 to CLK6). CLK1 is the
buffered output of the reference clock. CLK2 through
CLK6 are independently programmable to generate
eight different frequencies based on a 25MHz input
crystal: 133, 125, 83, 66, 62.5, 50, 33, and 25MHz. All
the outputs are LVCMOS single-ended signals. Either a
25MHz crystal or an external clock can serve as the
input reference clock. The MAX9492 incorporates two
phase-locked loops (PLLs) with two internal loop filters.
Select the MAX9492’s output clock frequency by programming on-chip registers through the MAX9492’s
I2C* interface. The device also features spread-spectrum capability to reduce electromagnetic interference
(EMI). This technique allows spreading the fundamental
energy over a wider frequency range, hence reducing
the respective energy amplitude. The output frequency
spectrum is downspread by -1.25% or -2.5%.
The MAX9492 operates from a 3.3V supply and is guaranteed over the extended temperature range (-40°C to
+85°C). The device is available in a space-saving,
20-pin, TQFN, 5mm x 5mm package.
Features
♦ Five LVCMOS Outputs with Independent
Frequency Selections
♦ One Buffered Reference Clock Output
♦ Eight Selectable Frequencies: 133, 125, 83, 66,
62.5, 50, 33, and 25MHz
♦ Crystal or an Input-Clock-Based Clock Reference
♦ Output Frequency Programmed Through I2C
Interface
♦ 0, -1.25%, or -2.5% Selectable Downspreading
Rate
♦ Low Output Period Jitter
(Without Spread Spectrum) < 10psRMS
♦ <220ps Output-to-Output Skew
♦ Available in 20-Lead, 5mm x 5mm, TQFN Package
♦ +3.3V Supply
♦ -40°C to +85°C Extended Temperature Range
Applications
Network Routers
Ordering Information
Telecom/Networking Equipment
Storage Area Networks/Network Attached
Storage
PART
TEMP RANGE
PINPACKAGE
20 Thin QFN-EP**
MAX9492ETP -40°C to +85°C 5mm x 5mm x
0.8mm
PKG
CODE
T2055-3
**EP = Exposed pad.
Typical Operating Circuit and Pin Configuration appear at
end of data sheet.
*Purchase of I2C components from Maxim Integrated Products, Inc., or one of its sublicensed Associated Companies, conveys a
license under the Philips I2C Patent Rights to use these components in an I2C system, provided that the system conforms to the I2C
Standard Specification as defined by Philips.
________________________________________________________________ Maxim Integrated Products
For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at
1-888-629-4642, or visit Maxim’s website at www.maxim-ic.com.
1
MAX9492
General Description
MAX9492
Multiple-Output Clock Generator
with Spread Spectrum
ABSOLUTE MAXIMUM RATINGS
VDD_ to GND .........................................................-0.3V to +4.0V
All Other Pins to GND.................................-0.3V to (VDD + 1.0V)
Short-Circuit Duration (all LVCMOS outputs) .............Continuous
ESD Protection (Human Body Model)................................. ±2kV
Continuous Power Dissipation (TA = +70°C)
20-Pin TQFN (derate 20.8mW/°C above +70°C) ......1667mW
Storage Temperature Range .............................-65°C to +165°C
Maximum Junction Temperature .....................................+150°C
Operating Temperature Range ...........................-40°C to +85°C
Lead Temperature (soldering, 10s) ................................+300°C
Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional
operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to
absolute maximum rating conditions for extended periods may affect device reliability.
DC ELECTRICAL CHARACTERISTICS
(VDD = VDDA = +3.0V to +3.6V, TA = -40°C to +85°C, unless otherwise noted. Typical values at VDD = VDDA = +3.3V, TA = +25°C,
with CLK1 at 25MHz, and all other CLK_ outputs at 133MHz.) (Note 1)
PARAMETER
SYMBOL
CONDITIONS
MIN
TYP
MAX
UNITS
0.8
V
+20
µA
CLOCK INPUT (X1)
Input High Level
VIH1
Input Low Level
VIL1
Input Current
IIL1, IIH1
2.0
VX_ = 0 to VDD
V
-20
CLOCK OUTPUTS (CLK_)
Output High Level
VOH
IOH = -100µA
IOH = -4mA
VDD 0.2
V
2.4
IOL = 100µA
0.2
IOL = 4mA
0.4
Output Low Level
VOL
Output Short-Circuit Current
IOS
CLK_ = VDD or GND
Output Capacitance
CO
(Note 2)
-60
V
+69
mA
5
pF
0.8
V
THREE-LEVEL INPUTS (SSC, SA0, SA1)
Input High Level
VIH2
Input Low Level
VIL2
Input Open Level
Input Current
2.5
VIO2
IIL2, IIH2
VIL2 = 0 or VIH2 = VDD
V
1.35
1.90
V
-15
+15
µA
SERIAL INTERFACE (SCL, SDA) (Note 3)
Input High Level
VIH
Input Low Level
VIL
Input Leakage Current
0.7 x
VDD
IIH, IIL
Low-Level Output
VOL
Input Capacitance
Ci
V
-1
0.3 x
VDD
V
+1
µA
ISINK = 4mA
0.4
V
(Note 2)
10
pF
3.6
V
POWER SUPPLIES
Digital Power-Supply Voltage
VDD
Analog Power-Supply Voltage
VDDA
3.0
3.6
V
Total Supply Current
IDC
CL = 10pF
60
76
mA
Output Disabled Supply Current
IOD
All clock registers = 0x0F
18
24
mA
2
3.0
_______________________________________________________________________________________
Multiple-Output Clock Generator
with Spread Spectrum
(VDD = VDDA = +3.0V to +3.6V, CL = 10pF, unless otherwise noted. Typical values at VDD = VDDA = +3.3V, TA = +25°C, with CLK1 at
25MHz and all other CLK_ outputs at 133MHz.) (Note 2)
PARAMETER
SYMBOL
CONDITIONS
MIN
TYP
MAX
UNITS
10
35
MHz
15
35
MHz
-50
+50
ppm
OUTPUTS (CLK_)
Crystal Frequency
Input Frequency Range
External clock
Crystal Frequency Tolerance
∆fA
Output-to-Output Skew
tSKO
Any two CLK_ outputs
Rise Time
tR1
20% VDD to 80% VDD
Fall Time
tF1
80% VDD to 20% VDD
Duty Cycle
220
ps
1.9
2.5
ns
1.3
2.5
ns
60
%
15
ps
40
Output Period Jitter
JP
RMS (SSC = 0), CLK1 is disabled to high
impedance
Power-Up Time
tPO
VDD > 2.8V to PLL lock
Frequency Spread
10
2
SSC = high
-2.5
SSC = floating
-1.25
ms
%
SERIAL INTERFACE TIMING
(VDD = VDDA = +3.3V, TA = -40°C to +85°C.) (Note 1, Figure 1)
PARAMETER
SYMBOL
CONDITIONS
MIN
TYP
MAX
UNITS
400
kHz
Serial Clock
fSCL
Bus Free Time Between STOP
and START Conditions
tBUF
1.3
µs
Hold Time, Repeated START
Condition
tHD,STA
0.6
µs
Repeated START Condition
Setup Time
tSU,STA
0.6
µs
STOP Condition Setup Time
tSU,STO
Data Hold Time
tHD,DAT
(Note 4)
0.6
15
900
ns
µs
Data Hold Time Slave
tHD,DAT
(Note 4)
15
900
ns
Data Setup Time
tSU,DAT
100
ns
SCL Clock Low Period
tLOW
1.3
µs
SCL Clock High Period
tHIGH
0.7
µs
Rise Time of SDA and SCL,
Receiving
tR
(Notes 2, 5)
20 +
0.1CB
300
ns
Fall Time of SDA and SCL,
Receiving
tF
(Notes 2, 5)
20 +
0.1CB
300
ns
_______________________________________________________________________________________
3
MAX9492
AC ELECTRICAL CHARACTERISTICS
SERIAL INTERFACE TIMING (continued)
(VDD = VDDA = +3.3V, TA = -40°C to +85°C.) (Note 1, Figure 1)
PARAMETER
SYMBOL
CONDITIONS
MIN
TYP
tF,TX
(Notes 2, 6)
20 +
0.1CB
Pulse Width of Spike Suppressed
tSP
(Notes 2, 7)
0
Capacitive Load for Each Bus
Line
CB
(Note 2)
Fall Time of SDA, Transmitting
MAX
UNITS
250
ns
50
ns
400
pF
Note 1: All DC parameters tested at TA = +25°C. Specifications over temperature are guaranteed by design.
Note 2: Guaranteed by design.
Note 3: No high output level is specified but only the output resistance to the bus. For I2C, the high-level voltage is provided by
pullup resistors on the bus.
Note 4: The device provides a hold time of at least 300ns for the SDA signal (referred to VIL of the SCL signal) to bridge the undefined region of SCL’s falling edge.
Note 5: CB = total capacitance of one bus line in pF. tR and tF measured between 0.3 x VDD and 0.7 x VDD.
Note 6: Bus sink current is less than 6mA. CB is the total capacitance of one bus line in pF. tR and tF are measured between 0.3 x
VDD and 0.7 x VDD.
Note 7: Input filters on the SDA and SCL inputs suppress noise spikes less than 50ns.
Typical Operating Characteristics
(TA = +25°C, unless otherwise noted.)
SUPPLY CURRENT vs. TEMPERATURE
(ALL OUTPUTS SET TO 133MHz)
61.2
2.0
2.3
MAX9492 toc03
2.5
MAX9492 toc02
61.6
FALL TIME vs. TEMPERATURE
(ALL OUTPUTS SET TO 133MHz)
RISE TIME vs. TEMPERATURE
(ALL OUTPUTS SET TO 133MHz)
MAX9492 toc01
62.0
1.8
60.4
60.0
59.6
FALL TIME (ns)
60.8
RISE TIME (ns)
SUPPLY CURRENT (mA)
MAX9492
Multiple-Output Clock Generator
with Spread Spectrum
2.1
1.9
1.6
1.4
59.2
58.8
1.2
1.7
58.4
58.0
4
1.0
1.5
-40
-15
10
35
TEMPERATURE (°C)
60
85
-40
-15
10
35
TEMPERATURE (°C)
60
85
-40
-15
10
35
TEMPERATURE (°C)
_______________________________________________________________________________________
60
85
Multiple-Output Clock Generator
with Spread Spectrum
133MHz OUTPUT WAVEFORM
PERIOD JITTER vs. TEMPERATURE
PERIOD JITTER (psRMS)
16
133MHz
83MHz OUTPUT WAVEFORM
MAX9492 toc05
MAX9492 toc04
20
MAX9492 toc06
3.3V
3.3V
33.3MHz
12
125MHz
8
62.5MHz
4
0V
0V
0
-40
-15
10
35
60
2ns/div
2ns/div
PERIOD JITTER vs. FREQUENCY
133MHz OUTPUT 0% DOWNSPREADING
85
TEMPERATURE (°C)
DUTY CYCLE vs. TEMPERATURE
33.3MHz
PERIOD JITTER (psRMS)
DUTY CYCLE (%)
16
62.5MHz
50.0
49.5
49.0
133MHz
48.5
125MHz
48.0
MAX9492 toc09
MAX9492 toc08
50.5
20
MAX9492 toc07
51.0
12
10dB/REF 0dBm
RBW = 10kHz
VBW = 10kHz
ATN = 20dB
CENTER = 133MHz
SPAN = 4MHz
8
4
47.5
0
47.0
-40
-15
10
35
60
25
85
TEMPERATURE (°C)
133MHz OUTPUT WITH
0% AND 1.25% DOWNSPREADING
MAX9492 toc10
10dB/REF 0dBm
VBW = 1kHz
CENTER = 133MHz
RBW = 100kHz
ATN = 20dB
SPAN = 15MHz
50
75
100
FREQUENCY (MHz)
125
150
133MHz OUTPUT WITH
0% AND 2.5% DOWNSPREADING
MAX9492 toc11
10dB/REF 0dBm
VBW = 1kHz
CENTER = 133MHz
RBW = 100kHz
ATN = 20dB
SPAN = 15MHz
_______________________________________________________________________________________
5
MAX9492
Typical Operating Characteristics (continued)
(TA = +25°C, unless otherwise noted.)
MAX9492
Multiple-Output Clock Generator
with Spread Spectrum
Pin Description
PIN
NAME
1
GNDA
FUNCTION
2
X1
3
X2
4
VDDA
Power-Supply Input for Analog Circuits. Bypass to GNDA with a 0.1µF capacitor.
5, 13, 16
VDD
Power-Supply Input for Digital Circuits. Bypass to GND with a 0.1µF capacitor.
6
SCL
Serial Clock Input. Serial interface clock.
7
SDA
Serial Data I/O. Data I/O of serial interface.
Analog Ground
Crystal Connection or Clock Input. If using a 25MHz crystal, connect it to X1 and X2. If using a reference
clock, connect the clock signal to X1 and leave X2 floating. See the Typical Operating Circuit.
8, 20
GND
Digital Ground
9
CLK1
Clock 1 Output. Buffered reference clock output.
10
CLK2
Clock 2 Output. Frequency-selectable clock output.
11
CLK3
Clock 3 Output. Frequency-selectable clock output.
12
CLK4
Clock 4 Output. Frequency-selectable clock output.
14
CLK5
Clock 5 Output. Frequency-selectable clock output.
15
CLK6
Clock 6 Output. Frequency-selectable clock output.
17
SSC
Spread-Spectrum-Select Input. Selects the spectrum-spread percentage. When SSC is low, spread
spectrum is disabled. When SSC is floating, spread spectrum is set to -1.25%. When SSC is high, spread
spectrum is set to -2.5%.
18
SA1
19
SA0
Address-Select Inputs for Serial Interface. SA0 and SA1 select the serial interface address, as shown in
Table 1. SA0 and SA1 are three-level inputs, making nine possible address combinations.
EP
GND
Exposed pad. Connect to GND.
Block Diagram
VDDA
SCL
SDA
VDD
CLK1
I 2C
SA0
SA1
266MHz
PLL1
X1
MUX
CLK2
MUX
CLK5
MUX
CLK6
DIVIDE BY
2, 4, 8
25MHz
OSC
X2
250MHz
PLL2
SSC
SPREAD
SPECTRUM
DIVIDE BY
2, 3, 4, 5, 10
MAX9492
AGND
6
GND
_______________________________________________________________________________________
Multiple-Output Clock Generator
with Spread Spectrum
The MAX9492 frequency synthesizer is designed to generate multiple clocks for clock distribution in network
routers or switches. The device provides a total of six
buffered clock outputs (CLK1 to CLK6). CLK1 is the
buffered output of the reference clock. CLK2 through
CLK6 are independently programmable to generate eight
different frequencies based on a 25MHz input crystal:
133, 125, 83, 66, 62.5, 50, 33, and 25MHz. All the outputs
are LVCMOS single-ended signals.
Select the MAX9492’s output frequency by programming on-chip registers through the I2C interface. The
MAX9492 also features spread-spectrum capability to
reduce EMI. Output frequency spectrum can be downspread by -2.5% or -1.25%. The 25MHz reference
comes from either a crystal or an external clock. The
MAX9492 incorporates two PLLs with two internal loop
filters. The MAX9492 operates from a 3.3V supply.
Reference Frequency Input
The MAX9492 requires a reference frequency. The reference can be a 25MHz crystal or an external clock
signal. If using a 25MHz crystal, connect it across X1
and X2, and connect loading capacitors from X1 and
X2 to GND (refer to the crystal manufacturer’s specification). If using an external clock, connect the signal to
X1 and leave X2 floating.
Power-Up State
At power-up, the CLK1 output is enabled and free running, the CLK2 to CLK4 outputs are set at 33.3MHz,
and the other CLK outputs are disabled at logic-low.
The output states can be overridden by writing to the
registers through the I2C interface.
Serial Interface
The MAX9492 is programmed through its I 2C serial
interface. This interface has a clock, SCL, and a bidirectional data line, SDA. In an I2C system, a master,
typically a microcontroller, initiates all data transfers to
and from slave devices, and generates the clock to
synchronize the data transfers.
The MAX9492 operates as a slave device. The timing of
the SDA and SCL signals is detailed in Figure 1. SDA
operates as both an input and an open-drain output. A
pullup resistor, typically 4.7kΩ, is required on SDA. SCL
operates only as an input. A pullup resistor, typically
4.7kΩ, is required on SCL.
START and STOP Conditions
A master signals the beginning of a transmission with a
START condition by transitioning SDA from high to low
while SCL is high (Figure 2). When communication is
complete, a master issues a STOP condition by transitioning SDA from low to high while SCL is high. The bus
is then free for another transmission.
SDA
tBUF
tSU,STA
tSU,DAT
tHD,STA
tLOW
tSU,STO
tHD,DAT
SCL
tHIGH
tHD,STA
tR
tF
START
CONDITION
REPEATED
START CONDITION
STOP
CONDITION
START
CONDITION
Figure 1. Serial-Interface Timing Diagram
_______________________________________________________________________________________
7
MAX9492
Detailed Description
MAX9492
Multiple-Output Clock Generator
with Spread Spectrum
NOT ACKNOWLEDGE
SDA
1
1
A4
A3
A1
A0
R/W
ACK
ACKNOWLEDGE
LSB
MSB
SCL
A2
START
Figure 2. I2C Address and Acknowledge
Bit Transfer
One data bit is transferred during each SCL clock
cycle. SDA must remain stable during the high period
of SCL, as changes in SDA while SCL is high are
START and STOP control signals. Idle the interface by
pulling both SDA and SCL high.
After 8 bits are transferred, the receiving device generates an acknowledge signal by pulling SDA low for the
entire duration of the 9th clock pulse. If the receiving
device does not pull SDA low, a not acknowledge is
indicated (Figure 2).
Table 1. Device I2C Address Selection
8
SA0
SA1
DEVICE ADDRESS
Open
Open
110 1000
Low
Open
110 0100
High
Open
110 0010
Open
Low
110 1100
Low
Low
110 1001
High
Low
111 0000
Open
High
111 0001
Low
High
111 0010
High
High
111 0100
Device Address
The MAX9492 features a 7-bit device address, configured by the two three-level address inputs, SA1 and
SA0. To select the device address, connect SA1 and
SA0 to VDD, GND, or leave floating, as indicated in
Table 1. The MAX9492 has nine possible addresses,
allowing up to nine MAX9492 devices to share the
same interface bus.
Writing to the MAX9492
Writing to the MAX9492 begins with a START condition
(Figure 3). Following the START condition, each pulse
on SCL transfers 1 bit of data. The first 7 bits comprise
the device address (see the Device Address section).
The 8th bit is low to indicate a write operation. An
acknowledge bit is then generated by the MAX9492,
signaling that it recognizes its address. The next 8 bits
form the register address byte (Table 2) and determine
which control register receives the following data byte.
The MAX9492 then generates another acknowledge bit.
The data byte is then written into the addressed register
of the MAX9492. An acknowledge bit by the MAX9492
followed by a required STOP condition by the master
completes the communication. To write to the device
again, the entire write procedure is repeated; I2C burstwrite mode is not supported by the MAX9492.
_______________________________________________________________________________________
Multiple-Output Clock Generator
with Spread Spectrum
MAX9492
MASTER-WRITE DATA STRUCTURE
START
S
R/W
DEVICE ADDRESS
1
1
A4
A3
A2
A1
A0
0
REGISTER ADDRESS
DATA IN
ACK RA7 RA6 RA5 RA4 RA3 RA2 RA1 RA0 ACK
D7
D6
D5
D4
D3
STOP
D2
D1
D0 ACK
P
MASTER-READ DATA STRUCTURE
START
S
R/W
DEVICE ADDRESS
1
1
A4
A3
A2
A1
A0
0
REGISTER ADDRESS
ACK RA7 RA6 RA5 RA4 RA3 RA2 RA1 RA0 ACK
DEVICE ADDRESS
RS
1
1
A4
A3
A2
R/W
A1
A0
1
DATA OUT
ACK
D7
D6
S = START CONDITION
A_ = DEVICE ADDRESS
RA_ = REGISTER ADDRESS
D_ = DATA
DATA DIRECTION
= MASTER TO SLAVE
ACK = ACKNOWLEDGE
P = STOP CONDITION
= SLAVE TO MASTER
ACK = NOT-ACKNOWLEDGE
RS = REPEATED START
D5
D4
D3
STOP
D2
D1
D0 ACK
P
Figure 3. I2C Interface Data Structure
Reading from the MAX9492
Reading from the MAX9492 registers begins with a
START condition and a device address with the write bit
set low, then the register address that is to be read, followed by a repeated START condition and a device
address with the write bit set high, and finally the data
are shifted out (Figure 3). Following a START condition,
the first 7 bits comprise the device address. The 8th bit
is low to indicate a write operation (to write in the following register address). An acknowledge bit is then generated by the MAX9492, signaling that it recognizes its
address. The next 8 bits form the register address, indicating the location of the data to be read, followed by
another acknowledge, again generated by the
MAX9492. The master then produces a repeated START
condition and readdresess the device, with the R/W bit
high to indicate a read operation (Figure 3). The
MAX9492 generates an acknowledge bit, signaling that it
recognizes its address. The data byte is then clocked
out of the MAX9492. A final not-acknowledge bit, generated by the master (not required), and a STOP condition,
also generated by the master, complete the communication. To read from the device again, the entire read procedure is repeated; I 2 C burst-read mode is not
supported by the MAX9492.
Device Control Registers
The MAX9492 has eight control registers. The register
addresses and functions are shown in Table 2. The first
seven registers are used to set the six outputs, with
register 0x00 controlling all outputs simultaneously, and
the rest are mapped to individual outputs. All other
addresses are reserved and are not to be used.
Table 2. Register Address Mapping
REGISTER
ADDRESS
OUTPUT PORT
00
Broadcast to all CLK registers
01
CLK1
02
CLK2
03
CLK3
04
CLK4
05
CLK5
06
CLK6
All others
Reserved
_______________________________________________________________________________________
9
Setting the Clock Frequencies
Spread-Spectrum Control
Each CLK_ output has an associated control register.
The contents of the registers determine the frequencies
of their associated outputs. Table 3 provides the frequency mapping for the registers. CLK1 only responds
to the 25MHz and high-impedance settings in Table 3.
For example, writing 03h to the CLK1 control register
does not change CLK1’s output frequency to
133.3MHz. The CLK1 output continues to output a
buffered reference clock signal.
The MAX9492 features spread-spectrum output structures to spread radiated emissions over the frequency
band. A programmable triangle-wave generator injects
an offset element into the master oscillator to dither its
output by -1.25% or -2.5%. The dither is controlled by
the SSC input. When SSC is low, spread spectrum is
disabled. When SSC is floating, spread spectrum is set
to -1.25%. When SSC is high, spread spectrum is set
to -2.5%.
Power Supply
Table 3. Output Frequency Selection for
CLK1–CLK6
BITS IN CLKn
REGISTERS
OUTPUT FREQUENCY
(MHz)
00
Logic-Low
01
133.3
02
125
03
83.3
04
66.6
05
62.5
The MAX9492 uses a 3.0V to 3.6V power supply connected to VDD, and 3.0V to 3.6V connected to VDDA.
Bypass V DDA and V DD at the device with a 0.1µF
capacitor. Additionally, use bulk bypass capacitors of
10µF where power enters the circuit board.
Applications Information
Board Layout Considerations
As with all high-frequency devices, board layout is critical to proper operation. Place the crystal as close as
possible to X1 and X2, and minimize parasitic capacitance around the crystal leads. Ensure that the exposed
pad makes good contact with GND.
06
50
07
33.3
08
25
0F
High Impedance
Chip Information
PROCESS: BiCMOS
Pin Configuration
Typical Operating Circuit
+3.3V
X1
VDD
25MHz
MAX9492
14
13
12
11
16
10
CLK2
SSC
17
9
CLK1
SA1
18
8
GND
SA0
19
7
SDA
GND
20
6
SCL
MAX9492
CLOCK
OUTPUTS
EXPOSED PADDLE (GND)
3
4
5
VDD
GND
2
VDDA
1
X2
CLK6
X1
SDA
SCL
SA0
SA1
SSC AGND
VDD
CLK1
X2
SERIAL
INTERFACE
15
0.1µF
10pF
10pF
CLK3
0.1µF
VDD
CLK4
VDD
VDD
VDDA
TOP VIEW
CLK5
0.1µF
0.1µF
CLK6
+3.3V
GNDA
MAX9492
Multiple-Output Clock Generator
with Spread Spectrum
THIN QFN
10
______________________________________________________________________________________
Multiple-Output Clock Generator
with Spread Spectrum
QFN THIN.EPS
D2
D
b
C
L
0.10 M C A B
D2/2
D/2
k
L
MARKING
XXXXX
E/2
E2/2
C
L
(NE-1) X e
E
DETAIL A
PIN # 1
I.D.
E2
PIN # 1 I.D.
0.35x45¡
e/2
e
(ND-1) X e
DETAIL B
e
L1
L
C
L
C
L
L
L
e
e
0.10 C
A
C
0.08 C
A1 A3
PACKAGE OUTLINE,
16, 20, 28, 32, 40L THIN QFN, 5x5x0.8mm
21-0140
-DRAWING NOT TO SCALE-
COMMON DIMENSIONS
A1
A3
b
D
E
e
k
L
L1
N
ND
NE
JEDEC
0.70 0.75 0.80 0.70 0.75 0.80 0.70 0.75 0.80 0.70 0.75 0.80 0.70 0.75 0.80
0
0.02 0.05
0
0.02 0.05
0.20 REF.
0.20 REF.
0.25 0.30 0.35 0.25 0.30 0.35
4.90 5.00 5.10 4.90 5.00 5.10
4.90 5.00 5.10 4.90 5.00 5.10
0.80 BSC.
0.65 BSC.
0.25 - 0.25 -
0
0.02 0.05
0
0.02 0.05
0
0.02 0.05
0.20 REF.
0.20 REF.
0.20 REF.
0.20 0.25 0.30 0.20 0.25 0.30 0.15 0.20 0.25
4.90 5.00 5.10 4.90 5.00 5.10 4.90 5.00 5.10
4.90 5.00 5.10 4.90 5.00 5.10 4.90 5.00 5.10
0.50 BSC.
0.40 BSC.
0.50 BSC.
- 0.25 0.35 0.45
0.25 - 0.25
0.30 0.40 0.50 0.45 0.55 0.65 0.45 0.55 0.65 0.30 0.40 0.50 0.40 0.50 0.60
- 0.30 0.40 0.50
16
4
4
20
5
5
WHHB
WHHC
1
2
EXPOSED PAD VARIATIONS
PKG.
16L 5x5
20L 5x5
28L 5x5
32L 5x5
40L 5x5
SYMBOL MIN. NOM. MAX. MIN. NOM. MAX. MIN. NOM. MAX. MIN. NOM. MAX. MIN. NOM. MAX.
A
H
28
7
7
WHHD-1
32
8
8
40
10
10
WHHD-2
-----
NOTES:
1. DIMENSIONING & TOLERANCING CONFORM TO ASME Y14.5M-1994.
2. ALL DIMENSIONS ARE IN MILLIMETERS. ANGLES ARE IN DEGREES.
3. N IS THE TOTAL NUMBER OF TERMINALS.
4. THE TERMINAL #1 IDENTIFIER AND TERMINAL NUMBERING CONVENTION SHALL
CONFORM TO JESD 95-1 SPP-012. DETAILS OF TERMINAL #1 IDENTIFIER ARE
OPTIONAL, BUT MUST BE LOCATED WITHIN THE ZONE INDICATED. THE TERMINAL #1
IDENTIFIER MAY BE EITHER A MOLD OR MARKED FEATURE.
5. DIMENSION b APPLIES TO METALLIZED TERMINAL AND IS MEASURED BETWEEN
0.25 mm AND 0.30 mm FROM TERMINAL TIP.
D2
L
E2
PKG.
CODES
MIN.
NOM. MAX.
T1655-1
T1655-2
T1655N-1
3.00
3.00
3.00
3.10 3.20 3.00
3.10 3.20 3.00
3.10 3.20 3.00
3.10
3.10
3.10
3.20
3.20
3.20
T2055-2
T2055-3
T2055-4
3.00
3.00
3.00
3.10 3.20 3.00
3.10 3.20 3.00
3.10 3.20 3.00
3.10
3.10
3.10
3.20
3.20
3.20
T2055-5
T2855-1
T2855-2
T2855-3
T2855-4
T2855-5
T2855-6
T2855-7
T2855-8
T2855N-1
T3255-2
T3255-3
T3255-4
T3255N-1
3.15
3.15
2.60
3.15
2.60
2.60
3.15
2.60
3.15
3.15
3.00
3.00
3.00
3.00
3.25
3.25
2.70
3.25
2.70
2.70
3.25
2.70
3.25
3.25
3.10
3.10
3.10
3.10
3.15
3.15
2.60
3.15
2.60
2.60
3.15
2.60
3.15
3.15
3.00
3.00
3.00
3.00
3.25
3.25
2.70
3.25
2.70
2.70
3.25
2.70
3.25
3.25
3.10
3.10
3.10
3.10
3.35
3.35
2.80
3.35
2.80
2.80
3.35
2.80
3.35
3.35
3.20
3.20
3.20
3.20
T4055-1
3.20
3.30 3.40 3.20
3.30
3.40
3.35
3.35
2.80
3.35
2.80
2.80
3.35
2.80
3.35
3.35
3.20
3.20
3.20
3.20
MIN.
NOM. MAX.
–0.15
**
**
**
**
**
**
0.40
DOWN
BONDS
ALLOWED
NO
YES
NO
NO
YES
NO
YES
**
NO
NO
YES
YES
NO
**
**
0.40
**
**
**
**
**
NO
YES
YES
NO
NO
YES
NO
NO
**
YES
**
**
**
**
** SEE COMMON DIMENSIONS TABLE
6. ND AND NE REFER TO THE NUMBER OF TERMINALS ON EACH D AND E SIDE RESPECTIVELY.
7. DEPOPULATION IS POSSIBLE IN A SYMMETRICAL FASHION.
8. COPLANARITY APPLIES TO THE EXPOSED HEAT SINK SLUG AS WELL AS THE TERMINALS.
9. DRAWING CONFORMS TO JEDEC MO220, EXCEPT EXPOSED PAD DIMENSION FOR T2855-1,
T2855-3, AND T2855-6.
10. WARPAGE SHALL NOT EXCEED 0.10 mm.
11. MARKING IS FOR PACKAGE ORIENTATION REFERENCE ONLY.
12. NUMBER OF LEADS SHOWN ARE FOR REFERENCE ONLY.
13. LEAD CENTERLINES TO BE AT TRUE POSITION AS DEFINED BY BASIC DIMENSION "e", –0.05.
PACKAGE OUTLINE,
16, 20, 28, 32, 40L THIN QFN, 5x5x0.8mm
21-0140
-DRAWING NOT TO SCALE-
H
2
2
Maxim cannot assume responsibility for use of any circuitry other than circuitry entirely embodied in a Maxim product. No circuit patent licenses are
implied. Maxim reserves the right to change the circuitry and specifications without notice at any time.
Maxim Integrated Products, 120 San Gabriel Drive, Sunnyvale, CA 94086 408-737-7600 ____________________ 11
© 2005 Maxim Integrated Products
Printed USA
is a registered trademark of Maxim Integrated Products, Inc.
MAX9492
Package Information
(The package drawing(s) in this data sheet may not reflect the most current specifications. For the latest package outline information,
go to www.maxim-ic.com/packages.)
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
