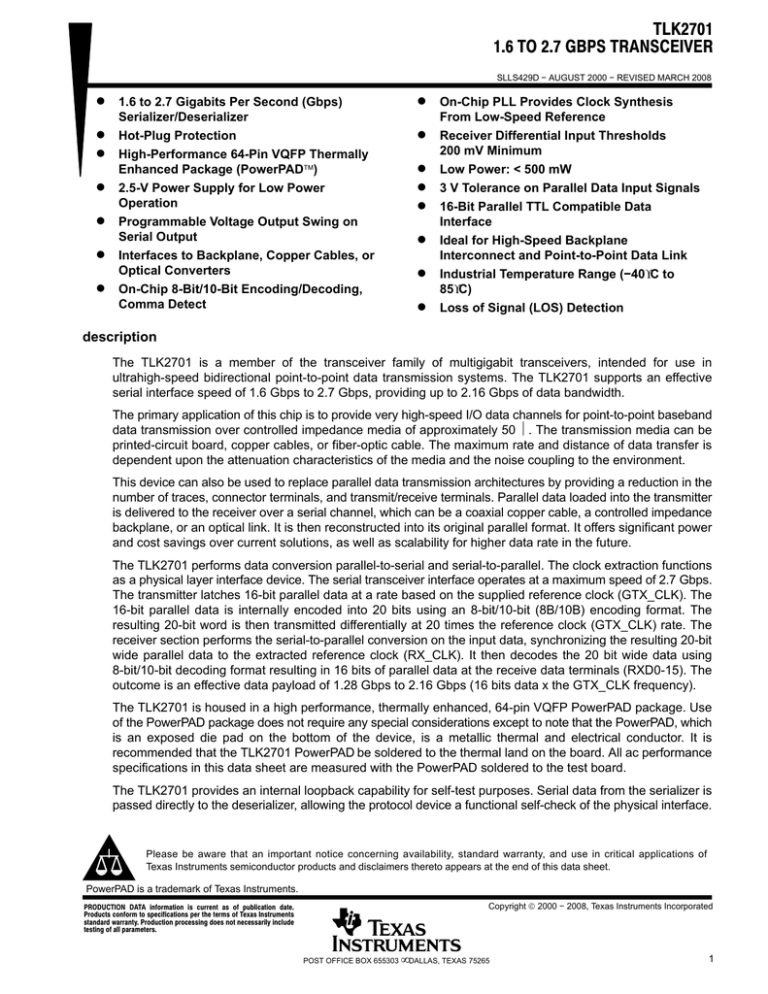

TLK2701

TLK2701

TLK2701

1.6 TO 2.7 GBPS TRANSCEIVER

D

1.6 to 2.7 Gigabits Per Second (Gbps)

Serializer/Deserializer

D

Hot-Plug Protection

D

High-Performance 64-Pin VQFP Thermally

Enhanced Package (PowerPAD

)

D

2.5-V Power Supply for Low Power

Operation

D

Programmable Voltage Output Swing on

Serial Output

D

Interfaces to Backplane, Copper Cables, or

Optical Converters

D

On-Chip 8-Bit/10-Bit Encoding/Decoding,

Comma Detect description

D

SLLS429D − AUGUST 2000 − REVISED MARCH 2008

On-Chip PLL Provides Clock Synthesis

From Low-Speed Reference

D

Receiver Differential Input Thresholds

200 mV Minimum

D

Low Power: < 500 mW

D

3 V Tolerance on Parallel Data Input Signals

D

16-Bit Parallel TTL Compatible Data

Interface

D

Ideal for High-Speed Backplane

Interconnect and Point-to-Point Data Link

D

Industrial Temperature Range (−40

°

C to

85

°

C)

D

Loss of Signal (LOS) Detection

The TLK2701 is a member of the transceiver family of multigigabit transceivers, intended for use in ultrahigh-speed bidirectional point-to-point data transmission systems. The TLK2701 supports an effective serial interface speed of 1.6 Gbps to 2.7 Gbps, providing up to 2.16 Gbps of data bandwidth.

The primary application of this chip is to provide very high-speed I/O data channels for point-to-point baseband data transmission over controlled impedance media of approximately 50

. The transmission media can be printed-circuit board, copper cables, or fiber-optic cable. The maximum rate and distance of data transfer is dependent upon the attenuation characteristics of the media and the noise coupling to the environment.

This device can also be used to replace parallel data transmission architectures by providing a reduction in the number of traces, connector terminals, and transmit/receive terminals. Parallel data loaded into the transmitter is delivered to the receiver over a serial channel, which can be a coaxial copper cable, a controlled impedance backplane, or an optical link. It is then reconstructed into its original parallel format. It offers significant power and cost savings over current solutions, as well as scalability for higher data rate in the future.

The TLK2701 performs data conversion parallel-to-serial and serial-to-parallel. The clock extraction functions as a physical layer interface device. The serial transceiver interface operates at a maximum speed of 2.7 Gbps.

The transmitter latches 16-bit parallel data at a rate based on the supplied reference clock (GTX_CLK). The

16-bit parallel data is internally encoded into 20 bits using an 8-bit/10-bit (8B/10B) encoding format. The resulting 20-bit word is then transmitted differentially at 20 times the reference clock (GTX_CLK) rate. The receiver section performs the serial-to-parallel conversion on the input data, synchronizing the resulting 20-bit wide parallel data to the extracted reference clock (RX_CLK). It then decodes the 20 bit wide data using

8-bit/10-bit decoding format resulting in 16 bits of parallel data at the receive data terminals (RXD0-15). The outcome is an effective data payload of 1.28 Gbps to 2.16 Gbps (16 bits data x the GTX_CLK frequency).

The TLK2701 is housed in a high performance, thermally enhanced, 64-pin VQFP PowerPAD package. Use of the PowerPAD package does not require any special considerations except to note that the PowerPAD, which is an exposed die pad on the bottom of the device, is a metallic thermal and electrical conductor. It is recommended that the TLK2701 PowerPAD be soldered to the thermal land on the board. All ac performance specifications in this data sheet are measured with the PowerPAD soldered to the test board.

The TLK2701 provides an internal loopback capability for self-test purposes. Serial data from the serializer is passed directly to the deserializer, allowing the protocol device a functional self-check of the physical interface.

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of

Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

PowerPAD is a trademark of Texas Instruments.

PRODUCTION DATA information is current as of publication date.

Products conform to specifications per the terms of Texas Instruments standard warranty. Production processing does not necessarily include testing of all parameters.

Copyright

2000 − 2008, Texas Instruments Incorporated

POST OFFICE BOX 655303

DALLAS, TEXAS 75265

1

TLK2701

1.6 TO 2.7 GBPS TRANSCEIVER

SLLS429D − AUGUST 2000 − REVISED MARCH 2008

description (continued)

The TLK2701 has a loss of signal detection circuit for conditions where the incoming signal no longer has a sufficient voltage amplitude to keep the clock recovery circuit in lock.

The TLK2701 allows users to implement redundant ports by connecting receive data bus terminals from two

TLK2701 devices together. Asserting the LCKREFN to a low state will cause the receive data bus terminals,

RXD[0:15], RX_CLK, and RKLSB, RKMSB/PRBS_PASS to go to a high-impedance state. This places the device in a transmit-only mode since the receiver is not tracking the data.

The TLK2701 uses a 2.5 V supply. The I/O section is 3 V compatible. With the 2.5-V supply the chipset is very power efficient consuming less than 350 mW typically. The TLK2701 is characterized for operation from −40

°

C to 85

°

C.

The TLK2701 is designed to be hot plug capable. An on-chip power-on reset circuit holds the RX_CLK low and goes to high impedance to the parallel side output signal terminals during power up as well as goes to DOUTTXP and DOUTTXN.

AVAILABLE OPTIONS

T

A

− 40

°

C to 85

°

C

PACKAGE

PowerPAD QUAD FLATPACK

(VQFP)

TLK2701IRCP

RCP PACKAGE

(TOP VIEW)

V

DD

TXD3

TXD4

TXD5

GND

TXD6

TXD7

GTX_CLK

V

DD

TXD8

TXD9

TXD10

GND

TXD11

TXD12

TXD13

6

7

4

5

2

3

1

64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49

48

47

46

45

44

43

42

8

9

10

11

12

13

14

37

36

35

41

40

39

38

15

16

17 18 19

34

20 21 22 23 24 25 26 27 28 29 30 31 32

33

V

DD

RXD3

RXD4

RXD5

RXD6

GND

RXD7

RX_CLK

RXD8

RXD9

V

DD

RXD10

RXD11

RXD12

RXD13

GND

2

POST OFFICE BOX 655303

DALLAS, TEXAS 75265

TLK2701

1.6 TO 2.7 GBPS TRANSCEIVER

SLLS429D − AUGUST 2000 − REVISED MARCH 2008

block diagram

LOOPEN

PRBSEN PRBSEN

PRBS

Generator

10

2:1

MUX

10

Parallel to

Serial

TD0−TD15

TKLSB

TKMSB

9

8B/10B Encoder

10

MUX

9

8B/10B Encoder

10

10

GTX_CLK

TESTEN

PRBSEN

ENABLE

RKLSB/

PRBS_PASS

RX_CLK

RDO−RD15

RKMSB

Controls:

PLL,Bias,Rx,

Tx

Clock

Synthesizer

Interpolator and

Clock Recovery

2:1

MUX

2:1

MUX

PRBSEN

PRBS

Verification

Recovered

Clock

9

Comma

Detect and 8B/10B

Decoding

10

9

Comma

Detect and 8B/10B

Decoding

10

1:2

MUX

10

Serial to

Parallel

Signal Detect

(LOS)

Figure 1. TLK2701 Block Diagram

2:1

MUX

Data

BIAS

Clock

DOUTTXP

DOUTTXN

RREF

DINRXP

DINRXN

POST OFFICE BOX 655303

DALLAS, TEXAS 75265

3

TLK2701

1.6 TO 2.7 GBPS TRANSCEIVER

SLLS429D − AUGUST 2000 − REVISED MARCH 2008

Terminal Functions

RXD0

RXD1

RXD2

RXD3

RXD4

RXD5

RXD6

RXD7

RXD8

RXD9

RXD10

RXD11

RXD12

RXD13

RXD14

RXD15

TERMINAL

NAME NO.

DINRXN

DINRXP

DOUTTXN

DOUTTXP

ENABLE

GND

GNDA

GTX_CLK

53

54

59

60

24

5, 13, 18,

28, 33, 43

52, 58, 61

8

I/O

I

O

I

DESCRIPTION

Serial receive inputs. DINRXP and DINRXN together are the differential serial input interface from a copper or an optical I/F module.

Serial transmit outputs. DOUTTXP and DOUTTXN are differential serial outputs that interface to copper or an optical I/F module. These terminals transmit NRZ data at a rate of 20 times the GTX_CLK value.

DOUTTXP and DOUTTXN are put in a high-impedance state when LOOPEN is high and are active when

LOOPEN is low. During power-on reset these terminals are high impedance.

Device enable. When this terminal is held low, the device is placed in power-down mode. Only the signal detect circuit on the serial receive pair is active. When asserted high while the device is in power-down mode, the transceiver will go into power-on reset before beginning normal operation.

Digital logic ground. Provides a ground for the logic circuits and digital I/O buffers.

I

LCKREFN

LOOPEN

PRBSEN

RREF

25

21

26

56 I

I

I

I

O

Analog ground. GNDA provides a ground reference for the high-speed analog circuits, RX and TX.

Reference clock. GTX_CLK is a continuous external input clock that synchronizes the transmitter interface signals TKMSB, TKLSB and TXD. The frequency range of GTX_CLK is 80 MHz to 135 MHz.

The transmitter uses the rising edge of this clock to register the 16-bit input data (TXD) for serialization.

Lock to reference.

When LCKREFN is low, the receiver clock is frequency locked to GTX_CLK. This places the device in a transmit only mode since the receiver is not tracking the data. When LCKREFN is asserted low, the receive data bus terminals, RXD[0:15], RX_CLK and RKLSB, RKMSB/LOS are in a high-impedance state.

When LCKREFN is deasserted high, the receiver is locked to the received data stream.

Loop enable. When LOOPEN is active high, the internal loop-back path is activated. The transmitted serial data is directly routed internally to the inputs of the receiver. This provides a self-test capability in conjunction with the protocol device. The DOUTTXP and DOUTTXN outputs are held in a high-impedance state during the loop-back test. LOOPEN is held low during standard operational state with external serial outputs and inputs active.

PRBS test enable. When asserted high results of pseudo random bit stream (PRBS) tests can be monitored on the RKLSB/PRBS_PASS terminal. A high on PRBS_PASS indicates that valid PRBS is being received.

Reference resistor. The RREF terminal is used to connect to an external reference resistor. The other side of the resistor is connected to analog V

DD

. The resistor is used to provide an accurate current reference to the transmitter circuitry.

Receive data bus. These outputs carry 16-bit parallel data output from the transceiver to the protocol device, synchronized to RX_CLK. The data is valid on the rising edge of RX_CLK as shown in Figure 11.

These terminals are in high-impedance state during power-on reset.

40

39

37

36

35

34

32

31

46

45

44

42

51

50

49

47

4

POST OFFICE BOX 655303

DALLAS, TEXAS 75265

TLK2701

1.6 TO 2.7 GBPS TRANSCEIVER

Terminal Functions (Continued)

SLLS429D − AUGUST 2000 − REVISED MARCH 2008

TERMINAL

NAME NO.

RX_CLK 41

RKLSB/

PRBS_PASS

RKMSB

29

30

I/O

O

O

O

I

I

DESCRIPTION

Recovered clock. Output clock that is synchronized to RXD, RKLSB, RKMSB/LOS. RX_CLK is the recovered serial data rate clock divided by 20. RX_CLK is held low during power-on reset.

K-Code indicator/PRBS test results. When RKLSB is active, an 8-bit/10-bit K code was received and is indicated by data bits RXD0 −RXD7. When RKLSB is inactive an 8-bit/10-bit D code is received and is presented on data bits RXD0 − RXD7.

When PRBSEN is asserted high then this pin is used to indicate status of the PRBS test results

(high = pass).

K-code indicator. When RKMSB is active an 8-bit/10-bit K code was received and is indicated by data bits RXD8 −RXD15. When RKMSB is inactive an 8-bit/10-bit D code was received and is presented on data bits RXD8 − RXD15.

Test mode enable. This terminal should be left unconnected or tied low.

Transmit data bus. These inputs carry the 16-bit parallel data output from a protocol device to the transceiver for encoding, serialization, and transmission. This 16-bit parallel data is clocked into the transceiver on the rising edge of GTX_CLK as shown in Figure 10.

TESTEN

TXD0

TXD1

TXD2

TXD3

TXD4

TXD5

TXD6

TXD7

TXD8

TXD9

TXD10

TXD11

TXD12

TXD13

TXD14

TXD15

TKMSB

27

15

16

17

19

10

11

12

14

6

7

3

4

62

63

64

2

20

TKLSB 22 I

I K-code generator (MSB). When TKMSB is active an 8-bit/10-bit K code is transmitted as controlled by data bits TXD8 −TXD15. When TKMSB is inactive an 8-bit/10-bit D code is transmitted as controlled by data bits TXD8 − TXD15.

K-code generator (LSB). When TKLSB is active an 8-bit/10-bit K code is transmitted as controlled by data bits TXD0 −TXD7. When TKLSB is inactive an8-bit/10-bit D code is transmitted as controlled by data bits TXD0 − TXD7.

Digital logic power. Provides power for all digital circuitry and digital I/O buffers.

V

DD

1, 9, 23,

38, 48

55, 57 V

DDA

Analog power. V

DDA

provides a supply reference for the high-speed analog circuits, receiver and transmitter

detailed description transmit interface

The transmitter portion registers valid incoming 16-bit wide data (TXD[0:15]) on the rising edge of the GTX_CLK.

The data is then 8-bit/10-bit encoded, serialized, and transmitted sequentially over the differential high-speed

I/O channel. The clock multiplier multiplies the reference clock (GTX_CLK) by a factor of 10 times, creating a bit clock. This internal bit clock is fed to the parallel-to-serial shift register which transmits data on both the rising and falling edges of the bit clock, providing a serial data rate that is 20 times the reference clock. Data is transmitted LSB (D0) first.

POST OFFICE BOX 655303

DALLAS, TEXAS 75265

5

TLK2701

1.6 TO 2.7 GBPS TRANSCEIVER

SLLS429D − AUGUST 2000 − REVISED MARCH 2008

detailed description (continued) transmit data bus

The transmit bus interface accepts 16-bit single-ended TTL parallel data at the TXD[0:15] terminals. Data and k-code control is valid on the rising edge of the GTX_CLK. The GTX_CLK is used as the word clock. The data, k-code, and clock signals must be properly aligned as shown in Figure 2. Detailed timing information can be found in the electrical characteristics table.

GTX_CLK

TXD[0−15] t su t h

TXLSB, TXMSB

Figure 2. Transmit Timing Waveform transmission latency

The data transmission latency of the TLK2701 is defined as the delay from the initial 16-bit word load to the serial transmission of bit 0. The transmit latency is fixed once the link is established. However, due to silicon process variations and implementation variables such as supply voltage and temperature, the exact delay will vary slightly. The minimum transmit latency (T latency

) is 34 bit times; the maximum is 38 bit times. Figure 3 illustrates the timing relationship between the transmit data bus, the GTX_CLK and serial transmit terminals.

Transmitted 20 bit Word

DOUTTXP,

DOUTTXN

(T latency

)†

TXD[0−15]

16 bit Word to Transmit

GTX_CLK

Figure 3. Transmitter Latency

8-bit/10-bit encoder

All true serial interfaces require a method of encoding to insure minimum transition density so that the receiving

PLL has a minimal number of transitions to stay locked on. The encoding scheme maintains the signal dc balance by keeping the number of ones and zeros the same. This provides good transition density for clock recovery and improves error checking. The TLK2701 uses the 8-bit/10-bit encoding algorithm that is used by fibre channel and gigabit ethernet. This is transparent to the user, as the TLK2701 internally encodes and decodes the data such that the user reads and writes actual 16-bit data.

6

POST OFFICE BOX 655303

DALLAS, TEXAS 75265

TLK2701

1.6 TO 2.7 GBPS TRANSCEIVER

SLLS429D − AUGUST 2000 − REVISED MARCH 2008

8-bit/10-bit encoder (continued)

The 8-bit/10-bit encoder converts 8-bit wide data to a 10-bit wide encoded data character to improve its transmission characteristics. Since the TLK2701 is a 16-bit wide interface, the data is split into two 8-bit wide bytes for encoding. Each byte is fed into a separate encoder. The encoding is dependant upon two additional input signals, the TKMSB and TKLSB.

Table 1. Transmit Data Controls

TKLSB

0

0

1

1

TKMSB

0

1

0

1

DECODED 20 BIT OUTPUT

Valid data on TXD(0−7), Valid data TXD(8−15)

Valid data on TXD(0−7), K code on TXD(8−15)

K code on TXD(0−7), Valid data on TXD(8−15)

K code on TXD(0−7), K code on TXD(8−15)

PRBS generator

The TLK2701 has a built-in 2

7

-1 PRBS (pseudorandom bit stream) function. When the PRBSEN terminal is forced high, the PRBS test is enabled. A PRBS is generated and fed into the 10-bit parallel-to-serial converter input register. Data from the normal input source is ignored during the PRBS mode. The PRBS pattern is then fed through the transmit circuitry as if it were normal data and sent out to the transmitter. The output can be sent to a BERT (bit error rate tester), the receiver of another TLK2701, or can be looped back to the receive input.

Since the PRBS is not really random but a predetermined sequence of ones and zeroes, the data can be captured and checked for errors by a BERT.

parallel-to-serial

The parallel-to-serial shift register takes in the 20-bit wide data word multiplexed from the two parallel 8-bit/10-bit encoders and converts it to a serial stream. The shift register is clocked on both the rising and falling edge of the internally generated bit clock, which is 10 times the GTX_CLK input frequency. The LSB (D0) is transmitted first.

high-speed data output

The high-speed data output driver consists of a current-mode logic (CML) differential pair that can be optimized for a particular transmission line impedance and length. The line can be directly-coupled or ac-coupled. Refer to Figure 15 and Figure 16 for termination details.

receive interface

The receiver portion of the TLK2701 accepts 8-bit/10-bit encoded differential serial data. The interpolator and clock recovery circuit will lock to the data stream and extract the bit rate clock. This recovered clock is used to retime the input data stream. The serial data is then aligned to two separate 10-bit word boundaries, 8-bit/10-bit decoded and output on a 16-bit wide parallel bus synchronized to the extracted receive clock.

POST OFFICE BOX 655303

DALLAS, TEXAS 75265

7

TLK2701

1.6 TO 2.7 GBPS TRANSCEIVER

SLLS429D − AUGUST 2000 − REVISED MARCH 2008

detailed description (continued) receive data bus

The receive bus interface drives 16-bit wide single-ended TTL parallel data at the RXD[0:15] terminals. Data is valid on the rising edge of the RX_CLK The RX_CLK is used as the recovered word clock. The data, enable, and clock signals are aligned as shown in Figure 4. Detailed timing information can be found in the switching characteristics table.

RX_CLK

RXD[0−15] t su t h

RXLSB, RXMSB

Figure 4. Receive Timing Waveform data reception latency

The serial-to-parallel data receive latency is the time from when the first bit arrives at the receiver until it is output in the aligned parallel word with RXD0 received as first bit. The receive latency is fixed once the link is established. However, due to silicon process variations and implementation variables such as supply voltage and temperature, the exact delay will vary slightly. The minimum receive latency (R latency

) is 76 bit times; the maximum is 107 bit times. Figure 5 illustrates the timing relationship between the serial receive terminals, the recovered word clock (RX_CLK), and the receive data bus.

20-Bit Encoded Word

DINTXP,

DINTXN

(R latency

)†

RXD[0−15]

16-Bit Decoded Word

RX_CLK

Figure 5. Receiver Latency serial-to-parallel

Serial data is received on the DINRXP and DINRXN terminals. The interpolator and clock recovery circuit will lock to the data stream if the clock to be recovered is within 200 PPM of the internally generated bit rate clock.

The recovered clock is used to retime the input data stream. The serial data is then clocked into the serial-to-parallel shift registers. The 10-bit wide parallel data is then multiplexed and fed into two separate

8-bit/10-bit decoders where the data is then synchronized to the incoming data steam word boundary by detection of the comma 8-bit/10-bit synchronization pattern.

8

POST OFFICE BOX 655303

DALLAS, TEXAS 75265

TLK2701

1.6 TO 2.7 GBPS TRANSCEIVER

SLLS429D − AUGUST 2000 − REVISED MARCH 2008

detailed description (continued) comma detect and 8-bit/10-bit decoding

The TLK2701 has two parallel 8-bit/10-bit decode circuits. Each 8-bit/10-bit decoder converts 10 bit encoded data (half of the 20 bit received word) back into 8-bits. The comma detect circuit is designed to provide for byte synchronization to an 8-bit/10-bit transmission code. When parallel data is clocked into a parallel to serial converter, the byte boundary that was associated with the parallel data is now lost in the serialization of the data.

When the serial data is received and converted to parallel format again, a way is needed to recognize the byte boundary. Generally this is accomplished through the use of a synchronization pattern. This is generally a unique pattern of 1s and 0s that either cannot occur as part of valid data or is a pattern that repeats at defined intervals. The 8-bit/10-bit encoding contains a character called the comma (b0011111 or b1100000), which is used by the comma detect circuit on the TLK2701 to align the received serial data back to its original byte boundary. The decoder detects the comma, generating a synchronization signal aligning the data to their 10-bit boundaries for decoding; the comma is mapped into the LSB. It then converts the data back into 8-bit data. The output from the two decoders is latched into the 16-bit register synchronized to the recovered parallel data clock

(RX_CLK) and output valid on the rising edge of the RX_CLK.

NOTE:

The TLK2701 only achieves byte alignment on the 0011111 comma.

Decoding provides two additional status signals, RKLSB and RKMSB. When RKLSB is asserted , an 8-bit/10-bit

K code was received and the specific K code is presented on the data bits RXD0 − RXD7, else an 8-bit/10-bit

D code was received. When TKMSB is asserted, an 8-bit/10-bit K code was received and the specific K code is presented on data bits RXD8 − RXD15, else an 8-bit/10-bit D code was received. The valid K codes the

TLK2701 will decode are provided in Table 3. An error detected on either byte, including K codes not in Table

3, will cause that byte only to indicate a K0.0 code on the RK

×

SB and associated data pins, where K0.0 is known to be an invalid 8-bit/10-bit code. A loss of input signal will cause a K31.7 code to be presented on both bytes, where K31.7 is also known to be an invalid 8-bit/10-bit code.

RKLSB

0

0

1

1

RKMSB

0

1

0

1

Table 2. Receive Status Signals

DECODED 20 BIT OUTPUT

Valid data on RXD(0−7), Valid data RXD(8−15)

Valid data on RXD(0−7), K code on RXD(8−15)

K code on RXD(0−7),

K code on RXD(0−7),

Valid data on RXD(8−15)

K code on RXD(8−15)

K28.6

K28.7

K23.7

K27.7

K29.7

K30.7

K28.0

K28.1

K28.2

K28.3

K28.4

K28.5

Table 3. Valid K Characters

K CHARACTER

RECEIVE DATA BUS

(RXD[7−0]) OR

(RXD[15−8])

000 11100

001 11100

010 11100

011 11100

100 11100

101 11100

110 11100

111 11100

111 10111

111 11011

111 11101

111 11110

POST OFFICE BOX 655303

DALLAS, TEXAS 75265

9

TLK2701

1.6 TO 2.7 GBPS TRANSCEIVER

SLLS429D − AUGUST 2000 − REVISED MARCH 2008

detailed description (continued) power down mode

When the ENABLE pin is deasserted low, the TLK2701 will go into a power down mode. In the power down mode, the serial transmit pins (DOUTTXP, DOUTTXN), the receive data bus pins (RXD[0:15]), and RKLSB will go into a high-impedance state. In the power down condition, the signal detection circuit draws less than 15 mW.

When the TLK2701 is in the power-down mode, the clock signal on the GTX_CLK terminal must be provided.

loss of signal detection

The TLK2701 has a loss of signal detection circuit for conditions where the incoming signal no longer has a sufficient voltage level to keep the clock recovery circuit in lock. The signal detection circuit is intended to be an indication of gross signal error conditions, such as a detached cable or no signal being transmitted, and not an indication of signal coding health. The TLK2701 reports this condition by asserting, the RKMSB/LOS, RKLSB and RXD[0:15] all to a high state. As long as the signal is above 200 mV in differential magnitude, the LOS circuit will not signal an error condition.

PRBS verification

The TLK2701 also has a built-in BERT function in the receiver side that is enabled by the PRBSEN. It can check for errors and report the errors by forcing the RKLSB/PRBSPASS terminal low.

reference clock input

The reference clock (GTX_CLK) is an external input clock that synchronizes the transmitter interface. The reference clock is then multiplied in frequency 10 times to produce the internal serialization bit clock. The internal serialization bit clock is frequency-locked to the reference clock and used to clock out the serial transmit data on both its rising and falling edge clock, providing a serial data rate that is 20 times the reference clock.

operating frequency range

The TLK2701 may operate at a serial data rate between 1.6 Gbps to 2.7 Gbps. The GTX_CLK must be within

±

100 PPM of the desired parallel data rate clock.

testability

The TLK2701 has a comprehensive suite of built-in self-tests. The loopback function provides for at-speed testing of the transmit/receive portions of the circuitry. The enable terminal allows for all circuitry to be disabled so that an I

DDQ

test can be performed. The PRBS function allows for a BIST (built-in self-test).

loopback testing

The transceiver can provide a self-test function by enabling (LOOPEN) the internal loop-back path. Enabling this terminal will cause serial-transmitted data to be routed internally to the receiver. The parallel data output can be compared to the parallel input data for functional verification. (The external differential output is held in a high-impedance state during the loopback testing.)

built-in self-test (BIST)

The TLK2701 has a BIST function. By combining PRBS with loopback, an effective self-test of all the circuitry running at full speed can be realized. The successful completion of the BIST is reported on the RKLSB/

PRBS_PASS terminal.

power-on reset

Upon application of minimum valid power, the TLK2701 generates a power-on reset. During the power-on reset the RXD, RKLSB, and RKMSB/LOS signal terminals go to a high-impedance state. The RX_CLK is held low.

The length of the power-on reset cycle is dependent upon the REFCLK frequency, but is less than 1 ms.

10

POST OFFICE BOX 655303

DALLAS, TEXAS 75265

TLK2701

1.6 TO 2.7 GBPS TRANSCEIVER

SLLS429D − AUGUST 2000 − REVISED MARCH 2008

absolute maximum ratings over operating free-air temperature (unless otherwise noted)

Supply voltage, V

DD

(see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Voltage range at TXD, ENABLE, GTX_CLK, TKLMSB, TKLLSB, LOOPEN, PRBS_PASS . . . . . . . .

−0.3 to 3 V

−0.3 to 4 V

Voltage range at any other terminal except above . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −0.3 to V

DD

+0.3 V

Package power dissipation, P

Storage temperature, T stg

D

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . See Dissipation Rating Table

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −65

°

C to 150

°

C

Electrostatic discharge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Characterized free-air operating temperature range, T

A

Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds

HBM:2 kV, CDM:1 kV

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −40

°

C to 85

°

C

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260

°

C

Stresses beyond those listed under absolute maximum ratings may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under recommended operating conditions is not implied.

Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

NOTE 1: All voltage values, except differential I/O bus voltages, are with respect to network ground.

DISSIPATION RATING TABLE

PACKAGE

T

A

2 5

_

C

POWER RATING

DERATING FACTOR

ABOVE T

A

= 25

_

C

T

A

= 70

_

C

POWER RATING

RCP64

RCP64

RCP64

§

#

5.25 W

3.17 W

2.01 W

46.58 mW/

_

C

23.70 mW/

_

C

13.19 mW/

_

C

2.89 W

1.74 W

1.11 W

§

This is the inverse of the traditional junction-to-ambient thermal resistance (R

θ

JA

).

2 oz. Trace and copper pad with solder.

2 oz. Trace and copper pad without solder.

#

Standard JEDEC High-K board.

For more information, refer to TI application note PowerPAD Thermally Enhanced Package, TI literature number

SLMA002.

electrical characteristics over recommended operating conditions

PARAMETER

Supply voltage, V

DD

TEST CONDITIONS

Frequency = 1.6 Gbps, PRBS pattern

Supply current, I

CC

Frequency = 2.7 Gbps, PRBS pattern

Frequency = 1.6 Gbps, PRBS pattern

Frequency = 2.7 Gbps, PRBS pattern

Frequency = 2.7 Gbps, worst case pattern

||

Shutdown current

PLL startup lock time

Enable = 0, V

DDA

, V

DD

terminals, V

DD

= MAX

V

DD

,V

DDC

= 2.3V

Operating free-air temperature, T

A

||

Worst case pattern is a pattern that creates a maximum transition density on the serial transceiver.

MIN NOM MAX UNIT

2.3

2.5

2.7

V

105 mA

156

262

390 mW mW

3

500 mW mA

− 40

0.1

0.4

85 ms

°

C

reference clock (GTX_CLK) timing requirements over recommended operating conditions (unless otherwise noted)

PARAMETER

Frequency

Frequency

Frequency tolerance

Duty cycle

Jitter

TEST CONDITIONS

Minimum data rate

Maximum data rate

Peak-to-peak

MIN

Typ −0.01%

Typ −0.01%

− 100

40%

TYP MAX

80 Typ+0.01%

135 Typ+0.01%

50%

100

60%

40

UNIT

MHz

MHz ppm ps

POST OFFICE BOX 655303

DALLAS, TEXAS 75265

11

TLK2701

1.6 TO 2.7 GBPS TRANSCEIVER

SLLS429D − AUGUST 2000 − REVISED MARCH 2008

TTL input electrical characteristics over recommended operating conditions (unless otherwise noted), TTL signals: TXDO−TXD15, GTX_CLK, LOOPEN, LCKREFN, PRBS_PASS, TKLSB, TKMSB

I

IH

C

I t r

V

IH

V

IL

I

IL t f t su t h

PARAMETER

High-level input voltage

Low-level input voltage

Input high current

Input low current

Receiver input capacitance

Rise time, GTX_CLK, TKMSB, TKLSB, TXD

Fall time, GTX_CLK, TKMSB, TKLSB, TXD

TXD, TKMSB, TKLSB setup to

GTX_CLK

TXD, TKMSB, TKLSB hold to

GTX_CLK

TEST CONDITIONS

See Figure 10

See Figure 10

V

DD

= MAX, V

IN

= 2 V

V

DD

= MAX, V

IN

= 0.4 V

0.7 V to 1.9 V, C = 5 pF, See Figure 10

1.9 V to 0.7 V, C = 5 pF, See Figure 10

See Figure 10

See Figure 10

MIN NOM MAX UNIT

2

− 40

1

3.6

0.80

40

4

V

V

µ

A

µ

A pF ns

1.5

1 ns ns

0.4

ns

GTX_CLK

3.6 V

2.0 V

0.8 V

0 V t r t f

TXLSB, TXMSB,

TXD[0−15]

2.0 V

3.6 V

0.8 V

0 V t su t f t h

Figure 6. TTL Data Input Valid Levels for AC Measurements

t r

12

POST OFFICE BOX 655303

DALLAS, TEXAS 75265

TLK2701

1.6 TO 2.7 GBPS TRANSCEIVER

SLLS429D − AUGUST 2000 − REVISED MARCH 2008

TTL output switching characteristics over recommended operating conditions (unless otherwise noted)

V

OH

V

OL t r(slew) t f(slew)

PARAMETER

High-level output voltage

Low-level output voltage

Slew rate (rising), magnitude of RX_CLK, RKLSB,

RKMSB/LOS, RXD

Slew rate (falling), magnitude of RX_CLK, RKLSB,

RKMSB/LOS, RXD

TEST CONDITIONS

I

OH

= −1 mA, V

DD

= MIN

I

OL

= 1 mA, V

DD

= MIN

0.8 V to 2 V, C = 5 pF, See Figure 11

0.8 V to 2 V, C = 5 pF, See Figure 11

MIN NOM MAX UNIT

1.7

2.3

GND 0.25

0.5

V

V

0.5

0.5

V/ns

V/ns t su t h

RXD, RKMSB/LOS, RKLSB setup to

RX_CLK

RXD, RKMSB/LOS, RKLSB hold to

RX_CLK

50% voltage swing,

GTX_CLK = 80 MHz, See Figure 11,

50% voltage swing,

GTX_CLK = 135 MHz, See Figure 11,

50% voltage swing,

GTX_CLK = 80 MHz, See Figure 11,

50% voltage swing,

GTX_CLK = 135 MHz, See Figure 11,

5.4

2.7

5.4

2.7

ns ns ns ns

RX_CLK

RKLSB, RKMSB,

RXD[0−15] t r(slew) t su t f(slew) t h

Figure 7. TTL Data Output Valid Levels for AC Measurements

2.7 V

2.0 V t f(slew)

0.8 V

0 V

2.0 V

2.7 V

0.8 V

0 V t r(slew)

POST OFFICE BOX 655303

DALLAS, TEXAS 75265

13

TLK2701

1.6 TO 2.7 GBPS TRANSCEIVER

SLLS429D − AUGUST 2000 − REVISED MARCH 2008

transmitter/receiver characteristics

V

(odp)

V

(odd)

PARAMETER

V

(odp)

= |VTXP−VTXN|,

Preemphasis V

OD

, direct

V

(odd)

= |VTXP−VTXN|,

De-emphasis V

OD

, direct

V

(term)

V

(ID)

V

(cmv)

I lkg(R)

C

I t

TJ

Transmit termination voltage range

Receiver input voltage requirement,

V

ID

=|RXP – RXN|

Receiver common mode voltage range,

(VRXP + VRXN)/2

Receiver input leakage

Receiver input capacitance

Serial data total jitter (peak-to-peak) t

TJ t r, t f

Serial data total jitter (peak-to-peak)

Differential output signal rise, fall time

(20% to 80%)

Jitter tolerance

TEST CONDITIONS

R t

= 50

, RREF = 200

, dc-coupled,

See Figure 8

R t

= 50

, RREF= 200

, dc-coupled,

See Figure 8

R t

= 50

, dc-coupled, See Figure 11

R t

= 50

, ac-coupled, See Figure 12

Differential output jitter at 2.7 Gbps, random + deterministic, PRBS pattern

Differential output jitter at 1.6 Gbps, random + deterministic, PRBS pattern

R

L

= 50

, C

L

= 5 pF, See Figure 12

Differential input jitter, random + determinisitc, PRBS pattern at zero crossing

T

(latency)

R

(latency)

Tx latency

Rx latency

V

OD(p)

V

OD(d)

V

(TERM) t f t r

V

OD(d)

Bit

Time

Bit

Time

V

OD(p)

Figure 8. Differential and Common-Mode Output Voltage Definitions

MIN NOM

840 1050

760

1500

200

MAX

1260

950 1140

V

DD

V

DD

−V

ID/2

UNIT

mV mV mV mV

1500

− 10

0.15

V

DD

−V

ID/2

10

2 mV

µ

A pF

UI

100

0.15

150

UI ps

0.60

34

76

UI

38

107 bits bits

PARAMETER

R θ

JA

Junction-to-free-air thermal resistance

R

θ

JC

Junction-to-case-thermal resistance

R

θ

JA

Junction-to-free-air thermal resistance

R

θ

JC

Junction-to-case-thermal resistance

R

θ

JA

R

θ

JC

Junction-to-free-air thermal resistance

Junction-to-case-thermal resistance

THERMAL INFORMATION

TEST CONDITION

Board-mounted, no air flow, high conductivity TI recommended test board, chip soldered or greased to thermal land

Board-mounted, no air flow, high conductivity TI recommended test board with thermal land but no solder or grease thermal connection to thermal land

Board-mounted, no air flow, JEDEC test board

MIN TYP MAX UNIT

21.47

°

C/W

0.38

42.20

0.38

75.83

7.8

°

°

C/W

C/W

14

POST OFFICE BOX 655303

DALLAS, TEXAS 75265

APPLICATION INFORMATION

TLK2701

1.6 TO 2.7 GBPS TRANSCEIVER

SLLS429D − AUGUST 2000 − REVISED MARCH 2008

1 nF − 10 nF

0.01

µ

V

DD Recommended use of 0.01

µ

F

Capacitor per V

DD

terminal

5

at 100 MHz

F

0.01

µ

F

0.01

µ

F

200

V t

810

R t

V

DDA

R t

1 nF − 10 nF

1 nF − 10 nF

0.01

0.01

µ

µ

F

F

R t

V t

R t

1 nF − 10 nF

V

DD

TXD3

TXD4

TXD5

GND

TXD6

TXD7

GTX_CLK

V

DD

TXD8

TXD9

TXD10

GND

TXD11

TXD12

TXD13

6

7

4

5

2

3

1

64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49

48

47

46

45

44

43

42

8

9

10

11

12

13

14

15 34

16

17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

33

37

36

35

41

40

39

38

V

DD

RXD3

RXD4

RXD5

RXD6

GND

RXD7

RX_CLK

RXD8

RXD9

VDD

RXD10

RXD11

RXD12

RXD13

GND

Figure 9. External Component Interconnection

POST OFFICE BOX 655303

DALLAS, TEXAS 75265

15

TLK2701

1.6 TO 2.7 GBPS TRANSCEIVER

SLLS429D − AUGUST 2000 − REVISED MARCH 2008

APPLICATION INFORMATION recommended values of external resistors (1% tolerance)

PARAMETER

R

(t)

, Termination resistor

R

(REF)

, Reference resistor

TEST CONDITIONS

50

environment

75

environment

50

environment

75

environment

RECOMMENDED

50

75

200

300

VOLTAGE vs

RESISTOR REFERENCE

2.0

UNIT

1.8

1.6

VODD at 75

VODP at 75

1.4

1.2

1.0

VODD at 50

0.8

VODP at 50

0.6

100 150 200 250

RREF − Resistor Reference −

300

Figure 10. Differential Transmitter Voltage choosing RREF resistor values

TLK2701 offers the flexibility to customize the voltage swing and transmission line termination by adjusting the reference resistor, RREF, and termination resistor, R t

. By choosing particular resistor values, the system can be optimized for a particular transmission line impedance, length, and controlling the output swing for EMI and attenuation concerns. Refer to Figure 10 to determine the nominal voltage swing and driver current as a function of resistor values. It is recommended that 1% tolerance resistors be used. Refer to Figure 11 for high-speed

I/O directly coupled mode and Figure 12 for high-speed I/O ac-coupled mode.

16

POST OFFICE BOX 655303

DALLAS, TEXAS 75265

APPLICATION INFORMATION

TLK2701

1.6 TO 2.7 GBPS TRANSCEIVER

SLLS429D − AUGUST 2000 − REVISED MARCH 2008

V

TERM

TXP

R t

V

TERM

RXP

+

_

RXN

R t

TXN

Data Data

V

TERM

= V

DD

Preemphasis = 21 mA

(See Note A)

De-Emphasis = 19 mA

TRANSMITTER MEDIA RECEIVER

NOTE A: This assumes RREF = 200

and termination resistance = 50

. See Figure 10 and section choosing RREF resistor values for more information.

Figure 11. High-Speed I/O Directly-Coupled Mode

POST OFFICE BOX 655303

DALLAS, TEXAS 75265

17

TLK2701

1.6 TO 2.7 GBPS TRANSCEIVER

SLLS429D − AUGUST 2000 − REVISED MARCH 2008

APPLICATION INFORMATION

V

DD

R t

TXP

V

DD

TXN

R t

0.01

µ

F

0.01

µ

F

V

TERM

R t

V

TERM

R t

RXP

RXN

Data Data

200

V

DD

820

+

_

V

TERM

Preemphasis = 21 mA

(See Note A)

De-Emphasis = 19 mA

TRANSMITTER MEDIA RECEIVER

NOTE A: This assumes RREF = 200

and termination resistance = 50

. See Figure 10 and section choosing RREF resistor values for more information.

Figure 12. High-Speed I/O AC-Coupled Mode

18

POST OFFICE BOX 655303

DALLAS, TEXAS 75265

APPLICATION INFORMATION

TLK2701

1.6 TO 2.7 GBPS TRANSCEIVER

SLLS429D − AUGUST 2000 − REVISED MARCH 2008

designing with PowerPAD

The TLK2701 is housed in a high-performance, thermally enhanced, 64-pin VQFP (RCP64) PowerPAD package. Use of the PowerPAD package does not require any special considerations except to note that the

PowerPAD, which is an exposed die pad on the bottom of the device, is a metallic thermal and electrical conductor. Therefore, if not implementing PowerPAD PCB features, the use of solder masks (or other assembly techniques) may be required to prevent any inadvertent shorting by the exposed PowerPAD of connection etches or vias under the package. It is strongly recommended that the PowerPAD be soldered to the thermal land. The recommended convention, however, is to not run any etches or signal vias under the device, but to have only a grounded thermal land as explained below. Although the actual size of the exposed die pad may vary, the minimum size required for the keep-out area for the 64-pin PFP PowerPAD package is 8 mm X 8 mm.

It is recommended that there be a thermal land, which is an area of solder-tinned-copper, underneath the

PowerPAD package. The thermal land will vary in size depending on the PowerPAD package being used, the

PCB construction, and the amount of heat that needs to be removed. In addition, the thermal land may or may not contain numerous thermal vias depending on PCB construction.

Other requirements for thermal lands and thermal vias are detailed in the TI application note PowerPAD

Thermally Enhanced Package Application Report, TI literature number SLMA002, available via the TI Web pages beginning at URL: http://www.ti.com.

Figure 13. Example of a Thermal Land

For the TLK2701, this thermal land should be grounded to the low-impedance ground plane of the device. This improves not only thermal performance but also the electrical grounding of the device. It is also recommended that the device ground terminal landing pads be connected directly to the grounded thermal land. The land size should be as large as possible without shorting device signal terminals. The thermal land may be soldered to the exposed PowerPAD using standard reflow soldering techniques.

While the thermal land may be electrically floated and configured to remove heat to an external heat sink, it is recommended that the thermal land be connected to the low impedance ground plane for the device. More information may be obtained from the TI application note PHY Layout, TI literature number SLLA020.

POST OFFICE BOX 655303

DALLAS, TEXAS 75265

19

www.ti.com

PACKAGE OPTION ADDENDUM

26-Mar-2008

PACKAGING INFORMATION

Orderable Device

TLK2701IRCP

TLK2701IRCPG4

TLK2701IRCPR

TLK2701IRCPRG4

Status

(1)

ACTIVE

ACTIVE

ACTIVE

ACTIVE

Package

Type

HVQFP

HVQFP

HVQFP

HVQFP

Package

Drawing

RCP

RCP

RCP

RCP

Eco Plan

(2)

Pins Package

Qty

64 160 Green (RoHS & no Sb/Br)

Lead/Ball Finish MSL Peak Temp

(3)

CU NIPDAU Level-3-260C-168 HR

64 CU NIPDAU Level-3-260C-168 HR

64

160 Green (RoHS & no Sb/Br)

1000 Green (RoHS & no Sb/Br)

CU NIPDAU Level-3-260C-168 HR

64 1000 Green (RoHS & no Sb/Br)

CU NIPDAU Level-3-260C-168 HR

(1)

The marketing status values are defined as follows:

ACTIVE: Product device recommended for new designs.

LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.

NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.

PREVIEW: Device has been announced but is not in production. Samples may or may not be available.

OBSOLETE: TI has discontinued the production of the device.

(2)

Eco Plan - The planned eco-friendly classification: Pb-Free (RoHS), Pb-Free (RoHS Exempt), or Green (RoHS & no Sb/Br) - please check http://www.ti.com/productcontent for the latest availability information and additional product content details.

TBD: The Pb-Free/Green conversion plan has not been defined.

Pb-Free (RoHS): TI's terms "Lead-Free" or "Pb-Free" mean semiconductor products that are compatible with the current RoHS requirements for all 6 substances, including the requirement that lead not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, TI Pb-Free products are suitable for use in specified lead-free processes.

Pb-Free (RoHS Exempt): This component has a RoHS exemption for either 1) lead-based flip-chip solder bumps used between the die and package, or 2) lead-based die adhesive used between the die and leadframe. The component is otherwise considered Pb-Free (RoHS compatible) as defined above.

Green (RoHS & no Sb/Br): TI defines "Green" to mean Pb-Free (RoHS compatible), and free of Bromine (Br) and Antimony (Sb) based flame retardants (Br or Sb do not exceed 0.1% by weight in homogeneous material)

(3)

MSL, Peak Temp. -- The Moisture Sensitivity Level rating according to the JEDEC industry standard classifications, and peak solder temperature.

Important Information and Disclaimer:The information provided on this page represents TI's knowledge and belief as of the date that it is provided. TI bases its knowledge and belief on information provided by third parties, and makes no representation or warranty as to the accuracy of such information. Efforts are underway to better integrate information from third parties. TI has taken and continues to take reasonable steps to provide representative and accurate information but may not have conducted destructive testing or chemical analysis on incoming materials and chemicals. TI and TI suppliers consider certain information to be proprietary, and thus CAS numbers and other limited information may not be available for release.

In no event shall TI's liability arising out of such information exceed the total purchase price of the TI part(s) at issue in this document sold by TI to Customer on an annual basis.

Addendum-Page 1

www.ti.com

TAPE AND REEL INFORMATION

PACKAGE MATERIALS INFORMATION

26-Mar-2008

*All dimensions are nominal

Device

TLK2701IRCPR

Package

Type

Package

Drawing

HVQFP RCP

Pins

64

SPQ

1000

Reel

Diameter

(mm)

Reel

Width

W1 (mm)

330.0

24.4

A0 (mm)

13.0

B0 (mm)

13.0

K0 (mm) P1

(mm)

W

(mm)

Pin1

Quadrant

1.4

16.0

24.0

Q2

Pack Materials-Page 1

www.ti.com

PACKAGE MATERIALS INFORMATION

26-Mar-2008

*All dimensions are nominal

Device

TLK2701IRCPR

Package Type Package Drawing Pins

HVQFP RCP 64

SPQ

1000

Length (mm) Width (mm) Height (mm)

346.0

346.0

41.0

Pack Materials-Page 2

IMPORTANT NOTICE

Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, modifications, enhancements, improvements, and other changes to its products and services at any time and to discontinue any product or service without notice. Customers should obtain the latest relevant information before placing orders and should verify that such information is current and complete. All products are sold subject to TI’s terms and conditions of sale supplied at the time of order acknowledgment.

TI warrants performance of its hardware products to the specifications applicable at the time of sale in accordance with TI’s standard warranty. Testing and other quality control techniques are used to the extent TI deems necessary to support this warranty. Except where mandated by government requirements, testing of all parameters of each product is not necessarily performed.

TI assumes no liability for applications assistance or customer product design. Customers are responsible for their products and applications using TI components. To minimize the risks associated with customer products and applications, customers should provide adequate design and operating safeguards.

TI does not warrant or represent that any license, either express or implied, is granted under any TI patent right, copyright, mask work right, or other TI intellectual property right relating to any combination, machine, or process in which TI products or services are used. Information published by TI regarding third-party products or services does not constitute a license from TI to use such products or services or a warranty or endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual property of the third party, or a license from TI under the patents or other intellectual property of TI.

Reproduction of TI information in TI data books or data sheets is permissible only if reproduction is without alteration and is accompanied by all associated warranties, conditions, limitations, and notices. Reproduction of this information with alteration is an unfair and deceptive business practice. TI is not responsible or liable for such altered documentation. Information of third parties may be subject to additional restrictions.

Resale of TI products or services with statements different from or beyond the parameters stated by TI for that product or service voids all express and any implied warranties for the associated TI product or service and is an unfair and deceptive business practice. TI is not responsible or liable for any such statements.

TI products are not authorized for use in safety-critical applications (such as life support) where a failure of the TI product would reasonably be expected to cause severe personal injury or death, unless officers of the parties have executed an agreement specifically governing such use. Buyers represent that they have all necessary expertise in the safety and regulatory ramifications of their applications, and acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any use of TI products in such safety-critical applications, notwithstanding any applications-related information or support that may be provided by TI. Further, Buyers must fully indemnify TI and its representatives against any damages arising out of the use of TI products in such safety-critical applications.

TI products are neither designed nor intended for use in military/aerospace applications or environments unless the TI products are specifically designated by TI as military-grade or "enhanced plastic." Only products designated by TI as military-grade meet military specifications. Buyers acknowledge and agree that any such use of TI products which TI has not designated as military-grade is solely at the Buyer's risk, and that they are solely responsible for compliance with all legal and regulatory requirements in connection with such use.

TI products are neither designed nor intended for use in automotive applications or environments unless the specific TI products are designated by TI as compliant with ISO/TS 16949 requirements. Buyers acknowledge and agree that, if they use any non-designated products in automotive applications, TI will not be responsible for any failure to meet such requirements.

Following are URLs where you can obtain information on other Texas Instruments products and application solutions:

Products

Amplifiers

Data Converters

DSP

Clocks and Timers

Interface

Logic

Power Mgmt

Microcontrollers amplifier.ti.com

dataconverter.ti.com

dsp.ti.com

www.ti.com/clocks interface.ti.com

logic.ti.com

power.ti.com

microcontroller.ti.com

RFID www.ti-rfid.com

RF/IF and ZigBee® Solutions www.ti.com/lprf

Applications

Audio

Automotive

Broadband

Digital Control

Medical

Military

Optical Networking

Security

Telephony

Video & Imaging

Wireless www.ti.com/audio www.ti.com/automotive www.ti.com/broadband www.ti.com/digitalcontrol www.ti.com/medical www.ti.com/military www.ti.com/opticalnetwork www.ti.com/security www.ti.com/telephony www.ti.com/video www.ti.com/wireless

Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265

Copyright © 2008, Texas Instruments Incorporated

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
