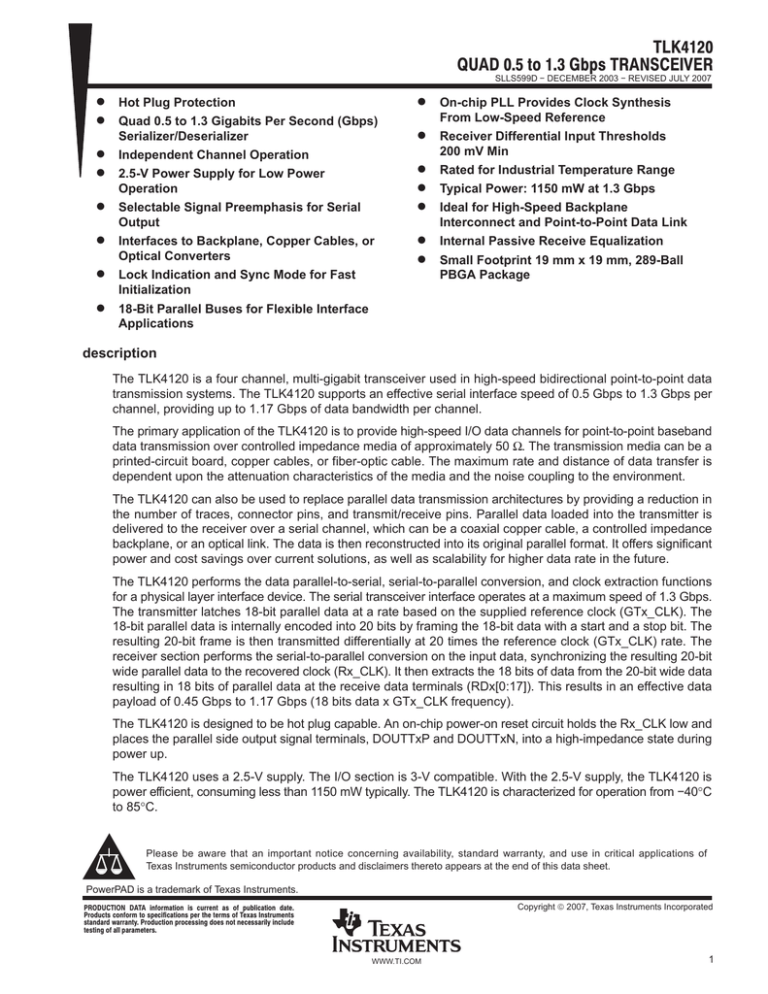

TLK4120

TLK4120
SLLS599D − DECEMBER 2003 − REVISED JULY 2007
D Hot Plug Protection
D Quad 0.5 to 1.3 Gigabits Per Second (Gbps)
Serializer/Deserializer
D Independent Channel Operation
D 2.5-V Power Supply for Low Power
D
D
D
D
Operation
Selectable Signal Preemphasis for Serial
Output
Interfaces to Backplane, Copper Cables, or
Optical Converters
Lock Indication and Sync Mode for Fast
Initialization
18-Bit Parallel Buses for Flexible Interface
Applications
D On-chip PLL Provides Clock Synthesis
D
D
D
D
D
D
From Low-Speed Reference
Receiver Differential Input Thresholds
200 mV Min
Rated for Industrial Temperature Range
Typical Power: 1150 mW at 1.3 Gbps
Ideal for High-Speed Backplane
Interconnect and Point-to-Point Data Link
Internal Passive Receive Equalization
Small Footprint 19 mm x 19 mm, 289-Ball
PBGA Package
description
The TLK4120 is a four channel, multi-gigabit transceiver used in high-speed bidirectional point-to-point data
transmission systems. The TLK4120 supports an effective serial interface speed of 0.5 Gbps to 1.3 Gbps per
channel, providing up to 1.17 Gbps of data bandwidth per channel.
The primary application of the TLK4120 is to provide high-speed I/O data channels for point-to-point baseband
data transmission over controlled impedance media of approximately 50 Ω. The transmission media can be a
printed-circuit board, copper cables, or fiber-optic cable. The maximum rate and distance of data transfer is
dependent upon the attenuation characteristics of the media and the noise coupling to the environment.
The TLK4120 can also be used to replace parallel data transmission architectures by providing a reduction in
the number of traces, connector pins, and transmit/receive pins. Parallel data loaded into the transmitter is
delivered to the receiver over a serial channel, which can be a coaxial copper cable, a controlled impedance
backplane, or an optical link. The data is then reconstructed into its original parallel format. It offers significant
power and cost savings over current solutions, as well as scalability for higher data rate in the future.
The TLK4120 performs the data parallel-to-serial, serial-to-parallel conversion, and clock extraction functions
for a physical layer interface device. The serial transceiver interface operates at a maximum speed of 1.3 Gbps.
The transmitter latches 18-bit parallel data at a rate based on the supplied reference clock (GTx_CLK). The
18-bit parallel data is internally encoded into 20 bits by framing the 18-bit data with a start and a stop bit. The
resulting 20-bit frame is then transmitted differentially at 20 times the reference clock (GTx_CLK) rate. The
receiver section performs the serial-to-parallel conversion on the input data, synchronizing the resulting 20-bit
wide parallel data to the recovered clock (Rx_CLK). It then extracts the 18 bits of data from the 20-bit wide data
resulting in 18 bits of parallel data at the receive data terminals (RDx[0:17]). This results in an effective data
payload of 0.45 Gbps to 1.17 Gbps (18 bits data x GTx_CLK frequency).
The TLK4120 is designed to be hot plug capable. An on-chip power-on reset circuit holds the Rx_CLK low and
places the parallel side output signal terminals, DOUTTxP and DOUTTxN, into a high-impedance state during
power up.
The TLK4120 uses a 2.5-V supply. The I/O section is 3-V compatible. With the 2.5-V supply, the TLK4120 is
power efficient, consuming less than 1150 mW typically. The TLK4120 is characterized for operation from −40°C
to 85°C.
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
PowerPAD is a trademark of Texas Instruments.
Copyright  2007, Texas Instruments Incorporated
!"#$ %&""' $ ! &(%$ )$'
")&% %!"# '%!%$ '" *' '"# ! '+$ "&#'
$)$") ,$""$- ")&% "%'. )' '%'$"(- %(&)'
'. ! $(( $"$#''"
WWW.TI.COM
1
SLLS599D − DECEMBER 2003 − REVISED JULY 2007
AVAILABLE OPTIONS
PACKAGE
TA
SYMBOL
PLASTIC BALL GRID ARRAY
(PBGA)
TLK4120IGPV
−40°C to 85°C
TLK4120IZPV
ECAT
NOTE: For the most current package and ordering information, see the Package Option
Addendum at the end of this document, or see the TI website at www.ti.com.
A
17
TDB1
B
TDB0
C
D
E
DOUTTB
DOUTTB
PREEMP
P
N
HB
F
DINRBP
G
DINRBN
H
J
RDB0
K
GND
TDC0
L
M
N
DOUTTC
DOUTTC
PREEMP
P
N
HC
P
R
T
U
DINRCP
DINRCN
RDC0
RDC1
17
16
TDB4
TDB2
GNDA
GNDA
VDDAB
GNDA
GNDA
RDB1
VDD
TDC1
GNDA
GNDA
VDDAC
GNDA
GNDA
RDC2
RDC4
16
15
TDB5
TDB3
GND
RDB3
VDDAB
RDB2
GND
VDD
GND
VDD
GND
TDC2
VDDAC
VDD
GND
RDC3
RDC5
15
14
TDB7
TDB6
VDD
RB_CLK
RDB7
RDB4
RDB5
RDB6
GND
TDC5
TDC6
TDC7
TDC4
TDC3
GND
RDC6
RDC7
14
13
TDB8
GND
RDB17
RDB13
RDB10
RDB9
RDB8
VDD
TDC9
TDC10
TDC11
TDC14
VDD
RDC8
RC_CLK
13
TDC12
TDC13
TDC16
GND
RDC10
RDC9
12
GND
RDC13
RDC11
11
GTB_CL
GTC_CL
K
12
TDB9
TDB10
K
VDD
SYNCB
RDB16
RDB14
RDB12
RDB11
VDD
TDC8
LOOPEN
C
11
TDB11
10
TDB12
9
TDB13
GND
VDD
LOCKBB
RDB15
GND
GND
GND
GND
GND
TDC15
VDD
TESTEN
C
TDB14
GND
TDB16
TDB15
GND
LOOPEN
ENABLE
TESTEN
B
B
B
TDB17
GND
VDD
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
TDC17
ENABLE
SYNCC
RDC17
RDC14
GND
RDC12
10
LOCKBC
GND
RDC16
RDC15
VDD
9
TDD5
TDD1
TDD0
8
GND
GNDA
C
8
RDA0
7
DINRAN
RDA1
VDD
RDA6
RDA8
RDA11
GND
GND
GND
GND
GND
TDD8
VDD
GTD_CL
K
GNDA
GND
RDA5
RDA9
RDA12
GND
GND
GND
GND
GND
TDD12
TDD9
TDD6
DOUTTD
7
P
6
DINRAP
PREEMP
5
GNDA
VDDAA
RDA2
VDDAA
RDA4
RDA7
RDA10
RDA13
RDA14
RDA16
HA
DOUTTA
4
GNDA
RDA3
RA_CLK
RDA17
SYNCA
RDA15
DOUTTA
ENABLE
A
D
LOCKB
ENABLE
A
A
VDD
N
3
TESTEN
GND
TDD17
TDD15
GND
VDD
GND
VDD
GND
SYNCD
VDD
TDA0
TDD7
TDD2
GNDA
DOUTTD
6
TDD16
TDD11
TDD4
VDDAD
VDDAD
PREEMP
5
HD
LOOPEN
TDA17
RDD17
LOCKBD
LOOPEN
TDD14
TDD3
VDD
GNDA
DINRDP
4
VDD
GND
GND
GNDA
DINRDN
3
D
TDA15
RDD16
RDD15
GND
P
2
TDD10
N
A
GNDA
TDD13
TESTEN
D
TDA2
TDA3
TDA6
GTA_CL
TDA10
TDA13
GND
TDA16
RDD14
RDD13
RDD10
RDD8
RDD6
RDD3
RDD2
RDD0
2
1
K
1
2
TDA1
TDA4
TDA5
TDA7
TDA8
TDA9
TDA11
TDA12
TDA14
RDD12
RDD11
RDD9
RD_CLK
RDD7
RDD5
RDD4
RDD1
A
B
C
D
E
F
G
H
J
K
L
M
N
P
R
T
U
WWW.TI.COM
SLLS599D − DECEMBER 2003 − REVISED JULY 2007
functional block diagram
A detailed block diagram of each channel is shown below. Channels A, B, C, and D are identical and are
configured as four separate links.
LOOPENx
DOUTTxP
TDx(0−17)
18-Bit
Register
DOUTTxN
18
Start/Stop
Encoder
Parallel to
Serial
20
Bit
Clock
PREEMPHx
Multiplying
Clock
Synthesizer
GTx_CLK
Controls:
PLL, Bias,
Rx, Tx
TESTENx
ENABLEx
Bit
Clock
Interpolator and
Clock Recovery
MUX
Recovered
Clock
LOCKBx
RDx(0−17)
18-Bit
Register
Rx_CLK
18
Start/Stop
Decoder
20
Serial to
Parallel
MUX
DINRxP
DINRxN
transmit interface
The transmitter portion registers valid incoming 18-bit wide data (TDx[0:17]) on the rising edge of GTx_CLK.
The data is then framed with start and stop bits, serialized, and transmitted sequentially over the differential
high-speed I/O channel. The clock multiplier multiplies the reference clock (GTx_CLK) by a factor of 10 creating
a bit clock. This internal bit clock is fed to the parallel-to-serial shift register, which transmits data on both the
rising and falling edges of the bit clock providing a serial data rate that is 20 times the reference clock. Data is
transmitted LSB (TDx0) first.
WWW.TI.COM
3
SLLS599D − DECEMBER 2003 − REVISED JULY 2007
transmit data bus
The transmit bus interface accepts 18-bit wide single-ended TTL parallel data at the TDx[0:17] terminals. Data
is valid on the rising edge of GTx_CLK. The GTx_CLK is used as the word clock. The data and clock signals
must be properly aligned as shown in Figure 1. Detailed timing information can be found in the TTL input
electrical characteristics table.
GTx_CLK
TDx[0:17]
tsu
th
Figure 1. Transmit Timing Waveform
transmission latency
The data transmission latency of the TLK4120 is defined as the delay from the initial 18-bit word on the parallel
transmit interface to the serial transmission of the start bit of the 20-bit frame containing the 18-bit word. The
transmit latency is fixed once the link is established. However, due to silicon process variations and
implementation variables, such as supply voltage and temperature, the exact delay varies slightly. Figure 2
illustrates the timing relationship between the transmit data bus, GTx_CLK, and serial transmit terminals.
Transmitted 20-Bit Frame
DOUTTxP,
DOUTTxN
td(Tx latency)
TDx(0−17)
18-Bit Word to Transmit
GTx_CLK
Figure 2. Transmitter Latency
start/stop framing logic
All true serial interfaces require a method of encoding to ensure minimum transition density so that the receiving
PLL has a minimal number of transitions in which to stay locked onto the data stream. The signal encoding also
provides a mechanism for the receiver to identify the word boundary for correct deserialization. The TLK4120
wraps a start bit (1) and a stop bit (0) around the 18-bit data payload as shown in Figure 3. This is transparent
to the user, as the TLK4120 internally adds the framing bits to the data such that the user reads and writes actual
18-bit data.
4
WWW.TI.COM
SLLS599D − DECEMBER 2003 − REVISED JULY 2007
start/stop framing logic (continued)
20-Bit Frame
18-Bit Word
Stop Start TDx0
Bit
Bit
TDx1
...
TDx16 TDx17 Stop
Bit
Start
Bit
Figure 3. Serial Output Data Stream With Start and Stop Bit
parallel-to-serial
The parallel-to-serial shift register takes in the 20-bit wide frame multiplexed from the framing logic and converts
it to a serial stream. The shift register is clocked on both the rising and falling edges of the internally generated
bit clock, which is 10 times the GTx_CLK input frequency. The LSB (TDx0) is first out after the start bit as shown
in Figure 3.
high-speed data output
The high-speed data output driver consists of a PECL-compatible differential pair that can be optimized for a
particular transmission line impedance and length. The line can be directly coupled or ac coupled. See Figure 10
and Figure 11 for termination details. No external pullup or pulldown resistors are required.
The TLK4120 provides a selectable signal preemphasis option for driving lossy media. When signal
preemphasis is enabled, the first bit of a run length of same-value bits (e.g., 111...) is driven to a larger output
swing, which precompensates for signal inter-symbol interference (ISI) in lossy media, such as copper cables
or printed circuit board traces.
receive interface
The receiver portion of the TLK4120 accepts 20-bit framed differential serial data. The interpolator and clock
recovery circuit locks to the data stream and extracts the bit rate clock. This recovered clock is used to retime
the input data stream. The serial data is then aligned to the 20-bit frame by finding the start and stop bits and
the 18-bit data is output on a 18-bit wide parallel bus synchronized to the extracted receive clock (Rx_CLK).
receive data bus
The receive bus interface drives 18-bit wide single-ended TTL parallel data at the RDx[0:17] terminals. Data
is valid on the rising edge of Rx_CLK. The Rx_CLK is used as the recovered word clock. The data and clock
signals are aligned as shown in Figure 4. Detailed timing information can be found in the TTL output switching
characteristics table.
Rx_CLK
RDx[0:17]
tsu
th
Figure 4. Receive Timing Waveform
WWW.TI.COM
5
SLLS599D − DECEMBER 2003 − REVISED JULY 2007
data reception latency
The serial-to-parallel data receive latency is the time from when the start bit arrives at the receiver until the output
of the aligned parallel word. The receive latency is fixed once the link is established. However, due to silicon
process variations and implementation variables, such as supply voltage and temperature, the exact delay
varies slightly. Figure 5 illustrates the timing relationship between the serial receive terminals, the recovered
word clock (Rx_CLK), and the receive data bus.
20-Bit Encoded Frame
DINRxP,
DINRxN
R(latency)
RDx[0−17]
18-Bit Decoded Word
Rx_CLK
Figure 5. Receiver Latency
serial-to-parallel
Serial data is received on the DINRxP and DINRxN terminals. The interpolator and clock recovery circuit locks
to the data stream if the clock to be recovered is within ±100 PPM of the internally generated bit rate clock. The
recovered clock is used to retime the input data stream. The serial data is then clocked into the serial-to-parallel
shift registers.
synchronization mode
The deserializer must synchronize to the serializer in order to receive valid data. Synchronization can be
accomplished in one of two ways.
rapid synchronization
The serializer has the capability to send specific SYNC patterns consisting of 9 ones and 9 zeros, switching at
the input clock rate. The transmission of SYNC patterns enables the deserializer to lock to the serializer signal
within a deterministic time frame. The transmission of SYNC patterns is selected via the SYNC input on the
serializer. Upon receiving a valid SYNC pulse (wider than 6 clock cycles), 1026 cycles of SYNC pattern are sent.
When the deserializer detects edge transitions at the serial input, it attempts to lock to the embedded clock
information. The deserializer LOCKBx output remains inactive while its clock/data recovery (CDR) locks to the
incoming data or SYNC patterns present on the serial input. When the deserializer locks to the serial data, the
LOCKBx output goes active. When LOCKBx is active, the deserializer outputs represent incoming serial data.
One approach is to tie the deserializer LOCKBx output directly to the SYNCx input of the transmitter. This
assures that enough SYNC patterns are sent to achieve deserializer lock.
random lock synchronization
The deserializer can attain lock to a data stream without requiring the serializer to send special SYNC patterns.
This allows the TLK4120 to operate in open-loop applications. Equally important is the deserializer’s ability to
support hot insertion into a running backplane. In the open-loop or hot-insertion case, it is assumed the data
stream is essentially random. Therefore, because lock time varies due to data stream characteristics, the exact
lock time cannot be predicted. The primary constraint on the random lock time is the initial phase relation
between the incoming data and the GTx_CLK when the deserializer powers up.
6
WWW.TI.COM
SLLS599D − DECEMBER 2003 − REVISED JULY 2007
random lock synchronization (continued)
The data contained in the data stream can also affect lock time. If a specific pattern is repetitive, the deserializer
could enter false lock—falsely recognizing the data pattern as the start/stop bits. This is referred to as repetitive
multitransition (RMT). This occurs when more than one low-high transition takes place per clock cycle over
multiple clock cycles. In the worst case, the deserializer could become locked to the data pattern rather than
the clock. Circuitry within the deserializer can detect that the possibility of false lock exists. Upon detection, the
circuitry prevents the LOCKBx from becoming active until the potential false-lock pattern changes. Notice that
the RMT pattern only affects the deserializer lock time, and once the deserializer is in lock, the RMT pattern does
not affect the deserializer state as long as the same data boundary happens each cycle. The deserializer does
not go into lock until it finds a unique data boundary that consists of four consecutive cycles of data boundary
(start/stop bits) at the same position.
The deserializer stays in lock until it cannot detect the same data boundary (start/stop bits) for four consecutive
cycles. Then the deserializer goes out of lock and hunts for the new data boundary (start/stop bits). In the event
of loss of synchronization, the LOCKBx terminal output goes inactive and the outputs (including Rx_CLK) enter
a high-impedance state. The user’s system must monitor the LOCKBx terminal in order to detect a loss of
synchronization. Upon detection of loss of lock, sending SYNC patterns for resynchronization is desirable if
reestablishing lock within a specific time is critical. However, the deserializer can lock to random data as
previously noted. LOCKBx is held inactive for at least nine cycles after loss of lock is detected.
recommended power-up sequence
When powering up the device, it is recommended to first set the ENABLEx terminal low. Set the ENABLEx
terminal to high once sufficient time has passed to allow the power supply to stabilize.
power-down mode
When the ENABLEx terminal is deasserted low, the TLK4120 goes into a power-down mode. In the power-down
mode, the serial transmit terminals (DOUTTxP, DOUTTxN) and the receive data bus terminals (RDx[0:17]) go
into a high-impedance state.
reference clock input
The reference clock (GTx_CLK) is an external input clock that synchronizes the transmitter interface. The
reference clock is then multiplied in frequency 10 times to produce the internal serialization bit clock. The internal
serialization bit clock is frequency locked to the reference clock and used to clock out the serial transmit data
on both its rising and falling edge clock providing a serial data rate that is 20 times the reference clock.
The receiver tracking logic uses clock phases from the internal PLL as it aligns the recovered clock phase with
the incoming serial data stream; therefore, the input reference clock (GTX_CLK) is needed even if the transmit
function of the TLK4120 is not being used. The receiver function has the ability to track an incoming serial data
stream that is within ±200 ppm of the data rate that is set by GTX_CLK. This allows the use of clock sources
with ±100 ppm frequency tolerance.
operating frequency range
The TLK4120 may operate at a serial data rate between 0.5 Gbit/s to 1.3 Gbit/s. GTx_CLK must be within
±100 PPM of the desired parallel data rate clock. Each individual channel may operate at a different rate.
testability
The TLK4120 has a comprehensive suite of built-in self-tests. The loopback function provides for at-speed
testing of the transmit/receive portions of the circuitry. The ENABLEx terminal allows for all circuitry to be
disabled so that an IDDQ test can be performed.
WWW.TI.COM
7
SLLS599D − DECEMBER 2003 − REVISED JULY 2007
loop-back testing
The transceiver can provide a self-test function by enabling (LOOPENx) the internal loop-back path. Enabling
this terminal causes serial transmitted data to be routed internally to the receiver. The parallel data output can
be compared to the parallel input data for functional verification. (The external differential output is held in a
high-impedance state during the loop-back testing.)
power-on reset
Upon application of minimum valid power, the TLK4120 generates a power-on reset. During the power-on reset,
the RDx terminals are tri-stated and Rx_CLK is held low. The length of the power-on reset cycle is dependent
upon the REFCLK frequency, but is less than 1 ms in duration.
Terminal Functions
TERMINAL
NAME
8
NO.
DINRAP
DINRAN
A6,
A7
DINRBP
DINRBN
F17
G17
DINRCP
DINRCN
P17
R17
DINRDP
DINRDN
U4
U3
DOUTTAP
DOUTTAN
A3
A4
DOUTTBP
DOUTTBN
C17
D17
DOUTTCP
DOUTTCN
L17
M17
DOUTTDP
DOUTTDN
U7
U6
ENABLEA
H5
ENABLEB
E10
ENABLEC
M9
ENABLED
J6
GTA_CLK
E2
GTB_CLK
B13
GTC_CLK
K13
GTD_CLK
P8
SYNCA
F4
SYNCB
D12
SYNCC
N10
SYNCD
K5
LOOPENA
H4
LOOPENB
D10
LOOPENC
P12
LOOPEND
M4
TYPE
Input
DESCRIPTION
Serial receive inputs. DINRxP and DINRxN together are the differential serial
input interface from a copper or an optical I/F module.
Output
(high-z
power up)
Serial transmit outputs. DOUTTxP and DOUTTxN are differential serial outputs
that interface to copper or an optical I/F module. These terminals transmit NRZ
data at a rate of 20 times the GTx_CLK value. DOUTTxP and DOUTTxN are
put in a high-impedance state when LOOPENx is high and are active when
LOOPENx is low. During power-on reset these terminals are high impedance.
Input
(w/pullup)
Device enable. When this terminal is held low, the device is placed in
power-down mode. When asserted high while the device is in power-down
mode, the transceiver goes into power on reset before beginning normal
operation.
Input
Reference clock. GTx_CLK is a continuous external input clock that
synchronizes the transmitter interface TDx. The frequency range of GTx_CLK
is 25 MHz to 65 MHz.
The transmitter uses the rising edge of this clock to register the 18-bit input
data (TDx) for serialization.
Input
(w/pulldown)
Fast synchronization. When asserted high, the transmitter substitutes the
18-bit pattern 111111111000000000 so that when the start/stop bits are framed
around the data the receiver can immediately detect the proper deserialization
boundary. This is typically used during initialization of the serial link.
Input
(w/pulldown)
Loop enable. When LOOPENx is active high, the internal loop-back path is
activated. The transmitted serial data is directly routed internally to the inputs
of the receiver. This provides a self-test capability in conjunction with the
protocol device. The DOUTTxP and DOUTTxN outputs are held in a high
impedance state during the loop-back test. LOOPENx is held low during
standard operational state with external serial outputs and inputs active.
WWW.TI.COM
SLLS599D − DECEMBER 2003 − REVISED JULY 2007
Terminal Functions (Continued)
TERMINAL
NAME
NO.
LOCKBA
G5
LOCKBB
E11
LOCKBC
N9
LOCKBD
L4
PREEMPHA
A5
PREEMPHB
E17
PREEMPHC
PREEMPHD
N17
DESCRIPTION
Output
Receiver lock. When asserted low indicates that the receiver has acquired
bit synchronization on the data stream and has located the start/stop bits so
that the deserialized data presented on the parallel receive bus is properly
received.
Input
Pre-emphasis. When asserted, the serial transmit outputs have extra output
swings on the first bit of any run length of save value bits. If the run length
of output bits is one, then that bit has larger output swings.
Output (hi-z
on power up)
Receive data bus. These outputs carry 18-bit parallel data output from the
transceiver to the protocol device, synchronized to Rx_CLK. The data is
valid on the rising edge of Rx_CLK as shown in Figure 10. These terminals
are high-impedance during power-on reset.
Output (low
on power up)
Recovered clock. Output clock that is synchronized to RDx. Rx_CLK is the
recovered serial data rate clock divided by 20. Rx_CLK is held low during
power-on reset.
Input
Transmit data bus. These inputs carry the 18-bit parallel data output from a
protocol device to the transceiver for encoding, serialization and
transmission. This 18-bit parallel data is clocked into the transceiver on the
rising edge of GTx_CLK as shown in Figure 9.
U5
RDA(0−17)
A8, B8, C6, C4, D6, D7, D8,
D5, E8, E7, E6, F8, F7, E5,
F6, G6, F5, E4
RDB(0−17)
H17, H16, F15, D15, F14,
G14, H14, E14, H13, G13,
F13, H12, G12, E13, F12,
F11, E12, D13
RDC(0−17)
T17, U17, T16, T15, U16,
U15, T14, U14, T13, U12,
T12, U11, U10, T11, R10,
T9, R9, P10
RDD(0−17)
U2, U1, T2, R2, T1, R1, P2,
P1, N2, M1, M2, L1, K1, L2,
K2, K3, J3, K4
RA_CLK
D4
RB_CLK
D14
RC_CLK
U13
RD_CLK
TYPE
N1
TDA(0−17)
A2, A1, B2, C2, B1, C1, D2,
D1, E1, F1, F2, G1, H1, G2,
J1, H3, J2, J4
TDB(0−17)
B17, A17, B16, B15, A16,
A15, B14, A14, A13, A12,
B12, A11, A10, B11, A9,
C10, B9, D9
TDC(0−17)
K17, K16, M15, P14, N14,
K14, L14, M14, K12, L13,
M13, N13, L12, M12, P13,
M11, N12, M10
TDD(0−17)
U8, T8, R6, P4, P5, R8, P7,
P6, M8, N7, N6, N5, M7, M6,
N4, L6, M5, K6
TESTENA
H6
TESTENB
F10
TESTENC
P11
TESTEND
M3
Input
(w/pulldown)
Test mode enable. This terminal must be left unconnected or tied low.
WWW.TI.COM
9
SLLS599D − DECEMBER 2003 − REVISED JULY 2007
Terminal Functions (Continued)
TERMINAL
NAME
NO.
TYPE
DESCRIPTION
POWER
C8, C12, C14, D3, D11, F3,
F9, G4, H15, J12, J13, J16,
K15, L5, N3, N8, N11, P15,
R4, R13, U9
VDD
VDDAA
B5, C5
VDDAB
E15, E16
VDDAC
N15, N16
VDDAD
R5, T5
Supply
Digital logic power. Provides power for all digital circuitry and digital I/O
Buffers.
Supply
Analog power. VDDAx provides a supply reference for the high-speed
analog circuits, receiver and transmitter.
B3, B4, B6, B7, C16, D16,
F16, G16, L16, M16, P16,
R16, T3, T4, T6, T7
Ground
Analog ground. GNDA provides a ground reference for the high-speed
analog circuits RX and TX.
B10, C3, C7, C9, C11, C13,
C15, E3, E9, G3, G7, G8,
G9, G10, G11, G15, H2, H7,
H8, H9, H10, H11, J5, J7, J8,
J9, J10, J11, J14, J15, J17,
K7, K8, K9, K10, K11, L3, L7,
L8, L9, L10, L11, L15, P3,
P9, R3, R7, R11, R12, R14,
R15, T10
Ground
Digital logic ground. Provides a ground for the logic circuits and digital I/O
buffers.
GROUND
GNDA
GND
absolute maximum ratings over operating free-air temperature (unless otherwise noted)†
Supply voltage, VDD (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −0.3 V to 3 V
Voltage range at TDx, ENABLEx, GTx_CLK, LOOPENx, SYNCx, PREEMPHx . . . . . . . . . . . . . . . . −0.3 V to 4 V
Voltage range at any other terminal except above . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −0.3 V to VDD + 0.3 V
Package power dissipation, PD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . See Dissipation Rating Table
Storage temperature, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −65°C to 150°C
Electrostatic discharge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . HBM: 2 kV, CDM: 1.5 kV
Characterized free-air operating temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −40°C to 85°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260°C
† Stresses beyond those listed under “absolute maximum ratings” may cause permanent damage to the device. These are stress ratings only, and
functional operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is not
implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTE 1: All voltage values, except differential I/O bus voltages, are with respect to network ground.
10
WWW.TI.COM
SLLS599D − DECEMBER 2003 − REVISED JULY 2007
DISSIPATION RATING TABLE
Air Flow
0 m/s
0.5 m/s
1 m/s
2.5 m/s
TJA (C/W)
18.4
16.92
15.95
14.7
electrical characteristics over recommended operating conditions
PARAMETER
TEST CONDITION
MIN
TYP
MAX
2.5
2.7
V
85
°C
VDD
TA
Supply voltage
2.3
Operating free-air temperature
−40
ICC
Supply current
PD
VDD = 2.5 V, Rate = 500 Mbps, PRBS pattern
VDD = 2.5 V, Rate = 1.3 Gbps, PRBS pattern
UNIT
180
mA
460
Power dissipation
VDD = 2.5 V, Rate = 500 Mbps, PRBS pattern
VDD = 2.5 V, Rate = 1.3 Gbps, PRBS pattern
450
Shutdown current
VDD = 2.7 V, Rate = 1.3 Gbps, worst case pattern
ENABLE = 0, VDDA, VDD terminals, VDD = maximum
PLL start-up lock time
VDD, VDDA = 2.3 V, EN ↑ to PLL acquire
1150
mW
1900
µA
520
0.1
Data acquisition time
0.4
1024
ms
bits
reference clock (GTx_CLK) timing requirements over recommended operating conditions (unless
otherwise noted)
PARAMETER
Rω
Frequency
MIN
TYP
MAX
UNIT
Minimum data rate
TEST CONDITIONS
TYP−0.01%
25
TYP+0.01%
MHz
Maximum data rate
TYP−0.01%
65
TYP+0.01%
MHz
100
ppm
50%
60%
Frequency tolerance
−100
Duty cycle
40%
Jitter
Peak-to-peak
WWW.TI.COM
40
ps
11
SLLS599D − DECEMBER 2003 − REVISED JULY 2007
TTL input electrical characteristics over recommended operating conditions (unless otherwise
noted)
TTL Signals: TDx0 ... TDx17, GTx_CLK, LOOPENx, SYNCx, PREEMPHx
PARAMETER
TEST CONDITIONS
MIN
TYP
2
MAX
UNIT
VIH
VIL
High-level input voltage
See Figure 6
Low-level input voltage
See Figure 6
3.6
V
0.8
V
IIH
IIL
High-level input current
Low-level input current
VDD = Maximum, VIN = 2 V
VDD = Maximum, VIN = 0.4 V
40
µA
CIN
Input capacitance
0.8 V to 2 V
tr
tf
GTx_CLK, TDXn rise time
0.8 V to 2 V, C = 5 pF, See Figure 6
1
ns
GTx_CLK, TDXn fall time
2 V to 0.8 V, C = 5 pF, See Figure 6
1
ns
tsu
th
TDXn setup to ↑ GTx_CLK
See Figure 6
1.5
ns
TDXn hold to ↑ GTx_CLK
See Figure 6
0.4
ns
µA
−40
4
pF
3.6 V
2V
GTx_CLK
0.8 V
0V
tr
tf
3.6 V
2V
TDx[0−17]
0.8 V
0V
tsu
tf
tr
th
Figure 6. TTL Data Input Valid Levels for AC Measurements
TTL output switching characteristics over recommended operating conditions (unless otherwise
noted)
PARAMETER
TEST CONDITIONS
MIN
TYP
2.1
2.3
GND
0.25
MAX
UNIT
VOH
VOL
High-level output voltage
Low-level output voltage
IOH= −1 mA, VDD = Minimum
IOL= 1 mA, VDD = Minimum
tr(slew)
tf(slew)
Magnitude of Rx_CLK, RDx slew rate (rising)
0.8 V to 2 V, C = 5 pF, See Figure 7
0.5
V/ns
Magnitude of Rx_CLK, RDx slew rate (falling)
0.8 V to 2 V, C = 5 pF, See Figure 7
0.5
V/ns
50% voltage swing, GTx_CLK = 25 MHz,
See Figure 7
19
ns
50% voltage swing, GTx_CLK = 65 MHz,
See Figure 7
6.7
ns
50% voltage swing, GTx_CLK = 25 MHz,
See Figure 7
19
ns
50% voltage swing, GTx_CLK = 65 MHz,
See Figure 7
6.7
ns
tsu
th
12
RDx setup to ↑ Rx_CLK
RDx hold to ↑ Rx_CLK
WWW.TI.COM
V
0.5
V
SLLS599D − DECEMBER 2003 − REVISED JULY 2007
2V
Rx_CLK
0.8 V
0V
tr(slew)
tf(slew)
2V
RDx[0−17]
0.8 V
0V
tr(slew)
tsu
tf(slew)
th
Figure 7. TTL Data Output Valid Levels for AC Measurements
transmitter/receiver characteristics
PARAMETER
TEST CONDITION
MIN
TYP
MAX
UNIT
VOD(p)
VOD(p) = |VTXP − VTXN|,
Preemphasis VOD
DC-coupled. Preemphasis = high, See Figure 8
730
945
1280
mV
VOD(pp−p)
Differential, peakĆto-peak output
voltage with preemphasis
DC-coupled. Preemphasis = high, See Figure 8
1460
1890
2560
mV
VOD(d)
VD(d) = |VTXP − VTXN|,
De-emphasis VOD
DC-coupled. Preemphasis = low, See Figure 8
560
750
1100
mV
VOD(pp−d)
Differential, peak-to-peak output
voltage with deemphasis
DC-coupled. Preemphasis = low, See Figure 8
1120
1500
2200
mV
V(cmt)
Transmit termination voltage range,
(VTXP + VTXN)/2
1000
1250
1400
mV
VID
Receiver input voltage differential
VID= |RXP – RXN|
200
Vcmr
Receiver common-mode voltage
range, (VRXP + VRXN)/2
1000
VDD−350
mV
−10
10
µA
2
pF
Iin
Cin
tr, tf
Receiver input leakage
mV
Receiver input capacitance
Differential output signal rise and
fall time (20% to 80%)
RL = 50 Ω, CL = 5 pF, See Figure 9
Serial transmit data total jitter
(peak-to-peak)
Receive jitter tolerance
Tlatency
TX latency
Rlatency
RX latency
100
150
ps
Differential output jitter, random + deterministic,
223−1 PRBS pattern at 1.3 Gbps
0.1
UI
Total input jitter, PRBS pattern, permitted eye
closure at zero crossing
0.5
UI
At 500 Mbps
17
19
At 1.3 Gbps
17
20
At 500 Mbps
88
92
At 1.3 Gbps
90
96
WWW.TI.COM
Bit
times
Bit
times
13
SLLS599D − DECEMBER 2003 − REVISED JULY 2007
VOD(p)
VOD(d)
VOD(pp_d) VOD(pp_p)
V(cmt)
tf
tr
VOD(d)
Bit
Time
Bit
Time
VOD(p)
Figure 8. Differential and Common-Mode Output Voltage Definitions
80%
50%
20%
DOUTTxP
tr
tf
DOUTTxN
80%
50%
20%
tf
tr
+V
80%
V(cmt)
DOUTTxP−DOUTTxN
20%
−V
tr
tf
Figure 9. Rise and Fall Time Definitions
TXP
RXP
VDD
ZO
ZO
5 kΩ
ZO
7.5 kΩ
ZO
TXN
Transmitter
+
_
GND
RXN
Media
Receiver
Figure 10. High-Speed I/O Directly Coupled Mode
14
WWW.TI.COM
SLLS599D − DECEMBER 2003 − REVISED JULY 2007
TXP
RXP
VDD
ZO
ZO
5 kΩ
ZO
7.5 kΩ
ZO
TXN
Transmitter
+
_
GND
RXN
Media
Receiver
Figure 11. High-Speed I/O AC-Coupled Mode
AC-coupling is only recommended if the parallel TX data stream is encoded to achieve a dc-balanced data
stream. Otherwise, the ac capacitors can induce common-mode voltage drift due to the dc-unbalanced data
stream.
WWW.TI.COM
15
PACKAGE OPTION ADDENDUM
www.ti.com
12-Feb-2009
PACKAGING INFORMATION
Orderable Device
Status (1)
Package
Type
Package
Drawing
Pins Package Eco Plan (2)
Qty
TLK4120IGPV
ACTIVE
BGA
GPV
289
84
TBD
Call TI
Level-3-220C-168 HR
TLK4120IZPV
ACTIVE
BGA
ZPV
289
84
Pb-Free
(RoHS)
SNAGCU
Level-3-260C-168 HR
Lead/Ball Finish
MSL Peak Temp (3)
(1)
The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in
a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2)
Eco Plan - The planned eco-friendly classification: Pb-Free (RoHS), Pb-Free (RoHS Exempt), or Green (RoHS & no Sb/Br) - please check
http://www.ti.com/productcontent for the latest availability information and additional product content details.
TBD: The Pb-Free/Green conversion plan has not been defined.
Pb-Free (RoHS): TI's terms "Lead-Free" or "Pb-Free" mean semiconductor products that are compatible with the current RoHS requirements
for all 6 substances, including the requirement that lead not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered
at high temperatures, TI Pb-Free products are suitable for use in specified lead-free processes.
Pb-Free (RoHS Exempt): This component has a RoHS exemption for either 1) lead-based flip-chip solder bumps used between the die and
package, or 2) lead-based die adhesive used between the die and leadframe. The component is otherwise considered Pb-Free (RoHS
compatible) as defined above.
Green (RoHS & no Sb/Br): TI defines "Green" to mean Pb-Free (RoHS compatible), and free of Bromine (Br) and Antimony (Sb) based flame
retardants (Br or Sb do not exceed 0.1% by weight in homogeneous material)
(3)
MSL, Peak Temp. -- The Moisture Sensitivity Level rating according to the JEDEC industry standard classifications, and peak solder
temperature.
Important Information and Disclaimer:The information provided on this page represents TI's knowledge and belief as of the date that it is
provided. TI bases its knowledge and belief on information provided by third parties, and makes no representation or warranty as to the
accuracy of such information. Efforts are underway to better integrate information from third parties. TI has taken and continues to take
reasonable steps to provide representative and accurate information but may not have conducted destructive testing or chemical analysis on
incoming materials and chemicals. TI and TI suppliers consider certain information to be proprietary, and thus CAS numbers and other limited
information may not be available for release.
In no event shall TI's liability arising out of such information exceed the total purchase price of the TI part(s) at issue in this document sold by TI
to Customer on an annual basis.
Addendum-Page 1
MECHANICAL DATA
MPBG233 – FEBRUARY 2002
GPV (S–PBGA–N289)
PLASTIC BALL GRID ARRAY
19,20
SQ
18,80
16,00 TYP
1,00
U
T
R
P
1,00
N
M
L
K
J
H
G
F
E
D
A1 Corner
C
B
A
3
1
2
5
4
7
6
9
8
11
10
13
12
15
14
17
16
Bottom View
2,00 MAX
Seating Plane
0,60
0,40
0,10
0,50
0,30
0,15
4204203/A 02/2002
NOTES: A. All linear dimensions are in inches (millimeters).
B. This drawing is subject to change without notice.
POST OFFICE BOX 655303
• DALLAS, TEXAS 75265
1
IMPORTANT NOTICE
Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, modifications, enhancements, improvements,
and other changes to its products and services at any time and to discontinue any product or service without notice. Customers should
obtain the latest relevant information before placing orders and should verify that such information is current and complete. All products are
sold subject to TI’s terms and conditions of sale supplied at the time of order acknowledgment.
TI warrants performance of its hardware products to the specifications applicable at the time of sale in accordance with TI’s standard
warranty. Testing and other quality control techniques are used to the extent TI deems necessary to support this warranty. Except where
mandated by government requirements, testing of all parameters of each product is not necessarily performed.
TI assumes no liability for applications assistance or customer product design. Customers are responsible for their products and
applications using TI components. To minimize the risks associated with customer products and applications, customers should provide
adequate design and operating safeguards.
TI does not warrant or represent that any license, either express or implied, is granted under any TI patent right, copyright, mask work right,
or other TI intellectual property right relating to any combination, machine, or process in which TI products or services are used. Information
published by TI regarding third-party products or services does not constitute a license from TI to use such products or services or a
warranty or endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual
property of the third party, or a license from TI under the patents or other intellectual property of TI.
Reproduction of TI information in TI data books or data sheets is permissible only if reproduction is without alteration and is accompanied
by all associated warranties, conditions, limitations, and notices. Reproduction of this information with alteration is an unfair and deceptive
business practice. TI is not responsible or liable for such altered documentation. Information of third parties may be subject to additional
restrictions.
Resale of TI products or services with statements different from or beyond the parameters stated by TI for that product or service voids all
express and any implied warranties for the associated TI product or service and is an unfair and deceptive business practice. TI is not
responsible or liable for any such statements.
TI products are not authorized for use in safety-critical applications (such as life support) where a failure of the TI product would reasonably
be expected to cause severe personal injury or death, unless officers of the parties have executed an agreement specifically governing
such use. Buyers represent that they have all necessary expertise in the safety and regulatory ramifications of their applications, and
acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products
and any use of TI products in such safety-critical applications, notwithstanding any applications-related information or support that may be
provided by TI. Further, Buyers must fully indemnify TI and its representatives against any damages arising out of the use of TI products in
such safety-critical applications.
TI products are neither designed nor intended for use in military/aerospace applications or environments unless the TI products are
specifically designated by TI as military-grade or "enhanced plastic." Only products designated by TI as military-grade meet military
specifications. Buyers acknowledge and agree that any such use of TI products which TI has not designated as military-grade is solely at
the Buyer's risk, and that they are solely responsible for compliance with all legal and regulatory requirements in connection with such use.
TI products are neither designed nor intended for use in automotive applications or environments unless the specific TI products are
designated by TI as compliant with ISO/TS 16949 requirements. Buyers acknowledge and agree that, if they use any non-designated
products in automotive applications, TI will not be responsible for any failure to meet such requirements.
Following are URLs where you can obtain information on other Texas Instruments products and application solutions:
Products
Amplifiers
Data Converters
DLP® Products
DSP
Clocks and Timers
Interface
Logic
Power Mgmt
Microcontrollers
RFID
RF/IF and ZigBee® Solutions
amplifier.ti.com
dataconverter.ti.com
www.dlp.com
dsp.ti.com
www.ti.com/clocks
interface.ti.com
logic.ti.com
power.ti.com
microcontroller.ti.com
www.ti-rfid.com
www.ti.com/lprf
Applications
Audio
Automotive
Broadband
Digital Control
Medical
Military
Optical Networking
Security
Telephony
Video & Imaging
Wireless
www.ti.com/audio
www.ti.com/automotive
www.ti.com/broadband
www.ti.com/digitalcontrol
www.ti.com/medical
www.ti.com/military
www.ti.com/opticalnetwork
www.ti.com/security
www.ti.com/telephony
www.ti.com/video
www.ti.com/wireless
Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265
Copyright © 2009, Texas Instruments Incorporated
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
