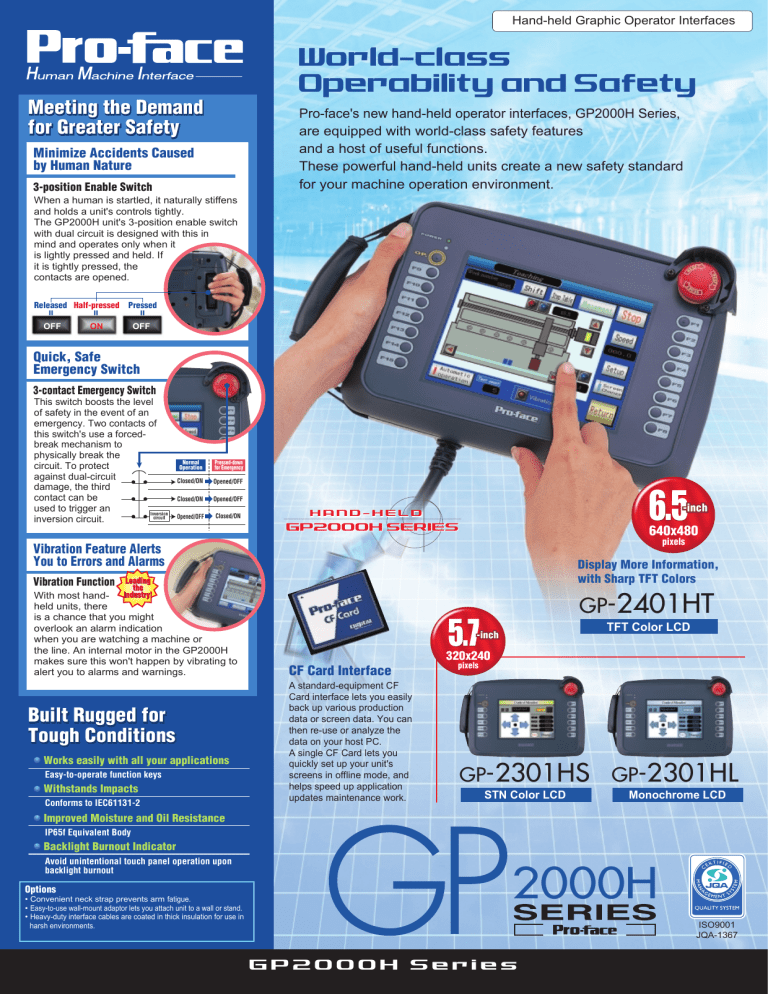

Digital Electronics | GP-2401 Series | GP2000H Series

Hand-held Graphic Operator Interfaces
World-class
Operability and Safety
Meeting the Demand
for Greater Safety
Pro-face's new hand-held operator interfaces, GP2000H Series,
are equipped with world-class safety features
and a host of useful functions.
These powerful hand-held units create a new safety standard
for your machine operation environment.
Minimize Accidents Caused
by Human Nature
3-position Enable Switch
When a human is startled, it naturally stiffens
and holds a unit's controls tightly.
The GP2000H unit's 3-position enable switch
with dual circuit is designed with this in
mind and operates only when it
is lightly pressed and held. If
it is tightly pressed, the
contacts are opened.
=
=
=
Released Half-pressed Pressed
OFF
ON
OFF
Quick, Safe
Emergency Switch
3-contact Emergency Switch
This switch boosts the level
of safety in the event of an
emergency. Two contacts of
this switch's use a forcedbreak mechanism to
physically break the
circuit. To protect
against dual-circuit
damage, the third
contact can be
used to trigger an
Inversion
circuit
inversion circuit.
Normal
Operation
Pressed-down
for Emergency
Closed/ON
Opened/OFF
Closed/ON
Opened/OFF
Opened/OFF
Closed/ON
-inch
6.5
HAND-HELD GP2000H SERIES
640x480
pixels
Vibration Feature Alerts
You to Errors and Alarms
Display More Information,
with Sharp TFT Colors
Vibration Function
With most handheld units, there
is a chance that you might
overlook an alarm indication
when you are watching a machine or
the line. An internal motor in the GP2000H
makes sure this won't happen by vibrating to
alert you to alarms and warnings.
Built Rugged for
Tough Conditions
Works easily with all your applications
Easy-to-operate function keys
Withstands Impacts
Conforms to IEC61131-2
GP-2401HT
TFT Color LCD
-inch
5.7
320x240
CF Card Interface
A standard-equipment CF
Card interface lets you easily
back up various production
data or screen data. You can
then re-use or analyze the
data on your host PC.
A single CF Card lets you
quickly set up your unit's
screens in offline mode, and
helps speed up application
updates maintenance work.
pixels
GP-2301HS
GP-2301HL
STN Color LCD
Monochrome LCD
Improved Moisture and Oil Resistance
IP65f Equivalent Body
Backlight Burnout Indicator
Avoid unintentional touch panel operation upon
backlight burnout
Options
• Convenient neck strap prevents arm fatigue.
• Easy-to-use wall-mount adaptor lets you attach unit to a wall or stand.
• Heavy-duty interface cables are coated in thick insulation for use in
harsh environments.
2000H
ISO9001
JQA-1367
GP2000H Series
GP2000H Series
General Specifications
Effective Display Area
Display Colors
Backlight
Brightness Control
Contrast Control
Language Fonts
Front Panel
Membrane
Switch
Displayable
Characters Text
Display Sizes*2
Font Sizes
8 x 8 Dots
8 x 16 Dots
16 x 16 Dots
32 x 32 Dots
Touch Panel
Function Switches
Operation Switch
Screen Data
Data Backup
Memory
Serial Interface
External Output
Tool Connector Interface
Memory Card Interface
DOUT Output
Operation Output
Buzzer Output
3-contact Emergency
Switch Output
3-position Enable
Switch Output
GP2000H Series
DC24V
Rated Voltage
DC19.2V to DC28.8V
Rated Voltage Range
15W or less
Power Consumption
10ms or less
Allowable Voltage Interruption
AC 500V, 20mA for up to 1 minute (between charging and FG terminals)
Voltage Endurance
20MΩ or more at DC500V (between charging and FG terminals)
Insulation Resistance
0°C to 40°C
Operating Temperature
-20 °C to +60°C
Storage Temperature
10%RH to 90%RH (non-condensing.wetbulb temperature:39°C or less)
Humidity
10%RH to 90%RH (non-condensing.wetbulb temperature:39°C or less)
Storage Humidity
IEC61131-2(JIS B 3502)Compliant
When vibration is NOT continuous:10Hz to 57Hz 0.075mm, 57Hz to 150Hz 9.8m/s2
Vibration Resistance
When vibration is continuous:10Hz to 57Hz 0.035mm, 57Hz to 150Hz 4.9m/s2
X, Y, Z directions for 10 times (80min.)
Shock Resistance
IEC61131-2 (JIS B 3502) Compliant 147m/s2, X, Y, Z directions for 2 times
Dropping
IEC61131-2 (JIS B 3502) Compliant (1.0-meter drop, twice)
Noise Voltage: 1000Vp-p
Noise Immunity
Pulse Duration: 1µs
(via noise simulator)
Rise Time: 1ns
Corrosive Gasses
Free of corrosive gasses
Electrostatic Discharge Immunity
6kV (EN61000-4-2 Level 3)
Certifications
EN55011 class A, EN61000-6-2, UL60950, CAN / CSA-C22.2 No.60950-00
Protection
Equivalent to IP65f (JEM 1030) *1
(Front face of installed unit)
(Applied for NEMA#250 TYPE4X/12)*2
Cooling Method
Natural air circuration
Weight
1.2kg [2.65lb]
External Dimensions
W253 [9.96] x H185 [7.28] x D58 [2.28] mm [in.] (excluding projections)*3
*1 The degree of protection provided by these products is equivalent to IP65f, however their performance cannot be guaranteed for
every environment. Be sure to confirm your work environment requirements prior to installation.
When using the CF Card interface guard. (included with GP2000H unit)
*2 To satisfy NEMA requirements, the CF Card interface guard is required (inclued with GP). Pro-face is currently applying for NEMA approval.
*3 Does not include CF Card interface guard or emergency stop switch guard.
3-position Enable Switch
*
A Lithium battery's lifetime is : 10 years when the battery's ambient temperature is 40°C max.
4.1 years when the battery's ambient temperature is 50°C max.
1.5 years when the battery's ambient temperature is 60°C max.
When used for backup : Approximately 60 days, with a fully charged battery. Approximately six(6) days, with a half-charged battery.
*1 Changing the “Colors” setting to “256 color” will disable the blinking feature on all screens in your project. If you wish to use
the blinking feature, select "64 colors".
*23 The font size varies depending on selected language and enlargement ratio.
*4 Only supported for Japanese Kanji characters.
* Only one contact (ENBOA, ENBOB) can be used in GP-H70-compatible mode.
External Dimensions
GP-2401HT/2301HS/2301HL
Model
Item
Electrical
Display Type
Display Resolution
GP2401H-TC41-24V GP2301H-SC41-24V GP2301H-LG41-24V
6.5-inch TFT Color LCD 5.7-inch STN Color LCD 5.7-inch Monochrome LCD
640x 480 pixels
320x 240 pixels
W132.5mm [5.21 in.] x
W115.2mm [4.54 in.] x H86.4mm [3.4 in.]
H99.4mm[3.91in.]
Monochrome
64 colors
256 colors*1
CCFL (Service life: 50,000 hrs. at 25°C and 24hr. operation)
4 levels via touch panel
–
8 levels of adjustment available via touch panel.
ASCII: (Code page 850) Alphanumeric (including European fonts),
Chinese: (GB2312-80 codes) simplified Chinese fonts,
Japanese: ANK 158 type, Kanji: 6962 types (JIS Type 1 and 2),
Korean: (KSC5601-1992 codes) Hangul fonts,
Taiwanese: (Big 5 codes) traditional Chinese fonts
8 x 8 pixels, 8 x 16 pixels, 16 x 16 pixels, 32 x 32 pixels
Width: 1, 2, 4 or 8 times expandable/Height: 1/2*3, 1, 2, 4 or 8 times expandable
80 char. x 60 rows
40 char. x 30 rows
80 char. x 30 rows
40 char. x 15 rows
40 char. x 30 rows
20 char. x 15 rows
20 char. x 15 rows
10 char. x 7 rows
Resistive Film 32 x 24 matrix
Resistive Film 16 x 12 matrix
15
11
(DOUT Output: F1, F2)
(DOUT Output: F1, F2)
Function Switch (O.P Key) (DOUT Output)
FLASH EPROM 2MB
FLASH EPROM 1MB
SRAM 128KB - Uses lithium battery*
Asynchronous Transmission Method: RS-232C/RS-422 Data Length: 7 or 8 bits
Stop Bit: 1 or 2 bits Parity: None, Odd or Even Data Transmission Speed: 2,400bps to 187.5kbps
Synchronous TTL non-procedural command I/F
1 socket (CompactFlash™)
2-point (F1, F2) open collector output Rated voltage: DC24V Max. Rated current: 300mA/point
1-point (F1, F2) open collector output Rated voltage: DC24V Max. Rated current: 300mA/point
1-point (F1, F2) open collector output Rated voltage: DC24V Max. Rated current: 300mA/point
NC x 2 points Rated voltage: DC30V Max. rated current: 1A (Min. closing load: 1mA/DC5V)
NO x 1 point open collector output Rated voltage: DC24V Max. rated current: 300mA/point
NO x 2 points*4 Rated voltage: DC24V
Max. rated current: 300mA (Min. closing load: 4mA/DC24V)
Environmental
Model
Item
Structural
Functional Specifications
3-contact Emergency Switch
Can be applied to standards
• IEC/EN 60947-5-1
• ANSI/RIA R15.06-1999
Can be applied to standards
• ISO13850
• IEC/EN60947-5-1
• EN418
Conforms to standards
• ISO13849-1
• EN954-1
Conforms to standards
• ISO13849-1
• EN954-1
Recognized
• UL 508 (CSA C22.2 No.14)
Recognized
• UL 508 (CSA C22.2 No.14)
58[2.28]
76[2.99]
Unit: mm [in.]
Optional Items
185[7.28]
253[9.96]
* The drawings show GP-2401HT.
Model No.
Item Name
GP-PRO/PBIII C-Package01 GPPRO-CNT01W-P01
GP-PRO/PBIII for Windows GPW-PB01W-V60
Data Transfer Cable
GPW-CB02
RS-232C Adapter
GP2000H-AP232
RS-422 Adapter
GP2000H-AP422
RS-232C Cable with D-sub, 3m GP2000H-D232-3M
RS-232C Cable with D-sub, 10m GP2000H-D232-10M
RS-422 Cable with D-sub, 3m GP2000H-D422-3M
RS-422 Cable with D-sub, 10m GP2000H-D422-10M
RS-232C Open-end Cable, 3m GP2000H-C232-3M
RS-232C Open-end Cable, 10m GP2000H-C232-10M
RS-422 Open-end Cable, 3m GP2000H-C422-3M
RS-422 Open-end Cable, 10m GP2000H-C422-10M
RS-232C Cable
GP410-IS00-O
Caution: Before operating any of these products, please be sure to read all related manuals thoroughly.
This unit's Enable and Emergency switches are not designed to provide protection of worker safety.
Please design separate methods to protect worker safety.
For printing purposes, the colors in this catalog may differ from those of the actual unit.
Actual user screens may differ from the screens shown here.
LCD screens may exhibit minute grid-points (light and dark) on the Display Panel surface. Also, "Contouring" - where some parts
of the screen are brighter than others, producing a wavelike pattern - may occasionally occur. Both are normal for an LCD
display and are not defects.
All product names used in this catalog are the registered trademarks of their respective companies.
All information contained in this catalog is subject to change without notice.
Model No.
Item Name
Mitsubishi PLC A Series
GP430-IP10-O*
Programming Port I/F Cable
Mitsubishi PLC FX Series
GP430-IP11-O*
Programming Port I/F Cable
CF Card (16MB)
GP077-CF20
CF Card (32MB)
GP077-CF30
CF Card PCMCIA Adapter
GP077-CFAD10
Screen Protection Sheet
GP2000H-DF10
(5 sheets / set)
Wall Mount Adapter
CA1-WMALRG-01
Neck Strap
GP2000H-STRAP11
Emergency Switch Guard GP2000H-EMGD11
CF Card I/F Guard
GP2000H-CFGD11
Hand Strap
H70-HS00-MS
* Connects directly to the Programing Port I/F of Mitsubishi PLC.
www.pro-face.com
Worldwide Contacts:
General Info: info@pro-face.com
Technical Info: support@digital.co.jp
2002 Digital Electronics Corporation All Rights Reserved.
Global Head Office
Taiwan
France
Scandinavia
Digital Electronics Corporation
8-2-52 Nanko-higashi
Suminoe-ku, Osaka 559-0031
JAPAN
Tel: +81-(0)6-6613-3116
Fax: +81-(0)6-6613-5888
http://www.pro-face.com
info@pro-face.com
Pro-face Taiwan Co., Ltd.
2F, No. 69 Fushing North Road
Taipei 105
TAIWAN R.O.C.
Tel: +886-(0)2-2772-5208
Fax: +886-(0)2-8773-7892
http://www.proface.com.tw
proface@proface.com.tw
Pro-face France S.A.S.
Le Vinci
1, rue Henri Becquerel
77290 Mitry-Mory
FRANCE
Tel: +33 (0)1 60 21 22 91
Fax: +33 (0)1 60 21 22 92
http://www.proface.com
info@proface.fr
Pro-face Scandinavia ApS
Copenhagen Europe Center
Vesterbrogade 149
1620 Copenhagen V
DENMARK
Tel: +45-33 27 06 16
Fax: +45-33 27 05 06
http://www.proface.com
scandinavia@proface.com
China
North/South American Head Office
Germany
United Kingdom
Pro-face Deutschland GmbH
Albertus-Magnus-Straβe 11
42719 Solingen
GERMANY
Tel: +49 (0)212 258 260
Fax: +49 (0)212 258 2640
http://www.pro-face.de
sales@pro-face.de
Pro-face UK, Ltd.
The Venture Centre,
The Science Park,
Coventry CV4 7EZ
ENGLAND
Tel: +44 (0)2476 692363
Fax: +44 (0)2476 692365
http://www.profaceuk.com
info@profaceuk.com
Pro-face China Representative Office
3606C, Southern Security Tower
No. 580, Nanjing Road West
Shanghai 200041
P. R. CHINA
Tel: +86-(0)21-5234-1646
Fax: +86-(0)21-5234-1649
http://www.proface.com.cn
proface@proface.com.cn
South Korea
Pro-face Korea Co., Ltd.
Room #701, Jaeyoung Building
678-10 Deungchon-dong
Kangseo-ku, Seoul 157-030
SOUTH KOREA
Tel: +82-(0)2-658-6835
Fax: +82-(0)2-3664-6839
http://www.proface.co.kr
proface@proface.co.kr
Pro-face America, Inc. / Xycom
750 North Maple Road
Saline, MI 48176
U.S.A.
Tel: +1-734-429-4971
Fax: +1-734-429-1010
http://www.profaceamerica.com
sales.info@profaceamerica.com
European Head Office
Pro-face Europe B.V.
Amsteldijk 166
1079 LH Amsterdam
THE NETHERLANDS
Tel: +31 (0)20 6464 134
Fax: +31 (0)20 6464 358
http://www.proface.com
info@proface.com
Italy
Pro-face Italia S.p.A.
Via Carcano 44
20033 Desio (MI)
ITALY
Tel: +39 0362 33 71 63
Fax: +39 0362 30 77 25
http://www.proface.com
info.italia@proface.com
NP020405-GP2000H-01E13
Download PDF
