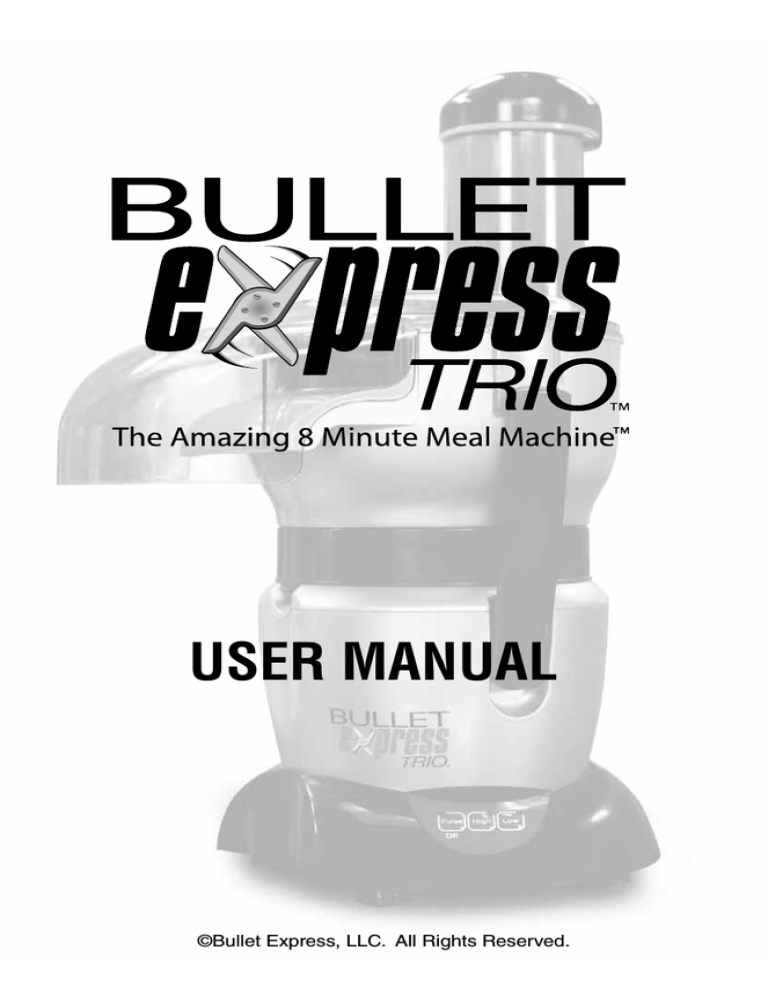

USER MANUAL
©Bullet Express, LLC. All Rights Reserved.
IMPORTANT SAFEGUARDS AND
CAUTIONARY INFORMATION
•Keep hands and utensils out of feed tubes and away from the cutting blades while
Bullet Express Trio is running to reduce risk of sever injury to person or damage
to the Bullet Express Trio. To use a scraper, turn the Bullet Express Trio off and
unlock the safety clamps.
FOR YOUR SAFETY, CAREFULLY
•To avoid injury from moving parts or food debris when operating Bullet Express
Trio, keep face and fingers out of and away from the Meal Maker discharge outlet.
READ ALL INSTRUCTIONS
BEFORE OPERATING BULLET EXPRESS TRIO
When using electrical appliances, basic safety precautions should always be followed
including the following:
• This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified persons in order to avoid a hazard.
• Make sure the motor has completely stopped before removing covers.
•Always put ingredients in the Meal Mixer Bowl first, before operation. Never turn
on when bowl is empty.
•Always make sure Juicer Cover is clamped securely in place and Juicer Spout is
securely inserted on to the Juicer Bowl before operating the juicer. Do not unfasten
clamps while the juicer is in operation. Turn off juicer prior to removing Juice Pulp
Container for emptying.
•To avoid clogs in the Juicer Feed Tube, foods should be cut to sizes no larger than
2 inches in diameter. If food does become lodged in the feed tube, use Feed Tube
Pusher only to push the lodged particles down. If this does not unclog the tube,
turn off the Bullet Express Trio and disassemble the juicer to remove the remaining
lodged food.
• Care is needed when handling cutting blades, especially when removing from the
bowl and during cleaning.
• Do not use Bullet Express Trio if the rotating Juicer Filter is damaged.
•Caution! To avoid risk of electrical shock, never immerse the cord, plug or Motor
Base in water or other liquids.
• Do not use the Bullet Express Trio outdoors in the rain or in wet conditions.
•Do not use attachments that are not recommended or sold by the manufacturer as
doing so may cause damage, fire, electric shock or injury and will void the warranty.
• Always use your Bullet Express Trio on a clean, flat, hard, dry surface.
• Never leave the Bullet Express Trio unattended while it is in use.
• Close supervision is necessary when any appliance is used by or near children.
• Do not pull, twist or mistreat the power cord.
• Blades and discs are sharp. Handle carefully.
• Do not allow the power cord to hang over the side of the counter or table.
•Flashing red light indicates Bullet Express Trio is ready to operate. Avoid any
contact with blades or moveable parts.
• Do not allow the power cord to touch hot surfaces, including stove.
•Unplug the Bullet Express Trio when it is not in use, before putting on or taking off
parts and before cleaning or assembling. When not in use, do not store blades or
discs on the motor shaft.
•Make sure that the Safety Clamps securely lock the cover in place and that the Feed
Tube Pusher is properly inserted, before operating the Bullet Express Trio.
• Do not attempt to defeat or override the cover interlock Safety Clamp mechanism.
•Avoid contact with cutting blades, discs, and moving parts of the Bullet Express
Trio. Never push food down into the feed tubes by hand. Always use the proper
Feed Tube Pusher or injury can occur.
• Do not place any of the Bullet Express Trio containers or bowls in a microwave.
•Never keep the blades running for more than three (3) minutes at a time, as it
can cause permanent damage to the motor. If the motor stops working, unplug
the Motor Base and let it cool for up to 1 hour before attempting to use it again.
Your Bullet Express Trio has an internal thermal breaker that shuts off the unit
when it overheats. Letting the thermal breaker cool down will allow the
Motor Base to reset.
SAVE THESE INSTRUCTIONS
FOR HOUSEHOLD USE ONLY
FEATURES OF THE BULLET EXPRESS TRIO
•Multi-purpose food processing functions of juicing, mixing, chopping, blending,
slicing, shredding and mincing.
•Two-way safety system: Your Bullet Express Trio will not operate unless the
Safety Clamps are engaged and the work bowls and covers are properly locked on
the Motor Base.
•A powerful 700W motor that will chop, blend, shred, slice and mix in a
matter of seconds.
• A detachable system for multi-functions and easy cleaning.
•The extra-wide feed tubes are perfect for juicing and slicing whole fruits
and vegetables.
• State-of-the-Art operating and safety design.
TABLE OF CONTENTS
What You Get . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 2
Motor Base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Meal Maker Express Assembly Components . . . . . . . . . . . . . . . . . . . 1
Meal Mixer Express Assembly Components . . . . . . . . . . . . . . . . . . . . 2
Juicer Express Assembly Components . . . . . . . . . . . . . . . . . . . . . . . . 2
Assembling the Bullet Express Trio . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 6
Meal Maker Express Assembly Instructions . . . . . . . . . . . . . . . . . . . . 3
How to Use the Slicer and Shredder Disc . . . . . . . . . . . . . . . . . . . . . . 4
Meal Mixer Express Assembly Instructions . . . . . . . . . . . . . . . . . . . . 5
Juicer Express Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . 6
Operating the Bullet Express Trio Control Panel . . . . . . . . . . . . . . . . . . 7
Using the Pulse Technique . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Meal Mixer
Attachment
Bullet Express Trio Capacities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Meal Maker
Attachment
How to Maintain Your Bullet Express Trio . . . . . . . . . . . . . . . . . . . . . . . 9
Bullet Express Trio Electrical Specifications . . . . . . . . . . . . . . . . . . . . 10
Juicer
Attachment
WHAT YOU GET
1 Your Bullet Express Trio has three main component assemblies that perform the
multiple functions of the machine. The assemblies are the Meal Maker, Meal
Mixer and Juicer. The Motor Base (see below) is the common mechanism that
powers the other components. The Safety Clamps on the Motor Base hold the
other components safely in place during operation. Note: The unit will not operate
unless the Safety Clamps are properly engaged and securely locked on to a work
bowl cover.
MOTOR BASE:
Motor Base
(Common to All Assemblies)
2 The Meal Maker Express Assembly is used for slicing and shredding a variety of
vegetables, fruits, cheeses, etc. (see components below):
MEAL MAKER EXPRESS ASSEMBLY Components:
Slicer/Shredder
Food Pusher
Slicer/Shredder Disc
(Slicer Blade UP
for SLICING)
Slicer/Shredder
Cover
Slicer/Shredder Disc
(Slicer Blade DOWN
for SHREDDING)
Slicer/Shredder
Bowl
Slicer/Shredder Disc
Outlet Disc
Slicer/Shredder
Gear Body
Meal Maker Express
Complete
(Bowl Not Included)
1
WHAT YOU GET
ASSEMBLING THE BULLET EXPRESS TRIO
3 The Meal Mixer Express Assembly is used for a variety of functions including ice
MEAL MAKER EXPRESS
ASSEMBLY INSTRUCTIONS
crushing, mixing, blending, chopping, mincing, etc. (see components below):
MEAL MIXER EXPRESS ASSEMBLY Components:
Feeder Hole Plug
Chopper/Mixer Blade
(Split-Level)
Meal Mixer Cover
Flat Blade
A. P
ut the Slicer/Shred- der Gear Body on the
Motor Body and then
place the Slicer/Shredder Bowl on the Slicer/
Shredder Gear Body
shaft.
D. Place your own bowl
or container under the
Slicer/Shredder Cover
outlet.
Meal Mixer Bowl
Blade Remover
B. Put the Outlet Disc on the Slicer/Shredder shaft and
then place the Slicer/Shredder disc on the shaft in the
desired direction (Slicer
Blade UP for Slicing, DOWN
for Shredding). Use caution
when handling sharp discs.
C. Place the Slicer/
Shredder Cover
over the Bowl and
attach the Safety
Clamps.
Meal Mixer Express
Assembly Complete
4 The Juicer Express Assembly can be used for juicing all types of fruits and
vegetables (see components below):
JUICER EXPRESS ASSEMBLY Components:
Juicer Feed
Tube Pusher
Juicer Bowl w/detachable Spout
2
Juicer Cover
Juicer Cleaning Brush
Juicer Filter
E. Push the “Low” ON
button first and then put
in your vegetables/fruits
using the Small Food
Pusher.
Juicer Pulp
Container
Juicer Express Assembly Complete
NOTE: To disassemble, just reverse the procedure above.
3
HOW TO USE THE SLICER/SHREDDER DISC
MEAL MIXER EXPRESS
ASSEMBLY INSTRUCTIONS
Use the Slicer/Shredder Disc in the manner required for the desired results.
Slicing
For SLICING, the Slicer Blade should be UP.
Pulse
Blade Direction (UP)
High
Off
Slicing
Results
A. Insert desired blade onto the spindle
axle of the Meal Mixer Bowl. Use
caution while handling sharp blades.
NOTE: Always put ingredients in first
before using Mixer Attachments.
Never turn on when bowl is empty.
ush the HI, LOW or PULSE button (as
C. Put the Meal Mixer Bowl on the Motor D. P
per your Recipe Manual) to operate.
Base and place the Motor Base Safety
Clamps over the side clamps of the Bowl
Cover. Lock the Safety Clamps with both
hands until you hear a click.
E. HOW TO USE THE BLADE REMOVER:
CAUTION: When a blade cannot be removed by grasping the shaft with your
fingers, please use the Blade Remover as shown. BLADES ARE VERY SHARP USE
CAUTION WHEN REMOVING THE BLADE. Insert the shorter bent lifting edge under the
center part of the blade and press the handle back away from the blade to release the
blade from the shaft.
Low
B. Put ingredients into the Meal
Mixer Bowl and place the Cover and
Feeder Hole Plug on the Bowl.
Button
Shredding
For SHREDDING, the Slicer Blade should be DOWN (see below).
Pulse
Blade Direction (DOWN)
4
OffResults
Shredding
High
Low
Button
NOTE: To disassemble, just reverse the procedure above.
5
JUICER EXPRESS
ASSEMBLY INSTRUCTIONS
A. Put Juicer Bowl on Motor Body.
Insert Juicing Filter firmly into Bowl.
Be sure the Juicer Spout is firmly
inserted into the bowl.
OPERATING THE BULLET EXPRESS TRIO
CONTROL PANEL
B. Put Juicer Cover on Juicer Bowl
and lock Safety Clamps firmly with
both hands until you hear a click.
Pulse
High
Low
Off
1 JUICING FUNCTION
• Use Juicer Express Assembly
• Operate on LOW
• Make natural vegetable and fruit juices
• Make purées for soups, sauces, tofu, etc
2
SLICING FUNCTION
• Use Meal Maker Express Assembly
• Use Slicer Disc
• Operate on LOW
• Slice all types of vegetables
C. Put Pulp Container securely under
Juicer Cover outlet.
D. Push the “LOW” ON
button first and then
put in your vegetables/fruits using the
Feed Tube Pusher.
7 CRUSHING FUNCTION
• Use Meal Mixer Express Assembly
• Use Flat Blade
• Operate on HIGH
• Finely crush dried beans, peas, etc.
8 DOUGH MIXING FUNCTION
• Use Meal Mixer Express Assembly
• Use Flat Blade
• Operate on HIGH or LOW
(As pertains to recipe book)
• Mixing Dough
3 SHREDDING FUNCTION
• Use Meal Maker Express Assembly
• Use Shredder Disc
• Operate on LOW
• Shred vegetables, cheese, etc.
4 SHAVED ICE FUNCTION
• Use Meal Maker Express Assembly
• Use Slicer Disc
• Operate on HIGH
• Shave Ice
5 CHOPPING FUNCTION
• Use Meal Mixer Express Assembly
• Use Chopper/Mixer (Split Level) Blade
• Operate with PULSE button
•Chop Garlic, Onions, Peppers, Meat, Fish,
etc.
NOTE: To disassemble, just reverse the procedure above.
6
6 MIXING FUNCTION
• Use Meal Mixer Express Assembly
• Use Chopper/Mixer (Split Level) Blade
• Operate on HIGH or LOW
• Mix smoothies, cake batters, etc.
7
HOW TO MAINTAIN YOUR
BULLET EXPRESS TRIO
USING THE PULSE TECHNIQUE
PULSE TECHNIQUE
The Bullet Express Trio motor is so
powerful, if you aren’t careful you can
quickly over-process food and turn it
into mush. This is where the Pulse
Technique is key.
A. Wash with warm water and neutral
detergent and wipe with a dish towel. Do
not use an abrasive scrubber. Clean the
Juicer Filter and Removable Spout with
the Cleaning Brush supplied. CAUTION: Be
careful when you clean blades and discs
which are sharp and can cut.
B. Remove the detachable Juicer Spout for
easy cleaning.
C. Clean Motor Base and Meal Maker Gear
Body with a damp cloth and mild detergent.
D. When washing your Bullet Express
Trio do not use any chemical cleaners
as they may discolor or ruin the appearance of your machine.
To Pulse, simply press the Pulse
button and immediately release.
Let the motor completely stop and
Pulse again until desired results
have been achieved.
Pulse
High
Low
Off
BULLET EXPRESS TRIO CAPACITIES
Recommended capacities for various foods and functions
Task
8
Food/
Maximum
Ingredient Blade Bowl Type Time
Directions
Mincing
Raw Beef
Chopper/ Mixing
Mixer
Bowl
15 Seconds Cut maximum of 400g into 2.5cm cubes.
Chopping
Onions
Chopper/ Mixing
Mixer
Bowl
15 Seconds Chop maximum of 500g to ensure evenly sized
pieces.
Grinding
Coffee
Beans
Flat Blade Mixing
Bowl
15 Seconds Chop maximum of 300g to ensure evenly sized
pieces.
Grinding
Dry
Soybeans
Flat Blade Mixing
Bowl
15 Seconds Chop maximum of 300g to ensure evenly sized
pieces.
Chopping
Apples
Chopper/ Mixing
Mixer
Bowl
15 Seconds Cut maximum 500g into 2.5cm cubes before
chopping.
Crushing
Ice
Flat Blade Mixing
Bowl
15 Seconds Crush up to 500g of ice cubes using the pulse
button.
Dough
Mixing
Flour &
Water
Flat Blade Mixing
Bowl
15 Seconds Mix up to 400mls of water into a maximum of
340g of flour to make dough.
Slicing/
Shredding
Carrots
Slicer/Shred- 3 Minutes
Slicer/
Shredder der Bowl
Slice/Shred up to a maximum of 2.5kgs.
CAUTION: Do not immerse the
Motor Body or Slicer/Shredder Gear Body in water. Water in
the motor can cause malfunctions or electrical shock.
Periodically check plug and cord for damage.
9
BULLET EXPRESS TRIO ELECTRICAL SPECIFICATIONS
10
MODEL:
Bullet Express Trio
MODEL NUMBER :
BE-110
VOLTAGE/HERZ:
AC220V~240V 50Hz/60Hz
RATING:
700 WATTS Max
MEAL MIXER BOWL CAPACITY:
1.18 Litres
MAXIMUM CONTINUOUS USE:
3 Minutes
NOTES
11
NOTES
12
NOTES
13
NOTES
14
Download PDF
