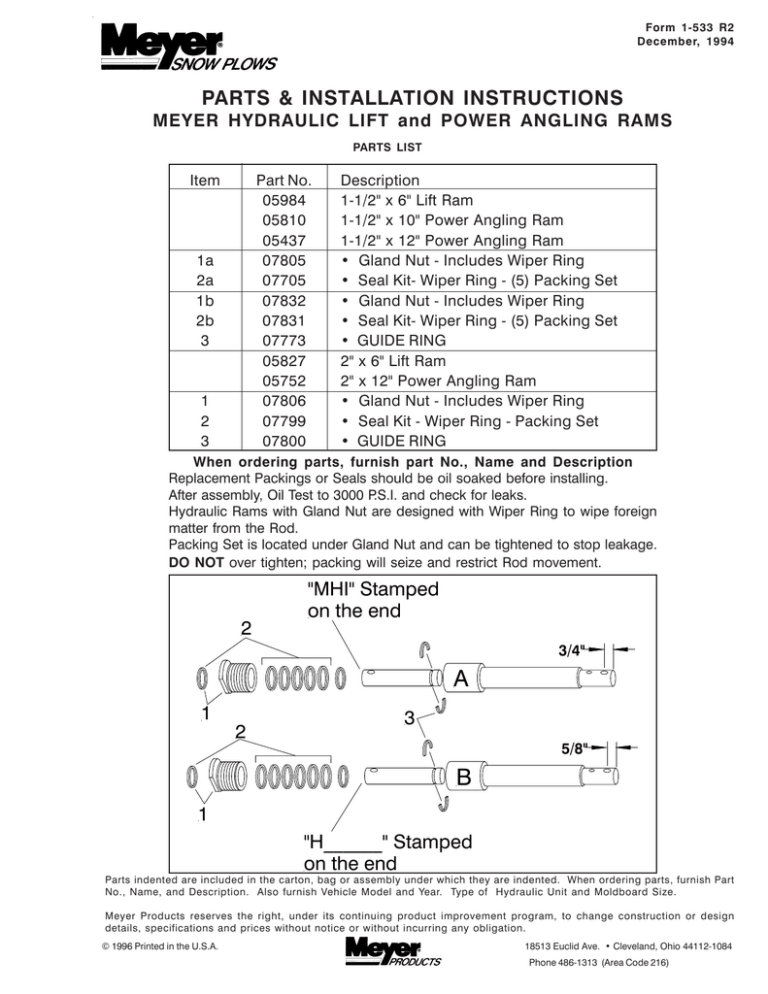

Form 1-533 R2
December, 1994
PARTS & INSTALLATION INSTRUCTIONS
MEYER HYDRAULIC LIFT and POWER ANGLING RAMS
PARTS LIST
Item
Part No.
05984
05810
05437
07805
07705
07832
07831
07773
05827
05752
07806
07799
07800
1a
2a
1b
2b
3
1
2
3
Description
1-1/2" x 6" Lift Ram
1-1/2" x 10" Power Angling Ram
1-1/2" x 12" Power Angling Ram
• Gland Nut - Includes Wiper Ring
• Seal Kit- Wiper Ring - (5) Packing Set
• Gland Nut - Includes Wiper Ring
• Seal Kit- Wiper Ring - (5) Packing Set
• GUIDE RING
2" x 6" Lift Ram
2" x 12" Power Angling Ram
• Gland Nut - Includes Wiper Ring
• Seal Kit - Wiper Ring - Packing Set
• GUIDE RING
When ordering parts, furnish part No., Name and Description
Replacement Packings or Seals should be oil soaked before installing.
After assembly, Oil Test to 3000 P.S.I. and check for leaks.
Hydraulic Rams with Gland Nut are designed with Wiper Ring to wipe foreign
matter from the Rod.
Packing Set is located under Gland Nut and can be tightened to stop leakage.
DO NOT over tighten; packing will seize and restrict Rod movement.
2
"MHI" Stamped
on the end
3/4"
A
1
2
3
5/8"
B
1
"H______" Stamped
on the end
Parts indented are included in the carton, bag or assembly under which they are indented. When ordering parts, furnish Part
No., Name, and Description. Also furnish Vehicle Model and Year. Type of Hydraulic Unit and Moldboard Size.
Meyer Products reserves the right, under its continuing product improvement program, to change construction or design
details, specifications and prices without notice or without incurring any obligation.
© 1996 Printed in the U.S.A.
18513 Euclid Ave. • Cleveland, Ohio 44112-1084
Phone 486-1313 (Area Code 216)
