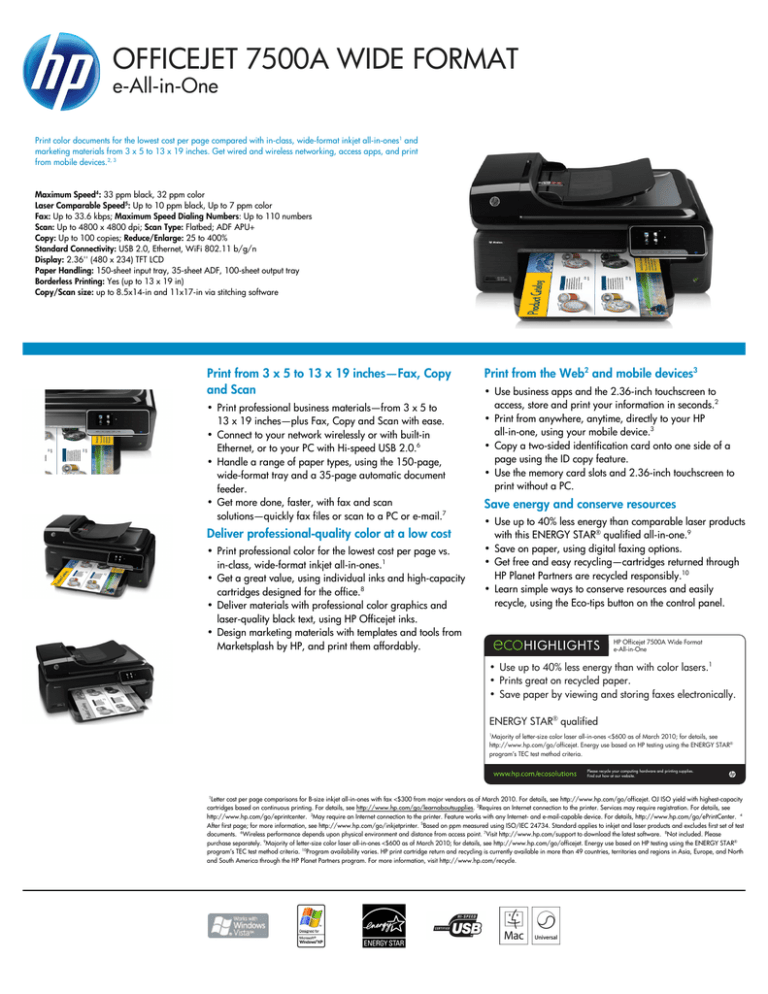

OFFICEJET 7500A WIDE FORMAT
e-All-in-One
Print color documents for the lowest cost per page compared with in-class, wide-format inkjet all-in-ones1 and
marketing materials from 3 x 5 to 13 x 19 inches. Get wired and wireless networking, access apps, and print
from mobile devices.2, 3
Maximum Speed4: 33 ppm black, 32 ppm color
Laser Comparable Speed5: Up to 10 ppm black, Up to 7 ppm color
Fax: Up to 33.6 kbps; Maximum Speed Dialing Numbers: Up to 110 numbers
Scan: Up to 4800 x 4800 dpi; Scan Type: Flatbed; ADF APU+
Copy: Up to 100 copies; Reduce/Enlarge: 25 to 400%
Standard Connectivity: USB 2.0, Ethernet, WiFi 802.11 b/g/n
Display: 2.36'' (480 x 234) TFT LCD
Paper Handling: 150-sheet input tray, 35-sheet ADF, 100-sheet output tray
Borderless Printing: Yes (up to 13 x 19 in)
Copy/Scan size: up to 8.5x14-in and 11x17-in via stitching software
Print from 3 x 5 to 13 x 19 inches—Fax, Copy
and Scan
• Print professional business materials—from 3 x 5 to
13 x 19 inches—plus Fax, Copy and Scan with ease.
• Connect to your network wirelessly or with built-in
Ethernet, or to your PC with Hi-speed USB 2.0.6
• Handle a range of paper types, using the 150-page,
wide-format tray and a 35-page automatic document
feeder.
• Get more done, faster, with fax and scan
solutions—quickly fax files or scan to a PC or e-mail.7
Deliver professional-quality color at a low cost
• Print professional color for the lowest cost per page vs.
in-class, wide-format inkjet all-in-ones.1
• Get a great value, using individual inks and high-capacity
cartridges designed for the office.8
• Deliver materials with professional color graphics and
laser-quality black text, using HP Officejet inks.
• Design marketing materials with templates and tools from
Marketsplash by HP, and print them affordably.
Print from the Web2 and mobile devices3
• Use business apps and the 2.36-inch touchscreen to
access, store and print your information in seconds.2
• Print from anywhere, anytime, directly to your HP
all-in-one, using your mobile device.3
• Copy a two-sided identification card onto one side of a
page using the ID copy feature.
• Use the memory card slots and 2.36-inch touchscreen to
print without a PC.
Save energy and conserve resources
• Use up to 40% less energy than comparable laser products
with this ENERGY STAR® qualified all-in-one.9
• Save on paper, using digital faxing options.
• Get free and easy recycling—cartridges returned through
HP Planet Partners are recycled responsibly.10
• Learn simple ways to conserve resources and easily
recycle, using the Eco-tips button on the control panel.
HP Officejet 7500A Wide Format
e-All-in-One
• Use up to 40% less energy than with color lasers.1
• Prints great on recycled paper.
• Save paper by viewing and storing faxes electronically.
ENERGY STAR® qualified
1
Majority of letter-size color laser all-in-ones <$600 as of March 2010; for details, see
http://www.hp.com/go/officejet. Energy use based on HP testing using the ENERGY STAR®
program’s TEC test method criteria.
Please recycle your computing hardware and printing supplies.
Find out how at our website.
1
Letter cost per page comparisons for B-size inkjet all-in-ones with fax <$300 from major vendors as of March 2010. For details, see http://www.hp.com/go/officejet. OJ ISO yield with highest-capacity
cartridges based on continuous printing. For details, see http://www.hp.com/go/learnaboutsupplies. 2Requires an Internet connection to the printer. Services may require registration. For details, see
http://www.hp.com/go/eprintcenter. 3May require an Internet connection to the printer. Feature works with any Internet- and e-mail-capable device. For details, http://www.hp.com/go/ePrintCenter. 4
After first page; for more information, see http://www.hp.com/go/inkjetprinter. 5Based on ppm measured using ISO/IEC 24734. Standard applies to inkjet and laser products and excludes first set of test
documents. 6Wireless performance depends upon physical environment and distance from access point. 7Visit http://www.hp.com/support to download the latest software. 8Not included. Please
purchase separately. 9Majority of letter-size color laser all-in-ones <$600 as of March 2010; for details, see http://www.hp.com/go/officejet. Energy use based on HP testing using the ENERGY STAR®
program’s TEC test method criteria. 10Program availability varies. HP print cartridge return and recycling is currently available in more than 49 countries, territories and regions in Asia, Europe, and North
and South America through the HP Planet Partners program. For more information, visit http://www.hp.com/recycle.
OFFICEJET 7500A WIDE FORMAT
e-All-in-One
TECHNICAL SPECIFICATIONS
AIO FUNCTIONS
Print, fax, scan, copy, web
PRINT TECHNOLOGY
HP Thermal Inkjet
PRINT SPEED1
Black: Up to 33 ppm; Color: Up to 32 ppm; 4 x 6 Photo: As fast as 17 sec;
Laser Comparable Speeds: Up to 10 ppm black, Up to 7 ppm color
PRINT RESOLUTION
Black: Up to 600 rendered dpi black when printing from a computer;
Color: Up to 4800 x 1200 optimized dpi color (when printing from a computer on
selected HP photo papers and 1200 input dpi)
STANDARD PRINTER
LANGUAGES
HP PCL 3 GUI
BORDERLESS PRINTING
Yes (up to 13 x 19 in)
SURESUPPLY SUPPORTED
Yes
DIRECT PRINT SUPPORTED
Yes (memory cards)
COMPATIBLE INK TYPES
Dye-based (color) , pigment-based (black)
PAPER HANDLING
DUTY CYCLE
Up to 7,000 pages
DUPLEX PRINT OPTIONS
None
PROCESSOR SPEED
192 MHz
SOFTWARE INCLUDED
ArcSoft® Scan-n-Stitch™ Deluxe v 1.1.1.36
OPERATING SYSTEM
(COMPATIBLE)
Microsoft® Windows® 7, Windows Vista®, Windows XP® (SP2), Mac OS X v 10.5, v
10.6, Linux (For more information, see
http://hplipopensource.com/hplip-web/index.html)
MINIMUM SYSTEM
REQUIREMENTS
PC: Microsoft® Windows® 7: 1 GHz 32-bit (x86) or 64-bit (x64) processor, 1 GB
(32-bit) or 2 GB (64-bit) RAM, 1.5 GB hard disk space, CD-ROM/DVD drive or
Internet connection, USB port; Windows Vista®: 800 MHz 32-bit (x86) or 64-bit (x64)
processor, 512 MB RAM, 2.0 GB hard disk space, CD-ROM/DVD drive or Internet
connection, USB port; Windows® XP (32-bit) (SP2): Intel Pentium II, Celeron or
compatible processor, 233 MHz or higher, 128 MB RAM, 750 MB hard disk space,
CD-ROM/DVD drive or Internet connection, USB port;
Mac: Mac OS X v 10.5.8, v 10.6; PowerPC G4, G5, or Intel Core processor; 300 MB
free hard disk space
OPERATING
ENVIRONMENT
Storage Humidity: 35 to 90% RH;
Storage Temperature Range: -40 to 140º F (-40 to 60º C);
POWER5
Power Supply Type: External universal power supply;
Power Supply Required: Input voltage 100 to 240 VAC (+/- 10%), 50/60 Hz (+/- 3
Hz);
Power Consumption: 16 watts active, 6 watts standby, 4.1 watts sleep, 0.75 watts
manual-off
ACOUSTICS
Acoustic Power Emissions: 7.0 B(A) (Draft printing);
Acoustic Pressure Emissions: 56 dB(A) (Draft printing)
PRODUCT
DIMENSIONS/WEIGHT
W x D x H: 23.86 x 16.77 x 11.54 in (606 x 426 x 293 mm);
Weight: 30.8 lb (14 kg)
WHAT’S IN THE BOX?
HP Officejet 7500A Wide Format e-All-in-One Printer, Power cord, Power
supply,User Guide, Setup Poster, Ink printhead, HP 920 Black Officejet Ink Cartridge
(~ 420 pages), HP 920 Cyan Officejet Ink Cartridge (~ 300 pages), HP 920 Magenta
Officejet Ink Cartridge (~ 300 pages), HP 920 Yellow Officejet Ink Cartridge
(~ 300 pages), Printer driver CD, Scan-Stitch CD, Phone cord
WARRANTY FEATURES
2-year Next Business Day Exchange w/Enhanced Phone Support (UQ211E); 3-year
Next Business Day Exchange w/Enhanced Phone Support (UQ212E); 4-year Next
Business Day Exchange w/Enhanced Phone Support (UQ213E); HP Basic Installation
Service for one consumer printer with wireless capability (US284E); HP Premium
Installation Service with wireless network setup for up to three PCs and/or printers
(US285E)
STANDARD CONNECTIVITY 1 USB (2.0), 1 Ethernet, 1 Wireless 802.11b/g/n, 2 memory card slots, 1 RJ-11 fax
WIRELESS CAPABILITY
Yes, built-in WiFi 802.11 b/g/n
FAX FEATURES
Fax Forwarding Supported: Yes; Fax Polling Supported: Yes; Fax Phone TAM
Interface Supported Yes; PC Interface Supported: Yes, PC fax send and archive;
Remote Retrieval Capability Supported: No; Junk Barrier Supported: Yes; Maximum
Broadcast Locations: 48; Distinctive Ring Detection Supported: Yes; Delayed Sending
Supported: Yes (black only); Auto Redialing Supported: Yes; Auto Fax Reduction
Supported: Yes; Fax Memory: Up to 100 pages; Maximum Speed Dials: Up to 110
numbers
FAX PHONE FEATURES
Color fax, auto reduction, auto redial, speed dial, group speed dial, junk barrier, poll
to receive, forwarding (black only), distinctive ring, delayed send (black only), scan
and fax, fax phone TAM interface, PC fax send and receive
FAX AND MODEM
DESCRIPTION
Up to 33.6 kbps
FAX SPEED
3 sec per page
FAX RESOLUTION2
Black: 203 x 98 dpi; Color: 200 x 200 dpi; Photo: 203 x 98 dpi
FAXING OPTIONS (ADF)
Single-sided
150-sheet input tray, 35-sheet ADF, 100-sheet output tray;
Input Capacity: Up to 150 sheets letter/legal, Up to 55 sheets transparencies,
Up to 40 sheets 4 x 6 photos, Up to 40 cards, Up to 15 envelopes
Output Capacity: Up to 100 sheets letter/legal, Up to 10 sheets labels,
Up to 55 sheets transparencies, Up to 40 cards, Up to 10 envelopes
SCAN TECHNOLOGY/TYPE CIS; Flatbed, ADF APU+
SCAN INPUT MODES
Scan: SW driver (Win/Mac OS), front panel, TWAIN, WIA based utility;
Copy: SW driver (Win/Mac OS), front panel, TWAIN, WIA based utility;
SCAN SPEED
ADF (letter): Up to 2.2 ppm; OCR Letter: < 20 sec
SCAN SIZE
8.5 x 14 in (ADF & Flatbed)
SCAN RESOLUTION3
Optical: Up to 4800 dpi; Hardware: Up to 4800 x 4800 dpi;
Enhanced: Up to 19,200 dpi
TWAIN VERSION
Version 1.9
ACCESSORIES
Hi-Speed USB cable Q6264A
COPY SPEED4
Black: Up to 33 cpm; Color: Up to 32 cpm; Laser Comparible Speeds: Up to 6 cpm
black, Up to 5 ppm color
REPLACEMENT INK
CARTRIDGES6
COPY RESOLUTION
Black Text/Graphics Up to 1200 optimized dpi from 600 input dpi;
Color Graphics: Up to 4800 x 1200 optimized dpi from 1200 input dpi on HP Photo
Papers
COPIER SETTINGS
A: Media size include Legal, A3 /11 x 17'' Stitch option
COPIER RESIZE
25 to 400%
HP 920 Black Officejet Ink Cartridge (~ 420 pages)
HP 920 Cyan Officejet Ink Cartridge (~ 300 pages)
HP 920 Magenta Officejet Ink Cartridge (~ 300 pages)
HP 920 Yellow Officejet Ink Cartridge (~ 300 pages)
HP 920XL Black Officejet Ink Cartridge (~ 1200 pages)
HP 920XL Cyan Officejet Ink Cartridge (~ 700 pages)
HP 920XL Magenta Officejet Ink Cartridge (~ 700 pages)
HP 920XL Yellow Officejet Ink Cartridge (~ 700 pages)
NUMBER OF COPIES
Up to 100 copies
SERVICE AND SUPPORT
DISPLAY
2.36" (480 x 234) TFT LCD
DIGITAL SENDING
STANDARD FEATURES
Scan to PC, Scan to Card
2-year Next Business Day Exchange w/Enhanced Phone Support UQ211E
3-year Next Business Day Exchange w/Enhanced Phone Support UQ212E
4-year Next Business Day Exchange w/Enhanced Phone Support UQ213E
HP Basic Installation Service for one consumer printer with wireless capability US284E
HP Premium Installation Service with wireless network setup for up to three PCs and/or
printers US285E
MEMORY
Standard/Maximum: 128 MB
MEDIA TYPES
Paper (plain, inkjet, photo), envelopes, brochure paper, transparencies, labels, cards
(index, greeting)
MEDIA SIZES SUPPORTED
Letter (8.5 x 11 in), legal (8.5 x 14 in), tabloid (11 x 17 in), executive (7.25 x 10.5
in), 4 x 6 in, 5 x 7 in, 8 x 10 in, 11 x 14 in, 12 x 12 in, 13 x 19 in (Super B);
Custom Media Sizes: 3 x 5 to 13 x 44 in
MEDIA WEIGHT
SUPPORTED
16 to 28 lb bond (plain media), 20 to 24 lb bond (envelope), up to 110 lb index
(cards), up to 75 lb bond (photo and brochure);
Recommended Media Weight: 20 to 24 lb
AUTOMATIC DOCUMENT
FEEDER CAPACITY
Standard, 35 sheets
ADDITIONAL INFORMATION
COUNTRY OF ORIGIN
Product of Malaysia
TARIFF NUMBERS
8443321040
PALLET INFORMATION
Dimensions: 48 x 40 x 100 in
Total Weight: 760 lb
Layers: 6
Quantity per pallet: 18
FOR MORE INFORMATION VISIT OUR WEBSITE AT WWW.HP.COM
HP OFFICEJET 7500A WIDE FORMAT e-All-in-One Product Number: C9309A
ENERGY STAR® qualified models; see: http://www.hp.com/go/energystar
1
After first page; see http://www.hp.com/go/inkjetprinter for details. 2Based on standard ITU-T test image #1 at standard resolution. More complicated pages or higher resolution will take longer and use more memory. 3The maximum dpi at which you can scan is limited by
available computer memory, disk space and other system factors. 4Copy speed may vary depending on the type of output. 5Power requirements are based on the country/region where the product is sold. Do not convert operating voltages or use with other voltages. Doing
so might cause damage that would not be covered under the HP product warranty. 6Yield varies considerably based on content of printed pages and other factors. See http://www.hp.com/go/learnaboutsupplies.
©2010 Hewlett-Packard Development Company, L.P. HP is a registered trademark of the Hewlett Packard Company. ENERGY STAR and the ENERGY STAR logo are registered U.S. marks. All other trademarks are the property of their respective owners. Microsoft and
Windows are registered trademarks of Microsoft Corporation. This listing of non HP products does not constitute an endorsement by Hewlett Packard Company. The information contained herein is subject to change without notice and is provides "as is" without warranty of
any kind. HP shall not be liable for technical or editorial errors or omissions contained herein. June 2010
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
