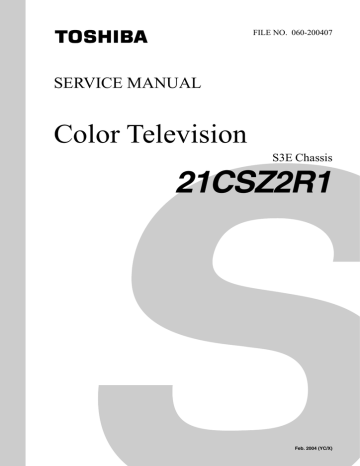

FILE NO. 060-200407

SERVICE MANUAL

Color Television

S3E Chassis

21CSZ2R1

Feb. 2004 (YC/X)

TABLE OF CONTENTS

CHAPTER 1 GENERAL ADJUSTMENTS

SAFETY INSTRUCTIONS ........................................................................................................................................ 3

SET-UP ADJUSTMENT ............................................................................................................................................ 4

SERVICE MODE ...................................................................................................................................................... 6

DESIGN MODE ........................................................................................................................................................ 9

ELECTRICAL ADJUSTMENTS .............................................................................................................................. 10

CIRCUIT CHECK .................................................................................................................................................... 12

CHAPTER 2 SPECIFIC INFORMATIONS

SETTING & ADJUSTING DATA .............................................................................................................................. 13

LOCATION OF CONTROLS ................................................................................................................................... 14

PROGRAMMING CHANNEL MEMORY ................................................................................................................. 15

CHASSIS AND CABINET REPLACEMENT PARTS LIST ...................................................................................... 17

PC BOARDS BOTTOM VIEW ................................................................................................................................. 23

TERMINAL VIEW OF TRANSISTORS ................................................................................................................... 26

CIRCUIT BLOCK DIAGRAM .................................................................................................................................. 28

SPECIFICATIONS .............................................................................................................................................. END

APPENDIX:

CIRCUIT DIAGRAM

– 2 –

CHAPTER 1 GENERAL ADJUSTMENTS

SAFETY INSTRUCTIONS

WARNING: BEFORE SERVICING THIS CHASSIS, READ THE “X-RAY RADIATION PRECAUTION”, “SAFETY PRECAU-

TION” AND “PRODUCT SAFETY NOTICE” INSTRUCTIONS BELOW.

X-RAY RADIATION PRECAUTION

1. Excessive high voltage can produce potentially hazardous X-RAY RADIATION. To avoid such hazards, the high voltage must not be above the specified limit. The nominal value of the high voltage of this receiver is (A) kV at zero beam current (minimum brightness) under a (C) V AC power source. The high voltage must not, under any circumstances, exceed (B) kV.

2. The only source of X-RAY RADIATION in this TV receiver is the picture tube. For continued X-RAY RADIATION protection, the replacement tube must be exactly the same type tube as specified in the parts list.

3. Some part in this receiver have special safety-related characteristics for X-RAY RADIATION protection. For continued safety, parts replacement should be undertaken only after referring to the PRODUCT SAFETY NOTICE below.

Refer to table-1 for high voltage (A), (B) & AC voltage (C).

(See SETTING & ADJUSTING DATA on page 13)

Each time a receiver requires servicing, the high voltage should be checked following the HIGH VOLTAGE CHECK procedure in this manual. It is recommended that the reading of the high voltage be recorded as a part of the service record. It is important to use an accurate and reliable high voltage meter.

SAFETY PRECAUTION

WARNING : Service should not be attempted by anyone unfamiliar with the necessary precautions on this receiver. The following are the necessary precautions to be observed before servicing this chassis.

1. An isolation transformer should be connected in the power line between the receiver and the AC line before any service is performed on the receiver.

2. Always discharge the picture tube anode to the CRT conductive coating before handling the picture tube. The picture tube is highly evacuated and if broken, glass fragments will be violently expelled. Use shatter proof goggles and keep picture tube away from the unprotected body while handling.

3. When replacing a chassis in the cabinet, always be certain that all the protective devices are put back in place, such as; nonmetallic control knobs, insulating covers, shields, isolation resistor-capacitor network etc.

PRODUCT SAFETY NOTICE

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These characteristics are often passed unnoticed by a visual inspection and the protection afforded by them cannot necessarily be obtained by using replacement components rated for higher voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in this manual and its supplements; electrical components having such features are identified by the international hazard symbols on the schematic diagram and the parts list.

Before replacing any of these components, read the parts list in this manual carefully. The use of substitute replacement parts which do not have the same safety characteristics as specified in the parts list may create shock, fire, X-ray radiation or other hazards.

– 3 –

WARNING: BEFORE SERVICING THIS CHASSIS, READ THE “X-RAY RADIATION PRECAUTION”, “SAFETY PRECAU-

TION” AND “PRODUCT SAFETY NOTICE” ON PAGE 3 OF THIS MANUAL.

SET-UP ADJUSTMENT

■ The following adjustments should be made when a complete realignment is required or a new picture tube is installed.

Perform the adjustments in order as follows :

1. Color Purity

2. Convergence

3. White Balance

Note: The PURITY/CONVERGENCE MAGNET assembly and rubber wedges need mechanical positioning.

Refer to figure 1.

Mounting position of the purity magnet assembly should fit to same position as old one because slightly difference to the position depend on a kind of tube.

*

There are no adjustment of purity and convergence in some picture tube (Unified with purity magnet)

COLOR PURITY ADJUSTMENT

NOTE : Before attempting any purity adjustments, the receiver should be operated for at least fifteen minutes.

1. Demagnetize the picture tube and cabinet using a degaussing coil.

2. Set the brightness and contrast to maximum.

3. Use a green raster from among the built-in test signals.

4. Loosen the clamp screw holding the yoke and slide the yoke backward or forward to provide vertical green belt

(zone) in the picture screen.

5. Remove the Rubber Wedges.

6. Rotate and spread the tabs of the purity magnet (See figure 2.) around the neck of the picture tube until the green belt is in the center of the screen. At the same time, enter the raster vertically.

7. Slowly move the yoke forward or backward until a uniform green screen is obtained. Tighten the clamp screw of the yoke temporarily.

8. Check the purity of the red and blue raster.

TEMPORARY

MOUNTING

DEFLECTION

YOKE

29.1mm(28", 29")

25mm(25")

19mm(19", 20", 21")

14mm(13", 14")

RUBBER WEDGE

DEFLECTION

YOKE

ADHESIVE

GLASS CLOTH

TAPES

PURITY/

CONVERGENCE

MAGNET ASS'Y

Figure 1.

– 4 –

CONVERGENCE ADJUSTMENTS

NOTE: Before attempting any convergence adjustments, the receiver should be operated for at least fifteen minutes.

CENTER CONVERGENCE ADJUSTMENT

1. Use the cross-dot pattern from among the built-in test signals.

2. Set the brightness and contrast for well defined pattern.

3. Adjust two tabs of the 4-Pole Magnets to change the angle between them (See figure 2.) and superimpose red and blue vertical lines in the center area of the picture screen.

4. Turn the both tabs at the same time keeping the angle constant to superimpose red and blue horizontal lines at the center of the screen.

5. Adjust two tabs of 6-Pole Magnets to superimpose red/ blue line and green one. Adjusting the angle affects the vertical lines and rotating both magnets affects the horizontal lines.

6. Repeat adjustments 3, 4, 5 keeping in mind red, green and blue movement, because 4-Pole Magnets and 6-Pole

Magnets have mutual interaction and make dot movement complex.

6-POLE

MAGNETS

4-POLE

MAGNETS

ADJUST THE ANGLE

(VERTICAL LINES)

CIRCUMFERENCE CONVERGENCE ADJUSTMENT

1. Loosen the clamping screw of deflection yoke slightly to allow the yoke to tilt.

2. Temporarily put a wedge as shown in figure 1. (Do not remove cover paper on adhesive part of the wedge.)

3. Tilt front of the deflection yoke up or down to obtain better convergence in circumference. (See figure 3.) Push the mounted wedge into the space between picture tube and the yoke to fix the yoke temporarily.

4. Put other wedge into bottom space and remove the cover paper to stick.

5. Tilt front of the yoke right or left to obtain better convergence in circumference. (See figure 3.)

6. Keep the yoke position and put another wedge in either upper space. Remove cover paper and stick the wedge on picture tube to fix the yoke.

7. Detach the temporarily mounted wedge and put it in another upper space. Stick it on picture tube to fix the yoke.

8. After fixing three wedges, recheck overall convergence.

Tighten the screw firmly to fix the yoke and check the yoke is firm.

9. Stick three adhesive tapes on wedges as shown in figure

1.

FIXED

ROTATE TWO TABS

AT THE SAME TIME

(HORIZONTAL LINES)

PURITY

MAGNETS

CONVERGENCE MAGNET ASSEMBLY

BLU RED

Figure 2.

ADJUSTMENT OF MAGNETS

RED/BLU GRN

BLU

RED

RED/BLU

GRN

4-POLE MAGNETS MOVEMENT 6-POLE MAGNETS MOVEMENT

Center Convergence by Convergence Magnets

BGR

B

G

R

RGB

R

G

B

B

G

R

RGB

INCLINE THE YOKE UP (OR DOWN)

BGR

R

G

B

INCLINE THE YOKE RIGHT (OR LEFT)

Circumference Convergence by DEF Yoke

Figure 3. Dot Movement Pattern

– 5 –

1. ENTERING TO SERVICE MODE

1) Press o button once on

Remote Control.

SERVICE MODE

2) Press o button again to keep pressing.

3) While pressing the o button, press MENU button on TV set.

Item

Data

S

(Service mode display)

2. DISPLAYING THE ADJUSTMENT MENU

1) Press MENU button on TV.

Service mode Adjustment mode

S

Press

Press

Item

Data

3. KEY FUNCTION IN THE SERVICE MODE

The following key entry during display of adjustment menu provides special functions.

A single horizontal line ON/OFF:

Test signal selection :

Selection of the adjustment items :

Change of the data value :

Adjustment menu mode ON/OFF :

Initialization of the memory (QA02) :

Reset the count of operating protect circuit to “00”:

“RCUT” selection :

“GCUT” selection :

“BCUT” selection :

“CNTX” (or “SCNT”) selection :

“COLC” selection :

“TNTC” selection :

Test audio signal ON/OFF (1kHz) :

Self diagnostic display ON/OFF :

- / - - button (on Remote) or a button (on TV) a button (on Remote)

Channel s/t (on TV or Remote)

Volume ; +/– (on TV or Remote)

MENU button (on TV)

CALL + Channel button on TV (s)

CALL + Channel button on TV (t)

1 button

2 button

3 button

4 button

5 button

6 button

8 button

9 button

Color thickness correction note: Displayed differently as shown below, depending on the setting of the receiving color system.

COLP (PAL)

COLC (NTSC)

COLS (SECAM)

CAUTION : Never try to perform initialization unless you have changed the memory IC.

– 6 –

4. SELECTING THE ADJUSTING ITEMS

1) Every pressing of CHANNEL s button in the service mode changes the adjustment items in the order of table-2.

(t button for reverse order)

Refer to table-2 for preset data of adjustment mode.

(See SETTING & ADJUSTING DATA on page 13)

5. ADJUSTING THE DATA

1) Pressing of VOLUME ; +/– button will change the value of data in the range from 00H to FFH. The variable range depends on the adjusting item.

6. EXIT FROM SERVICE MODE

1) Pressing POWER button to turn off the TV once.

INITIALIZATION OF MEMORY DATA OF QA02

After replacing QA02, the following initialization is required.

1. Enter the service mode, then select any register item.

2. Press and hold the CALL button on the Remote, then press the CHANNEL s button on the TV. The initialization of QA02 has been complated.

3. Check the picture carefully. If necessary, adjust any adjustment item above.

Perform “Auto search Memory” on the owner’s manual.

CAUTION: Never attempt to initialize the data unless QA02 has been replaced.

7. TEST SIGNAL SELECTION

1) Every pressing of a button on the Remote Control changes the built-in test patterns on screen as described below in SERVICE MODE.

Signal off

NTSC signals (14 patterns)

PAL signals (14 patterns)

Picture Signals

• Red raster

• Green raster

• Blue raster

• All Black

• All White

• Black & White

• Black cross-bar

• White cross-bar

• Black cross-bar on green raster

• Black cross-hatch

• White cross-hatch

• Black cross-dot

• White cross-dot

• H signal (white)

• H signal (black)

*

The signals marked with are not usable to display in the Test signal for some model.

– 7 –

8. SELF DIAGNOSTIC FUNCTION

1) Press “9” button on Remote Control during display of adjustment menu in the service mode.

The diagnosis will begin to check if interface among IC’s are executed properly.

2) During diagnosis, the following displays are shown.

Indicated color of mode now selected : Green and Red

Indicated color of other modes : White

<SELF CHECK>

23******

POWER : 00

BUS LINE : OK

BUS CONT : OK

BLOCK : UV V1 V2

Green : Normal

Red : The microprocessor though the signal is input, failure may exist in input signal line.

operates to provide judgement of no video signal. The red color is still indicated

� Part number of microprocessor

(Q

100

)

� Operation number of protecting circuit ----“00” is normal.

When indication is other than “00”, overcurrent apts to flow, and circuit parts may possibly be damaged.

� BUS LINE CHECK ----“OK” is normal.

“SDA1-GND” ------------- SDA-GND short circuit.

“SCL1-GND” -------------- SCL-GND short circuit.

“SCL1-SDA1” ------------- SCL-SDA short circuit.

� BUS CONT ----“OK” is normal.

When indication shows “Q uuu NG”, the device with the number may possibly be damaged.

� BLOCK

UV : TV reception mode

V1 : VIDEO 1 input mode (a1)

V2 : VIDEO 2 input mode (a2)

*

The items marked with are not usable to display in the SELF DIAGNOSTIC FUNCTION for some model.

– 8 –

DESIGN MODE

1. ENTERING TO DESIGN MODE

1) Select the Service mode.

2) While pressing o (or CALL) button on

Remote and press MENU button on TV.

3) Press MENU button on TV.

S D

Press

Press

ITEM

DATA

(Design mode) (Adjustment mode)

When QA02 is initialized, items “OPT0” and “OPT1” of DESIGN MODE are set to the data of the representative model of this chassis family.

Therefore, because ON-SCREEN specification remains in the state of the representative of model. This model is required to reset the data of items “OPT0” and “OPT1”.

2. SELECTING THE ADJUSTING ITEMS

Every pressing of CHANNEL t button in the design mode changes the adjustment items in the order of table-3.

(s button for reverse order)

Refer to table-3 for data of design mode.

(See SETTING & ADJUSTING DATA on page 13)

3. ADJUSTING THE DATA

Pressing of VOLUME s or t button will change the value of data.

– 9 –

ELECTRICAL ADJUSTMENTS

ITEM

FOCUS VR ADJ

SUB-BRIGHTNESS

(BRTC)

Note: Constrict the picture height until the vertical retrace line appears adjusting the item

HIT (HEIGHT).

HORIZONTAL POSITION

ADJUSTMENT (HPOS)

VERTICAL POSITION

ADJUSTMENT (VPOS)

ADJUSTMENT PROCEDURE

1. Enter the service mode, then select any register item.

2. Press the TV/VIDEO button on the Remote until the black cross-bar pattern appears on the screen.

3. Adjust the FOCUS control (on T461) for well defined scanning lines on the picture screen.

1. Set CONTRAST to minimum, and

BRIGHTNESS to center by adjusting user controls.

2. Set the TV in service mode to get white cross-bar of inside pattern.

3. Select BRTC (brightness correction), and adjust the ; – /+ button to reduce the value so that white portion of inside pattern slightly light.

4. Adjust ; – /+ button to increase the data value of BRTC, and set it just before the difference between the belt of vertical retrace and the border of black portion of inside pattern is visible.

After that, return vertical height and contrast.

1. Set the TV in service mode, and get black or white cross-bar signal with

VIDEO button on remote hand unit.

2. Select either HPOS (Horizontal picture phase) or VPOS (Vertical picture phase) with CHANNEL s, t buttons, and adjust horizontal or vertical picture position in the center of screen with VOLUME ; – /+ buttons.

Belt of vertical retrace

VERTICAL AMPLITUDE

ADJUSTMENT (HIT)

1. Set the TV in service mode, and get black or white cross-hatch signal with VIDEO button on remote hand unit.

2. Select HIT (Vertical amplitude) with

CHANNEL s, t buttons, and adjust vertical amplitude with VOLUME

; – /+ buttons so that vertical amplitude lacks a little.

3. Adjust vertical amplitude with VOL-

UME ; – /+ buttons so that the first bar on cross-hatch signal touches edge of screen.

The first

– 10 –

ITEM

WHITE BALANCE

ADJUSTMENT

CUTOFF ADJUSTMENT

(RCUT)

(GCUT)

(BCUT)

DRIVE ADJUSTMENT

(GDRV)

(BDRV)

ADJUSTMENT PROCEDURE

1. Set Contrast to 40, and brightness to +20 by picture control.

2. Set the TV in service mode, and get the inside W/B adjusting signal with VIDEO button.

3. Select RCUT, GCUT and BCUT with CHANNEL s, t buttons, to set individual values to Initial reference data, and to set GDRV and BDRV to Initial reference data with VOLUME ; – /+ buttons.

4. Press -/- - button on the remote control and rotate Screen VR to get one slight horizontal line on screen.

Note: Every pressing of -/- - button provides Horizontal line picture and Normal picture alternately.

5. Press -/- - button to release horizontal line picture, and select the two other colors which did not light in the above step with CHANNEL s, t buttons. Then tap VOL-

UME ; – /+ buttons so that three colors slightly light in the same level.

X To correct white balance in light area, select GDRV and BDRV with CHANNEL s, t buttons to adjust.

X To correct white balance in dark area, perform fine adjustment of RCUT, GCUT and BCUT.

Light area check

(to show white)

Dark area check

(to show black)

NOTE: It is released built-in test pattern by changing the adjustment item for some model.

In this case, select the adjustment item with channel s t buttons first and then select the built-in test pattern with

-/- - button.

– 11 –

CIRCUIT CHECK

HIGH VOLTAGE CHECK

CAUTION: There is no HIGH VOLTAGE ADJUSTMENT on this chassis. Checking should be done following the steps below.

1. Connect an accurate high voltage meter to the second anode of the picture tube.

2. Turn on the receiver. Set the BRIGHTNESS and CONTRAST controls to minimum (zero beam current).

3. High voltage must be measured below (B) kV.

Refer to table-1 for high voltage (B).

(See SETTING & ADJUSTING DATA on page 13)

4. Vary the BRIGHTNESS control to both extremes to be sure the high voltage does not exceed the limit under any conditions.

– 12 –

CHAPTER 2 SPECIFIC INFORMATIONS

SETTING & ADJUSTING DATA

SAFETY INSTRUCTIONS

21"

HIGH VOLTAGE AT ZERO BEAM:

(A)

29.7

kV

MAX HIGH VOLTAGE:

(B)

32.0 kV

AV VOLTAGE

(C)

22

0~240 V

Table-1

SERVICE MODE

ADJUSTING ITEMS AND DATA IN THE SERVICE MODE:

Item

RCUT

GCUT

BCUT

GDRV

BDRV

BRTC

COLC

TNTC

COLP

COLS

SCNT

HPOS

VPOS

HIT

VLIN

SRY

SBY

RAGC

Adjustment

R CUTOFF (B/W)

G CUTOFF (B/W)

B CUTOFF (B/W)

G DRIVE

B DRIVE

BRIGHT

NESS

CEN

TER

COLOR CEN NTSC

TINT

CENTER

COLOR CEN PAL

COLOR CEN SECAM

SUB CONTRAST

50Hz H-POSITION

V-POSITION

50Hz

HEIGHT

50Hz

V-LINEARITY

50Hz

SECAM R-Y

SECAM-B-Y

RF AGC

Table-2

Reference data

09H

30H

08H

0DH

04H

1EH

0AH

08H

08H

2AH

20H

20H

20H

40H

40H

40H

30H

45H

DESIGN MODE

ADJUSTING ITEMS AND DATA IN THE DESIGN MODE:

Item

OPT 0

OPT 1

Name of adjustment

OPTION 0

OPTION 1

Preset Data

75H

15H

Table-3

Data

21"

Data

07H

Remarks

– 13 –

Front

LOCATION OF CONTROLS

5

4

6

Remote

!

VIDEO AUDIO MENU

a ;

+ j i h d e f g c b a

9

3

8

1

7

2

NAMES OF PARTS

TV Set a q

Main power on/off

1 f b

Infrared sensor

2

0~9 c q d

MENU

Power indicator

3

CHs/t

Menu open e a TV/VIDEO select f –;+

Volume down/ up,

Menu select,

Level adjust

4

5

; -/+

-/--

g tcs

Channel down/ up,

Item select h l

Headphone jack i AUDIO Audio input terminal j VIDEO

Video input terminal

6

MENU

7 o

8

9

Remote Control a

! CALL

RGYB

Power on/ standby

Direct select

Channel up/ down,

Item select

Volume down/ up,

Menu select,

Level adjust

Digit select

Menu open

Sound mute

Picture control

TV/VIDEO select

On-screen on/ off

Game select

Red/Green/

Yellow/Blue

Note: The shaded buttons are not available for your TV. If you press the button, “MODE

NOT AVAILABLE” will appear on the screen.

– 14 –

PROGRAMMING CHANNEL MEMORY

• For easy Channel selection, the chosen Position should have the same number as Channel stored there. For this operation, you may use the “SEARCH” and “SKIP” functions.

Example : Presetting Channel 12 to Position 12

Channel Preset

Auto search memory (ASM)

All the channels that can be received are preset automatically.

Manual Search and Changing the assigned position

Manual Search

1

Select Position 12.

Press CH s/t repeatedly until 12 is displayed. Or, press

-/-- twice to display “--” on the screen then press the “1” and “2” buttons in this order.

1

Select the starting position for ASM. Press (0~9) or CH s/t.

2

Set the correct broadcast system for your region. Press

MENU and ; –/+ to call up the “SET UP” menu D7 .

Set “COLOR” to “AUTO” and set “SOUND” according to the table above using CHs/t and ; –/+.

2

Press MENU and ; –/+ to call up the “TUNING” menu

D8 . Press CH s/t and select “SEARCH”.

Press ; –/+ to search. Pressing “-” searches for channels at lower frequencies while pressing “+” searches for channels at higher frequencies.

3

Press MENU and ; –/+ to call up the “TUNING” menu

D8 . Select “ASM”, then press ; + to start the search.

When the TV screen returns to the start position, the procedure is complete.

3

When Channel 12 is found, press CH s/t to select

“MEMORY”. Press “+” to complete the presetting.

Store Position

1

Select Channel 12.

Press (0~9) or CH s/t to find the position preset for

Channel 12.

2

When Channel 12 is selected, press MENU and

; –/+ to call up the “TUNING” menu D8 . Press CH s/t and select “POSITION”. Press ; –/+ and set “PO-

SITION” to P012. Pressing “-” and “+” respectively decreases and increases the position number.

3

When Position 12 is found, press CH s/t to select

“MEMORY”. Press “+” to complete the presetting.

– 15 –

• Under some reception conditions, fine tuning may be necessary to improve the picture quality. In such cases, adjust the manual fine tuning (MFT).

• If the signal frequency is unstable due to environmental conditions, use auto fine tuning.

Skip Function

If you set “SKIP ON” for unnecessary position numbers, these will be skipped when selecting channels using CH s/t.

Example : Skipping Channel 13

Auto fine tuning (AFT)

1

Press MENU and ; –/+ to call up the “TUNING” menu

D8 .

1

Select Position 13 using the same method for selecting Position 12 (above).

2

Press CH s/t and select “AFT”. Press ; –/+ to switch it to “ON”. This completes the setting.

Notes:

• When you operate MFT, AFT is switched OFF automatically. If you switch on AFT after fine tuning with MFT, MFT may be cancelled.

• AFT may be set independently for each Position.

2

Press MENU and ; –/+ to call up the “SET UP” menu

D7 . Press CH s/t and select “SKIP”.

Press ; –/+ to switch the “SKIP” setting from “OFF” to “ON”. This completes the setting for skipping Position 13.

Note:

• When “SKIP” is ON, the Position number is prefixed by

“*”.

Example: *13. To confirm this, select Position 13 using the -/-- and 0~9 buttons.

• If you want to restore a skipped position number, select it using the -/-- and 0~9 buttons then switch the

“SKIP” setting to “OFF” as in step 2 above.

Manual fine tuning (MFT)

1

Press MENU and ; –/+ to call up the “TUNING” menu

D8 .

2

Press CH s/t and select “MFT”. Press ; –/+ to start fine tuning. Pressing “-” fine tunes to a lower frequency while pressing “+” fine tunes to a higher frequency.

– 16 –

CHASSIS AND CABINET REPLACEMENT PARTS LIST

WARNING

: BEFORE SERVICING THIS CHASSIS, READ THE "X-RAY RADIATION PRECAUTION", "SAFETY PRE-

CAUTION" AND "PRODUCT SAFETY NOTICE" ON PAGE 3 OF THIS MANUAL.

CAUTION

: The international hazard symbols " " in the schematic diagram and the parts list designate components which have special characteristics important for safety and should be replaced only with types identical to those in the original circuit or specified in the parts list. The mounting position of replacements is to be identical with originals.

Before replacing any of these components, read carefully the PRODUCT SAFETY NOTICE. Do not degrade the safety of the receiver through improper servicing.

NOTICE:

·····

The part number must be used when ordering parts, in order to assist in processing, be sure to include the

Model number and Description.

·····

The PC board assembly with

*

mark is no longer available after the end of the production.

Model : 21CSZ2R1

Capacitors ............. CD : Ceramic Disk

Resistors ............... CF : Carbon Film

PF : Plastic Film

CC : Carbon Composition

EL : Electrolytic

MF : Metal Film

OMF : Oxide Metal Film

(All CD and PF capacitors are

VR : Variable Resistor FR : Fusible Resistor

±

5%, 50V and all resistors,

±

5%, 1/6W unless otherwise noted.)

Location

No.

Parts No. Description

C221

C222

C223

C224

C226

C227

C172

C173

C174

C175

C176

C189

C192

C216

C136

C137

C141

C150

C166

C167

C170

C171

C121

C123

C129

C130

C131

C132

C133

C135

CAPACITORS

C101 24203101 ELECTROLYTIC, 16V 100UF M 7L 3A

C102

C103

24763221 ELECTROLYTIC, 16V 220UF M

24109103 CERAMIC CHIP, 50V B 0.01UF K

C104

C105

C106

C107

24105470 CERAMIC CHIP, 50V CH 47PF J

24105220 CERAMIC CHIP, 50V CH 22PF J

24205479 ELECTROLYTIC, 35V 4.7UF M 7L 3A

24105220 CERAMIC CHIP, 50V CH 22PF J

C108

C109

C110

C113

C114

C116

C118

C120

24503049 PLASTIC FILM, 63V 0.47UF J

24203100 CAPASITOR, ELECTORLYTIC, 16V 10UF M 7L 3A

24109103 CERAMIC CHIP, 50V B 0.01UF K

24109102 CERAMIC CHIP, 50V B 1000PF K

24109102 CERAMIC CHIP, 50V B 1000PF K

24109103 CERAMIC CHIP, 50V B 0.01UF K

24109102 CERAMIC CHIP, 50V B 1000PF K

24203100 CAPASITOR, ELECTORLYTIC, 16V 10UF M 7L 3A

24109103 CERAMIC CHIP, 50V B 0.01UF K

24206010 ELECTROLYTIC, 50V 1.0UF M 7L 3A

24109102 CERAMIC CHIP, 50V B 1000PF K

24206479 ELECTROLYTIC, 50V 4.7UF M 7L 3A

24814103 CERAMIC CHIP, 50V F 0.01UF Z

24100104 CERAMIC CHIP, 25V F 0.1UF Z

24105101 CERAMIC CHIP, 50V CH 100PF J

24109222 CERAMIC CHIP, 50V B 2200PF K

24206228 ELECTROLYTIC, 50V 0.22UF M 7L 3A CE04WS

24100103 CERAMIC CHIP, 50V F 0.01UF Z

24105101 CERAMIC CHIP, 50V CH 100PF J

24814103 CERAMIC CHIP, 50V F 0.01UF Z

24109103 CERAMIC CHIP, 50V B 0.01UF K

24763101 ELECTROLYTIC, 16V 100UF M

24109103 CERAMIC CHIP, 50V B 0.01UF K

24203100 CAPASITOR, ELECTORLYTIC, 16V 10UF M 7L 3A

24203100 CAPASITOR, ELECTORLYTIC, 16V 10UF M 7L 3A

24203100 CAPASITOR, ELECTORLYTIC, 16V 10UF M 7L 3A

24105330 CERAMIC CHIP, 50V CH 33PF J

24105330 CERAMIC CHIP, 50V CH 33PF J

24105330 CERAMIC CHIP, 50V CH 33PF J

24206478 ELECTROLYTIC, 50V 0.47UF M 7L 3A

24206478 ELECTROLYTIC, 50V 0.47UF M 7L 3A

24206010 ELECTROLYTIC, 50V 1.0UF M 7L 3A

24105101 CERAMIC CHIP, 50V CH 100PF J

24105101 CERAMIC CHIP, 50V CH 100PF J

24105101 CERAMIC CHIP, 50V CH 100PF J

24203100 CAPASITOR, ELECTORLYTIC, 16V 10UF M 7L 3A

24591104 PLASTIC FILM, 50V 0.1UF J

24591104 PLASTIC FILM, 50V 0.1UF J

Location

No.

C440

C442

C444

C445

C446

C448

C449

C463

C421

C431

C432

C433

C434

C435

C436

C437

C313

C314

C315

C317

C320

C410

C417

C420

C231

C232

C304

C305

C306

C307

C308

C312

C498

C502

C517

C523

C526

C528

C464

C467

C470

C472

C473

C479

C484

C485

Parts No. Description

24232103 CERAMIC DISC, 50V F 0.01UF Z

24232103 CERAMIC DISC, 50V F 0.01UF Z

24435330 CERAMIC DISC CC45 SL 500V33PF J

24617915 ELECTROLYTIC, 50V 1UF K 3A LI

24763102 ELECTROLYTIC, 16V 1000UF M

24693473 PLASTIC FILM, 100V 0.047UF J

24765101 ELECTROLYITC, 35V 100UF M

24765102 ELECTROLYTIC CE04G 35V 1000UF M

24082280 PLASTIC FILM, 100V 0.22UF J

24212272 CERAMIC DISC, 50V B 2700PF K

24503049 PLASTIC FILM, 63V 0.47UF J

24214471 CERAMIC DISC, 500V B 470PF K

24765101 ELECTROLYITC, 35V 100UF M

24693472 PLASTIC FILM, 100V 4700PF J

24214102 CERAMIC DISC, 500V B 1000PF K

24203220 ELECTROLYTIC, 16V 22UF M 7L 3A

24763470 16MV47HC +T 16MV47HC +T

24206479 ELECTROLYTIC, 50V 4.7UF M 7L 3A

24203100 CAPASITOR, ELECTORLYTIC, 16V 10UF M 7L 3A

24100103 CERAMIC CHIP, 50V F 0.01UF Z

24100103 CERAMIC CHIP, 50V F 0.01UF Z

24763102 ELECTROLYTIC, 16V 1000UF M

24206478 ELECTROLYTIC, 50V 0.47UF M 7L 3A

24109822 CERAMIC CHIP, 50V B 8200PF K

24503213 PLASTIC FILM CF92 T 1500VH 1500PF H

24082995 PLASTIC FILM, 250V 0.36 UF J

24503278 PLASTIC FILM CF92 T 1500VH 8700PF H

24693104 PLASTIC FILM, 100V 0.1UF J

24679100 ELECTROLYTIC, 250V 10UF M 3A

24073118 ELECTROLYTIC, 160V 33UF M

24763471 ELECTROLYTIC, 16V 470UF M

24109152 CERAMIC CHIP, 50V B 1500PF K

24640872 ELECTROLYTIC, 100V 10UF M 3A

24503157 PLASTIC FILM, 630V 0.033UF J

24206220 ELECTROLYTIC, 50V 22UF M 7L 3A

24503049 PLASTIC FILM, 63V 0.47UF J

24206010 ELECTROLYTIC, 50V 1.0UF M 7L 3A

24105271 CERAMIC CHIP, 50V CH 270PF J

24591104 PLASTIC FILM, 50V 0.1UF J

24591104 PLASTIC FILM, 50V 0.1UF J

24591103 PLASTIC FILM, 50V 0.01UF J

24591103 PLASTIC FILM, 50V 0.01UF J

24203100 CAPASITOR, ELECTORLYTIC, 16V 10UF M 7L 3A

24203100 CAPASITOR, ELECTORLYTIC, 16V 10UF M 7L 3A

24109102 CERAMIC CHIP, 50V B 1000PF K

24206478 ELECTROLYTIC, 50V 0.47UF M 7L 3A

– 17 –

Location

No.

C915

C930

C931

CA01

CA02

CA03

CA04

CA30

C902

C904

C905

C907

C909

C910

C912

C913

C883

C884

C885

C889

C893

C897

C898

C899

C821

C822

C823

C829

C830

C831

C832

C862

CA42

CA45

CA51

CA52

CA53

CA54

CA55

CA58

CA60

CB01

CC01

CC02

CC08

C805

C806

C808

C810

C813

C814

C817

C818

C630

C631

C633

C634

C673

C674

C801

C802

C610

C611

C612

C613

C614

C615

C616

C629

C565

C566

C567

C606

C607

C608

C609

Parts No. Description

24109103 CERAMIC CHIP, 50V B 0.01UF K

24763471 ELECTROLYTIC, 16V 470UF M

24109103 CERAMIC CHIP, 50V B 0.01UF K

24206229 ELECTROLYTIC, 50V 2.2UF M 7L 3A

24206229 ELECTROLYTIC, 50V 2.2UF M 7L 3A

24206229 ELECTROLYTIC, 50V 2.2UF M 7L 3A

24764101 ELECTROLYTIC, 25V 100UF M

24591473 PLASTIC FILM, 50V 0.047UF J

24766100 ELECTROLYTIC, 50V 10UF M

24766220 ELECTROLYTIC, 50V 22UF M

24766100 ELECTROLYTIC, 50V 10UF M

24591473 PLASTIC FILM, 50V 0.047UF J

24763101 ELECTROLYTIC, 16V 100UF M

24764471 ELECTROLYTIC, 25V 470UF M

24764101 ELECTROLYTIC, 25V 100UF M

24764471 ELECTROLYTIC, 25V 470UF M

24206478 ELECTROLYTIC, 50V 0.47UF M 7L 3A

24591823 PLASTIC FILM, 50V 0.082UF J

24591563 PLASTIC FILM, 50V 0.056UF J

24109103 CERAMIC CHIP, 50V B 0.01UF K

24109103 CERAMIC CHIP, 50V B 0.01UF K

24503507 PLASTIC FILM, AC275V 0.22UF K

24503507 PLASTIC FILM, AC275V 0.22UF K

24092281 CERAMIC DISC, AC250V E 4700PF

24092281 CERAMIC DISC, AC250V E 4700PF

24765101 ELECTROLYITC, 35V 100UF M

24086857 ELECTROLYTIC, 400V 560UF

24092555 CERAMIC DISC, AC250V E 1000PF M

24092555 CERAMIC DISC, AC250V E 1000PF M

24092338 CERAMIC DISC, 2KV R 270PF K

24092341 CERAMIC DISC, 2KV R 470PF K

24214561 CERAMIC DISC, 500V B 560PF K

24214102 CERAMIC DISC, 500V B 1000PF K

24214471 CERAMIC DISC, 500V B 470PF K

24212471 CERAMIC DISC, 50V B 470PF K

24766100 ELECTROLYTIC, 50V 10UF M

24203100 CAPASITOR, ELECTORLYTIC, 16V 10UF M 7L 3A

24503045 PLASTIC FILM, 63V 0.22UF J

24092339 CERAMIC DISC, 2KV 330PF K

24214561 CERAMIC DISC, 500V B 560PF K

24640018 ELECTROLYTIC, 160V 220UF

24214471 CERAMIC DISC, 500V B 470PF K

24764102 ELECTROLYTIC, 25V 1000UF M

24092338 CERAMIC DISC, 2KV R 270PF K

24092553 CERAMIC DISC, AC250V B 470PF K

24214101 CERAMIC DISC, 500V B 100PF K

24503049 PLASTIC FILM, 63V 0.47UF J

24092347 CERAMIC DISC, 2KV R 1500PF K

24436561 CERAMIC DISC, 50V SL 560PF J

24436681 CERAMIC DISC, 50V SL 680PF J

24436821 CERAMIC DISC, 50V SL 820PF J

24679220 ELECTROLYTIC, 250V 22UF M 3A

24766100 ELECTROLYTIC, 50V 10UF M

24763221 ELECTROLYTIC, 16V 220UF M

24203220 ELECTROLYTIC, 16V 22UF M 7L 3A

24203220 ELECTROLYTIC, 16V 22UF M 7L 3A

24214101 CERAMIC DISC, 500V B 100PF K

24214101 CERAMIC DISC, 500V B 100PF K

24232103 CERAMIC DISC, 50V F 0.01UF Z

24105101 CERAMIC CHIP, 50V CH 100PF J

24105220 CERAMIC CHIP, 50V CH 22PF J

24105220 CERAMIC CHIP, 50V CH 22PF J

24105270 CERAMIC CHIP, 50V CH 27PF J

24203100 CAPASITOR, ELECTORLYTIC, 16V 10UF M 7L 3A

24109103 CERAMIC CHIP, 50V B 0.01UF K

24109272 CERAMIC CHIP, 50V B 2700PF K

24109152 CERAMIC CHIP, 50V B 1500PF K

24105181 CERAMIC CHIP, 50V CH 180PF J

24766330 ELECTROLYTIC, 50V 33UF M

24206010 ELECTROLYTIC, 50V 1.0UF M 7L 3A

24105101 CERAMIC CHIP, 50V CH 100PF J

24206229 ELECTROLYTIC, 50V 2.2UF M 7L 3A

24203470 ELECTROLYTIC, 16V 47UF M 7L 3A

24109103 CERAMIC CHIP, 50V B 0.01UF K

24109103 CERAMIC CHIP, 50V B 0.01UF K

24105330 CERAMIC CHIP, 50V CH 33PF J

Location

No.

CS01

CS02

CS04

CS05

CS07

CS15

CV10

CV11

Parts No. Description

24203220 ELECTROLYTIC, 16V 22UF M 7L 3A

24203100 CAPASITOR, ELECTORLYTIC, 16V 10UF M 7L 3A

24109102 CERAMIC CHIP, 50V B 1000PF K

24109102 CERAMIC CHIP, 50V B 1000PF K

24109102 CERAMIC CHIP, 50V B 1000PF K

24109102 CERAMIC CHIP, 50V B 1000PF K

24762471 ELECTROLYTIC, 10V 470UF M

24203220 ELECTROLYTIC, 16V 22UF M 7L 3A

R182

R190

R191

R192

R194

R196

R217

R227

R174

R175

R176

R177

R178

R179

R180

R181

R228

R229

R230

R301

R305

R158

R166

R167

R168

R169

R171

R172

R173

R144

R145

R146

R147

R148

R149

R150

R156

R134

R135

R136

R139

R140

R141

R142

R143

R117

R121

R122

R124

R130

R131

R132

R133

RESISTORS

R101 24011563 CHIP, METAL FILM, 1/20W 56K OHM J

R102

R105

R106

R107

24011123 CHIP, METAL FILM, 1/20W 12K OHM J

24011331 CHIP, METAL FILM, 1/20W 330 OHM J

24011332 CHIP, METAL FILM, 1/20W 3.3K OHM J

24011330 CHIP, 1/20W 33 OHM J

R108

R109

R110

R111

R112

R113

R114

R116

24011272 CHIP, 1/20W 2.7K OHM J

24011682 CHIP, METAL FILM, 1/20W 6.8K OHM J

24011102 CHIP, METAL FILM, 1/20W 1K OHM J

24011360 METAL FILM CHIP 1/20W 36 J

24000445 CHIP JUMPER, 1608TYPE

24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J

24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J

24011682 CHIP, METAL FILM, 1/20W 6.8K OHM J

24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J

24011221 CHIP, METAL FILM, 1/20W 220 OHM J

24000445 CHIP JUMPER, 1608TYPE

24011102 CHIP, METAL FILM, 1/20W 1K OHM J

24011101 CHIP, METAL FILM, 1/20W 100 OHM J

24011221 CHIP, METAL FILM, 1/20W 220 OHM J

24011271 CHIP, METAL FILM, 1/20W 270 OHM J

24011271 CHIP, METAL FILM, 1/20W 270 OHM J

24011561 CHIP, METAL FILM, 1/20W 560 OHM J

24011103 CHIP, METAL FILM, 1/20W 10K OHM J

24011513 CHIP, METAL FILM, 1/20W 51K OHM J

24011332 CHIP, METAL FILM, 1/20W 3.3K OHM J

24011101 CHIP, METAL FILM, 1/20W 100 OHM J

24011331 CHIP, METAL FILM, 1/20W 330 OHM J

24011102 CHIP, METAL FILM, 1/20W 1K OHM J

24011333 CHIP, METAL FILM, 1/20W 33K OHM J

24011103 CHIP, METAL FILM, 1/20W 10K OHM J

24011303 CHIP, METAL FILM, 1/20W 30K OHM J

24011224 CHIP, METAL FILM, 1/20W 220K OHM J

24011152 CHIP, METAL FILM, 1/20W 1.5K OHM J

24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J

24011684 CHIP, METAL FILM, 1/20W 680K OHM J

24000445 CHIP JUMPER, 1608TYPE

24553153 OXIDE METAL FILM, 1W 15K OHM J

24011122 CHIP, METAL FILM, 1/20W 1.2K OHM J

24011103 CHIP, METAL FILM, 1/20W 10K OHM J

24011103 CHIP, METAL FILM, 1/20W 10K OHM J

24011473 CHIP, METAL FILM, 1/20W 47K OHM J

24011102 CHIP, METAL FILM, 1/20W 1K OHM J

24011473 CHIP, METAL FILM, 1/20W 47K OHM J

24011162 CHIP, METAL FILM, 1/20W 1.6K OHM J

24011102 CHIP, METAL FILM, 1/20W 1K OHM J

24011473 CHIP, METAL FILM, 1/20W 47K OHM J

24011223 CHIP, METAL FILM, 1/20W 22K OHM J

24011473 CHIP, METAL FILM, 1/20W 47K OHM J

24011223 CHIP, METAL FILM, 1/20W 22K OHM J

24011103 CHIP, METAL FILM, 1/20W 10K OHM J

24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J

24011473 CHIP, METAL FILM, 1/20W 47K OHM J

24011223 CHIP, METAL FILM, 1/20W 22K OHM J

24011162 CHIP, METAL FILM, 1/20W 1.6K OHM J

24011101 CHIP, METAL FILM, 1/20W 100 OHM J

24011330 CHIP, 1/20W 33 OHM J

24011330 CHIP, 1/20W 33 OHM J

24011102 CHIP, METAL FILM, 1/20W 1K OHM J

24011102 CHIP, METAL FILM, 1/20W 1K OHM J

24011104 CHIP, METAL FILM, 1/20W 100K OHM J

24366123 CARBON FILM, 1/6W 12K OHM J

24011271 CHIP, METAL FILM, 1/20W 270 OHM J

24011271 CHIP, METAL FILM, 1/20W 270 OHM J

24011271 CHIP, METAL FILM, 1/20W 270 OHM J

24366163 CARBON FILM, 1/6W 16K OHM J

24323758 METAL FILM 2W R75 J

– 18 –

Location

No.

R630

R631

R632

R662

R663

R801

R802

R803

R605

R606

R607

R608

R609

R611

R612

R622

R483

R484

R485

R490

R491

R498

R603

R604

R475

R476

R477

R478

R479

R480

R481

R482

R805

R807

R808

R809

R810

R811

R815

R819

R820

R821

R822

R823

R825

R448

R462

R469

R470

R471

R472

R473

R474

R431

R432

R433

R434

R435

R436

R441

R447

R306

R307

R312

R313

R316

R317

R333

R333Z

R336

R410

R411

R412

R416

R421

R430

Parts No. Description

24366823 CARBON FILM, 1/6W 82K OHM J

24366103 CARBON FILM, 1/6W 10K OHM J

24552152 OXIDE METAL FILM, 1/2W 1.5K OHM J

24366513 CARBON FILM, 1/6W 51K OHM J

24011392 CHIP, METAL FILM, 1/20W 3.9K OHM J

24011392 CHIP, METAL FILM, 1/20W 3.9K OHM J

24547829 FUSIBLE, 1W 8.2 OHM J

24531120 FUSIBLE, 1/2W 12 OHM J

24383121 OXIDE METAL FILM, 1/2W 120 OHM J

24011181 CHIP, METAL FILM, 1/20W 180 OHM J

24011561 CHIP, METAL FILM, 1/20W 560 OHM J

24366560 CARBON FILM, 1/6W 56 OHM J

24019323 OXIDE METAL FILM, 5W 1.8K OHM J

24011391 CHIP, METAL FILM, 1/20W 390 OHM J

24366103 CARBON FILM, 1/6W 10K OHM J

24531120 FUSIBLE, 1/2W 12 OHM J

24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J

24011182 CHIP, METAL FILM, 1/20W 1.8K OHM J

24552271 OXIDE METAL FILM, 1/2W 270 OHM J

24011822 CHIP, METAL FILM, 1/20W 8.2K OHM J

24011270 CHIP, 1/20W 27 OHM J

24532102 FUSIBLE, 1W 1K OHM J

24553472 OXIDE METAL FILM, 1W 4.7K OHM J

24321228 OXIDE METAL FILM, 1/2W 0.22 OHM J

24011223 CHIP, METAL FILM, 1/20W 22K OHM J

24366183 CARBON FILM, 1/6W 18K OHM J

24338758 OXIDE METAL FILM, 1W 0.75 OHM J

24011102 CHIP, METAL FILM, 1/20W 1K OHM J

24552301 OXIDE METAL FILM, 1/2W 300 OHM J

24366183 CARBON FILM, 1/6W 18K OHM J

24383151 OXIDE METAL FILM, 2W 150 OHM J

24011102 CHIP, METAL FILM, 1/20W 1K OHM J

24011471 CHIP, METAL FILM, 1/20W 470 OHM J

24011471 CHIP, METAL FILM, 1/20W 470 OHM J

24011102 CHIP, METAL FILM, 1/20W 1K OHM J

24011101 CHIP, METAL FILM, 1/20W 100 OHM J

24011471 CHIP, METAL FILM, 1/20W 470 OHM J

24011154 CHIP, METAL FILM, 1/20W 150K OHM J

24011223 CHIP, METAL FILM, 1/20W 22K OHM J

24011104 CHIP, METAL FILM, 1/20W 100K OHM J

24011563 CHIP, METAL FILM, 1/20W 56K OHM J

24382121 OXIDE METAL FILM, 1W 120 OHM J

24011102 CHIP, METAL FILM, 1/20W 1K OHM J

24011103 CHIP, METAL FILM, 1/20W 10K OHM J

24011154 CHIP, METAL FILM, 1/20W 150K OHM J

24011393 CHIP, METAL FILM, 1/20W 39K OHM J

24011220 CHIP, METAL FILM, 1/20W 22 OHM J

24011102 CHIP, METAL FILM, 1/20W 1K OHM J

24011223 CHIP, METAL FILM, 1/20W 22K OHM J

24011223 CHIP, METAL FILM, 1/20W 22K OHM J

24011102 CHIP, METAL FILM, 1/20W 1K OHM J

24011220 CHIP, METAL FILM, 1/20W 22 OHM J

24011104 CHIP, METAL FILM, 1/20W 100K OHM J

24011103 CHIP, METAL FILM, 1/20W 10K OHM J

24000445 CHIP JUMPER, 1608TYPE

24011152 CHIP, METAL FILM, 1/20W 1.5K OHM J

24011273 CHIP, METAL FILM, 1/20W 27K OHM J

24011272 CHIP, 1/20W 2.7K OHM J

24552221 OXIDE METAL FILM, 1/2W 220 OHM J

24552221 OXIDE METAL FILM, 1/2W 220 OHM J

24009954 METAL FILN, 1/2W 2.2M OHM J

24383104 OXIDE METAL FILM, 2W 100K OHM J

24011101 CHIP, METAL FILM, 1/20W 100 OHM J

24366681 CARBON FILM, 1/6W 680 OHM J

24376684 CARBON RES B 1/2W 684J

24019476 THERMISTOR, POSITIVE, AC290V 18 OHM M

24366393 CARBON FILM, 1/6W 39K OHM J

24007737 CERAMIC COVERED, 15W 2.2 OHM J

24568271 CERAMIC COVERED, 7W 270 OHM J

24366562 CARBON FILM, 1/6W 5.6K OHM J

24011101 CHIP, METAL FILM, 1/20W 100 OHM J

24019463 METAL PLATE RK99 2W R22 J

24310479 OXIDE METAL FILM, 1/2W 4.7 OHM J

24366562 CARBON FILM, 1/6W 5.6K OHM J

24376152 CARBON FILM, 1/2W 1.5K OHM J

24011331 CHIP, METAL FILM, 1/20W 330 OHM J

Location

No.

RA51

RA52

RA53

RA54

RA55

RA56

RA57

RA60

RA06

RA07

RA35

RA36

RA37

RA41

RA42

RA43

R962

R977

R992

RA01

RA02

RA03

RA04

RA05

R937

R942

R943

R944

R945

R946

R960

R961

RA61

RA62

RA63

RA71

RA72

RA73

RA74

RA75

RA76

RA77

RA78

RA79

RA89

R926

R928

R929

R930

R932

R934

R935

R936

R917

R918

R919

R920

R921

R922

R924

R925

R902

R903

R904

R905

R912

R914

R915

R916

R829

R831

R863

R881

R888

R899

R901

Parts No. Description

24988027 METAL FILM 1W R47 J

24531120 FUSIBLE, 1/2W 12 OHM J

24366132 CARBON FILM, 1/6W 1.3K OHM J

24366102 CARBON FILM, 1/6W 1K OHM J

24546228 FUSIBLE, 1/2W 0.22 OHM J

24004718 METAL GLAZE 1/2W 8R2M J

24376102 CARBON FILM, 1/2W 1K OHM J

24376102 CARBON FILM, 1/2W 1K OHM J

24376102 CARBON FILM, 1/2W 1K OHM J

24366472 CARBON FILM, 1/6W 4.7K OHM J

24366150 CARBON FILM, 1/6W 15 OHM J

24366102 CARBON FILM, 1/6W 1K OHM J

24366561 CARBON FILM, 1/6W 560 OHM J

24366121 CARBON FILM, 1/6W 120 OHM J

24366181 CARBON FILM, 1/6W 180 OHM J

24366821 CARBON FILM, 1/6W 820 OHM J

24366270 CARBON FILM, 1/6W 27 OHM J

24366102 CARBON FILM, 1/6W 1K OHM J

24000880 FUSIBLE, 1W 5.1 OHM J

24366561 CARBON FILM, 1/6W 560 OHM J

24366121 CARBON FILM, 1/6W 120 OHM J

24366270 CARBON FILM, 1/6W 27 OHM J

24366821 CARBON FILM, 1/6W 820 OHM J

24366102 CARBON FILM, 1/6W 1K OHM J

24366561 CARBON FILM, 1/6W 560 OHM J

24366121 CARBON FILM, 1/6W 120 OHM J

24366270 CARBON FILM, 1/6W 27 OHM J

24366102 CARBON FILM, 1/6W 1K OHM J

24366561 CARBON FILM, 1/6W 560 OHM J

24366392 CARBON FILM, 1/6W 3.9K OHM J

24552820 OXIDE METAL FILM, 1/2W 82 OHM J

24366821 CARBON FILM, 1/6W 820 OHM J

24366562 CARBON FILM, 1/6W 5.6K OHM J

24366562 CARBON FILM, 1/6W 5.6K OHM J

24366562 CARBON FILM, 1/6W 5.6K OHM J

24366181 CARBON FILM, 1/6W 180 OHM J

24366181 CARBON FILM, 1/6W 180 OHM J

24383153 OXIDE METAL FILM, 2W 15K OHM J

24383153 OXIDE METAL FILM, 2W 15K OHM J

24383153 OXIDE METAL FILM, 2W 15K OHM J

24366122 CARBON FILM, 1/6W 1.2K OHM J

24366150 CARBON FILM, 1/6W 15 OHM J

24011331 CHIP, METAL FILM, 1/20W 330 OHM J

24011103 CHIP, METAL FILM, 1/20W 10K OHM J

24000445 CHIP JUMPER, 1608TYPE

24011223 CHIP, METAL FILM, 1/20W 22K OHM J

24011102 CHIP, METAL FILM, 1/20W 1K OHM J

24011103 CHIP, METAL FILM, 1/20W 10K OHM J

24000445 CHIP JUMPER, 1608TYPE

24011102 CHIP, METAL FILM, 1/20W 1K OHM J

24011103 CHIP, METAL FILM, 1/20W 10K OHM J

24011223 CHIP, METAL FILM, 1/20W 22K OHM J

24011101 CHIP, METAL FILM, 1/20W 100 OHM J

24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J

24011332 CHIP, METAL FILM, 1/20W 3.3K OHM J

24011392 CHIP, METAL FILM, 1/20W 3.9K OHM J

24011392 CHIP, METAL FILM, 1/20W 3.9K OHM J

24011123 CHIP, METAL FILM, 1/20W 12K OHM J

24011471 CHIP, METAL FILM, 1/20W 470 OHM J

24011683 CHIP, METAL FILM, 1/20W 68K OHM J

24011564 CHIP, METAL FILM, 1/20W 560K OHM J

24011681 CHIP, METAL FILM, 1/20W 680 OHM J

24011183 CHIP, METAL FILM, 1/20W 18K OHM J

24011103 CHIP, METAL FILM, 1/20W 10K OHM J

24011103 CHIP, METAL FILM, 1/20W 10K OHM J

24011123 CHIP, METAL FILM, 1/20W 12K OHM J

24367163 CARBON FILM, 1/6W 16K OHM G

24367113 CARBON FILM, 1/2W 11K OHM J

24367562 CARBON FILM, 1/6W 5.6K OHM G

24011103 CHIP, METAL FILM, 1/20W 10K OHM J

24011103 CHIP, METAL FILM, 1/20W 10K OHM J

24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J

24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J

24367114 CARBON FILM, 1/6W 110K OHM G

24367303 CARBON FILM, 1/6W 30K OHM G

24000445 CHIP JUMPER, 1608TYPE

– 19 –

Location

No.

GJ23

GJ25

GJ27

GJ30

GJ100

GL431

GL525

GR01

GJ10

GJ11

GJ12

GJ15

GJ16

GJ17

GJ21

GJ22

RV02

RV11

RV12

RV13

G101

G218

GJ03

GJ06

RB01

RB09

RB30

RC02

RS02

RS04

RS06

GR02

GR03

GR160

GR303

GR400

JP119

JR001

JR002

JR003

JR004

JR155

Parts No. Description

24011271 CHIP, METAL FILM, 1/20W 270 OHM J

24011470 CHIP, METAL FILM, 1/20W 47 OHM J

24011103 CHIP, METAL FILM, 1/20W 10K OHM J

24011101 CHIP, METAL FILM, 1/20W 100 OHM J

24011471 CHIP, METAL FILM, 1/20W 470 OHM J

24011223 CHIP, METAL FILM, 1/20W 22K OHM J

24000445 CHIP JUMPER, 1608TYPE

24011750 CHIP, METAL FILM, 1/20W 75 OHM J

24011750 CHIP, METAL FILM, 1/20W 75 OHM J

24011181 CHIP, METAL FILM, 1/20W 180 OHM J

24011101 CHIP, METAL FILM, 1/20W 100 OHM J

24000445 CHIP JUMPER, 1608TYPE

24366472 CARBON FILM, 1/6W 4.7K OHM J

24000445 CHIP JUMPER, 1608TYPE

24000445 CHIP JUMPER, 1608TYPE

24000445 CHIP JUMPER, 1608TYPE

24000445 CHIP JUMPER, 1608TYPE

24000445 CHIP JUMPER, 1608TYPE

24000445 CHIP JUMPER, 1608TYPE

24000445 CHIP JUMPER, 1608TYPE

24000445 CHIP JUMPER, 1608TYPE

24000445 CHIP JUMPER, 1608TYPE

24000445 CHIP JUMPER, 1608TYPE

24000445 CHIP JUMPER, 1608TYPE

24000445 CHIP JUMPER, 1608TYPE

24000445 CHIP JUMPER, 1608TYPE

24000445 CHIP JUMPER, 1608TYPE

24000445 CHIP JUMPER, 1608TYPE

24000445 CHIP JUMPER, 1608TYPE

24000445 CHIP JUMPER, 1608TYPE

24011102 CHIP, METAL FILM, 1/20W 1K OHM J

24011102 CHIP, METAL FILM, 1/20W 1K OHM J

24011102 CHIP, METAL FILM, 1/20W 1K OHM J

24011470 CHIP, METAL FILM, 1/20W 47 OHM J

24321109 OXIDE METAL FILM, 1/2W 1 OHM J

24000445 CHIP JUMPER, 1608TYPE

24000445 CHIP JUMPER, 1608TYPE

24000576 JUMPER CHIP, 3216TYPE

24000445 CHIP JUMPER, 1608TYPE

24000445 CHIP JUMPER, 1608TYPE

24000445 CHIP JUMPER, 1608TYPE

24000445 CHIP JUMPER, 1608TYPE

L810

L811

L883

L884

L886

L887

L900

L901

L902

L462C

L462D

L462E

L514

L661

L662

L805

L806

COILS & TRANSFORMERS

L101 23289929 COIL, PEAKING COIL 82MMH TRF4820AU

L102

L103

23238562 COIL, PEAKING, TRF4109AJ

23238503 COIL, PEAKING, TRF4129AJ

L104

L105

L106

L107

23238506 COIL, PEAKING, TRF4229AJ

23238506 COIL, PEAKING, TRF4229AJ

23238713 COIL, PEAKING, TRF4120AJ

23238713 COIL, PEAKING, TRF4120AJ

L108

L162

L301

L441

L461

L462

L462A

L462B

23238709 COIL, PEAKING, TRF4270AJ

23289928 COIL, PEAKING COIL 68MMH TRF4680AU

23103249 CORE, FERRITE BEAD 3.5X4.5, TEM2011AO

23233999 COIL, LINEALITY, TLN2215AY

23248364 COIL, CHOKE 17X29H 680MMH 1.7A TLN3337AC

23231375 COIL, DEFLECTION YOKE, TDY821AA

23993696 BOARD, CORRECTION

23949616 CONVER CORRECTOR, YV TC-R TC-R(YV)

23993081 METAL SHEET, CONV. CORRECTION TCRMXH01H

23948535 SHEET, MAGNETIC FERRITE

23948536 SHEET, MAGNETIC FERRITE

23289919 COIL, PEAKING, TRF4120AU

23221129 CHOKE COIL , TRF9240AC TRF9240AC

23221129 CHOKE COIL , TRF9240AC TRF9240AC

23248234 COIL, CHOKE, TLN3481AC

23248234 COIL, CHOKE, TLN3481AC

23103279 FILTER, FERRITR CHOKE 3.5X5X2 TEM2014AO

23103279 FILTER, FERRITR CHOKE 3.5X5X2 TEM2014AO

23103249 CORE, FERRITE BEAD 3.5X4.5, TEM2011AO

23248230 COIL, CHOKE, TLN3142AC

23103249 CORE, FERRITE BEAD 3.5X4.5, TEM2011AO

23248087 COIL, CHOKE, TLN3312D

23103249 CORE, FERRITE BEAD 3.5X4.5, TEM2011AO

23200534 COIL, DG-0.37 TSB-2301AH

23289934 COIL, PEAKING, TRF4221AU

Location

No.

T862

G102

G103

G104

G105

G106

G107

G108

G109

G110

G402

G889

GL511

GL512

LA05

LC01

LC04

LZ02

T401

T461

T801

T802

L903

L904

L905

L906

L907

LA03

LA04

Parts No. Description

23289934 COIL, PEAKING, TRF4221AU

23289934 COIL, PEAKING, TRF4221AU

23289925 COIL, PEAKING, TRF4390AU

23289925 COIL, PEAKING, TRF4390AU

23289925 COIL, PEAKING, TRF4390AU

23103279 FILTER, FERRITR CHOKE 3.5X5X2 TEM2014AO

23103279 FILTER, FERRITR CHOKE 3.5X5X2 TEM2014AO

23289918 COIL, PEAKING, TRF4100AU

23238513 COIL, PEAKING, TRF4R22AJ

23289918 COIL, PEAKING, TRF4100AU

23221129 CHOKE COIL , TRF9240AC

23224391 TRANSFORMER, DRIVE, TLN1104AH

23236829 TRANSFORMER, FLY-BACK TFB4213AH

23211731 COIL, LINE FILTER, TRF3164AC

23211777 COIL, LINE FILTER 37X40H 4.7MH TRF3202AR

23217664 TRANSFORMER, CONVERTER TPW3543AC

23103279 FILTER, FERRITR CHOKE 3.5X5X2 TEM2014AO

23103249 CORE, FERRITE BEAD 3.5X4.5, TEM2011AO

23248234 COIL, CHOKE, TLN3481AC

23248234 COIL, CHOKE, TLN3481AC

23103249 CORE, FERRITE BEAD 3.5X4.5, TEM2011AO

23103249 CORE, FERRITE BEAD 3.5X4.5, TEM2011AO

23103249 CORE, FERRITE BEAD 3.5X4.5, TEM2011AO

23103249 CORE, FERRITE BEAD 3.5X4.5, TEM2011AO

23103249 CORE, FERRITE BEAD 3.5X4.5, TEM2011AO

23103249 CORE, FERRITE BEAD 3.5X4.5, TEM2011AO

23289918 COIL, PEAKING, TRF4100AU

23289918 COIL, PEAKING, TRF4100AU

23103279 FILTER, FERRITR CHOKE 3.5X5X2 TEM2014AO

QA02

QA51

QA52

QA53

QA60

QA61

QB30

Q901

Q902

Q903

Q904

Q905

Q906

Q907

Q908

Q610

Q612

Q613

Q801

Q805

Q811

Q819

Q862

Q421

Q422

Q430

Q431

Q470

Q471

Q482

SEMICONDUCTORS

Q100 23009668 IC, P/N 2IN1 VCD MICRO

Q101 23114611 TRANSISTOR, 2SC3357

Q103

Q104

Q108

Q109

23205006 TRANSISTOR, KTC4075Y

23205006 TRANSISTOR, KTC4075Y

70200984 IC, A/V SW 3IN1X1 SOP-8C MM1113XF

23205081 TRANSISTOR, 2SA1980-Y

Q112

Q115

Q116

Q130

Q196

Q301

Q402

Q404

23205006 TRANSISTOR, KTC4075Y

23205006 TRANSISTOR, KTC4075Y

23205005 TRANSISTOR, KTA2014Y

23205204 TRANSISTOR, NPN VEBO=25V KTC2875B-RTK

23205085 TRANSISTOR, 2SC5343-Y

23009352 IC, AN5522

23114755 TRANSISTOR, 2SC2482FA-1

23314970 TRANSISTOR, 2SD2539(FA)

23314375 TRANSISTOR, ON4409

23314141 TRANSISTOR, 2SC3852

23009843 IC, REGULATOR +5V 4% S7805PI

23314980 TRANSISTOR, 2SD2549 P

23205209 TRANSISTOR, NPN R1=2.2K R2=47K SRC1205S (SOT-23)

23205005 TRANSISTOR, KTA2014Y

23205006 TRANSISTOR, KTC4075Y

23205257 TRANSISTOR, PNP VCBO=-150V KTA1024-Y

23000867 IC, AN5274

23205005 TRANSISTOR, KTA2014Y

23205006 TRANSISTOR, KTC4075Y

23009322 IC, POW SW.REG.IC VDS=650V,PO= STR-G8656

23205209 TRANSISTOR, NPN R1=2.2K R2=47K SRC1205S (SOT-23)

23318299 IC, L78MR05-FA

23205006 TRANSISTOR, KTC4075Y

23906937 IC, PHOTO COUPLER, ON3171-R

23314780 TRANSISTOR, 2SC4544

23205085 TRANSISTOR, 2SC5343-Y

23314780 TRANSISTOR, 2SC4544

23205085 TRANSISTOR, 2SC5343-Y

23314780 TRANSISTOR, 2SC4544

23205085 TRANSISTOR, 2SC5343-Y

23205081 TRANSISTOR, 2SA1980-Y

23205202 TRANSISTOR, 2SC5344Y 2SC5344Y

23009646 IC, 8K BIT CMOS EEPROM AT24C08A-10PI-2.7

23205006 TRANSISTOR, KTC4075Y

23205005 TRANSISTOR, KTA2014Y

23205005 TRANSISTOR, KTA2014Y

23205006 TRANSISTOR, KTC4075Y

23205006 TRANSISTOR, KTC4075Y

23205006 TRANSISTOR, KTC4075Y

– 20 –

Location

No.

D612

D622

D801

D802

D803

D805

D806

D809

D432

D440

D441

D444

D467

D470

D471

D472

D224

D301

D302

D303

D406

D408

D421

D431

QB43

QB60

QB61

QV10

QV13

D101

D150

D903

D904

D905

D906

D907

D908

D909

D910

D810

D812

D819

D872

D881

D883

D885

D901

D911

DB02

DB30

KB01

Parts No. Description

23205209 TRANSISTOR, NPN R1=2.2K R2=47K SRC1205S (SOT-23)

23205006 TRANSISTOR, KTC4075Y

23205006 TRANSISTOR, KTC4075Y

23205081 TRANSISTOR, 2SA1980-Y

23000359 IC, MM1111XF

23316411 DIODE, ZENER, HZT33-12

23357447 DIODE, SWITCH SILICON KDS160-RTK/USC

23357447 DIODE, SWITCH SILICON KDS160-RTK/USC

23357372 DIODE, AXIAL EU2JGF-41U2

23357372 DIODE, AXIAL EU2JGF-41U2

23316794 DIODE, SC570A

23357372 DIODE, AXIAL EU2JGF-41U2

23357372 DIODE, AXIAL EU2JGF-41U2

23118622 DIODE, ZENER, RD10ES B2

23118515 DIODE, ZENER, RD11ESA B1

23357447 DIODE, SWITCH SILICON KDS160-RTK/USC

23316254 DIODE, ERC06-15

23118516 DI0DE, ZENER, RD9.1ES B3

23357364 DIODE, RU4JGF- M2 RU4JGF- M2

23357372 DIODE, AXIAL EU2JGF-41U2

23357267 DIODE, DZ5.6 BS B

23357447 DIODE, SWITCH SILICON KDS160-RTK/USC

23357447 DIODE, SWITCH SILICON KDS160-RTK/USC

23357447 DIODE, SWITCH SILICON KDS160-RTK/USC

23357447 DIODE, SWITCH SILICON KDS160-RTK/USC

23357237 DIODE, TS4B05G-A1

23357295 DIODE, ZENER, DZ13 BS C

23357447 DIODE, SWITCH SILICON KDS160-RTK/USC

23357012 DIODE, 1SS244

23357372 DIODE, AXIAL EU2JGF-41U2

23118529 DIODE, ZENER, RD5.6ES B2

23118616 DIODE, ZENER, RD27ESA B2

23357450 DIODE, VRM=90V IO=130MA ISS133

23118526 DIODE, ZENER, RD6.8ES B2

23118511 DIODE, ZENER, RD12ES B2

23357273 DIODE, ZENER, DZ6.8 BS B

23357336 DIODE, RL3A LF014-3

23316714 DIODE, RL2Z

23357450 DIODE, VRM=90V IO=130MA ISS133

23357450 DIODE, VRM=90V IO=130MA ISS133

23357450 DIODE, VRM=90V IO=130MA ISS133

23357450 DIODE, VRM=90V IO=130MA ISS133

23357450 DIODE, VRM=90V IO=130MA ISS133

23357450 DIODE, VRM=90V IO=130MA ISS133

23357450 DIODE, VRM=90V IO=130MA ISS133

23357450 DIODE, VRM=90V IO=130MA ISS133

23357450 DIODE, VRM=90V IO=130MA ISS133

23357449 DIODE, DIODE IO=1.0A ERB10JGR-41A-1AU

23358567 LED, LAMP RED/GREEN L-59EGW

23357447 DIODE, SWITCH SILICON KDS160-RTK/USC

23009490 IC, REMOCON RECEIVER, PIC-TB19

MISCELLANEOUS

F470 23144646 FUSE, CARTRIDGE 5X20 250V 0.8A

F470A 23165469 FUSE HOLDER, FUSE HOLDER 5.2 DFH-001

F801

F801A

N724

N728

23144508 FUSE, CARTRIDGE 5.2X20, 250V 4.0A

23165469 FUSE HOLDER, FUSE HOLDER 5.2 DFH-001

23965900 TAPE, GLASS-CLOTH, W/ADHESIVE W=18 T=0.18

23960101 SILICONE RUBBER, TSE-382 RTV

P661

P801

P802

P900

P910

PV01

PV02

S801

23023116 PLUG, HEAD PHONE JACK 3.5MM PJ3-14-7

23372052 POWER CORD, 250V2.5A

23368249 POWER CORD, 2P 11.88MM VH-JST

23164725 CONNECTOR, PLUG 2P

23164725 CONNECTOR, PLUG 2P

23023198 JACK, 4P (NO SW) DAV4-31B01110S01

23023195 JACK, PIN JACK 2P DMD AV2-43-001

23344385 SWTCH, POWER, PUSH 2C1P TV5, OMRON

SA01

SA02

SA03

SA04

SA05

SA06

V901A

V901B

V901M

23344443 SWITCH, TACTING SWITCH TSV TYP TSVB-1

23344443 SWITCH, TACTING SWITCH TSV TYP TSVB-1

23344443 SWITCH, TACTING SWITCH TSV TYP TSVB-1

23344443 SWITCH, TACTING SWITCH TSV TYP TSVB-1

23344443 SWITCH, TACTING SWITCH TSV TYP TSVB-1

23344443 SWITCH, TACTING SWITCH TSV TYP TSVB-1

23903147 SOCKET, ISH46S-E ICE 29MM

23102959 MAGNET, RUBBER

23102424 CONVERGENCE MAGNET, MAG-1082

Location

No.

W661

W662

XA01

Z101

Z102

Z103

Z130

ZC01

ZC02

Parts No. Description

23351239 SPEAKER, 60X90 8-OHM 3W ONKYO SPK-1452AO

23351239 SPEAKER, 60X90 8-OHM 3W ONKYO SPK-1452AO

23153571 CRYSTAL, 8.000 MHZ

23303136 CERAMIC TRAP, TCF1097

23303085 CERAMIC TRAP, TCF1092

23303271 FILTER, TRAP 4.5MHZ, TCF1138AM

23303230 FILTER, 38MHZ MULTI F816KPL F816KPL

23303166 CERAMIC TRAP, 39.5MHZ TCF1107

23303224 CERAMIC TRAP, TCF1120AM

PC BOARD ASSEMBLIES

*

U901

U902

23761794 PC BOARD ASSY, PD0607E CRT/D TSP2003082892

23761824 PC BOARD ASSY, PD1675 MAIN TSP2003092324

PICTURE TUBE

V901 23312954 PICTURE TUBE, A51LVV896X, 21FFG02

TUNER

H001 23321450 TUNER, ASIA HYPER FS D-J, ENV59DA7G3

ACCESSORIES

K902 23306459 REMOCON HAND UNIT IR, CTVPAL CT-90119

Y101A 23566255 OWNERS MANUAL, 21SZ2R1/M1/M2

Y101B

Y120

23566262 OWNERS MANUAL, 21SZ2R1, RUS

23943846 BAG, POLY

CABINET PARTS

A201 23532535 COVER, FRONT COVER

A267 23445755 BUTTON, BUTTON POWER

A268

A270

A271

A401

23929509 HOLDER, BUTTON

23428230 DOOR, DOOR PROPER

23451868 PUSH CATCH

23532500 COVER, BACK COVER P

A530A

A530B

A701

A702A

A702B

AT03

E501

E912

23929521 PIECE, WASHER T=0.5

23929522 PIECE, WASHER T=1.0

23067594 CARTON, BOX

23946609 PACKING, TOP PACKING

23946610 PACKING, BOTTOM PACKING

23588765 REMOCON PART, BATTERY COVER, CT-90119

23198694 WIRE, CRT EARTH, 21D7DXE

23848729 WEDGE, YOKE HOLDING, 3 REQUIRED

– 21 –

THIS PAGE IS

INTENTIONALLY LEFT

BLANK.

22

MAIN BOARD PD1675 (U902)

BOTTOM (FOIL) SIDE

C

E

QS02

B

GR05

GR05

P496

G103

H001

PV01

CS14 CS05

RS05

GR02

GR02

B

QS01

CV10

+

CS04

E

QS01

RS05

C

3

M804

+

C106

Q422

1

TP15

+

C483

GJ02

GJ02

GJ01

GJ01

C102

+

+

C188

E

QV10

RV12

RV12

B

+

RV13

RV13

CS03

CS11

+

C484

RS11

RS12

+

+

RS12

RS11

C187

C187

D431

GD430

R479

R479

C431

B102

C118

C118

Q101

B

ZC01

E

R111

ZC02

GR106

LC01

C170

GJ07

GJ07

Q101

R117

L103

C

R191

C103

C103

R191

R124

D150

GJ04

GJ04

GJ05

R124

R113

GJ06

R115

C

Q130

GJ05

E

B

Q130

Z130

R115

R117

L162

R131

L112

L102

1 2 3 4

D432

E

C

B

D432 Q430

D472

D472

GD433

R431

R436

B

E

Q431

C

R432

R432

R122

L514

+

5

C167

+

Q120

B C

C528

C227

R217

R158

C

B Q116 E

D224

D224

R190

R190

+

+ +

C523

R158

+

Q111

C

E

Q111

B

C

Q113

E

Q113

R126

C179

R129

B

GJ10

R138

R137

R138

GJ10

C105

B

C105

C

GJ101

GJ101

Q112

JR002

+

+

G102

LA03

C133

C133

+

33

C479

R483

C479

GL512

RV02

RV02

32

C224

R139

+

R127

R127

R125

C111

C111

L109

C180

+

C432

+

GR160

GR160

Q109

B

L171

C178

R120

C567

C114

C

JR004

JR004

E

C567

8

Q108

5

+

Q108

+

1

C171

R134

R134

4

+ CC08

C172

RC02

RC02

C177

C177

GJ11

C176

C176

R170

R170

+

R145

++

C216

D221

Q100

GJ15

D222

D222

R229

C435

+

C434

C232

R434

R435

C436

R435

C175

Z102

GR400

GR400

R491

+

B

GJ25

R169

R167

QB61

C E

QB61

B

RA77

RA77

RA74

C137

C137

C

QB60

E

B

RA74

RA75

C

B E

R178

R178

Q104

R173

R173

R177

R177

R166

R179

R166

RA76

R172

E C

R168

R168

C

R176 R176

R167

GJ25

R169

+

C120

R143

L115

CA67

JR155

JR155

E

B

C

GJ28

R182

GJ27

GJ27

GJ28

R182

QB43

E

B

C

QB30

RB30

RB30

RA62

5

8

20

D223

M501

QB60

C524

GL525

+

G219

+

CA45

CA45

CA42

21 22 23 24

D223

RA35

CA58

QA60

RA06

B

E

C

RA06

CA58

QA60

DA60

DA60

RA63

RA60 RA60

RA63

RA35

64

RA04

RA04

4

E B

C

RA36

RA05

QA53

CA52

+

1

QA02

RA53

RA53

RA52

CA52

RA56

B

RA52

C

QA52

E

QA52

+

CA55

CA53

RA55

CA53

RA55

RA41

RA43 RA41

+

CA54

+

1

R150

R150

R194 R194

R196

C485

2

+

R315

L887

C471

C420

R421

R421

+

C308

2

4

6

Q301

1

3

7

C304

R314

D305

R316

R317

C309

+

C305

+

R301

C472

R306

R156

L884

+

C884

D883

R888

GR888

D885

L886

+

C889

G889

C899

R313

GR303

F470

+

G218

C312

+

M502

R305

L301

D303

R312

C307

C

R469

R485

E

Q482

81

81

T800mA L/250V

C

E

Q805

B

T862

C317

B

C410

C445

R447

R430

R481

R482

R482 R484

R484

E

QA61

B

C498

C446

13 12

11

+

+

P570

C470

R336

+

C306

C417

R410

C416

R416

+

2

1

C821

3

4

+

1

3

5

C818

C883

C806

D801

E

B

Q801

2

Q402

4

R441

C442

C

G812

R808

GJ18

GJ18

R811

C629

+

T802

+

+

+

R605

+

GJ17

R605

R608

GJ17

R608

R632

R632

+

QV14

+

R633

R634

R633

C637

R631

R634

R631

+

C609

R624

E

C

Q611

B

R623

R611

R611

GJ24

CS09

C

+

E

Q622

GJ24

R623

4

+

CS09

QV13

+

+

+

5

RS07

8

R622

R622

1

D612

C

B

Q612

D612

R612

GJ30

GJ31

R612

Q621

RS07

+

CS01

Q621

R630

+

R630

+

GJ22

GJ22

GJ20

B

C

Q613

E

GJ20

CS06

CV12

CV14

R621

RS06

RS06

CS06

CV12

CV14

R621

R825

R819

D470

D803 R478

B

C

E

E

C

C

+

B

B E

R471

R475

R471

R475

2

4

Q811

+

1

3

5

C831

+

GR06

GR06

CS10

RS09

CS16

CS10

RS09

CS16

3

4

1

2

P601

C672

C672

R663

C671

C671

R662

BLU

P802

BRN

+

P499

CS15

CS15

GR03

RS04

RS04

CS07

CS07

RB09

RB01

RB09

RB01

P661

C674

C674

C673

C673

T401

R829

C822

G108

C444

T461

Q404

G402

D440

C

L461

D467

C464

R474

D444

C467

C829

C810

+

R

80

2

G109

C801

R801

P498

S801

G106

P497

MCL-437F

23547546

B

C463

C463

R412

E

L806

CAUTION LIVE AREA

– 23 – – 24 –

P900

E

Q903

C

CRT/D BOARD PD0607E (U901)

BOTTOM (FOIL) SIDE

B

TP47G

E

C

R946

R924

R922

R919

B

Q901

TP47R

L905

P905

E

Q904

B

R901

R916

R918

C903

R917 R915

E

D907 R912

B

Q902

P501B

R903

CCP-3400

TP46B

TP46G

TP46R

R935

B

Q907

E

R977

E

R936

23546994

C910

D903 D901

D910 R904

B E

Q908

R945

C

Q905

B

B

C908

R929

E

Q906

R920

P502B

14

13

12

11

R963

2SD2253

(old)

2SC5243

E

C

B

TERMINAL VIEW OF TRANSISTORS

2SC3852

2SD1763A

2SC1569

2SC4544

2SA1788

2SA1306

2SA1186A

E

C

B

2SC752GTM

2SC2482

2SC2655

2SC4721P

2SC752

2SA562TM

2SA1015

2SC1815

2SC2878

2SC1740S

2SC2120

2SA9335

B

CE

B

CE

2SA1788

E

C

B

RN2203

RN2201

RN2004

RN1203

RN1204

RN2204

RN1205

RN1202

RN1201

E

C B

2SD1554

2SD2253

2SD1556

2SC5143

2SD2553

E

C

B

ON4409

E

C

B

– 25 – – 26 –

SCHEMATIC DIAGRAM

MODEL : 21CSZ2R1

WARNING

: BEFORE SERVICING THIS CHASSIS, READ THE "X-RAY RADIATION PRECAUTION", "SAFETY

PRECAUTION" AND "PRODUCT SAFETY NOTICE" ON THE MANUAL FOR THIS MODEL.

CAUTION

: The international hazard symbols " " in the schematic diagram and the parts list designate components which have special characteristics important for safety and should be replaced only with types identical to those in the original circuit or specified in the parts list. The mounting position of replacements is to be identical with originals.

Before replacing any of these components, read carefully the PRODUCT SAFETY NOTICE on the MANUAL for this model. Do not degrade the safety of the receiver through improper servicing.

NOTE:

1. RESISTOR Resistance is shown in ohm [K = 1.000, M = 1.000.000]. All resistors are 1/6W and 5% tolerance carbon resistor, unless otherwise noted as the following marks.

1/2R = Metal or Metal oxide of 1/2 watt 1/2S = Carbon compsistion of 1/2 watt

1RF = Fuse resistor of 1 watt

K =

±

10% G =

±

2% F =

±

1%

10W = Cement of 10 watt

2. CAPACITOR Unless otherwise noted in schematic, all capacitor values less than 1 are expressed in

µ

F, and the values more than 1 in pF.

All capacitors are ceramic 50V, unless otherwise noted as the following marks.

Electolytic capacitor Mylar capacitor

3. The parts indicated with " " have special characteristics, and should be replaced with identical parts only.

4. Voltages read with DIGITAL MULTI-METER from point indicated to chassing ground, using a color bar signal with all controls at normal, line voltage at 220 volts.

5. Waveforms are taken receiving color bar signal with enough sensitivity.

6. Voltage reading shown are nominal values and may vary

±

20% except H.V.

SCHEMATIC DIAGRAM STRUCTURE:

MAIN Circuit [ SHEET– 1/2 ] .......................................................................... 1/3

[ SHEET– 2/2 ] .......................................................................... 2/3

CRT-D Circuit ..................................................................................................................................... 3/3

– 27 –

– 28 –

Rated voltage

Power consumption

(at ~ 220V 50Hz)

Dimensions

MODEL

(Width x Depth x Height)

Mass

Picture Tube

SPECIFICATIONS

21CSZ2R1

~ 220 - 240V, 50Hz

92W

Television system

(Aerial input)

Color system

Sound output

Terminals

Channel coverage

Special

RF signal

Speaker

* Please refer to owner's manual in detail.

500(W) X 477(D) X 478(H) mm

Type 21

System

PAL B/G

PAL I

PAL D/K

SECAM B/G

SECAM D/K

NTSC M

NTSC M

22.9kg

Flat square picture tube

(549.1mm) Overall picture tube measured diagonally

(505.5mm) Viewable picture tube measured diagonally

90

° deflection

Channel

CCIR

UK

CHINA

CCIR

OIRT

US

JAPAN

VHF

2 - 12

––

1 -12

2 - 12

Color system Sound system

NTSC4.43

PAL 60Hz

5.5/6.0/6.5 MHz

5.5/6.0/6.5 MHz

1 -12

2 -13

1 -12

UHF

21 - 69

21 - 69

13 - 57

21 - 69

21 - 69

14 - 69

13 - 62

CATV

X~Z+2, S1~S41

––

Z-1~ Z-38

X~Z+2, S1~S41

X1~X19

A-6~A-1, A~W, AA~ZZ, AAA, BBB

M-1~M-10, S1~41

PAL / SECAM / NTSC4.43 / NTSC3.58

2.5 W x 2

Input: Video/Audio (monaural)

Monitor output: Video/Audio (monaural)

6 x 9cm (2)

TOSHIBA CORPORATION

1-1, SHIBAURA 1- CHOME, MINATO-KU, TOKYO 105-8001, JAPAN

FILE NO. 060-200210

SERVICE MANUAL

COLOUR TELEVISION

S2ES Chassis

29VZ6DE

,

29VZ6DA

29VZ6SH

Sep., 2002

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
