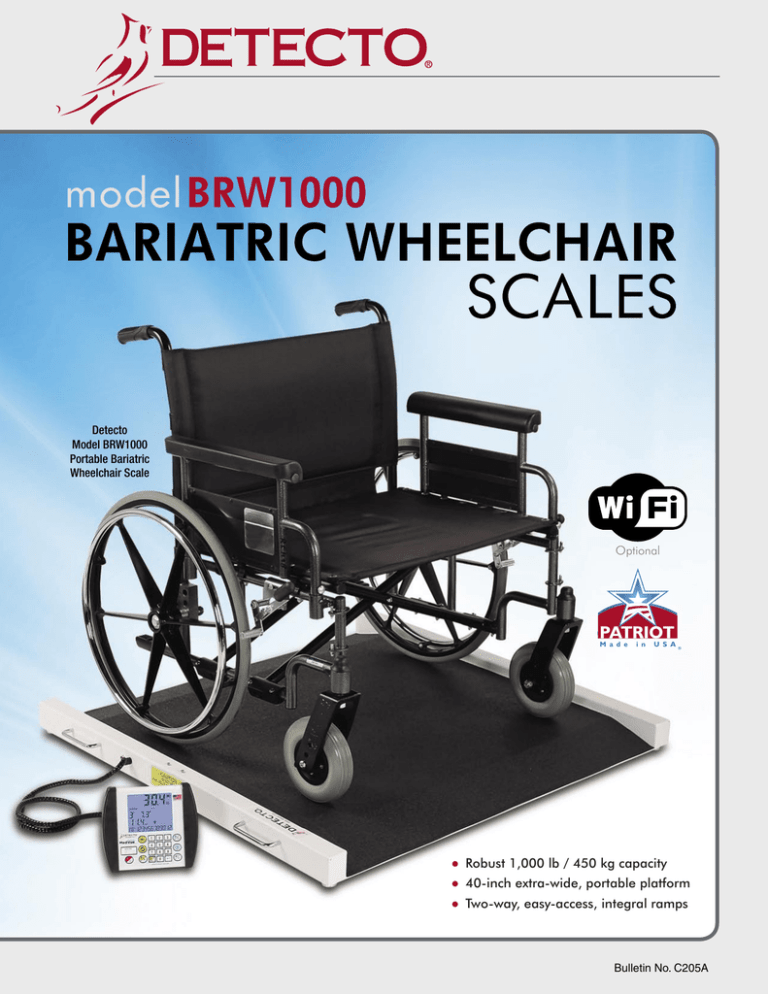

Detecto
Model BRW1000
Portable Bariatric
Wheelchair Scale
Optional
PATRIOT
M a d e i n U S A
®
● Robust 1,000 lb / 450 kg capacity
● 40-inch extra-wide, portable platform
● Two-way, easy-access, integral ramps
Bulletin No. C205A
Detecto’s USA-made model BRW1000
portable digital wheelchair scale is
designed specifically for bariatric-size wheelchair patients. The BRW1000 features a lowprofile platform with two-way, easy-access integral
ramps for efficient wheelchair loading. The digital
scale’s spacious platform measures extra-large
40-inch wide by 30-inch deep dimensions to
accommodate oversized bariatric wheelchairs.
The robust 1,000-lb / 450-kilogram capacity and
extra-large platform size allows the BRW1000
to be used with patients in manual or
power wheelchairs, dialysis patients,
or walk-ons.
Integral Wheels combine with a
lightweight frame and battery power
to make the scale completely mobile.
Carrying Handles ease transport
and allow the scale to be used in
multiple locations.
40
-in
ch
-w
id
e
Large
Bariatric
Wheelchair
Size Platform
pl
at
fo
rm
This lightweight aluminum
digital wheelchair scale is made for
heavyweight tasks in patient healthcare
and will even handle power wheelchairs.
Stainless Steel Load Cells feature
self-aligning feet, so they will find the
most level surface for weighing.
The BRW1000's
MedVue indicator is
attached to the scale
via a pigtail cable that
extends up to 14 ft. long.
Weight, Height, and Body Mass Index patient measurement data may be
output to EMR/EHR software through the indicator’s standard RS232 serial
or USB ports, or through optional wired or Wi-Fi Ethernet connectivity.
OPTIONAL WI-FI
The BRW1000 features brilliant blue LCD
readouts with 7/8-in-high weight digits and
up to 14-digit patient IDs that may be entered
via the indicator’s color-coded keypad.
The non-skid rubber mat provides traction for patients standing
barefoot or wheelchair tires to grip for assurance and stability.
● Up to 99 tares (optional)
to store wheelchair weights
Optimum
patient weighing
"on-the-move"
● Hold/Release key to retain
weight after leaving the scale
● Body Mass Index calculation
● Interface with a PC or printer
via multiple connectivity methods
American-Made Quality
Clinical-Grade Construction
Integral dual wheels and two carrying handles combine
with a relatively-lightweight, 75-lb frame and battery
operation to allow the BRW1000 rolling mobility for
versatile weighing use. Simply lift up and easily transport the BRW1000 from location to location throughout a healthcare facility wherever it’s needed. The
scale’s four USA-made stainless steel load cells feature
self-aligning feet, so when the scale comes to rest from
transport mode, it will find the most level surface.
The BRW1000 is part of Detecto’s Patriot line of
USA-made clinical scales. From the stainless steel load
cells to the MedVue® digital weight indicator, the scale
is completely manufactured in Webb City, Missouri at
Detecto’s factory. This digital scale’s American-made
quality is apparent throughout its construction.
Capacity 1,000 lb x 0.2 lb / 450 kg x 0.1 kg
Display Weight: 5-digit, 7-segment, 7/8 inch (22.2 mm) high LCD
Height: 4-digit, 7-segment, 1/2 inch (12.7 mm) high LCD
Keyboard Membrane type with 19 keys
Connectivity Ports RS232 serial and USB (standard), wired and Wi-Fi Ethernet (optional)
Display Dimensions 6.8 inch H x 7.6 inch W x 1.8 inch D (171.4 mm W x 193.8 mm H x 44.4 mm D)
Power 6 AA cell Alkaline, Ni-Cad or NiMH batteries (not included)
OR an optional 12 VDC 1.25A wall plug-in AC power adapter (Detecto part number MV1PWR)
Resolution 5,000 divisions, maximum
Operating Temperature 14º to 104º F (-10º to +40º C)
Construction Aluminum
UPC Code 809161139303
Shipping Weight 75 lb / 34 kg
Detecto Scale reserves the right to improve, enhance, or modify features and specifications without prior notice.
DETECTO
Sold By:
MADE IN USA
®
ISO
A Division of Cardinal Scale Manufacturing Co.
REGISTERED 9001
203 E. Daugherty, Webb City, MO 64870 USA
Ph: 417-673-4631 or 1-800-641-2008 Fax: 417-673-5001
www.Detecto.com
© Copyright 2013 Cardinal Scale Mfg. Co.
• Printed in USA • CAR/00/0813/C205A
