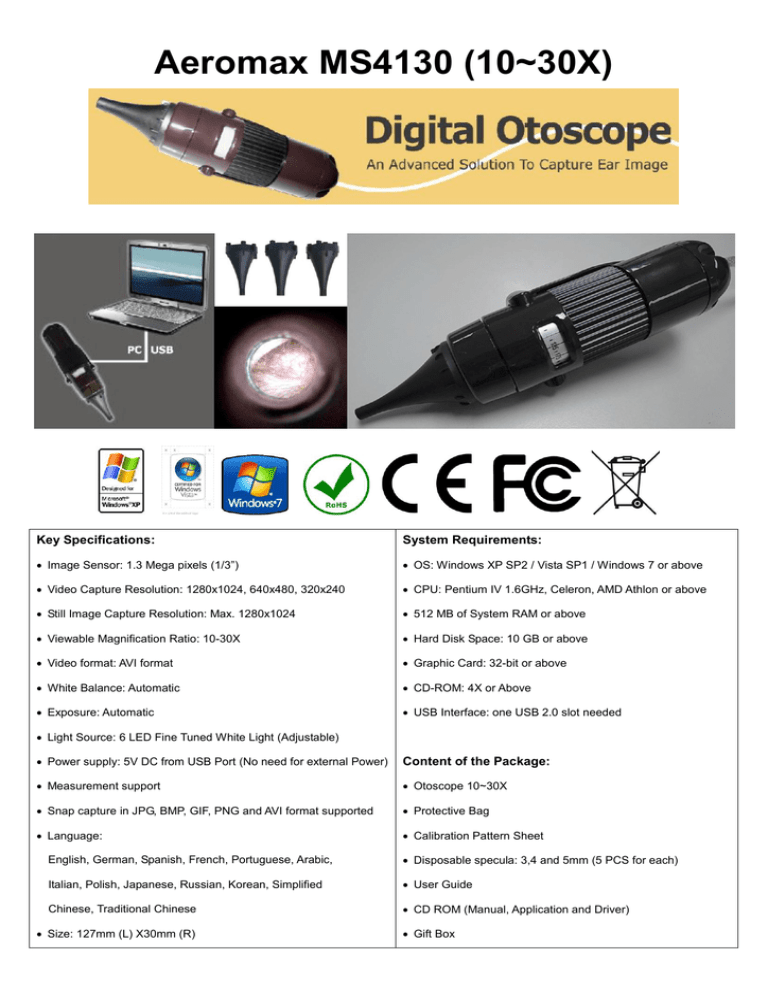

Aeromax MS4130 (10~30X)
Key Specifications:
System Requirements:
 Image Sensor: 1.3 Mega pixels (1/3”)
 OS: Windows XP SP2 / Vista SP1 / Windows 7 or above
 Video Capture Resolution: 1280x1024, 640x480, 320x240
 CPU: Pentium IV 1.6GHz, Celeron, AMD Athlon or above
 Still Image Capture Resolution: Max. 1280x1024
 512 MB of System RAM or above
 Viewable Magnification Ratio: 10-30X
 Hard Disk Space: 10 GB or above
 Video format: AVI format
 Graphic Card: 32-bit or above
 White Balance: Automatic
 CD-ROM: 4X or Above
 Exposure: Automatic
 USB Interface: one USB 2.0 slot needed
 Light Source: 6 LED Fine Tuned White Light (Adjustable)
 Power supply: 5V DC from USB Port (No need for external Power)
Content of the Package:
 Measurement support
 Otoscope 10~30X
 Snap capture in JPG, BMP, GIF, PNG and AVI format supported
 Protective Bag
 Language:
 Calibration Pattern Sheet
English, German, Spanish, French, Portuguese, Arabic,
 Disposable specula: 3,4 and 5mm (5 PCS for each)
Italian, Polish, Japanese, Russian, Korean, Simplified
 User Guide
Chinese, Traditional Chinese
 CD ROM (Manual, Application and Driver)
 Size: 127mm (L) X30mm (R)
 Gift Box
