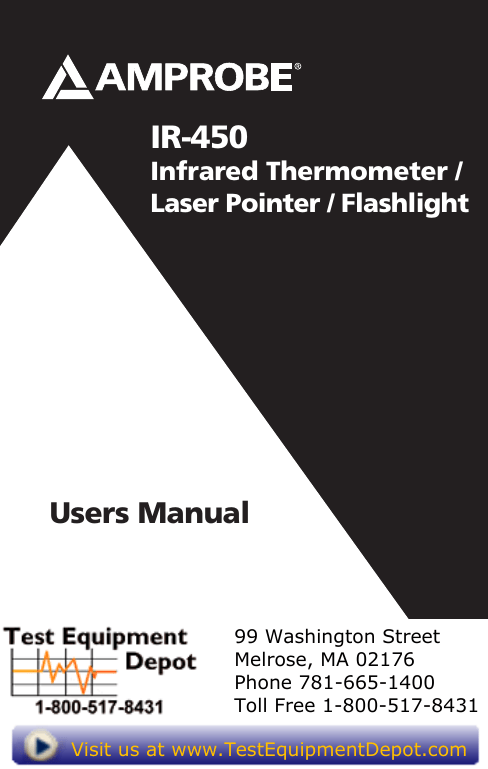

IR-450
Infrared Thermometer /
Laser Pointer / Flashlight
Users Manual
99 Washington Street
Melrose, MA 02176
Phone 781-665-1400
Toll Free 1-800-517-8431
Visit us at www.TestEquipmentDepot.com
Infrared Thermometer /
Laser Pointer / Flashlight
Users Manual
4240687A
©2012 Amprobe.
All rights reserved. Printed in Taiwan
English
IR-450
Limited Warranty and Limitation of Liability
Your Amprobe product will be free from defects in material and
workmanship for one year from the date of purchase, unless
local laws require otherwise. This warranty does not cover fuses,
disposable batteries or damage from accident, neglect, misuse,
alteration, contamination, or abnormal conditions of operation
or handling. Resellers are not authorized to extend any other
warranty on Amprobe’s behalf. To obtain service during the
warranty period, return the product with proof of purchase to an
authorized Amprobe Service Center or to an Amprobe dealer or
distributor. See Repair Section for details. THIS WARRANTY IS YOUR
ONLY REMEDY. ALL OTHER WARRANTIES - WHETHER EXPRESS,
IMPLIED OR STAUTORY - INCLUDING IMPLIED WARRANTIES OF
FITNESS FOR A PARTICULAR PURPOSE OR MERCHANTABILITY, ARE
HEREBY DISCLAIMED. MANUFACTURER SHALL NOT BE LIABLE
FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL
DAMAGES OR LOSSES, ARISING FROM ANY CAUSE OR THEORY.
Since some states or countries do not allow the exclusion or
limitation of an implied warranty or of incidental or consequential
damages, this limitation of liability may not apply to you.
Repair
All returned for warranty or non-warranty repair or for calibration
should be accompanied by the following: your name, company’s
name, address, telephone number, and proof of purchase.
Additionally, please include a brief description of the problem or
the service requested and include the test leads with the meter.
Non-warranty repair or replacement charges should be remitted
in the form of a check, a money order, credit card with expiration
date, or a purchase order made payable to Amprobe®.
In-Warranty Repairs and Replacement – All Countries
Please read the warranty statement and check your battery before
requesting repair. During the warranty, period any defective test
tool can be returned to your Amprobe® distributor for an exchange
for the same or like product. Please check the “Where to Buy”
section on www.amprobe.com for a list of distributors near you.
Additionally, in the United States and Canada In-Warranty repair
and replacement units can also be sent to a Amprobe® Service
Center (see address next page).
IR-450 Infrared Thermometer /
Laser Pointer / Flashlight
1
2
3
4
7
8
9
5
6
1) Laser
6) Battery cover
2) Flash light
7) Battery indicator
3) Display
8) Laser indicator
4) Flashlight button
9) OF / OC
5) On button / Test button
CONTENTS
SYMBOLS............................................................................. 1
UNPACKING AND INSPECTION........................................... 2
INTRODUCTION................................................................... 2
OPERATING INSTRUCTIONS................................................ 3
Power On / Off................................................................ 3
Auto Power Off............................................................... 3
Auto Hold........................................................................ 3
Operating The Unit......................................................... 3
Taking Temperature Measurement................................ 3
°F / °C Selection............................................................... 4
Distance & Spot Size....................................................... 4
Reminders........................................................................ 5
Emissivity......................................................................... 7
SPECIFICATION..................................................................... 7
TROUBLE SHOOTING........................................................... 8
MAINTENANCE AND REPAIR.............................................. 9
BATTERY REPLACEMENT..................................................... 10
SYMBOLS
�
Caution! Refer to the explanation in this Manual
*
Laser light: Do not stare into laser beam
M
Battery
�
Conform to relevant Australian standards
�
Complies with European Directives
=
Do not dispose of this product as unsorted
municipal waste. Contact a qualified recycler
�Safety Information
�Warning
• Do not stare into laser beam.
• Do not point laser directly at eye or indirectly off
reflective surfaces.
• For use by competent persons only.
• Do not leave the unit on or near objects of high
temperature.
• Verify the Tester’s operation by measuring on a
known source. Do not use the Tester if it operates
abnormally.
• Do not operate the Tester around explosive gas,
vapor, or dust.
• The Tester is intended for indoor use only.
• Use the Tester only as specifed in the users manual
or the protection by the Tester might be impaired.
1
�Cautions
The unit should be protected from the following,
• EMF (electro-magnetic fields) from arc welders and
induction heaters
• Static electricity
• Thermal shock (caused by large or abrupt ambient
temperature changes - allow 30 minutes for unit to
stabilize before use)
Unpacking and Inspection
Your shipping carton should include:
1 IR-450
1 1.5V AAA alkaline battery (installed)
1 Manual
If any of the items are damaged or missing, return
the complete package to the place of purchase for an
exchange.
INTRODUCTION
A must-have tool for everyday applications, the IR-450 is
a 3-in-1 tool that verifies temperature, is used as a laser
pointer and illuminates dark work spaces with a bright
LED flashlight. Compact and easy to use - just aim, press
the button, and read surface temperatures in less than a
second. You can safely measure surface temperatures of
hot, hazardous, or hard-to-reach objects without contact.
Features
• Infrared temperature measurement with laser pointer
• Holds temperature reading for 10 seconds
• Ultra white LED flashlight
• Selectable oF / oC temperature measurements
• Pocket clip
2
OPERATING INSTRUCTIONS
Power On / Off
Auto Power Off
The IR-450 will power down after not being used for 3
minutes.
Auto Hold
The unit will hold the reading for 10 seconds after the
on button is pressed.
Operating the Unit
To measure temperature, point unit at an object and press
the Test button. Be sure to consider distance-to-spot size
ratio and your distance from the measured object. The IR450 is equipped with a laser. Use the laser only for aiming.
See “Taking Temperature Measurement”.
Taking Temperature Measurement
Target Area
Incorrect
3
Make sure that the target is larger than the unit‘s spot
size. The smaller the target, the closer you should be
to it. The minimum measurement area is 3.75cm (1.5in)
diameter.
Press the
key, and the unit will show the
temperature of the target surface. Then release the
key, and the LCD will hold the reading for 10 seconds.
Press the
key for 3 seconds, the unit will turn into
the IR temperature continuous measurement mode.
°F / °C Temperature Selection
Press the Test button and the Flashlight button for
2 seconds at the same time for switching between
Fahrenheit and Celsius.
Distance and Spot Size
As the distance (D) from the object increases, the spot
size (S) of the area measured by the unit becomes larger.
4
Use the unit at around 30cm to get the best measurement
accuracy.
At longer distances, the target area shall be larger than
the distance divided by 8.
Please do not put the fingers on the housing for a long
period of time and cross the “B line” to prevent thermo
effect interference from measuring accuracy.
Reminders
1. Changes of surrounding ambient temperatures can
result in inaccurate readings. Allow time for the
unit to adapt to the change temperatures before
use. Specified accuracy applies after 30 minutes
when the Tester adjusts to different environmental
temperatures..
5
Allow time for the unit to adapt to the change of
ambient temperatures from the user’s pocket to
environmental ambient.
2. The unit cannot take measurements through
transparent surfaces such as glass. Remove the
barrier between the unit and the target surface.
6
3. Not recommended for use in measuring shiny or
polished metal surfaces (stainless steel, aluminum,
etc.). See Emissivity.
4. Steam, dust, smoke, etc., can prevent accurate
measurement by obstructing the unit‘s optics
Emissivity
Most organic materials and painted or oxidized surfaces
have an emissivity of 0.95 (pre-set in the unit). Inaccurate
readings will result from measuring shiny or polished
metal surfaces. To compensate, cover the surface to be
measured with masking tape or flat black paint. Allow
time for the tape to reach the same temperature as the
material underneath it. Measure the temperature of the
tape or painted surface.
SPECIFICATION
Temperature
Range
-30°C to 500°C (-22°F to 932°F)
Accuracy at
23°C ±2°C
<80﹪RH
-30°C to 0°C (-22°F to 32°F): ±2°C (±4°F)
1°C to 10°C (34°F to 50°F): ±1.5°C (±3°F)
11°C to 40°C (52°F to 104°F): ±1°C (±2°F)
41°C to 500°C (106°F to 932°F): ±1.5°C
(±3°F) or ±1.5% of reading, whichever
is greater.
Best display
Resolution
0.5°F / 0.2°C
Response
Time
0.5 s
Wavelength
630nm to 670nm
Spectral
Response
6.5µm to 18µm
Emissivity
E=0.95
D:S
8:1(calculated at 80% energy)
7
Repeatability
±1°C or ±0.5% of reading, whichever is
greater.
Display Hold
10 s
Electrical
Supply
Internally powered by 1 x AAA 1.5
Alkaline, LR03 battery
Weight
Approx. 50g (0.11lb)
Dimensions
(HxWxD)
100 x 20 x 29mm (3.94 x 0.79 x 1.14in)
Storage
Temperature
-20°C to 60°C (without battery)
CE Certification
This instrument conforms to the following standards:
• EN 61326-1 Electromagnetic Emissions and
Susceptibility
• EN 61010-1 General Safety
• EN 60825-1 Laser Safety
Environmental Conditions
•
•
•
•
•
Indoor use
Operating altitude: up to 2000m (6562 ft)
Pollution degree: 2
Temperature 23°C ± 2°C
Humidity < 80% RH
TROUBLESHOOTING
Code
Problem
Battery icon
appears
Possible low battery Check and/or
replace battery
Action
Blank display
Possible dead
battery
Check and/or
replace battery
Laser doesn‘t
work
Low or dead
battery
Replace battery
8
MAINTENANCE AND REPAIR
Lens Cleaning: Blow off loose particles using clean
compressed air. Gently brush remaining debris away
with a brush. Carefully wipe the surface with a moist
cotton swab. The swab may be moistened with water or
rubbing alcohol.
NOTE: DO NOT use solvents to clean the plastic lens.
Case Cleaning: Use soap and water on a damp sponge or
soft cloth.
NOTE: DO NOT submerge the unit in water.
9
BATTERY REPLACEMENT
Please replace the battery when “Battery indicator” is
flashing on display.
When battery is replaced / installed, the unit will go into
standby mode automatically.
10
