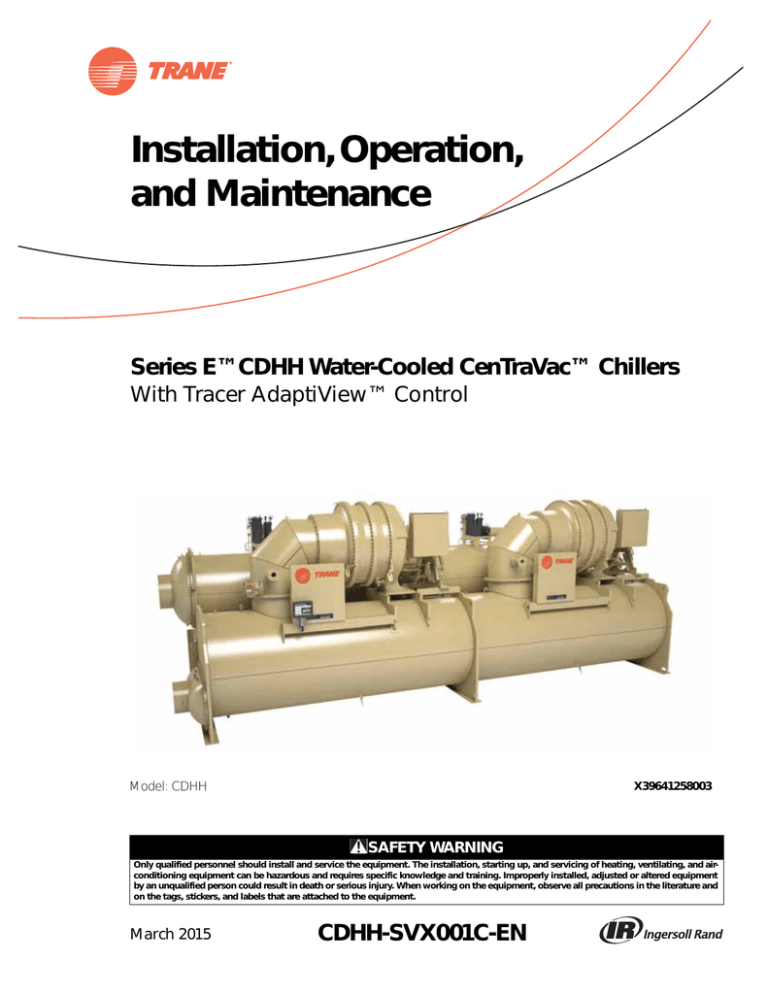

Installation, Operation, and Maintenance

Series E™CDHH Water-Cooled CenTraVac™ Chillers

With Tracer AdaptiView™ Control

Model: CDHH

X39641258003

SAFETY WARNING

Only qualified personnel should install and service the equipment. The installation, starting up, and servicing of heating, ventilating, and airconditioning equipment can be hazardous and requires specific knowledge and training. Improperly installed, adjusted or altered equipment by an unqualified person could result in death or serious injury. When working on the equipment, observe all precautions in the literature and on the tags, stickers, and labels that are attached to the equipment.

March 2015

CDHH-SVX001C-EN

Introduction

Read this manual thoroughly before operating or servicing this unit.

Warnings, Cautions, and Notices

Safety advisories appear throughout this manual as required. Your personal safety and the proper operation of this machine depend upon the strict observance of these precautions.

The three types of advisories are defined as follows:

WARNING

CAUTION s

Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, could result in minor or moderate injury. It could also be used to alert against unsafe practices.

NOTICE:

Indicates a situation that could result in equipment or property-damage only accidents.

Important Environmental Concerns

Scientific research has shown that certain man-made chemicals can affect the earth’s naturally occurring stratospheric ozone layer when released to the atmosphere. In particular, several of the identified chemicals that may affect the ozone layer are refrigerants that contain Chlorine, Fluorine and Carbon (CFCs) and those containing Hydrogen, Chlorine, Fluorine and

Carbon (HCFCs). Not all refrigerants containing these compounds have the same potential impact to the environment. Trane advocates the responsible handling of all refrigerants-including industry replacements for CFCs and HCFCs.

Important Responsible Refrigerant Practices

Trane believes that responsible refrigerant practices are important to the environment, our customers, and the air conditioning industry. All technicians who handle refrigerants must be certified according to local rules. For the USA, the Federal Clean Air Act (Section 608) sets forth the requirements for handling, reclaiming, recovering and recycling of certain refrigerants and the equipment that is used in these service procedures. In addition, some states or municipalities may have additional requirements that must also be adhered to for responsible management of refrigerants. Know the applicable laws and follow them.

WARNING

Proper Field Wiring and Grounding

Required!

Failure to follow code could result in death or serious injury. All field wiring MUST be performed by qualified personnel. Improperly installed and grounded field wiring poses FIRE and ELECTROCUTION hazards. To avoid these hazards, you MUST follow requirements for field wiring installation and grounding as described in

NEC and your local/state/national electrical codes.

X39003892001A

Note: Graphic labels (shown above) are used for CE application only.

Important:

Before servicing, disconnect all power sources and allow at least 30 minutes for capacitors to discharge.

All electrical enclosures—unit or remote—are IP2X.

© 2015 Trane All rights reserved CDHH-SVX001C-EN

Introduction

WARNING

Personal Protective Equipment (PPE)

Required!

Installing/servicing this unit could result in exposure to electrical, mechanical and chemical hazards.

• Before installing/servicing this unit, technicians

MUST put on all PPE required for the work being undertaken (Examples; cut resistant gloves/sleeves, butyl gloves, safety glasses, hard hat/bump cap, fall protection, electrical PPE and arc flash clothing).

ALWAYS refer to appropriate Material Safety Data

Sheets (MSDS)/Safety Data Sheets (SDS) and OSHA guidelines for proper PPE.

• When working with or around hazardous chemicals,

ALWAYS refer to the appropriate MSDS/SDS and

OSHA/GHS (Global Harmonized System of

Classification and Labelling of Chemicals) guidelines for information on allowable personal exposure levels, proper respiratory protection and handling instructions.

• If there is a risk of energized electrical contact, arc, or flash, technicians MUST put on all PPE in accordance with OSHA, NFPA 70E, or other country-specific requirements for arc flash protection, PRIOR to servicing the unit. NEVER PERFORM ANY

SWITCHING, DISCONNECTING, OR VOLTAGE

TESTING WITHOUT PROPER ELECTRICAL PPE AND

ARC FLASH CLOTHING. ENSURE ELECTRICAL

METERS AND EQUIPMENT ARE PROPERLY RATED

FOR INTENDED VOLTAGE.

Failure to follow instructions could result in death or serious injury.

WARNING

Replace Manual in Cabinet After Use!

Failure to replace this Installation, Operation, and

Maintenance manual in cabinet after use could prevent personnel from accessing necessary safety information and could result in death or serious injury or equipment damage.

NOTICE:

Do Not Use Non-Compatible Parts or

Materials!

Use of non-compatible parts or materials could result in equipment damage. Only genuine Trane

®

replacement components with identical Trane part numbers should be used in Trane CenTraVac chillers. Trane assumes no responsibility for damages resulting from the use of non-compatible parts or materials.

WARNING

Refrigerant May Be Under Positive

Pressure!

Failure to recover refrigerant to relieve pressure or the use of non-approved refrigerants, refrigerant substitutes, or refrigerant additives could result in an explosion which could result in death or serious injury or equipment damage. System contains oil and refrigerant and may be under positive pressure.

Recover refrigerant to relieve pressure before opening the system. See unit nameplate for refrigerant type. Do not use non-approved refrigerants, refrigerant substitutes, or refrigerant additives.

CDHH-SVX001C-EN

X39003892001A

Note: Graphic labels (shown above) are used for CE application only.

Copyright

This document and the information in it are the property of

Trane, and may not be used or reproduced in whole or in part without written permission. Trane reserves the right to revise this publication at any time, and to make changes to its content without obligation to notify any person of such revision or change.

3

4

Introduction

Trademarks

All trademarks referenced in this document are the trademarks of their respective owners.

Revision History

CDHH-SVX001C-EN (31 Mar 2015)

• Labels added for clarification:

– kPaA = kPa Absolute

– kPaD = kPa Differential

– kPaG = kPa Gauge

• Clarification of refrigerant container return

(

“Installation Requirements and Contractor

Responsibilities,” p. 11

)

• Revised instruction for placement and tightening of flow probe (

“Water Flow Detection Controller and

Sensor—ifm efector,” p. 23 )

“Equipment Damage” notice added to p. 38 and

p. 95

• Revised specifications for conduit used with 110/120 V

customer wiring in “Power Supply Wiring,” p. 51

Added “CE for Medium Voltage Starter,” p. 63

• Added recommended material for cleaning material ifm efector

®

flow detection sensors ( Table 20, p. 95 )

Factory Warranty Information

Compliance with the following is required to preserve the factory warranty:

All Unit Installations

Startup MUST be performed by Trane, or an authorized agent of Trane, to VALIDATE this WARRANTY. Contractor must provide a two-week startup notification to Trane (or an agent of Trane specifically authorized to perform startup).

Additional Requirements for Units Requiring

Disassembly

When a new fully assembled chiller is shipped and received from our Trane manufacturing location and, for any reason, it requires disassembly or partial disassembly—which could include but is not limited to the evaporator, condenser, control panel, compressor/motor, purge, factory-mounted starter or any other components originally attached to the fully assembled unit— compliance with the following is required to preserve the factory warranty:

• Trane, or an agent of Trane specifically authorized to perform start-up and warranty of Trane

®

products, will perform or have direct on-site technical supervision of the disassembly and reassembly work.

• The installing contractor must notify Trane—or an agent of Trane specifically authorized to perform startup and warranty of Trane

®

products—two weeks in advance of the scheduled disassembly work to coordinate the disassembly and reassembly work.

• Start-up must be performed by Trane or an agent of

Trane specifically authorized to perform startup and warranty of Trane

®

products.

Trane, or an agent of Trane specifically authorized to perform start-up and warranty of Trane

®

products, will provide qualified personnel and standard hand tools to perform the disassembly work at a location specified by the contractor. Trane, or an agent of Trane specifically authorized to perform start-up and warranty of Trane products, will perform or have direct on-site supervision of the disassembly and reassembly work. The contractor shall provide the rigging equipment such as chain falls, gantries, cranes, forklifts, etc. necessary for the disassembly and reassembly work and the required qualified personnel to operate the necessary rigging equipment.

Important:

Any deviation from these requirements must be agreed upon prior to startup in a written agreement from Trane.

CDHH-SVX001C-EN

Table of Contents

Introduction

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Warnings, Cautions, and Notices

. . . . . . . . 2

Important Environmental Concerns . . . . . 2

Important Responsible Refrigerant Practices

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Unit and Compressor Nameplates

. . . . . . . . 8

Unit Nameplate

. . . . . . . . . . . . . . . . . . . . . . . 8

Compressor Nameplate

. . . . . . . . . . . . . . . . 9

Model Number Descriptions

. . . . . . . . . . . . . 10

CDHH CenTraVac Duplex Chiller Description

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

CCHH Centrifugal Compressor Description

10

Pre-Installation

. . . . . . . . . . . . . . . . . . . . . . . . . 11

ASHRAE Standard 15 Compliance

. . . . . . 11

Unit Shipment

. . . . . . . . . . . . . . . . . . . . . . . 11

General Information

. . . . . . . . . . . . . . . . . . 11

Installation Requirements and Contractor Responsibilities

. . . . . . . . . . . . . . . . . . . . . . . . . 11

Storage Requirements

. . . . . . . . . . . . . . . . 13

Unit Components

. . . . . . . . . . . . . . . . . . . . . 14

Unit Clearances and Weights

. . . . . . . . . . . . 15

Recommended Unit Clearances

. . . . . . . . 15

General Weights

. . . . . . . . . . . . . . . . . . . . . . 16

Installation: Mechanical

. . . . . . . . . . . . . . . . . 17

Operating Environment

. . . . . . . . . . . . . . . 17

Foundation Requirements

. . . . . . . . . . . . . 17

Rigging

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Standard Chiller Lift . . . . . . . . . . . . . . . . . 17

Special Lift Requirements . . . . . . . . . . . . 19

Unit Isolation

. . . . . . . . . . . . . . . . . . . . . . . . 19

Isolation Pads

. . . . . . . . . . . . . . . . . . . . . . . . 20

Spring Isolators

. . . . . . . . . . . . . . . . . . . . . . 20

Leveling the Unit

. . . . . . . . . . . . . . . . . . . . . 21

Installation: Water Piping

. . . . . . . . . . . . . . . . 22

Overview

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Water Treatment

. . . . . . . . . . . . . . . . . . . . . 22

Pressure Gauges

. . . . . . . . . . . . . . . . . . . . . 22

Valves—Drains and Vents

. . . . . . . . . . . . . 22

Strainers

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

CDHH-SVX001C-EN

Required Flow-Sensing Devices

. . . . . . . . .22

Evaporator and Condenser Water Piping

.25

Water Piping Connections

. . . . . . . . . . . . . .25

Waterbox Locations

. . . . . . . . . . . . . . . . . . .26

Grooved Pipe Coupling

. . . . . . . . . . . . . . . . .26

Flange-Connection Adapters

. . . . . . . . . . . .27

Victaulic Gasket Installation

. . . . . . . . . . . . .27

Bolt-Tightening Sequence for Water Piping

Connections

. . . . . . . . . . . . . . . . . . . . . . . . . .28

Flanges with 8 or 12 Bolts . . . . . . . . . . . . .28

Flanges with 16 or 20 Bolts . . . . . . . . . . . .28

Pressure Testing Waterside Piping

. . . . . . .28

Vent Piping

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Refrigerant Vent Line

. . . . . . . . . . . . . . . . . .29

General Requirements . . . . . . . . . . . . . . . .29

Purge Discharge . . . . . . . . . . . . . . . . . . . . .29

Vent Line Materials . . . . . . . . . . . . . . . . . .29

Vent Line Sizing . . . . . . . . . . . . . . . . . . . . .29

Vent Line Installation

. . . . . . . . . . . . . . . . . . .30

Trane RuptureGuard

. . . . . . . . . . . . . . . . . . .33

General Information . . . . . . . . . . . . . . . . . .33

Connection to External Vent Line and Drip

Leg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Insulation

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

Unit Insulation Requirements

. . . . . . . . . . .38

Insulation Thickness Requirements

. . . . . .38

Installation: Controls

. . . . . . . . . . . . . . . . . . . . .40

UC800 Specifications

. . . . . . . . . . . . . . . . . .40

Wiring and Port Descriptions . . . . . . . . . .40

Communication Interfaces . . . . . . . . . . . .41

Rotary Switches . . . . . . . . . . . . . . . . . . . . .41

LED Description and Operation . . . . . . . .41

Installing the Tracer AdaptiView Display

. .44

Adjusting the Tracer AdaptiView Display Arm

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Electrical Requirements

. . . . . . . . . . . . . . . . . .46

Installation Requirements

. . . . . . . . . . . . . .46

Electrical Requirements

. . . . . . . . . . . . . . . .46

Trane-Supplied Remote Starter Wiring

. . .48

5

Table of Contents

Customer-Supplied Remote Starter Wiring

49

Current Transformer and Potential Transformer Wire Sizing

. . . . . . . . . . . . . . . . . . . . . . . . 50

Power Supply Wiring

. . . . . . . . . . . . . . . . . . . 51

Three-Phase Power . . . . . . . . . . . . . . . . . 51

Circuit Breakers and Fused Disconnects

. 52

CE for Control Power Transformer (CPTR) Option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

CE for Starter or Drive . . . . . . . . . . . . . . . 52

Control Power Transformer (CPTR) Option

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Power Factor Correction Capacitors (Optional)

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Interconnecting Wiring

. . . . . . . . . . . . . . . . 56

Starter to Motor Wiring (Remote-Mounted

Starters Only)

. . . . . . . . . . . . . . . . . . . . . . . . 57

Ground Wire Terminal Lugs . . . . . . . . . . 57

Terminal Clamps . . . . . . . . . . . . . . . . . . . 57

Wire Terminal Lugs . . . . . . . . . . . . . . . . . 57

Bus Bars . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Starter to Control Panel Wiring

. . . . . . . . . 58

Medium Voltage Installation

. . . . . . . . . . . . . 60

Medium Voltage Motor . . . . . . . . . . . . . . 60

Motor Terminal Box . . . . . . . . . . . . . . . . . 60

Motor Supply Wiring

. . . . . . . . . . . . . . . . . . 61

CE for Medium Voltage Starter

. . . . . . . . . 63

System Control Circuit Wiring (Field Wiring)

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Water Pump Interlock Circuits and Flow

Switch Input . . . . . . . . . . . . . . . . . . . . . . . 66

Temperature Sensor Circuits

. . . . . . . . . . . 67

Optional Control and Output Circuits . . . 68

Optional Tracer Communication Interface 68

Unit Start-up/Commissioning

. . . . . . . . . . 68

Starter Module Configuration

. . . . . . . . . . 68

Schematic Wiring Drawings

. . . . . . . . . . . . 68

Operating Principles

. . . . . . . . . . . . . . . . . . . . 69

General Requirements

. . . . . . . . . . . . . . . . 69

Cooling Cycle

. . . . . . . . . . . . . . . . . . . . . . . . 69

Duplex Compressor Sequencing

. . . . . . . . 70

Fixed Sequence—Compressor 1 / Compressor 2 (Default Mode) . . . . . . . . . . . . . . . . 70

6

Fixed Sequence—Compressor 2 / Compressor 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70

Sequencing—Balanced Starts and Hours 71

Simultaneous Compressor Start/Stop . . .71

Compressor Load Balancing . . . . . . . . . . .71

Oil and Refrigerant Pump

. . . . . . . . . . . . . . .72

Motor Cooling System

. . . . . . . . . . . . . . . . .74

Tracer AdaptiView Display

. . . . . . . . . . . . . .74

RuptureGuard

. . . . . . . . . . . . . . . . . . . . . . . . .75

EarthWise Purge

. . . . . . . . . . . . . . . . . . . . . .75

How a Purge System Works . . . . . . . . . . .75

Start-up and Shut-down

. . . . . . . . . . . . . . . . . .79

Chiller Sequence of Operation

. . . . . . . . . .79

Software Operation Overview Diagram . .79

Start-up Sequence of Operation—Wye-Delta

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80

Power Up Diagram . . . . . . . . . . . . . . . . . . .82

Ice Machine Control

. . . . . . . . . . . . . . . . . . .82

Hot Water Control

. . . . . . . . . . . . . . . . . . . . .84

Control Panel Devices and Unit-Mounted Devices

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .84

Unit Control Panel . . . . . . . . . . . . . . . . . . .84

User-Defined Language Support . . . . . . .84

Unit Start-up and Shut-down Procedures

.84

Daily Unit Start-up . . . . . . . . . . . . . . . . . . .85

Seasonal Unit Start-up . . . . . . . . . . . . . . .86

Daily Unit Shut-down . . . . . . . . . . . . . . . .86

EarthWise Purge Sequence of Operations

86

Purge Operating Modes . . . . . . . . . . . . . .86

Air Removal . . . . . . . . . . . . . . . . . . . . . . . .90

Pump-out Operating Sequence . . . . . . . .90

Carbon Tank and Regeneration Subsystem

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .91

Recommended Maintenance

. . . . . . . . . . . . .94

Record Keeping Forms . . . . . . . . . . . . . . .94

Normal Operation . . . . . . . . . . . . . . . . . . .95

Compressor Oil Change

. . . . . . . . . . . . . . . .96

Leak Checking Based on Purge Pump Out

Time

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .96

RuptureGuard Maintenance

. . . . . . . . . . . . .97

EarthWise Purge Maintenance

. . . . . . . . . .97

CDHH-SVX001C-EN

Weekly Maintenance . . . . . . . . . . . . . . . . 97

Semi-Annual Maintenance . . . . . . . . . . . 98

Annual Maintenance . . . . . . . . . . . . . . . . 98

Inspecting the Moisture Indicator . . . . . . 98

Maintaining the Moisture-Indicating Sight

Glass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

Removing Air After Servicing the Chiller 98

Recommended System Maintenance . . . 99

Waterbox Removal and Installation

. . . . . 101

Discussion

. . . . . . . . . . . . . . . . . . . . . . . . . . 101

Procedure

. . . . . . . . . . . . . . . . . . . . . . . . . . 101

Reassembly . . . . . . . . . . . . . . . . . . . . . . . 102

Torque Requirements . . . . . . . . . . . . . . 102

Bolt-Tightening Sequence for Waterboxes

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

Evaporator Waterbox Covers . . . . . . . . 102

Condenser Waterbox Covers . . . . . . . . 102

Forms and Check Sheets

. . . . . . . . . . . . . . . 103

Table of Contents

CDHH-SVX001C-EN 7

8

Unit and Compressor Nameplates

Unit Nameplate

The unit nameplate is located on the left side of the left hand control panel. A typical unit nameplate is illustrated in

Figure 1

and contains the following information:

• Unit model and size descriptor

• Unit electrical requirements

• Correct operating charge and refrigerant type

• Unit test pressures and maximum operating pressures

• Unit literature

Serial Number.

The unit serial number provides the specific chiller identity. Always provide this serial number when calling for service or during parts identification.

Service Model Number.

The service model represents the unit as built for service purposes. It identifies the selections of variable unit features required when ordering replacements parts or requesting service.

Note: Unit-mounted starters are identified by a separate number found on the starter.

Product Description Block.

The CenTraVac™ models are defined and built using the Product Definition and

Selection (PDS) system. This system describes the product offerings using a product coding block which is made up of feature categories and codes that identifies all characteristics of a unit.

Figure 1.

Typical unit nameplate (CVHH shown; CDHH is similar)

CDHH-SVX001C-EN

Compressor Nameplate

The compressor assembly has a separate model number which is required to identify internal and external compressor parts. The model number begins with

“CCHH” and the nameplate is located on the foot of the volute.

Figure 2.

Compressor nameplate

MODEL NO.

SERIAL NO.

SALES ORDER

TRANE MADE IN USA X39002458010B

Note: The serial number space on the compressor nameplate will be intentionally left blank.

Unit and Compressor Nameplates

CDHH-SVX001C-EN 9

Model Number Descriptions

CDHH CenTraVac

Duplex Chiller

Description

Digit 1, 2 — Duplex™

CenTraVac™ Chiller

Digit 3 — Direct Drive

Digit 4 — Development

Sequence

Digit 5, 6, 7 — Nominal Total

Compressor Tonnage

Digit 8 — Unit Motor Voltage

Digit 9 — Unit Type

Digit 10, 11 — Design Sequence

Digit 12 — Manufacturing

Location

Digit 13 — Hot Gas Bypass

(HGB)

Digit 14 — Starter Type (LH and

RH Circuit)

Digit 15 — Control Enclosure

Digit 16 — Evaporator and

Condenser Size

Digit 17 — Evaporator Tube

Bundle (EVBS)

Digit 18 — Evaporator Tubes

Digit 19 — Evaporator Waterbox

Digit 20 — Condenser Tube

Bundle

Digit 21 — Condenser Tubes

Digit 22 — Condenser

Waterboxes

Digit 23, 24 — Evaporator

Orifice Size (LH Circuit)

Digit 25, 26 — Evaporator

Orifice Size (RH Circuit)

Digit 27, 28 — Economizer

Orifice Size (LH Circuit)

Digit 29, 30 — Economizer

Orifice Size (RH Circuit)

Digit 31, 32 — Condenser

Orifice Size (LH Circuit)

Digit 33, 34 — Condenser

Orifice Size (RH Circuit)

Digit 35 — Unit Option

Digit 36 — Control: Enhanced

Protection

10

Digit 37 — Control: Extended

Operation

Digit 38 — Tracer™

Communication Interface

Digit 39 — Special Options

Digit 40 — Water Flow Control

Digit 41 — Chilled Water Reset

Digit 42 — Control Power

Transformer (CPTR)

Digit 43 — Thermal Dispersion

Water Flow Proving

Digit 44 — Compressor Motor

Frame Size (LH Circuit)

Digit 45 — Compressor Motor

Frame Size (RH Circuit)

CCHH Centrifugal

Compressor

Description

The compressor assembly has a separate model number which is required to identify internal and external compressor parts. The model number begins with “CCHH” and the nameplate is located on the foot of the volute.

Digit 1, 2 — Unit Function

Digit 3 — Drive

Digit 4 — Development

Sequence

Digit 5, 6, 7 — Nominal Total

Compressor Tonnage

Digit 8 — Compressor Motor

Voltage

Digit 9 — Compressor Motor

Frame Size

Digit 10, 11 — Design Sequence

Digit 12 — Manufacturing

Location

Digit 13, 14, 15, 16 —

Compressor Motor Power (kW)

Digit 17, 18, 19, 20 — First Stage

Compressor Impeller (IMPI)

Digit 21, 22, 23, 24 — Second

Stage Compressor Impeller

(IMP2)

Digit 25, 26, 27, 28 — Third

Stage Compressor Impeller

(IMP3)

Digit 29 — Motor and Terminal

Board Configuration

Digit 30 — Resistent

Temperature Detector

CDHH-SVX001C-EN

Pre-Installation

ASHRAE Standard 15 Compliance

Trane recommends that indoor CenTraVac unit installations fully meet or exceed the guidelines of the current version of ASHRAE Standard 15, in addition to any applicable national, state, or local requirements. This typically includes:

• A refrigerant monitor or detector that is capable of monitoring and alarming within the acceptable exposure level of the refrigerant, and that can actuate mechanical ventilation.

• Audible and visual alarms, activated by the refrigerant monitor, inside the equipment room and outside of every entrance.

• The equipment room should be properly vented to the outdoors, using mechanical ventilation that can be activated by the refrigerant monitor.

• The purge discharge and the rupture disk must be properly piped to the outdoors.

• If required by local or other codes, a self-contained breathing apparatus should be available in close proximity to the equipment room.

For the USA, refer to the latest copy of ASHRAE

Standard 15 for specific guidelines. Trane assumes no responsibility for any economic, health, or environmental issues that may result from an equipment room’s design or function.

Unit Shipment

Inspect unit while it is still on the truck for any shipping damage. The chiller ships shrink-wrapped in a 0.254 mm

(0.010-in.) recyclable film protective covering. Do not remove shrink-wrap for inspection! Inspect for damage to the shrink-wrap and determine if physical damage has occurred.

Each chiller ships from the factory as a hermetically assembled package; it is factory-assembled, -wired, and

-tested. All openings except for the waterbox vent and drain holes are covered or plugged to prevent contamination during shipment and handling.

Figure 3, p. 14

shows an illustration of a typical unit and its components. As soon as the unit arrives at the job site, inspect it thoroughly for damage and material shortages.

In addition:

1.

Verify the hermetic integrity of the unit by checking the chiller pressure for an indication of holding charge pressure.

Note: Since there are two refrigerant circuits in

Duplex units, both must be checked.

2. To prevent damaging moisture from entering the unit and causing corrosion, each chiller is pressurized with

20.7 to 34.5 kPaG (3 to 5 psig) of dry nitrogen before shipment.

Note: The holding charge should register approximately

34.5 kPaG (5 psig) at 22.2°C (72°F). Place a gauge on the access valve provided (indicated by arrow and circle in the preceding figure) on the refrigerant pump discharge line to verify the holding charge.

This access valve is located on the front of the oil tank, which is at the right rear corner of the chiller.

If the charge has escaped, contact your local Trane sales office for instructions. For Duplex™, verify charge on both units.

3. The loose parts box and isolator pads ship on top of the control panel box.

4. Check the oil sump sight glasses to verify that the sump was factory-charged with 79.5 L (21 gallons) of oil. The oil level should be visible to about halfway in the top sight glass. If no oil level is visible, contact your local

Trane sales office.

General Information

Regulations regarding waste handling are constantly changing. To ensure that personnel are in compliance with the latest federal, state and local regulations, contact your local waste management office for the proper procedures on handling, disposal, transporting and storage of oil, oil filters, refrigerant filters, and filter dryer cores.

Installation Requirements and

Contractor Responsibilities

A list of the contractor responsibilities typically associated with the unit installation process is provided.

CDHH-SVX001C-EN 11

Pre-Installation

WARNING

Combustible Material!

Failure to follow this instruction could result in death or serious injury or equipment damage. Shrink-wrap is a combustible material. Avoid open flames and hot sparks.

Note: The chiller should remain within its protective shrink-wrap covering during storage.

Type of

Requirement

Foundation

Rigging

Trane Supplied

Trane Installed

Trane Supplied

Field Installed

Field Supplied

Field Installed

• Meet foundation requirements

• Safety chains

• Clevis connectors

• Lifting beam

Disassembly/Reassembly

(as required)

• Trane will perform or have direct on-site supervision of the disassembly and reassembly work (contact your local Trane office for pricing)

Isolation

Electrical

Water piping

Relief

• Circuit breakers or fusible disconnects (optional)

• Unit mounted starter

(optional)

• PFCCs (optional)

• Rupture disk assembly

• RuptureGuard™ (optional)

• Isolation pads or spring isolators

• Jumper bars

• Temperature sensor

(optional outdoor air)

• Flow switches (may be field supplied)

• Remote-mounted starter

(optional)

• Isolation pads or spring isolators

• Circuit breakers or fusible disconnects (optional)

• Electrical connections to unit mounted starter

(optional)

• Electrical connections to remote mounted starter

(optional)

• Wiring sizes per submittal and NEC or local codes

• PFCCs (remote mounted starter optional only)

• Terminal lugs

• Ground connection(s)

• Jumper bars

• BAS wiring (optional)

• IPC wiring (AFD and remote-mounted starters only)

• Control voltage wiring (AFD and remote-mounted starters only)

• Oil pump interlock wiring (AFD and remote mounted starters only)

• High condenser pressure interlock wiring (AFD and remote mounted starters only)

• Chilled water pump contactor and wiring including interlock

• Condenser water pump contactor and wiring including interlock

• Option relays and wiring

• Flow sensing devices

(may be field supplied)

• Taps for flow sensing devices

• Taps for thermometers and gauges

• Thermometers

• Strainers (as required)

• Water flow pressure gauges

• Isolation and balancing valves in water piping

• Vents and drain on waterbox valves (one each per pass)

• Pressure relief valves (for waterboxes as required)

• Vent line and flexible connector and vent line from rupture disk to atmosphere

Insulation

Water Piping Connection

Components

Flanged (optional)

Other Materials

• Insulation (optional)

Flanged (optional)

• Victaulic

®

to flange adapter for 1034.2 kPaG

(150 psig) waterboxes

• Insulation

• Chiller feet insulation

Victaulic

• Victaulic coupling for 1034.2 kPaG (150 psig) and

2068.4 kPaG (300 psig) waterboxes

• Fasteners for flanged-type connections (optional)

• Material and equipment to perform leak testing

• Dry nitrogen (55.2 kPaG [8 psig] maximum per machine as needed)

12 CDHH-SVX001C-EN

Pre-Installation

Type of

Requirement

“CenTraVac™ Installation

Completion Check Sheet and Request for Trane

Service”

(CTV-ADF001*-EN; refer to

“Forms and Check

Sheets,” p. 103 )

Chiller start-up commissioning

(a)

Trane Supplied

Trane Installed

Trane Supplied

Field Installed

Field Supplied

Field Installed

• To be completed by installing contractor prior to contacting Trane for start-up

• Trane, or an agent of Trane specifically authorized to perform start-up of Trane

® products

Post-commissioning transport of empty refrigerant containers for return or recycling

• Move empty refrigerant containers to an easily accessible point of loading

(a) Start-up must be performed by Trane or an agent of Trane specifically authorized to perform start-up and warranty of Trane scheduled start-up.

®

products. Contractor shall provide Trane (or an agent of Trane specifically authorized to perform start-up) with notice of the scheduled start-up at least two weeks prior to the

Storage Requirements

NOTICE:

Insulation Damage!

Do not expose unit to direct sunlight as it could result in damage to factory-installed insulation.

Less than 1 month 1–6 months Greater than 6 months

Location requirements:

• solid foundation

• vibration free

• dry

• temperature range -40°C to 70°C

(-40°F to 158°F)

• Do not remove any plastic coverings

• Do not charge the chiller with refrigerant

• If additional refrigerant is on site, follow manufactures storage requirements

• Verify dry nitrogen pressure using gauge located on the evaporator shell reads

20.7 to 34.5 kPaG (3 to 5 psig)

• Notify the local Trane office if charge has escaped

• Do not operate purge unit

Location requirements:

• solid foundation

• vibration free

• dry

• temperature range -40°C to 70°C

(-40°F to 158°F)

• Do not remove any plastic coverings

• Do not charge the chiller with refrigerant

• If additional refrigerant is on site, follow manufactures storage requirements

• Verify dry nitrogen pressure using gauge located on the evaporator shell reads

20.7 to 34.5 kPaG (3 to 5 psig)

• Notify the local Trane office if charge has escaped

• Do not operate purge unit

• Verify waterbox and tube bundles are clean and dry

Location requirements:

• solid foundation

• vibration free

• dry

• temperature range -40°C to 70°C

(-40°F to 158°F)

• Do not remove any plastic coverings

• Do not charge the chiller with refrigerant

• If additional refrigerant is on site, follow manufactures storage requirements

• Verify dry nitrogen pressure using gauge located on the evaporator shell reads 20.7 to 34.5 kPaG

(3 to 5 psig)

• Notify the local Trane office if charge has escaped

• Do not operate purge unit

• Verify waterbox and tube bundles are clean and dry

• Conduct an oil analysis and verify no oil breakdown

(a)

• Repeat yearly

• Replace oil if breakdown has occurred

• If no oil analysis program has been followed, replace oil prior to start up

Note:

Chillers stored 5 years or longer should be inspected every 5 years by a qualified service organization for leaks.

(a) If protective plastic coverings need to be removed for access and/or service, contact your local Trane office.

CDHH-SVX001C-EN 13

Pre-Installation

Unit Components

Note: The control panel side of the unit is always designated as the front side of the unit. The left side

Figure 3.

Typical Duplex CDHH CenTraVac chiller

of the unit is referred to as referred to as Side 1 and the right side of the unit is referred to as Side 2.

-

1

4

2

3

1

4

2

3

0

6

0

1.

Suction Elbow

2.

Compressor

3.

Terminal Box

4.

Control Panel

5.

Condenser

6.

Motor Housing

8

9

6

5

7

9

7

8

7.

Economizer

8.

Oil Tank Assembly

9.

Purge

10. Evaporator

11.

Display Panel

14 CDHH-SVX001C-EN

Unit Clearances and Weights

Recommended Unit Clearances

Adequate clearances around and above the chiller are required to allow sufficient access for service and maintenance operations. Specific unit clearance requirements are indicated in the submittal package provided for your unit.

• Do NOT install piping or conduit above the compressor motor assembly or behind the suction elbow of the unit.

Figure 4.

Clearance requirements

46 cm (18 in.)

Economizer

Economizer

• Minimum vertical clearance above the unit is 92 cm

(3 feet).

• Use a housekeeping pad to provide better service clearances; refer to submittal for more information.

Per NEC Article 110: Unit mounted starters from 0–600V require a 107 cm (42 inch) clearance, 601–2500V require a

122 cm (48 inch) clearance, and 2501–9000V require a

152 cm (60 inch) clearance. Refer to NEC and local electrical codes for starter and control panel clearance requirements.

D

Condenser

Condenser

Evaporator

Motor

Evaporator

Motor

Right hand tube pull shown, apply tube pull clearance dimension to left end for left hand tube pull.

E

A

These dimensions per

NEC Article 110

Optional unit mounted starter

These dimensions per

NEC Article 110

Optional unit mounted starter

C

92 cm (3 ft)

B

Table 1.

Clearance requirements

(a)

A B C

Shell Combo

400M/440M

440M/440M

440X/440X

cm

272

305

305

in.

107

120

120

cm

808

808

930

in.

318

318

366

cm

1887

1920

2164

in.

743

756

852

(a) All dimensions are approximate; refer to the unit submittal package for exact dimensions for your unit.

cm

94

97

97

D in.

37

38

38

CDHH-SVX001C-EN

cm

305

300

300

E in.

120

118

118

15

Unit Clearances and Weights

General Weights

The unit weight information provided in

Table 2

should be used for general information purposes only. Trane does not recommend using this weight information for considerations relative to chiller handling. The large number of variances between chiller selections drives variances in chiller weights that are not recognized in this table. For specific weights for your chiller, refer to your submittal package.

The values in

Table 2

representing chiller weights include the following:

TECU 0.028-in. (0.71 mm) tube wall.

1034.2 kPaG (150 psig) non-marine waterboxes.

Operating weights include the largest possible refrigerant charge.

Table 2.

Unit weights

MODEL

CDHH

NTON

2000–2600

2800–3300

2800–3300

3050

3050

Hz

60

60

60

50

50

EVSZ

400M

440M

440X

440M

440X

CDSZ

440M

440M

440X

440M

440X

Chillers with starter weights include the weight of the heaviest possible starter.

Heaviest possible bundle and heaviest possible motor combination for the application family chiller.

The values in

Table 2 representing chiller weights do NOT

include the following options:

INDP (Industrial Control Panel) option—add 23 kg

(50 lb)

CPTR (Control Panel Transformer) option—add

127 kg (280 lb)

SMP (Supplemental Motor Protection) option—add

230 kg (500 lb)

Weight without Starters

Operating Shipping kg

48059

lb

105953

kg

40640

lb

89595

52656

56010

54914

57769

116087

123482

121065

127360

44098

46374

46356

48133

97219

102238

102197

106116

Weight with Starters

Operating Shipping kg

48651

lb

107257

kg

41231

lb

90899

53248

56602

55506

58361

117391

124786

122369

128664

44689

46966

46947

48725

98523

103542

103501

107420

16 CDHH-SVX001C-EN

Installation: Mechanical

Operating Environment

Important:

The standard chiller is designed for indoor use only and as such has NEMA Type 1 or IP 20 enclosures.

For chillers in unheated equipment rooms, contact your local Trane service agency for methods to ensure that the oil temperature is maintained suitable for proper operation of the chiller.

To ensure that electrical components operate properly, do not locate the chiller in an area exposed to dust, dirt, corrosive fumes, or excessive heat and humidity. The ambient temperature range for chiller operation is 1.1°C to

40°C (34°F to 104°F).

NOTICE:

Equipment Failure!

Unit operating at ambient temperatures exceeding

40°C (104°F) could result in starter component damage due to the panel’s inability to dissipate heat adequately.

If any of these adverse operating conditions are present, take necessary action to improve the equipment room environment.

Foundation Requirements

Chiller mounting surface must be:

rigid non-warping mounting pads or a concrete foundation.

able to support the chiller at its full operating weight

(including completed piping, and full operating charges of refrigerant, oil and water.)

For proper unit operation, the chiller must be level within

1.6 mm (1/16 in.) over its length and width when set into place on the mounting surface.

Table 2, p. 16

shows approximate weights for various chiller sizes and options.

Note: For specific weight information, refer to the unit submittal package.

Important:

Trane will not assume responsibility for equipment problems resulting from an improperly designed or constructed foundation.

Rigging

Lifting is the recommended method for moving chillers.

Suggested lifting arrangements for standard units are described in

“Standard Chiller Lift,” p. 17 .

WARNING

Heavy Objects!

Failure to properly lift unit could result in death or serious injury, or equipment or property-only damage.

Do not use cables (chains or slings) except as shown in

Figure 5, p. 18 . Each of the cables (chains or slings)

used to lift the unit must be capable of supporting the entire weight of the unit. Lifting cables (chains or slings) may not be of the same length. Adjust as necessary for even unit lift.

WARNING

Improper Unit Lift!

Failure to properly lift unit could result in death or serious injury, or equipment or property-only damage.

• Test lift unit approximately 61 cm (24 inches) to verify proper center of gravity lift point. To avoid dropping of unit, reposition lifting point if unit is not level.

• Do not lift chiller utilizing waterbox lifting lug.

Waterbox lifting lug is to be used only for removing waterbox from chiller.

• Do not lift chiller utilizing elbow lifting tab. Elbow lifting tab and approved clevis are used when removing elbow from chiller.

NOTICE:

Wiring Damage!

Damage to unit wiring could result in equipment failure. Care must be taken during rigging, assembly and disassembly to avoid damaging unit wiring.

Standard Chiller Lift

WARNING

5.72-cm (2.25-in.) Diameter Clevis

Required to Lift Units!

Failure to follow instructions below could result in death or serious injury. A clevis with a 5.72-cm (2.25-in.) diameter pin MUST be used to lift these units. Using a smaller clevis would cause too much stress to the

5.72-cm (2.25-in.) lifting holes which could result in pullout of the lifting holes causing the unit to drop from the rigging.

1.

Insert clevis connections at the points indicated in

Figure 5, p. 18 . A 63.5 mm (2.5 in.) diameter lifting hole

is provided at each of these points.

2. Attach the lifting chains or cables.

CDHH-SVX001C-EN 17

Installation: Mechanical

3. Once the lifting cables are in place, attach a safety chain or cable between the first-stage casing of the compressor and the lifting beam.

Important:

There should not be tension on this safety cable; the cable is used only to prevent the unit from rolling during the lift.

4. Position isolator pads or spring isolators beneath the chiller feet (refer to

“Unit Isolation,” p. 19 for

instructions).

Figure 5.

Typical rigging arrangements for Duplex chillers

Note: Follow instructions provided by the spring isolator manufacturer, being careful to not damage isolator adjustment bolt.

5. Once the isolators are in place, lower the chiller— working from end to end—in small increments to maintain stability.

6. When lift is complete, detach the clevis connections and safety chain.

Lifting beam

Safety chains

C

A

B

18 CDHH-SVX001C-EN

Installation: Mechanical

Table 3.

Rigging arrangements

X Y

Type

CDHH

CDHH

CDHH

NTON

2000–2600

2000–3300

2800–3300

EVSZ

400M

440M

440X

CDSZ

440M

440M

440X

cm

411

410

482

in.

161.8

161.6

189.6

m

7.925

7.925

9.144

ft

26.0

26.0

30.0

Notes:

1. Lifting chains (or cables) are not the same length between point A and B, or between points A and

C. Adjust as necessary for an even lift.

2. Lifting holes provided on chillers to attach chains are 63.5 mm (2-1/2 in.) in diameter.

3. Attach safety chain (or cable) as shown, and without tension. The safety chain is not used for lifting, but is there to prevent the unit from rolling.

4. Do not fork-lift the unit.

Special Lift Requirements

Oil Loss!

NOTICE:

Failure to prevent oil migration out of the oil tank could result in equipment failure or property-only damage. To prevent oil migration out of the oil tank during lifting procedures, remove the oil from the oil tank if the unit will be lifted at any angle greater than 15° from horizontal end-to-end. If oil is allowed to run out of the oil tank into other areas of the chiller, it will be extremely difficult to return the oil to the oil tank even during operation.

NOTICE:

Equipment Damage!

Moving the chiller using a fork lift could result in equipment or property-only damage. Do not use a fork lift to move the chiller!

Information,” p. 4

.

Note: Disassembly and reassembly work includes dowel-pinning the compressor and removing it from the unit. Contact Trane or an agent of

Trane specifically authorized to perform startup and warranty of Trane

®

products for specific rigging instructions. Do NOT attempt to rotate the chiller onto its side.

• When lifting the chiller is either impractical or undesirable, attach cables or chains to the jacking slots shown in

Figure 5, p. 18

; then push or pull the unit across a smooth surface. Should the chiller be on a shipping skid, it is not necessary to remove the skid from the chiller before moving it into place.

• If removal of the compressor or economizer assembly is necessary to move the chiller to the operating location, contact Trane. For more information, refer to

“Factory Warranty Information,” p. 4

.

NOTICE:

Compressor Alignment!

Failure to preserve compressor alignment could result in equipment or property-only damage. Lifting the compressor/motor assembly from the shells without factory-installed doweling in the compressor casting flanges could result in misalignment of the compressor castings.

If the chiller cannot be moved using a standard chiller lift, consider the following:

• When job site conditions require rigging of the chiller at an angle greater than 30° from horizontal (end-toend), the unit may require removal of the compressor.

Contact Trane or an agent of Trane specifically authorized to perform start-up and warranty of Trane

® products regarding the disassembly and reassembly

work. For more information, refer to “Factory Warranty

Unit Isolation

To minimize sound and vibration transmission through the building structure, and to ensure proper weight distribution over the mounting surface, always install isolation pads or spring isolators under the chiller feet.

Note: Isolation pads (see

Figure 6

) are provided with each chiller unless spring isolators are specified on the sales order.

Note: The center support leg of the Duplex CenTraVac is approximately 12.7 mm (1/2 in.) shorter than the end support legs, and a field supplied steel shim of appropriate thickness will be required under the center support leg to ensure the chiller’s weight is evenly distributed. If isolation pads are used, the shim used should be of the same dimensions as the chiller’s center foot, or larger, and it should be placed under the isolation pads. If isolation springs are used then any shims used with them should be placed under the springs and must be large enough to properly support the spring base.

Specific isolator loading data is provided in the unit submittal package. If necessary, contact your local Trane sales office for further information.

CDHH-SVX001C-EN 19

Installation: Mechanical

Important:

When determining placement of isolation pads or spring isolators, remember that the control panel side of the unit is always designated as the unit front.

Isolation Pads

When the unit is ready for final placement, position isolation pads (457.2-mm sides) end for end under the full length of the chiller leg. The pads measure 228.6 mm x

457.2 mm (9 in. × 18 in.) and on some units there may be small gaps between pads. Pads are provided to cover entire foot.

Duplex units have pads for both ends, plus pads for the support in the middle of the chiller.

Figure 6.

Isolation pad and dimensions

9.525 mm

(3/8 in.)

457.2 mm

(18 in.)

228.6 mm

(9 in.)

Remember that the chiller must be level within 1.6 mm

(1/16 in.) over its length and width after it is lowered onto the isolation pads. In addition, all piping connected to the chiller must be properly isolated and supported so that it does not place any stress on the unit.

Spring Isolators

Spring isolators should be considered whenever chiller installation is planned for an upper story location. Base

isolator placement is shown in Figure 7

; also refer to

Table 4 .

Figure 7.

Isolation spring placement by shell size, evaporator and condenser length

2

4

5

1

Condenser

Evaporator

8

Condenser

9

7

Length

Evaporator

6

3

Evap

Width

Table 4.

Isolation spring placement, cm (in.)

EVSZ CDSZ Width

400M

440X

440M

440M

440X

440M

285.2

(112.3)

303.3

(119.4)

303.3

(119.4)

Evap

Width Length

Isolator

Config

Origin to

Center of Rear

Pad

Origin to

Center of

Middle

Pad

170.2

(67)

188.0

(74)

188.0

(74)

792.5

(312)

914.4

(360)

792.5

(312)

3

3

3

268.7

(105.8)

286.8

(112.9)

286.8

(112.9)

153.7

(60.5)

171.5

(67.5)

171.5

(67.5)

Spring isolators typically ship assembled and ready for installation. To install and adjust the isolators properly, follow the instructions given.

Note: Do not adjust the isolators until the chiller is piped and charged with refrigerant and water.

1.

Position the spring isolators under the chiller as shown

in Figure 7 . Ensure that each isolator is centered in

relation to the tube sheet.

Note: Spring isolators shipped with the chiller may not be identical. Compare the data provided in the unit submittal package to determine proper isolator placement.

2. Set the isolators on the sub-base; shim as necessary to provide a flat, level surface at the same elevation for the end supports, and approximately 12.7 mm (1/2 in.) higher for the center support.

Important:

Support the full underside of the isolator base plate; do NOT straddle gaps or small shims.

3. If required, bolt the isolators to the floor through the slots provided, or cement the pads.

Note: Fastening the isolators to the floor is not necessary unless specified.

4. If the chiller must be fastened to the isolators, insert capscrews through the chiller base and into holes drilled and tapped in the upper housing of each isolator.

Important:

Do NOT allow the screws to protrude below the underside of the isolator upper housing, or interfere with the adjusting bolts. An alternative method of fastening the chiller to the isolators is to cement the neoprene pads.

5. Set the chiller on the isolators; refer to

“Standard

Chiller Lift,” p. 17 . The weight of the chiller will force

down the upper housing of each isolator, and could cause it to rest on the isolator’s lower housing (refer to

Figure 8

).

20 CDHH-SVX001C-EN

.

Figure 8.

Chiller foot and isolator orientation

Side View of Unit End View of Unit

Center tube sheet support leg

Outside edge of tube sheet

Center of isolator spring

Note:

The spring isolator must be centered in relation to the tube sheet. Do not align the isolator with the flat part of the chiller foot since the tube sheet is often off center

Note:

The length of the isolator should be parallel to the leg.

6. Check the clearance on each isolator. If this dimension is less than 6.35 mm (1/4 in.) on any isolator, use a wrench to turn the adjusting bolt one complete revolution upward.

Note: When the load is applied to the isolators ( Step 5 ),

the top plate of each isolator moves down to compress the springs until either the springs

Figure 9.

Installation: Mechanical

support the load or the top plate rests on the bottom housing of the isolator. If the springs are supporting the load, screwing down on the adjusting bolt (

Step 7

) will raise the chiller.

7.

Turn the adjusting bolt on each of the remaining isolators to obtain the required minimum clearance of

6.35 mm (1/4 in.).

8. Once the minimum required clearance is obtained on each of the isolators, level the chiller by turning the adjusting bolt on each of the isolators on the low side of the unit. Work from one isolator to the next.

Important:

The chiller must be level to within 1.6 mm (1/

16 in.) over its length and width, and the clearance of each isolator must be at least

6.35 mm (1/4 in.).

Leveling the Unit

The chiller must be set level within 1.6 mm (1/16 in.).

1.

Measure and make a punch mark an equal distance up from the bottom of each foot of the chiller.

2. Suspend a clear plastic tube along the length of the chiller as shown in the following figure.

3. Fill the tube with water until the level aligns with the punch mark at one end of the chiller.

4. Check the water level at the opposite mark. If the water level does not align with the punch mark, use full length shims to raise one end of the chiller until the water level at each end of the tube aligns with the punch marks at both ends of the chiller.

5. Once the unit is level across its length, repeat Step 1 through Step 3

to level the unit across its width. If isolation pads have been used, shim the center support.

2

1

Note: Use of a laser level is an acceptable alternative method to level the unit.

Important:

Immediately report any unit damage incurred during handling or installation at the job site to the Trane sales office.

CDHH-SVX001C-EN 21

Installation: Water Piping

Overview

The following water piping circuits must be installed and connected to the chiller:

• Pipe the evaporator into the chilled water circuit.

• Pipe the condenser into the cooling tower water circuit.

Note: Piping must be arranged and supported to avoid stress on the equipment. It is strongly recommended that the piping contractor does not run pipe closer than 0.91 m (3 feet) minimum to the equipment. This will allow for proper fit upon arrival of the unit at the job site. Any adjustment that is necessary can be made to the piping at that time. Expenses that result from a failure to follow this recommendation will not be paid by Trane.

Piping suggestions for each of the water circuits listed

above are outlined in “Evaporator and Condenser Water

Piping,” p. 25

. General recommendations for the installation of field supplied piping components (e.g., valves, flow switches, etc.) common to most chiller water circuits are listed below.

Water Treatment

The use of untreated or improperly treated water in a

CenTraVac may result in inefficient operation and possible tube damage.

Important:

Trane strongly recommends using the services of a qualified water treatment specialist to determine necessary water treatment. A label with a customer disclaimer note is affixed to each unit.

NOTICE:

Proper Water Treatment!

Trane assumes no responsibility for equipment failures which result from untreated or improperly treated water, or saline or brackish water. The use of untreated or improperly treated water in a CenTraVac could result in scaling, erosion, corrosion, algae or slime. It is recommended that the services of a qualified water treatment specialist be engaged to determine what water treatment, if any, is required.

Pressure Gauges

Locate pressure gauge taps in a straight length of pipe.

Place each tap a minimum of one pipe diameter downstream of any elbow, orifice, etc. For example, for a

152.4 mm (6 in.) pipe, the tap would be at least 152.4 mm

(6 in.) from any elbow, orifice, etc.

22

Valves—Drains and Vents

NOTICE:

Waterbox Damage!

Failure to follow instructions could result in damage to the waterbox. Do not over-tighten or use excessive

Teflon

®

pipe tape when installing valves, drains, plugs and vents on waterboxes.

1.

Install field-supplied air vents and drain valves on the waterboxes. Each waterbox is provided with a National

Pipe Thread Female (NPTF) vent and drain connection; the openings are 19.05 mm (3/4 in.).

NOTICE:

Over-pressurization!

Failure to install pressure-relief valves in the condenser and evaporator water circuits could result in waterbox damage due to hydrostatic expansion.

2. If necessary for the application, install pressure-relief valves at the drain connections on the evaporator and condenser waterboxes. To do so, add a tee with the relief valve attached to the drain valve. Follow local codes for determining if drain connection is large enough for relief devices.

To determine whether or not pressure relief valves are needed for a specific application, keep in mind that: a. Vessels with close-coupled shutoff valves may cause high potentially damaging hydrostatic pressures as fluid temperature rises.

b. Relief valves are required by American Society of

Mechanical Engineers (ASME) codes when the waterside is ASME. Follow ASME guidelines or other applicable codes/local regulation to ensure proper relief valve installation.

Strainers

NOTICE:

Tube Damage!

Failure to install strainers in all water piping entering the chiller could result in tube plugging conditions that damage unit components.

Install a strainer in the entering side of each piping circuit to avoid possible tube plugging in the chiller with debris.

Required Flow-Sensing Devices

The ifm efector

®

flow detection controller and sensor (see

“Water Flow Detection Controller and Sensor—ifm efector,” p. 23 ) are used to verify evaporator and

CDHH-SVX001C-EN

condenser water flows.

If a customer-supplied flow sensing device is used to ensure adequate chiller protection, refer to the wiring diagrams that shipped with the unit for specific electrical connections.

Be sure to follow the manufacturer’s recommendations for device selection and installation.

Water Flow Detection Controller and Sensor—ifm efector

Figure 10.

Installation of ifm efector flow detection controller and sensor

If factory-provided, located in control panel.

Components:

A. E40174 – 1/2" NPT adapter (for flow probe)

B . SF6200 – Flow probe

C . SN0150 – Flow control monitor

4

E . E10965 – Micro DC cable, 10m length, PUR jacket

F. F53003 – Din rail, 40mm length

3

Installation: Water Piping

that 7.6–8.9 cm (3–3.5 in.) of the probe’s length extends into the pipe. Finger-tighten the 1/2-in. NPT adapter; then, tighten with a wrench an additional 3/4 turns

(minimum) to 1 turn (maximum); do NOT overtighten.

Note: When installed, the tip of the ifm efector sensor probe must be at least 2.54 cm (1 in.) away from any pipe wall. Do NOT insert more than 8.9 cm

(3.5 in.) of the probe length into the pipe.

3. Install the Micro DC Cable by inserting it through the wire openings on the back side of the control panel (see item labeled “3” in

Figure 10, p. 23

). Install the supplied Micro DC Cable (9 meters [25 feet] in length) to the Flow Probe and hand-tighten the connector nut.

4. Plug the other end of the Micro DC Cable into the Flow

Control Monitor with the Combicon connector (see item labeled “4” in

Figure 10, p. 23

). Refer to

Figure 11

for cable wiring.

n

pter (A) into pipe.

w probe (B) into adapter (A).

rail (F) into control cabinet.

trol monitor (C) onto DIN rail (F).

able (E) to flow probe (B), (hand tighten only).

in combicon connectors (D) according to gram.

outputs for flow, wire-break, and/or ure monitoring, according to wiring diagram.

w monitoring monitoring n series, use ram at right.

Jumper

L

N

AC

toring monitoring re monitoring delay time quid / gas onitoring can rated using

1, and 12.

Jumper

Do NOT insert more than 8.9 cm control cabinet

(3.5 in.) of the probe length into the

pipe.

2

1

1.

Mount the 1/2-in. NPT adapter in a horizontal or vertical section of pipe. The maximum distance from the control panel must not exceed 8.99 meters (29.5 ft)

(see item labeled “1” in

Figure 10, p. 23

). Allow at least five pipe diameters straight run of pipe upstream of the sensor location, and three pipe diameters straight run of pipe downstream of the sensor location.

Note: In the case of a horizontal pipe, mounting the sensor in the side of the pipe is preferred. In the case of a vertical pipe, mounting the sensor in a place where the water flows upwards is preferred.

2. Insert the flow sensor probe (see item labeled “2” in

Figure 10, p. 23

) through the 1/2-in. NPT adapter so

CDHH-SVX001C-EN 23

Installation: Water Piping

NOTICE:

Do Not Apply Electrical Power to a Unit in a Vacuum!

Failure to disconnect power to units with inside-the-delta solid state starters during evacuation or when the unit is in a deep vacuum could cause compressor motor damage. Applying electrical power to a motor in a vacuum could cause damage to the motor. In addition, on units with inside-the-delta solid state starters, all power to the unit must be disconnected prior to evacuating the unit as line power is directly applied to the motor terminals 4, 5, and 6.

flow setting cutout and adjusting counterclockwise (-) increases the flow setting cutout.

Note: The “Temp” potentiometer on the ifm efector control module has no effect in Trane application. It is not necessary to make adjustments to the “Temp” potentiometer.

8. Once the cutout setting is adjusted, the cutout setpoint will be indicated with a yellow light on the Flow Control

Monitor LED bar graph display. When the water flows are higher than the cutout, a green light will indicate proper flow status. If the flows fall below the cutout setpoint, a red light will indicate low/no flow status.

Figure 11.

ifm efector flow sensing device terminal connection

7

X39003892001A

Note: Graphic labels (shown above) are used for CE application only.

Important:

Before servicing, disconnect all power sources and allow at least 30 minutes for capacitors to discharge.

All electrical enclosures—unit or remote—are IP2X.

5. Apply power to the chiller control panel to verify the

Flow Control Monitor has power and the Low Volt

Broken Wire Relay light is not lit.

6. Remove all air from the piping circuit prior to adjusting the low water flow setpoint.

7.

Reduce the water flow to the minimum allowable flow and adjust the Flow setting on the Flow Control

Monitor (see item labeled “7” in Figure 11 ). Adjusting

the “Flow” potentiometer clockwise (+) reduces the

NOTICE:

Proof of Flow Switch!

Evaporator and condenser water circuits require proof of flow switches.

• Failure to include the proof of flow devices and/or jumping out these devices could cause the unit to stop on a secondary level of protection.

• Frequent cycling on these higher level diagnostic devices could cause excessive thermal and pressure cycling of unit components (O-rings, gaskets, sensors, motors, controls, etc.) and/or freeze damage, resulting in premature failure of the chiller.

Failure to provide flow switches or jumping-out of switches could result in severe equipment damage.

Evaporator and condenser proof of flow switches are required. These switches are used with control logic to confirm flow prior to starting a unit and to stop a running unit if flow is lost. For trouble shooting, a viewable diagnostic is generated if a proof of flow switch does not close when flow is required.

24 CDHH-SVX001C-EN

Evaporator and Condenser Water

Piping

Figure 12 and Figure 13, p. 25

illustrate the recommended

(typical) water piping arrangements for the evaporator and condenser.

Figure 12.

Typical evaporator water piping circuit

6

Inlet

4

2 1 7 3

8 2 3

3 2

5

2

9

2

5

3 7

1

2

4

Outlet

4

Inlet

1.

Balancing Valve

2.

Gate (Isolation) Valve or Ball

Valve

3.

Thermometer (if field supplied)

4.

Waterbox Nozzle Connection

5.

Drain, Vent, Anode

6.

8.

Strainer

7.

Chilled Water Flow Switch

(4B4)

(a)

Pump

9.

Pressure Gauge

(b)

(a) Flow switch 4B4 may be installed in either the entering or leaving leg of the chilled water circuit.

(b) It is recommended to pipe the gauge between entering and leaving pipes. A shutoff valve on each side of the gauge allows the operator to read either entering or leaving water pressure.

Figure 13.

Typical condenser water piping circuits

Outlet

4

2

5

10

2

5 9

8

6

1.

2.

3.

Balancing Valve

Gate (Isolation) Valve or Ball

Valve

Thermometer (if field supplied)

6.

Strainer

7.

Condenser Water Flow

Switch (4B5)

(a)

8.

3-Way Valve (Optional)

4.

Waterbox Nozzle Connection

5.

Drain, Vent, Anode

9.

Condenser Water Pump

10. Pressure Gauge

(b)

Notes:

1. Some type of field-supplied temperature control device may be required to regulate the temperature of the heat-recovery condenser water circuit. For application recommendations, refer to Heat

Recovery Seminar (Part 2): "Systems/Equipment (AM-FND-8).

2. Install a bypass valve system to avoid circulating water through the auxiliary shell when the unit is shut down.

3. On multiple pass condensers, entering condenser water must enter at the lowest nozzle.

(a) Flow switch 4B5 may be installed in either the entering or leaving leg of the water circuit.

(b) It is recommended to pipe a single gauge between entering and leaving pipes.

CDHH-SVX001C-EN

Installation: Water Piping

Piping must be arranged and supported to avoid stress on the equipment. It is strongly recommended that the piping contractor does not run pipe closer than 0.91 meters

(3 feet) minimum to the equipment. This will allow for proper fit upon arrival of the unit at the job site. Any adjustment that is necessary can be made to the piping at that time. Expenses that result from a failure to follow this recommendation will not be paid by Trane.

Waterboxes with multiple pass arrangements utilize a baffle to separate the passes. These baffles are designed for a maximum pressure of 137.9 kPaD (20 psid). If larger pressure drops are expected in the application, contact your local Trane representative to discuss special waterbox options.

Important:

Water flows must be piped in accordance with nameplate designation.

Field-provided isolation valves for the evaporator and condenser water lines should be installed upstream and downstream of the heat exchangers, and be installed far enough away from the chiller to also provide practical service isolation for flow sensing devices, field thermometers, flexible connectors, and any removable pipe spools.

Ensure that the evaporator water piping is clear, check it after the chilled water pump is operated but before initial chiller start-up. If any partial blockages exist, they can be detected and removed to prevent possible tube damage resulting from evaporator freeze-up or erosion.

For applications that include an “infinite source” or

“multiple-use”, cooling condenser water supply, install a valved bypass “leg” (optional) between the supply and return pipes. This valved bypass allows the operator to short-circuit water flow through the cooling condenser when the supply water temperature is too low.

Note: System refrigerant pressure differential must be maintained above 20.7 kPaD (3 psid) at all times.

Failure to do so could result in operating problems.

Water Piping Connections

All standard units use grooved-pipe connections. These are grooved-end NSP (Victaulic style) pipe connections.

Flanged connections are optional.

Piping joined using grooved type couplings, like all types of piping systems, requires proper support to carry the weight of pipes and equipment. The support methods used must eliminate undue stresses on joints, piping and other components; allow movement where required, and provide for any other special requirements (i.e., drainage, etc.).

Note: Plug-type sensor extension cables are available for purchase from Trane Parts Service if needed. These sensor extension cables may be necessary if the waterboxes are changed or if the temperature sensors are moved out into the unit piping for better mixed temperature readings.

25

Installation: Water Piping

Table 5.

Water connection pipe sizes

Water

Passes

Evaporator

1 Pass

2 Pass

3 Pass

Condenser

1 Pass

2 Pass

Evaporator

1 Pass

2 Pass

3 Pass

Condenser

1 Pass

2 Pass

100 130 160

Shell Size

200 220 400 440

Metric Pipe Size (mm)

DN300 DN300 DN350 DN400 DN500 DN400 DN500

DN250 DN250 DN300 DN350 DN350

DN200 DN200 DN250 DN300 DN300

DN300 DN350

DN250 DN300

DN400 DN600

DN350 DN350

Nominal Pipe Size (in.)

12

10

8

12

10

8

14

12

10

16

14

12

20

14

12

12

10

14

12

16

14

24

14

16

DN600

20

24

Figure 14.

Typical grooved pipe connection

Waterbox Locations

If removal of waterboxes is necessary, refer to “Waterbox

Removal and Installation,” p. 101

.

If the waterboxes on any of the shells are exchanged endfor-end, be sure to reinstall them right side up to maintain the correct baffle arrangements. Use a new gasket with each waterbox cover.

Three-pass waterboxes have lifting lugs on the top and bottom. When reinstalling, ensure that the waterbox is oriented the same way it as removed.

Grooved Pipe Coupling

A customer-supplied, standard flexible grooved pipe coupling (Victaulic Style 77 or equivalent) should be used to complete the Victaulic connection for both 1034.2 kPaG or 150 psig and 2068.4 kPaG or 300 psig waterboxes.

When a flexible coupling such as this is installed at the waterbox connections, other flexible piping connectors

(i.e., braided-steel, elastomeric arch, etc.) are usually not required to attenuate vibration and/or prevent stress on the connections.

Table 6.

Water piping connection components

Customer Piping Connection

Unit Model

CDHH

CDHH

Unit Connection

Type Victaulic

Flanged (optional)

Victaulic (all others)

Customer provided

Victaulic coupling

Flanged

No adapter required

Trane provided

Victaulic-toflange adapter

Figure 15.

Customer piping connection types

Flanged

Victaulic

26

Flange Adaptor

Trane Provided

Style 77 Flexible

Customer Provided

Refer to the coupling manufacturer’s guidelines for specific information concerning proper piping system design and construction methods for grooved water piping systems.

Flexible coupling gaskets require proper lubrication before installation to provide a good seal. Refer to the coupling manufacturer’s guidelines for proper lubricant type and application.

CDHH-SVX001C-EN

Installation: Water Piping

Flange-Connection Adapters

When flat-face flange connections are specified, flange-togroove adapters are provided (Victaulic Style 741 for

1034.2 kPaG or 150 psig systems; Style 743 for

2068.4 kPaG or 300 psig systems). The adapters are shipped bolted to one of the chiller end-supports. Adapter descriptions are given in

Table 7, p. 28

. The flange adapters provide a direct, rigid connection of flanged components to the grooved-pipe chiller waterbox connections.

Figure 16.

Typical shipping location for flange

Figure 17.

Modifying 300 psig or 21 bar flange adaptors for flat-faced flange application

Remove to mate to flat-faced flanges

Victaulic Gasket Installation

1.

Inspect supplied gasket to be certain it is suited for intended service (code identifies gasket grade). Apply a thin coat of silicone lubricant to gasket tips and outside of gasket.

2. Install gasket, placing gasket over pipe end and making sure gasket lip does not overhang pipe end. Refer to

Figure 18

for gasket configuration.

Figure 18.

Typical Victaulic flange gasket configuration

In this case, the use of flexible type connectors (i.e., braided steel, elastomeric arch, etc.) are recommended to attenuate vibration and prevent stress at the waterbox connections.

All flange-to-flange assembly bolts must be provided by the installer. Bolt sizes and number required are given in

Table 7, p. 28 . The four draw-bolts needed for the larger

Style 741 (1034.2 kPaG or 150 psig) adapters are provided.

The Style 741, 1034.2 kPaG or 150 psig flange adapter requires a smooth, hard surface for a good seal.

Connection to other type flange faces (i.e., raised, serrated, rubber, etc.) will require the use of a flange washer between the faces. Refer to the flange adapter manufacturer’s guidelines for specific information.

The flange-adapter gasket must be placed with the colorcoded lip on the pipe and the other lip facing the mating flange.

NOTICE:

Piping Connection Leaks!

Failure to provide effective seal could result in equipment or property-only damage. To provide effective seal, gasket contact surfaces of adapter must be free of gouges, undulations or deformities.

3. Align and bring two pipe ends together and slide gasket into position centered between the grooves on each pipe. No portion of the gasket should extend into the groove on either pipe.

4. Open fully and place hinged Victaulic flange around the grooved pipe end with the circular key section locating into the groove.

5. Insert a standard bolt through the mating holes of the

Victaulic flange to secure the flange firmly in the groove.

6. Tighten fasteners alternately and equally until housing bolt pads are firmly together (metal to metal); refer to

“Bolt-Tightening Sequence for Water Piping

Connections,” p. 28

. Do not excessively tighten fasteners.

Note: Uneven tightening may cause gasket to pinch.

CDHH-SVX001C-EN 27

Installation: Water Piping

Table 7.

Installation data for 150 psig flange adapters (Style 741)

Nominal Pipe Size mm in.

200

250

300

350

400

450

500

600

8

10

12

14

16

18

20

24

Assembly Bolt

Size

(a) in.

3/4 x 3-1/2

7/8 x 4

7/8 x 4

1 x 4-1/2

1 x 4-1/2

1-1/8 x 4-3/4

1-1/8 x 5-1/4

1-1/4 x 5-3/4

Number of

Assembly Bolts

Required

8

12

12

12

16

16

20

20

Bolt Pattern Diameter mm

298

362

432

476

540

578

635

749

in.

11.75

14.25

17

18.75

21.25

22.75

25

29.5

(a) Bolt size for conventional flange to flange connection. Longer bolts are required when flange washer must be used.

kg

7.5

11

21.2

28.1

35.8

37.3

46.9

64.4

Weight lb

16.6

24.2

46.8

62

79

82.3

103.3

142

Bolt-Tightening Sequence for

Water Piping Connections

This section describes a bolt-tightening sequence for flanges with flat gaskets or O-rings. Remember that improperly tightened flanges may leak.

Note: Before tightening any of the bolts, align the flanges.

Flanges with 8 or 12 Bolts

Tighten all bolts to a snug tightness, following the numerical sequence for the appropriate bolt pattern as shown below. Repeat this sequence to apply the final torque to each bolt.

12

16

8

1

5

9

13

3

4

7

14

10

15

6 2

16 bolt flange

11

16

20

1 5

9

13

17

12

3

8

7

4

18

14

10

19

6 2

20 bolt flange

15

11

Pressure Testing Waterside Piping

4

7

1

5

8

12

1 5

9

3

8

3

4

7

2 6

8 bolt flange

10

6 2

12 bolt flange

11

Flanges with 16 or 20 Bolts

Tighten only the first half of the total number of bolts to a snug tightness, following the numerical sequence for the appropriate bolt pattern as shown below. Next, sequentially tighten the remaining half of the bolts in numerical order.

NOTICE:

Equipment Damage!

Failure to follow these instructions could result in equipment damage. Do not over pressurize the system or exceed design pressure. Always perform as a hydro pressure test with water present in piping and waterboxes.

Waterside design pressure is either 1034.2 or 2068.4 kPaG

(150 or 300 psig); refer to unit nameplate or to submittal documentation.

28 CDHH-SVX001C-EN

Vent Piping

Refrigerant Vent Line

General Requirements

State and local codes, and ASHRAE Standard 15 contain requirements for venting the relief device on the chiller to the atmosphere outside of the building. These requirements include, but are not limited to, permitted materials, sizing, and proper termination.

Note: The following information is a general outline of vent-line installation requirements based on

ASHRAE Standard 15. Most codes contain similar requirements but may vary in some significant areas. The installer must check state and local codes and follow the specific requirements applicable to the location.

Purge Discharge

To comply with ASHRAE Standard 15, the discharge piping from purge units that remove noncondensible gas from refrigerating systems must conform to the ASHRAE

Standard 15 requirements for relief piping. To help meet this requirement, the purge discharge is factory-piped to the relief device assembly.

Vent Line Materials

All materials in the relief device vent system must be compatible with the refrigerant in use. Commonly used and accepted piping materials include steel and DWV

(drain/waste/vent) copper. Consult local codes for restrictions on materials. Consult with the manufacturers of any field-provided components or materials for acceptable material compatibility.

Note: PVC piping is acceptable for use as a vent line material with R-1233zd(E), but the glue that joins the sections of plastic pipe may not be. When considering a vent system constructed of plastic piping, such as PVC, ensure that both the pipe material and the adhesive have been tested for refrigerant compatibility. In addition, verify that the local codes permit PVC for refrigerant vent lines; even though ASHRAE Standard 15 doesn’t prohibit its use, some local codes do.

The following materials for PVC pipe construction are recommended for use with R-1233zd(E):

Primer/Cleaner:

Hercules—PVC Primer #60-465

RECTORSEAL

®

PVC Cleaner—Sam™ CL-3L

Adhesives:

Hercules—Clear PVC, Medium Body/Medium Set,

#60-020

RECTORSEAL—PVC Cement, Gene™ 404L

Vent Line Sizing

Vent line size must conform to local codes and requirements. In most cases, local codes are based on

ASHRAE Standard 15. ASHRAE Standard 15 provides specific requirements for the discharge piping that allows pressure-relief devices to safely vent refrigerant to the atmosphere if over pressurization occurs. In part, the standard mandates that:

• The minimum pipe size of the vent line must equal the size of the discharge connection on the pressure-relief device. A larger vent line size may be necessary, depending on the length of the run.

• Two or more relief devices can be piped together only

if the vent line is sized to handle all devices that could relieve at the same time.

• When two or more relief devices share a common vent line, the shared line must equal or exceed the sum of the outlet areas of all upstream relief devices, depending on the resulting back pressure.

ASHRAE Standard 15 provides guidance for determining the maximum vent line length. It also provides the

equation (shown in Figure 23, p. 35

) and data necessary to properly size the vent line at the outlet of a pressure-relief device or fusible plug.

The equation accounts for the relationship between pipe diameter, equivalent pipe length, and the pressure difference between the vent line inlet and outlet to help ensure that the vent line system provides sufficient flow capacity.

Table 8, p. 34

provides additional information based on

ASHRAE Standard 15, including:

• Capacities of various vent line sizes and lengths.

However, this data applies only to conventional pressure-relief valves and NOT to balanced relief valves, rupture members (as used on Trane

® centrifugal chillers), fusible plugs, or pilot-operated valves.

• A simplified method to determine the appropriate

vent-line size, with Figure 23, p. 35 . Enter the figure

with the total C value, read across to a pipe curve and down to find the maximum allowable length for that size pipe.

To determine the total C value for a specific unit, add the appropriate C values for the evaporator, standard condenser, and economizer. If the unit is equipped with any options (e.g., heat recovery, free cooling, or an auxiliary condenser), add the applicable C value(s) for those options to the total as well.

Note:

Table 8, p. 34

and

Figure 23, p. 35 are applicable

only for non-manifolded vent-line runs connected to a 344.7 kPaG (50 psig) rupture disk relief device.

The pipe length provided by the table is in

“equivalent feet.” The vent-line length in equivalent

CDHH-SVX001C-EN 29

Vent Piping

feet is the sum of the linear pipe length plus the equivalent length of the fittings (e.g., elbows).

Vent Line Installation

Important:

Before constructing the rupture disk vent line, consult local codes for applicable guidelines and constraints.

All CenTraVac centrifugal chillers are equipped with rupture disks. If refrigerant pressure within the evaporator exceeds 344.7 kPaG (50 psig) the rupture disk breaks and shell pressure is relieved as refrigerant escapes from the chiller.

There are two rupture disks on CDHF chillers, one per

refrigerant circuit. See Figure 19, p. 32 for locations.

A cross-section of the rupture disk assembly appears in

Figure 19, p. 32 along with an illustration indicating the

location of the rupture disk on the suction elbow.

Several general recommendations for rupture disk vent line installation are outlined below.

Note: If the rupture disk was removed for service or vent line piping installation, the rupture disk must be

reinstalled (as shown in Figure 19, p. 32 ). Refer to

the following procedure and contact CenTraVac

Technical Service when reinstalling the rupture disk.

• Verify that the rupture disk is positioned as shown in

the cross-section view that appears in Figure 19, p. 32

.

– Install the two bottom bolts though the pipe flanges.

– Install the rupture disk with a gasket on each side between the pipe flanges. Orient the disk with the reference arrow facing the chiller side as shown in

Figure 19, p. 32 .

– Install the two top bolts.

– Center the disk and gaskets to the flange bore.

– Hand tighten all bolts assuring equal pressure.

– Use a torque wrench set to 196.6 N·m (145 ft·lb) with a 24-mm socket.

– Tighten bolts in a star pattern, one half turn each, to maintain even pressure on the disk.

– Final torque on all bolts should be 196.6 N·m

(145 ft·lb).

• When attaching the vent line to the chiller, do not apply threading torque to the outside pipe of the rupture disk assembly.

NOTICE:

Rupture Disk Damage!

Failure to follow instruction could result in damage to the rupture disk assembly. Do not apply threading torque to the outside pipe.

• Provide support as needed for the vent line. Do not use the rupture disk assembly to support the vent line piping.

30

• Use a flexible connection between the vent-line and the rupture disk assembly to avoid placing stress on the rupture disk. (Stress can alter rupture pressure and cause the disk to break prematurely.) The flexible connector used to isolate the rupture disk from excessive vent line vibration must be compatible with the refrigerant in use. Use a flexible, steel connector such as the stainless-steel type MFP, style HNE, flexible pump connector (from Vibration Mounting and

Control, Inc.) or equivalent. Refer to Figure 20, p. 33

for a recommended relief piping arrangement.

WARNING

Pressure-Relief Device Discharge Hazard!

An improper vent-line termination could result in death or serious injury or equipment damage. When a pressure-relief device operates, it could discharge a large amount of fluid and/or vapor. Units MUST be equipped with a vent-line termination that discharges outdoors in an area that will not spray refrigerant on anyone.

CDHH-SVX001C-EN

Vent Piping

NOTICE:

Proper Refrigerant Vent Line Termination!

Failure to properly terminate a refrigerant vent line could result in equipment damage. Improperly terminating a refrigerant vent line could allow rain to enter the line. Accumulated rainwater could cause the relief device to malfunction; or, in the case of a rupture disk, the rainwater pressure could cause the disk to rupture, allowing water to enter the chiller.

NOTICE:

Equipment Damage!

Trane assumes no responsibility for equipment damage caused by insufficient drainage of the drip leg. All ventlines must be equipped with a drip leg of sufficient volume to hold the expected accumulation of water and or refrigerant. The drip leg must be drained periodically to ensure that it does not overflow and allow fluid to flow into the horizontal portion of the vent-line.

• Consult local regulations and codes for any additional relief line requirements.

X39003892001A

Note: Graphic labels (shown above) are used for CE application only.

• Route the vent-line piping so that it discharges outdoors in an area that will not spray refrigerant on anyone. Position the vent line discharge at least

4.572 meters (15 feet) above grade level and at least

6.096 meters (20 feet) from any building opening.

Provide a vent line termination that cannot be blocked by debris or accumulate rainwater.

• Provide a drip leg on the vent-line (see

Figure 20, p. 33

). Provide a standard 1/4-in. FL x 1/4-in. NPT, capped refrigerant service valve to facilitate liquid removal.

CDHH-SVX001C-EN 31

Vent Piping

Figure 19.

Illustrates rupture disk location, cross section of rupture disk

Gasket

Outside pipe assembly

Cap

Bolt

Note:

Pipe connection is 3 in. NPT.

Suction connection

Rupture disk

32 CDHH-SVX001C-EN

Figure 20.

Arrangement for rupture disk relief piping

Alternate

Outside wall

Purge discharge vent line

Support this pipe

Vent Piping

Figure 21.

Reverse buckling rupture disk

Disk in normal operating position.

Chiller pressure is below 50 psig.

When chiller pressure exceeds the disk’s rated burst pressure, the disk begins to tear open along the score line of the outlet ring.

The disk snaps open through the score line of the outlet ring and the pressure is vented.

The outlet ring is designed with a hinge area to retain the disk petal.

Flexible steel connection

Rupture disk assembly

Drip leg

(length as required for easy access)

1/4 in. FL x 1/4 in. NPT drain valve

Trane RuptureGuard

General Information

The Trane RuptureGuard™ refrigerant containment system replaces the rupture disk on new low pressure chillers utilizing R-1233zd(E). The RuptureGuard system consists of a solid-metal, (non-fragmenting) reversebuckling rupture disk, and automatically re-seating relief valve. The relief valve and the rupture disk are rated at the chiller’s maximum working pressure level. If the chiller’s refrigerant pressure exceeds the rupture disk burst rating, the disk bursts, releasing pressure to the relief valve. The relief valve vents the pressure down to a safe level and then re-seats, thus minimizing the amount of refrigerant vented to the atmosphere.

Figure 21 illustrates the

operation of a reverse buckling rupture disk.

Chiller

Chiller

Chiller

Chiller

To prevent water, refrigerant and/or other debris such as rust from hindering the operation of the valve, a drip leg should be installed immediately after or downstream of the RuptureGuard (see

Figure 22

).

Connection to External Vent Line and Drip

Leg

NOTICE:

Equipment Damage!

Trane assumes no responsibility for equipment damage caused by insufficient drainage of drip leg. All vent lines must be equipped with a drip leg of sufficient volume to hold the expected accumulation of water and/or refrigerant. The drip leg must be drained periodically to assure that it does not overflow and allow fluid to flow into the horizontal portion of the vent line.

With RuptureGuard installed horizontally, the drain plug downstream of the valve relief plug and nearest to the bottom of the valve body should be piped to the drip leg in the vent line. This will allow the removal of any condensate formed within the valve body.

Provisions, such as installing a set of flanges (see

Figure 22

) or other disconnect means, must be made in the discharge vent piping. This will allow the piping downstream of the valve to be easily removed for an annual inspection, to replace the rupture disk, or for any other servicing need.

CDHH-SVX001C-EN 33

Vent Piping

Figure 22.

External vent line and drip leg (not provided)

Purge

Exhaust

Rupture

Disk

Flange

Inlet

Flange

Outlet Flange

Drain Line

Drain Valve

Connect the discharge of the valve assembly to the vent line connected to the outdoors.

Note: Make sure there are no crosses

1

, elbows, tees or any other obstructions within the first

22.86 cm (9 in.) of valve discharge. Refer to

ASHRAE Standard 15, national, state, and local codes for additional requirements on piping rupture disk and relief valve vent lines.

Table 8.

“C” values used to determine rupture disk vent

line sizes (kg/s); for use with Figure 23, p. 35

NTON

Evap.

Size

(EVSZ)

2000–2600 400M

2800–3300 440M

2800–3300 440X

“C” Values for Unit Components

Cond.

Size

(CDSZ)

Total

“C”

Value Evap. Cond. Econ.

Oil

Tank

440M 1.086 0.500 0.412 0.141 0.034

440M 1.151 0.554 0.412 0.151 0.034

440X 1.299 0.639 0.475 0.151 0.034

Notes:

1. Rupture disk diameter is 76.2 mm (3 in.).

2. Use the total “C” value in

Figure 23, p. 35

to determine the vent line pipe diameter.

3. If piping multiple rupture disks (multiple units) to a common vent line, first determine the total “C” value for each unit, and then; add

all “C” values together and apply the result to Figure 23, p. 35

.

4. The CDHH unit is a Duplex chiller and has (2) refrigerant circuits and

(2) relief devices.

1

A derate on the rated flow capacity for this configuration is published in RuptureGuard engineering bulletin, E/CTV-EB-10.

34 CDHH-SVX001C-EN

Figure 23.

Rupture disk vent pipe sizing (SI units); for use with

Table 8, p. 34

Pipe size as a Function of “C” Value and Length of Run

10

Vent Piping

1

Pipe Size (I.D.) friction factor

150 DN (6 NPS)

154 mm (6.06 in.) f = 0.0149

125 DN (5 NPS)

128 mm (5.05 in.) f = 0.0155

100 DN (4 NPS)

102 mm (4.03 in.) f = 0.0163

0

10 100

L = Pipe Length (Equivalent Meters)

(Meters x 3.281 = Feet)

80 DN (3 NPS)

78 mm (3.07 in.) f = 0.0173

1000

ASHRAE Standard 15

L =

7.4381x10

-15

d

5

(P

2

0

- P

2

2

)

fC

2

R

-

d * ln(P

0

/ P

2

)

500f

Note:

This figure, provided as a reference, is based on ASHRAE Standard 15. Vent line size is typically dictated by state or local code which may be different from ASHRAE Standard 15 requirements.

L = equivalent length of discharge piping, meters

C r

= rated capacity as stamped on the relief device in

SCFM (conversion: kg/s = SCFM * 0.0764 / 132.28)

C r

= C value from

Table 8, p. 34

(convert C in kg/s to lb/ min for IP; lb/min = (kg/s) / 132.28)

f = Moody friction factor in fully turbulent flow

d = inside diameter of pipe or tube, mm

• ln = natural logarithm

P

2

= absolute pressure at outlet of discharge piping, kPa (atmospheric pressure)

CDHH-SVX001C-EN

P

0

= allowed back pressure (absolute) at the outlet of pressure relief device, kPa

P

0

= (0.15 P) + atmospheric pressure

35

Vent Piping

Table 9.

“C” values used to determine rupture disk vent line sizes (lb/min); for use with

Figure 24, p. 37

NTON

Evap.

Size

(EVSZ)

2000–2600 400M

2800–3300 440M

2800–3300 440X

“C” Values for Unit Components

Cond.

Size

(CDSZ)

Total

“C”

Value Evap. Cond. Econ.

440M 142.6 65.7

54.0

18.5

Oil

Tank

4.5

440M 151.1 72.7

54.0

19.8

440X 170.5 83.9

62.3

19.8

4.5

4.5

Notes:

1. Rupture disk diameter is 3 in. (76.2 mm).

2. Use the total “C” value in

Figure 24, p. 37

to determine the vent line pipe diameter.

3. If piping multiple rupture disks (multiple units) to a common vent line, first determine the total “C” value for each unit, and then; add

all “C” values together and apply the result to Figure 24, p. 37

.

4. The CDHH unit is a Duplex chiller and has (2) refrigerant circuits and

(2) relief devices.

36 CDHH-SVX001C-EN

Vent Piping

Figure 24.

Rupture disk vent pipe sizing (IP units); for use with Table 9, p. 36

Pipe size as a Function of “C” Value and Length of Run

1000

100

Pipe Size (I.D.) friction factor

6 NPS (150 DN)

6.06 in. (154 mm) f=0.0149

5 NPS (125 DN)

5.05 in. (128 mm) f=0.0155

4 NPS (100 DN)

4.03 in. (102 mm) f=0.0163

3 NPS (80 DN)

3.07 in. (78 mm) f=0.0173

10

10 100

L = Pipe Length (Equivalent Feet)

(Feet x 0.305 = Meters)

1000

ASHRAE Standard 15

L =

0.214d

5

(P

2

0

- P

2

2

)

fC

2

R

-

d * ln(P

0

/ P

2

)

6f

Note:

This figure, provided as a reference, is based on ASHRAE Standard 15. Vent line size is typically dictated by state or local code which may be different from ASHRAE Standard 15 requirements.

L = equivalent length of discharge piping, feet

C r

= rated capacity as stamped on the relief device in

SCFM (conversion: lb/min = SCFM * 0.0764)

C r

= C value in lb/min from

Table 9, p. 36

f = Moody friction factor in fully turbulent flow

d = inside diameter of pipe or tube, in.

• ln = natural logarithm

P

2

= absolute pressure at outlet of discharge piping, psi

(atmospheric pressure)

P

0

= allowed back pressure (absolute) at the outlet of pressure relief device, psi

P

0

= (0.15 P) + atmospheric pressure

CDHH-SVX001C-EN 37

Insulation

Unit Insulation Requirements

Factory-installed insulation is available as an option for all units. Factory installation does not include insulation of the chiller feet; if required, insulation for chiller feet is provided by others. In applications where the chiller is not factory-insulated, install insulation over the areas outlined and highlighted with dashed lines as shown in

Figure 25, p. 39 .

Insulate all 6.35-mm (1/4-in.) eductor lines, one from the suction cover and one from the evaporator to prevent sweating.

The quantities of insulation required based on unit size and insulation thickness are listed in

Table 10

. Insulation thickness is determined at normal design conditions which are:

• standard comfort-cooling leaving chilled water temperature

• 29.4°C (85°F) dry bulb ambient temperature

• 75 percent relative humidity

Operation outside of normal design conditions as defined above may require additional insulation; contact Trane for further review.

Note: If the unit is not factory-insulated: install insulation around the evaporator bulbwells and ensure that the bulbwells and connections for the waterbox drains and vents are still accessible after insulation is applied. The sensor modules (LLIDs) and interconnecting four wire cable (IPC bus) must be raised up above the field-installed insulation.

Secure the IPC bus to the insulation top/outer surface after insulation is completed.

Important:

Do not insulate the motor housing, unit wiring, or sensor modules.

WARNING

Replace Manual in Cabinet After Use!

Failure to replace this Installation, Operation, and

Maintenance manual in cabinet after use could prevent personnel from accessing necessary safety information and could result in death or serious injury or equipment damage.

Table 10.

CDHH evaporator insulation requirements

EVSZ

(Standard Unit)

400M

440M

440X

190.5 mm (3/4 in.) Insulation m

2

119.4

124.3

130.8

ft

2

1285

1338

1408

Notes:

1. Units are NOT insulated on the motor or refrigerant drain lines.

2. 19.05-mm (3/4-in.) sheet insulation is installed on the evaporator, evaporator waterboxes, suction elbow, suction cover, economizer, liquid lines, and piping.

3. Copper oil eductor lines require pipe insulation.

Insulation Thickness

Requirements

Factory applied insulation.

All low-temperature surfaces are covered with 19.05 mm (3/4 in.) Armaflex

® or equal (thermal conductivity = 0.036 W/m

2

-K

[0.25 Btu/h-ft

2

]), including the evaporator, waterboxes,

II suction elbow, economizer, and piping.

The insulation is Armaflex or equivalent closed cell elastomeric insulation to prevent the formation of condensation in environments with a relative humidity up to 75%. Chillers in high humidity areas or ice storage, low leaving water temperature (less than 2.2°C [36°F] chilled water temperature/glycol) units may require double thickness to prevent formation of condensation.

NOTICE:

Insulation Damage!

To prevent damage to factory installed insulation:

• Do not allow the insulation to be exposed to excessive sunlight. Store indoors or cover with canvas to prevent exposure.

• Do not use thinners and solvents or other types of paint. Use only water base latex.

Failure to follow these instructions could result in insulation damage.

NOTICE:

Equipment Damage!

Failure to remove the strain relief with the sensor could result in equipment damage. Do NOT attempt to pull sensor bulb through the strain relief; always remove the entire strain relief with the sensor.

38 CDHH-SVX001C-EN

Insulation

Figure 25.

Recommended area for unit insulation

Line to eductor

Notes:

1. Bulbwells, drain and vent connections must be accessible after insulating.

2. Evaporators with pressure vessel nameplates must have insulation cut out around the nameplate. Do not glue insulation to the nameplate.

3. All units with evaporator marine waterboxes wrap waterbox shell insulation with strapping and secure strapping with seal.

4. Apply 50.8-mm (2-in.) wide black tape on overlap joints. Where possible, apply 76.2-mm (3-in.) wide strip of 9.7-mm (0.38-in.) thick insulation over butt joint seams.

5. Insulate all economizer supports.

Filter drier and eductor lines

Line from evap

Pipe (free cooling only)

Control panel support

Suction connection

Suction elbow

Suction cover

Pipe

Economizer

Pipe

See Notes

1 & 3

Evaporator See Note 1

Eductor line

See Notes

1 & 3

CDHH-SVX001C-EN 39

Installation: Controls

This section covers information pertaining to the UC800 controller hardware. For information about the Tracer

AdaptiView™ display, which is used to interface with the internal chiller data and functions provided by the UC800, refer to Tracer AdaptiView™ Display for Water-Cooled

CenTraVac™ Chillers Operations Guide (CTV-SVU01*-EN, or the most recent version).

UC800 Specifications

Power Supply

NOTICE:

Customer Wiring!

Failure to follow instructions below could result in equipment or property-only damage. Only use flexible conduit or metal-clad cable when wiring the control panel and motor terminal box to ensure a vibration-free installation.

The UC800 (1K1) receives 24 Vac (210 mA) power from the

1T3 power supply located in the chiller control panel.

Wiring and Port Descriptions

Figure 26

illustrates the UC800 controller ports, LEDs, rotary switches, and wiring terminals. The numbered list

following Figure 26 corresponds to the numbered callouts

in the illustration.

Figure 26.

Wiring locations and connection ports

6

1

+

LINK

+ +

+

24

VDC

MBUS

2 3 4 5

6

7

8

9

10

11

Front View

40 CDHH-SVX001C-EN

Installation: Controls

Figure 26.

Wiring locations and connection ports

10

11

Figure 27.

LED locations

Marquee LED

LINK MBUS IMC

TX

RX

LINK

SERVICE

ACT

Bottom View

1.

Rotary Switches for setting BACnet

®

MAC address or MODBUS

®

ID.

2.

LINK for BACnet MS/TP, or MODBUS Slave (two terminals, ±). Field wired if used.

3.

LINK for BACnet MS/TP, or MODBUS Slave (two terminals, ±). Field wired if used.

4.

Machine bus for existing machine LLIDs (IPC3 Tracer bus 19.200 baud).

IPC3 Bus: used for Comm4 using TCI or LonTalk

®

using LCI-C.

5.

Power (210 mA at 24 Vdc) and ground terminations (same bus as item 4). Factory wired.

6.

Not used.

7.

Marquee LED power and UC800 Status indicator (

Table 11, p. 41 ).

8.

Status LEDs for the BAS link, MBus link, and IMC link.

9.

USB device type B connection for the service tool (Tracer TU).

10. The Ethernet connection can only be used with the Tracer AdaptiView display.

11.

USB Host (not used).

Communication Interfaces

There are four connections on the UC800 that support the communication interfaces listed. Refer to

Figure 26, p. 40

for the locations of each of these ports.

• BACnet MS/TP

• MODBUS Slave

• LonTalk using LCI-C (from the IPC3 bus)

• Comm 4 using TCI (from the IPC3 bus)

Rotary Switches

There are three rotary switches on the front of the UC800 controller. Use these switches to define a three-digit address when the UC800 is installed in a BACnet or

MODBUS system (e.g., 107, 127, etc.).

Note: Valid addresses are 001 to 127 for BACnet and 001 to 247 for MODBUS.

LED Description and Operation

There are 10 LEDs on the front of the UC800. Figure 27

shows the locations of each LED and

Table 11, p. 41

describes their behavior in specific instances.

Table 11.

LED behavior

LED

Marquee LED

LINK, MBUS,

IMC

Ethernet Link

Service

UC800 Status

Powered. If the Marquee LED is green solid, the

UC800 is powered and no problems exist.

Low power or malfunction. If the Marquee LED is red solid, the UC800 is powered, but there are problems present.

Alarm. The Marquee LED blinks Red when an alarm exists.

The TX LED blinks green at the data transfer rate when the UC800 transfers data to other devices on the link.

The Rx LED blinks yellow at the data transfer rate when the UC800 receives data from other devices on the link.

The LINK LED is solid green if the Ethernet link is connected and communicating.

The ACT LED blinks yellow at the data transfer rate when data flow is active on the link.

The Service LED is solid green when pressed. For qualified service technicians only. Do not use.

Important:

Maintain at least 16 cm (6 in.) between lowvoltage (<30V) and high voltage circuits.

Failure to do so could result in electrical noise that could distort the signals carried by the low-voltage wiring, including IPC.

CDHH-SVX001C-EN 41

Installation: Controls

Figure 28.

Control panel: Tracer AdaptiView main unit assembly left hand panel (showing low voltage and higher voltage areas for proper routing of field wiring)

42

30 Volt Maximum 30–120 Volt Maximum

CDHH-SVX001C-EN

Installation: Controls

Figure 29.

Control panel: Tracer AdaptiView main unit assembly right hand panel (showing low voltage and higher voltage areas for proper routing of field wiring)

30 Volt Maximum 30–120 Volt Maximum

CDHH-SVX001C-EN 43

Installation: Controls

Installing the Tracer AdaptiView

Display

The Tracer AdaptiView display is boxed, shrink-wrapped, and located behind the control panel during shipment. The

Tracer AdaptiView display must be installed at the site.

Important:

The Tracer AdaptiView display and display arm are to be installed by Trane, or an agent of Trane, for best results.

1.

Unwrap the control panel and display arm. Locate the box containing the Tracer AdaptiView display behind the control panel (labeled A).

2. After the box containing the display has been removed, remove the shipping bracket from the back of the control panel (B).

A

B

CAUTION

Tension in Display Support Arm!

Failure to ensure that the support arm is in the full upright position when removing the Tracer AdaptiView display from the support arm could result in unexpected movement of the spring-loaded support arm which could result in personal injury.

Note: Review

“Adjusting the Tracer AdaptiView Display

Arm,” p. 45

prior to attaching the display as some adjustments may be required prior to attaching the display to the support arm base.

6. Position the Tracer AdaptiView display, with the LCD screen facing up, on top of the display support arm base plate.

Note: Ensure the Trane logo is positioned so that it will be at the top when the Tracer AdaptiView display is attached to the display support arm.

NOTICE:

Do Not Drop Display!

Failure to keep a firm grip on the Tracer AdaptiView display as you position the display on top of the support arm base place could result in equipment or property-only damage.

7.

Align the four holes in the display with the bolt holes in the display support arm base plate.

8. Attach the Tracer AdaptiView display to the display support arm base plate (E) using the M4 (metric size 4) screws referenced in

Step 3

.

3. Remove the Tracer AdaptiView display from the box.

Note: Screws are M4 (metric size 4), 6 to 8 mm long, and are shipped with the display.

4. Plug the power cable (C) and the Ethernet cable (D) into the bottom of the display.

Note: Both cables are already present and extend from the end of the display arm.

E

C

D

5. Adjust the Tracer AdaptiView display support arm so the base plate that attaches to the Tracer AdaptiView display is horizontal.

44 CDHH-SVX001C-EN

Adjusting the Tracer AdaptiView

Display Arm

The Tracer AdaptiView display arm may become too loose or too tight and need adjustment. There are three joints on the display arm that allow the Tracer AdaptiView display to be positioned at a variety of heights and angles (refer to

items labeled 1, 2, and 3 in Figure 30 ).

To adjust the tension on the display arm:

• At each joint in the display arm, there is either a hex bolt (1 and 2) or hex screw (3). Turn the hex bolt or screw in the proper direction to increase or decrease tension.

Note: Each hex bolt or screw is labeled with loosen/

tighten or +/- indicators.

Figure 30.

Joint locations on the display arm

2

3

1

4

• Joint 3 has a 6 mm hex screw controlling the tension on a gas spring, which allows the Tracer AdaptiView display to tilt up and down.

• Joints 1 and 2 are covered by a plastic cap. Remove the plastic cap to access the hex bolt. Adjust using a 13 mm wrench as necessary.

• To adjust the swivel rotation tension of the Tracer

AdaptiView display, adjust the hex bolt located in the

support arm base plate, as described in Step 8

in

“Installing the Tracer AdaptiView Display,” p. 44 . This

adjustment must be done prior to attaching the Tracer

AdaptiView display to the support arm base. Use a

14 mm wrench to adjust the tension.

• To adjust the left/right swivel of the entire display arm, use a 13 mm wrench to adjust the bolt labeled 4 in

Figure 30 .

CDHH-SVX001C-EN

Installation: Controls

45

Electrical Requirements

Installation Requirements

WARNING

Proper Field Wiring and Grounding

Required!

Failure to follow code could result in death or serious injury. All field wiring MUST be performed by qualified personnel. Improperly installed and grounded field wiring poses FIRE and ELECTROCUTION hazards. To avoid these hazards, you MUST follow requirements for field wiring installation and grounding as described in

NEC and your local/state/national electrical codes.

X39003892001A

Note: Graphic labels (shown above) are used for CE application only.

Important:

Before servicing, disconnect all power sources and allow at least 30 minutes for capacitors to discharge.

All electrical enclosures—unit or remote—are IP2X.

Unit-mounted starters are available as an option on most units. While this option eliminates most field-installed wiring requirements, the electrical contractor must still complete the electrical connection for the following:

• power supply wiring to the starter,

• other unit control options present, and

• any field-supplied control devices.

As you review this manual, along with the wiring instructions presented in this section, keep in mind that:

• All field-installed wiring must conform to National

Electric Code (NEC) guidelines, and any applicable national, state, and local codes. For the USA, be sure to satisfy proper equipment grounding requirements per

NEC.

• Compressor motor and unit electrical data (including motor kW, voltage utilization range, rated load amps, and locked rotor amps) is listed on the chiller nameplate.

• All field-installed wiring must be checked for proper terminations, and for possible shorts or grounds.

Note: Always refer to the actual wiring diagrams that shipped with the chiller or the unit submittal for specific as-built electrical schematic and connection information.

NOTICE:

Starter Component Damage!

Failure to remove debris from inside the starter panel could result in an electrical short and could cause serious starter component damage.

Do not modify or cut enclosure to provide electrical access.

Removable panels have been provided, and any modification should be done away from the enclosure. If the starter enclosure must be cut to provide electrical access, exercise care to prevent debris from falling inside the enclosure. Refer to installation information shipped with the starter or submittal drawings.

Electrical Requirements

Before wiring begins, observe the following electrical requirements:

• Follow all lockout-tagout procedures prior to performing installation and/or service on the unit.

• Always wear appropriate personal protective equipment.

• Wait the required time to allow the capacitor(s) to discharge; this could be up to 30 minutes.

• Verify that all capacitors are discharged prior to service using a properly rated volt meter.

• Use appropriate capacitor discharge tool when necessary.

• Comply with the safety practices recommended in

PROD-SVB06*-EN.

46 CDHH-SVX001C-EN

Electrical Requirements

For AWG/MCM equivalents in mm

2

, refer to

Table 12

:

Table 12. Wire sizing reference

AWG/MCM

22

mm

2

equivalent

0.32

16

14

12

10

21

20

18

17

8

6

4

2 or 1

1/0

2/0

2/0 or 3/0

4/0 or 250

0.35

0.5

0.75

1.0

1.5

2.5

4

6

10

16

25

35

50

70

95

120

300

350 or 400

150

185

450 or 500 240

Note:

AWG = American Wire Gauge

Important:

Customers are responsible for all field wiring in compliance with local, national, and/or international codes.

WARNING

Hazardous Voltage w/Capacitors!

Failure to disconnect power and discharge capacitors before servicing could result in death or serious injury.

Disconnect all electric power, including remote disconnects and discharge all motor start/run capacitors before servicing. Follow proper lockout/ tagout procedures to ensure the power cannot be inadvertently energized. For variable frequency drives or other energy storing components provided by Trane or others, refer to the appropriate manufacturer’s literature for allowable waiting periods for discharge of capacitors. Verify with an appropriate voltmeter that all capacitors have discharged.

For additional information regarding the safe discharge of capacitors, see PROD-SVB06*-EN

Required!

WARNING

Personal Protective Equipment (PPE)

Failure to follow proper handling guidelines could result in death or serious injury. Always wear appropriate personal protective equipment in accordance with applicable regulations and/or standards to guard against potential electrical shock and flash hazards.

WARNING

Live Electrical Components!

Failure to follow all electrical safety precautions when exposed to live electrical components could result in death or serious injury. During installation, testing, servicing and troubleshooting of this product, it may be necessary to work with live electrical components.

Have a qualified licensed electrician or other individual who has been properly trained in handling live electrical components perform these tasks.

X39003892001A

Note: Graphic labels (shown above) are used for CE application only.

Important:

Before servicing, disconnect all power sources and allow at least 30 minutes for capacitors to discharge.

All electrical enclosures—unit or remote—are IP2X.

CDHH-SVX001C-EN 47

Electrical Requirements

Trane-Supplied Remote Starter Wiring

This information is applicable to Starter 1 for

Compressor 1 as well as Starter 2 for Compressor 2. (For wire estimation purposes, double check the following list as there are two starters to be wired.)

Table 13. Standard field power wiring requirements

Power Supply Wiring to Starter Panel

3-Phase Line Voltage

Starter to Motor Power Wiring

Remote Starter to Chiller Motor Junction Box

Power Supply Wiring to Unit-Mounted

Control Power Transformer

(CPTR Optional)

3-Phase Line Voltage

(b)

Ground

Starter to Control Panel

120 Vac Control Wiring

120 Vac Power Supply (from starter to control panel)

High Pressure Cutout to Starter

1F1 Circuit Breaker to Starter

Oil Pump Interlock

LV starter Oil/Refrigerant pump start

MV starter Oil/Refrigerant pump start

Oil/Refrigerant pump neutral

Starter to Oil/Refrigerant Pump

Junction Box

Low Voltage 3-Phase Pump Power

Medium Voltage 1-Phase Pump Power

Low Voltage Circuits less than 30 Vac

Standard Circuits

Starter Panel

Terminals

L1, L2, L3, and GROUND

(a)

Starter

T1 through T6

Control Power

Transformer Terminals

6Q1-1,3,5

CPTR panel GND

Starter Panel

Terminals

2X8-1, 2X8-2

2X8-G (Ground)

2X8-4

2X8-3

2X8-7, 2X8-8

2X8-24

2X8-14

2X8-25

Starter Panel

Terminals

2X8-21, 2X8-22, 2X8-23

2X8-12, 2X8-13

Starter Panel

Terminals

Motor

T1 through T6

Unit Control Panel

Terminations

1X1-1, 1X1-12

1X1-G (Ground)

1X1-4

1X1-2

1X1-10, 1X1-21

1X1-21

1X1-21

1X1-16

Oil/Refrigerant

Pump Junction Box

4X4-1, 4X4-2, 4X4-3

4X4-1, 4X4-4

Unit Control Panel

Terminations

Inter Processor Communications (IPC)

Remote Mounted

(c)

2K32-J3-3-4, or

2X1-12 to 13 if present (do not ground shield at starter)

1T2-J53-4

Shield ground at

1X1-G (GND) only.

2 wire with ground

Comm link

Notes:

1. All wiring to be in accordance with National Electrical Code and any local codes.

2. Auxiliary equipment must be powered from other sources as the chiller control panel power supplies are sized for the chiller loads only.

(a) Ground lug for a unit-mounted solid state starter or wye-delta starter is sized to accept 14 AWG solid to 8 AWG strand wire. For AWG/MCM equivalents in mm

2

, refer to

Table 12, p. 47 . If local codes require different lug size, it must be field-supplied and -installed.

(b) Refer to submittal and ship-with wiring schematics for voltage requirements.

(c) Must be separated from 120 Vac and higher wiring.

48 CDHH-SVX001C-EN

Customer-Supplied Remote Starter Wiring

This information is applicable to Starter 1 for

Compressor 1 as well as Starter 2 for Compressor 2. (For wire estimation purposes, double check the following list as there are two starters to be wired.)

Table 14. Standard customer-supplied remote field wiring requirements

Power Supply Wiring to Starter Panel

Starter by others 3-Phase power wiring

Starter Panel

Terminals

See starter by others schematic

Starter Starter to Motor Power Wiring

Remote Starter to Chiller Motor Junction

Box

(a)

T1 through T6

Motor

T1 through T6

Power Supply Wiring to Unit-Mounted

Control Power Transformer (CPTR)

3-Phase Line Voltage

(b)

Ground

Starter to Control Panel 120 Vac

Control Wiring

Power from control panel 1F1

Neutral from control panel

Ground from control panel

Interlock relay signal

Start contactor signal

Oil Pump Interlock

Run contactor signal

Transition complete

Solid State Starter Fault

(c)

Control Power

Transformer

Terminals

6Q1-1,3,5

CPTR panel GND

Starter Panel

Terminals

5X12-3

5X12-2

5X12-G

5X12-4

5X12-5

5X12-7, 5X12-8

5X12-10

5X12-14

5X12-12

5X12-11

Starter Panel

Terminals

Unit Control Panel

Terminations

1X1-2

1X1-13

1X1-G

1K23 J10-1

1K23 J8-1

1X1-10, 1X1-21

1K23 J6-1

1K23 J12-2

1K13 J2-2

1K13 J2-1

Unit Control Panel

Terminations Low Voltage Circuits less than 30 Vac

Standard Circuits

5X12-19 1K23 J7-1

Note:

Phasing must be maintained

Current Transformers (see

(Required)

(d)

Table 15, p. 50

Potential Transformers (Required)

(d)

)

5X12-20

5X12-21

5X12-22

5X12-23

5X12-24

5X12-25

5X12-26

5X12-27

5X12-28

5X12-29

5X12-30

1K23 J7-2

1K23 J7-3

1K23 J7-4

1K23 J7-5

1K23 J7-6

1K23 J5-1

1K23 J5-2

1K23 J5-3

1K23 J5-4

1K23 J5-5

1K23 J5-6

Notes:

1. All wiring to be in accordance with National Electrical Code and any local codes.

2. Refer to ship-with wiring schematics; some terminals may vary based on unit.

(a) For AWG/MCM equivalents in mm

2

, refer to Table 12, p. 47 . Wires, lugs, and fuses/breakers are sized based on National Electric Code NEC [NFPA 70]

and UL 1995.

(b) Refer to submittal and ship-with wiring schematics for voltage requirements.

(c) Solid State Starter Fault input is used with low-and medium-voltage, customer-supplied solid state starters only.

(d) Must be separated from 120 Vac and higher wiring.

CDHH-SVX001C-EN 49

Customer-Supplied Remote Starter Wiring

Current Transformer and Potential

Transformer Wire Sizing

For customer-supplied starter-to-chiller unit control panel starter module 1K23; these wires must be separated from

120 Vac or higher wiring.

Table 15. Maximum recommended wire length for secondary CT leads in dual CT system

Wire AWG

(a)

Maximum Wire Length

Secondary CT Leads

Meters Feet

8

10

12

14

415.5

261.2

164.3

103.3

16 65.0

17 51.5

18

20

40.9

25.7

1362.8

856.9

538.9

338.9

213.1

169.1

134.1

84.3

Notes:

1. Wire length is for copper conductors only.

2. Wire length is total one-way distance that the CT can be from the starter module.

(a) For AWG/MCM equivalents in mm

[NFPA 70] and UL 1995.

2

, refer to Table 12, p. 47

. Wires, lugs, and fuses/breakers are sized based on National Electric Code NEC

Table 16. Maximum recommended total wire length for

PTs in a single PT system

Wire AWG

(a)

16

17

18

20

8

10

12

14

21

22

Maximum Lead Length

Meters Feet

1627

1023

643

404

254

201

160

100

79

63

5339

3357

2112

1328

835

662

525

330

262

207

Notes:

1. Wire length is for copper conductors only.

2. The above length is maximum round trip wire length. The maximum distance the PT can be located from the starter module is half of the listed value.

(a) For AWG/MCM equivalents in mm 2 , refer to

Table 12, p. 47 . Wires, lugs,

and fuses/breakers are sized based on National Electric Code NEC

[NFPA 70] and UL 1995.

Table 17.

Max recommended total wire length (to and from) for PT leads in a dual PT system

Wire

AWG

(a)

16

17

18

20

8

10

12

14

21

22

Max Wire Length

Primary

Meters Feet

145

115

91

57

933

586

369

232

45

36

3061

1924

1211

761

478

379

301

189

150

119

Max Wire Length

Secondary

Meters Feet

33

26

21

13

217

136

85

53

10

8

111

88

70

44

711

447

281

177

34

27

Notes:

1. Wire length is for copper conductors only.

2. The above length is maximum round trip wire length. The maximum distance the PT can be located from the starter module is half of the listed value.

(a) For AWG/MCM equivalents in mm

[NFPA 70] and UL 1995.

2

, refer to Table 12, p. 47

. Wires, lugs, and fuses/breakers are sized based on National Electric Code NEC

50 CDHH-SVX001C-EN

Power Supply Wiring

WARNING

Proper Field Wiring and Grounding

Required!

Failure to follow code could result in death or serious injury. All field wiring MUST be performed by qualified personnel. Improperly installed and grounded field wiring poses FIRE and ELECTROCUTION hazards. To avoid these hazards, you MUST follow requirements for field wiring installation and grounding as described in

NEC and your local/state/national electrical codes.

NOTICE:

Starter Component Damage!

Failure to remove debris from inside the starter panel could result in an electrical short and could cause serious starter component damage.

X39003892001A

Note: Graphic labels (shown above) are used for CE application only.

Important:

Before servicing, disconnect all power sources and allow at least 30 minutes for capacitors to discharge.

All electrical enclosures—unit or remote—are IP2X.

Three-Phase Power

Review and follow the guidelines below to properly install and connect the power supply wiring to the starter panel:

• Verify that the starter nameplate ratings are compatible with the power supply characteristics and with the electrical data on the unit nameplate.

NOTICE:

Use Copper Conductors Only!

Failure to use copper conductors could result in equipment damage as unit terminals are not designed to accept other types of conductors.

• Do not modify or cut enclosure to provide electrical access. Removable panels have been provided, and any modification should be done away from the enclosure. If the starter enclosure must be cut to provide electrical access, exercise care to prevent debris from falling inside the enclosure.

• Use copper conductors to connect the three-phase power supply to the remote- or unit-mounted starter panel.

• Flexible conduit connections are recommended to enhance serviceability and minimize vibration transmission.

• Size the power supply wiring in accordance with NEC and local guidelines, using the RLA value stamped on the chiller nameplate and transformer load on L1 and

L2.

• Confirm that wire size is compatible with lug size stated in unit submittal.

• Make sure that the incoming power wiring is properly phased; each power supply conduit run to the starter must carry the correct number of conductors to ensure equal phase representation.

Note: Connect L1, L2, and L3 (shown below) per starter diagram provided with chiller.

CDHH-SVX001C-EN 51

Power Supply Wiring

Unit-Mounted Starters

L3 L2 L1 G L3 L2 L1 G L3 L2 L1 G

L3 L2 L1

Remote-Mounted Starters

L1 L2 L3 G L1 L2 L3 G L1 L2 L3 G

L1 L2 L3

G

G

L3 L2 L1

L1 L2 L3

G

G

• When installing the power supply conduit, ensure that the position of the conduit does not interfere with the serviceability of any of the unit components, or with structural members and equipment. Ensure that the conduit is long enough to simplify any servicing that may be necessary in the future (e.g., starter).

• Electrical wire torque specifications—follow starter manufacturer’s torque specifications.

Circuit Breakers and Fused

Disconnects

Any field supplied circuit breaker or fused disconnect installed in power supplied to the chiller must be sized in compliance with NEC or local guidelines.

CE for Control Power Transformer (CPTR)

Option

Important:

For the CPTR (Control Power Transformer) option, chiller mounted/UPS power, the customer needs to ensure that the supply is

NOT taken from public low voltage supplies, and that a dedicated clean source of private power supply is used for chiller mounted CPTR option when a CE chiller is selected. This also includes when CPTR option is standard such as in customersupplied starters and remote-mounted medium voltage AFDs.

52

All customer wiring, including power wiring to starters/ drives/CPTR Option/UPS shore power, needs to be separated: 24–27 Vdc, 110–120 Vac, and 380–600 Vac each need to be in separate conduit runs.

For 110/120 V customer wiring, including main power supply to CPTR option, it is required that the customer provides some sort of surge protection ahead of it, and all customer wiring needs to be run in conduit. Any ethernet cables being used by customer to interface with the Trane chiller must be shielded ethernet cabling.

The customer is required to provide an overcurrent device upstream of the CPTR option in accordance with IEC standards and/or any applicable local and national codes.

The customer is required to follow all local, national, and/ or IEC codes for installation.

Service personnel must use proper PPE for servicing and should also use proper lockout/tagout procedures during servicing. The customer should also disconnect the main supply disconnecting device upstream of the starter or drive first before performing any service on any part of the chiller, including the CPTR option, related controls, and oil pump motor circuits. In addition, service personnel should first disconnect the supply disconnecting device upstream of the CPTR option before performing any service on the

CPTR option or its related circuits. Lock the CPTR option enclosure panel disconnect handle before servicing to prevent accidental pulling of the disconnect handle.

CE for Starter or Drive

Important:

All Trane-supplied remote starters and drives used in conjunction with CVHH or CDHH Trane chillers will be

CE-compliant per EU directives and IEC standards to which the CVHH and CDHH chillers also comply. All

Trane-supplied remote starters and drives must be used with CVHH or CDHH Trane chillers to ensure CE compliance.

For remote starters and drives: Basic details are provided on remote starter/drive nameplate. Please refer to the chiller unit nameplate located on the chiller mounted control panel for details on wire sizing

(minimum current ampacity) and overcurrent protection sizing upstream of the unit (maximum overcurrent protection).

Always refer to as-built schematic wiring diagrams and

the chiller Installation, Operation, and Maintenance

manual located inside the chiller mounted control panel (regardless of unit or remote-mounted starter or drive) for details on wiring, safety, installation, and warnings.

Refer to drive-specific Installation, Operation, and

Maintenance manuals for drive and option installation

specifics for unit- and remote-mounted adaptive frequency drives.

Customers are responsible for all field wiring with respect to EMC and EMI interference. Customers are

CDHH-SVX001C-EN

Power Supply Wiring

responsible to mitigate the risks associated with EMC and EMI interference that can occur as a result of customer-provided field wiring as dictated by international, national, and local codes. This also implies that for remote-mounted starters and drives, customers are responsible for the entire field wiring into the starter/drive as well as between the starter/ drive and the chiller/compressor terminals with respect to EMC and EMI interference. It also implies that customers are responsible for incoming power wiring to both the starter/drive and CPTR option enclosure unit-mounted panel with respect to EMC and EMI interference.

All customer wiring, including power wiring to starters/ drives/CPTR Option/UPS shore power, needs to be separated: 24–27 Vdc, 110–120 Vac, and 380–600 Vac each need to be in separate conduit runs.

For 110/120V customer wiring, including power supply to

CPTR option, it is required that the customer provides some sort of surge protection and all customer wiring needs to be run in conduit.

For remote starters interfacing with the Trane chiller, all wiring needs to be run in conduit. Any ethernet cables being used by customer to interface with the Trane chiller must be shielded ethernet cabling.

The customer is required to provide an overcurrent protective device upstream of all starters and drives in accordance with IEC standards and/or any applicable local and national codes.

Service personnel must use proper PPE for servicing and should also use proper lockout/tagout procedures during servicing: lock the starter disconnect handle before servicing to prevent accidental pulling of disconnect handle at the starter panel. In addition, service personnel should first disconnect the main supply disconnecting device upstream of the starter or drive before performing any service on any part of the chiller.

WARNING

Lockout/Tagout Before Removing Touch-

Safe Covers!

Failure to follow instructions regarding touch-safe covers could result in death or serious injury. Touch-safe covers inside panels are there for protection and may be removed if necessary for service only and only after disconnection of main power supply. Before removing any touch-safe cover, ensure that there is no line power first. Removal of touch-safe covers would be at the customer/service personnel’s own risk. After any service is completed, if the touch-safe covers have been removed, the touch-safe covers need to be put back in to ensure safety and protection.

X39003892001A

Note: Graphic labels (shown above) are used for CE application only.

Important:

Before servicing, disconnect all power sources and allow at least 30 minutes for capacitors to discharge.

All electrical enclosures—unit or remote—are IP2X.

For CE units, the convenience outlet in the control panel requires a suitable adaptor to meet the needs of customers with different plug requirements.

CDHH-SVX001C-EN 53

Power Supply Wiring

Control Power Transformer (CPTR) Option

The CPTR option provides a means to isolate the incoming line voltage required for the chiller control circuits and the oil/refrigerant pump from the compressor incoming line voltage. The CPTR option provides a solution for customers that cannot afford to lose communication with the chiller or extended restart times due to lost incoming power.

The CPTR option will benefit:

• UPS customers

• Customers requiring fast restarts

• Customers who need controls sourced from a clean dedicated source

• Customers with building automation/communication systems who want to maintain chiller status reporting during power loss

• Chillers with remote-mounted medium-voltage AFDs or customer-supplied starters

NOTICE:

CPTR Option Enclosure Panel Damage!

Failure to remove debris from inside the CPTR option enclosure panel could result in an electrical short and could cause serious component damage.

The standard unit-mounted CPTR option shall have an enclosure with a disconnect and will require customersupplied power.

CVHH and CDHH chillers have a low-voltage CPTR option and a medium-voltage CPTR option.

The CPTR option involves a single phase 4kVA transformer(s) and the oil pump motor circuit to be located together in an enclosure that is unit-mounted. There is

3-phase line power between 380–600 Vac feeding this enclosure. Wherever the 4kVA transformer is located, the oil pump motor circuit will be located along with it.

With the CPTR option, the control power transformer(s) and oil pump motor circuit are NOT inside of the starter.

For the low-voltage CPTR option, the single phase 4kVA transformer feeds the 120 V control power to all of the controls. The three-phase line power feeds a motor starter and overload oil pump motor circuit which feeds the three-phase oil pump motor.

For the medium-voltage CPTR option, there are two singlephase 4-kVA transformers: one of the 4 kVA transformers feeds the 120 V control power to all of the controls. The second transformer feeds a combination motor controller oil pump motor circuit which then feeds a single-phase oil pump motor.

Note: Refer to the unit nameplate for maximum overcurrent protection and minimum current ampacity values for connecting to the CPTR option enclosure.

Service personnel are required to ensure that the incoming power supply voltage provided by the customer to the CPTR option enclosure unit-mounted panel is as per submittal and nameplate.

Power Factor Correction

Capacitors (Optional)

Power factor correction capacitors (PFCCs) are designed to provide power factor correction for the compressor motor.

PFCCs are available as an option for unit-mounted starters and remote mounted starters.

Notes:

Verify PFCC voltage rating is greater than or equal to the compressor voltage rating stamped on the unit nameplate.

Refer to the wiring diagrams that shipped with the unit for specific PFCC wiring information.

54 CDHH-SVX001C-EN

NOTICE:

Motor Damage!

Failure to wire PFCCs into the starter correctly could cause misapplication of these capacitors and result in a loss of motor overload protection and subsequently cause motor damage.

Power Supply Wiring

PFCCs must be wired one of two ways as shown as explained in the following (Option 1 and Option 2).

Motor starter contactor

Current transformer

Power circuit

1

2

3

Motor

Fused disconnect or suitable breaker

Fuses

Enclosed

3-phase capacitor unit

X39003892001A

Note: Graphic labels (shown above) are used for CE application only.

Important:

Before servicing, disconnect all power sources and allow at least 30 minutes for capacitors to discharge.

All electrical enclosures—unit or remote—are IP2X.

CDHH-SVX001C-EN 55

Power Supply Wiring

Option 1—PFCCs installed downstream of starter contactor, upstream of current transformers.

WARNING

Hazardous Voltage w/Capacitors!

Failure to disconnect power and discharge capacitors before servicing could result in death or serious injury.

Disconnect all electric power, including remote disconnects and discharge all motor start/run capacitors before servicing. Follow proper lockout/ tagout procedures to ensure the power cannot be inadvertently energized. For variable frequency drives or other energy storing components provided by Trane or others, refer to the appropriate manufacturer’s literature for allowable waiting periods for discharge of capacitors. Verify with an appropriate voltmeter that all capacitors have discharged.

For additional information regarding the safe discharge of capacitors, see PROD-SVB06*-EN

X39003892001A

Note: Graphic labels (shown above) are used for CE application only.

Important:

Before servicing, disconnect all power sources and allow at least 30 minutes for capacitors to discharge.

All electrical enclosures—unit or remote—are IP2X.

Simultaneously disconnect capacitors and load from line power. If the capacitors are not switched offline when the load is disconnected, they continue to add capacitance to

56 the electrical distribution system. A leading power factor—too much capacitance—may eventually develop.

This overprotection causes poor voltage regulation (i.e., voltage is high when the circuit is unloaded, then drops as loads are added).

Option 2—PFCC wires routed through current transformers.

Size motor overload protection to account for capacitorsupplied current. Overloads are typically set to measure the total current drawn by the motor. When PFCCs are used, they become the source of part of that current. If the current they provide is not registered by the overload protectors, potentially damaging amperage can reach the motor. The simplest way to ensure that the overloads detect all current supplied to the motor is to position the

PFCCs upstream of the current transformers as shown in the preceding figure. If the capacitor connection points are downstream of the current transformers, route the PFCC leads through the current transformers as shown in the following figure. This ensures that the overloads register both line and capacitor-supplied current.

Current transformer

Power circuit

1

2

3

Fused disconnect or suitable breaker

Enclosed

3-phase capacitor unit

Motor starter contactor

Fuses

Motor

Interconnecting Wiring

Typical equipment room conduit layouts with and without

unit-mounted starters are shown in Figure 31

and

Figure 32

.

Important:

The interconnecting wiring between the panel, compressor, and control panel is factory-installed with unit-mounted starters. However, when a remote-mounted starter is used, the interconnecting wiring must be field-installed.

Note: Refer to starter submittal drawing for location of incoming wiring to the starter.

CDHH-SVX001C-EN

Figure 31.

Typical equipment room layout for units with unit-mounted starter

1

2

3

Power Supply Wiring

Terminal Clamps

NOTICE:

Use Copper Conductors Only!

Failure to use copper conductors could result in equipment damage as unit terminals are not designed to accept other types of conductors.

1.

Line side power conduits

2.

Unit-mounted starter

3.

Unit control panel

Figure 32.

Typical equipment room layout for units with remote-mounted starter

1

2

4

7

6

3

5

1.

Line side power conduits

2.

Remote-mounted starter

3.

Unit control panel

4.

IPC Circuit conduit less than 30V (and CT/PT wiring for starters by others)

Note:

Must enter the low voltage Class 2 portion of the unit control panel (304.8 m [1000 feet] max).

5.

Motor terminal box

6.

115V Control conduit

Note:

Must enter the higher than 30 Vdc Class 1 portion of the until control panel.

7.

Lead power wiring

Notes:

• Refer to the unit field connection diagram for approximate unit control panel knock out locations.

• To prevent damage to the unit control panel components, do not route control conduit into the top of the box.

Starter to Motor Wiring (Remote-

Mounted Starters Only)

Ground Wire Terminal Lugs

Ground wire lugs are provided in the motor terminal box and in the starter panel.

X39003892001A

Note: Graphic labels (shown above) are used for CE application only.

Important:

Before servicing, disconnect all power sources and allow at least 30 minutes for capacitors to discharge.

All electrical enclosures—unit or remote—are IP2X.

Terminal clamps are supplied with the motor terminals to accommodate either bus bars or standard motor terminal wire lugs. Terminal clamps provide additional surface area to minimize the possibility of improper electrical connections.

Wire Terminal Lugs

Wire terminal lugs must be field supplied.

• Use field-provided, crimp-type wire terminal lugs properly sized for the application.

CDHH-SVX001C-EN 57

Power Supply Wiring

Note: Wire size ranges for the starter line and loadside lugs are listed on the starter submittal drawings supplied by the starter manufacturer or Trane. Carefully review the submitted wire lug sizes for compatibility with the conductor sizes specified by the electrical engineer or contractor.

On 600 V and below, a terminal clamp with a

9.525-mm (3/8-in.) bolt is provided on each motor terminal stud; use the factory-supplied Belleville washers on the wire lug connections.

Figure 33

illustrates the junction between a motor terminal stud and terminal lug.

Figure 33.

Terminal stud, clamp, and lug assembly

(600 V and below)

2

1

4

5

1.

Belleville washer

2.

Terminal lugs

3.

Terminal clamp

4.

Motor terminal stud

5.

Terminal mounting bolt

3

• Torque for this assembly is 32.5 N·m (24 ft·lb).

• Install but do not connect the power leads between the starter and compressor motor. (These connections will be completed under supervision of a qualified Trane service engineer after the pre-start inspection.)

NOTICE:

Component Damage!

Failure to ensure the power supply wiring and output to motor wiring are connected to the proper terminals. could cause catastrophic failure of the starter and/or motor.

Bus Bars

Bus bars and extra nuts are available as a Trane option.

Install the bus bars between the motor terminals when using a starter that is:

• a low-voltage AFD

• across-the-line

• primary reactor/resistor

• auto transformer

• customer-supplied

Connect T1 to T6, T2 to T4, and T3 to T5.

Note: Bus bars are not needed in medium-voltage or high-voltage applications since only 3 terminals are used in the motor and starter.

Starter to Control Panel Wiring

The unit submittal includes the field wiring connection diagram and the starter-to-control-panel connection diagram (showing the electrical connections required between the remote-mounted starter and the control panel).

Note: Install separate conduit into the low voltage

(30 volts) section of the control panel.

When sizing and installing the electrical conductors for these circuits, follow the guidelines listed. Use 14 AWG for

120V control circuits unless otherwise specified. For AWG/

MCM equivalents in mm

2

, refer to Table 12, p. 47 .

NOTICE:

Component Damage!

Remove all debris from inside the starter panel. Failure to do so could result in an electrical short and could cause serious starter component damage.

Important:

Maintain at least 16 cm (6 in.) between lowvoltage (<30V) and high voltage circuits.

Failure to do so could result in electrical noise that may distort the signals carried by the low voltage wiring, including the IPC wiring.

To wire the starter to the control panel, follow the guidelines below:

• If the starter enclosure must be cut to provide electrical access, exercise care to prevent debris from falling inside the enclosure. Do not cut AFD enclosure.

• Use only shielded, twisted-pair wiring for the

Interprocessor Communication (IPC) circuit between the starter and the control panel on remote mounted starters.

Note: Recommended wire is Beldon Type 8760,

18 AWG for runs up to 304.8 m (1000 ft). For

AWG/MCM equivalents in mm

2

, refer to

Table 12, p. 47

. The polarity of the IPC wiring is critical for proper operation.

• Separate low-voltage (less than 30V; refer to

Table 13, p. 48

) wiring from the 115V wiring by running each in its own conduit.

• When routing the IPC circuit out of the starter enclosure, ensure that it is at least 16 cm (6 in.) from all wires carrying a higher voltage.

58 CDHH-SVX001C-EN

WARNING

Proper Field Wiring and Grounding

Required!

Failure to follow code could result in death or serious injury. All field wiring MUST be performed by qualified personnel. Improperly installed and grounded field wiring poses FIRE and ELECTROCUTION hazards. To avoid these hazards, you MUST follow requirements for field wiring installation and grounding as described in

NEC and your local/state/national electrical codes.

Power Supply Wiring

contacts, keeps the chiller motor running after the controller interrupts the run signal.

X39003892001A

Note: Graphic labels (shown above) are used for CE application only.

Important:

Before servicing, disconnect all power sources and allow at least 30 minutes for capacitors to discharge.

All electrical enclosures—unit or remote—are IP2X.

The IPC wiring shield should be grounded on one end only at control panel end.The other end should be unterminated and taped back on the cable sheath to prevent any contact between shield and ground.

Oil Pump Interlock: All starters must provide an interlock (normally open) contact with the chiller oil pump connected to the control panel at terminals

1X1-10 and 1X1-21 (14 AWG; for AWG/MCM equivalents in mm

2

, refer to

Table 12, p. 47

.) The purpose of this interlock is to maintain the oil pump signal in the event that a starter failure, such as welded

CDHH-SVX001C-EN 59

Medium Voltage Installation

WARNING

Hazardous Voltage!

Failure to disconnect power before servicing could result in death or serious injury. Disconnect all electric power, including remote disconnects before servicing.

Follow proper lockout/tagout procedures to ensure the power can not be inadvertently energized.

autotransformer, or solid-state starting. Refer to the unit nameplate for motor data including RLA, LRA, etc.

In all cases of non-Trane supplied starters, the Trane

Engineering Specification for UC800 Starter By Others

(available through your local Trane office) must be followed in order to ensure proper function and protection of the chiller. A disconnecting means and short-circuit protection must be installed ahead of the starter, unless they are included as part of the starter.

Note: Trane assumes no responsibility for the design, documentation, construction, compatibility, installation, start-up, or long term support of starters provided by others.

Motor Terminal Box

A large steel motor terminal box is provided to allow for the field connection of the motor power supply wire to the motor. There are three sizes available depending on voltage and motor frame size.

A

1219

X39003892001A

Note: Graphic labels (shown above) are used for CE application only.

Important:

Before servicing, disconnect all power sources and allow at least 30 minutes for capacitors to discharge.

All electrical enclosures—unit or remote—are IP2X.

All electrical circuits shall be treated as energized until all lockout-tagout procedures are in place and the circuit has been tested to verify that it is de-energized. The medium voltage motor terminal box cover must not be removed if power is present, or if there is a possibility that power may be present. Working on energized medium voltage circuits is not an approved practice for normal HVAC maintenance or service.

Medium Voltage Motor

The motor is suitable for remote mounted across-the-line

(including circuit breaker starting), primary reactor,

889.1

B

457.2

60

633

673.6

737

949

203

C

670

CDHH-SVX001C-EN

A

B

C

Box Weight (kg)

256

(a)

117.3

58.5

Volt Range

6000–13.8kV

Frame 6800, 6800L

2300–13.8kV

Frame 440E, 5000, 5800, 580L

380–600 Vac

Frame 440E, 5000

Note:

Lifting holes are 14.3 mm.

(a) Motor terminal box cover-only weight is 24.9 kg (55 lb).

Note: If the box is removed for installation purposes, the motor terminals MUST be protected against impact or stress damage. Field fabrication of a cover or guard is required.

• The motor terminal box is large enough to accommodate the use of stress cones.

• If conduit is applied, a flexible connection of the conduit to the box should be made to allow for unit serviceability and for vibration isolation. The cable should be supported or protected against abrasion and wear on any edges or surfaces. Cable or conduit openings can be cut at any location in the box sides, top, or bottom for cable entry. Always ensure that debris does not remain in the box after cutting cable entry holes.

Medium Voltage Installation

Motor Supply Wiring

WARNING

Proper Field Wiring and Grounding

Required!

Failure to follow code could result in death or serious injury. All field wiring MUST be performed by qualified personnel. Improperly installed and grounded field wiring poses FIRE and ELECTROCUTION hazards. To avoid these hazards, you MUST follow requirements for field wiring installation and grounding as described in

NEC and your local/state/national electrical codes.

CDHH-SVX001C-EN

X39003892001A

Note: Graphic labels (shown above) are used for CE application only.

Important:

Before servicing, disconnect all power sources and allow at least 30 minutes for capacitors to discharge.

All electrical enclosures—unit or remote—are IP2X.

Motor circuit wire sizing by the installer must be made in accordance with the National Electric Code or any other applicable codes .

Three terminals are provided on the chiller for the connection of power to the motor from the starter. Power leads to motors must be in multiples of three, with equal phase representation in all conduits or wire trays. To limit the effects of corona or ionization with cables carrying more than 2000V, Trane requires that the power cable have a metallic shield, unless the cable is specifically listed or

61

Medium Voltage Installation

approved for non-shielded use. If the cable is shielded, the shielding must be grounded at one end (grounding is typically done at the starter or supply end).

Care must be taken while routing the incoming cables to ensure that cable loads or tensions are not applied to the terminal or premature terminal failure could result.

Motor Terminals

Field-provided, ring-type lugs, with no sharp edges or corners, must be used by a qualified installer to connect the power wiring to the motor terminals. Follow all instructions provided with the field-provided lugs to ensure proper connections.

Important:

The use of stress cones is highly recommended to reduce and control longitudinal and radial electrical stresses at the cable ends.

Prior to assembly the terminal stud, nuts, and lug should be inspected and cleaned to ensure they are not damaged or contaminated. When attaching starter leads to 2.3–

6.6 kV motor terminals, the M14x2 brass jam nuts should be tightened to a maximum torque of 32.5–40.7 N·m (24–

30 ft·lb). Always use a second wrench to backup the assembly and prevent applying excessive torque to the terminal shaft.

Note: 6.0kV and 6.6kV motors on 6800 or 6800L frames

(see compressor model number for motor frame) use the same motor terminals as the 10kV–13.8kV motors.

The motor terminal on a 10–13.8kV motor has a copper shaft that is threaded M14 x 2–6 G. Brass nuts are provided on the motor terminals to retain the lugs, and the final connection should be tightened to 32.5–40.7 N·m (24–

30 ft·lb).

NOTICE:

Motor Terminal Damage!

Applying torque to the motor terminal when tightening lugs could cause equipment or property-only damage.

Always use a second wrench to back-up the assembly and prevent the application of torque to the terminal shaft.

Before beginning wiring and torquing, ensure proper motor terminal care and do not apply any excess stress.

Ground Wire Terminal Lug

A ground wire lug is provided in the motor terminal box to allow the field connection of an earth ground. The lug will accept a field supplied ground wire of #8 to #2 AWG. For

AWG/MCM equivalents in mm

2

, refer to Table 12, p. 47 .

After completing the field connection of wiring, inspect and clean the motor terminals and motor housing, and remove any debris before reinstalling the motor terminal box cover. The cover must be re-installed onto the motor terminal box and all bolts installed. Do not operate the chiller with the motor terminal box cover removed or with any loose or missing cover bolts.

62 CDHH-SVX001C-EN

Medium Voltage Installation

CE for Medium Voltage Starter

WARNING

Hazardous Voltage w/Capacitors!

Failure to disconnect power and discharge capacitors before servicing could result in death or serious injury.

Disconnect all electric power, including remote disconnects and discharge all motor start/run capacitors before servicing. Follow proper lockout/ tagout procedures to ensure the power cannot be inadvertently energized. Verify with an appropriate voltmeter that all capacitors have discharged.

For additional information regarding the safe discharge of capacitors, see PROD-SVB06A-EN

Mounting a motor starter on or over a combustible surface could result in a fire. To minimize the risk of possible fires, a floor plate of at least 1.43 mm

(0.056 in.) thick galvanized or 1.6 mm (0.63 in.) thick uncoated steel extending at least 150 mm (5.9 in.) beyond the equipment on all four sides must be used.

X39003893001A

Note: Graphic labels (shown above) are used for CE application only.

Important:

Before servicing, disconnect all power sources and allow at least 10 minutes for capacitors to discharge.

All electrical enclosures—unit or remote—are IP2X.

Customers are responsible for all field wiring in compliance with local, national, and/or international codes.

Any fuses inside the medium voltage starter enclosure may be energized.

PFCC fuses must be installed before energizing medium voltage starter.

Do NOT modify or disassemble the medium voltage starter.

Use only factory-authorized replacement parts.

Do NOT install or energize the medium voltage starter if it has been damaged.

Contactor must be bolted in place after installation; maximum torque is 19.0 N·m (14 ft·lb).

CDHH-SVX001C-EN 63

System Control Circuit Wiring (Field Wiring)

Table 18.

Unit control panel wiring 120 Vac

Standard Control Circuits: Unit

Control Panel Control Wiring

(120 Vac)

Chilled Water Flow Proving Input

(a)

Condenser Water Flow Proving Input

(b)

Chilled Water Pump Relay Output

Condenser Water Pump Relay Output

Unit Control Terminations

1X1-5 to 1K16-J3-2 Left Panel

1X1-6 to 1K16-J2-2 Left Panel

1K15-J2-4 to 6 Left Panel

1K15-J2-1 to 3 Left Panel

Input or Output Type

Binary Input

Binary Input

Binary Output

Binary Output

Contacts

Normally Open, closure with flow

Normally Open, closure with flow

Normally Open

Normally Open

Note:

Defaults are factory programmed, alternates can be selected at start-up using the service tool.

Optional Control Circuits

(120 Vac)

Alarm Relay MAR (Non-Latching) Output

Limit Warning Relay Output

Alarm Relay MMR (Latching) Output

Compressor Running Relay Output

Maximum Capacity Relay Output

Head Relief Request Relay Output

Circuit 2 Purge Alarm Relay Output

Circuit 1 Purge Alarm Relay Output

Ice Making Relay Output

Alternates

Circuit 1 Running

Circuit 2 Running

Chiller Alarm

Circuit 1 Alarm

Circuit 2 Alarm

Purge Alarm

1K19-J2-1 to 3 Left Panel

1K19-J2-4 to 6 Left Panel

1K19-J2-7 to 9 Left Panel

1K19-J2-10 to 12 Left Panel

1K20-J2-1 to 3 Left Panel

1K20-J2-4 to 6 Left Panel

1K20-J2-7 to 9 Left Panel

1K20-J2-10 to 12 Left Panel

1K15-J2-10 to 12 Left Panel

Binary Output

Binary Output

Binary Output

Binary Output

Binary Output

Binary Output

Binary Output

Binary Output

Normally Open

Normally Open

Normally Open

Normally Open

Normally Open

Normally Open

Normally Open

Normally Open

Standard Low Voltage Circuits

(less than 30 Vac)

(c)

External Auto Stop Input

Unit Control Panel

Terminations

1K2-J2-1 to 2 Left Panel

Input or Output Type

Binary Input

Contacts

Emergency Stop Input

Circuit 1 External Lockout

Circuit 2 External Lockout

1K2-J2-3 to 4 Left Panel

1K11-J2-1 to 2 Left Panel

1K11-J2-3 to 4 Left Panel

Binary Input

Binary Input

Binary Input

Closure required for normal operation

Closure required for normal operation

Closure required for normal operation

Closure required for normal operation

Optional Low Voltage Circuits

External Base Loading Enable Input

External Hot Water Control Enable Input

1K8-J2-1 to 2 Left Panel

1K8-J2-3 to 4 Left Panel

External Ice Machine Control Enable Input 1K9-J2-1 to 2 Left Panel

% RLA Compressor Output (Circuit 1 Left

Panel 1K5)

1K5-J2-1 to 3 Left Panel

External Condenser Pressure Output (Circuit

1 Left Panel 1K5)

1K5-J2-4 to 6 Left Panel

Evaporator/Condenser Differential Pressure

Output (Circuit 1 Left Panel 1K5)

Condenser Head Pressure Control (Circuit 1

Left Panel 1K5)

1K5-J2-4 to 6 Left Panel

1K5-J2-4 to 6 Left Panel

External Current Limit Setpoint Input

External Chilled Water Setpoint Input

External Base Loading Setpoint Input

1K6-J2-2 to 3 Left Panel

1K6-J2-5 to 6 Left Panel

1K7-J2-2 to 3 Left Panel

Binary Input

Binary Input

Binary Input

Analog Output

Analog Output

Analog Output

Analog Output

Analog Input

Analog Input

Analog Input

Normally Open

Normally Open

Normally Open

2–10 Vdc

2–10 Vdc

2–10 Vdc

2–10 Vdc

2–10 Vdc, or 4–20 mA

2–10 Vdc, or 4–20 mA

2–10 Vdc, or 4–20 mA

64 CDHH-SVX001C-EN

System Control Circuit Wiring (Field Wiring)

Table 18.

Unit control panel wiring 120 Vac (continued)

Generic Refrigerant Monitor input

Outdoor Air Temperature sensor

Tracer Comm 4 Interface 1K3

Note:

Comm 4 required two modules, one is mounted in each panel.

1K7-J2-5 to 6 Left Panel

IPC bus Connection and sensor

1K3-J2-1(+) to 2(-)

1K3-J2-3(+) to 4(-)

Left Panel

Analog Input

Communication and sensor

Communication to Tracer

BACnet or MODBUS 1K1, 5(+) to 6(-) Left Panel Communication to BACnet or

MODBUS

LonTalk Comm 5 interface (one Comm 5 module left panel only)

1K4-J2-1(+) to 2(-)

1K4-J2-3(+) to 4(-)

Left Panel

Communication to LonTalk

Right Hand Control Panel

Optional Low Voltage Circuits

% RLA Compressor 2 Output (Circuit 2

Right Panel 1K5)

External Condenser Pressure Output

(Circuit 2 Right Panel 1K5)

1K5-J2-1 to 3 Right Panel

1K5-J2-4 to 6 Right Panel

Analog Output

Analog Output

Tracer Comm 4 interface 1K3

Note:

Comm 4 requires two modules; one in each panel

1K3-J2-1(+) to 2(-)

1K3-J2-3(+) to 4(-)

Right Panel

Note:

All wiring to be in accordance with National Electrical Codes and any local codes

Communication to Tracer

2–10 Vdc, or 4–20 mA

(as ordered, see sales order)

(as ordered, see sales order)

(as ordered, see sales order)

2–10 Vdc

2–10 Vdc

(a) If the Chilled Water Flow Proving Input is a factory-installed ifm efector flow-sensing device, the secondary field device (recommended with 3.3°C [38°F] and lower leaving chilled water temperatures) for proof of flow connects from 1X1-5 to 1K26-4 (binary input; normally open, closure with flow). Remove factory jumper when used.

(b) If the Condenser Water Flow Proving Input is a factory-installed ifm efector flow-sensing device, the secondary (optional) field device for proof of flow connects from 1X1-6 to 1K27-4 (binary input; normally open, closure with flow). Remove factory jumper when used.

(c) Standard low-voltage circuits (less than 30 Vac) must be separated from 120 Vac or higher wiring.

CDHH-SVX001C-EN 65

System Control Circuit Wiring (Field Wiring)

Water Pump Interlock Circuits and Flow

Switch Input

WARNING

Hazardous Voltage!

Failure to disconnect power before servicing could result in death or serious injury. Disconnect all electric power, including remote disconnects before servicing.

Follow proper lockout/tagout procedures to ensure the power can not be inadvertently energized.

X39003892001A

Note: Graphic labels (shown above) are used for CE application only.

Important:

Before servicing, disconnect all power sources and allow at least 30 minutes for capacitors to discharge.

All electrical enclosures—unit or remote—are IP2X.

Note: The circuits for the chilled water proof of flow and the condenser water proof of flow do NOT require external power. Refer to the wiring diagrams that shipped with the chiller.

Chilled water pump

1.

Wire the evaporator water pump contactor (5K42) to a separate 120 volt single phase power supply with

14 AWG, 600 volt copper wire. For AWG/MCM equivalents in mm

2

, refer to

Table 12, p. 47

.

2. Connect circuit to 1K15-J2-6.

66

3. Use 1K15-J2-4 120 Vac output to allow the control panel to control the evaporator water pump, or wire the 5K1 contactor to operate remotely and independently of the control panel (left panel only).

Chilled water proof of flow

When this circuit is installed properly and the evaporator pump is running and providing the required minimum flow, this circuit will prove the evaporator water flow for the chiller controls. Proof of evaporator water flow is required before the start sequence will be allowed to proceed and a loss of evaporator water flow during chiller operation will result in a chiller shut-down.

Refer to as-built schematics on the inside of the control panel for field wiring. This is a dry binary input; normallyopen, closure for flow. Apply no external power.

1.

With factory-installed ifm efector flow-sensing devices, a field-provided secondary flow-sensing device is recommended with applications having 3.3°C

(38°F) and below leaving evaporator water temperatures. When a secondary flow-sensing device is used, remove the factory jumper and install its contacts between 1X1-5 to 1K26-4; this places the secondary flow sensing device in series with the ifm efector.

2. For field-provided primary proof of flow devices, connect the primary proof of flow device between terminals 1X1-5 to 1K16-J3-2 (left panel only). A secondary field device is recommended with applications having 3.3°C (38°F) and below leaving evaporator water temperatures, and must be fieldwired in series with the primary proof of flow device.

Condenser water pump

1.

Wire the condenser water pump contactor (5K43) to a separate 120-volt, single phase power supply with

14 AWG, 600-volt copper wire. For AWG/MCM equivalents in mm

2

, refer to

Table 12, p. 47

.

2. Connect circuit to control panel terminals 1K15-J2-3.

3. Use 1K15-J2-1 120 Vac output to allow the control panel to control the condenser pump (left panel only).

Condenser water proof of flow

When this circuit is installed properly and the condenser pump is running and providing the required minimum condenser water flow, this circuit will prove the condenser water flow for the chiller controls. Proof of condenser water flow is also required for the start sequence will be allowed to proceed and a loss of condenser water flow during chiller operation will result in a chiller shut-down.

Refer to as-built schematics on the inside of the control panel for field wiring. This is a dry binary input; normallyopen, closure for flow. Apply no external power.

1.

With factory-installed ifm efector flow-sensing devices, a secondary field-provided flow-sensing device is optional. When a secondary flow-sensing device is used, remove the factory jumper, and install

CDHH-SVX001C-EN

System Control Circuit Wiring (Field Wiring)

its contacts between 1X1-5 to 1K27-4; this places the secondary flow sensing device in series with the ifm efector.

2. For field-provided primary proof of flow devices, connect the primary proof of flow device between terminals 1X1-6 to 1K16-J2-2 (left panel only). The secondary field provided flow sensing device is optional; however, when it is present, it must be fieldwired in series with the primary proof of flow device.

Temperature Sensor Circuits

All temperature sensors are factory installed except the optional outdoor air temperature sensor (refer to

Figure 34, p. 67

for sensor locations). This sensor is required for the outdoor air temperature type of chilled water reset. Use the following guidelines to locate and mount the outdoor air temperature sensor. Mount the sensor probe where needed, however, mount the sensor module in the control panel.

Figure 34.

Sensor locations (CVHH is shown; CDHH is similar)

See Detail A

2 3 4

= q ty er

=q

9

Detail A Detail B

5 i

7 8

1 p

[ u

See Detail B sd ty ty o er

0

1. Tracer AdaptiView display module

2. Motor winding temperature 1

3. Motor winding temperature 2

4. Motor winding temperature 3

5. Oil pump discharge pressure transducer

6. Oil tank pressure transducer

7. Evaporator water differential pressure transducer

8. Condenser water differential pressure transducer

9. Compressor discharge refrigerant temperature sensor

10.Evaporator saturated refrigerant temperature sensor

11.Condenser saturated refrigerant temperature sensor

12.Second condenser entering water temperature sensor (used on HTRC)

13.Second condenser leaving water temperature sensor (used on HTRC)

14.Oil tank temperature sensor

15.Evaporator entering water temperature sensor er w

6 f

16.Evaporator leaving water temperature sensor

17.Condenser entering water temperature sensor

18.Condenser leaving water temperature sensor

19.Inboard bearing temperature sensor

20.Outboard bearing temperature sensor

21.Oil cooling solenoid valve

22.Inlet guide vane first stage actuator

23.Inlet guide vane second stage actuator

24.Outboard bearing pad temperature sensor 1

25.Outboard bearing pad temperature sensor 2

26.Outboard bearing pad temperature sensor 3

27.Condenser high pressure cut out switch

28.Condenser refrigerant pressure transducer

29.Oil tank vent line valve

-

CDHH-SVX001C-EN 67

System Control Circuit Wiring (Field Wiring)

CWR—Outdoor Option

The outdoor temperature sensor is similar to the unitmounted temperature sensors in that it consists of the sensor probe and the module. A four-wire IPC bus is connected to the module for 24 Vdc power and the communications link. Trane recommends mounting the sensor module within the control panel and the sensor two wire leads be extended and routed to the outdoor temperature sensor probe sensing location. This ensures the four-wire IPC bus protection and provides access to the module for configuration at start-up.

The sensor probe lead wire between the sensor probe and the module can be separated by cutting the two-wire probe lead leaving equal lengths of wire on each device: the sensor probe and the sensor module.

Note: This sensor and module are matched and must remain together or inaccuracy may occur.

These wires can then be spliced with two 14–18 AWG 600V wires of sufficient length to reach the desired outdoor location with a maximum length 304.8 meters (1000 feet).

For AWG/MCM equivalents in mm

2

, refer to

Table 12, p. 47 . The module four-wire bus must be connected to the

control panel four-wire bus using the Trane-approved connectors provided.

The sensor will be configured (given its identity and become functional) at start-up when the Trane service technician performs the start-up configuration. It will NOT be operational until that time.

Note: If shielded cable is used to extend the sensor leads, be sure to cover the shield wire with tape at the junction box and ground it at the control panel. If the added length is run in conduit, do not run them in the same conduit with other circuits carrying 30 or more volts.

Important:

Maintain at least 16 cm (6 in.) between lowvoltage (<30V) and high voltage circuits.

Failure to do so could result in electrical noise that may distort the signals carried by the low-voltage wiring, including the IPC.

Optional Control and Output Circuits

Install various optional wiring as required by the owner’s specifications (see

Table 18, p. 64

).

Optional Tracer Communication Interface

This control option allows the control panel to exchange information—such as chiller status and operating set points—with a Tracer system.

Note: The circuit must be run in separate conduit to prevent electrical noise interference.

Additional information about the Tracer Communication interface option is published in the installation and operation guide that ships with the Tracer.

Note: Comm 4 will require Tracer to be connected to each panel for individual circuit information. (Comm 5

68

will require connections to the left panel only when available.

Unit Start-up/Commissioning

Important:

Start-up must be performed by Trane or an agent of Trane specifically authorized to perform start-up and warranty of Trane

® products. Contractor shall provide Trane (or an agent of Trane specifically authorized to perform start-up) with notice of the scheduled start-up at least two weeks prior to the scheduled start-up.

Starter Module Configuration

The starter module configuration settings will be checked

(and configured for Remote Starters) during start-up commissioning.

Note: To configure starter modules, and perform other starter checks, it is recommended that the line voltage three-phase power be turned off and secured (locked out), and then that a separate source control power (115 Vac) be utilized to power up the control circuits. This needs to be done in each panel.

Use the as-built starter schematic to ensure correct fuse and terminals. Verify that the correct fuse is removed and that the control circuit connections are correct; then apply the 115 Vac separate source power to service the controls.

Schematic Wiring Drawings

Please refer to the submittals and drawings that shipped with the unit. Additional wiring drawings for CenTraVac chillers are available from your local Trane office.

CDHH-SVX001C-EN

Operating Principles

General Requirements

Operation and maintenance information for CDHH chillers are covered in this section. This includes both 50 and 60 Hz centrifugal chillers equipped with the Tracer AdaptiView

UC800 control system. This information pertains to all chiller types unless differences exist, in which case the sections are listed by chiller type as applicable and described separately. By carefully reviewing this information and following the instructions given, the owner or operator can successfully operate and maintain a CenTraVac unit. If mechanical problems do occur, however, contact a Trane service technician to ensure proper diagnosis and repair of the unit.

Cooling Cycle

Duplex chillers have two refrigerant circuits that operate as their own independent circuits. These circuits are discussed as individual chiller refrigeration units in the following discussion. The sequence of operation of the two refrigeration circuits is discussed in a later section.

When in the cooling mode, liquid refrigerant is distributed along the length of the evaporator and sprayed through small holes in a distributor (i.e., running the entire length of the shell) to uniformly coat each evaporator tube. Here, the liquid refrigerant absorbs enough heat from the system water circulating through the evaporator tubes to vaporize. The gaseous refrigerant is then drawn through the eliminators (which remove droplets of liquid refrigerant from the gas) and the first stage variable inlet guide vanes, and into the first-stage impeller.

CDHH 3-Stage Compressor 1 or 2

Compressed gas from the first-stage impeller flows through the fixed, second-stage inlet vanes and into the second-stage impeller. Here, the refrigerant gas is again compressed, and then discharged through the third-stage variable guide vanes and into the third-stage impeller.

Once the gas is compressed a third time, it is discharged into the condenser. Baffles within the condenser shell distribute the compressed refrigerant gas evenly across the condenser tube bundle. Cooling tower water circulated through the condenser tubes absorbs heat from the refrigerant, causing it to condense. The liquid refrigerant then passes through an orifice plate and into the economizer.

The economizer reduces the energy requirements of the refrigerant cycle by eliminating the need to pass all gaseous refrigerant through three stages of compression

(see

Figure 36, p. 69

). Notice that some of the liquid refrigerant flashes to a gas because of the pressure drop created by the orifice plates, thus further cooling the liquid refrigerant. This flash gas is then drawn directly from the first and second stages of the economizer into the thirdand second-stage impellers of the compressor,

CDHH-SVX001C-EN respectively. All remaining liquid refrigerant flows through another orifice plate to the evaporator.

Figure 35.

Pressure enthalpy curve, 3-stage

P

4

P

3

P

2

P

1

8

1

7

6 condenser high side economizer low side economizer evaporator

2

3

5 compressor

(3 rd

stage)

4 compressor

(2 nd

stage) compressor

(1 st

stage)

Figure 36.

Refrigerant flow, 3-stage

CDHH 2-Stage Compressor 1 or 2

Compressed gas from the first-stage impeller is discharged through the second-stage variable guide vanes and into the second-stage impeller. Here, the refrigerant gas is again compressed, and then discharged into the condenser. Baffles within the condenser shell distribute the compressed refrigerant gas evenly across the condenser tube bundle. Cooling tower water, circulated through the condenser tubes, absorbs heat from the refrigerant, causing it to condense. The liquid refrigerant then flows out of the bottom of the condenser, passing through an orifice plate and into the economizer.

The economizer reduces the energy requirements of the refrigerant cycle by eliminating the need to pass all gaseous refrigerant through both stages of compression

(see

Figure 38 ). Notice that some of the liquid refrigerant

flashes to a gas because of the pressure drop created by the orifice plate, thus further cooling the liquid refrigerant.

This flash gas is then drawn directly from the economizer into the second-stage impellers of the compressor. All remaining liquid refrigerant flows out of the economizer, passes through another orifice plate and into the evaporator.

69

Operating Principles

Figure 37.

Pressure enthalpy curve

P

3

P

2

6

5

P

1

1 condenser economizer evaporator

2

4

3 compressor

(2nd stage) compressor

(1st stage)

Figure 38.

Refrigerant flow, 2-stage

Duplex Compressor Sequencing

Four methods (two fixed sequence methods, a balanced start and hour’s method, and a no staging method) are provided for order of a compressor sequencing on CTV

Duplex chillers. The desired method is selectable at startup via the service tool. The application can decide to either balance the wear burden among the unit’s compressors, to start the most efficient compressor, or to simultaneously start and stop both compressors to minimize startup pull down time. Each method has specific applications were it can be used advantageously. If one compressor is locked out, in restart inhibit, or generally not ready to start, the available compressor will be started.

Note: The following description assumes Compressor 1 is the down stream compressor.

Fixed Sequence—Compressor 1 /

Compressor 2 (Default Mode)

If the chiller is in the Auto mode and all interlocks have been satisfied, Compressor 1 will be started based on the leaving water temperature rising above the “Differential to

Start” setting. Compressor 2 will stage on when the overall chiller average capacity exceeds stage on load point for 30 seconds. The stage on load point is adjustable

(via service tool) up to 50 percent.

The default is 40 percent which means that a single compressor would have to load to 80 percent (the average would be 40 percent) before the second compressor starts. Both compressors will run until chiller average

70 capacity drops below stage off load point for 30 seconds.

The stage off load point is also adjustable (via service tool)

(default = 30 percent, range from 0 to 50 percent).

Compressor 2 will be shut down and Compressor 1 will run until water temperature drops below the differential to stop. Before shutting down, Compressor 2 will be unloaded and Compressor 1 will be loaded to maintain the same average capacity command. When running chilled water temperature at selected conditions, the downstream compressor usually will be the most efficient compressor to operate at part load because compressors on Duplex chillers are not sized exactly the same.

Figure 39.

Duplex sequence of operation: lead 1 / lag 2

Auto

Evap LWT

Falls Below

Differential to

Stop

Evap LWT

Rises Above

Differential to

Start

Running

(Circuit 1)

Chiller Capacity

Less than 30%

(No Time Delay)

Compressor A

Capacity Greater than 80%

(No Time Delay)

Running

(Circuit

1 and 2)

Fixed Sequence—Compressor 2 /

Compressor 1

If the chiller is in the Auto mode and all interlocks have been satisfied, Compressor 2 will be started based on the leaving water temperature rising above the “Differential to

Start” setting. Compressor 1 will stage on when the overall chiller average capacity exceeds stage on load point for 30 seconds. The stage on load point is adjustable up to 50 percent.

The default is 40 percent which means that a single compressor would have to load to 80 percent (the average would be 40 percent) before the second compressor starts. Both compressors will run until chiller average capacity drops below stage off load point for 30 seconds.

The stage off load point is also adjustable. Compressor 1 will be shut down and Compressor 2 will run until water temperature drops below the differential to stop. Before shutting down, Compressor 1 will be unloaded and

Compressor 2 will be loaded to maintain the same average capacity command. If chilled water reset is used, the upstream compressor usually will be the most efficient compressor to operate at part load. If the leaving water temperature is reset and the chiller only needs one compressor, then the upstream compressor would be running closer to its selection point and will be the most efficient compressor to operate.

CDHH-SVX001C-EN

Figure 40.

Duplex sequence of operation: lead 2 / lag 1

Auto

Evap LWT

Falls Below

Differential to

Stop

Evap LWT Rises

Above Diff to Start

(Start Cprsr with

Fewest Starts and

Hours)

Running

(Circuit 2)

Chiller Capacity

Less than 30%

(De-Energize

Cprsr with Most

Starts and Hours)

Single Comp

Capacity Greater than 80% (No

Time Delay)

Running

(Circuit

1 and 2)

Sequencing—Balanced Starts and Hours

When desired to balance the wear between the compressors. This method will extend the time between maintenance on the lead compressor. When balanced starts and hours is selected, the compressor with the fewest starts will start. If that compressor is unavailable to start due to a circuit lockout (including restart inhibit) or a circuit diagnostic, then the other compressor will be started. The second compressor will stage on when chiller capacity exceeds the stage on load point for 30 seconds.

When chiller capacity falls below stage off load point for

30 seconds, the compressor with the most hours will be shut off.

Figure 41.

Duplex sequence of operation: equalize starts and hours

Evap LWT

Falls Below

Differential to

Stop

Chiller Capacity

Less than 30%

(No Time Delay)

Auto

Running

(Single

Circuit)

Running

(Both

Circuits)

Evap LWT

Rises Above

Differential to

Stop

Compressor A

Capacity Greater than 80%

(No Time Delay)

Simultaneous Compressor Start/Stop

Both compressors will start in close succession to minimize the time it takes for the chiller to reach full load.

Some process applications need the chiller to start and generate capacity as fast as possible. This method will start both compressors, slightly staggered to prevent doubling of the current inrush, but will generally control

CDHH-SVX001C-EN

Operating Principles

the chiller as if there were only one compressor. If the chiller is in the Auto mode and all interlocks have been satisfied, Compressor 1 will be started based on the leaving water temperature rising above the “Differential to

Start” setting. When Compressor 1 is at speed,

Compressor 2 will start. Both compressors will run until water temperature falls below the differential to stop, at that time both compressors will be shut down.

Figure 42.

Duplex sequence of operation: combined start

Auto

Evap LWT

Falls Below

Differential to

Stop

Evap LWT

Rises Above

Differential to

Start

Running

(Circuit 1)

Confirm Comp A

Start, then

Immediately

Start Comp B

Running

(Circuit

1 and 2)

Compressor Load Balancing

Duplex chillers with Tracer AdaptiView UC800 control will balance the compressor load by giving each compressor the same load command. The load command will be converted to IGV position that will be the same on each compressor. Balancing compressor load results in the best overall efficiency and with both circuits operating with nearly the same refrigerant pressures. When both compressors are running the overall chiller load command will be split evenly between the two compressors unless limit control overrides balancing. When transitioning between one compressor operation and two compressor operation, the load commands will be actively balanced at a rate slow enough to minimize capacity control disturbances.

Restart Inhibit.

The purpose of restart inhibit feature is to provide short cycling protection for the motor and starter. The operation of the restart inhibit function is dependent upon two setpoints.

Restart Inhibit Free Starts.

The Restart Inhibit Free

Starts (1–5, 3 default) is adjustable via the service tool and will allow a number of rapid restarts equal to its value. If the number of free starts is set to “1”, this will allow only one start within the time period set by the Start to Start

Time Setting. The next start will be allowed only after the start to start timer has expired. If the number of free starts is programmed to “3”, the control will allow three starts in rapid succession, but thereafter, it would hold off on a compressor start until the Start to Start timer expired.

Restart Inhibit Start to Start Time Setting.

The

Restart Inhibit Start to Start Timer (10–30 min, 20 default)

71

Operating Principles

is adjustable via the service tool and defines the shortest chiller cycle period possible after the free starts have been used. If the number of free starts is programmed to “1”, and the Start to Start Time Setting is programmed to

20 minutes, then the compressor will be allowed one start every 20 minutes. The start-to-start time is the time from when the motor was commanded to energize to when the next command to enter prestart is given.

Clear Restart Inhibit.

A Clear Restart Inhibit “button” is provided within Manual Override in Settings on the Tracer

AdaptiView display. This provides a way for an operator to allow a compressor start when there is a currently active

Restart Inhibit that is prohibiting such a start. The “button” press will have no other function than to remove the restart inhibit if there is one active. It does not change the count of any internal restart inhibit timers or accumulators. The restart inhibit function, setpoints and clear features exist for each compressor and operate independently of other compressors on that chiller. During the time the start is inhibited due to the start-to-start timer, the Tracer AdaptiView shall display the mode “Restart

Inhibit” and the also display the time remaining in the restart inhibit. A “Restart Inhibit Invoked” warning diagnostic will exist when the attempted restart of a compressor is inhibited.

Oil and Refrigerant Pump

Compressor Lubrication System

A schematic diagram of the compressor lubrication system is illustrated in

Figure 43, p. 73

. (This can be applied to circuit 1 or 2.) Oil is pumped from the oil tank (by a pump and motor located within the tank) through an oil pressure regulating valve designed to maintain a net oil pressure of 137.9 to 165.5 kPaD (20 to 24 psid). It is then filtered and sent to the braze plate heat exchanger oil cooler located above the oil tank and on to the compressor motor bearings. From the bearings, the oil drains back to the oil tank.

72 CDHH-SVX001C-EN

Operating Principles

Figure 43.

Oil refrigerant pump (Circuit 1 or Circuit 2)

1

14

Compressor lubrication system

Motor cooling system

Oil reclaim system

13

12

15

6

5

19

4

11

17

18

8

20

21

22

7

16

2

3

10

1.

Motor coolant return to condenser,

53.975 mm (2.125 in.) OD

2.

Oil tank vent line, 53.975 mm (2.125 in.) OD

3.

Vent line actuated ball valve

4.

Condenser

5.

High pressure condenser gas to drive oil reclaim eductors, 9.525 mm (0.375 in.) OD

6.

Oil return to tank

7.

Oil tank

8.

Oil cooler braze plate heat exchanger

9.

Oil reclaim from evaporator (2 nd

eductor),

6.35 mm (0.25 in.) OD

10. Liquid refrigerant to pump, 41.275 mm (1.625 in.) OD

11. Economizer

9

12. Oil supply to bearings, 22.225 mm (0.875 in.) OD

13. Purge

14. Compressor

15. Liquid refrigerant motor coolant supply,

28.575 mm (1.125 in.) OD

16. Liquid refrigerant to economizer

17. Liquid refrigerant to evaporator

18. Evaporator

19. Oil reclaim from suction cover (1 st

eductor),

6.35 mm (0.25 in.) OD

20. Motor coolant filter

21. Oil tank junction box enclosure

22. Oil pump motor terminal box

CDHH-SVX001C-EN 73

Operating Principles

WARNING

Hot Surface!

Failure to use caution while working on the oil system could result in severe burns. Oil system temperature could exceed 65.6°C (150°F).

WARNING

Hazardous Voltage in Oil Tank Junction

Box Enclosure and Oil Pump Motor

Terminal Box!

Failure to disconnect main power and/or auxiliary control power before opening oil tank junction box enclosure or any other junction box/terminal box/panel on the CVHH and CDHH chiller can result in death or serious injury. Apply lockout/tagout devices and follow all company procedures for lockout/tagout. Unit must be tested to ensure a zero energy state and equipment must be put in an electrically safe work condition prior to maintenance. Hazardous voltage up to 600 Vac is present in the oil tank junction box enclosure and oil pump motor terminal box.

X39003892001A

Note: Graphic labels (shown above) are used for CE application only.

Important:

Before servicing, disconnect all power sources and allow at least 30 minutes for capacitors to discharge.

All electrical enclosures—unit or remote—are IP2X.

74

To ensure proper lubrication and prevent refrigerant from condensing in the oil tank, two 750-watt heaters are in wells in the oil tank and are used to heat the oil while the unit is off. With the default settings, the oil heaters are deenergized when the unit starts. The heaters energize as needed to maintain 53.3°C to 56.1°C (128°F to 133°F) when the chiller is not running.

When the chiller is operating, the temperature of the oil tank is typically 37.8°C to 60.0°C (100°F to 140°F). The oil return lines are routed into a separation chamber in the oil tank. Gas flow exits out the top of the oil tank and is vented to the evaporator.

A dual eductor system, using high pressure condenser gas, reclaims oil from the suction cover and the evaporator. The suction cover eductor is discharged into the evaporator, and the evaporator eductor is discharged into the oil tank. The evaporator eductor line has a shut-off valve mounted on the evaporator. Normally, the valve should be 3/4 to one turn open; open up to two turns if necessary.

Oil supply to both the thrust bearing and journal bearings is cooled when the oil tank temperature reaches 60.0°C

(140°F). The supply oil and liquid refrigerant are pumped to a brazed plate heat exchanger. The unit controller monitors oil tank temperature and opens a solenoid valve to allow liquid refrigerant to flow into the heat exchanger.

Motor Cooling System

Compressor motors are cooled with liquid refrigerant (see

Figure 43, p. 73

). The refrigerant pump is located on the front of the oil tank (motor inside the oil tank). The refrigerant pump inlet is connected to the well at the bottom of the condenser. The well design ensures preferential supply of liquid refrigerant to the refrigerant pump before refrigerant is supplied to the economizer.

Refrigerant is delivered to the motor via the pump. An inline filter is installed (replace the in-line filter only with major service). Motor refrigerant drain lines are routed to the condenser.

Tracer AdaptiView Display

Information is tailored to operators, service technicians, and owners.

When operating a chiller, there is specific information you need on a day-to-day basis—setpoints, limits, diagnostic information, and reports.

Day-to-day operational information is presented at the display. Logically organized groups of information— chiller modes of operation, active diagnostics, settings and reports put information conveniently at your fingertips. For more information, refer to Tracer

AdaptiView™ Display for Water-Cooled CenTraVac™

Chillers Operations Guide (CTV-SVU01*-EN, or the most recent version).

CDHH-SVX001C-EN

RuptureGuard

The rupture disk monitors the pressure inside the chiller. If the pressure exceeds the disk’s burst setting, the disk ruptures allowing the chiller pressure to enter the valve holder compartment upstream of the relief valve. If the pressure is above the pressure setting of the relief valve, the valve will open allowing only the amount of refrigerant to escape to keep the pressure within safe operating limits.

The excess flow valve maintains the downstream side of the rupture disk at atmospheric pressure to assure proper operating conditions for the disk. When the disk bursts, the rapid pressure increase causes the excess flow valve to seal and the valve holder area becomes pressurized.

A disk rupture will be indicated by a pressure reading on the gauge and the pressure switch contacts will close. The pressure switch is an optional accessory and does not wire to the control panel. The pressure switch can be connected to a customer-supplied building automation system

(BAS).

EarthWise Purge

Centrifugal chillers that use low-pressure refrigerants, such as R-1233zd(E), operate with areas of the chiller at less than atmospheric pressure. Non-condensables in the air, such as water and nitrogen vapor, may leak into these low-pressure areas and accumulate in the condenser. If these non-condensables are not removed, the condenser loses its ability to condense refrigerant efficiently, and the pressure of the condenser increases. Increased condenser pressure lowers the chillers efficiency and capacity.

A purge system is required on low-pressure centrifugal chillers. It is a device that is externally mounted on the chiller. Its purpose is to remove non-condensable materials that have leaked into the machine.

Note: For convenience, the term “air” is often used in this document, although any other non-condensable materials that may exist in the chiller are also removed by the purge system.

How a Purge System Works

From a functional standpoint, the purge system can be divided into subsystems of components. This section identifies and describes the function of these subsystems.

Refrigeration Circuit Subsystem

The purge evaporator of the refrigeration circuit is located in the purge tank. The purge tank is connected to the chiller condenser by supply and return lines through which chiller refrigerant can freely flow.

The purge evaporator coil presents a cold condensing surface to the chiller refrigerant entering the purge tank.

When the purge refrigeration system is running, refrigerant from the chiller condenser is attracted to the cold surface of the purge evaporator. When the gaseous refrigerant contacts the surface of the purge evaporator

CDHH-SVX001C-EN

Operating Principles

coil, it condenses into a liquid, leaving a partial vacuum behind. More refrigerant vapor from the chiller condenser migrates to the purge tank to fill the vacuum.

The liquid refrigerant that has condensed in the purge tank returns to the chiller condenser through the liquid return line. The return line includes a filter-drier and a moistureindicating sight glass.

The condensing unit is air-cooled, and is operable whether the chiller is running or not. No additional cooling source is required.

75

Operating Principles

Figure 44.

Components of a Trane EarthWise purge system (front view)

8

7

6

5

4

3

2

1

10

9

12

11

1. Purge tank

2. Condensing unit (includes compressor, condenser coil, and fan)

3. Pressure-relief device (fusible plug)

4. Pump-out solenoid valve

5. Automatic expansion valve

6. Carbon tank

7. Carbon tank temperature sensor

8. Carbon tank heater

9. Exhaust solenoid valve

10. Pump-out compressor

11. Float switch

12. Compressor suction temperature sensor

13. Chiller refrigerant return line

14. Filter-drier canister

13

76

14

CDHH-SVX001C-EN

Operating Principles

Figure 45.

Components of a Trane EarthWise purge system (back view)

6

5

7

8

4

10

3

2

1

9

11

1. Regeneration solenoid valve

2. Pressure-relief valve

3. Exhaust solenoid valve

4. Pump-out compressor

5. Carbon tank heater

6. Automatic expansion valve

7. Pump-out solenoid valve

8. Pressure-relief device (fusible plug)

9. Carbon tank

10. Purge tank

11. Condensing unit

12. Chiller refrigerant supply line

1

Purge Tank Subsystem

Any non-condensables that have accumulated from the refrigerant vapor are left behind to collect in the purge tank. As the quantity of non-condensables increases, the heat transfer efficiency of the purge evaporator coil is reduced, causing the purge compressor suction temperature to decrease.

A float switch, mounted in the bottom of the purge tank, indicates if there is excessive accumulation of liquid refrigerant in the tank. A liquid level sensor, which resides

12

in the purge control panel, monitors the status of the float switch.

If the normally closed float switch is open for more than

20 minutes, the purge controls will turn off the refrigeration system and generate a non-latching diagnostic—Purge Liquid Level Too High Warning. If the float switch has re-closed after 20 minutes, the purge controls will restart the refrigeration system.

If the float switch remains open for more than 20 minutes, or if the float switch/liquid level restart cycle has occurred

CDHH-SVX001C-EN 77

Operating Principles

more than four times in four hours, a latching diagnostic—

Purge Liquid Level Too High Continuously—will be generated. The purge system will not restart until it is reset.

If a Purge Liquid Level Too High Continuously diagnostic occurs, check the purge lines for any type of restriction

(trapped liquid, closed valves, etc.) and ensure that the filter-drier on the liquid return line is in good condition.

A UL-required pressure-relief device (fusible plug), which protects against over-pressurization of the purge tank, is mounted on the purge tank. The plug material will fuse at

98.9°C (210°F), which equates to approximately

910.1 kPaG (132 psig) for refrigerant R-1233zd(E).

Pump-out Subsystem

When the purge control subsystem detects the presence of non-condensables in the purge tank, the pump-out solenoid and exhaust solenoid valves open, and the pump-out compressor turns on. The valves and the compressor cycle on and off as needed to achieve an efficient and fast removal of non-condensables.

A High Vacuum Pump option is available for applications that require purge operation at low condensing temperatures and pressures. This option provides a twostage pump-out compressor. The High Vacuum Pump option allows the purge system to operate to saturation temperatures as low as 1.1°C (34°F). Typical applications that may require the High Vacuum Pump option include free-cooling installations, series chiller installations, ice systems having brine flowing through idle chillers, chillers installed outdoors or in unconditioned spaces, or any application that may cause very low condenser water temperatures.

Carbon Tank and Regeneration Subsystem

The discharge from the pump-out compressor is piped through the carbon tank. The special carbon in the tank effectively scrubs and collects refrigerant molecules from the non-condensable gas before the gas passes through the exhaust solenoid valve to the chiller vent line.

A 175 W resistive heater is mounted inside the carbon tank and is used to periodically “regenerate” the carbon bed and drive any collected refrigerant vapor back into the chiller. A UL-required pressure-relief valve, rated at

1034.2 kPaG (150 psig), is mounted on the line leaving the carbon tank. The valve protects against overpressurization of the carbon tank.

A temperature sensor is installed through the top of the carbon tank shell so that the controls can monitor the carbon bed temperature. The temperature sensor controls the regeneration cycle and protect against overheating. If the limit temperature is reached, the system shuts down and a Purge Carbon Regen Temperature Limit Exceeded diagnostic is generated.

Sensors

The following sensors are used to enable control communication between the Tracer UC800 controller and the EarthWise purge system. The sensors use low-level intelligence devices (LLIDs) to communicate with the

Tracer UC800 controller.

Compressor suction temperature sensor.

This sensor is mounted on the purge condensing unit suction line. The controller uses the value of this temperature sensor to decide whether or not to purge noncondensables from the purge tank. When the temperature drops to a specified point, the controller activates the pump-out cycle to remove the accumulated noncondensables from the purge tank. When enough noncondensables have been removed and the purge compressor suction temperature increases in response, the controller terminates the pump-out cycle.

Saturated condenser temperature sensor.

This sensor is mounted on the chiller. If the chiller is running, the controller uses the value of this temperature sensor to adjust the purge pump-out initiate/terminate setpoints. It may be used to prohibit pump-out, if system conditions are too cool.

Saturated evaporator temperature sensor.

This sensor is mounted on the chiller. If the chiller is Off, the controller uses the value of this temperature sensor to adjust the purge pump-out initiate/terminate setpoints. It may be used to prohibit pump-out, if system conditions are too cool.

Carbon tank temperature sensor.

This sensor is mounted in the carbon tank of the purge system. It provides feedback to the carbon regeneration algorithm.

The sensor and the controller function much the same as a thermostat to control the carbon tank heater.

Liquid level sensor.

This sensor resides in the purge control panel. It monitors the status of the normally closed float switch, which is mounted in the bottom of the purge tank. If an adequate amount of liquid fails to drain from the purge tank, the float switch and sensor detect the condition and prevent further purge operation.

Condensing unit LLID.

This LLID resides in the purge control panel. It uses a high-capacity relay to control the operation of the purge condensing unit.

Quad relay LLID.

This LLID resides in the purge control panel. It has four relay outputs that are used to control the pump-out compressor, the carbon tank heater, the regeneration solenoid valve, and an alarm output.

Dual triac LLID.

This LLID resides in the purge control panel. It has two triac-type outputs that are used to control the pump-out solenoid valve and the exhaust solenoid valve. The purge system draws its control power from the power supplies of the chiller control panel.

78 CDHH-SVX001C-EN

Start-up and Shut-down

This section will provide basic information on chiller operation for common events. With microelectronic controls, ladder diagrams cannot show today’s complex logic, as the control functions are much more involved than older pneumatic or solid state controls.

Chiller Sequence of Operation

Adaptive control algorithms can also complicate the exact sequence of operation. This section illustrates common control sequences.

Software Operation Overview Diagram

Figure 46

is a diagram of the five possible software states.

This diagram can be thought of as a state chart, with the

Figure 46.

Software operation overview

arrows, and arrow text, depicting the transitions between states.

Descriptions

• The text in the circles are the internal software designations for each state.

• The first line of text in the circles are the visible top level operating modes that can be displayed on Tracer

AdaptiView.

• The shading of each software state circle corresponds to the shading on the time lines that show the state that the chiller is in.

Stopped

Stopped

Run Inhibit

Power

Up

Stopping

Preparing to Shut Down

Shutting Down

Confirmed Shutdown

Fast Restart or Satisfied Setpoint

Diagnostic

Reset

Stop Command or Diagnostic

Stop Command

Diagnostic

Running

Running

Running - Limit

Confirmed Start

Starting

Auto

Waiting to Start

Starting Compressor

CDHH-SVX001C-EN 79

Start-up and Shut-down

There are five generic states that the software can be in:

• Power Up

• Stopped

• Starting

• Running

• Stopping

Descriptions

• The time line indicates the upper level operating mode, as it would be viewed on Tracer AdaptiView.

• The shading color of the cylinder indicates the software state.

• Text in parentheses indicates sub-mode text as viewed on Tracer AdaptiView.

• Text above the time line cylinder is used to illustrate inputs to the Main Processor. This may include User input to the Tracer AdaptiView Touch screen, Control inputs from sensors, or Control Inputs from a Generic

BAS.

• Boxes indicate Control actions such as Turning on

Relays, or moving the Inlet Guide Vanes.

• Smaller cylinders indicate diagnostic checks, text indicates time based functions, solid double arrows indicate fixed timers, and dashed double arrows indicate variable timers.

Start-up Sequence of Operation—

Wye-Delta

Logic Circuits within the various modules will determine the starting, running, and stopping operation of the chiller.

When operation of the chiller is required the chiller mode is set at “Auto.” Using customer supplied power, the chilled water pump relay is energized and chilled water flow must be verified within 4 minutes and 15 seconds, at the same time the oil vent line valve is opened. The main processors logic decides to start the chiller based on the differential to start setpoint. With the differential to start criteria met, the module then energizes condenser water pump relay with

customer supplied power (see Figure 47, p. 80

).

Based on the Restart Inhibit function and the Differential to

Start setpoint, the oil and refrigerant pump is energized, and the oil vent line valve is closed to the minimum position. The oil pressure must be at least 82.7 kPaD

(12 psid) for 60 continuous seconds and condenser water flow verified within 4 minutes and 15 seconds for the compressor start sequence to be initiated. After the compressor starts, the oil vent line valve begins to open; it can take between 15 and 30 minutes to fully open depending on the chiller running conditions.

The compressor motor starts in the “Wye” configuration and then, after the compressor motor has accelerated and the maximum phase current has dropped below

85 percent of the chiller nameplate RLA for 1.5 seconds, the starter transitions to the “Delta” configuration.

Figure 47.

Sequence of operation: power up to starting

Last Chiller Mode

Was Auto

Call for Cooling

Power

Applied to

Controls

Auto Waiting to Start

UC800 Boot

Time

(30–50 sec)

Wait for Highest Motor Winding

Temp to Fall Below 73.9°C (165°F)

Enforce Power

Up Start Delay

Timer (0–30 min)

Energize Evaporator

Water Pump Relay

Wait for Oil Temp to Rise Above

Sat Evap + -1.1°C (30°F) and 37.8°C (100°F)

Waiting to Start

Prelube (60 sec)

Overdrive IGV Closed

Energize Condenser

Water Pump Relay

Starting

Compressor

Begin Oil Vent Line

Valve low limit venting

Confirm Evaporator Water

Flow Within 4 min 15 sec

(6 sec Filter)

Confirm Condenser Water Flow

Within 4 min 15 sec

(6 sec Filter)

Energize Oil Pump Relay

Open Oil Vent Line Valve

Enforce Stop to Start Timer Using Values From

Real Time Clock (5–200 sec, 30 is Default)

Confirm 82.7 kPaD (12 psid)

Oil Pressure

Within 3 min

Check for High Vacuum

Lockout

Initialize Oil Vent Line Valve to Minimum Open Position

80 CDHH-SVX001C-EN

Start-up and Shut-down

Now that the compressor motor is running in the “Delta” configuration, the inlet guide vanes will modulate, opening and closing to the chiller load variation by operation of the stepper vane motor actuator to satisfy chilled water setpoint. The chiller continues to run in its appropriate mode of operation: Normal, Softload, Limit

Mode, and so on (see

Figure 48

). If the oil tank temperature rises above the oil cooler setpoint while the compressor is running, the oil cooler solenoid valve shall be energized to cool the oil.

Note: For more information, refer to “Duplex

Compressor Sequencing,” p. 70 .

If the chilled water temperature drops below the chilled water set point by an amount set as the “differential to

Figure 48.

Sequence of operation: running

Starter

Status is

“Running”

Limit Mode

Starting

Compressor

Chiller Is Running Chiller Is Running—Limit

stop” setpoint, a normal chiller stop sequence is initiated as follows:

1.

The inlet guide vanes are driven closed (up to

50 seconds).

2. After the inlet guide vanes are closed, the stop relay and the condenser water pump relays open to turn off.

The oil and refrigerant pump motor will continue to run for 3 minutes post-lube while the compressor coasts to a stop. The oil vent line valve will then open. The chilled water pump will continue to run while the main processor module monitors leaving chilled water temperature preparing for the next compressor motor start based on the “differential to start” setpoint.

Figure 49, p. 81

illustrates this sequence.

Exit

Limit Mode

Chiller Is Running

Chiller

Is

Running

Modulate IGV/AFD for LWT control

Modulate IGV/AFD for Limit control

Modulate IGV/AFD for LWT control

Enforce All Running Mode Diagnostics

Note: If the Oil Tank Temperature rises above the Oil Cooler Control Setpoint whilte the compressor is running, the Oil Cooler Solenoid Valve shall be energized to cool the unit.

Figure 49.

Sequence of operation: satisfied setpoint

Satisfied Setpoint

Running

Preparing Shutdown

Shutting Down

Close IGV (0–50 sec)

Postlube 3 min

Shutting Down

De-Energize Oil Pump

Command IGV Closed

Auto

De-Energize

Compressor

Confirm No Oil Pressure*

5 min after oil pump is de-energized

Open Oil Vent Line Valve

Confirm No Compressor Currents

Within 0–30 sec

Hold position of Oil Vent Line Valve

De-Energize Condenser

Water Pump Relay

*Note: No oil pressure is less than 20.7 kPaD (3 psid)

Enforce All Running Mode Diagnostics

CDHH-SVX001C-EN 81

Start-up and Shut-down

If the STOP key is pressed on the operator interface, the chiller will follow the same stop sequence as above except the chilled water pump relay will also open and stop the chilled water pump after the chilled water pump delay timer has timed out after compressor shut down (see

Figure 50

).

If the “Immediate Stop” is initiated, a panic stop occurs which follows the same stop sequence as pressing the

STOP key once except the inlet guide vanes are not sequence closed and the compressor motor is immediately turned off.

Figure 50.

Sequence of operation: normal shut-down to stopped and run inhibit

Local Stop

Normal Latching Diagnostic

Normal Non-Latching Diagnostic

Tracer Stop

External Auto-Stop

IGV Closed

Stopped

Run Inhibit

Running Preparing Shutdown Shutting Down Shutting Down

Stopped or

Run Inhibit

Close IGV (0–50 sec)

Command IGV Closed

Postlube 3 min

De-Energize Condenser

Water Pump Relay

Open Oil Vent Line Valve

De-Energize Oil Pump

Evap Pump

Off Delay and Postlube

Complete

Evap Pump Off Delay Time

(0–30 min)

De-Energize

Compressor

Confirm No Oil Pressure*

5 min after oil pump is de-energized

De-Energize Evaporator

Water Pump Relay

Confirm No Compressor Currents

Within 8 sec

Hold position of Oil Vent Line Valve

Enforce All Running Mode Diagnostics

Power Up Diagram

Figure 47, p. 80 illustrates Tracer AdaptiView during a

power up of the main processor. This process takes from

30 to 50 seconds depending on the number of installed

Options. On all power ups, the software model always will transition through the Stopped software state independent of the last mode. If the last mode before power down was Auto, the transition from Stopped to

Starting occurs, but it is not apparent to the user.

Ice Machine Control

The control panel provides a service level Enable or

Disable menu entry for the Ice Building feature when the

Ice Building option is installed. Ice Building can be entered from Front Panel, or if hardware is specified the control panel will accept either an isolated contact closure 1K9

Terminals J2-1 and J2-2 (Ground)) or a remote communicated input (BAS) to initiate the ice building mode where the unit runs fully loaded at all times. Ice building will be terminated either by opening the contact or based on entering evaporator fluid temperature. The control panel will not permit the Ice Building mode to be

82

*Note: No oil pressure is less than 20.7 kPaD (3 psid) entered again until the unit is switched to the non-ice building mode and back into the ice building mode. It is not acceptable to reset the chilled water setpoint low to achieve a fully loaded compressor. When entering ice building, the compressor will be loaded at its maximum rate and when leaving ice building the compressor will be unloaded at its maximum rate. While loading and unloading the compressor, all surge detection will be ignored. While in the ice building mode, current limit setpoints less than the maximum will be ignored. Ice

Building can be terminated by one of the following means:

• Front panel disable.

• Opening the external Ice. Contacts/ Remote communicated input (BAS).

• Satisfying an evaporator entering fluid temperature setpoint (default is -2.8°C [27°F]).

• Surging for 7 minutes at full open IGV.

CDHH-SVX001C-EN

Start-up and Shut-down

Figure 51.

Sequence of operation: ice building: running to ice building

Ice Making Command:

1. Front Panel

2. Tracer

3. External Input

Ice Making

Command

Withdrawn

Evap Leaving

Water Temp Rises

Above the Diff To

Stop

Running

Running

(Ice Building)

Running (Ice to Normal

Transition)

Running

Open IGV at Max Rate/

Max AFD Frequency

Ice to Normal Transition Timer

(0–10 min)

Close IGV/Min AFD

Frequency

Modulate IGV/AFD for LWT control

Ignore Softloading and

Set CLS=100%

De-Energize Ice Building

Relay

De-Energize Head Relief

Request Relay

Energize Ice Building

Relay

Head Relief Request Relay

Delay (1–60 min)

Energize Head Relief

Request Relay

Head Relief Request Relay

Delay (1–60 min)

Enforce All Limits and Running Mode Diagnostics

Running

Figure 52.

Sequence of operation: ice building: stopped to ice to ice building complete

Ice Making Command:

1. Front Panel

2. Tracer

3. External Input

Evap Entering

Water Temp Falls

Below the Ice

Termination

Setpoint

Auto

Starting

Compressor

Running

(Ice Building)

Open IGV at Max Rate/

Max AFD Frequency

Preparing to

Shut Down

Close IGV

(0–50 sec)

Shutting

Down

Postlube

(3 min)

Run

Inhibit

Run Inhibit

(Ice Building

Complete)

De-Energize Oil Pump

Close IGV/Min AFD

Frequency

Open Oil Vent Line Valve

Ignore Softloading and

Set CLS=100%

Hold position of Oil Vent Line Valve

De-Energize Ice

Building Relay

Energize Ice Building

Relay

De-Energize Heat

Relief Request Relay

De-Energize

Condenser

Water Pump Relay

Begin Oil Vent Line

Valve low limit venting

Heat Relief Request Relay

Delay (1–60 min)

Energize Head Relief

Request Relay

Ignore Evap Pump

Off Delay Time for Ice Building

De-Energize

Compressor

De-Energize Evaporator

Water Pump Relay

Enforce All Limits and Running Mode Diagnostics

Confirm No Compressor Currents

Within 8 sec

CDHH-SVX001C-EN 83

Start-up and Shut-down

Hot Water Control

Occasionally CTV chillers are selected to provide heating as a primary mission. With hot water temperature control, the chiller can be used as a heating source or cooling source. This feature provides greater application flexibility. In this case the operator selects a hot water temperature and the chiller capacity is modulated to maintain the hot water setpoint. Heating is the primary mission and cooling is a waste product or is a secondary mission. This type of operation requires an endless source of evaporator load (heat), such as well or lake water. The chiller has only one condenser.

Note: Hot water temperature control mode does not convert the chiller to a heat pump. Heat pump refers to the capability to change from a coolingdriven application to a heating-driven application by changing the refrigerant path on the chiller. This is impractical for centrifugal chillers as it would be much easier to switch over the water side.

This is NOT heat recovery. Although this feature could be used to recover heat in some form, a heat recovery unit has a second heat exchanger on the condenser side.

The Tracer AdaptiView Main Processor provides the hot water temperature control mode as standard. The leaving condenser water temperature is controlled to a hot water setpoint between 26.7 and 60.0°C (80°F and 140°F). The leaving evaporator water temperature is left to drift to satisfy the heating load of the condenser. In this application the evaporator is normally piped into a lake, well, or other source of constant temperature water for the purpose of extracting heat. In hot water temperature control mode all the limit modes and diagnostics operate as in normal cooling with one exception; the leaving condenser water temperature sensor is an MMR diagnostic when in hot water temperature control mode.

(It is an informational warning in the normal cooling mode.)

In the hot water temperature control mode the differentialto-start and differential-to-stop setpoints are used with respect to the hot water setpoint instead of with the chilled water setpoint. The control panel provides a separate entry at the Tracer AdaptiView to set the hot water setpoint. Tracer AdaptiView is also able to set the hot water setpoint. In the hot water mode the external chilled water setpoint is the external hot water setpoint; that is, a single analog input is shared at the 1K6-J2-5 to 6 (ground).

An external binary input to select external hot water control mode is on the EXOP OPTIONAL module 1K8 terminals J2-3 to J2-4 (ground). Tracer AdaptiView also has a binary input to select chilled water control or hot water temperature control. There is no additional leaving hot water temperature cutout; the HPC and condenser limit provide for high temperature and pressure protection.

In hot water temperature control the softloading pulldown rate limit operates as a softloading pullup rate limit. The

84 setpoint for setting the temperature rate limit is the same setpoint for normal cooling as it is for hot water temperature control. The hot water temperature control feature is not designed to run with HGBP, AFD, free cooling, or ice building.

The factory set PID tuning values for the leaving water temperature control are the same settings for both normal cooling and hot water temperature control.

Control Panel Devices and Unit-

Mounted Devices

Unit Control Panel

Safety and operating controls are housed in the unit control panel, the starter panel, and the purge control panel. The control panel operator interface and main processor is called Tracer AdaptiView and is located on an adjustable arm connected to the base of the control panel.

For more information about operating Tracer AdaptiView, refer to Tracer AdaptiView™ Display for Water-Cooled

CenTraVac™ Chillers Operations Guide (CTV-SVU01*-EN, or the most recent version).

The control panel houses several other controls modules called panel mounted LLID (Low Level Intelligent Device), power supply, terminal block, fuse, circuit breakers, and transformer. The IPC (Interprocessor communication) bus allows the communications between LLIDs and the main processor. Unit mounted devices are called frame mounted LLIDs and can be temperature sensors or pressure transducers. These and other functional switches provide analog and binary inputs to the control system.

User-Defined Language Support

Tracer AdaptiView is capable of displaying English text or any of twenty-four other languages. Switching languages is simply accomplished from a language settings menu.

Unit Start-up and Shut-down

Procedures

WARNING

Live Electrical Components!

Failure to follow all electrical safety precautions when exposed to live electrical components could result in death or serious injury. During installation, testing, servicing and troubleshooting of this product, it may be necessary to work with live electrical components.

Have a qualified licensed electrician or other individual who has been properly trained in handling live electrical components perform these tasks.

CDHH-SVX001C-EN

WARNING

Toxic Hazards!

Do not allow the chiller to increase above 54.4°C (130°F) in temperature while unit is off. Failure to prevent high chiller temperature will cause the inside pressure to rise:

• Do not run evaporator water pump longer than

30 minutes after the chiller is shut down.

• Ensure that the evaporator is isolated from the hot water loop before changeover to heating mode.

The rupture disk is designed to relieve and discharge the refrigerant from the unit if the pressure in the evaporator exceeds 344.7 kPaG (50 psig). A significant release of refrigerant into a confined space due to a rupture disk failure could displace available oxygen to breathe and cause possible asphyxiation. Should a rupture disk fail, evacuate the area immediately and contact the appropriate rescue or response authority.

Failure to follow instructions could result in death or serious injury.

X39003892001A

Note: Graphic labels (shown above) are used for CE application only.

Important:

Before servicing, disconnect all power sources and allow at least 30 minutes for capacitors to discharge.

All electrical enclosures—unit or remote—are IP2X.

CDHH-SVX001C-EN

Start-up and Shut-down

Daily Unit Start-up

1.

Verify the chilled water pump and condenser water pump starter are in ON or AUTO.

2. Verify the cooling tower is in ON or AUTO.

3. Check the oil tank oil level on both oil tanks; the level must be visible in or above the lower sight glass. Also, check the oil tank temperature; normal oil tank temperature before start-up is 53.3°C to 56.1°C (128°F to 133°F).

Note: Each oil heater is energized during the compressor off cycle. During unit operation, the oil tank heater may be de-energized.

4. Check the chilled water setpoint and readjust it, if necessary, in the Chiller Settings menu.

5. If necessary, readjust the current limit setpoint in the

Chiller Setpoints menu.

6. Press AUTO.

The control panel also checks compressor motor winding temperature, and a start is initiated after a minimum restart inhibit time if the winding temperature is less than

129.4°C (265°F). The chilled water pump relay is energized and evaporator water flow is proven. Next, the control panel checks the leaving evaporator water temperature and compares it to the chilled water setpoint. If the difference between these values is less than the start differential setpoint, cooling is not needed.

If the control panel determines that the difference between the evaporator leaving water temperature and chilled water setpoint exceeds the start differential setpoint, the unit enters the initiate Start Mode and the refrigerant pump and the condenser water pump are started. If flow is not initially established within 4 minutes 15 seconds of the condenser pump relay energization, an automatically resetting diagnostic “Condenser Water Flow Overdue” shall be generated which terminates the prestart mode and de-energizes the condenser water pump relay. This diagnostic is automatically reset if flow is established at any later time.

Note: This diagnostic does not automatically reset if

Tracer AdaptiView is in control of the condenser pump through its condenser pump relay, since it is commanded off at the time of the diagnostic. It may reset and allow normal chiller operation if the pump was controlled from some external source.

If the compressor motor starts and accelerates successfully, Running appears on the display. If the purge is set to AUTO, the purge will start running and will run as long as the chiller is running.

Note: If a manual reset diagnostic condition is detected during start-up, unit operation will be locked out, and a manual reset is required before the start-up sequence can begin again. If the fault condition has not cleared, the control panel will not permit restart.

85

Start-up and Shut-down

When the cooling requirement is satisfied, the control panel originates a Shutting down signal. The inlet guide vanes are driven closed for 50 seconds, the compressor stops, and the unit enters a 3-minute post-lube period. The evaporator pump may continue to run for the amount of time set using Tracer AdaptiView.

Once the post-lube cycle is done, the unit returns to auto mode.

Seasonal Unit Start-up

1.

Close all drain valves, and reinstall the drain plugs in the evaporator and condenser headers.

2. Service the auxiliary equipment according to the startup and maintenance instructions provided by the respective equipment manufacturers.

3. Fill and vent the cooling tower, if used, as well as the condenser and piping. At this point, all air must be removed from the system (including each pass). Then close the vents in the condenser waterboxes.

4. Open all of the valves in the evaporator chilled water circuit.

5. If the evaporator was previously drained, fill and vent the evaporator and chilled water circuit. When all air is removed from the system (including each pass), close the vent valves in the evaporator waterboxes.

6. Lubricate the external vane control linkage as needed.

7.

Check the adjustment and operation of each safety and operating control.

8. Close all disconnect switches.

9. Perform instructions listed in “Daily Unit Start-up,” p. 85

.

Daily Unit Shut-down

Note: Also refer to Figure 50, p. 82 .

1.

Press STOP.

2. After compressor and water pumps shut-down, the operator may turn Pump Contactors to OFF or open pump disconnects.

Seasonal Unit Shut-down

Important:

Control power disconnect switch must remain closed to allow oil sump heater operation. Failure to do this will allow refrigerant to condense in the oil pump.

1.

Open all disconnect switches except the control power disconnect switch.

2. Drain the condenser piping and cooling tower, if used.

Rinse with clean water.

3. Remove the drain and vent plugs from the condenser headers to drain the condenser. Air dry bundle of residual water.

4. Once the unit is secured for the season, the maintenance procedures described

Table 20, p. 95 and

86

Table 21, p. 96 should be performed by qualified Trane

service technicians.

Note: During extended shut-down periods, be sure to operate the purge unit for a two-hour period every two weeks. This will prevent the accumulation of air and noncondensables in the machine. To start the purge, change the purge mode to ON in the unit control “Settings Purge” menu. Remember to turn the purge mode to “Adaptive” after the two-hour run time.

EarthWise Purge Sequence of

Operations

A Tracer UC800 controller that is configured to control a purge system uses the operational sequences described in this section.

Purge Operating Modes

Purge operating mode options are as follows:

Stop.

The purge condensing unit does not run in this mode.

On.

The purge condensing unit runs continuously in this mode, regardless of the chillers operational status.

Auto.

The purge condensing unit runs in this mode, if the main compressor of the chiller is operating.

Adaptive.

The purge condensing unit operation depends on past purge activity.

Adaptive Mode

The objectives of operating the unit in the adaptive mode are to:

• Enable purge system operation

• Enable the refrigeration circuit to effectively accumulate non-condensables whether or not the chiller is running

• Provide information to an operator regarding whether leakage is on the high-pressure or low-pressure side of the chiller

• Decrease energy usage by running the purge refrigeration circuit only when needed to remove noncondensables, rather than running it continuously

The adaptive mode requires historical operating data so that the controller can make optimal decisions regarding how to run the purge refrigeration circuit in the future. On initial start-up of a chiller that is in adaptive mode, the purge refrigeration circuit runs continuously for 168 hours

(7 days). The chiller compressor may or may not be running during this period.

CDHH-SVX001C-EN

Following the initial data collection period, the adaptive mode customizes the purge refrigeration circuit operation during two distinct chiller operating conditions:

• Chiller compressor On

• Chiller compressor Off

Adaptive Mode Process—Chiller Compressor

On

Figure 53, p. 87

, illustrates the process described in this subsection.

Figure 53.

Adaptive chiller ON flow chart

Start-up and Shut-down

When the chiller compressor starts, the purge refrigeration circuit starts. The purge refrigeration circuit continues to run until 60 consecutive minutes of running occur without any pump-out of non-condensables. The Pumpout Time is the greater of the following two values that the controller has been tracking:

• The pump-out time with the chiller On, over the last

24 hours

• The average daily pump-out time with the chiller On, over the last 7 days

No

First chiller power-up.

Purge operates continuously for 168 hours to collect data.

Chiller On or Off.

Chiller and purge start.

Purge runs.

Has purge run 60 minutes without any pump-out?

Yes

The purge control reviews the historical data and determine the Pumpout

Time with the chiller On

(Pumpout Time from last

24 hours daily average over last 7 days, whichever is greater.

Yes

Is Pumpout

Time greater than 8 minutes?

Turn purge unit Off for

1 hour, then restart.

Yes

Is Pumpout

Time greater than 5 minutes?

Turn purge unit Off for

2 hours, then restart.

Turn purge unit Off for

3 hours, then restart.

Yes

Yes

Is Pumpout

Time greater than

1 minute?

Is Pumpout

Time greater than

3 minutes?

No

Turn purge unit Off for

4 hours, then restart.

No

No

The purge then shuts down for a corresponding period of

CDHH-SVX001C-EN time, as shown in the following table:

No

87

Start-up and Shut-down

Pumpout Time with chiller On

(over the last 24 hours or daily average over the last 7 days, whichever is greater)

Purge Off cycle duration

4 hours Pumpout Time ≤ 1 minute

1 minute < Pumpout Time ≤ 3 minutes

3 minutes < Pumpout Time ≤ 5 minutes

5 minute < Pumpout Time ≤ 8 minutes

Pumpout Time > 8 minutes

3 hours

2 hours

1 hour

No Off cycle

During the purge refrigeration circuit Off cycle, the time remaining is displayed as Time Until Next Purge Run in the

Log Sheet that you can view from the Tracer AdaptiView display.

If the compressor is turned Off during the purge refrigeration circuit Off cycle, the purge transfers to

Adaptive Mode Procedure—Chiller Compressor Off.

Figure 54, p. 89

illustrates this process.

Adaptive Mode Procedure—Chiller

Compressor Off

Refer to

Figure 54, p. 89

for an illustration of the process described in this subsection.

If the chiller compressor is turned Off, the purge refrigeration circuit Off cycle is determined by the purge control. The purge Off-cycle duration is determined by the pump-out time, which is the greater of the following two values:

• Daily Pumpout—24 Hours (the pump-out time over the last 24 hours whether the chiller is On or Off)

• Average Daily Pumpout—7 Days (the pump-out time with the chiller On over the last 7 days)

Note: These two values can be seen on the Tracer

AdaptiView display.

The purge will be shut down for a corresponding period of time, as shown in the following table:

The pump-out time with chiller On or Off

(over the last 24 hrs or daily average over the last 7 days, whichever is greater)

Purge Off cycle duration

Pump-out time ≤ 1 minute

1 minute < pump-out time ≤ 3 minutes

3 minutes < pump-out time ≤ 5 minutes

Pump-out time > 5 minutes

3 days

2 days

1 day

6 hours

During the purge refrigeration circuit Off cycle, the time remaining is displayed as the Time Until Next Purge Run in the purge report of the Tracer AdaptiView display.

If the controls determine it is necessary to run the purge while the chiller compressor is Off, the purge will be started and run until 60 consecutive minutes have passed without any pump-out of non-condensables.

If the chiller compressor starts before the purge Off cycle has elapsed, the purge starts and transfers to Adaptive

Mode Procedure—Chiller Compressor On.

Figure 53, p. 87 , illustrates this process.

88

Submodes

You can view up to six purge submodes from the Purge

Settings screen. The available purge submodes are:

Refrigeration Circuit On.

appears if the purge condensing unit/compressor is operating.

Refrigeration Circuit Idle.

appears if the purge condensing unit/ compressor is not operating.

Pumping Out.

appears if the purge refrigeration circuit is On and pump-out has been initiated by the purge unit controls.

Exhaust Circuit Check.

appears if a pump-out has been initiated by an operator.

Pumpout Inhibited.

appears if the purge refrigeration circuit is On but pump-out has been inhibited by a low condenser saturation temperature.

Daily Pumpout Limit Disabled.

appears if the purge refrigeration circuit is On but the daily pump-out limit has been disabled.

Regenerating.

appears if the purge carbon system is in its regeneration mode. Pump-out is not allowed in this submode.

Alarm–Check Diagnostics.

appears if a new diagnostic occurs.

Purge Diag Shutdown.

appears if the purge system has shut down in response to a latching diagnostic.

Regen Disabled.

appears if carbon regeneration is not allowed.

CDHH-SVX001C-EN

Start-up and Shut-down

Figure 54.

Adaptive chiller OFF flow chart

First chiller power-up.

Purge operates continuously for 168 hours to collect data.

Chiller On or Off.

Chiller Off.

Turn purge Off.

Purge Off.

Hold purge Off for

6 hours.

No

No

Yes

Is purge run

60 minutes without purging?

The purge control reviews the historical pump-out data for “chiller On” and

“chiller Off” and determines the Pumpout

Time (from the last 24 hrs, or the daily average over the last 7 days, whichever is greater).

Hold purge Off for

1 day.

No

Is Pumpout

Time less than

5 minutes?

Yes

Is Pumpout

Time less than

3 minutes?

Run purge.

Hold purge Off for

2 days.

No

Yes

Is Pumpout

Time less than

1 minute?

Hold purge Off for

3 days.

Yes

The purge condensing-unit compressor suction temperature varies with the amount of non-condensables collected in the purge tank. If the amount of noncondensables collected in the purge tank limits the available condensing surface in the tank, the condensingunit compressor suction temperature begins to fall.

The purge controller initiates a pump-out cycle when the suction temperature reaches the pump-out initiate value that is calculated within the purge control. During the pump-out cycle, the small pump-out compressor pulls any non-condensables from the purge tank and discharges them through the carbon tank. As the non-condensables are removed from the purge tank, the condensing-unit compressor suction temperature increases. The purge

CDHH-SVX001C-EN controller monitors the compressor suction temperature and cycles or stops the pump-out, depending on the temperature that is present.

The 1/4 hp air-cooled condensing unit of the refrigeration system operates effectively when it is in the operating range shown in

Figure 55 .

89

Start-up and Shut-down

Figure 55.

EarthWise purge operating limits

120

100

Operating envelope extremes

80

Typical operation

60

40

20

150

Pump-out can be inhibited in this range according to control settings.

0

0 20 40 60 80 100 120

Chiller condenser saturation temperature (ºF)

Air Removal

If no air is in the purge tank, the refrigerant returning to the purge condensing unit compressor suction has a high

superheat (heat added past the point of evaporation), because of the heat removed from the condensing chiller refrigerant vapor in the purge tank. As air accumulates in the purge tank, it displaces the chiller refrigerant vapor and decreases the amount of coil surface that is exposed to the vapor. Less heat is removed from the vapor, and the available superheat at the purge condensing unit compressor suction consequently falls. When the purge refrigerant compressor suction temperature falls far enough to reach the pump-out initiate value, the purge control activates the solenoids and the pump-out compressor to remove the accumulated air.

As air is removed from the purge tank, the inside coil is once again exposed to chiller refrigerant vapor. As more chiller refrigerant vapor condenses on the coil, more heat is removed from the vapor, and the purge refrigerant compressor suction temperature rises. The purge control cycles or stops the pump-out process in response to the compressor suction temperature.

Pump-out Operating Sequence

As the purge control system detects the presence of noncondensables in the purge tank, it initiates a pump-out cycle. The pump-out solenoid valve, the exhaust solenoid valve, and the pump-out compressor cycle On and Off as needed to remove the non-condensables.

Non-Condensable Pump-out Algorithm

The controller uses the non-condensable pump-out algorithm to determine when to initiate, control, and

90

140 terminate a pump-out cycle to remove air from the purge tank. The purge refrigerant compressor suction temperature sensor serves as the feedback to this control algorithm. The compressor suction temperature pumpout initiate and pump-out terminate values are calculated by the purge control and are a function of the purge liquid temperature.

The refrigerant used in the purge refrigeration circuit,

R-404A, is metered into the purge tank coil by a constantpressure regulating expansion valve. The valve automatically controls the purge suction pressure at a constant value of 351.6 kPaA (51 psia). Therefore, refrigerant is metered into the coil as a two-phase refrigerant mixture at a constant saturation temperature of approximately -18.9°C (-2°F).

The cold coil creates a low vapor pressure near its outside surface, which draws refrigerant from the chiller condenser into the purge tank and to the coil surface.

When the refrigerant gets close enough to the coil surface, it condenses into a liquid. Since liquid refrigerant requires less volume than it does in a gaseous form, additional refrigerant enters the purge tank to fill the void and, in turn, condenses. This mechanism is known as a thermal siphon.

As the chiller refrigerant condenses, heat is transferred into the purge coil through the latent heat of condensation.

The compressor suction temperature sensor monitors this heat transfer.

Air and other gases carried with the chiller refrigerant vapor do not condense on the coil. Instead, they accumulate in the purge tank, effectively acting to insulate and inhibit the flow of refrigerant to the cold coil surface.

The thermal siphon rate is reduced and, consequently, so is the amount of heat transfer. A corresponding reduction

CDHH-SVX001C-EN

occurs in the temperature of the purge refrigerant exiting the coil. The compressor suction temperature sensor monitors this temperature.

When sufficient non-condensables have accumulated in the purge tank to decrease the compressor suction temperature below the pump-out initiate value, a pumpout cycle begins. The cycle is terminated when the compressor suction temperature sensor increases above the pump-out terminate value. The calculations for the pump-out values are:

Pump-out initiate:

(°C) = Purge liquid temperature (°C) – 10.0°C or -

17.8°C (whichever is higher)

(°F) = Purge liquid temperature (°F) – 50°F or 0°F

(whichever is higher)

Pump-out terminate:

(°C) = Purge liquid temperature (°C) – 4.4°C or -

15.0°C (whichever is higher)

(°F) = Purge liquid temperature (°F) – 40°F or 5°F

(whichever is higher)

The purge liquid temperature value comes from the chiller’s saturated condenser temperature sensor when the chiller is running, or the chiller’s saturated evaporator temperature sensor when the chiller is off.

Non-condensable Pump-out cycle

A non-condensable pump-out cycle may be initiated as described below only if the following two conditions are met:

• A carbon regeneration cycle is NOT in process, and

• The refrigeration circuit is on.

If at any time, except as described above, the purge refrigerant compressor suction temperature drops below the pump-out initiate value, the following sequence is initiated by the controls.

The controller starts the pump-out compressor and opens the exhaust solenoid valve. After 5 seconds, the pump-out solenoid valve opens and pulses at a rate of 20 seconds On and 20 seconds Off. If, after two cycles, the purge refrigerant compressor suction temperature has not exceeded the pump-out terminate value, the pump-out solenoid valve stays continuously open. If the pump-out compressor runs for more than 10 consecutive minutes, the controller recalculates the pump-out initiate and pump-out terminate values as described.

The purge controls continue to operate the pump-out solenoid valve and calculate values as described above until the purge refrigerant compressor suction temperature rises above the pump-out terminate value. At this point, the controller will close the pump-out solenoid valve and turn off the pump-out compressor and exhaust solenoid valve.

Note: For purge systems equipped with standard pumpout compressors, operation at low chiller

CDHH-SVX001C-EN

Start-up and Shut-down

condenser saturation temperatures may result in a system vacuum greater than the pump-out compressor can overcome. If the chiller experiences low condensing temperatures, then the Tracer UC800 controller can be programmed to inhibit the operation of the purge pump-out compressor.

Carbon Tank and Regeneration Subsystem

The function of the carbon tank is to absorb refrigerant molecules that may be entrained in the discharge of noncondensables. In order to maintain effectiveness, the carbon tank periodically regenerates.

Carbon Regeneration Algorithm

The controller uses the carbon regeneration algorithm to determine when to initiate, control, and terminate a carbon regeneration cycle. The carbon bed temperature sensor serves as the feedback to this algorithm. In addition, the controller uses a pump-out accumulation timer to indicate the remaining carbon capacity in the carbon tank. The carbon capacity is the capacity of the carbon to adsorb refrigerant while maintaining acceptable levels of refrigerant emission through the chiller vent line.

A capacity of 100 percent means the carbon bed has the capacity to adsorb refrigerant and maintain acceptable emission levels. A capacity of 0 percent means the carbon bed has inadequate capacity to adsorb refrigerant and still maintain acceptable emission levels.

The main objectives of the carbon regeneration algorithm are to:

• Minimize the amount of refrigerant contained in the carbon by performing a periodic regeneration.

• Regenerate to maintain low emissions levels.

• Minimize the regeneration time.

• Regenerate only when the chiller is at a minimum level of purging activity.

• Allow regeneration to occur with the chiller On or Off.

Regeneration is preferable when the chiller is On to ensure low carbon tank pressure, but regeneration is also acceptable when the chiller is Off.

The remaining amount of absorption capacity within the carbon tank is directly proportional to the number of purge pump-out minutes that have accumulated, and is also a function of the chiller refrigerant type. The purge carbon tank on an R-1233zd(E)-equipped chiller is considered to be fully saturated after the purge has accumulated

350 minutes of pump-out time. Because the relationship between pump-out capacity and pump-out minutes is directly proportional, it can be described by the following equation within the regeneration algorithm:

Remaining carbon capacity% =

100 - (pump-out minutes since last regen/pump-out minutes at 100% capacity)*100

91

Start-up and Shut-down

For example, an R-1233zd(E)-equipped chiller that has accumulated 80 minutes of purge pump-out time since the last carbon tank regeneration would be estimated to have

84 percent carbon tank capacity remaining:

100 – (80/350)*100 = 84%

The purge controls may initiate a carbon tank regeneration cycle when the remaining carbon tank capacity is calculated to be less than 80 percent. However, the continued stable operation of the chiller is always more important than the regeneration of the carbon tank.

Therefore, the following rules apply:

1.

If the Daily Pump-out Limit is disabled, a regeneration cycle may not be initiated, regardless of the value of the remaining carbon capacity.

Also, if the Daily Pump-out Limit is disabled during a regeneration cycle, the regeneration cycle must be terminated.

2. When the remaining carbon capacity is less than

80 percent, a regeneration cycle will be initiated at the next opportunity when the chiller is running (after the chiller has started and no pump-out minutes have accumulated for the previous 60 minutes).

3. If there is no opportunity to purge as indicated by Rules

1 and 2 and the remaining carbon capacity is less than

50 percent, a regeneration cycle will be initiated at the best opportunity when the chiller is shut down (and no pump-out minutes have accumulated for the previous

60 minutes).

4. If there is no opportunity to regenerate as indicated by

Rules 1, 2, and 3, and the carbon capacity drops below

0 percent, then a regeneration cycle is initiated.

5. Note that if at any time during the regeneration cycle, the chiller is running and shuts down or if the chiller is off and starts up, then the regeneration cycle is continued.

Carbon Tank Regeneration Sequence

WARNING

Hazardous Voltage

Failure to disconnect power before servicing could result in death or serious injury. Disconnect all electric power, including remote disconnects before servicing.

Follow proper lockout/ tagout procedures to ensure the power can not be inadvertently energized.

X39003892001A

Note: Graphic labels (shown above) are used for CE application only.

Important:

Before servicing, disconnect all power sources and allow at least 30 minutes for capacitors to discharge.

All electrical enclosures—unit or remote—are IP2X.

If the purge controller determines that carbon tank regeneration is desired and is allowed, the purge controls:

1.

Disable the purge refrigeration circuit and the pumpout solenoid valve.

2. Open the regeneration solenoid valve and turn on the carbon tank heater.

3. Monitor the carbon temperature until it reaches the regeneration temperature value of 115.6°C (240°F), and control within a ±5.6°C (±10°F) dead band for

15 minutes (this step should take approximately

3 hours).

92 CDHH-SVX001C-EN

If the carbon tank temperature exceeds 120 percent of the regeneration temperature setpoint, the controller issues a latching diagnostic, Purge Carbon Regeneration

Temperature Limit Exceeded. The purpose of this diagnostic is to identify a failed heater relay or temperature sensor. It disables the purge and opens the exhaust solenoid valve.

If the carbon tank temperature does not increase more than 13.3°C (56°F) in the first two hours, the controller generates a non-latching diagnostic, Carbon Regeneration

Temperature Too Low. The purpose of this diagnostic is to identify a failed heater or temperature sensor. It prevents automatic regeneration from occurring, but a service technician can initiate a manual regeneration for testing purposes. All other purge algorithms continue to function.

If the carbon tank temperature does not reach the minimum regeneration temperature setpoint within 4 hours, the controller generates a non-latching diagnostic,

Purge Carbon Regen Temperature Not Satisfied. The purpose of this diagnostic is to identify a failing insulation system.

The complete regeneration cycle can take as long as seven hours to accomplish, but an average chiller does not have to regenerate very often. A typical regeneration cycle is

depicted in Figure 56

.

Figure 56.

Typical carbon regeneration cycle

0 2 4

Time (Hours)

6 8

Purge Status Points

The status points appear on the purge component screen of the Tracer AdaptiView display. The purge component screen is accessible from the purge touch target on the home screen of the display.

Start-up and Shut-down

Time Until Next Purge Run.

Displayed if the purge is in Adaptive mode and is idle. It indicates the amount of time left on the adaptive cycle timer.

Daily Pumpout—24 Hours.

Indicates the daily pumpout time for the last 24 hours (a moving 24-hour window). It indicates how the hermetic integrity of the chiller compares to historic pump-out times for the same chiller. It also allows a check against factory-recommended values.

Average Daily Pumpout—7 Days.

Indicates the average daily pump-out time for the last 168 hours (a moving 168-hour window). Enables a comparison of present pump-out times to past averages, and can be another indication of the hermetic integrity of the chiller.

Daily Pumpout Limit/Alarm.

Indicates the limit value that an operator has set in the Settings menu. When the daily pumpout rate exceeds this value, purge operation stops and a diagnostic is generated.

Chiller On—7 Days.

Indicates the percentage of time during the past 7 days (floating 168-hour window) that the chiller was operating. You can use it to help determine if a leak is present on the high side or the low side of the chiller.

Pumpout Chiller On—7 Days.

Indicates the percentage of the total purge pump-out time during the past 7 days that occurred while the chiller was operating.

You can use it to help determine if a leak is present on the high side or the low side of the chiller.

Pumpout Chiller Off—7 Days.

Indicates the percentage of the total purge pump-out time during the past 7 days that occurred when the chiller was not operating. You can use it to help determine if a leak is present on the high side or the low side of the chiller.

Pumpout—Life.

Indicates the total purge pump-out time that has accumulated over the life of the purge.

Purge Rfgt Cprsr Suction Temp.

Indicates the purge refrigerant compressor suction temperature. It is useful for diagnosing purge system problems.

Purge Liquid Temp.

Indicates the temperature sensed by the controller and used to inhibit purge operation. The purge liquid temperature sensor, when the chiller is operating, is the chiller saturated condenser temperature sensor; when the chiller is Off, it is the chiller saturated evaporator temperature sensor. If this temperature is below the Pumpout Inhibit Temperature that is defined in the Settings menu, pump out is not allowed. This value is used to prevent inefficient operation of the purge under certain conditions.

Carbon Tank Temp.

Indicates the carbon bed temperature and is useful for monitoring regeneration and for diagnosing regeneration system problems.

CDHH-SVX001C-EN 93

Recommended Maintenance

WARNING

Hazardous Voltage w/Capacitors!

Failure to disconnect power and discharge capacitors before servicing could result in death or serious injury.

Disconnect all electric power, including remote disconnects and discharge all motor start/run capacitors before servicing. Follow proper lockout/ tagout procedures to ensure the power cannot be inadvertently energized. For variable frequency drives or other energy storing components provided by Trane or others, refer to the appropriate manufacturer’s literature for allowable waiting periods for discharge of capacitors. Verify with an appropriate voltmeter that all capacitors have discharged.

For additional information regarding the safe discharge of capacitors, see PROD-SVB06*-EN

X39003892001A

Note: Graphic labels (shown above) are used for CE application only.

Important:

Before servicing, disconnect all power sources and allow at least 30 minutes for capacitors to discharge.

All electrical enclosures—unit or remote—are IP2X.

NOTICE:

Check Purge Run-Time for Unit Hermetic

Integrity!

If frequent purging is required, failure to monitor purge pumpout rate, identify and correct source of air or water leak as soon as possible could shorten chiller life expectancy, due to moisture contamination caused by leakage.

NOTICE:

Do Not Use Non-Compatible Parts or

Materials!

Use of non-compatible parts or materials could result in equipment damage. Only genuine Trane

®

replacement components with identical Trane part numbers should be used in Trane CenTraVac chillers. Trane assumes no responsibility for damages resulting from the use of non-compatible parts or materials.

This section describes the basic chiller preventive maintenance procedures, and recommends the intervals at which these procedures should be performed. Use of a periodic maintenance program is important to ensure the best possible performance and efficiency from a

CenTraVac chiller.

Note: Due to the pressure vessel codes applied to CDHH

CenTraVac chillers, the bolts used for both the economizer sump cover and the oil tank cover are specified for both ASME and PED application

(SCREW, METRIC CAP-M16 x 70 mm with FULL

THREAD), HEAVY HEXAGON HEAD - ASME SA-

193M GRADE B7, ZINC PLATED.

Do not substitute! Contact your local Trane representative for replacement bolts.

Record Keeping Forms

An important aspect of the chiller maintenance program is the regular completion of records. Refer to

“Forms and

Check Sheets,” p. 103

for copies of the recommended forms. When filled out accurately by the machine operator, the completed logs can be reviewed to identify any developing trends in the chiller’s operating conditions. For example, if the machine operator notices a gradual increase in condensing pressure during a month’s time, he can systematically check, then correct the possible cause of this condition.

94 CDHH-SVX001C-EN

Recommended Maintenance

Normal Operation

Table 19.

Normal operation

Operating Characteristic Normal Reading

Approximate Evaporator Pressure

Approximate Condenser Pressure

(a)

55.2 to 91.0 kPaA (8 to 13.2 psia) / -46.2 to -10.3 kPaG (-6.7 to -1.5 psig)

166.9 to 259.9 kPaA (24.2 to 37.7 psia) / 65.5 to 158.6 kPaG (9.5 to 23 psig) (standard condenser)

Oil Sump Temperature Unit not running 43.3°C to 57.2°C (110°F to 135°F)

Oil Sump Temperature Unit running

Oil Sump Differential Oil Pressure

(b)

43.3°C to 71.1°C (110°F to 160°F)

137.9 to 165.5 kPaD (20 to 24 psid)

(a) Condenser pressure is dependent on condenser water temperature, and should equal the saturation pressure of R-1233zd(E) at a temperature above that of leaving condenser water at full load.

(b) Oil tank pressure: -48.3 to -27.6 kPaG (-7 to -4 psig). Discharge oil pressure: 89.6 to 137.9 kPaG (13 to 20 psig).

NOTICE:

Equipment Damage!

Failure to remove the strain relief with the sensor could result in equipment damage. Do NOT attempt to pull sensor bulb through the strain relief; always remove the entire strain relief with the sensor.

Table 20. Recommended maintenance

Daily

Check the chiller’s evaporator and condenser pressures, oil tank pressure, differential oil pressure and discharge oil pressure.

Compare the readings with the

values provided in Table 19, p. 95

.

Every 3 months

Check the oil level in the chiller oil sump using the two sight glasses provided in the oil sump head.

When the unit is operating, the oil level should be visible in the lower sight glass.

Complete logs on a daily basis.

Clean all water strainers in the water piping system.

Every 6 months Annually

(a), (b)

Lubricate the vane control linkage bearings, ball joints, and pivot points.

Lubricate vane operator tang

O-rings.

Operate the tang operators manually and check for any abnormalities.

Drain contents of the rupture disk and purge discharge ventline dripleg into an evacuated waste container. Do this more often if the purge is operated excessively.

Apply oil to any exposed metal parts to prevent rust.

Shut down the chiller once each year to check the

items listed on the “CDHH Annual Inspection List”

(refer to

“Forms and Check Sheets,” p. 103

).

Perform the annual maintenance procedures

referred to in “EarthWise Purge Maintenance,” p. 97 .

Use an ice water bath to verify the accuracy of the evaporator refrigerant temperature sensor

(4BT11). If the sensor is exposed to temperature extremes outside its normal operating range

(-17.8°C to 32.2°C [0°F to 90°F]), check its accuracy at six-month intervals.

Inspect the condenser tubes for fouling; clean if necessary.

CDHH-SVX001C-EN 95

Recommended Maintenance

Table 20. Recommended maintenance (continued)

Inspect and clean the ifm efector sensors. Use Scotch-Brite

®

flow detection

®

or other non-abrasive material to clean scale; do NOT use steel wool, which could cause the probe to rust.

Submit a sample of the compressor oil to a Tranequalified laboratory for comprehensive analysis.

Measure the compressor motor winding resistance to ground; a qualified service technician should conduct this check to ensure that the findings are properly interpreted. Contact a qualified service organization to leak-test the chiller; this procedure is especially important if the system requires frequent purging.

(a) Every three years, use a nondestructive tube test to inspect the condenser and evaporator tubes. It may be desirable to perform tube tests on these components at more frequent intervals, depending upon chiller application. This is especially true of critical process equipment.

(b) Contact a qualified service organization to determine when to conduct a complete examination of the unit to discern the condition of the compressor and internal components. Check the following: chronic air leaks (which can cause acidic conditions in the compressor oil and result in premature bearing wear) and evaporator or condenser water tube leaks (water mixed with the compressor oil can result in bearing pitting, corrosion, or excessive wear).

Table 21.

Recommended maintenance of optional features

Feature Every 3 months

Waterbox Coatings Inspect waterbox coatings within the first 1–3 months to determine a required maintenance schedule for your job site.

Refer to “Waterbox and Tubesheet

Protective Coatings,” p. 100

for more information.

Every 6 months

Waterbox Anodes Inspect waterbox anodes within the first

1–3 months to determine a required maintenance schedule for your job site.

Refer to “Sacrificial Anodes,” p. 100

for more information.

Gantries

Hinges

Compressor Oil Change

After the first six months of accumulated operation, or after 1,000 hours operation—whichever comes first—it is recommended to change the oil filter. It is recommended to subscribe to the Trane annual oil analysis program rather than automatically change the oil as part of scheduled maintenance. Change the oil only if indicated by the oil analysis. Use of an oil analysis program will reduce the chiller’s overall lifetime waste oil generation and minimize refrigerant emissions. The analysis determines system moisture content, acid level, and wear metal content; it can be used as a diagnostic tool. Due to the new refrigerant and oil combination, the oil analysis should be performed by the Trane Chemical Laboratory.

In conjunction with other diagnostics performed by a qualified service technician, oil analyses can provide valuable information on the performance of the chiller to help minimize operating and maintenance costs and maximize its operating life. An access valve is installed in the oil supply line, before the oil filter, for obtaining oil samples.

Notes:

Use only Trane OIL00022. A full oil change is 79.5 L

(21 gallons).

96

Annually

Lubricate the gantries annually. Use ConocoPhillips

MegaPlex

®

XD3 (gray in color), LPS

®

MultiPlex Multi-

Purpose (blue in color), or equivalent.

Lubricate the hinges annually. Use ConocoPhillips

MegaPlex

®

XD3 (gray in color), LPS

®

MultiPlex Multi-

Purpose (blue in color), or equivalent.

Leak Checking Based on Purge

Pump Out Time

Figure 57

has been developed to aid in determining when to do a leak check of a chiller based on the purge pump out time and unit size. This figure depicts normal purge pumpout times, small leaks and large leaks based on the chiller tonnage.

If the purge pump-out time is in the small leak region, then a leak check should be performed and all leaks repaired at the earliest convenience. If the purge pump-out time is in the large leak region, a thorough leak check of the unit should be performed immediately to find and fix the leaks.

CDHH-SVX001C-EN

Figure 57.

Purge operation under typical and leak conditions

large leak small leaks typical operation

Recommended Maintenance

WARNING

Hazardous Voltage!

Failure to disconnect power before servicing could result in death or serious injury. Disconnect all electric power, including remote disconnects before servicing.

Follow proper lockout/ tagout procedures to ensure the power can not be inadvertently energized.

Chiller tons (per circuit)

RuptureGuard Maintenance

It is recommended that the RuptureGuard be visually inspected and the relief valve pressure tested annually.

The test can be performed with the valve in place and the refrigerant in the chiller.

The vent line drip leg must be periodically checked for accumulation of water or refrigerant. Drain any accumulation that may be present into an evacuated, properly labeled vessel and dispose of in accordance with local, state and federal codes.

EarthWise Purge Maintenance

Maintenance requirements for an EarthWise purge system with Tracer AdaptiView control are described in this section. To ensure efficient and reliable purge operation, perform all inspections and procedures at the prescribed intervals. Keep records of inspection results to establish proper service intervals. Document changes that occur in purge activity that could provide information about chiller performance.

WARNING

Contain Refrigerant!

Failure to follow proper procedures or the use of nonapproved refrigerants, refrigerant substitutes, or refrigerant additives could result in death or serious injury or equipment damage. System contains oil and refrigerant under high pressure. Recover refrigerant to relieve pressure before opening the system. See unit nameplate for refrigerant type. Do not use nonapproved refrigerants, refrigerant substitutes, or refrigerant additives.

X39003892001A

Note: Graphic labels (shown above) are used for CE application only.

Important:

Before servicing, disconnect all power sources and allow at least 30 minutes for capacitors to discharge.

All electrical enclosures—unit or remote—are IP2X.

CAUTION

Hot Surfaces!

Failure to follow instructions below could result in minor to severe burns. Surface temperatures may exceed 148.9°C (300°F) on condensing unit and carbon tank. Wear protective gear and allow surfaces to cool before servicing these parts or any part located in their vicinity.

Weekly Maintenance

Perform the following maintenance procedure on a weekly basis:

CDHH-SVX001C-EN 97

Recommended Maintenance

1.

With the purge unit operating, check the purge tank condensing activity by observing the liquid refrigerant flow in the moisture-indicating sight glass located in the liquid drain line immediately after the filter drier canister. A lack of visible refrigerant flow in the sight glass indicates one of the following:

A pump-out cycle is necessary

A problem exists with the purge heat transfer circuit

(such as the condensing unit, expansion device, or purge evaporator coil)

A problem exists in the purge control subsystem

Refrigerant vapor from the chiller condenser is blocked or restricted

2. Check the moisture-indicator sight glass. Replace the filter-drier core if moisture is indicated.

Note: The need for frequent changes of the filter drier could be an indication of significant chiller air or tube leaks.

Semi-Annual Maintenance

Perform the following maintenance procedure on a semiannual basis:

1.

Inspect the air-cooled condenser coil and clean as needed. Clean the coil from the fan side using compressed air or coil cleaner. A dirty coil will reduce purge efficiency and capacity.

2. Inspect the purge tank and carbon tank insulation for any damage or degradation. Make any needed repairs to the insulation.

Annual Maintenance

Perform the following maintenance procedure on an annual basis:

1.

Perform the semi-annual maintenance procedures.

2. Open the purge control panel and check all internal components for such problems as corrosion, terminal tightness, or signs of overheating.

3. Change the filter-drier assembly.

Inspecting the Moisture Indicator

Monitor the quality of the liquid refrigerant in the chiller by periodically inspecting the moisture indicator. The indicator will show “wet” whenever the chiller moisture

exceeds the levels shown in Table 22

. Notice that the indicator becomes more sensitive as the temperature decreases. (The moisture indicator normally operates at equipment room ambient temperatures.)

A “wet” indication for more than 72 hours typically indicates that the filter-drier is saturated and should be replaced. In some cases in which a substantial amount of moisture has accumulated, such as when the chiller has been serviced, several filter-drier assembly changes may be required before a satisfactory moisture level is achieved. A reoccurring or persistent “wet” indication is a sign of possible chiller air or water infiltration.

Inspect the moisture indicator only under the following conditions:

• The chiller is operating.

• The purge unit is operating and has been allowed sufficient time to properly remove system moisture

(allow a minimum of 72 hours after replacing filterdrier).

Table 22. Refrigerant moisture content as determined by moisture indicator

Refrigerant moisture level

23.9°C

(75°F)

R-1233zd(E)

37.8°C

(100°F)

51.7°C

(125°F)

Dry

Caution

Below 20

20–50

Below 30

30–80

Below 35

35–100

Wet Above 50 Above 80 Above 100

Note:

Refrigerant moisture content given in parts per million (ppm).

Maintaining the Moisture-Indicating Sight

Glass

In normal operating conditions, the moisture-indicating sight glass should not require maintenance beyond keeping the sight glass clean. However, the sight glass should be replaced after any major repair to the unit has taken place, or if it is on a unit in which severe moisture contamination is known to have occurred.

Be aware that it is normal for the sight glass to indicate the presence of moisture for a period of least 72 hours after it is installed and after it has been exposed to atmosphere.

Allow a minimum of 72 hours after sight glass installation or filter-drier service before using the sight glass to determine the system moisture content.

Removing Air After Servicing the Chiller

Air that leaks into a chiller during servicing needs to be removed so that the chiller can operate normally. The purge pump-out system, which performs this function, may operate for a long time to remove the air before cycling off for the first time. This is due to the large amount of non-condensables and the relatively small amount of refrigerant being drawn into the purge tank.

Important:

Do not bypass or remove the pump-out restrictor of the EarthWise Purge system.

Doing so could reduce the efficiency of the purge system. The purge system has a faster air exhaust rate than previous purge systems, which makes bypassing or removing the restrictor unnecessary.

The Daily Pumpout Limit determines how long the purge pump-out compressor can operate continuously without generating a Purge Daily Pumpout Exceeded diagnostic, which will shut off the purge system. You can disable the

98 CDHH-SVX001C-EN

Recommended Maintenance

Daily Pumpout Limit to allow the purge to pump out for an extended period of time.

Once the level of non-condensables present in the chiller falls to a point in which an increasing amount of refrigerant enters the purge tank, the pump-out compressor begins to cycle on and off. As the refrigerant in the system becomes less contaminated with non-condensables, purge pumpout is activated less frequently.

Note: If large amounts of non-condensables are present in the chiller, the air removal rate can be enhanced by operating the chiller at part-load conditions.

Leak Testing

WARNING

Hazard of Explosion!

Failure to follow recommended safe leak test procedures could result in death or serious injury or equipment or property-only-damage. Never use an open flame to detect gas leaks. Explosive conditions may occur. Use a leak test solution or other approved methods for leak testing.

WARNING

Hazardous Pressures!

Failure to follow these safety precautions could result in a sudden rise of pressure possibly resulting in a violent explosion which could result in death or serious injury. If a heat source is required to raise the tank pressure during removal of refrigerant from cylinders, use only warm water or heat blankets to raise the tank temperature. Do not exceed a temperature of 150°F. Do not, under any circumstances apply direct flame to any portion of the cylinder.

Important:

If leak testing is required, contact a Trane service agency.

Recommended System Maintenance

NOTICE:

Proper Water Treatment!

The use of untreated or improperly treated water in a

CenTraVac could result in scaling, erosion, corrosion, algae or slime. It is recommended that the services of a qualified water treatment specialist be engaged to determine what water treatment, if any, is required.

Trane assumes no responsibility for equipment failures which result from untreated or improperly treated water, or saline or brackish water.

Condenser

Condenser tube fouling is indicated when the approach temperature (the difference between the condensing refrigerant temperature and the leaving condenser water temperature) is higher than predicted.

If the annual condenser tube inspection indicates that the tubes are fouled, two cleaning methods, mechanical and chemical, can be used to rid the tubes of contaminants.

Use the mechanical cleaning method to remove sludge and loose material from smooth-bore tubes.

To clean other types of tubes including internallyenhanced types, consult a qualified service organization for recommendations.

X39003892001A

Note: Graphic labels (shown above) are used for CE application only.

CDHH-SVX001C-EN 99

Recommended Maintenance

Figure 58.

Typical chemical cleaning setup

circulator pump pipe connections cleaning solution shutoff valves

1.

Follow all instructions in

“Waterbox Removal and

Installation,” p. 101 to remove waterbox covers.

2. Work a round nylon or brass bristled brush (attached to a rod) in and out of each of the condenser water tubes to loosen the sludge.

3. Thoroughly flush the condenser water tubes with clean water.

Scale deposits are best removed by chemical means.

Be sure to consult any qualified chemical house in the area (one familiar with the local water supply’s chemical mineral content) for a recommended cleaning solution suitable for the job.

Note: A standard condenser water circuit is composed solely of copper, cast iron, and steel.

NOTICE:

Unit Corrosion Damage!

Failure to follow proper procedures when using corrosive chemicals to clean water side of unit could result in corrosion damage to the unit and tubes. It is recommended that the services of a qualified chemical cleaning firm be used. Proper personal protective equipment as recommended by the chemical manufacturer should be used. Refer to the chemicals

MSDS sheet for proper safety procedures.

Important:

All of the materials used in the external circulation system, the quantity of the solution, the duration of the cleaning period, and any required safety precautions should be approved by the company furnishing the materials or performing the cleaning. Remember, however, that whenever the chemical tube cleaning method is used, it must be followed up with mechanical tube cleaning, flushing and inspection.

Evaporator

Since the evaporator is typically part of a closed circuit, it may not accumulate appreciable amounts of scale or sludge. Normally, cleaning every three years is sufficient.

However, periodic inspection and cleaning is recommended on open evaporator systems, such as air washers.

Waterbox and Tubesheet Protective Coatings

Trane recommends that coated waterboxes/tubesheets— regardless of the type of protective coating included—be taken out of service within the first one to three months of operation for inspection. Any voids or defects identified upon inspection must be repaired. If the water quality is known to be highly supportive of corrosion (i.e., sea water, etc.), inspect the coating system at one month; if the water quality is known to be relatively benign (i.e., normal treated and clean condenser water), inspect the coating system within three months. Only when initial inspections show no problems are present should subsequent maintenance intervals be increased.

Sacrificial Anodes

The replacement schedule for the optional zinc or magnesium anodes can vary greatly with the aggressiveness of the water that is in the system. Some sites could require anode replacement every two to three months while other sites may require anode replacement every two to three years. Trane recommends that anode inspection for wear sometime within the first several months of the anodes being placed into service. If the observed loss of anode material is small, then the interval between subsequent inspections can be lengthened.

Replace the anode and/or shorten the inspection interval if the anode has lost 50 percent or more of its original mass.

If anode depletion occurs very quickly, consult a water treatment specialist to determine if the anode material selected is correct for the application.

NOTICE:

Equipment Damage!

Failure to follow instructions could result in equipment damage. Do NOT use Teflon-based tape or paste on anode; a small amount of liquid sealant (Loctite

®

242 or equivalent) may be applied to prevent leakage when installing an anode, but do not apply so much sealant that it prevents the necessary electrical connection between the anode and the waterbox.

As needed after draining the waterbox, use a 63.5 mm (2-1/

2 in.) wrench to remove/install Trane-supplied waterbox anodes.

100 CDHH-SVX001C-EN

Waterbox Removal and Installation

Important:

Only qualified technicians should perform the installation and servicing of this equipment.

Discussion

This section will discuss recommended lifting. Proper lifting technique will vary based on mechanical room layout.

• It is the responsibility of the person(s) performing the work to be properly trained in the safe practice of rigging, lifting, securing, and fastening of the waterbox.

• It is the responsibility of the person(s) providing and using the rigging and lifting devices to inspect these devices to ensure they are free from defect and are rated to meet or exceed the published weight of the waterbox.

• Always use rigging and lifting devices in accordance with the applicable instructions for such device.

Procedure

5. Disconnect water pipes, if connected.

6. Remove waterbox bolts.

7.

Lift the waterbox away from the shell.

Figure 59.

Waterbox lifting—condenser and evaporator lifting points

Lifting

LOCATION

Lifting

LOCATION

Lifting

LOCATION

Lifting

LOCATION

WARNING

Heavy Objects!

Failure to properly lift waterbox could result in death or serious injury. Each of the individual cables (chains or slings) used to lift the waterbox must be capable of supporting the entire weight of the waterbox. The cables (chains or slings) must be rated for overhead lifting applications with an acceptable working load

limit. Refer to Table 24, p. 102 for waterbox weights.

Review mechanical room limitations and determine the safest method or methods of rigging and lifting the waterboxes.

1.

Determine the type and size of chiller being serviced.

Refer to Trane nameplate located on chiller control panel.

Important:

This literature contains rigging and lifting

information only for Trane CTV chillers built

in La Crosse. For Trane CTV chillers built outside the United States, refer to literature provided by the applicable manufacturing location.

2. The rated lifting capacity of the lifting shackle must meet or exceed the published weight of the waterbox.

Verify the waterbox weight from the latest published literature.

3. Ensure that the lift connection device has the correct size for the waterbox lifting hole.

4. Properly connect the shackle to the waterbox.

Figure 59, p. 101

WARNING

Overhead Hazard!

Failure to follow instructions could result in death or serious injuries. Never stand below or in close proximity to heavy objects while they are suspended from, or being lifted by, a lifting device in case the object drops.

8. Store waterbox in a safe and secure location and position.

Note: Do not leave waterbox suspended from lifting device.

CDHH-SVX001C-EN 101

Waterbox Removal and Installation

Reassembly

Once service is complete, the waterbox should be reinstalled on the shell following all previous procedures in reverse. Use new O-rings or gaskets on all joints after thoroughly cleaning each joint.

• Torque waterbox bolts (see

Table 23

).

Torque Requirements

Table 23. CenTraVac torque

Bolt Size in. (mm)

3/8

1/2

5/8

3/4

Gasket type O-ring

N·m (ft·lb)

33.9 (25)

94.9 (70)

203.4 (150)

339.0 (250)

Flat

N·m (ft·lb)

16.3–24.4 (12–18)

44.7–67.8 (33–50)

94.9–122.0 (70–90)

142.4–210.2 (105–155)

Table 24. CDHH waterbox weights

Shell

Size

400

440

Description

Evaporator, 1034.2 kPaG (150 psig)

Evaporator, 2068.4 kPaG (300 psig)

Condenser, 1034.2 kPaG (150 psig)

Condenser, 2068.4 kPaG (300 psig)

Evaporator, 1034.2 kPaG (150 psig)

Non-Marine

Plate

Weight kg (lb)

Lifting

Hole mm

(in.)

NA NA

Non-Marine

Dome

Weight kg (lb)

295

(652)

Lifting

Hole mm

(in.)

11.9

(0.469)

1003

(2211)

11.9

(0.469)

NA NA

NA

NA

NA

NA

NA

NA

317

(700)

NA

364

(802)

11.9

(0.469)

11.9

(0.469)

11.9

(0.469)

Evaporator, 2068.4 kPaG (300 psig)

1459

(3218)

11.9

(0.469)

NA NA

Condenser, 1034.2 kPaG (150 psig)

Condenser, 2068.4 kPaG (300 psig)

NA

NA

NA

NA

346

(763)

513

(1132)

11.9

(0.469)

11.9

(0.469)

Marine Plate

Cover

Weight kg (lb)

581

(1282)

799

(1763)

Lifting

Hole mm

(in.)

11.9

(0.469)

11.9

(0.469)

NA

11.9

(0.469)

782

(1724)

772

(1702)

1123

(2476)

11.9

(0.469)

11.9

(0.469)

11.9

(0.469)

Marine Dome

Cover

Weight kg (lb)

Lifting

Hole mm

(in.)

NA

NA

NA

NA

NA

NA

NA

NA

NA

NA

NA

NA

NA

NA

NA

NA

246

(543)

321

(708)

11.9

(0.469)

11.9

(0.469)

970

(2138)

1214

(2677)

1876

(4137)

724

(1598)

862

(1901)

Marine

Waterbox

Weight kg (lb)

870

(1918)

1292

(2849)

Lifting

Hole mm

(in.)

35.1

(1.38)

35.1

(1.38)

700

(1544)

21.8

(0.858)

21.8

(0.858)

35.1

(1.38)

35.1

(1.38)

21.8

(0.858)

21.8

(0.858)

Bolt-Tightening Sequence for

Waterboxes

Evaporator Waterbox Covers

Ensure that the waterbox head rests tightly against the tube sheet, and then snugly tighten the bolts in sequential order as shown in the figure below. If excessive tube sheet crown prevents the head from contacting the tube sheet, tighten the bolts located where the greatest gaps occur. Be sure to use an equal number of bolt turns from side to side.

Then, apply final torque to each bolt in sequential order.

Condenser Waterbox Covers

Condenser waterbox covers use a similar procedure to that which is used for the evaporator waterbox covers. Use a crossing pattern as shown in the following figure.

7

21 13 3 1 11 19

5

25

9

24

17

16

15

23

10

26

18

6

20

12

2 4 14 22

8

102 CDHH-SVX001C-EN

Forms and Check Sheets

The following forms and check sheets are included for use with Trane start-up of CDHH CenTraVac chillers. Forms and check sheets are used, as appropriate, for installation completion verification before Trane start-up is scheduled, and for reference during the Trane start-up.

Where the form or check sheet also exists outside of this publication as standalone literature, the literature order number is also listed.

“CenTraVac™ Installation Completion Check Sheet and Request for Trane Service”

(CTV-ADF001*-EN)

“CDHH Start-up Task List”

“CDHH Annual Inspection List”

“Operator Log”

CDHH-SVX001C-EN 103

CenTraVac™ Installation Completion Check Sheet and

Request for Trane Service

Important:

A copy of this completed form must be submitted to the Trane service office that will be responsible for the start-up of the chiller. Start-up will NOT proceed unless applicable items listed in this form have been satisfactorily completed.

To: __________________________________________________ Trane Service Office: ____________________________________

S.O. Number: ________________________________________ Serial Numbers: ________________________________________

Job/Project Name: ______________________________________________________________________________________________

Address: _______________________________________________________________________________________________________

The following items are being installed and will be completed by: __________________________________________________

Important:

Start-up must be performed by Trane or an agent of Trane specifically authorized to perform start-up and warranty of Trane

®

products. Contractor shall provide Trane (or an agent of Trane specifically authorized to perform start-up) with notice of the scheduled start-up at least two weeks prior to the scheduled start-up.

Equipment not started by Trane is not warranted by Trane.

Check box if the task is complete or if the answer is “yes.”

1. CenTraVac

In place and piped.

Note: Do not insulate the CenTraVac chiller or adjacent piping prior to the chiller commissioning by Trane service personnel. The contractor is responsible for any foreign material left in the unit.

2. Piping

Chilled water piping connected to:

CenTraVac

Air handling units

Pumps

Make-up water connected to cooling tower

Water supply connected to filling system

Systems filled

Condenser and heat recovery condenser (as applicable) piping connected to:

CenTraVac

Pumps

Cooling tower

Heating loop (as applicable)

Pumps run, air bled from system

Strainers cleaned

Rupture disk or RuptureGuard™ ventilation piping installed

3. Flow balancing valves installed

Leaving chilled water

Leaving condenser water

Optional heat recovery or auxiliary condenser water

4. Gauges, thermometers, and air vents

Installed on both sides of evaporator

Installed on both sides of condenser and heat recovery condenser (as applicable)

5. Wiring

Compressor motor starter has been furnished by Trane, or has been configured and installed in compliance with the appropriate Trane Starter by Others specification (available from your local Trane Sales Office)

Full power available

Chilled water pump (connected and tested)

Interconnecting wiring, starter to panel (as required)

Condenser water pump (connected and tested)

External interlocks (flow switch, pumps auxiliary, etc.)

Cooling tower fan rotation checked

Chiller motor connection (remote starters)

Heat recovery condenser water pump (as applicable)

Note: Do not make final remote starter-tocompressor motor connections until requested to do so by the Trane service representative!

115 Vac power available for service tools

All controls installed and connected

All magnetic starters installed and connected

CTV-ADF001E-EN (31 Mar 2015) 1

6. Testing

7.

Dry nitrogen available for pressure testing (for disassembled units)

Material and equipment available for leak testing, if necessary

Refrigerant on job site and in close proximity to chiller

Total amount in cylinders/drums: _______ (specify lb or kg) and fill in specifics below:

Number of cylinders/drums _____ of size __________ (specify lb or kg)

Number of cylinders/drums _____ of size __________ (specify lb or kg)

8.

9.

Note: After commissioning is complete, it is the installer’s responsibility to transport empty refrigerant containers to an easily accessible point of loading to facilitate container return or recycling.

Systems can be operated under load conditions

Electrical, control man, and contractor’s representative are available to evacuate, charge, and test the

CenTraVac under serviceman’s supervision

10.Equipment room

Does the equipment room have a refrigerant monitor/ sensor capable of monitoring and alarming within the allowable exposure level of the refrigerant?

Does the installation have properly placed and operating audible and visual refrigerant alarms?

11. Owner awareness

Has the owner been fully instructed on the proper use and handling of refrigerant?

Does the equipment room have proper mechanical ventilation?

If it is required by local code, is a self-contained breathing apparatus available?

Does the owner have a copy of the MSDS for refrigerant?

Note: Additional time required to properly complete the start-up and commissioning, due to any incompleteness of the installation, will be invoiced at prevailing rates.

This is to certify that the Trane

®

equipment has been properly and completely installed, and that the applicable items listed above have been satisfactorily completed.

Checklist completed by (print name): _____________________________________________________________________________

Signature: _____________________________________________ Date: ______________________________

In accordance with your quotation and our purchase order number __________________ , we will therefore require the presence of Trane service on this site, for the purpose of start-up and commissioning, by __________________ (date).

Note: Minimum two-week advance notification is required to allow scheduling of the chiller start-up.

Additional comments/instructions:

_______________________________________________________________________________________________________________

_______________________________________________________________________________________________________________

_______________________________________________________________________________________________________________

This document and the information in it are the property of Trane, and may not be used or reproduced in whole or in part without written permission. Trane reserves the right to revise this publication at any time, and to make changes to its content without obligation to notify any person of such revision or change.

All trademarks referenced in this document are the trademarks of their respective owners.

Trane optimizes the performance of homes and buildings around the world. A business of Ingersoll Rand, the leader in creating and sustaining safe, comfortable and energy efficient environments, Trane offers a broad portfolio of advanced controls and HVAC systems, comprehensive building services, and parts. For more information, visit www.Trane.com.

Trane has a policy of continuous product and product data improvement and reserves the right to change design and specifications without notice.

© 2015 Trane All rights reserved

CTV-ADF001E-EN 31 Mar 2015

Supersedes CTV-ADF001D-EN (10 Oct 2014)

We are committed to using environmentally conscious print practices that reduce waste.

CDHH Start-up Task List

Start-up Tasks to be Performed By Trane

WARNING

Safety Alert!

In addition to the following tasks, you MUST:

• Follow all instructions in the chiller’s Installation, Operation, and Maintenance manual, including warnings, cautions, and notices.

• Perform all required tasks in any applicable Service Alerts and Service Bulletins.

• Review and understand all information provided in Submittals and Design Specifications.

Failure to do so could result in death or serious injury.

General

• Inspect chiller for damage (shipping or rigging).

• Verify and record unit nitrogen holding charge pressure.

• Inspect water piping for proper installation.

– Inspect strainers, flow sensing devices, isolation valves, pressure gauges, thermometer wells, flow balancing valves, vent cocks, and drains.

– Inspect cooling tower piping.

• Verify proper clearances.

• Power wiring meets size requirement.

– Verify proper voltage and amperage rating.

• Verify proper foundation installation.

• Verify unit isolator pads/springs have been installed.

• Verify low voltage circuits are isolated from high voltage circuits.

• Check equipment room for ventilation, refrigerant monitor, rupture disk piping, and PPE.

Note: All conditions which do not conform to the established requirements for unit installation must be corrected prior to start-

up. Any non-conforming condition which is not corrected prior to start-up must be noted in the Non-Compliance Form

(PROD-ADF001*-EN) by the start-up technician; this information must also be signed by responsible site personnel

before start-up and the completed Non-Compliance Form will become part of the start-up record, submitted with a Start-

up Check Sheet and a Chiller Service Report.

Pre-Start Operations

• Verify nitrogen holding charge.

• Calibrate the high pressure cutout control (HPC).

• Meg compressor motor.

• Check condenser installation.

• Check evaporator installation.

NOTICE:

Do Not Apply Electrical Power to a Unit in a Vacuum!

Failure to disconnect power to units with inside-the-delta solid state starters during evacuation or when the unit is in a deep vacuum could cause compressor motor damage. Applying electrical power to a motor in a vacuum could cause damage to the motor. In addition, on units with inside-the-delta solid state starters, all power to the unit must be disconnected prior to evacuating the unit as line power is directly applied to the motor terminals 4, 5, and 6.

• Check electrical and controls.

– Inspect motor starter and control panel.

– Confirm all wiring connections are tight, free of abrasion and have no sharp bends in panel and on compressors.

– Inspect contactors and relays.

– Verify unit wiring (low and high voltage) is correctly isolated, phased, and properly grounded.

– Connect external 120 Vac power to power up the control panel.

CDHH Start-up Task List Revised: 31 Mar 2015

– Run the oil pump to verify pump can provide 137.9 to 165.5 kPaD (20 to 24 psid) net pressure.

– Verify and record control parameters.

– Verify all control interlocks are installed and properly functioning.

– Dry run starter (non-AFD).

• Measure condenser pressures and flow.

• Adjust condenser flow sensing device.

• Measure evaporator pressures and flow.

• Adjust evaporator flow sensing device.

• Inspect motor starter panel and perform starter panel checkout procedures.

• Confirm proper phase check incoming power.

• Inspect control panel.

• Apply separate source 120 Vac power to control to perform control panel checkout procedure.

• Review and record unit configuration parameters.

• Verify the operation of the oil tank vent valve.

• Verify that the oil cooling line valve actuates.

• Verify vane operator is working properly and moves without binding.

• Dry run test starter (non-AFD).

• Remove separate source power and reconnect wiring.

Preparation for Start-up

• Relieve nitrogen holding charge.

• Confirm proper oil pump operation.

• Confirm oil pump pressure—regulating valve setting.

• Evacuate and charge the system.

• Apply power to the starter panel.

• Verify current to the oil sump heater.

Chiller Start-up

• Set Purge mode to “On.”

• Bump-start the compressor and verify compressor motor rotation.

• Start chiller.

• Verify no unusual noises or vibrations and observe operating conditions.

• If necessary, adjust oil pressure regulator between 137.9 to 165.5 kPaD (20 to 24 psid) net.

• Measure and verify refrigerant pump pressure.

• When chiller is stable, take system log three times at 15-minute intervals.

• Set Purge mode to “Adaptive.”

• Reset the “Starter Energy Consumption” resettable.

• Record a Chiller Service Report.

• Review “AdaptiView Display Customer Training Checklist.”

– Equipment Description

– Stopping/Starting Chiller Operation

– Alarms

– Reports

– Data Graphs

– Equipment Settings

– Display Settings

– Security Settings

– Basic Troubleshooting

Revised: 31 Mar 2015 CDHH Start-up Task List

CDHH Annual Inspection List

Follow the annual maintenance instructions provided in the text of this manual, including but not limited to:

Compressor Motor

• Motor continuity.

• Motor meg test.

• Check motor terminals.

• Inspect motor terminal board.

Starter or AFD

• Inspect starter contacts.

• Check all connections per manufacturer specifications.

• Follow all manufacturer recommendations for starter or AFD maintenance.

• Inspect/clean/service the AFD cooling system (water- or air-cooled AFD).

• Record all applicable starter or starter component settings.

Oil System

• Annual oil analysis (follow recommendations).

• Clean and lubricate oil system as required.

• Electrical inspection.

• Pump motor continuity check.

• Run oil pump and check differential oil pressure.

Condenser

• Inspect for fouling and scaling in tubes.

• Check operation of condenser water flow sensing device.

• Factory recommendation to eddy current test tubes every three years.

Evaporator

• Inspect for fouling and scaling in tubes.

• Check operation of evaporator water flow sensing device.

• Factory recommendation to eddy current test tubes every three years.

Control Circuits

• Verify control parameters.

• Test appropriate sensors for accuracy.

• Ensure sensors are properly seated in wells with thermopaste installed.

• Check evaporator leaving water temperature low temperature cutout setpoint.

• Condenser high pressure switch check-out.

• Check adjustment and operation of the inlet guide vane actuator.

Leak Test Chiller

• Check purge times and unit performance logs. If warranted, pressure leak test.

• Review oil analysis. If required, submit refrigerant sample for analysis.

• Inspect unit for any signs of refrigerant or oil leakage.

• Check unit for any loose bolts on flange, volutes, or casing.

Purge Unit

• Review this manual and follow maintenance and/or inspection items identified.

• Review purge pump out data.

• Review overall operation of purge and service as necessary.

Exterior

• Inlet guide vane linkage.

• Clean and touch-up painted surfaces as needed.

• Repair deteriorated, torn, or missing insulation.

CDHH Annual Inspection List Revised: 10 Oct 2014

Optional Accessories

• If applicable, lubricate factory-installed gantries.

• After the first month of operation, inspect Heresite

®

or Belzona

®

coated waterboxes after first month; thereafter, inspect as needed.

• Inspect anodes.

• Inspect and lubricate hinged waterboxes.

• With water flow sensing option, bleed tubing from waterboxes to transformers.

Revised: 10 Oct 2014 CDHH Annual Inspection List

Operator Log

Water-Cooled CDHH CenTraVac Chiller with UC800 Controller

Tracer AdaptiView Reports—Log Sheet

Evaporator

Entering

Leaving

Saturated

Refrig. Press

Approach

Flow Sw Status

Condenser

Entering

Leaving

Saturated

Refrig. Press

Approach

Flow Sw Status

Compressor 1

Starts

Running Time

Oil Tank Press

Oil Discharge Press

Oil Diff Press

Oil Tank Temp

IGV Position %

Outboard Bearing Pad Temperature #1

Outboard Bearing Pad Temperature #2

Outboard Bearing Pad Temperature #3

Motor 1

% RLA L1, L2, L3

Amps L1, L2, L3

Volts AB, BC, CA

Power KW

Load PF

Winding #1 Temp

Winding #2 Temp

Winding #3 Temp

Compressor 2

Starts

Running Time

Oil Tank Press

Oil Discharge Press

Oil Diff Press

Oil Tank Temp

IGV Position %

Outboard Bearing Pad Temperature #1

Outboard Bearing Pad Temperature #2

Outboard Bearing Pad Temperature #3

Motor 2

% RLA L1, L2, L3

Amps L1, L2, L3

Volts AB, BC, CA

Power KW

Load PF

Winding #1 Temp

Winding #2 Temp

Winding #3 Temp

Log 1 Log 2

CDHH Operator Log

Log 3

Revised: 10 Oct 2014

Water-Cooled CDHH CenTraVac Chiller with UC800 Controller

Tracer AdaptiView Reports—Log Sheet with AFD only

AFD Freq

AFD Speed

AFD Transistor Temp

Purge

Time Until Next Purge Run

Daily Pumpout—24 hrs

Avg. Daily Pumpout—7 days

Daily Pumpout Limit/Alarm

Chiller On—7 days

Pumpout Chiller On—7 days

Pumpout Chiller Off—7 days

Pumpout—Life

Purge Rfgt Cprsr Suction Temp.

Purge Liquid Temp.

Carbon Tank Temp.

Log 1 Log 2

Date:

Technician:

Owner:

Log 3

Revised: 10 Oct 2014 CDHH Operator Log

Trane optimizes the performance of homes and buildings around the world. A business of Ingersoll Rand, the leader in creating and sustaining safe, comfortable and energy efficient environments, Trane offers a broad portfolio of advanced controls and HVAC systems, comprehensive building services, and parts. For more information, visit www.Trane.com.

Trane has a policy of continuous product and product data improvement and reserves the right to change design and specifications without notice.

© 2015 Trane All rights reserved

CDHH-SVX001C-EN 31 Mar 2015

Supersedes CDHH-SVX001B-EN (29 Jan 2015)
