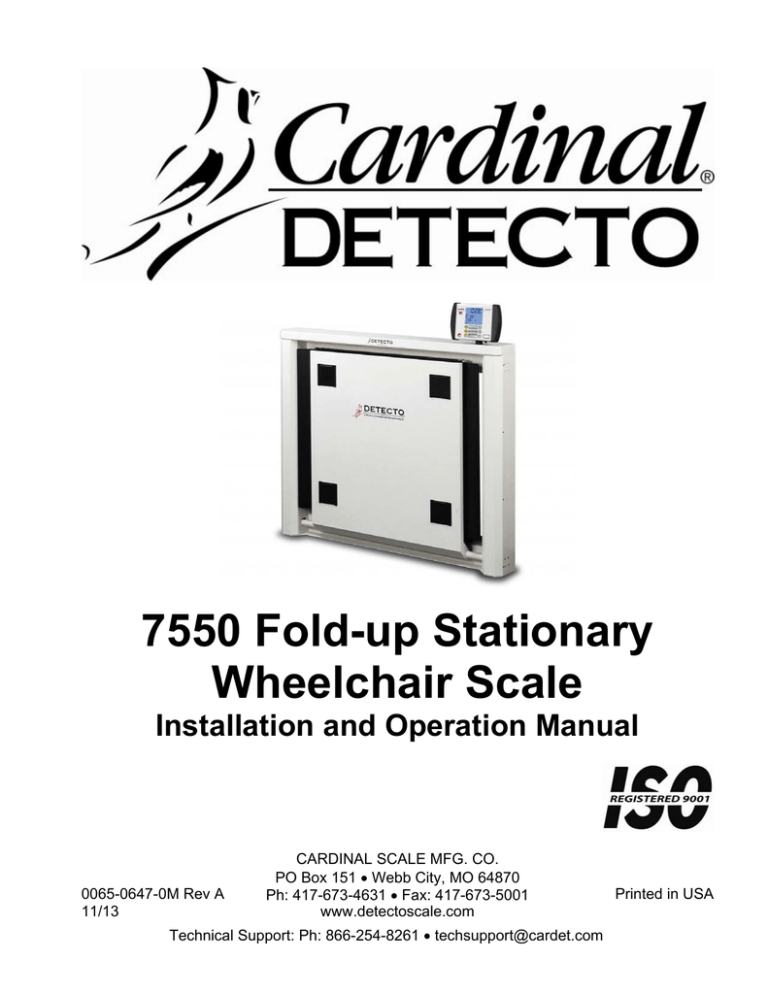

7550 Fold-up Stationary

Wheelchair Scale

Installation and Operation Manual

CARDINAL SCALE MFG. CO.

0065-0647-0M Rev A

PO Box 151 Webb City , MO 64870

Ph: 417-673-4631

 Fax: 417-673-5001

Printed in USA

11/13 www.detectoscale.com

Technical Support: Ph: 866-254-8261

[email protected]

1

INTRODUCTION

Thank you for purchasing our DETECTO™ 7550 Fold-up Stationary Wheelchair Scale. It has been manufactured with quality and reliability at our factory in Webb City, MO USA. This scale has been assembled and tested before leaving our factory to insure accuracy and dependability for years to come.

This manual is provided to guide you through the assembly of your scale. Please read it thoroughly before attempting to assemble your scale and keep it handy for future reference.

COPYRIGHT

All rights reserved. Reproduction or use, without expressed written permission, of editorial or pictorial content, in any manner, is prohibited. No patent liability is assumed with respect to the use of the information contained herein.

DISCLAIMER

While every precaution has been taken in the preparation of this manual, the Seller assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from use of the information contained herein. All instructions and diagrams have been checked for accuracy and ease of application; however, success and safety in working with tools depend to a great extent upon the individual accuracy, skill and caution. For this reason the Seller is not able to guarantee the result of any procedure contained herein. Nor can they assume responsibility for any damage to property or injury to persons occasioned from the procedures. Persons engaging the procedures do so entirely at their own risk.

PRECAUTIONS

Before beginning assembly of this scale, read this manual and pay special attention to all "NOTIFICATION" symbols:

IMPORTANT:

0065-0647-0M Rev A

 7550 FOLD-UP STATIONARY SCALE

1

SPECIFICATIONS

Capacity: 1,000 lb x 0.2 lb / 450 kg x 0.1 kg

Platform Size (Flat Portion): 32.3 in W x 33 in D / 81.9 cm W x 83.9 cm D

Overall Dimensions

Width:

Depth:

Height:

50.3 in / 127.6 cm

39.3 in / 99.7 cm (with platform extended)

7.3 in / 18.4 cm (without platform extended)

44.5 in / 113 cm (with indicator)

41.1 in / 104.4 cm (without indicator)

Power:

Display:

Keypad:

Connectivity:

6 “C” cell Alkaline, Ni-Cad or NiMH batteries (not included) OR an optional 12 VDC 1.25A wall plug-in AC power adapter

(Detecto part number MV1PWR)

5-digit, 7-segment, 7/8 inch (22.23 mm) high LCD weight digits

19 key, color-coded, sealed membrane

RS232 serial, USB and optional wired and Wi-Fi Ethernet

FEATURES

Slim, 7.3-inch Profile

2-Way Easy Access Ramps

Compact Vertical Fold-Up Platform Conserves Space

Gas Spring Lifting Mechanism

Platform Lip to Hold Wheelchairs in Place on Scale

Optional Wi-Fi Connectivity for EMR/HER

USA-Made Quality - ISO 9001:2008

Sturdy Steel Construction for Durability

RS232 Serial and USB Ports Standard

350-Degree Tilt-and-Swivel Rotating Indicator

Body Mass Index Calculation

Optional Printer Available to Record Patient Weights

2

0065-0647-0M Rev A

 7550 FOLD-UP STATIONARY SCALE

INSTALLATION

Location

The scale should be installed in a location with a flat, level floor. Note that the weighing platform will not sit completely against the floor. This will not affect the accuracy of the scale as the weighing platform will settle to the floor when the patient is placed on the scale.

Back Load Cell

Front Load Cell

1/8” – 1/4” Clearance

The front load cells of the weighing platform will be off the floor. The back load cells must be sitting completely on the floor.

There should be 1/8” to 1/4” clearance between the sides of the scale frame and the floor. This clearance is required for the lift mechanism to close completely. The included shims can be used to raise the scale if there are slight imperfections with the floor or wall mount installation that sits the wall mount too low and prevents the scale from closing completely. If the wall mount is too high the back load cells will not touch the floor when the weighing platform is lowered. If the wall mount is too high, the wall mount must be moved lower on the wall or the scale will not function correctly.

NOTE: It may be necessary to remove any base molding/chair rail/wall guard or to remove a section of the base molding/chair rail/wall guard to provide space to mount the scale in a true vertical position. An alternative method would be to shim the wall mount away from the wall to accommodate any base molding/chair rail/wall guard.

0065-0647-0M Rev A

 7550 FOLD-UP STATIONARY SCALE

3

This page intentionally left blank.

4

0065-0647-0M Rev A

 7550 FOLD-UP STATIONARY SCALE

Step 1 – Unpack the Scale

IMPORTANT:

UNPACKING AND INSTALLATION OF THIS PRODUCT

SHOULD BE PERFORMED BY TWO PEOPLE. PLEASE READ THROUGH THE

INSTRUCTIONS CAREFULLY BEFORE STARTING TO INSTALL THE SCALE.

NOTE: Make certain the scale has been received in good condition. Check for any damage incurred in shipping. If scale has been damaged, place a claim with the carrier. It is the responsibility of the purchaser to file all claims for any damages or loss incurred during transit.

Keep the carton and packing material for return shipment if it should become necessary.

Wall

Mount

Weight

Indicator

1. Cut the shipping straps and remove the shipping carton top to unpack the scale.

2. Remove the boxes containing the Wall Mount and Weight Indicator from the shipping carton.

NOTE: Leave the strap securing

the Weighing Platform to the

Scale Frame until instructed to

Leave this strap until

instructed to remove!

remove it in “Step 4 – Install the

Scale on the Wall Mount”.

DO NOT lift scale by this strap!

Cut

Tape

3. Remove all packing material.

4. Cut the tape securing the flaps on one end of the carton and with an assistant, slide the scale out of the carton.

NOTE: When the scale is out of the carton, DO NOT lift the scale by the strap securing the weighing platform to the scale frame to raise the scale to the upright position.

0065-0647-0M Rev A

 7550 FOLD-UP STATIONARY SCALE

5

Step 2 – Install the Wall Mount

NOTE: Due to the various types of wall construction, no mounting hardware is furnished with the scale. Appropriate mounting hardware suitable to the wall’s construction will need to be obtained to secure the wall mount to the wall.

The wall mount allows the scale to be adjusted up or down and left or right to accommodate floors that may not be perfectly flat. This insures the accuracy of the weighing platform and prevents undue stress to the scale.

The wall mount should be secured to the wall using mounting hardware suitable to the wall’s construction.

The six (6) holes (in groups of two, sixteen (16) inchs apart) in the wall mount allow for 1/4" hardware to be used to secure the wall mount to the wall.

1. Determine the desired location where the scale is to be mounted.

2. With an assistant, place the wall mount against the wall. Insure it’s level and 35 1/2” from the top edge of the wall mount to the floor.

3. Mark the holes to mount the wall mount.

4. Remove the wall mount and drill the required diameter holes for the mounting hardware used.

5. Fasten the wall mount to the wall.

6

0065-0647-0M Rev A

 7550 FOLD-UP STATIONARY SCALE

35 1/2”

Top Edge

to Floor

Step 3 – Routing the Load Cell Cable

1. With the help of an assistant, raise the scale to the upright position.

NOTE: DO NOT lift the scale by the shipping strap to raise to the updright position. Refer to the note and picture in “Step 1 – Unpack the Scale”.

2. On the back of the scale, locate the load cell cable and the large cut-out in the scale frame.

3. Feed the load cell cable through the large cut-out in the back of the scale frame.

4. Continue feeding the load cell cable through the scale frame and up through the notch in the top of the scale frame.

0065-0647-0M Rev A

 7550 FOLD-UP STATIONARY SCALE

7

Step 4 – Install the Scale on the Wall Mount

1. Once the Load Cell cable has been routed through the scale frame, remove the strap securing the weighing platform to the scale frame. Refer to the note and picture in Step 1.

2. With an assistant, lift the scale above the wall mount and then lower it into position in the channel of the wall mount.

3. Center the scale side to side in the channel of the wall mount.

Rubber

Bumper

Wall

Mount

Rubber

Bumper

8

0065-0647-0M Rev A

 7550 FOLD-UP STATIONARY SCALE

Step 5 – Install the Weight Indicator

1. Remove the weight indicator from its box and unpack it. Obtain and install

1

six “C” batteries in the indicator.

2. Assemble the indicator swivel ball socket mount and then place it over the bolt and washer on the top right of the scale frame.

Adjustment

Knob

Swivel Ball

Socket

Mounting Bolt and Washer

3. To install the indicator, slightly loosen the adjustment knob to allow the two parts of the socket to open enough to insert the rubber ball and place the rubber ball on the back of the indicator into the swivel ball socket mount. Tighten the adjustment knob slightly to secure the indicator for the next step.

4. Turn the indicator around (display away from you). Locate the 9-pin load cell connector on the back panel of the indicator. Align the long edge of the load cell cable connector with the long edge of the indicator connector. Place the load cell cable connector on the indicator connector and secure using the load cell cable retaining screws.

5. Adjust the indicator to the desired viewing angle and direction and then tighten the adjustment knob.

1

NOTE: For more detailed information on installing the batteries, connecting the load cell cable and mounting the weight indicator on the scale, refer to the MedVue Model

MV1 Medical Weight Analyzer Owner’s Manual, 8555-M512-O1.

0065-0647-0M Rev A

 7550 FOLD-UP STATIONARY SCALE

9

Step 6 – Scale Operation

1. With the weighing platform in the closed

(stored) position, grasp the top edge of the platform and pull it down into the operating position.

2.

With the weighing platform in the operating position, press the ON/OFF key to turn the indicator on.

3.

When the indicator reads Zero, place the em pty wheelchair on the weighing platform and

TARE the wheelchair weight if desired.

4.

Position the patient on the weighing platform by pulling the wheelchair onto the platform.

Do Not push the wheelchair on or off the we ighing platform.

DANGER: Never PUSH the wheelchair ont o or off the weighing platform!

Always PULL the wheelchair onto and off th e platform. Serious injury to the patient could occur!

10

Direction of Travel

0065-0647-0M Rev A

 7550 FOLD-UP STATIONARY SCALE

Step 6 – Scale Operation, Cont.

5. Lock the wheelchair wheels.

6. When the weight reading is steady, record the patient’s weight.

7. Remove the patient by pulling the wheelchair off the weighing platform. Do Not push the wheelchair off the weighing platform.

8. To return the weighing platform to the closed (stored) position, lift the platform up.

Lift weighing platform up to return to the closed (stored) position.

Platform in closed (stored) position

0065-0647-0M Rev A

 7550 FOLD-UP STATIONARY SCALE

11

PARTS IDENTIFICATION

FRAME ASSEMBLY

ITEM

1

2

12

5

8

1

1

0065-C624-0A

0065-C624-1A

DESCRIPTION

CYLINDER MOUNT WELDMENT LEFT

CYLINDER MOUNT WELDMENT RIGHT

20

1

6021-2033

8555-B519-0A

SCW BUTTON-HD. CAP-SCREW.. 10-32X.25

MEDVUE MTG KIT ASSY

0065-0647-0M Rev A

 7550 FOLD-UP STATIONARY SCALE

PARTS IDENTIFICATION

FRAME ASSEMBLY, CONT.

ITEM

1

5

6

7

1

20

2

AR

0065-C624-0A

6021-2033

6031-0220

6560-1125

DESCRIPTION

CYLINDER MOUNT WELDMENT L EFT

SCW BUTT ON-HD. CAP-SCREW.. 10-32X.25

BALL STUD, GAS SPRI NG, 10 MM DIA, 5/16” - 18

ADHESIVE LOCTITE 2 42 THRDLCKR, REMOVABLE

0065-0647-0M Rev A

 7550 FOLD-UP STATIONARY SCALE

13

PARTS IDENTIFICATION

SUPPORT TRAY ASSEMBLY

ITEM

8

10

13

14

1

2

4

4

3502-B629-0A

6021-0654

6610-5007

FP-250

DESCRIPTION

PCB 7550 4 CELL TRIM BOARD

SCW PAN-HEAD. MACHINE-SCW 06-32X 0.25

CABLE CLIP, 1” X 1” GREY

LOAD CELL, FLAT PLATE, 250 LBS

14

0065-0647-0M Rev A

 7550 FOLD-UP STATIONARY SCALE

PARTS IDENTIFICATION

SUPPORT TRAY ASSEMBLY, CONT.

ITEM

1 8

2

3

4

8

0065-B632-0A

0065-B635-08

4 4

5 8

6 4

9 16 6013-0295

11

12

4

AR

6031-0220

6560-1125

DESCRIPTION

LOAD CELL FOOT WELDMENT

LOAD CELL MOUNT SPRING

NUT #10-32 HEX Z/P

BALL STUD, GAS SPRING, 10 MM DIA, 5/16” - 18

ADHESIVE LOCTITE 242 THRDLCKR, REMOVABLE

0065-0647-0M Rev A

 7550 FOLD-UP STATIONARY SCALE

15

PARTS IDENTIFICATION

FINAL ASSEMBLY

16

0065-0647-0M Rev A

 7550 FOLD-UP STATIONARY SCALE

PARTS IDENTIFICATION

FINAL ASSEMBLY, CONT.

0065-0647-0M Rev A

 7550 FOLD-UP STATIONARY SCALE

17

PARTS IDENTIFICATION

FINAL ASSEMBLY, CONT.

DESCRIPTION ITEM

4 1 0065-b638-0A INDICATOR CABLE 7550

11

12

13

14

15

16

2

2

4

28

2

2

6021-1058

6021-1246

6021-1801

6021-2033

6031-0219

6031-0221

17

18

19

20

AR

AR

3

2

30

1

NOT SHOWN

6050-3049

6560-1125

6610-5007

6680-0021

SCW TRUSS-HEAD MACHINE-SCW 10-32X.375

SCW SHOULDER.. SOCKET HEAD 5/16-18X1.0”

SCW FLAT-HEAD. SOCKET CAP

.25-20X.375 BLACK OXIDE

SCW BUTTON-HD. CAP-SCREW.. 10-32X.25

CYLINDER, GAS SPRING, 191 LBS,

TWO SOCKET 8 INCH STROKE

CYLINDER, GAS SPRING, 191 LBS,

ONE SOCKET 8 INCH STROKE

GREASE, FOOD GRADE, MOLYKOTE G-4500 14OZ

ADHESIVE LOCTITE 242 THRDLCKR, REMOVABLE

CABLE CLIP, 1” X 1” GREY

SPACER NYLON 1.000 OD X .450 ID X .219 LONG

18

7550 WALL MOUNT (0065-C623-08) AND HOLE SPACING

0065-0647-0M Rev A

 7550 FOLD-UP STATIONARY SCALE

STATEMENT OF LIMITED WARRANTY

Detecto Scale warrants its equipment to be free from defects in material and workmanship as follows: Detecto warrants to the original purchaser only that it will repair or replace any part of equipment which is defective in material or workmanship for a period of one (1) year from date of shipment. Detecto shall be the sole judge of what constitutes a defect.

During the first ninety (90) days Detecto may choose to supply all necessary replacement parts and service during normal weekday working hours at no charge to the buyer.

After the first ninety (90) days Detecto will supply parts and service at the job site provided the owner agrees to pay the Dealer for all travel time, including mileage and test equipment, as well as any expenses incurred over the direct labor of the technician at the job site. This limited warranty honors only labor performed by Detecto authorized dealers.

This warranty does not apply to peripheral equipment not manufactured by Detecto; this equipment will be covered by certain manufacturer’s warranty only.

This warranty does not include replacement of expendable or consumable parts. This does not apply to any item which has deteriorated or damaged due to wear, accident, misuse, abuse, improper line voltage, overloading, theft, lightning, fire, water or acts of God, or due to extended storage or exposure while in purchaser’s possession. This warranty does not apply to maintenance service. Purchased parts will have a ninety (90) day repair or replacement warranty only.

Detecto may require components be returned to the factory; they must be properly packed and shipping charges prepaid. A return authorization number must be obtained for all returns and marked on the outside of all returned packages. Detecto accepts no responsibility for loss or damage in transit.

Conditions Which Void Limited Warranty

This warranty shall not apply to equipment which:

A.) Has been tampered with, defaced, mishandled or have had repairs and modifications not authorized by Detecto.

B.) Has had serial number altered, defaced, or removed.

C.) Has not been grounded according to Detecto’s recommended procedure.

Freight Carrier Damage

Claims for equipment damaged in transit must be referred to the freight carrier in accordance with freight carrier regulations.

This warranty sets forth the extent of our liability for breach of any warranty or deficiency in connection with the sale or use of the product. Detecto will not be liable for consequential damages of any nature, including but not limited to, loss of profit, delays or expenses, whether based on tort or contract. Detecto reserves the right to incorporate improvements in material and design without notice and is not obligated to incorporate improvements in equipment previously manufactured.

The foregoing is in lieu of all other warranties, express or implied including any warranty that extends beyond the description of the product including any warranty of merchantability or fitness for a particular purpose. This warranty covers only those Detecto products installed in the forty-eight (48) contiguous continental United States.

Ph. (800) 641-2008

E-mail: [email protected]

203 E. Daugherty

Webb City, MO 64870

02/06

Printed in USA

D268-WARRANTY-DET

20

0065-0647-0M Rev A

 7550 FOLD-UP STATIONARY SCALE
