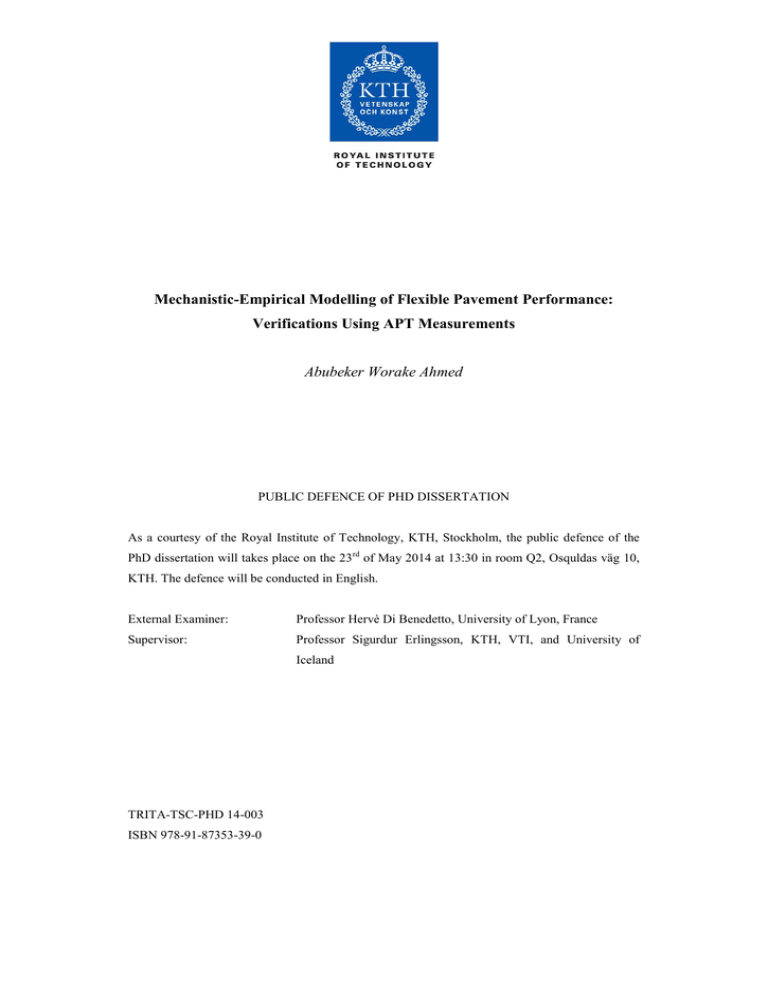

Abubeker Worake Ahmed

PUBLIC DEFENCE OF PHD DISSERTATION

As a courtesy of the Royal Institute of Technology, KTH, Stockholm, the public defence of the

PhD dissertation will takes place on the 23 rd

of May 2014 at 13:30 in room Q2, Osquldas väg 10,

KTH. The defence will be conducted in English.

External Examiner:

Supervisor:

Professor Hervè Di Benedetto, University of Lyon, France

Professor Sigurdur Erlingsson, KTH, VTI, and University of

Iceland

TRITA-TSC-PHD 14-003

ISBN 978-91-87353-39-0

Mechanistic-Empirical Modelling of Flexible Pavement Performance:

Verifications Using APT Measurements

Abubeker Worake Ahmed

Division of Highway and Railway Engineering, Department of Transport Science, Royal Institute of Technology, Stockholm, Sweden

ABSTRACT

Mechanistic-Empirical (M-E) pavement design procedures are composed of a reliable response model to estimate the state of stress in the pavement and distress models in order to predict the different types of pavement distresses due to the prevailing traffic and environmental conditions.

One of the main objectives of this study was to develop a response model based on multilayer elastic theory (MLET) with improved computational performance by optimizing the time consuming parts of the MLET processes. A comprehensive comparison of the developed program with two widely used programs demonstrated excellent agreement and improved computational performance. Moreover, the program was extended to incorporate the viscoelastic behaviour of bituminous materials through elastic-viscoelastic correspondence principle. A procedure based on collocation of linear viscoelastic (LVE) solutions at selected key time durations was also proposed that improved the computational performance for LVE analysis of stationary and moving loads. A comparison of the LVE responses with measurements from accelerated pavement testing (APT) revealed a good agreement.

Furthermore the developed response model was employed to evaluate permanent deformation models for bound and unbound granular materials (UGMs) using full scale APTs. The M-E

Pavement Design Guide (MEPDG) model for UGMs and two relatively new models were evaluated to model the permanent deformation in UGMs. Moreover, for bound materials, the simplified form of the MEPDG model for bituminous bound layers was also evaluated. The measured and predicted permanent deformations were in general in good agreement, with only small discrepancies between the models.

Finally, as heavy traffic loading is one of the main factors affecting the performance of flexible pavement, three types of characterizations for heavy traffic axle load spectrum for M-E analysis and design of pavement structures were evaluated. The study recommended an improved approach that enhanced the accuracy and computational performance.

Keywords: Flexible Pavement; Pavement Performance Models; Multilayer Elastic Theory; Linear

Viscoelasticity; Rutting; Accelerated Pavement Testing; Heavy Vehicle Simulator.

Mechanistic-Empirical Modelling of Flexible

Pavement Performance:

Verifications Using

APT Measurements

Abubeker Worake Ahmed

Doctoral Thesis

KTH Royal Institute of Technology

School of Architecture and the Built Environment

Department of Transport Science

Division of Highway and Railway Engineering

SE-100 44 Stockholm

Stockholm 2014

© Abubeker Worake Ahmed, 2014

Doctoral Thesis

Division of Highway and Railway Engineering

Department of Transport Science

TRITA-TSC-PHD 14-003

ISBN 978-91-87353-39-0

To my father Worake Ahmed

Summary

Summary

In the last few decades, Mechanistic-Empirical (M-E) pavement design methods have gained considerable interest due to their ability to model the actual pavement characterization. M-E design procedures are primarily composed of a reliable response model to estimate the state of stress in the pavement and distress prediction models in order to predict the different types of pavement distresses due to the prevailing traffic and environmental conditions.

One of the objectives of the study presented here was to develop a response model based on multilayer elastic theory (MLET) with improved computational performance by optimizing the time consuming parts of the MLET processes. The convergence and accuracy of responses in the vicinity of the surface of the top layer were improved using Richardson’s extrapolation. An iterative approach to model stress dependency of unbound granular materials was also incorporated. A comprehensive comparison of the program with two frequently used programs demonstrated excellent agreement and improved computational performance.

Moreover, the program was extended to incorporate the viscoelastic nature of bituminous materials the through elastic-viscoelastic correspondence principle. A procedure based on collocation of linear viscoelastic (LVE) solutions at selected key time durations was also proposed that improved the computational performance for LVE analysis of stationary and moving loads. A comparison of the LVE responses with measurements from accelerated pavement testing (APT) revealed good agreement.

The second objective of this study was to evaluate permanent deformation (or rutting) models for bound and unbound granular materials (UGMs). The

Mechanistic Empirical Pavement Design Guide (MEPDG) model for UGMs and two relatively new models were evaluated to model the permanent deformation in

UGMs. Furthermore, for bound materials, the simplified form of the MEPDG model for bituminous bound layers was also evaluated. A total of three series of full scale accelerated pavement tests (APT) using a heavy vehicle simulator (HVS)

i

Mechanistic-Empirical Performance Modelling Abubeker W. Ahmed

was used to evaluate the models. In addition, test results from an extra-large wheel tracking (ELWT) device were employed for the purpose of verification of model parameters for bituminous bound layers. The permanent deformation, wheel loading, pavement temperature and other material properties were continuously controlled during the HVS and ELWT tests. Stress dependent behaviour of unbound materials and traffic wandering were also taken into account during the evaluations and a time hardening approach was applied to accumulate the permanent deformation contributions from different stress levels.

The measured and predicted permanent deformations were in general in good agreement, with only small discrepancies between the models. Model parameters were also estimated for three different types of unbound granular materials.

Finally, as heavy traffic loading is one of the main factors affecting the performance of flexible pavement, this study evaluated three distinct types of characterizations of heavy traffic axle load spectrum (ALS) for M-E analysis and design of pavement structures. The characterization of the entire ALS using an equivalent number of standard axle loads (ESALs) of 80 kN (US) and 100 kN

(Europe) is generally employed in most empirical and few M-E design procedures. The other alternatives are to characterize the entire ALS by Constant

Contact Area (CCA) or Constant Contact Pressure (CCP). These characterizations were evaluated based on the predicted rutting and fatigue cracking of several pavement structures subjected to heavy traffic ALS data collected from bridge-weigh-in-motion stations. The results indicated that for layers below the top 25 cm, all characterizations produced similar values of predicted rutting. However, for the top 25 cm, the methods produced significantly different values of predicted rutting and fatigue cracking. Even though the CCP approach is a relatively realistic representation of the actual traffic compared to the ESAL and CCA characterizations, it was shown that the CCP characterization is computationally very expensive. The study proposed an improvement to the

CCA approach that enhanced the accuracy while maintaining the same level of computational performance.

ii

Acknowledgements

Acknowledgements

First and foremost, I would like to express my special gratitude and appreciation to my supervisor Prof. Sigurdur Erlingsson, who created the opportunities for me, and I am honoured and privileged to have been able to work so closely with him. I am indebted to him for his guidance, encouragement and invaluable advice over the years.

I would like to acknowledge the substantial financial support from the Swedish

Transport Administration (Trafikverket) and the Swedish National Road and

Transport Research Institute (VTI).

I would also like to thank Hassan Hakim, Andreas Waldemarson, Håkan

Arvidsson, Tomas Halldin and Henrik Hellman at the Division of Pavement

Technology at VTI, who contributed invaluable assistance during the specimen preparation and laboratory testing in the second half of the project.

I would also like to thank my colleagues at the Division of Pavement

Technology (väg och banteknik) at VTI. Each of you contributed to making the

Division a nice working place. Special thanks to Dr Safwat Said for his fruitful technical discussions and encouragement. My fellow colleagues Farhad Salour,

Jonas Wennström and Shafiqur Rahman are also acknowledged for their excellent company and for reviewing my thesis. In addition, I also want to thank my friends

Abateneh Yitayew, Markus Svensson (currently working at the Swedish Defence

Research Agency FOI), Tariku Mehari (Ericsson) and Tigist Fetene (KTH) for their support and encouragement.

Further, I would like to extend my sincere gratitude to the staff at the VTI for all administrative and other kinds of support that they have provided me over the years.

Finally, I would like to express my special thanks to my mother Jemila Redi, who has always believed in me, her support has been tremendous; words cannot express how grateful I am. iii

iv

List of Acronyms

List of Acronyms

AASHTO American Association of State Highway and Transport Officials

ALS Axle Load Spectra

APT

BWIM

Accelerated Pavement Testing

Bridge Weight-in-Motion

CalME

CCA

California Mechanistic-Empirical Pavement Design Program

Constant Contact Area

CCP

ELWT

Constant Contact Pressure

Extra-Large Wheel Tracking

ERAPAVE Elastic Response Analysis of Pavements

ESAL Equivalent Standard Axle Load

FEM

FWD

HMA

HVS

Finite Element Method

Falling Weight Deflectometer

Hot Mix Asphalt

Heavy Vehicle Simulator

LVE

M-E

Linear Viscoelastic

Mechanistic–Empirical

MEPDG Mechanistic-Empirical Pavement Design Guide

MLET Multilayer Elastic Theory

PEDRO Permanent Deformation of asphalt for Roads

PMS Pavement Management System

STA

UGMs

Swedish Transport Administration

Unbound Granular Materials

VEROAD Viscoelastic Road Analysis Delft

VTI Swedish National Road and Transport Research Institute

Weigh-in-Motion WIM v

Table of Contents

Table of Contents

Summary ................................................................................................................... i

Acknowledgements ................................................................................................. iii

List of Acronyms ..................................................................................................... v

Table of Contents ................................................................................................... vii

List of Publications ................................................................................................. ix

1. Introduction .......................................................................................................... 1

1.1. Distresses in Pavements ................................................................................ 2

1.2. Use of Distress Models in Pavement Management System ......................... 5

1.3. Objectives and Scope of the Research .......................................................... 6

2. Pavement Performance Modelling ....................................................................... 9

2.1. Response Model for M-E Design Procedures ............................................... 9

2.2. Performance Modelling of Unbound Granular Materials ........................... 13

2.3. Modelling Permanent Deformation in UGMs ............................................ 17

2.4. Performance of Asphalt Bound Materials .................................................. 19

2.5. Modelling Permanent Deformation in Asphalt Mixtures ........................... 21

2.6. Characterization of Traffic .......................................................................... 22

2.7. Time Hardening Procedure ......................................................................... 26

3. Test Equipment, Structures and Materials ......................................................... 29

3.1. Full Scale Accelerated Pavement Tests ...................................................... 29

3.2. Extra-Large Wheel Tracking Tests ............................................................. 31

4. Response Models for Flexible Pavements ......................................................... 33

4.1. Multi-Layer Elastic Theory ........................................................................ 33

4.2. Linear Viscoelastic Theory ......................................................................... 36

5. Evaluation of Permanent Deformation Models ................................................. 39

5.1. Permanent Deformation Models for UGMs ............................................... 39

5.2. Permanent Deformation Model for Bituminous Bound Layers .................. 41

6. Characterization of Heavy Traffic Axle Load Spectrum ................................... 43

vii

Mechanistic-Empirical Performance Modelling Abubeker W. Ahmed

7. Conclusions and Recommendations .................................................................. 47

7.1. Response Model .......................................................................................... 47

7.2. Permanent Deformation Models ................................................................. 48

7.3. Heavy Vehicle Characterization ................................................................. 49

7.4. Limitations and Recommendations for Future Studies............................... 49

References .............................................................................................................. 51

viii

List of Publications

List of Publications

Paper I

Erlingsson, S., and Ahmed, A. W., 2013. Fast layered elastic response program for the analysis of flexible pavement structures,

Road Materials and Pavement Design, 14(1), pp. 196-210, DOI:

10.1080/14680629.2012.757558.

The author of this thesis carried out the development of theory, the programming, and was involved in the write-up.

Paper II

Ahmed, A. W., and Erlingsson, S., 2013. Evaluation of permanent deformation models for unbound granular materials using accelerated pavement tests, Road Materials and Pavement Design,

14(1), pp. 178-195, DOI: 10.1080/14680629.2012.755936.

The author of this thesis carried out the analysis of the data, the development of theory and the write-up.

Paper III

Ahmed A. W., and Erlingsson, S., 2012. Modeling of flexible pavement structure behaviour–Comparisons with HVS measurements In D. Jones, J. Harvey, A. Mateos, and I. Al-Qadi,

(Eds). Advances in Pavement Design through Full-scale Accelerated

Pavement Testing, pp. 493-503, New York: CRC Press.

The author of this thesis analysed the data, carried out the development of theory and the write-up.

Paper IV

Ahmed, A. W., and Erlingsson, S., 2013. Characterization of heavy traffic axle load spectra for mechanistic-empirical pavement design applications. Accepted for publication in International Journal of

Pavement Engineering.

The author of this thesis carried out the data analysis, the development of theory and the write-up.

Paper V

Ahmed, A. W., and Erlingsson, S., 2014. Viscoelastic modelling of pavement structure behaviour in a full scale accelerated pavement test. Submitted to International Journal of Pavement Engineering.

The author of this thesis carried out the analysis of the data, the implementation of the viscoelastic approach used and the write-up.

Paper VI

Ahmed A. W., and Erlingsson, S., 2014. Evaluation of a permanent deformation model for asphalt concrete mixtures using extra-large wheel tracking and heavy vehicle simulator tests. Submitted to Road

Materials and Pavement Design.

The author of this thesis carried out the ELWT tests, performed the analysis of data from both the ELWT and HVS tests, and was involved in the write-up.

ix

x

Introduction

1. Introduction

Flexible pavement flexes or deforms when subjected to wheel loads. A flexible pavement is typically constructed of several layers of materials, traditionally with the stiffer layers (usually made of asphalt materials) placed at the top and weaker layers at the bottom. The major functions of flexible pavements are, among others, to distribute the traffic loading in order to protect the subgrade from excessive stress and to provide a better ride quality.

When subjected to excessive traffic loading and/or severe climatic condition, pavements start to deteriorate and as a result the performance of pavement starts to decline, which in turn affects the safety of road users.

Permanent deformation on the pavement surface along the wheel path, usually referred to as rutting, is one of the major deteriorations that affect the ride quality as well as safety of road users by leading to hydroplaning, which decreases the skid resistance of the surface and eventually makes steering difficult as the rutting increases in depth.

Pavements are designed using either the pure empirical or Mechanistic-

Empirical (M-E) procedures. The empirical procedures developed from the 1950 road test by the American Association of State Highway and Transport Officials

(AASHTO) are the basis for most existing empirical design procedures in use worldwide. However these procedures are subjected to growing uncertainties due to the fact that today’s pavement design data exceed the data used in the 1950s

AASHTO road test. In addition, these procedures have no mechanistic basis to verify that the stresses, strains or deformations which are induced due to traffic loads and environmental conditions are within the allowable limits.

The M-E design philosophy, on the other hand, applies a more realistic characterization of pavement structures and the related variables. The responses

(stresses and strains) in the pavement due to traffic loading, and prevailing environmental conditions are calculated using a response model. Distresses are

1

Mechanistic-Empirical Performance Modelling Abubeker W. Ahmed then predicted using M-E distress (performance) prediction models which empirically relate the pavement performance to the pavement responses, traffic volume and the environment. Finally the M-E procedure attempts to limit the distresses or damage to pavement within the desirable tolerances. Therefore the response model and performance prediction models are vital to M-E pavement design methods. Figure 1 shows the flow chart of a typical M-E pavement design procedure.

Inputs

Traffic Foundation Climate

Pavement

Geometry

&

Material

Properties

Pavement

Performance

Analysis

Pavement Response Model

Damage Accumulation with

Time/Load Cycles

Deterioration/Distress

Prediction Models

Life Cycle

Assessment

Maintenance Strategies

Life Cycle Cost Analysis

Figure 1. Flow chart for Mechanistic - Empirical pavement design procedure.

1.1. Distresses in Pavements

Pavements are built to provide safe and good ride quality for road users. The safety and ride quality are affected due to different types of distresses during the service life of the pavements. A more detailed description of different types of distresses can be found in textbooks such as Huang (2004) or in handbooks of highway engineering. The subsequent sections present the two distress modes that most M-E design procedures attempt to control.

1.1.1. Permanent deformation

Permanent deformation of the surface of the pavement along the wheel path, also referred to as rutting, is a gradual accumulation of small unrecoverable

2

Introduction deformations, in both bound and unbound granular pavement layers, as a result of applied traffic load (Huang, 2004; Sousa et al., 1991). Rutting occurs when the pavement layers consolidate (or change in volume) due to traffic loading. Rutting may also have associated transverse displacement due to shear failure (FHWA,

2003).

Some of the causes of rutting, among others, are an unstable asphalt layer and densification of the asphalt layer due to inadequate compaction during construction. Rutting is considered as a load related or structural distress and is included as a failure criterion in most M-E pavement design procedures. Figure 2 presents the profile of a tested pavement structure after several load passes were carried out using a Heavy Vehicle Simulator (HVS) testing (Wiman, 2006). The figure demonstrates that as the number of load passes increased, the rutting increased.

1

0 500

Distance [mm]

1000 1500 2000 2500

0

-1

-2

-3

-4

Load Repetitions

0

20000

40000

120000

200000

300000

-5

-6

Figure 2. Rut measurements from HVS Testing.

1.1.2. Fatigue cracking

Fatigue cracking is a series of longitudinal and interconnected cracks caused by repeated application of tensile strains due to the traffic load. These tensile strains are usually below the tensile strength of the material.

Fatigue cracking may be initiated at the bottom (bottom-up cracking) of an asphalt layer or stabilized base where tensile stress or strain becomes highest following traffic loading (Mobasher et al., 1997; Huang, 2004). These

3

Mechanistic-Empirical Performance Modelling Abubeker W. Ahmed microscopic cracks propagate through the material to the top of the layer and form one or more longitudinal wheel path cracks which, after repeated application of loading, interconnect with each other and form cracks with a pattern like the skin of an alligator (Huang, 2004). It is also observed that fatigue cracking may be initiated at or near the surface of the pavement and propagate downward (topdown cracking), which commonly occurs in hot mix asphalt pavements (Wang et al., 2003; Wang et al., 2007).

Fatigue cracking, in general, is described as a two-phase process, initiation followed by propagation. The initiation phase of fatigue cracking on the surface is characterized by microcracks that are instigated in places where high cyclic shear or tensile stress occurs (Daniel et al, 2001). The mechanism of top-down cracking is very complicated; however, Wang el al. (2003) indicated that both tensile-type and shear-type cracking may initiate top-down cracking. Once the crack initiation develops and starts to propagate, further loading may lead to the propagation phase which is characterized by macrocracks. Fatigue cracking occurs mostly in areas which are subjected to repeated traffic loading. Therefore fatigue cracking is considered as a structural (load related) distress and it is incorporated in most M-E pavement design methods.

1.1.3. Modelling distresses in pavements

In pavement structures, it is believed that each passage of traffic load contributes a certain amount of damage to the pavement that gradually accumulates over time and eventually leads to pavement failure. Therefore pavements are designed to span a specific amount of design life, after which the pavement is assumed to be no longer serviceable.

The prediction of pavement life for rutting and fatigue cracking was first introduced by Shell’s pavement design method (Dorman, 1962; Sousa et al., 1991;

Huang, 2004). The damage calculation is performed according to Miner’s law where failure due to the combined loading occurs when:

D

R

i

S Y



1

j

1

n i

,

j

N i

,

j

(1)

4

Introduction where D

R

, 0 ≤ D

R

≤ 1 is the damage ration; Y denotes the analysis period; S is the number of seasons per year; n

i,j

is the number of applied load cycles and N

i,j

is the number of load cycles to failure. If D

R

> 1, the pavement has reached its ultimate carrying capacity and can no longer be serviceable.

Miner’s law is used to predict the life of a pavement with respect to both rutting and fatigue cracking and it is implemented for pavement damage calculation in several pavement analyses and design programs such as KENPAVE

(Huang, 2004).

Barksdal (1972) presented an approach to predict the rutting in pavement layers. The method involves dividing the layer into sub-layers and the permanent strain at the mid-points of the sub-layers is then used to estimate the total pavement rutting by summing up the contribution to rutting from each layer or sub-layer as shown in Equation (2).

p

0

p

 

dz

i n

1

p

,

i

z i

(2)

where ε

p,i

denotes permanent strain in sublayer i calculated from M-E performance prediction model (permanent strain model); Δz

i

is the thickness of the

i th

layer or sub-layer; n is the total number of sub-layers and δ

p

is the rut depth.

1.2. Use of Distress Models in Pavement Management System

The pavement management system (PMS) involves a set of techniques for monitoring, collecting, analysing and providing post-construction conditions of pavements so as to assist decision makers in selecting efficient and cost-effective maintenance strategies or intervention level (Haas et al., 1994). Therefore evaluation or prediction of the performance of new or in-service pavements is an essential part of PMS in order to determine the best possible cost-effective maintenance alternatives. PMS usually involves rigorous computations of life cycle cost analyses of several alternatives, thus leading to high- performance M-E performance prediction procedures. Figure 3 illustrates a typical performance curve and the possible intervention levels depending on the predicted performance.

5

Mechanistic-Empirical Performance Modelling Abubeker W. Ahmed

Distress models have also gained importance in performance-based contracts for pavement maintenance and rehabilitation projects. This is due to the fact that performance-based contracts specify the desired levels of pavement performances or fundamental engineering properties. Therefore distress prediction models provide an objective means to assist contractors to achieve a structural design that fulfils the required levels of pavement performance (Pidwerbesky, 2004).

Preventative maintenance

Light rehabilitation

Medium rehabilitation

Performance without treatment

New construction is necessary

Pavement age

Figure 3. Pavement conditions and intervention levels for pavement management system (Huang, 2004).

1.3. Objectives and Scope of the Research

The main objective of this research project was to develop an M-E performance prediction procedure or framework which adequately predicts the performance of thin asphalt pavements under prevailing traffic and environmental conditions. The tasks included:

1. Developing and evaluating high efficiency response programs based on multi-layer elastic and viscoelastic theories for predicting flexible pavement responses.

2. Evaluation of performance prediction models for rutting in bound and unbound layers using measurements of full scale accelerated pavement testing (APT).

3. Evaluation of different characterizations of heavy vehicle axle load spectra

(ALS) for M-E pavement analysis and design applications.

Even though there are several other types of distresses such as thermal and fatigue cracking, the present work mainly concentrated on rutting as it is

6

Introduction considered the most important distress mode. Furthermore, the framework was designed in such a way that other types of distresses can easily be incorporated in the future.

7

Pavement Performance Modelling

2. Pavement Performance Modelling

The subsequent sections present a short literature review of the selected works which are deemed essential for M-E performance modelling of flexible pavement structures. The survey focused on the response model for pavement analysis and permanent deformation (rutting) behaviour of unbound granular materials

(UGMs) and asphalt mixtures.

2.1. Response Model for M-E Design Procedures

The multilayer elastic theory (MLET), first introduced by Burmister (1943, 1945), is by far the most common response model employed for analysis of layered systems, as shown in Figure 4 (Acum and Fox, 1951; Ahlvin and Ulery, 1962;

Jones, 1962; Peattie, 1962; Verstraeten, 1967; Hunag, 1968; Bufler, 1971; Van

Cauwelaert and Lequeux, 1986; Maina and Matsui, 2005; Khazanovich and

Wang, 2007). Other alternatives for analysis of layered pavement systems include

Odemark’s method of equivalent thickness (Ullidtz, 1987) and the 3D finite element method (FEM). The FEM is more comprehensive in its ability to model characteristics of real pavement structures such as a wide variety of nonlinear material behaviour; however it is computationally expensive when compared to the MLET (ARA, 2004). Therefore most M-E pavement design procedures employ the MLET due to its simplicity and computational performance. For instance the US Mechanistic-Empirical Pavement Design Guide (MEPDG) implements a layered elastic program JULEA (ARA, 2004).

9

Mechanistic-Empirical Performance Modelling

a q

E

1

, v

1

E

2

, v

2

Abubeker W. Ahmed

z

1

z

2

r z

n-2

H

E

n-1

,

v

n-1

E n

, v

n z

Figure 4. Layered system subjected to a circular distributed load.

In Figure 4, E

i

and v

i

denote the elastic modulus and Poisson’s ratio of layer i (i =

1, 2,..n); n is the number of layers; z

i

is the distance from the surface to the bottom of layer i; H is the distance from the surface to the top of the lowest layer; q is the circular distributed contact pressure and a denotes the contact radius.

2.1.1. Summary of MLET

An axisymmetric solution of a multilayer elastic system as in Figure 4 can be solved by assuming a stress function

that satisfies (Timoshenko and Goodier,

1951):

4

0

(3) where the Laplace operator

4

for axially symmetrical stress distribution is defined as:

4

2

r

2

1

r

r

2

z

2

2

r

2

1

r

r

z

2

(4)

Each of the constituent layers must satisfy Equation (3) and the axisymmetric responses, stresses and displacements can be obtained from (Timoshenko and

Goodier, 1951; Maina and Matsui, 2005):

10

Pavement Performance Modelling

rz w u z r t

1

( 2

(

1

E

z

z

1

0

)

)

z

r

2

 1

E

3

z

3

2

z

1

r

2

z

r r

2

r

z

2

2

r

2

1

r

1

E

2

r

z

r

2

(5) in which v and E are the Poisson’s ratio and modulus of elasticity of the material, respectively; and σ, τ, w and u are normal stress, shear stress, vertical displacement and radial displacement, respectively. The stress function

for the

i th

layer (i = 1 to n) which satisfies Equation (3) is given by (Huang, 2004):

i

H

3

J

0

(

m

)

m

2

A

C i i e

m

(

i m

e

) 

B i e

m

(

i

m

(

i

 

)

D i m

e

1

) 

m

(

  

i

1

)

(6) where ρ = r/H, λ = z/H, λ

i

= z i

/H; A

i

, B

i

, C

i

and D

i

are integration constants for the

i th

layer which are obtained from the boundary and continuity condition; J

0

is the

Bessel function of the first kind and order 0 and m is the Hankel parameter (Van

Cauwelaert, 2003). The integration constants are determined from the solution of a matrix equation of the form ZX = Y where Z and Y are matrix of 4n-2

4n-2 and

4n-2

1, respectively, which are assembled from the boundary and continuity conditions; X is a column vector of the unknown integration constants.

Introducing Equation (6) into Equation (5) yields the solution of the layered system under concentrated load P = -mJ

0

(mρ). Therefore the responses due to a circular distributed load q over radius a can be found by integrating:

S

q a

H

0

S c m a

J

1

(

m

H

)

dm

(7) where S is the response due to a distributed load of q and S

c

is the response due to a concentrated load of P = -mJ

0

(mρ).

The infinite integral in Equation (7) is evaluated using numerical integration

(Van Cauwelaert and Lequeux, 1986; Hayhoe, 2002; Huang, 2004; Maina and

11

Mechanistic-Empirical Performance Modelling Abubeker W. Ahmed

Matsui, 2005; Khazanovich and Wang, 2007). The integral in Equation (7) is a time consuming process for M-E pavement design applications where a repeated application of response computation is needed. In addition, for locations close to the surface of the top layer, the convergence of the integral is very slow (Maina and Matsui, 2005; Khazanovich and Wang, 2007). Khazanovich and Wang (2007) thus suggested the use of interpolation and tabulated values of stresses in order to improve the computational performance of MLET. Maina and Matsui (2005) employed Richardson’s extrapolation to improve the convergence of near surface responses.

2.1.2. Extension of MLET for problems involving linear viscoelasticity (LVE)

Asphalt mixtures exhibit unique characteristics of both viscous and elastic properties, and hence are categorized as viscoelastic materials. Moreover, understanding the viscoelastic properties of asphalt mixtures is important to achieve performance-based structural design of bituminous layers (ARA, 2004).

Therefore it is important to extend the theory of MLET to account for the effect of viscoelasticity. This can be achieved by means of the elastic–viscoelastic correspondence principle which states that the solutions of linear viscoelastic

(LVE) problems can be derived from corresponding solutions of linear elastic problems in Laplace space (Chou, 1969; Huang, 2004; Kim, 2011).

The constitutive equation for an LVE material is given, in terms of the convolution integral, as:

t

0

E

t

  

d

(8) where

(t) is time dependent stress at time t; E(t-

) is the modulus as function of time t;

(

) is the strain and

is a dummy variable. The Laplace transform of

Equation (8) yields:

ˆ

L

  

L

 

0

t

E

t

  

d

s

ˆ

ˆ

 

(9)

12

Pavement Performance Modelling where L is the Laplace transform operator; s is a complex number;

ˆ ,

ˆ

 

, and

Eˆ

 

are the stress, the strain and modulus, respectively, expressed in the Laplace domain.

It is the similarity between Equation (9) and the constitutive equation for linear elastic problems (i.e.,

= E

) that led to the elastic – viscoelastic correspondence principle. Therefore Equations (3) to (7) can be employed to solve LVE problems provided that v and E are replaced with their corresponding Laplace transform

s v

 and

E

respectively.

The LVE solutions described above can also be extended to solve problems involving moving loads through Boltzmann’s superposition. However, this approach is generally time consuming (Huang, 2004; Kim, 2011). Another alternative for analysis of pavement structures subjected to moving load includes the use of a simplified load function, which varies with time, in order to simulate a moving load. For instance, in the VESYS and KENLAYER codes, a haversine function P(t) has been employed. The load function is given by (Papagiannakis et al., 1996; Huang, 2004):

P

A

sin

2

2

D t

(10) where D = is the duration of the load in sec; a is the contact radius; V is the speed of the moving load; A is the amplitude and , is the time in sec.

2.2. Performance Modelling of Unbound Granular Materials

Unbound granular materials (UGMs) consist of continuously graded crushed rock or natural aggregates that also contain some amount of fines. The term unbound means that no binding agent such as cement or bitumen is used in UGMs. UGMs in pavement structure are used primarily to transfer the heavy traffic loads from the surface to the underlying subgrade. The resistance to load in UGMs is mainly a result of the aggregate interlock and the internal friction between aggregates, and their performance is affected by several factors presented in the subsequent sections.

13

Mechanistic-Empirical Performance Modelling Abubeker W. Ahmed

2.2.1. State of stresses and stress history of UGMs

Several studies have indicated that the stress state of UGMs substantially influences the rutting performance of UGMs. The state of stress at an arbitrary point in UGM, as shown in Figure 5, can be expressed in tensor form as:

S

yx zx x

xy y

zy

xz

yz z

(11)

Figure 5. Stress state of UGMs subjected to traffic loading.

The mean stress (also referred to as hydrostatic stress) is defined as the mean of the normal stresses and is given by:

m

x

y

3

z

(12)

Then the stress tensor in Equation (12) can be expressed as the sum of two components, namely, the deviatoric stress and the mean stress, given by:

S

yx zx x

xy y

zy

xz

yz z

x

yx

zx m

y

xy

 

zy m

z

xz

yz

m

0

0

m

0

m

0

0

0

m

(13)

Deviatoric stress Mean stress

The mean stress and the deviatoric stress components are the key to understanding the deformation mechanisms in UGMs. For instance, from repeated

14

Pavement Performance Modelling triaxial tests performed on various UGMs, it is reported that the accumulation of permanent strain in UGMs increases when the deviatoric stress increases and decreases when the confining stress increases (Morgan, 1966; Barksdale, 1972;

Brown and Hyde, 1975).

Moreover, the state of stress at a single point in UGMs varies with the position of the wheel, as shown in Figure 6, which leads to shear reversal or the rotation of the principal planes (planes with zero shear stress). To investigate the effect of the shear reversal on the permanent deformation behaviour of UGMs, Chan (1990) conducted a hollow cylindrical test on crushed limestone and a higher permanent strain was observed for load cases with shear reversal.

Figure 6. Stress condition in unbounded granular materials (Lekarp et. al., 1998).

In addition to the stress state, the permanent deformation behaviour of UGMs is also affected by the stress history. This is due to the fact that the stiffness of the material gradually increases due to the compaction effect of the repeated loading, resulting in a reduction in permanent deformation for subsequent loadings. Brown and Hyde (1975) reported that the permanent strain resulting from successive increases in stress level is considerably smaller than the permanent strain that occurs due to abrupt loading of higher stress.

15

Mechanistic-Empirical Performance Modelling Abubeker W. Ahmed

Uzan (1985) has shown that the stiffness of UGMs increases as the confinement level increases and has recommended a stress dependent resilient stiffness. One of several forms of stress dependent stiffness is given by ARA

(2004):

M r

k

1

p a



3

m p a



k

2 



oct p a

1

k

3

(14) where M

r

is the resilient stiffness; k

1

, k

2

, and k

3

are material constants; p

a

= 100 kPa;

m

is the mean stress in kPa;

oct

=

√(

)

(

)

(

) is the octahedral shear stress in kPa and

1

,

2 and

3

are the principal stresses in kPa.

2.2.2. Load cycle

Pavement materials are subjected to repeated traffic loading with each passage contributing to a small amount of unrecoverable strain. The permanent deformation in UGMs is therefore a gradual accumulation of these contributions through the service life of the pavement.

Several studies have indicated that the permanent deformation of UGMs is highly influenced by the number of load repetitions (Morgan, 1966; Barksdale,

1972; Sweere, 1990). Paute et al. (1996) concluded that the rate of increase of permanent strain in UGMs under repeated loading decreases constantly to such an extent that it is possible to define a limit value for accumulation of permanent strain. However, Lekarp (1997) and Lekarp and Dawson (1998) reported that stabilization of the accumulation of permanent strain is attained only at a low applied stress level, and at high stresses which are above some threshold value known as the shakedown limit the material experiences a continuous incremental permanent strain and eventually leads to failure. Kolisoja (1998) revealed that the development of permanent deformation is complex and may not be expressed as a simple function, as the materials that seem to be stable at some loading cycle may indicate unpredictable behaviour under further loading.

16

Pavement Performance Modelling

2.2.3. Moisture content and physical properties

Moisture content in its optimum amount promotes better compaction of the

UGMs. However, the actual moisture content in UGMs in pavements varies from time to time due to the ingress of water from the surroundings, depending on the permeability of the material and the drainage conditions. Generally, an increase in moisture content decreases the shear resistance or resistance to permanent deformation (Barksdale, 1972; Thom and Brown, 1988; Lekarp et al., 2000a and

2000b; Erlingsson, 2010b).

Physical properties such as density, degree of compaction, fine contents, grading, aggregate type and aggregate surface conditions also affect the performance to rutting of UGMs. Several studies have indicated that as the density increases the resistance to permanent deformation increases this is particularly true for angular aggregates (Dunlap, 1966; Holubec, 1969; Thom and

Brown, 1988; Lekarp et al., 2000a and 2000b).

2.3. Modelling Permanent Deformation in UGMs

As discussed in the previous sections, permanent deformation in UGMs is influenced by a number of factors and several attempts have been made to develop analytical or M-E permanent strain predictive models for UGMs in pavements. A detailed summary of the permanent strain prediction models for UGMs can be found in Lekarp et al. (2000b) and SAMARIS (2004). The subsequent sections present the commonly used and recently developed permanent strain models.

2.3.1. Regression-based permanent deformation models

Regression-based models for permanent deformation in UGMs relate the pavement responses (stresses or strains) with the permanent strain in the UGM layers using empirical equations. These models are usually some function of the stress state, load cycles and material constants. This section presents the Tseng and Lytton (1989), the Gidel et al. (2001) and the Korkiala-Tanttu (2005, 2008) models. In these models, the permanent strain

p

is expressed as the product of two functions as:

p

g

(

15)

17

Mechanistic-Empirical Performance Modelling Abubeker W. Ahmed where g(

,

) is some function of pavement responses (stresses or strains) and

f(N) is some function of load repetition N.

The Tseng and Lytton (1989) model, Equation (16), is a function of resilient strain

r

and the number of load repetitions N. This model has been implemented for estimating the permanent strain in base, subbase and subgrade layers in

MEPDG (ARA, 2004):

p

1

0

e

(

N

)

r

(

16) in which

1

is the laboratory to field correlation factor; ε

0

, β and ρ are material parameters.

The model by Gidel et al. (2001), Equation (17), was developed based on repeated multistage triaxial tests conducted on UGMs and is a function of the maximum deviatoric stress (q

max

) and mean stress (p

max

).

p

1

0



L

max

p a



n



m

s p

max

q

max

p

max



1

1



N

N

0



B

(

17) where

1

is the laboratory to field correlation factor; N

0

is the reference number of load applications (N

0

= 100);

L

max

p

2 max

q

2 max

and p

a

= 100 kPa; n, B and

0

are material constants; m = 6(sin



/(3 - sin

) and s = 6(c)(cos



/(3 - sin

), where

 and c are the angle of internal friction and the cohesion of the material, respectively; p

max

= (

1

+2

3

)/3, q

max

=

1

-

3

,

1

,

2

and

3

are the principal stresses.

In the Korkiala-Tanttu (2005) model, it is presumed that the permanent strain in UGMs is directly proportional to the distance from the state of stress (stress point) to the Mohr-Coulomb failure line expressed in deviatoric stress – mean stress (q-p) space. The permanent strain is then expressed as a hyperbolic function of the deviatoric stress ratio, Equation (18). This model accounts for the effect of the number of load cycles through the log-log approach, as recommended by

Sweere (1990).

p

(

N

)

1

C

R

A

R

N b

(

18

)

18

Pavement Performance Modelling in which

1

is the laboratory to field correlation factor; C and b are material constants; A is a parameter independent of the material (A = 1.05) and R is the deviatoric stress ratio given by:

R

q

max

q f

s

q

max

mp

max

(

19

) where m, s, q

max

, p

max

and s are as defined above.

2.3.2. Advanced models

The two most studied advanced group of models used for UGMs are the Elastoplastic and the Shakedown models. The elasto-plastic models apply the concept of plasticity theory to model the cyclic behaviour of UGMs (Bonaquist et al., 1997;

Hornych et al., 1998; Desai, 2002).

The shakedown concept employs the fact that if progressive increase in plastic strain (also known as ratcheting) under cyclic loading occurs then the structure will eventually fail. The critical load level below which the structure shakes down

(or the plastic strain progressively stabilizes under cyclic loading) and above which ratcheting is instigated is called the shakedown limit. This limiting value is used for estimating the permanent strain in the UGMs (Hornych et al., 2007).

2.4. Performance of Asphalt Bound Materials

The three building blocks of asphalt bound materials (or asphalt mixtures) are aggregate, binder, and air. In dense graded asphalt mixtures the aggregate constitutes around 90% of the mixture volume. Asphalt mixtures are one of the principal components of flexible pavement structure which are used to transfer the heavy traffic loads from the surface to the underlying base and subbase layers and provide a smooth ride when used as a surface layer.

One of the major distresses affecting the ride quality of asphalt pavements is rutting. Rutting in asphalt layers occurs when the pavement under traffic loading consolidates due to compaction. Rutting may also arise due to lateral movement of the hot-mix asphalt (HMA) due to shear failure which generally occurs in the upper portion of the pavement surface. The performance of asphalt mixtures to rutting is affected by several factors which are presented in the following section.

19

Mechanistic-Empirical Performance Modelling Abubeker W. Ahmed

2.4.1. Temperature and binder

The quantity and type of the binders are determinant factors of the performance of an asphalt mixture. Generally a binder content higher than the optimum makes the asphalt layer prone to rutting. On the other hand low binder content decreases workability during construction and makes compaction of the HMA difficult, which in turn leads to excessive air void, thus making the mix vulnerable to rutting. Furthermore, at high pavement temperatures the asphalt binder becomes less viscous. This in turn reduces the stiffness which leads to shear failure.

Some performance tests performed on asphalt mixtures indicated that asphalt mixtures with modified binder might have better resistance to rutting and low temperature susceptibility than unmodified mixtures (Corte et al., 1994; Tayfur et al., 2007; Oscarsson, 2011).

2.4.2. Physical properties

Studies indicated that aggregate selections and gradations play a significant role in the performance of asphalt mixtures. In addition, the shape and texture of the aggregate also influence the performance of the mixture. In general, a roughtextured cubical-shaped aggregate performs better than a smooth, rounded aggregate as it produces a better aggregate interlock. This help decrease the potential for rutting (Matthews and Monismith, 1992).

2.4.3. Other factors

Other factors influencing the performance of asphalt mixtures include traffic load and axle configurations, truck speed, contact pressure and wheel wandering. It is well known that slow moving trucks are more damaging due to the longer duration of loading. Furthermore, truck loading and axle configurations are also important factors. For instance, Corte et al. (1994) reported that axles with wide single wheels, super single wheels, might be more aggressive than dual wheels with respect to rutting resistance. Finally excessive wheel wander may also lead to wider and perhaps deeper ruts in the asphalt layers (Donovan and Tutumluer,

2008).

20

Pavement Performance Modelling

2.5. Modelling Permanent Deformation in Asphalt Mixtures

Simple M-E analytical and advanced models have been developed in an effort to predict rutting in asphalt mixtures which are discussed in the subsequent sections.

2.5.1. Regression-based models

One of the commonly used regression-based rut predictive models for asphalt layers is the AASHTO model which was developed as a part of the M–E

Pavement Design Guide developed under the National Cooperative Highway

Research Program (NCHRP). Equation (20) presents the simplified version of the model. This model is a function of pavement temperature, number of load cycles and vertical elastic strain calculated using a response model (ARA, 2004).

p

(

N

)

1

a

1

T a

2

N a

3

r

(20) where

p

is the permanent strain;

1

is a calibration factor; T is the temperature; N is the load repetitions; a

1

, a

2

and a

3

are the regression constants and

r

is the vertical elastic strain calculated using a response model.

Other models include the shear based incremental-recursive CalME model which is employed in the M-E design program by the California Department of

Transportation (Ullidtz et al., 2006) and the PEDRO model which was developed based on viscoelastic densification and flow (Said et al., 2011). Oscarsson (2011) evaluated the MEPDG, CalME and PEDRO models based on permanent deformation measurements from test pavement structures.

2.5.2. Advanced models

Advanced models for predicting permanent deformation in asphalt mixtures consider the viscous nature of asphalt mixtures through viscoelastic or viscoelastoplastic constitutive equations. Both linear and nonlinear viscoelasticity approaches have been examined. One such example is the linear viscoelastic model employed in the viscoelastic multilayer computer program VEROAD, viscoelastic road analysis Delft, (Hopman, 1996). However, being computationally expensive the nonlinear viscoelasticity has gained little usage

(Collop et al., 1995).

21

Mechanistic-Empirical Performance Modelling Abubeker W. Ahmed

Collop et al. (1995) used VESYS to predict rutting in asphalt concrete and they reported that there was a good agreement between the measured and the predicted rutting except at the initial stage of the loading. This was attributed to the fact that the initial stage rutting is a result of densification which the theory of viscoelasticity is unable to take into account. Furthermore, research from Shell indicated that utilizing viscoelastic properties of asphalt is not sufficient due to the fact that the influence of the aggregate and its interaction with the asphalt is not included in viscoelastic modelling (Lijzenga, 1997; Long, 2001).

Viscoelastoplastic models, on the other hand, take into account the influence of aggregate and asphalt-aggregate interaction through elastoplastic components.

2.6. Characterization of Traffic

Traffic is one of the major factors affecting the performance of flexible pavements and it is certainly one of the important parameters in pavement design procedures.

In the empirical pavement design procedure which was developed based on the

1950’s AASHTO road test, the mixed traffic is converted into the number of an

Equivalent Standard Axle Loads (ESAL) of usually 80kN (US) and 100 kN

(Europe). The conversion is made based on empirical relations developed from the AASHTO road test. The conversion of mixed traffic into ESALs depends on several factors such as the pavement type and the distress type under consideration.

As pavement design procedures advance toward a more mechanistic approach, the use of a more detailed traffic count and characterization is inevitable. The subsequent sections present the common traffic counting method and its characterizations.

2.6.1. Weigh-in-motion instruments

Weigh-in-motion (WIM) instruments are installations or attachments on or under the pavement which are used to record the daily, weekly, seasonal and yearly variations of traffic data while the vehicle is in motion (Cebon and Winkler, 1991;

Bouteldja et al., 2008).

22

Pavement Performance Modelling

The bridge weigh-in-motion (BWIM) system, first introduced by Moses

(1979), is a WIM system mounted on a concrete bridge. The system consists of extensometers (strain gauges) and a data logger. Strain gauges and extensometers attached to the bottom surface of the bridge slab are used to measure and detect traffic information such as vehicle speed, axle load and configurations, and time.

The various recordings are stored in the data logger. It is essential to note that, even though BWIM or WIM instruments provide detailed information regarding traffic characteristics, these instruments do not record other important parameters such as traffic wander pattern, wheel configurations (i.e. single or dual), and contact pressure which are also important for pavement design procedures.

The axle loads and configurations from WIM instruments are usually presented in the form of the axle load spectra (ALS) or frequency distribution of the axle load groups of a given axle configuration (steering, single, tandem, tridem or quad axle). Therefore raw WIM or BWIM data must be analysed to produce the ALS.

The analysis of the BWIM data is carried out in two steps; first the data from each axle configuration are grouped into different axle load intervals (load groups). The axle loads may be grouped using a desired load interval or bin width. In MEPDG, for instance, 4.4 kN (1000 lb) for single axle, 8.9 kN (2000 lb) for tandem axle and 13.3 kN (3000 lb) for tridem and quad axle are used (APA, 2004). The frequency distributions for the load groups are then determined in order to produce the ALS.

Few studies have been carried out to characterize the statistics of ALS and their contribution to the pavement deterioration process. Based on the ALS data from the USA, Haider and Harichandran (2009) concluded that fatigue damage is related to the heavy load wings of the ALS while the rutting behaviour is primarily the result of the number of load applications. Similarly, Prozzi and

Hong (2006) has shown that the ALS of a given project site can be represented by a mixed lognormal distribution function and it is reported that the performance of the pavement can be predicted by the statistical characteristics of the ALS distribution functions.

23

Mechanistic-Empirical Performance Modelling Abubeker W. Ahmed

2.6.2. Characterization of heavy traffic in a Swedish road network

In 2004, the Swedish Road Administration established a national BWIM network.

The BWIM network consists of motorways, arterials or trunk roads as well as one county road and measurements were made during one week every year between

2004 and 2008 (Erlingsson, 2010a; Erlingsson et al., 2010; Winnerholt and

Persson, 2010). Erlingsson et al. (2010) analysed the BWIM data to generate ALS of national BWIM sites and studied their characteristics. A time series analysis of these stations for the time period between 2004 and 2008 was also carried out to investigate how the ALS changes over time and to estimate the annual growth rate. Figure 7 shows the ALS for a national BWIM site at Mjölby, South of

Stockholm.

40 15

30

20 a)

2004

2005

2006

2007

2008

Mean

10 b)

2004

2005

2006

2007

2008

Mean

5

10

0

0

10

8

6

4

2

0

0 c)

50

50 100

Axle Weights [kN]

2004

2005

2006

2007

2008

Mean

150

100 150 200

Axle Weights [kN]

250 300

0

0 50 100

Axle Weights [kN]

150 200

10

8

6

4

2

0

0 d)

50

2004

2005

2006

2007

2008

Mean

100 150 200 250 300 350

Axle Weights [kN]

1

1

0

0

0.2

0.4

0.6

0.8

1 1.2

(Erlingsson, 2010a).

From Figure 7 it can be observed that the distribution of steering axles was fairly normally distributed; this might be attributed to the fact that steering axles are single wheel and the load carried by steering axles, the front compartment of the trucks, is fairly uniform from truck to truck while the load transferred to other axle configurations varies depending on the loading conditions.

24

Pavement Performance Modelling

2.6.3. Characterization of heavy traffic ALS for M-E applications

As mentioned in the preceding sections, traffic is one of the key factors influencing the performance of flexible pavements and it is one of the main input parameters for pavement design procedures. Various design procedures adopt different characterizations of the traffic. Most M-E procedures characterize the entire heavy traffic ALS by converting into an equivalent number of standard axles ESALs; thus this standard axle is used for analysis and design of the pavement. This characterization is generally computationally efficient as the analysis of the pavement is performed only for the chosen standard axle. On the other hand, in more comprehensive M-E design procedures such as MEPDG, the entire ALS is used to analyse the pavement. However, these procedures are computationally expensive. Thus, to improve the computational performance, in

MEPDG the ALS is characterized by a constant contact area (CCA); in this way, as indicated in Equation (7), response analysis for only one set of axle loadcontact pressure combinations is performed. The responses for other axle loads in the ALS are estimated from the linear relation between contact pressure and the response. As reported by Morton et al. (2004), a relatively more accurate characterization for the ALS is to assume a constant contact pressure (CCP) for the entire traffic. However, this characterization requires the analysis of the pavement structure for the entire axle loads in the ALS and therefore computationally inefficient for practical applications.

2.6.4. Heavy traffic lateral wander

Pavements are subjected to wandering traffic loads that do not follow a straight course or channelized traffic. Several studies have shown that traffic wandering has a significant effect on the development of rutting (Blab and Litzka, 1995; Wu and Harvey, 2008). It is therefore necessary to take the effect of a wandering pattern into account both during testing and modelling of the permanent deformation behaviour of the pavement structures. Studies based on field measurements have indicated that the lateral wander pattern can be modelled as normally distributed (Erlingsson et al., 2012). Figure 8 shows the measured lateral wander distributions of one-lane and two-lane sections of a state road. The

25

Mechanistic-Empirical Performance Modelling Abubeker W. Ahmed approximate normal distribution curve and its standard deviation of the data are also included in the figure.

15

One-lane

= 24.5 cm

10

15

10

Two-lane

= 28.5 cm

5

5

0

-1.00

-0.50

0.00

Wheel position [m]

0.50

1.00

0

-1.00

-0.50

0.00

Wheel position [m]

0.50

1.00

Figure 8. Normalized frequency of the lateral positions of the right wheel of heavy vehicles on one-lane and two-lane sections of a state road (Erlingsson et al.,

2012).

2.7. Time Hardening Procedure

The preceding sections discussed the various factors affecting the rutting performance of bound and unbound pavement materials. Attempts to develop permanent deformation models for pavement materials were also discussed. These models are generally some function of the number of load passes, stress or strain level and pavement temperature. Figure 9 is a graphical representation of these models. The dashed lines in the figure represent the accumulated permanent strain

p

as a function of the number of load passes N for a single pavement temperature

T i

, a single deviatoric or mean stress level q

i

or p

i

and a single strain level

ri

, where i = 1, 2, 3 and 4, denoting the climate and loading conditions of period i.

However, pavements in actual field circumstances are subjected to variable climatic and traffic loading conditions (such as ALS or wandering); therefore a procedure must be adopted to combine the permanent strain contributions from different temperature and stress levels.

Lytton et al. (1993) proposed a time hardening procedure to combine the permanent deformation contributions due to various stress levels. To illustrate the procedure, the permanent deformation in the bituminous bound layers, shown in

Equation (20), is employed to predict the permanent strain for a time period of

26

Pavement Performance Modelling four seasons. It is assumed that each season is characterized by a pavement temperature T

i

, a deviatoric or mean stress level q

i

or p

i

and a strain level

ri

where

i = 1, 2, 3 and 4. The process begins by calculating the permanent strain

p1

at the end of the first season, using the temperature T

1

and strain

r1

, and is given by:

(21)

Then the equivalent number of passes N

eq1 that would yield the same permanent strain

p1

in the second season (or dashed line 2 in Figure 9) is calculated from:

( )

(22)

ε p

3

1

4

2

T

4

, q

4

, p

4

, ε

r4

T

3

, q

3

, p

3

, ε

r3

T

2

, q

2

, p

2

, ε r2

T

1

, q

1

, p

1

, ε r1

N

eq1

N

i1

N

eq2

N

i2

N

i5

N

Figure 9. The time hardening procedure.

Finally, the permanent strain contribution due to the climate and loading conditions of the second season is calculated from:

(23a)

( )

(23b) where

N is the number of applied load repetitions during the second season. The total permanent strain at the end of the second season is obtained from:

(24)

The above procedures are repeated until the end of the seasons is reached.

27

Test Equipment, Structures and Materials

3. Test Equipment, Structures and Materials

3.1. Full Scale Accelerated Pavement Tests

Full Scale APT results were used in this study. The APTs were conducted using an HVS facility at the Swedish National Road and Transport Research Institute,

VTI (Wiman and Erlingsson, 2008). Figure 10 shows the HVS facility.

Figure 10. The HVS at the Swedish Road and Transport Research Institute, VTI,

Linköping, Sweden.

The HVS is a mobile device employed to study the behaviour of a pavement structure under loading and environmental conditions which are close to actual field conditions. Using the HVS it is possible to apply a single or dual wheel moving load of magnitudes from 30 to 110 kN at speeds up to 12 km/h. Traffic wander is simulated by moving the wheel in the transverse direction.

Environmental influences such as pavement temperature and ground water table are controlled through add-on facilities. The responses (stresses and strains in the pavement) in the pavement and permanent deformation measurements are registered using various sensors installed in the test structure.

The tests used in this study were conducted on test structures built in a 3 m deep test pit testing facility at VTI (Wiman, 2001, 2006 and 2010). The structures consisted of a thin asphalt surface layer, bituminous bases, UGM base or subbase layer, and a sand subgrade over a rigid bottom. A total of 6 test pavement structures were used. Figure 11 shows the cross sections of the test structures and

29

Mechanistic-Empirical Performance Modelling their instrumentations.

SE01

0

49

0

50

SE05-1

Abubeker W. Ahmed

0

55

SE05-2

138

z [mm]

512

z [mm]

506

z [mm]

0

48

101

209

351

SE06

198

0

35

117

SE09

0

33

110

192

644

SE10

396

z [mm]

z [mm]

z [mm]

Asphalt concrete surface

Bituminous base

Natural till mixed with crushed rock base

Granular subbase

Pressure cell (vertical stresses)

Crushed aggregate base

Inductive coils (vertical strain)

Natural gravel

Transversal asphalt strain gauge

Sand subgrade

Longitudinal asphalt strain gauge

Bituminous binder

Deflection gauge

Figure 11. Cross sections of the test structures and instrumentations.

The test structures, referred to as SE01, SE05-1, SE05-2 and SE06 in Figure

11, were used for evaluation and validation of responses and permanent deformation models for UGMs (Paper II and Paper III) whereas permanent

30

Test Equipment, Structures and Materials deformation models and viscoelastic responses of bituminous layers were evaluated using test structures SE09 and SE10, respectively (Paper V and Paper

VI).

The material properties for the different layers in the test structures were established based on laboratory tests and/or back-calculated from falling weight deflectometer (FWD) measurements performed on the test structures.

3.2. Extra-Large Wheel Tracking Tests

The other device employed in this study was the extra-large wheel tracking

(ELWT) apparatus at The Swedish Road and Transport Research Institute (VTI),

Linköping, Sweden. In the ETWT test, an asphalt slab specimen of size 50 cm x

70 cm x 4-12 cm is subjected to a moving single wheel load of a magnitude up to

25 kN at a speed of up to 5 km/h in either direction. The load is applied through a small truck tyre. The load is applied for a specified number of passes. Traffic wandering is simulated by displacing the wheel at 7 offset positions over a width of 6 cm.

The permanent deformation on the asphalt slab is measured using a laser beam mounted on the device. The rut measuring is carried out at five transverse profiles along the length of the plate. The distance measurement is made at an accuracy of

0.01 mm and a maximum number of 700 measurement points per profile. The measurement points are spaced at 0.7 mm.

Specimen and air temperature in the test chamber are continuously controlled.

The temperature in the chamber can be varied between +5 and +60 °C. The chamber temperature is controlled so that the temperature of the specimen is maintained at a constant level. Figure 12 demonstrates the schematics of the device.

31

Mechanistic-Empirical Performance Modelling Abubeker W. Ahmed

Laser beam

Water tank

Asphalt plate

A total of nine rectangular asphalt slabs from three types of asphalt mixtures which are commonly used as asphalt surface layer (ABT11), bituminous binder layer (ABb22) and a bituminous base layer (AG22), respectively, were prepared.

The sizes of the slabs were determined by the size of loading area (70 cm x 50 cm) of the ELWT device and therefore, 70 cm x 50 cm x 4 cm for ABT11 mixes and 70 cm x 50 cm x 6 cm for ABb22 and AG22 were selected. The mixes were prepared according to the European standard and the slabs were roller compacted to attain the desired degree of compaction, as shown in Figure 13. The mixture properties for the asphalt slabs were selected to match the corresponding mixture properties of the bituminous bound layers of the SE09 test structure shown in

Figure 11. The permanent deformation measurements in the asphalt slabs along with the APT results of SE09 test structure were used to evaluate the permanent deformation model for asphalt bound layers (Paper VI).

Figure 13. Compaction of the slabs and the actual ELWT test setup.

32

Response Models for Flexible Pavements

4. Response Models for Flexible Pavements

As discussed in the preceding sections, the response model plays an important role in M-E pavement design and performance prediction procedures. The response model is used to estimate the stresses, strains and displacements in the pavement structure subjected to existing traffic loading, taking into account the material properties and prevailing environmental conditions.

4.1. Multi-Layer Elastic Theory

Paper I appended to this thesis documents the development of a layered elastic program based on Burmister theory. As is explained in the paper, a considerable effort was made to improve the computational performance of the MLET program by computing the integration constants shown in Equation (6) at selected Hankel parameters and using piecewise linear interpolation to estimate the coefficients for other values of the Hankel parameters. This procedure considerably decreased the number of matrix inversions required. In addition, Richardson’s extrapolation was employed to improve the convergence and accuracy of the integral for near surface responses. Figure 14 depicts the stress coefficients (A, B, C and D), shown in Equation (6), for a typical four layer pavement structure. As can be observed from the figures, the coefficients increase or decrease continuously, like monotonic functions, thus interpolation or extrapolation of the coefficients is valid. The procedure is implemented in an MLET program ERAPAVE (Elastic

Response Analysis of flexible PAVEments).

A comprehensive verification of the program using two frequently used layered elastic programs, KENPAVE (Huang, 2004) and WinJulea (ARA, 2004), was performed and the accuracy obtained was excellent. The comparison of the computational performance of the three programs also revealed that the

ERAPAVE program has an improved computational performance, especially for a larger number of evaluation points, as shown in Figure 15.

33

Mechanistic-Empirical Performance Modelling

2

10

Abubeker W. Ahmed

0

8

-2

-4

Layer-1

Layer-2

Layer-3

Layer-4

6

4

Layer-1

Layer-2

Layer-3

Layer-4

-6

2

-8

0 a) b)

-10

-2

0 10 20 30 40

Hankel parameter m

50

0 10 20 30

Hankel parameter m

40 50

12

16 d) c)

14

10

8

6

Layer-1

Layer-2

Layer-3

Layer-4

12

10

8

Layer-1

Layer-2

Layer-3

Layer-4

4

6

4

2

2

0

0

-2

0 10 20 30 40

Hankel parameter m

50

-2

0 10 20 30 40

Hankel parameter m

50

Figure 14. Coefficients of the stress function as a function of the Hankel parameter m for a four layer structure a) A; b) B; c) C; d) D.

5

4

3

2

WinJulea

KENPAVE

ERAPAVE

1

0

0 100 200 300 400 500

Number of evaluation points

Figure 15. Comparison of the computational performance of ERAPAVE,

KENPAVE and WinJulea.

34

Response Models for Flexible Pavements

Moreover, a nonlinear module was also introduced to take the stress dependent behaviour of unbound materials into account. The superposition principle was used to handle multiple wheel loading. The comparison of the nonlinear responses from ERAPAVE with KENPAVE revealed good agreement between the two programs.

The program was also used to simulate the measured responses of a test structure from a full scale APT conducted at several wheel loadings and pavement temperatures (Paper III). Figure 16 presents the measured and calculated vertical strain for dual wheel (DW) loads of 50, 60 and 80 kN at a tyre pressures of 500 kPa, 800 kPa and 900 kPa, respectively, and a pavement temperature of 10

C.

0

-1.0

0.0

Strain ε

z

[10

-3

]

1.0

2.0

3.0

0

-1.0

0.0

Strain ε

z

[10 -3 ]

1.0

2.0

3.0

10

10

20

20

30

T = 10 ºC

30

T = 10 ºC

40

40 a) b)

50

50

60

70

DW-50kN/500kPa-measured

DW-50kN/500kPa-computed

60

70

Strain ε

z

[10

-3

]

1.0

3.0

0

-1.0

10

20

DW-60kN/800kPa-measured

DW-60kN/800kPa-computed

5.0

30

T = 10 ºC

40 c)

50

DW-80kN/900kPa-measured

60

DW-80kN/900kPa-computed

70

Figure 16. Measured and computed vertical strain for SE06 test structure under wheel loads of a) 50, b) 60 and c) 80 kN.

35

Mechanistic-Empirical Performance Modelling Abubeker W. Ahmed

Figure 17 presents the measured and calculated vertical stress for a single wheel (SW) load of 60 kN and at tyre pressures of 500 kPa and 900 kPa, respectively, at a pavement temperature of 10

C.

200 200

175

150 a) b)

125

100

75

50

25

0

-40

SW-60kN/500kPa-measured

SW-60kN/500kPa-computed

-20 0 20 40

175

150

125

100

75

50

25

0

-40

SW-60kN/900kPa - measured

SW-60kN/900kPa - computed

-20 0 20 40

Distance from centre of tyre [cm]

Distance from centre of tyre [cm]

Figure 17. Vertical stress for SE06 test structure under single wheel loading at different radial locations at 17 cm depth from the surface for (a) 500 kPa and (b)

900 kPa tyre pressure and pavement temperature of 10ºC.

4.2. Linear Viscoelastic Theory

The ERAPAVE program was extended for analysis of a layered system consisting of linear viscoelastic materials. Paper V appended to this thesis demonstrated the application of a generalized layered LVE analysis for estimating the structural response of flexible pavements. The procedure is based on the elastic-viscoelastic correspondence principle using a numerical inverse Laplace transform by Abate and Valko (2004). A comparison of the direct layered LVE responses with approximate solutions based on the elastic collocation (LE Collocation) method was also carried out. Furthermore, this study proposed and demonstrated the use of a collocation method based on LVE solutions at selected time durations (or

LVE Collocation) in order to improve the accuracy of the elastic collocation method. Figures 18 and 19 present the comparison of these approaches for a typical four layered pavement structure subjected to a stationary load of 60 kN

(Paper V). The figures also included the LVE response from KENLAYER.

36

Response Models for Flexible Pavements

Maximum errors of 8% in tensile stress and 3% tensile strain at the bottom of the asphalt layer were observed in the LVE collocation method. The corresponding values for the LE collocation approximation were 14% for tensile stress and 5% for tensile strain, respectively.

0 2

Time [sec]

4 6 8 10 0 2

Time [sec]

4 6 8 10

0 0

-500

-1000 a)

-0.1

-0.2

b)

LVE

LVE Collocation

LE Collocation

KENLAYER

-0.3

-1500

-2000

LVE

LVE Collocation

LE Collocation

KENLAYER

-0.4

-0.5

-2500

-0.6

Figure 18. a) Tensile stress and b) tensile strain at the bottom of the asphalt layer under the centre of the wheel.

The proposed LVE collocation method was extended for analyses of moving loads. The HVS test pavement structure SE10, shown in Figure 11, was also analysed to simulate the measured responses under a moving load of varying magnitude. Figures 20a to 20d show the measured and computed longitudinal and transversal strains at the bottom of the bituminous base layer for moving wheel loads of 30, 50, 60 and 80 kN at tyre pressure of 800 kPa and a pavement temperature of 20

C. The LVE calculations in general agreed very well with the response measurements.

80

1

0.8

60

0.6

40

20

LVE

LVE Collocation

LE Collocation

KENLAYER

0.4

0.2

LVE

LVE Collocation

LE Collocation

KENLAYER a) b)

0

0

0 2 4 6 8 10

0 2 4 6 8 10

Time [sec] Time [sec]

Figure 19. a) Vertical stress and b) vertical strain at the top of the subgrade under the centre of the wheel.

37

Mechanistic-Empirical Performance Modelling

600 600

500

400

Measured

Calculated

y

y

Measured ex

Calculated ex

500

400

300

300

Abubeker W. Ahmed

Measured ey

Calculated ey

Measured ex

Calculated ex

200

200

100

100

0

0 a) b)

-100

0 500 1000 1500 2000 2500 3000

Time [msec]

-100

0 500 1000 1500 2000 2500 3000

Time [msec]

600

500

400

Measured

y

Measured ex

Calculated ex

600

500

Measured ey

Calculated

y y

Measured ex

Calculated ex

300

400

300

200

200

100 100

0

0

-100

-100 c) d)

-200

0 500 1000 1500 2000 2500 3000

-200

0 500 1000 1500 2000 2500 3000

Time [msec] Time [msec]

Figure 20. Longitudinal and transversal strains at the bottom of the bituminous base under the centre of one wheel for a) 30, b) 50, c) 60 and d) 80 kN at pavement temperature of 20

C.

38

Evaluation of Permanent Deformation Models

5. Evaluation of Permanent Deformation Models

Permanent deformation on the pavement surface along the wheel path, usually referred to as rutting, is one of the main deterioration mechanisms. Rutting affects the ride quality by forming hydroplaning which decreases the skid resistance of the surface and eventually makes steering the vehicle difficult.

A number of permanent deformation models have been developed by several researchers for both bound and unbound granular materials (Lekarp et al., 2000;

SAMARIS, 2004; Korkiala-Tanttu, 2008). The evaluation of these models is frequently performed using data from triaxial tests which do not fully represent the actual field loading circumstances. The subsequent sections present the evaluation of selected permanent deformation models for bound and unbound granular materials using full scale APT test results.

5.1. Permanent Deformation Models for UGMs

Paper II appended to this thesis presents the evaluation the Tseng and Lytton

(1989), the Gidel et al. (2001) and the Korkiala-Tanttu (2005) permanent strain models using permanent deformation measurements from full scale APTs performed on three different types of base materials. The Gidel et al. model has shown a similar trend for the three base materials, i.e. a steep slope at the initial stage of the load repetitions and a milder slope afterwards. A good fit was obtained for crushed rock base material. On the other hand, the models by

Korkiala-Tanttu and Tseng and Lytton have shown slight differences between patterns of permanent deformation for the base materials. Moreover, the Tseng and Lytton model agreed relatively well with all materials. Figures 21, 22 and 23 show the measured and the modelled permanent deformation for the three types of base materials, respectively.

39

Mechanistic-Empirical Performance Modelling

3.0

Measured

Korkiala-Tanttu

Gidel

Tseng-Lytton

2.0

Abubeker W. Ahmed

1.0

0.0

0 200 400 600 800 1000

Number of load repetitions in thousands

Figure 21. Measured and modelled permanent deformation of base layer (natural moraine mixed with crushed rock) of SE01 test structure.

4.0

3.0

2.0

1.0

Measured

Korkiala-Tanttu

Gidel

Tseng-Lytton

0.0

0 100 200 300 400

Number of load repetitions in thousands

Figure 22. Measured and modelled permanent deformation of natural gravel base layer of SE05-1 test structure.

5.0

4.0

3.0

2.0

1.0

Measured

Korkiala-Tanttu

Gidel

Tseng-Lytton

0.0

0 100 200 300 400

Number of load repetitions in thousands

Figure 23. Measured and modelled permanent deformation of crushed rock base layer of SE05-2 test structure.

40

Evaluation of Permanent Deformation Models

Laboratory to field correlation factors for the three base materials and for three models were also estimated. The influence of moisture content and degree of compaction was not modelled in this study.

5.2. Permanent Deformation Model for Bituminous Bound Layers

An evaluation of the permanent deformation model for asphalt concrete mixtures, shown in Equation (20), was carried out based on ELWT and full scale APT tests performed on three different types of asphalt mixtures. The tests were performed at several pavement temperatures and efforts were made to simulate the actual field conditions (Paper VI).

The measured permanent deformations in the asphalt slabs were modelled using the permanent deformation model in Equation (20) and model parameters

a

1

, a

2

and a

3

for the three types of asphalt mixtures were estimated based on least square optimization.

1 was considered as unity for ELWT tests. The estimated mode parameters were then used to model the measured permanent deformation of a test structure SE09 shown in Figure 11. The test structure consisted of the three mixtures tested using the ELWT device. The calibration parameters

1

, in

Equation (20), were estimated for the mixtures. Here, it should be noted that the

1 factor was used to relate the model parameters from the ELWT and the HVS test. Figure 24 shows the measured and modelled permanent deformations in the bituminous bound layers of the test structure.

The estimated

 factors were close to unity for all mixtures which indicated that the ELWT device fairly represented the behaviour of the full scale APT test.

It should also be noted that slight differences in

1 were observed though efforts were made to reproduce the APT test circumstances (Paper VI). Therefore it was demonstrated that the ELWT device can be used to evaluate the performance asphalt mixtures as well as to establish parameters for permanent deformation model for asphalt mixtures. The slight differences in

1 from unity might be attributed to differences in geometry, scale, wheel load and speed.

41

Mechanistic-Empirical Performance Modelling Abubeker W. Ahmed

8

12

ABT11 - HVS

ABT11- Model

ABb22 - HVS

ABb22 - Model

6

9 a) b)

4

6

20

C

20

C

2

0

0

3

10

C

30

C

150 300 450

Load cycles [Thousands]

600

10

8

AG22 - HVS

AG22 - Model

0

0

10

C

30

C

150 300 450

Load cycles [Thousands]

600

6 c)

20

C

4

2

10

C

30

C

0

0 150 300 450 600

Load cycles [Thousands]

Figure 24. Measured and modelled permanent deformations for asphalt layers in the SE09 HVS test structure a) ABT11, b) ABb22 and c) AG22.

42

Characterization of Heavy Traffic Axle Load Spectrum

6. Characterization of Heavy Traffic Axle Load

Spectrum

Heavy traffic axle load spectrum (ALS) is one of the key inputs for mechanisticempirical analyses and design of pavement structures. For the purpose of pavement design, the entire ALS is aggregated into Equivalent Number of

Standard Axle Loads (ESALs) or characterized by either constant contact area

(CCA) or constant contact pressure (CCP). These characterizations affect both the accuracy and computational performance of the pavement analysis process.

Usually a standard axle load of 80 kN or 100 kN is used to convert the ALS into

ESALs or to obtain the contact area for the CCA characterizations. The CCP characterization is a relatively accurate representation of the actual field conditions as observed by tyre inflation pressure measurements of actual traffic scenarios (Morton et al., 2004).

In Paper IV these three alternatives were evaluated based on the predicted rutting and fatigue cracking performances of several pavement structures subjected to heavy traffic ALS data collected from BWIM stations. It was indicated that for layers below the 25 cm from the surface, the three characterizations produced similar values of predicted rutting. However, for the top 25 cm, the characterizations produced significant differences. Figure 25a to

25d shows the permanent deformation in the surface, base, subbase and subgrade layers, respectively, of a typical four layered pavement structure subjected to a heavy traffic ALS from one of the BWIM sites. The figure indicated that both the

ESAL and CCA characterizations underestimated the predicted permanent deformation.

The Paper indicated that even though the CCP characterization is a relatively accurate representation of the actual traffic conditions, it is computationally very expensive and impractical for routine applications. On the other hand the ESAL

43

Mechanistic-Empirical Performance Modelling Abubeker W. Ahmed and CCA characterizations are computationally very efficient for M-E pavement analysis and design applications; however, both characterizations underestimated the calculated permanent deformation. Therefore in this study an improvement to the CCA approach was proposed that enhanced the accuracy while maintaining the same level of computational performance. Figure 26a and 26b presents the predicted permanent deformation using the improved CCA approach (denoted by modified CCA [MCCA] in the figure). From the figure it can be observed that a significant improvement was gained when using the proposed MCCA approach.

8.0

2.0

a) b)

6.0

1.5

4.0

1.0

2.0

ESAL

CCA

CCP

0.5

ESAL

CCA

CCP

0.0

0 5 10 15

Pavement age [year]

20

0.0

0 5 10 15

Pavement age [year]

20

0.8

1.2

c) d)

0.6

1.0

0.8

0.4

0.6

ESAL

ESAL

0.4

CCA

0.2

CCA

0.2

CCP

CCP

0

0.0

0 5 10 15 20

0 5 10 15 20

Pavement age [year]

Pavement age [year]

Figure 25. Permanent deformation in a) surface layer, b) base layer, c) subbase and d) subgrade.

44

Characterization of Heavy Traffic Axle Load Spectrum

8.0

2.5

a) b)

2.0

6.0

1.5

4.0

1.0

ESAL

ESAL

2.0

CCP

0.5

CCP

MCCA

MCCA

0.0

0 5 10 15 20

0.0

0 5 10 15 20

Pavement age [year]

Pavement age [year]

Figure 26. Permanent deformation using mean of the ALS as a reference axle a) surface layer and b) base layer.

45

Conclusions and Recommendations

7. Conclusions and Recommendations

The objective of this study was to develop a mechanistic-empirical (M-E) flexible pavement performance prediction framework. The work particularly concentrated on evaluating the most important constituents of the M-E methods, namely, the response model, permanent deformation models for bound and unbound pavement materials, and heavy traffic characterization. The subsequent sections present the conclusions, recommendations and limitations from of study.

7.1. Response Model

The response model is one of the key components of M-E design procedures. The multilayer elastic theory (MLET) is employed in several M-E pavement design procedures due to its simplicity and computational performance. In this study, an

MLET program ERAPAVE (Elastic Response Analysis Program for Flexible

PAVEments) which was based on the Burmister theory was developed and a considerable e ffort was made to further improve the computational performance of the program. In addition a procedure based on Richardson’s extrapolation was introduced to improve the accuracy and convergence of near-surface responses. A comprehensive verification of the ERAPAVE program using two frequently used layered elastic programs, KENPAVE and WinJulea, was performed and the accuracy obtained was excellent. The comparison of the performance of the three programs revealed that the ERAPAVE program has an improved computational performance, especially for a larger number of evaluation points, which is usually the case for M-E design applications. Moreover, a nonlinear module was introduced into the program to take stress dependent behaviour of unbound materials into account.

Asphalt mixtures exhibit unique characteristics of both viscous and elastic properties and hence are categorized as viscoelastic materials. Therefore the

ERAPVE program was extended to incorporate the viscoelastic behaviour of

47

Mechanistic-Empirical Performance Modelling Abubeker W. Ahmed bituminous layers through the elastic-viscoelastic correspondence principle. A procedure based on collocation of linear viscoelastic (LVE) solutions at selected time durations was also proposed that improved the computational performance for analysis of stationary and moving loads.

7.2. Permanent Deformation Models

Rutting is one of the distresses that M-E pavement design procedure attempts to control and it is well understood that rutting is the result of the permanent deformation in the constituent layers of the pavement due to the prevailing traffic and environmental condition. Therefore, it is necessary to model the permanent deformation in bound and unbound layers of the pavement.

In this study, three M-E permanent deformation models for unbound granular materials (UGMs) were evaluated based on three accelerated pavement tests

(APTs). The APTs were conducted on three test structures with different base materials. The permanent deformation models evaluated were the Tseng and

Lytton (1989), Gidel et al. (2001) and Korkiala-Tanttu (2005). Models by Tseng and Lytton and Korkiala-Tanttu showed slight differences between patterns of permanent deformation for the base materials whereas the Gidel et al. model has shown a similar trend for the three base materials, i.e. a steep slope at the initial phase of the loading and a milder slope afterwards, and a good fit was obtained for crushed rock base material. In general, the Tseng and Lytton model agreed relatively well with all types of base materials. Laboratory to field correlation factors for the three materials were also estimated for the models.

Furthermore, one permanent deformation model for asphalt layers was also evaluated using an extra-large wheel tracking (ELWT) and APT tests. The model produced reasonable magnitudes and trends for permanent deformation in the asphalt layers. In addition, a calibration factor relating the ELWT device and the

APT facilities indicated that the ELWT device could fairly simulate the conditions of APT and it can be employed to establish model parameters for the permanent strain model.

48

Conclusions and Recommendations

7.3. Heavy Vehicle Characterization

Traffic loading is one of the most important factors influencing the performance of flexible pavements. Therefore M-E pavement design procedures must account for the effect of traffic. Due to the nature and the complexity of traffic data, M-E pavement design procedures adopt different types of characterization and simplification of the raw traffic data. This study discussed and evaluated three different approaches for characterizations of heavy traffic ALS, namely, the equivalent standard axle load (ESAL), the constant contact area (CCA) and the constant contact pressure (CCP) approaches. Field measurement studies showed that the CCP is a more realistic characterization of the actual traffic conditions; however, it was shown that it is computationally very expensive for M-E applications.

The characterizations were evaluated based on the predicted permanent deformation and fatigue cracking performances and they produced similar results for layers below 25 cm from the surface. However both the ESAL and CCA approaches underpredicted the permanent deformations for the top 25 cm. The error introduced, due to ESAL and CCA characterizations, reached up to 35% for the permanent deformation and up to 70% for fatigue cracking. The computational performances of the three characterizations were also evaluated; the ESAL produced the highest performance, followed by the CCA. An improvement to the

CCA approach was also proposed that enhanced the accuracy while maintaining the same level of computational performance.

7.4. Limitations and Recommendations for Future Studies

It is essential to state that the impact of climate such as temperature, moisture, freezing-thawing, ground water table and drainage conditions were not fully considered when evaluating the permanent deformation models for UGMs and bituminous bound layers. This was due to the fact that the study mainly employed results from full scale APT tests, where the temperature and the moisture in the pavements were controlled. Moreover, unlike pavements under real traffic scenarios, the APT test structures considered in the study were subjected to only a

49

Mechanistic-Empirical Performance Modelling Abubeker W. Ahmed single axle configuration. Therefore a validation of the models and the model parameters using actual field conditions is recommended.

The stress dependent nature of UGMs was considered in the study; however, the bituminous bound layers were treated as linear elastic materials and the effect of aging was not taken into account. Furthermore, as MLET theory was employed in the study, it was not possible to implement advanced characterization of the materials such as anisotropic behaviours. Therefore these influences should be assessed and incorporated through advanced materials characterizations and rigorous modelling techniques such as the finite element method (FEM).

Finally, this study focused mainly on the M-E prediction and development of rutting for flexible pavements and therefore other failure modes of flexible pavements such as cracking, low temperature cracking and the international roughness index (IRI) were not incorporated.

50

References

References

Abate, J., and Valko, P. P., 2004. Multi-precision Laplace transform inversion.

International Journal of Numerical Methods in Engineering, 60(5), 979–993.

Acum, W. E. A., and Fox, L., 1951. Computation of load stresses in a threelayered elastic system. Geotechnique, London, 2(4), pp. 293-300.

Ahlvin, R. G., and Ulery, H. H., 1962. Tabulated values for determining the complete pattern of stresses, strains and deflections beneath a uniform circular load on a homogeneous half space. Bulletin 342, Highway Research Board, pp.

1-13.

ARA., 2004. Guide for the Mechanistic Empirical Design of New and

Rehabilitated pavement Structure. (Report 1-37A), Washington, D. C:

Transportation Research Board of the National Academies.

Barksdale, R. D., 1972. Laboratory evaluation of rutting in base course materials.

Proceedings of 3 rd

International Conference on Structural Design of Asphalt

Pavements, pp. 161–174.

Blab, R., and Litzka, J., 1995. Measurements of the lateral distribution of heavy vehicles and its effects on the design of road pavements, Proceedings of the 4

th

International symposium on Heavy Vehicle Weights and Dimensions, Ann

Arbor.

Bonaquist, R. F., and Witczak, M. W., 1997. A comprehensive constitutive model for granular materials in flexible pavement structures. Proceedings of 8

th

International Conference on Asphalt Pavements, Seattle, U.S.A., pp. 783-802.

Bouteldja, M., Jacob, B., and Dolcemascolo, V., 2008. Optimized design of weight-in-motion multiple-sensors array by energy approach. 10

th

International

Symposium on Heavy Vehicle Transport Technology, Paris, France, pp. 195-

203.

51

Mechanistic-Empirical Performance Modelling Abubeker W. Ahmed

Brown, S. F., and Hyde, A. F. L., 1975. Significance of cyclic confining stress in repeated-load triaxial testing of granular material. Transport Research Record

537, Transportation Research Board, Washington, D. C., pp. 49– 58.

Bufler, H., 1971. Theory of elasticity of a multilayered medium. Journal of

Elasticity, 1(2), pp. 125-143.

Burmister, D. M., 1943. The theory of stresses and displacements in layered system and application to the design of airport runways. Proceedings of the

Highway Research Board, Washington, D. C, 23, pp. 126–148.

Burmister, D. M., 1945. The general theory of stresses and displacements in layered soil systems. Journal of Applied Physics, 16(2), pp. 89–96, 16(3), pp.

126–127, 16(5), 296–302.

Cebon, D., and Winkler, C. B., 1991. Multiple-sensor weight-in-motion: Theory and experiments. Transportation Research Record, No. 1311, Transportation

Research Board, Washington, D. C., pp. 70–78.

Chan, F. W. K., 1990. Permanent Deformation Resistance of Granular Layers in

Pavements. PhD Thesis, Department of Civil Engineering, University of

Nottingham, Nottingham, England.

Chou, Y. T., 1969. General theory of stresses and displacements in elastic and viscoelastic layered systems. Final Report WESMPM698, Vicksburg, MS:

Army Engineer Waterways Experiment Station.

Collop, A. C., Cebon, D., and Hardy, M. S. A., 1995. Viscoelastic approach to rutting in flexible pavements. Journal of Transportation Engineering, ASCE,

121 (1). pp. 82-93.

Corte, J.-F., Brosseaud, Y., Simoncelli, J-P., and Caroff, G., 1994. Investigation of rutting of asphalt surface layers: Influence of binder and axle loading configuration. Transportation Research Record 1436. pp. 28-37.

Daniel, J. S., and Kim, Y. R., 2001. Laboratory evaluation of fatigue damage and healing of asphalt mixtures. Journal of Materials in Civil Engineering, ASCE,

Vol. 13, No. 6, pp. 434-440.

52

References

Desai, C. S., 2002. Mechanistic pavement analysis and design using unified material and computer models. Proceedings of 3

rd

International Symposium on

3D Finite Element for Pavement Analysis, Amsterdam, The Netherlands, pp. 1-

63.

Donovan, P., and Tutumluer, E., 2008. Effect of Aircraft Load Wander on

Unbound Aggregate Pavement Layer Stiffness and Deformation Behaviour.

Proceedings of the 2008 Airfield and Highway Pavements, October 15-18,

Bellevue, Washington, pp. 465-476, DOI: 10.1061/41005(329)40.

Dorman, G. M., 1962. The Extension to practice of a fundamental procedure for the design of flexible pavements. Proceedings of 1

st

International Conference

on the Structural Design of Asphalt Pavements, Ann Arbor, pp. 785-793.

Dunlap, W. A., 1966. Deformation Characteristics of Granular Materials

Subjected to Rapid Repetitive Loading. PhD Thesis, Texas A&M University,

College Station, Texas.

Erlingsson, S., 2010a. Characterization of heavy traffic on the Swedish road network, Proceedings of the 11

th

International Conference on Asphalt

Pavements, Nagoya, 01 – 06 August, Japan, CD-ROM.

Erlingsson, S., 2010b. Impact of water on the response and performance of pavement structure in an accelerated test. Road Materials and Pavement

Design, 11(4), pp. 863–880.

Erlingsson, S., Said, S. F, and McGarvey, T., 2012. Influence of heavy traffic lateral wander on pavement deterioration. Proceedings of the 4

th

European

Pavement Asset Management Conference, Malmö, Sweden.

Erlingsson, S., Winnerholt, T., and Persson, L., 2010. Axle Load Spectra

Characteristics of the Swedish Road Network. Transport Research Arena

Europe Conference, 7-10 June, Brussels, CD-ROM.

FHWA, 2003. Distress Identification Manual for the Long – Term Pavement

performance Performance Program (4 th

Revised Edition). Report No. FHWA-

RD-03-031, US Department of Transportation, Federal Highway

Administration.

53

Mechanistic-Empirical Performance Modelling Abubeker W. Ahmed

Gidel, G., Hornych, P., and Chauvina, J., 2001. A new approach for investigating the permanent deformation behaviour of unbound granular material using the repeated load triaxial apparatus. Bulletin des Laboratoires des Ponts et

Chaussees, 233, Ref. 4359, pp. 5–21.

Haas, R. C. G., Hudson, W. R., and Zaniewski, J. P., 1994. Modern Pavement

Management. Krieger Publishing Company, Malabar, Florida.

Haider, S. W., and Harichandran, R. S., 2009. Effect of axle load spectrum characteristics on flexible pavement performance. Transportation Research

Record: Journal of the Transportation Research Board, No. 2095,

Transportation Research Board of the National Academies, Washington, D. C., pp. 101–114.

Hayhoe, G. F., 2002. LEAF – A new layered elastic computational program for federal aviation administration pavement design and evaluation procedures.

Federal aviation administration airport technology transfer conference,

Atlantic City, New Jersey, USA.

Holubec, I., 1969. Cyclic Creep of Granular Materials. Report No. RR147,

Department of Highways, Ontario, Canada.

Hopman, P. C., 1996. VEROAD: A viscoelastic multilayer computer program.

Transportation Research Record: Journal of the Transportation Research

Board, No. 1539, Transportation Research Board of the National Academies,

Washington, D. C., pp. 72–80.

Hornych, P., Chazallon, C., Allou, F., and El Abd, A., 2007. Prediction of permanent deformations of unbound granular materials in low traffic pavements. Road Materials and Pavement Design, 8(4), pp. 643-666.

Hornych, P., Kazai, A., and Piau, J. M., 1998. Study of the resilient behaviour of unbound granular materilas. Proceedings 3

rd

International Conference on

Bearing Capacity of Roads, Railways, and Airfields, Trondheim, pp. 1277-

1287.

54

References

Huang, Y. H., 1968. Stresses and displacements in nonlinear soil media. The

Journal of Soil Mechanics and Foundation Division, ASCE, 94(1), pp. 1-19.

Huang, Y. H., 2004. Pavement Analysis and Design. USA: Pearson Prentice Hall.

Jones, A., 1962. Tables of stresses in three layer elastic system, Highway

Research Bulletin, No. 342.

Khazanovich, L., and Wang, Q., 2007. High-performance layered elastic analysis program. Transportation Research Record: Journal of the Transportation

Research Board, No. 2037, pp. 63-75.

Kim, J., 2011. General viscoelastic solutions for multilayered systems subjected to static and moving loads. Journal Mater. Civil Engineering. ASCE 23(7), pp.

1007–1016.

Kolisoja, P., 1998. Large Scale Dynamic Triaxial Tests for Arbeidsfellsskapet

KPG, Results of the Permanent Deformation Tests. Delprosjektrapport KPG

20, Tampere.

Korkiala-Tanttu, L., 2005. A new material model for permanent deformations in pavements. Proceedings of the 7

th

International Conference on Bearing

Capacity of Roads, Railways and Airfields, Trondheim [CD-ROM], pp. 10.

Korkiala-Tanttu, L., 2008. Calculation Method for Permanent Deformation of

Unbound Pavement Materials. PhD. Thesis, Helsinki University of

Technology, Finland.

Lekarp, F., 1997. Permanent Deformation Behaviour of Unbound Granular

Materials. Licentiate Thesis, Royal Institute of Technology, Stockholm.

Lekarp, F., and Dawson, A., 1998. Modelling permanent deformation behaviour of unbound granular materials. Construction and Building Materials, 12(1), 9–

18.

Lekarp, F., Isacsson, U., and Dawson, A., 2000a. State of the art I: Resilient response of unbound aggregates. Journal of Transportation Engineering,

ASCE, 126(1), pp. 66–75.

55

Mechanistic-Empirical Performance Modelling Abubeker W. Ahmed

Lekarp, F., Isacsson, U., and Dawson, A., 2000b. State of the art II: Permanent strain response of unbound aggregates. Journal of Transportation Engineering,

ASCE, 126 (1), pp. 76-83

Lijzenga, J., 1997. On the prediction of pavement rutting in the shell pavement design manual, 2 nd

European Symposium on Performance and durability of

bituminous materials, Leeds, UK.

Long, F. M., 2001. Permanent Deformation of Asphalt Concrete Pavements: A

Nonlinear Viscoelastic Approach to Mix Analysis and Design, Doctoral

Dissertation, University of California, Berkeley.

Lytton, R. L., Uzan, J., Fernando, E. G., Roque, R., Hiltumen, D., and Sto ffels, S.

M., 1993. Development and validation of performance prediction model and

specifications for asphalt binders and paving mixes (Report No. SHRP-A-357).

Washington, D. C: The Strategic Highway Research Program Project.

Maina, J., and Matsui, K., 2005. Elastic multilayered analysis using DE-

Integration. Publications of the Research institute for Mathematical Sciences,

41(5), pp. 853-867.

Matthews, J. M., and Monismith, C. L., 1992. The effect of aggregate gradation on the creep response of asphalt mixtures and pavement rutting estimates,

ASTM STP 1147.

Mobasher, B., Mamlouk, M., and Lin, H., 1997. Evaluation of crack propagation properties of asphalt mixtures. Journal of Transportation Engineering, 123(5), pp. 405–413.

Morgan, J. R., 1966. The response of granular materials to repeated loading.

Proceedings 3 rd

Conference, ARRB, pp. 1178-1192.

Morton, B. S., Luttig, E., Horak, E., and Visser, A. T., 2004. The effect of axle load spectra and tyre inflation pressures on standard pavement design method.

Proceedings of the 8 th

Conference on Asphalt Pavements for Southern Africa

(CAPSA'04), 12-16 September, Sun City, South Africa.

56

References

Moses, F., 1979. Weight in motion system using instrumented bridge.

Transportation Engineering Journal, ASCE, pp. 233-249.

Oscarsson, E., 2011. Evaluation of the mechanistic-empirical pavement design guide model for permanent deformation in asphalt concrete. International

Journal of Pavement Engineering, 12(1), pp. 1-12.

Papagiannakis, A. T., Amoah, N., and Taha, R., 1996. Formulation for viscoelastic response of pavement under moving dynamic loads. Journal of

Transport Engineering. ASCE, 122(2), pp. 140-145.

Paute, J. L., Hornych, P., and Benaben, J. P., 1996. Repeated load triaxial testing of granular materials in the French network of Laboratories des Ponts et

Chaussees. Proceedings of the European Symposium Eurofles 1993, Lisbon,

Balkema, pp. 53-64.

Peattie, K. R., 1962. Stress and strain factors for three layered elastic systems,

Highway Research Bulletin No. 342.

Pidwerbesky, B. D., 2004. Performance-based contracts and their impact on construction and maintenance practices: A contractor’s perspective.

Proceedings of the 6 th

International Conference on Managing Pavements,

Brisbane, Queensland, Australia.

Prozzi, J. A., and Hong, F., 2007. Optimum statistical characterization of axle load spectra based on load-associated pavement damage. International Journal

of Pavement Engineering, 8(4), pp. 323–330.

Said, S. F., Hakim, H., Osscarson, E., and Hjort, M., 2011. Prediction of flow rutting in asphalt concrete layers. International Journal of Pavement

Engineering, 12(6), pp. 519-532.

SAMARIS., 2004. Selection and evaluation of models for prediction of permanent deformations of unbound granular materials in road pavements. Sustainable

and Advanced Materials for Road Infra-structures, Work Package 5

Performance-based specifications.

57

Mechanistic-Empirical Performance Modelling Abubeker W. Ahmed

Sousa, J. B., Craus, J., and. Monismith, C. L., 1991. Summary report on permanent deformation in asphalt concrete, Strategic Highway Research

Program National Research Council, Washington, D. C.

Sweere, G. T. H., 1990. Unbound Granular Bases for Roads. PhD. Thesis,

University of Delft, Delft.

Tayfur, S., Ozen, H., and Aksoy, A., 2007. Investigation of rutting performance of asphalt mixtures containing polymer modifiers. Construction and Building

Materials 21(2), pp. 328–337.

Thom, N. H., and Brown, S. F., 1988. The effect of grading and density on the mechanical properties of a crushed dolomitic limestone. Proceedings of the

Australian Road Research Board, 14(7), pp. 94–100.

Timoshenko, S., and Goodier, I. N., 1951. Theory of Elasticity. New York:

McGraw-Hill.

Tseng, K. H., and Lytton, R. L., 1989. Prediction of permanent deformation in flexible pavement materials. In H. G. Schreuders & C. R. Marek (Eds.).

Implication of Aggregates in the Design, Construction, and Performance

Flexible Pavements, Philadelphia, PA: ASTM, pp. 154–172.

Ullidtz, P., 1987. Pavement analysis. Development in Civil Engineering, Vol.19,

Amsterdam, The Netherlands.

Ullidtz, P., Harvey, J., Tsai, B. W., and Monismith, C., 2006. Calibration of incremental-recursive damage models in CalME using HVS experiments,

Report No. UCPRC-RR-2005-06, Pavement Research Centre, Institute of

Transport Studies, University of California, Berkeley and Davis, California,

USA.

Uzan, J., 1985. Characterization of granular materials. Transportation Research

Record 1022, pp. 52-59, National Research Council, Washington, D. C.

Van Cauwelaert, F. J., 2003. Pavement design and evaluation: The required mathematics and its application. Brussels: Federation of the Belgian Cement

Industry.

58

References

Van Cauwelaert, F. J., and Lequeux, D., 1986. Computer Programs for the

Determination of Stresses and Displacements in Four Layered Structures.

Water Experiment Station, U.S. Army Corps of Engineers, Vicksburg, Miss.

Verstraeten, J., 1967. Stresses and displacements in elastic layered systems.

Proceedings of 2 nd

International Conference on the Structural Design of

Asphalt Pavements, Ann Arbor, Michigan, pp. 223–238.

Wang, J., Birgisson, B., and Roque, R., 2007. Window-based top-down cracking design tool for Florida: Using energy ratio method. Transportation Research

Record: Journal of the Transportation Research Board, No. 2037,

Transportation Research Board of the National Academies, Washington, D. C., pp. 86–96, DOI: 10.3141/2037-08.

Wang, L. B., Myers, L. A., Mohammad, L. N., and Fu, Y. R., 2003..

Micromechanics study on top-down cracking. Transportation Research Record:

Journal of the Transportation Research Board, No. 1853, Transportation

Research Board of the National Academies, Washington, D. C., pp. 121–133.

Wiman, L. G., 2001. Accelerated Load Testing of Pavements: HVS-NORDIC tests

at VTI Sweden 1999. VTI Report 477A, Linköping: Swedish National Road and

Transport Research Institute.

Wiman, L. G., 2006. Accelerated Load Testing of Pavements: HVS-NORDIC tests

at VTI Sweden 2003–2004. VTI report 544A, Linköping: Swedish National

Road and Transport Research Institute.

Wiman, L. G., 2010. Accelererad Provning av Vägkonstruktioner Med och Utan

Polymermodifierat Bitumen i Bindlager (In Swedish). VTI report 576,

Linköping: Swedish National Road and Transport Research Institute.

Wiman, L. G., and Erlingsson, S., 2008. Accelerated pavement testing by HVS – trans-national testing equipment. Ljubljana: Transport Research Arena

Europe, [CD-ROM].

Winnerholt, T., and Persson, L., 2010. Results from 6 years of Swedish measurements with bridge weight in motion (WIM) systems during 2004 –

59

Mechanistic-Empirical Performance Modelling Abubeker W. Ahmed

2009. HVTT11 – International Heavy Vehicle Symposium, Melbourne,

Australia.

Wu, R., and Harvey, J. T., 2008. Evaluation of the effect of wander on rutting performance in HVS Tests, Proceedings of the 3

rd

International Conference on

Accelerated Pavement Testing, October, Madrid, Spain.

60

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Related manuals

Download PDF

advertisement
