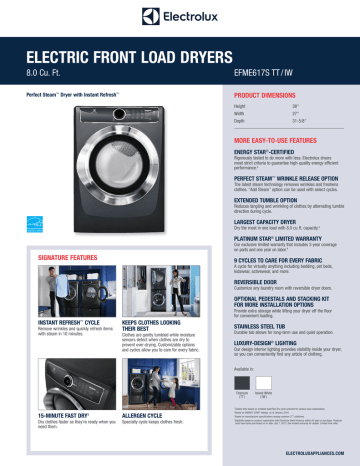

ELECTRIC FRONT LOAD DRYERS
8.0 Cu. Ft.
EFME617S TT / IW
Perfect Steam™ Dryer with Instant Refresh™
PRODUCT DIMENSIONS
Height38"
Width27"
Depth31-5/8"
MORE EASY-TO-USE FEATURES
ENERGY STAR®-CERTIFIED
Rigorously tested to do more with less. Electrolux dryers
meet strict criteria to guarantee high-quality energy efficient
performance.2
PERFECT STEAM™ WRINKLE RELEASE OPTION
The latest steam technology removes wrinkles and freshens
clothes. “Add Steam” option can be used with select cycles.
EXTENDED TUMBLE OPTION
Reduces tangling and wrinkling of clothes by alternating tumble
direction during cycle.
LARGEST CAPACITY DRYER
Dry the most in one load with 8.0 cu. ft. capacity.3
PLATINUM STAR® LIMITED WARRANTY
Our exclusive limited warranty that includes 3-year coverage
on parts and one year on labor.4
SIGNATURE FEATURES
9 CYCLES TO CARE FOR EVERY FABRIC
A cycle for virtually anything including bedding, pet beds,
kidswear, activewear, and more.
REVERSIBLE DOOR
Customize any laundry room with reversible dryer doors.
OPTIONAL PEDESTALS AND STACKING KIT
FOR MORE INSTALLATION OPTIONS
Provide extra storage while lifting your dryer off the floor
for convenient loading.
INSTANT REFRESH™ CYCLE
Remove wrinkles and quickly refresh items
with steam in 10 minutes.
KEEPS CLOTHES LOOKING
THEIR BEST
Clothes are gently tumbled while moisture
sensors detect when clothes are dry to
prevent over-drying. Customizable options
and cycles allow you to care for every fabric.
STAINLESS STEEL TUB
Durable tub allows for long-term use and quiet operation.
LUXURY-DESIGN® LIGHTING
Our design interior lighting provides visibility inside your dryer,
so you can conveniently find any article of clothing.
Available in:
Titanium
( TT )
Island White
( IW )
F astest time based on smallest load/Fast Dry cycle selected for various load compositions.
Based on ENERGY STAR ® listings, as of January 2016.
Based on manufacturer specifications among common 27" platforms.
4
Eligibility based on product registration with Electrolux North America within 60 days of purchase. Products
must have been purchased on or after July 1, 2013. See limited warranty for details. Limited time offer.
1
15-MINUTE FAST DRY
1
Dry clothes faster so they’re ready when you
need them.
ALLERGEN CYCLE
Specialty cycle keeps clothes fresh.
2
3
ELECTROLUXAPPLIANCES.COM
ELECTRIC FRONT LOAD DRYERS
EFME617S TT / IW
27" ELECTRIC FRONT LOAD DRYER
Capacity D.O.E.
8.0 Cu. Ft.
FEATURES
Pull-to-Open Door
LED Display with Capacitive Touch Controls
Perfect Steam™ Dry System
Dry System
Sound System
Lighting
Tumble System
Moisture Sensor
Dryer Drum
Tumble Speed (RPM)
Reversible Door
Adjustable Leveling Legs
ENERGY STAR®
NSF® Certified / Sanitize
Yes
Yes
Yes
Luxury-Dry™
Luxury-Quiet™
Luxury-Design®
Gentle Tumble™
Yes
Stainless Steel / Painted Steel
50
Yes
Yes
Yes
CYCLES
Timed Dry (30, 45, 60, 75), Allergen, Heavy Duty, Towels,
Normal, 15-Min. Fast Dry, Casual, Delicates, Instant Refresh™
9
OPTIONS
Temperature Selections
Add Steam
Electronic Auto Dry System
Manual Timed Dry Selections
Delay Start (Hours)
End-of-Cycle Chime
Extended Tumble
Anti-Static
Line Dry
Shrink Guard
Dryness Levels
5
Yes
Yes
4
12
Adjustable
Yes
Yes
Yes
Yes
5
INSTALLATION OPTIONS
Freestanding, Under Counter *, Stacked (Above Washer),
Pedestal, Hidden (In Closet), Second Floor
4-Way Dryer Venting
Yes
Yes
ACCESSORIES
Luxury-Glide® Pedestal with Spacious Storage Drawer–
Titanium – PN # EPWD157STT
Island White – PN # EPWD157SIW
Dryer Stacking Kit – PN # STACKIT7X
Drying Rack – PN # A04840701
Optional
Optional
Optional
Optional
SPECIFICATIONS
Color –
Titanium
Island White
Maximum Exhaust Duct Length** (Ft.)
Power Supply Connection Location
Voltage Rating
Connected Load (kW Rating) @ 240 Volts
Amps @ 240 Volts
Heating Element @ 240 Volts (Watts)
Shipping Weight (Approx.)
TT
IW
125
Rear
240V / 60 Hz / 30A
6.0
25
5,400
141 Lbs.
*Side-by-Side units in under-counter installation require custom-built countertop and/or cabinetry.
** Rigid metal duct preferred, semi-rigid optional and allow deductions for elbows and vents.
Refer to Installation Guide on web for additional information.
NOTE: Always consult local and national electric and plumbing codes. Refer to Product Installation Guide
for detailed installation instructions on the web at electroluxappliances.com.
Specifications subject to change.
PRODUCT DIMENSIONS
Height (without 15" Pedestal)
(with 15" Pedestal)
Width
Depth (to Center of Arc Not Including Hose)
(with Door 90° Open)
38"
53"
27"
31-5/8"
53-1/2"
Electrolux Major Appliances, N.A.
USA • 10200 David Taylor Drive • Charlotte, NC 28262­­• 1-877-4electrolux (1-877-435-3287) • electroluxappliances.com
CANADA • 5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • electroluxappliances.ca
EFME617S 03/16
© 2016 Electrolux Home Products, Inc.
High standards of quality at Electrolux Home Products, Inc.
mean we are constantly working to improve our products.
We reserve the right to change specifications or
discontinue models without notice.
EFME417S_EFME517S_EFME617S (steam)
ELECTRIC
FRONT LOAD DRYERS
Electrolux
EFME617S TT / IW
Front
Left
/4" hose
clearance
required
3
27"
Rear
53 1/2"
31 5/8"
2 1/4"
Wall
Water inlet
38"
(75 3/4" min.
for stacked
units)
Reversible
Door Swing
3 7/16"
Built-In Installations
0"min.
Elevates dryer height to 53 1/4".
For detailed pedestal installation,
refer to instructions included
with pedestal or on web.
Pedestal Installation may require
modified utility hookup locations.
For details, refer to Product
Installation Guide on web.
0"min.
0"min.*
1" min.
Vented door
Front
Side
3"
60"
sq. in.
min.
27"
Front
*Steam dryer requires additional 3/4" hose clearance.
26 1/2"
Side
Overall depth with drawer
fully extended – 42 1/2"
60"
sq. in.
min.
3"
15"
15 /4"
1
240V
Power
supply
6 1/2"
12 1/2"
22"
15" Pedestal Drawer
Installation
2 1/2"
Closet Installation:
If washer and dryer are installed in same closet, door(s)
MUST be vented with 120 sq. in. minimum louvered
opening, equally divided, located 3" from top and bottom
of door. Louvered door(s) with equivalent air openings for
full-length of door is acceptable. Air openings MUST
remain unobstructed with door(s) installed.
13 1/2"
Installation Clearances:
Dryer can be built in alone or with washer
(side by side or stacked) in closet, recess or
under counter installation with 0" minimum
clearance required around sides and back of
unit(s). To achieve 0" minimum rear clearance,
dryer MUST be vented straight back or with
quick-turn 90° elbow. Steam dryer requires
additional 3/4" steam hose clearance at back of
unit(s). Installation of closet door(s) requires
additional 1" minimum clearance between front
of unit(s) and door(s). Location of plumbing,
exhaust and utility hookups MUST be considered
when planning any built-in installation. For
additional installation details, refer to Product
Installation Guides on web.
Under Counter Installation:
Installation of dryer alone or side by side
with washer under counter, requires custom-built
countertop and/or cabinetry to accommodate
unit(s) height.
Stacking Units:
Stacking dryer above washer requires use of
optional Stacking Kit (PN# STACKIT7X) with
modified utility hookup locations for dryer. For
complete installation details, refer to instructions
included with Stacking Kit or on web.
Electric Dryer Specifications
•Product Weight
– 129 Lbs. / Shipping Weight – 140 Lbs.
Rating – 240 / 60 Hz / 30A
•Single phase 3- or 4-wire cable, 240 Volt, 60 Hertz AC only electrical
supply with ground required on separate circuit fused on both sides of line.
(Do not use same circuit as washer.)
•Connected Load (kW Rating) @ 240 Volts = 6.0 kW
•Amps @ 240V = 25A
•Dryer MUST employ a 3-conductor NEMA 10-30 type SRDT or 4-conductor
NEMA 14-30 type SRDT or ST (as required), rated at 240 volt AC minimum,
30 amp power supply cord marked for use with clothes dryers (not supplied).
•Grounding through neutral link prohibited in specific applications and certain
locales, requiring use of 4-wire system. (For detailed electrical requirements,
refer to Product Installation Guide on web.)
•Always consult local and national electric & plumbing codes.
•Can be installed alone, with or without optional 15" pedestal drawer, or
stacked above matching Electrolux Washer, which requires installation of
optional dryer stacking kit. (For installation details, refer to instructions
included with optional pedestal or stacking kit or on web.)
•Can be built in alone or with matching Electrolux Washer (side by side or stacked)
in closet, recess or under counter installation with 0" minimum clearance
required around sides and back of unit(s). To achieve 0" minimum rear clearance,
dryer MUST be vented straight back or with quick-turn 90° elbow. Steam dryer
requires additional 3/4" steam hose clearance at back of unit(s). Installation
of closet door(s) requires additional 1" minimum clearance between front of
unit(s) and door(s). Location of plumbing, exhaust and utility hookups MUST be
considered when planning any built-in installation.
•Under-counter installation requires custom-built countertop and/or cabinetry
to accommodate unit(s) height.
•Voltage
•Do
NOT install in area exposed to dripping water or outdoor weather conditions,
or where gasoline or other flammables, including automobiles, are kept or stored.
•For garage installation, dryer MUST be located minimum 18" above floor.
•Floor MUST be solid with 1" maximum slope. To ensure vibration or movement
does not occur, reinforcement of floor may be necessary. Do NOT install on
carpeted surface.
•Dryer MUST exhaust to outside of building, NOT into any concealed space.
•Dryer equipped for 4-way venting and approved for up to 125-foot-equivalent
of duct length, determined by length of run and number of elbows needed.
•Exhaust installation requires minimum 4"-diameter rigid or semi-rigid metal duct
with approved, unobstructed vent hood having swing-out damper(s). If installing
rigid metal duct (preferred), do not exceed MAXIMUM venting run length of 125 ft.,
allow deductions for elbows and vents. If installing semi-rigid metal duct, do not
exceed MAXIMUM venting run length of 8 ft., always allow deductions for elbows
and vents (Refer to Product Installation Guide on web for additional information).
Do NOT use flexible plastic or metal foil duct and use shortest run possible.
•Leveling legs supplied to level dryer properly and reduce excessive noise and
vibration.
•Water inlet hose for steam setting connects to cold water supply with “Y”
connector and requires 3/4" clearance between back of unit and wall.
Note: F or planning purposes only. Refer to Product Installation Guide
on the web at electroluxappliances.com for detailed instructions.
Optional Accessories
•Pedestal
Drawers – Titanium (PN # EPWD157STT), Island White (PN # EPWD157SIW).
Stacking Kit – (PN # STACKIT7X).
•Drying Rack – (PN # A04840701).
•Dryer
Electrolux Major Appliances, N.A.
USA • 10200 David Taylor Drive • Charlotte, NC 28262­­• 1-877-4electrolux (1-877-435-3287) • electroluxappliances.com
CANADA • 5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • electroluxappliances.ca
EFME617S 03/16
© 2016 Electrolux Home Products, Inc.
High standards of quality at Electrolux Home Products, Inc.
mean we are constantly working to improve our products.
We reserve the right to change specifications or
discontinue models without notice.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
