Weslo 831.293020 User`s manual

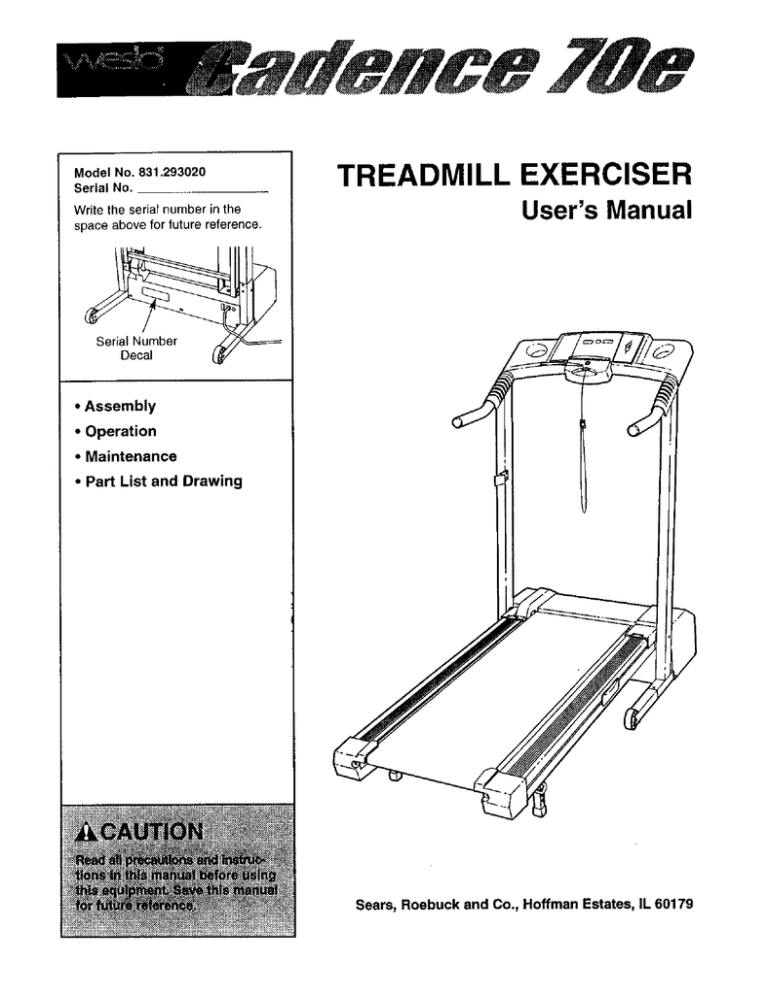

Model No. 831,293020 Serial No. TREADMILL EXERCISER User's Manual Write the serial number in the space above for future reference. Serial Number Decal • Assembly • Operation • Maintenance • Part List and Drawing Sears, Roebuck and Co., Hoffman Estates, IL 60179 TABLE OF CONTENTS IMPORTANT PRECAUTIONS ............................................................. BEFORE YOU BEGIN ................................................................... ASSEMBLY ........................................................................... OPERATION AND ADJUSTMENT .......................................................... HOW TO FOLD AND MOVE THE TREADMILL ............................................... MAINTENANCE AND TROUBLESHOOTING ................................................ CONDITIONING GUIDELINES ........................................................... ORDERING REPLACEMENT PARTS ............................................... FULL 90 DAY WARRANTY ....................................................... Note: An EXPLODED DRAWING and a PART LIST are attached in the center of this manual. IMPORTANT PRECAUTIONS 2 4 5 8 10 12 14 Back Cover Back Cover The decals shown have been placed on your treadmill. If a decal is missing, or if it is not legible, please call toll-free 1-800-999-3756 to order a free replacement decal (see the front cover of this manual). Apply the decal in the location shown. Note: The decals are not shown at actual size. Prolectyourself oLhersfTornriskof seric,Js injury. Read theusers n_nual and: *t4_ IlandrMat0 operdng_1_ I_1 km_4w IIIo _. 3 BEFORE YOU BEGIN Thank you for selecting the WESLO ®CADENCE 70e treadmill. The CADENCE 70e treadmill combines advanced technology with innovative design to let you enjoy an excellent form of cardiovascular exercise in the convenience and privacy of your home. And when you're not exercising, the unique CADENCE 70e treadmill can be folded up, requiring less than half the floor space of other treadmills. ing this manual, call 1-800-4-MY-HOME ®(1-800-4694663).To help us assist you, please note the product model number and serial number before calling. The model number of the treadmill is 831.293020. The serial number can be found on a decal attached to the treadmill (see the front cover of this manual for the location). Before reading further, please review the drawing below and familiarize yourself with the labeled parts. For your benefit, read this manual carefully before using the treadmill, If you have questions after read- Water Bottle Holder (Bottle not included) Console Key/Clip Storage Latch --_ FRONT Walking Belt Circuit Breaker Foot Rails -- Power Cord BACK RIGHT SIDE Rear Roller Adjustment Bolts 4 ASSEMBLY Assembly requires two persons, Set the treadmill in a cleared area and remove all packing materials. Do not dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner. Assembly requires the included allen wr_ wire cutters _ and your own phillips screwdriver , and needlenose pliers _ (__, . To identify small parts, use the PART IDENTIFICATION CHART attached in the center of this manual. Note: If a part is not in the parts bag, first check to see if it has been pre-assembled. If a part is missing, call toll-free 1-800-999-3756. 1. Make sure that the power cord is unplugged. With the help of a second person, carefully raise the Uprights (38) until the treadmill is in the position shown. Cut the tie (not shown) off the right Upright (38). 2. Insert one of the Extension Legs (15) into the treadmill as shown. Make sure that the Base Pad (33) is on the indicated side. Note: It may be helpful to tip the Uprights (38) in the direction shown by the arrow as you insert the Extension Leg, Attach the Extension Leg (15) with an Extension Leg Screw (14). Make sure to push on the head of the Extension Leg Screw while tightening it. Attach the other Extension Leg (15) in the same way. 5 2 3. If there are plastic ties in the brackets on the Handrails (4), remove the plastic ties. Hold one of the Handrails near the right Upright (38) as shown. Insert the Wire Harness (53) up through the bracket on the Handrail and out of the round hole in the side of the Handrail. If neces- 3 Connectors 53 sary, use needlenose pliers to pull the Wire Harness out of the hole. Be careful not to damage the Wire Harness. Insert the brackets on the Handrails (4) into the upper ends of the Uprights (38). 4 40 f 40 16 Finger tighten four 1" Bolts (16) with Handrail Washers (40) into the Uprights (38) and the Handrails (4). 16 4. Set the Console Base (87) on the Handrails (4). Thread four 3/4" Screws (5) into the Handrails and the Console Base. After you have started all four Screws, tighten the Screws until they are snug; do not overtighten the Screws. 4 4 53 ._ Firmly tighten, but do not overtighten, the 1" Bolts (not shown) used in step 3. 87 i Insert the Wire Harness (53) through the two indicated plastic ties on the Console Base (87) and up through the hole in the Console Base. 5. Insert the Battery Cover (12) into the Console Base (87), with the hinges in the position shown. The Battery Cover should pivot down, away from the Console Base. 5 87 6 6. Hold the Console (11) near the Console Base (87). Touch the right Handrail (4) to discharge any static. Locate the two wires in the Wire Harness (53) that have L-shaped connectors on the ends. Press the connectors onto the two tabs on the switch shown in inset drawing 6a. Connect the other two wires in the Wire Harness to the back of the Console (87) in the locations shown by the arrows in drawing 6. If the connectors do not fit together easily, rotate them and then connect them. 7. Set the Console (11) in the Console Base (87). Make sure that no wires are pinched. Insert as much of the Wire Harness as possible (53) down the hole in the right Handrail (4). Securely tighten the plastic tie nearest the right Handrail. Pull any excess Wire Harness between the plastic ties tight and tighten the other plastic tie. Cut off the ends of the plastic ties. Cover the Wire Harness with the Wire Cover (10), and route the Wire Harness out of the hole in the side of the Wire Cover. Attach the Wire Cover to the back of the Console Base with two 3/4" Screws (5). Do not overtighten the Screws. Make sure that no wires are pinched before you attach the Console (11) to the Console Base (87). Tighten the remaining four 3/4" Screws (5) into the Console Base and the Console. Do not overtighten the Screws. 7 Ties 5 5 5 4 Refer to step 3. Firmly tighten the four 1" Bolts (16). 8. Attach the Storage Latch (66) to the left Upright (38) with two 3/4" Screws (5). 9. Make sure that all parts used in assembly are properly tightened before you use the treadmill. Keep the included allen wrench in a secure place. The allen wrench is used to adjust the walking belt (see page 13). To protect the floor or carpet, place a mat under the treadmill. 7 OPERATION AND ADJUSTMENT THE PERFORMANT LUBE TM WALKING BELT having an equipment-grounding conductor and a grounding plug. Plug the power cord into a surge suppressor, and plug the surge suppressor into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. Important: The treadmill is not compatible with GFCl-equil0ped outlets. Your treadmill features a walking belt coated with PERFORMANT LUBE TM, a high-performance lubricant. IMPORTANT: Never apply silicone spray or other substances to the walking belt or the walking platform. Such substances will deteriorate the walking belt and cause excessive wear. This product is for use on a nominal 120-volt circuit, and has a grounding plug that looks like the plug illustrated in drawing 1 below. A temporary adapter that looks like the adapter illustrated in drawing 2 may be used to connect the surge suppressor to a 2-pole receptacle as shown in drawing 2 if a properly grounded outlet is not available. HOW TO PLUG IN THE POWER CORD Your treadmill, like any other type of sophisticated electronic equipment, can be seriously damaged by sudden voltage changes in your home's power. Voltage surges, spikes, and noise interference can result from weather conditions or from other appliances being turned on or off. To decrease the possibility of your treadmill being damaged, always use a surge suppressor with your treadmill (see drawing 1 at the right). To purchase a surge suppressor, see your local Sears or call 1-800-3667278 end order part number 146148. Grounded Outlet GIroun_mg Plug_ 2 Grounded | "/ Use only a single-outlet surge suppressor that is UL 1449 listed as a transient voltage surge suppressor (TVSS). The surge suppressor must have a UL suppressed voltage rating of 400 volts or less and a minimum surge dissipation of 450 joules. The surge suppressor must be electrically rated for 120 volts AC and 15 amps. There must be a monitoring light on the surge suppressor to indicate whether it is functioning properly. Failure to use a properly functioning surge suppressor could result in damage to the control system of the treadmill. If the control system is damaged, the walking belt may change speed or stop unexpectedly, which may result in a fall and serious injury. Outlet Box Adapter J.L_,,-_I Surge _uppressor Metal Screw The temporary adapter should be used only until a properly grounded outlet (drawing 1) can be installed by a qualified electrician. The green-colored rigid ear, lug, or the like extending from the adapter must be connected to a permanent ground such as a properly grounded outlet box cover. Whenever the adapter is used it must be held in place by a metal screw. Some 2-pole receptacle outlet box covers are not grounded. Contact a qualified electrician to determine if the outlet box cover is grounded before using an adapter. This product must be grounded. If it should malfunction or break down, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This product is equipped with a co_d 8 DIAGRAM OF THE CONSOLE Displays HEART TRAINING II RATE ZONES 20 125 145 165 30 120 138 155 40 115 130 145 60 105 118 130 70 95 11Q 125 103 125 115 14Om 80 90 _T< _i50< 110 N Z Z 0 Speed Control Note: If there is a thin sheet of clear plastic on the face of the console, remove it before operating the console. BA'I-rERY INSTALLATION STEP-BY-STEP The console requires two 12 "AA" batteries (not included). Alkaline batteries are recommended. To install batteries, open the battery cover (12) beneath the Tab console as shown. Press two batteries into the console. Make sure that the negative (-) ends of the batteries ere touching the springs. Close the battery cover, push up on the tab, and then push the tab forward as shown in the inset drawing. Make sure that the tab locks into place. Before operating the console, make sure that the power cord is properly plugged in (see page 8). CONSOLE OPERATION Step onto the foot rails of the treadmill. Find the clip attached to the key, and slide the clip onto the waistband of your clothes. Next, insert the key fully into the console. Test the clip by carefully taking a few steps backward until the key is pulled from the console. If the key is not pulled from the console, adjust the position of the clip as needed. 9 of the walking belt, in miles per hour. Every few seconds, the display will change from one number to the next, as shown the the arrows in the display. Follow the steps below to operate the console. L1 Insert the key fully into the console. Inserting the key will not turn on the displays. The displays will turn on when the ON/RESET button is pressed or when the walking belt is started. Note: If you just installed batteries, the displays will already be on. B To reset the displays, press the ON/RESET button. B Step onto the foot rails, slide the speed control to the RESET position, and remove the key from the console. The displays will turn off a few minutes after the key is removed. Note: Any time that the walking belt is stopped and the ON/RESET button is not pressed for a few minutes, the displays will automatically turn off. Reset belt. the speed control and start the walking Slide the speed control down to the RESET position.Note: Each time the walking belt is stopped, the speed control must be moved to the RESET When you are finished exercising, stop the walking belt and remove the key. HOW TO CHANGE THE INCLINE OF THE TREADMILL To vary the intensity of your exercise, the incline of the treadmill can be changed. There are four incline levels. Before changing the incline, remove the key and unplug the power cord. Next, fold the treadmill to the storage position (see HOW TO FOLD THE TREADMILL FOR STORAGE on page 11). position before the walking belt can be restarted. Next, slowly slide the speed control up until the walking belt begins to move at slow speed. Carefully step onto the walking belt and begin walking. Change the speed of the walking belt as desired by sliding the speed control. To change the incline, first remove the incline pin from one of the incline legs as shown below. Adjust the incline leg to the desired height and fully reinsert the incline pin. Make sure that the incline pin is in the "locked" position shown in the inset drawing. Adjust the other incline leg in the same way. Make sure that both incline pins are inserted from the direction shown. To stop the walking belt, step onto the foot rails and slide the speed control to the RESET position. Note: During the first few minutes that the treadmill is used, inspect the alignment of the walking belt and align it if necessary (see page 13). B Incline Monitor your progress with the displays. TIME/DISTANCE dis- play--This display shows the elapsed time and the distance that Arrow Incline Pin 119:5B Incline Pin you have walked or run, TIME DISTANCE in miles. Every few seconds, the display will change from one number to the other, as shown by the arrows in the display. CALS/FAT CALS/ SPEED display--This display shows the approximate numbers of calories and fat calo- CAUTION: Before using the treadmill, make sure that both incline legs are at the same height. Do not use the treadmill with the incline pins removed. After you have adjusted the incline legs, lower the treadmill (see HOW TO LOWER THE TREADMILL FOR USE on page 11). Arrow CALS. FAT SPEED ries you have burned. (See FAT BURNING on page 14.) In addition, the display shows the speed :, 10 HOW TO FOLD AND MOVE THE TREADMILL HOW TO FOLD THE TREADMILL FOR STORAGE 1 Before folding the treadmill, unplug the power cord. CAUTION: You must be able to safely lift 45 pounds (20 kg) in order to raise, lower or move the treadmill. 1, Hold the treadmill with your hands in the locations shown at the right. To decrease the possibility of injury, bend your legs and keep your back straight. As you raise the treadmill, make sure to lift with your legs rather than your back. Raise the treadmill about halfway to the vertical position. 2. Move your right hand to the position shown and hold the treadmill firmly. Raise the treadmill until the storage latch closes over the catch. Make sure that the storage latch is fully engaged over the catch. To protect the floor or carpet from damage, place a mat under the treadmill. Keep the treadmill out of direct sunlight. Do not leave the treadmill in the storage position in temperatures above 85 ° Fahrenheit. Closed Storage HOW TO MOVE THE TREADMILL Before moving the treadmill, convert the treadmill to the storage position as described above. Make sure that the storage latch is fully engaged over the catch. 1. Hold the upper ends of the handrails. Place one foot on one of the front wheels as shown. 2. Tilt the treadmill back until it rolls freely on the front wheels, Carefully move the treadmill to the desired location. To reduce the risk of injury, use extreme caution while moving the treadmill. Do not attempt to move the treadmill over an uneven surface. 3. Place one foot on a front wheel, and carefully lower the treadmill until it is resting in the storage position. HOW TO LOWER THE TREADMILL Front Wheels FOR USE 1, Refer to drawing 2 above. Hold the upper end of the treadmill with your right hand as shown. Press the storage latch and hold it. Pivot the treadmill until the frame and foot rail are past the storage latch. 2. Refer to drawing 1. Hold the treadmill firmly with both hands, and lower the treadmill to the floor. Do not drop the treadmill frame to the floor. CAUTION: To decrease the possibility of injury, bend your legs and keep your back straight. 11 MAINTENANCE AND TROUBLESHOOTING Most treadmill problems can be solved by following the simple steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, call toll-free 1-800-4-MY-HOME ® (1-800-469-4663). PROBLEM: The power does not turn on SOLUTION: a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor is plugged into a properly grounded outlet (see page 8). Use only a single-outlet surge suppressor that meets all of the specifications described on page 8. Important: The treadmill is not compatible with GFCI-equipped outlets. b. After the power cord has been plugged in, make sure that the key is fully inserted into the console. C, frame near the power cord. If the switch protrudes as shown, the circuit breaker has tripped. To reset the circuit breaker, wait for five minutes Check thepress circuitthebreaker and then switch located back in.on the treadmill PROBLEM: c Reset Tripped I_ [_ The power turns off during use SOLUTION: a. Check the circuit breaker located on the treadmill frame near the power cord (see 1. c. above). If the circuit breaker has tripped, wait for five minutes and then press the switch back in. b. Make sure that the power cord is plugged in. if the power cord is plugged in, unplug it, wait for five minutes, and then plug it back in. c. Remove the key from the console. Reinsert the key fully into the console. d. If the treadmill still will not run, please call toll-free 1-800-4-MY-HOME ®(1-800-469-4663). PROBLEM: The displays of the console do not function properly SOLUTION: a. Check the batteries in the console (see page 9). Most problems are the result of drained batteries. b. Remove the key from the console and UNPLUG THE POWER CORD. Remove the screws from the hood. Carefully remove the hood. Locate the Reed Switch (13) and the Magnet (63) on the left side of the Pulley (78). Turn the Pulley until the Magnet is aligned with the Reed Switch. Make sure that the gap between the Magnet and the Reed Switch is about 1/8". If necessary, loosen the Reed Switch Screw (89) and move the Reed Switch slightly. Retighten the Screw. Re-attach the hood, and run the treadmill for a few minutes to check for a correct speed reading. 12 b 1/8'_--_1r e-- 13 j Top View "63 | L-- 75 PROBLEM: The walking belt slows when walked on SOLUTION: a. Use only a single-outlet surge suppressor that meets all of the specifications described on page 8. b, If the walking belt is overtightened, treadmill performance may decrease and the walking belt may become damaged. Remove the key and UNPLUG THE POWER CORD. Using the allen wrench, turn both rear roller adjustment bolts counterclockwise, 1/4 of a turn. When the walking belt is properly tightened, you should be able to lift each side of the walking belt 2 to 3 inches off the walking platform. Be careful to keep the walking belt centered. Plug in the power cord, insert the key and run the treadmill for a few minutes. Repeat until the walking belt is properly tightened. Rear Roller Adjustment Bolts c. If the walking belt still slows when walked on, please call toll-free 1-800-4-MY-HOME ® (1-800469-4663). PROBLEM: The walking belt is off-center or slips when walked on SOLUTION: a. If the walking belt is off-center, first remove the key and UNPLUG THE POWER CORD. If the walking belt has shifted to the left, use the allen wrench to turn the left rear roller bolt clockwise 1/2 of a turn; if the walking belt has shifted to the right, turn the bolt counterclockwise 1/2 of a turn. Be careful not to overtighten the walking belt. Plug in the power cord, insert the key, and run the treadmill for a few minutes. Repeat until the walking belt is centered. b. If the walking belt slips when walked on, first remove the key and UNPLUG THE POWER CORD. Using the allen wrench, turn both rear roller bolts clockwise, 1/4 of a turn. When the walking belt is correctly tightened, you should be able to lift each side of the walking belt 2 to 3 inches off the walking platform. Be careful to keep the walking belt centered. Plug in the power cord, insert the key and carefully walk on the treadmill for a few minutes. Repeat until the walking belt is properly tightened. 13 CONDITIONING GUIDELINES Aerobic Exercise If your goal is to strengthen your cardiovascular system, your exercise must be "aerobic." Aerobic exercise is activity that requires large amounts of oxygen for prolonged periods of time. This increases the demand on the heart to pump blood to the muscles, and on the lungs to oxygenate the blood. For aerobic exercise, adjust the speed and incline of the treadmill until your heart rate is near the highest number in your training zone. It may also be helpful to set the speed control on the console to AEROBIC to help you maintain the proper intensity level. (See page 9.) The following guidelines will help you to plan your exercise program. For more detailed exercise information, obtain a reputable book or consult your physician. EXERCISE INTENSITY High Performance Athletic Conditioning Whether your goal is to burn fat or to strengthen your cardiovascular system, the key to achieving the desired results is to exercise with the proper intensity. The proper intensity level can be found by using your heart rate as a guide. The chart below shows recommended heart rates for fat burning and aerobic exercise. If your goal is high performance athletic conditioning, set the speed control on the console to PERFORMANCE to help you maintain the proper intensity level. (See page 9.) Note: During the first few weeks of your exercise program, keep your heart rate near the low end of your training zone. HOW TO MEASURE YOUR HEART RATE MAXFATBURN r-ATBURN 145 125 20 HEART RATE Adge TRAINING AEROBIC 165 138 130 120 115 30 ZONES 40 155 145 125 110 50 140 113 105 60 130 110 95 70 125 103 90 80 115 To measure your heart rate, stop exercising and place two fingers on your wrist as shown. Take a six-second heartbeat count, and multiply the result by ten to find your heart rate. (A six-second count is used because your heart rate drops quickly when you stop exercising.) If your heart rate is too high or too low, adjust the speed or incline of the treadmill accordingly. To find the proper heart rate for you, first find your age at the bottom of the chart (ages are rounded off to the nearest ten years). Next, find the three numbers at the top of your age. The three numbers are your "training zone." The lower two numbers are recommended heart rates for fat burning; the highest number is the recommended heart rate for aerobic exercise. Fat Burning WORKOUT GUIDELINES To burn fat effectively, you must exercise at a relatively low intensity level for a sustained period of time. During the first few minutes of exercise, your body uses easily accessible carbohydrate calories for energy. Only after the first few minutes does your body b_}gin to use stored fat calories for energy. If your goal is to burn fat, adjust the speed and incline of the treadmill until your heart rate is near one of the lower two numbers in your training zone. It may also be helpful to set the speed control on the console to FAT BURN to help you maintain the proper intensity level. (See page 9.) A well-rounded workout includes the following three important parts: A Warm-up Start each workout with 5 to 10 minutes of stretching and light exercise (see SUGGESTED STRETCHES on page 15). A proper warm-up increases your body temperature, heart rate, and circulation in preparation for exercise. 14 Training Zone Exercise to cool down. This will increase the flexibility of your muscles and will help to prevent post-exercise problems. After warming up, increase the intensity of your exercise until your pulse is in your training zone for 20 to 60 minutes. (During the first few weeks of your exercise program, do not keep your pulse in your training zone for longer than 20 minutes.) Breathe regularly and deeply as you exercise--never hold your breath. EXERCISE FREQUENCY To maintain or improve your condition, complete three workouts each week, with at least one day of rest between workouts. After a few months, you may complete up to five workouts each week if desired. A Cool-down The key to success is to make exercise a regular and enjoyable part of your everyday life. Finish each workout with 5 to 10 minutes of stretching SUGGESTED STRETCHES The correct form for several basic stretches is shown at the right. Move slowly as you stretch--never bounce. 1. Toe Touch Stretch Stand with your knees bent slightly and slowly bend forward from your hips. Allow your back and shoulders to relax as you reach down toward your toes as far as possible. Hold for 15 counts, then relax. Repeat 3 times. Stretches: Hamstrings, back of knees, and back. 2 2. Hamstring Stretch Sit with one leg extended. Bring the sole of the opposite foot toward you and rest it against the inner thigh of your extended leg. Reach toward your toes as far as possible. Hold for 15 counts, then relax. Repeat 3 times for each leg. Stretches: Hamstrings, lower back, and groin. 3. Calf/Achilles Stretch With one leg in front of the other, reach forward and place your hands against a wall. Keep your back leg straight and your back foot flat on the floor. Bend your front leg, lean forward and move your hips toward the wall. Hold for 15 counts, then relax. Repeat 3 times for each leg. To cause further stretching of the achilles tendons, bend your back leg as well. Stretches: Calves, achilles tendons, and ankles. 4. Quadriceps Stretch With one hand against a wall for balance, reach back and grasp one foot with your other hand. Bring your heel as close to your buttocks as possible. Hold for 15 counts, then relax. Repeat 3 times for both legs. Stretches: Quadriceps and hip muscles. 5. Inner Thigh Stretch Sit with the soles of your feet together and your knees outward. Pull your feet toward your groin area as far as possible. Hold for 15 counts, then relax. Repeat 3 times. Stretches: Quadriceps and hip muscles. 15 4 PART IDENTIFICATION CHART Remove this chart and use it to identify small parts during assembly. Save this chart and the EXPLODED DRAWING/PART LIST for future reference. 3/4" Screw (5)-12 1" Bolt (16)-4 1© Handrail Washer (40)-4 Extension Leg Screw (14)-2 PART LIST--Model Key No. 1 2 3 4 5 6 7 8 9 10 !1 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 3O 3t 32 33 34 35 36 37 38 39 4O 41 42 43 44* 45 46 47 48 49* Qty. 4 6 2 2 24 1 1 2 2 1 1 1 1 2 2 4 4 1 1 1 1 1 1 1 1 1 5 17 1 1 4 2 4 1 1 2 2 i 4 8 2 2 6 2 1 1 1 1 1 No. 831.293020 Description Front Endcap Screw Star Washer Plastic Tie Handrail 3/4" Screw Key/Clip Hole Plug Incline Leg Handrail Endcap Wire Cover Console Battery Cover Reed Switch Extension Leg Screw Extension Leg I" Bolt Cage Nut Motor Belt Motor Tension Bolt Motor Tension Washer Tension Star Washer Motor Pivot Nut Motor/Pulley/Flywheel/Fan Pufley/Flywheel/Fan Motor Motor Pivot Bolt 8" Cable Tie Screw Hood Hood Shield 1" Tek Screw Isolator Fastener Base Pad Motor Belly Pan Controller Frame Pivot Bolt Frame Pivot Washer Upright/Base Belt Guide Screw Roller Washer/Handrail Washer Wheel Bolt Wheel Frame Nut/Wheel Nut Extension Leg Assembly Circuit Breaker Grommet Power Cord Motor Tension Nut Console Assembly Key No. 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 # # # # R02O3A Qty. 1 4 1 1 1 1 1 1 2 1 2 1 1 1 2 2 1 1 3 4 1 1 2 1 1 1 10 1 2 1 1 1 1 1 1 1 1 1 1 1 1 1 _r 1 1 1 1 Description Right Foot Rail Platform Screw Front Roller Adj. Bolt Wire Harness Speed Pot Speed Knob 5/32" Allen Wrench Choke Belt Guide Console Warning Decal Isolator Latch Catch' Frame Spacer (Left) Magnet Incline Pin Endcap Washer Latch Walking Belt Wire Tie Wire Tie Clamp Frame Spacer (Right) Walking Platform Endcap Left Foot Rail Sensor Clip Front Roller/Pulley Electronic Screw Ground Wire Rear Roller Adj. Bolt Left Rear Endcap Upright Grommet Allen Wrench Latch Decal Rear Roller Frame Console Lens Right Front Endcap Console Base Motor Shield Reed Switch Screw Right Rear Endcap Left Front Endcap 4" Red Wire, Male/Female 4" White Wire, Male/Female 4" Blue Wire, Male/Female User's Manual * Includes all parts shown in the box Note: "#" indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover of the user's manual for information about ordering replacement parts. EXPLODED DRAWINGmModel NO. 831.293020 RO2_A 40 I 66 18 28 29 3O 55 87 28 _28 44* 15 36 47 13 89 d)'_31 74 67 73 I 10 82 57 38 84 79 5 71 17 83 _40 34 78 I 78 28 Your Home For repair - in your home - of all major brand appliances, lawn and garden equipment, or heating and cooling systems, no matter who made it, no matter who sold it! For the replacement parts, accessories, and user's manuals that you need to do-it-yourself. For Sears professional installation of home appliances and items like garage door openers and water heaters. 1-800-4-MY-HOME (1-800-469-4663) ® Anytime, day or night (U.S.A. and Canada) www.sears.com www.sears.ca Our Home For repair of carry-in products like vacuums, lawn equipment, and electronics, call or go on-line for the location of your nearest Sears Parts and Repair Center. 1-800-488-1222 Anytime,day or night(U.S.A. only) www.sears.com To purchase a protection agreement (U.S.A.) or maintenance agreement (Canada) on a product serviced by Sears: 1-800-827-6655 (u.s_.) 1-800-361-6665 (Canada) @ Para pedir servicio de reparaci6n a domicilio, y para ordenar piezas: ® Registered Trademark / TM Trademark / s_uService Mark of Sears, Roebuck and Co. ® Marca eegistrnda / _ Mama de F&brlca I su Mama de Servlcio de Seam, Roebuck and Co. FULL 90 DAY WARRANTY f For 90 days from the date of purchase, if failure-occurs due to defect in material or workmanship in this Sears Treadmill Exerciser, contact the nearest Sears Service Center throughout the United States and Sears will repair or replace the Treadmill Exerciser, free of charge. This warranty does not apply when the Treadmill Exerciser is used commercially or for rental purposes. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Sears, Roebuck and Co., Dept. 817WA, Hoffman Estates, IL 60179 Part No. 191273 RO203A Printed in USA© 2003 Sears, Roebuck and Co.
