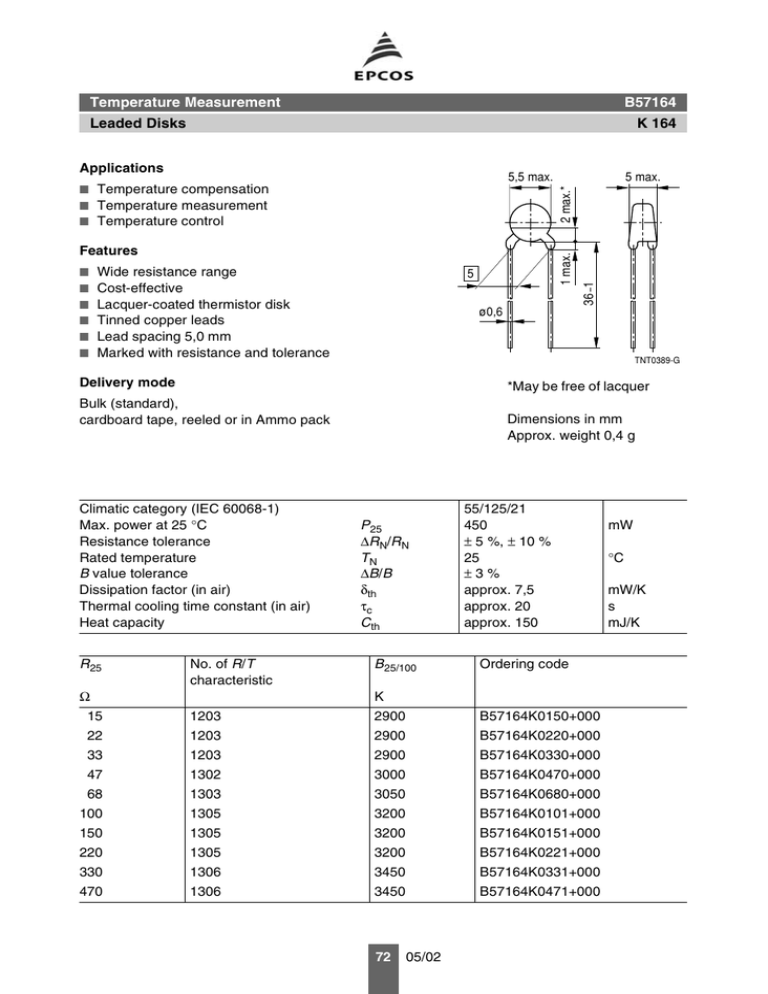

Temperature Measurement
B57164
Leaded Disks
K 164
Applications
5,5 max.
1 max.
Wide resistance range
Cost-effective
Lacquer-coated thermistor disk
Tinned copper leads
Lead spacing 5,0 mm
Marked with resistance and tolerance
5
36 _ 1
Features
■
■
■
■
■
■
5 max.
2 max.*
■ Temperature compensation
■ Temperature measurement
■ Temperature control
ø0,6
TNT0389-G
Delivery mode
*May be free of lacquer
Bulk (standard),
cardboard tape, reeled or in Ammo pack
Climatic category (IEC 60068-1)
Max. power at 25 °C
Resistance tolerance
Rated temperature
B value tolerance
Dissipation factor (in air)
Thermal cooling time constant (in air)
Heat capacity
Dimensions in mm
Approx. weight 0,4 g
P25
∆R N/R N
TN
∆B/B
δth
τc
Cth
55/125/21
450
± 5 %, ± 10 %
25
±3%
approx. 7,5
approx. 20
approx. 150
Ordering code
No. of R/T
characteristic
B 25/100
15
1203
2900
B57164K0150+000
22
1203
2900
B57164K0220+000
33
1203
2900
B57164K0330+000
47
1302
3000
B57164K0470+000
68
1303
3050
B57164K0680+000
100
1305
3200
B57164K0101+000
150
1305
3200
B57164K0151+000
220
1305
3200
B57164K0221+000
330
1306
3450
B57164K0331+000
470
1306
3450
B57164K0471+000
R 25
Ω
K
72
05/02
mW
°C
mW/K
s
mJ/K
Temperature Measurement
B57164
Leaded Disks
K 164
Ordering code
No. of R/T
characteristic
B 25/100
1k
1011
3730
B57164K0102+000
1,5 k
1013
3900
B57164K0152+000
2,2 k
1013
3900
B57164K0222+000
3,3 k
4001
3950
B57164K0332+000
4,7 k
4001
3950
B57164K0472+000
6,8 k
2903
4200
B57164K0682+000
10 k
2904
4300
B57164K0103+000
15 k
1014
4250
B57164K0153+000
22 k
1012
4300
B57164K0223+000
33 k
1012
4300
B57164K0333+000
47 k
4003
4450
B57164K0473+000
68 k
2005
4600
B57164K0683+000
100 k
2005
4600
B57164K0104+000
150 k
2005
4600
B57164K0154+000
220 k
2007
4830
B57164K0224+000
330 k
2006
5000
B57164K0334+000
470 k
2006
5000
B57164K0474+000
R 25
Ω
K
+: J for ∆RN/RN = ± 5 %
K for ∆RN/RN = ± 10 %
Reliability data
Test
Standard
Test conditions
∆R 25/R25 (typ.) Remarks
Storage in
dry heat
IEC
60068-2-2
Storage at upper category
temperature T: 125 °C
t: 1000 h
<3%
No visible
damage
Storage in damp
heat, steady state
IEC
60068-2-3
Temperature of air: 40 °C
Relative humidity of air: 93 %
Duration: 21 days
<3%
No visible
damage
Rapid temperature
cycling
IEC
Lower test temperature: – 55 °C < 3 %
60068-2-14 Upper test temperature: 125 °C
Number of cycles: 100
No visible
damage
Endurance
Pmax: 450 mW
t: 1000 h
<3%
No visible
damage
Long-term stability
(empirical value)
Temperature: 125 °C
t: 10 000 h
<5%
No visible
damage
73
05/02
