Installation and operating instructions

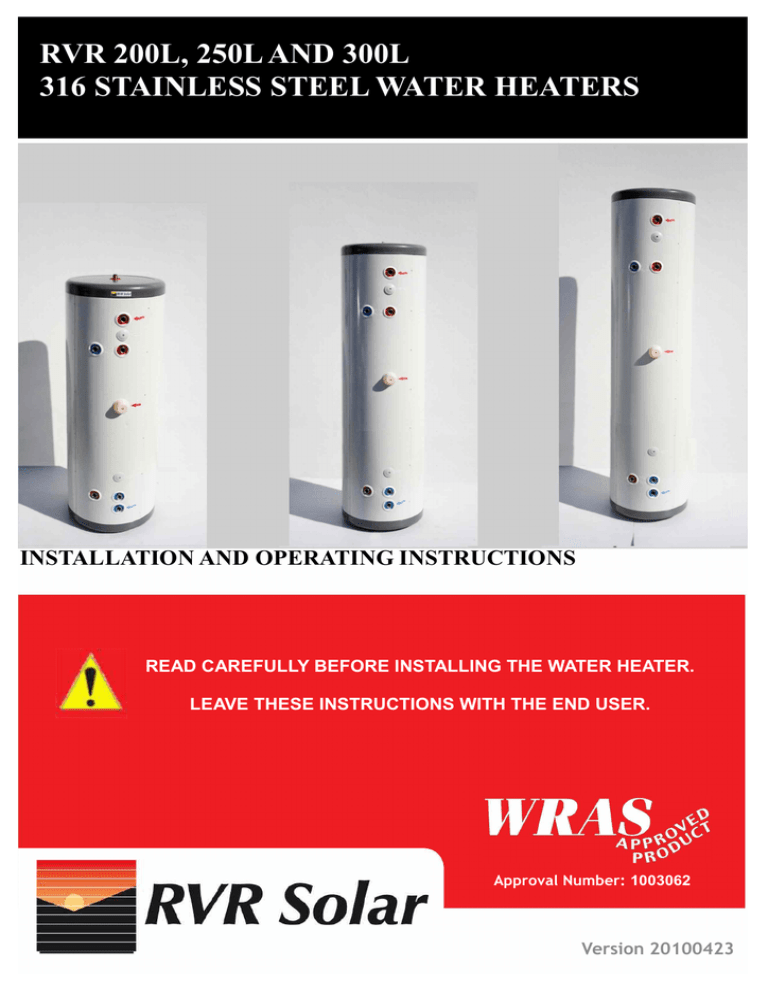

RVR 200L, 250L AND 300L

316 STAINLESS STEEL WATER HEATERS

INSTALLATION AND OPERATING INSTRUCTIONS

READ CAREFULLY BEFORE INSTALLING THE WATER HEATER.

LEAVE THESE INSTRUCTIONS WITH THE END USER.

Approval Number: 1003062

Version 20100423

Installation and operating instructions

13

13

13

13

10

11

12

12

14

15

Table of Contents

Page Title

3 1.0 Introduction

3 1.1 Reading the instructions

3 1.2 Guarantee

4 2.0 Technical Specifications

4

5

6

6

2.1 Capacity and Performance

2.2 Dimensions

2.3 Installation options

2.3.1 Unvented System

8

9

10

10

2.3.2 Open / Vented System

3.0 Recirculation

4.0 Installation General Requirements

5.0 Discharge Pipes from Safety Valves

5.1 Tundish Installation

5.2 High Level Termination of discharge

5.3 Discharge pipe sizing example

6.0 Electrical requirements

7.0 Maintenance Procedures

7.1 Draining and filling the system

7.2 Checking the expansion vessel

7.3 Checking the operation of safety valves

8.0 Commissioning

9.0 Troubleshooting

2

Installation and operating instructions

1.0 Introduction

1.1 READING THE INSTRUCTIONS

Please read and ensure that you fully understand these instructions prior to installing the water heater.

Following installation and commissioning the operation of the heater should be explained to the customer and these instructions left with them for future reference.

1.2 Guarantee

This water heater is guaranteed for a period of five years provided that:

It has been installed in accordance with these instructions and all the necessary inlet controls and safety valves have been fitted correctly.

Any valves or controls are approved by RVR.

The unit has not been tampered with and has been regularly maintained as detailed in these instructions.

The unit has been used only for heating potable water.

The unit is NOT guaranteed against damage by frost or due to the build up of scale.

This guarantee does not affect the statutory rights of the consumer.

The policy of RVR Energy Technology is that of continuous improvement and development, therefore the right is reserved to change specification without notice.

All water heaters must be installed by a competent and qualified person, in accordance with relevant clauses of applicable standards and recommendations.

These include but may not be limited to the following:-

EN12897: 2006 Water Supply—Specification for indirectly heated unvented (closed) storage water heaters.

All relevant Building Regulations

Local Water Bye Laws

IEE Wiring Regulations

Health & Safety legislation

3

Installation and operating instructions

2.0 Technical Specifications

2.1 Capacity and Performance

Nominal Capacity

Litres

Max. Normal DHW Pressure bar

Max. Normal Primary Pressure bar

Max. Operating Temperature

° C

Standing Heat Loss

Dedicated Solar Volume kWh/24h

Litres

Upper Coil information:

Upper Coil Performance kW

Upper Coil Water Content

Upper Coil Pressure Drop

Upper Coil Flow Rate

Reheat Time

Lower Coil information:

Lower Coil Performance

Upper Coil Water Content

Lower Coil Pressure Drop

Lower Coil Flow Rate

Reheat Time

Litres kpa

Litres/s minutes kW

Litres kpa

Litres/s minutes

4.5

19.5

0.17

15

16.5

5.7

32.0

0.20

23

RVR 200L RVR 250L RVR 300L

200 250 300

5.5 5.5 5.5

4 4 4

90

1.21

122

90

1.48

155

90

1.74

178

14.1 15.2 18.6

5.4

25.4

0.18

18

18.5

6.65

34.0

0.22

29

6.3

28.2

0.22

18

20.8

7.6

39.3

0.25

32

Table 1 - Technical information

4

Installation and operating instructions

2.2 Dimensions

Figure 1 - Connections

Dimensions

A

B

C

D

E

F

G

H

I

J

Dry Weight

Full Weight mm mm mm mm mm mm mm mm mm mm kg kg

200L

1480

520

320

180

260

390

825

1138

1220

1300

57

257

Table 2– Dimensions of Water Heater

250L

1835

520

320

180

270

400

1000

1417

1555

1655

66

316

300L

2170

520

320

200

290

492

1147

1682

1867

1970

72

372

Figure 2 - Dimensions of water heater

5

Installation and operating instructions

2.3 Installation Options

This water heater may be used in either open vented systems or in unvented installations. In unvented installations, the optional unvented kit (RVR Stock No: ACW018) must be used to ensure a safe installation. The unvented kit contains items 2, 3, 5, 6 and 11 as shown in figure 3 together with an expansion vessel hose and pressure gauge. Other items such as mixing valve and zone valves are available from RVR.

2.3.1 Unvented System

1. Stop Valve

2. Combined Pressure Reducing Valve and cold fill manifold

3. Expansion vessel

4. Drain Valve

5. Tundish

6. Temperature and Pressure Relief Valve

7. Mixing Valve

8. Upper Coil Temperature Sensor Dry

Pocket

9. Zone Valve

10. Lower Coil Temperature sensor Dry

Pocket

11. Pressure Gauge

Figure 3 - Unvented system schematic to comply with BS7206:1990

6

Installation and operating instructions

WARNING: All water heaters must be fitted with temperature control to ensure that the domestic water is not heated to temperatures above 60°C

The following safety devices must be fitted to the water heater when used in an unvented system:

1

2

Stop Valve: This allows the system to be isolated from the cold water supply.

3

4

5

6

7

8

Combined Pressure Reducing Valve and Cold Fill Manifold: The PRV is designed to stabilise the inlet water pressure at 3 bar. The unit comprises the PRV and a manifold containing a check valve, a cold water balancing port and a preset pressure relief valve. The pressure relief valve is set at 6bar.

Expansion vessel: Expansion must be accommodated using an Expansion vessel. The Expansion vessel must be sized to accommodate the maximum expansion of the system and should be suitable for use with potable water.

Drain Valve: This allows the water heater to be drained for service or removal.

Tundish: The Tundish must be fitted to the discharge of the safety valves. It provides an air break and allows the user to see the release of water from the valves.

Temperature and Pressure Relief valve (T&P valve): this ensures that the temperature of the stored water cannot exceed 100 o

C and in this scenario will vent any excess pressure.

Blending (Mixing) Valve: The blending valve limits the temperature of the delivered water by mixing it with cold water as required. The delivered water temperature should not exceed 50°C.

Upper Coil Temperature Sensor Dry Pocket: This is used for the insertion of the high limit and thermostat control. It is essential that suitable temperature controls are used to prevent the water from reaching excessive temperature. A high limit thermostat with a manual reset device is also supplied to

9 allow interruption of the energy supply when the water temperature reaches 90°C. The correct installation and wiring of this device is essential for the safe operation of the water heater.

Zone Valve: The recommended water storage temperature is 60°C. The water heater thermostat should be wired to ensure that the energy supply to the water heater is interrupted if the water temperature exceeds 60°C. The zone valve is used for this purpose.

10 Lower Coil Temperature Sensor Dry Pocket: This is used to insert temperature sensor for the control of the lower coil. In a solar water heating system, the solar water heater sensor will normally be fitted here. It is essential that suitable temperature controls are used to prevent the water temperature exceeding 60°C.

11 Pressure Gauge: This is used to monitor pressure in the system from 0-6 bar.

Failure to fit these essential safety devices will invalidate the warranty and may cause a dangerous installation leading to property damage, injury or loss of life.

7

Installation and operating instructions

2.3.2 Open / Vented System

1. Stop Valve

2. Drain Valve

3. Mixing Valve

4. Zone Valve

5. Cold Water Cistern

6. Vent Pipe

7. Lower Coil Temperature sensor Dry Pocket

8. Upper Coil Temperature

Sensor Dry Pocket

WARNING: All water heaters must be fitted with temperature control to ensure that the domestic water is not heated to excessive temperatures.

A blending (mixing) valve must be fitted to all installations to ensure water does not exceed

50°C at the point of use.

Figure 4 - Open system schematic

The following safety devices must be fitted to the water heater when used in an open system:

1

2

3

4

5

6

7

8

Stop Valve: This allows the system to be isolated from the cold water supply.

Drain Valve: This allows the water heater to be drained for service or removal.

Blending (Mixing) Valve: The blending valve limits the temperature of the delivered water by mixing it with cold water as required. The delivered water temperature should not exceed 50°C.

Zone Valve: The recommended water storage temperature is 60°C. The water heater thermostat should be wired to ensure that the energy supply to the water heater is interrupted f the water temperature exceeds 60°C. The zone valve is used for this purpose.

Cold Water Cistern: This is the cold water storage cistern. The Vent pipe is also returned to the cistern.

Vent pipe: This is also referred to as the expansion pipe and is used to safely vent expansion of the heated water.

Lower Coil Temperature Sensor Dry Pocket: This is used to insert temperature sensor for the control of the lower coil. In a solar water heating system, the solar water heater sensor will normally be fitted here.. It is essential that suitable temperature controls are used to prevent the water temperature exceeding 60°C.

Upper Coil Temperature Sensor Dry Pocket: This is used for the insertion of the high limit and thermostat control. It is essential that suitable temperature controls are used to prevent the water temperature exceeding 60°C. A high limit thermostat with a manual reset device is also supplied to allow interruption of the energy supply when the water temperature reaches 90°C. The correct installation and wiring of this device is essential for the safe operation of the water heater.

Failure to fit these essential safety devices will invalidate the warranty and may cause a dangerous installation.

8

Installation and operating instructions

3.0 Recirculation

A secondary return may be fitted.

A non-return valve must be fitted to prevent back-flow and a bronze recirculation pump will be needed in conjunction with a pipe thermostat to circulate the hot water.

Almost all installations will be fitted with a blending valve. Special care must be taken when connecting a secondary return in conjunction with a blending valve. Please refer to Figures 5 below for information on how the secondary return should be connected. It is very important that the connection to the cold water port of the mixing valve is connected downstream of the fill manifold as shown. It must not be connected to the

‘balanced cold water outlet’.

Hot Water Outlet

4

1. Recirculation Pump

2. Thermostat

3. Check Valve

4. Mixing Valve

1 2

3

Balanced Cold Water Outlet

Cold Water Inlet

Figure 5—Recirculation layout

9

Installation and operating instructions

4.0 Installation - General Requirements:

Check the load bearing capacity of any floors or walls to ensure that they can support the weight of the water heater when filled to capacity. Refer to table 2 for full weight of the water heater.

Enough space should be left at the top and sides of the unit for pipe connections and access to the safety controls and valves. Refer to Figure 1 and the Dimensions Table 2 to determine a suitable position for the heater.

DO NOT install the water heater where the unit may freeze.

Refer to the section IMPORTANT INSTALLATION POINTS to determine which valves and accessories are required. Plumb the valves as shown in the relevant diagrams ( Figures 3 & 4). An isolating valve must be fitted on the cold water supply to the heater. Several hot water outlets can be served.

Do not use solder joints as this will damage the heater and may prevent servicing under warranty.

5.0 Discharge Pipes from Safety Valves

5.1 Tundish Installation

The discharge pipes must be routed to a tundish. The discharge pipework from both relief valves may be joined together.

The pipe diameter must be at least one pipe size larger than the nominal outlet size of the safety device, unless its’ total equivalent hydraulic resistance exceeds that of a straight pipe 9m long.

I.e. Discharge pipes between 9m and 18m equivalent resistance length should be at least 2 sizes larger than the nominal outlet size of the safety device. Between 18m and 27m at least 3 larger, and so on.

Bends must be taken into account in calculating the flow resistance.

For more information please see FIG. 4, TABLE 3 and SECTION 3.3

Valve outlet size Minimum size of discharge pipe D1

G 1/2

G 3/4

G 1

15mm

22mm

28mm

Minimum size of discharge pipe D2 from tundish

22mm

28mm

35mm

28mm

35mm

42mm

35mm

42mm

54mm

Maximum Resistance allowed (expressed as a length of straight pipe)

Up to 9m

Up to 18m

Up to 27m

Up to 9m

Up to 18m

Up to 27m

Up to 9m

Up to 18m

Up to 27m

Resistance created by each elbow or bend

0.8m

1.0m

1.4m

1.0m

1.4m

1.7m

1.4m

1.7m

2.3m

Table 3 – Discharge Pipe Sizing

Tundish - The tundish must be positioned vertically within 500 mm of the unit, clearly visible to the user and away from electrical devices. The minimum size of the discharge pipe downstream of the tundish is given in

TABLE 3.

10

Installation and operating instructions

The discharge pipework from the tundish:

Must fall continuously through its length.

Must be of a heat resistant material, e.g. metal.

Must not be fitted with any valves or taps.

Must discharge to a safe visible position, e.g. onto the surface of an external wall or into a gulley.

Must have a minimum of 300 mm straight pipework directly from the tundish.

Note: Where children may play or otherwise come into contact with discharges, a wire cage or similar guard must be positioned to prevent contact whilst maintaining visibility.

The diagrams on this page show recommended methods of routing and terminating the discharge pipe safely.

Where a single pipe serves a number of discharges, such as in blocks of flats, the number served should be limited to not more than 6 systems so that any tundish installation can be traced easily.

If a single common discharge pipe is used then it should be at least one pipe size larger than the largest individual discharge pipe to be connected. If the system is installed where discharges from safety devices may not be apparent, i.e. in dwellings occupied by blind, infirm or disabled people, consideration should be given to the installation of an electronically operated device to warn when discharge takes place.

Figure 6 - Discharge Pipe routing

Figure 7 - Tundish installation

300mm minimum

D1

D2

Option A

Tundish

300mm minimum

D1

D2

Option B

Tundish

Pipe close to wall to allow water to fan out safely

100mm max.

70mm min.

Ground level

300mm minimum

D1

D2

Option C

Tundish

Type ‘A’

Air Gap

Gulley if available

End of pipe clearly visible

5.2 High Level Termination of Discharge

At high level, discharge onto a roof is acceptable providing the roof is capable of withstanding high temperatures and there is a distance of 3 m from any plastic guttering systems that would collect such discharge.

Note: The discharge may consist of scalding water and steam. Asphalt, roofing felt and non-metallic materials may be damaged by such discharges.

11

Installation and operating instructions

5.3 Discharge Pipe Sizing Example

This example shows how to select pipe diameter for a given discharge pipe.

For this example we will assume we are using a G½ temperature relief valve and require 4 elbows in the discharge pipe run. The length of the pipe run from tundish to point of discharge is 7 metres.

Begin by calculating whether 22mm pipe would be sufficient

Consult Table 3 and look up the maximum resistance allowed for this pipe size (9 metres)

Consult Table 3 and look up the resistance of an elbow in this pipe size (0.8 m) As we have 4 elbows or bends, multiply (0.8m * 4m) = 3.2m

Subtract the resistance of the elbows from the maximum resistance (9m—3.2m) = 5.8m.

Is your length of pipe run less than or equal to the maximum permissible resistance for this pipe run?

7 metres is not less than or equal to 5.8m, so 22mm pipe is not acceptable. Repeat the steps above using

28mm pipe (18m max resistance—4m of resistance from elbows = 14m. 7m < 14m, so 28mm is acceptable). If

28mm is not acceptable, repeat the steps above using 35mm pipe.

6.0 Installation - Electrical Requirements

WARNING: This water heater must be earthed

The water heater is fitted with a high limit and control thermostat as shown in figure 8. It is essential that the energy source to the water heater is under the control of this device.

A typical wiring scheme is shown in figure 9.

Figure 8—Thermostat/High Limit Control

Figure 9—Typical Wiring Scheme

The water heater may be optionally fitted with an electrical immersion heater. The immersion heater thread size is 1

1/4”

. Ensure that any electric immersion heater is fitted with a high limit and control thermostat.

Where an immersion heater is fitted, the following information is relevant.

Disconnect the electrical supply before removing the terminal cover. Installation must be in accordance with the current I.E.E. Wiring Regulations.

The electricity supply should be fused to protect the immersion heater circuit and it should be possible to isolate it via a double pole isolating switch with a contact separation of at least 3mm in both poles.

12

Installation and operating instructions

7.0 Maintenance Procedures

7.1 Draining and Refilling the System

Draining

1. Switch off electrical power to immersion heater(s) and/or solar station and/or shut down the boiler.

2. Close the Stop Valve.

3. Open a hot water tap in order to reduce pressure in the water heater.

4. Drain from the drain cock at the base of the water heater.

Refilling

1. DO NOT switch on the immersion heaters or solar station or boiler until the system has been completely refilled.

2. Close the drain valve.

3. With hot tap open, turn on pumped cold water supply. When water flows from the hot tap allow to flow for a short while to purge air and to flush through any disturbed particles.

4. Close hot tap and then open successive hot taps in system to purge any air.

The electrical supply can now be switched on.

7.2 Checking the expansion vessel

The charge pressure of the expansion vessel should be checked annually.

Method

Switch off power to immersion heater(s) and shut down boiler.

Close the Stop Valve.

Open a hot water tap in order to reduce pressure in the cylinder.

Remove the black cap on the end of the expansion vessel.

The charge pressure can then be checked against the vessel nameplates by using a good tyre gauge. If it is low then replenish it by using a nitrogen gas bottle with regulating valve, or a foot pump. The pressure will normally be set to 3.5 bar.

Any fluid escaping from the expansion vessel valve indicates a leaking diaphragm and the vessel should be replaced.

7.3 Checking the operation of safety valves

Manually operate the valve lever on the Temperature & Pressure Relief Valve for a few seconds.

Check that water is discharged and that it flows freely through the tundish and discharge pipework.

Check that the valve reseats correctly when released.

Repeat the procedure for the Expansion Relief Valve.

Note: The water discharged may be very hot.

Important: After servicing, preliminary electrical system checks must be carried out to ensure electrical safety (i.e. polarity, earth continuity, resistance to earth and short circuit).

13

Installation and operating instructions

8.0 Commissioning

It is important to follow the steps outlined below during commissioning.

Do not switch on the electrical supply, solar station or boiler until the unit has been filled with water and checked for leaks.

Check that all installation, electrical and discharge pipe requirements have been met.

Check that all water and electrical connections are tight and properly connected.

Open a hot water tap, turn on mains water supply to the heater.

Allow unit to fill and leave hot tap running for a short while to purge any air and flush out the pipe-work.

Close the hot tap and check the system for leaks.

Manually test the operation of the Temperature/Pressure Relief Valve and Pressure Relief Valve. Ensure water flows freely from the valve(s) and through the discharge pipes.

Switch on the electrical supply and boiler.

Verify that water is heated and that the thermostatic controls work correctly.

14

Installation and operating instructions

9.0 Troubleshooting

FAULT

Water not heating

POSSIBLE CAUSES

Electrical supply fault

REMEDIAL MEASURES

Check electrical supply. Verify the operation of boiler and controls.

Discharge of water from

Pressure Relief Valve

(continuously)

Thermal cut-out tripped

Thermostat fault

Excessive supply water pressure

Check cut-out. If it has activated then reset and check thermostat operation.

If necessary replace thermostat/thermal cut-out (see Wiring Diagram)

Check thermostat operation, replace if necessary

Fit Pressure Reducing Valve (see

IMPORTANT INSTALLATION

POINTS)

Check valve is seating properly. Replace if necessary. Failure of Pressure Relief Valve

Discharge of water from

Pressure Relief Valve

(intermittently) Inadequate expansion in system

Water supply pressure exceeds 3.5 bar

Check expansion vessel size and precharge pressure.

Fit a pressure reducing valve with integral line strainer (See Important installation points)

Water or steam from

Pressure Relief Valve

No water flow

Thermostat and thermal cut-out fault

Inlet valves incorrectly fitted

Supply water not turned on

Blockage in water supply

Milky water Oxygenated water

Table 4 - Faults and remedial measures

Replace thermostat and thermal cutout

Check all valves are correctly installed in accordance with flow direction arrows

Check water supply is on

Check for obstructions. If a pressure reducing valve is fitted check strainer is not blocked.

Water from a pressurised system releases oxygen bubbles when flowing.

The milkiness will disappear after a short time.

15

Installation and operating instructions

Manufacturer details:

16

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
