Bacharach SF6 Portable Monitor Specifications

Bacharach SF6 Portable Monitor Specifications

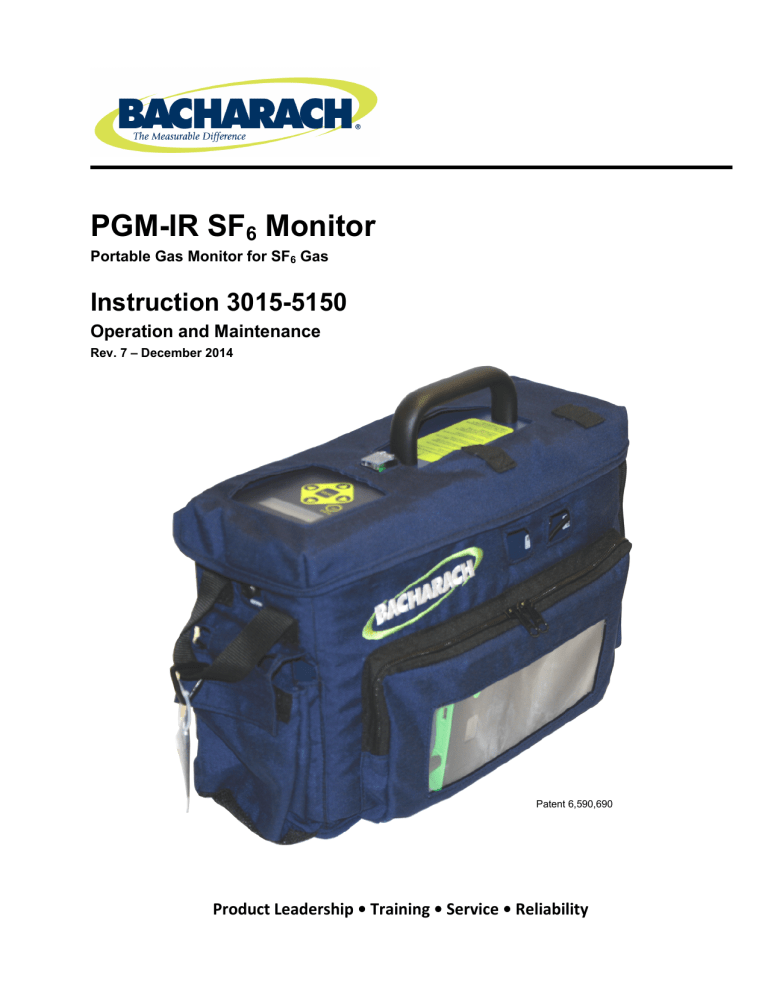

PGM-IR SF

6

Monitor

Portable Gas Monitor for SF

6

Gas

Instruction 3015-5150

Operation and Maintenance

Rev. 7 – December 2014

Patent 6,590,690

Product Leadership • Training • Service • Reliability

2

SF

6

Portable Monitor

WARRANTY

Bacharach, Inc. warrants to Buyer that at the time of delivery this Product will be free from defects in material and manufacture and will conform substantially to Bacharach Inc.'s applicable specifications. Bacharach's liability and Buyer's remedy under this warranty are limited to the repair or replacement, at Bacharach's option, of this Product or parts thereof returned to Seller at the factory of manufacture and shown to Bacharach Inc.'s reasonable satisfaction to have been defective; provided that written notice of the defect shall have been given by Buyer to Bacharach Inc. within two (2) years after the date of delivery of this Product by Bacharach, Inc.

Bacharach, Inc. warrants to Buyer that it will convey good title to this Product. Bacharach's liability and Buyer's remedy under this warranty of title are limited to the removal of any title defects or, at the election of Bacharach, to the replacement of this Product or parts thereof that are defective in title.

The warranty set forth in paragraph 1 does not apply to parts the Operating Instructions designate as having a limited shelflife or as being expended in normal use (e.g., filters).

THE FOREGOING WARRANTIES ARE EXCLUSIVE AND ARE GIVEN AND ACCEPTED IN LIEU OF (I) ANY

AND ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION THE IMPLIED

WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE: AND (II) ANY

OBLIGATION, LIABILITY, RIGHT, CLAIM OR REMEDY IN CONTRACT OR TORT, WHETHER OR NOT

ARISING FROM BACHARACH'S NEGLIGENCE, ACTUAL OR IMPLIED. The remedies of the Buyer shall be limited to those provided herein to the exclusion of any and all other remedies including, without limitation incidental or consequential damages. No agreement varying or extending the foregoing warranties, remedies or this limitation will be binding upon Bacharach, Inc. unless in writing, signed by a duly authorized officer of Bacharach.

Register Your Warranty by Visiting www.mybacharach.com

Product improvements and enhancements are continuous; therefore the specifications and information contained in this document may change without notice.

Bacharach, Inc. shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.

No part of this document may be photocopied, reproduced, or translated to another language without the prior written consent of Bacharach, Inc.

Copyright © 2014, Bacharach, Inc., all rights reserved.

BACHARACH

®

is a registered trademark of Bacharach, Inc. All other trademarks, trade names, service marks and logos referenced herein belong to their respective owners.

Instruction 3015-5150

SF

6

Portable Monitor

Table of Contents

1 INTRODUCTION ....................................................................................................................................... 5

1.1

How to Use This Manual ................................................................................................................. 5

1.2

Warning Statements ........................................................................................................................ 5

1.3

Caution Statements ......................................................................................................................... 5

1.4

Hazard Symbols on Monitor ............................................................................................................ 5

1.5

Safety Precautions ........................................................................................................................... 6

1.5.1

Explosive Atmosphere ....................................................................................................... 6

1.5.2

Misuse and Modifications to Monitor ............................................................................... 6

1.5.3

Altitude Limit .................................................................................................................... 6

1.5.4

Cleaning ............................................................................................................................. 6

1.6

Unpacking and Initial Checks ......................................................................................................... 6

1.7

Shipping Precaution ......................................................................................................................... 6

1.8

Features and Capabilities................................................................................................................ 7

1.9

Functional Overview ........................................................................................................................ 7

2 SPECIFICATIONS ..................................................................................................................................... 8

3 OPERATION .............................................................................................................................................. 9

3.1

Front Panel Display and Controls .................................................................................................. 9

3.2

Connecting Gas-Sample and Exhaust Lines .................................................................................. 9

3.2.1

Overview ............................................................................................................................ 9

3.2.2

Connecting the Gas-Sample Line ..................................................................................... 9

3.2.3

Connecting the Exhaust Line (optional) ........................................................................ 10

3.3

Gas Detector Operation ................................................................................................................. 11

3.4

Time Weighted Average Operation ............................................................................................... 12

3.4.1

Overview .......................................................................................................................... 12

3.4.2

Starting a New or Continuing TWA/twa........................................................................ 12

3.5

Peak Reading Operation ................................................................................................................ 13

3.6

Leak Detector Operation ............................................................................................................... 13

3.7

Standby Mode ................................................................................................................................. 13

3.8

Battery – Charging and Using ...................................................................................................... 14

3.8.1

Charging the Battery ...................................................................................................... 14

3.8.2

Using the Battery ............................................................................................................ 14

3.9

Display Screens .............................................................................................................................. 14

3.9.1

Initial Power ON .............................................................................................................. 14

3.9.2

Filling the Purge-Air Bag ................................................................................................ 15

3.9.3

Data Display Screen ........................................................................................................ 15

3.9.4

Function Screens ............................................................................................................. 15

3.10

Working with System Faults ......................................................................................................... 18

3.10.1

Functional Overview ....................................................................................................... 18

3.10.2

Clearing / Silencing a Fault Alarm ................................................................................ 18

3.10.3

Viewing the Faults Log ................................................................................................... 18

3.11.4 Fault Codes ..................................................................................................................... 19

3.11

Working with the Gas Alarm ........................................................................................................ 20

3.11.1

Gas-Alarm Light .............................................................................................................. 20

3.11.2

Silencing a Gas Alarm ..................................................................................................... 20

3.12

Clearing the PPM & Faults Data .................................................................................................. 20

3.13

Working with the DIAG Function ................................................................................................. 20

3.13.1

Overview .......................................................................................................................... 20

3.13.2

Keypad Functions ............................................................................................................ 20

3.13.3

First Diagnostic Screen ................................................................................................... 21

3.13.4

Second Diagnostic Screen ............................................................................................... 21

3.14

Working with the P-CHK Function .............................................................................................. 22

3.14.1

Overview .......................................................................................................................... 22

3.14.2

Keypad Functions ............................................................................................................ 22

3.14.3

Screen Display ................................................................................................................. 22

Instruction 3015-5150 3

SF

6

Portable Monitor

3.15

Print/Plot Logged Gas Levels ........................................................................................................ 23

3.16

Downloading Stored Data to a Personal Computer ..................................................................... 24

3.17

Importing Saved Data to a Spreadsheet ...................................................................................... 25

4 MAINTENANCE ...................................................................................................................................... 26

4.1

Disassembly.................................................................................................................................... 26

4.2

Internal Particulate / Hydrophobic Filter Replacement ............................................................. 27

4.3

Updating Firmware ....................................................................................................................... 28

5 PARTS AND SERVICE ........................................................................................................................... 29

5.1

Replacement Parts and Optional Items ....................................................................................... 29

Replacement Parts

.......................................................................................................................... 29

Item Description

............................................................................................................................. 29

Part Number

.................................................................................................................................. 29

Item Description

............................................................................................................................. 29

Part Number

.................................................................................................................................. 29

5.2

Service Centers .............................................................................................................................. 29

4 Instruction 3015-5150

1 Introduction

SF

6

Portable Monitor

1.1 How to Use This Manual

This manual provides important information on how to operate and service Bacharach’s Sulfur

Hexafluoride (SF

6

) Portable Monitor.

To assure operator safety and the proper use of the monitor, please read, understand, and follow the contents of this manual.

If you have a working knowledge of gas monitors, you will find this manual useful as a reference tool. If you are new to the use of gas monitors, you can educate yourself about the principles of gas detection and the proper operation of this device by reading this manual thoroughly.

1.2 Warning Statements

The use of the word

WARNING

in this manual denotes a potential hazard associated with the use of this equipment. It calls attention to a procedure, practice, or condition, or the like, which if not correctly performed or adhered to, could result in personal injury or death.

1.3 Caution Statements

The use of the word

CAUTION

in this manual denotes a potential hazard associated with the use of this equipment. It calls attention to a procedure, practice, condition, or the like, which if not correctly performed or adhered to, could result in damage to the equipment.

1.4 Hazard Symbols on Monitor

This symbol indicates the need to consult this operating instruction manual when opening the enclosure.

WARNING

:

A potential risk exists if the operating instructions are not followed.

This symbol indicates the presence of electric shock hazards when the enclosure is opened.

WARNING:

To avoid risk of injury from electric shock, do not open the enclosure when power is applied.

Instruction 3015-5150 5

6

SF

6

Portable Monitor

1.5 Safety Precautions

HAZARDOUS AREA WARNING:

This instrument has not been designed to be intrinsically safe for use in areas classified as hazardous locations. For your safety,

DO NOT

use it in hazardous

(classified) locations.

COMBUSTIBLE/FLAMMABLE GAS WARNING:

This is NOT a safety device. Some gases which this instrument can detect may be combustible/flammable. When properly configured, this instrument is designed to alarm at concentrations that are lower than the explosive limit of the gas. As such, it is the buyer’s responsibility to initiate an immediate planned response to any gas leaks as soon as they are detected. This equipment should NEVER be used to measure or sample gases at or above their respective lower explosive limits.

1.5.1 Explosive Atmosphere

Do not operate this equipment in the presence of flammable liquids, vapors or aerosols. Operation of any electrical equipment in such an environment constitutes a safety hazard.

1.5.2 Misuse and Modifications to Monitor

The protection provided by the monitor may be impaired if the monitor is used in a manner not specified by these instructions. Changes or modifications to this monitor will void the warranty.

1.5.3 Altitude Limit

6,562 ft (2,000 m)

1.5.4 Cleaning

Clean the outside of the monitor’s case using a dry cloth —

DO NOT

use soap and water.

1.6 Unpacking and Initial Checks

Your SF

6

Portable Monitor was carefully inspected at the factory before shipment, and packed so as to be highly resistant to damage while in transport. When you receive the instrument, however, please unpack it promptly and make a visual inspection to make sure that no damage has occurred during shipment. Also check that all the following items have been received.

Item

SF

6

Portable Monitor

Soft Carrying Case with

Shoulder Strap

Battery Pack & Charger

Instruction Manual

External Filter Assembly

Stainless Steel Probe

Elbow

Tubing (3 ft)

Qty.

1

1

1

1

1

1

1

1

Part Number

3015-5148

3015-5700

3015-5739

3015-5150

3015-5324

3015-5326

3015-3234

0003-6182

If damage was found, immediately file a claim with the carrier. If an item is missing, please contact

Bacharach’s Service Department for assistance (refer to Section

5.2 Service Centers

).

1.7 Shipping Precaution

When shipping the instrument by air, deflate the purge-air bag to prevent it from bursting due to changes in air pressure. Deflate the bag by selecting the

EMTYBAG

function as described on page 16.

Instruction 3015-5150

SF

6

Portable Monitor

1.8 Features and Capabilities

Detects, measures, and displays the level of SF

6

gas in the area being monitored

• Measurement range of 0–1,000 ppm with a resolution of 1 ppm

Self contained purge-air bag, allowing the monitor to be used in a contaminated atmosphere

Automatically logs up to 200 gas readings that can be printed / plotted for analysis

• Eliminates false alarms with use of non-dispersive IR source and sample draw system

Visual and audible gas alarm indictors that are turned ON when the detected gas level exceeds a user defined trip-point

Extensive self diagnostics, providing both visual and audible indications when a fault occurs

• Battery powered, providing 8–12 hours of operation

1.9 Functional Overview

The Bacharach Sulfur Hexafluoride (SF

6

) Portable Monitor is designed to detect, measure, and display the concentration of SF

6

gas in the area being monitored. To ensure accurate gas measurements, the monitor self-zeros every 4 minutes using its internal supply of fresh air.

During normal operation the SF

6

Monitor displays both the current gas level and the peak gas level detected on its front panel LCD. The monitor retains a log of previous readings that can be easily accessed at a later time for analysis.

Front panel indicators and an audible alarm are provided to signal gas alarm and instrument fault conditions. The audible alarm can temporarily be silenced by a push of a button, but will reactivate if the gas level is still above the alarm trip point after a user-defined time period has elapsed.

The SF

6

Monitor requires only minor periodic maintenance such as the occasional replacement of filters.

The monitor incorporates active diagnostics that continuously check the system for proper operation. A front panel indicator is provided to alert an operator of system malfunctions, and fault codes are generated that enable the operator to quickly identify the cause of the fault.

Instruction 3015-5150 7

8

SF

6

Portable Monitor

2 Specifications

Product Type ........................ Portable SF

6

Gas Monitor

Measuring Range ................. 0 to 1,000 ppm

Warm-Up Time .................... 5 minutes

Detector Type ....................... Infrared, Non-Dispersive

Sensitivity ............................ 1 ppm

Accuracy ............................... ±1 ppm

Response Time ..................... 90% of response within 3 seconds; 100% in 5 seconds

Temperature Drift ............... 1.5 ppm per °C between purge cycles

System Noise ....................... Less than 40 dB(A) at 10 ft (3 m)

Operating Temp ................... 32 to 122°F (0 to 50°C)

Ambient Humidity ............... 5 to 90% RH (non-condensing)

Altitude Limit ...................... 6,562 ft (2,000 m)

Power .................................... DC power pack, provides 8–12 hours of operation

Power Consumption ............ 15 Watts

Front Panel .......................... 3 Indicator lights:

ON

– Green LED flashes during warm-up, and then glows steady during normal operation

FAULT

– Yellow LED flashes when there is a system fault

ALARM

– Red LED flashes when the gas level is above its alarm setting

Audible Alarm ..................... Internal audible alarm programmable for any of the following conditions:

OFF, FAULT/ALARM, ALARM

Dimensions (DxLxW) .......... 9” x 14.5” x 5” (229 x 368 x 127 mm)

Weight .................................. Less than 9 lbs (4 kg) including battery

Valid Calibration Period to Specifications ................... 12 months

Warranty .............................. 2 Years from date of shipment

Instruction 3015-5150

3 Operation

3.1 Front Panel Display and Controls

SF

6

Portable Monitor

3.2 Connecting Gas-Sample & Exhaust Lines

3.2.1 Overview

A single gas-sample line needs to be run from the SF

6

Monitor to the area to be monitored. If desired, an optional exhaust line can be installed to vent SF

6

gas away from the monitor.

3.2.2 Connecting the Gas-Sample Line

To connect the gas-sample line to the monitor, simply push the tubing onto the elbow connector and attach the elbow to the Gas Sample Port on the front of the monitor as shown in the illustration below.

The gas-sample line can be up to

50 ft (15.2 m)

in length. All tubing bends should have a radius of no less than 5" to insure proper airflow. If kinks or obstructions occur in the line the monitor may not function properly.

The end of this line should be placed near the potential leak source and positioned to reduce the possibility of mists, aerosols, oil, water, dust, or other contaminates being drawn into the monitor.

An external filter (P/N 3015-5324) should be attached to the end of this line. See figure below.

Instruction 3015-5150 9

SF

6

Portable Monitor

10

3.2.3 Connecting the Exhaust Line (optional)

The optional exhaust line carries the exhausted gas sample away from the monitor.

The exhaust line can be up to

50 ft (15.2 m)

in length. Ideally this line should terminate outdoors in a location that is not exposed to the elements.

Connect the exhaust line to the monitor by firmly pushing the tubing into the Exhaust Port’s push-toconnect (PTC) fitting. (See previous figure.) If the exhaust line terminates outside the building, position the tubing so that no water or moisture can enter the line. Note that this line does not require a termination filter.

To connect the exhaust line to the exhaust port’s PTC fitting, firmly push the appropriate tubing into the hole in the center of the connector until it seats in the connector. Refer to the figures at the left.

To remove tubing from a PTC connector, push and hold the spring-loaded collar inwards, then simultaneously withdraw the tubing.

Refer to the figures at the right.

Instruction 3015-5150

SF

6

Portable Monitor

3.3 Gas Detector Operation

CAUTION:

Operate the monitor in its horizontal position (handle facing upwards). Tilting the monitor to a vertical position while in operation may cause inaccurate measurements to occur.

Turn ON the monitor as follows:

1.

Lift up the shield located in front of the handle

2.

Press the red power ON/OFF toggle switch.

3.

Observe monitor’s firmware version is briefly displayed.

4.

Observe that the

NEW TWA/twa

screen may appear, depending on the configuration of the monitor’s TWA/twa function (refer to

Section 3.4 for detailed TWA operation).

5.

Observe the monitor starts counting down its warm-up period of

300 seconds (5 minutes).

6.

At the end of warm up, take the monitor to an area than contains fresh air and press the

ENTER

button to fill the monitor’s internal purge-air bag with clean, fresh air that is of the same temperature and humidity as the area being monitored for gas. DO NOT fill the purge-air bag in an area that is contaminated with SF

6

gas.

After the purge-air bag is filled, observe the following as the monitor makes gas measurements in the area being sampled:

MEASURE

indicates when the monitor is actively measuring the level of SF

6

gas at the sampling point. The screen to the right shows that currently 100 ppm is being measured. The measurement cycle runs for 4 minutes.

BACHARACH

VERSION x.xx

PRESS ENTER FOR

NEW TWA/twa

WARM UP

300

PURGE AIR EMPTY

(ENTER) TO FILL

RECHARGING PURGE

AIR...

MEASURE 2ndUNIT

100ppm SF6

A log of up to 200 previous measurements can be viewed using the

PPM LOG

The

function (page 16), or printed as described in 3.16.

2ndUNIT

value (Blank, Peak PPM, Continuous TWA, or 8 Hr

TWA) is user-selected (refer to

2ndUNIT

function on page 17).

PURGE

indicates when the monitor is resetting its infrared detector to a baseline of 0 ppm using the air contained in the monitor’s internal purge-air bag. The purge cycle runs for 10 seconds.

PURGE 2ndUNIT

100ppm SF6

PURGE AIR EMPTY

<ENTER> TO FILL

The monitor will operate for approximately 40 minutes before the purge-air bag needs refilled.

When the message "PURGE AIR EMPTY" appears, take the monitor to a

clean, fresh-air environment

and press the

ENTER

button to refill the bag.

Work with gas alarms and system faults as follows:

ALARM

(red) light turns ON if the detected gas level exceeds a programmed alarm point. An audible alarm also sounds if the

AUDALRM

function is activated (page 16) Pressing the front panel

SILENCE

button turns OFF the audible alarm, but the

ALARM

light will continue to flash for as long as the detected gas level is above the alarm point. The audible alarm will reactivate if the gasalarm condition is not cleared within the time period set by the

SILENCE

function (page 17).

FAULT

(yellow) light turns ON if a fault occurs (see Fault Code list on page 19). An audible alarm

also sounds if the

AUDALRM

function is activated (page 16). Pressing the front panel

SILENCE

button turns OFF the audible alarm, but the

FAULT

light continues to flash for as long as the fault is present. The audible alarm will reactivate if the fault condition is not cleared within the time period set by the

SILENCE

function (page 17). Both the

FAULT

light and audible alarm will automatically turn OFF after the cause of the fault has been eliminated. A log of the last 30 fault events can be viewed using the monitor’s

FAULTS

function (page 16).

Instruction 3015-5150 11

SF

6

Portable Monitor

3.4 Time Weighted Average Operation

3.4.1 Overview

In addition to displaying the current SF

6

level, the monitor can also calculate and display a

T

ime

W

eighted

A

verage ppm value. This value is available in two formats (8 Hour or Continuous). This provides users with the most appropriate data on their average ppm SF

6

exposure in the working environment.

TWA operation is selected by using the

2ndUNIT

function

(

page 17).

The two TWA formats are identified by the appearance of either “TWA” or ‘twa” in the upper-right corner of the

Data Display

screen.

TWA

(upper case letters) is calculated over an 8-hour period. This format is designed to show the uers’s average ppm SF

6

exposure level during a typical work day. After 8 hours has expired, an asterisk (*) will be displayed but the TWA will continue to be updated.

PURGE 00TWA

100ppm SF6

twa

(lower case letters) is continuously calculated over the operating time of the monitor. This mode is useful for monitoring an area for a few minutes or more and is the preferred mode of operation for checking operating room atmospheres.

PURGE 00twa

100ppm SF6

3.4.2 Starting a New or Continuing TWA/twa

When the monitor is turned ON the following message appears if the monitor is set up to display

TWA/twa.

PRESS ENTER FOR

NEW TWA/twa

Press either . . .

ENTER

to start a new TWA/twa

ESC

to continue with the current TWA/twa.

Tip:

If

NO

button is pressed within 60 seconds the monitor automatically continues with the current TWA/twa.

Note:

During the time the monitor is OFF, the gas measurement is assumed to be zero and will be factored into the TWA/twa calculation.

After selecting whether to start or continue a TWA/twa, the next screen shows the current elapsed

TWA/twa time.

ELAPSED TWA TIME

IS xx MINUTES

Where: xx is the accumulated time used by the monitor in calculating the TWA/twa.

12 Instruction 3015-5150

SF

6

Portable Monitor

3.5 Peak Reading Operation

In addition to displaying the current SF

6 measurement.

level, the monitor can also be set up to display its peak ppm

The peak reading display is selected by using the

2ndUNIT

function

(

page 17).

PURGE 500pk

100ppm SF6

The display above shows that currently the monitor is detecting 100 ppm SF

6 measurement of 500 ppm has occurred.

and that a peak

The peak reading is reset by pressing the

ENTER

button.

3.6 Leak Detector Operation

The monitor can be configured to operate as a Leak Detector by setting the

AUDALRM

function (page 16)

to

LEAK DETECTOR

.

When configured as a Leak Detector, the monitor will produce a leak detector type of audible feedback. At zero ppm there will be a tic every 2 seconds with the tic rate increasing up to 20 tics per second when the ppm level reaches the

ALRMLVL

(page 16) setting.

3.7 Standby Mode

After becoming operational, the monitor can be placed into a Standby Mode. When taken out of standby the monitor is ready for operation without waiting an additional 5 minutes to warm up. While in standby the monitor will stop taking gas samples and stops purging itself from the purge-air bag.

Place the monitor into its Standby Mode by pressing both the

ENTER

and

ESC

buttons at the same time.

STAND BY

Take the monitor out of standby by again pressing both the

ENTER

and

ESC

buttons.

When the monitor is taken out of standby the operator must refill the purge-air bag by pressing the

ENTER

button. Refilling the bag after coming out of standby re-establishes the monitor’s ambient pressure reading and ensures that the purge-air bag is filled at the start of taking gas measurements.

WARNING:

Fill the purge-air bag in a clean, fresh-air environment that is at the same temperature and humidity as the area being checked for gas. DO NOT fill the bag in an area that is contaminated with SF

6

gas.

.

<ENTER> TO FILL

RECHARGING PURGE

AIR...

As soon as the purge-air bag has been refilled with fresh air, the

Data Display

screen appears and the monitor resumes normal operation.

Instruction 3015-5150 13

SF

6

Portable Monitor

3.8 Battery – Charging and Using

IMPORTANT:

If you replace the original PGM-IR battery, refer to the installation instructions included in the replacement kit, as the new replacement battery and cable may differ from the original cable and battery.

IMPORTANT:

Cables and sockets are sized appropriately. As general rules of thumb:

• Note the initial orientation of your power cable, and

Never force a connector into a socket.

3.8.1 Charging the Battery

The monitor is powered by a rechargeable battery pack located in a pouch on the side of the monitor’s soft carrying case. The battery pack can be recharged at any time, regardless of the battery’s current charge state.

The lithium-ion battery will likely be partially charged. However, you should fully charge the battery prior to operating the PGM-IR. Refer to the battery manufacturer’s instruction sheet for the proper charging procedure.

3.8.2 Using the Battery

To properly use the battery, follow the steps below.

1. The PGM-IR is designed for a 16VDC input. Set battery voltage output to 16V (refer to the battery manufacturer’s instruction sheet for details).

2. The battery pack provided with your PGM-IR uses a power cable with a straight connector and a

90-degree elbow connector. The battery provided with your PGM-IR may differ slightly from the photos shown in this manual, however, the 90-degree elbow connector must ALWAYS be the connector used to supply power to the PGM-IR. Refer to the figure below.

To PGM-IR

3. Ensure that the battery is powered ON per the instruction label on the battery pack.

4. Verify that the battery is properly connected to the PGM-IR (see above).

A fully charged battery pack will power the monitor for a minimum of 8 hours.

3.9 Display Screens

3.9.1 Initial Power ON

When the monitor is first powered ON, all front panel lights turn ON and a splash screen appears showing the monitor’s current firmware revision level. After a brief moment the

Warm Up

screen is displayed along with the front panel

ON

light (green) blinking.

BACHARACH

VERSION x.xx

WARM UP

The monitor requires 5 minutes to warm up from a cold start; after which, the

ON

light glows steady and the

Data Display

screen appears.

14 Instruction 3015-5150

SF

6

Portable Monitor

3.9.2 Filling the Purge-Air Bag

CAUTION:

Fill the purge-air bag in a clean, fresh-air environment that is at the same temperature and humidity as the area being checked for gas. DO NOT fill the bag in an area that is contaminated with SF

6

gas.

The following message is displayed and an audible alarm is sounded when the monitor’s purge-air bag is empty. This message appears immediately after warm-up, and approximately every 40 minutes during normal operation. Press the

ENTER

button to start the refill process.

PURGE AIR EMPTY

<ENTER> TO FILL

RECHARGING PURGE

AIR...

After the air bag has been filled, the monitor starts or resumes normal operation by displaying the

Data Display

screen.

3.9.3 Data Display Screen

MEASURE 2ndUNIT PURGE 2ndUNIT

100ppm SF6

100ppm SF6

During normal operation the

Data Display

screen shows when the monitor is performing the following two functions:

MEASURE

indicates that the monitor is actively measuring gas. In the screen shown above the monitor is currently detecting 100 ppm of SF

6

gas. The

2ndUNIT

value (Blank, Peak PPM, Continuous TWA, or 8 Hr

TWA) is user-selected (refer to

2ndUNIT

function on page 17). The measurement cycle runs for 4 minutes.

PURGE

is displayed when the monitor is resetting its infrared detector to a baseline of 0 ppm using the fresh air in the monitor’s internal purge-air bag. The purge cycle runs for 10 seconds.

3.9.4 Function Screens

The Function screens are used to set up the monitor and display stored data.

From the

Data Display

screen, press both the

Keypad Left

and

Right

buttons at the same time to display the first

Function Menu

screen. Next, use the

Keypad

buttons to move the arrow (>) until it points to the desired function, and then press the

ENTER

button to select that function.

>FILLBAG EMTYBAG

ALRMLVL AUDALRM

>2ndUNIT PRINT

PLOT PC-DUMP

>PPM LOG LOG INT

FAULTS DIAG

>SILENCE P-CHK

GAS CLOCK

Once a function has been selected, use the

Keypad

to scroll through the displayed data or to change a parameter associated with that function. Press

ENTER

to save any newly entered parameters. Press the

ESC

button to return to the previous screen without saving.

Note that if no buttons are pressed within 90 seconds after selecting a function, the unit returns to the

Data Display

screen.

FILLBAG

– Press

ENTER

to manually fill the purge-air bag.

WARNING:

Fill the purge-air bag in a clean, fresh-air environment that is at the same temperature and humidity as the area being checked for gas. DO NOT fill the bag in an area that is contaminated with SF

6

gas.

FILLING BAG...

Instruction 3015-5150 15

SF

6

Portable Monitor

EMTYBAG

– Press

ENTER

to manually empty the purge-air bag. Use this function to drain the bag if it becomes contaminated with gas.

DRAINING BAG...

ALRMLVL

– Detected gas level that causes the front panel

ALARM

(red) light to turn ON and the audible alarm to sound (if AUDALRM function is set to ALARM or ALARM/FAULT).

EDIT ALARM LEVEL

300 ppm

AUDALRM

follows:

– The internal audible alarm is programmable to function as

AUDIBLE ALARM IS

ALARM

OFF

– Audible alarm is disabled.

ALARM

– Alarm sounds when detected gas level exceeds the ALRMLVL level as evidenced by the front panel ALARM (red) light turning ON.

ALARM/FAULT

– Alarm sounds when either the detected gas level exceeds the ALRMLVL value, or if a system fault occurs, as evidenced by the front panel ALARM (red) light or FAULT (yellow) light turning ON.

LEAK DETECTOR

– When selected, the monitor will produce a leak detector type of audible feedback.

At zero ppm there will be a tic every 2 seconds with the tic rate increasing up to 20 tics per second when the ppm level reaches the ALRMLVL setting.

TWA ALARM

– Audible alarm sounds when the TWA or twa, whichever is selected by the

2ndUNIT

Function

, exceeds the ALARMLVL value.

The audible alarm can be temporarily silenced by pressing the

SILENCE

button (page 17).

PPM LOG

– Contains records of the last 200 measurements. Each record shows the measurement’s date, time, and ppm level.

Measurements are logged at an interval determined by the

LOG INT

function. After all 200 locations are filled the newest entries overwrite the oldest entries.

Use the

Keypad Up

and

Down

buttons to change the record number by a factor of 1. Use the

Right

and

Left

buttons to change the record number by a factor of 10. Press

ESC

to return to the previous screen.

To the right, record #025 shows that a gas level of 7 ppm was measured on 07/11/2005 at 3:35 PM.

The PPM Log can be cleared per Section 3.11.

LOG INT

– Sets the interval at which measurements are logged to memory from 1 to 9999 minutes. Factory default is 1 minute. The logged measurements can be viewed using the

PPM LOG

function. Use the

Keypad

to enter the desired value, and then press

ENTER

to save that value and return to the previous screen.

FAULTS

– Contains records of the last 30 fault events. The most recent event is displayed when the

Fault

screen is first displayed. After 30 events have been recorded, the newest record overwrites the oldest. Each

record lists an event’s numeric fault code (refer to Section 3.10) plus the

date and time at which the event occurred. Use any of the

Keypad

buttons to scroll through the other fault events. Press

ESC

to return to the previous screen.

To the right, record #15 shows that a Purge Flow Fault (fault code

<1000>) occurred on 07/11/2005 at 12:37 PM.

DIAG

– Enters the diagnostic function. Refer to Section 3.13.

#025 7PPM @

07/11/05 15:35

LOG INTERVAL IS

0001 min

#15 <1000> @

07/11/05 12:37

4.2159v <0000>

29.05cD 14.58psi

16 Instruction 3015-5150

SF

6

Portable Monitor

SILENCE

– Sets the length of time the internal audible alarm is turned

OFF when the front panel

SILENCE

button is pressed. The factory default is 30 seconds. If the cause of the gas-alarm has not been cleared at the end of this time period, the internal audible alarm will reactivate. Use the

Keypad

to enter the desired time period, and then press

ENTER

to save that value and return to the previous screen.

SILENCE TIMEOUT

0030 sec

P-CHK

– The

Pressure Check

function displays the current manifold pressure and the stored ambient pressure in psia, along with the difference between these two pressures and the current fault code. Refer to

Section 3.14.

GAS

Displays Sulfur Hexafluoride (SF

6

) as the gas being monitored. No other gas types are available for selection.

CLOCK

– Sets the monitor’s date and time. Use the

Keypad

to enter the correct date and time, and then press

ENTER

to save those values and return to the previous screen. Note that time is displayed in a

24 hour format, while the date is displayed as mm/dd/yy.

14.07 * AMB14.05

-0.02dif <1000>

SELECT GAS TYPE

SF6

SET DATE & TIME

07/11/05 15:30

2ndUNIT

– One of following second measurements can be selected to appear in the upper-right hand corner of the

Data Display

Screen:

NONE

– Blank

Peak PPM

– Peak gas reading

Cont twa

– Time Weighted Average calculated on a continuous basis

8hr TWA

– Time Weighted Average calculated over an 8 hour period

MEASURE 00500pk

100ppm SF6

PRINT

– Refer to Section

3.15 Print/Plot Logged Gas Levels.

PLOT

– Refer to Section

3.15 Print/Plot Logged Gas Levels.

PC-DUMP

– A personal computer can be connected to the monitor’s DB9

RS-232 connector (refer to illustration in Section 3.15) for the purpose of

downloading logged ppm measurements. These measurements can later be analyzed using any common spreadsheet program. Refer to Section 3.17 for detailed instructions on how to transfer stored data to a personal computer.

2ndUNI >PRINT

PLOT PC-DUMP

2ndUNIT PRINT

>PLOT PC-DUMP

2ndUNIT PRINT

PLOT >PC-DUMP

Instruction 3015-5150 17

SF

6

Portable Monitor

3.10 Working with System Faults

3.10.1 Functional Overview

If a system malfunction occurs (see Fault Code list, page 19), the front panel

FAULT

light will flash and the audible alarm, if activated (refer to

AUDALRM

function page 16), will start beeping.

3.10.2 Clearing / Silencing a Fault Alarm

The

FAULT

light and audible alarm will automatically turn OFF after the cause of the fault has been eliminated.

Pressing the

SILENCE

button while a fault condition still exists causes the internal audible alarm to turn

OFF for a period of time as set by the

SILENCE

function (page 17). The front panel

FAULT

light will continue to flash as a reminder that a fault condition still exists. At the end of the silence period if the cause of the fault has not been corrected the audible-alarm circuit will reactivate.

3.10.3 Viewing the Faults Log

From the

Data Display

screen, press any of the

Keypad

buttons to display the first

Function Menu

screen. Next, use the

Keypad

buttons to move the arrow (>) until it points to the

FAULTS

function, and then press the

ENTER

button to display the

Faults Log

screen.

#03 <0800> @

07/11/05 08:17

#04 <0000> @

07/11/05 09:00

FAULT CODE<1800>

12 SAMPLE FLOW

FAULT CODE<1800>

13 PURGE FLOW

The

Faults Log

screen shows the monitor’s current fault status. If the fault is still present when the

FAULTS

function is selected, then the current cause of the fault is displayed along with the date and time it occurred. If the cause of the fault has been cleared, then the

Faults Log

screen will show <0000> along with the date and time the fault was cleared. Use the

Keypad

buttons to scroll through the fault log. In the screens shown to the left, record #03 shows that a Sample Flow Fault (fault code <0800>) occurred on 07/11/2005 at 08:17 AM, while record #04 shows that the fault was cleared on 07/11/2005 at 9:00 AM.

The cause of the fault is identified by a numeric fault code. To convert the fault code into a text description of the fault, first press the

ENTER

button and then use the

Keypad

buttons to scroll through the display until the text description of the fault appears. If the fault code is a combination of two or more faults, then continue to use the

Keypad

buttons until all fault text descriptions have been displayed. For example, the fault code <1800> represents the combination of both a Sample Flow <0800> and a Purge

Flow <1000> fault as shown to the left.

The Fault Log can be cleared as described under the heading

Clearing the

PPM and Faults Data

(Section 3.13).

18 Instruction 3015-5150

SF

6

Portable Monitor

3.11.4 Fault Codes

Fault codes are additive. For example: A fault code of <0003> indicates that both a Box Temperature

Fault <0001> and a Bench Temperature Fault <0002> have occurred.

Code

<0001>

<0002>

Name

Box

Temperature

Fault

Bench

Temperature

Fault

Description of Fault Condition

Enclosure temperature is outside normal range (or IR detector has failed). Check that the monitor is not being subjected to extreme temperatures. Use the

DIAG

function to check the Box Temperature.

Optical bench is outside normal operating range (or IR detector has failed). Check that the monitor is not being subjected to extreme temperatures.

<0004>

<0040>

Manifold

Pressure Fault

Fill Flow

The manifold pressure is outside its normal operating range (or IR detector has failed).

Enter the

DIAG

function and record ALL data. Call the factory with this information for further instructions.

The purge-air bag’s pressure drop is outside expected limits. Use the

EMTYBAG

and

FILLBAG

functions to refill the purge-air bag. If the fault still occurs, check for a punctured bag or disconnected tubing.

Monitor exposed to a gas level that exceeded 65,000 ppm.

<0080>

Over Range

Fault

<0100> Zero Filter Fault The air-purge bag is contaminated with gas. Take monitor to a clean-air area and use

<0200>

<0400>

<0800>

<1000>

<2000>

<4000>

<8000>

Gain Set Fault

A/D Fault

Sample Flow

Fault

Purge Flow

Fault

Bag Fill Time

Zero Range

Fault

Clipping Fault

The digipot autotune sequence has failed. This fault will only occur on first boot up or after a firmware upgrade. Call the factory for further instructions.

A fault has occurred in the analog-to-digital circuitry. Contact the factory with this information for further instructions.

Check for a restriction in the gas-sample inlet or exhaust, a blocked internal filter, or a failed pump.

Check for a restriction in the gas-sample exhaust, a blocked internal filter, or a failed pump. Once the purge air stream has been restored, the monitor will return to normal operation after it completes a purge cycle.

The purge-air bag did not fill within the expected time allotment, or too many purge cycles occurred indicating a leak in the purge-air system. Check for a punctured bag or disconnected tubing.

The IR detector’s output voltage is out of tolerance. Enter the

DIAG

function and record all data. Call the factory with this information for further instructions.

The detector voltage may be out of tolerance. Use the

DIAG

function to check the IR detector voltage. Call the factory with this information for further instructions.

Instruction 3015-5150 19

SF

6

Portable Monitor

3.11 Working with the Gas Alarm

3.11.1 Gas-Alarm Light

If the detected gas level reaches the gas-alarm level as set by the

ALRMLVL

function, the front panel

ALARM

(red) light will flash and the audible alarm, if activated (refer to

AUDALRM

function on page

16), will start beeping. The

ALARM

light and audible alarm will automatically turn OFF once the detected gas level drops below the gas-alarm level.

3.11.2 Silencing a Gas Alarm

Pressing the

SILENCE

button while the alarm circuit is activated causes the audible alarm to turn OFF for a period of time as set by the

SILENCE

function (page 17). The front panel

ALARM

light will continue to flash as an indication that an alarm condition still exists. At the end of the silence period if the detected gas level is still above the gas-alarm level the audible alarm will reactivate.

3.12 Clearing the PPM and Faults Data

Up to 200 gas measurements and 30 fault events are stored by the monitor.

To clear stored data, first display the data to be cleared by selecting the

PPM LOG

or

FAULTS

function

per Section 3.9.4. Next, press both the

ENTER

and

Keypad Right

buttons at the same time. A single, long tone should be heard when the data has been successfully cleared.

3.13 Working with the DIAG Function

3.13.1 Overview

The

DIAG

function displays sensor data and status information useful to a service technician for troubleshooting various fault conditions. Explanations of the data shown in these screens are given below.

3.13.2 Keypad Functions

From the

Data Display

screen, press any one of the

Keypad

buttons to display the first

Function Menu

screen. Next, use the

Keypad

buttons to move the arrow (>) until it is next to the

DIAG

function, and then press

ENTER

to display the first of two

Diagnostic

screens.

Press the

Keypad Up

button to toggle between the

First

and

Second Diagnostic

screen.

20 Instruction 3015-5150

SF

6

Portable Monitor

3.13.3 First Diagnostic Screen

4.20885v <0000>

29.05cD 14.58psi

Bench Voltage Fault Code

Detector Temperature °C ∗ Pressure Reading

0.00075n <0000>

Noise Fault Code

35.40cB 14.59psi

Box Temperature °C ∗ Pressure Reading

In the

First Diagnostic

screen, the user can toggle between displaying Bench Voltage / Detector

Temperature, and Noise / Box Temperature by pressing the

Keypad Right

button.

Bench Voltage

– This is the current peak-to-peak output of the IR detector. In the absence of gas this value can range from 3.90000V to 4.50000V.

Noise –

The Noise value is a 16 point running average of the noise portion of the IR detector’s output. This reading is valuable mainly when gas is NOT present.

Detector Temperature

– This is the current detector temperature in °C.

Box Temperature

– This is the current internal enclosure temperature in °C.

Fault Code

– Current fault code. A value of <0000> indicates that no faults are being detected.

Pressure Reading

– This is the pressure as measured every purge cycle with the sample pump off and the gas-sample inlet open. Its value is weather and altitude dependent and can range from 10.0 to

15.5 PSIA.

Purge Valve Asterisk (

)

– The purge valve can be opened and closed by pressing the

Keypad Left

button. An asterisk appears on the display when the purge valve is

open

causing the monitor to draw air from its purge-air port.

3.13.4 Second Diagnostic Screen

0.1ppm 0.01

PPM Level

0.00004au 4.210v

µMole/Liter

Avg. Absorption Unit ∗ Detector Voltage

PPM Level

– Parts Per Million Level is the current detected gas level, and is the volume concentration referenced to standard temperature and pressure.

Average Absorption Unit

– This is the optical absorbency. In the absence of gas the absorbency is

0.00000 au. When sampling gas, its value varies proportionally with the gas concentration.

µMoles/Liter

– This is the absolute concentration in micro-moles per liter of gas.

Detector Voltage

– This is a running average of the IR detector’s bench voltage.

Purge Valve Asterisk (

)

– The purge valve can be opened and closed by pressing the

Keypad Left

button. An asterisk appears on the display when the purge valve is

open

causing the monitor to draw air from its purge-air port.

Instruction 3015-5150 21

SF

6

Portable Monitor

3.14 Working with the P-CHK Function

3.14.1 Overview

The

P-CHK

function (Pressure Check function) (page 17) is useful to a service technician for

troubleshooting a flow-fault problem. The monitor will trigger a flow fault if the pressure drop from ambient is less than 0.2 psi during a purge cycle, and 0.5 psi during a measurement cycle.

3.14.2 Keypad Functions

From the

Data Display

screen, press both the

Keypad Left

and

Right

buttons at the same time to display the first

Function Menu

screen. Next, use the

Keypad

buttons to move the arrow (>) until it points to the

P-CHK

function, and then press

ENTER

to display the

Pressure

screen.

The

Keypad Left

button toggles the purge valve open and closed. Note that an asterisk (*) appears when the purge valve is

open

causing the monitor to draw air from the purge-air bag.

The

Keypad Down

button toggles the pump ON and OFF.

Pressing the

ENTER

button stores the current manifold pressure shown on the left to the ambient pressure shown on the right (must be done with the pump OFF).

3.14.3 Screen Display

14.59 AMB14.75

-0.16dif <0000>

Current Manifold Pressure ∗ Stored Ambient Pressure

Pressure Difference Fault Code

Current Manifold Pressure

– Current manifold pressure in psia.

Stored Ambient Pressure

– Stored ambient pressure in psia.

Pressure Difference

– Difference between the current manifold pressure and the stored ambient pressure.

Fault Code

– Current fault code (page 19).

Purge Valve Asterisk (

)

– The purge valve can be opened and closed by pressing the

Keypad Left

button. An asterisk appears on the display when the purge valve is

open

causing the monitor to draw air from the purge-air bag.

22 Instruction 3015-5150

SF

6

Portable Monitor

3.15 Print/Plot Logged Gas Levels

A printout or plot of the last 200 SF

6

ppm measurements can be made by connecting the optional

Bacharach printer and printer cable to the monitor as follows (refer to Section 5.1 for printer and cable

part numbers):

1.

For a printout or plot to be made, the monitor must have been set up to record gas measurements using the

LOG INT

function (page 16).

2.

Interconnect the RS-232 connectors located on the printer and monitor.

3.

If not already done, refer to the printer manual and set the printer’s communication parameters to:

• Data bit = 8

Parity = None

Baud rate = 19200

• Handshaking = DTR

4.

From the

Data Display

screen, press both the

Keypad Left

and

Right

buttons at the same time to display the first

Function

Menu

screen. Next, use the

Keypad

buttons to move the arrow (>) until it points to either

PRINT

to produce a printout, or

PLOT

to generate a plot.

5.

Press

ENTER

to start the print/plot process.

2ndUNIT >PRINT

PLOT PC-DUMP

Instruction 3015-5150 23

SF

6

Portable Monitor

3.16 Downloading Stored Data to a Personal Computer

Using the monitor’s

PC DUMP

feature (page 17), the last 200 SF

memory can be downloaded to a personal computer in ASCII text, comma-delimited format, which can then be imported into most spreadsheet programs for analysis.

6

gas readings that were stored in

The following describes how to download data to a computer using Windows® HyperTerminal as the communications program. If a different operating system and/or communications program is being used, then consult the appropriate instruction manuals for those products.

1.

Install serial data cable P/N 104-4027 (straight through, 6 foot, DB9 male to DB9 female) between the computer’s COM port and the analyzer’s RS-232 connector. (For computers having a 25-pin

COM port, either use a 25-pin to 9-pin adapter, or use a serial cable with appropriate connectors on each end.)

2.

At the computer, start HyperTerminal by doing one of the following:

• If HyperTerminal has already been set up to communicate with the SF

6

Monitor, then click

Start

, point to

Programs

, point to

Accessories

, point to

Communications

, click

HyperTerminal

, and double-click the file name or icon that has been associated with the SF

6

Monitor.

If HyperTerminal has never been run in association with the SF

6

Monitor, then a new

HyperTerminal connection needs to be made as follows: a) Click

Start

; click

Run

. In the Run box type “hypertrm.exe

and click

OK.

The

New

Connection

dialog box should appear. b) Type in a New Connection Name such as “SF6”. Click

OK

to select the default icon (if desired, select a different icon before clicking OK). The

Connect To

dialog box should appear. c) Click the

Connect using

drop-down menu and choose the

COM

port to which the analyzer is connected. Then click

OK

to display the

COM Properties

dialog box for that COM port. d) Set Port Settings to:

- Bits per second: 19200

- Data bits: 8

- Parity: None

- Stop bits: 1

- Flow control: None

Then click

OK

to display HyperTerminal’s main window. e) Click File; click Save. This creates a file with an .ht extension in the folder C:\Program

Files\Accessories\Hyper Termina, using the name that was entered in Step b.

3.

After HyperTerminal is running: click

Transfer

, click

Capture Text

, and then click

Start

to accept the default drive\directory\filename to which all received data will be stored as an ASCII text file.

Note:

By default, the captured text file will be stored on the hard drive at C:\Program

Files\Accessories\HyperTerminal\CAPTURE.TXT. If desired, click

Browse

to select a different drive, directory and filename. The next time data is captured, it will be stored under the same location and filename.

Tip:

Changing the filename extension to “CSV” (comma separated variable) will allow the file to be directly opened in the spreadsheet program. For example, double clicking the filename

CAPTURE.CSV in Windows Explorer will automatically start Microsoft Excel and load the file.

24 Instruction 3015-5150

SF

6

Portable Monitor

4.

From the

Data Display

screen, press both the

Keypad Left

and

Right

buttons at the same time to display the first

Function Menu

screen. Next, use the

Keypad

buttons to move the arrow (>) until it points to

PC-DUMP

, and then press the

ENTER

button to begin the download process.

2ndUNIT

PRINT

5.

Observe that the SF

6

Monitor’s screen goes blank and that HyperTerminal displays the data as it is being received. After all data has been transmitted, the SF

Menu

screen.

6

Monitor re-displays the

Function

6.

To stop capturing data and save it, click

Transfer

, click

Capture Text

, click

Stop

.

7.

HyperTerminal and the connection to the SF

6

Monitor can now be closed.

3.17 Importing Saved Data to a Spreadsheet

A text file that was created as described in Section 3.16

can be imported into spreadsheet programs that are capable of importing comma-delimited files.

The following describes how to generate a spreadsheet from a comma-delimited text file using Microsoft

Excel 2003. If you are using a different spreadsheet program, please refer to its instruction manual for information on how to import comma-delimited text files.

1. Start Microsoft Excel.

2. Click

Data

,

Import External Data

, and

Import Data

to display the “Select Data Source” dialog box.

3. Locate file saved earlier. Select file, then click “Open” to display Excel’s “Text Import Wizard.”

4. Choose the “Delimited” original data type option and click Next.

5. Check the “Tab,” “Comma,” and “Space” delimiters and click Finish.

6. Choose “Existing worksheet” or “New worksheet” and click OK to create spreadsheet.

Note: A worksheet must be open in order to import data.

Instruction 3015-5150 25

4 Maintenance

SF

6

Portable Monitor

4.1 Disassembly

When servicing the parts inside the SF

6

Monitor, disassemble the monitor’s metal chassis as follows:

Items Required:

Medium Phillips head screwdriver

Procedure:

1.

Remove monitor and its battery pack from the soft carrying case.

2.

Unplug battery pack from monitor.

3.

Remove a total of 10 screws from the locations shown in the illustrations below.

4.

Carefully separate the metal chassis.

Instruction 3015-5150 26

SF

6

Portable Monitor

4.2 Internal Particulate / Hydrophobic Filter Replacement

Items Required:

Replacement filter (P/N 0007-1654)

Medium Phillips head screwdriver

Procedure:

1.

Disassemble the monitor’s metal chassis per Section 4.1.

2.

See illustration below and locate the internal particulate / hydrophobic filter.

3.

Pull off tubing from both ends of filter and remove filter from instrument.

4.

Attach tubing to new filter

5.

Reassemble monitor.

Instruction 3015-5150 27

SF

6

Portable Monitor

4.3 Updating Firmware

An RS-232 connector, located on the top panel, is used to update the monitor’s firmware. Reprogramming the instrument with updated firmware should be done by qualified service technicians only using instructions provided by Bacharach.

28 Instruction 3015-5150

5 Parts and Service

5.1 Replacement Parts and Optional Items

Replacement Parts

Item Description

SF

6

Monitor

Replacement Battery Kit

Soft Carrying Case with Shoulder Strap

Bladder Bag Kit

Stainless Steel Probe

External Filter

Hydrophobic Filter

External Filter Assembly

Tubing (3 ft)

Replacement Pump

Battery (for main PCB board)

Replacement Bench

Part Number

3015-5148

3015-5739

3015-5700

3015-5325

3015-5326

3015-2906

0007-1654

3015-5324

0003-6182

3015-4239

0204-0020

3015-4561

Optional Accessories

Item Description

IrDA Printer (includes printer, roll of thermal paper, 4 x AA batteries, manual)

Thermal printer paper, 1 roll

Thermal printer paper, 5 rolls

Cable (DB9 to RJ-45)

Computer Communications Cable (DB9 male to

DB9 female)

Part Number

0024-1400

0006-8733

0024-1310

3015-4214

0104-4027

5.2 Service Centers

Service and replacement parts can be obtained by contacting any of the following

Bacharach Service Centers:

United States

Bacharach, Inc.

621 Hunt Valley Circle

New Kensington, PA 15068

Phone: 724-334-5051

Fax: 724-334-5723

Email: [email protected]

Canada

Bacharach of Canada, Inc.

20 Amber St. Unit #7

Markham, Ontario L3R SP4

Canada

Phone: 905-470-8985

FAX: 905-470-8963

E-mail: [email protected]

Instruction 3015-5150

SF

6

Portable Monitor

29

Printed in U.S.A.

Headquarters:

621 Hunt Valley Circle, New Kensington, PA 15068-7074

Toll Free: 800-7364666 • Tel: +1 -724-3345000 • FAX: +1 -724-334-5001

Website: www.MyBacharach.com • E -mail: [email protected]

® Registered Trademark of Bacharach Inc.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
