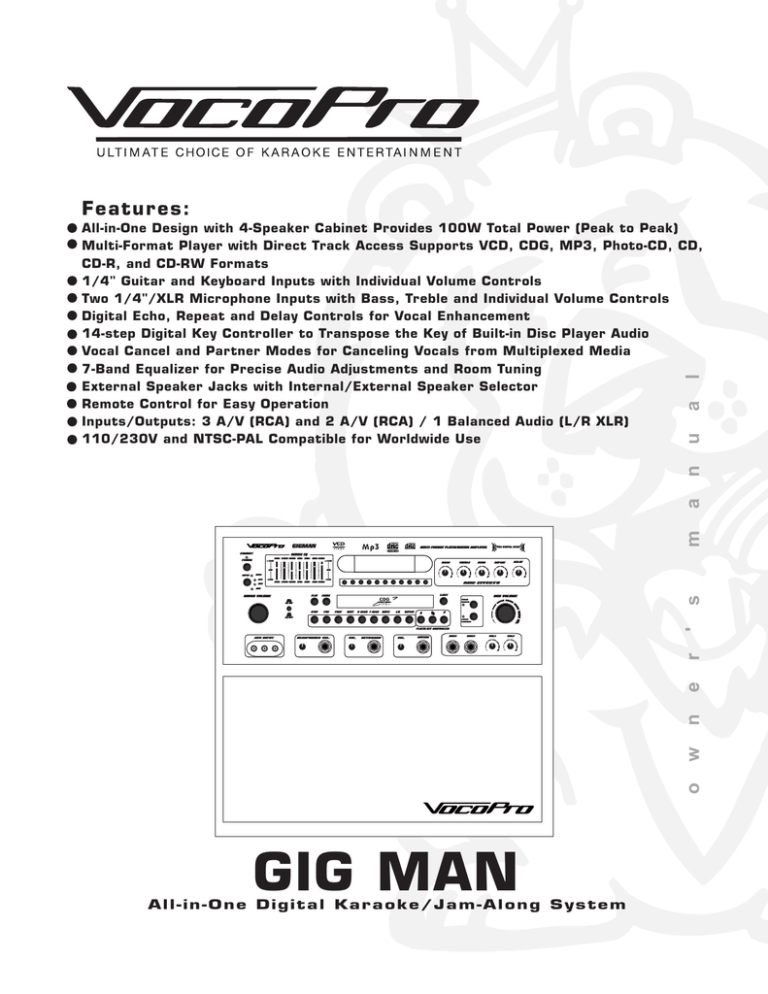

Featur es:
GIGMAN
STANDBY
COMPACT
DIGITAL AUDIO
MULTI-FORMAT PLAYER/MIXING AMPLIFIER
PRO DIGITAL ECHO
MUSIC EQ
POWER
INPUT
COMPACT
DIGITAL AUDIO
m
a
n
u
a
l
All-in-One Design with 4-Speaker Cabinet Provides 100W Total Power (Peak to Peak)
Multi-Format Player with Direct Track Access Supports VCD, CDG, MP3, Photo-CD, CD,
CD-R, and CD-RW Formats
1/4" Guitar and Keyboard Inputs with Individual Volume Controls
Two 1/4"/XLR Microphone Inputs with Bass, Treble and Individual Volume Controls
Digital Echo, Repeat and Delay Controls for Vocal Enhancement
14-step Digital Key Controller to Transpose the Key of Built-in Disc Player Audio
Vocal Cancel and Partner Modes for Canceling Vocals from Multiplexed Media
7-Band Equalizer for Precise Audio Adjustments and Room Tuning
External Speaker Jacks with Internal/External Speaker Selector
Remote Control for Easy Operation
Inputs/Outputs: 3 A/V (RCA) and 2 A/V (RCA) / 1 Balanced Audio (L/R XLR)
110/230V and NTSC-PAL Compatible for Worldwide Use
+12dB
60Hz 200Hz 400Hz 1KHz 3KHz
6KHz 16KHz
+12dB
0dB
0dB
-12dB
-12dB
BASS
TREBLE
ECHO
REPEAT
DELAY
DISC
AV1
AV2
60Hz 200Hz 400Hz 1KHz 3KHz
6KHz 16KHz
MIC EFFECTS
PLAY
PAUSE
EQ ON
STOP
PBC
EJECT
CDG
PREV
NEXT
B-SCAN F-SCAN
MUTE
MIC VOLUME
VOCAL
CANCEL
L/R
REPEAT
b
#
EQ OFF
VOCAL
PARTNER
VOL.
KEYBOARD
VOL.
GUITAR
MIC1
MIC2
VOL1
VOL2
o
w
n
e
r
HEADPHONES VOL.
'
PLAYER KEY CONTROLLER
AV3 INPUT
s
AV3
MUSIC VOLUME
GIG MAN
All-in-One Digital Karaoke/Jam-Along System
Safety Instructions
CAUTION
RISK OF SHOCK
CAUTION: To reduce the risk of electric shock,
do not remove cover (or back). No userserviceable parts inside. Only refer servicing to
qualified service personnel.
Explanation of Graphical Symbols
The lightning flash & arrowhead
symbol, within an equilateral triangle,
is intended to alert you to the
presence of danger.
The exclamation point within an
equilateral triangle is intended to alert
you to the presence of important
operating and servicing instructions.
WARNING
To reduce the risk of fire or electric shock, do
not expose this unit to rain or moisture.
8. Ventilation - The appliance should be situated so its
location does not interfere with its proper ventilation. For
example, the appliance should not be situated on a bed,
sofa, rug, or similar surface that may block the
ventilation slots.
9. Heat - The appliance should be situated away from
heat sources such as radiators, heat registers,
stoves, or other appliances (including amplifiers)
that produce heat.
10. Power Sources - The appliance should be
connected to a power supply only of the type described
in the operating instructions or as marked on the
appliance.
11. Grounding or Polarization - Precautions should be
taken so that the grounding or polarization means of
an appliance is not defeated.
12. Power-Cord Protection - Power-supply cords
should be routed so that they are not likely to be walked
on or pinched by items placed upon or against them,
paying particular attention to cords at plugs,
convenience receptacles, and the point where they exit
from the appliance.
13. Cleaning - Unplug this unit from the wall outlet
before cleaning. Do not use liquid cleaners or
aerosol cleaners. Use a damp cloth for cleaning.
14. Power lines - An outdoor antenna should be
located away from power lines.
1. Read Instructions - All the safety and operating
instructions should be read before the appliance is
operated.
15. Nonuse Periods - The power cord of the appliance
should be unplugged from the outlet when left unused
for a long period of time.
2. Retain Instructions - The safety and operating
instructions should be retained for future reference.
16. Object and Liquid Entry - Care should be taken so
that objects do not fall and liquids are not spilled into the
enclosure through openings.
3. Heed Warnings - All warnings on the appliance and in
the operating instructions should be adhered to.
4. Follow Instructions - All operating and use
instructions should be followed.
5. Attachments - Do not use attachments not
recommended by the product manufacturer as they may
cause hazards.
6. Water and Moisture - Do not use this unit near water.
For example, near a bathtub or in a wet basement and
the like.
7. Carts and Stands - The appliance should be used
only with a cart or stand that is recommended by the
manufacturer.
7 A. An appliance and cart combination
should be moved with care. Quick stops,
excessive force, and uneven surfaces may
cause an overturn.
1
17. Damage Requiring Service - The appliance should
be serviced by qualified service personnel when:
A.
B.
C.
D.
The power supply cord or plug has been damaged; or
Objects have fallen into the appliance; or
The appliance has been exposed to rain; or
The appliance does not appear to operate normally
or exhibits a marked change in performance; or
E. The appliance has been dropped, or the enclosure
damaged.
18. Servicing - The user should not attempt to service
the appliance beyond that described in the operating
instructions. All other servicing should be referred to
qualified service personnel.
Note:
To CATV system installer's (U.S.A.): This reminder is
provided to call the CATV system installer's attention to
Article 820-40 of the NEC that provides guidelines for
proper grounding and, in particular, specifies that the
cable ground shall be connected as close to the point of
cable entry as practical.
FCC INFORMATION (U.S.A.)
1. IMPORTANT NOTICE: DO NOT MODIFY THIS
UNIT!: This product, when installed as indicated in the
instructions contained in this manual, meets FCC
requirements. Modifications not expressly approved by
Vocopro may void your authority, granted by the FCC,
to use this product.
2. IMPORTANT: When connecting this product to
accessories and/or another product use only high
quality shielded cables. Cable(s) supplied with this
product MUST be used. Follow all installation
instructions. Failure to follow instructions could void your
FCC authorization to use this product in the U.S.A.
CAUTION:
READ THIS BEFORE OPERATING YOUR UNIT
1. To ensure the finest performance, please read this
manual carefully. Keep it in a safe place for future reference.
2. Install your unit in a cool, dry, clean place - away from
windows, heat sources, and too much vibration, dust,
moisture or cold. Avoid sources of hum (transformers, v
motors). To prevent fire or electrical shock, do not expose to
rain and water.
3. Do not operate the unit upside-down.
3. NOTE: This product has been tested and found to
comply with the requirements listed in FCC Regulations,
Part 15 for Class "B" digital devices. Compliance with
these requirements provides a reasonable level of
assurances that your use of this product in a residential
environment will not result in harmful interference with
other electronic devices. This equipment
generates/uses radio frequencies and, if not installed
and used according to the instructions found in the
owner's manual, may cause interference harmful to the
operation of other electronic devices. Compliance with
FCC regulations does not guarantee that interference
will not occur in all installations. If this product is found
to be the source of interference, which can be
determined by turning the unit "Off" and "On", please try
to eliminate the problem by using one of the following
measures:
4. Never open the cabinet. If a foreign object drops into the
set, contact your dealer.
Relocate either this product or the device that is being
affected by the interference.
9. This unit consumes a fair amount of power even when the
power switch is turned off. We recommend that you unplug
the power cord from the wall outlet if the unit is not going to
be used for a long time. This will save electricity and help
prevent fire hazards. To disconnect the cord, pull it out by
grasping the plug. Never pull the cord itself.
Use power outlets that are on different branch (circuit
breaker or fuse) circuits or install AC line filter(s).
In the case of radio or TV interference, relocate/reorient
the antenna. If the antenna lead-in is 300-ohm ribbon
lead, change the lead-in to coaxial type cable.
If these corrective measures do not produce satisfactory
results, please contact your local retailer authorized to
distribute Vocopro products. If you can not locate the
appropriate retailer, please contact Vocopro, 1728
Curtiss Court, La Verne, CA 91750.
5. Place the unit in a location with adequate air circulation.
Do not interfere with its proper ventilation; this will cause the
internal temperature to rise and may result in a failure.
6. Do not use force on switches, knobs or cords. When
moving the unit, first turn the unit off. Then gently disconnect
the power plug and the cords connecting to other
equipment. Never pull the cord itself.
7. Do not attempt to clean the unit with chemical solvents:
this might damage the finish. Use a clean, dry cloth.
8. Be sure to read the "Troubleshooting" section on common
operating errors before concluding that your unit is faulty.
10. To prevent lightning damage, pull out the power cord
and remove the antenna cable during an electrical storm.
11. The general digital signals may interfere with other
equipment such as tuners or receivers. Move the system
farther away from such equipment if interference is
observed.
NOTE:
Please check the copyright laws in your country
before recording from records, compact discs,
radio, etc. Recording of copyrighted material may
infringe copyright laws.
CAUTION
The apparatus is not disconnected from the AC power
source so long as it is connected to the wall outlet,
even if the apparatus itself is turned off. To fully insure
that the apparatus is indeed fully void if residual power,
leave unit disconnected from the AC outlet for at least
fifteen seconds.
Voltage Selector (General Model Only)
Be sure to position the voltage selector to match the
voltage of your local power lines before installing the
unit.
220V
110V
2
Welcome...
And Thank you for purchasing the GIG MAN from VocoPro, your ultimate choice in
Karaoke entertainment! With years of experience in the music entertainment business,
VocoPro is a leading manufacturer of Karaoke equipment, and has been providing
patrons of bars, churches, schools, clubs and individual consumers the opportunity to
sound like a star with full-scale club models, in-home systems and mobile units. All our
products offer solid performance and sound reliability, and to further strengthen our
commitment to customer satisfaction, we have customer service and technical support
professionals ready to assist you with your needs. We have provided some contact
information for you below.
VocoPro
1728 Curtiss Court
La Verne, CA 91750
Toll Free: 800-678-5348
TEL: 909-593-8893
FAX: 909-593-8890
VocoPro Company Email Directory
Customer Service & General Information
[email protected]
Tech Support
[email protected]
Remember Our Website
Be sure to visit the VocoPro website www.vocopro.com for the latest information on
new products, packages and promos. And while you're there don't forget to check out
our Club VocoPro for Karaoke news and events, chat rooms, club directories and even a
KJ Service directory!
We look forward to hearing you sound like a PRO, with VocoPro, your ultimate choice in
Karaoke entertainment.
FOR YOUR RECORDS
Please record the model number and serial number below, for easy reference, in case of loss or theft. These numbers
are located on the rear panel of the unit. Space is also provided for other relevant information
Model Number
Serial Number
Date of Purchase
Place of Purchase
3
GIG MAN
All-in-One Digital Karaoke/Jam-Along System
Contents
Specifications
Introduction
Safety Instructions..............................
Welcome……………………………….
Specifications.....................................
Listening For a Lifetime………..……..
1-2
3
4
5
Controls and Functions
Front Panel .......................................
Rear Panel………………………........
Remote Control.................................
115V / 230V
AUDIO OUTPUT POWER:
50W+50W TOTAL (PEAK TO PEAK) THD=10%
6-8
8-9
10-11
AV Inputs...........................................
Audio Outputs........…………………...
Video Outputs....................................
Microphone/Instrument Inputs...........
AC Device..........................................
Speaker Connection..........................
AV1 AV2 AV3 AUDIO INPUT SENSITIVITY:
300mV
Getting Connected
12
12
12
13
13
14
Basic and Advanced Operations
Playback Operations..........................
14
MP3 Functions and Operations...…... 15-16
MP3 Glossary....................................
16
MP3 Playback....................................
16
Karaoke Functions and Operations...
17
Viewing a Photo-CD..........................
17
Viewing VCD's...................................
18
VIDEO INPUT SENSITIVITY:
1V
MIC INPUT SENSITIVITY:
8mV
KEYBOARD / GUITAR INPUT SENSITIVITY:
8mV
VIDEO OUTPUT LEVEL:
1V (PEAK TO PEAK)
AUDIO OUTPUT LEVEL:
Troubleshooting
Common Problems and Solutions.....
AC INPUT VOLTAGE:
19
500mV
S/N RATIO:
60dB
4
Listening For A Lifetime
Selecting fine audio equipment such as the unit you've just purchased is only the start of your musical enjoyment. Now it's
time to consider how you can maximize the fun and excitement your equipment offers. VocoPro and the Electronic
Industries Association's Consumer Electronics Group want you to get the most out of your equipment by playing it at a
safe level. One that lets the sound come through loud and clear without annoying blaring or distortion and, most
importantly, without affecting your sensitive hearing.
Sound can be deceiving. Over time your hearing 'comfort level' adapts to a higher volume of sound. So what sounds
'normal' can actually be loud and harmful to your hearing. Guard against this by setting your equipment at a safe level
BEFORE your hearing adapts.
To establish a safe level:
• Start your volume control at a low setting.
• Slowly increase the sound until you can hear it comfortably and clearly, and without
distortion.
Once you have established a comfortable sound level:
• Set the dial and leave it there.
• Pay attention to the different levels in various recordings.
Taking a minute to do this now will help to prevent hearing damage or loss in the future. After all, we want you listening for
a lifetime.
Used wisely, your new sound equipment will provide a lifetime of fun and enjoyment. Since hearing damage from loud
noise is often undetectable until it is too late, this manufacturer and the Electronic Industries Association's Consumer
Electronics Group recommend you avoid prolonged exposure to excessive noise. This list of sound levels is included for
your protection.
Some common decibel ranges:
Level
30
40
50
60
70
80
Example
Quiet library, Soft whispers
Living room, Refrigerator, Bedroom away from traffic
Light traffic, Normal conversation
Air conditioner at 20 ft., Sewing machine
Vacuum cleaner, Hair dryer, Noisy Restaurant
Average city traffic, Garbage disposals, Alarm clock at 2 ft.
The following noises can be dangerous under constant exposure:
Level
90
100
120
140
180
Example
Subway, Motorcycle, Truck traffic, Lawn mower
Garbage truck, Chainsaw, Pneumatics drill
Rock band concert in front of speakers
Gunshot blast, Jet plane
Rocket launching pad
-Information courtesy of the Deafness Research Foundation
5
Front Panel Description and Functions
Front Panel
3
1
2
4
GIGMAN
STANDBY
COMPACT
DIGITAL AUDIO
8
MULTI-FORMAT PLAYER/MIXING AMPLIFIER
9
PRO DIGITAL ECHO
MUSIC EQ
POWER
+12dB
60Hz 200Hz 400Hz 1KHz 3KHz
6KHz 16KHz
+12dB
0dB
INPUT
COMPACT
DIGITAL AUDIO
7
6
5
LOW
HI
ECHO
REPEAT
11
0dB
VCD
AV1
-12dB
AV2
60Hz 200Hz 400Hz 1KHz 3KHz
6KHz 16KHz
-12dB
10
DELAY
MIC EFFECTS
AV3
MUSICC VOLUME
PLAY
PAUSE
STOP
PBC
EJECT
MIC VOLUME
VOCAL
CANCEL
EQ ON
12
PREV
NEXT
B-SCAN F-SCAN
MUTE
L/R
REPEAT
b
#
EQ OFF
VOCAL
PARTNER
PLAYER KEY CONTROLLER
AV3 INPUT
13
HEADPHONES VOL.
VOL.
KEYBOARD
VOL.
GUITAR
MIC1
MIC2
VOL1
VOL2
14
1. POWER button - This button is used to turn the GIG MAN 'ON' or place it in STANDBY mode. NOTE: When in STANDBY mode, the
GIG MAN is not completely powered down and still contains residual power.
2.
INPUT button - This button toggles through all the INPUT channels (VCD, AV 1/2/3) for available INPUT SOURCES.
3. 7-BAND GRAPHIC EQ - This GRAPHIC EQ is used to BOOST and/or CUT particular frequencies from SOURCE MUSIC output.
Each slide fader processes a particular frequency range indicated by the number above it. Frequencies from 30Hz - 120Hz constitute
the very low to low range. Frequencies from 120Hz to 1kHz are the mid-range and frequencies from 1kHz to 16kHz make up the high
to very high range. To adjust, slide the fader up to boost the frequency presence or down to cut the frequency presence.
4. GRAPHIC DISPLAY panel - This panel displays all graphical information regarding system operations, settings and performance.
5. DIRECT TRACK ACCESS buttons - These buttons allow for DIRECT TRACK selection. For tracks 10 and up, press the +10 button.
For example, to go directly to track 13, you would press +10 and 3, and for track 22, you would press +10, +10 and 2.
6. REMOTE SENSOR - This sensor receives infrared signals transmitted by the REMOTE CONTROL transmitter. NOTE: Obstacles
located between the remote control and remote sensor should be avoided as they can prevent signal recognition.
7. LOW control - This control increases/decreases the amount of LOW frequency response applied to the MASTER VOLUME output.
8. HI control - This control increases/decreases the amount of HIGH frequency response applied to the MASTER VOLUME output.
9. ECHO LEVEL control - This control adjusts the level of ECHO applied to the MIC channels. Turn control clockwise to INCREASE and
counter-clockwise to DECREASE level.
10. REPEAT control - Use this control to adjust the REPEAT setting of the ECHO effect. As REPEAT adjusts the total number of echo
intervals prior to fade-out, the more REPEAT that is applied, the more ECHO intervals will occur prior to fade-out. Turn control
clockwise to INCREASE and counter-clockwise to DECREASE level.
11. DELAY control - Use this control to adjust the DELAY setting of the ECHO effect. As DELAY adjusts the total begin-to-end length of
each echo interval, the more DELAY that is applied, the longer each ECHO interval will take to complete. Turn control clockwise to
INCREASE and counter-clockwise to DECREASE level.
12. MUSIC VOL. control - This control increases/decreases the MUSIC VOLUME level. Turn clockwise to increase MUSIC VOLUME and
counter-clockwise to decrease the MUSIC VOLUME.
13. PLAY button - This button is used to initiate disc PLAYBACK.
14. PAUSE button - This button is used to PAUSE disc PLAYBACK.
6
Front Panel Description and Functions cont...
Front Panel
16 17 18
GIGMAN
STANDBY
COMPACT
COMPACT
DIGITAL AUDIO
DIGITAL AUDIO
MULTI-FORMAT PLAYER/MIXING AMPLIFIER
PRO DIGITAL ECHO
MUSIC EQ
POWER
+12dB
60Hz 200Hz 400Hz 1KHz 3KHz
6KHz 16KHz
+12dB
0dB
INPUT
21
20
BASS
TREBLE
ECHO
REPEAT
22
DELAY
23
0dB
DISC
AV1
-12dB
AV2
60Hz 200Hz 400Hz 1KHz 3KHz
6KHz 16KHz
-12dB
MIC EFFECTS
AV3
MUSIC VOLUME
PLAY
PAUSE
STOP
PBC
EJECT
CDG
EQ ON
PREV
NEXT
B-SCAN F-SCAN
MUTE
MIC VOLUME
VOCAL
CANCEL
L/R
REPEAT
b
24
#
EQ OFF
VOCAL
PARTNER
PLAYER KEY CONTROLLER
26
AV3 INPUT
HEADPHONES VOL.
VOL.
KEYBOARD
VOL.
GUITAR
MIC1
MIC2
VOL1
VOL2
27
25
30 29 15
33 34 19 28
31 32
35
36
15. PREV / NEXT buttons - These buttons are used to either go back to a PREVIOUS track or advance the NEXT track on a disc during
playback.
16. B-SCAN / F-SCAN buttons - These buttons are used to SCAN either BACKWARD or FORWARD through tracks on a disc during
playback. NOTE: Using the B-SCAN and F-SCAN buttons during the playback of a CDG disc while performing Karaoke is not
recommended as it will cause the onscreen lyrics to scramble.
17. MUTE button - Press this button to SILENCE audio playback. Press a second time to return to audio playback.
18. AUDIO button - This button will cycle between three AUDIO PLAYBACK MODES: STEREO, LEFT/LEFT and RIGHT/RIGHT. In
STEREO mode, audio playback is standard L/R audio. In L/L mode, the right channel is removed and replaced with a duplicate left
channel. In R/R mode, the left channel is removed and replaced with a duplicate right channel.
19. REPEAT button - Press once to access the REPEAT selection window, press twice to select TRACK REPEAT mode and press a third
time to select DISC REPEAT mode.
20. DISC tray - This tray is used for inserting and removing discs. The DISC TRAY is operated with the EJECT button.
21. EJECT button - This button is used to OPEN/CLOSE the DISC tray.
22. VOCAL CANCEL button - This feature is used to cancel out the lead vocal layer on a multiplex format CD+G or VCD disc. In
order for this feature to work, the disc must be multiplex formatted. To activate, press the VOCAL CANCEL button once to remove
the lead vocal layer. Press a second time, and the lead vocal layer will be reestablished. NOTE: If you try to utilize this feature while
a standard or non-multiplex disc is playing, it will not work as this feature is designed to work with multiplex discs only.
23. VOCAL PARTNER button - This feature acts very similar to the vocal cancel feature, but with an added voice activation feature that
acts like a vocal "auto-pilot". When you enable the VOCAL PARTNER feature, the lead vocal layer will be removed as long as you are
singing into the microphone. When you stop singing into the microphone, the lead vocal layer will automatically be added back into
the music. To activate VOCAL PARTNER, press button once. To remove VOCAL PARTNER, press a second time. NOTE: If you try to
utilize this feature while a standard or non-multiplex disc is playing, it will not work as this feature is designed to work with
multiplex discs only.
24. MIC VOLUME control - This control is the Master MIC VOLUME level for all microphone output. Turn clockwise to
increase and counter-clockwise to decrease.
25. AV3 INPUT jacks (RCA) - These jacks are for connecting AUDIO/VIDEO OUTPUT from an external AV SOURCE. Connect an
RCA-style AV cable (R, W, Y) from these jacks to the AV OUTPUT jacks on your external AV device.
7
Front Panel Description and Functions cont...
26. STOP button - This button is used to STOP disc PLAYBACK.
27. PBC button - The PBC (play back control) button toggles the PBC mode ON/OFF. When in PBC mode, you can use direct access to tracks/scenes
by using the NUMBER PAD on the REMOTE CONTROL. This feature is used primarily with VCD, MP3 and PHOTO-CD discs. NOT E : Not all dis cs
have P B C s upport coding. C heck to make s ure a dis c has P B C s upport before trying to us e the feature. P res s ing the P B C button during the
playback of a track/s cene will caus e the playback to s top and res tart.
28. DIGITAL KEY CONTROL buttons - These buttons direct the DIGITAL KEY CONTROLLER to either raise, lower or reset the musical key of audio
from the built-in multi-format disc player.
# - Raises the musical key a half-step each time it is pressed.
- Resets the musical key to it's original key.
b - Lowers the musical key a half-step each time it is pressed.
29. HEADPHONES jack - This jack is used to connect HEADPHONES equipped with a ¼" plug.
30. HEADPHONES VOLUME control - This control is used to set the VOLUME for the HEADPHONES.
31. KEYBOARD VOLUME control - This controls is used to set the VOLUME level for a KEYBOARD connected to the KEYBOARD INPUT JACK.
32. KEYBOARD input - This input is used to connect a KEYBOARD device via a ¼" output cable.
33. GUITAR VOLUME control - This controls is used to set the VOLUME level for GUITAR connected to the GUITAR INPUT JACK.
34. GUITAR input - This input is used to connect a GUITAR via a ¼" guitar cable.
35. MIC INPUTS 1, 2 - These inputs are for connecting MICROPHONES with a ¼" plug. NOT E : B oth the XLR (rear panel) and ¼" inputs cannot be us ed
s imultaneous ly for any given mic channel.
36. MIC 1 / 2 VOLUME controls - These controls adjust the VOLUME levels of MIC channels 1 and 2 individually. Turn controls clockwise to INCREASE
and counter-clockwise to DECREASE.
Rear Panel Description and Functions
Rear Panel
2
VCD+CDG
VOCOPRO
1
COMBO Model: GIGMAN
AV1 INPUT
VIDEO
www.vocopro.com
Rated:AC~115/230V,50/60HZ, 70W
Class1 Laser Product
This product complies with DHHS Rules21CFR Chapter1,
Subchapter J
Made in China
Manufactured Date:
www.vocopro.com
This device complies with part 15 of the FCC
Rules. Operation is subject to the following two
Conditions:(1)This device may not cause harmful
Interference,and (2)This device must accept any
interference that may cause undesired operation
Power
Commutator
L
L
4
VIDEO
R
AV2 INPUT
BALANCED AUDIO OUTPUT
BALANCED MIC OUTPUT
R
MIC 1
MIC 2
T2A
SPEAKER 8 ½
VIDEO
OUT
AUDIO
OUT
L
AC IN
R
ENTR EAC
3
INT
EXT
Speacker Selector
R
L
AC115V/230V
50/60GHZ
C
UL
US
LISTED
(AUDIO PRODUCT)
XXXX
5
1. POWER switch - This switch turns the GIG MAN's MAIN POWER ON/OFF.
2. VOLTAGE selector - This selector toggles between 110-120V and 220-240V power settings. Please ensure this toggle is set to the
correct position, matching the receiving AC outlets power supply before plugging it in and operating it. Doing so may cause
severe damage to the unit and void your product warranty.
3. INTERNAL/EXTERNAL SPEAKER selector - This selector toggles the GIG MAN's master output to be played through either the
BUILT-IN speakers or EXTERNAL speakers connected to the EXTERNAL SPEAKER CONNECTORS. N O T E : Y ou c a nnot pla yba c k
from both IN T E R N A L a nd E X T E R N A L s pe a ke rs s imulta ne ous ly.
4. EXTERNAL SPEAKER connectors - These connectors are for connecting EXTERNAL SPEAKERS to be used for playback instead of
the BUILT-IN SPEAKERS. N O T E : O nly c onne c t one 8-ohms ra te d s pe a ke r to e a c h s pe a ke r c onne c tor.
5. AC~IN terminal - Connect AC MAIN POWER CORD from the wall outlet to this terminal.
8
Rear Panel Description and Functions cont...
Rear Panel
6
12
VCD+CDG
VOCOPRO
AV1 INPUT
COMBO Model: GIGMAN
VIDEO
www.vocopro.com
Rated:AC~115/230V,50/60HZ, 70W
Class1 Laser Product
This product complies with DHHS Rules21CFR Chapter1,
Subchapter J
Made in China
Manufactured Date:
www.vocopro.com
This device complies with part 15 of the FCC
Rules. Operation is subject to the following two
Conditions:(1)This device may not cause harmful
Interference,and (2)This device must accept any
interference that may cause undesired operation
Power
Commutator
L
L
VIDEO
R
10
AV2 INPUT
BALANCED AUDIO OUTPUT
BALANCED MIC OUTPUT
R
MIC 1
MIC 2
T2A
11
SPEAKER 8 ½
VIDEO
OUT
7
AUDIO
OUT
C
L
UL
US
LISTED
AC IN
R
ENTR EAC
INT
EXT
Speacker Selector
L
R
13
(AUDIO PRODUCT)
XXXX
AC115V/230V
50/60GHZ
8
9
6. FUSE terminal - This terminal houses the GIG MAN's main system FUSE. NOTE: If fuse replacement is necessary, only replace with
the same type and rating of fuse.
7. AC POWER outlet - This outlet provides AC POWER to an external device. NOTE: Do not connect any device with a power
consumption level higher than 200W.
8. VIDEO OUT 1-2 jacks (RCA) - These jacks are for connecting the GIG MAN's VIDEO OUTPUT to TV or DISPLAY devices. Connect
RCA-type patch cables from these jacks to the VIDEO INPUT jacks on the connecting TV or display devices.
9. AUDIO OUT 1-2 jacks (RCA) - These jacks are for connecting the GIG MAN's AUDIO OUTPUT to amplifier, recording or mixing
devices. Connect paired RCA-type patch cables from these jacks to appropriate INPUT jacks on external audio devices.
10. AV 1-2 INPUT jacks - These jacks are for connecting AUDIO/VIDEO OUTPUT from external AV SOURCES. Connect RCA-style AV
cables (R, W, Y) from these jacks to the AV OUTPUT jacks on your external AV devices.
11. BALANCED MIC 1-2 INPUT (XLR) - These jacks are for connecting microphones via BALANCED XLR-type microphone cables.
NOTE: Both the XLR and ¼" MIC jacks cannot be used simultaneously for any given mic channel.
12. BALANCED AUDIO OUTPUT jacks - These XLR jacks are for connecting MASTER output to an external device with balanced
cables.
13. L-R-FRONT SPEAKER jacks - Connect EXTERNAL L and R SPEAKER's to this jack.
9
Remote Control Description and Functions
5.
SET A/B button - This feature allows you to select a section of the
disc for repeat playback. While a disc is playing, press the A/B button
once to select the beginning point of the selection. Press the A/B
button again to select the end point of the selection. Playback of the
selection will start automatically. Press the A/B button again to cancel
this feature and return to normal playback.
6.
BOOKMARK button - Press the BOOKMARK button to set a memory
point on the disc. Press the RETURN button at any time to jump to
the BOOKMARK point and resume playback.
7.
PROGRAM button - Press this button to enter track PROGRAM
mode. The disc must be stopped to enter PROGRAM mode. See the
Remote Control
1
2
3
4
7
5
6
8
PROGRAM function in the Advanced Operation section of this manual for
a detailed explanation of this feature.
10
11
9
14
13
15
8.
MUTE button - Press this button to MUTE or silence the audio track
during playback. Press MUTE a second time to restore the audio
playback
9.
NUMBER pad - Use these buttons for direct track selection, selecting
tracks in program mode or any other occasion where numeric entry is
needed. The +10 button adds 10 to the track number each time it is
pressed: 10, 20, 30 etc.
12
17
16
18
19
10. SLOW button - Press this button to playback in slow motion. Press
SLOW to cycle through the 4 available playback speeds: 1/2 speed,
1/4 speed, 1/8 speed and normal. Press the PLAY button to cancel
slow-motion playback.
11. VIDEO button - Use this button to select between NTSC/PAL video
modes. For U.S., Mexico, and Canada, select NTSC. For European
countries, select PAL.
12. AUDIO button - This button is used to select the audio playback mode:
LEFT/LEFT, RIGHT/RIGHT and STEREO
13. STEP button - Press this button to playback the video one frame at a
time. Each press of the step button will advance the video one frame.
Press the PLAY button to return to normal playback.
14. RESUME button - This button is used to jump to the point on the disc
previously marked using the BOOKMARK feature.
15. PBC button - When playing a 2.0 compatible VCD disc, an MP3 or
PHOTO-CD disc, press this button to enable PBC control for direct
track selection, menu support and auto-playback
16. REPEAT button - Press this button once to have the currently selected
track play again (repeat) after it completes. Press REPEAT a second
time and the entire disc will be replayed once. Press REPEAT a third
time to turn REPEAT mode off.
17. FREEZE button - Press this button to FREEZE the video playback on
the current frame without freezing the audio playback.
1.
POWER button - This button is used to turn the GIG MAN 'ON' or
place it in STANDBY mode. NOTE: When in STANDBY mode, the GIG
MAN is not completely powered down and still contains residual power.
2.
SELECT button - This button is used to make selections in OSD and
media menus when an entry is highlighted.
3.
STOP button - This button is used to STOP disc PLAYBACK.
4.
OPEN/CLOSE button - This button is used to OPEN/CLOSE the
DISC tray.
18. MODE button - Press this button to display the first nine tracks'
information on the video display. NOTE: This function is only available with
VCD media.
19. DIGITAL KEY CONTROL button - These buttons direct the DIGITAL
KEY CONTROLLER
# - Raises the musical key a half-step each time it is pressed.
- Resets the musical key to it's original key.
b - Lowers the musical key a half-step each time it is
pressed
10
Remote Control Description and Functions cont...
Remote Control
26. VOCAL CANCEL button - This feature is used to cancel out the
lead vocal layer on a 2-channel multiplex CD+G or VCD disc.
In order for this feature to work properly, the disc must be
multiplex formatted. Press the VOCAL CANCEL button once
to remove the lead vocal layer. Press a second time, and
the lead vocal layer will be reestablished. NOTE: If you try to
utilize this feature while a standard or non-multiplex disc is
playing, it will not work as this feature is designed to work with
multiplex format discs only.
20
21
22
24
23
28
25
26
27. VOCAL PARTNER button - This feature acts very similar to the
vocal cancel feature, but with an added voice activation feature
that acts like a vocal "auto-pilot". When you utilize the VOCAL
PARTNER feature, the lead vocal layer will be removed as long
as you are singing into the microphone. When you stop singing
into the microphone, the lead vocal layer will automatically be
added back into the music. To activate VOCAL PARTNER,
press button once. To remove VOCAL PARTNER, press a
second time. NOTE: If you try to utilize this feature while a
standard or non-multiplex disc is playing, it will not work as
this feature is designed to work on multiplex format discs only.
28. VOL -/+ buttons - These buttons increase/decrease the MASTER
MUSIC VOLUME level. Press the + button to increase VOLUME
and the - button to decrease the VOLUME.
23 feet
27
Using the Remote Control
When operating the remote control, point the top of the remote
control toward the GIG MAN's remote sensor on the front panel
and ensure that there is a clear line of sight between the remote
control and GIG MAN void of obstacles in order to prevent signal
deflection.
20. RETURN button - Press this button to return to the point on the
disc selected with the BOOKMARK feature. Press it again to
RETURN to normal playback .
21. OSD button - Press this button to display the DISC PLAYBACK
STATUS on the video display. Pressing this button repeatedly
cycles between showing the TRACK TIME REMAINING and
TOTAL DISC TIME REMAINING.
22.
buttons - Pressing these buttons during playback causes the
GIG MAN to skip to the PREVIOUS or NEXT track on a DISC during
playback.
23.
buttons - Pressing these buttons during playback causes the
GIG MAN to skip rapidly BACKWARDS or FORWARDS through the
track being played. Video playback is maintained, allowing you to
search for a particular passage within a track. Continuing to hold
these buttons down causes the search to progress faster.
24.
button - This button PLAYS and PAUSES disc playback.
25. GOTO buttons - Allows direct selection of the playback point on
the disc. See the GOTO function in the Advanced Operation
section of this manual for a detailed explanation of this
feature.
11
When to replace the batteries
The maximum operational distance between the remote control and the
sensor is approximately 23 feet. If the remote only operates at shorter
distances, it is time to replace the batteries.
Installing the batteries
To install the batteries, first remove the battery compartment lid from the
back of the remote control. Insert two AAA batteries, ensuring that the
polarities are aligned correctly.
Getting Connected
AV Input Connections
To connect an AV source player, use an RCA-type AV cable with red, white and yellow colored plugs.
For AUDIO, connect the L and R AUDIO OUTPUT jacks from the source player to the L (white) and R (red) AUDIO INPUT jacks on the GIG MAN, using
the AV channel of your choice.
For VIDEO, connect the VIDEO OUTPUT jack on the source player to the yellow VIDEO INPUT jack on the GIG MAN, using the same channel you
connected the audio to.
AV Input
To Audio In
To Audio Out
To Video Out
AV3 INPUT
To Video In
A/V Device
Audio Output Connections
To connect audio output to external devices, there are three available channels: AUDIO OUTPUT 1 & 2 (RCA) and BALANCED AUDIO OUTPUT (XLR).
All three OUTPUTS can be connected simultaneously
For AUDIO OUTPUT 1 & 2, using an RCA-type audio cable, connect the left and right AUDIO/LINE/AUX INPUT jacks on the external device to the left
and right AUDIO OUTPUT 1 or 2 jacks on the GIG MAN.
For BALANCED AUDIO OUTPUT, using two XLR-type audio cables, connect the left and right AUDIO/LINE IN jacks on the external device to the left
and right BALANCED AUDIO OUTPUT jacks on the GIG MAN's rear panel.
Audio Output
L
R
External Amplifier
To Audio In
VIDEO
OUT
To Audio In
AUDIO
OUT
POWERED STAGE
MONITORS
Recording Device
Video Output Connections
The GIG MAN has two VIDEO OUTPUT channels with RCA-type jacks for connection to TV's or monitor devices.
To connect VIDEO, using an RCA-type patch cable, connect the VIDEO IN jack of your television or monitor device to either the VIDEO OUT 1 or 2
jacks on the GIG MAN. Both VIDEO OUTPUTS can be connected simultaneously
Video Output
VIDEO
OUT
AUDIO
OUT
To Video In
AUDIENCE
TV
STAGE
TV
L
To Video In
R
12
Getting Connected cont...
Microphone/Instrument Input Connection
After making your main system connections, it is time to get your microphones and instruments connected and ready for performing. Before you get
started with your connections we recommend to take the following tips into consideration:
When connecting instruments, refrain from using defective cables as they can cause significant noise and loud pops, posing a threat to system
speakers.
When using effects devices for instruments, such as pedals/stomp boxes, use caution when connecting a chain of multiple effects devices as the
output voltage may change and possibly overload the GIG MAN's input channel.
When connecting a guitar, longer cables are recommended to prevent guitar feedback from occurring
The GIG MAN has one guitar (1/4"), one keyboard (1/4") and two microphone (1/4"/XLR). Remember that both the XLR and ¼" cannot be used
simultaneously.
To connect MICROPHONES via ¼" mic cables, connect the XLR-end of the cable into the MICROPHONE until it locks into place and connect the ¼"
plug into either of the MIC 1 or 2 jacks on the GIG MAN.
To connect MICROPHONES via XLR mic cables, connect the XLR-F end of the cable into the MICROPHONE until it locks into place and connect the
XLR-M end into either of the BALANCED MIC 1 or 2 jacks on the GIG MAN's rear panel.
To connect a GUITAR, connect a ¼" instrument cable from the GUITAR's ¼" output to the GIG MAN's ¼" GUITAR input.
To connect a KEYBOARD, connect a ¼" instrument cable from the KEYBOARD's ¼" output to the GIG MAN's ¼" KEYBOARD input.
Intsruments
G
IG
MAN
STAND
BY
+12dB
COMPACT
COMPACT
DIGITAL AUDIO
MULTI-FO
RMAT PLAYER/MIXINGAMPLIFIER
+12dB
0dB
INPU
T
DIGITAL AUDIO
PRO DIGITAL ECHO
MUSICEQ
60Hz 200Hz400Hz 1KHz 3KHz 6KHz16KHz
PO
WER
LO
W
H
I
ECH
O
REPEAT
D
ELAY
0dB
VCD
AV1
-12dB
AV2
-12dB
To Mic 1 Input
M
ICE
F
F
E
C
TS
60Hz 200Hz400Hz 1KHz 3KHz 6KHz16KHz
AV3
PLAY
MU
SICCVO
LU
ME
EJECT
PAUSE
MICVO
LU
ME
VO
CAL
CANCEL
EQO
N
STO
P
PBC
PREV
NEXT
B-SCAN F-SCAN MUTE
L/R
REPEAT
b
#
EQO
FF
VO
CAL
PARTNER
PLAYERKEYCO
NTRO
LLER
A
V3 IN
PU
T
H
EA
D
PH
O
N
ES VO
L.
VO
L.
KEYBO
A
RD
VO
L.
G
U
ITAR
MIC1
MIC2
VO
L1
VO
L2
To Mic 2 Input
*The Balanced XLR
Mic Inputs on the Rear
Panel Can Be Used
Instead of the 1/4" Mic
Inputs
AC Device Connections
The GIG MAN has an AC power outlet on the rear panel to provide power to a connecting device. Please note that a device with a power
consumption rating over 200W should not be connected as that exceeds the allowable power feed. Doing so may cause serious damage to
both devices and may void your warranty.
13
Speaker Connection
The GIG MAN has a set of speaker connectors for connection to external speakers. Remember that only speakers with an impedance rating of 8 ohms
should be connected.
To connect speakers, first unlock the plastic fasteners on each speaker connector by pushing downward on them. Then strip approximately a 1 /2 " of
insulation from the speaker wire ends and twist the strands so that they can easily slide through the holes. Once a wire is inserted, lock them in place
with the fasteners by pushing upward on them. It is easy to over-insert a wire into a speaker connector so that the insulation is inserted as well. To
ensure this doesn't happen, only insert the wires to the point where you can still see the edge of the insulation.
Speakers
SPEAKER 8
*Set to EXT for
External Speaker
Output
INT
EXT
Speacker Selector
R
L
Basic and Advanced Operations
Preparing a Disc for Playback
Turn the power on by pressing the POWER button on the front panel. Press the OPEN/CLOSE button to open the disc tray. Insert a disc into the round
recess in the tray with the label side up.
Playing a Disc
Press the PLAY/PAUSE button on the front panel or the remote control to begin disc playback. Press the PREV/NEXT buttons to skip to the beginning
of the previous or next track. Press the STOP button to cease playback of the disc.
Selecting a Playback Starting Point
To select a playback starting point, press the GOTO button on the Remote Control. Using the 0-9 number keys, enter the start point in minutes and
seconds format (for example 3320 to start playback at 33 minutes and 20 seconds from the start of the disc). Playback will start automatically when the
last digit is entered.
Customizing Audio Playback for MPX Media
Multiplexed discs are specially recorded so that the vocals can be removed for Karaoke. These discs are recorded with the vocals on the right channel
only. When the right channel is bypassed and the left channel is split to both sides, the vocals disappear, leaving the music only. The AUDIO button on
the GIG MAN's front panel and remote control allows you to select through 3 audio playback modes: LEFT CHANNEL ONLY, RIGHT CHANNEL
ONLY AND BOTH (STEREO). To select, press the AUDIO button repeatedly.
Muting Playback
Pressing the MUTE button on the remote control silences the audio during playback of a disc. Press the MUTE button again or either of the VOLUME
buttons to restore audio playback.
14
Basic and Advanced Operations cont...
Displaying the Remaining Time
While the disc is playing, pressing the OSD button on the remote control will display the disc's playback status. Press the OSD button to cycle between
TRACK TIME REMAINING and DISC TIME REMAINING.
Programming a Playback Sequence
Press the PROGRAM button to enter PROGRAM mode. Using the number buttons (0-10, +10), enter the track numbers to be played. Press the PLAY
button to begin playback of the programmed sequence. Note: P rogram mode cannot be entered while a dis c is playing.
Repeat Playback
To repeat a track/scene press REPEAT once.
To repeat a disc/title press REPEAT twice.
To cancel REPEAT mode, either press the PLAY button, or cycle through the REPEAT options till REPEAT is turned OFF
Repeating a Segment Using the A-B Feature
The starting point of the LOOP region is immediately commenced after pushing A-B. Press the A-B button again to establish the LOOP ending point.
To cancel the A-B loop Press the A-B button a third time.
Note: Y ou cannot s earch and s kip tracks while us ing the A-B feature.
Programmed Playback
You can select up to 99 tracks to program. The program is maintained until the STOP button is pressed twice or the unit is turned on or off.
Use the number buttons to select a track. Once selected, press PROGRAM to enter it into the program. Repeat this procedure till you are complete with
your program.
To start playback of a disc press PLAY.
You can cancel a program by pressing the STOP button twice, removing the disc or turning off the unit.
This function does not work unless you turn PBC on.
MP3 Functions and Operations
The GIG MAN can play back MP3's files recorded to CD-ROM, CD-R or CD-RW discs.
Notes on MP3 Discs
An MP3 file stores audio data that has been compressed using the MPEG1 encoding scheme. Although PC terminology uses "files" and "folders"
regarding MP3s and storage, in this manual we refer to them as "tracks and albums".
Notes on Playing MP3s
An MP3 track must be recorded on a disc in the format compliant with ISO9660. Track order may differ from MP3 player to MP3 player.
The maximum allowable number of tracks and/or albums located on a disc is 900, including the root albums (directory).
The maximum allowable depth of a nested folder is 127, including files.
If a disc contains both audio as well as MP3 tracks, it will not play in the GIG MAN.
Multi-session discs are limited to a total of 20 sessions.
MP3 playback is optimal with MP3s encoded with a sampling rate of 44.1 kHz and a fixed bit rate of 128 Kbps.
The unit may not play MP3 tracks recorded using a packet writing utility.
The unit can only play back MP3 tracks having a file extension of ".mp3".
It may take 30 seconds or more before the unit can start playback of MP3's. This time depends on the number of recorded tracks and the
complexity of the album tree.
If you play a non-MP3 track that has the ".mp3" file extension, the unit will skip to the next valid track automatically.
Digital recordings with this unit cannot be done while playing back MP3 discs.
15
MP3 Functions and Operations cont...
Notes on display indications during playback
Up to 8 characters are displayed for the name of an album or track.
Characters other than uppercase letters ("A" to "Z"), numerals ("0" to "9") and underscore ("_") may not be displayed, or may be displayed in
different characters.
The elapsed playing time may not be displayed correctly for MP3 tracks.
Depending on the condition of the recording equipment or the CD-R/RW disc itself, a false album or track which cannot by played on the unit may
be displayed on a TV screen.
Notes on creating MP3 discs
When converting audio data to MP3, create MP3 files with a sampling frequency of 44.1 kHz and a fixed bit rate of 128 Kbps.
When creating MP3 discs, do not store more than 900 albums and/or tracks in a disc.
To play tracks in the order they were recorded, ensure your encoding software is set up to auto arrange by name, or use only one album (if they are
already alphabetized) or place a three digit number in front of each track to set an order manually.
R ecommended = 001-S ong.mp3, 002-S ong.mp3, 003-S ong.mp3…
Not R ecommended = 1-S ong.mp3, 5-S ong.mp3, 10-S ong.mp3…
MP3 Glossary
File Extension - A 3-character string added to a file name under the Windows or DOS environment is called a "file extension". A file extension is used
mainly to identify types of files. The file extension for MP3 files is ".mp3".
ISO 9660 - ISO stands for the "International Organization for Standardization". ISO 9660 determines the file structure for CD-ROMs. This unit can play
MP3 files recorded in the format compliant with ISO 9660.
Nesting of folders (albums) - To organize all your data files stored in a PC, you can store related files in a folder. A folder can contain other folders as
well as files. For example, FOLDER A can contain FOLDER B (as well as files) and FOLDER B can contain FOLDER C (as well as other files).
Session - A session is one uninterrupted section of written data on a disc. A multi-session disc is a disc that has more than two sessions.
MP3 Playback
To load an MP3 disc:
The disc will automatically load and display the MP3 window. It may take up to 20 seconds for an MP3 disc to be read
depending on the complexity of the file structure.
To start playback of a disc:
Select the MP3 title that you want to begin playback with. If you have folders on the disc, you may need to navigate through them to find the desired
MP3 title.
Press PLAY.
You can cancel a program by pressing the STOP button twice or turning the unit on or off.
This function does not work unless you turn PBC on.
Refer to the "Basic and Advanced Operations" Section For More Playback Operations
16
Karaoke Functions and Operations
Notes on Karaoke Media
There are various types of Karaoke media available for playback with the GIG MAN. You can perform Karaoke with MP3, CDG and VCD formats. The
thing to remember is how each type differs as far as audio channels and video support.
CDG
CDG has been the most commonly used format of Karaoke media for the last 7 years. It is very similar to a standard CD, except it has video graphics
that are decoded by your Karaoke player and displayed onscreen. In addition, many CDG's are specially 'multiplex' formatted with background music
on the left channel and vocals on the right channel, so vocal cancellation can be done by simply adjusting the balance control.
VCD
While the VCD format is not as popular in North America as it is in other countries, it remains an excellent format to be used for Karaoke. Because
video is not limited to 16 colors (as with CDG), VCD's tend to have motion video behind the lyrics instead of a monotone screen, making them a bit
more attractive to party atmospheres. Most VCD's also have multiplexed coded audio for easy vocal cancellation.
Adjusting the Echo Level
Digital echo provides a very spacious feeling to the vocals. You can adjust the ECHO effect to sound several ways.
1.
2.
3.
First off, you can adjust the overall ECHO applied to the Mic channels via the ECHO VOLUME control. This limits the echo to all three channels
together.
After the ECHO level is set, you can start customizing the nature of the echo effect via the REPEAT and DELAY controls. The REPEAT control
adjusts the number of times the echo will repeat prior to fading out. The DELAY control adjusts the interval time between each echo. For example,
a minimal REPEAT and maximum DELAY configuration would result in one echo repetition that occurred seconds after the source sound. A
maximum REPEAT and minimum DELAY configuration would result in several echo repetitions occurring extremely close together, at times
sounding slightly overlapped.
Start some background music and finalize the settings to achieve the "perfect" echo effect.
Using Digital Control
Digital Key Controllers are designed to transpose the natural key of source music up or down, so that singers can perform songs that are normally out
of their vocal range. You can use the Digital Key Controller to obtain the desired musical key within 1.5 octaves up or down from the original key.
1. To step up, press the left button marked "b".
2. To step down, press the right button marked "#".
3. To revert back to the original key, press the RESET button.
Viewing a Photo-CD
To LOAD a PHOTO-CD:
1. Insert a PHOTO-CD to either automatically start a slideshow or display the Photo-CD selection window
To view PHOTO-CD images on-screen:
1. Select a viewing MODE on the bottom of the menu using the remote control.
2. Select a PHOTO from the menu (may be in a folder) to begin viewing.
3. Press PLAY
4. Press the PAUSE button to PAUSE on an image. You can use the 9 or :
maneuver through the Photo's in PAUSE mode
5. Press STOP to cancel viewing the Photo-CD
17
buttons to
Viewing VCD's
Tips on VCD Discs
There are two types of VCD's:
VCD 1/1.1 Format
This format of VCD has no menu, track search and other video features available, as this format does not support PBC. The same as with audio CD's,
these discs will auto-play with full motion-picture audio and video, but with no support for menus and custom track selection.
VCD 2.0 Format
2.0 formatted VCD's are equipped with PBC support. PBC (playback control) allows for user-interaction with system menus, search functions and other
video-based operations. Moreover, high-resolution still pictures (JPG/JPEG) can be displayed if they are embedded in a VCD track/scene.
Playing VCD's
To LOAD a VCD disc:
1. Refer to "Basic and Advanced Operation" section for instructions.
Track/Scene Searching
To SEARCH through a track/scene:
1. Press the 78 buttons on the remote control or front panel. Each time you press the 7 or 8 button, the search speed increases.
1. To fast forward a disc press 8
2. To fast reverse a disc press 7
3. To return to normal playback, press the PLAY button.
Scene/Track Selection
To SKIP to the next chapter or track:
1. Press : during playback. The disc position advances one chapter or track each time the button is pressed.
To RETURN to the previous chapter or track:
1. Press : twice in rapid succession to return to the beginning of the previous chapter or track.
NOTE: When using these features with a VCD1.1 disc with PBC on, you may be returned to the main menu.
To skip to the desired track directly using the number buttons:
1. During playback or in stop mode, enter the desired track number using the number buttons on the remote control. For example, to play track 3, press
3 and then ENTER.
NOTE: For numbers above 10, use the +10 key. For example, for track 22, press +10 twice and 2, then ENTER
Step Mode
To ENTER STEP MODE during playback:
1. Press the STEP button. Each press, the program advances one frame. There is no audio during STEP playback.
To RETURN to normal playback:
1.
Press PLAY
Slow Playback
To enter SLOW MODE during playback:
1. Press SLOW. Each time SLOW is pressed, the play speed changes.
NOTE: There is no audio during SLOW playback.
To return to normal playback:
1. Press PLAY.
18
Troubleshooting
Troubleshooting
No audio output.
The input selector is not set to the channel
that the active source player is connected
to.
Check the source player input channel and
ensure the input selector is set to that channel.
The speaker selector is not set correctly.
If external speakers are connected, set the
speaker selector to EXT. If no external
speakers are connected, select INT.
Faulty connection within external
components or external component failure.
Checks overall cabling and viability of external
equipment.
The power cord to the GIG MAN is not
plugged in.
Plug the power cord from the GIG MAN to a
wall outlet.
Your TV does not have RCA style A/V input
jacks.
Use an external RF Modulator.
Unable to connect the GIG MAN to my An open microphone or guitar is too close to
television monitor with the RCA cable the output speakers.
provided.
There is a loud "squealing" noise
coming from the speakers.
An MP3 or Photo-CD does not play in
the GIG MAN.
Increase space between microphone and
speakers.
Microphone or guitar volume is too high.
Turn down microphone or guitar volume.
Excessive treble is applied.
Lower the treble levels.
The MP3/Photo-CD either has files that are
not standard-formatted, or the disc was not
standard-copied.
Try other MP3/JPEG encoding software or disc
writing software for writing the discs.
19
C
Vocopro 2004
V 1.0
WWW.VOCOPRO.COM
Was this manual useful for you? yes no
Thank you for your participation!
