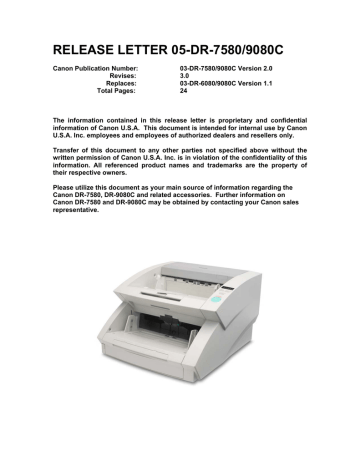

RELEASE LETTER 05-DR-7580/9080C
Canon Publication Number:
Revises:
Replaces:
Total Pages:
03-DR-7580/9080C Version 2.0
3.0
03-DR-6080/9080C Version 1.1
24
The information contained in this release letter is proprietary and confidential
information of Canon U.S.A. This document is intended for internal use by Canon
U.S.A. Inc. employees and employees of authorized dealers and resellers only.
Transfer of this document to any other parties not specified above without the
written permission of Canon U.S.A. Inc. is in violation of the confidentiality of this
information. All referenced product names and trademarks are the property of
their respective owners.
Please utilize this document as your main source of information regarding the
Canon DR-7580, DR-9080C and related accessories. Further information on
Canon DR-7580 and DR-9080C may be obtained by contacting your Canon sales
representative.
About Canon U.S.A., Inc.
Canon U.S.A., Inc. is an industry leader in professional and consumer imaging solutions and,
through its parent company, Canon Inc. (NYSE:CAJ), is a top patent-holder of imaging
technologies. The company's comprehensive product line includes networked multifunction
devices; digital and analog copiers (color and black and white); printers, scanners, image filing
systems, and facsimile machines; camcorders, cameras and lenses; and semiconductor,
broadcast and medical equipment. Canon employs 12,000 people at more than 30 facilities
throughout North, Central and South America and the Caribbean.
DR-7580/9080C Release Letter
2
Version 2.0 June 2005
Table Of Contents
About Canon U.S.A., Inc.
2
Retail Price List
4
DR-7580/9080C Product Overview
5
Inherited DR-Series Features
6
DR-7580/9080C Product Features
7
CapturePerfect 3.0
12
DR-7580/9080C Specifications
18
DR-7580/9080C Options and Consumables
19
Packaging
20
DR-7580/9080C Recommended System Requirements
21
DR-7580/9080C Scanning Speed Table
22
Service / Support Information
23
Brochure Ordering
24
Online Sales Support Materials
24
Online Training Resources
24
DR-7580/9080C Release Letter
3
Version 2.0 June 2005
DR-7580/9080C
Item No.
0640B002AA
8926A002AC
Description
Canon DR-7580
w/ ISIS Driver for Windows
Twain Driver for Windows
CapturePerfect v3.0 for Windows
Canon DR-9080C
w/ ISIS Driver for Windows
Twain Driver for Windows
CapturePerfect v3.0 for Windows
Retail Price
$7,560
$9,975
Accessories
Item No.
8927A001AA
0434B003AA
8927A002AA
8927A004AA
3650A005AA
3650A006AA
6331A001AA
6334A001AA
6333A001AA
6332A001AA
3649A008AA
3649A009AA
Description
Imprinter for DR-6080/ 7580/ 9080C
Barcode Module for DR-5010C/6080/ 7580/
9080C
Hard Counter for DR-6080/ 7580/ 9080C
Exchange Roller Kit for DR-6080/ 7580/ 9080C
Endorser ED600 w/ Die Drum 300
Die Drum 300 w/8 digit Dater
Ink Roller, Black
Ink Roller, Red
Ink Roller, Purple
Ink Roller, Green
SCSI II Cable G (50pin/50pin)
SCSI II/III Cable H (50pin/68pin)
DR-7580/9080C Release Letter
4
Retail Price
$495
$199
$99
$70
$1,300
$615
$74
$74
$74
$74
$158
$158
Version 2.0 June 2005
DR- 7580 / DR- 9080C Product Overview
The new DR-Series Production Scanners are positioned to reap the rising demand for heavy-duty
scanners in mainstream capture applications. The new DR-7580 and DR-9080C come to market
with a remarkable feature set at a new price point for production level scanning. Incorporating
Canon’s high-volume feeding system, patented features and advanced image sensor technology,
these products have earned numerous industry accolades, including the 2003 Editor’s Choice
Award for the DR-9080C in the “Better Buys for Business” Scan-To-File Guide.
Engineered to serve demanding, high-volume image capture applications, the DR-9080C
performs at up to 90 pages per minute (ppm) in B/W or grayscale modes and up to 50 ppm in
color, while the new DR-7580 scans up to 75 ppm in B/W or grayscale*. These scanners offer
high-end features, simple USB 2.0 connectivity, superior ergonomics and unique Canon design.
Features, such as flexible MultiStream™ technology, offer new opportunities for added value your
prospects can afford.
In addition to ISIS® and TWAIN drivers, the DR-7580/9080C scanners come bundled with
Canon’s new scanning utility software – CapturePerfect 3.0 – which incorporates many advanced
software functionality enhancements including the ability to save images in multiple file formats,
including searchable PDF and encrypted PDF, scan-to-email, built-in OCR for file indexing, and a
new user-friendly GUI. Printable patch code sheets in PDF format are also provided on the
installation disc.
This guide will identify how unique Canon technology sets both the DR-7580 and DR-9080C
apart from all competitive scanners and will set the new standard for a wide range of applications.
* Letter-sized documents @200dpi portrait feeding
DR-7580/9080C Release Letter
5
Version 2.0 June 2005
Inherited DR-Series Features
The following scan functions and features have become standard among most of the current DR
series of Canon Document Scanner products and available with the DR-7580/9080C as well.
•
Advanced Text Enhancement binary scanning mode
•
Skip Blank Page
•
Pre-Scan function
•
Automatic Paper Size Detection
•
Automatic Skew Correction
•
Batch Separation options (including Patch Code Detection)
•
Border Removal
•
Edge Enhancement
•
Preset Gamma Curve function
•
RGB Color Drop-out/Enhance
•
Scan Area Setting
•
MultiStream™
•
Image Rotation (0/90/180/270 degrees)
•
Scanning Side Selection/Reverse Side (Front/Back)
DR-7580/9080C Release Letter
6
Version 2.0 June 2005
DR- 7580 / DR- 9080C Product Features
Image Quality
At the heart of the DR-7580/9080C is Canon image sensor technology that features an optical
resolution of 600dpi and each sensor array has dual RGB LED light sources (to capture images
on the front and back side of documents) for the highest quality image capture. This arrangement
results in more even illumination even when scanning wrinkled or folded documents. They also
provide for full RGB color duplex dropout with the DR-7580 as well as the DR-9080C. Color
dropout is commonly used with forms to “drop-out” the form background for data processing. The
reverse, RGB enhance is also provided to facilitate enhancing certain colors contained in a stamp
or other critical color image data.
Sensor
Document
Built-in Shading Adjustment Boards automatically activates to calibrate the sensors between
every scanned batch, optimizing image output consistency. A “Smoothing” mode is available to
reduce moiré and improve overall image quality as illustrated below.
DR-5020/5080C
Predecessor Model
DR-7580/9080C Release Letter
DR-7580/9080C
With Smoothing
7
Version 2.0 June 2005
High Speed, High Volume Design
By adopting CIS line sensor and on-board JPEG Compression; the color model DR-9080C scans
at up to 90ppm in BW/Grayscale mode and 50ppm in Color mode, while the grayscale model DR7580 scans at up to 75ppm in BW/Grayscale scanning (A4/LTR Portrait, 200dpi).
With a duty cycle of up to 10,000 pages per day, the DR-7580/9080C scanners were engineered
by the same Canon standards that have earned us a solid reputation for reliable day-in day-out
operation. With Canon’s unique feeding system, a wide range of mixed batches and other
challenging work is handled with minimal operator intervention for optimized throughput. The
high-capacity 500 sheet ADF can be operated in multiple modes (Manual or Automatic feeding
mode) according to operator preference. A user selectable long document mode supports Black
and White scanning of documents up to 39.4” in long.
Compact Ergonomic Design
Innovative hardware technology and space-saving design enable these new scanners to deliver
powerful capabilities to environments with little room for hardware. Its compact design means that
these units can fit comfortably in just about any workspace. Even the output stacking tray is
specially designed and patented to be compact and yet accept a wide range of documents.
Typical letter size office documents can be scanned faster if fed in landscape paper orientation
Fujitsu fi-4860C (H: 20.6in, 99lb)
Panasonic KV-SS905C (H: 16.34in, 114lb)
21.49in
20.67in
Kodak i260 (H: 13.94in, 30.62)
Without Flatbed
16.96in
11.29in
DR-7580/9080C
(H: 12.2in, 55lb)
460mm
20.47in
24.61in
24.69in
Control Panel for Easy Operation
Count Only / Verify Scan Modes
In the count only mode, documents are
fed through the scanner and the number
of the documents is counted and
displayed, they are not scanned. You can
use the count only mode to count the
number of documents and then use
“Verify Scan” mode (to verify the number
of documents scanned against the
number of documents counted). You can
also use the count only mode to count
and endorse with the optional ED-600
attached.
Bypass (Non-Separation) Mode
The Bypass Mode is useful for multi-part
forms or if the paper is thin or stuck
together, such as multiple copies of
shipping forms. In this mode the feeding
system’s separation mechanism is
disabled.
DR-7580/9080C Release Letter
8
Version 2.0 June 2005
Reliable Double-Feed Detection and Skew Detection
The DR-7580/9080C offer two reliable methods for detecting document double feeds, i.e., ‘by
Length’ and/or ‘by Ultrasonic.’ When the ‘Detect by Length’ option is selected, the scanner is set
to memorize the document length of the very first document, and recognize thereafter as a double
feed whenever the length of any of the following documents exceeds a length allowance from the
memorized standard. The ‘Detect by Ultrasonic’ option can also be combined or independently
selected for example if different sizes of documents are to be scanned. With this option, a pair of
Ultrasonic Sensor units exchanges Ultrasonic waves to detect the gap, i.e. layer of air, if any,
between double-fed papers, and signals a double feed occurrence for the scanner to stop
scanning. The detection system works when a document overlaps by more than 2 inches.
Ultrasonic emitter
The
DR-7580/9080C
is
equipped with Document
Skew
Sensors,
which
immediately
detect
large
documents being fed at an
angle,
preventing
the
documents from tearing or
jamming.
Whenever a
skewed document feeding is
detected,
scanning
is
temporarily stopped, followed
by an error message alerting
scanner operators.
Ultrasonic sensor
Patented Staple Detection
Canon’s patented on-board Staple Detection feature automatically stops the scanning process
whenever it detects an un-removed staple that could damage the device, or require jam clearing
or exception scanning, that would negatively affect throughput rates. Undetected, such errors
could compromise the document, or worse, cause the loss of critical information. This feature
works when documents are stapled in normal position and has a user adjustable sensitivity
range.
When a stapled document is about to
feed, the document lifts-up as
illustrated. The sensors built-in on both
sides of feeder detect this reaction as a
stapled document.
Staple Detection can not work in the
following cases:
• When documents are stapled
at positions other than the 4
corners
• When documents are A5 or smaller
• When documents are stapled at 2 or more positions
Unique MultiStream™ Capability
File output options are greatly expanded to fit a wider range of applications with MultiStream™
technology, enabling users to generate multiple images simultaneously, in a variety of
combinations, all from a single scan, i.e., color (DR-9080C only), black and white, grayscale,
binary, R/G/B color dropout and even different resolutions. Now applications with multiple
processing and archiving requirements can be scanned in one pass, with virtually no reduction in
throughput speed. For instance, a form with legal retention requirements can be scanned and
output in two “streams”; one with the full image for archive and one with color-dropout for data
processing.
DR-7580/9080C Release Letter
9
Version 2.0 June 2005
Flexible Connectivity
By incorporating both a high-speed USB 2.0 and SCSI-III interface, easy integration is ensured
and installation is simplified. To utilize USB 2.0 the Windows® operating system must have native
support for USB devices. USB is not supported by Windows® NT 4.0 or Windows® 95 operating
systems. A High-speed USB 2.0 compatible PC built-in interface, or a recommended USB 2.0
interface card (see DR-7580/9080C Instruction Manual for recommended interface cards) and
cable are required.
On-board JPEG Compression
The DR-7580/9080C has on-board, JPEG compression, accessible through the drivers, for fast
image processing. The compression ratio settings are user-adjustable with the bundled utility
application, CapturePerfect 3.0.
Automatic Text Recognition/Rotation
Another unique feature is automatic recognition of text orientation to correctly rotate the image.
This feature is useful when scanning mixed batches of portrait and landscape images, and while
there is a slight reduction in speed it can result in an overall higher throughput rate. Corrected
images are sent to the application.
Patch Code Detection
Patch code sheets are sheets of paper, or preprinted forms on which a special pattern is printed
so that files can be separated without interrupting the scanning operation.
The DR-7580/9080C scanner recognizes the pattern on these sheets, which allows for efficient
separation. A common application for patch codes are insurance claim forms, where each claim
is a new batch and all the following supporting documents are part of that batch until the next
claim form is detected.
Patch code sheets are provided in PDF format upon installation of the drivers in four types,
[PATCH II (A4)], [PATCH II (LTR)], [PATCH T (A4)], and [PATCH T(LTR)]. Both patch code
patterns as shown below.
DR-7580/9080C Release Letter
10
Version 2.0 June 2005
Image Imprinting
By using the “Image Add-On” function of the drivers (ISIS or TWAIN) a “soft” imprinter function is
provided as a standard feature of the drivers. In many applications this can function much as a
pre-scan imprint does.
User Replaceable Rollers
The feed rollers (pickup rollers, feed rollers, and retard rollers) are user-replaceable and have a
life of 250,000 scans. If the total number of scanned documents exceeds 250,000, a message for
roller replacement appears when you restart the computer. All three rollers come in the exchange
roller kit available as an accessory item.
NCR Paper Compatibility
The composition of the rollers are resistant to the residue produced when scanning NCR forms.
Energy Star Compliance
As an ENERGY STAR partner, Canon has determined that this product meets the ENERGY
STAR guidelines for energy efficiency.
DR-7580/9080C Release Letter
11
Version 2.0 June 2005
CapturePerfect 3.0
Included with the DR-7580/9080C, as an out-of-box office-scanning tool, the CapturePerfect 3.0
application was designed to maximize the capabilities of the scanner in scanning, viewing,
saving, distributing and printing office documents. CapturePerfect 3.0 is an ISIS-compliant
application and is compatible with all the features and functionalities offered by the DR7580/9080C scanners.
File Format Support
CapturePerfect offers a variety of file saving options for converting office documents into
electronic files. The scanned images can be saved in different output file formats (or ‘Types’),
including TIFF (*.tif), BMP (*.bmp), JPEG (*. jpg), or PDF (*.pdf) files.
Scanning Modes
TIFF
BMP
PDF
JPEG
Binary
Yes
Yes
Yes
No
256-Level Grayscale
Yes
Yes
Yes
Yes
24-bit Color (DR-9080C
only)
Yes
Yes
Yes
Yes
Multi-page vs. Single-page File Format
Multiple images can be saved into a single
TIFF or PDF file (as ‘Multi-page’ file), or the
pages can be separated as necessary into
multiple single-image files (as ‘Single-page’
file). When the ‘Multi-page’ file scanning
option is selected with a user-specified
‘number of pages’ per document or form, a
sequential
identification
number
is
automatically generated for each file and
appended to the shared portion of the file
name that was initially given by the user to the
batch before scanning. When the ‘Singlepage’ files are created, the system-generated
numbers are always appended to the file
name, or additional information such as scan
settings can also be selectively included in the
file names at the ‘Schema Settings’ dialog
box.
DR-7580/9080C Release Letter
12
Version 2.0 June 2005
Scan Functions
CapturePerfect provides users with a number of convenient ways to scan documents for a variety
of business imaging needs.
Scan Function
Description
Scan Page
Documents are scanned only one page, i.e., one side
of a document at a time. The scanned images can
then be saved to a file, sent to a printer or discarded
as necessary. Duplex scanning is not available with
this option.
Scan Batch to File
In many cases, documents are scanned in batches,
and the scanned images are saved either into Multipage file(s) per batch or separately into multiple
Single-page files.
Scan Batch to Printer
As documents are scanned, the scanned data is sent
directly to a printer for printing from the document
images. The scanned images are not saved after
scanning using this option. (Documents can also be
printed in CapturePerfect from previously saved image
files.)
Scan Batch to Mail
Users can also choose to send scanned images as file
attachments to email messages. A MAPI (Microsoft
Messaging Application Programming Interface) –
compliant email client application program, for
example, Microsoft® Outlook®, many popular Internet
email applications, or Lotus Notes®, is required on the
computer. As with the ‘Scan Batch to Printer’ option,
the scanned images are not saved on the PC after
scanning.
Scan to Presentation
The projector connected to the PC displays scanned
images in this mode when page after page is loaded
on the Paper Feed Tray and scanned during business
presentations. Scanned images can optionally be
saved when the presentation is closed.
Scan Job
‘Scan Jobs’ can be pre-registered for routine scan
operations or other frequently repeated scan sessions
using the same scanning conditions. ‘Scan to Mail,’
‘Scan to Print,’ and ‘Scan to PC’ operations are
available as different types of the Scan Job, and a total
of up to 99 Jobs can be registered.
DR-7580/9080C Release Letter
13
Version 2.0 June 2005
Image File Editing Functions
CapturePerfect offers a variety of post-scan image editing capabilities.
For example:
•
Brightness/contrast on output images can be adjusted to enhance the image quality.
•
New pages, whether from scanning new documents or from an existing image file, can be
inserted anywhere in the middle or appended to the end of existing image files once
scanned and saved with CapturePerfect.
•
Pages can be replaced with new pages, extracted and saved into another file, or
permanently deleted as necessary.
•
Until any changes are saved, the editing operations
can be canceled (“Undo”) or reapplied (“Redo”).
•
Part of or the entire displayed image can be
selected, as illustrated below, with a rectangle
selection below, and then copied onto the clipboard.
•
Multiple files can be combined into a single file.
Insert/Add Image
Function
Image Copy Function
DR-7580/9080C Release Letter
14
Version 2.0 June 2005
Image Display Functions
CapturePerfect offers multiple display options to view scanned images.
Thumbnail View of Images
When the ‘Thumbnail’ display option is
selected, the thumbnail (reduced) views of
opened or scanned images are displayed in
the ‘“Thumbnail’” window on the left pane of
the screen, and the selected thumbnail is
displayed in the main ‘Image View’ window on
the right side of the screen. The images in the
‘Thumbnail’ window can be ‘dragged and
dropped’ at the users’ convenience to be
displayed in desired order. This display option
helps users to easily navigate through piles of
document images, for example, to locate a
specific page of interest.
Split View of Images
Users may choose to split the image display
window into two or four windows to view more
than a single image at a time. Scanning
operations can be performed while this ‘Split
View’ feature is enabled; other image display
functions, such as image magnification,
reduction or rotation, are independently
applied to each image displayed in each
window. The ‘Thumbnail Display’ option can
also be combined with this ‘Split View’ feature.
Full-Screen View of Images
Images can be viewed at full screen for
business presentations or on any other
image display/exhibit occasion. While in this
viewing
mode,
display
tools
(Brightness, Zoom, Rotate, Page Navigation,
Thumbnail, etc.) become available when the
users right-click anywhere on the currently
displayed full screen image.
DR-7580/9080C Release Letter
15
Version 2.0 June 2005
Unique MultiStream™ Capability
File output options are greatly expanded to fit a wider range of applications with flexible
MultiStream™ technology, enabling users to generate multiple images simultaneously, in a
variety of combinations, all from a single scan, i.e., color, black and white, grayscale, binary,
R/G/B color dropout and even different resolutions. Now applications with multiple processing and
archiving requirements can be scanned in one pass, with virtually no reduction in throughput
speed. For instance, a form with legal retention requirements can be scanned and output in two
“streams”; one with the full color image for archive and one black-and-white with color-dropout for
data processing.
MultiStream™ is a trademark of Pixel Translations (a division of Captiva Software Corp).
Note: When the MultiStream™ feature is used, the automatic batch separation functions of the
DR-7580/9080C cannot be used.
DR-7580/9080C Release Letter
16
Version 2.0 June 2005
Searchable PDF File Format Support
When documents are scanned into PDF file format in CapturePerfect, the printed character
strings within the documents, can be recognized and saved as text data attached to the PDF
output files. The output PDF files with the embedded OCR text then become “searchable”
by a string of text as the search ‘keyword,’ similar to using the Windows ® built-in Search tool.
The text contained in these ‘Searchable PDF’ files can also be extracted and copied over into
other text application files such as Microsoft® Word® files.
PDF File Security
When scanning with CapturePerfect, security-sensitive documents can be scanned into PDF file
format and password-protected from unauthorized user access for opening, editing or
printing. The PDF files can be encrypted either at 40-bit (‘RC3’ standard) or 128-bit (‘RC4’
standard) encryption levels, depending on the security requirements and nature of image files.
This security functionality is increasingly important to businesses with industry specific
government compliance initiatives.
DR-7580/9080C Release Letter
17
Version 2.0 June 2005
DR- 7580 / 9080C Specifications
Color Production Document Scanner (DR-9080C) /
Production Document Scanner (DR-7580)
8926A002AC (DR-9080C) / 0640B002AA (DR-7580)
Item #:
Automatic or Manual (Bypass mode)
Document-feeding:
Width: 2.2”– 12" Length: 2.8" – 17"(Up to 39.4" in Long Document user mode)
Document Size
Automatic-feeding: 0.002” to 0.006” (0.06mm – 0.15mm) / 13 to 32 lb bond (48
Thickness / Weight
to 120 g/m2)
Manual-feeding: 0.002” to 0.01” (0.05 to 0.3 mm) / 11 to 64 lb bond (40 to 240
g/m2)
500 Sheets (LTR)
Stacker Capacity:
8-bit
Grayscale:
24-bit (DR-9080C only)
Color:
Contact Image Sensor (CMOS)
Scanning Element:
Three color (RGB) single-line LED
Light Source:
Simplex, Duplex, Color (DR-9080C Only), Black and White, Grayscale,
Operating Modes:
Advanced Text Enhancement, Smoothing, MultiStream, User-selectable side
(front/back/both)
Binary modes (BW / Error Diffusion / Advanced Text Enhancement), 256-level
Output Modes:
Grayscale mode and color modes (DR-9080C only; 24-bit Color / 24-bit
Smoothing Color)
RGB. User-selectable (front/back/both)
Drop-out Color:
600 dpi
Optical Resolution:
100/150/200/240/300/400/600 dpi
Output Resolution:
(LTR Portrait @200 dpi)
Scanning Speeds*
Simplex Duplex
Simplex Duplex
90 ppm 180 ipm (DR-9080C) / 75 ppm 150 ipm (DR-7580)
Black and White:
90 ppm 180 ipm (DR-9080C) / 75 ppm 150 ipm (DR-7580)
256-level Grayscale:
24-bit Color (DR-9080C 55 ppm 95 ipm (with jpeg compression)
Only):
Bundled with Canon CapturePerfect 3.0 Software for choice of output file
File Format:
formats including TIFF (*.tif), BMP (*.bmp), JPEG (*. jpg), or PDF (*.pdf)
1 USB 2.0 and 2 SCSI-III
Interface:
For Windows® 98SE/Me/NT 4.0/2000/XP: ISIS, TWAIN
Scanner Drivers:
12.2" (H) x 18.1" (W) x 20.7" (D)
Dimensions (H x W x
D):
Approximately 55.1 lb.
Weight: Approx.
Max. 28W
Power Consumption:
Imprinter (8927A001AA)
Options:
Endorser ED600 w/ Die Drum 300 (3650A005AA)
Hard Counter (8927A002AA)
Barcode Module (0434B003AA)
Exchange Roller Kit (8927A004AA)
Type:
DR-7580/9080C Release Letter
18
Version 2.0 June 2005
DR- 7580 / 9080C Options and Consumables
Imprinter
The optional, post-scan ink-jet Imprinter, prints a variety of text messages on the front scan side
of the scanned document. Ink cartridges are not included. Please purchase HP brand ink
cartridge as follows:
Product codes: c6602a (Black) / c6602r (Red) / c6602g (Green) / c6602b (Blue)
Specifications:
1. Enable settings
2. Characters
Type
Symbols
Date
Counter
Count-up timing
Count-up
Reset timing
Reset
3. Fonts
4. Orientation
5. Character direction
Imprinter / Add-on / Imprinter and Add-on / Off
Text: Max. 32 characters
ASCII codes (20H-7FH)
↑/↓/←/→
MDY / DMY / YMD (e.g. 06/18/2003)
Max. 9 figures, 2 levels
New File / Every page / None
Max. 9 figures
New File / None
Max. 9 figures
12 x 12 dot (Normal) / 12 x 8 dot (Narrow)
4 orientations by 90 steps
left to right / right to left
Endorser
The optional ED-600 endorser is the same as that used with the DR-5020/5080C. It can stamp a
custom made rubber stamp (must be ordered separately) on the rear scan side of scanned
documents with the stand Die Drum 300. When equipped with the optional Die Drum 300 w/8
digit Dater a non-incremental 8-digit number (such as a date) can be stamped as well. The
stamp position is operator adjustable and conforms to the Federal Reserve cc: regulations for
check endorsement. When ED-600 is installed on a DR-7580 or DR-9080C, the maximum
scanning speed becomes 85ppm regardless of the scanning mode. Ink rollers are available in
four colors: black, red, purple and green.
Hard Counter
The optional non-resetable mechanical counter records the number of pages fed through the
scanner (a “soft counter” is built-in to the driver).
Barcode Module
This optional software module enables the ISIS and TWAIN driver to recognize barcodes. Please
see below for Recognized Codes
Codes
EAN/JAN
CODABAR
CODE39
ITF
CODE128
UPC-A
UPC-E
Figures
8 or 13
3~32
(Incl. START/STOP CHARACTER)
3~32
(Incl. START/STOP CHARACTER)
(Standard ASCII / Full ASCII)
2~32 (only even number)
1~32 (only enabled data)
13
8
DR-7580/9080C Release Letter
19
Check Digit
Modulus 10 / Modulus 3
Modulus 16, 10 / Weight 2, 10 /
Weight 3, 11, 7DR
Modulus 43
Modulus 10 / Weight 3
Modulus 103
Modulus 10 / Weight 3
Modulus 10 / Weight 3
Version 2.0 June 2005
Packaging
Items Included in the Box
Main Body
Start-up Manual
Quick Reference Guide
Set-up Disc (CD-ROM)
Warranty Card (US and Canada only)
Power Cord
USB Cable
DR-7580/9080C Release Letter
20
Version 2.0 June 2005
DR-7580 / 9080C Recommended System Requirements
PC Requirements
The connected PC must be an IBM PC/AT or compatible machine meeting the minimum
specifications:
9
Intel Pentium™ 4 CPU 3.0 GHz
9
1 GB RAM or more PC processing power recommended in high speed/volume
production environments
9
SCSI card or High-speed USB 2.0 card built-in or one of the below recommended
interface cards
9
An ISIS or TWAIN compatible application software that works on one of the following
operating systems
Recommended SCSI Interface Card
Manufacturer:
Model:
Adaptec
AHA-2930U
AHA-2940AU
AVA-2930LP
ASC-19160
ASC-29160
APA-1480
Recommended USB Interface Card
Manufacturer:
Product Name:
Adaptec
USB2connect2000LP (AUA-2000)
USB2connect3100 (AUA-3100LP)
USB2connect5100 (AUA-5100)
USB2connect for Notebooks (AUA-1420)
Operating Systems for use with SCSI-III
interface:
Microsoft Windows 98SE
Microsoft Windows Me
Microsoft Windows NT4.0 SP6a
Microsoft Windows 2000 SP3/SP4
Microsoft Windows XP Pro SP2
Microsoft Windows XP Home SP2
DR-7580/9080C Release Letter
Operating Systems for use with
USB interface:
Microsoft Windows 98SE
Microsoft Windows Me
Microsoft Windows 2000 SP3/SP4
Microsoft Windows XP Pro SP2
Microsoft Windows XP Home SP2
21
Version 2.0 June 2005
DR-7580 / 9080C Scanning Speed Table
200
300
600
200
300
600
200
300
600
200
300
600
200
300
600
DR7580
Standard
Actual
75.0
76.4
75.0
75.2
25.0
26.5
75.0
77.7
75.0
76.9
25.0
26.7
75.0
76.2
75.0
75.9
25.0
26.5
N/A
N/A
N/A
N/A
N/A
N/A
DR6080
Standard
Actual
63.0
64.4
63.0
64.5
20.0
21.6
62.0
64.2
62.0
65.1
20.0
21.6
63.0
65.3
63.0
64.2
20.0
21.6
N/A
N/A
N/A
N/A
N/A
N/A
DR9080C
Standard
Actual
90.0
94.2
90.0
93.9
33.0
34.5
90.0
90.1
90.0
95.5
33.0
34.5
90.0
94.4
90.0
94.5
26.0
28.3
54.0
54.8
38.0
39.1
10.0
11.3
54.0
55.4
33.0
35.8
6.0
9.1
200
300
600
200
300
600
200
300
600
200
300
600
200
300
600
DR7580
Standard
Actual
150.0
151.4
150.0
150.9
38.0
39.1
150.0
156.5
150.0
154.0
36.0
37.6
150.0
152.5
100.0
103.4
22.0
23.6
N/A
N/A
N/A
N/A
N/A
N/A
DR6080
Standard
Actual
126.0
128.0
126.0
128.1
36.0
39.3
126.0
129.7
126.0
129.4
36.0
37.5
126.0
129.6
100.0
107.4
22.0
24.4
N/A
N/A
N/A
N/A
N/A
N/A
DR9080C
Standard
Actual
180.0
188.2
180.0
188.0
56.0
57.0
180.0
189.2
180.0
189.4
55.0
56.9
180.0
189.8
100.0
107.1
22.0
27.6
92.0
95.5
64.0
67.4
12.0
14.1
75.0
77.6
33.0
35.9
6.0
8.5
A4 Simplex
B&W
Grayscale
Grayscale
w/o JPEG
compression
Color
Color
w/o JPEG
compression
A4 Duplex
B&W
Grayscale
Grayscale
w/o JPEG
compression
Color
Color
w/o JPEG
compression
* Pentium4, 1.7GHz, 512MB RAM, USB2.0
** Feeding Speed with using "ScanTest" application
DR-7580/9080C Release Letter
22
Version 2.0 June 2005
Systems Support And Services Information
Technical Support
In the event assistance is required by an Authorized Sevicer for the support of the DR7580/9080C, Canon USA’s Technical Support Center will provide support and problem
escalation. The Technical Support Center will provide second level support for Authorized DR7580/9080C Servicers only. A valid Support ID and DR-7580/9080C serial number is required to
access the Technical Support Center. Hardware support is available Monday through Friday,
9:00am-8:00pm Eastern Time and software and connectivity support is available Monday through
Friday, 9:00am-6:00pm Eastern Time. Please see the DR-7580/DR-9080C Service Guide for
complete details. If you are not an authorized servicer for DR products, please contact your
Canon representative should you wish to become authorized.
End User Product Support
In the event assistance is required by an end user for the support of the DR-2580C, a reseller or
end user can contact the Canon USA Help Desk (CITS) at 1-800-423-2366. CITS works at the
Canon Call avoidance center with the objective to reduce the number of onsite service visits.
CITS will take the first call from resellers and end users and provide comprehensive support as
follows:
•
Answer product related questions
•
Provide pre- and post-sales support including purchase recommendations
•
Perform troubleshooting
•
Assist with set-up and testing the unit
•
Reload software and drivers
•
SCSI card recommendations
Canon World Wide Web Site
Another service available through Canon U.S.A. support is the Canon World Wide Web site. In
addition to providing information on all Canon products, an area is provided for download of the
latest versions of the drivers.
The Canon, USA World Wide Web site, is located @ http://www.usa.canon.com.
Internet Systems and Technical Support
Canon USA’s Systems and Technical Support Division provides high quality e-Support via the
internet and is only available for Canon USA Authorized Services. Canon e-Support is designed
to give Authorized Servicer Technicians access to technical support information via the
Worldwide Web. Please refer to the DR-7580/DR-9080C Service Guide for details.
Service Training and Authorization Policy
Please refer to the DR-7580/DR-9080C Service Guide.
Canon U.S.A Limited Warranty Conditions
Please refer to the DR-7580/DR-9080C Service Guide.
DR-7580/9080C Release Letter
23
Version 2.0 June 2005
Brochure Ordering
To obtain information concerning the availability, pricing and order forms for Canon DR Scanner
brochures, please see Canon’s marketing website.
Online Sales Support Materials
Canon U.S.A., makes a wide variety of Sales Support materials available to sales personnel
designed to aid in the positioning and sale of Canon solution offerings. These items are
frequently updated, with new items made available on a continual basis.
To receive the latest information concerning these support tools, please access the Canon’s
marketing website.
Online Sales Training
A comprehensive web-based sales training module on the DR-7580/DR-9080C is available on
Canon’s marketing website.
DR-7580/9080C Release Letter
24
Version 2.0 June 2005
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
