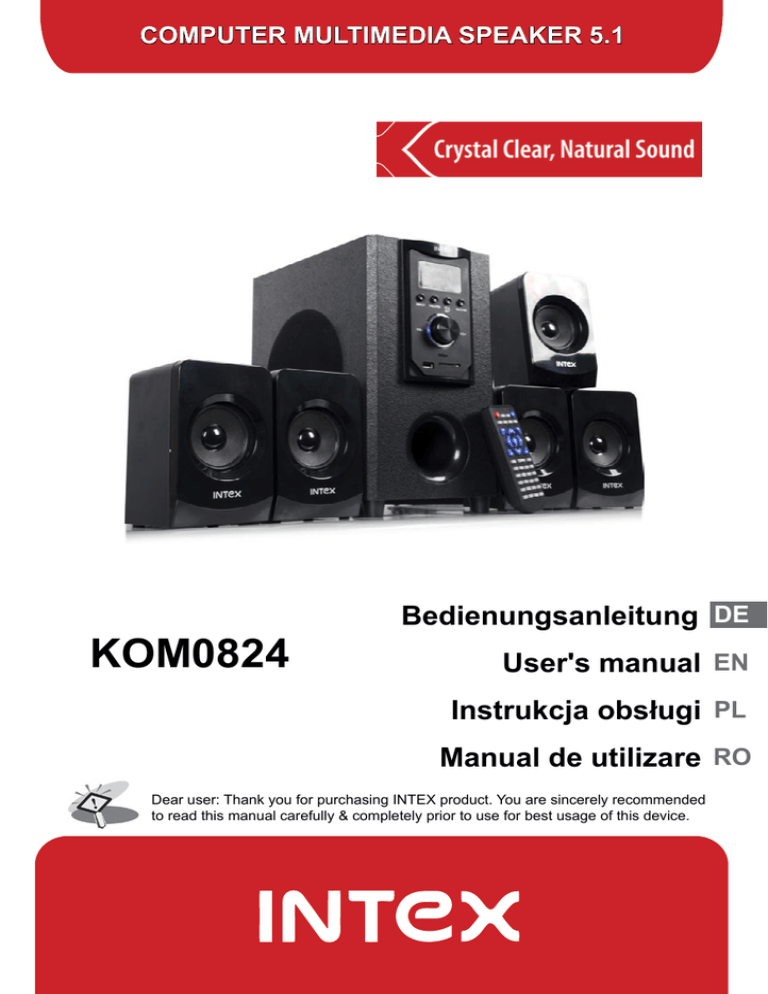

COMPUTER MULTIMEDIA SPEAKER 5.1
KOM0824
Bedienungsanleitung
User's manual
Instrukcja obsługi
DE
EN
PL
Manual de utilizare
RO
Dear user: Thank you for purchasing INTEX product. You are sincerely recommended to read this manual carefully & completely prior to use for best usage of this device.
Bedienungsanleitung
Lieber INTEX - Kunde,
Herzlichen Glückwunsch als stolzer Besitzer eines INTEX – Produkts. Sie haben Sich nun der Gemeinschaft von Millionen zufriedener INTEX – Kunden,
über den ganzen Globus verstreut, angeschlossen.
INTEX – Technologies ist eines der schnell wachsenden IT Hardware, Mobiltelefonen und Elektronik-Unternehmen. Eine gut bestehende Marke, INTEX hat Schritt gehalten mit den Technologie-Bedürfnissen von Millionen von IT
Hardware & Elektronik Verbrauchern und hat sie mit über 350 benutzerfreundliche, hochqualitative, auf dem neuesten Stand der Technik, jedoch einfache
Produkte/ Lösungen beliefert. Die Produkte befinden sich auf dem Markt seit
1996 und sind gemäß den globalen Standards.
Die Marke INTEX erfasst eine weite Auswahl von Computer-Zubehör und
Peripherie-Geräte, mit denen es in 1996 begonnen hat, wie Computer-Multimedialautsprecher, Gehäuse, Tastaturen, Mouse, Erweiterungskarten, Webkameras, Kopfhörer, HDMI-Player, Laptop-Taschen und Zubehör, Stromversorgung, , USV, 3G Modem, usw. Als Teil seiner Vervielfältigungs-Strategie, bietet
INTEX ebenso eine interessante Auswahl von Mobiltelefonen, Verbraucherelektronik, wie z.B. LCD & CRT TV, DVD-Player, usw., sowie TFT-LCD/LED
Monitore &PCs an. (*)
INTEX hat eine starke Tendenz zu Produkt-Entwurf und Entwicklung und arbeitet eng zusammen mit einigen der führenden Chip und IC Herstellern, durch sein Entwurf und Entwicklungszentrum. Jedes INTEX Produkt durchlauft einen rigorosen Prozess von Muster-Beurteilung und Genehmigung vor der kommerziellen Freigabe. Kunden sehen die Marke als ein besonderes Preis-Leistungsverhältnis & reich an Eigenschaften, unterstützt von einem effizienten
Kundendienst.
DE
Wir würden uns freuen über Ihre Anmerkungen und Vorschläge zur Verbesserung des Produkts(e) das Sie benutzen. Wir freuen uns auf Ihre Schirmherrschaft.
(*) Einige Produkte stehen möglicherweise nicht in allen Märkten zur Verfügung.
3
Bedienungsanleitung
MERKMALE
• 5.1 Kanal Computer Multimedia Lautsprecher mit USB
• MP3 Unterstützung von USB/SD/MMC
• AUX Audioeingang kompatibel mit DVD/PC/LCD TV
• Digital FM
• Vollfunktion Fernbedienung
• LED Display
• Drehregler für Lautstärkekontrolle
TECHNISCHE DATEN
Ausgangsleistung
Lautsprecherabmessungen Hauptgerät: 10,16 cm (4”)
Satellit: 7,62 cm (3”)x5
Impedanz
Frequenzgang
20W + 5W x 5
4 Ohm
Hauptgerät: 20 Hz -200 Hz
Satellit: 200 Hz - 20 KHz
S/N Ratio
Kanaltrennung
>=60 db
>=45 db
Spannungsversorgung
Kontrolltasten an der
Forderseite
Gewicht (Netto)
AC 220-240 V, 50/60 Hz
Lautstärke (Drehregler), Eingang, Vorherige/FM-,
Nächste/FM+, Wiedergabe/Pause/Auto
4 kg
DE
Die Spezifikationen können ohne Ankündigung geändert werden.
SICHERHEITSANLEITUNGEN
• Halten Sie das Gerät fern von Wärmequellen, direktem Sonnenlicht, Wasser und
Feuchtigkeit.
• Versuchen Sie nicht das Gerät selbst zu reparieren. Wenn das Gerät nicht richtig funktioniert, wenden Sie sich an einen autorisierten Kundendienst.
• Trennen Sie das Gerät von Netz wenn es nicht richtig funktioniert, oder für längere
Zeit nicht verwendet wird.
4
Bedienungsanleitung
MONTAGEANLEITUNG
Lesen Sie sorgfältig die Anleitungen betreffend der Geräteverbindungen und heben die Anleitung auf für späteres nachschlagen.
1. Anschlusskabel für linker Frontlautsprecher
2. Anschlusskabel für rechter Frontlautsprecher
3. Anschlusskabel für linker Rückseitigen Lautsprecher
4. Anschlusskabel für rechten Rückseitigen Lautsprecher
5. Anschlusskabel für Zentrallautsprecher
6. Netzkabel
7. Netztaste für Hauptgerät
5.1 ch input rechter
Frontlautsprecher linker
Frontlautsprecher
FM Antenna
2.1 ch input
DE
rechten Rückseitigen
Lautsprecher
Zentrallautsprecher linker Rückseitigen
Lautsprecher
5
Bedienungsanleitung
BEDIENUNGSANLEITUNG
1. EINGANG
Drücken um den Eingangsmodus zu wechseln. Voreingestellt ist 6 CH. Ununterbrochen drücken zur Auswahl des Eingangsmodus: 6 CH, 2 CH, USB, SD, FM.
DE
2. VORHERIGE/FM-
Im SD/USB Modus, drücken für vorherige Melodie. Im FM Modus, kurzes drücken für vorherigen Radiosender.
3. NÄCHSTE/FM+
Im SD/USB Modus, drücken für nächste Melodie. Im FM Modus, kurzes drücken für nächsten Radiosender
4. WIEDERGABE/PAUSE
Im SD/USB Modus, drücken für Wiedergabe/Pause. Im FM Modus, kurzes drücken für stumm-schalten, drücken und halten um die automatische
Sendersuche zu starten.
5. LAUTSTÄRKE -/+
Drehen Sie den Lautstärkeregler um die Lautstärke einzustellen
(Einstellungsbereich 0-30).
6
FERNBEDIENUNG
Bedienungsanleitung
ACHTUNG
1. Wählen Sie den Titel durch Eingabe von Zahlen im USB / SD-Modus.
2. Stellen Sie sicher Fernbedienungs-Infrarot-Sender ist am Infrarotempfängerfenster auf der Lautsprecher-Frontseite ausgerichtet und drücken Sie die Taste (gültiger
Empfangsbereich beträgt 5-7 m und ein Winkel von 30 Grad links und rechts).
3. Vermeiden Sie das Fallenlassen der Fernbedienung.
4. Legen Sie die Fernbedienung nicht in Hochtemperatur oder feuchter Umgebung.
5. Öffnen Sie nicht Fernbedienung.
DE
7
DE
Bedienungsanleitung
Gerät EIN-/AUSSCHALTEN
Stummschalten (in jedem Modus)
AUX Modus
DVD Modus
USB/SD/MMC Modus
FM Modus
2.1-5.1 Schalter
Im USB/SD Modus, drücken um die Melodie anzuhalten.
Im AUX/DVD/FM Modus keine Funktion.
Im USB/SD Modus, drücken für vorherige Melodie.
Im AUX/DVD/FM Modus keine Funktion.
Im USB/SD Modus, drücken für nächste Melodie.
Im AUX/DVD/FM Modus keine Funktion.
Im USB/SD Modus, drücken für Wiedergabe/Pause. Im AUX/DVD/FM
Modus keine Funktion. Im FM Modus, kurzes drücken für stumm-schalten, drücken und halten um die automatische Sendersuche zu starten
Klangeinstellung nur im USB/SD Modus: 5 EQ Modus (Normal,
Pop, Rock, Jazz, Klassisch).
Im FM Modus, kurzes drücken für vorherigen Radiosender.
Im AUX/DVD/USB/SD Modus keine Funktion.
Im FM Modus, kurzes drücken für nächsten Radiosender.
Im AUX/DVD/USB/SD Modus keine Funktion.
8
Bedienungsanleitung
FM Frequenz verringern
Im AUX/DVD/USB/SD Modus keine Funktion.
FM Frequenz erhöhen
Im AUX/DVD/USB/SD Modus keine Funktion.
FM manuelle Speicherung
Im AUX/DVD/USB/SD Modus keine Funktion.
Lautstärke verringern in jedem Modus
Lautstärke erhöhen in jedem Modus
Frontlautsprecher Lautstärke erhöhen in jedem Modus
Frontlautsprecher Lautstärke verringern in jedem Modus
Zentrallautsprecher Lautstärke erhöhen in jedem Modus
Zentrallautsprecher Lautstärke verringern in jedem Modus
Rückseitige Lautsprecher Lautstärke erhöhen in jedem Modus
Rückseitige Lautsprecher Lautstärke verringern in jedem Modus
Subwoofer Lautstärke erhöhen in jedem Modus
Subwoofer Lautstärke verringern in jedem Modus
REPEAT
USB/SD/MMC Wiedergabe wiederholen
RESET
Taste Lautstärke zurücksetzen
DE
9
Bedienungsanleitung
In USB/SD Modus, direkte Melodiewahl. Z.B. – wenn Sie
Melodie Nr. 9 möchten, (auf USB/SD Speicher), einfach 9 auf der Tastatur drücken und für Melodie Nr. 19, drücken Sie
10+ und 9.
DE
10
Deutsch
Korrekte Entsorgung dieses Produkts
(Elektromüll)
(Anzuwenden in den Ländern der Europäischen Union und anderen europäischen Ländern mit einem separaten Sammelsystem)
Die Kennzeichnung auf dem Produkt bzw. auf der dazugehörigen Literatur gibt an, dass es nach seiner
Lebensdauer nicht zusammen mit dam normalen Haushaltsmüll entsorgt werden darf. Entsorgen Sie dieses Gerät bitte getrennt von anderen Abfällen, um der Umwelt bzw. der menschilchen Gesundheit nicht durch unkontrollierte Müllbeseitigung zu schaden. Recyceln Sie das Gerät, um die nachhaltige
Wiederverwertung von stofflichen Ressourcen zu fördern.
Private Nutzer sollten den Händler, bei dem das Produkt gekauft wurde, oder die zuständigen Behörden kontaktieren, um in Erfahrung zu bringen, wie sie das Gerät auf umweltfreundliche Weise recyceln können.
Gewerbliche Nutzer sollten sich an Ihren Lieferanten wenden und die Bedingungen des Verkaufsvertrags konsultieren. Dieses Produkt darf nicht zusammen mit anderem Gewerbemüll entsorgt werden.
Vertrieben durch LECHPOL Electronics BV, Nijverheidsweg 15 4311RT Bruinisse, Niederlande.
Owner’s manual
Dear INTEX customer,
Congratulations on becoming a proud owner of INTEX product. You have now joined the fraternity of millions of satisfied INTEX customers spread across the globe.
Intex Technologies is one of fastest growing IT Hardware, Moble Phones and
Electronics companies. A well established brand, INTEX has kept pace with the technology needs of millions of IT hardware & electronics consumers and has been serving them with more than 350 users friendly, high quality, stateof-the art. yet simple products/solutions. The products have been in the market since 1996 and conform to global standards.
Brand INTEX covers a wide range of computer peripherals and accessories such as Computer Multimedia speakers, Cabinets, Keyboards, Mouse, UPS,
Add-on cards, Webcams, Headphones, Laptop bags, etc. As a port of it is divarication strategy, Intex also offers an interesting range of Pcs, TFT-LCD
Monitors, Consumer Electronics (DVD Players) & Mobile Phones.
Every INTEX product goes through rigorous process of sample evaluation and approval before commercial launch. Customers look upon the brand as a value-for-money & feature-rich offering, supported by efficient after sales service.
We look forward to your patronage.
It would be our pleasure to receive feedback and suggestions you may have for improvements in the product(s) you are using.
EN
11
Owner’s manual
FEATURES
• 5.1 Channel computer multimedia speaker
• MP3 support from USB/SD/MMC
• AUX audio input compatible with DVD/PC/LCD TV
• Digital FM
• Fully functional remote control
• LED Display
• Rotary type volume control
SPECIFICATIONS:
Output power
Speaker unit
20 W + 5 W x 5
Main unit: 10.16 cm (4”), Satellite: 7.62 cm (3”) x 5
Impedance 4 Ohm
Frequency response Main unit: 20 Hz -200 Hz
Satellite: 200 Hz - 20 KHz
S/N Ratio >=60 dB
Separation
Power supply
Front controls
Net weight
>=45 dB
AC 220-240 V, 50/60 Hz
Volume (rotary), Input, Prev/FM-, Play/Pause/Auto, Next/FM+
4 kg
Specifications are subject to change without notice.
EN
SAFETY INSTRUCTIONS:
• Keep this device away from sources of heat, direct sunlight, water and humidity.
• Do not attempt to repair this device yourself. If not operating correctly, handle it to an authorized service point.
• Unplug this product from mains supply if it’s not operating properly, or when not in use for a longer period of time.
12
Owner’s manual
INSTALLATION GUIDE
Read the instructions concerning connecting this device carefully and keep them for future use.
1. Left front speaker connecting cable
2. Right front speaker connecting cable
3. Left rear speaker connecting cable
4. Right rear speaker connecting cable
5. Centre speaker connecting cable
6. Power supply cable
7. Main unit power switch rear rear
EN
13
OPERATION GUIDE
Owner’s manual
EN
1. INPUT:
Press to change input mode. Default mode is 6 CH. Press continuously to select from modes: 6 CH, 2 CH, USB, SD, FM.
2. PREV/FM-:
In SD/USB mode, press to go to previous song. In FM mode, press shortly to go to previous radio station.
3. NEXT/FM+:
In SD/USB mode, press to go to next song. In FM mode, press shortly to go to next radio station.
4. PLAY/PAUSE:
In SD/USB mode, press to play/pause. In FM mode, press shortly to Mute; press and hold to start automatic radio stations search.
5. VOLUME -/+:
Rotate the Volume control knob to adjust volume (adjustment range 0-30).
14
REMOTE CONTROL
Owner’s manual
CAUTION
1. Select the song by inputting numbers in USB/SD mode.
2. Make sure remote control infrared transmitter aims to infrared receiver window on speaker front side and then press the button (valid receiving range is 5-7 meters and 30 degrees from both left and right angle).
3. Avoid drop down of remote control.
4. Do not put remote control in high temperature or humid place.
5. Don’t open remote control.
EN
15
EN
Owner’s manual
Power ON/OFF
Mute (in all modes)
AUX mode
DVD mode
USB/SD/MMC mode
FM mode
2.1-5.1 switch
In USB/SD mode, press to Stop song.
In AUX/DVD/FM mode no function.
In USB/SD mode, press to skip to previous song.
In AUX/DVD/FM mode no function.
In USB/SD mode, press to skip to next song.
In AUX/DVD/FM mode no function.
In USB/SD mode, press to play/pause. In AUX/DVD/FM mode no function. In FM mode, press shortly to Mute; Press and hold for automatic radio stations search.
Sound performance only in USB/SD mode: 5 EQ modes (Normal,
Pop, Rock, Jazz, Classic).
In FM mode, press shortly to skip to previous radio station.
In AUX/DVD/USB/SD mode no function.
In FM mode, press shortly to skip to next radio station.
In AUX/DVD/USB/SD mode no function.
16
Owner’s manual
FM Frequency decrease
In AUX/DVD/USB/SD mode no function.
FM Frequency decrease
In AUX/DVD/USB/SD mode no function.
FM manual storage
In AUX/DVD/USB/SD mode no function.
Volume down in all modes
Volume up in all modes
Front speakers volume up in all modes
Front speakers volume down in all modes
Center speakers volume up in all modes
Center speakers volume down in all modes
Rear speakers volume up in all modes
Rear speakers volume down in all modes
Subwoofer volume up in all modes
Subwoofer volume down in all modes
REPEAT
USB/SD/MMC Play repeat
RESET
Volume reset key
EN
17
Owner’s manual
In USB/SD mode select song directly. For example - if you want song number 9 (on USB disc/SD card), just press 9 on numeric dialer, and if you want song no. 19, press 19.
EN
English
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with separate collection systems)
This marking shown on the product or Its literature, indicates that It should not be disposed with other household wastes at the end of its working life. To prevent possible harm lo the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract This product should not be mixed with other commercial wastes for disposal.
Made in China for LECHPOL Zbigniew Leszek, Miętne, 1 Garwolińska Street, 08-400 Garwolin.
18
Instrukcja obsługi
Drogi kliencie,
Gratulujemy, stałeś się dumnym właścicielem produktu INTEX. Dołączyłeś do milionów zadowolonych klientów INTEX na całym świecie.
Intex Technologies jest jednym z najszybciej rozwijających się producentów sprzętu komputerowego i elektronicznego. Dobrze znana marka INTEX nadąża z potrzebami technologicznymi milionów konsumentów. Produkty są wprowadzane na rynek od 1996 roku, zgodne z międzynarodowymi normami.
Marka INTEX obejmuje szeroką gamę urządzeń peryferyjnych i akcesoriów, takich jak multimedia, głośniki komputerowe, szafy, klawiatury, myszki, UPS-y, karty rozszerzeń, kamery internetowe, słuchawki, torby na laptopy, itp.
Każdy produkt INTEX przechodzi rygorystyczny proces oceny. Klienci patrzą na markę jako stosunek wartości do ceny. Artykuły wspierane są przez efektywną obsługę posprzedażową.
Byłoby nam bardzo miło poznać Państwa opinie i sugestie, które mogą służyć poprawie używanego przez Państwa produktu.
PL
19
Instrukcja obsługi
OPIS PRODUKTU
• Zestaw głośników 5.1
• Obsługa plików MP3 z nośników USB oraz kart SD/MMC
• Cyfrowe radio
• Wyświetlacz LCD
• Pilot zdalnego sterowania
SPECYFIKACJA
Moc wyjściowa
Wymiary głośników
Impedancja
Pasmo przenoszenia
S/N
Separacja
Zasilanie
Waga
20 W + 5 W x 5
Jednostka główna: 10.16 cm (4”)
Satelity: 7.62 cm (3”) x 5
4 Ohm
Jednostka główna: 20 Hz -200 Hz
Satelity: 200 Hz - 20 KHz
>=60 db
>=45 db
220-240 V AC, 50/60 Hz
4 kg
Specyfikacja produktu może ulec zmianie bez powiadomienia.
PL
KWESTIE BEZPIECZEŃSTWA:
• Urządzenie należy chronić przed wodą, wilgocią, bezpośrednim nasłonecznieniem oraz źródłami ciepła.
• Nie należy własnoręcznie naprawiać tego urządzenia. Jeśli nie działa ono poprawnie, należy oddać je do autoryzowanego punktu serwisowego w celu sprawdzenia/ naprawy.
• Urządzenie należy odłączyć od źródła zasilania jeśli nie działa poprawnie, lub jeśli nie będzie używane przed dłuższy czas.
20
Instrukcja obsługi
INSTALACJA
Przed użyciem należy uważnie przeczytać instrukcję obsługi, oraz zachować ją w celu późniejszego wykorzystania. Instalację produktu należy przeprowadzić zgodnie z instrukcją obsługi.
1. Kabel lewego, przedniego głośnika
2. Kabel prawego, przedniego głośnika
3. Kabel lewego, tylnego głośnika
4. Kabel prawego, tylnego głośnika
5. Kabel głośnika centralnego
6. Kabel zasilania
7. Przycisk zasilania
Wejście 5.1
Antena FM
Wejście 2 CH
Prawy przedni głośnik
Lewy przedni głośnik
Prawy tylny głośnik
Głośnik centralny
Lewy tylny głośnik
PL
21
PRZYCISKI FUNKCYJNE
Instrukcja obsługi
PL
1. INPUT:
Zmiana źródła odtwarzania. Domyślnym trybem odtwarzania jest wejście
6CH (6 kanałów). Aby wybrać odpowiedni tryb, należy kilkakrotnie nacisnąć przycisk INPUT (6 CH, 2 CH, USB, SD, FM).
2. PREV/FM-:
Naciśnięcie przycisku w trybie USB/SD uruchomi odtwarzanie poprzedniego utworu. W trybie FM, naciśnięcie przycisku uruchomi poprzednią stację radiową.
3. NEXT/FM+:
Naciśnięcie przycisku w trybie USB/SD uruchomi odtwarzanie następnego utworu. W trybie FM, naciśnięcie przycisku uruchomi następną stację radiową.
4. PLAY/PAUSE:
W trybie USB odpowiada za uruchamianie/zatrzymywanie odtwarzania.
W trybie FM, naciśnięcie przycisku powoduje wyciszenie dźwięku; naciśnięcie i przytrzymanie rozpocznie automatyczne strojenie radia.
5. VOLUME -/+:
Poziom głośności należy dostosować pokrętłem Volume (w skali 0-30).
22
Instrukcja obsługi
PILOT ZDALNEGO STEROWANIA
UWAGA
1. Wybór utworów w trybie USB/SD jest możliwy za pomocą znajdujących się na pilocie przycisków numerycznych.
2. Używając pilota zdalnego sterowania, należy go skierować w kierunku urządzenia (zasięg pilota wynosi 5-7 metrów, odchylenie w prawo/lewo 30 stopni).
3. Nie należy narażać pilota na silne wstrząsy/uderzenia.
4. Pilot należy przechowywać w suchym miejscu z dala od źródeł ciepła.
5. Nie należy samodzielnie demontować/naprawiać pilota.
PL
23
PL
Instrukcja obsługi
Włącz/wyłącz
Wyciszenie (we wszystkich trybach)
Tryb AUX
Tryb DVD
Tryb USB/SD/MMC
Tryb FM
Przełącznik 2.1 - 5.1
W trybie USB/SD, zatrzymanie odtwarzania.
W trybie USB/SD, przejście do poprzedniego utworu.
W trybie USB/SD, przejście do nastepnego utworu.
W trybie USB/SD, przycisk służy do rozpoczęcia/wstrzymania odtwarzania. W trybie FM, po naciśnięciu nastąpi wyciszenie dźwięku; po naciśnięciu i przytrzymaniu, rozpocznie się automatyczne strojenie radia.
W trybie USB/SD, wybór trybu EQ (Normal, Pop, Rock, Jazz,
Classic).
W trybie FM, naciśnięcie spowoduje przejście do poprzedniej stacji radiowej.
W trybie FM, naciśnięcie spowoduje przejście do następnej stacji radiowej.
24
Instrukcja obsługi
Zmniejszenie częstotliwości radiowej
Zwiększenie częstotliwości radiowej
Pamięć częstotliwości radiowych
Zwiększenie poziomu głośności (w każdym trybie)
Zmniejszenie poziomu głośności (w każdym trybie)
Zwiększenie poziomu głośności głośników przednich (w każdym trybie)
Zmniejszenie poziomu głośności głośników przednich (w każdym trybie)
Zwiększenie poziomu głośności głośnika centralnego (w każdym trybie)
Zmniejszenie poziomu głośności głośnika centralnego (w każdym trybie)
Zwiększenie poziomu głośności głośników tylnych (w każdym trybie)
Zmniejszenie poziomu głośności głośników tylnych (w każdym trybie)
Zwiększenie poziomu głośności subwoofera (w każdym trybie)
Zmniejszenie poziomu głośności subwoofera (w każdym trybie)
PL
REPEAT
Powtarzanie odtwarzania w trybie USB/SD/MMC
RESET
Reset ustawień głośności
25
Instrukcja obsługi
Naciśnięcie przycisku w trybie USB/SD spowoduje przejście do żądanego utworu.
PL
Poland
Prawidłowe usuwanie produktu
(zużyty sprzęt elektryczny i elektroniczny)
Oznaczenie umieszczone na produkcie lub w odnoszących się do niego tekstach wskazuje, że po upływie okresu użytkowania nie należy usuwać z innymi odpadami pochodzącymi z gospodarstw domowych.
Aby uniknąć szkodliwego wpływu na środowisko naturalne i zdrowie ludzi wskutek niekontrolowanego usuwania odpadów, prosimy o oddzielenie produktu od innego typu odpadów oraz odpowiedzialny recykling w celu promowania ponownego użycia zasobów materialnych jako stałej praktyki. W celu uzyskania informacji na temat miejsca i sposobu bezpiecznego dla środowiska recyklingu tego produktu użytkownicy w gospodarstwach domowych powinni skontaktować się z punktem sprzedaży detalicznej, w którym dokonali zakupu produkt, lub z organem władz lokalnych Użytkownicy w firmach powinni skontaktować się ze swoim dostawcą i sprawdzić warunki umowy zakupu. Produkt nie należy usuwać razem z innymi odpadami komercyjnymi.
Wyprodukowano w CHRL dla LECHPOL Zbigniew Leszek, Miętne ul. Garwolińska 1, 08-400 Garwolin.
26
Manual de utilizare
Draga client INTEX,
INTEX.
Felicitari pentru faptul ca ati devenit fericitul posesor al acestui produs
V-ati alaturat astfel milioanelor de clienti INTEX multumiti de pe cuprinsul globului.
Intex Technologies este una dintre companiile cu o ascendenta rapida in domeniul IT Hardware, telefoane mobile si aparatura electronica. Cu o marca cu traditie in domeniul produselor electronice, INTEX a tinut pasul cu nevoile tehnologice a milioane de consumatori si i-a servit cu mai mult de 350 de produse/solutii de inalta calitate, moderne si totusi simple. Produsele se gasesc pe piata inca din anul 1996 si sunt conform standardelor globale.
Marca INTEX acopera o gama larga de periferice pentru calculatoare si accesorii, cu care au inceput activitatea in 1996, cum ar fi difuzoare pentru calculator, UPS pentru calculator, incinte (carcase calculator), tastaturi, mouse, carduri add-on, camere web, casti, player HDMI, genti laptop & accesorii, surse de alimentare, baterii UPS, modem 3G, etc. Ca parte a strategiei de diversificare, Intex ofera de asemenea o gama interesanta de telefoane mobile, articole electronice de larg consum, cum ar fi LCD & TV CRT,
DVD playere, etc si monitoare TFT-LCD/LED & calculatoare. (*)
INTEX are o inclinatie puternica spre design-ul produsului si dezvoltare si lucreaza in stransa colaborare cu unii dintre cei mai importanti producatori de IC din lume, prin intermediul Centrului de Design si Dezvoltare.
Fiecare produs INTEX trece printr-un proces riguros de evaluare de proba si de aprobare inainte de lansarea comerciala. Clientii aleg produsele in functie de cel mai bun raport pret/calitate impreuna cu servicii eficiente post-vanzare.
Ar fi placerea noastra sa primim sugestiile dumneavoastra pentru imbunatatirile care s-ar putea aduce produsului (produselor) utilizate. Asteptam cu nerabdare sugestiile dumneavoastra.
(*) anumite produse nu sunt disponibile pe toate pietele.
RO
27
Manual de utilizare
CARACTERISTICI
• Sistem 2.1 pentru calculator cu USB
• Redare MP3 de pe USB/SD/MMC
• Intrare AUX audio compatibila cu DVD/PC/LCD TV
• Digital FM
• Telecomanda
• Ecran cu iluminare cu LED
• Buton pentru reglarea volumui
SPECIFICATII
Putere de iesire 20W + 5W x 5
Dimensiuni difuzoare Unitate centrala: 10,16 cm (4”)
Satelit: 7,62 cm (3”)x5
Impedanta 4 Ohm
Raspuns in frecventa Unitate centrala: 20 Hz -200 Hz
Satelit: 200 Hz - 20 KHz
Raport semnal/zgomot >=60 db
Separare >=45 db
Alimentare
Butoane de control frontale
Greutate (neta)
AC 220-240 V, 50/60 Hz volum (Buton rotativ), Intrare, anterior/FM-, urmator/FM+, redare/pauza/auto
4 kg
Nota: datoritaimbunatatirilor continue aduseprodusului, specificatiilesicaracteri sticile pot fi modificatefara o instiintareprealabila.
RO
INSTRUCTIUNI DE SIGURANTA:
• Păstrați aparatul departe de surse de căldură, apă, umiditate sau lumina directa.a razelor solare
• Nu incercati sa reparati aparatul, duceti-l la un service autorizat. În cazul în care aparatul are o funcționare defectuoasă, contactati imediat un centru de service autorizat.
• Deconectați aparatul de la sursa de alimentare, dacă acesta nu funcționează corect sau nu este utilizat pentru o perioadă lungă de timp.
28
Manual de utilizare
GHID DE INSTALARE
Va rugam sa cititi cu atentie ghidul de instalare inainte de a utiliza aparatul si pastrati-l pentru consultari ulterioare.
1. Cablu de conectare pentru boxa stânga față
2. Cablu de conectare pentru boxa dreapta față
3. Cablu de conectare pentru boxa stânga spate
4. Cablu de conectare pentru boxa dreapta spate
5. Cablu de conectare pentru difuzor central
6. Cablu de alimentare
7. Butonul de alimentare pe unitatea principală
Boxa dreapta
față
Boxa stânga față
5.1 ch input
FM Antenna
2.1 ch input
Boxa dreapta
față
Difuzor central
Boxa stânga
față
RO
29
FUNCTIILE TASTELOR
Manual de utilizare
1. INTRARE
Apasati pentru a selecta modul intrare. Implicit este de 6 CH. Apasati in mod continuu pentru a selecta modul de intrare: 6 CH, CH 2, USB, SD, FM.2.
2. ANTERIOR/FM-
Apasati pe modul SD/USB, pentru redarea piesei anterioare. Apasati scurt pe modul FM pentru redarea postului de radio anterior.
3. URMATORUL/FM+
Apasati pe modul SD/USB, pentru redarea piesei urmatoare. Apasati scurt pe modul FM pentru redarea postului de radio urmator.
RO
4. REDARE/PAUZA
Apasati pe modul SD/USB, pentru redare/pauza. Apasati scurt pe modul FM pentru functia silentios. Apăsați și țineți apăsat pentru a porni cautarea automata a posturilor radio.
5. VOLUM -/+
Rotiți butonul de control volum pentru a regla volumul (domeniul de reglare 0-30).
30
TELECOMANDA
Manual de utilizare
1. Selectati melodia introducand direct numarul de ordine al acesteia, cand va aflati pe modul USB/SD.
2. Asigurati-va ca transmitatorul IR al telecomenzii este orientat spre fereastra receptorului pe partea din fata a difuzorului si apasati apoi butonul (distanta de receptionare a semnaluilui este de 5-7 metri, la un unghi de 30º stangadreapta)
3. Evitati socurile mecanice, nu trantiti telecomanda
4. Nu expuneti telecomanda la temperaturi ridicate sau umezeala.
5. Va rugam sa nu decsfaceti telecomanda.
RO
31
RO
Manual de utilizare
Buton PORNIRE/OPRIRE
Mute (in toate modurile)
Mod AUX
MOD DVD
MOD USB/SD/MMC
MOD FM
Comutator 2.1-5.1
Apasati scurt pe modul USB/SD pentru a opri redarea piesei.
Pe modul AUX/DVD/FM nu exista functii.
Apasati scurt pe modul USB/SD pentru a asculta ultima piesa.
Pe modul AUX/DVD/FM nu exista functii.
Apasati scurt pe modul USB/SD pentru a asculta urmatoarea piesa.
Pe modul AUX/DVD/FM nu exista functii.
Apasati scurt pe modul USB/SD pentru redare/pauza. Pe modul AUX/DVD/
FM nu exista functii. Pe modul FM, apăsați scurt pentru functia silentios, apăsați și țineți apăsat pentru a porni cautarea automat a postului radio.
Setare sunet pe modul USB/SD: 5 moduri de egalizare a sunetului
(Jazz, Rock, Bass, Normal si Classic)
Apasati scurt pe modul FM, pentru a selecta postul de radio anterior.
Pe modul AUX/DVD/FM nu exista functii.
Apasati scurt pe modul FM, pentru a selecta postul de radio urmator.
Pe modul AUX/DVD/FM nu exista functii.
32
Manual de utilizare
Cautare FM in sens descrescator al frecventei
Pe modul AUX/DVD/FM nu exista functii.
Cautare FM in sens crescator al frecventei
Pe modul AUX/DVD/FM nu exista functii.
Memorare manuala FM
Pe modul AUX/DVD/FM nu exista functii.
Reducerea volumului pe toate modurile.
Marirea volumului pe toate modurile.
Creșterea volumului difuzorului frontal în toate modurile.
Reducerea volumului difuzorului frontal în toate modurile.
Creșterea volumului difuzorului central în toate modurile
Reducerea volumului difuzorului central în toate modurile.
Creșterea volumului difuzorului din spate în toate modurile.
Reducerea volumului difuzorului din spate în toate modurile.
Creșterea volumului subwoofer în toate modurile.
Reducerea volumului subwoofer in toate modurile.
REPEAT
Repetare redare USB / SD / MMC
RESET
Butonul de resetare volum
RO
33
Manual de utilizare
În modul USB/SD, selectati piesa direct.
De exemplu: daca doriti piesa numarul 9 (de pe USB/SD), apasati tasta nr. 9 si daca vreti piesa numarul 19, apasati 19.
Romania
Reciclarea corecta a acestui produs
(reziduuri provenind din aparatura electrica si electronica)
RO
Marcajale de pe acest produs sau mentionate in instructiunile sale de folosire indica faptul ca produsul nu trebuie aruncat impreuna cu alte reziduuri din gospod arie atunci cand nu mai este in stare de functionare.
Pentru a preveni posibile efecte daunatoare asupra mediului inconjurator sau a san ata tii oamenilor datorate evacuarii necontrolate a reziduurilor, vă rugăm să separați acest produs de alte tipuri de reziduuri si să-l reciclati in mod responsabil pentru a promova refolosirea resurselor materiale. Utilizatorii casnici sunt rugati să ia legatura fie cu distribuitorul de la care au achizitionat acest produs, fie cu autoritatile locale, pentru a primi informatii cu privire la locul si modul in care pot depozita acest produs in vederea reciclarii sale ecologice. Utilizatorii institutionali sunt rugati să ia legatura cu furnizorul și să verifice condițiile stipulate in contractul de vanzare. Acest produs nu trebuie amestecat cu alte reziduuri de natura comerciala.
Distribuit de Lechpol Electronics SRL, Republicii nr. 5, Resita, CS, ROMANIA.
34

Download
Advertisement
Key features
5.1 Channel computer multimedia speaker
MP3 support from USB/SD/MMC
AUX audio input
Digital FM
Fully functional remote control
LED Display
Rotary type volume control
Frequently asked questions
Connect the speaker system to your computer using the included 3.5mm audio cable. You can also connect the speaker system to your computer using the included USB cable.
You adjust the volume using the rotary volume control on the main unit, the remote control or the front controls.
Press the INPUT button to change the input mode. Default mode is 6 CH. Press continuously to select from modes: 6 CH, 2 CH, USB, SD, FM.
