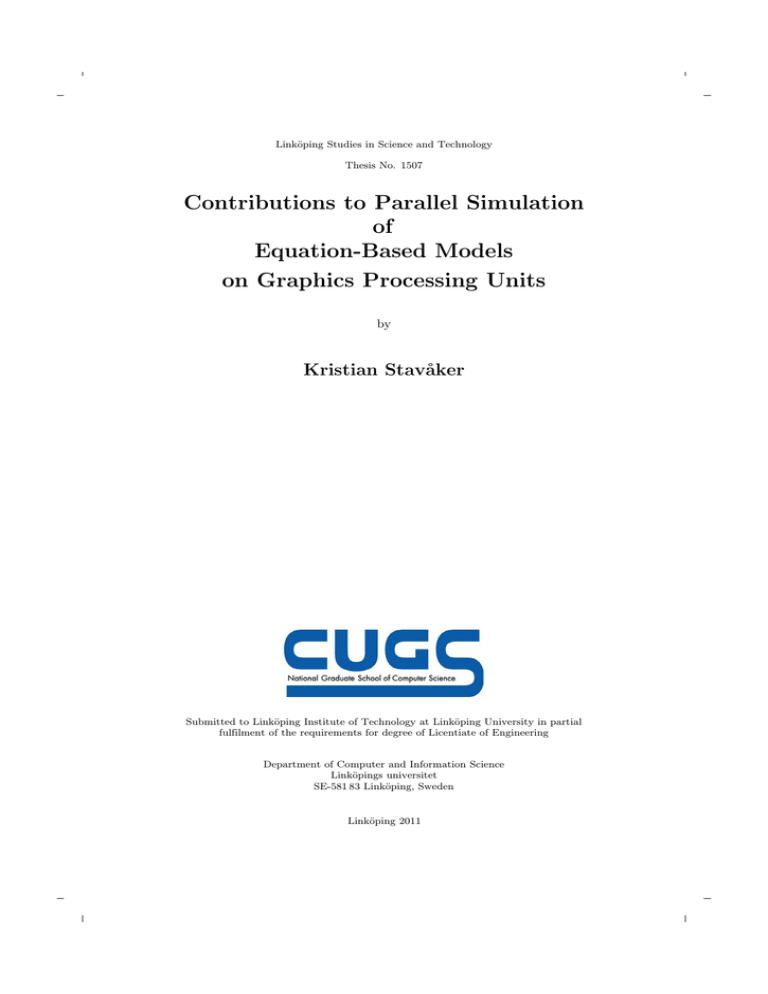

Linköping Studies in Science and Technology
Thesis No. 1507
Contributions to Parallel Simulation
of
Equation-Based Models
on Graphics Processing Units
by
Kristian Stavåker
Submitted to Linköping Institute of Technology at Linköping University in partial
fulfilment of the requirements for degree of Licentiate of Engineering
Department of Computer and Information Science
Linköpings universitet
SE-581 83 Linköping, Sweden
Linköping 2011
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page iv --- #4
c 2011 Kristian Stavåker
Copyright ISBN 978-91-7393-047-5
ISSN 0280--7971
Printed by LiU Tryck 2011
URL: http://urn.kb.se/resolve?urn=urn:nbn:se:liu:diva-71270
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page v --- #5
Contributions to Parallel Simulation of
Equation-Based Models on Graphics
Processing Units
by
Kristian Stavåker
December 2011
ISBN 978-91-7393-047-5
Linköping Studies in Science and Technology
Thesis No. 1507
ISSN 0280--7971
LiU--Tek--Lic--2011:46
ABSTRACT
In this thesis we investigate techniques and methods for parallel simulation of equationbased, object-oriented (EOO) Modelica models on graphics processing units (GPUs).
Modelica is being developed through an international effort via the Modelica Association.
With Modelica it is possible to build computationally heavy models; simulating such
models however might take a considerable amount of time. Therefor techniques of utilizing
parallel multi-core architectures for simulation are desirable. The goal in this work is
mainly automatic parallelization of equation-based models, that is, it is up to the compiler
and not the end-user modeler to make sure that code is generated that can efficiently utilize
parallel multi-core architectures. Not only the code generation process has to be altered
but the accompanying run-time system has to be modified as well. Adding explicit parallel
language constructs to Modelica is also discussed to some extent. GPUs can be used to do
general purpose scientific and engineering computing. The theoretical processing power of
GPUs has surpassed that of CPUs due to the highly parallel structure of GPUs. GPUs
are, however, only good at solving certain problems of data-parallel nature. In this thesis
we relate several contributions, by the author and co-workers, to each other. We conclude
that the massively parallel GPU architectures are currently only suitable for a limited set
of Modelica models. This might change with future GPU generations. CUDA for instance,
the main software platform used in the thesis for general purpose computing on graphics
processing units (GPGPU), is changing rapidly and more features are being added such
as recursion, function pointers, C++ templates, etc.; however the underlying hardware
architecture is still optimized for data-parallelism.
This work has been supported by the European ITEA2 OPENPROD project (Open
Model-Driven Whole-Product Development and Simulation Environment) and by the
National Graduate School of Computer Science (CUGS).
Department of Computer and Information Science
Linköpings universitet
SE-581 83 Linköping, Sweden
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page vi --- #6
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page i --- #7
Acknowledgements
First of all I would like to express my greatest gratitude to my main supervisor
Professor Peter Fritzson for accepting me as a PhD student and for giving me
guidance through the years. I would like to thank my colleagues at PELAB
for a nice working environment and for their support and help, especially
my secondary supervisor Professor Christoph Kessler, Professor Kristian
Sandahl, Usman Dastgeer, and Per Östlund, Dr Adrian Pop and Martin
Sjölund (for giving me advice on OpenModelica implementation issues). I
would also like to thank Jens Frenkel (TU Dresden). I am very thankful for
the kind help I have been given when it comes to administrative issues from
Bodil Mattsson Kihlström, Åsa Kärrman, and the other administrators at
IDA. Finally, I would like to thank my sister Kirsti Stavåker.
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page ii --- #8
Contents
1 Introduction
1.1 Motivation . . . .
1.2 Research Question
1.3 Research Process .
1.4 Contributions . . .
1.5 Delimitations . . .
1.6 List of Publications
1.7 Thesis Outline . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
1
1
3
3
4
4
5
6
2 Background
2.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . .
2.2 The Modelica Modeling Language . . . . . . . . . . . .
2.3 The OpenModelica Development Environment . . . .
2.4 Mathematical Concepts . . . . . . . . . . . . . . . . .
2.4.1 ODE and DAE Representation . . . . . . . . .
2.4.2 ODE and DAE Numerical Integration Methods
2.5 Causalization of Equations . . . . . . . . . . . . . . . .
2.5.1 Sorting Example . . . . . . . . . . . . . . . . .
2.5.2 Sorting Example with Modelica Model . . . . .
2.5.3 To Causal Form in Two Steps . . . . . . . . .
2.5.4 Algebraic Loops . . . . . . . . . . . . . . . . .
2.6 Compiler Structure . . . . . . . . . . . . . . . . . . . .
2.7 Compilation and Simulation of Modelica Models . . .
2.8 Graphics Processing Units (GPUs) . . . . . . . . . . .
2.8.1 The Fermi Architecture . . . . . . . . . . . . .
2.8.2 Compute Unified Device Architecture (CUDA)
2.8.3 Open Computing Language (OpenCL) . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
8
8
8
10
10
10
11
12
12
15
16
17
17
19
20
21
22
24
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
3 Previous Research
3.1 Introduction . . . . . . . . . . . . . . . . . . . . .
3.2 Overview . . . . . . . . . . . . . . . . . . . . . .
3.3 Early Work with Compilation of Mathematical
Parallel Executable Code . . . . . . . . . . . . .
3.4 Task Scheduling and Clustering Approach . . . .
ii
.
.
.
.
.
.
.
.
.
.
.
.
.
.
. . . . . . .
. . . . . . .
Models to
. . . . . . .
. . . . . . .
25
25
25
26
26
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page iii --- #9
CONTENTS
3.5
3.6
3.7
iii
3.4.1 Task Graphs . . . . . . . . . . . . . . .
3.4.2 Modpar . . . . . . . . . . . . . . . . . .
Inlined and Distributed Solver Approach . . . .
Distributed Simulation using Transmission Line
Related Work in other Research Groups . . . .
4 Simulation of Equation-Based Models
cessor Architecture
4.1 Introduction . . . . . . . . . . . . . . .
4.2 The Cell BE Processor Architecture .
4.3 Implementation . . . . . . . . . . . . .
4.4 Measurements . . . . . . . . . . . . . .
4.5 Discussion . . . . . . . . . . . . . . . .
. . . . . .
. . . . . .
. . . . . .
Modeling
. . . . . .
.
.
.
.
.
.
.
.
.
.
27
28
28
29
31
on the Cell BE Pro.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
5 Simulation of Equation-Based Models with Quantized State
Systems on Graphics Processing Units
5.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.2 Restricted Set of Modelica Models . . . . . . . . . . . . . . .
5.3 Quantized State Systems (QSS) . . . . . . . . . . . . . . . . .
5.4 Implementation . . . . . . . . . . . . . . . . . . . . . . . . . .
5.5 Measurements . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.6 Discussion . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
32
32
33
33
34
35
37
37
38
38
40
42
43
6 Simulation of Equation-Based Models with Task Graph Creation on Graphics Processing Units
46
6.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
6.2 Case Study . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
6.3 Implementation . . . . . . . . . . . . . . . . . . . . . . . . . . 47
6.4 Run-time Code and Generated Code . . . . . . . . . . . . . . 48
6.5 Measurements . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
6.6 Discussion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
7 Compilation of Modelica Array Computations into Single
Assignment C (SAC) for Execution on Graphics Processing
Units
7.1 Introudction . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.2 Single Assignment C (SAC) . . . . . . . . . . . . . . . . . . .
7.3 Implementation . . . . . . . . . . . . . . . . . . . . . . . . . .
7.4 Measurements . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.5 Discussion . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
54
54
55
56
57
59
8 Extending the Algorithmic Subset of Modelica with Explicit
Parallel Programming Constructs for Multi-core Simulation
8.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8.2 Implementation . . . . . . . . . . . . . . . . . . . . . . . . . .
8.2.1 Parallel Variables . . . . . . . . . . . . . . . . . . . . .
60
60
60
61
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page iv --- #10
iv
CONTENTS
8.3
8.4
8.2.2 Parallel Functions . . . . . . . . . . . . .
8.2.3 Kernel Functions . . . . . . . . . . . . . .
8.2.4 Parallel For-Loops . . . . . . . . . . . . .
8.2.5 OpenCL Functionalities . . . . . . . . . .
8.2.6 Synchronization and Thread Management
Measurements . . . . . . . . . . . . . . . . . . . .
Discussion . . . . . . . . . . . . . . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
9 Compilation of Unexpanded Modelica Array Equations for
Execution on Graphics Processing Units
9.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9.2 Problems with Expanding Array Equations . . . . . . . . . .
9.3 Splitting For-Equations with Multiple
Equations in their Bodies . . . . . . . . . . . . . . . . . . . .
9.3.1 Algorithm . . . . . . . . . . . . . . . . . . . . . . . . .
9.3.2 Examples . . . . . . . . . . . . . . . . . . . . . . . . .
9.4 Transforming For-Equations and Array
Equations into Slice Equations . . . . . . . . . . . . . . . . .
9.4.1 Algorithm . . . . . . . . . . . . . . . . . . . . . . . . .
9.4.2 Examples . . . . . . . . . . . . . . . . . . . . . . . . .
9.5 Matching and Sorting of Unexpanded Array Equations . . . .
9.5.1 Algorithm . . . . . . . . . . . . . . . . . . . . . . . . .
9.5.2 Examples . . . . . . . . . . . . . . . . . . . . . . . . .
9.6 Implementation . . . . . . . . . . . . . . . . . . . . . . . . . .
9.6.1 Instantiation - Symbolic Elaboration . . . . . . . . . .
9.6.2 Lowering . . . . . . . . . . . . . . . . . . . . . . . . .
9.6.3 Equation Sorting and Matching . . . . . . . . . . . . .
9.6.4 Finding Strongly Connected Components . . . . . . .
9.6.5 CUDA Code Generation . . . . . . . . . . . . . . . . .
9.7 Discussion . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
61
61
62
63
63
63
64
67
67
68
69
69
69
70
70
71
72
72
74
77
81
81
82
82
82
82
10 Discussion
10.1 What Kind of Problems are Graphics Processing Units Suitable for? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10.2 Are Graphics Processing Units Suitable for Simulating EquationBased Modelica Models? . . . . . . . . . . . . . . . . . . . . .
10.2.1 Discussion on The Various Approaches of Simulating
Modelica Models on GPUs . . . . . . . . . . . . . . .
10.3 Summary and Future Work . . . . . . . . . . . . . . . . . . .
84
A Quantized State Systems Generated CUDA Code
89
84
85
86
87
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 1 --- #11
Chapter 1
Introduction
In this chapter we start by giving a motivation to the research problem
we are investigating in this thesis work. We then continue by stating the
research question followed by the research process taken, the contributions
of this work together with the delimitations. Finally we provide a list of
publications on which this thesis is based and an outline of the rest of the
thesis.
1.1
Motivation
By using the equation-based object-oriented modeling language Modelica
[25], [15] it is possible to model large and complex physical systems from
various application domains. Large and complex models will typically result
in large differential equation systems. Numerical solution of large systems of
differential equations, which in this context equals simulation, can be quite
time consuming. Therefore it is relevant to investigate how parallel multi-core
architectures can be used to speedup simulation. This has also been a research
goal in our research group Programming Environment Laboratory (PELAB)
at Linköping University for several years, see for instance [4], [21], [3], [40].
This work involves both the actual code generation process and modifying the
simulation run-time system. Several different parallel architectures have been
targeted, such as Intel multi-cores, STI1 Cell BE, and Graphics Processing
Units (GPUs). In this thesis the main focus is on GPUs. GPUs can be
used to do general purpose scientific and engineering computing in addition
to their use for graphics processing. The theoretical processing power of
GPUs has surpassed that of CPUs due to the highly parallel structure of
GPUs. GPUs are, however, only good at solving certain problems which are
primarily data-parallel. Mainly four methods for harnessing the power of
GPUs for Modelica model simulations are discussed in this thesis:
1 An
alliance between Sony, Toshiba, and IBM
1
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 2 --- #12
2
Chapter 1. Introduction
• compiling Modelica array equations for execution with GPUs;
• creating a task graph from the model equation system and scheduling
the tasks in this task graph for execution;
• simulation of Modelica models using the QSS integration method on
GPUs;
• extending the algorithmic subset of Modelica with parallel constructs.
These four approaches will be described in the various chapters of this
thesis.
Handling Modelica array equations unexpanded through the compilation
process is discussed in this thesis to some extent. This is necessary in
order to compile data-parallel, array-based models efficiently. This is in
contrast to the usual way of compiling Modelica array equations used by
almost all Modelica tools, which is to expand the array equations into scalar
equations early in the compilation process and then these equations are
handled just like normal scalar equations. Keeping the array equations
unexpanded involves modifications of the whole compilation process, from
the initial flattening, the middle parts with equation sorting and the code
generation. Keeping the array equations unexpanded opens up possibilities
for generating efficient code that can be executed with GPUs. This work is
mainly being carried out by the author and is work in progress, see Chapter 9.
The second approach of creating a task graph of the equation system and
then scheduling the tasks in this task graph has been used earlier for other
architectures [4], [21]. We have now investigated this approach for GPUs
which is described in the master thesis of Per Östlund [41] and in Paper 4
[33]. That work is summarized in this thesis, some conclusions are drawn
and we relate this approach to the other approaches.
In Chapter 5 and Paper 2 [34] a joint work with Politecnico di Milano
is discussed regarding simulation of Modelica models using the QSS integration method on GPUs.
The fourth approach of extending the algorithmic subset of Modelica with
parallel programming constructs is also discussed and summarized in this
thesis. This has been investigated in the master thesis of Mahder Gebremedhin [16] and in Paper 6 [23] and supervised by the author. That work is
summarized in this thesis, some conclusions are drawn and we relate this
approach to the other approaches.
Moreover several other pieces of work are presented in this thesis. Simulating
Modelica models with the Cell BE architecture is discussed in Chapter 4
and in Paper 1 [6]. In Chapter 7 and Paper 3 [37] work with compiling
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 3 --- #13
1.2. Research Question
3
Modelica array operations into an intermediate language, Single Assignment
C (SAC) is described. That work is related to the work with compiling
unexpanded Modelica array constructs and is a joint work with University
of Hertfordshire. In Chapter 3 some previous work on simulating Modelica
models on parallel multi-core architectures is presented.
An important part of this thesis is the last chapter where we relate the
various approaches and draw some conclusions regarding whether or not
GPUs are suitable for simulating Modelica models. That last chapter is
related to Section 2.8 with GPUs, where we give a description of this architecture.
All the implementation work in this thesis have been done in the opensource OpenModelica development environment [30]. OpenModelica is an
open-source implementation of a Modelica compiler, simulator and development environment and its development is supported by the Open Source
Modelica Consortium (OSMC). See Section 2.3 for more information.
1.2
Research Question
The main research question of this work is given below.
’Is it possible to simulate Modelica models with GPU architectures; will
such simulations run with sufficient speed compared to simulation on other
architectures, for instance single- and multi-core CPUs, are GPUs beneficial for performance; and what challenges are there in terms of hardware
limitations, memory limitations, etc.’
1.3
Research Process
The following research steps have roughly been taken for carrying out this
work.
• Literature study of background theory.
• Literature study of earlier work.
• Theoretical derivations and design sketches on paper.
• Implementations in the open-source OpenModelica compiler and runtime system and then measurements of execution times for various
models.
• Presentation of papers at workshops and conferences for comments
and valuable feedback.
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 4 --- #14
4
Chapter 1. Introduction
The research methodology used in this work is the traditional system
oriented computer science research method, that is, in order to validate our
hypotheses prototype implementations are built. The prototypes are used
to simulate Modelica models both with serial and parallel architecture runs
and then compare the simulation times. In this way we can calculate the
speedup. As noted in [5], the ACM Task Force on the core of computer
science has suggested three different paradigms for conducting research
within the discipline of computing: theory, abstraction (modeling), and
design. The first discipline is rooted in mathematics, the second discipline is
rooted in experimental scientific methods, and the third discipline is rooted
in engineering and consist of stating requirements, defining the specification,
designing the system, implementing the system and finally testing the system.
All three paradigms are considered to be equally important and computer
science and engineering consist of a mixture of all three paradigms.
1.4
Contributions
The following are the main contributions of this work:
• A survey and summary of various techniques by the author and coworkers for simulating Modelica models with GPUs and an analysis of
the suitability of this architecture for simulating Modelica models.
• Enhancement to the open-source OpenModelica compiler with methods
and implementations for generating GPU-based simulation code as
well as extensions to accompanying run-time system.
• Some preliminary theoretical results and a partial implementation in
the OpenModelica compiler of unexpanded array equation handling in
the equation sorting phase of the compilation process.
1.5
Delimitations
The main delimitations concern the models we generate code for. We have
(mainly) only looked at a subset of possible Modelica models:
• Models that are purely continuous with respect to time.
• Models that can be reduced to ordinary differential equation systems
(ODE systems). This will be described in more details later.
• Models where the values of all constants and parameters are known at
compile time.
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 5 --- #15
1.6. List of Publications
1.6
5
List of Publications
This thesis is mainly based on the following publications.
• Paper 1 Håkan Lundvall, Kristian Stavåker, Peter Fritzson, Christoph
Kessler. Automatic Parallelization of Simulation Code for Equationbased Models with Software Pipelining and Measurements on Three
Platforms. MCC’08 Workshop, Ronneby, Sweden, November 27-28,
2008. [6]
• Paper 2 Martina Maggio, Kristian Stavåker, Filippo Donida, Francesco
Casella, Peter Fritzson. Parallel Simulation of Equation-based ObjectOriented Models with Quantized State Systems on a GPU. In Proceedings of the 7th International Modelica Conference (Modelica’2009),
Como, Italy, September 20-22, 2009. [34]
• Paper 3 Kristian Stavåker, Daniel Rolls, Jing Guo, Peter Fritzson,
Sven-Bodo Scholz. Compilation of Modelica Array Computations into
Single Assignment C for Efficient Execution on CUDA-enabled GPUs.
3rd International Workshop on Equation-Based Object-Oriented Modeling Languages and Tools, Oslo, Norway, October 3, 2010. [37]
• Paper 4 Per Östlund, Kristian Stavåker, Peter Fritzson. Parallel Simulation of Equation-Based Models on CUDA-Enabled GPUs. POOSC
Workshop, Reno, Nevada, October 18, 2010. [33]
• Paper 5 Kristian Stavåker, Peter Fritzson. Generation of Simulation
Code from Equation-Based Models for Execution on CUDA-Enabled
GPUs. MCC’10 Workshop, Gothenburg, Sweden, November 18-19,
2010. [22]
• Paper 6 Afshin Hemmati Moghadam, Mahder Gebremedhin, Kristian
Stavåker, Peter Fritzson. Simulation and Benchmarking of Modelica
Models on Multi-Core Architectures with Explicit Parallel Algorithmic Language Extensions. MCC’11 Workshop, Linköping, Sweden,
November 23-25, 2011. [23] [ACCEPTED, TO BE PRESENTED]
Other publications (pre-PhD) by the author not covered in this thesis.
• Paper X Adrian Pop, Kristian Stavåker, Peter Fritzson. Exception
Handling for Modelica. In Proceedings of the 6th International Modelica
Conference (Modelica’2008), Bielefeld, Germany, March.3-4, 2008. [13]
• Paper Y Kristian Stavåker, Adrian Pop, Peter Fritzson. Compiling
and Using Pattern Matching in Modelica. In Proceedings of the 6th International Modelica Conference (Modelica’2008), Bielefeld, Germany,
March.3-4, 2008. [32]
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 6 --- #16
6
Chapter 1. Introduction
1.7
Thesis Outline
Since this work contains contributions by several people it is important to
state which parts have been done by the author of this thesis and which
parts have been done by others.
• Chapter 2 This chapter contains a summary of existing background
knowledge not by the author. We introduce the Modelica modeling
language, the OpenModelica development environment, some mathematical concepts as well as the GPU architecture and the CUDA
computing architecture.
• Chapter 3 This chapter contains a summary of earlier work mainly
from the same research group (PELAB).
• Chapter 4 This chapter is mainly based on paper 1 which contains
(updated) material from Håkan Lundvall’s licentiate thesis [21] as well
as new material with targeting the Cell BE architecture for simulation
of equation-based models. The author did the actual mapping to the
Cell BE processor. The author also co-authored the actual paper.
• Chapter 5 This chapter is mainly based on paper 2. In this paper
ways of using the QSS simulation method with NVIDIA GPUs were
investigated. The author implemented the OpenModelica backend QSS
code generator. The author also co-authored the actual paper.
• Chapter 6 This chapter is a summary of paper 4. This chapter
describes work of creating a task graph of the model equation system
and then scheduling this task graph for execution. The implementation
work was done by Per Östlund and is described in his master thesis [41].
The author co-authored the actual paper, held the paper presentation
and supervised the master thesis work.
• Chapter 7 This chapter is mainly based on paper 3. The chapter
discusses compiling Modelica array constructs into an intermediate
language, Single Assignment C (SAC), from which highly efficient code
can be generated for instance for execution with CUDA-enabled GPUs.
The author has been highly involved with this work.
• Chapter 8 This chapter is mainly based on paper 6. This chapter
addresses compilation and benchmarking of the algorithmic subset of
Modelica, primarily to OpenCL executed on GPUs and Intel multicores. The implementation and measurements were done by two master
students (Mahder Gebremedhin and Afshin Hemmati Moghadam),
supervised by the author.
• Chapter 9 (Work In Progress) This chapter describes preliminary
results of ways to keep the Modelica array equations unexpanded
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 7 --- #17
1.7. Thesis Outline
7
through the compilation process. The author is highly involved with
the actual implementation that is being carried out in the OpenModelica
compiler, which at the moment is only a partial implementation.
• Chapter 10 Chapter has been completely written by the author of
this thesis.
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 8 --- #18
Chapter 2
Background
2.1
Introduction
In this chapter we begin by introducing the Modelica modeling language and
the open-source OpenModelica compiler. We then continue by introducing
some mathematical concepts and describing the general compilation process
of Modelica code. The final section contains a description of GPUs and the
CUDA and OpenCL software architectures, with focus on CUDA.
2.2
The Modelica Modeling Language
Modelica is a modeling language for equation-based, object-oriented mathematical modeling which is being developed through an international effort
[25], [15]. Since Modelica is an equation-based language it support modeling in acausal form using equations. This is in contrast to a conventional
programming language where the user would first have to manually transform the model equations into causal (assignment) statement form but with
Modelica it is possible to write equations directly in the model code and
the compiler in question will take care of the rest. When writing Modelica
models it is also possible to utilize high-level concepts such as object-oriented
modeling and component composition. An example of a Modelica model is
given below in Listing 2.1.
The model in Listing 2.1 describes a simple circuit consisting of various
components as well as source and ground. Several components are instantiated from various classes (Resistor class, Capacitor class, etc.) and these
are then connected together with the connect construct. The connect is an
equation construct since it expands into one or more equations. Subsequently
a Modelica compiler can be used to compile this model into code that can be
linked with a runtime system (where the main part consists of a solver, see
Section 2.4.2) for simulation. All the object-oriented structure is removed
8
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 9 --- #19
2.2. The Modelica Modeling Language
9
at the beginning of the compilation process and the connect equations are
expanded into scalar equations.
model C i r c u i t
R e s i s t o r R1(R=10 ) ;
C a p a c i t o r C(C=0 . 0 1 ) ;
R e s i s t o r R2(R=100 ) ;
I n d u c t o r L(L=0 . 1 ) ;
VsourceAC AC;
Ground G;
equation
connect (AC.p , R1.p ) ;
connect ( R1.n , C.p ) ;
connect ( C.n , AC.n ) ;
connect ( R1.p , R2.p ) ;
connect ( R2.n , L.p ) ;
connect ( L.n , C.n ) ;
connect (AC.n , G.p ) ;
end C i r c u i t ;
Listing 2.1: A Modelica model for a simple electrical circuit.
Modelica and Equation-Based Object-Oriented (EOO) languages in general support the following concepts:
• Equations
• Models/Classes
• Objects
• Inheritance
• Polymorphism
• Acausal Connections
Continuous-time differential or algebraic equations make it possible to
model continuous-time systems. There are also discrete equations available
for modeling hybrid systems, i.e., systems with both continuous and discrete
parts. Modelica has a uniform design meaning that everything, e.g., models,
packages, real numbers, etc. in Modelica are classes. A Modelica class can
be of different kinds denoted by different class keywords such as model, class,
record, connector, package, etc. From the Modelica class, objects can be
instantiated. Just like in C++ and Java classes can inherit behavior and data
from each other. To conclude, Modelica supports imperative, declarative
and object-oriented programming thus resulting in a complex compilation
process that places a high burden on the compiler constructor.
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 10 --- #20
10
Chapter 2. Background
2.3
The OpenModelica Development Environment
OpenModelica is an open source implementation of a Modelica compiler, simulator and development environment for research, education and industrial
purposes and it is developed and supported by an international effort, the
Open Source Modelica Consortium (OSMC) [30]. OpenModelica consists of
several parts namely a Modelica compiler and other tools that form an environment for creating and simulating Modelica models. The OpenModelica
Compiler is easily extensible; a different code generator can for instance be
plugged-in at a suitable place. The OpenModelica User Guide [31] states:
• The short-term goal is to develop an efficient interactive computational
environment for the Modelica language, as well as a rather complete
implementation of the language. It turns out that with support of
appropriate tools and libraries, Modelica is very well suited as a computational language for development and execution of both low level and
high level numerical algorithms, e.g. for control system design, solving
nonlinear equation systems, or to develop optimization algorithms that
are applied to complex applications.
• The longer-term goal is to have a complete reference implementation of
the Modelica language, including simulation of equation based models
and additional facilities in the programming environment, as well as
convenient facilities for research and experimentation in language
design or other research activities. However, our goal is not to reach
the level of performance and quality provided by current commercial
Modelica environments that can handle large models requiring advanced
analysis and optimization by the Modelica compiler.
2.4
Mathematical Concepts
Here we will give an overview of some of the mathematical theory that will
be used later on in the thesis. For more details see for instance [8].
2.4.1
ODE and DAE Representation
Central concepts in the field of equation-based languages are ordinary differential equation (ODE) systems and differential algebraic equation (DAE)
systems. A DAE representation can be described as follows.
0 = f (t, ẋ(t), x(t), y(t), u(t), p)
• t time
• ẋ(t) vector of differentiated state variables
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 11 --- #21
2.4. Mathematical Concepts
11
• x(t) vector of state variables
• y(t) vector of algebraic variables
• u(t) vector of input variables
• p vector of parameters and/or constants
The difference between an ODE and DAE system is that with an ODE
system the vector of state derivatives ẋ is explicitly stated. In the compilation
process, as a middle step we will typically arrive to a DAE system from the
transformed Modelica model after all the object-oriented structure has been
removed and expansions have been made, see section 2.7.
2.4.2
ODE and DAE Numerical Integration Methods
In this section we describe some of the numerical integration methods that
are available for numerically solving an ODE or a DAE systems.
Euler Integration Method
The simplest method for numerically solving an ODE system is the Euler method which is derived below, where x is the state vector, u is the
input vector, p is a vector of parameters and constants, and t represents time.
ẋ(tn ) ≈
x(tn+1 )−x(tn )
tn+1 −tn
≈ f (tn , x(tn ), u(tn ), p)
The derivative is approximated as the difference of the state values between two time points divided with the difference in time (this can easily
be derived by studying a graph). The above equation gives the following
iteration scheme.
x(tn+1 ) ≈ x(tn ) + (tn+1 − tn ) · f (tn , x(tn ), u(tn ), p)
Runge-Kutta Integration Method
The explicit Runge-Kutta numerical integration method is a multi-stage
scheme. The generic s-stage explicit Runge-Kutta method is given below,
where ∆t represents a time step.
k1 = f (t, x(tn ))
k2 = f (t + c2 ∗ ∆t, x(tn ) + ∆ta21 k1 )
k3 = f (t + c3 ∗ ∆t, x(tn ) + ∆t(a31 k1 + a32 k2 ))
...
ks = f (t + cs ∗ ∆t, x(tn ) + ∆t(as1 k1 + ... + as,s−1 ks ))
x(tn+1 ) = b1 k1 + ... + bs ks
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 12 --- #22
12
Chapter 2. Background
The values of the constants are given by the Runge-Kutta table below
(given a value of s).
0
c2
c3
...
cs
a21
a31
a32
as1
b1
as2
b2
...
...
as,s−1
bs−1
bs
We also have the following necessary condition.
cj =
Pi−1
j=1
aij
DASSL Solver
DASSL stands for Differential Algebraic System Solver and it implements the
backward differentiation formulas of orders one through five. The nonlinear
system (algebraic loop) at each time-step is solved by Newton’s method.
This is the main solver used in the OpenModelica compiler. Input to DASSL
are systems in DAE form F(t,y,y’)=0, where F is a function and y and y’
are vectors, and initial values for y and y’ are given. [10]
2.5
Causalization of Equations
As mentioned earlier in this chapter, systems that consist of a mixture of
implicitly formulated algebraic and differential equations are called DAE
systems. Converting an implicit DAE system to equivalent explicit sorted
ODE system if possible (we know in which order and by which equation
a variable should be computed) is an important task for a compiler of an
equation-based language.
Two simple rules can determine which variable to solve from which
equation:
• If an equation only has a single unknown variable then that equation
should be used to solve for that variable. It could be a variable for
which no solving equation has been found yet.
• If an unknown variable only appears in one equation, then use that
equation to solve for it.
2.5.1
Sorting Example
We we use f1,...,f5 to denote expressions containing variables. Initially all
equations are assumed to be on acausal form. This means that the equal
sign should be viewed as an equality sign rather than an assignment sign.
The structure of an equation system can be captured in a so-called incidence
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 13 --- #23
2.5. Causalization of Equations
13
matrix. Such a matrix lists the equations as rows and the unknowns in
these equations as columns. In other words if equation number i contains
variable number j then entry (i,j) in the matrix contains an 1 otherwise 0.
The best one can hope for is to be able to transform the incidence matrix
into Block-Lower-Triangular (BLT) form, that is a triangular form but with
”squares” on the diagonal representing sets of equations that needs to be
solved together (algebraic loops).
f 1(z3, z4) = 0
f 2(z2) = 0
f 3(z2, z3, z5) = 0
f 4(z1, z2) = 0
f 5(z1, z3, z5) = 0
The above equations will result in the sorted equations with the solved
for variables underlined:
f 2(z2) = 0
f 4(z1, z2) = 0
f 3(z2, z3, z5) = 0
f 5(z1, z3, z5) = 0
f 1(z3, z4) = 0
Note that we have an algebraic loop since z3 and z5 have to be solved
together. The corresponding matrix transformation is given below. The
matching of the variables with an equation to compute that variable is shown
in Figure 2.1 and Figure 2.2.
Figure 2.1: Equation system dependencies before matching.
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 14 --- #24
14
Chapter 2. Background
Figure 2.2: Equation system dependencies after matching.
z2
0
1
1
1
0
z3
1
0
1
0
1
z4
1
0
0
0
0
z5
0
0
1
0
1

f1
f2
f3
f4
f5
z1
0
0
0
1
1
z2
0
1
1
1
0
z3
1
0
1
0
1
z4
1
0
0
0
0
z5
0
0
1
0
1

f1
f2
f3
f4
f5
z1
0
0
0
1
1
z1
0
1
0
1
0
z3
0
0
1
1
1
z5
0
0
1
1
0
z4
0
0
0
0
1

f2
f4
f3
f5
f1
z2
1
1
1
0
0













































This algorithm is usually divided into two steps: 1. solve matching
problem and 2. find strong components (and sort equations).
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 15 --- #25
2.5. Causalization of Equations
2.5.2
15
Sorting Example with Modelica Model
An example Modelica model is given in Listing 2.2.
model NonExpandedArray1
Real x ;
Real y ;
Real z ;
Real q ;
Real r ;
equation
2 . 3 2 3 2 ∗y + 2 . 3 2 3 2 ∗z + 2 . 3 2 3 2 ∗q
der ( y ) = 2 . 3 2 3 2 ∗x + 2 . 3 2 3 2 ∗z +
2 . 3 2 3 2 ∗x + 2 . 3 2 3 2 ∗y + 2 . 3 2 3 2 ∗q
der ( r ) = 2 . 3 2 3 2 ∗x + 2 . 3 2 3 2 ∗y +
2 . 3 2 3 2 ∗x + 2 . 3 2 3 2 ∗y + 2 . 3 2 3 2 ∗z
end NonExpandedArray1 ;
+ 2 .3232∗r
2 . 3 2 3 2 ∗q +
+ 2 .3232∗r
2 . 3 2 3 2 ∗z +
+ 2 .3232∗r
= der ( x ) ;
2 .3232∗r ;
= der ( z ) ;
2 . 3 2 3 2 ∗q ;
= der ( q ) ;
Listing 2.2: Modelica model used for sorting example.
The above model will result in the following matrix.
y
0
1
0
0
0
z
0
0
1
0
0
q
0
0
0
0
1
r
0
0
0
1
0

eq1
eq2
eq3
eq4
eq5
x
1
0
0
0
0
y
0
1
0
0
0
z
0
0
1
0
0
q
0
0
0
1
0
r
0
0
0
0
1

eq1
eq2
eq3
eq5
eq4
x
1
0
0
0
0















In sorted form:















‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 16 --- #26
16
Chapter 2. Background
2.5.3
To Causal Form in Two Steps
Here the algorithms commonly used are described in more details.
Step 1: Matching Algorithm
Assign each variable to exactly one equation (matching problem), find
a variable that is solved in each equation. Then perform the matching
algorithm, which is the first part of sorting the equations into BLT form.
See Listing 2.3.
a s s i g n ( j ) := 0 , j=1 , 2 , . . , n
f o r < a l l e q u a t i o n s i=1 , 2 , . . , n>
vMark ( j ) := f a l s e , j=1 , 2 , . . , n ;
eMark ( j ) := f a l s e , j=1 , 2 , . . , n ;
i f not pathFound ( i ) , ” s i n g u l a r ” ;
end f o r ;
function s u c c e s s = pathFound ( i )
eMark ( i ) := true ;
i f <a s s i g n ( j )=0 f o r one v a r i a b l e j in equation i > then
s u c c e s s := true ;
a s s i g n ( j ) := i ;
else
s u c c e s s := f a l s e ;
f o r < a l l v a r i a b l e j o f equation i with vMark ( j ) = f a l s e >
vMark ( j ) := true ;
s u c c e s s := pathFound ( a s s i g n ( j ) ) ;
i f s u c c e s s then
a s s i g n ( j ) := i ;
return
end i f
end f o r
end i f
end
Listing 2.3: Matching algorithm pseudo code.
Step 2: Tarjan’s Algorithm
Find equations which have to be solved simultaneously. This is the second
part of the BLT sorting. It takes the variable assignments and the incidence
matrix as input and identifies strong components, i.e. subsystems of equations.
See Listing 2.4.
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 17 --- #27
2.6. Compiler Structure
17
i = 0; % global variable
number = z e r o s (n , 1 ) ; % g l o b a l v a r i a b l e
l o w l i n k = z e r o s (n , 1 ) ; % r o o t o f s t r o n g component
<empty s t a c k > % s t a c k i s g l o b a l
for w = 1 : n
i f number (w) == 0 % c a l l t h e r e c u r s i v e p r o c e d u r e
s t r o n g C o n n e c t (w) ; % f o r each non− v i s i t e d v e r t e x
end i f
end f o r
procedure strongConnect (v)
i = i+1 ;
number ( v ) = i ;
lowlink (v) = i ;
<put v on s t a c k >
f o r < a l l w d i r e c t l y r e a c h a b l e from v>
i f number (w) == 0 %( v , w) i s a t r e e a r c
s t r o n g C o n n e c t (w) ;
l o w l i n k ( v ) = min ( l o w l i n k ( v ) , l o w l i n k (w) ) ;
e l s e i f number (w) < number ( v ) %( v , w) f r o n d or cross l i n k
i f <w i s on s t a c k >
l o w l i n k ( v ) = min ( l o w l i n k ( v ) , number (w) ) ;
end i f
end i f
end f o r
i f l o w l i n k ( v ) == number ( v ) % v r o o t o f a s t r o n g component
while <w on top o f s t a c k s a t i s f i e s number (w) >= number ( v )>
<d e l e t e w from s t a c k and put w in c u r r e n t component>
end while
end i f
end
Listing 2.4: Tarjan’s algorithm pseudo code.
2.5.4
Algebraic Loops
An algebraic loop is a set of equations that cannot be causalized to explicit
form, they need to be solved together using some numerical algorithm. In
each iteration of the solver loop this set of equations has to be solved together,
i.e. a solver call is made in each iteration. Newton iteration could for instance
be used if the equations are nonlinear.
2.6
Compiler Structure
In this section we will outline the basic principles behind compilers and
compiler construction. Basically a compiler is a program that reads a
program written in a source language and translates it to a program written
in a target language. Before a program can be run it must be transformed by
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 18 --- #28
18
Chapter 2. Background
a compiler into a form which can be executed by a computer1 . A compiler
should also report any errors in the source program that it detects during
the translation process. See Figure 2.3 for the various compilation steps.
• Front-end. The front-end typically includes lexical analysis and
parsing. That is, from the initial program code an internal abstract
syntax tree is created by collecting groups of characters into tokens
(lexical analysis) and building the internal tree (syntax analysis).
• Middle-part. The middle-part typically includes semantic analysis
(checking for type conflicts etc.), intermediate code generation and
optimization.
• Code Generation. Code generation is the process of generating code
from the internal representation. Parallel executable code generation
is the main focus of this thesis.
Figure 2.3: Main compilation phases in a typical compiler.
1 There
are also interpreters that execute a program directly at run-time.
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 19 --- #29
2.7. Compilation and Simulation of Modelica Models
2.7
19
Compilation and Simulation of Modelica
Models
Figure 2.4: Main compilation phases in a typical Modelica compiler.
The main translation stages of the OpenModelica compiler can be seen
in Figure 2.4. The compilation process of Modelica code differs quite a bit
for instance from typical imperative programming languages such as C, C++
and Java. This is because Modelica is a complex language that mixes several
programming styles and especially due to the fact that it is a declarative
equation-based language. Here we give a brief overview of the compilation
process for generating sequential code, as well as the simulation process. For
a more detailed description the interested reader is referred to for instance
[8]. The Modelica model is first parsed by the parser, making use of a lexer
as well; this is a fairly standard procedure. The Modelica model is then
elaborated/instantiated by a front-end module which involves among other
things removing of all object-oriented structure, type checking of language
constructs, etc. The output from the front-end is a lower level intermediate
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 20 --- #30
20
Chapter 2. Background
form, a data structure with lists of equations, variables, functions, algorithm
sections, etc. This internal data structure will then be used, after several optimization and transformation steps, as a basis for generating the simulation
code.
There is a major difference between the handling of time-dependent equations
and the handling of time-independent algorithms and functions. Modelica assignments and functions are mapped in a relatively straightforward way into
assignments and functions respectively in the target language. Regarding
the equation handling, several steps are taken. This involves among other
things symbolic index reduction (that includes symbolic differentiation) and
a topological sorting according to the data flow dependencies between the
equations and conversion into assignment form. In some cases the result
of the equation processing is an ODE system in assignment form. But in
general, we will get an DAE system as the result. The actual runtime
simulation corresponds mainly of solving this ODE or DAE system using
a numerical integration method, such as the once described earlier (Euler,
Runge-Kutta or DASSL). Several C-Code files are produced as output from
the OpenModelica compiler. These files will be compiled and linked together
with a runtime system, which will result in a simulation executable. One
of the output files is a source file containing the bulk of the model-specific
code, for instance a function for calculating the right-hand side f in the
sorted equation system. Another source file contains the compiled Modelica
functions. There is also a makefile generated and a file with initial values of
the state variables and of constants/parameters along with other settings
that can be changed at runtime, such as time step, simulation time, etc..
2.8
Graphics Processing Units (GPUs)
This section is based on [14], [28], [29] and [9]. The main goal of GPUs
was initially to accelerate the rendering of graphic images in memory frame
buffers intended for output to a display, graphic rendering in other words.
A GPU is a specialized circuit designed to be used in personal computers,
game consoles, workstations, mobile phones, and embedded systems. The
highly parallel structure of modern GPUs make them more effective than
general-purpose CPUs for data-parallel algorithms. The same program is
executed for each data element. In a personal computer there are several
places where a GPU can be present. It can for instance be located on a video
card, or on the motherboard, or in certain CPUs, on the CPU die. Several
series of GPU cards have been developed by NVIDIA, the three most notable
are mentioned below.
• The GeForce GPU computing series. The GeForce 256 was launched
in August 1999. In November 2006 the G80 GeForce 8800 was released,
which supported several novel innovations: support of C, the single-
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 21 --- #31
2.8. Graphics Processing Units (GPUs)
21
instruction multiple-thread (SIMT) execution model (more on this
later in Section 2.8.2), shared memory and barrier synchronization for
inter-thread communication, a single unified processor that executed
vertex, pixel, geometry, and computing programs, etc..
• The Quadro GPU computing series. The goal with this series of card
was to accelerate digital content creation (DCC) and computed-aided
design (CAD).
• The Tesla GPU computing series. The Tesla GPU was the first
dedicated general purpose GPU.
The appearance of programming frameworks such as CUDA (Compute
Unified Device Architecture) from NVIDIA minimizes the programming
effort required to develop high performance applications on these platforms.
A whole new field of general-purpose computation on graphics processing
units (GPGPU) has emerged. The NVIDIA Fermi hardware architecture
will be described together with CUDA in Section 2.8.2, since they are closely
related. Another software platform for GPUs (as well as for other hardware
architectures) is OpenCL that will be described in Section 2.8.3.
2.8.1
The Fermi Architecture
A scalable array of multi-threaded Streaming Multiprocessors (SMs) is the
most notable feature of the architecture. Each of these streaming multiprocessors then contains Scalar Processors (SPs), resulting in a large number of
computing cores that can compute a floating point or integer instruction per
clock for a thread. Some synchronization between the streaming multiprocessors is possible via the global GPU memory but no formal consistency
model exists between them. Thread blocks (will be described later in Section
2.8.2) are distributed by the GigaThread global scheduler to the different
streaming multiprocessors. The GPU is connected to the CPU via a host
interface. Each scalar processor contains a fully pipelined integer arithmetic
unit (ALU) and floating point unit (FPU). Each streaming multiprocessor
has 16 load/store units and four special function units (SFU) that executes
transcendental instructions (such as sin, cosine, reciprocal, and square root).
The Fermi architecture supports double precision.
Memory Hierarchy
There are several levels of memory available as described below.
• Each scalar processor has a set of registers and accessing these typically
requires no extra clock cycles per instruction (except for some special
cases).
• Each streaming multiprocessor has an on-chip memory. This on-chip
memory is shared and accessible by all the scalar processors on the
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 22 --- #32
22
Chapter 2. Background
streaming multiprocessor in question, which greatly reduces off chip
traffic by enabling threads within one thread block to cooperate. The
on-chip memory of 64KB can be configured either as 48 KB of shared
memory with 16 KB of L1 cache or as 16 KB of shared memory with
48 KB of L1 cache.
• All the streaming multiprocessors can access a L2 cache.
• The Fermi GPU has 6 GDDR5 DRAM memory of 1 GB each.
2.8.2
Compute Unified Device Architecture (CUDA)
Compute Unified Device Architecture or CUDA is a parallel programming
model and software and platform architecture from NVIDIA [28]. It was
developed in order to overcome the challenge with developing application
software that transparently scales the parallelism of NVIDIA GPUs but at
the same time maintains a low learning curve for programmers familiar with
standard programming languages such as C. CUDA comes as a minimal set
of extensions to C. CUDA provides several abstractions for data-parallelism
and thread parallelism: a hierarchy of thread groups, shared memories, and
barrier synchronization. With these abstractions it is possible to partition the
problem into coarse-grained subproblems that can be solved independently
in parallel. These subproblems can then be further divided into smaller
pieces that can be solved cooperatively in parallel as well. The idea is that
the runtime system only needs to keep track of the physical processor count.
CUDA, as well as the underlying hardware architecture has become more and
more powerful and increasingly powerful language support has been added.
Some of the CUDA release highlights from [28] are summarized below.
• CUDA Toolkit 2.1 C++ templates supported in CUDA kernels as well
as debugger support using gdb.
• CUDA Toolkit 3.0 C++ class and template inheritance and support
for the Fermi architecture.
• CUDA Toolkit 3.1 Support for function pointers and recursion for the
Fermi architecture as well as support to run up to 16 different kernels
at the same time (with the Fermi architecture).
• CUDA Toolkit 4.0 Support for sharing GPUs across multiple threads
and a single united virtual address space (from a single host thread
it is possible to use all GPUs in the system concurrently). No-copy
pinning of system memory, no need to explicitly copy data with cudaMallocHost().
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 23 --- #33
2.8. Graphics Processing Units (GPUs)
23
CUDA Programming Model
The parallel capabilities of GPUs are well exposed by the CUDA programming
model. Host and device are two central concepts in this programming model.
The host is typically a CPU and the device is one or more NVIDIA GPUs.
The device operates as a coprocessor to the host and CUDA assumes that
the host and device operates separate memories, host memory and device
memory. Data transfer between the host and device memories takes place
during a program run. All the data that is required for computation by
the GPUs is transfered by the host to the device memory via the system
bus. Programs start running sequentially on the host and kernels are then
launched for execution on the device. CUDA functions, kernels, are similar
to C functions in syntax but the big difference is that a kernel, when called,
is executed N times in parallel by N different CUDA threads. It is possible
to launch a large number of threads to perform the same kernel operation on
all available cores at the same time. Each thread operates on different data.
The example in Listing 2.5 is taken from the CUDA Programming Guide [9].
// Kernel d e f i n i t i o n
global
v o i d vecAdd ( f l o a t ∗ A, f l o a t ∗ B, f l o a t ∗ C)
{
int i = threadIdx.x ;
C[ i ] = A[ i ] + B[ i ] ;
}
i n t main ( )
{
// Kernel i n v o c a t i o n
vecAdd<<<1, N>>>(A, B, C) ;
}
Listing 2.5: CUDA kernel example, taken from [9].
The main function is run on the host. The global keyword states that
the vecAdd function is a kernel function to be run on the device. The special
<<< ... >>> construct specifies the number threads and thread blocks to
be run for each call (or a execution configuration in the general case). Each
of the threads that execute vecAdd performs one pair-wise addition and the
thread ID for each thread is accessible via the threadIdx variable. Threads
are organized into thread blocks (which can be organized into grids). The
number of threads in a thread block is restricted by the limited memory
resources. On the Fermi architecture a thread block may contain up to 512
threads. After each kernel invocation, blocks are dynamically created and
scheduled onto multiprocessors efficiently by the hardware. Within a block
threads can cooperate among themselves by synchronizing their execution
and sharing memory data. Via the syncthreads function call it is possible
to specify synchronization points. When using this barrier all threads in a
block must wait for the other threads to finish.
Thread blocks are further organized into one-dimensional or two-dimensional
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 24 --- #34
24
Chapter 2. Background
grids. One important thing to note is that all thread blocks should execute
independently, in other words they should be allowed to execute in any order.
On the Fermi architecture it is possible to run several kernels concurrently
in order to occupy idle streaming multiprocessors; with older architectures
only one kernel could run at a time thus resulting in some streaming multiprocessors being idle.
CUDA employs an execution mode called SIMT (single-instruction, multiplethread) which means that each scalar processor executes one thread with
the same instruction. Each scalar thread executes independently with its
own instruction address and register state on one scalar processor core on a
multiprocessor. On a given multiprocessor the threads are organized into so
called warps, which are groups of 32 threads. It is the task of the SIMT unit
on a multiprocessor to organize the threads in a thread block into warps,
and this organization is always done in the same way with each warp containing threads of consecutive, increasing thread IDs starting at 0. Optimal
execution is achieved when all threads of a warp agree on their execution
path. If the threads diverge at some point, they are executed in serial and
when all paths are complete they converge back to the same execution path.
2.8.3
Open Computing Language (OpenCL)
OpenCL (Open Computing Language) is a framework that has been developed in order to be able to write programs that can be executed across
heterogeneous platforms. Such platforms could consist of CPUs, GPUs, Digital Signal Processors (DSPs), and other processors. It has been adopted into
graphics card drivers by AMD, ATI and NVIDIA among others. OpenCL
consists of, among other things, APIs for defining and controlling the platforms and a language for writing kernels (C-like language). Both task-based
and data-based parallelism is possible with OpenCL. OpenCL shares many of
its computational interfaces with CUDA and is similar in many ways. [29]
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 25 --- #35
Chapter 3
Previous Research
3.1
Introduction
This chapter describes earlier research that has been conducted mainly at
our research group PELAB with simulations of equation-based models on
multi-core architectures.
3.2
Overview
From a perspective there are three main approaches to parallelism with
equation-based models.
• Explicit Parallel Programming Constructs in the Language
The language is extended with language constructs for expressing parts
that should be simulated/executed in parallel. It is up to the application
programmer to decide which parts will be executed in parallel. This
approach is touched upon in chapter 9 and in [27].
• Coarse-Grained Explicit Parallelization Using Components
The application programmer decides which components of the model
can be simulated in parallel. This is described in more details in section
3.6 below.
• Automatic (Fine-grained) Parallelization of Equation-Based
Models It is entirely up to the compiler to make sure that parallel
executable simulation code is generated. This is the main approach
that is investigated in this thesis.
The automatic parallelization approach can further be divided using the
following classification.
25
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 26 --- #36
26
Chapter 3. Previous Research
• Parallelism over the method With this approach one adopts the
numerical solver to exploit parallelism over the method. But this can
lead to numerical instability.
• Parallelism over time The goal of this approach is to parallelize
the simulation over the simulation time. This method is difficult to
implement though, since with a continuous time system each new solution of the system depends on preceding steps, often the immediately
preceding step.
• Parallelism of the system With this approach the model equations
are parallelized. This means the parallelization of the right-hand side
of an ODE system.
3.3
Early Work with Compilation of Mathematical Models to Parallel Executable Code
In [3] some methods of extracting parallelism from mathematical models are
described. In that work search for parallelism was done on three levels.
• Equation System Level Equations are gathered into strongly connected components. The goal is to try to identify tightly coupled
equation systems within a given problem and separate them and solve
them independently of each other. A dependency analysis is performed
and an equation dependence graph is created using the equations in
the ordinary differential equation system as vertices where arcs represents dependencies between equations. From this graph the strongly
connected components are extracted. This graph is then transformed
into an equation system task graph. A solver is attached to each task
in the equation system task graph.
• Equation Level Each equation forms a separate task.
• Clustered Task Level Each subexpression is viewed as a task. This
is the method that has been used extensively in other research work.
See subsection 3.4 below on task scheduling and clustering.
3.4
Task Scheduling and Clustering Approach
In [4] the method of exploiting parallelism from an equation-based Modelica
model via the creation and then the scheduling of a task graph of the equation
system was extensively studied.
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 27 --- #37
3.4. Task Scheduling and Clustering Approach
3.4.1
27
Task Graphs
A task graph is a directed acyclic graph (DAG) for representing the equation
system. There are costs associated with the nodes and edges. It can be
described by the following tuple.
G = (V, E, c, τ )
• V is the set of vertices (nodes) representing the tasks in the task graph.
• E is the set of edges. An edge e = (v1 , v2 ) indicates that node v1 must
be executed before v2 and send data to v2 .
• c(e) gives the cost of sending the data along an edge e ∈ E.
• τ (n) gives the execution cost for each node v ∈ V .
An example of a task graph is given in Figure 3.1.
Figure 3.1: An example of a task graph representation of an equation system.
The following steps are taken.
• Building a Task Graph A fine grained task graph is built, at the
expression level.
• Merging An algorithm is applied that tries to merge tasks that can
be executed together in order to make the graph less fine grained.
Replication might also be applied to further reduce executison time.
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 28 --- #38
28
Chapter 3. Previous Research
• Scheduling The fine grained task graph is then scheduled using a
scheduler for a fixed number of computation cores.
• Code Generation Finally code generation is performed. The code
generator takes the merged tasks from the last step and generates the
executable code.
3.4.2
Modpar
Modpar is the name of the OpenModelica code generation back-end module
that was developed in [4] which performs for automatic parallelization of (a
subset) Modelica models. Its use is optional, via flags one can decide whether
to generate serial and parallel executable code. The internal structure of
Modpar consist of a task graph building module, a task merging module, a
scheduling module, and a code generation module.
3.5
Inlined and Distributed Solver Approach
In [21] the work with exploiting parallelism by creating an explicit task graph
was continued. A combination of the following three approaches was taken:
Figure 3.2: Centralized solver running on one computational core with the
equation system distributed over several computational cores.
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 29 --- #39
3.6. Distributed Simulation using Transmission Line Modeling
29
Figure 3.3: Centralized solver running on several computational cores with an
equation system distributed over several computational cores as well.
• The stage vectors of a Runge-Kutta solver are evaluated in parallel
within a single time step. The stage vectors corresponds to the various
intermediate calculations in Section 2.4.2.
• The evaluation of the right-hand side of the equation system is parallelized.
• A computation pipeline is generated such that processors early in the
pipeline can carry on with subsequent time steps while the end of the
pipeline still computes the current time step.
Figure 3.2 shows the traditional approach with a centralized solver and
the equation system computed in parallel over several computational cores.
Figure 3.3 instead shows the distributed solver approach. Figure 3.4 shows
an inlined Runge-Kutta solver, where the computation of the various stages
overlap in time.
3.6
Distributed Simulation using Transmission
Line Modeling
Technologies based on transmission line modeling, TLM, have been developed
for a long time at Linköping University, for instance in the HOPSAN
simulation package for mechanical engineering and fluid power, see for
instance [17]. It is also used in the SKF TLM-based co-simulation package
[1]. Work has also been done on introducing distributed simulation based
on TLM technology in Modelica [40]. The idea is to let each component
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 30 --- #40
30
Chapter 3. Previous Research
Figure 3.4: Two-stage inlined Runge-Kutta solver distributed over three computational cores [21].
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 31 --- #41
3.7. Related Work in other Research Groups
31
in the model solve its own equations, in other words we have a distributed
solver approach where each component is numerically isolated from the other
components. Each component and each solver can then have its own fixed
time step which gives high robustness and also opens up potential for parallel
execution over multi-core platforms. Time delays are introduced between
different components to encounter for the real physical time propagations
which gives a physically accurate description of wave propagation in the
system. Mathematically, a transmission line can be described in the frequency
domain by the four pole equation. Transmission line modeling is illustrated
in Figure 3.5.
Figure 3.5: Transmission Line Modeling (TLM) with different solvers and step
sizes for different parts of the model [40].
3.7
Related Work in other Research Groups
For work on parallel differential equation solver implementations in a broader
context than Modelica see for instance [36], [19], [20], [35].
In [26] and [12] a different and more complete implementation of the
QSS method for the OpenModelica compiler was described. That work
interfaces the OpenModelica compiler and enables the automatic simulation
of large-scale models using QSS and the PowerDEVS runtime system. The
interface allows the user to simulate by supplying a Modelica model as input,
even without any knowledge of DEVS and/or QSS methods. In that work
discontinuous systems were also handled, something that we do not handle
in our work in Chapter 5.
SUNDIALS from the Center for Applied Scientific Computing at Lawrence
Livermore National Laboratory has been ”implemented with the goal of
providing robust time integrators and nonlinear solvers that can easily be
incorporated into existing codes” [42]. PVODE is included in the SUNDIALS
package for equation solving on parallel architectures. Interfacing this solver
with OpenModelica could be a promising future work.
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 32 --- #42
Chapter 4
Simulation of
Equation-Based Models on
the Cell BE Processor
Architecture
4.1
Introduction
This chapter is based on paper 1 which mainly covered two areas: a summary
of old approaches of extracting parallelism from equation-based models (this
we have covered somewhat in Chapter 2 of this thesis) and an investigation
of using the STI1 Cell BE architecture [7] for simulation of equation-based
Modelica models. A prototype implementation of the parallelization approaches with task graph creation and scheduling for the Cell BE processor
architecture was presented for the purpose of demonstration and feasibility.
It was a hard-coded implementation of an embarrassingly parallel flexible
shaft model. We manually re targeted the generated parallel C/C++ code
(from the OpenModelica compiler) to the Cell BE processor architecture.
Some speedup was gained but no further work has been carried out since
then. This work is covered in this thesis since it holds some relevance with
the work on generating code for NVIDIA GPUs.
This chapter is organized as follows. We begin by describing the Cell
BE processor architecture. We then discuss the above mentioned hard-coded
implementation. We provide the measurements that was given in the paper.
Finally, we conclude with a discussion section where we discuss the measurements results, suitability of the Cell BE architecture for simulation of
1 An
alliance between Sony, Toshiba, and IBM
32
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 33 --- #43
4.2. The Cell BE Processor Architecture
33
equation-based Modelica models and our implementation.
4.2
The Cell BE Processor Architecture
The Cell BE Architecture is a single-chip multiprocessor consisting of one socalled Power Processor Element (PPE) and 8 so-called Synergistic Processor
Elements (SPE). The PPE runs the top level thread and coordinates the
SPEs which are optimized for running compute-intensive applications. Each
SPE has its own, small local on-chip memory for both code and data but the
SPEs and PPE do not share on-chip memory. To transfer data between the
main memory and the SPEs and between the different SPEs DMA transfers
(which can run asynchronously in parallel) are used. To conclude, the main
features of the Cell BE processor architecture are the following.
• One main 64-bit PPE processor (PowerPC) Power Processor Element,
2 hardware threads good at control tasks, task switching, and OS-level
code SIMD unit VMX.
• 8 SPE processors (RISC with 128bit SIMD operations). Good at
compute-intensive tasks, small local memory 256KB (code and data).
• No direct access to main memory, DMA transfers used.
• Internal communication: Signals, Mailboxes Interface to main memory
(off chip, 512 MB and more).
4.3
Implementation
Here the hard-coded implementation for demonstration and feasibility studies
is described. The equations on statement form to be calculated are divided
into 6 different subsets and in the PPE 6 pthreads are created and loaded
with 6 different program handlers. The PPE then uses the mailbox facility
to send out a pointer to a control block in main memory to each SPE which
is then used to transfer a copy of the control block via DMA to its local store.
The SPEs will use the pointers in control block to fetch and store data from
main storage and when sending and synchronizing between different SPEs.
Next the initial data is read by each SPE for the different vectors x’ (state
variable derivatives), x (state variables), u (input variables) and p (constants
and parameters) into local store. Then comes the actual iteration of the
solver (that runs on the PPE) in N time steps where new values of the state
variables x(t+h) are calculated in each step (the values x(t+h) associated
with each SPE). DMA transfers are used if SPEs needs to send and receive
data between them. Data is sent back from the SPEs to the main memory
buffer at the end of each iteration step (or at the end of some iteration
steps, in a periodic manner). After all threads have finished the PPE will
write this data to a result file. In order to exploit the full performance
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 34 --- #44
Chapter 4. Simulation of Equation-Based Models on the Cell BE Processor
34
Architecture
potential of the Cell BE processor, the SIMD instructions of the SPEs need
to be leveraged (but only inter-SPE parallelism and DMA parallelism was
utilized). This requires vectorization of the (generated) code (or for instance
keeping the array equations unexpanded throughout the compilation process).
DMA transfers have the advantage that an SPE in some cases can continue
to execute while the transfer is going on. For large examples code, data
distribution across a cluster of several Cell BE processors is needed. An
other alternative is time-consuming overlay of multiple program modules in
SPE local store.
model S h a f t E l e m e n t
import M o d e l i c a . M e c h a n i c s . R o t a t i o n a l ;
extends R o t a t i o n a l . I n t e r f a c e s . T w o F l a n g e s ;
Rotational.Inertia inertia1 ;
SpringDamperNL springDamper1 ( c=5 , d=0 . 1 1 ) ;
equation
connect ( i n e r t i a 1 . f l a n g e b , s p r i n g D a m p e r 1 . f l a n g e a ) ;
connect ( i n e r t i a 1 . f l a n g e a , f l a n g e a ) ;
connect ( s p r i n g D a m p e r 1 . f l a n g e b , f l a n g e b ) ;
end S h a f t E l e m e n t ;
model F l e x i b l e S h a f t
import M o d e l i c a . M e c h a n i c s . R o t a t i o n a l ;
extends R o t a t i o n a l . I n t e r f a c e s . T w o F l a n g e s ;
parameter Integer n ( min=1 ) = 3 ;
ShaftElement s h a f t [ n ] ;
equation
f o r i in 2 : n loop
connect ( s h a f t [ i−1 ] . f l a n g e b , s h a f t [ i ] . f l a n g e a ) ;
end f o r ;
connect ( s h a f t [ 1 ] . f l a n g e a , f l a n g e a ) ;
connect ( s h a f t [ n ] . f l a n g e b , f l a n g e b ) ;
end F l e x i b l e S h a f t ;
model S h a f t T e s t
F l e x i b l e S h a f t s h a f t ( n=100 ) ;
Modelica.Mechanics.Rotational.Torque src ;
Modelica.Blocks.Sources.Step c ;
equation
connect ( s h a f t . f l a n g e a , s r c . f l a n g e b ) ;
connect ( c . y , s r c . t a u ) ;
end S h a f t T e s t ;
Listing 4.1: SimpleShaft Modelica model.
4.4
Measurements
The Modelica model used for the measurements is given in Listing 4.1.
Running the whole flexible shaft example 100000 iteration steps on the Cell
BE processor (with 6 SPUs as mentioned earlier) took about 31.4 seconds
(from start of the PPU main function to end of the PPU main function). The
final writing of the result to result files is not included in this measurement.
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 35 --- #45
4.5. Discussion
35
Table 4.1: Measurements of running the flexible shaft model on six threads (on
Cell BE).
T hread
1
2
3
4
5
6
Ttot (s)
31.39
31.39
31.39
31.39
31.39
31.38
TDM A (s)
2.49
12.28
11.10
12.25
11.04
4.39
% DMA
7.9%
39.1%
35.4%
39.0%
35.2%
13.9%
The relative speedup is shown in Figure 4.1, comparing running with 6
SPUs to one SPU. However, it is not straightforward to define relative
speedup since the Cell BE architecture is a heterogenous architecture, and
this measurement should be taken with some caution.
Figure 4.1: Relative speedup of running the flexible shaft model on the Cell BE
architecture with 6 threads.
4.5
Discussion
From table 4.1 we can conclude several things. Thread 2 to 5 spent more than
a third of the execution time on DMA transfers, but thread 1 and 6 did not
spend much time doing DMA transfers. The total execution time of about
31.4 seconds is pretty bad. On a 4 core Intel Xeon with hyper-threading the
same example took 11.35 seconds (using one core) and on SGI Altix 3700
Bx2 it took 22.59 seconds (using one processor). Another issue is the fact
that on our Cell BE version double precision calculations takes about 7 times
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 36 --- #46
Chapter 4. Simulation of Equation-Based Models on the Cell BE Processor
36
Architecture
more time than single precision (this was improved in the next version of the
Cell BE processor). To conclude, this implementation was a crude one and
it seems the memory transfers eat up any performance gains. A model with
larger and more heavier calculations in each time step might have worked
better. We will discuss this further in Chapter 10 of this thesis.
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 37 --- #47
Chapter 5
Simulation of
Equation-Based Models
with Quantized State
Systems on Graphics
Processing Units
5.1
Introduction
This chapter discusses the use of the Quantized State Systems (QSS) [18]
simulation algorithm as a way to exploit parallelism for simulating Modelica
models with NVIDIA GPUs. This chapter is mainly based on paper number
2. In that paper a method was developed that made it possible to translate
a restricted class of Modelica models to parallel QSS-based simulation code.
The OpenModelica compiler was extended with a new back-end module
that automatically generated CUDA-based simulation code. Some performance measurements of an example model on the Tesla architecture [44]
was performed. The QSS method replaces the classical time slicing by a
quantization of the states in an ODE system. It is an alternative way for
computing ODE systems. The QSS integration method is a Discrete Event
System (DEVS) method. No further work on the implementation was done
after the paper was presented. The goal was two-fold: to investigate the
possibility of parallelization of the QSS algorithm per se together with the
chosen architecture and to investigate the parallel performance of the QSS
integration method via automatically generated CUDA code. It was first
suggested in [18] that QSS could be suitable for parallel execution. The set of
models have been restricted only to a subset: continuous time, time-invariant
37
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 38 --- #48
38
Chapter 5. Simulation of Equation-Based Models with Quantized State
Systems on Graphics Processing Units
systems (with no events); index-1 DAE; initial values of states and values
of parameters known at compile time, and inserted into the generated code
as numbers; and no implicit systems of nonlinear equations to be solved
numerically.
This chapter is organized as follows. We begin by describing the restricted
set of Modelica models we generate code from. We then introduce the quantized state systems integration method. In the section after this we describe
why the QSS method is suitable for parallel execution. We then make a
summary of the implementation work that was described in the paper. We
continue with a measurements section and finally conclude with a discussion
section. We will not cover the NVIDIA GPU architecture nor the CUDA
programming model however although this was done in the paper, since we
have already done this in Chapter 2 of this thesis.
5.2
Restricted Set of Modelica Models
The set of models were restricted to a subset. This is mainly because the
Modelica language is used to describe many different classes of systems and
it was deemed suitable to limit the work. The restricted set of models are
described below.
• continuous time, time-invariant systems (with no events),
• index-1 DAE (if the index is greater than 1 the index reduction algorithm should be used before processing the model),
• initial values of states and values of parameters known at compile time,
and inserted into the generated code as numbers,
• no implicit systems of nonlinear equations to be solved numerically.
A constant QSS integration step was used, unchanged for all the state
variables but a different quantization step can be used for each state variable,
with minor modification to the code.
5.3
Quantized State Systems (QSS)
The QSS integration method is a discrete event system (DEVS) method that
was introduced in [8], where the authors suggested that it could be suitable
for parallel execution. Here we will describe the main characteristics of this
method.
Time slicing is by far the most commonly used approach for numerically
solving a set of ODEs on a digital computer. But instead of discretization of
the time it is possible to discretized the state values. This is what is done in
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 39 --- #49
5.3. Quantized State Systems (QSS)
39
the QSS method. QSS is actually a set of algorithms that have in common
that they aim to discretize the state values. The classical approach is as
follows.
Given that the state value at time tk is equal to x, what is the state value at
time tk+1 = tk + ∆t?
With QSS one instead tries to answer the following question.
Given that the state has a value of xk at time t, what is the earliest time
instant, at which the state assumes a value of xk±1 = xk ±∆x?
In other words, a QSS algorithm calculates when is the earliest time
instant at which this state variable shall reach either the next higher or
the next lower discrete level in a set of values. The currently available
QSS algorithms are not yet, since the QSS method is relatively new, as
sophisticated as the classical numerical ODE solvers.
A limited boundary error exists when transforming a continuous time system
into a DEVS one, i.e.:
x = f (x, u) −→ ẋ = f (q, u)
Here the state vector x becomes a quantized state vector q where state
values are in the corresponding set. The quantized state vector is a vector of discretized states and each state varies according to an hysteretic
quantization function. When simulating a system with the QSS algorithm a
variable-step technique is applied. The algorithm is asynchronous: it adjusts
the time instant at which the state variable is re-evaluated to the speed of
change of that state variable. In other words, different state variables will
update their values independently of each others. This approach can be
seen in Figure 5.1. Each state variable has an associated DEVS subsystem.
The dependency between state variables and derivative equations decides
the interconnection between subsystems. When the hysteretic quantization
threshold is reached the events of the DEVS model are fired.
The simulation method consists of three main steps:
• Search the DEVS subsystem that is the next to perform an internal
transition, according to its internal time and to the derivative value.
Suppose that the event time is tnext and the associated state variable
is xi . If tnext > tinputevent than set tnext = tinputevent and perform the
input change.
• Advance the simulation time from current time to tnext and execute
the internal transition function of the model associated to xi or the
input change associated to ui .
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 40 --- #50
40
Chapter 5. Simulation of Equation-Based Models with Quantized State
Systems on Graphics Processing Units
Figure 5.1: Updating state variable values with the QSS method [34].
• Propagate the new output event produced by the transition to the
connected state variable DEVS models.
5.4
Implementation
It was noted in [18] that ”due to the asynchronous behavior, the DEVS
models can be implemented in parallel in a very easy and efficient way”.
Because of the possibility to separately compute the derivatives of the state
variables and the time events schedule the QSS algorithm is naturally keen
to be parallelized. We shall first describe the method in general terms and
then go on to discuss the actual code that is generated. A Modelica model
and the generated CUDA code can be found in Appendix A.
• The derivatives of the state variables are computed using the model
equations (assuming that the initial values of the state variables are
known). MIMD execution model.
• The time of the new event is calculated. Since all the computing
threads execute the same code on different data we can completely
exploit SIMD parallelism.
• A time advance is done. If the values of one of the inputs changes or if
one of the bounds of the quantized state function is reached a new event
is registered. Each value of the state variables is then re-computed and
the quantized integrators are updated. Since the same code executes
on different data elements SIMD parallelism can be exploited here as
well.
Good performance can be achieved via the definition of a state vector array since the NVIDIA Tesla architecture requires all the computing
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 41 --- #51
5.4. Implementation
41
cores in the same group to compute the same instruction at the same time.
Each derivative state value is calculated within a separate thread but the
SIMD model is not performing well here since the code to compute such values are different for each state variable. Instead a MIMD style code is needed.
When all threads finish, the derivative values have been calculated. The next
time event for each variable is then calculated by the threads, executing the
same portion of code. Since every thread execute the same code on different
data portion this part of the code should be able to execute in SIMD fashion.
Finally, next time event of the QSS simulation is determined and processed.
To conclude, the system advancement part takes full advantage of the
hardware possibilities but the derivative calculation part of the code is not
completely parallel with this approach.
The OpenModelica compiler was extended with a new back-end module
that generates QSS, CUDA-based simulation code. The module took the
equation system right after the matching and index reduction phases and
generated the CUDA code.
Figure 5.2: Internal call chain in the OpenModelica compiler to obtain CUDA
code.
Figure 5.2 shows the internal call chain in the compiler to obtain CUDA
code. The new module is the GPUpar module, the other phases were
described in the background chapter of this thesis. In the GPUpar module
different kernel and header files are generated. As input GPUpar takes the
DAELow form as well as the BLT matrix and strong components information
from the equation sorting phase. Some data has to be computed from the
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 42 --- #52
42
Chapter 5. Simulation of Equation-Based Models with Quantized State
Systems on Graphics Processing Units
DAELow form in order to generate the model-specific files.
• For each state variable a derivative function is generated. This function
contains the algorithm for the time derivative computation. If there is
a dependency with other equations they are also added to the derivative
function (in statement form of course).
• For each output variable an output function for computing the output
values is generated. If there is a dependency with other equations they
are also added to this function (in statement form).
• From the list of variables in the DAELow form initial variable (and
parameter) values must be gathered
When additional equations that depend on the single derivative/output
equation are present, we get a subtree with the main equation as the root node.
An existing function (DAELow.markStateEquations) was slightly modified
to handle this problem. The equations are sorted by using information
obtained in the sorting phase. All the equations are also brought into solved
form (explicit form) by calling Exp.solve. By traversing the list of variables
the initial values are gathered in a rather straight-forward manner. To
solve the problem with the variables being stored in different arrays in the
generated code - xd (derivatives), x (state variables), y (output variables),
u (input variables) and p (parameters) - an environment is created at the
beginning of the GPUpar module that contains a mapping between each
variable/parameter and the array name plus the index number in this array.
In order to find the correct array and index to print for a given variable this
environment is then used when the CUDA C-code is generated.
5.5
Measurements
The test model used for the measurements is depicted in Figure 5.3. The
circuit consists of a generator voltage that comprises N ..1 different branches;
each of them is composed of a resistor with resistance R=N and of a capacitor with capacitance C=N. The last branch is made up of the resistor with
resistance R=N and a capacitor with capacitance C together with a resistor
with resistance R in parallel. The only input of the system, in the following
referred as u, is the voltage V, that is supposed to be a square wave with
rise time and fall time of 1s and voltage of 1Volt.
The initial time is obtained at the beginning of the program, before the
memory allocation. The end time is measured when the simulation stops
with the same function call and the difference between them is divided by a
CLOCKSPERSEC constant, to compare architectures with different clock
periods. The parallel algorithm is compared to the sequential one, where a
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 43 --- #53
5.6. Discussion
43
single thread is executed on the graphic card and takes care of the computation sequentially. The results with the NVIDIA Tesla GeForce 8600 can
be seen in table 5.1. Table 5.2 contains the results with the NVIDIA Tesla
C1060 when just one cluster is used to compute the derivative values, while
table 5.3 reports the data with the same graphic card when all the available
clusters are used. In Figure 5.4 a summary of the obtained speed-up values
is presented.
Figure 5.3: Simple circuit used as test model.
Figure 5.4: Speed-up measurements: comparison between a GeForce 8600 and
an NVIDIA Tesla C1060 with increasing number of state variables.
5.6
Discussion
In this work methods of simulating equation-based models using the QSS
method with NVIDIA GPUs were investigated which was a first attempt at
this, with some minor success. However, it is worth noting that the work
done in [26] and [12] is more promising for the future. The simulations in
this paper were very slow, compared to simulating the same model on for
instant with a normal CPU. This has to do with memory latency of copying
data back and forth to the GPU device.
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 44 --- #54
44
Chapter 5. Simulation of Equation-Based Models with Quantized State
Systems on Graphics Processing Units
Table 5.1: Execution times and speed-up with the GeForce 8600.
8 state variables
16 state variables
32 state variables
64 state variables
parallel [s]
6.26
8.04
27.02
103.18
sequential [s]
7.07
10.27
45.55
507.38
speed-up
1.129
1.277
1.685
4.917
Table 5.2: Execution times and speed-up with the C1060 using one cluster for
the derivatives of the state variables calculation.
8 state variables
16 state variables
32 state variables
64 state variables
parallel [s]
1.06
8.11
22.91
208.76
sequential [s]
5.71
9.07
47.30
711.00
speed-up
5.387
1.118
2.065
3.406
Table 5.3: Execution times and speedup with the C1060 using all the clusters for
the derivatives of the state variables calculation.
8 state variables
16 state variables
32 state variables
64 state variables
parallel [s]
1.98
7.73
23.73
98.09
sequential [s]
5.71
9.07
47.30
711.00
speed-up
2.884
1.173
1.993
7.248
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 45 --- #55
5.6. Discussion
45
A problem with 256 state variables requires more than (5 ∗ 64 + 1 ∗ 32) ∗
256/8[Bytes] = 11[M b], while a case with 1024 state variables would require
43[Mb]. The side effects of the diverging branches has to be furthermore
reduced.
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 46 --- #56
Chapter 6
Simulation of
Equation-Based Models
with Task Graph Creation
on Graphics Processing
Units
6.1
Introduction
This chapter is mainly based on paper number 4 which was based on [41].
In that paper it was showed that it is possible to automatically generate
simulation code for pure continuous-time models that can be reduced to an
ordinary differential equation system without algebraic loops and where the
initial values of all variables and parameters are known at compile time. A
new back-end module was implemented for the OpenModelica compiler and
measurements were performed: a relative speedup of 4.6 was obtained for one
of the models. The method for finding parallelism in this work is by creating
a large task graph from the equation system, merge this coarse grained task
graph into larger tasks, and then schedule this task graph for execution with
NVIDIA GPUs. Methods of efficiently using the available memory spaces
on the architecture were also presented, which is an important issue that
we shall discuss in Chapter 10. Other ways of using the CUDA architecture
more efficiently were also discussed.
46
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 47 --- #57
6.2. Case Study
6.2
47
Case Study
The model is taken from [15](page 584). The model models the onedimensional wave equation that is given by a partial differential equation of
the following form:
∂2p
∂t2
2
∂ p
= c2 ∂x
2
Here p = p(x, t) is a function of both space and time and we consider
a duct of length 10 where we let −5 ≤ x ≤ 5. We discretize the problem
in the spatial dimension and approximate the spatial derivatives using the
difference approximation:
∂2p
∂t2
−2pi
= c2 pi−1 +pδxi+1
2
where pi = p(x1 + (i − 1)δx) on an equidistant grid and δx is a small
change in distance. The Modelica model in Listing 6.1 is obtained.
model WaveEquationSample
parameter Real L = 10 ” Length o f duct ” ;
parameter Integer n = 30 ”Number o f s e c t i o n s ” ;
parameter Real dL = L/n ” S e c t i o n l e n g t h ” ;
parameter Real c = 1 ;
Real [ n ] p ( s t a r t = f i l l ( 0 , n ) ) ;
Real [ n ] dp ( s t a r t = f i l l ( 0 , n ) ) ;
equation
p [ 1 ] = exp(−(−L/2 ) ˆ2 ) ;
p [ n ] = exp(−(L/2 ) ˆ2 ) ;
dp = der ( p ) ;
f o r i in 2 : n−1 loop
der ( dp [ i ] )=c ˆ2∗( p [ i+1 ]−2∗p [ i ]+p [ i−1 ] ) /dL ˆ 2 ;
end f o r ;
end WaveEquationSample ;
Listing 6.1: Modelica model WaveEquationSample.
6.3
Implementation
The general compilation and simulation process of Modelica models was
described in chapter 2. In this implementation some changes of the normal
compilation process of Modelica models was done. This is depicted in Figure
6.1. A new module was implemented as a small MetaModelica package that
exports a task graph to an external C++ module, which then manipulates
the task graph and finally generates the CUDA code. This module is invoked
with a sorted equation system as input. A task graph is then created from
the equation system. A task graph was described in chapter 3. Crude costs
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 48 --- #58
48
Chapter 6. Simulation of Equation-Based Models with Task Graph
Creation on Graphics Processing Units
for the tasks were used: the cost of unary and binary operations are set
to 1 and the cost of special functions are set to 4 (which should reflect the
fact that a streaming multiprocessor has eight scalar processors but only
two special function units). The cost of communication is set to 100, which
should reflect the latencies to the global memory. After the task graph has
been created a merging algorithm is applied to it. This merging algorithm is
further described in [41].
The merged task graph is then sent to the scheduling phase. We need
to determine in which order the tasks should be executed and whether they
should be executed in parallel on different streaming multiprocessors. This
is a two step process: in the first step the nodes in the merged task graph is
scheduled with the so-called critical path algorithm and then the tasks inside
each node are scheduled. Inside one node the tasks are scheduled using a
first in, first out queue with the tasks to be scheduled. An example of this
approach can be seen in Figure 6.2. There is also a third approach used
by the scheduler. The scheduler tries to find nodes that are operationally
equivalent to other nodes. If they are operationally equivalent they are
scheduled to be executed in parallel on the same streaming multiprocessor
(SIMD style execution). A processor schedule is the result of the scheduling,
an example can be seen in Figure 6.3. From the figure we can see that
the processor schedule contains execution paths and execution path lists
where an execution path is a list of task executed in order. The goal is to
execute one execution path on one streaming multiprocessor and inside one
streaming multiprocessor we should hopefully (if there are several execution
paths) execute in SIMD mode. We can run several blocks in parallel by
using the following technique (remember that we do not know in which
order the different blocks are going to execute): we never execute more
blocks than there are streaming multiprocessors (to avoid dead-locks) and
we synchronize via the global memory. If it is the case that a task has a
dependency with a task that is scheduled on another processor, the scheduler
inserts signals and locks into the schedule and determines what data should
be sent where. In addition to this, special execution paths for communication
are inserted into the schedule. From the schedule code is then generated.
This is done by iterating through the processors schedule one processor at a
time one execution path at a time. Memory coalescing is used to reduce long
off-chip DRAM latencies. 16 variables are read at a time from the device
memory (the size of a coalesced read of 32-bit variables). These variables are
then moved to where they should be in the shared memory on a streaming
multiprocessor.
6.4
Run-time Code and Generated Code
The actual simulation function is given in the code Listing 6.2. A fourth-order
Runge-Kutta method was used, both for the GPU-based implementation
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 49 --- #59
6.4. Run-time Code and Generated Code
49
Modelica Model
OMC Front-end
DAELow
CudaCodegen
Equations
Task Graph
Task Graph
Task Merger
Merged Task Graph
Scheduler
Scheduled Tasks
Code Generator
CUDA Code
Figure 6.1: The process of compiling a Modelica model to CUDA code.
a
c
h
g
e
d
f
h
b
g
e
c
f
d
b
a
Time
Figure 6.2: An example of the task scheduling algorithm.
as well as the normal CPU implementation. In the code below there is a
main for-loop that corresponds to the main simulation loop. The function
execute tasks corresponds to the computation of one of the stages in the
Runge-Kutta solver scheme. This is done in parallel by launching kernels for
the GPU. The various step and increment functions takes care of advancing
the step and adding vectors together. Note that we have four calls to
execute tasks since we have a fourth-order Runge-Kutta solver scheme.
In each iteration device to host copying is done of the vectors with state
variables, which is time-consuming of course.
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 50 --- #60
50
Chapter 6. Simulation of Equation-Based Models with Task Graph
Creation on Graphics Processing Units
Execution Path
Execution Path List
Processor Schedule
Figure 6.3: An example of a schedule for two processors.
// Determine t h e s i z e o f t h e s h a r e d memory n e e d e d .
i n t shmem size = 100 ∗ s i z e o f ( r e a l ) ;
f o r ( i n t s t e p = 0 ; s t e p < s t e p s ; ++s t e p )
{
//Move t h e p o i n t e r s o f t h e r e s u l t a r r a y s f o r w a r d .
r d x += DERIVATIVES ;
r x += STATES ;
r y += ALGEBRAICS ;
// E x e c u t e t h e t a s k s , c a l l i n t e g r a t i o n k e r n e l .
e x e c u t e t a s k s <<<7, 2 0 , shmem size>>>( d dx , d x ,
d y , d c , d l , t) ;
s t e p a n d i n c r e m e n t 1 <<<2, 32>>>( d x , d o l d x ,
d dx , d k , h a l f h ) ;
// Increment t h e time by h a l f a time s t e p .
t += h a l f h ;
//Do two more s t e p s o f t h e RK4 method.
e x e c u t e t a s k s <<<7, 2 0 , shmem size>>>( d dx
d y , d c , d l , t) ;
s t e p a n d i n c r e m e n t 2 <<<2, 32>>>( d x , d o l d
d dx , d k , h a l f h ) ;
e x e c u t e t a s k s <<<7, 2 0 , shmem size>>>( d dx
d y , d c , d l , t) ;
s t e p a n d i n c r e m e n t 3 <<<2, 32>>>( d x , d o l d
d dx , d k , h ) ;
, d x,
x ,
, d x,
x ,
// Increment t h e time a g a i n w i t h h a l f a time s t e p .
t += h a l f h ;
//Do t h e f i n a l i n t e g r a t i o n .
e x e c u t e t a s k s <<<7, 2 0 , shmem size>>>( d dx , d x ,
d y , d c , d l , t) ;
s t e p a n d i n t e g r a t e <<<2, 32>>>( d x , d o l d x ,
d dx , d k , h d i v 6 ) ;
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 51 --- #61
6.5. Measurements
51
// Save t h e new v a l u e s .
cudaMemcpy ( r x , d x , STATES ∗ s i z e o f ( r e a l ) ,
cudaMemcpyDeviceToHost ) ;
cudaMemcpy ( r d x , d dx , DERIVATIVES ∗ s i z e o f ( r e a l ) ,
cudaMemcpyDeviceToHost ) ;
cudaMemcpy ( r y , d y , ALGEBRAICS ∗ s i z e o f ( r e a l ) ,
cudaMemcpyDeviceToHost ) ;
}
Listing 6.2: Main CUDA simulation loop, based on a 4-stage Runge-Kutta solver.
Simulation Time (seconds)
15
E6600
8800 GTS
C1060 single
C1060 double
10
5
0
30
60
120 240 480 960 1920 3840
n
Figure 6.4: Execution time for the WaveEquationSample Modelica model as a
function of the number of sections.
6.5
Measurements
The specification for the two GPU cards used can be seen in table 6.1. The
CPU used was an Intel Core 2 Duo E6600 with 2.4 GHz clock frequency.
Note though that only one core was used. Table 6.2 shows seconds spent
in different parts of the simulation of the test model WaveEquationSample
and the graph in Figure 6.4 shows the execution time for the sample model
as a function of the number of sections.
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 52 --- #62
52
Chapter 6. Simulation of Equation-Based Models with Task Graph
Creation on Graphics Processing Units
Table 6.1: Specifications for the GPUs used.
Streaming Multiprocessors
Scalar Processors
Scalar Processor Clock (MHz)
Single Precision GFLOPS
Double Precision GFLOPS
Memory Amount (MB)
Memory Interface
Memory Clock (MHz)
Memory Bandwidth (GB/s)
PCIe Version
PCIe Bandwidth (GB/s)
CUDA Compute Capability
GeForce 8800 GTS
12
96
1200
346
N/A
320
320-bit
800
64
1.0
4
1.0
Tesla C1060
30
240
1300
933
78
4096
512-bit
800
102
2.0 (1.0 used)
8 (4 used)
1.3
Table 6.2: Seconds spent in the different parts of the simulation of the WaveEquationSample Modelica model.
Task Execution
Shared Mem Allocation
Integration
Memory Transfers
8800 GTS
0.164
1.440
0.417
1.104
C1060 single
0.592
1.426
0.400
1.332
C1060 double
0.389
2.287
0.445
2.278
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 53 --- #63
6.6. Discussion
6.6
53
Discussion
Some general conclusions can be drawn from the measurements.
• A relative speedup of 4.6 with 3840 sections was obtained using single
precision calculations and comparing the GeForce 8800 GTS to the
Intel E6600 CPU.
• Actual computations take a small amount of time and memory transactions take most of the time.
• The simulation times on the CPU approximately doubles when the
model size is doubled. The simulation times for the GPUs instead
rises slower. However, the GPUs need many thread blocks with many
threads to fully utilize their power.
• The computation per variable is low for the model used. If the model
would have had more computations per variable we would most likely
have seen a larger performance increase when using a GPU.
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 54 --- #64
Chapter 7
Compilation of Modelica
Array Computations into
Single Assignment C
(SAC) for Execution on
Graphics Processing Units
7.1
Introudction
This chapter is mainly based on paper 3. In that paper the possibility of
compiling Modelica array equations into an intermediate language, Single
Assignment C (SAC) [39], was investigated. SAC is a language with C-like
syntax but that allows Matlab-style programming on n-dimensional arrays.
The SAC2C SAC compiler can generate highly efficient code and several
auto-parallelizing back-ends have been developed. These back-ends include
POSIX-thread based code for shared memory multi-cores and CUDA-based
code for GPUs. A future plan was to enhance the OpenModelica compiler
with capabilities to detect and compile data-parallel Modelica array equations and/or algorithmic array operations into SAC WITH-loops. A SAC
WITH-loop is the most important construct in the SAC language. In the
paper however, only a feasibility study was conducted. As a first step calls
to SAC array operations in the code generated from OpenModelica were
inserted manually and as a second step parts of the OpenModelica runtime
system was rewritten in SAC code. The paper was about unifying three
technologies OpenModelica, SAC2C and CUDA. Measurements of this new
integrated runtime system with and without CUDA were performed as well
as stand-alone measurements of CUDA code generated with SAC2C.
54
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 55 --- #65
7.2. Single Assignment C (SAC)
55
This chapter is organized as follows. We begin by describing SAC and
its main characteristics. We then continue with the actual implementation work that was done in the paper. After this we provide some of the
measurements from the paper and conclude the chapter with a discussion
section.
7.2
Single Assignment C (SAC)
SAC combines a C-like syntax with Matlab-style programming on n-dimensional
arrays. The highly optimizing compiler SAC2C can generate high performance code from SAC due to its functional underpinnings. Most constructs
in SAC, however, are inherited from C and the overall design policy is that
a C style construct should behave in the same way as it does in C. The
support of non-scalar data structures is a major difference between SAC and
C however. In C the programmer has to allocate and deallocate memory as
needed and sharing of data structures is explicit via the use of pointers. In
SAC there is no notion of pointers and n-dimensional arrays are stateless
data structures. Allocation, reuse and deallocation of memory is handled by
the compiler and runtime system and arrays can be passed to and returned
from functions in the same way as scalar values can. Memory is reused as
soon as possible and array updates are performed in place whenever possible,
this is ensured by the compiler and runtime system.
SAC comes with a very versatile data-parallel programming construct, the
WITH-loop. Here we will just briefly discuss this construct. A modarray
WITH-loop take the general form seen in Listing 7.1.
with {
( l o w e r 1 <= i d x v e c < upper1 ) : e x p r 1 ;
...
( l o w e r n <= i d x v e c < uppern ) : exprn ;
} : modarray ( a r r a y )
Listing 7.1: General form of SAC modarray WITH-loop.
Here idxvec is an identifier and lower i and upper i denote expressions
for which for any i lower i and upper i should evaluate to vectors of identical
length. expri denote arbitrary expressions that should evaluate to arrays
of the same shape and the same element type. Such a WITH-loop defines
an array of the same shape as array is, whose elements are either computed
by one of the expressions or copied from the corresponding position of the
array. As we shall see, the goal is to map Modelica array equations into
SAC WITH-loops.
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 56 --- #66
Chapter 7. Compilation of Modelica Array Computations into Single
Assignment C (SAC) for Execution on Graphics Processing Units
56
7.3
Implementation
We shall discuss the implementation work that was done by using an example
model and show the various compilation steps by use of this model. The
model used is the WaveEquationSample model introduced in Section 6.2 of
this thesis. After instantiating this model the system of equations in Listing
7.2 is obtained.
p [ 0 ] = exp(−(−L / 2 . 0 ) ˆ 2 . 0 ) ;
p [ n−1 ] = exp(−(L / 2 . 0 ) ˆ 2 . 0 ) ;
der ( p [ 0 ] ) = p [ 0 ] ;
...
der ( p [ n−1 ] ) = p [ n−1 ] ;
der ( dp [ 0 ] ) = 0 ;
der ( dp [ 1 ] ) = c ˆ2 . 0 ∗ ( ( p [ 2 ]+(−2 . 0 ∗p [ 1 ]+p [ 0 ] ) ) ∗ dLˆ−2 . 0 ) ;
...
der ( dp [ n−2 ] ) = c ˆ2 . 0 ∗ ( ( p [ n−1 ]+(−2 . 0 ∗p [ n−2 ]+p [ n−3 ] ) ) ∗ dLˆ−2 . 0 ) ;
der ( dp [ n−1 ] ) = 0 ;
Listing 7.2: Instantiated equation code from the WaveEquationSample Modelica
model.
In Listing 7.3 define four expressions (where 0 ≤ Y ≤ n − 1 and 2 ≤
X ≤ n − 3). The expressions corresponds to the various right-hand side
expressions present in the equation system in Listing 7.2.
Expression 1 .
p [Y]
Expression 2 .
c ˆ2 . 0 ∗( ( p [ 2 ] + (−2 . 0 ∗p [ 1 ] + p [ 0 ] ) )∗dLˆ−2 . 0 )
Expression 3 .
c ˆ2 . 0 ∗( ( p [X+1 ] + (−2 . 0 ∗p [X] + p [X−1 ] ) )∗dLˆ−2 . 0 )
Expression 4 .
c ˆ2 . 0 ∗( ( p [ n−1 ] + (−2 . 0 ∗p [ n−2 ] + p [ n−3 ] ) )∗dLˆ−2 . 0 )
Listing 7.3: Definition of expressions from the instantiated equation code from
the WaveEquationSample Modelica model.
The generated C++ code from OpenModelica will then have the structure
as seen in the pseudo code in Listing 7.4.
v o i d functionODE ( . . . ) {
// I n i t i a l code
tmp0 = exp( (−pow( (L / 2 . 0 ) , 2 . 0 ) ) ) ;
tmp1 = exp( (−pow( ( (−L) / 2 . 0 ) , 2 . 0 ) ) ) ;
s t a t e D e r s [ 0 . . . (NX/2 )−1 ] = E x p r e s s i o n 1 ;
s t a t e D e r s [NX/2 ] = E x p r e s s i o n 2 ;
s t a t e D e r s [ (NX/2 + 1 ) . . . (NX − 2 ) ] = E x p r e s s i o n 3 ;
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 57 --- #67
7.4. Measurements
57
s t a t e D e r s [NX−1 ] = E x p r e s s i o n 4 ;
}
Listing 7.4: Generated equation code from the WaveEquationSample Modelica
model.
The code in f unctionODE is rewritten into SAC code which can be seen
in Listing 7.5.
with {
( [ 0 ] <= i v < [NX/2 ] ) : E x p r e s s i o n 1 ;
( [NX/2 ] <= i v <= [NX/2 ] ) : E x p r e s s i o n 2 ;
( [NX/2 ] < i v < [NX − 1 ] : E x p r e s s i o n 3 ;
( [NX−1 ] <= i v <= [NX−1 ] ) : E x p r e s s i o n 4 ;
} : modarray ( s t a t e V a r s ) ;
Listing 7.5: SAC with-loop corresponding to the generated equation code from
the WaveEquationSample model.
A second approach that was tried in the paper was to rewrite the actual
simulation loop in SAC. In the first approach we make at least one call to
a SAC binary in each time step, which we shall see in the measurements
section is very time consuming. A simple Euler loop was written in SAC,
which can be seen in Listing 7.6, where f unctionODE as the same as earlier.
while ( time < s t o p )
{
s t a t e s = s t a t e s ∗ timestep ∗ d e r i v a t i v e s ;
d e r i v a t i v e s = functionODE ( s t a t e s , c , 1 , dL) ;
time = time + t i m e s t e p ;
}
Listing 7.6: A main Euler simulation loop written in SAC.
7.4
Measurements
All the experiments were run on CentOS Linux with Intel Xeon 2.27GHz
processor and 24Gb of RAM, 32kb of L1 cache, 256kb of L2 cache per
core and 8Mb of processor level 3 cache. SAC2C measurements were run
with version 16874, Gcc 4.5 and version 5625 of OpenModelica was used.
Figure 7.1 shows time measurements for the modified generated code from
the WaveEquationSample Modelica model with functionODE implemented
purely in C and in SAC respectively.
Figure 7.2 shows time measurements for the WaveEquationSample Modelica model with the modified solver loop.
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 58 --- #68
58
Chapter 7. Compilation of Modelica Array Computations into Single
Assignment C (SAC) for Execution on Graphics Processing Units
'%!!"
'$!!"
*+,-./0,1234"
!"#$%&'(
'#!!"
*+,-./0,1234"5267"849"
'!!!"
&!!"
%!!"
$!!"
#!!"
!"
!"
(!!"
'!!!"
'(!!"
#!!!"
%(
#(!!"
)!!!"
)(!!"
$!!!"
$(!!"
Figure 7.1: The WaveEquationSample model run for different number of sections
(n) with functionODE implemented as pure OpenModelica-generated C++ code as
OpenModelica-generated C++ code with functionODE implemented in SAC. Start
time 0.0, stop time 1.0, step size 0.002 and without CUDA.
!"#$%&!'
(!"
'!"
*+,-./0,1234"
&!"
*+,-./0,1234"5267"849"
%!"
$!"
#!"
!"
!"
#!!!"
$!!!"
%!!!"
&!!!"
'!!!"
(!!!"
)!!!"
%'
Figure 7.2: The WaveEquationSample model run for different number of sections
(n) with functionODE and euler loop implemented as pure OpenModelica-generated
C++ code and as OpenModelica-generated C++ code with functionODE and euler
loop implemented in SAC. Start time 0.0, stop time 10.0, step size 0.002 and
without CUDA.
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 59 --- #69
7.5. Discussion
7.5
59
Discussion
In this work ways to make use of the efficient execution of array computations
that SAC and SAC2C offer, in the context of Modelica and OpenModelica,
were investigated. It is common to have large arrays of state variables in
Modelica code, as in the model used in this chapter. It was shown that it is
possible to generate C++ code from OpenModelica that can call compiled
SAC binaries for execution of heavy array computations. It was also shown
that it is possible to rewrite the main simulation loop of the runtime solver
in SAC. To conclude, the potential for the use of SAC as an intermediate
language and runtime language was shown. At least it has potential for
code fragments that the OpenModelica compiler can identify as potentially
data-parallel. With the new implementation of handling of unexpanded
Modelica arrays in the OpenModelica compiler, this work has some future
promise.
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 60 --- #70
Chapter 8
Extending the Algorithmic
Subset of Modelica with
Explicit Parallel
Programming Constructs
for Multi-core Simulation
8.1
Introduction
This chapter is based on paper 6. More or less all the previous work described
in this thesis has focused on automatic parallelization of equation-based
models. That is, it is entirely up to the compiler of finding and analyzing
parallelism. In this chapter however, a different approach is investigated.
In this chapter we introduce several extensions to the algorithmic part of
the Modelica language. In other words it is up to the end user modeler to
express which parts of a model that should be simulated in parallel and
corresponding OpenCL code is generated. The new constructs include parallel
variables, parallel functions, parallel for-loops, etc. It is very important
to note that these new language constructs are not part of the official
language specification, they have rather been added to the OpenModelica
compiler for experimental reasons. A similar approach was taken with the
NestStepModelica implementation [27].
8.2
Implementation
In this section we shall briefly introduce some of the new language constructs.
60
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 61 --- #71
8.2. Implementation
8.2.1
61
Parallel Variables
Recall that all data to be used on the GPU (the device) must be copied
explicitly by the programmer. Therefor a special keyword has been added
that specifically tells the compiler that a variable should be allocated on the
device. An example of this is given in Listing 8.1.
function p a r v a r
Integer m = 1 0 0 0 ;
Integer A[m, n ] ;
Integer B[m, n ] ;
p a r a l l e l Integer pA [m,m] ;
p a r a l l e l Integer pB [m,m] ;
end p a r v a r ;
Listing 8.1: Example of parallel variables in Modelica.
The first three variables are located in the normal host memory while the
two last matrices will be allocated on the device. We can then do the copying
of data between the host memory and the device memory in a normal fashion.
The assignments A := B, pA := A, B := pB and pA := pB would all be
valid in function parvar.
8.2.2
Parallel Functions
With the help of the keyword parallel, parallel functions can be defined in
Modelica. They correspond to OpenCL functions defined in kernel files or
CUDA device functions and these functions are for distributed independent
parallel execution. A parallel function must be called from an other parallel
function, from a kernel function (see below) or from inside a parfor loop.
Parallel functions can neither have parfor loops inside of them nor is it
possible to declare explicit parallel variables inside of them (since a parallel
function is already executing on the GPU device).
8.2.3
Kernel Functions
Kernel functions correspond to CUDA global functions and to OpenCL
kernel functions. They can be called from serial host code and are entry
functions for parallel execution. They can not, however, be called from the
body of a parfor loop or from other kernel functions. They can not have
parfor loops in their bodies nor can they have any explicit parallel variables.
They are defined by using the kernel keyword, see Listing 8.2.
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 62 --- #72
62
Chapter 8. Extending the Algorithmic Subset of Modelica with Explicit
Parallel Programming Constructs for Multi-core Simulation
kernel function a r r a y E l e m W i s e M u l t i p l y
input Integer A[ : ] ;
input Integer B[ : ] ;
output Integer C[ : ] ;
Integer i d ;
algorithm
i d := g l o b a l T h r e a d I d ( ) ;
C[ i d ] := m u l t i p l y (A[ i d ] ,B[ i d ] ) ;
end a r r a y E l e m W i s e M u l t i p l y ;
Listing 8.2: Example of kernel function in Modelica.
In the function above a parallel function multiply is called. Note the
kernel keyword before the function.
8.2.4
Parallel For-Loops
A parallel for-loop is written using the parfor keyword and it is a loop
meant to be executed in a parallel fashion using a device. There are some
constraints in order to make this work. First of all, all variables referenced
inside a loop must be parallel variables. Secondly, one iteration can not have
a loop-carried dependency to another iteration. An example of a function
with a parallel loop is given in Listing 8.3.
function parMatrixMult
input Integer m;
input Integer A[m,m] ;
input Integer B[m,m] ;
output Integer C[m,m] ;
// p a r a l l e l c o u n t e r p a r t s o f t h e v a r i a b l e s
p a r a l l e l Integer pm ;
p a r a l l e l Integer [m,m] pA ;
p a r a l l e l Integer [m,m] pB ;
p a r a l l e l Integer [m,m] pC ;
// I n t e g e r temp
p a r a l l e l Integer ptemp ;
algorithm
pm := m;
pA := A;
pB := B ;
parfor i in 1 :m loop
f o r j in 1 :pm loop
ptemp := 0 ;
f o r h in 1 :pm loop
ptemp := m u l t i p l y (pA [ i , h ] ,pB [ h , j ] )+ptemp ;
end f o r ;
pC [ i , j ] := ptemp ;
end f o r ;
end parfor ;
// copy b a c k C. No o t h e r copy b a c k needed
C := pC ;
end parMatrixMult ;
Listing 8.3: Example of parralel for-loops in Modelica.
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 63 --- #73
8.3. Measurements
63
In the code above the function multiply is a parallel function. Note that
the variables referenced inside the loop all are parallel variables. It is enough
to specify the parfor keyword for the outermost loop, the inner loops will
all be considered as parallel loops. The iterations of the loop specified with
the parfor keyword are equally distributed among available processors. If
there are more iterations than threads then some threads might perform
more than one iteration.
8.2.5
OpenCL Functionalities
Some additional features have been added for management and execution of
parallel operations.
• oclbuild(String) Builds an OpenCL source file and returns an OpenCL
program object.
• oclkernel(oclprogram, string) The first argument is a previously built
OpenCL program and the second argument is a kernel. The function
creates an OpenCL kernel object.
• oclsetargs(oclkernel,...) This function takes a previously created kernel
object and a variable number of arguments. It sets each argument to
one in the kernel definition.
• oclexecute(oclkernel) Executes the specified kernel.
8.2.6
Synchronization and Thread Management
There are also some features for managing threads and synchronizations,
they are briefly described below.
• globalThreadId() This function can only be called from a parallel or
kernel function and it returns the global id of the current thread.
• localThreadId() This function can only be called from a parallel or
kernel function and it returns the local id of the current thread (not
finalized).
• globalBarrier() A global barrier that makes sure that all threads reach
this point before any thread is allowed to continue.
• localBarrier() Used to synchronize all local threads (not finalized).
8.3
Measurements
Measurements from simulating two models from the implemented benchmark
suite is presented in this section. All simulations where run with time step
0.2, with the DASSL solver, start time 0.0 and with a stop time of 0.2 seconds
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 64 --- #74
64
Chapter 8. Extending the Algorithmic Subset of Modelica with Explicit
Parallel Programming Constructs for Multi-core Simulation
(it makes sense with the same time step and duration since we are dealing
with purely algorithmic models). The time measurement is taken as the
difference from when the simulation loop start and simulation loop finishes.
• Matrix Multiplication. A M×K matrix C is produced from multiplying
an M×N matrix A by an N×K matrix B. A considerable speedup
has been achieved as a result of parallel simulation of this model
on parallel platforms since this model presents a very great level of
data-parallelism.
• LU Decomposition. The Gaussian Elimination method is used to
decompose a matrix to lower and upper triangular forms, which can
be used for solving a system of linear equations Ax=B. The size of the
problem were successively increased the values of the parameters M,
N, and K of matrices A and B (both matrices had the same size).
• Stationary Heat Conduction. This model models the transformation
of energy in stationary surfaces. Thermal energy transfers to surfaces
with lower temperatures from surfaces with higher temperatures occurs.
A parameter N determines the size of the models which refers to the
size of the surface and an equidistant grid.
For executing sequential code (generated by the old OpenModelica compiler): the Intel Xeon E5520 CPU, with 16 cores, each with 2.27 GHz clock
frequency. For executing parallel code by our new code generator the same
CPU was used and the NVIDIA Fermi-Tesla M2050 GPU. The simulation
execution times are used as results to give us information regarding to the
following considerations. The measurements were performed to validate that
the code generator generates efficient parallel code and to ensure that the
Modelica language extensions are successfully targeted toward the OpenCL
architecture. The time plots can be seen in Figure 8.1, Figure 8.2 and Figure
8.3 respectively.
8.4
Discussion
In this section some novel language constructs for the algorithmic part of
the Modelica language have been discussed. Several measurements were
provided from a benchmark test suite, MPAR, containing models using
these new language constructs. The models contains for instance heavy
computations over large matrices and considerable speedups compared to
normal CPU execution were obtained. It is important to once more note
that these language constructs are not part of the official Modelica language
specification, rather they have been implemented in the OpenModelica
compiler for experimental purposes. The results obtained are not surprising
considering that we are studying the imperative parts of the Modelica
language.
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 65 --- #75
Simulation Time (seconds)
8.4. Discussion
65
CPU E5520 (Serial)
CPU E5520 (Parallel)
GPU M2050 (Parallel)
600
400
200
0
16
32
64
128
256
M, N, K
Figure 8.1: Simulation Time Plot for Matrix Multiplication Model as a Function
of Model Parameter M,N, and K.
Simulation Time (seconds)
·104
CPU E5520 (Serial)
CPU E5520 (Parallel)
GPU M2050 (Parallel)
1
0.8
0.6
0.4
0.2
0
16
32
64
128
256
M, N, K
Figure 8.2: Simulation Time Plot for LU Decomposition Model as a Function of
Model Parameters M,N, and K.
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 66 --- #76
66
Chapter 8. Extending the Algorithmic Subset of Modelica with Explicit
Parallel Programming Constructs for Multi-core Simulation
Simulation Time (seconds)
6,000
CPU E5520 (Serial)
CPU E5520 (Parallel)
GPU M2050 (Parallel)
4,000
2,000
0
32
64
128
256
512 1024 2048
N
Figure 8.3: Simulation Time Plot for Heat Conduction Model as a Function of
Model Parameter N.
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 67 --- #77
Chapter 9
Compilation of
Unexpanded Modelica
Array Equations for
Execution on Graphics
Processing Units
Traditionally most Modelica compilers have expanded arrays into scalars and
array equations into scalar equations, one equations for each array element.
This has advantages in providing specific symbolic manipulation for each
array element equations. However, this approach also has serious disadvantages when trying to exploit data parallelism from arrays. In this chapter an
approach is investigated to keep arrays unexpanded throughout the Modelica
compilation process in order to facilitate exploiting data parallelism, e.g. for
efficient execution on GPUs. The main approach is to avoid expanding array
operations and to combine many references of array elements into references
of whole arrays or array slices.
9.1
Introduction
The present OpenModelica Compiler (OMC) handles array-related constructs
such as arrays of state variables, array equations and for-equations by expanding them into scalar variables and scalar equations. Work has been
started resulting in a preliminary prototype to provide functionality to keep
arrays of state variables and array equations unexpanded throughout the
compilation process. This functionality is turned on by a compilation flag.
Several changes in the OMC compilation process are needed. This involves
67
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 68 --- #78
68
Chapter 9. Compilation of Unexpanded Modelica Array Equations for
Execution on Graphics Processing Units
changes in more or less all parts of the compilation process (in the front-end,
in the middle parts, and in the code generation part). The most difficult
task involves changes in the equation sorting and equation processing part
of the compilation process. The focus in this chapter is on the equation
sections of Modelica; array constructs in algorithmic sections of Modelica are
discussed in Chapter 8. Keeping array equations and arrays of state variables
unexpanded opens up the possibility of generating more efficient code for
execution on parallel architectures, for instance GPUs. The equation handling parts in the OpenModelica compilation process were briefly described
in Chapter 2. By keeping array equations and array variables unexpanded
the equation sorting should become faster since the number of equations
will be lower. Keeping array equations unexpanded results in smaller matrices and data structures thus leading to less memory consumption and less
compilation time. Keeping array equations unexpanded is also beneficial for
normal serial code since the number of statements that are generated in the
final executable code is reduced. One could for instance generate a for-loop
instead of many assignments statements. Finally, note that in the traditional
approach when array equations are expanded, at the code generation phase
the information about which equations belongs together has been lost, thus
loosing opportunities for generation of data-parallel code. Modelica models
containing operations over large arrays of state variables often originate from
models derived from a discretization of a partial differential equation, one
such model was given in Listing 6.1.
In this chapter we begin by describing the problem with the current approach in Section 9.6. We then continue in Section 9.3 and Section 9.4 with
describing some initial algorithms that should be applied to array equations
and array for-equations so that they can be handled easier in the equation
sorting phase which is described in Section 9.5. We then continue with a
section on the actual implementation in OMC, Section 9.6. Finally, we end
with a discussion section in Section 9.7.
9.2
Problems with Expanding Array Equations
The following are three problems with the current approach of expanding
array equations. The mentioned loss of array-related information makes it
more difficult e.g. to generate data-parallel code
• The current equation matching algorithm in the OMC back-end assumes that array equations and array variables have all been expanded
into scalar equations and scalar variables, thus leading to large data
structures, large memory consumption and long compilation times as
a result.
• At the code generation phase all the original explicit array operations
in the model have been lost.
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 69 --- #79
9.3. Splitting For-Equations with Multiple
Equations in their Bodies
69
• The dimension sizes of arrays and the number of equations related to
specific array equations have been lost.
9.3
Splitting For-Equations with Multiple
Equations in their Bodies
The following can be concluded from the Modelica Language Specification
[25] regarding for-equations: since the solution order of the equations in a
Modelica model is not specified it does not matter if we split a for-equation
into multiple for-equations with one equation each (with the current approach
for-equations are expanded, merged into the larger model equation system,
and the ordering might change). For example, in Listing 9.2 and Listing 9.3
the for-equation in the model is transformed into several for-equations.
9.3.1
Algorithm
An algorithm in pseudo code is given in Listing 9.1.
for each equation in the for - equation body do
create a separate for - equation containing the equation ,
use the same head
Listing 9.1: Splitting array for-equations with multiple equations in the body.
9.3.2
Examples
An example of using this splitting approach is given below in Listing 9.2 and
9.3.
model TestModel
parameter Integer n = 4 ;
Real u [ n ] ( s t a r t = 1 . 0 ) ;
Real x [ n ] ( s t a r t = 1 . 0 ) ;
equation
f o r y in 1 : n loop
der ( u [ y ] )=−0 . 1 6 7 ;
der ( x [ y ] )=8 0 ;
end f o r ;
end TestModel ;
Listing 9.2: Modelica model containing a for-equation with multiple equations in
the body.
The model in Listing 9.2 can be transformed into the model in Listing
9.3.
model TestModel
parameter Integer n = 4 ;
Real u [ n ] ( s t a r t = 1 . 0 ) ;
Real x [ n ] ( s t a r t = 1 . 0 ) ;
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 70 --- #80
70
Chapter 9. Compilation of Unexpanded Modelica Array Equations for
Execution on Graphics Processing Units
equation
f o r y in 1 : n loop
der ( u [ y ] )=−0 . 1 6 7 ;
end f o r ;
f o r y in 1 : n loop
der ( x [ y ] )=8 0 ;
end f o r ;
end TestModel ;
Listing 9.3: Modelica model containing for-equations with one equation each in
their bodies.
9.4
Transforming For-Equations and Array
Equations into Slice Equations
In order to have all equations on a standard uniform format it is suitable to
transform all for-equations1 and array equations into slice equations. Such
equations have a simple form where all array references have the shape of
array slices which are indexed.
9.4.1
Algorithm
An algorithm in pseudo code for conversion of for-equations and array
equations to slice equations is given in Listing 9.4. The reason is to simplify
index reduction, BLT sorting, etc. Basically there are a few forms: equations
containing whole arrays (without any indexing), or array slices, or array
elements, or for-equations. Single scalar array elements can be eliminated
by combining them into slices. For-equations can be transformed into array
equations with slices. Whole arrays can be trivially converted to a slices
that are the same as the array (e.g. from 1 to end). Overlapping array slices
is not handled in the current algorithm but the algorithm can be extended
with the following approach: partition the slices into smaller slices so that
the overlapping part becomes its own slice.
for each equation do
case equation is for - equation
for each for - equation iterator do
case iterator used as an array index
replace by computing an array slice of the array indexing
using the dimension data from the for - equation head
remove for - equation head , use only body equation
otherwise
replace by expanding into an array constructor with
iterator ( s ) using the dimension data ,
from the for - equation head
1 Another approach could be not to transform for-equations. For instance algorithmic
for-loops in algorithm sections are currently handled as they are.
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 71 --- #81
9.4. Transforming For-Equations and Array
Equations into Slice Equations
71
remove for - equation head , use only body equation
otherwise
for each variable reference ( if not already slice reference )
create a slice reference using the dimension information
for that variable .
Listing 9.4: Splitting array for-equations with multiple equations in the body.
9.4.2
Examples
Several examples of using this approach is given below. The model in Listing
9.5 can be transformed into the model in Listing 9.6.
model TestModel
parameter Integer n = 4 ;
Real u [ n ] ( s t a r t = 1 . 0 ) ;
Real x [ n ] ( s t a r t = 1 . 0 ) ;
equation
f o r y in 1 : n loop
der ( u [ y ] )=−0 . 1 6 7 ;
end f o r ;
f o r y in 1 : n loop
der ( x [ y ] )=8 0 ;
end f o r ;
end TestModel ;
Listing 9.5: Modelica TestModel model containing for-equations.
model TestModel
parameter Integer n = 4 ;
Real u [ n ] ( s t a r t = 1 . 0 ) ;
Real x [ n ] ( s t a r t = 1 . 0 ) ;
equation
der ( u [ 1 : n ] )=−0 . 1 6 7 ;
der ( x [ 1 : n ] )=8 0 ;
end TestModel ;
Listing 9.6: Modelica TestModel model containing slice-equations.
The model in Listing 9.7 can be transformed into the model in Listing
9.8.
model WaveEquationSample
import M o d e l i c a . S I u n i t s ;
parameter S I u n i t s . L e n g t h L = 10 ” Length o f duct ” ;
parameter Integer n = 30 ”Number o f s e c t i o n s ” ;
parameter S I u n i t s . L e n g t h d l = L/n ” S e c t i o n l e n g t h ” ;
parameter S I u n i t s . V e l o c i t y c = 1 ;
S I u n i t s . P r e s s u r e [ n ] p ( each s t a r t = 1 . 0 ) ;
Real [ n ] dp ( s t a r t = f i l l ( 0 , n ) ) ;
equation
p [ 1 ] = exp(−(−L/2 ) ˆ2 ) ;
p [ n ] = exp(−(L/2 ) ˆ2 ) ;
dp = der ( p ) ; // Array e q u a t i o n
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 72 --- #82
72
Chapter 9. Compilation of Unexpanded Modelica Array Equations for
Execution on Graphics Processing Units
f o r i in 2 : n−1 loop // f o r−e q u a t i o n h e a d e r
der ( dp [ i ] ) = c ˆ2∗( p [ i+1 ] − 2 ∗ p [ i ] + p [ i−1 ] ) /dL ˆ 2 ;
end f o r ;
end WaveEquationSample ;
Listing 9.7: Modelica WaveEquationSample model containing one array equation
one for-equation.
model WaveEquationSample
import M o d e l i c a . S I u n i t s ;
parameter S I u n i t s . L e n g t h L = 10 ” Length o f duct ” ;
parameter Integer n = 30 ”Number o f s e c t i o n s ” ;
parameter S I u n i t s . L e n g t h d l = L/n ” S e c t i o n l e n g t h ” ;
parameter S I u n i t s . V e l o c i t y c = 1 ;
S I u n i t s . P r e s s u r e [ n ] p ( each s t a r t = 1 . 0 ) ;
Real [ n ] dp ( s t a r t = f i l l ( 0 , n ) ) ;
equation
p [ 1 ] = exp(−(−L/2 ) ˆ2 ) ;
p [ n ] = exp(−(L/2 ) ˆ2 ) ;
dp [ 1 : n ] = der ( p [ 1 : n ] ) ;
der ( dp [ 2 : n−1 ] ) = c ˆ2∗( p [ 3 : n ] − 2 ∗ p [ 2 : n−1 ] + p [ 1 : n−2 ] ) /dL ˆ 2 ;
end WaveEquationSample ;
Listing 9.8: Modelica WaveEquationSample model containing slice-equations.
9.5
Matching and Sorting of Unexpanded Array Equations
Here an outline of matching and sorting (see Chapter 2) of unexpanded array
equations is given, for at least a subset of possible models. The algorithm
assumes that the model is balanced (same number of equations and variables)
and there are no overlapping array reference slices (array slices are nonoverlapping if each array element belongs to at most one slice). Handling
overlapping array reference slices needs some modifications of the algorithm:
partition the slices into smaller slices so that the overlapping part becomes
its own slice.
9.5.1
Algorithm
The algorithm is divided into several steps, shown in Listing 9.9, 9.10, 9.11,
9.12, 9.13 and 9.14.
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 73 --- #83
9.5. Matching and Sorting of Unexpanded Array Equations
73
for each equation do
for each variable reference do
case not array slice reference
insert the index of variable in the set for the equation .
add a minus ( -) sign if state ,
no minus sign if derivative of state .
otherwise array slice reference
insert the index of variable in the set for the equation
store the array slice reference .
add a minus ( -) sign if state ,
no minus sign if derivative of state .
Listing 9.9: Step 1: Generate a list with one set for each equation, containing
all variable references in the equation.
create an array of lists of booleans , one list of booleans
for each variable ( empty lists to begin with )
for each set in the list from step 1 do
for each variable reference in the set do
if the variable reference index is negative then skip
else
if variable reference has a slice that overlaps
with another slice in the list from the array
( with the same variable name )
then return
else insert a variable reference with slice
information into the list for the correct array entry
if overlapping slices we can not continue with
the remaining steps
Listing 9.10: Step 2: Detect overlapping array reference slices.
Check if the number of equations equals the number of variables
if not the algorithm can not continue with the remaining steps
Listing 9.11: Step 3: Check to make sure that the model is balanced.
for each set in the list from step 1 do
create a new row in the matrix
for each variable reference in the set do
if the variable reference is not negative insert into row
else do nothing
Listing 9.12: Step 4: Building the incidence matrix (see Chapter 2).
Do the matching as usual but now we also need to check
that the dimension on the left side equals the
dimension on the right side .
Listing 9.13: Step 5: Extended version of matching.
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 74 --- #84
74
Chapter 9. Compilation of Unexpanded Modelica Array Equations for
Execution on Graphics Processing Units
As before , no major changes needed .
Listing 9.14: Step 6: Equation sorting.
9.5.2
Examples
Several examples of the algorithm in the previous section are given in this
section.
Example 1
The Modelica model for the first example is given in Listing 9.15.
model NonExpandedArray1
parameter Integer p=5 0 0 ;
Real x [ p ] ;
Real y [ p ] ;
Real z [ p ] ;
Real q [ p ] ;
Real r [ p ] ;
equation
2 . 3 2 3 2 ∗y + 2 . 3 2 3 2 ∗z + 2 . 3 2 3 2 ∗q
der ( y ) = 2 . 3 2 3 2 ∗x + 2 . 3 2 3 2 ∗z +
2 . 3 2 3 2 ∗x + 2 . 3 2 3 2 ∗y + 2 . 3 2 3 2 ∗q
der ( r ) = 2 . 3 2 3 2 ∗x + 2 . 3 2 3 2 ∗y +
2 . 3 2 3 2 ∗x + 2 . 3 2 3 2 ∗y + 2 . 3 2 3 2 ∗z
end NonExpandedArray1 ;
+ 2 .3232∗r
2 . 3 2 3 2 ∗q +
+ 2 .3232∗r
2 . 3 2 3 2 ∗z +
+ 2 .3232∗r
= der ( x ) ;
2 .3232∗r ;
= der ( z ) ;
2 . 3 2 3 2 ∗q ;
= der ( q ) ;
Listing 9.15: Example 1: Modelica Model NonExpandedArray1.
eq
1
2
3
4
5
x[1:n], -y[1:n], -z[1:n], -q[1:n], -r[1:n]
-x[1:n], y[1:n], -z[1:n], -q[1:n], -r[1:n]
-x[1:n], -y[1:n], z[1:n], -q[1:n], -r[1:n]
-x[1:n], -y[1:n], -z[1:n], -q[1:n], r[1:n]
-x[1:n], -y[1:n], -z[1:n], q[1:n], -r[1:n]
The above model has no overlapping slices and the model is balanced. The
above model will result in the following matrix.








eq
1
2
3
4
5
der(x[1 : n])
1
0
0
0
0
=> Sorting =>
der(y[1 : n])
0
1
0
0
0
der(z[1 : n]) der(q[1 : n])
0
0
0
0
1
0
0
0
0
1
der(r[1 : n])
0
0
0
1
0








‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 75 --- #85
9.5. Matching and Sorting of Unexpanded Array Equations








eq
1
2
3
5
4
der(x[1 : n]) der(y[1 : n])
1
0
0
1
0
0
0
0
0
0
75
der(z[1 : n]) der(q[1 : n]) der(r[1 : n])
0
0
0
0
0
0
1
0
0
0
1
0
0
0
1
Example 2
The Modelica model for the second example is given in Listing 9.16.
model WaveEquationSample
import M o d e l i c a . S I u n i t s ;
parameter S I u n i t s . L e n g t h L = 10 ” Length o f duct ” ;
parameter Integer n = 30 ”Number o f s e c t i o n s ” ;
parameter S I u n i t s . L e n g t h d l = L/n ” S e c t i o n l e n g t h ” ;
parameter S I u n i t s . V e l o c i t y c = 1 ;
S I u n i t s . P r e s s u r e [ n ] p ( each s t a r t = 1 . 0 ) ;
Real [ n ] dp ( s t a r t = f i l l ( 0 , n ) ) ;
equation
p [ 1 ] = exp(−(−L/2 ) ˆ2 ) ;
p [ n ] = exp(−(L/2 ) ˆ2 ) ;
dp = der ( p ) ;
f o r i in 2 : n−1 loop
der ( dp [ i ] ) = c ˆ2∗( p [ i+1 ] − 2 ∗ p [ i ] + p [ i−1 ] ) /dL ˆ 2 ;
end f o r ;
end WaveEquationSample ;
Listing 9.16: Example 2: Modelica model WaveEquationSample.
=> Transform for-equation =>
model WaveEquationSample
import M o d e l i c a . S I u n i t s ;
parameter S I u n i t s . L e n g t h L = 10 ” Length o f duct ” ;
parameter Integer n = 30 ”Number o f s e c t i o n s ” ;
parameter S I u n i t s . L e n g t h d l = L/n ” S e c t i o n l e n g t h ” ;
parameter S I u n i t s . V e l o c i t y c = 1 ;
S I u n i t s . P r e s s u r e [ n ] p ( each s t a r t = 1 . 0 ) ;
Real [ n ] dp ( s t a r t = f i l l ( 0 , n ) ) ;
equation
p [ 1 ] = exp(−(−L/2 ) ˆ2 ) ;
p [ n ] = exp(−(L/2 ) ˆ2 ) ;
dp = der ( p ) ;
der ( dp [ 2 : n−1 ] ) = c ˆ2∗( p [ 3 : n ] − 2 ∗ p [ 2 : n−1 ] + p [ 1 : n−2 ] ) /dL ˆ 2 ;
end WaveEquationSample ;
Listing 9.17: Example 2: Modelica model WaveEquationSample after transformation.








‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 76 --- #86
76
Chapter 9. Compilation of Unexpanded Modelica Array Equations for
Execution on Graphics Processing Units
eq
1
2
3
4
-p[1]
-p[n]
p[1:n], -dp[1:n]
dp[2:n-1], -p[3:n], -p[2:n-1], -p[1:n-2]
In this model there are no overlapping slices and the model is balanced.
The above model will result in the following incidence matrix. The columns
dp[1] and dp[n] result from the check in step 2, which is an extended version.






eq
1
2
3
4
der(dp[2 : n − 1])
0
0
0
1

der(p[1 : n]) dp[1] dp[n]
0
0
0 

0
0
0 

1
0
0 
0
0
0
=> This causes Pantelides algorithm[18] to detect that equation 1 and 2
must be derived to get an equation for dp[1] and dp[n], where p[1] and p[n]
are dummy states =>


eq der(dp[2 : n − 1]) der(p[1 : n]) dp[1] dp[n] p[1] p[n]
 1
0
0
0
0
1
0 


 2
0
0
0
0
0
1 


 3
0
1
0
0
0
0 


 4
1
0
0
0
0
0 


 5
0
0
1
0
0
0 
6
0
0
0
1
0
0
=> Sorting =>

eq der(dp[2 : n − 1])
 4
1

 3
0

 5
0

 6
0

 1
0
2
0
der(p[1 : n])
0
1
0
0
0
0

dp[1] dp[n] p[1] p[n]
0
0
0
0 

0
0
0
0 

1
0
0
0 

0
1
0
0 

0
0
1
0 
0
0
0
1
Example 3
The Modelica model for the third example is given in Listing 9.18.
class ArraySlice1
Real a [ 4 ] ;
equation
a [ {1 ,3} ] = a [ {2 ,4} ] ;
a [ 1 ]=time ;
a [ 4 ]=1 ;
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 77 --- #87
9.6. Implementation
77
end A r r a y S l i c e 1 ;
Listing 9.18: Example 3: Modelica model ArraySlice1.
eq
1
2
3
4
a[1], a[2]
a[3],a[4]
a[1]
a[4]
The above model has no overlapping slices and the model is balanced. The
above model will result in the following matrix.






eq
1
2
3
4

a[1] a[2] a[3] a[4]
1
1
0
0 

0
0
1
1 

1
0
0
0 
0
0
0
1
eq
3
1
4
2

a[1] a[2] a[3] a[4]
1
0
0
0 

1
1
0
0 

0
0
0
1 
0
0
1
1
=> Sorting =>






9.6
Implementation
In Listing 9.19 some of the code of the main execution flow of the OpenModelica compiler is presented. See also Figure 9.1. The main point of entry
is the function translateFile. We shall describe the main changes to the
different phases of the compilation process in the different sections below.
• Instantiation The instantiation is started with a call to function instantiate from translateFile in Listing 9.19. See Section 9.6.1.
• Lowering The lowering is started with a call to function backendDAE.lower from optimizeDae in Listing 9.19. See Section 9.6.2.
• Equation Sorting and Matching The equation sorting and matching is
started with a call to function BackendDAEUtil.getSolvedSystem from
optimizeDAE in Listing 9.19. See Section 9.6.3.
• Code Generation The entry function to the code generation is function
simcodegen which is called from optimizeDae in Listing 9.19. See
Section 9.6.5.
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 78 --- #88
78
Chapter 9. Compilation of Unexpanded Modelica Array Equations for
Execution on Graphics Processing Units
Figure 9.1: Main execution flow (function calls) of the OpenModelica compiler.
protected function t r a n s l a t e F i l e
” function : translateFile
This f u n c t i o n i n v o k e s t h e t r a n s l a t o r on a s o u r c e f i l e .
The argument s h o u l d be a l i s t with a s i n g l e f i l e name ,
with t h e r e s t o f t h e l i s t b e i n g an o p t i o n a l
l i s t o f l i b r a r i e s and .mo− f i l e s i f t h e f i l e i s a .mo− f i l e ”
input l i s t <S t r i n g > i n S t r i n g L s t ;
algorithm
:= m a t c h c o n t i n u e ( i n S t r i n g L s t )
local
Absyn.Program p , p L i b s ;
l i s t <SCode.Element> s c o d e ;
DAE.DAElist d 1 , d ;
String s , str , f ;
l i s t <S t r i n g > l i b s ;
Absyn.Path cname ;
...
Env.Cache c a c h e ;
Env.Env env ;
DAE.FunctionTree f u n c s ;
l i s t <A b s y n . C l a s s > c l s ;
// A .mo− f i l e , f o l l o w e d by an o p t i o n a l l i s t o f
// e x t r a .mo− f i l e s and l i b r a r i e s . The l a s t c l a s s
// i n t h e f i r s t f i l e w i l l be i n s t a n t i a t e d .
case ( f : : l i b s )
equation
...
isModelicaFile ( f ) ;
// Parse t h e f i r s t f i l e .
( p a s Absyn.PROGRAM( c l a s s e s = c l s ) ) = P a r s e r . p a r s e ( f ) ;
...
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 79 --- #89
9.6. Implementation
// I n s t a n t i a t e t h e program.
( cache , env , d 1 , s c o d e , cname ) = i n s t a n t i a t e ( p ) ;
...
// Run t h e b a c k e n d .
o p t i m i z e D a e ( cache , env , s c o d e , p , d , d , cname ) ;
then ( ) ;
...
end m a t c h c o n t i n u e ;
end t r a n s l a t e F i l e ;
protected function o p t i m i z e D a e
” f u n c t i o n : optimizeDae
Run t h e b a c k e n d .
Used f o r both p a r a l l e l and f o r normal e x e c u t i o n . ”
input Env.Cache inCache ;
input Env.Env inEnv ;
input SCode.Program inProgram1 ;
input Absyn.Program inProgram2 ;
input DAE.DAElist i n D A E l i s t 3 ;
input DAE.DAElist i n D A E l i s t 4 ;
input Absyn.Path inPath5 ;
algorithm
:=
m a t c h c o n t i n u e ( inCache , inEnv , inProgram1 , inProgram2 ,
i n D A E l i s t 3 , i n D A E l i s t 4 , inPath5 )
local
BackendDAE.BackendDAE dlow , d l o w 1 ;
a r r a y <l i s t <Integer>> m,mT;
a r r a y <Integer> v1 , v2 ;
BackendDAE.StrongComponents comps ;
l i s t <SCode.Element> p ;
Absyn.Program ap ;
DAE.DAElist dae , d a e i m p l ;
Absyn.Path c l a s s n a m e ;
Env.Cache c a c h e ;
Env.Env env ;
DAE.FunctionTree f u n c s ;
String str ;
c a s e ( cache , env , p , ap , dae , daeimpl , c l a s s n a m e )
equation
true = runBackendQ ( ) ;
funcs = Env.getFunctionTree ( cache ) ;
dlow = BackendDAECreate.lower ( dae , f u n c s , true ) ;
d l o w 1 = BackendDAEUtil.getSolvedSystem ( cache ,
env , dlow , f u n c s ,NONE( ) ,NONE( ) ,NONE( ) ) ;
modpar ( d l o w 1 ) ;
D e b u g . e x e c S t a t ( ” Lowering Done” ,
CevalScript.RT CLOCK EXECSTAT MAIN) ;
s i m c o d e g e n ( dlow 1 , f u n c s , c l a s s n a m e , ap , d a e i m p l ) ;
then
() ;
...
end m a t c h c o n t i n u e ;
79
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 80 --- #90
80
Chapter 9. Compilation of Unexpanded Modelica Array Equations for
Execution on Graphics Processing Units
end o p t i m i z e D a e ;
protected function s i m c o d e g e n
” f u n c t i o n simcodegen
G e n e r a t e s s i m u l a t i o n code u s i n g t h e
SimCode module ”
input BackendDAE.BackendDAE inBackendDAE5 ;
input DAE.FunctionTree i n F u n c t i o n T r e e ;
input Absyn.Path inPath ;
input Absyn.Program inProgram3 ;
input DAE.DAElist i n D A E l i s t 4 ;
algorithm
:=
m a t c h c o n t i n u e ( inBackendDAE5 , i n F u n c t i o n T r e e ,
inPath , inProgram3 , i n D A E l i s t 4 )
local
BackendDAE.BackendDAE dlow ;
DAE.FunctionTree f u n c t i o n T r e e ;
S t r i n g cname str , f i l e d i r ;
Absyn.ComponentRef a c r e f ;
Absyn.Path c l a s s n a m e ;
l i s t <SCode.Element> p ;
Absyn.Program ap ;
DAE.DAElist dae ;
a r r a y <Integer> a s s 1 , a s s 2 ;
a r r a y <l i s t <Integer>> m, mt ;
BackendDAE.StrongComponents comps ;
SimCode.SimulationSettings simSettings ;
S t r i n g methodbyflag ;
Boolean m e t h o d f l a g ;
c a s e ( dlow , f u n c t i o n T r e e , c l a s s n a m e , ap , dae )
equation
true = RTOpts.simulationCg ( ) ;
Print.clearErrorBuf () ;
Print.clearBuf () ;
cname str = Absyn.pathString ( classname ) ;
simSettings = SimCode.createSimulationSettings (
0 . 0 , 1 . 0 , 5 0 0 , 1 e−6 , ” d a s s l ” , ” ” , ”mat” , ” . ∗” , f a l s e , ” ” ) ;
( , , , , , ) = SimCode.generateModelCode ( dlow ,
f u n c t i o n T r e e , ap , dae , c l a s s n a m e , c n a m e s t r ,
SOME( s i m S e t t i n g s ) ) ;
D e b u g . e x e c S t a t ( ” Codegen Done” ,
CevalScript.RT CLOCK EXECSTAT MAIN) ;
then
() ;
...
end m a t c h c o n t i n u e ;
end s i m c o d e g e n ;
Listing 9.19: Main control flow of the OpenModelica compiler.
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 81 --- #91
9.6. Implementation
9.6.1
81
Instantiation - Symbolic Elaboration
Handling non-expanded arrays in the instantiation (symbolic elaboration)
phase involves changes in the InstSection package as well as the Static
package, which is called by functions in the InstSection package for static
evaluation of expressions. The InstSection package is called from the Inst
package.
• In InstSection.InstEquationCommonWork and the case /* equality
equations e1 = e2 */ the +a flag is retrieved from RTopts.splitArrays
and sent as a Boolean flag to Static.elabExp. RTopts.splitArarys is
false if no expansion should be done.
• In InstSection.condenseArrayEquation a condition, true=RTOpts.splitArrays
has been inserted in order to to stop the code from being executed if
no expansion should be done.
• In InstSection.instArrayEquation some minor changes have been done
for not expanding array equations and the code is guarded with the
RTOpts.splitArrays flag.
• In the Static package a performVectorization flag has been added to
many functions in order to make sure that expressions are not expanded
if the flag is set, it was missing in many places.
• In Static.crefVectorize it has been arranged so that no vectorization
takes place if the vectorization flag is false.
• In Lookup.makeDimensionSubscript a new case has been added so that
the type dimension is not expanded.
9.6.2
Lowering
The main changes to handle non-expanded arrays in the lowering process
are described below.
• A new data structure that contains array equations has been added to
the lowered form. This data structure stores a lowered array equation.
In BackendDAE.Equation a new record MULTIDIMEQUATION2
has been added. This record simply represents an unexpanded array
equation.
• In BackendDAECreate.lower guarded code has been inserted that
places the array equations from the array equation array in BackendDAE.DAE into the normal ordered equation array in BackendDAE.DAE. The actual function for performing this transformation can
be found in BackendDAEUtil (from BackendDAE.MULTIDIMEQUATION
to BackendDAE.MULTIDIMEQUATION2 ).
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 82 --- #92
82
Chapter 9. Compilation of Unexpanded Modelica Array Equations for
Execution on Graphics Processing Units
• BackendDAECreate.lowerMultidimeqns and
BackendDAECreate.lowerMultidimeqns2 have both been modified.
9.6.3
Equation Sorting and Matching
• In BackendDAEUtil.traversingincidenceRowExpFinder new cases for
handling component references and derivative functions call with references to unexpanded arrays have been added. The problem was that
the lowering phase unexpanded arrays are inserted into the environment with variables with the addVar function but with a subscript
list. Then when encountering a variable reference and trying to look
it up with getVar the algorithm does not have a subscript list so the
look up fails. In BackendDAEUtil.traversingincidenceRowExpFinder a
change has been made so that the algorithm looks up the variable with
getVar but first attaches a subscript list to the component reference
(by using the size in the type information).
• In BackendDAEUtil.incidenceRow a new case has been added for
BackendDAE.MULTIDIMEQUATION2.
9.6.4
Finding Strongly Connected Components
• The strongly connected components phase that detects if equation
nodes belong to a strongly connected component in the data dependency
graph can more or less be left unmodified.
9.6.5
CUDA Code Generation
• New data structures for array equations have been added to SimCode.SimEqSystem.
• In the function SimCode.callTargetTemplates a new case have been
added for generating CUDA code.
• A new Susan2 OpenModelica text template, SimCodeCUDA.tpl has
been created which generates a CUDA-based fourth-order Runge-Kutta
solver as well as the compiled code for the array equations. The CUDA
Runge-Kutta solver is based on the one implemented in [41].
9.7
Discussion
In this chapter we have discussed how Modelica array equations can be kept
unexpanded throughout the compilation process. Previously such equations
were expanded into scalar equations and handled as normal scalar equations.
2 Susan is a text template language that is used in the OpenModelica project for creating
code generators [43]
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 83 --- #93
9.7. Discussion
83
However, if array equations can be kept unexpanded there are several benefits.
We get a faster compilation process, especially the equation sorting phase
becomes faster since we have smaller and fewer data structures to process.
We can also more easily compile more efficient and faster code. Keeping
array equations unexpanded makes it much easier to detect data parallelism
when compiling code for parallel architectures such as GPUs.
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 84 --- #94
Chapter 10
Discussion
In this chapter we summarize the work described in the previous chapters. In
Section 10.1 we first discuss GPU architectures in general followed by Section
10.2 where we try to answer the research question from Chapter 1 whether
GPU architectures are suitable for parallel simulation of equation-based
models. Finally in Section 10.3 we end with a summary and future work.
10.1
What Kind of Problems are Graphics
Processing Units Suitable for?
It is important to note that GPUs have traditionally been used for handling
computer graphics computations. They are suitable for algorithms where
processing of large blocks of data is done in a data-parallel fashion. Initially
GPUs were used for texture-mapping and polygon rendering, geometric calculations (such as the rotation and translation of vertices), oversampling and
interpolation techniques to reduce aliasing. Other example of applications
that can be accelerated in video decoding include: motion compensation,
inverse discrete cosine transform, intra-frame prediction, bit stream processing, inverse quantization (IQ), etc.. Applications that are ideally suitable
for GPUs have large data sets, high parallelism, and minimal dependency
between data elements. [9]
The advent of General Purpose GPU (GPGPU) computing has expanded
the usage of GPUs to not only include computer graphics calculations. This
move into other fields of computations has come from the observation that
most computer graphics calculations include computations on matrices and
vectors. GPGPUs have been made possible by the addition of stream processing on non-graphics data features, which in turn have been made possible by
the addition of programmable stages and higher precision arithmetic to the
rendering pipelines. Although GPGPU and architectures/software platforms
84
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 85 --- #95
10.2. Are Graphics Processing Units Suitable for Simulating Equation-Based
Modelica Models?
85
such as CUDA and OpenCL have expanded the set of problems that GPUs
can solve it is still important to note that GPUs are still mainly suitable for
algorithms where processing of large blocks of data is done in parallel, i.e.
data-parallelism.
10.2
Are Graphics Processing Units Suitable
for Simulating Equation-Based Modelica
Models?
The problem of simulating equation-based Modelica models is essentially one
of solving a system of differential equations, either in ODE or DAE form,
given initial values of the state variables, values of constants and parameters,
start time, stop time, time step, etc. (there is also the algorithmic part of
Modelica, see below). The front-end and middle part of a Modelica compiler
removes all high-level structure and we essentially end up with an equation
system that is to be solved at runtime. When solving such an equation
system on a computer a numerical method for solution of ODEs is applied
(solving it analytically is not practically possible with a computer in the
general case). There are two categories of such numerical methods that
have been described in this thesis: time-stepping based methods (e.g., Euler,
Runge-Kutta, DASSL, etc.) and quantization of state methods (QSS).
With the classical time-stepping approach there is essentially a central
loop that usually is run on one computational node1 . When using a system
containing GPUs this central loop is most suitable to run on the host CPU.
In each time step data must be gathered and distributed from the host
memory to the device memory to perform the time step computations, which
is time consuming. Another problem is simply that we need to distribute the
equation system over the GPU device architecture for computation in each
time step. However this is not an easy task since some parts of the equation
system might potentially depend on other parts of the equation system,
in fact this must in general be assumed. We must therefore communicate
between different parts of the distributed equation system and it is often not
clear how this can be done in a cost efficient manner. In the approach of
Chapter 6 this was done (when data between different streaming multiprocessors needed to be sent) by synchronizing with the global memory which
was very slow. The problem of solving a system of differential equations
is not data-parallel in nature in the general case. Models that exhibits a
large degree of data-parallelism are suitable though, which is discussed below.
Yet another problem is that the equation system may contain algebraic
1 Also an approach of inlining the solver and replicating code has been tried, which was
described briefly in Chapter 2 and is described in more details in [21]
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 86 --- #96
86
Chapter 10. Discussion
loops (simultaneous equation systems), in other words an additional solver
step must be applied to each such simultaneous equation system in each
time iteration. This could potentially be done on one streaming multiprocessor for each simultaneous equation system. Even with a distributed solver
approach, such as the approach described in [21], we have the same problem
of communication of data between different computations; the same notion
still holds, we are trying to solve a problem that is linear in nature on a
highly data-parallel architecture. The QSS-based method is somewhat more
suitable for parallel computations, its suitability for GPUs is discussed below.
It is also important to note that in our work we have not involved some
of the more complex features of Modelica. We have limited ourselves to
models which result in purely continuous time equation systems. We have
not yet dealt with hybrid models, in other words models that can contain
both continuous-time and discrete-time variables and language constructs.
For dealing with such models one approach could be to run the solver on
the host CPU, calculate the events there and in each time step compute the
equation system on the GPU device(s).
There are also purely algorithmic models which consists of imperative code
and data-parallel models. These kind of models are different from the above
and the previous discussion does not concern these models. Instead this is
discussed below.
10.2.1
Discussion on The Various Approaches of Simulating Modelica Models on GPUs
In this section we again discuss the various approaches from the different
chapters of the thesis. It is important to note that although the general
problem of solving an ODE or DAE equation system may not be very
data-parallel in nature, there are however important subsets of models that
contain data-parallel features where the use of GPUs is suitable.
• Simulation of Equation-Based Models with Task Graph Creation on
Graphics Processing Units This approach might work for equation
systems where there is not much dependency between different parts of
the equation system, where not much communication is needed between
different streaming multiprocessors. However in the general case a
task graph arising from an equation-based models is not necessarily
data-parallel in nature, thus it is not easy to map a task graph for
execution with a GPU, since communications between different parts
of the equation system is needed. Also the amount of memory transfers
taking place between the CPU and the GPU might be time consuming.
• Simulation of Equation-Based Models with Quantized State Systems
on Graphics Processing Units The approach presented in this thesis
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 87 --- #97
10.3. Summary and Future Work
87
was an attempt to compile Modelica to QSS-based code on a GPU,
with a small and simplified model. Simulation times were bad because
of the amount of memory transfers taking place. Although QSS-based
simulations might be suitable for parallel executions we still have
the same problem with GPUs as with time-stepping methods: the
computation of the equation system is not in general a data-parallel
task, which GPUs are good at. Even with the QSS-based method,
when updating the states, the same equation system must be solved,
even though when to solve this equation system is different from a
time-stepping method.
• TLM Component-Based Partitioning The approach with TLM componentbased partitioning has not yet been tried with GPUs at our research
group PELAB. TLM-based component partitioning was described
briefly in Chapter 3. One approach could be to put each partitioned
submodel on a streaming multiprocessor. The computations on the
streaming multiprocessors could run fairly independent given that the
partition of the original model results in submodels that are fairly
independent.
• Compilation of Unexpanded Modelica Array Equations for Efficient
Simulation on Graphics Processing Units In the work in Chapter 9
and Chapter 7 we look at a restricted subset of Modelica models. We
mainly focus on models that are data-parallel in nature, or has features
that are data-parallel in nature. For these kind of models GPUs are
suitable.
• Extending the Algorithmic Subset of Modelica with Explicit Parallel
Programming Constructs for Multi-core Simulation In Chapter 8 we
looked at purely algorithmic models that were data-parallel in nature.
For these kind of models GPUs are suitable.
10.3
Summary and Future Work
As discussed earlier, the general problem of solving an ODE or DAE equation
system may not be very data-parallel in nature. There are however important
subsets of models that contain data-parallel features where the use of GPUs
are suitable. These are mainly models that contain operations over large
arrays of state variables (or other variables). For such models it is suitable
to compile the array operations directly into GPU-based code. A related
approach is to search for data-parallelism in the resulting compiled equation
system, i.e. to reconstruct array operations from sets of similar operations
on scalar variables (array elements). However, it is more efficient for the
compiler to directly compile array operations than to later reconstruct them
from scalars.
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 88 --- #98
88
Chapter 10. Discussion
One kind of Modelica models that could be interesting for simulation on
GPUs are models containing Partial Differential Equations (PDEs). The
Modelica language standard does not currently contain constructs for modeling PDEs. However, such constructs were proposed in [38] where PDEs in
the context of Modelica were discussed extensively. Currently PDEs can be
modeled in Modelica via a discretization approach using for-equations; the
WaveEquationSample model in Listing 6.1 is an example of such a model.
These kind of models are almost always highly data-parallel in nature.
An interesting future work could be to try to classify the Modelica models
that are suitable for simulation with GPUs and those models where a different
simulation architecture would be more suitable. A question then is whether
this classification should be done at the front-end, before all the structure is
removed, or later in the compilation process when the whole equation system
is available as one system. Applying machine learning techniques could be
one interesting feature work. With machine learning techniques computers
use empirical data to learn various behaviors. The goal would be to run
OpenModelica with many different models and the compiler could then learn
what kind of architecture is most suitable for what kind of model. [24]
It is important to note that GPGPU is evolving rapidly. CUDA for instance now supports function pointers, recursion, C++ templates, virtual
methods, etc. as noted in Chapter 2. However, as David Black-Schaffer
one of the developers of OpenCL notes [2], the underlying hardware architecture is still one optimized for data-parallel problems. He proposes the
following check list for determining whether your application is suitable to
be implemented on GPUs.
• Is your application data-parallel?
• Is your application computationally intensive?
• Do you wish to avoid global synchronization?
• Does your application need lots of bandwidth?
• Is use of small caches OK for your application?
• Does your application use single precision?2
Regarding the ongoing discussion whether to use CPUs or GPUs, in
[11] it is claimed that the gap in performance between CPUs and GPUs is
overestimated and it is suggested that the performance gap can be decreased,
which is demonstrated for a set of example applications, provided the right
optimization techniques are applied to the CPU implementation. Perhaps
future generations of CPUs and GPUs will converge towards each other.
2 For GPGPUs with good double precision support, which is becoming more and more
common, this check is not needed of course.
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 89 --- #99
Appendix A
Quantized State Systems
Generated CUDA Code
The following code example contains the model dependent part of the code
of the experiment presented in chapter 5 with 8 state variables, where three
output variables are defined. The original Modelica model is given in Listing
A.1.
model Test Model
parameter Integer N = 8 ;
input Real i n p u t V a r s [ 1 ] ( s t a r t = 0 . 0 ) ;
Real s t a t e V a r s [N] ( s t a r t = 0 . 0 ) ;
output Real outputVars [ 3 ] ;
equation
der ( s t a t e V a r s [ 1 ] ) = N∗N ∗ (−2 . 0 ∗ s t a t e V a r s [ 1 ] +
stateVars [ 2 ] + inputVars [ 1 ] ) ;
f o r i in 2 : (N−1 ) loop
der ( s t a t e V a r s [ i ] ) = N∗N ∗ (−2 . 0 ∗ s t a t e V a r s [ i ] +
s t a t e V a r s [ i−1 ] + s t a t e V a r s [ i+1 ] ) ;
end f o r ;
der ( s t a t e V a r s [N] ) = N ∗ ( s t a t e V a r s [N−1 ] −
1000 ∗ ( (N+1 ) /N) ∗ s t a t e V a r s [N] ) ;
outputVars [ 1 ] = s t a t e V a r s [ 1 ] ;
outputVars [ 2 ] = s t a t e V a r s [ 4 ] ;
outputVars [ 3 ] = s t a t e V a r s [N] ;
end Test Model ;
Listing A.1: Test Model
Two output files are produced: model.h and model.cu. The first one is
a C-CUDA header file and contains the function prototypes of the routine
contained in the second one.
/∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗
∗ MODEL.H
∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗/
#i f d e f MODEL H
#d e f i n e MODEL H
89
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 90 --- #100
90
Chapter A. Quantized State Systems Generated CUDA Code
#d e f i n e NUMBER STATES 8
#d e f i n e NUMBER INPUTS 1
#d e f i n e NUMBER OUTPUT 3
#d e f i n e NUMBER EVENTS 10
#d e f i n e SIMULATION TIME 10
#d e f i n e SIMULATION STEP 0 . 0 0 1
/∗ I n i t i a l i z a t i o n s ∗/
void i n i t i a l i z e S y s t e m ( f l o a t ∗ x , f l o a t ∗ u) ;
void i n i t i a l i z e E v e n t s ( f l o a t ∗ t , unsigned∗ i , f l o a t ∗ v ) ;
/∗ D e r i v a t i v e c a l c u l a t i o n ∗/
global
void d e r i v a t i v e
( f l o a t ∗ dx , f l o a t ∗ x , f l o a t ∗ u ,
device
v o i d dx7
( f l o a t ∗ dx , f l o a t ∗ x , f l o a t ∗ u ,
device
v o i d dx6
( f l o a t ∗ dx , f l o a t ∗ x , f l o a t ∗ u ,
device
v o i d dx5
( f l o a t ∗ dx , f l o a t ∗ x , f l o a t ∗ u ,
device
v o i d dx4
( f l o a t ∗ dx , f l o a t ∗ x , f l o a t ∗ u ,
device
v o i d dx3
( f l o a t ∗ dx , f l o a t ∗ x , f l o a t ∗ u ,
device
v o i d dx2
( f l o a t ∗ dx , f l o a t ∗ x , f l o a t ∗ u ,
device
v o i d dx1
( f l o a t ∗ dx , f l o a t ∗ x , f l o a t ∗ u ,
device
v o i d dx0
( f l o a t ∗ dx , f l o a t ∗ x , f l o a t ∗ u ,
/∗ Output c a l c u l a t i o n ∗/
global
void output
( float∗ y, float∗ x , float∗ u,
device
v o i d y2
( float∗ y, float∗ x , float∗ u,
device
v o i d y1
( float∗ y, float∗ x , float∗ u,
device
v o i d y0
( float∗ y, float∗ x , float∗ u,
#e n d i f
f l o a t ∗ t , unsigned∗ c ) ;
f l o a t ∗ t , unsigned∗ c ) ;
f l o a t ∗ t , unsigned∗ c ) ;
f l o a t ∗ t , unsigned∗ c ) ;
f l o a t ∗ t , unsigned∗ c ) ;
f l o a t ∗ t , unsigned∗ c ) ;
f l o a t ∗ t , unsigned∗ c ) ;
f l o a t ∗ t , unsigned∗ c ) ;
f l o a t ∗ t , unsigned∗ c ) ;
f l o a t ∗ t , unsigned∗ c ) ;
f l o a t ∗ t , unsigned∗ c ) ;
f l o a t ∗ t , unsigned∗ c ) ;
f l o a t ∗ t , unsigned∗ c ) ;
/∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗
∗ MODEL.CU
∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗/
#i n c l u d e ” i n c l u s i o n . h ”
#i n c l u d e ” m o d e l . h ”
/∗ I n i t i a l i z a t i o n s ∗/
v o i d i n i t i a l i z e S y s t e m ( f l o a t ∗x , f l o a t ∗ u ) {
int i ;
u [ 0 ]=0 . 0 ;
f o r ( i=0 ; i <NUMBER STATES; i++) x [ i ]=0 . 0 ;
}
void i n i t i a l i z e E v e n t s ( f l o a t ∗ t , unsigned∗ i , f l o a t ∗ v ) {
t [ 0 ] = 1; i [ 0 ] = 0; v [ 0 ] = 1;
t [ 1 ] = 2; i [ 1 ] = 0; v [ 1 ] = 0;
t [ 2 ] = 3; i [ 2 ] = 0; v [ 2 ] = 1;
t [ 3 ] = 4; i [ 3 ] = 0; v [ 3 ] = 0;
t [ 4 ] = 5; i [ 4 ] = 0; v [ 4 ] = 1;
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 91 --- #101
91
t [5]
t [6]
t [7]
t [8]
t [9]
=
=
=
=
=
6; i
7; i
8; i
9; i
10; i
[5]
[6]
[7]
[8]
[9]
=
=
=
=
=
0;
0;
0;
0;
0;
v[5]
v[6]
v[7]
v[8]
v[9]
=
=
=
=
=
0;
1;
0;
1;
0;
}
/∗ D e r i v a t i v e c a l c u l a t i o n ∗/
global
void d e r i v a t i v e
( f l o a t ∗ dx , f l o a t ∗ x , f l o a t ∗ u , f l o a t ∗ t , u n s i g n e d ∗ c ) {
int i = threadIdx.x ;
switch ( i ) {
c a s e 7 : dx7 ( dx , x , u , t , c ) ; b r e a k ;
c a s e 6 : dx6 ( dx , x , u , t , c ) ; b r e a k ;
c a s e 5 : dx5 ( dx , x , u , t , c ) ; b r e a k ;
c a s e 4 : dx4 ( dx , x , u , t , c ) ; b r e a k ;
c a s e 3 : dx3 ( dx , x , u , t , c ) ; b r e a k ;
c a s e 2 : dx2 ( dx , x , u , t , c ) ; b r e a k ;
c a s e 1 : dx1 ( dx , x , u , t , c ) ; b r e a k ;
c a s e 0 : dx0 ( dx , x , u , t , c ) ; b r e a k ;
}
}
device
v o i d dx7
( f l o a t ∗ dx , f l o a t ∗ x , f l o a t ∗ u , f l o a t ∗ t , u n s i g n e d ∗ c ) {
dx [ 7 ] = 8 . 0 ∗ ( x [ 6 ] − 1000 ∗ 1 . 0 6 2 5 ∗ x [ 7 ] ) ;
}
device
v o i d dx6
( f l o a t ∗ dx , f l o a t ∗ x , f l o a t ∗ u , f l o a t ∗ t , u n s i g n e d ∗ c ) {
dx [ 6 ] = 16384 . 0 ∗ (−2 . 0 ∗ x [ 6 ] + x [ 5 ] + x [ 7 ] ) ;
}
device
v o i d dx5
( f l o a t ∗ dx , f l o a t ∗ x , f l o a t ∗ u , f l o a t ∗ t , u n s i g n e d ∗ c ) {
dx [ 5 ] = 16384 . 0 ∗ (−2 . 0 ∗ x [ 5 ] + x [ 4 ] + x [ 6 ] ) ;
}
device
v o i d dx4
( f l o a t ∗ dx , f l o a t ∗ x , f l o a t ∗ u , f l o a t ∗ t , u n s i g n e d ∗ c ) {
dx [ 4 ] = 16384 . 0 ∗ (−2 . 0 ∗ x [ 4 ] + x [ 3 ] + x [ 5 ] ) ;
}
device
v o i d dx3
( f l o a t ∗ dx , f l o a t ∗ x , f l o a t ∗ u , f l o a t ∗ t , u n s i g n e d ∗ c ) {
dx [ 3 ] = 16384 . 0 ∗ (−2 . 0 ∗ x [ 3 ] + x [ 2 ] + x [ 4 ] ) ;
}
device
v o i d dx2
( f l o a t ∗ dx , f l o a t ∗ x , f l o a t ∗ u , f l o a t ∗ t , u n s i g n e d ∗ c ) {
dx [ 2 ] = 16384 . 0 ∗ (−2 . 0 ∗ x [ 2 ] + x [ 1 ] + x [ 3 ] ) ;
}
device
v o i d dx1
( f l o a t ∗ dx , f l o a t ∗ x , f l o a t ∗ u , f l o a t ∗ t , u n s i g n e d ∗ c ) {
dx [ 1 ] = 16384 . 0 ∗ (−2 . 0 ∗ x [ 1 ] + x [ 0 ] + x [ 2 ] ) ;
}
device
v o i d dx0
( f l o a t ∗ dx , f l o a t ∗ x , f l o a t ∗ u , f l o a t ∗ t , u n s i g n e d ∗ c ) {
dx [ 0 ] = 16384 . 0 ∗ (−2 . 0 ∗ x [ 0 ] + x [ 1 ] + u [ 0 ] ) ;
}
/∗ Output c a l c u l a t i o n ∗/
global
void output
( f l o a t ∗ y , f l o a t ∗ x , f l o a t ∗ u , f l o a t ∗ t , unsigned∗ c ) {
int i = threadIdx.x ;
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 92 --- #102
92
Chapter A. Quantized State Systems Generated CUDA Code
switch ( i )
case 2 :
case 1 :
case 0 :
}
{
y2 ( y , x , u , t , c ) ; b r e a k ;
y1 ( y , x , u , t , c ) ; b r e a k ;
y0 ( y , x , u , t , c ) ; b r e a k ;
}
device
v o i d y2
( f l o a t ∗ y , f l o a t ∗ x , f l o a t ∗ u , f l o a t ∗ t , unsigned∗ c ) {
y[2] = x[7] ;
}
device
v o i d y1
( f l o a t ∗ y , f l o a t ∗ x , f l o a t ∗ u , f l o a t ∗ t , unsigned∗ c ) {
y[1] = x[3] ;
}
device
v o i d y0
( f l o a t ∗ y , f l o a t ∗ x , f l o a t ∗ u , f l o a t ∗ t , unsigned∗ c ) {
y[0] = x[0] ;
}
Listing A.2: Generated CUDA QSS Code
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 93 --- #103
Bibliography
[1] Alexander Siemers, Dag Fritzson, and Peter Fritzson. Meta-Modeling for
Multi-Physics Co-Simulations applied for OpenModelica. In Proceedings
of International Congress on Methodologies for Emerging Technologies
in Automation (ANIPLA), November 2006.
[2] Introduction to OpenCL, David Black-Schaffer, Division of Computer
Systems, Department of Information Technology, Uppsala University,
http://www.it.uu.se/katalog/davbl791/presentations/Introduction
%20to%20OpenCL.pdf, accessed October 25, 2011.
[3] Niclas Andersson. Compilation of Mathematical Models to Parallel
Code, Licentiate thesis 563. Linköping University, 1996.
[4] Peter Aronsson. Automatic Parallelization of Equation-Based Simulation
Programs. PhD thesis, Linköping University, 2006. Dissertation No.
1022.
[5] David Broman. Safety, Security, and Semantic Aspects of EquationBased Object-Oriented Languages and Environment, Licentiate thesis
1337. Linköping University, 2007.
[6] Håkan Lundvall, Kristian Stavåker, Peter Fritzson, Christoph Kessler:
Automatic Parallelization of Simulation Code for Equation-based Models with Software Pipelining and Measurements on Three Platforms.
MCC’08 Workshop, Ronneby, Sweden, November 27-28, 2008.
[7] The Cell project at IBM Research, accessed October 25, 2011.
http://www.research.ibm.com/cell/.
[8] Francois Cellier and Ernesto Kofman. Continuous System Simulation.
Springer, 2006.
[9] NVIDIA
CUDA
Programming
Guide,
Version
http://www.nvidia.com/object/cuda home new.html.
2.0.
[10] DASSL, Solution of Differential Algebraic Equation, accessed October
25, 2011. http://www.oecd-nea.org/tools/abstract/detail/nesc9918/.
93
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 94 --- #104
94
BIBLIOGRAPHY
[11] Victor W Lee, et. al. Debunking the 100X GPU vs. CPU Myth: An
Evaluation of Throughput Computing on CPU and GPU, Intel Corporation, ISCA ’10 Proceedings of the 37th annual international symposium
on Computer architecture.
[12] Xenofon Floros, Francois Cellier, Ernesto Kofman. Discretizing Time
or States? A Comparative Study between DASSL and QSS. 3rd International Workshop on Equation-Based Object-Oriented Modeling
Languages and Tools, EOOLT, Oslo, Norway, October 3, 2010.
[13] Adrian Pop, Kristian Stavåker, Peter Fritzson. Exception Handling for
Modelica In Proceedings of the 6th International Modelica Conference
(Modelica’2008), Bielefeld, Germany, March.3-4, 2008.
[14] Fermi, Next Generation CUDA Architecture, accessed October 25, 2011.
http://www.nvidia.com/object/fermi architecture.html.
[15] Peter Fritzson. Principles of Object-Oriented Modeling and Simulation
with Modelica 2.1. IEEE Press, 2004.
[16] Mahder Gebremedhin. ParModelica: Extending the Algorithmic Subset
of Modelica with Explicit Parallel Language Constructs for Multi-core
Simulation LIU-IDA/LITH-EX-A--11/043--SE. Linköping University,
2011.
[17] Hopsan - An Integrated Simulation Environment for Simulation of Fluid Power Systems, accessed October 25, 2011.
http://www.iei.liu.se/flumes/system-simulation/hopsan?l=en.
[18] Ernesto Kofman. Discrete Event Based Simulation and Control of
Continuous Systems. PhD thesis, School of Electronic Engineering FCEIA Universidad Nacional de Rosario, 2003.
[19] Matthias Korch and Thomas Rauber. Scalable parallel rk solvers for
odes derived by the method of lines. In Kosch et al. [20], pages 830--839.
[20] Harald Kosch, László Böszörményi, and Hermann Hellwagner, editors.
Euro-Par 2003. Parallel Processing, 9th International Euro-Par Conference, Klagenfurt, Austria, August 26-29, 2003. Proceedings, volume
2790 of Lecture Notes in Computer Science. Springer, 2003.
[21] Håkan Lundvall. Automatic Parallelization using Pipelining for
Equation-Based Simulation Languages, Licentiate thesis 1381. Linköping
University, 2008.
[22] Kristian Stavåker, Peter Fritzson: Generation of Simulation Code
from Equation-Based Models for Execution on CUDA-Enabled GPUs.
MCC’10 Workshop, Gothenburg, Sweden, November 18-19, 2010.
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 95 --- #105
BIBLIOGRAPHY
95
[23] Afshin Hemmati Moghadam, Mahder Gebremedhin, Kristian Stavåker,
Peter Fritzson. Simulation and Benchmarking of Modelica Models on
Multi-Core Architectures with Explicit Parallel Algorithmic Language
Extensions. MCC’11 Workshop, Linköping, Sweden, November 23-25,
2011.
[24] Tom Mitchell. Machine Learning. McGraw Hill, 1997.
[25] Modelica and the Modelica Association, accessed October 25, 2011.
http://www.modelica.org.
[26] Xenofon Floros, Federico Bergero, Francois Cellier, Ernesto Kofman.
Automated Simulation of Modelica Models with QSS Methods - The
Discontinuous Case. In Proceedings of the 8th International Modelica
Conference (Modelica’2010), Dresden, Germany, Mars 20-22, 2011.
[27] Christoph Kessler, Peter Fritzson, Mattias Eriksson. NestStepModelica: mathematical modeling and bulk-synchronous parallel simulation.
PARA’06 Proceedings of the 8th international conference on Applied
parallel computing: state of the art in scientific computing, 2006.
[28] CUDA
Zone,
accessed
October
25,
http://www.nvidia.com/object/cuda home new.html.
2011.
[29] OpenCL, accessed October 25, 2011. http://www.khronos.org/opencl/.
[30] The OpenModelica Project,
http://www.openmodelica.org.
accessed
October
25,
2011.
[31] OpenModelica User Guide Version 2011-09-23.
[32] Kristian Stavåker, Adrian Pop, Peter Fritzson. Compiling and Using
Pattern Matching in Modelica. In Proceedings of the 6th International
Modelica Conference (Modelica’2008), Bielefeld, Germany, March.3-4,
2008.
[33] Per Östlund, Kristian Stavåker, Peter Fritzson. Parallel Simulation of
Equation-Based Models on CUDA-Enabled GPUs. POOSC Workshop,
Reno, Nevada, October 18, 2010.
[34] Martina Maggio, Kristian Stavåker, Filippo Donida, Francesco Casella,
Peter Fritzson. Parallel Simulation of Equation-based Object-Oriented
Models with Quantized State Systems on a GPU. In Proceedings of the
7th International Modelica Conference (Modelica’2009), Como, Italy,
September 20-22, 2009.
[35] Thomas Rauber and Gudula Rünger. Iterated runge-kutta methods
on distributed memory multiprocessors. In PDP, pages 12--19. IEEE
Computer Society, 1995.
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 96 --- #106
96
BIBLIOGRAPHY
[36] Thomas Rauber and Gudula Rünger. Parallel execution of embedded and
iterated runge-kutta methods. Concurrency - Practice and Experience,
11(7):367--385, 1999.
[37] Kristian Stavåker, Daniel Rolls, Jing Guo, Peter Fritzson, Sven-Bodo
Scholz. Compilation of Modelica Array Computations into Single Assignment C for Efficient Execution on CUDA-enabled GPUs. 3rd International Workshop on Equation-Based Object-Oriented Modeling
Languages and Tools, EOOLT, Oslo, Norway, October 3, 2010.
[38] Levon Saldamli. PDEModelica A High-Level Language for Modeling
with Partial Differential Equations. PhD thesis, Linköping University,
2006. Dissertation No. 1016.
[39] Single Assignment C Homepage,
http://www.sac-home.org.
accessed October 25,
2011.
[40] Martin Sjölund, Robert Braun, Peter Fritzson, Petter Krus. Towards Efficient Distributed Simulation in Modelica using Transmission Line Modeling. 3rd International Workshop on Equation-Based Object-Oriented
Modeling Languages and Tools, EOOLT, Oslo, Norway, October 3,
2010.
[41] Per Östlund. Simulation of Modelica Models on the CUDA Architecture. Master Thesis. LIU-IDA/LITH-EX-A--09/062--SE. Linköping
University, 2009.
[42] SUNDIALS
(SUite
of
Nonlinear
gebraic equation Solvers),
accessed
http://acts.nersc.gov/sundials/index.html.
and
DIfferential/ALOctober 25,
2011.
[43] Peter Fritzson, Pavol Privitzer, Martin Sjölund, Adrian Pop. Towards
a Text Generation Template Language for Modelica. In Proceedings
of the 7th International Modelica Conference (Modelica’2009), Como,
Italy, September 20-22, 2009.
[44] High
Performance
Computing
Supercomputing
with
Tesla
GPUs,
accessed
October
25,
2011.
http://www.nvidia.com/object/tesla computing solutions.html.
‘‘teclicthesiseng’’ --- 2011/11/13 --- 19:24 --- page 97 --- #107
Avdelning, Institution
Division, Department
Datum
Date
Institutionen för datavetenskap,
Dept. of Computer and Information Science
581 83 Linköping
Språk
Rapporttyp
Report category
ISBN
Language
Svenska/Swedish
×
Licentiatavhandling
ISRN
×
Engelska/English
Examensarbete
C-uppsats
D-uppsats
Övrig rapport
2011-12-16
978-91-7393-047-5
LiU-Tek-Lic--2011:46
Serietitel och serienummer ISSN
Title of series, numbering
0280--7971
URL för elektronisk version
Linköping Studies in Science and Technology
Thesis No. 1507
http://urn.kb.se/resolve?urn=urn:
nbn:se:liu:diva-71270
Titel
Title
Contributions to Parallel Simulation of Equation-Based Models on
Graphics Processing Units
Författare
Author
Kristian Stavåker
Sammanfattning
Abstract
In this thesis we investigate techniques and methods for parallel simulation of equation-based, object-oriented (EOO) Modelica models on graphics
processing units (GPUs). Modelica is being developed through an international effort via the Modelica Association. With Modelica it is possible to
build computationally heavy models; simulating such models however might
take a considerable amount of time. Therefor techniques of utilizing parallel
multi-core architectures for simulation are desirable. The goal in this work is
mainly automatic parallelization of equation-based models, that is, it is up to
the compiler and not the end-user modeler to make sure that code is generated
that can efficiently utilize parallel multi-core architectures. Not only the code
generation process has to be altered but the accompanying run-time system
has to be modified as well. Adding explicit parallel language constructs to
Modelica is also discussed to some extent. GPUs can be used to do general
purpose scientific and engineering computing. The theoretical processing power
of GPUs has surpassed that of CPUs due to the highly parallel structure of
GPUs. GPUs are, however, only good at solving certain problems of dataparallel nature. In this thesis we relate several contributions, by the author
and co-workers, to each other. We conclude that the massively parallel GPU
architectures are currently only suitable for a limited set of Modelica models.
This might change with future GPU generations. CUDA for instance, the main
software platform used in the thesis for general purpose computing on graphics
processing units (GPGPU), is changing rapidly and more features are being
added such as recursion, function pointers, C++ templates, etc.; however the
underlying hardware architecture is still optimized for data-parallelism.
Nyckelord
Keywords
Modelica, GPU, CUDA, OpenCL, Modeling, Simulation
Department of Computer and Information Science
Linköpings universitet
Licentiate Theses
Linköpings Studies in Science and Technology
Faculty of Arts and Sciences
No 17
No 28
No 29
No 48
No 52
No 60
No 71
No 72
No 73
No 74
No 104
No 108
No 111
No 113
No 118
No 126
No 127
No 139
No 140
No 146
No 150
No 165
No 166
No 174
No 177
No 181
No 184
No 187
No 189
No 196
No 197
No 203
No 212
No 230
No 237
No 250
No 253
No 260
No 283
No 298
No 318
No 319
No 326
No 328
No 333
No 335
No 348
No 352
No 371
No 378
Vojin Plavsic: Interleaved Processing of Non-Numerical Data Stored on a Cyclic Memory. (Available at: FOA,
Box 1165, S-581 11 Linköping, Sweden. FOA Report B30062E)
Arne Jönsson, Mikael Patel: An Interactive Flowcharting Technique for Communicating and Realizing Algorithms, 1984.
Johnny Eckerland: Retargeting of an Incremental Code Generator, 1984.
Henrik Nordin: On the Use of Typical Cases for Knowledge-Based Consultation and Teaching, 1985.
Zebo Peng: Steps Towards the Formalization of Designing VLSI Systems, 1985.
Johan Fagerström: Simulation and Evaluation of Architecture based on Asynchronous Processes, 1985.
Jalal Maleki: ICONStraint, A Dependency Directed Constraint Maintenance System, 1987.
Tony Larsson: On the Specification and Verification of VLSI Systems, 1986.
Ola Strömfors: A Structure Editor for Documents and Programs, 1986.
Christos Levcopoulos: New Results about the Approximation Behavior of the Greedy Triangulation, 1986.
Shamsul I. Chowdhury: Statistical Expert Systems - a Special Application Area for Knowledge-Based Computer
Methodology, 1987.
Rober Bilos: Incremental Scanning and Token-Based Editing, 1987.
Hans Block: SPORT-SORT Sorting Algorithms and Sport Tournaments, 1987.
Ralph Rönnquist: Network and Lattice Based Approaches to the Representation of Knowledge, 1987.
Mariam Kamkar, Nahid Shahmehri: Affect-Chaining in Program Flow Analysis Applied to Queries of Programs, 1987.
Dan Strömberg: Transfer and Distribution of Application Programs, 1987.
Kristian Sandahl: Case Studies in Knowledge Acquisition, Migration and User Acceptance of Expert Systems,
1987.
Christer Bäckström: Reasoning about Interdependent Actions, 1988.
Mats Wirén: On Control Strategies and Incrementality in Unification-Based Chart Parsing, 1988.
Johan Hultman: A Software System for Defining and Controlling Actions in a Mechanical System, 1988.
Tim Hansen: Diagnosing Faults using Knowledge about Malfunctioning Behavior, 1988.
Jonas Löwgren: Supporting Design and Management of Expert System User Interfaces, 1989.
Ola Petersson: On Adaptive Sorting in Sequential and Parallel Models, 1989.
Yngve Larsson: Dynamic Configuration in a Distributed Environment, 1989.
Peter Åberg: Design of a Multiple View Presentation and Interaction Manager, 1989.
Henrik Eriksson: A Study in Domain-Oriented Tool Support for Knowledge Acquisition, 1989.
Ivan Rankin: The Deep Generation of Text in Expert Critiquing Systems, 1989.
Simin Nadjm-Tehrani: Contributions to the Declarative Approach to Debugging Prolog Programs, 1989.
Magnus Merkel: Temporal Information in Natural Language, 1989.
Ulf Nilsson: A Systematic Approach to Abstract Interpretation of Logic Programs, 1989.
Staffan Bonnier: Horn Clause Logic with External Procedures: Towards a Theoretical Framework, 1989.
Christer Hansson: A Prototype System for Logical Reasoning about Time and Action, 1990.
Björn Fjellborg: An Approach to Extraction of Pipeline Structures for VLSI High-Level Synthesis, 1990.
Patrick Doherty: A Three-Valued Approach to Non-Monotonic Reasoning, 1990.
Tomas Sokolnicki: Coaching Partial Plans: An Approach to Knowledge-Based Tutoring, 1990.
Lars Strömberg: Postmortem Debugging of Distributed Systems, 1990.
Torbjörn Näslund: SLDFA-Resolution - Computing Answers for Negative Queries, 1990.
Peter D. Holmes: Using Connectivity Graphs to Support Map-Related Reasoning, 1991.
Olof Johansson: Improving Implementation of Graphical User Interfaces for Object-Oriented Knowledge- Bases,
1991.
Rolf G Larsson: Aktivitetsbaserad kalkylering i ett nytt ekonomisystem, 1991.
Lena Srömbäck: Studies in Extended Unification-Based Formalism for Linguistic Description: An Algorithm for
Feature Structures with Disjunction and a Proposal for Flexible Systems, 1992.
Mikael Pettersson: DML-A Language and System for the Generation of Efficient Compilers from Denotational
Specification, 1992.
Andreas Kågedal: Logic Programming with External Procedures: an Implementation, 1992.
Patrick Lambrix: Aspects of Version Management of Composite Objects, 1992.
Xinli Gu: Testability Analysis and Improvement in High-Level Synthesis Systems, 1992.
Torbjörn Näslund: On the Role of Evaluations in Iterative Development of Managerial Support Systems, 1992.
Ulf Cederling: Industrial Software Development - a Case Study, 1992.
Magnus Morin: Predictable Cyclic Computations in Autonomous Systems: A Computational Model and Implementation, 1992.
Mehran Noghabai: Evaluation of Strategic Investments in Information Technology, 1993.
Mats Larsson: A Transformational Approach to Formal Digital System Design, 1993.
No 380
No 381
No 383
No 386
No 398
No 402
No 406
No 414
No 417
No 436
No 437
No 440
FHS 3/94
FHS 4/94
No 441
No 446
No 450
No 451
No 452
No 455
FHS 5/94
No 462
No 463
No 464
No 469
No 473
No 475
No 476
No 478
FHS 7/95
No 482
No 488
No 489
No 497
No 498
No 503
FHS 8/95
FHS 9/95
No 513
No 517
No 518
No 522
No 538
No 545
No 546
FiF-a 1/96
No 549
No 550
No 557
No 558
No 561
No 563
Johan Ringström: Compiler Generation for Parallel Languages from Denotational Specifications, 1993.
Michael Jansson: Propagation of Change in an Intelligent Information System, 1993.
Jonni Harrius: An Architecture and a Knowledge Representation Model for Expert Critiquing Systems, 1993.
Per Österling: Symbolic Modelling of the Dynamic Environments of Autonomous Agents, 1993.
Johan Boye: Dependency-based Groudness Analysis of Functional Logic Programs, 1993.
Lars Degerstedt: Tabulated Resolution for Well Founded Semantics, 1993.
Anna Moberg: Satellitkontor - en studie av kommunikationsmönster vid arbete på distans, 1993.
Peter Carlsson: Separation av företagsledning och finansiering - fallstudier av företagsledarutköp ur ett agentteoretiskt perspektiv, 1994.
Camilla Sjöström: Revision och lagreglering - ett historiskt perspektiv, 1994.
Cecilia Sjöberg: Voices in Design: Argumentation in Participatory Development, 1994.
Lars Viklund: Contributions to a High-level Programming Environment for a Scientific Computing, 1994.
Peter Loborg: Error Recovery Support in Manufacturing Control Systems, 1994.
Owen Eriksson: Informationssystem med verksamhetskvalitet - utvärdering baserat på ett verksamhetsinriktat och
samskapande perspektiv, 1994.
Karin Pettersson: Informationssystemstrukturering, ansvarsfördelning och användarinflytande - En komparativ
studie med utgångspunkt i två informationssystemstrategier, 1994.
Lars Poignant: Informationsteknologi och företagsetablering - Effekter på produktivitet och region, 1994.
Gustav Fahl: Object Views of Relational Data in Multidatabase Systems, 1994.
Henrik Nilsson: A Declarative Approach to Debugging for Lazy Functional Languages, 1994.
Jonas Lind: Creditor - Firm Relations: an Interdisciplinary Analysis, 1994.
Martin Sköld: Active Rules based on Object Relational Queries - Efficient Change Monitoring Techniques, 1994.
Pär Carlshamre: A Collaborative Approach to Usability Engineering: Technical Communicators and System
Developers in Usability-Oriented Systems Development, 1994.
Stefan Cronholm: Varför CASE-verktyg i systemutveckling? - En motiv- och konsekvensstudie avseende
arbetssätt och arbetsformer, 1994.
Mikael Lindvall: A Study of Traceability in Object-Oriented Systems Development, 1994.
Fredrik Nilsson: Strategi och ekonomisk styrning - En studie av Sandviks förvärv av Bahco Verktyg, 1994.
Hans Olsén: Collage Induction: Proving Properties of Logic Programs by Program Synthesis, 1994.
Lars Karlsson: Specification and Synthesis of Plans Using the Features and Fluents Framework, 1995.
Ulf Söderman: On Conceptual Modelling of Mode Switching Systems, 1995.
Choong-ho Yi: Reasoning about Concurrent Actions in the Trajectory Semantics, 1995.
Bo Lagerström: Successiv resultatavräkning av pågående arbeten. - Fallstudier i tre byggföretag, 1995.
Peter Jonsson: Complexity of State-Variable Planning under Structural Restrictions, 1995.
Anders Avdic: Arbetsintegrerad systemutveckling med kalkylprogram, 1995.
Eva L Ragnemalm: Towards Student Modelling through Collaborative Dialogue with a Learning Companion,
1995.
Eva Toller: Contributions to Parallel Multiparadigm Languages: Combining Object-Oriented and Rule-Based
Programming, 1995.
Erik Stoy: A Petri Net Based Unified Representation for Hardware/Software Co-Design, 1995.
Johan Herber: Environment Support for Building Structured Mathematical Models, 1995.
Stefan Svenberg: Structure-Driven Derivation of Inter-Lingual Functor-Argument Trees for Multi-Lingual
Generation, 1995.
Hee-Cheol Kim: Prediction and Postdiction under Uncertainty, 1995.
Dan Fristedt: Metoder i användning - mot förbättring av systemutveckling genom situationell metodkunskap och
metodanalys, 1995.
Malin Bergvall: Systemförvaltning i praktiken - en kvalitativ studie avseende centrala begrepp, aktiviteter och
ansvarsroller, 1995.
Joachim Karlsson: Towards a Strategy for Software Requirements Selection, 1995.
Jakob Axelsson: Schedulability-Driven Partitioning of Heterogeneous Real-Time Systems, 1995.
Göran Forslund: Toward Cooperative Advice-Giving Systems: The Expert Systems Experience, 1995.
Jörgen Andersson: Bilder av småföretagares ekonomistyrning, 1995.
Staffan Flodin: Efficient Management of Object-Oriented Queries with Late Binding, 1996.
Vadim Engelson: An Approach to Automatic Construction of Graphical User Interfaces for Applications in
Scientific Computing, 1996.
Magnus Werner : Multidatabase Integration using Polymorphic Queries and Views, 1996.
Mikael Lind: Affärsprocessinriktad förändringsanalys - utveckling och tillämpning av synsätt och metod, 1996.
Jonas Hallberg: High-Level Synthesis under Local Timing Constraints, 1996.
Kristina Larsen: Förutsättningar och begränsningar för arbete på distans - erfarenheter från fyra svenska företag.
1996.
Mikael Johansson: Quality Functions for Requirements Engineering Methods, 1996.
Patrik Nordling: The Simulation of Rolling Bearing Dynamics on Parallel Computers, 1996.
Anders Ekman: Exploration of Polygonal Environments, 1996.
Niclas Andersson: Compilation of Mathematical Models to Parallel Code, 1996.
No 567
No 575
No 576
No 587
No 589
No 591
No 595
No 597
No 598
No 599
No 607
No 609
FiF-a 4
FiF-a 6
No 615
No 623
No 626
No 627
No 629
No 631
No 639
No 640
No 643
No 653
FiF-a 13
No 674
No 676
No 668
No 675
FiF-a 14
No 695
No 700
FiF-a 16
No 712
No 719
No 723
No 725
No 730
No 731
No 733
No 734
FiF-a 21
FiF-a 22
No 737
No 738
FiF-a 25
No 742
No 748
No 751
No 752
No 753
Johan Jenvald: Simulation and Data Collection in Battle Training, 1996.
Niclas Ohlsson: Software Quality Engineering by Early Identification of Fault-Prone Modules, 1996.
Mikael Ericsson: Commenting Systems as Design Support—A Wizard-of-Oz Study, 1996.
Jörgen Lindström: Chefers användning av kommunikationsteknik, 1996.
Esa Falkenroth: Data Management in Control Applications - A Proposal Based on Active Database Systems,
1996.
Niclas Wahllöf: A Default Extension to Description Logics and its Applications, 1996.
Annika Larsson: Ekonomisk Styrning och Organisatorisk Passion - ett interaktivt perspektiv, 1997.
Ling Lin: A Value-based Indexing Technique for Time Sequences, 1997.
Rego Granlund: C3Fire - A Microworld Supporting Emergency Management Training, 1997.
Peter Ingels: A Robust Text Processing Technique Applied to Lexical Error Recovery, 1997.
Per-Arne Persson: Toward a Grounded Theory for Support of Command and Control in Military Coalitions, 1997.
Jonas S Karlsson: A Scalable Data Structure for a Parallel Data Server, 1997.
Carita Åbom: Videomötesteknik i olika affärssituationer - möjligheter och hinder, 1997.
Tommy Wedlund: Att skapa en företagsanpassad systemutvecklingsmodell - genom rekonstruktion, värdering och
vidareutveckling i T50-bolag inom ABB, 1997.
Silvia Coradeschi: A Decision-Mechanism for Reactive and Coordinated Agents, 1997.
Jan Ollinen: Det flexibla kontorets utveckling på Digital - Ett stöd för multiflex? 1997.
David Byers: Towards Estimating Software Testability Using Static Analysis, 1997.
Fredrik Eklund: Declarative Error Diagnosis of GAPLog Programs, 1997.
Gunilla Ivefors: Krigsspel och Informationsteknik inför en oförutsägbar framtid, 1997.
Jens-Olof Lindh: Analysing Traffic Safety from a Case-Based Reasoning Perspective, 1997
Jukka Mäki-Turja:. Smalltalk - a suitable Real-Time Language, 1997.
Juha Takkinen: CAFE: Towards a Conceptual Model for Information Management in Electronic Mail, 1997.
Man Lin: Formal Analysis of Reactive Rule-based Programs, 1997.
Mats Gustafsson: Bringing Role-Based Access Control to Distributed Systems, 1997.
Boris Karlsson: Metodanalys för förståelse och utveckling av systemutvecklingsverksamhet. Analys och värdering
av systemutvecklingsmodeller och dess användning, 1997.
Marcus Bjäreland: Two Aspects of Automating Logics of Action and Change - Regression and Tractability,
1998.
Jan Håkegård: Hierarchical Test Architecture and Board-Level Test Controller Synthesis, 1998.
Per-Ove Zetterlund: Normering av svensk redovisning - En studie av tillkomsten av Redovisningsrådets rekommendation om koncernredovisning (RR01:91), 1998.
Jimmy Tjäder: Projektledaren & planen - en studie av projektledning i tre installations- och systemutvecklingsprojekt, 1998.
Ulf Melin: Informationssystem vid ökad affärs- och processorientering - egenskaper, strategier och utveckling,
1998.
Tim Heyer: COMPASS: Introduction of Formal Methods in Code Development and Inspection, 1998.
Patrik Hägglund: Programming Languages for Computer Algebra, 1998.
Marie-Therese Christiansson: Inter-organisatorisk verksamhetsutveckling - metoder som stöd vid utveckling av
partnerskap och informationssystem, 1998.
Christina Wennestam: Information om immateriella resurser. Investeringar i forskning och utveckling samt i
personal inom skogsindustrin, 1998.
Joakim Gustafsson: Extending Temporal Action Logic for Ramification and Concurrency, 1998.
Henrik André-Jönsson: Indexing time-series data using text indexing methods, 1999.
Erik Larsson: High-Level Testability Analysis and Enhancement Techniques, 1998.
Carl-Johan Westin: Informationsförsörjning: en fråga om ansvar - aktiviteter och uppdrag i fem stora svenska
organisationers operativa informationsförsörjning, 1998.
Åse Jansson: Miljöhänsyn - en del i företags styrning, 1998.
Thomas Padron-McCarthy: Performance-Polymorphic Declarative Queries, 1998.
Anders Bäckström: Värdeskapande kreditgivning - Kreditriskhantering ur ett agentteoretiskt perspektiv, 1998.
Ulf Seigerroth: Integration av förändringsmetoder - en modell för välgrundad metodintegration, 1999.
Fredrik Öberg: Object-Oriented Frameworks - A New Strategy for Case Tool Development, 1998.
Jonas Mellin: Predictable Event Monitoring, 1998.
Joakim Eriksson: Specifying and Managing Rules in an Active Real-Time Database System, 1998.
Bengt E W Andersson: Samverkande informationssystem mellan aktörer i offentliga åtaganden - En teori om
aktörsarenor i samverkan om utbyte av information, 1998.
Pawel Pietrzak: Static Incorrectness Diagnosis of CLP (FD), 1999.
Tobias Ritzau: Real-Time Reference Counting in RT-Java, 1999.
Anders Ferntoft: Elektronisk affärskommunikation - kontaktkostnader och kontaktprocesser mellan kunder och
leverantörer på producentmarknader, 1999.
Jo Skåmedal: Arbete på distans och arbetsformens påverkan på resor och resmönster, 1999.
Johan Alvehus: Mötets metaforer. En studie av berättelser om möten, 1999.
No 754
No 766
No 769
No 775
FiF-a 30
No 787
No 788
No 790
No 791
No 800
No 807
No 809
FiF-a 32
No 808
No 820
No 823
No 832
FiF-a 34
No 842
No 844
FiF-a 37
FiF-a 40
FiF-a 41
No. 854
No 863
No 881
No 882
No 890
FiF-a 47
No 894
No 906
No 917
No 916
FiF-a-49
FiF-a-51
No 919
No 915
No 931
No 933
No 938
No 942
No 956
FiF-a 58
No 964
No 973
No 958
FiF-a 61
No 985
No 982
No 989
No 990
No 991
Magnus Lindahl: Bankens villkor i låneavtal vid kreditgivning till högt belånade företagsförvärv: En studie ur ett
agentteoretiskt perspektiv, 2000.
Martin V. Howard: Designing dynamic visualizations of temporal data, 1999.
Jesper Andersson: Towards Reactive Software Architectures, 1999.
Anders Henriksson: Unique kernel diagnosis, 1999.
Pär J. Ågerfalk: Pragmatization of Information Systems - A Theoretical and Methodological Outline, 1999.
Charlotte Björkegren: Learning for the next project - Bearers and barriers in knowledge transfer within an
organisation, 1999.
Håkan Nilsson: Informationsteknik som drivkraft i granskningsprocessen - En studie av fyra revisionsbyråer,
2000.
Erik Berglund: Use-Oriented Documentation in Software Development, 1999.
Klas Gäre: Verksamhetsförändringar i samband med IS-införande, 1999.
Anders Subotic: Software Quality Inspection, 1999.
Svein Bergum: Managerial communication in telework, 2000.
Flavius Gruian: Energy-Aware Design of Digital Systems, 2000.
Karin Hedström: Kunskapsanvändning och kunskapsutveckling hos verksamhetskonsulter - Erfarenheter från ett
FOU-samarbete, 2000.
Linda Askenäs: Affärssystemet - En studie om teknikens aktiva och passiva roll i en organisation, 2000.
Jean Paul Meynard: Control of industrial robots through high-level task programming, 2000.
Lars Hult: Publika Gränsytor - ett designexempel, 2000.
Paul Pop: Scheduling and Communication Synthesis for Distributed Real-Time Systems, 2000.
Göran Hultgren: Nätverksinriktad Förändringsanalys - perspektiv och metoder som stöd för förståelse och
utveckling av affärsrelationer och informationssystem, 2000.
Magnus Kald: The role of management control systems in strategic business units, 2000.
Mikael Cäker: Vad kostar kunden? Modeller för intern redovisning, 2000.
Ewa Braf: Organisationers kunskapsverksamheter - en kritisk studie av ”knowledge management”, 2000.
Henrik Lindberg: Webbaserade affärsprocesser - Möjligheter och begränsningar, 2000.
Benneth Christiansson: Att komponentbasera informationssystem - Vad säger teori och praktik?, 2000.
Ola Pettersson: Deliberation in a Mobile Robot, 2000.
Dan Lawesson: Towards Behavioral Model Fault Isolation for Object Oriented Control Systems, 2000.
Johan Moe: Execution Tracing of Large Distributed Systems, 2001.
Yuxiao Zhao: XML-based Frameworks for Internet Commerce and an Implementation of B2B
e-procurement,
2001.
Annika Flycht-Eriksson: Domain Knowledge Management in Information-providing Dialogue systems, 2001.
Per-Arne Segerkvist: Webbaserade imaginära organisationers samverkansformer: Informationssystemarkitektur
och aktörssamverkan som förutsättningar för affärsprocesser, 2001.
Stefan Svarén: Styrning av investeringar i divisionaliserade företag - Ett koncernperspektiv, 2001.
Lin Han: Secure and Scalable E-Service Software Delivery, 2001.
Emma Hansson: Optionsprogram för anställda - en studie av svenska börsföretag, 2001.
Susanne Odar: IT som stöd för strategiska beslut, en studie av datorimplementerade modeller av verksamhet som
stöd för beslut om anskaffning av JAS 1982, 2002.
Stefan Holgersson: IT-system och filtrering av verksamhetskunskap - kvalitetsproblem vid analyser och beslutsfattande som bygger på uppgifter hämtade från polisens IT-system, 2001.
Per Oscarsson: Informationssäkerhet i verksamheter - begrepp och modeller som stöd för förståelse av informationssäkerhet och dess hantering, 2001.
Luis Alejandro Cortes: A Petri Net Based Modeling and Verification Technique for Real-Time Embedded
Systems, 2001.
Niklas Sandell: Redovisning i skuggan av en bankkris - Värdering av fastigheter. 2001.
Fredrik Elg: Ett dynamiskt perspektiv på individuella skillnader av heuristisk kompetens, intelligens, mentala
modeller, mål och konfidens i kontroll av mikrovärlden Moro, 2002.
Peter Aronsson: Automatic Parallelization of Simulation Code from Equation Based Simulation Languages, 2002.
Bourhane Kadmiry: Fuzzy Control of Unmanned Helicopter, 2002.
Patrik Haslum: Prediction as a Knowledge Representation Problem: A Case Study in Model Design, 2002.
Robert Sevenius: On the instruments of governance - A law & economics study of capital instruments in limited
liability companies, 2002.
Johan Petersson: Lokala elektroniska marknadsplatser - informationssystem för platsbundna affärer, 2002.
Peter Bunus: Debugging and Structural Analysis of Declarative Equation-Based Languages, 2002.
Gert Jervan: High-Level Test Generation and Built-In Self-Test Techniques for Digital Systems, 2002.
Fredrika Berglund: Management Control and Strategy - a Case Study of Pharmaceutical Drug Development,
2002.
Fredrik Karlsson: Meta-Method for Method Configuration - A Rational Unified Process Case, 2002.
Sorin Manolache: Schedulability Analysis of Real-Time Systems with Stochastic Task Execution Times, 2002.
Diana Szentiványi: Performance and Availability Trade-offs in Fault-Tolerant Middleware, 2002.
Iakov Nakhimovski: Modeling and Simulation of Contacting Flexible Bodies in Multibody Systems, 2002.
Levon Saldamli: PDEModelica - Towards a High-Level Language for Modeling with Partial Differential
Equations, 2002.
Almut Herzog: Secure Execution Environment for Java Electronic Services, 2002.
No 999
No 1000
No 1001
No 988
FiF-a 62
No 1003
No 1005
No 1008
No 1010
No 1015
No 1018
No 1022
FiF-a 65
No 1024
No 1034
No 1033
FiF-a 69
No 1049
No 1052
No 1054
FiF-a 71
No 1055
No 1058
FiF-a 73
No 1079
No 1084
FiF-a 74
No 1094
No 1095
No 1099
No 1110
No 1116
FiF-a 77
No 1126
No 1127
No 1132
No 1130
No 1138
No 1149
No 1156
No 1162
No 1165
FiF-a 84
No 1166
No 1167
No 1168
FiF-a 85
No 1171
FiF-a 86
No 1172
No 1183
No 1184
No 1185
No 1190
Jon Edvardsson: Contributions to Program- and Specification-based Test Data Generation, 2002.
Anders Arpteg: Adaptive Semi-structured Information Extraction, 2002.
Andrzej Bednarski: A Dynamic Programming Approach to Optimal Retargetable Code Generation for Irregular
Architectures, 2002.
Mattias Arvola: Good to use! : Use quality of multi-user applications in the home, 2003.
Lennart Ljung: Utveckling av en projektivitetsmodell - om organisationers förmåga att tillämpa
projektarbetsformen, 2003.
Pernilla Qvarfordt: User experience of spoken feedback in multimodal interaction, 2003.
Alexander Siemers: Visualization of Dynamic Multibody Simulation With Special Reference to Contacts, 2003.
Jens Gustavsson: Towards Unanticipated Runtime Software Evolution, 2003.
Calin Curescu: Adaptive QoS-aware Resource Allocation for Wireless Networks, 2003.
Anna Andersson: Management Information Systems in Process-oriented Healthcare Organisations, 2003.
Björn Johansson: Feedforward Control in Dynamic Situations, 2003.
Traian Pop: Scheduling and Optimisation of Heterogeneous Time/Event-Triggered Distributed Embedded
Systems, 2003.
Britt-Marie Johansson: Kundkommunikation på distans - en studie om kommunikationsmediets betydelse i
affärstransaktioner, 2003.
Aleksandra Tešanovic: Towards Aspectual Component-Based Real-Time System Development, 2003.
Arja Vainio-Larsson: Designing for Use in a Future Context - Five Case Studies in Retrospect, 2003.
Peter Nilsson: Svenska bankers redovisningsval vid reservering för befarade kreditförluster - En studie vid
införandet av nya redovisningsregler, 2003.
Fredrik Ericsson: Information Technology for Learning and Acquiring of Work Knowledge, 2003.
Marcus Comstedt: Towards Fine-Grained Binary Composition through Link Time Weaving, 2003.
Åsa Hedenskog: Increasing the Automation of Radio Network Control, 2003.
Claudiu Duma: Security and Efficiency Tradeoffs in Multicast Group Key Management, 2003.
Emma Eliason: Effektanalys av IT-systems handlingsutrymme, 2003.
Carl Cederberg: Experiments in Indirect Fault Injection with Open Source and Industrial Software, 2003.
Daniel Karlsson: Towards Formal Verification in a Component-based Reuse Methodology, 2003.
Anders Hjalmarsson: Att etablera och vidmakthålla förbättringsverksamhet - behovet av koordination och
interaktion vid förändring av systemutvecklingsverksamheter, 2004.
Pontus Johansson: Design and Development of Recommender Dialogue Systems, 2004.
Charlotte Stoltz: Calling for Call Centres - A Study of Call Centre Locations in a Swedish Rural Region, 2004.
Björn Johansson: Deciding on Using Application Service Provision in SMEs, 2004.
Genevieve Gorrell: Language Modelling and Error Handling in Spoken Dialogue Systems, 2004.
Ulf Johansson: Rule Extraction - the Key to Accurate and Comprehensible Data Mining Models, 2004.
Sonia Sangari: Computational Models of Some Communicative Head Movements, 2004.
Hans Nässla: Intra-Family Information Flow and Prospects for Communication Systems, 2004.
Henrik Sällberg: On the value of customer loyalty programs - A study of point programs and switching costs,
2004.
Ulf Larsson: Designarbete i dialog - karaktärisering av interaktionen mellan användare och utvecklare i en
systemutvecklingsprocess, 2004.
Andreas Borg: Contribution to Management and Validation of Non-Functional Requirements, 2004.
Per-Ola Kristensson: Large Vocabulary Shorthand Writing on Stylus Keyboard, 2004.
Pär-Anders Albinsson: Interacting with Command and Control Systems: Tools for Operators and Designers,
2004.
Ioan Chisalita: Safety-Oriented Communication in Mobile Networks for Vehicles, 2004.
Thomas Gustafsson: Maintaining Data Consistency in Embedded Databases for Vehicular Systems, 2004.
Vaida Jakoniené: A Study in Integrating Multiple Biological Data Sources, 2005.
Abdil Rashid Mohamed: High-Level Techniques for Built-In Self-Test Resources Optimization, 2005.
Adrian Pop: Contributions to Meta-Modeling Tools and Methods, 2005.
Fidel Vascós Palacios: On the information exchange between physicians and social insurance officers in the sick
leave process: an Activity Theoretical perspective, 2005.
Jenny Lagsten: Verksamhetsutvecklande utvärdering i informationssystemprojekt, 2005.
Emma Larsdotter Nilsson: Modeling, Simulation, and Visualization of Metabolic Pathways Using Modelica,
2005.
Christina Keller: Virtual Learning Environments in higher education. A study of students’ acceptance of educational technology, 2005.
Cécile Åberg: Integration of organizational workflows and the Semantic Web, 2005.
Anders Forsman: Standardisering som grund för informationssamverkan och IT-tjänster - En fallstudie baserad på
trafikinformationstjänsten RDS-TMC, 2005.
Yu-Hsing Huang: A systemic traffic accident model, 2005.
Jan Olausson: Att modellera uppdrag - grunder för förståelse av processinriktade informationssystem i
transaktionsintensiva verksamheter, 2005.
Petter Ahlström: Affärsstrategier för seniorbostadsmarknaden, 2005.
Mathias Cöster: Beyond IT and Productivity - How Digitization Transformed the Graphic Industry, 2005.
Åsa Horzella: Beyond IT and Productivity - Effects of Digitized Information Flows in Grocery Distribution, 2005.
Maria Kollberg: Beyond IT and Productivity - Effects of Digitized Information Flows in the Logging Industry,
2005.
David Dinka: Role and Identity - Experience of technology in professional settings, 2005.
No 1191
No 1192
No 1194
No 1204
No 1206
No 1207
No 1209
No 1225
No 1228
No 1229
No 1231
No 1233
No 1244
No 1248
No 1263
FiF-a 90
No 1272
No 1277
No 1283
FiF-a 91
No 1286
No 1293
No 1302
No 1303
No 1305
No 1306
No 1307
No 1309
No 1312
No 1313
No 1317
No 1320
No 1323
No 1329
No 1331
No 1332
No 1333
No 1337
No 1339
No 1351
No 1353
No 1356
No 1359
No 1361
No 1363
No 1371
No 1373
No 1381
No 1386
No 1387
No 1392
No 1393
No 1401
No 1410
No 1421
No 1427
No 1450
No 1459
No 1466
Andreas Hansson: Increasing the Storage Capacity of Recursive Auto-associative Memory by Segmenting Data,
2005.
Nicklas Bergfeldt: Towards Detached Communication for Robot Cooperation, 2005.
Dennis Maciuszek: Towards Dependable Virtual Companions for Later Life, 2005.
Beatrice Alenljung: Decision-making in the Requirements Engineering Process: A Human-centered Approach,
2005.
Anders Larsson: System-on-Chip Test Scheduling and Test Infrastructure Design, 2005.
John Wilander: Policy and Implementation Assurance for Software Security, 2005.
Andreas Käll: Översättningar av en managementmodell - En studie av införandet av Balanced Scorecard i ett
landsting, 2005.
He Tan: Aligning and Merging Biomedical Ontologies, 2006.
Artur Wilk: Descriptive Types for XML Query Language Xcerpt, 2006.
Per Olof Pettersson: Sampling-based Path Planning for an Autonomous Helicopter, 2006.
Kalle Burbeck: Adaptive Real-time Anomaly Detection for Safeguarding Critical Networks, 2006.
Daniela Mihailescu: Implementation Methodology in Action: A Study of an Enterprise Systems Implementation
Methodology, 2006.
Jörgen Skågeby: Public and Non-public gifting on the Internet, 2006.
Karolina Eliasson: The Use of Case-Based Reasoning in a Human-Robot Dialog System, 2006.
Misook Park-Westman: Managing Competence Development Programs in a Cross-Cultural Organisation - What
are the Barriers and Enablers, 2006.
Amra Halilovic: Ett praktikperspektiv på hantering av mjukvarukomponenter, 2006.
Raquel Flodström: A Framework for the Strategic Management of Information Technology, 2006.
Viacheslav Izosimov: Scheduling and Optimization of Fault-Tolerant Embedded Systems, 2006.
Håkan Hasewinkel: A Blueprint for Using Commercial Games off the Shelf in Defence Training, Education and
Research Simulations, 2006.
Hanna Broberg: Verksamhetsanpassade IT-stöd - Designteori och metod, 2006.
Robert Kaminski: Towards an XML Document Restructuring Framework, 2006.
Jiri Trnka: Prerequisites for data sharing in emergency management, 2007.
Björn Hägglund: A Framework for Designing Constraint Stores, 2007.
Daniel Andreasson: Slack-Time Aware Dynamic Routing Schemes for On-Chip Networks, 2007.
Magnus Ingmarsson: Modelling User Tasks and Intentions for Service Discovery in Ubiquitous Computing,
2007.
Gustaf Svedjemo: Ontology as Conceptual Schema when Modelling Historical Maps for Database Storage, 2007.
Gianpaolo Conte: Navigation Functionalities for an Autonomous UAV Helicopter, 2007.
Ola Leifler: User-Centric Critiquing in Command and Control: The DKExpert and ComPlan Approaches, 2007.
Henrik Svensson: Embodied simulation as off-line representation, 2007.
Zhiyuan He: System-on-Chip Test Scheduling with Defect-Probability and Temperature Considerations, 2007.
Jonas Elmqvist: Components, Safety Interfaces and Compositional Analysis, 2007.
Håkan Sundblad: Question Classification in Question Answering Systems, 2007.
Magnus Lundqvist: Information Demand and Use: Improving Information Flow within Small-scale Business
Contexts, 2007.
Martin Magnusson: Deductive Planning and Composite Actions in Temporal Action Logic, 2007.
Mikael Asplund: Restoring Consistency after Network Partitions, 2007.
Martin Fransson: Towards Individualized Drug Dosage - General Methods and Case Studies, 2007.
Karin Camara: A Visual Query Language Served by a Multi-sensor Environment, 2007.
David Broman: Safety, Security, and Semantic Aspects of Equation-Based Object-Oriented Languages and
Environments, 2007.
Mikhail Chalabine: Invasive Interactive Parallelization, 2007.
Susanna Nilsson: A Holistic Approach to Usability Evaluations of Mixed Reality Systems, 2008.
Shanai Ardi: A Model and Implementation of a Security Plug-in for the Software Life Cycle, 2008.
Erik Kuiper: Mobility and Routing in a Delay-tolerant Network of Unmanned Aerial Vehicles, 2008.
Jana Rambusch: Situated Play, 2008.
Martin Karresand: Completing the Picture - Fragments and Back Again, 2008.
Per Nyblom: Dynamic Abstraction for Interleaved Task Planning and Execution, 2008.
Fredrik Lantz:Terrain Object Recognition and Context Fusion for Decision Support, 2008.
Martin Östlund: Assistance Plus: 3D-mediated Advice-giving on Pharmaceutical Products, 2008.
Håkan Lundvall: Automatic Parallelization using Pipelining for Equation-Based Simulation Languages, 2008.
Mirko Thorstensson: Using Observers for Model Based Data Collection in Distributed Tactical Operations, 2008.
Bahlol Rahimi: Implementation of Health Information Systems, 2008.
Maria Holmqvist: Word Alignment by Re-using Parallel Phrases, 2008.
Mattias Eriksson: Integrated Software Pipelining, 2009.
Annika Öhgren: Towards an Ontology Development Methodology for Small and Medium-sized Enterprises,
2009.
Rickard Holsmark: Deadlock Free Routing in Mesh Networks on Chip with Regions, 2009.
Sara Stymne: Compound Processing for Phrase-Based Statistical Machine Translation, 2009.
Tommy Ellqvist: Supporting Scientific Collaboration through Workflows and Provenance, 2009.
Fabian Segelström: Visualisations in Service Design, 2010.
Min Bao: System Level Techniques for Temperature-Aware Energy Optimization, 2010.
Mohammad Saifullah: Exploring Biologically Inspired Interactive Networks for Object Recognition, 2011
No 1468
No 1469
No 1476
No 1481
No 1485
FiF-a 101
No 1490
No 1503
No 1504
No 1506
No 1507
No 1509
No 1510
No 1513
Qiang Liu: Dealing with Missing Mappings and Structure in a Network of Ontologies, 2011.
Ruxandra Pop: Mapping Concurrent Applications to Multiprocessor Systems with Multithreaded Processors and
Network on Chip-Based Interconnections, 2011.
Per-Magnus Olsson: Positioning Algorithms for Surveillance Using Unmanned Aerial Vehicles, 2011.
Anna Vapen: Contributions to Web Authentication for Untrusted Computers, 2011.
Loove Broms: Sustainable Interactions: Studies in the Design of Energy Awareness Artefacts, 2011.
Johan Blomkvist: Conceptualising Prototypes in Service Design, 2011.
Håkan Warnquist: Computer-Assisted Troubleshooting for Efficient Off-board Diagnosis, 2011.
Jakob Rosén: Predictable Real-Time Applications on Multiprocessor Systems-on-Chip, 2011.
Usman Dastgeer: Skeleton Programming for Heterogeneous GPU-based Systems, 2011.
David Landén: Complex Task Allocation for Delegation: From Theory to Practice, 2011.
Kristian Stavåker: Contributions to Parallel Simulation of Equation-Based Models on
Graphics Processing Units, 2011.
Mariusz Wzorek: Selected Aspects of Navigation and Path Planning in Unmanned Aircraft Systems, 2011.
Piotr Rudol: Increasing Autonomy of Unmanned Aircraft Systems Through the Use of Imaging Sensors, 2011.
Anders Carstensen: The Evolution of the Connector View Concept: Enterprise Models for Interoperability
Solutions in the Extended Enterprise, 2011.
